Effects of Wildfire on Rockfall Occurrence: A Review through Actual Cases in Spain

Department of Natural Hazards, Geological Survey of Spain (IGME), Ríos Rosas, 23, 28003 Madrid, Spain
Geotechnical Laboratory, CEDEX, 28014 Madrid, Spain
Department of Civil Engineering, University of Alicante, P.O. Box 99, 03080 Alicante, Spain
Department of Natural Resources and Environmental Engineering, University of Vigo, Campus Universitario Lagoas-Marcosende, s/n, 36310 Vigo, Spain
Regional Service of Studies and Ecological Impacts of the Canary Islands Government, 38001 Tenerife, Spain
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(6), 2545;
Received: 5 February 2021 / Revised: 4 March 2021 / Accepted: 9 March 2021 / Published: 12 March 2021
(This article belongs to the Special Issue Effects of Temperature on Rock and Rock Masses)



Featured Application

This review contribute to understand the mechanisms underlying the observed rockfall activity during and after a wildfire, to advance in the solutions and methods to address the study of the problem, and to assess the hazard during and after wildfire, and its impact on not only transportation infrastructure and urban areas, but also the population. The results will help the decision makers and emergencies authorities to evaluate the exposure of elements at risk, to define actions to reduce their vulnerability and to identify measures to mitigate damages and social impact.


Understanding processes and conditions that lead to rockfalls during and after a wildfire in different geological contexts is crucial since this phenomenon is one of the major hazards in mountainous regions across Europe. Spain is one of the European countries with the highest rate of wildfires, and rockfalls cause high economic and social impact, with many fatalities every year. The increase of rockfalls during and after wildfires is connected with the merging of different factors, not only in the detached area but also in the propagation and potentially affected area. When wildfire occurred, many actions take place: changes in the mechanical conditions of the rocks, the loss of protective capacity from vegetation, the effect induced by firefighting activities and/or the impact by the high temperatures in the adopted protective measures. After the wildfire, there is an increase in frequency and intensity of rockfalls in the burned area, causing a major impact of rockfalls on not only road networks and built-up areas but also people living. Additionally, the removal of vegetation by wildfires causes an increase in the risk perception, related not only to detached blocks but also to the general appearance of the rock mass. In this review, the main factors that influence the occurrence of rockfalls after a wildfire are analyzed, and three actual case studies in Spain are presented to support the variety of conclusions obtained.

Graphical Abstract

1. Introduction

Wildfires are very frequent in semi-arid and arid climates, particularly during the summer season, where high temperatures, strong winds, and scarcity of precipitation converge. During fires, the temperature can reach over 1000 °C, causing important physical/chemical effects on the soil and rocky substratum [1]. According to the “Forest Fires in Europe, Middle East and North Africa 2019”report, Spain, Portugal and Poland are the European countries with the highest number of fires [2]. In the last fifty years, almost 600,000 wildfires were recorded in Spain, affecting about 7.5 Mha, being the 1990 s the decade with the highest number, with an average of 19,000 fires per year, and an average of 160,000 ha burnt per year. During the last years, the number of fires and the area burned in Spain has decreased. However, the occurrence of large wildfires (affected area > 500 ha) remains high [3]. Trends in global wildfire activity are changing dangerously, as climatic conditions due to global warming clearly influence the frequency, severity, and extent of wildfires [4,5].
In addition to the environmental effects, wildfires increase the frequency of landslides, and specifically debris flows [6,7,8] and rockfalls [9]. These post-fire processes enhance the risk posed to infrastructures and people within the burned area. Several studies during the past decade analyzed the susceptibility to debris flows in burned watersheds [10,11,12,13,14]. After a wildfire, there is an alteration of the hydrological and soil conditions by changing the evapotranspiration and infiltration rates, which increases the probability of occurrence of debris flow [15]. These rapid slope-movements can be very dangerous, capable of causing significant damage and fatalities in a single event [12,16].
In the case of rockfalls, there is a lack of exhaustive research on the effects of wildfires. Rockfalls are dangerous phenomena due to high kinetic energy related to the velocity of the falling bocks. This often explains the difficulty of taking fast-enough and effective actions and of designing appropriate protection and mitigation measures [17,18]. After detachment, boulders may move by falling, bouncing, rolling, and sliding. A single block can be fragmented into different boulders during its impact with ground and/or trees. When the block loses enough kinetic energy, it stops reaching its final stable position [19,20,21]. Understanding the conditions leading to the occurrence of rockfalls during and after a wildfire in different geological contexts is crucial [22], as rockfalls are very frequent in mountain ranges, coastal cliffs and slope cuts.
There are some studies in the scientific literature that reported the increase in rockfall-activity during and after wildfires [9,23,24,25]. This occurs by the confluence of rock fragmentation by high temperatures, changes in the rock mechanical conditions, and loss in the protective capacity of vegetation. In granular soils, chemical-mineralogical variations take place: dehydration, dihydroxylation, oxidation, etc., while in rocks, mechanical effects by thermal expansion occur [26]. Furthermore, fires increase the erosional processes in the slope, modifying the original topography [27,28], which can significantly change the rockfall trajectories [29,30,31,32,33].
Spain is the second-highest country in Europe, a mountainous country with an average altitude of over 600 m. In this context, landslides are the second most important geohazard (after flooding) regarding damage [34]. In Spain, around 4 million people live in areas susceptible to landslides, which cause annual economic losses of over 160 M€ [35]. In the particular case of Spain, the consequences of fires in increasing the rockfall hazard could be of great interest, as Spain is one of the European countries with the highest rate of wildfires [36] and rockfalls are very common, causing great economic and social impacts with several fatalities every year [35].
Wildfires cause great social impacts, such as home loss, property damage, the number of residents evacuated and severe ecological effects. When wildfires occur in mountainous areas, the loss of vegetation exposes the rock and social awareness increases.
In this work, the review of the effect of wildfires on rockfall occurrence is divided into three parts (Figure 1): (i) the detached zone or source area; (ii) the propagation rockfall area, and (iii) the affected zone, where the majority of the boulders and fragments stops. Regarding the source areas, we present the effects of wildfires on the rock mass and its properties: thermal weathering and erosion, degradation of rocks, crack initiation and strength damage. The propagation area comprises the loss of vegetation by the fire and their consequences on the slope. It is difficult to predict when the protective function of a forest against rockfalls will be effective again. These long-term changes in the slope parameters in burned areas have a significant effect on rockfall-runout.
Rockfall modeling has proven to be a very useful tool to predict and perform rockfall hazard simulations from a quantitative point of view before and after wildfires [37]. Thanks to the modeling, it is possible to determine the runout distance of falling rock blocks, computing the rockfall trajectories and estimating the kinematic behavior of the boulders, which is useful information to assess rockfall hazards on infrastructures and urban areas [22,38]. When modeling, we must take into account new input parameters as restitution coefficients as well as variations in the original topography. Finally, the affected area claims for the social and economic impacts after wildfires and the consideration of new protective measures against rockfalls.
To support this analysis, some actual cases in Spain were considered: Galicia, the Balearic Islands and the Canary Islands. They represent different geological contexts and allow us to evaluate how the rockfall hazard varied after a wildfire. In the case of Galicia, we show examples of the wildfire effects on rockfall occurrence in the detachment zone and propagation area. In the Balearic Islands case, we also focused on the propagation area, evaluating how the occurrence of rockfall increased after a wildfire. Finally, in the Canary Islands case, we present the impacts on protection elements, as barriers, in the affected area, and which mitigation measurements were proposed against future rockfalls.

2. Source Area: Effects of Fires on the Rock Mass

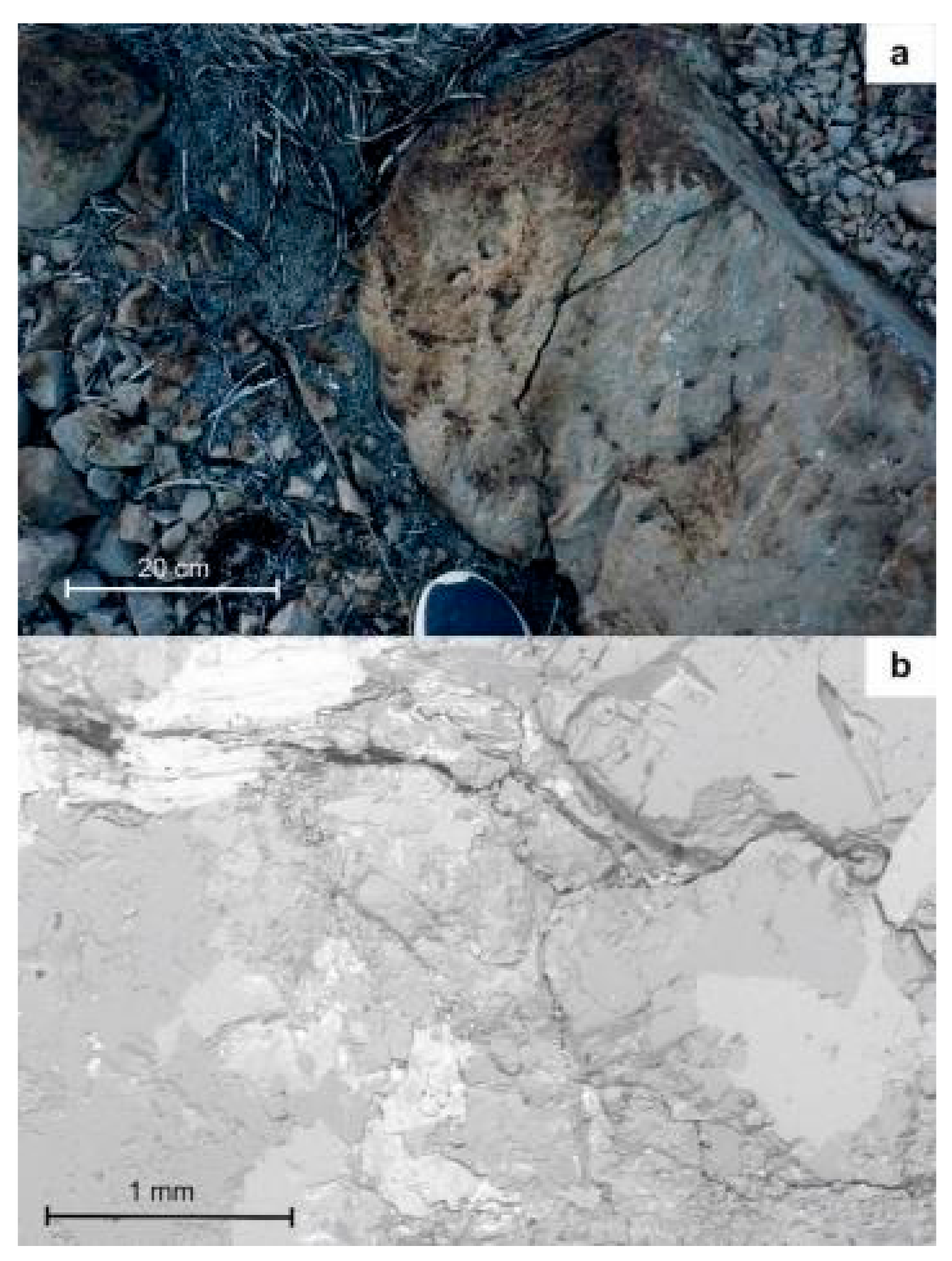

High temperatures induced by wildfires cause important effects on the rock matrix. The thermal expansion of constituent minerals origins an increase of contact surfaces between them that causes structural changes that modify the strength of the rock [39,40,41]. Other processes, such as dehydration or decarbonization, can lead to significant physical changes and mechanical properties of rocks [40,42]. Thermo–minero–chemical changes also cause polymorphic transformations, melting, and even the disappearance of certain minerals [40,43,44,45]. These processes are behind the development of new microcracks and the coalescence and enlargement of existing ones that are responsible for the important changes in the physical and mechanical properties of rocks after a fire [39,41,42,46,47,48,49] (Figure 2).

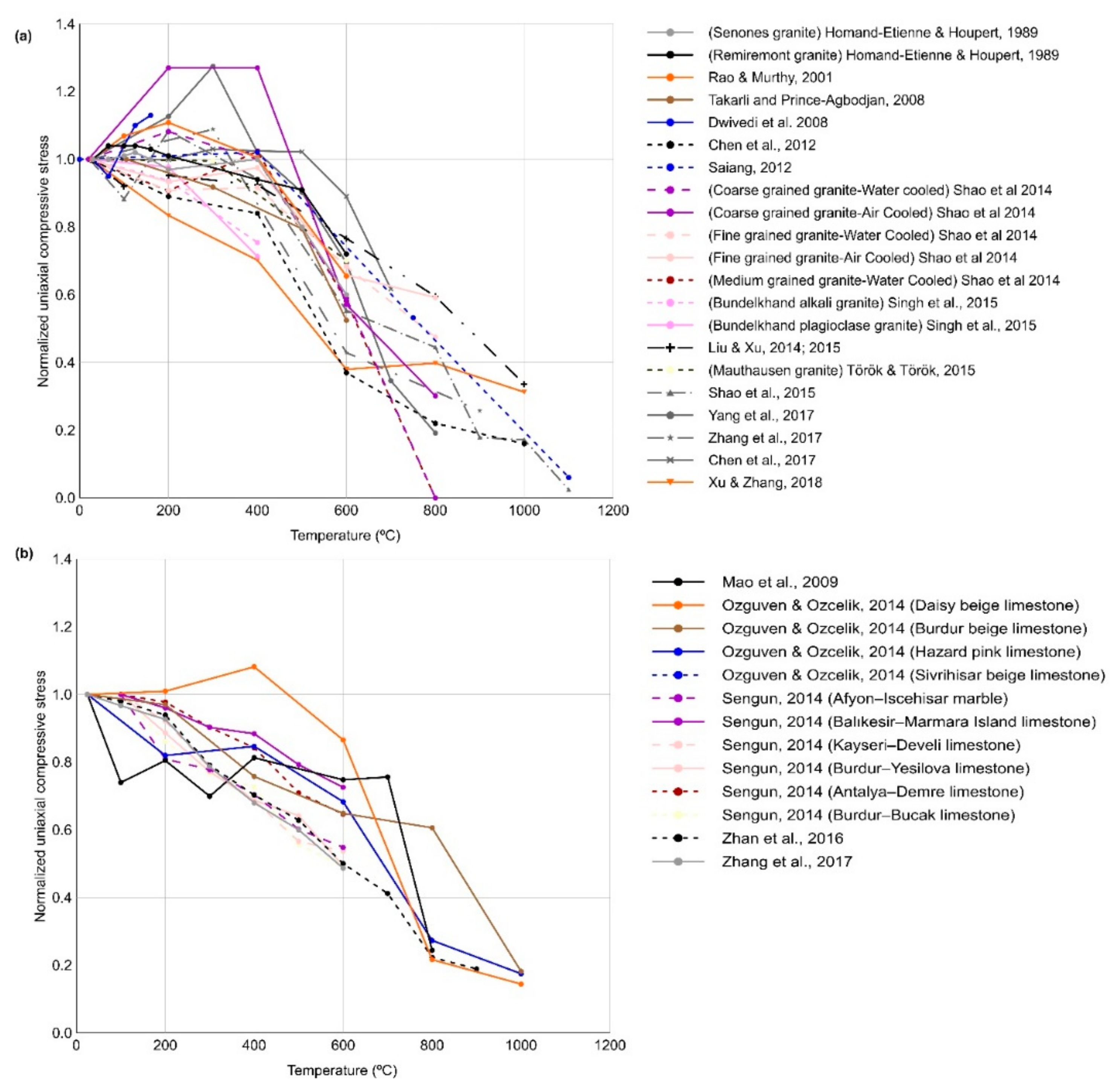

The effect of temperature on intact rocks has been widely studied in the laboratory [50,51,52,53,54,55,56,57,58,59]. These studies allow evaluating the changes in the chemical, physical and mechanical properties of rocks when heated. Most of the works use regular samples of intact rock heated in an oven by following standard heating curves, which represent the phenomena under study.
The heating curves usually present three main stages: (a) an initial heating ramp, between 1 to 15 °C/min, is applied from room temperature up to the target temperature, being 5 °C/min one of the most commonly used gradients. It is worth mentioning that the target temperature usually ranges between 200 °C and 1000 °C, according to the temperature range we are interested in this test. This part of the curve represents the initiation of the fire. (b) Once the target temperature has been reached, it is constant during an interval of time that varies from 1 to 24 h, and usually during one hour. This part of the curve represents the duration of the fire. (c) Finally, the cooling process is simulated in different ways [60,61]: on one hand, some authors cool down the samples within the oven up to room temperature to simulate the slow and natural cooling of the rock. On the other hand, the cooling can be performed in a faster way, by introducing the samples into water or even applying liquid–nitrogen to cause a thermal shock that reproduces the action of extinguishing fires with waters. Once the samples have been thermally treated, they are tested following standardized laboratory methods. Physical properties like volume change, density, porosity, P- and S-wave velocities, attenuation and permeability have been widely studied. Mechanical properties, such as uniaxial compressive strength, tensile, flexural, and shear strength of heated samples of rock have also been widely studied. They show a worsening of the properties with the target temperature since strength and elastic characteristics are significantly reduced. Figure 2 shows the changes of normalized uniaxial compressive strength after thermal treatment at different temperatures following the procedure described above for granites (Figure 2a) and limestones (Figure 2b) similar to those existing in the areas of study of Galicia and Balearic Islands. As it can be seen, the general trend shows a gradual decrease of the properties in both types of rock. More specifically, the main changes in granites (Figure 2a) are observed from 500 °C due to the phase transition temperature from α-quartz to β-quartz at 573 °C. In contrast, in limestones, the changes are noticed from 300 °C due to dehydration, absorption, and the decomposition of some cement, and between 500 and 700 °C due to the decomposition of magnesium carbonate and dolomite, being mostly decomposed from 700 °C [62]. This variation of the strength of the rock matrix can exert an important impact on the degradation and detachment of rock blocks as well as the later fragmentation on rockfalls.
The effect of the cooling method is also a factor of importance in rock masses affected by wildfires. Previous studies highlighted that the reduction of strength and elastic characteristics of rocks is greater in rapid-cooled samples than in air-cooled (i.e., slowly cooled) samples, growing crack density due to sudden thermal shock [49,55,61,76].
The effect of temperature on the shear strength of joints has been scarcely studied. Some studies were focused on the evaluation of the shear strength of discontinuities that were subjected to thermal treatments at different temperatures (up to 800 °C) by means of a direct shear test [77,78,79,80]. These results showed a gradual decline of the shear strength-peak as the temperature increased under normal loading conditions. However, this thermal effect gradually became more reduced as the normal stress increased.

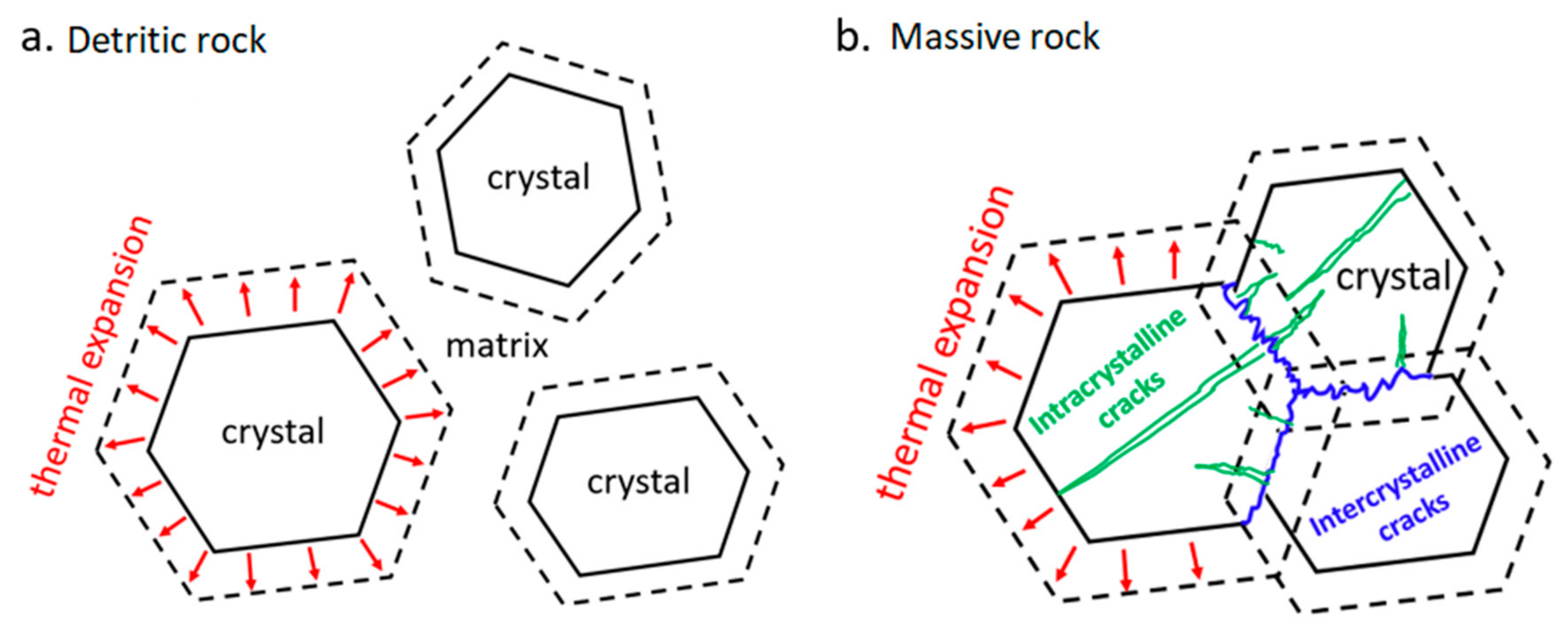

Wildfires mainly affect rock masses, expanding the outer parts, causing internal stresses that exceed the tensile strength of the rock-forming fractures (Figure 3a,b). These fractures are more or less parallel to the surface or influenced by various lines of weakness, such as stratification, “blind joints”, rift, veins, and schistosity yielding fragments of many shapes and sizes [81,82]. Thus, the presence of matrix in detritic rocks causes a dampening effect of mineral crystal dilations; however, in massive rocks, the absence of matrix and the greater packing of the crystals increase the efforts between them as they dilate, and cracking occurs (Figure 4). Considering massive rocks with similar porosities and mineral packing, those of carbonate composition are less sensitive to the action of fire than those of siliceous composition [26].

3. Propagation Zone: Changes on the Slope

Wildfires usually cause the removal of vegetation coverage and the modification of the slope/soil properties. Subsequently, key factors for slope stability can be strongly modified.

3.1. Removal of Vegetation

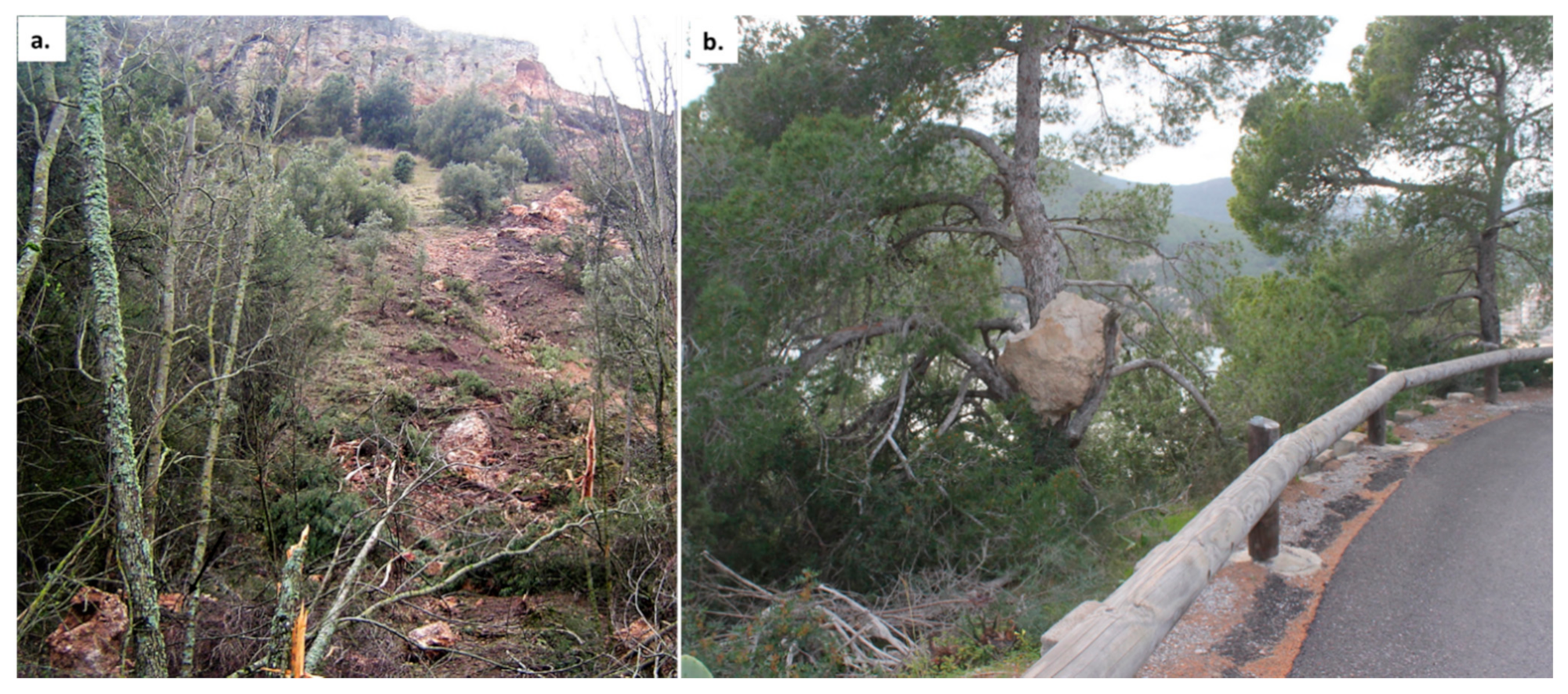

Forests and undergrowth act as natural barriers for protection against rockfalls since they can significantly reduce the runout of rockfalls [83] and provide stability [23]. Vegetation not only decreases the intensity of rockfalls, reducing the energy and the velocity of the falling boulders but also reduces their frequency (Figure 5) [84,85]. The distribution and types of trees on the slope influence this protective effect. As the diameter at breast height (DBH) of the trees increases, the capacity of retention of blocks is greater [86,87]. Moreover, the role of roots is also extremely important in soil retention. As a result, rockfall hazards at a forested slope should be analyzed by focusing on both forest characteristics and rockfall dynamics [88].
When a forest fire occurs, the natural defense of the vegetation is lost. Wildfires cause damage from the tree crown to the roots, and shrubs use to be completely burned. Moreover, the burned roots in the rock joints accelerate physical weathering processes. However, the effects of the wildfire on the vegetation depend on the intensity and duration of the fire. The total recovery of the environment after a fire can take from a few years to several decades, depending on many factors and, specifically, on the climatic conditions [14]. The critical role of climate change combined with high severity fire is demonstrated, as well as a slower capacity of vegetation recovery after wildfires [89].

3.2. Modification of The Slope Properties: The Modeling Parameters

Several computer programs have been designed to model rockfall trajectories as one of the most effective tools for the analysis and assessment of rockfall risk. Thanks to modeling, it is possible to determine the rockfall trajectories and to estimate the kinematic behavior of the boulders in order to improve the protection of endangered urban areas, road networks and infrastructure.
Taking into account how to calculate the trajectories, rockfall models can be categorized into three main groups: empirical models, process-based models and GIS-based models [33]. In addition, simulations can be two-dimensional or three-dimensional. The 2D models assume that the rockfall occurs in a linear plane and that the trajectory is not affected by the slope surface. In contrast, 3D models are able to simulate the overall movement of the block, including falling, rolling, sliding and bouncing with high accuracy. Finally, rockfalls can be simulated using a probabilistic or deterministic approach. In the probabilistic or stochastic approach, trajectories vary randomly, within predefined ranges according to certain probability distributions (input data). In order to minimize the inevitable uncertainties associated with rockfall simulation, most current models adopt a probabilistic approach [90].
Most of the rockfall modeling programs work along user-defined slope profiles and require detailed information on the outcropping materials. Among the input parameters when performing numerical simulations of rockfalls are the rockfall detachment areas, starting velocity of the boulders, a digital terrain model (DTM) and data of the coefficients of dynamic rolling friction, and of normal and tangential energy restitution used to simulate the loss of energy when rolling and at impact points. The most important is the restitution [91,92,93] and the dynamic friction [33,94] coefficients. Restitution coefficient (R) represents the ratio of pre-impact and post-impact velocity between the boulder and soil, and it is subdivided into tangential (Rt) and normal (Rn) components. These coefficients basically depend on the angle of impact and the properties of the soil [93]. Dynamic friction coefficient determines the force in the opposite direction of the sliding of the block. The value of the friction coefficient depends on the shape and on the characteristics of the slope. Both coefficients quantify the amount of energy lost during the impact of a block over the slope surface. Despite the different techniques and studies developed to evaluate these parameters, the values of the restitution coefficients and friction coefficients are still not standardized.
If the simulation is carried out in a burned area, the effects of the fire must be taken into account. Intense wildfires induce impacts on soils in the short-term: the reduction of vegetation cover, the deposition of ash after the combustion of biomass, the induction of enhancement of water repellency and changes in the structure and soil components [95]. Nevertheless, the literature on the modeling of rockfalls shows very few studies that take into account how the restitution coefficients and the dynamic friction coefficient change after wildfires. Sabatakakis et al. [91] estimated the new values of the restitution coefficients in five cases in western Greece. According to these authors, Restitution coefficient values can be increased after the fire.

3.3. The Subsequent Increase of Rockfall Occurrence

Rockfalls are the result of the combination of geological, geomorphological and climatic factors. Usually, the rockfall inventories only record events affecting dwellings, roads or infrastructures. After a wildfire, not only new detachment areas appear, but also the rockfall-runout is longer, and new infrastructures can be reached.
Regarding geological characteristics, the discontinuities of the rock mass play a fundamental role. The characterization of discontinuity sets can be carried out according to geomechanical and geometric criteria. Within the geomechanical characteristics, the number of sets of discontinuities that affect the rock mass, as well as the nature of its filling (if any) and the presence or absence of water, stand out first [96]. During a wildfire, these conditions are altered. Furthermore, there is a degradation in the rock matrix properties reducing the rock strength and increasing the fracturing of blocks and the potential to disaggregation of the initial rock mass and breakage of the blocks during the occurrence of rockfall processes (i.e., increase fragmentation potential).
The increase of rockfall after a wildfire is not only associated with the effects on the rock mass but also with the loss of vegetation. Dorren et al. [88] explained that trees reduce the energy of the boulders mainly in three ways: rotation and translation over the roots, deformation by their hit in the tree stem, and penetration of the rock in the impact. With regard to these considerations, there is a relation between the type of forest (i.e., DBH or density) and its capacity to hold back boulders of a specific size. Some studies [87,97] suggest that a forest should account for one-third of the size boulders with the mean DBH, producing a reduction of rockfall velocity in 26% on average and the maximum rebound height by 75% on average.

4. The Affected Area: Changes to the Potential Risk

Rockfalls are one of the main threats to firefighter work practices. Additionally, the measures installed to retain the detached blocks can be seriously damaged during the fire or can become obsolete under the new conditions. As a result, wildfire disturbances can have an adverse effect on the potential risk and cause important socio-economic impacts.

4.1. Firefighting and Rockfalls

Wildfire fighting is a hazardous activity. Despite the fact that many studies are focused on firefighter’s exposure to gases or temperature during a fire extinction, little is known regarding the exposure of firefighters to rockfalls. The main statistic to evaluate the effect of rockfalls in firefighting activities is the number of fatalities. In the USA, data provided by the US Fire Administration (USFA) show a general upward trend in deaths of firefighters. In the nine-year period January 2000 to October 2019, there were 99 fatal injuries in wildland fires. Regarding the cause of fatal injury, 32.3% of the fatalities were caught or trapped. 23.2% of the fatalities were due to collision of the vehicle and 20.2% of them by stress/overexertion. Nevertheless, the fourth cause of fatalities was related to struck by elements, such as rocks or trees (16.2%). Almost 70% of these deaths occurred during the extinction of the wildfire [98].
In Spain, there is a lack of information about firefighter fatalities; the official information records 3 deaths caused by rockfall impacts during the last 10 years [99]. Additionally, we had an interview with a senior official of the operational services of the Consorcio Provincial de Bomberos de Alicante (Spain), who informed us about some actions developed during firefighting that can trigger rockfalls, which are also contained in some Spanish official fire extinction guidelines [100,101,102]. The main causes are: (a) the destabilization of boulders due to the stretching of the hose lines; (b) the movement of firefighting equipment (e.g., fire trucks) and personnel near slope edges or on slopes; (c) the impact of water projection on slopes and cliffs by hoses or aerial forest firefighting means.

4.2. Degradation and Obsolescence of Protective Measures

In many cases, protection elements are installed to deal with rockfalls: bolt fixing, cable netting or shotcrete are commonly used. In those places in which it is necessary to protect critical elements, such as roads or buildings, the use of barriers is also very common. Rockfall barriers are designed (inclination, height, energy absorption capacity and location), taking into account boulder characteristics, such as energy, bounce height, runout, etc. [103]. The role of these barriers is to hold back the boulders during their trajectories along the slope, able to become deformed, transmitting the energy of the falling boulders to the slope throughout a system of cables, anchors and energy dissipators [104,105,106].

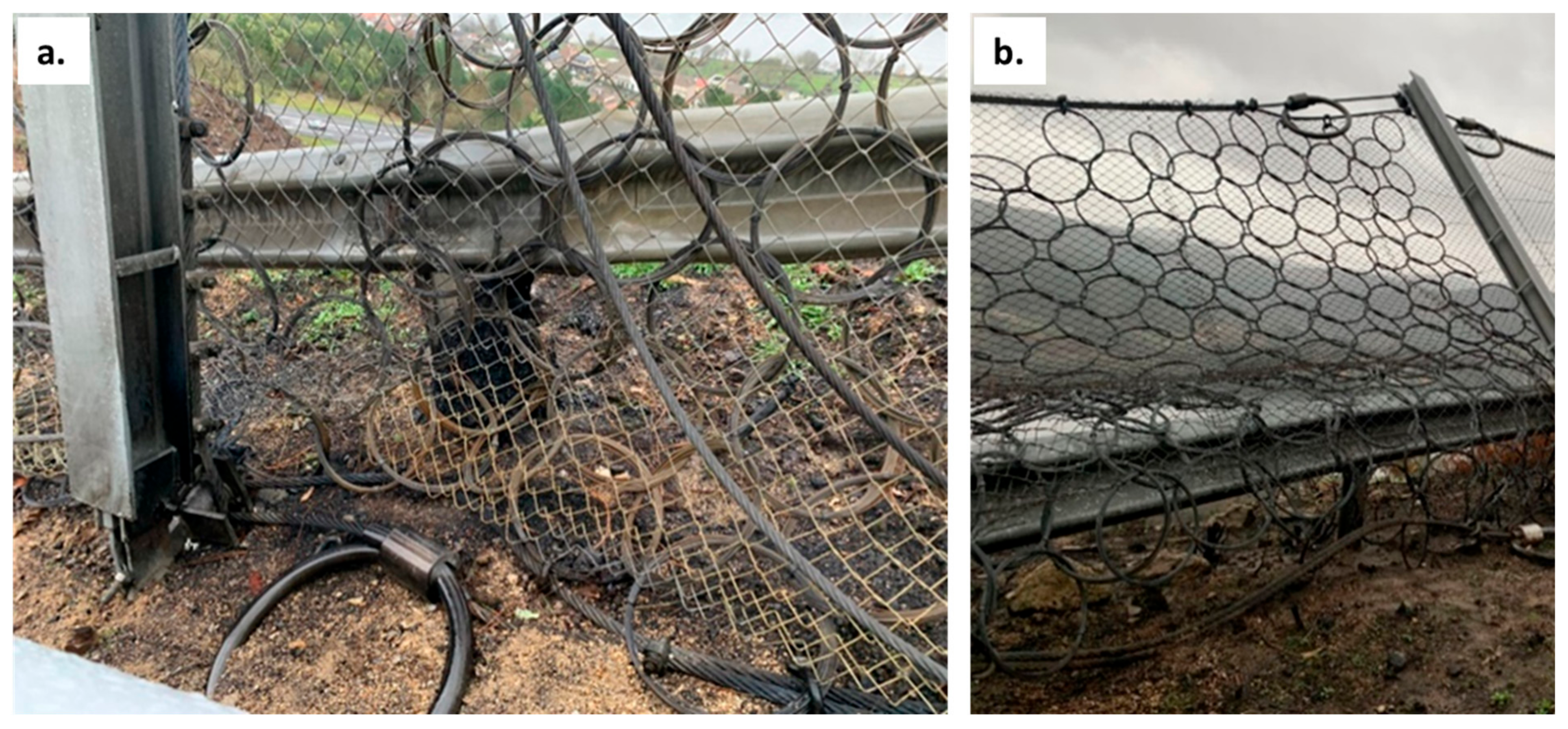

However, when a fire occurs, these protective measures can be seriously affected by the high temperatures (Figure 6b). One of the main effects of wildfire on rockfall protection barriers is the degradation of the cables and energy dissipators, changing their properties of friction/tightening with cable ties (Figure 6a). In this case, cables, energy dissipators and nets would be replaced. High temperatures can also destroy nets and bolts, which become brittle and weak depending on the composition of these elements and the temperature reached during the fire.
On the other hand, after a fire, rockfall barriers may become inoperative. The design of the rockfall barrier usually takes into account the energy level calculated from rockfall trajectory simulations and the results obtained from full-scale tests and the support of standardized prescription. This approach already has a large number of uncertainties due to the input data to carry out the rockfall simulation being often difficult to make accurate identification/measurements, for example, of new source areas or the block size. As a result, heuristic techniques are usually used in the selection of some inputs. In areas where a fire has occurred, these estimates are no longer valid because of the effect that the fire may have had on the source areas and propagation zone, and hence the changes that may occur in the volume of the rock block and the rockfall trajectories [107,108,109].

4.3. Economic and Social Impacts

Rockfalls disrupt livelihoods, sometimes causing fatalities and damage to infrastructure or urban areas. The economic impacts from rockfalls can be classified into two categories: (a) direct economic impacts for maintenance works, rehabilitation, etc., and (b) indirect economic impacts, as property damage, injury or fatalities, or environmental impacts [110]. The impact of rockfalls on social systems is generally only addressed by statistics on economic losses related to damaged houses or loss of infrastructure or investment in protective measures against it. There are no references to social impact measures beyond economic loss assessments [35]. The perception of risk is one of the main factors conditioning the behavior of people and, therefore, has a decisive impact on the capacity of the community for mitigation, protection and recovery [111]. Perceptions of rockfall hazards are influenced by the ways in which the risk is analyzed, assessed and managed. Fluent communication and appropriate information to the citizens are essential.
Wildfires cause a social impact by themselves, increasing the sense of vulnerability. When wildfires occur in abrupt or mountainous areas with forest covering rocky massifs prone to falling, this perception is amplified once a fire has been extinguished. The amplification of risk is reflected not only in the adverse effects produced by wildfires but also in the evidence of exposure to other risks, such as rockfalls, of which people were previously unaware. An example of these issues in Spain can be noted in the wildfire that occurred in Ibarrangelu (Basque Country) on 5 April 2020 [112]. The fire affected an area covered by bush and holm oak located above the car park at Laida beach, one of the most frequented beaches in Bizkaia. The impact of the fire was not significant, but therefore, results highlighted that rockfall prone areas were intensively located on the upper and middle of the slope, being visible from the beach. Something similar, although at a smaller scale, was detected in the area of Chandebrito (Pontevedra, Spain) after the occurrence of the forest fire. The development of the corresponding study leading to the installation of the dynamic barrier was motivated, in part, by a general request from the inhabitants of the area, who transmitted their concerns regarding the potential occurrence of rockfalls to the authorities.

5. Actual Cases in Spain

5.1. Galicia

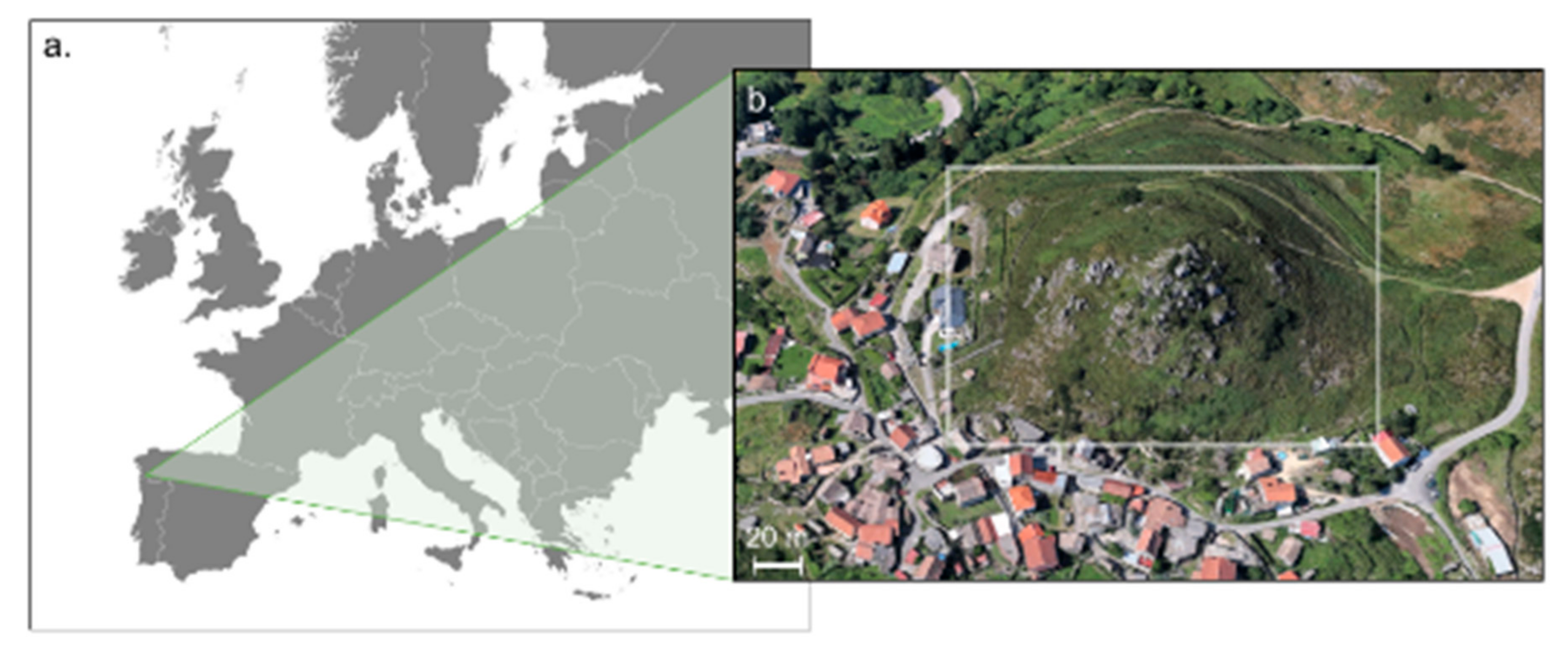

This case study refers to a village located at a foothill in Chandebrito (Pontevedra, Galicia, NW Spain) (Figure 7), where after an intense wildfire, the risk perception significantly increased. This leads to a detailed study on potential rockfall occurrence, concluding the convenience of installing protective measures. The study statistically analyzed the potential detachment of boulders from the rock mass in the conditions encountered after a fire, and it also studies propagation accounting for the loss of natural protection provided by the vegetation by means of rockfall path statistic simulations after a fire. Empirical methods were also applied with the aim of confirming results and better understanding the risk issues at stake.
The area of study is situated next to the small village of Chandebrito in the region of Galicia (Figure 7a). It consists of a granitic hill located at 359 m.a.s.l., where the village of Chandebrito (500 people) is located at the base (Figure 7b) around 50 m below. The hill is steep with slopes ranging from 30° to 40°, and maximum values of 50°. High rainfall typical in the area does not contribute to mitigating rockfall risk awareness.
Geologically, the area is part of the Hercynian batholite, where slightly-deformed granites outcrop [113], showing characteristically rounded and boulder-like shapes [114]. Three main joint sets (J1, J2, and J3) were identified during the field survey, and the rock mass was assigned an approximate rock mass rating (RMR) value of 55. The shrubby hill was affected by a severe wildfire in October 2017 that burned the vegetation (Figure 8a,b). Shortly after the fire, a few new fragmented boulders were identified at the lower part of the slope (Figure 9b). A detailed study, briefly reported in what follows, has been published elsewhere [115].
Input data for the study included (a) basic geotechnical characterization and identification in place of potentially unstable blocks, (b) a detailed 3D point-cloud of the zone and (c) the properties of each lithological unit (tangential and normal resolution parameters and friction coefficients). In the field survey, various potential source areas were located at different points towards the crest of the hill associated with potential sliding and toppling blocks detached from the rock mass and potentially sliding of already detached blocks through erosive processes. This fieldwork permitted to estimate of the probability of occurrence of block instability in 1/20 for a one-year period.
Once estimated the probability of block instability, the rockfall risk assessment to the houses below required the analysis of the propagation of potential rockfall trajectories. This can be studied with the help of statistical rockfall simulations, and the program Rocfall [116] was used for this purpose.
Slope geometries are key input data. 3D point clouds offer better topographic resolution helpful in various ways. That is why the authors obtained a 3D point cloud based on LiDAR and standard aerial imagery from an unmanned aerial system (UAS). Classical rock mechanics fieldwork was combined with advanced remote-sensing methods and a semi-automatic classification of the discontinuities following the methodology described in Riquelme et al. [117,118]. This combination permitted accurately quantifying the average volume of rock block in 0.9 m3, one of the relevant input data for the simulations [119]. Additionally, the 3D point cloud was the base for obtaining very accurate maximum dip profiles, starting in the rock block source zones and needed for the simulations. Eventually, 18 eighteen maximum dip profiles were selected from the 3D point cloud with the aim of computing potential rockfall phenomena.

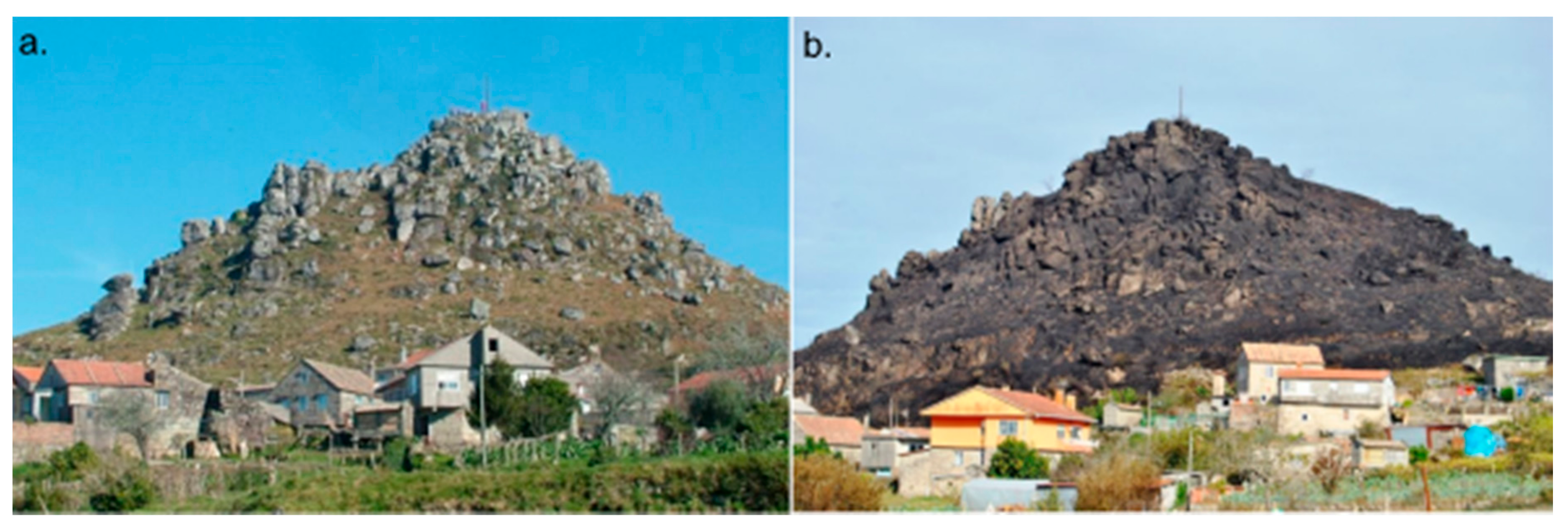

As pointed out above, rockfall propagation tends to be affected by wildfires and loss of vegetation, as it was for the case under scrutiny. Therefore, it was necessary to consider the loss of vegetation in the analysis of the boulders’ trajectories. This could be done by updating surface parameters in the rockfall simulations. The wildfire mainly affected the lower zone of the hill (with bushy vegetation, as shown in Figure 8a). Two materials were considered concerning coefficients of restitution: bedrock for the upper part of the slope and debris without vegetation for the rest. In Table 1, the corresponding restitution coefficients (kn and ks) and friction angles (ɸ) were selected by the authors based on previous experiences in rockfall modeling in granitic environments [121] and accounting for the effect of fire in both kinds of surfaces.

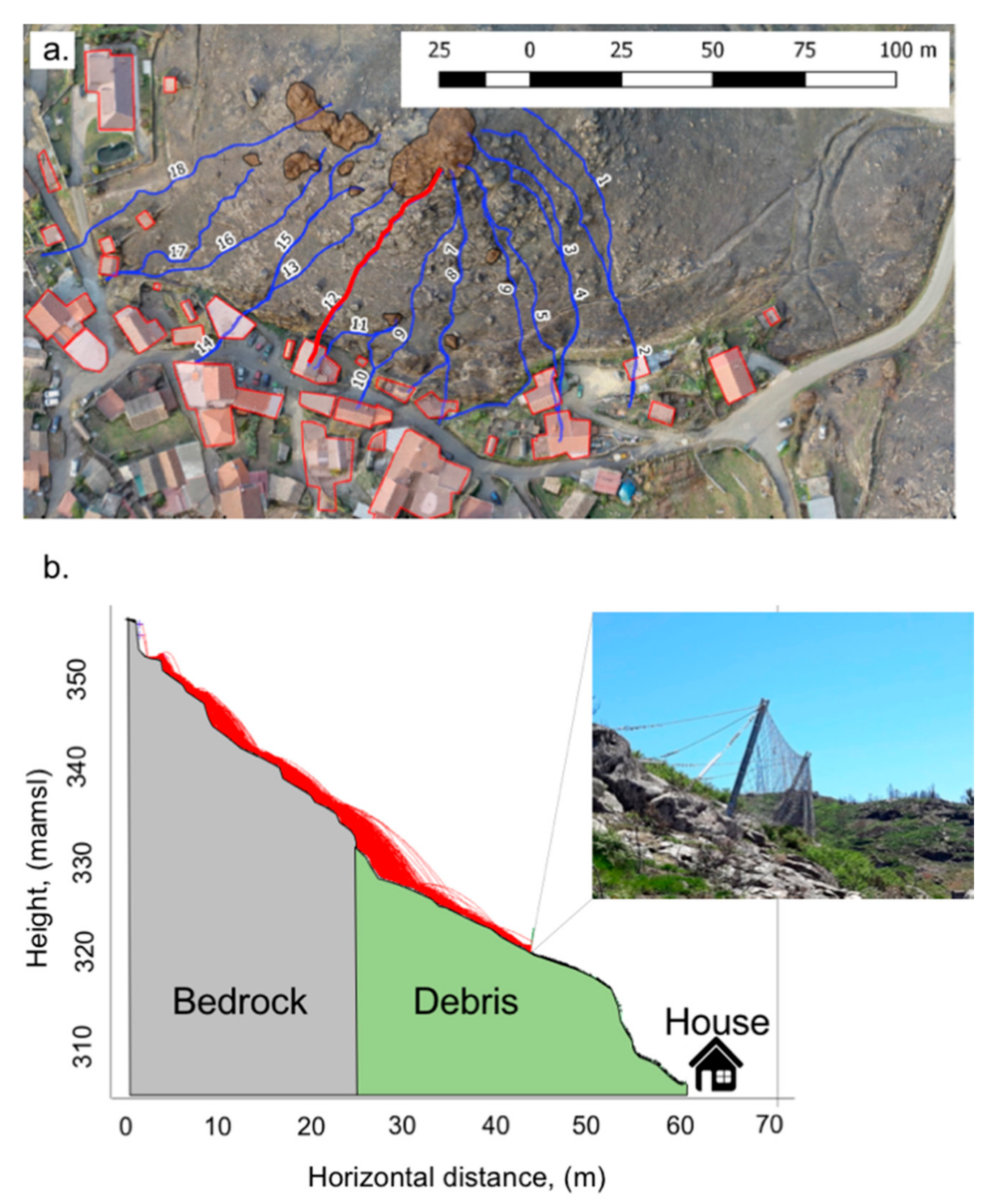

To carry out the rockfall simulation and based on the 3D point cloud and the location of the rockfall source areas, maximum slope lines were identified (Figure 10a), and the corresponding 18 profiles were obtained in x-y coordinates with a point every 3 cm. Previous studies [122] showed that blocks tend not to deviate more than 5% from the maximum slope lines, which justifies the use of simpler 2D rockfall models. These profiles were input into RocFall code [116] together with the corresponding parameters of Table 1 and the block size estimated. For illustrative purposes, profile 12 is shown in Figure 10b.
Results provided by the code include end fall-path positions and bounce height for every profile. Around 5.2% of falling blocks in profile 12 would impact the houses placed on the foot of the slope. This means that in general, 1 out of 20 blocks detached from the central zone would impact the houses below. Note that, whereas in the central profiles (Figure 10a: 5 to 14) a small percentage of rocks (1–5%) would impact the houses, in the external profiles (Figure 10a: 1–4 and 15–18), the rocks would never attain the buildings below, so protective measures were not needed in these external zones.

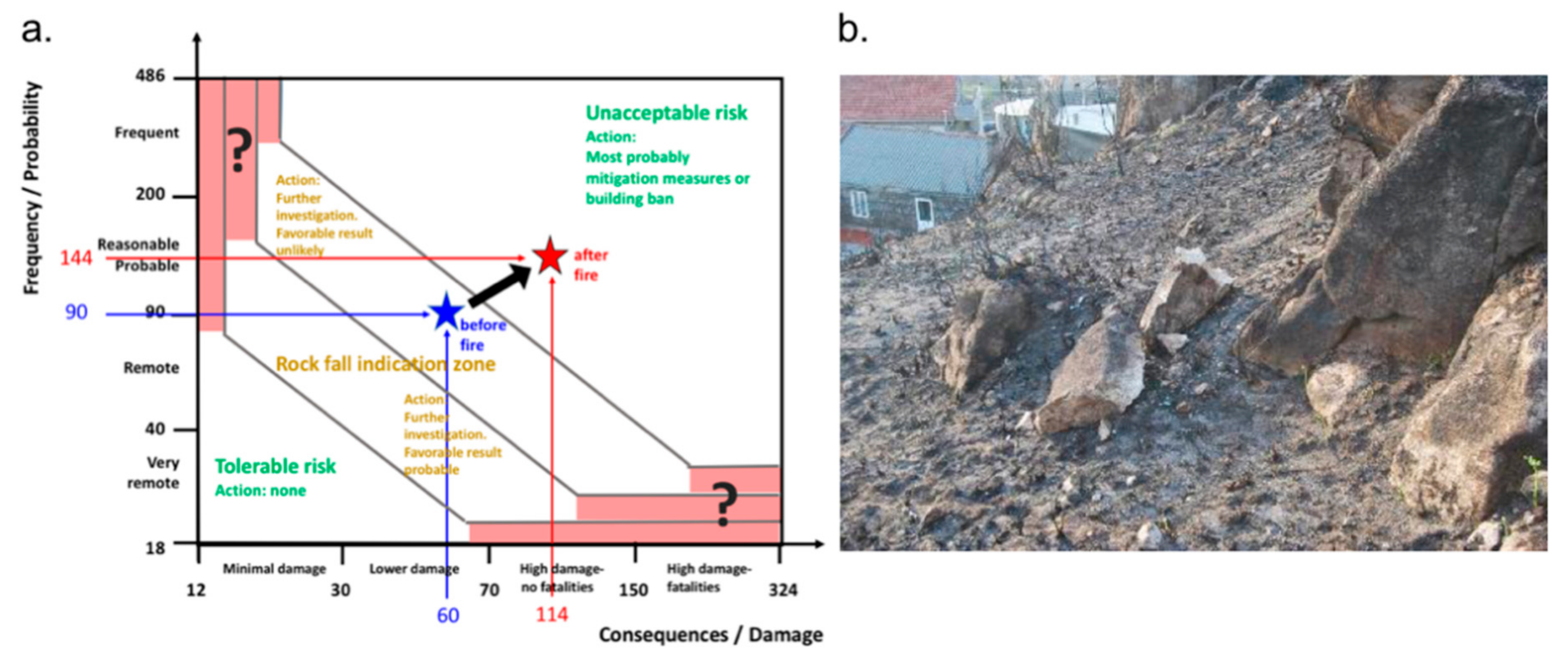

Multiplying the above-mentioned probability of block instability (1/20) times the propagation probability that a detached block attained the houses (1/20), we estimated a probability of accident around 1/400. This is more than twice that typically accepted as suitable for the general public (1/1000), so a panel indicating “entering at your own risk” is typically placed in those areas where the risk is estimated over this threshold. This was a clear indication that some protective measures were in order. Based on the rockfall path models and accounting for the block weight computed and the bounce height (Figure 10b) and kinetic energy of falling blocks provided by the simulation, a dynamic barrier about 2 m high and 100 m long able to absorb 500 kJ impacts was designed and installed in the area to protect the houses.
Complex natural phenomena, such as rockfall, are difficult to analyze, and some estimative assumptions are typically needed, as was the case to achieve the conclusions presented so far. In this sense, it is interesting to compare results with natural observations and other methodologies; if existing, empirical methods tend to be a good choice for this purpose, so they were used to analyze the case from a different perspective. Although other empirical approaches, such as RHRS and ROFRAQ, were tentatively applied [123,124], the most suitable methodology and that was finally selected was the R3S2 approach [120]. It focuses on inhabited valleys in mountainous regions and permits frequency-consequences analysis of scenarios with different types of vegetation (Figure 9a). The application of this method was based on rough estimates on different aspects of the rockfall process that were quantified in place. The application of R3S2 showed significantly different rockfall risk levels before and after the fire. While it was inconclusive for the original situation, recommending further studies; it clearly suggested the need of active measures to protect the village (dynamic barriers) for the conditions encountered after the fire event. It is relevant to mention that indeed R3S2 is probably the only empirical method that considers in an explicit way the role of vegetation in the rockfall paths (though this can be accounted for in a not so explicit manner for other approaches), so it could be potentially appropriate to reflect the impact of wildfires on rockfall hazard assessment and mitigation.
Consequently, the traditional approach enhanced by the information derived from the accurate 3D point cloud and combined with rockfall simulations yielded the same conclusion as this empirical approach, which largely improved the reliability of the solution proposed. The risk-awareness of rockfalls in Chandebrito (Pontevedra) was much more evident after the fire and led the population to require the analysis briefly presented. Based on the conclusions of this study and also accounting for the fact that the presence of a pre-Roman hillfort in the site prevented the excavation of the slope, a dynamic barrier was finally selected as the most appropriate solution, so it was projected and installed two years after the wildfire (Figure 10b). The total amount of the performed intervention was near 50 k€.

5.2. Balearic Islands

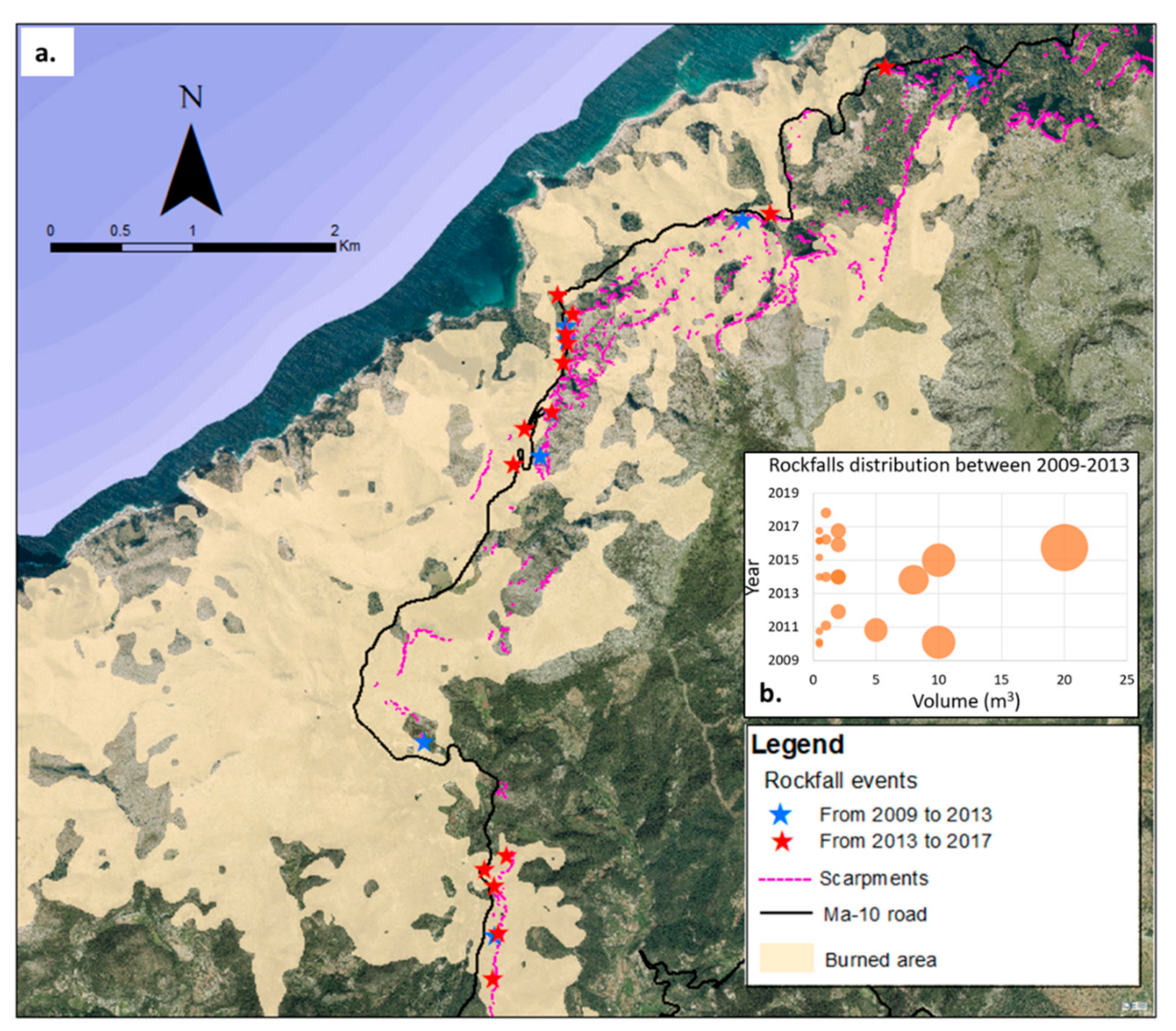

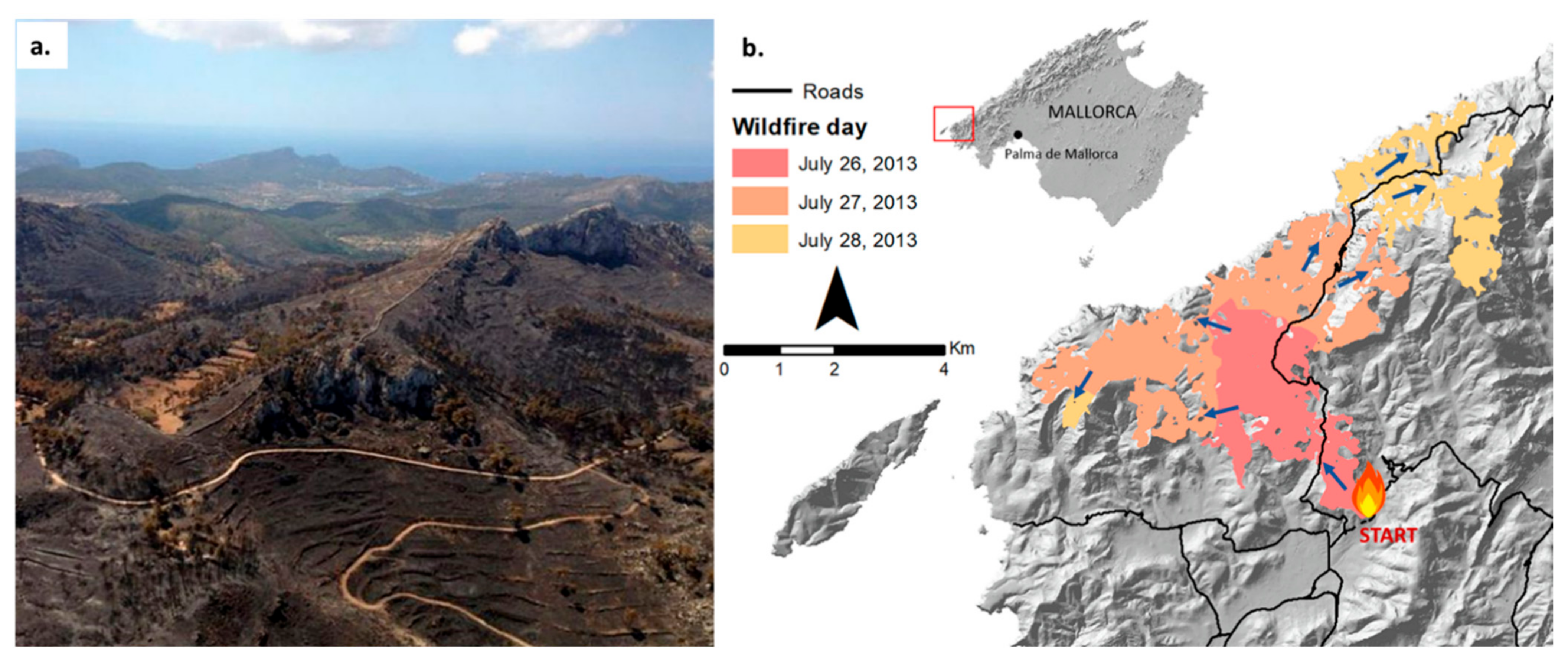

We evaluate the increase of rockfall activity after the wildfire (Figure 11) that took place in Mallorca during the summer of 2013.
The Tramuntana range (around 1100 km2) forms the backbone of the NW part of the island. It runs for about 90 km, with a maximum width of 15 km, over 20 municipalities. The landscape is marked by agricultural terraces constructed in dry stone to extend farmland. The terraces have also played an important role in preventing damage from soil erosion and very frequent slope movements [125]. Pine and holm oaks forest and a rich shrub layer mainly cover the range.
The Tramuntana range is characterized by a steep topography in high geological complexity with several peaks having an altitude over 1000 m a.s.l. Hard rocks predominate, especially Jurassic limestone and dolostone, which constitute the framework of the mountains. These conditions determine frequent rockfalls, which have caused significant damage, specifically to the road network [18,30,126].
The Ma-10 road is a strategic road and constitutes the main transportation corridor on the northern face of the Tramuntana range. From the total rockfalls registered in the Ma-10 since 1995, 53% of them were recorded along the southern section of the road, between Andratx and Valldemossa (40 km long). Moreover, there is a special, hazardous road-section between Andratx and Estellencs (approximately 11 km), where vertical, rocky fronts define the slopes, with heights up to 200 m. Because of the high rockfall hazard in this section, the road maintenance service of Mallorca installed numerous protecting measures: retaining walls, mesh systems, braking elements, anchorages, barriers, etc. This southern area suffered a forest fire on 26 July 2013 (Figure 11). High temperatures (up to 40 °C), dry conditions and strong winds provided the fatal blend. It was one of the most devastating in the island’s history, burning 2400 hectares.
Seven hundred people had to be evacuated in Estellencs as well as some homes in Andratx. The Ma-10 road was cordoned off, mainly because the wire netting for preventing rockfalls at the sides of the road was melted, meaning the safety of drivers cannot be guaranteed. The area severely damaged was the far western part of the Tramuntana range, a natural area of great interest. A total of 95% of the total burned area has a category of a natural area of special interest and a high-level of protection. The abatement and removal of trees that compromised the safety of pedestrian and vehicle traffic were carried out as a priority.
From the first moment, specialists warned that the fire would affect the slope instability at both sides of the Ma-10 road. The first rains of autumn confirmed this when some rockfalls took place, and many blocks invaded the road. The Road Maintenance Service of Mallorca decided the installation of metal meshes on the slopes to prevent stones, rocks, or trees fall on the road. Moreover, dynamic and static rockfall barriers were also installed in those road-sections previously identified as the most dangerous. The cost of the adopted measures along the sections of the road network affected by this wildfire reached 1.5 M€ (data from the Road Maintenance Service of Mallorca).
In this case, the effect produced by the loss of vegetation was important. During the spanning period 2009–2017, the rockfall inventory collected by the Road Maintenance Service of Mallorca showed a total of 22 significant rockfalls in the area where the wildfire took place (Figure 12). Before the wildfire in 2013, 7 rockfalls were recorded in the burned section of the road between 2009 and 2013; 4 of them took place in 2010 when the island of Mallorca experienced the coldest and wettest winters of the last 40 years [126]. After the 2013 wildfire, between 2013 and 2017, a considerable increase in rockfalls was observed in the same section; a total of 15 rockfalls, which double the number of events for the pre-fire period (2009–2013). Nevertheless, the number of rockfalls could be higher because some fences were installed along the road after the wildfire. Regarding the intensity of the events, a greater heterogeneity of block-sizes was observed after the wildfire. The volume varied from 0.5 m3 to 20 m3 after the wildfire, while in the previous period, they range between 2 m3 and 10 m3.

5.3. Canary Islands

Finally, for the Canary Islands test-site, we focus on the affected area (Figure 1), analyzing the protective measurement to establish once the wildfire occurs and what the social and economic consequences may be. Three actual cases of wildfires were studied: Los Realejos (Tenerife), Tejeda-Artenera (Gran Canaria) and La Palma.

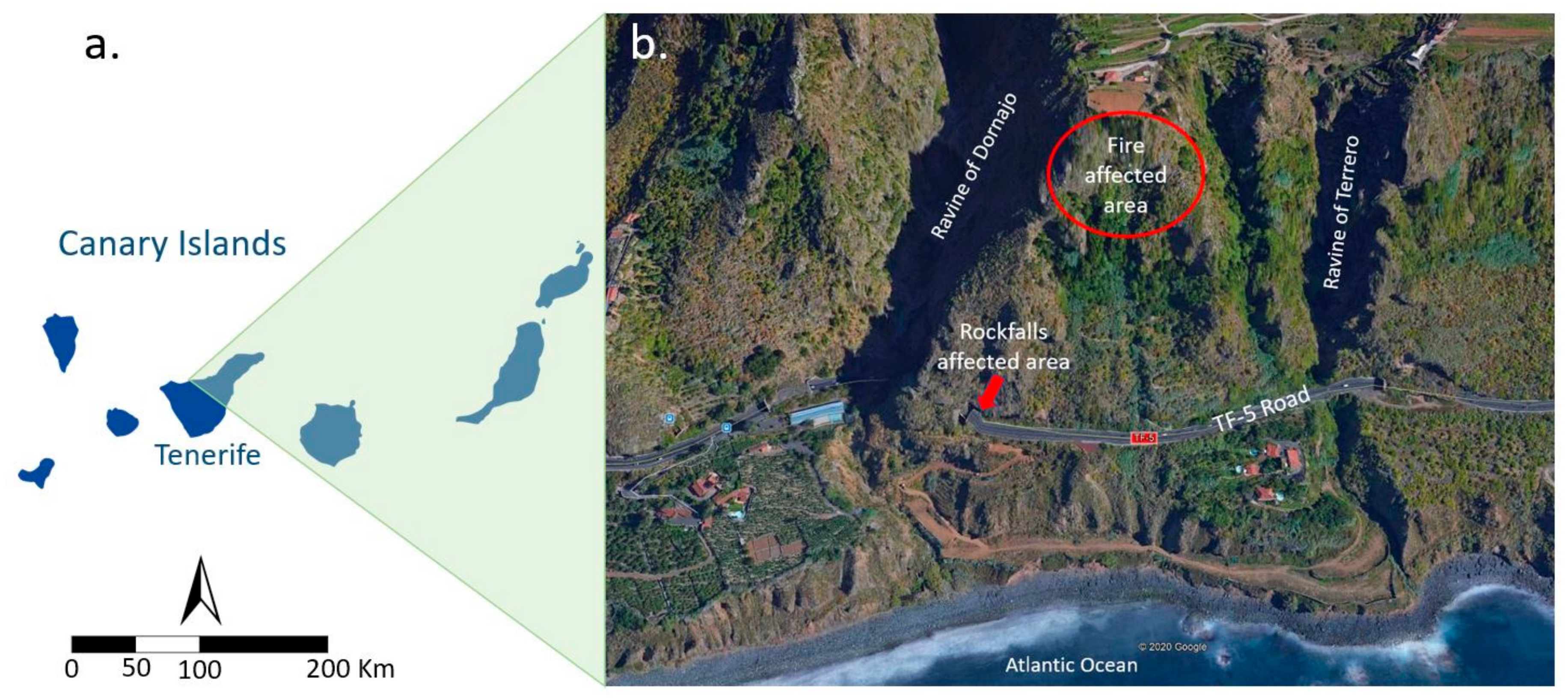

The first case study took place in the municipality of Los Realejos (Tenerife) and affected the TF-5 road, an important coastal infrastructure in the northern part of the island (Figure 13), which runs along the tourist municipalities of Puerto de La Cruz and San Juan de La Rambla. TF-5 is a strategic road with heavy traffic estimated at 29,003 vehicles (Annual average daily traffic, 2019).
On 23 February 2020, the Canary Islands were affected by a widespread and persistent inrush of suspended dust from the Sahara Desert accompanied by strong winds and high temperatures, which caused numerous fires on Tenerife. One of them, located in Icod El Alto (Los Realejos), triggered a rockfall that affected the road TF-5 at kilometer 43, one of the most important communication routes of the north part of the island. The wildfire occurred at the top of the hill, a steep escarpment of 300 m in height, and burned bush, scrub, as well as some trees (eucalyptus).
From the geological point of view, the site belongs to the Tigaiga Domain, formed by a vertical accumulation of volcanic deposits slightly inclined towards the sea. A pile of basaltic constitutes the slope, and trachybasaltic lava with pyroclastic material (tuff) interbedded. They are Pleistocene materials with ages ranging from 2.2 to 2.3 Ma [127]. This pile of lava and pyroclasts form a step coastal cliff above the road TF-5.

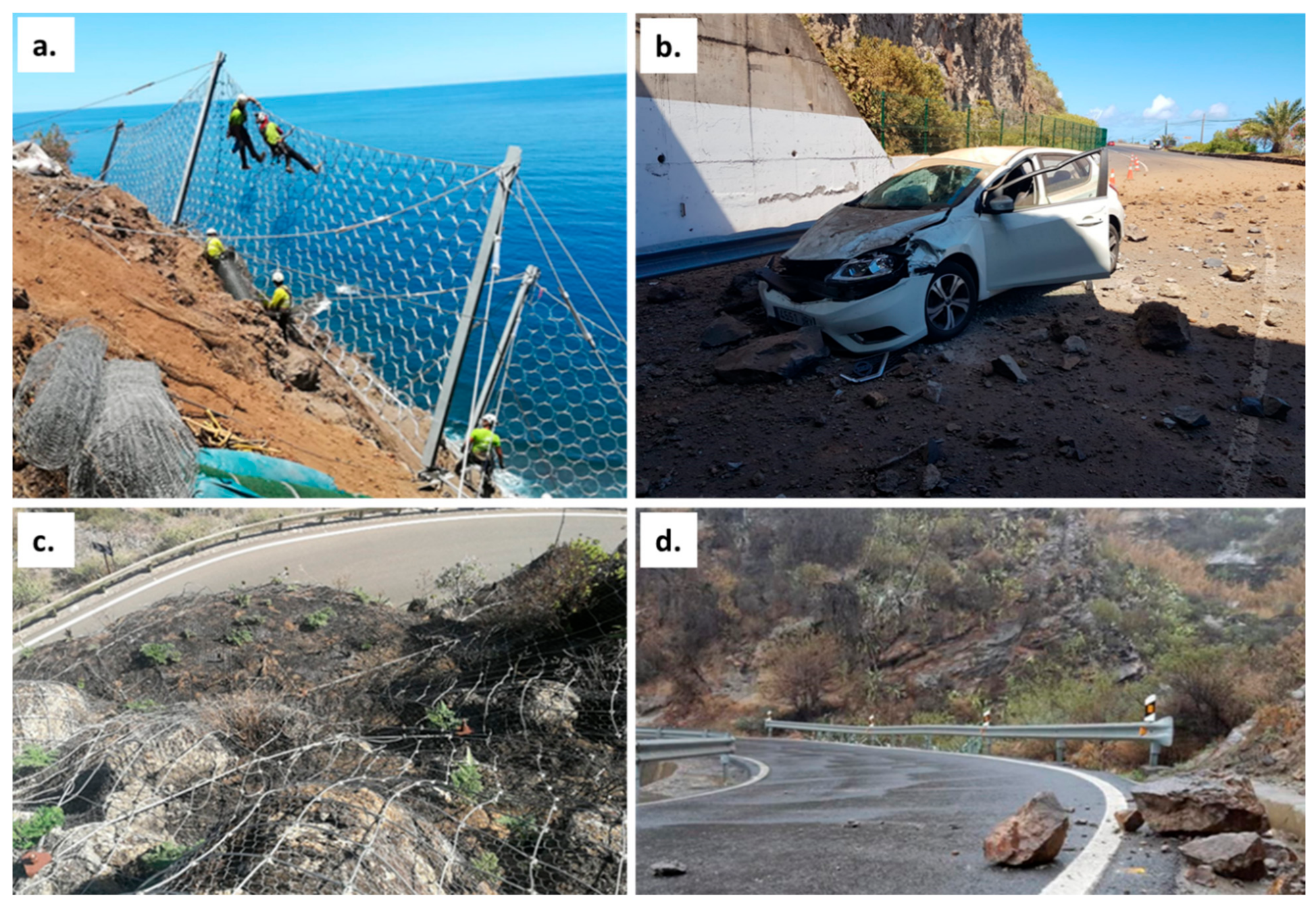

The rockfall occurred three months after the fire (6 and 7 May 2020). On the second day, a vehicle was impacted by a boulder with a size greater than 2 m3 (Figure 14b). Fortunately, there were no fatalities, but the road was cut off for a week. In this case, some additional stabilization and protection measures were installed (Figure 14a): cliff clean-up works; installation of dynamic barriers on the slope; fastening of unstable rock levels through a cable network, and application of shotcrete to the scoriaceous levels to avoid differential erosion. The slope needed the installation of all of these protective measurements over near 10 ha. More specifically, the measurement used for the compact basalt and trachybasalts layers consisted of the installation of 162 m² of 300 × 300 mm galvanized steel cable network panel. The net was placed on the massifs susceptible to mass mobilization and was anchored to the ground by means of Gewi type bolts. Under this cable network, in order to retain the small particles, a triple torsion mesh of galvanized steel with a wire diameter of 2.7 mm was placed. In addition, three 750-kJ and six 1500-kJ dynamic barriers at different heights of the slope were installed to prevent isolated falling blocks (Figure 14a). Pyroclasts forms were stabilized by applying shotcrete over an area of 1250 m2, with a triple torsion galvanized steel mesh. The total cost of these countermeasures was higher than 125 k€.
Despite the installation of these protective measures, rockfalls have continued to occur, although to a lesser extent. For this reason, and in order to guarantee the safety of people, as well as to avoid repeatedly cut off in traffic along TF-5 road, the regional authorities proposed in 2008 several alternative roads for this section, including the execution of large concrete structures (i.e., viaducts, bridges and false tunnels) with costs higher than 120 M€ [128]. In June 2020, the Canary Government put out to public tender the drafting of the project for an amount of 320 k€.
The second case in the Canary Islands occurred on 17 August 2019 on the island of Gran Canaria. The fire started near the town of Tejeda and spread to Tamadaba Natural Park, driven by prolonged high temperatures, strong winds and low humidity. According to the authorities’ information, over 700 firefighters and 16 aircraft helped to tackle the blaze, with some flames reaching over 50 m in height. The Copernicus Emergency Mapping Service (CEMS) was activated. The products offered by CEMS were based on comparing pre- and post-event Sentinel satellite images [129]. The Tejeda-Artenara wildfire affected a land surface of 104.5 km2, 26.2 km2 of forest, forcing the evacuation of 13,000 inhabitants. In addition, fences and barriers against rockfalls were affected by the high temperatures (Figure 14c), and the road maintenance service noted an increase in the number of rockfalls during the months following the fire. (Figure 14d).
The last case study in the Canary Islands was the wildfire that occurred in August 2016 on the island of La Palma. A great wildfire took place on the southern part of the island, affecting about 5000 hectares, 6.8% of the total surface of the island, producing an important loss of forest stand. The fire spread quickly through mostly pine and eucalyptus forests. Daytime temperatures in previous days were between 30 °C and 40 °C. The most affected areas were the municipality of El Paso, where almost 2500 ha of land were burned, followed by the municipalities of Fuencaliente (1600 ha) and Mazo (800 ha). The fire forced the evacuation of 2500 people and caused one fatality. Civil Protection Authorities deployed almost 1500 vehicles and 32 water-dumping aircraft to extinguish the fire.
La Palma’s volcanic environment is characterized by sequences of volcanic materials with different strengths and a very abrupt landscape. Weaker layers are more susceptible to erosive processes, undermining the base of harder layers and causing blocks to fall, mainly during heavy rains. In vegetated areas burned by wildfires, these instability processes intensified after the 2016 wildfire. In fact, although the regional authorities installed protective measures after the fire, on 2 December 2016, during a period of heavy rains, rockfalls and debris flow in the burned area took place, causing the cutting of the LP-2 road between Las Manchas and Fuencaliente, as well as other roads in the lower part of the island, and burying houses, and infrastructures.

6. Discussion

Rockfalls can be triggered by a large variety of natural processes, such as rainfall, cycling thermal stress, seismic activity, etc. [130,131,132,133]. Nevertheless, there is a lack of literature about the influence of wildfires on rockfall activity. In this paper, we present a review on this issue through three real cases in Spain.
Climate change and the expansion of human development in furthering the adverse effect of wildfires on lives and property, triggering cascading hazards, including rockfalls. New tools and methods need to be developed to identify and quantify the potential hazards posed by rockfalls in burned areas taking into account the Climate Change scenarios.
Rockfall phenomena are mainly controlled by the source areas and the rockfall runout [37,134]. Wildfire can induce significant changes in both. In-deep, new studies focused on understanding how rock mass properties are influenced by wildfires are necessary, and specifically experimental research on the role of high temperatures in the rock–fragmentation and changes in the shear strength of discontinuities.
After a wildfire, the propagation area is also disturbed due to the removal of vegetation. Vegetation is extremely important to protect against rockfall, reducing the velocity and the rebound heights of falling rocks. Therefore, it is necessary to consider the loss of vegetation in the rockfall modeling, mainly the variation of restitution coefficients and friction coefficient. The development of new tools, methodologies represents an essential achievement for the analysis and prevention of rockfalls after a wildfire.
The impact of rockfalls after wildfires, not only on road networks and built-up areas but also on people’s hazard-awareness, would need a special analysis. For this purpose, an accurate inventory of rockfalls after wildfires is required to validate simulations as well as to identify new vulnerable elements and check the effectiveness of the defense measures. The results would be highly valuable for experts in dealing with safety and security services and specifically for firefighters.
The three cases reported in the present work demonstrate the close relationship between wildfires and the increase in rockfalls and demand more in-depth studies.

7. Concluding Remarks

Fires can induce physical and chemical changes on the rock masses, increasing rock–fragmentation and decreasing rock and discontinuity strength.
Rockfall trajectory (runout) is also modified when the vegetation is lost. Forests are extremely important to protect against rockfalls, as trees reduce the velocity and the rebound heights of the falling rocks. In rockfall modeling, the loss of vegetation tends to change the input parameters, in particular the restitution coefficients. Comparing pre- and post-fire simulations would be an effective tool to evaluate the new hazard of the slope.
Specific attention should be paid to match the characteristics of the wildfire (intensity, duration, etc.) with the rockfalls. Mapping fire intensity and burn severity in combination with the rockfall inventory (pre- and post-wildfire) would help to understand their correlation.
Stabilization and protection measures can be greatly deteriorated by the high temperatures and may lose their functionality. Furthermore, social risk awareness is increased after a wildfire, and people demand new, urgent and expensive protecting measures.
In addition, firefighting actions can increase the rockfall activity. Firefighters and emergency authorities should develop strategies for rockfall risk reduction during wild-fires in collaboration with the scientific community. Major efforts on communication must be carried out in areas prone to rockfalls, and wildfires could be a good opportunity for this.

Author Contributions

R.S. (IGME) led and designed the paper. R.M.M. (IGME) and R.S. (IGME) were involved in the analysis of the effects of wildfire on rockfall occurrence in propagation and affected area, and collecting and analyzing data from the Balearic Islands test site. I.P.-R. (CEDEX) and L.R.A. (UV) collaborated in collecting and analyzing data from the Galicia test site. R.T. (UA) helped in collecting data and was involved in the effects of fires on the rock mass and the impact of rockfalls. L.E.H.-G. (GOBCAN) and R.S. (IGME) collaborated in collecting and analyzing data from the Canary Islands test site. All authors wrote and critically revised the manuscript. All authors have read and agreed to the published version of the manuscript.


This work is funded by the RISKCOAST project (Ref: SOE3/P4/E0868) within the framework of the IV INTERREG SUDOE program.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


The authors would like to thank the Consell de Mallorca, who kindly provided the information on the rockfalls events in the Tramontana range, in particular to Joan Rius and D. Raul Aguiló. We also appreciate the contribution of the Canary Government, who kindly provided the information on the rockfalls in the Canary Islands test site. Thanks are extended to Paramassi and V-Traverca companies for granting use of their images of rockfalls triggered by wildfire and fence and barriers affected by wildfire to illustrate this manuscript. Finally, we would like to thank the Consorcio Provincial de Bomberos de Alicante for their support and the information provided.

Conflicts of Interest

The authors declare no conflict of interest.
