Article

Locomotion of Self-Excited Vibrating and Rotating Objects in Granular Environments

1
College of Liberal Arts and Sciences, National University of Defense Technology, Changsha 410073, China
2
Gonville & Caius College, University of Cambridge, Trinity St., Cambridge CB2 1TA, UK
*
Authors to whom correspondence should be addressed.
Academic Editor: Leonid Burakovsky
Appl. Sci. 2021, 11(5), 2054; https://doi.org/10.3390/app11052054
Received: 2 December 2020 / Revised: 28 January 2021 / Accepted: 10 February 2021 / Published: 25 February 2021

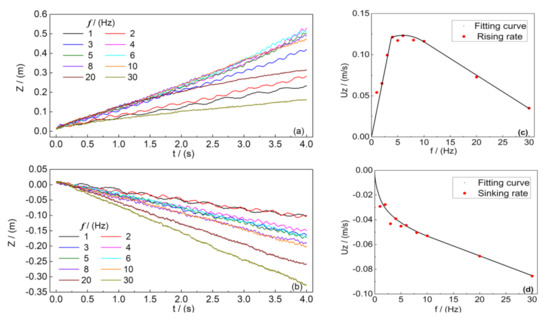

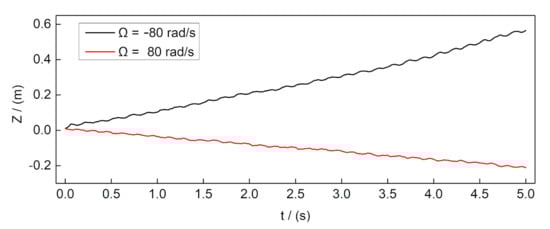

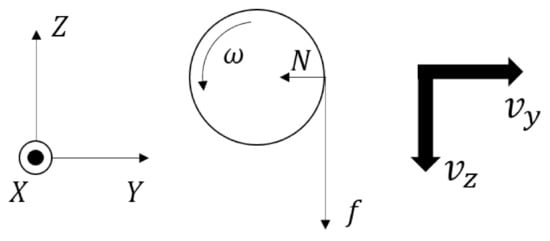

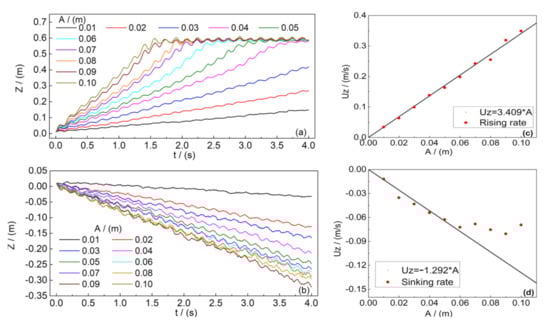

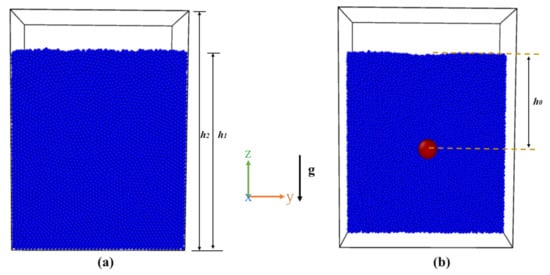

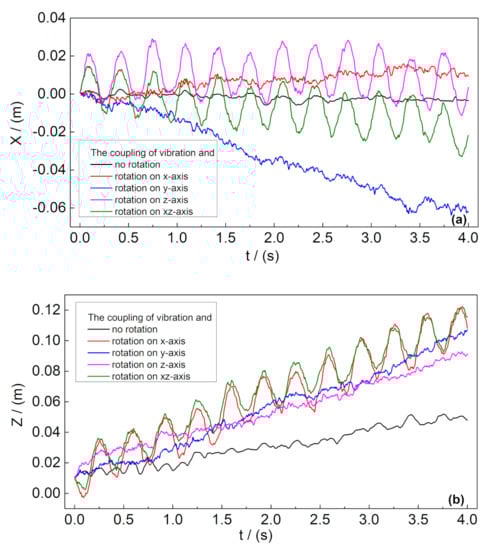

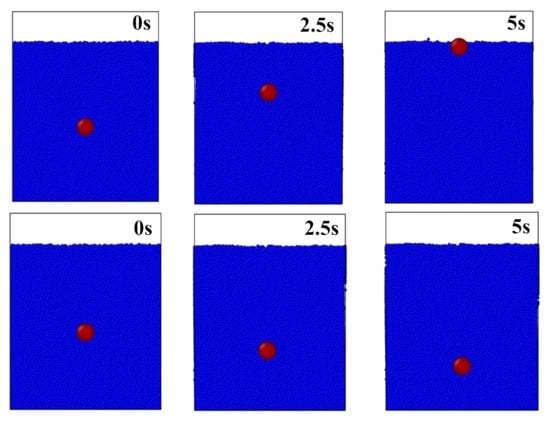

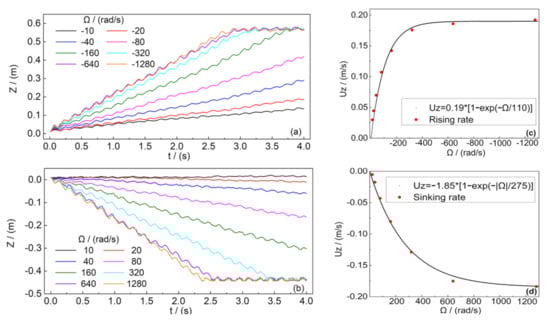

Many reptiles, known as ‘sand swimmers’, adapt to their specific environments by vibrating or rotating their body. To understand these type of interactions of active objects with granular media, we study a simplified model of a self-excited spherical object (SO) immersed in the granular bed, using three-dimensional discrete element method (DEM) simulations. Modelling the vibration by an oscillatory motion, we simulate the longitudinal locomotion of the SO in three modes: transverse vibration, rotation around different axes, and a combination of both. We find that the mode of oscillation in y direction coupled with rotation around x-axis is optimal in the sense that the SO rises fastest, with periodic oscillations, in the z direction while remaining stable at the initial x position. We analyze the physical mechanisms governing the meandering up or down and show that the large oscillations are caused by an asynchronous changes between the directions of oscillation and rotation. We also observed that the SO’s rising rate is sensitive to three parameters: the oscillation amplitude, the oscillation frequency, f, and the rotation angular velocity, Ω. We report the following results. 1. When the frequencies of the rotation and transverse motion are synchronised, SO rises when Ω<0 and sinks when Ω>0; the average rising/sinking rate is proportional to |Ω|. 2. The rising rate increases linearly with the oscillation amplitude. 3. There exists a critical oscillation frequency, above and below which the rising mechanisms are different. Our study reveals the range of parameters that idealized ‘swimmers’ need to use to optimize performance in granular environments. View Full-Text
Keywords: granular materials; LIGGGHTS; DEM simulations; rotation mode; vibration mode; bio-inspired robotics; locomotion; lizards granular materials; LIGGGHTS; DEM simulations; rotation mode; vibration mode; bio-inspired robotics; locomotion; lizards
Show Figures

Figure 1

MDPI and ACS Style

Liu, P.; Ran, X.; Cheng, Q.; Tang, W.; Zhou, J.; Blumenfeld, R. Locomotion of Self-Excited Vibrating and Rotating Objects in Granular Environments. Appl. Sci. 2021, 11, 2054. https://doi.org/10.3390/app11052054

AMA Style

Liu P, Ran X, Cheng Q, Tang W, Zhou J, Blumenfeld R. Locomotion of Self-Excited Vibrating and Rotating Objects in Granular Environments. Applied Sciences. 2021; 11(5):2054. https://doi.org/10.3390/app11052054

Chicago/Turabian Style

Liu, Ping, Xianwen Ran, Qi Cheng, Wenhui Tang, Jingyuan Zhou, and Raphael Blumenfeld. 2021. "Locomotion of Self-Excited Vibrating and Rotating Objects in Granular Environments" Applied Sciences 11, no. 5: 2054. https://doi.org/10.3390/app11052054
