Design and Evaluation of a Web- and Mobile-Based Binaural Audio Platform for Cultural Heritage
2.1. Sonic Narratives and Web-Based Spatial Audio
2.2. Sonic Narratives for Cultural Heritage
- Design and develop tools that foster spatial audio for the creation of interactive soundscapes and sonic narratives, with a focus towards cultural heritage.
- Adopt web and mobile technologies to simplify and streamline the curation process and prevent the need for specialised software, custom applications development and/or hardware requirements.
- Prove—through an evaluation with inexperienced participants—that 3D audio technologies can be designed to be accessible while remaining capable of delivering an engaging and compelling experience.

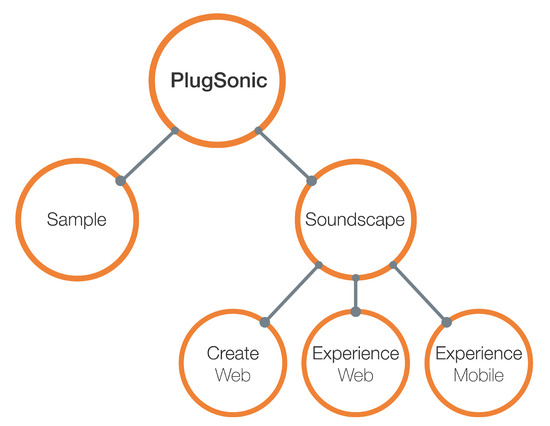

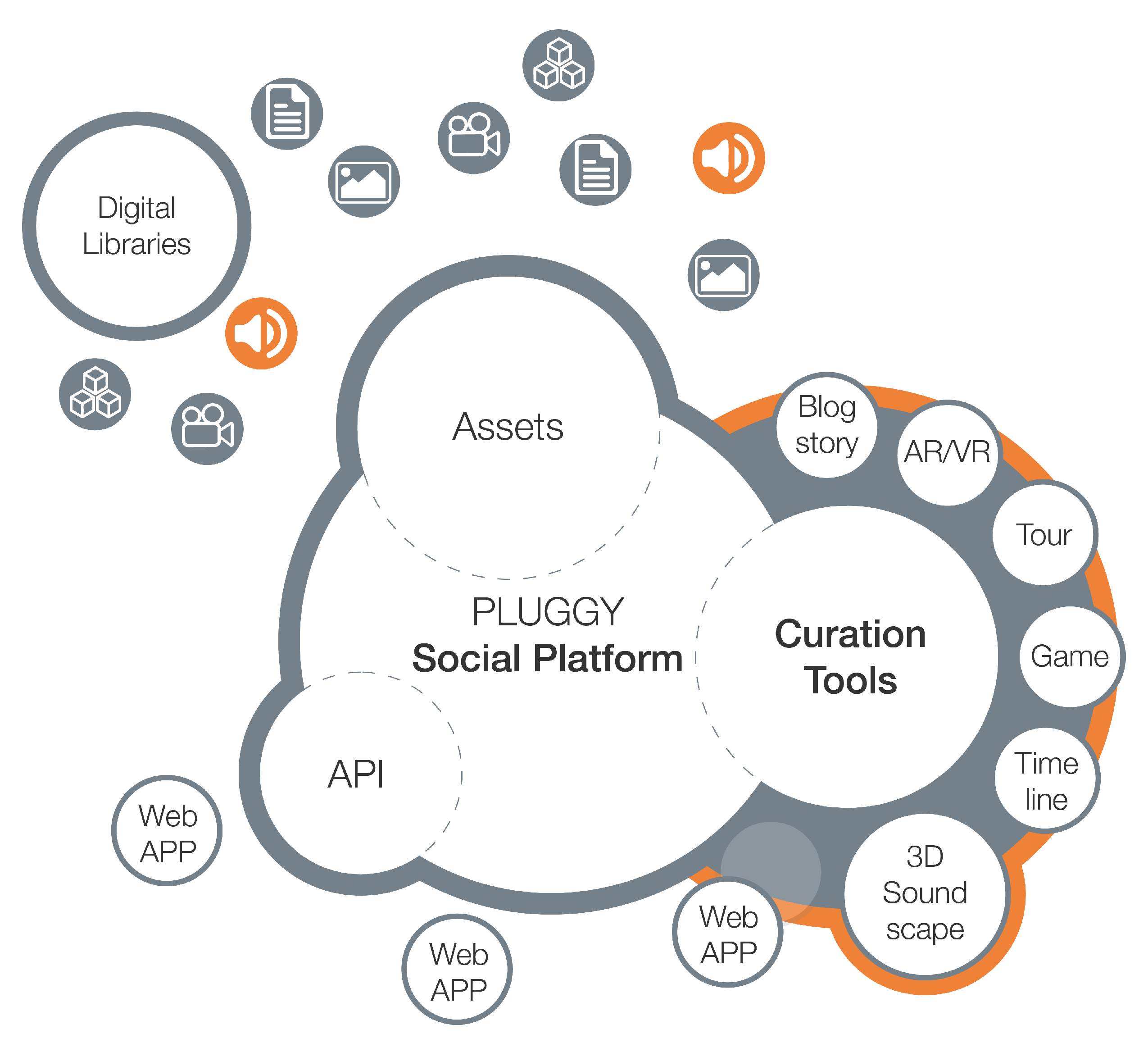

4. PlugSonic Suite
4.1. PlugSonic Sample
4.2. PlugSonic Soundscape Create
4.3. PlugSonic Soundscape Experience Web

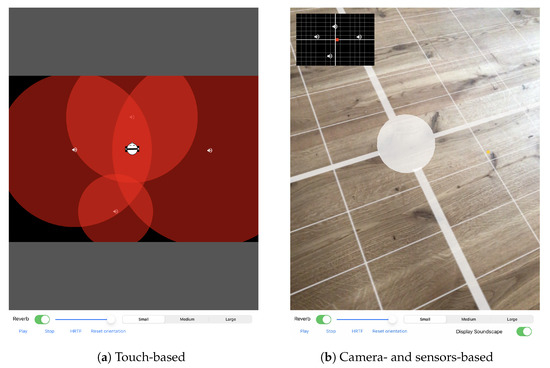

4.4. PlugSonic Soundscape Experience Mobile
- How would users create a soundscape using PlugSonic?
- Could users easily find functionalities/features they need?
- Did users understand all functionalities/features offered in Plugsonic?
- If not, what issues did participants face?
- How long did it take them to successfully use the functionality/feature?
- How easy or difficult was it for users to recreate a 3D soundscape experienced in a real physical space?
5.1. Part 1—Soundscape Creation
5.2. Part 2—Soundscape Curation
5.3. Part 3—Soundscape Experience
6. Conclusions and Future Work
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest

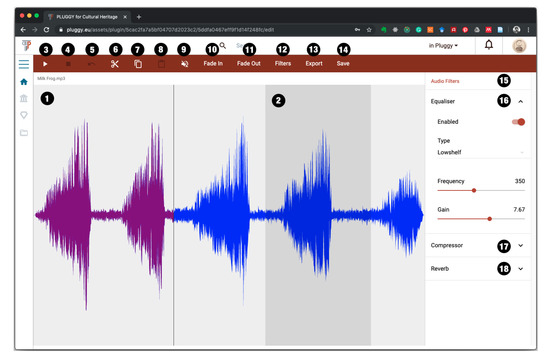

Appendix A. PlugSonic Sample UI Controls Details
- Waveform of the audio file with filename on the top left corner
- Use of mouse to control the playback start and end points and select parts of the waveform to be modified
- Play button to reproduce the whole audio file or the selected part
- Stop button to stop reproduction
- Undo button to cancel edit actions
- Cut button to cut part of the waveform
- Copy button to copy part of the waveform
- Paste button to paste cut/copied part of the waveform
- Mute button to mute part of the waveform
- Fade In button to apply a volume fade in to the selection
- Fade Out button to apply a volume fade out to the selection
- Filters button to open the filters/effects menu (15)
- Export button to save the modified audio file to the users device
- Save button to save the modified audio file to the PLUGGY social platform
- Audio Filters/Effects menu
- Equaliser panel. Includes: lowpass, highpass, bandpass, lowshelf, highshelf, peaking and notch filters
- Compressor effect panel with threshold, knee, ratio, attack and release controls
- Reverb effect panel. Includes small, medium and large room reverbs

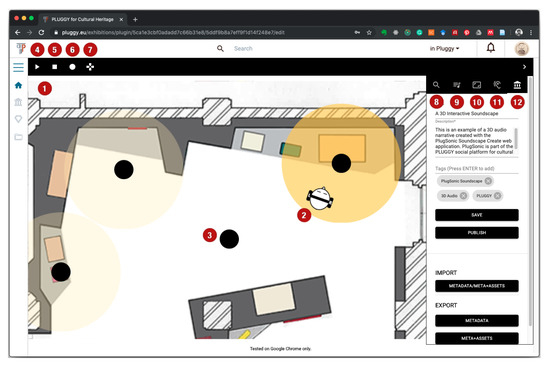

Appendix B. PlugSonic Soundscape Create UI Controls Details
- Virtual room used for the curation of the soundscape
- Listener’s icon representing position and orientation of the listener in the virtual environment
- Sound sources’ icons representing position of each sound source in the virtual environment
- Play button
- Stop button
- Record button to record and export a .wav file of the rendered 3D audio
- Touch arrows button to open a panel showing touch arrow controls (necessary to navigate the soundscape on a touchscreen-based device)
- Search tab. To search and retrieve audio sources from the social platform (Figure 3A):
- Search text field
- Dropdown menu to search among the user’s audio assets (My Assets) or the whole social platform (All Pluggy)
- Dropdown menu to choose the ordering of the results
- Search button
- One button for each sound found by the search. Upon clicking a button the source is retrieved and added to the soundscape.
- Sound sources’ tab. Each sound source has the following options (Figure 3B):
- On/off toggle to activate/deactivate the sound
- Volume slider
- Position options:
- Relative to listener toggle. To set the sound’s position in an absolute or relative fashion
- Position sliders. X/Y/Z for absolute positioning or Angle/Distance for relative positioning
- Loop toggle to choose if the sound source will loop or play only once
- Spatialisation toggle to turn on/off the spatialisation engine. When off the source is reproduced as a mono/stereo file depending on the original file format
- Reach options:
- Reach toggle—to turn on/off the interaction area. The interaction area (in yellow in Figure A2) is used to control the interaction between listener and sound source. When on, the listener will be able to hear the specific sound source only when they are inside the interaction area.
- Reach radius slider—to choose the size of the interaction area
- Reach behaviour dropdown menu—to choose the type of action the app will perform when entering/exiting the interaction area.
- Fade in and out—playback will start as the user clicks the Play button but the source’s volume will fade in/out as the listener enters/exits the interaction area
- Start when entering—Playback will start as the listener enters the interaction area
- Fade duration slider—to set the volume’s fade in/out duration
- Timings dropdown menu—to set an order in the reproduction of the sound sources. The reproduction of a specific source can be constrained to the start of another one.
- Hidden toggle—to hide the sound source in the Soundscape Experience apps so that the user cannot see the source’s position on the screen
- Delete button—to delete the sound source from the soundscape

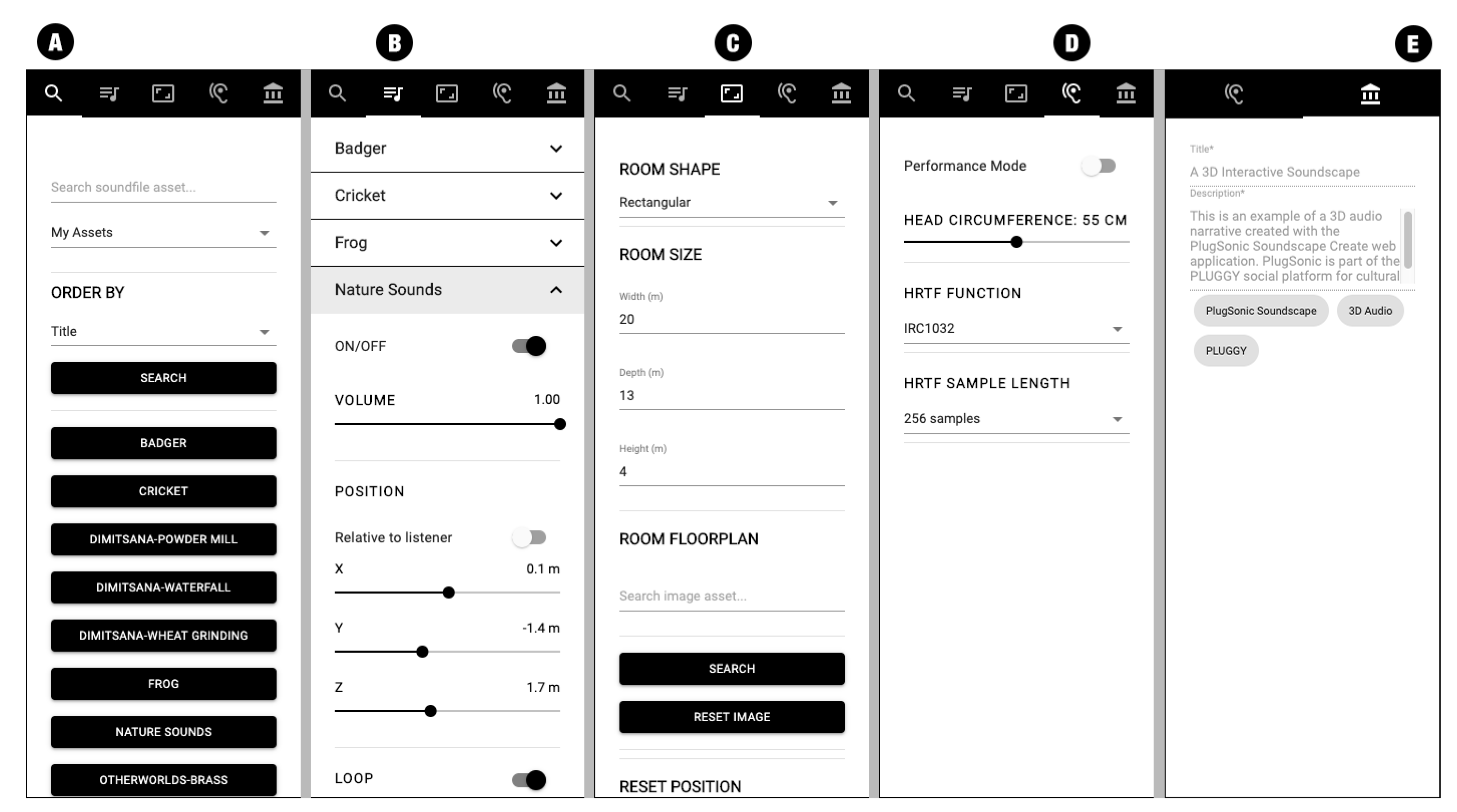

- Room options tab. The room has the following options (Figure 3C):
- Room Shape dropdown menu (rectangular or round)
- Room Size text fields (Width/Depth/Height)
- Room floorplan—to search and select an image asset to be used as the soundscape’s floor-plan.
- Reset listener position button—to reset the listener’s position to coordinate (0, 0)
- Listener’s options tab—to set options regarding the 3D audio rendering engine. The listener’s options are the following (Figure 3D):
- Performance mode toggle. When on, the performance mode is enabled, requiring less computational effort, allowing the rendering on low performance devices.
- HRTF function dropdown menu—to select the head related transfer functions to be used for the 3D sound rendering
- HRTF sample length dropdown menu—to choose between 128/256/512 samples long HRTFs
- Exhibition tab—to set the exhibition’s options, save and publish the exhibition (Figure A2). It includes:
- Title text field—to set the exhibition’s title
- Description text field—to add a description of the soundscape
- Tags text field and icons—to add/delete tags to the exhibition
- Save button—to save the exhibition in the social platform
- Publish/Unpublish button—to make the exhibition available or not to the social platform’s users.
- Import button—to import a previously exported soundscape in either format (metadata or metadata + assets)
- Export metadata button—to export the exhibition’s metadata (will require access to PLUGGY social platform to retrieve the audio files)
- Export metadata+assets button—to export the exhibition’s metadata and the audio assets in one file (will not require access to PLUGGY social platform to retrieve the audio files. Can be experienced when off-line)
