Development and Evaluation of Low-Damage Maize Snapping Mechanism Based on Deformation Energy Conversion
Abstract
:1. Introduction
2. Materials and Methods

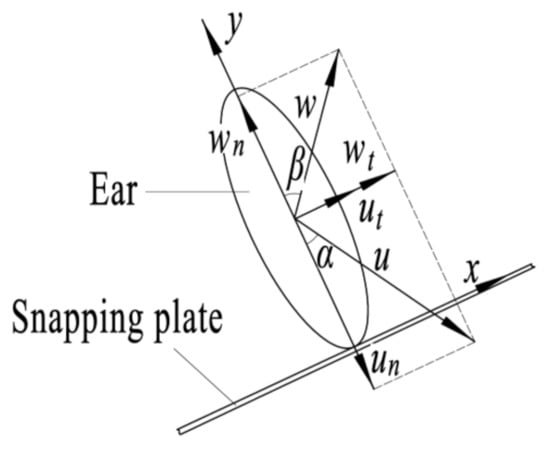

2.1. Analysis of Ear Picking Based on the Principle of Energy Balance
2.2. Parameter Design of Key Component

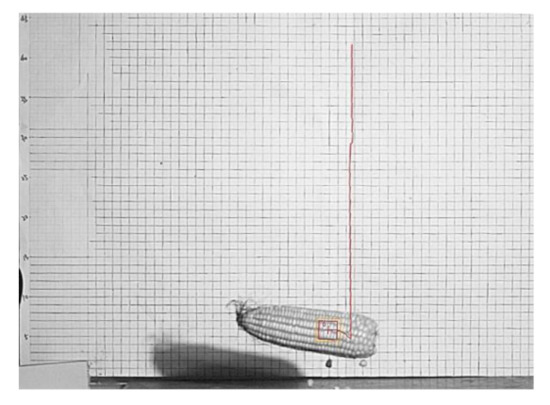

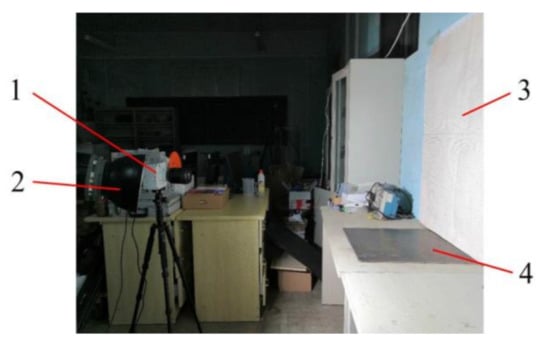

2.2.1. Determination of Ear Deformation Energy

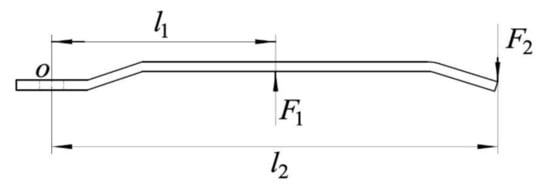

2.2.2. Improved Design of Ear Snapping Mechanism Based on Energy Conversion

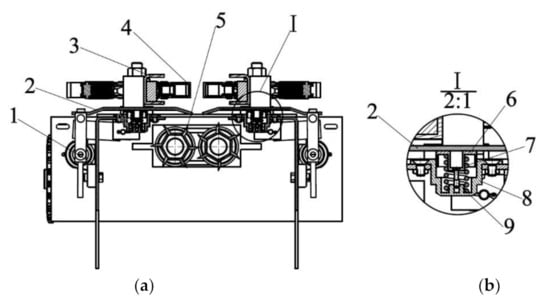

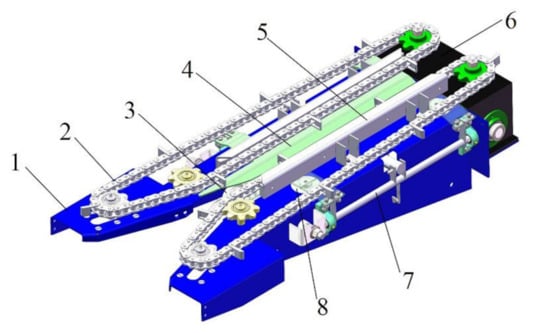

2.3. Basic Structure of the Improved Mechanism

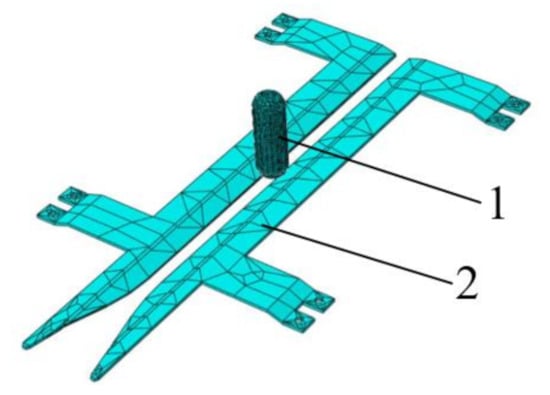

2.4. The Establishment of Simulation Model Based on Finite Element Method
2.5. Performance Test

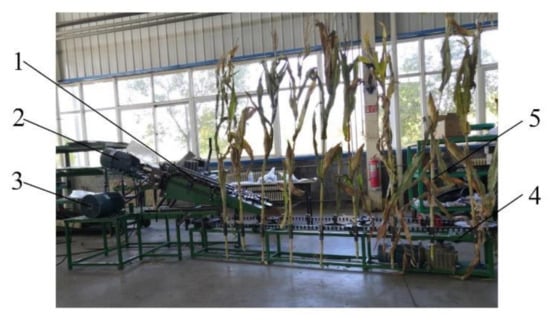

2.5.1. Test Materials and Equipment
2.5.2. Test Method
3. Results and Discussion

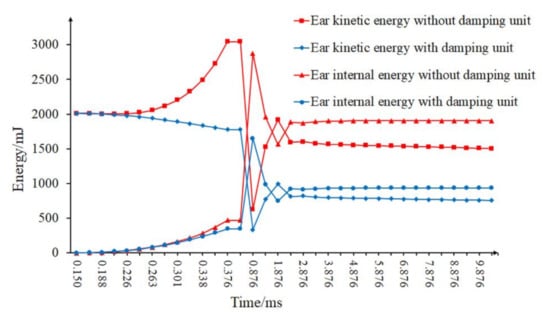

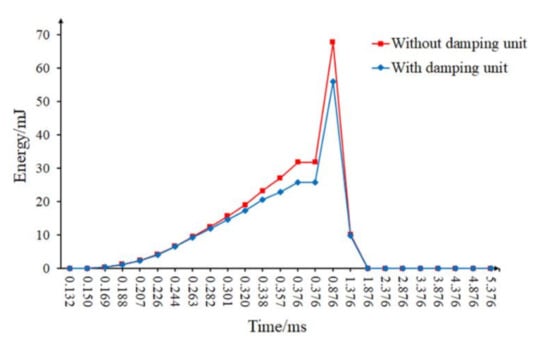

3.1. Energy Conversion Analysis Based on FEM
3.2. Results and Discussion of Performance Test
3.2.1. Test Results
3.2.2. Regression Equation and Significance Test

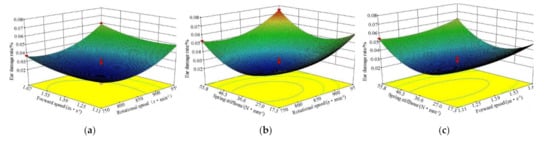

3.2.3. Analysis of the Influence of Interaction Factors on the Ear Damage Rate
3.2.4. Parameter Optimization
4. Conclusions
- Ear picking served as a key link in maize harvesting and reducing stresses on the ear, which was important in solving issues related to ear damage. However, stresses of the ears were noted to be more complicated during the picking process. Therefore, this study analysed the interaction between the ears and the ear picking parts in view of energy balance. By conducting a theoretical analysis, the main factors of ear damage were found to be the machine forward speed and speed of the stalk roller.
- In order to reduce the ear damage in the ear picking process, the ear snapping mechanism was improved based on ear deformation energy conversion. Accordingly, the compression spring was designed, and the working range of the compression spring was determined (17.3 N·mm−1, 55.8 N·mm−1). In order to verify the effectiveness of the ear deformation energy reduction of the low-damage mechanism, a comparative experiment was carried out in FEM under the conditions of the snapping plate with or without compression spring. The results showed that the ear snapping plate with a compression spring could reduce the internal energy of both the most stressed kernel and the whole ear. In addition, the possibility of ear damage was reduced at the same time.
- In order to determine the optimized parameters of the snapping mechanism, a performance test was carried out based on the Box–Behnken test design. The primary and secondary order for which the factors affecting the ear damage rate was found to be the rotational speed of the stalk roller, spring stiffness and forward speed. The data processing software Design Expert 8.0.6 was used to optimize the parameters. The ear damage rate was taken as the test index, in which the rotational speed of the stalk roller was found to be 805 r·min−1, while the forward speed was 1.29 m·s−1 and the spring stiffness was 33.5 N·mm−1. Furthermore, the ear damage rate predicted by the model was noted to be 0.023%.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Ren, B.; Li, X.; Dong, S.; Liu, P.; Zhao, B.; Zhang, J. Soil physical properties and maize root growth under different tillage systems in the North China Plain. Crop J. 2018, 6, 669–676. [Google Scholar] [CrossRef]
- Cui, T.; Fan, C.; Zhang, D.; Yang, L.; Li, Y.; Zhao, H. Research progress of maize mechanized harvesting technology. Trans. Chin. Soc. Agric. Mach. 2019, 50, 1–13. [Google Scholar]
- Wang, K.R.; Xie, R.Z.; Ming, B.; Hou, P.; Xue, J.; Li, S.K. Review of combine harvester losses for maize and influencing factors. Int. J. Agric. Biol. Eng. 2021, 14, 1–10. [Google Scholar] [CrossRef]
- Hanna, H.M.; Kohl, K.D.; Haden, D.A. Machine losses from conventional versus narrow row corn harvest. Appl. Eng. Agric. 2002, 18, 405–409. [Google Scholar] [CrossRef]
- Paulsen, M.R.; de Assis de Carvalho Pinto, F.; de Sena, D.G., Jr.; Zandonadi, R.S.; Ruffato, S.; Gomide Costa, A.; Ragagnin, V.A.; Danao, M.-G.C. Measurement of Combine Losses for Corn and Soybeans in Brazil. Appl. Eng. Agric. 2013, 30, 841–855. [Google Scholar]
- Yang, L.; Cui, T.; Qu, Z.; Li, K.; Han, D.; Yan, B.; Zhao, D.; Zhang, D. Development and application of mechanized maize harvesters. Int. J. Agric. Biol. Eng. 2016, 9, 15–28. [Google Scholar]
- Fu, Q.; Fu, J.; Chen, Z.; Han, L.; Ren, L. Effect of impact parameters and moisture content on kernel loss during corn snapping. Int. Agrophys. 2019, 33, 493–502. [Google Scholar] [CrossRef]
- Zhang, Z.; Chi, R.J.; Du, Y.F.; Pan, X.; Xie, B. Experiments and modeling of mechanism analysis of maize picking loss. Int. J. Agric. Biol. Eng. 2021, 14, 11–19. [Google Scholar] [CrossRef]
- Qin, J.; Yin, Y.; Liu, Z.; Du, Y.; Wang, G.; Zhu, Z.; Li, Z. Optimisation of maize picking mechanism by simulation analysis and high-speed video experiments. Biosyst. Eng. 2020, 189, 84–98. [Google Scholar] [CrossRef]
- Chen, Z.; Wassgren, C.; Ambrose, K. A review of grain kernel damage: Mechanisms, modeling, and testing procedures. Trans. ASABE 2020, 63, 455–475. [Google Scholar] [CrossRef]
- Xu, L.; Li, Y.; Ma, Z.; Zhao, Z.; Wang, C. Theoretical analysis and finite element simulation of a rice kernel obliquely impacted by a threshing tooth. Biosyst. Eng. 2013, 114, 146–156. [Google Scholar]
- Yang, F.; Du, Y.; Fu, Q.; Li, X.; Li, Z.; Mao, E.; Zhu, Z. Design and testing of seed maize ear peeling roller based on hertz theory. Biosyst. Eng. 2021, 202, 165–178. [Google Scholar] [CrossRef]
- Gambella, F.; Dimauro, C.; Paschino, F. Evaluation of fruit damage caused by mechanical harvesting of table olives. Trans. ASABE 2013, 56, 1267–1272. [Google Scholar]
- Fu, H.; He, L.; Ma, S.; Karkee, M.; Chen, D.; Zhang, Q.; Wang, S. ‘Jazz’ apple impact bruise responses to different cushioning materials. Trans. ASABE 2017, 60, 327–336. [Google Scholar]
- Wang, W.; Lu, H.; Zhang, S.; Yang, Z. Damage caused by multiple impacts of litchi fruits during vibration harvesting. Comput. Electron. Agric. 2019, 162, 732–738. [Google Scholar] [CrossRef]
- Wang, W.; Zhang, S.; Fu, H.; Lu, H.; Yang, Z. Evaluation of litchi impact damage degree and damage susceptibility. Comput. Electron. Agric. 2020, 173, 105409. [Google Scholar] [CrossRef]
- Celik, H.K. Determination of bruise susceptibility of pears (Ankara variety) to impact load by means of FEM-based explicit dynamics simulation. Postharvest Biol. Technol. 2017, 128, 83–97. [Google Scholar] [CrossRef]
- Du, D.; Wang, B.; Wang, J.; Yao, F.; Hong, X. Prediction of bruise susceptibility of harvested kiwifruit (Actinidia chinensis) using finite element method. Postharvest Biol. Technol. 2019, 152, 36–44. [Google Scholar] [CrossRef]
- Kitthawee, U.; Pathaveerat, S.; Srirungruang, T.; Slaughter, D. Mechanical bruising of young coconut. Biosyst. Eng. 2011, 109, 211–219. [Google Scholar] [CrossRef]
- Berry, N.K.; Fielke, J.M.; Saunders, C. A Mastercurve to predict annual ryegrass (Lolium rigidum) seed devitalisation when exposed to multiple single sided impacts. Biosyst. Eng. 2015, 133, 56–63. [Google Scholar] [CrossRef]
- Bao, Y.; Yang, C.; Zhao, Y.; Liu, X.; Guo, Y. Collision injury assessment of mechanical harvesting blueberry fruit based on collision deformation energy. Trans. Chin. Soc. Agric. Eng. 2017, 33, 283–292. [Google Scholar]
- Huynh, V.M.; Powell, T.; Siddall, J.N. Threshing and separating process—A mathematical model. Trans. ASAE 1982, 25, 65–73. [Google Scholar] [CrossRef]
- Wang, X. Mechanical Properties of Rice Grain and Threshing Injury Based on the Energy Conservation. Master’s Thesis, Jiangsu University, Zhenjiang, China, 2007. [Google Scholar]
- Li, Y.; Wang, X.; Xu, L. Threshing injury to rice grain based on the energy conservation. Chin. J. Mech. Eng. 2007, 43, 160–164. [Google Scholar] [CrossRef]
- Fu, Q.; Fu, J.; Chen, Z.; Ren, L. Loss reduction mechanism and experiment on snapping of rigid-flexible coupling corn head. Trans. Chin. Soc. Agric. Mach. 2020, 51, 60–68. [Google Scholar]
- Li, K. Design and Experimental Study on Gap-Adjustable Combined Ear-Picking Mechanism of Corn. Ph.D. Thesis, China Agricultural University, Beijing, China, 2018. [Google Scholar]
- Yousefi, S.; Farsi, H.; Kheiralipour, K. Drop test of pear fruit: Experimental measurement and finite element modelling. Biosyst. Eng. 2016, 147, 17–25. [Google Scholar] [CrossRef]
- Caglayan, N.; Oral, O.; Celik, H.K.; Cinar, R.; Rodrigues, L.; Rennie, A.; Akinci, I. Determination of time dependent stress distribution on a potato tuber during drop case. J. Food Process Eng. 2018, 41, e12869. [Google Scholar] [CrossRef]
- Celik, H.K.; Ustun, H.; Erkan, M.; Rennie, A.; Akinci, I. Effects of bruising of ‘pink lady’ apple under impact loading in drop test on firmness, colour and gas exchange of fruit during long term storage. Postharvest Biol. Technol. 2021, 179, 111561. [Google Scholar] [CrossRef]
- Tai, J.; Li, H.; Guan, Y.; Ding, N.; Du, Y.; Mao, E. Simulation of a maize ear picking device with a longitudinal horizontal roller based on hypermesh modeling. BioResources. 2021, 16, 1394–1410. [Google Scholar] [CrossRef]
- Zhu, Z.; Yue, X.; Du, Y.; Song, Z.; Mao, E.; Wang, B. Dynamic simulation and high-speed photography experiment on corn-ear husking. Trans. Chin. Soc. Agric. Eng. 2015, 31, 42–48. [Google Scholar]
- Hou, M. Study on Mechanical Properties of Corn Kernel and Design of Threshing Test Bed. Master’s Thesis, Henan Agricultural University, Zhengzhou, China, 2017. [Google Scholar]
- Wang, B.; Wang, J.; Du, D. Finite element analysis of dynamic impact damage process of maize kernel based on HyperMesh and LS-DYNA. J. Zhejiang Univ. Agric. Life Sci. 2018, 44, 465–475. [Google Scholar]
- Pan, L.; Chen, J. Experiment Design and Data Processing; Southeast University Press: Nanjing, China, 2008; pp. 192–239. [Google Scholar]
Level | Range/J | Mean/J | Standard Deviation/J |
---|---|---|---|
30° | 0.424~1.144 | 0.791 | 0.166 |
60° | 0.442~1.135 | 0.817 | 0.171 |
90° | 0.621~1.243 | 0.842 | 0.156 |
Item | Parameters | Values |
---|---|---|
Corn cob | Poisson’s ratio | 0.0539 |
Elastic modulus/Pa | 5 × 108 | |
Density/(kg·m−3) | 0.6 × 103 | |
Corn kernel | Poisson’s ratio | 0.031 |
Elastic modulus/Pa | 2.8 × 108 | |
Density/(kg·m−3) | 1.24 × 103 | |
Corn kernel-steel board | Coefficient of static friction | 0.34 |
Levels | Factors | ||
---|---|---|---|
Rotational Speed x1/(r·min−1) | Forward Speed x2/(m·s−1) | Spring Stiffness x3/(N·mm−1) | |
−1 | 750 | 1.11 | 17.3 |
0 | 850 | 1.39 | 36.6 |
1 | 950 | 1.67 | 55.8 |
Serial Number | Factors | Respond Values | ||
---|---|---|---|---|
Rotational Speed X1 | Forward Speed X2 | Spring Stiffness X3 | Ear Damage Rate/% | |
1 | −1.00 | −1.00 | 0.00 | 0.028 |
2 | 1.00 | −1.00 | 0.00 | 0.049 |
3 | −1.00 | 1.00 | 0.00 | 0.037 |
4 | 1.00 | 1.00 | 0.00 | 0.060 |
5 | −1.00 | 0.00 | −1.00 | 0.041 |
6 | 1.00 | 0.00 | −1.00 | 0.062 |
7 | −1.00 | 0.00 | 1.00 | 0.053 |
8 | 1.00 | 0.00 | 1.00 | 0.075 |
9 | 0.00 | −1.00 | −1.00 | 0.042 |
10 | 0.00 | 1.00 | −1.00 | 0.048 |
11 | 0.00 | −1.00 | 1.00 | 0.054 |
12 | 0.00 | 1.00 | 1.00 | 0.060 |
13 | 0.00 | 0.00 | 0.00 | 0.029 |
14 | 0.00 | 0.00 | 0.00 | 0.032 |
15 | 0.00 | 0.00 | 0.00 | 0.023 |
16 | 0.00 | 0.00 | 0.00 | 0.027 |
17 | 0.00 | 0.00 | 0.00 | 0.022 |
Source | Ear Damage Rate | |||
---|---|---|---|---|
Sum of Squares | Freedom | F Value | p Value | |
Model | 3.84 × 10−3 | 9 | 38.57 | <0.0001 |
X1 | 9.461 × 10−4 | 1 | 85.51 | <0.0001 |
X2 | 1.280 × 10−4 | 1 | 11.57 | 0.0114 |
X3 | 3.001 × 10−4 | 1 | 27.13 | 0.0012 |
X1X2 | 1.000 × 10−6 | 1 | 0.09 | 0.7724 |
X1X3 | 2.5 × 10−7 | 1 | 0.023 | 0.8848 |
X2X3 | 0 | 1 | 0.00 | 1.0000 |
X12 | 5.888 × 10−4 | 1 | 53.21 | 0.0002 |
X22 | 1.084 × 10−4 | 1 | 9.80 | 0.0166 |
X32 | 1.572 × 10−3 | 1 | 142.12 | <0.0001 |
Residual | 7.745 × 10−5 | 7 | ||
Lack-Fit | 8.250 × 10−6 | 3 | 0.16 | 0.9186 |
Pure Error | 6.920 × 10−5 | 4 | ||
Cor total | 3.918 × 10−3 | 16 |
Serial No. | Ear Damage Rate/% |
---|---|
1 | 0.019 |
2 | 0.018 |
3 | 0.020 |
4 | 0.020 |
5 | 0.018 |
Mean | 0.019 |
