Review

Systematic Review of Nutritional Recommendation Systems

1
eVIDA—Lab, University of Deusto, Avda/Universidades 24, 48007 Bilbao, Spain
2
Facultad de Ciencias de la Salud, Universidad Católica del Uruguay, Av. 8 de Octubre 2738, 11600 Montevideo, Uruguay
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(24), 12069; https://doi.org/10.3390/app112412069
Received: 22 November 2021 / Revised: 10 December 2021 / Accepted: 14 December 2021 / Published: 17 December 2021
(This article belongs to the Special Issue New Trends in Medical Informatics)

Abstract

:
In recent years, the promotion of healthy habits, and especially diet-oriented habits, has been one of the priority interests of our society. There are many apps created to count calories based on what we eat, or to estimate calorie consumption according to the sport we do, or to recommend recipes, but very few are capable of giving personalized recommendations. This review tries to see what studies exist and what recommendation systems are used for this purpose, over the last 5 years in the main databases. Among the results obtained, it is observed that the existing works focus on the recommendation system (usually collaborative filtering), and not so much on the description of the data or the sample analyzed; the indices used for the calculation of calories or nutrients are not specified. Therefore, it is necessary to work with open data, or well-described data, which allows the experience to be reproduced by third parties, or at least to be comparable. In recent years, the promotion of healthy habits, and especially diet-oriented habits, has been one of the priority interests of our society.

1. Introduction

Obesity is a prominent disease around the world. According to WHO, global obesity has nearly tripled since the 1970s [1]. This is a topic of concern because gaining weight is a risk factor for the noncommunicable diseases and the prevalence is still increasing globally [2].
Despite the efforts and the various strategies outlined by the different agencies and nations, no significant changes have been achieved that contribute to changing this reality [3].
However, healthy lifestyles behavior has become an important strategy to avoid excessive caloric intake. Having a good level of adherence to a diet, despite the nutritional strategy, guarantees better results [4,5,6]. According to Pagoto et al. [6], adherence is defined as “the degree to which participants continued in the program or met program goals for diet and physical activity”. Taking into consideration that the use of mobile phones is rising around the world [7] and people tend to have a strong attachment to them, especially young people [8,9], Health Mobile Apps could act as a strategic tool to empower consumers’ knowledge in order to support weight loss and reach the desired adherence, at least in the short term [10].
Computational technologies such as artificial intelligence, machine learning, and deep learning could help to offer an integrated framework of the patient information, improving not only the diagnosis but also the recommendations in individuals [11]. Classic dietary assessment methods are prone to have measurement errors [12], whereas new technologies could help to measure in a more accurate way as well as reduce costs.
According to a recent review, health professionals do not always tend to recommend these types of apps because of their limitations: food composition is inaccurate, they do not have local food composition, there is a need for some technical expertise, poor quality, poor usability, inaccurate database, inaccurate energy calculations, or because they are not personalized [13].
On the other hand, individuals tend to underreport due to poor image quality or negligence, or because they estimate the portions erroneously [14].
Despite the fact that there is an increasing number of reviews analyzing mobile apps utility, there is still an important gap in knowledge, since there is a significant heterogeneity in the types of apps available in the mobile market. Some tend to focus on one nutritional outcome; others tend to investigate a specific target group or different behaviors [15].
In the present paper, the authors provide a description of the status of the different recommender systems and analyze the involving machine learning algorithms used, in order to find out if they accomplish their purpose.
The article is structured as follows: Section 2 explains how the method used in the systematic review was developed; Section 3 provides an analysis of records; lastly, Section 4 contains the discussion and conclusions about future work.

2. Material and Methods

The purpose of the SRL is to determine the current situation of the different recommender systems used in the nutrition and health areas, also involving machine learning algorithms. Research manuscripts reporting large datasets that are deposited in a publicly available database should specify where the data have been deposited and provide the relevant accession numbers. If the accession numbers have not yet been obtained at the time of submission, please state that they will be provided during review. They must be provided prior to publication.

Review Protocol

Firstly, the different objectives and search questions were defined (Table 1), and the following databases were used: (1) ACM was used as the main digital library of scientific content in the area of informatics and computing, (2) Scopus was taken into account as a database that has access to important different research in different areas of knowledge, and (3) PubMed was used as a more specific dataset related to the health area. No filter was used for the population filter; all available items were used.
Considering the mapping of the literature, the keywords were selected; these are the words that have been used: Nutrition, Recommendation System (recommender system), and Machine Learning. A more precise search was possible due to the advanced searches of the different repositories, which enables to search using logical operators. The terms “Recommendation System” AND “Nutrition” were searched all through the full texts, AND “Machine Learning” just in the author keywords. Table 2 shows the records obtained for each database between the years 2016 and 2021.
The PRISMA guidelines were followed to filter the different articles from the SRL, which suggests applying four steps: (1) Identification, (2) Filtering, (3) Eligibility, and (4) Inclusion.
Figure 1 represents the PRISMA-based flow chart, which shows all the details about the records that were included and excluded.
In total, 214 records were obtained, and the first filter was applied. The aim of this filter was to eliminate the duplicates; in this case, there was just one text repeated in two of the databases. After this criterion, there were 213 records still available.
Secondly, the second filter was applied excluding all those text that were non-English, short papers, abstracts, posters or reviews. Moreover, by the reading of the titles some of the results have also been discarded, leaving 53 records to analyze in depth.
After the reading of the remaining abstracts, there were another 29 records discarded; this filter left 24 results to read. Finally, after completely reading all the remaining records, just 18 studies were included for analysis.
After this analysis, a review of words related to the study that could offer another point of view to the search was carried out. Among the terms found, a new identification stage was carried out with two of these (nutrition behavior and calorie tracking) and the results of the searches can be seen in Table 3 and Table 4.
As a conclusion, we can observe that the search by adding the term nutrition behavior shows that most of the studies stored in ACM are related to nutrition (136). In addition, it can be seen that the Scopus database does not have any results, which shows that it is a more technical database. Finally, PubMed shows only six results (Table 3).
If we look at the other search, which added the term calorie tracking, it shows similar results, although in the ACM database fewer results are obtained, since they are reduced to slightly more than half (65) (Table 4).
In the end, we realized that the two complementary searches that were performed were included in the main search carried out in the first place; therefore, taking into account that the search did not obtain many results, we used the main search to analyze the articles.
Certain inclusion and exclusion criteria have been used in the filtering of documents found in the searches, and are defined in Table 5.
To measure the quality of the analyzed articles, 10 indicators have been defined. The first 7 are related to the content of the article and to publication quality metrics. The M8 metric was used to differentiate those articles that have published in conferences from the journals. We thought it would be interesting to point out the articles that give the possibility to obtain the data used in the research, so that the experiment might be reproduced, which is why M9 was included. Lastly, M10 gives importance to those articles that use diagrams and images to help with the explanation (Table 6).
The results of the review of the articles will be obtained using the criteria shown in Table 6.

3. Results

In the analyzed cases, we can see that most of the recommendation systems are designed to recommend different diets; some of them do not recommend whole diets but some specific foods. Rarely do we see systems that offer physical activity recommendations in addition to diet.
On the other hand, most of the analyzed systems have made use of collaborative filtering. However, content-based, hybrid, and knowledge-based filtering have also been used. As for the type of platforms used, in most studies this was not specified, and in those where it was, online platforms were used.
Finally, it should be noted that most studies and platforms have been motivated to help patients with a disease that may improve as a result of maintaining a healthier diet.
Once the comparative table of the studies (Table 7) had been made, articles 1 to 11 were graded taking into account the criteria defined in Table 6 so that an overview of the quality of each article could be obtained. For this purpose, three levels of quality have been defined: High (H) the articles with a score between 8 and 11, Medium (M) between 5.1 and 7.9, and Low (L) less than 5. After the qualification, we can affirm that within the metrics used in this study, the articles [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31] are of high impact.

3.1. Geographical Distribution

As for the geographic distribution of the different articles written, it can be seen that the majority of these have been written in Asia (56.3%) and North America (18.8%); the remaining articles come from Europe (12.5%) and Africa (12.5%) (Figure 2).

3.2. Journals per Year

In total, nine of the articles have appeared in conferences and the other seven in journals (Figure 3).
As a conclusion, we can see that an increase in conferences has a direct impact on the publication of articles on the subject; this is due to the time required to publish an article in journals, whereas conferences have shorter publication times.

3.3. Different Recommendation System Used in the Article

In addition, the percentage of the different recommendation systems used in the studies was analyzed (Table 8).

4. Discussion

Nutrition mobile apps are an emerging field that could act as a cost-effective tool that can instruct different type of populations in improving their nutritional habits. However, there is a high variability in the recommendations. Some tend to focus on diets, others on specific food, and they rarely offer physical activity recommendations. At the same time, differences exist between apps in the nutrition tools and the type of technology used.
Answering question Q4 defined in Table 1, if we focus on the different filtering methods used by the analyzed systems, we can see a tendency in the use of the collaborative filter. This is not a common result; normally content-based filters are used as starting filtering methods [32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47], and once a considerable amount of data from the users are obtained, collaborative filters are launched. This might be because some studies were started with some initial data about the users.
Additionally, the methods used for the caloric and nutrients need are not explained in depth, which is the reason why Q3 could not be answered.
On the one hand, in Q1, which talks about the areas of nutrition used in SR, most of the systems are related to health problems linked to nutrition or that can be improved by certain specific diets, and some studies focus on improving the diet regardless of whether the user suffers from a disease or not.
Finally, question Q2, which is focused on answering whether different recommendations are used for the different systems developed, is linked to Q1, since depending on the target user group, certain recommendations are offered or others.
Almost all the data used by the different research are not available. In some cases (which can be seen in Table A1), the obtained data have been made available under request. On the other hand, some research cited the data used for the investigation.
For the future, it would be interesting to include both the methods used for the nutrient or caloric needs calculation and the data obtained in the investigation; with this information, given the easiness to reproduce it should considerably improve.
Finally, the population involved in the different articles is different from each other. Depending on the specific subject of the research, the study has chosen people related to the research, either because they are young, patients of certain pathologies, or without considering any other criteria.
Given that the population is highly heterogeneous, confusing data makes it challenging to interpret the available data, because the results change considerably depending on the population analyzed. There are no “one size fits all” diet, requirements and nutritional needs, as they differ in the entire population. It is difficult to analyze the data collected when there is such disparity between the individuals. In fact, collecting people’s caloric intake is in itself complex, since people, regardless of their body weight, tend to underestimate the calories they consume [48].
At the same time, there is a high variability in diets responses and personalized nutrition programs tend to show better results than standardized approaches [11]. Although some people tend to lose weight with a specific diet, this does not guarantee that the same method will work for other people. In part, this is explained by adherence and motivation. When people are comfortable with the type of diet they follow, they tend to find better results and respect the nutritional recommendations [7,49,50].
As with diets, users find positive results if they are motivated, since this reinforces their degree of adherence, a key aspect when trying to lose weight. Despite the practicality and usefulness of health mobile apps, users tend to lose adherence and motivation over time. In part this is because each user is different: although some may be motivated by uploading the data to the app, others may need to constantly receive encouraging messages or be helped to modify their behavior [51].
Measuring caloric intake is quite difficult and calorie reporting often contains errors. Additionally, the caloric report in mobile applications is influenced by the motivational level of the subjects and many of the available studies were carried out in heterogeneous populations. Consequently, analyzing the collected data becomes complex, making it difficult to draw general conclusions for the entire population.
Other limitations observed in the studies is that they do not always precisely define the type of diet, food, preparation methods, or nutrient composition. In fact, these are some of the limitations that health professionals highlight in these types of applications [14].
We see that nutritional applications are associated with numerous sources of error, both internal (of the app itself) and external (of human behavior). Therefore, it is recommended to be careful when interpreting the data collected.
Although many people can benefit from the use of these types of applications, sometimes it may be linked to eating disorders. It is not clear if eating disorders develop from using these apps or if those who have eating disorders tend to use them. In any case, due to the great variability that exists, it is advisable to take these data with caution and educate people before encouraging their use [52].
However, our review has limitations. Firstly, we evaluate scientific research where different types of apps were analyzed. Perhaps there is a different degree of effectiveness between them that we could not detect in this review.
Secondly, it is possible that our limited sample size obscured a larger size effect. The size and duration of the different studies were not the same; this may have affected the data collected. Additionally, not all investigations used the same intervention criteria and population. Having different data sources may have biased us in being able to identify the potential impact they really have or if they act differently in any particular population.
Thirdly, perhaps there is a different degree of adherence in the strategies that use technological support compared with traditional diets; therefore, by not considering these data, we could not find significant differences.
Fourth, we may have incurred certain bias when selecting the types of studies, affecting the quality of the data collected. However, after the qualification, we can affirm that within the metrics used in this study, the articles are of high impact.

5. Conclusions

In conclusion, although there is a massive and widespread use of Health Mobile Apps, there are still doubts about their effectiveness in improving nutritional habits, in what type of population they work best, and what type of information usually produces better results. Although these types of apps can be useful due to their growing interest and popularity in the public that wants to eat healthily, more information is still needed.
However, they can become a useful tool for developing personalized nutritional recommendations if AI and ML support is enhanced. By improving the methodology and procedures used in different scientific investigations, could help us to understand more accurately how these technologies can contribute to improve the nutritional health of the population. Although there are certain gaps and problems to be solved, the use of this technology shows encouraging results in promoting health and disease management.
The importance of nutrition during the pandemic caused by COVID-19 is noteworthy. There is clear evidence that the prevention of diseases such as obesity and type 2 diabetes reduces the risk of serious COVID-19 outcomes [53]. A proper and healthy diet can ensure a robust immune system that can resist any onslaught by the virus; individuals consuming well-balanced diets appear to be safer with better immune systems and lower incidence of chronic diseases and infections [54]. Apps can help in this task, as users are looking for simple options to help them with their diets, for example, and the importance of these is becoming more and more crucial.
Finally, we believe that it would be also important to consider ethical and legal issues as these applications often store, process, and share personal information. We do not know if there are any regulations so far.

Author Contributions

Conceptualization, I.O.-S., M.K. and A.M.-Z.; methodology, I.O.-S., M.K. and A.M.-Z.; formal analysis, I.O.-S.; investigation, I.O.-S.; writing—original draft preparation, I.O.-S. and M.K.; writing—review and editing, I.O.-S., M.K. and A.M.-Z.; supervision, A.M.-Z. All authors have read and agreed to the published version of the manuscript.

Funding

No funding received for this study.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable, all the details about the satabses consulted are in the article.

Conflicts of Interest

The authors declared no conflict of interest.

Appendix A

Table A1. Selected articles.
Table A1. Selected articles.
REFM1M2M3M4M5M6M7M8M9M10TotalImpact
[16]10111101118.5H
[17]10101111018H
[18]10001001003L
[19]00101101015.5M
[20]10100101015.5M
[21]10111111019H
[22]01101111018H
[23]00101001014.5L
[24]00100111016M
[25]00001101003L
[26]00100101014.5L
[27]00101101015.5M
[28]10101110016.5M
[29]10001100014.5L
[30]111111111111H
[31]10111111019H

References

  1. World Health Organization. Obesity and Overweight. Available online: https://www.who.int/news-room/fact-sheets/detail/obesity-and-overweight (accessed on 7 September 2020).
  2. Afshin, A.; Forouzanfar, M.H.; Reitsma, M.B.; Sur, P.; Estep, K.; Lee, A.; Marczak, L.; Mokdad, A.H.; Moradi-Lakeh, M.; Naghavi, M.; et al. Health Effects of Overweight and Obesity in 195 Countries over 25 Years. New Engl. J. Med. 2018, 377, 13–27. [Google Scholar] [CrossRef]
  3. di Cesare, M.; Bentham, J.; Stevens, G.A.; Zhou, B.; Danaei, G.; Lu, Y. Trends in adult body-mass index in 200 countries from 1975 to 2014: A pooled analysis of 1698 population-based measurement studies with 19.2 million participants. Lancet 2016, 387, 1377–1396. [Google Scholar] [CrossRef][Green Version]
  4. Swinburn, B.A.; Kraak, V.I.; Allender, S.; Atkins, V.J.; Baker, P.I.; Bogard, J.R. The Global Syndemic of Obesity, Undernutrition, and Climate Change: The Lancet Commission report. Lancet 2019, 393, 791–846. [Google Scholar] [CrossRef]
  5. Freire, R. Scientific evidence of diets for weight loss: Different macronutrient composition, intermittent fasting, and popular diets. Nutrition 2020, 69, 110549. [Google Scholar] [CrossRef] [PubMed]
  6. Pagoto, S.; Appelhans, B. A Call for an End to the Diet Debates. JAMA 2013, 310, 687–688. [Google Scholar] [CrossRef] [PubMed]
  7. Ge, L.; Sadeghirad, B.; Ball, G.D.C.; da Costa, B.R.; Hitchcock, C.L.; Svendrovski, A.; Kiflen, R.; Quadri, K.; Kwon, H.Y.; Karamouzia, M.; et al. Comparison of dietary macronutrient patterns of 14 popular named dietary programmes for weight and cardiovascular risk factor reduction in adults: Systematic review and network meta-analysis of randomised trials. BMJ 2020, 369, m696. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Andrews, S.; Ellis, D.A.; Shaw, H.; Piwek, L. Beyond self-report: Tools to compare estimated and real-world smartphone use. PLoS ONE 2015, 10, e0139004. [Google Scholar] [CrossRef][Green Version]
  9. Konok, V.; Gigler, D.; Bereczky, B.M.; Miklósi, Á. Humans’ attachment to their mobile phones and its relationship with interpersonal attachment style. Comput. Hum. Behav. 2016, 61, 537–547. [Google Scholar] [CrossRef]
  10. Konok, V.; Pogány, Á.; Miklósi, Á. Mobile attachment: Separation from the mobile phone induces physiological and behavioural stress and attentional bias to separation-related stimuli. Comput. Hum. Behav. 2017, 71, 228–239. [Google Scholar] [CrossRef]
  11. Cel Khoury, F.; Karavetian, M.; Halfens, R.J.G.; Crutzen, R.; Khoja, L.; Schols, J.M.G.A. The Effects of Dietary Mobile Apps on Nutritional Outcomes in Adults with Chronic Diseases: A Systematic Review and Meta-Analysis. J. Acad. Nutr. Diet. 2019, 119, 626–651. [Google Scholar] [CrossRef]
  12. Verma, M.; Hontecillas, R.; Tubau-Juni, N.; Abedi, V.; Bassaganya-Riera, J. Challenges in Personalized Nutrition and Health. Front. Nutr. 2018, 5, 117. [Google Scholar] [CrossRef][Green Version]
  13. Poslusna, K.; Ruprich, J.; de Vries, J.H.M.; Jakubikova, M.; Veer, P.V. Misreporting of energy and micronutrient intake estimated by food records and 24 hour recalls, control and adjustment methods in practice. Br. J. Nutr. 2009, 101, S73–S85. [Google Scholar] [CrossRef][Green Version]
  14. Vasiloglou, M.; Christodoulidis, S.; Aubry, E.R.; Stathopoulou, T.; Lu, Y.; Stanga, Z.; Mougiakakou, S. What Healthcare Professionals Think of “Nutrition & Diet” Apps: An International Survey. Nutrients 2020, 12, 2214. [Google Scholar]
  15. Villinger, K.; Wahl, D.R.; Boeing, H.; Schupp, H.T.; Renner, B. The effectiveness of app-based mobile interventions on nutrition behaviours and nutrition-related health outcomes: A systematic review and meta-analysis. Obes. Rev. 2019, 20, 1465–1484. [Google Scholar] [CrossRef][Green Version]
  16. Sowah, R.; Bampoe-Addo, A.; Armoo, S.; Saalia, F.; Gatsi, F.; Sarkodie-Mensah, B. Design and Development of Diabetes Management System Using Machine Learning. Int. J. Telemed. Appl. J. 2020, 2020, 8870141. [Google Scholar] [CrossRef]
  17. Baek, J.W.; Kim, J.C.; Chun, J.; Chung, K. Hybrid clustering based health decision-making for improving dietary habits. Technol. Health Care 2019, 27, 459–472. [Google Scholar] [CrossRef][Green Version]
  18. Suwan, R.; Temdee, P. Lifestyle Classification for Recommendation of Excessive Sugar Consumption in Thai Teenagers. In Proceedings of the 2021 Joint International Conference on Digital Arts, Media and Technology with ECTI Northern Section Conference on Electrical, Electronics, Computer and Telecommunication Engineering, Online Conference, 3–6 March 2021; pp. 380–383. Available online: https://ieeexplore.ieee.org/document/9425692 (accessed on 15 September 2020).
  19. Mogaveera, D.; Mathur, V.; Waghela, S. e-Health Monitoring System with Diet and Fitness Recommendation using Machine Learning. In Proceedings of the 2021 6th International Conference on Inventive Computation Technologies (ICICT), Coimbatore, India, 20–22 January 2021; pp. 694–700. Available online: https://ieeexplore.ieee.org/document/9358605 (accessed on 1 November 2020).
  20. Prabakaran, J.; Damodharan, D.; Anandhan, K.; Kumar, N.S.; Nallarasan, V. Enhanced Predictive Learning Approaches for Tweaked Diet Proposal System in Health Care. Int. J. Emerg. Trends Eng. Res. 2020, 8, 6334–6341. [Google Scholar] [CrossRef]
  21. Iwendi, C.; Khan, S.; Anajemba, J.H.; Bashir, A.K.; Noor, F. Realizing an Efficient IoMT-Assisted Patient Diet Recommendation System Through Machine Learning Model. IEEE Access 2020, 8, 28462–28474. [Google Scholar] [CrossRef]
  22. Mustaqeema, A.; Muhammad, S.; Majidb, M. A modular cluster based collaborative recommender system for cardiac patients. Artif. Intell. Med. 2020, 102, 101761. [Google Scholar] [CrossRef]
  23. Miranda, R.; Ferreira, D.; Abelha, A.; Machado, J. Intelligent Nutrition in Healthcare and Continuous Care. In Proceedings of the 2019 International Conference in Engineering Applications (ICEA), Sao Miguel, Portugal, 8–11 July 2019; pp. 1–6. Available online: https://ieeexplore.ieee.org/abstract/document/8883496 (accessed on 16 September 2020).
  24. Sookrah, R.; Dhowtal, J.D.; Nagowah, S.D. A DASH Diet Recommendation System for Hypertensive Patients Using Machine Learning. In Proceedings of the 2019 7th International Conference on Information and Communication Technology (ICoICT), Kuala Lumpur, Malaysia, 24–26 July 2019; pp. 1–6. Available online: https://ieeexplore.ieee.org/abstract/document/8835323 (accessed on 16 September 2020).
  25. Premasundari, M.; Yamini, C. Food and Therapy Recommendation System for Autistic Syndrome using Machine Learning Techniques. In Proceedings of the 2019 IEEE International Conference on Electrical, Computer and Communication Technologies (ICECCT), Coimbatore, India, 20–22 February 2019; pp. 1–6. Available online: https://ieeexplore.ieee.org/document/8868979 (accessed on 20 September 2020).
  26. Khan, A.; Deshpande, S.; Tripathy, A.K. Optimizing Nutrition using Machine Learning Algorithms-a Comparative Analysis. In Proceedings of the 2019 International Conference on Nascent Technologies in Engineering (ICNTE), Navi Mumbai, India, 4–5 January 2019; pp. 1–4. Available online: https://ieeexplore.ieee.org/document/8946091 (accessed on 21 September 2020).
  27. Banerjee, A.; Noor, A.; Siddiqua, N.; Uddin, M.N. Food Recommendation using Machine Learning for Chronic Kidney Disease Patients. In Proceedings of the 2019 International Conference on Computer Communication and Informatics (ICCCI), Coimbatore, India, 23–25 January 2019; pp. 1–5. Available online: https://ieeexplore.ieee.org/abstract/document/8821871 (accessed on 21 September 2020).
  28. Mitchell, E.G.; Heitkemper, E.M.; Burgermaster, M.; Levine, M.E.; Miao, Y.; Hwang, M.L.; Desai, P.M.; Cassells, A.; Tobin, J.N.; Tabak, E.G.; et al. From Reflection to Action: Combining Machine Learning with Expert Knowledge for Nutrition Goal Recommendations. In CHI '21: Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems, Yokohama, Japan, 8–13 May 2021; Association for Computing Machinery: New York, NY, USA, 2021; pp. 1–17. Available online: https://dl.acm.org/doi/10.1145/3411764.3445555 (accessed on 21 September 2020).
  29. Muhammad, H.; Khan, H.; Asif, T.; Hashmi, S.; Rafi, M. Towards a transfer learning approach to food recommendations through food images. In ICMLSC 2019: Proceedings of the 3rd International Conference on Machine Learning and Soft Computing; Association for Computing Machinery: New York, NY, USA, 2019; pp. 99–105. Available online: https://dl.acm.org/doi/10.1145/3310986.3310990 (accessed on 21 September 2020).
  30. Yang, L.; Hsieh, C.; Yang, H.; Pollak, J.P.; Dell, N.; Belongie, S.; Cole, C.; Estrin, D. Yum-Me: A Personalized Nutrient-Based Meal Recommender System. ACM Trans. Inf. Syst. 2017, 36, 1–31. Available online: https://dl.acm.org/doi/10.1145/3072614 (accessed on 21 September 2020). [CrossRef]
  31. Hezarjaribi, N.; Mazrouee, S.; Hemati, S.; Chaytor, N.S.; Perrigue, M.; Ghasemzadeh, H. Human-in-the-loop Learning for Personalized Diet Monitoring from Unstructured Mobile Data. ACM Trans. Inf. Syst. 2019, 9, 1–24. [Google Scholar] [CrossRef]
  32. Cetin, M.; Ayvaz, S. A Negative Similarity Based Hybrid Recommender System Using Apache Spark. In Proceedings of the 2019 3rd International Conference on Advances in Artificial Intelligence, Istanbul, Turkey, 26–28 October 2019; Available online: https://dl.acm.org/doi/abs/10.1145/3369114.3369152 (accessed on 21 September 2020).
  33. Hansen, C.; Hansen, C.; Simonsen, J.; Alstrup, S.; Lioma, C. Content-aware Neural Hashing for Cold-start Recommendation. In Proceedings of the 43rd International ACM SIGIR Conference on Research and Development in Information Retrieval; Association for Computing Machinery: New York, NY, USA, 2020; Available online: https://dl.acm.org/doi/abs/10.1145/3397271.3401060 (accessed on 21 September 2020).
  34. Musa, J.; Zhihong, X. Item Based Collaborative Filtering Approach in Movie Recommendation System Using Different Similarity Measures. In Proceedings of the 2020 6th International Conference on Computer and Technology Applications, Antalya, Turkey, 14–16 April 2020; Available online: https://dl.acm.org/doi/abs/10.1145/3397125.3397148 (accessed on 21 September 2020).
  35. Shambour, Q.Y.; Hussein, A.H.; Kharma, Q.M.; Abualhaj, M.M. Effective Hybrid Content-Based Collaborative Filtering Approach for Requirements Engineering. Comput. Syst. Sci. Eng. 2021, 40, 113–125. [Google Scholar] [CrossRef]
  36. Afoudi, Y.; Lazaar, M.; al Achhab, M. Hybrid recommendation system combined content-based filtering and collaborative prediction using artificial neural network. Simul. Model. Pract. Theory 2021, 113, 102375. [Google Scholar] [CrossRef]
  37. Sanwal, M.; Çalişkan, C. A Hybrid Movie Recommender System and Rating Prediction Model. Int. J. Inf. Technol. Appl. Sci. (IJITAS) 2021, 3, 161–168. [Google Scholar] [CrossRef]
  38. Najmani, K.; el habib, B.; Sael, N.; Zellou, A. A Comparative Study on Recommender Systems Approaches. In Proceedings of the 4th International Conference on Big Data and Internet of Things, Rabat, Morocco, 23–24 October 2019; Available online: https://dl.acm.org/doi/abs/10.1145/3372938.3372941 (accessed on 21 September 2020).
  39. Gunawardana, A.; Meek, C. A unified approach to building hybrid recommender systems. In Proceedings of the third ACM Conference on Recommender systems—RecSys '09, New York, NY, USA, 23–25 October 2009; Available online: https://dl.acm.org/doi/abs/10.1145/1639714.1639735 (accessed on 21 September 2020).
  40. Bianchi, M.; Cesaro, F.; Ciceri, F.; Dagrada, M.; Gasparin, A.; Grattarola, D.; Inajiar, I.; Metelli, A.M.; Cella, L. Content-Based approaches for Cold-Start Job Recommendations. In Proceedings of the Recommender Systems Challenge 2017 on ZZZ—RecSys Challenge '17, Como, Italy, 27 August 2017; Available online: https://dl.acm.org/doi/abs/10.1145/3124791.3124793 (accessed on 21 September 2020).
  41. Ronen, R.; Koenigstein, N.; Ziklik, E.; Nice, N. Selecting content-based features for collaborative filtering recommenders. In Proceedings of the 7th ACM Conference on Recommender systems, Hong Kong, China, 12–16 October 2017; Available online: https://dl.acm.org/doi/abs/10.1145/2507157.2507203 (accessed on 21 September 2020).
  42. Jordán, J.; Valero, S.; Turró, C.; Botti, V. Using a Hybrid Recommending System for Learning Videos in Flipped Classrooms and MOOCs. Electronics 2021, 10, 1226. [Google Scholar] [CrossRef]
  43. Nair, A.M.; Preethi, N. A Pragmatic Study on Movie Recommender Systems Using Hybrid Collaborative Filtering. IoT Anal. Sens. Netw. 2021, 244, 489–494. [Google Scholar] [CrossRef]
  44. Khan, M.; Smyth, B.; Coyle, D. Addressing the complexity of personalized, context-aware and health-aware food recommendations: An ensemble topic modelling based approach. J. Intell. Inf. Syst. 2021, 57, 229–269. [Google Scholar] [CrossRef]
  45. Fan, H.; Wu, K.; Parvin, H.; Beigi, A.; Pho, K. A Hybrid Recommender System Using KNN and Clustering. Int. J. Inf. Technol. Decis. Mak. 2021, 20, 553–596. [Google Scholar] [CrossRef]
  46. Zhu, Y.; Lin, J.; He, S.; Wang, B.; Guan, Z.; Liu, H.; Cai, D. Addressing the Item Cold-Start Problem by Attribute-Driven Active Learning. IEEE Trans. Knowl. Data Eng. 2020, 32, 631–644. [Google Scholar] [CrossRef][Green Version]
  47. Bozanta, A.; Kutlu, B. HybRecSys: Content-based contextual hybrid venue recommender system. J. Inf. Sci. 2018, 45, 212–226. [Google Scholar] [CrossRef]
  48. Schoeller, D. Limitations in the assessment of dietary energy intake by self-report. Metabolism 1995, 44, 18–22. [Google Scholar] [CrossRef]
  49. Gardner, C.; Trepanowski, J.F.; Del Gobbo, L.C.; Hauser, M.E.; Rigdon, J.; Ioannidis, J.P.A.; Desai, M.; King, A.C. Effect of Low-Fat vs Low-Carbohydrate Diet on 12-Month Weight Loss in Overweight Adults and the Association with Genotype Pattern or Insulin Secretion. JAMA 2018, 319, 667. [Google Scholar] [CrossRef]
  50. Hall, K.; Guo, J. Obesity Energetics: Body Weight Regulation and the Effects of Diet Composition. Gastroenterology 2017, 152, 1718–1727.e3. [Google Scholar] [CrossRef][Green Version]
  51. Ghelani, D.; Moran, L.; Johnson, C.; Mousa, A.; Naderpoor, N. Mobile Apps for Weight Management: A Review of the Latest Evidence to Inform Practice. Front. Endocrinol. 2020, 11. [Google Scholar] [CrossRef]
  52. Linardon, J.; Messer, M. My fitness pal usage in men: Associations with eating disorder symptoms and psychosocial impairment. Eat. Behav. 2019, 33, 13–17. [Google Scholar] [CrossRef]
  53. James, P.; Ali, Z.; Armitage, A.; Bonell, A.; Cerami, C.; Drakesmith, H. The Role of Nutrition in COVID-19 Susceptibility and Severity of Disease: A Systematic Review. J. Nutr. 2021, 151, 1854–1878. [Google Scholar] [CrossRef]
  54. Aman, F.; Masood, S. How Nutrition can help to fight against COVID-19 Pandemic. Pak. J. Med Sci. 2020, 36(COVID19-S4), S121–S123. [Google Scholar] [CrossRef]

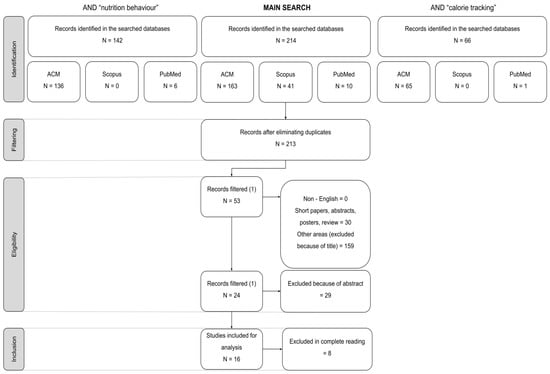

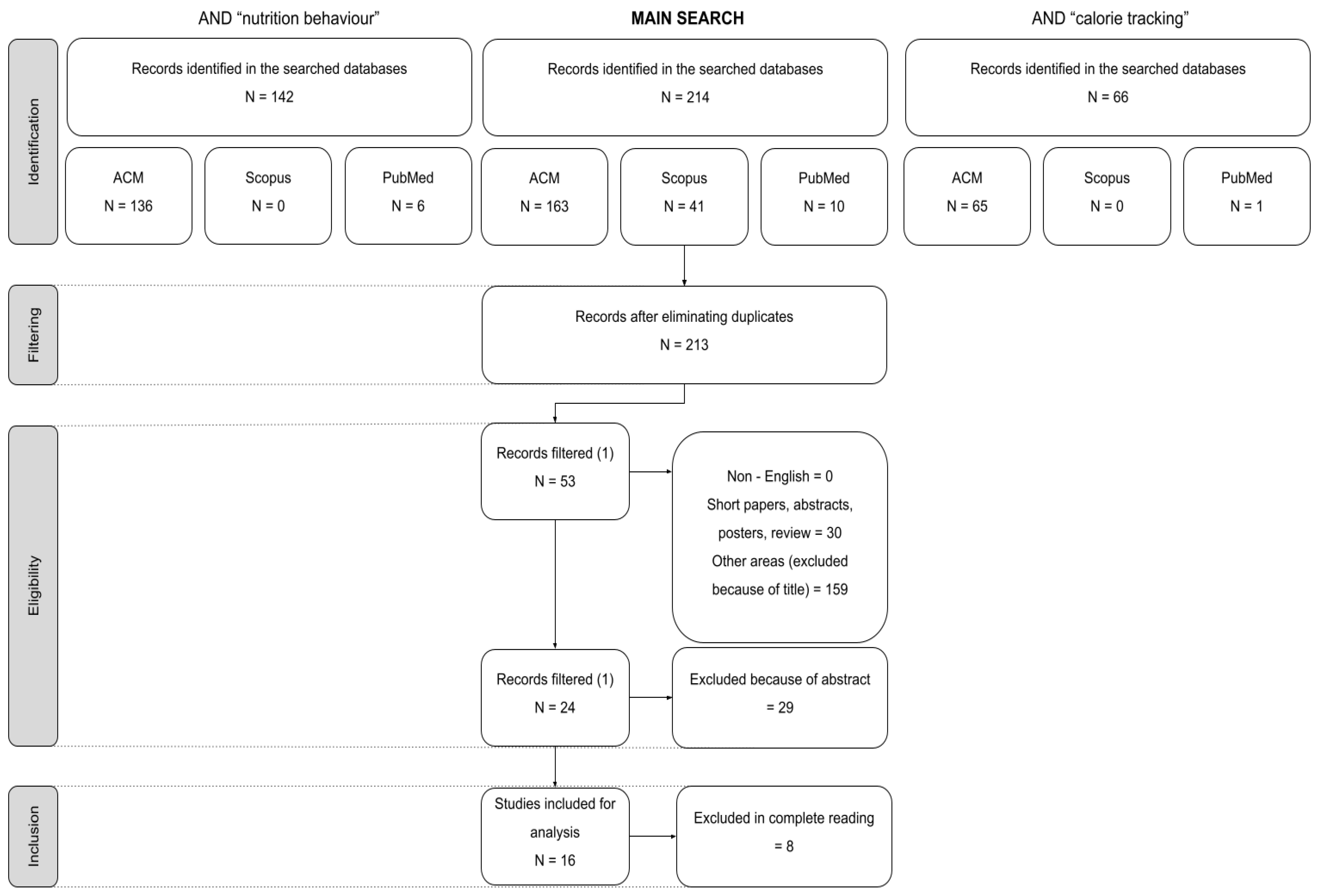

Figure 1. Systematic review flow chart.
Figure 1. Systematic review flow chart.
Applsci 11 12069 g001

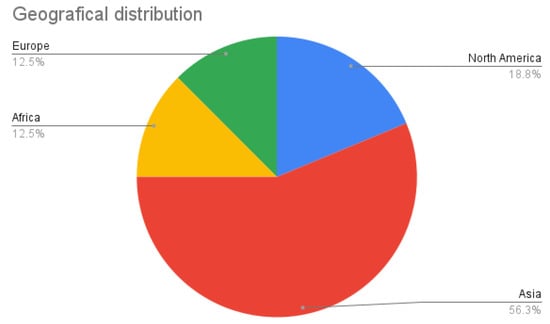

Figure 2. Geographical distribution.
Figure 2. Geographical distribution.
Applsci 11 12069 g002

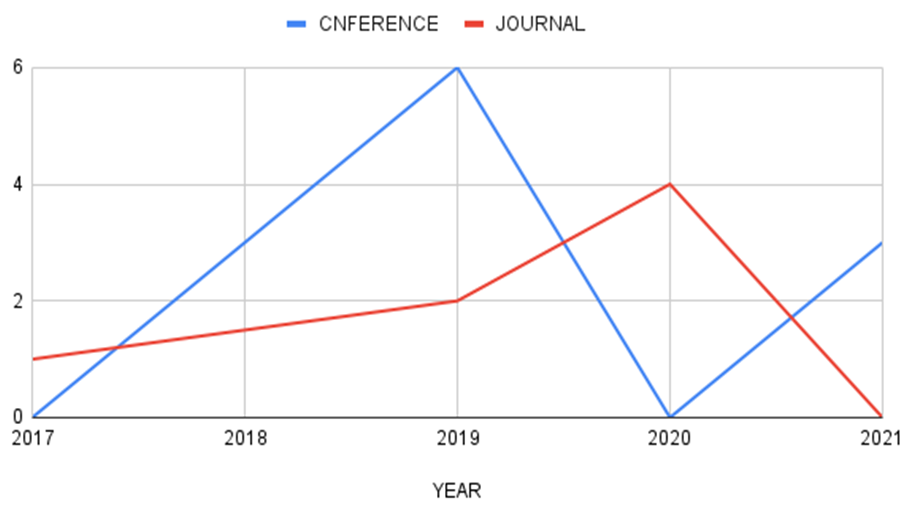

Figure 3. Journals per year.
Figure 3. Journals per year.
Applsci 11 12069 g003
Table 1. Research questions.
Table 1. Research questions.
QuestionPurpose
Q1At what areas of the nutrition are used the RS?To learn about those areas in which have been implemented recommendation systems.
Q2Do they make different kinds of nutritional recommendations?To determine the recommendations that offer the different platforms.
Q3What methods/equations do you use to estimate the daily caloric needs of users?To determine if the caloric needs are agreed.
Q4What type of RS are used in nutrition?To determine the types of RS that are used.
Table 2. Database search.
Table 2. Database search.
SourceSearch ChainRecords
ACM[All: nutrition] AND [Keywords: machine learning] AND [All: recommendation system] AND [Publication Date: (1 July 2016 TO 31 July 2021)]163
ScopusALL (“nutrition” AND “recommendation system”) AND KEY (“machine learning”) AND (LIMIT-TO (PUBYEAR, 2021) OR LIMIT-TO (PUBYEAR, 2020) OR LIMIT-TO (PUBYEAR, 2019 ) OR LIMIT-TO (PUBYEAR, 2018) OR LIMIT-TO (PUBYEAR, 2017) OR LIMIT-TO (PUBYEAR, 2016))41
PubMed(((nutrition) AND (recommendation system) AND (1 July 2016:31 July 2021[pdat])) AND (machine learning[Text Word])10
Table 3. Database search AND “nutrition behaviour”.
Table 3. Database search AND “nutrition behaviour”.
SourceSearch ChainRecords
ACM[All: nutrition] AND [Keywords: machine learning] AND [All: recommendation system] AND [All: nutrition behaviour] AND [Publication Date: (1 July 2016 TO 31 July 2021)]136
ScopusALL (“nutrition” AND “recommendation system” AND “nutrition behaviour”) AND KEY (“machine learning”) AND (LIMIT-TO (PUBYEAR, 2021) OR LIMIT-TO (PUBYEAR, 2020) OR LIMIT-TO (PUBYEAR, 2019) OR LIMIT-TO (PUBYEAR, 2018) OR LIMIT-TO (PUBYEAR, 2017) OR LIMIT-TO (PUBYEAR, 2016))0
PubMed(((nutrition) AND (recommendation system) AND (nutrition behaviour) AND (1 July 2016:31 July 2021[pdat])) AND (machine learning[Text Word])6
Table 4. Database search AND “calorie tracking”.
Table 4. Database search AND “calorie tracking”.
SourceSearch ChainRecords
ACM[All: nutrition] AND [Keywords: machine learning] AND [All: recommendation system] AND [All: nutrition behaviour] AND [Publication Date: (1 July 2016 TO 31 July 2021)]65
ScopusALL (“nutrition” AND “recommendation system” AND “nutrition behaviour”) AND KEY (“machine learning”) AND (LIMIT-TO (PUBYEAR, 2021) OR LIMIT-TO (PUBYEAR, 2020) OR LIMIT-TO (PUBYEAR, 2019) OR LIMIT-TO (PUBYEAR, 2018) OR LIMIT-TO (PUBYEAR, 2017) OR LIMIT-TO (PUBYEAR, 2016))0
PubMed(((nutrition) AND (recommendation system) AND (nutrition behaviour) AND (1 July 2016:31 July 2021[pdat])) AND (machine learning[Text Word])1
Table 5. Inclusion and exclusion criteria.
Table 5. Inclusion and exclusion criteria.
Criteria
InclusionExclusion
Complete documentsPublications in languages other than English
Publications in journals or congressesPublications such as: letters to the editor, reviews, etc.
Title and abstract with words used in the searchPublications in areas other than nutrition
Unavailable publications
Table 6. Quality measure metrics.
Table 6. Quality measure metrics.
MetricsValueWeight
About the text of the article itselfM1: The abstract provides information and a balanced summary of what was carried out and what was found0/11
M2: Give the eligibility criteria and the sources and methods of selection of participants0/11
M3: Provides system architecture and details of components0/11
M4: Provides details on the validation of the system0/11
M5: Provides results according to objectives, constraints, and analysis0/11
M6: Provides an accurate and unbiased discussion0/11
M7: References0/11.5
Other quality metricsM8: Publication type (Conference/Journal)0/11
M9: Available data0/11
M10: Provides images and diagrams of the developed work0/11.5
Table 7. Selected articles.
Table 7. Selected articles.
Ref.YearCountryType of NutritionType of UserRecommendation ElementDevelopmental ApproachType of Platform
Design and Development of Diabetes Management System Using Machine Learning [16]2020GhanaNutrition for diabetes sufferersDiabetes sufferersDietCollaborativeOnline
Hybrid clustering-based health decision-making for improving dietary habits [17]2019KoreaNormalEverybodyDietCollaborativeOnline/Offline
Lifestyle Classification for Recommendation of Excessive Sugar Consumption in Thai Teenagers [18]2021ThailandExcessive sugar consumptionTeenagersDaily Sugar ConsumptionDecision TreeN/O
E-Health Monitoring System with Diet and Fitness Recommendation using Machine Learning [19]2021IndiaUSDA Food CompositionPatients of Diabetes, Blood Pressure or ThyroidDiet and ExerciseCollaborativeOnline
Enhanced predictive learning approaches for tweaked diet proposal system in health care [20]2020IndiaDepending on the objectivePatients of illnesses (Everybody)DietCollaborativeN/O
Realizing an Efficient IoMT-Assisted Patient Diet Recommendation System Through Machine Learning Model [21]2020EnglandNormal (Healthy)EverybodyDietKnowledge-basedN/O
A modular cluster-based collaborative recommender system for cardiac patients [22]2018PakistanNormal (Healthy)Cardiac patientsHealthy habitsCollaborativeN/O
Intelligent Nutrition in Healthcare and Continuous Care [23]2019PortugalNormal (Healthy)EverybodyDietKnowledge-basedN/O
A DASH Diet Recommendation System for Hypertensive Patients Using Machine Learning [24]2019MauritiusNormal (Healthy)Hypertensive patientsDietContent-basedOnline
Food and Therapy Recommendation System for Autistic Syndrome using Machine Learning Techniques [25]2019IndiaNormal (Healthy)Children suffering from autismFood and TherapyCollaborativeN/O
Optimizing Nutrition using Machine Learning Algorithms-a Comparative Analysis [26]2019IndiaNormal (Healthy)EverybodyDietKnowledge-basedOnline
Food Recommendation using Machine Learning for Chronic Kidney Disease Patients [27]2019BangladeshNormal (Healthy)Chronic kidney disease patientsDietCollaborativeN/O
From Reflection to Action: Combining Machine Learning with Expert Knowledge for Nutrition Goal Recommendations [28]2021United StatesNormal (Healthy)Diabetes type 2 patientsDietN/ON/O
Towards a transfer learning approach to food recommendations through food images [29]2019PakistanNormal (Healthy)EverybodyFoodContent-basedN/O
Yum-Me: A Personalized Nutrient-Based Meal Recommender System [30]2017United StatesNormal (Healthy)EverybodyDietHybridN/O
Human-in-the-loop Learning for Personalized Diet Monitoring from Unstructured Mobile Data [31]2019United StatesNormal (Healthy)Everybody, prevention of many chronic diseases.DietContent-basedN/O
Table 8. Different recommendation system used in the article.
Table 8. Different recommendation system used in the article.
Developmental ApproachNumber of Articles% of Articles
Collaborative743.75%
Content—Based318.75%
Knowledge—Based318.75%
Decision Tree16.25%
Hybrid16.25%
N/O16.25%
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Orue-Saiz, I.; Kazarez, M.; Mendez-Zorrilla, A. Systematic Review of Nutritional Recommendation Systems. Appl. Sci. 2021, 11, 12069. https://doi.org/10.3390/app112412069

AMA Style

Orue-Saiz I, Kazarez M, Mendez-Zorrilla A. Systematic Review of Nutritional Recommendation Systems. Applied Sciences. 2021; 11(24):12069. https://doi.org/10.3390/app112412069

Chicago/Turabian Style

Orue-Saiz, Iñigo, Miguel Kazarez, and Amaia Mendez-Zorrilla. 2021. "Systematic Review of Nutritional Recommendation Systems" Applied Sciences 11, no. 24: 12069. https://doi.org/10.3390/app112412069

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
