Characteristics of Photon Beam and Preservation of Coherence in Fourth-Generation Light Sources

Abstract

Fourth-generation storage rings (4GSRs) that exploit the multi-bend achromat lattice concept may be able to surpass the brightness and coherence that are attained using the present third-generation storage rings. This paper presents the characteristics of photon beams and an analysis of their coherence properties in Korea-4GSR to represent 4GSRs.

1. Introduction

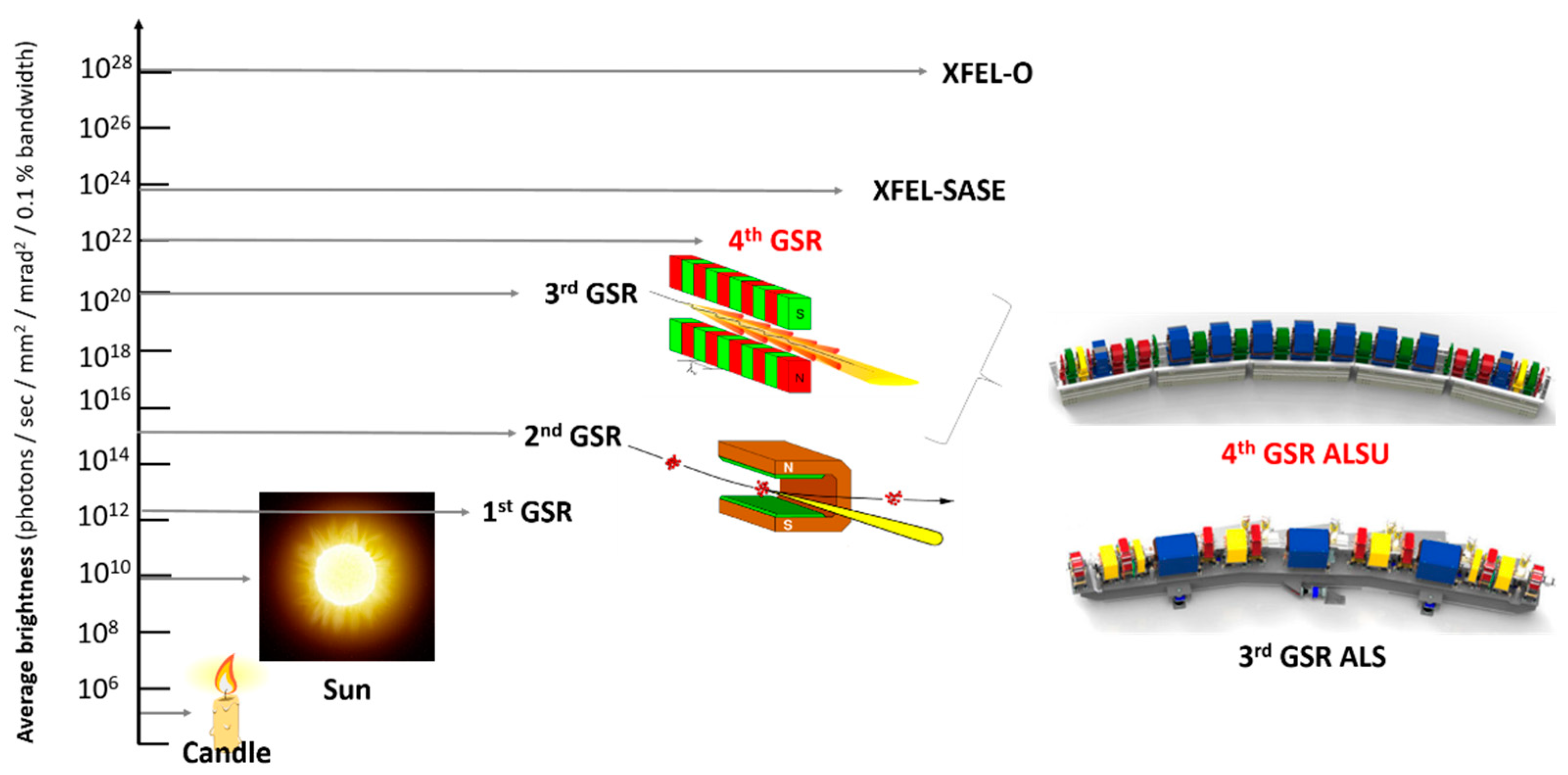

The synchrotron radiation (SR) from storage rings has a wide range of applications, including surface science [1], magnetic materials [2], materials chemistry [3], environmental sciences [4], protein crystallography [5], bio-microscopy [6], and chemical dynamics [7]. The SR from storage rings has many notable characteristics including high brilliance and flux, wavelength tunability, beam size tunability, (partially) coherent radiation, polarization, and time structure. In addition, the SR is very stable in energy, intensity, position, and size. The brightness of SR from storage rings has been increased by more than seven orders of magnitude from first-generation to third-generation storage rings (3GSRs; Figure 1). To increase brightness, operation electron beam current has been increased to 400 mA or higher, and the undulator has been successfully operated to realize a dramatic increase in brightness. At the same time, efforts have been made to increase brightness by reducing electron-beam emittance.

The natural emittance in an electron storage ring is given by

$${\epsilon }_0=C_q{\gamma }^2\frac{\langle H/\left|{\rho }^3\right|\rangle }{j_x\langle 1/{\rho }^2\rangle },$$

(1)

where $C_q\cong 3.832\times {10}^{-13}$ m, $\gamma$ is the relativistic factor for a particle, $H\cong 1/{\rho }^2$ (where $\rho$ is the unit-cell bending angle) and $j_x$ is the horizontal damping partition number [8,9,10]. The natural emittance scales with 1/$\rho$³, so the multi-bend achromat lattice concept [11] enables an emittance reduction by one to two orders of magnitude compared with 3GSRs.

The Heisenberg uncertainty principle ($\Delta \mathrm{x}\Delta p_x\ge \hslash /2$) sets a lower limit for the emittance of radiation. In storage rings, the altered relation for SR is given by

$$\Delta \mathrm{x}\Delta \mathrm{x}\text{’}\ge \mathsf{\lambda }/4$$

(2)

where $\mathsf{\Delta }\mathrm{x}$, $\mathsf{\Delta }\mathrm{x}’$ and $\mathsf{\lambda }$ are the position, divergence and wavelength of SR, respectively. If both the horizontal and vertical emittance of the beam are less than $\mathsf{\lambda }/\left(4\mathsf{\pi }\right)$, then the emitted radiation is fully coherent and the source is diffraction-limited. Here, coherence describes all properties of the correlation between physical quantities of a single wave, or between several waves or wave packets. In a storage ring, coherence is an important parameter in some experiments, such as photon correlation spectroscopy, X-ray holography, and imaging.

Storage rings that exploit the multi-bend achromat (MBA) lattice concept are emerging as part of a worldwide push to move beyond the brightness and coherence reached by present 3GSRs. The first MBA machine was MAX-IV, which began user operations in 2017. SIRIUS [12] and ESRF-EBS [13] are also currently in operation, and several new projects worldwide are exploiting these new concepts, either targeting new light sources such as HEPS, or replacing existing sources; upgrades of APS [14], ALS-U [15], SLS and PETRA-IV are already in progress, and those of DIAMOND, ELETTRA, SOLEIL and others are in a planning phase. The upgraded lattice designs for these facilities have reduced the beam emittance to a few hundred picometers, or even $\le$100 pm. Therefore, 4GSRs can produce coherent beams up to 1 keV X-ray and higher-coherent-fraction X-ray beams > 1 keV. In this paper, we address this new era of SR, introduce the parameter of Korea-4GSR to represent 4GSR, and describe the coherent characteristics of SR from 4GSRs.

2. Worldwide 4GSRs

The MAX-IV 3-GeV electron storage ring was the first new generation light source that used an MBA lattice [11] to reduce emittance, and hence increase brightness and transverse coherence. Brilliance and coherent fraction are the major performance parameters for 4GSR. Brilliance is defined as the ratio of the photon spectral flux to the phase space volume formed by convolution of the electron and photon beam:

$$\mathrm{Brilliance}=\frac{flux}{4{\pi }^2{\mathsf{\Sigma }}_x{\mathsf{\Sigma }}_{x’}{\mathsf{\Sigma }}_y{\mathsf{\Sigma }}_{y’}}$$

(3)

where the convoluted size is

$${\mathsf{\Sigma }}_x=\sqrt{{\sigma }_{x,e}^2+{\sigma }_{ph}^2} ,$$

(4)

and the divergence is

$${\mathsf{\Sigma }}_{x\prime }=\sqrt{{\sigma }_{x\prime ,e}^2+\sigma {\prime }_{ph}^2}$$

(5)

where ${\sigma }_{x,e}$ is electron-beam size, ${\sigma }_{ph}$ is photon-beam size from a single electron, ${\sigma }_{x^{\prime },e}$ is electron-beam divergence, and ${\sigma }_{ph}^{’}$ is photon-beam divergence from a single electron. The coherent fraction is represented as the ratio of the photon wavelength to the volume, which is a convolution of the electron and the photon beam in phase space:

$$F=\frac{{\lambda }^2/{\left(4\pi \right)}^2}{{\mathsf{\Sigma }}_x{\mathsf{\Sigma }}_{x’}{\mathsf{\Sigma }}_y{\mathsf{\Sigma }}_{y’}}$$

(6)

where $\lambda$ is the photon wavelength.

Therefore, the brilliance and coherent fraction are maximized by decreasing the electron-beam emittances until the diffraction limit is reached. Typically, an electron emittance of ~10 pm can reach the diffraction limit at ~1 Å (12.4 keV).

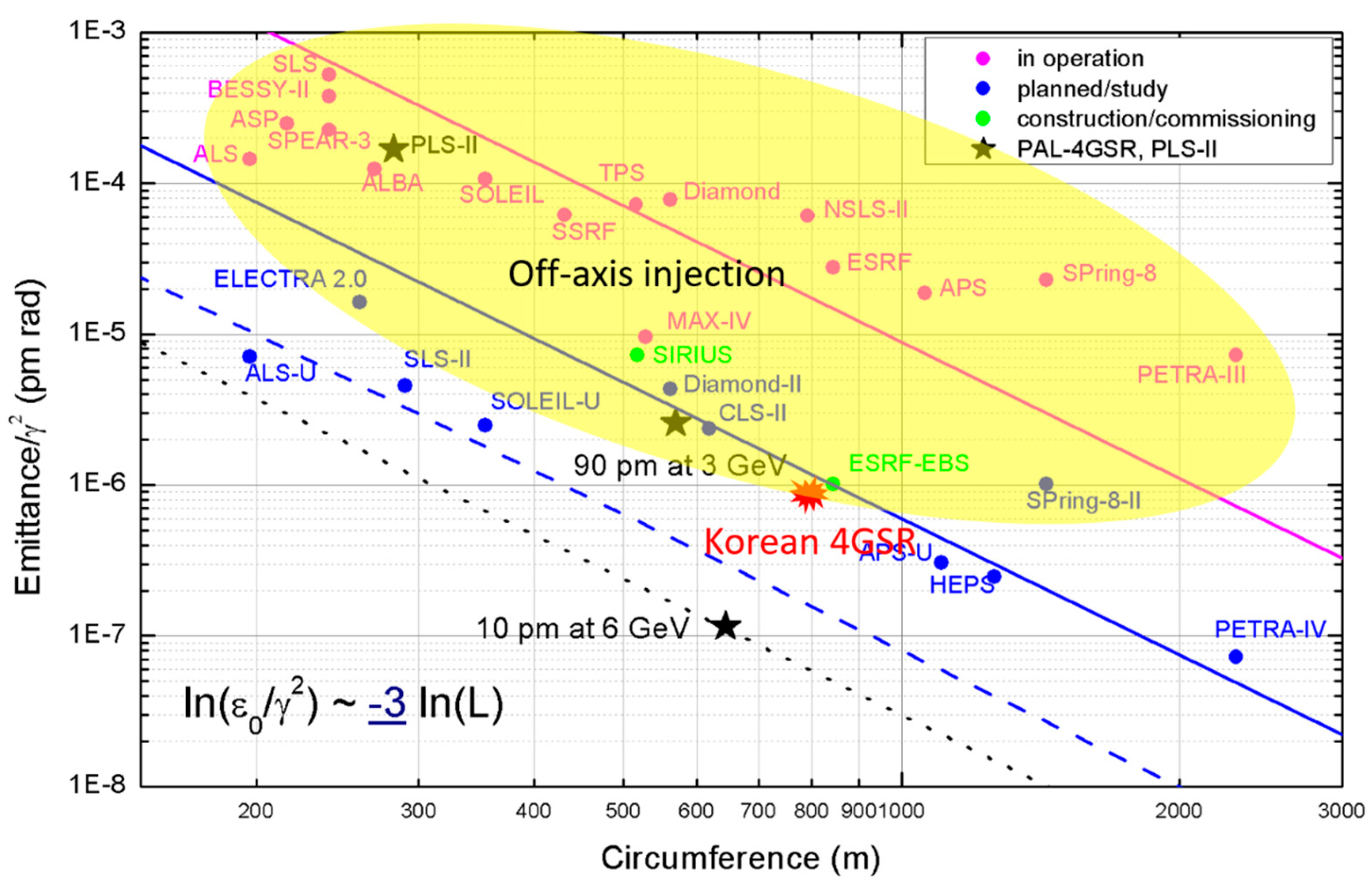

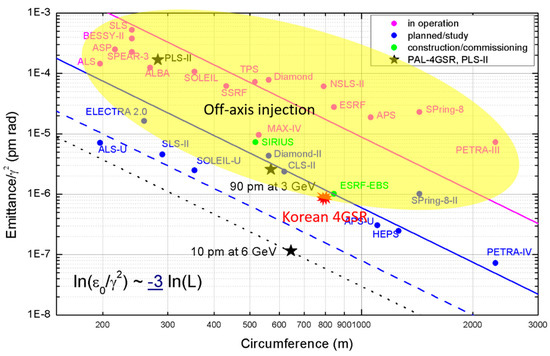

Emittance distributions of various storage rings including 4GSRs, tend to decrease as ring circumference increases (Figure 2). The distribution of 3GSR natural emittances indicates that they decrease in inverse proportion to the cube of circumference. By implementing the MBA lattice concept and compact technology, the Korean 4GSR (red asterisk) obtains 100 times the emittance reduction (or even more) of 3GSRs. When an on-axis injection scheme, reverse bends and cutting-edge technology are taken into consideration, emittance is reduced by another 3~4 times. Ultra-low emittance rings such as HEPS (<60 pm), Korea-4GSR (58 pm), APS-U (42 pm) and PETRA IV (20 pm) provide high brightness and coherence up to high photon energies.

4GSR projects worldwide (

Table 1. Present ongoing 4GSR projects [16].

Project	Energy (GeV)	Emittance (pm)	Ener. Spr. (10−4)	Beta x/y (m) @ Source Point	Reverse Bends	ID Source Point Move
ALS-U	2.0	108	9.8	2.0/2.8	yes	No
ELETTRA 2	2.4	212	9.3	5.7/1.6	yes	No
SLS-II	2.7	157	12.0	2.5/1.3	yes	<70 mm
SOLEIL-U	2.75	81	9.0	1.3/1.3	yes	<100 mm
SIRIUS	3	250	8.5	1.5/1.5	no	n/a
Diamond-II	3.5	136	9.0	6.0/2.5	yes	No
APS-U	6	42	13.5	4.9/1.9	yes	No
ESRF-EBS	6	135	9.3	6.9/2.6	no	No
HEPS	6	<60 (35)	10	2.6/2.3	yes	n/a
PETRA-IV	6	20	11.2	4.0/2.0	TBD	yes

) choose energies ranging from 2 to 6 GeV. All have emittances <300 pm; the lowest is 20 pm, which is obtained by PETRA IV, as a consequence of its huge (2300 m) circumference. The recent trend of 4GSR design is to consider reverse bends. However, not all machines realize beta function optimization for phase-space matching between electron and photon beams. To facilitate beam injection, several machines have a large horizontal beta function at the injection point.

3. PLS-II and Korea-4GSR

This analysis uses parameters (

Table 2. Major parameters of the Korea-4GSR storage ring.

Parameter	PLS-II	Korea-4GSR	Unit
Beam energy	3	4	GeV
Beam current	400	400	mA
Lattice structure	DBA	Hybrid 7BA
Superperiods	12	28
Natural hor. emittance	5.8	0.058	nm rad
Betatron tune	15.28/9.18	67.44/23.17
RF frequency	500	500	MHz
rms energy spread	0.1	0.1	%
rms bunch length	20	13	ps

) of PLS-II [17] to represent 3GSRs, and of Korea-4GSR [18] to represent 4GSRs, to estimate the improvement in coherence in 4GSRs and compare the characteristics of photon beams of 3GSRs to those of 4GSRs. The machine characteristics of PLS-II and Korea-4GSR will be introduced in this section and the results of the investigation of the coherence and characteristics of photon beams will be described in the next section.

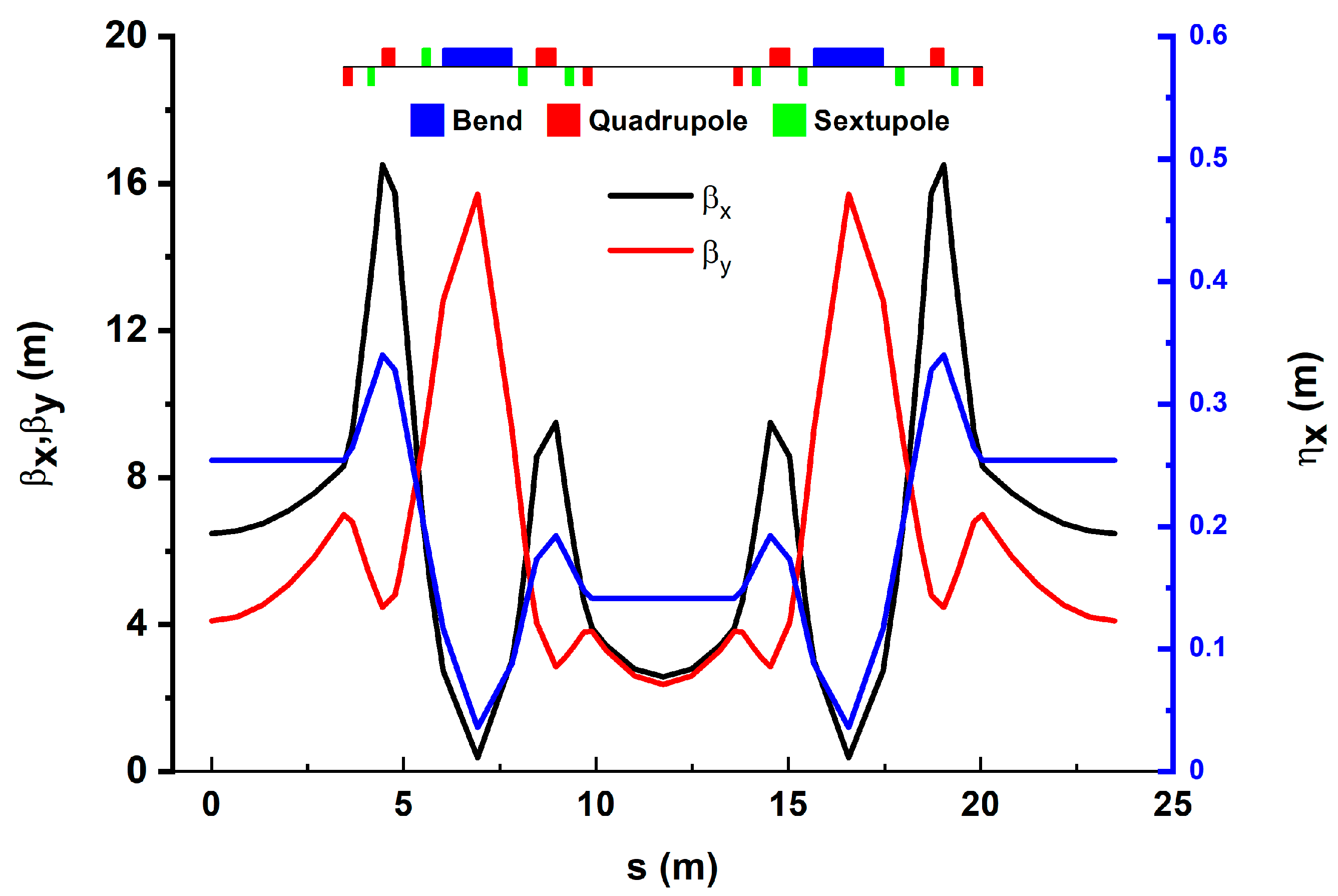

The PLS-II lattice has a gradient dipole double-bend achromat structure with 12 super-periods. Each of the 12 super-periods contains two gradient dipole magnets equipped with a FODO cell, which is a lattice period composed of a focusing (F) and a defocusing (D) quadrupole with a drift space (O) arrangement. The critical photon energy from bending magnets is 8.97 keV. The lattice provides a 6.88 m and a 3.69 m straight section per cell for installation of insertion devices. To reduce the beam emittance, a horizontal dispersion of 0.25 m is considered in the long straight section, in which RF cavities are installed. The lattice functions (Figure 3) for the PLS-II illustrate how a compact lattice can be realized to accommodate twenty insertion devices along the 280 m circumference.

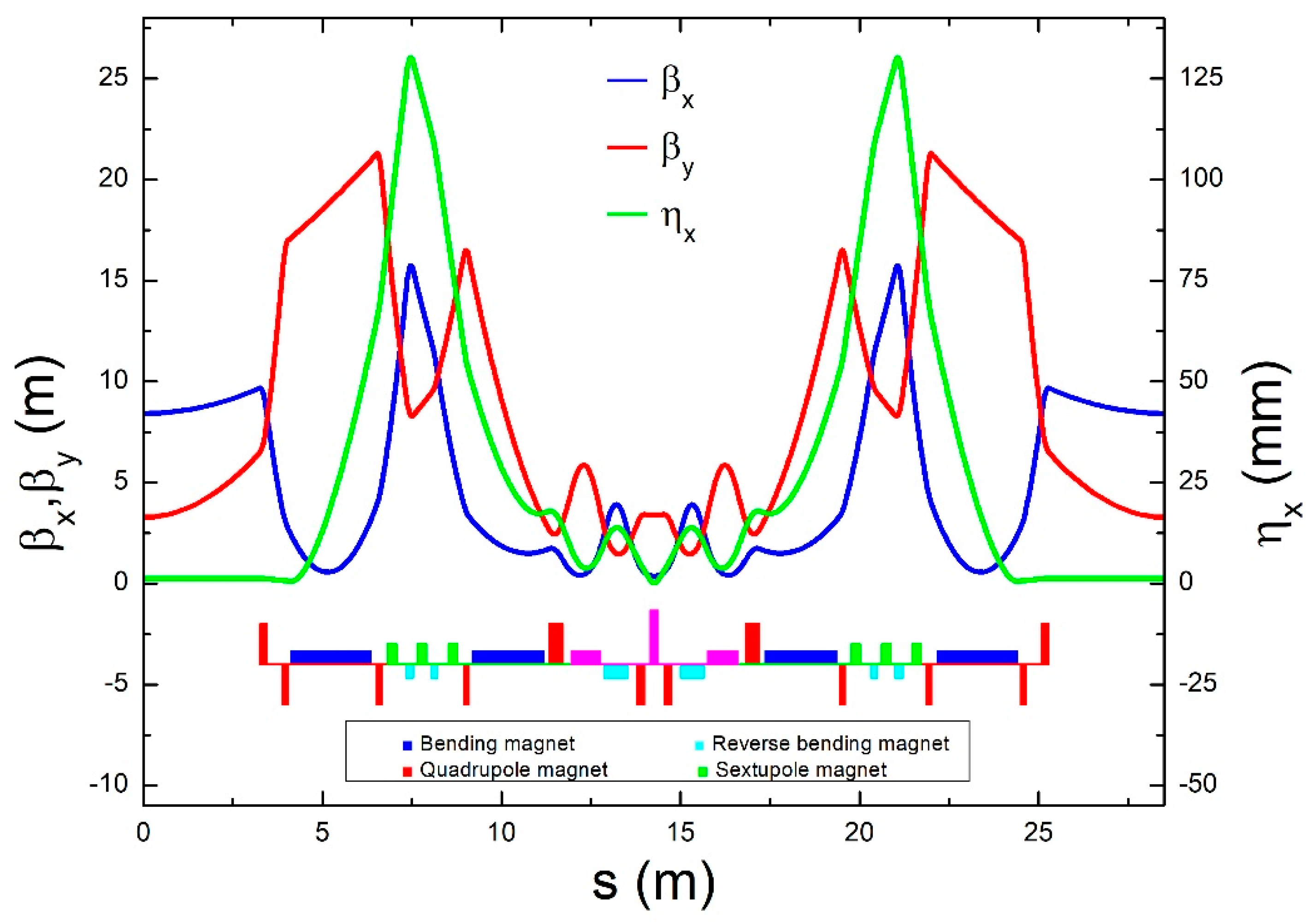

The Korea-4GSR lattice has a hybrid seven-bend achromat (H7BA) type with a 58 pm horizontal emittance. The ring with an 800 m circumference is composed of 28 symmetric cells. As a result of experience with the PLS-II, the length of the straight section in the Korea 4GSR is set to 6.5 m to accommodate two SCRF modules. The Korea-4GSR lattice has a 2-T high field central dipole to create radiation that has a critical energy of 21 keV. The Korea-4GSR uses ESRF-EBS and APS-U lattices. The dispersion was deliberately magnified between the first and second dipoles and between the sixth and seventh dipoles to make a dispersion bump. Chromatic sextupoles were located in this bump region to control the chromaticity with smaller strength. The betatron phase advances between the two dispersion bumps were adjusted to be ∆φ_x~3π in the horizontal plane and ∆φ_y~π in the vertical plane. Consequently, nonchromatic effects generated by the sextupoles are canceled out naturally. Five-step longitudinal gradient bends and reverse dipoles were introduced to further reduce natural emittance. Each super-period in the designed lattice for the Korea-4GSR is composed of a total of 28 cells (Figure 4).

The Korea-4GSR project has officially been started. The conceptual design project for Korea-4GSR is complete, and the overall project will be completed in 2027. It will have extremely low emittance (Figure 2) and a conventional off-axis injection scheme is being considered. Korea-4GSR has 1/100 the emittance of PLS-II as a result of using the multi-bend lattice concept (Table 2).

4. Characteristics of Photon Beams

The quality of SR can be evaluated by many variables, of which flux, brilliance, and transverse coherence are important. To compare three important characteristics of PLS-II and Korea-4GSR, three representative insertion devices, which have already been operated in PLS-II, are considered with two different bending magnets to evaluate photon beam characteristics (

Table 3. Major parameters of three representative insertion device in PLS-II.

Parameter	Wiggler	EPU	In-Vac. Undulator
Total length (m)	2.0	3.6	1.3
Peak field (T)	1.81	0.89	0.97
Peroid of ID (cm)	10	11.4	2

).

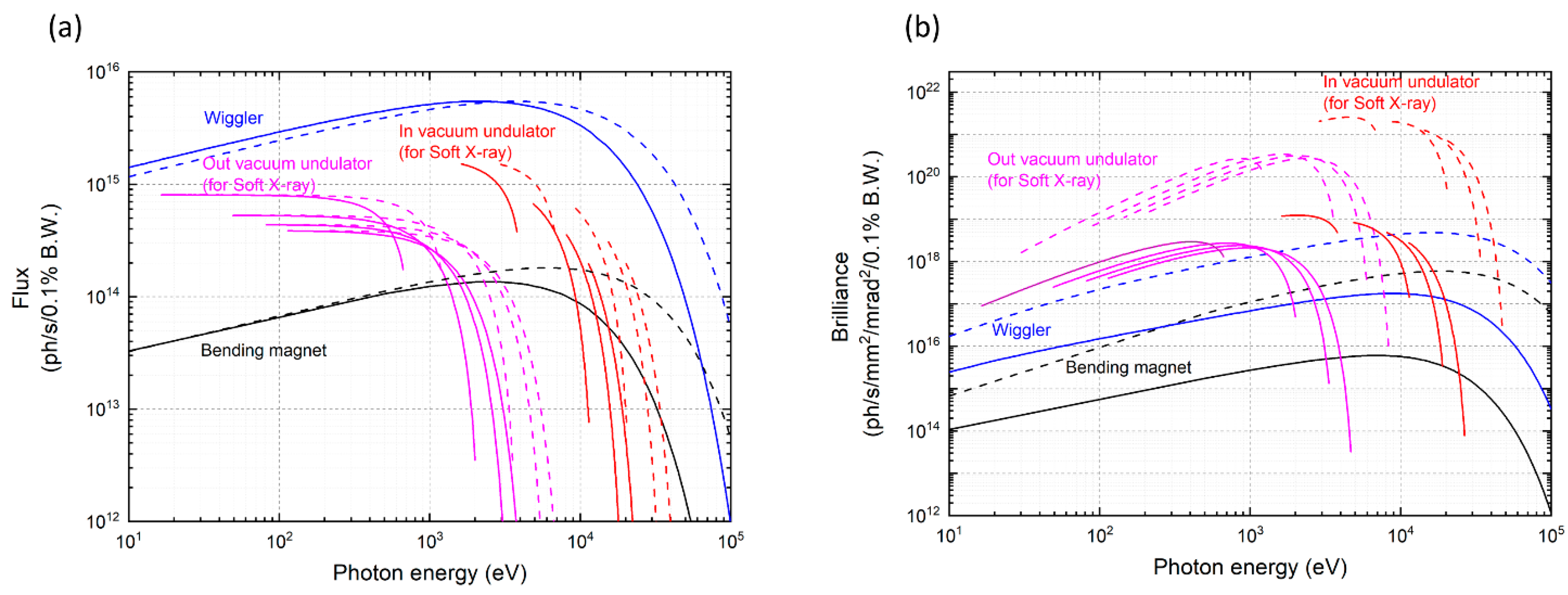

The total flux of a synchrotron light source is defined as the total number of photons emitted per unit of time at a given spectral bandwidth. Therefore, the total flux is independent of beam emittance and strongly depends on the current and energy of the electron beam. Compared to the PLS-II, the flux curve for Korea-4GSR is shifted to the right due to an electron beam energy increase (Figure 5a).

The brilliance is defined as the total number of photons emitted per unit of time, and per unit of area in the transverse direction at a given spectral bandwidth. In the case of bending magnets, the horizontal aperture was set to 5 mrad for PLS-II and Korea-4GSR. At 10 keV, Korea-4GSR is 100 times higher than PLS-II, because the emittance of the Korea-4GSR is reduced (Figure 5b).

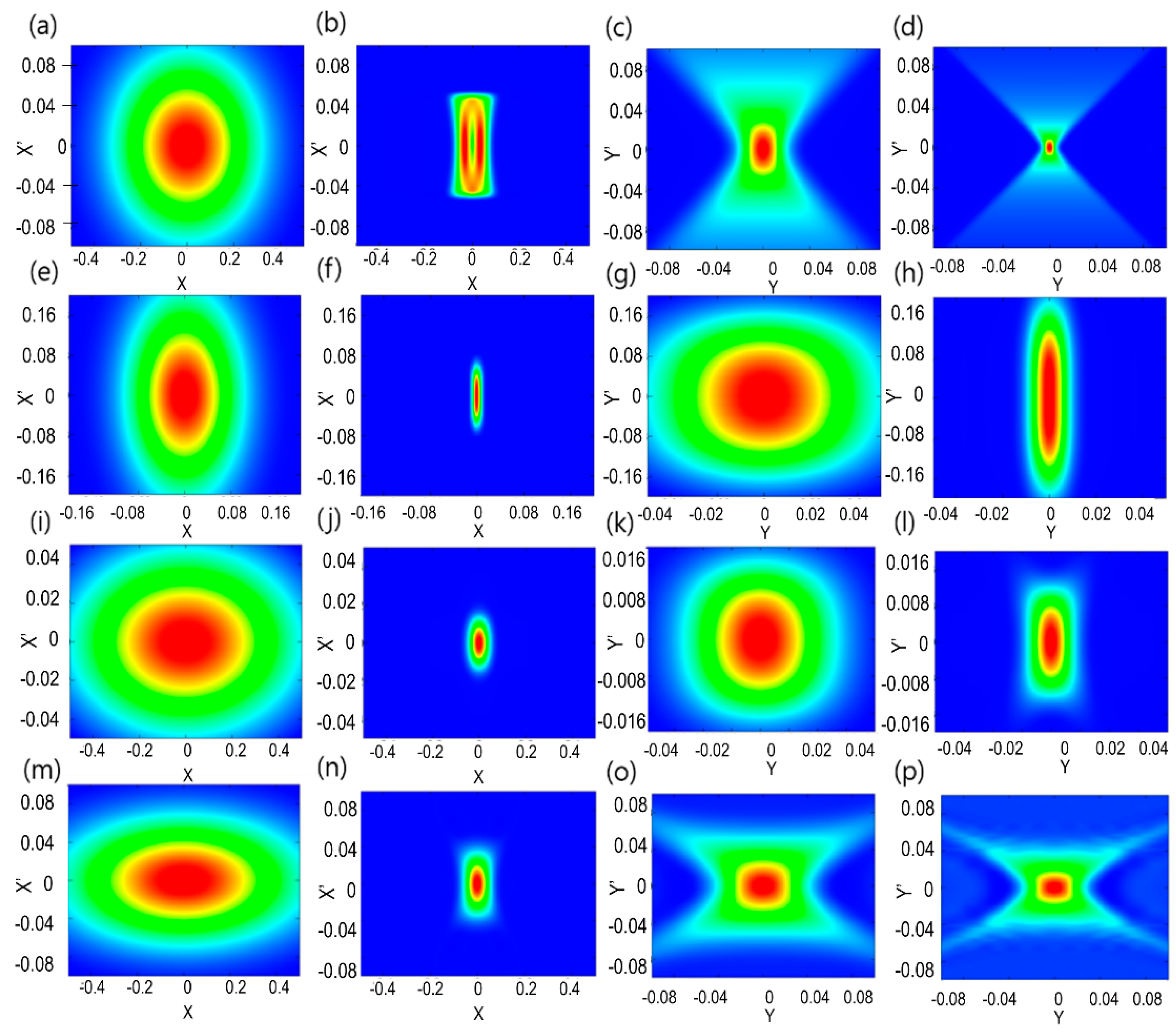

The photon-density distributions in phase space were obtained (Figure 6) for the bending magnet, wiggler, and out-vacuum undulator and in-vacuum undulator in PLS-II and Korea-4GSR. The increased density of distribution (i.e., improvement) of Korea-4GSR was particularly extreme in beam size and divergence in the horizontal plane. This improvement is a result of the smaller electron emittance and zero dispersion in straight sections in Korea-4GSR than in PLS-II. The wiggler radiation assumes a toroid shape in the phase-space photon beam density of Korea-4GSR, because wiggling motion is dominated by electron beam emittance reduction (Figure 6b). This specific shape in phase space should be included in the beamline design. In addition, the vertical photon-density distribution of the soft X-ray region of both PLS-II and Korea-4GSR represents a diffraction-limit pattern close to the SR pattern emitted from single electron (Figure 6o,p).

5. Preservation of Coherence

As emittance approaches the diffraction limit, the coherence of SR increases in the transverse dimension. To quantify the degree of coherence, the fraction of coherence, defined in Equation (6) was evaluated (Figure 7) to be about 100 times higher, on average, in Korea-4GSR than in PLS-II.

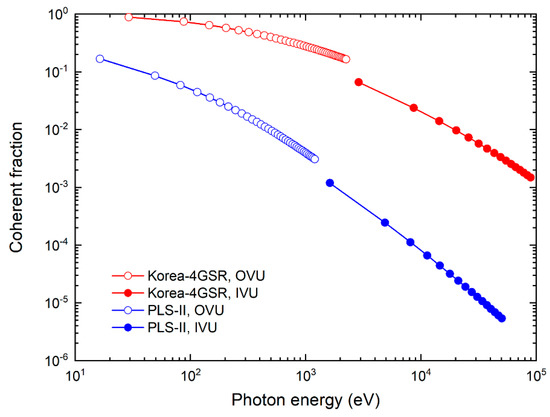

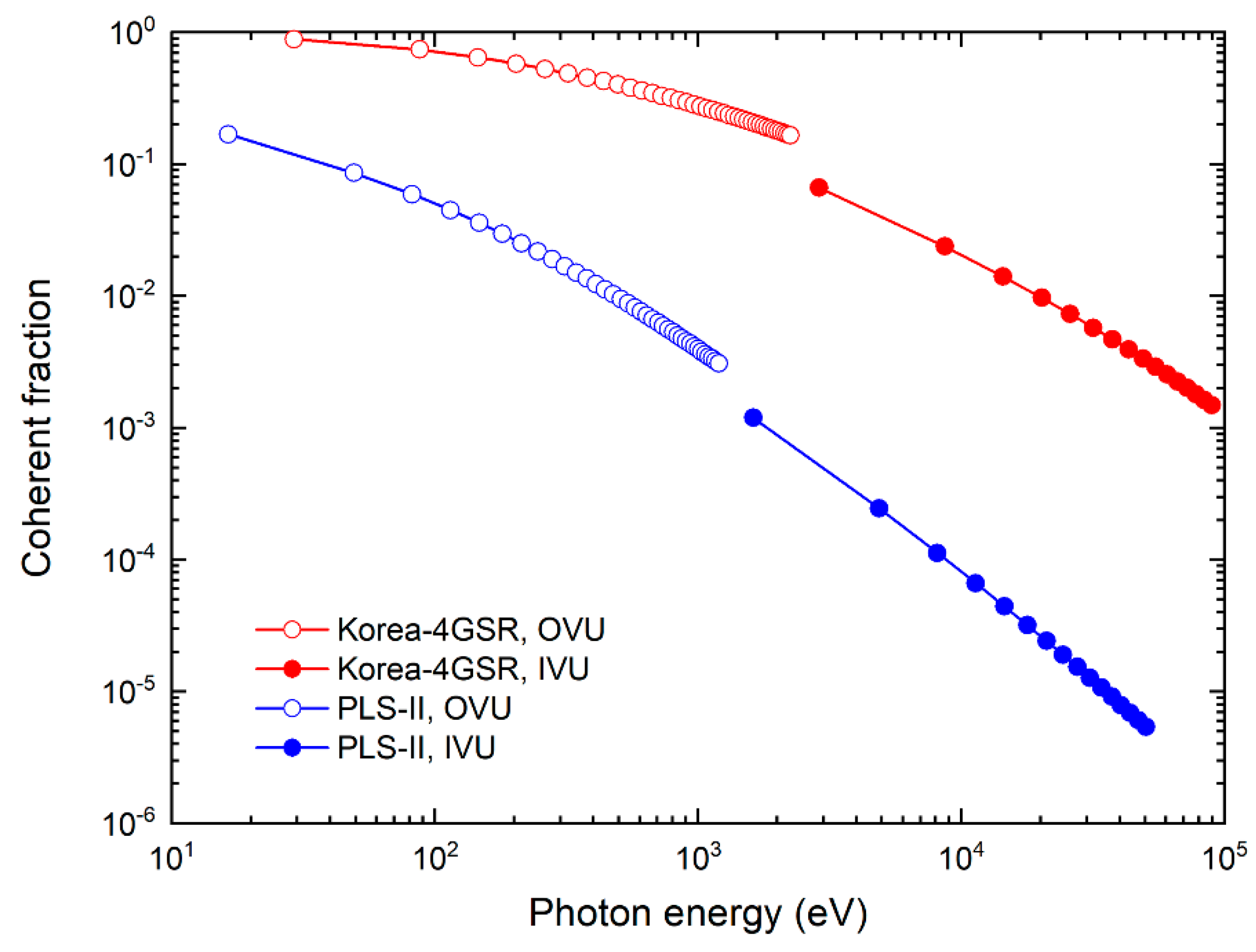

To evaluate the coherence fraction along a wide spectrum range, an out-vacuum undulator and an in-vacuum undulator were considered as SR sources. The out-vacuum undulator generates SR up to 1~3 keV, and the in-vacuum undulator generates SR > 1 keV (Figure 8). The coherence fraction beyond 10 keV is at most a few percent coherent. To satisfy high coherency at 10 keV, electron emittance <10 pm should be realized. However, currently, the storage ring yields a partially coherent beam at 10 keV.

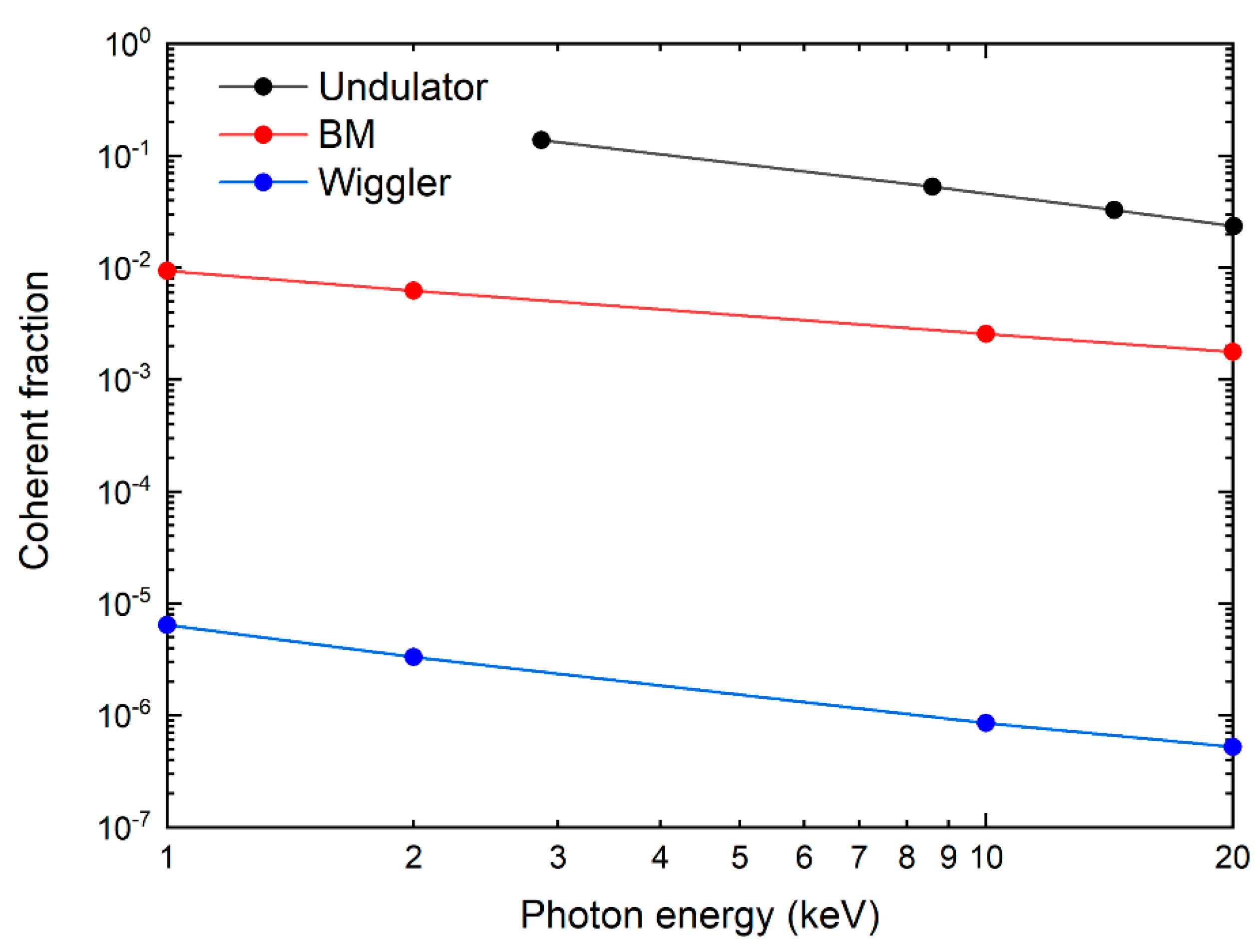

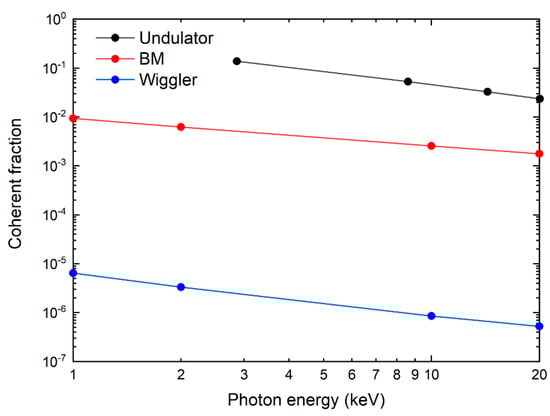

Coherence also depends on the SR source, as well as on the lattice function at the source point. The undulator is the strongest coherent SR source due to the small electron-beam path variation in the SR region. A comparison of coherence among the undulator, bending magnet, and wiggler at the given parameter of the storage ring demonstrates that an undulator must be used for experiments that require high coherence (Figure 8).

The improvements in photon beam coherence caused by a reduction in electron beam emittance will be amplified by matching the phase-space distributions of the electron beam and photon beam. Proper matching of the phase space distribution of the electron beam to the photon beam requires tuning of the betatron function. The optimal betatron function that provides maximum coherence and brilliance is [19,20,21].

$${\mathsf{\beta }}_{x,y}^{opt} ~ L/\pi$$

(7)

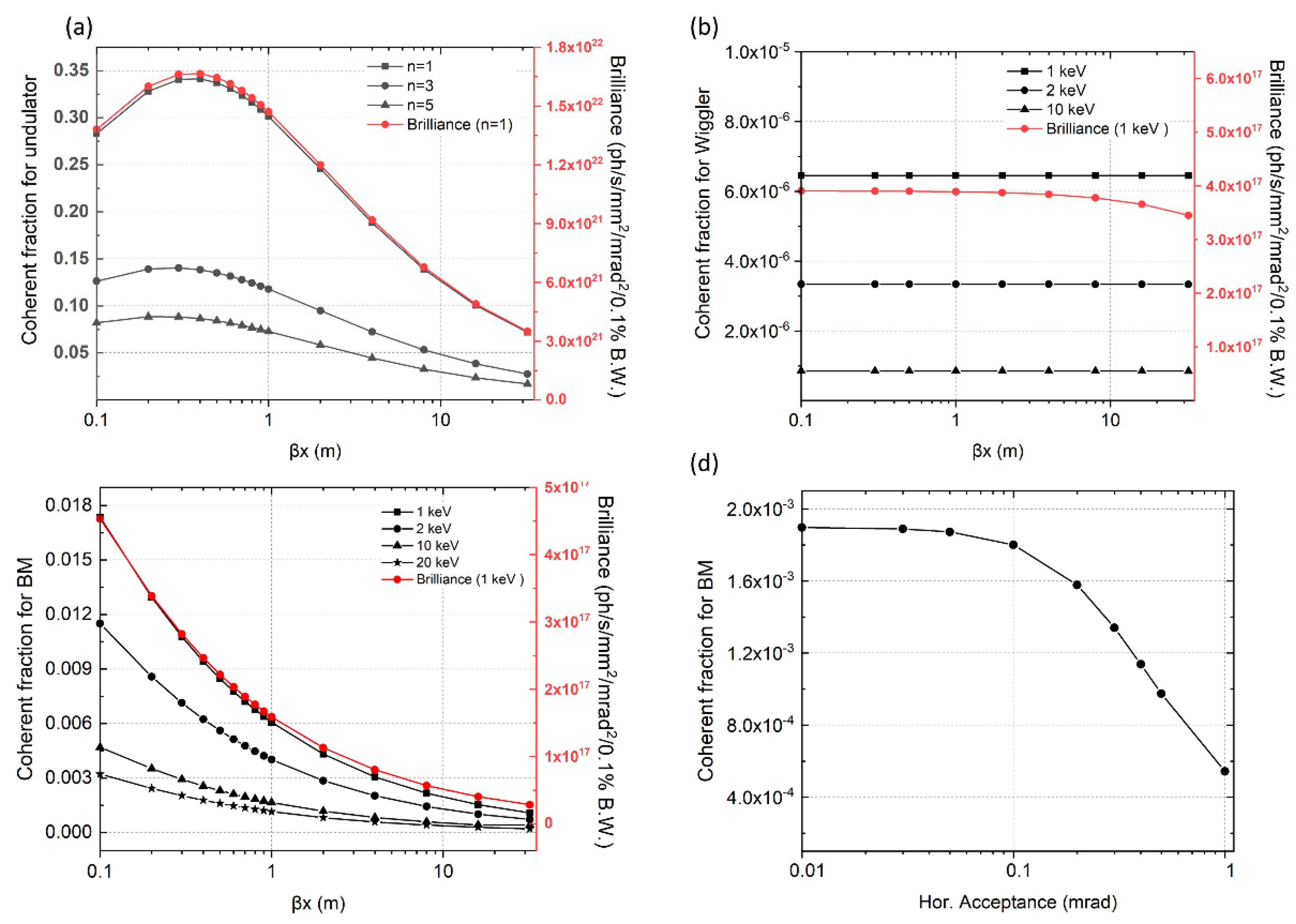

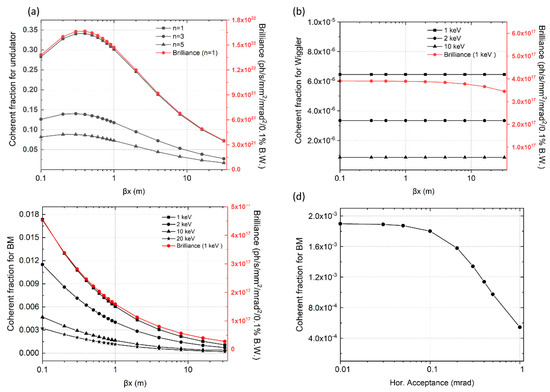

where $L$ is the undulator length. To investigate the optimal conditions of each SR source for Korea-4GSR, the coherences and brilliances of each SR source were quantified as a function of the betatron function. At optimal conditions along the betatron function, the coherence of the undulator is increased to 30% by reducing the betatron function to 1 m (Figure 9). Coherence in the wiggler source does not depend on the betatron function, because coherence is dominantly determined by large electron-beam path variation rather than by phase-matching in the wiggler source. The coherence of the photon beam from a bending magnet is strongly dependent on the betatron function, and less dependent on the undulator.

The effect of error of focusing by the mirror was quantified to identify the tolerance range of such errors. The errors of the focusing mirror are caused by vibration of the mirror (slop error) and error of the mirror surface (roughness). These errors are a direct cause of deterioration in the coherence of the beam. For example, given a focusing mirror that is at a distance $p$ from the SR source, then, if the mirror receives the full beam, the beam spread is approximately $2p{\sigma }_{vib}$ due to the vibration ${\sigma }_{vib}$, or $2p{\sigma }_{tilt}$ due to the tilt error of the mirror ${\sigma }_{tilt}$. In addition, the coherence characteristics of the photon beam decline and can be defined as [22]

$$\frac{F_c{\Sigma }_x}{\sqrt{{\Sigma }_x^2+\mathsf{\Delta }{\sigma }_x^2}}\mathrm{or}\frac{F_c{\Sigma }_y}{\sqrt{{\Sigma }_y^2+\mathsf{\Delta }{\sigma }_y^2}},$$

(8)

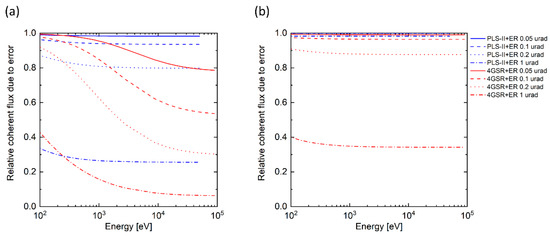

where $F_c$ is the coherent fraction when the mirror is error-free, x is horizontal direction, y is vertical direction, and σ represents an error due to the vibration or tilt of the mirror. Equation (8) allows for a comparison of the error effects on coherent flux in PLS-II and Korea-4GSR (Figure 10). For the same error, the deterioration of coherent flux is severe in the horizontal plane in PLS-II, and in the vertical plane in Korea-4GSR. Therefore, these results indicate the need for a thorough study of the effect of error on beam coherence during the design of a Korea-4GSR beamline.

6. Conclusions

Fourth-generation storage rings are being developed. They are expected to increase the coherence of the SR beam by reducing beam emittance to a few hundred picometers, or even <100 pm. In this paper, we described a quantitative estimation of the coherence of photon beams by using machine parameters from PLS-II as an example of a 3GSR, and Korea-4GSR as an example of a 4GSR. An undulator should be used as the SR source with the optimized betatron function to increase the coherence of the photon beam. With optimized conditions, Korea-4GSR will provide coherence beams with a 30% coherent fraction at 10-keV photon-beam energy, which is 100 times higher, on average, than that of PLS-II. The need for a thorough study of error effect on coherence beam when designing the Korea-4GSR beamline was also suggested, because errors in optic elements in Korea-4GSR degrade coherent flux.
