Strata Movement of the Thick Loose Layer under Strip-Filling Mining Method: A Case Study

Abstract

Filling mining plays an important role in controlling surface subsidence. To study the movement of overburdened rock in filling mining under thick loose layers, a numerical simulation combing field measurement in CT30101 working face in the Mahuangliang coal mine was tested. The results show that different filling rates and filling body strength have different influences on roof and surface movement. The filling rate has a greater impact, which is the main control factor. The filling stress and roof tensile stress decrease gradually with roadway filling. The filling body stress and roof tensile stress in the first and second rounds are far greater than in the fourth round. After the completion of filling, the first and second round of filling bodies mainly bear the overburden, and the total deformation of the surrounding rock of the main transport roadway is very small, and therefore the displacement of the overburdened rock is controllable. The field monitoring results also show that the overburdened rock became stable after several fillings rounds. Combing the numerical modeling and field tests results, this study can be a guideline for similar geological conditions especially for coal mining under thick loose layers and thin bedrock.

1. Introduction

The strength of the loose layer is far less than that of the ordinary rock layer. The loose layer not only undergoes consolidation and compression deformation but also loads the bedrock surface, aggravating the destruction of rock formations and mining subsidence, resulting in damage to surface buildings (structures) [1,2,3,4]. Therefore, the law of overburden and surface movement and deformation in loose layer mining is quite different from conventional mining.

Some scholars have used fractal-related theories to study the mining with thick loose layers and thin bedrock, and they found that the evolution characteristics of overlying rock fractures have good self-similarity and fractal characteristics. Some have studied the mechanical properties of the thick loose layer, and they pointed out that the maximum surface subsidence value increases with the thickness of the loose layer, and decreases with the increase in the friction angle and cohesion of the loose layer [5,6,7,8,9]. Furthermore, the relevant research across the world is shown as follows. According to the engineering geological conditions of the Shandong mining area, the law of surface movement and deformation in thick loose layers and large mining height mining is studied [10,11]. Based on the measured data of the Lianghuai mining area, the influence of geological mining conditions on boundary angle and movement angle is analyzed in detail. It is concluded that there is a logarithmic relationship between comprehensive movement angle, comprehensive boundary angle, and the thickness of the Tertiary and Quaternary loose layer [12,13]. The change characteristics of topographic factors such as slope direction, coefficient of variation, and slope before and after mining subsidence show that all topographic factors are changed by mining subsidence [14,15]. Under the mining condition of thin bedrock and thick loess layer, the subsidence deformation of loess layer and bedrock subsidence keep moving synchronously. The model of deep wide strip mining under super thick loose layer is established to study the relationship between the change in loose layer thickness, surface movement law, and subsidence coefficient [16]. The calculation of surface rock movement parameters of coal mine under loess gully terrain is based on slope stability analysis and computer inversion simulation. To evaluate surface asymmetric settlement in a mining area with thick bedrock and a thin loose layer, a superposition model is proposed. Time evolution of mining-related residual subsidence monitored over 24 years using InSAR in southern Alsace, France, is also investigated [17].

Others used numerical simulation to study the influence of loose layer thickness/base rock thickness, buried depth/coal thickness, and three mechanical parameters of tensile strength, cohesion, and internal friction on ground subsidence [18,19,20,21,22]. Some have analyzed the stability of the key water-proof layer of the filling working face through theoretical analysis, numerical simulation, and actual measurement, and they revealed the crack height and change law of the overburdened rock under the thin base rock and thick loose layer [23,24,25,26,27]. Some researchers have established a mechanical model of the thin bedrock face structure, and they pointed out that a thick clay layer with greater bearing capacity can be combined with a thin bedrock to form a stable structure [28,29,30,31]. Some scholars regarded the thick loose layer and single thin bedrock as the load-bearing structure acting on the solid filling material, and they established a single-layer thin bedrock elastic continuous beam model [32,33,34,35]. The above-mentioned research has enriched the theory and practice of overlying rock movement and deformation in mining under thick loose layers [36,37,38].

However, the theory of paste filling mining has not been adopted for the shallow buried extremely thick loose layer and thin bedrock, and there are few cases of paste filling mining under such conditions. Therefore, taking the Mahuangliang coal mine as the geological background, this paper studies the law of overburden migration in the roadway by paste filling to guide the production of such conditions. First, a short description of the project is discussed. Second, a 3D model about the project is established and analyzed. Last, the field test and monitoring are conducted and discussed.

2. Project Overview

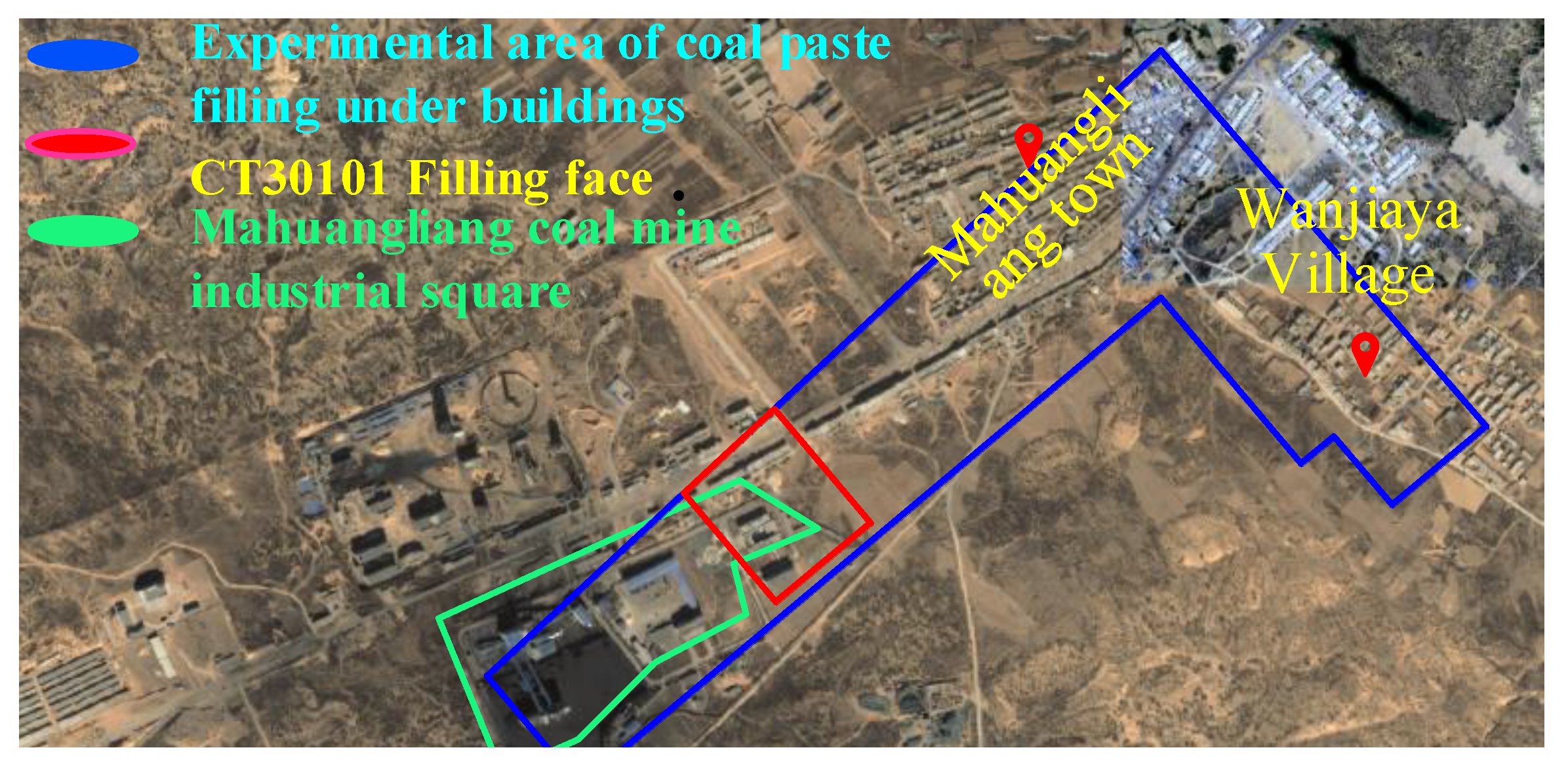

Mahuangliang is located on the border between Mu Us Desert and Loess Plateau in Northern Shaanxi. The surface is completely covered by Quaternary loose sediments. The average thickness of Neogene and Quaternary unconsolidated layer overlying the coal seam is 168.7 m, and the average thickness of bedrock is 25 m. It belongs to the occurrence characteristics of typical extremely thick unconsolidated layer and thin bedrock. Due to the medium characteristics of the loose layer, its strength is far lower than that of the general rock layer and will not produce a layered effect. It will aggravate the rock layer damage and mining subsidence, resulting in the damage of surface buildings (structures). Therefore, this paper takes the first mining experimental working face CT30101 of compressed coal-filling mining of buildings (structures) in the Mahuangliang mine as the research object, as shown in Figure 1.

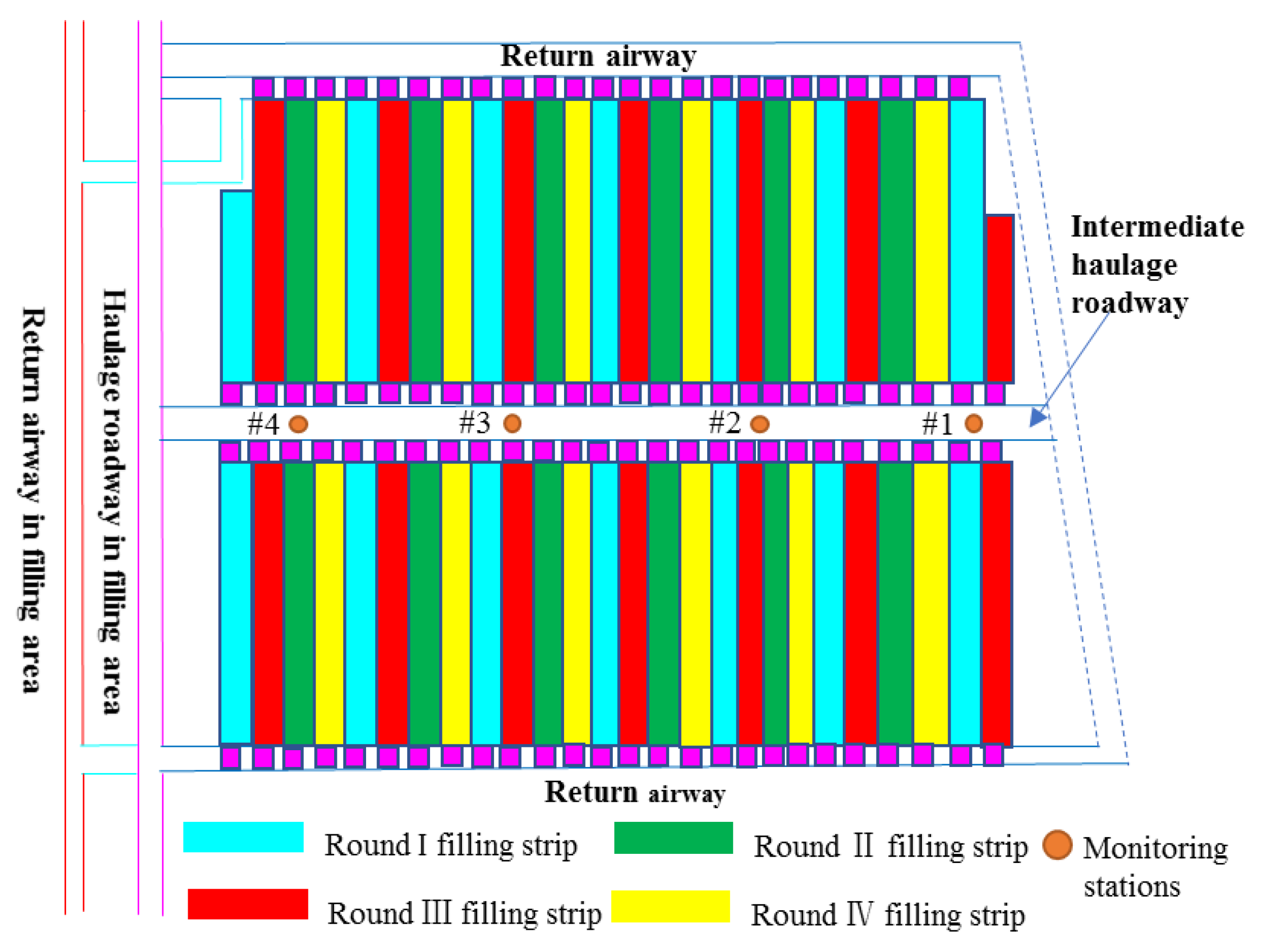

The average buried depth of CT30101 working face is 193.7 m, and the average thickness of the coal seam is 10.4 m. The 30,401 working face is arranged on both sides, and two working faces are arranged in parallel with three roadways. The strip-mining width is 8 m, as shown in Figure 2. The direct roof is mainly composed of mudstone and silty mudstone with a thickness of 1.5~3.7 m. The basic roof is mainly medium coarse-grained sandstone with an average thickness of 22.4 m. The monitoring stations are set in the main transportation roadway shown in Figure 2 to monitor the displacement of the roadway. Before and after the mining and filling, the displacement is recorded not only around the roadway surface but also in the rock mass (8.5 m away from the surface) from January 2019 to June 2020.

3. Numerical Simulation Analysis of Overburden Movement and Failure

3.1. Model Establishment

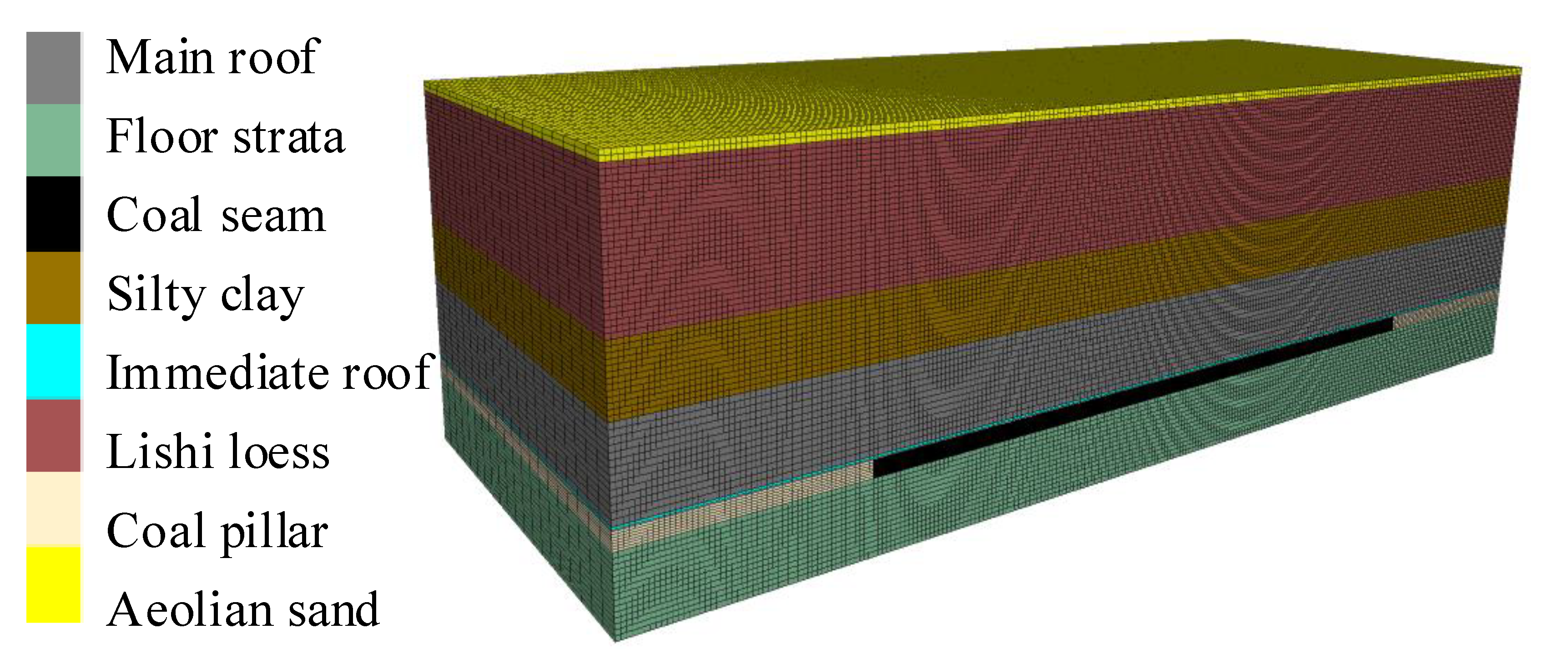

The FLAC3D (V5.0) is applied to establish the numerical model. Combined with the geological conditions of CT30101 working face in the Mahuangliang coal mine, we establish a 520 m × 150 m × 234 m numerical calculation model. Considering the influence of the mining movement, 100 m coal pillars are reserved on both sides of the model. The upper part of the coal seam is built to the surface to observe the surface movement and deformation as shown in Figure 3. The upper boundary of the model is the free boundary. The lower boundary is a fully constrained boundary with fixed horizontal and vertical displacement. The other boundaries are single constraint boundaries with fixed horizontal displacement. The Mohr–Coulomb elastic-plastic constitutive model is selected. The simulated mechanical parameters of surrounding rock consider external force factors such as weathering and structure, and the weakening is classified according to the engineering rock mass, as shown in

Table 1. Mechanical parameters of surrounding rocks.

Rock Formation	Thickness /m	Density /kg/m3	Bulk Modulus /MPa	Shear Modulus /MPa	Tensile Strength /MPa	Internal Friction Angle /°	Cohesion /MPa
Aeolian sand	5.5	1650	133	79	0.00	8	0.00
Lishi loess	88.2	1950	233	185	0.20	10	0.01
Silty clay	75	2240	609	469	1.20	25	0.02
Medium coarse sandstone	22.4	2250	1436	1062	2.50	40	2.81
Sandy mudstone	2.6	2430	1047	1028	0.85	41	1.93
Coal seam	10.4	1420	340	300	0.50	36	3.40
Argillaceous siltstone	30	2760	780	402	3.90	39	3.14
Filling body	—	1990	389	233	1.00	24	0.79

.

3.2. Simulation Scheme

(1)

Scheme 1: When the strip width is 8 m and the strength of the fixed filling body is 5 MPa, the movement and deformation of roof surrounding rock and surface after four-wheel strip filling with different filling rates are studied.

(2)

Scheme 2: When the strip width is 8 m and the fixed filling rate is 98%, study the movement and deformation of roof surrounding rock and surface after four-wheel strip filling.

3.3. Influence of Filling Ratio on Movement and Failure of Overburden

(1)

Analysis of overburden and surface deformation

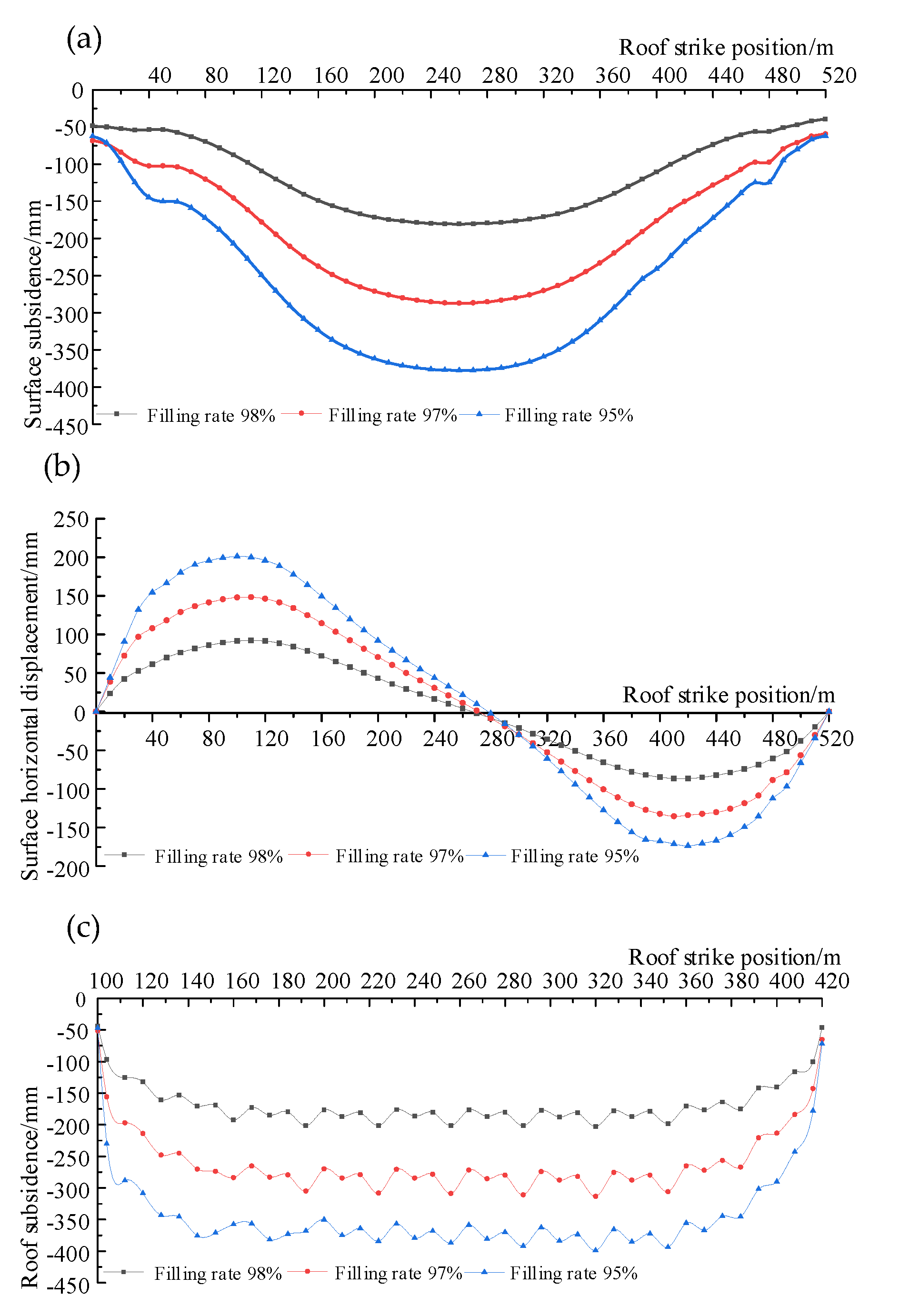

After four rounds of strip filling mining with different filling rates, the movement and deformation of overburden and surface are shown in Figure 4.

As can be seen from Figure 4, in strip paste filling mining, the filling rate decreases and the surface subsidence value increases significantly. The surface subsidence value is the largest in the mining center of the working face, and the subsidence value is symmetrical. When the filling rate is 98%, 97%, and 95%, the maximum surface subsidence values are 180 mm, 287 mm, and 377 mm, respectively. When the filling rate is 98%, 97%, and 95%, the surface horizontal displacement ranges are 92 mm~−86 mm, 148 mm~−135, mm and 200 mm~−173 mm, respectively. The increase of surface subsidence and horizontal displacement makes the horizontal deformation and increases the inclined deformation and curvature. The law of roof subsidence is consistent with that of surface subsidence. When the filling rate is 98%, 97%, and 95%, the maximum subsidence values of the roof are 203 mm, 319 mm, and 395 mm, respectively. Among them, the stripped roof subsidence values of different rounds of mining and filling are also different. The strip roof subsidence of the fourth round is the largest, followed by the third round and the second round, and the first round is the smallest. This also shows that the roof subsidence value gradually accumulates with strip mining.

(2)

Stress analysis of overburden and backfill

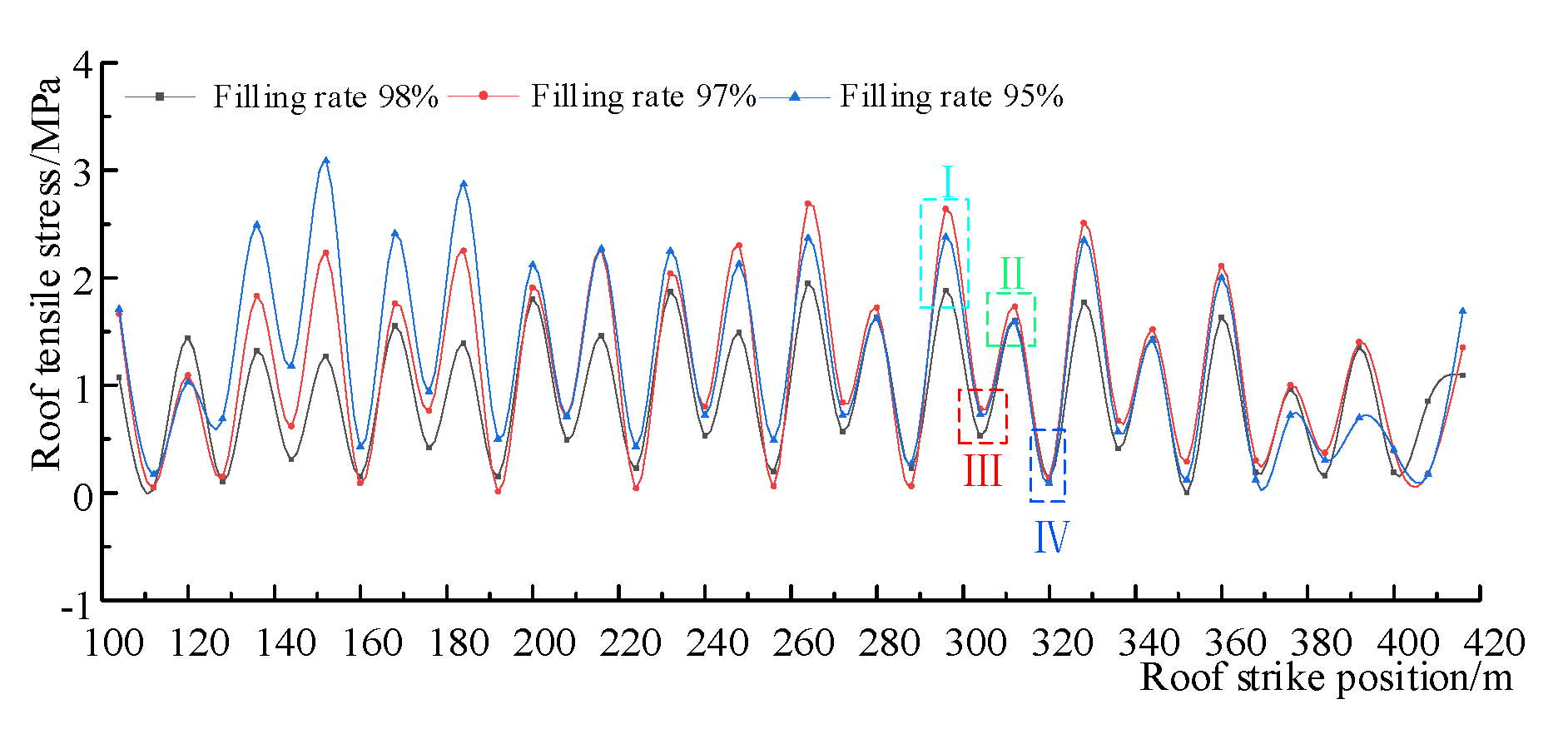

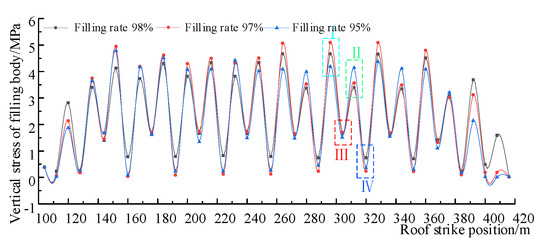

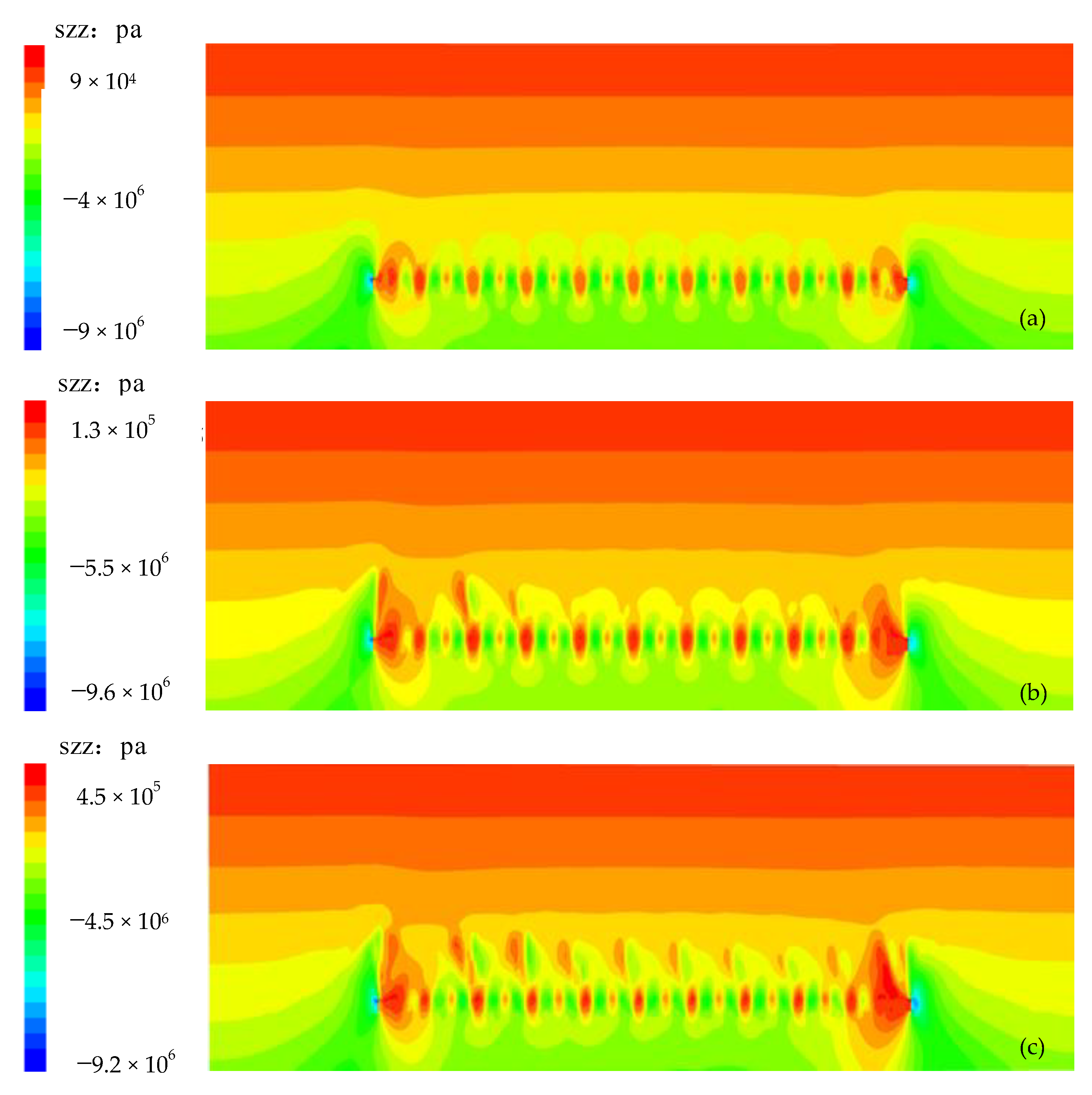

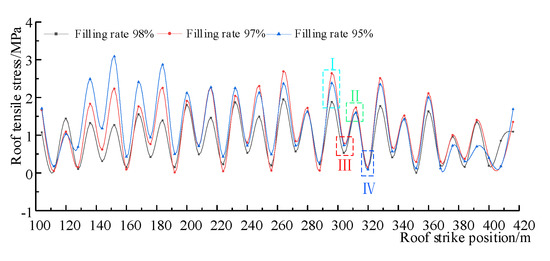

After four rounds of strip filling mining with different filling rates, the vertical stress change curve of the filling body and the tensile stress curve of the roof is shown in Figure 5, Figure 6 and Figure 7, respectively.

As can be seen from Figure 5, the coal walls on both sides will produce certain stress concentrations after strip paste filling mining, and the magnitude of stress concentration will change with the change in filling rate. When the filling rate is 98%, 97%, and 95%, the peak values of advance bearing stress are 8.96 MPa, 9.63 MPa, and 9.25 MPa, respectively. The stress concentration factors are 2.67, 2.86, and 2.75. As can be seen from Figure 6, after the four strips mining face with paste filling is fully mined, the stress of filling body in different circulating strips is different. In the first round and the fourth round, the force on the filling body decreases in turn and changes with the change in the filling rate. When the filling rate is 98%, the filling stress of the first round to the fourth round is 4.67 MPa, 4.33 MPa, 1.66 MPa, and 0.82 MPa, respectively. When the filling rate is 97%, the filling stress of the first round to the fourth round is 5.10 MPa, 4.95 MPa, 1.73 MPa, and 0.24 MPa, respectively. When the filling rate is 95%, The filling stress of the first round to the fourth round is 4.42 MPa, 4.79 MPa, 1.67 MPa, and 0.45 MPa, respectively. The first and second strip fillings mainly support the overburdened strata. As can be seen from Figure 7, the tensile stress of strip roof in filling mining is also different in different stages, and changes with the change in the filling rate. When the filling rate is 98%, 97%, and 95%, the maximum tensile stress of strip roof in the first round of mining is 1.95 MPa, 2.69 MPa, and 2.49 MPa respectively. The maximum tensile stress of strip roofs in the second round of mining is 1.63 MPa, 2.26 MPa, and 2.87 MPa, respectively. The maximum tensile stress of strip roofs in the third round of mining is 0.57 MPa, 0.84 MPa, and 0.94 MPa, respectively. The maximum tensile stress of strip roofs in the fourth round of mining is 0.23 MPa, 0.37 MPa, and 0.50 MPa, respectively.

In conclusion, the strength of the filling body is certain, and different filling rates have a great impact on the movement and deformation of the overburden, surface, and filling body. To ensure the filling effect, it is necessary to reduce the distance between the under-connected top and the top and bottom plate before filling, to improve the filling rate.

3.4. Influence of Backfill Strength on Overburden Movement and Failure

(1)

Analysis of overburden and surface deformation

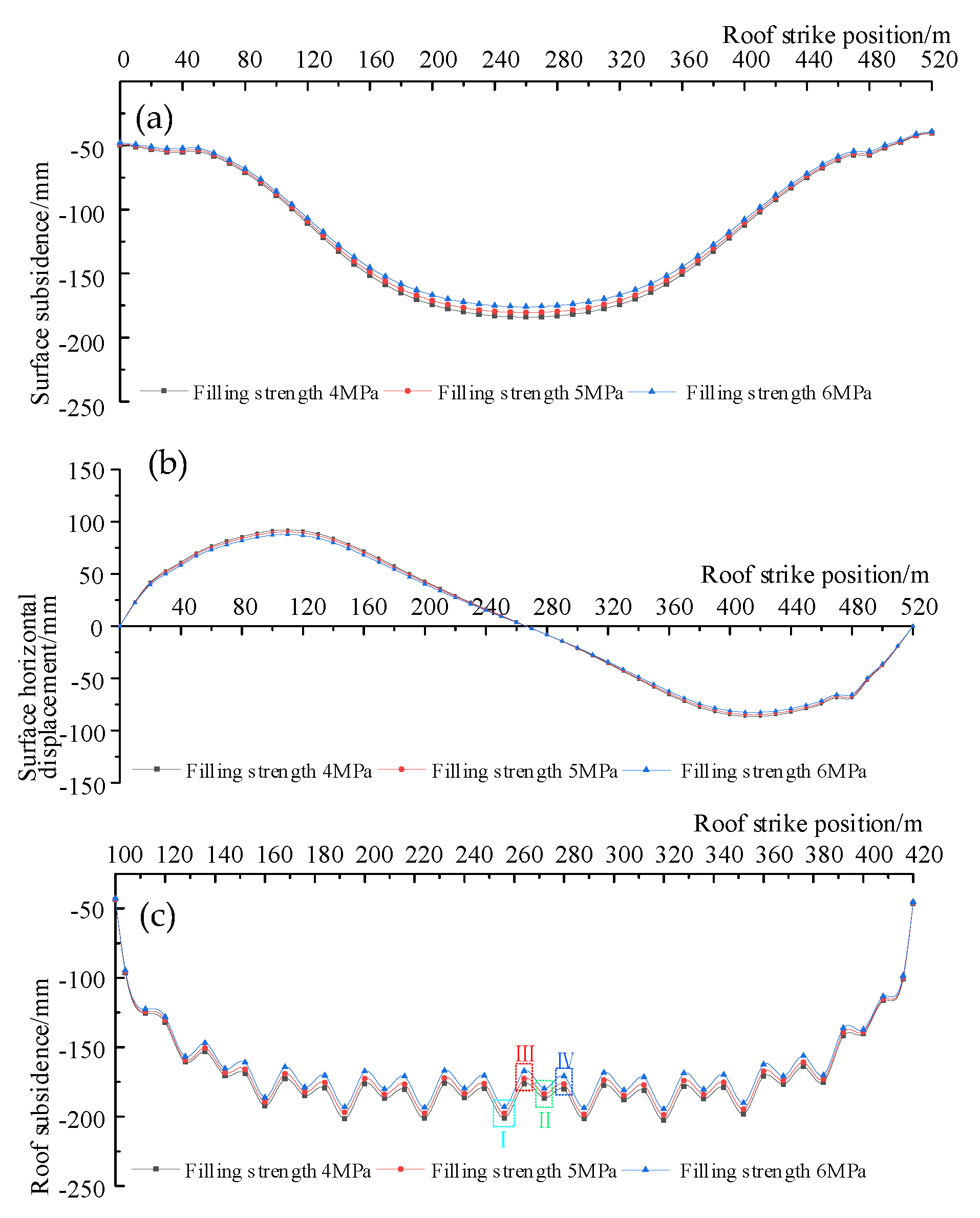

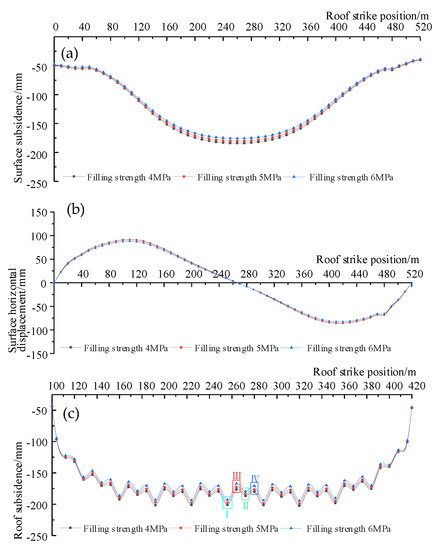

After four rounds of strip filling mining with different filling strengths, the movement and deformation of overburden and surface are shown in Figure 8.

As can be seen from Figure 8, in strip paste filling mining, different filling strength has little effect on surface subsidence, horizontal movement, and roof subsidence. The movement deformation law is consistent with the influence law of filling rate. When the filling rate is 98%, the maximum surface subsidence is 183 mm. The range of surface horizontal displacement is 92 mm~−86 mm. The maximum subsidence of the roof occurs during the first round of strip filling, and its value is 202 mm.

(2)

Stress analysis of overburden and backfill

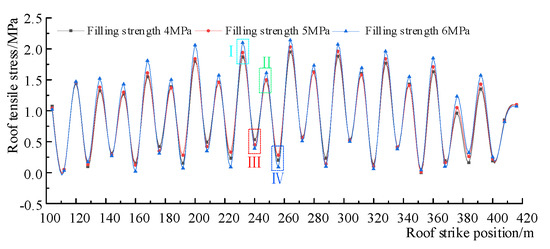

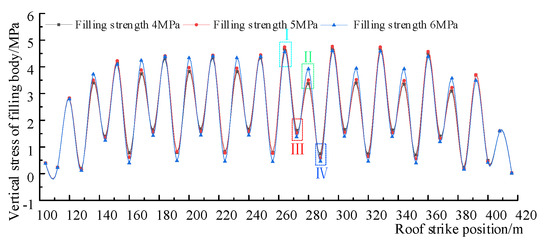

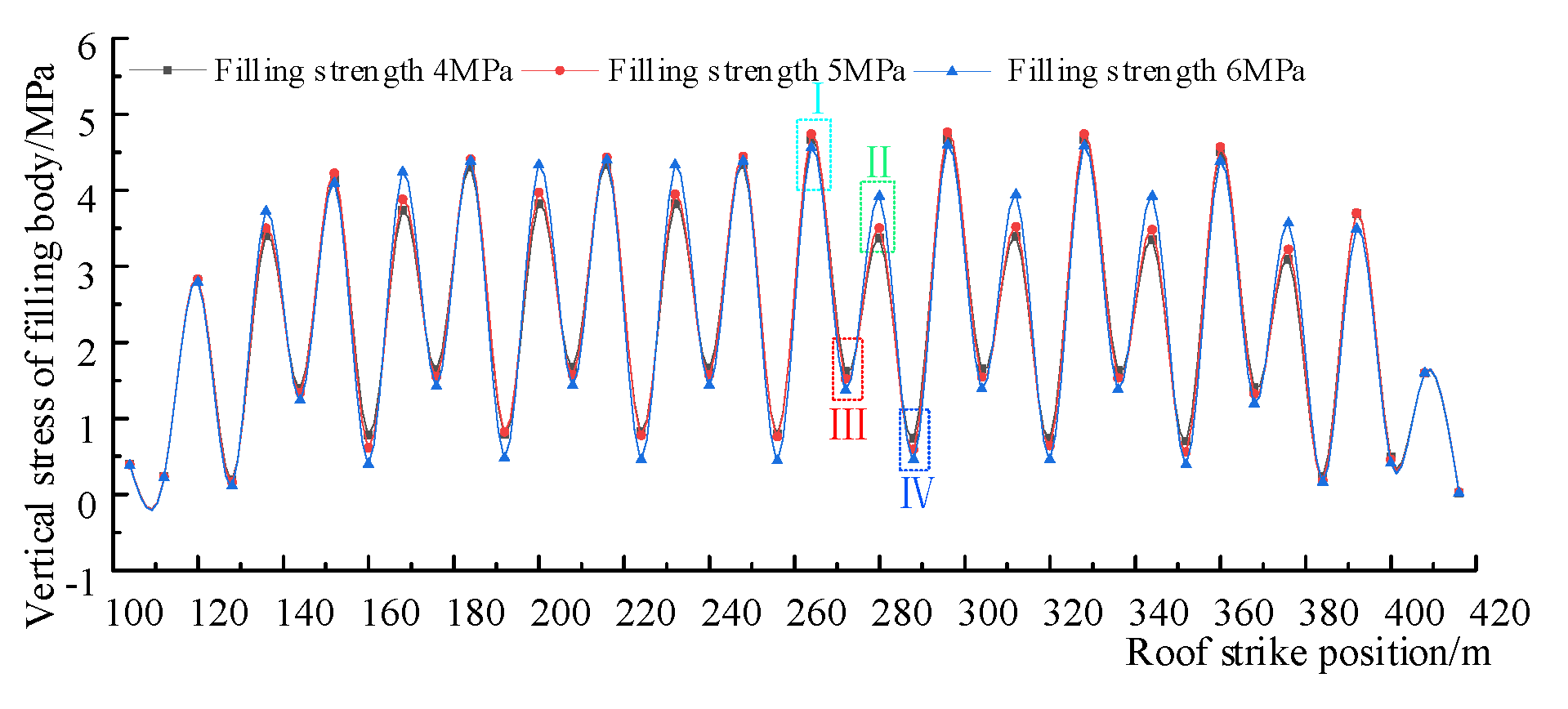

After four rounds of strip filling mining with different filling strengths, the vertical stress change curve of the filling body and the tensile stress curve of the roof are shown in Figure 9 and Figure 10, respectively.

As can be seen from Figure 9 and Figure 10, when the filling rate is 98%, different filling strength is selected for strip filling mining, and the compressive stress of the overlying rock is the same. However, the maximum compressive stress of the first to fourth round strip fillings gradually decreases, which are 4.76 MPa, 4.43 MPa, 1.67 MPa, and 0.82 MPa, respectively. It shows that in the process of strip filling, the first and second strip filling bodies are mainly responsible for the mining stress of the overlying strata, followed by the third strip filling body, and the fourth strip filling body. Compared with the influence of filling rate on the tensile stress of the roof, different filling strength has less influence on the tensile stress of the roof. It still shows that the maximum tensile stress of the filling roof in the first round is 2.1 MPa, followed by the second and third round, and the tensile stress of the roof in the fourth round is reduced to 0.1 MPa.

In conclusion, the filling rate is certain, and the strength of the filling body has little effect on the movement and deformation of the overburden, surface, and filling body, which can meet the requirements.

4. Engineering Practice of Strip Paste Filling

4.1. Roadway Surrounding Rock Deformation Monitoring

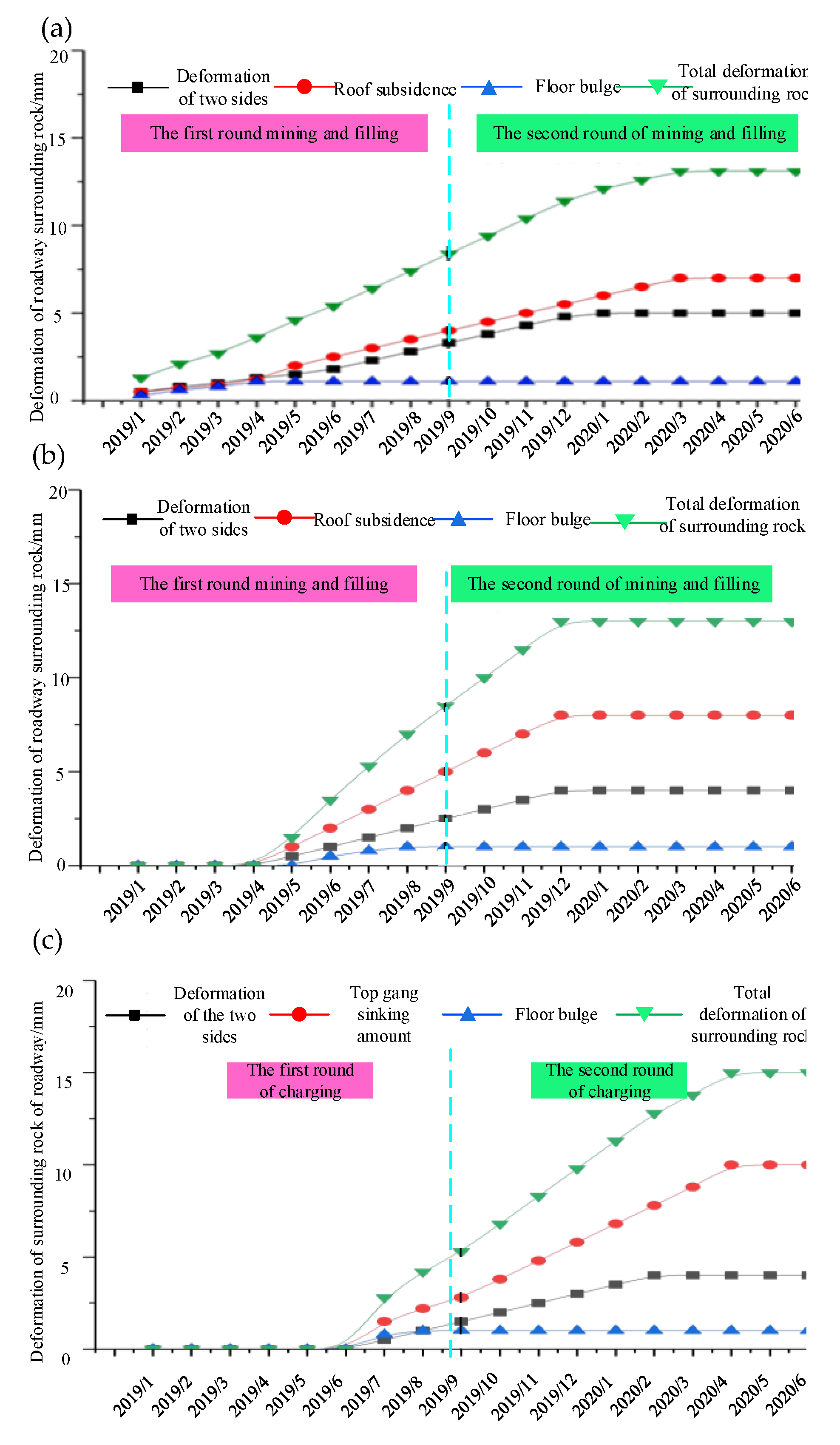

Three surrounding rock deformation measuring stations are set in the middle main transportation roadway of CT30101 working face, which is away from the stopping line. The monitoring results are shown in Figure 11.

As can be seen from Figure 11, at the initial stage of mining, the surrounding rock is not deformed. After the first round of mining and filling, the maximum total deformation of the two sides is 2.5 mm, the maximum subsidence of the top is 5 mm, the maximum bottom heave is 0.5 mm, and the maximum total deformation is 8 mm. After the second round of mining and filling, the maximum total deformation of the two sides is 5 mm, the maximum top subsidence is 10 mm, the maximum bottom heave is 1 mm, and the maximum total deformation is 16 mm. Monitoring results show that, after the completion of the second round of filling mining in front of CT30101, the deformation of the main transport roadway of the working face is very small, which will not affect the normal production of the working face.

4.2. Monitoring of Overburden Displacement

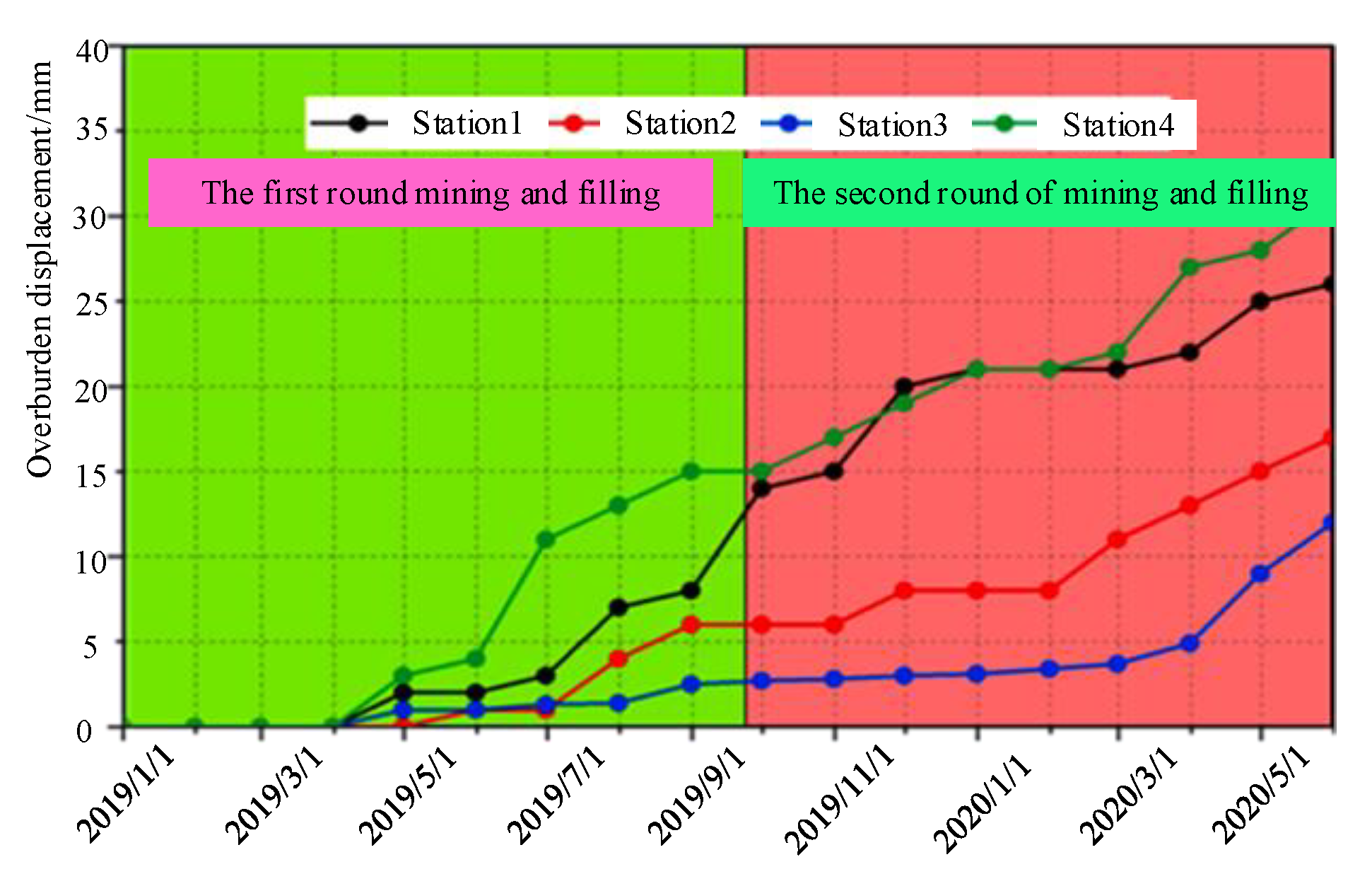

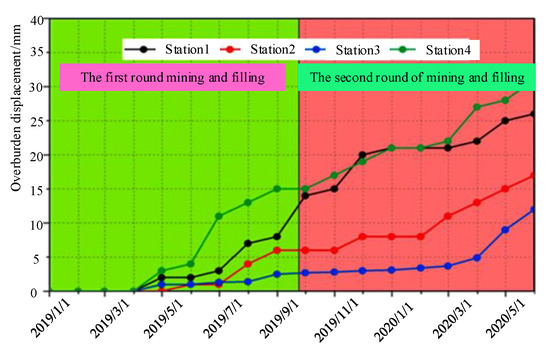

CT30101 working face is mined in four rounds. Four survey stations are selected in the main transportation roadway of CT30101 working face, which is away from the stopping line. During the first, second, third, and fourth rounds of mining, the approach of the top and bottom plate shall be observed, and the measuring points with a depth of 8.5 m shall be selected. The displacement of overburden after two rounds of mining in front of CT30101 is shown in Figure 12.

As can be seen from Figure 12, the overburden did not move within four months before the first round of mining, and the roof began to move slowly after the fourth month. After the first round of mining and filling, the maximum displacement of overburden was close to 15 mm. After the first round of mining and filling is completed, the second round of mining and filling is carried out. It can be seen that the displacement of overburden changes slowly, but the change is relatively gentle. The maximum overburden displacement is around 30 mm and according to the requirement in this mine, the results can keep the surface stability, which means that under the joint action of the remaining coal pillar and filling body in CT30101 working face, the overburden deformation is controllable and will not affect the normal production of the working face.

4.3. Filling Stress Monitoring

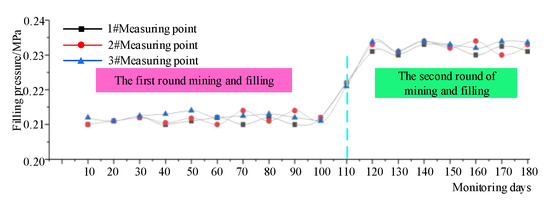

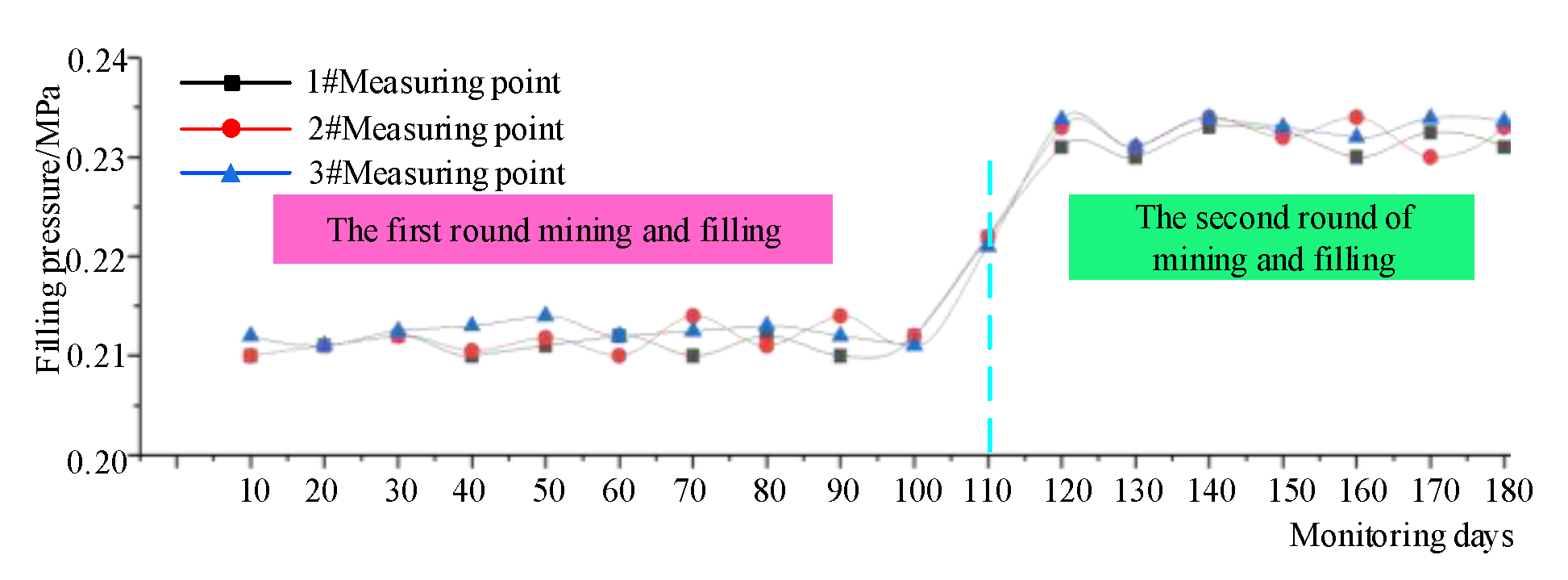

We selected the observation strip in the middle of the advancing direction of the working face, and each observation strip is equipped with 3 borehole stress meters to test the pressure changes in the middle, secondary middle, and near the edge of the filling strip length direction. The borehole stress gauge for observing the strip filling body shall be installed around 7 d after the filling body solidifies and shall not exceed 10 d at the latest. Drill holes from the upper end of the filling strip and arrange three holes in a triangle. Among them, the drilling depth for measuring the edge stress of the filling body is about 2 m deep into the filling body. Measure the stress in the middle area of the filling zone, and the drilling depth is about 15 m. The stress in the sub middle area of the filling zone was measured, and the drilling depth was about 7 m. The stress monitoring curve of three measuring points of the strip filling body is shown in Figure 13.

As can be seen from Figure 13, after the first round of filling and mining, the stress value of the filling body is generally between 0.21~0.215 MPa. However, at the beginning of the second round of filling mining, the stress value of the first round of filling body increases, which is generally between 0.23~0.235 MPa. The results show that the first and second round filling bodies mainly bear their pressure in the first two rounds of mining and filling operation. The overburden pressure has not been transferred to the filling body in the first round of mining and filling operation, and the overburden pressure begins to transfer to the first round of filling body in the second round of mining and filling operation.

5. Conclusions

(1)

Different filling rates and filling strength have different effects on the roof surrounding rock and surface movement and deformation. To ensure the filling effect, it is mainly to improve the filling rate.

(2)

The filling stress and roof tensile stress gradually decrease with the roadway filling, but the first and second rounds of filling stress and roof tensile stress are much greater than the fourth round.

(3)

After the first round and the second round of roadway filling, the maximum total deformation of the surrounding rock of the main transportation roadway is 8 mm and 16 mm, respectively. Therefore, the movement of overburden is controllable, which will not affect the normal production of the working face.

(4)

During the first round of mining and filling, the overburden pressure is not transferred to the filling. During the second round of filling, the stress value of the first round of filling increases.
