Article

Design and Development of Magnesium-Based Suture Anchor for Rotator Cuff Repair Using Finite Element Analysis and In Vitro Testing

1
School of Biomedical Engineering, College of Biomedical Engineering, Taipei Medical University, Taipei 11031, Taiwan
2
Department of Mechanical Engineering, Institute of Materials Science and Engineering, National Central University, Taoyuan 32001, Taiwan
3
Department of Orthopedics, Shuang Ho Hospital, Taipei Medical University, Taipei 23561, Taiwan
4
Bone and Joint Research Center, Department of Orthopedics, Taipei Medical University Hospital, School of Medicine, College of Medicine, Taipei Medical University, Taipei 11031, Taiwan
5
Center for Biomedical Engineering, Graduate Institute of Biomedical Engineering, College of Engineering, Chang Gung University, Taoyuan 33302, Taiwan
6
Bone and Joint Research Center, Department of Orthopedic Surgery, Chang Gung Memorial Hospital Linkou Branch, Taoyuan 333, Taiwan
*
Authors to whom correspondence should be addressed.
Academic Editors: Raffaella Pecci, Ilaria Campioni, Antonio Scarano and Francesca Mangione
Appl. Sci. 2021, 11(20), 9602; https://doi.org/10.3390/app11209602
Received: 19 August 2021 / Revised: 9 October 2021 / Accepted: 12 October 2021 / Published: 15 October 2021

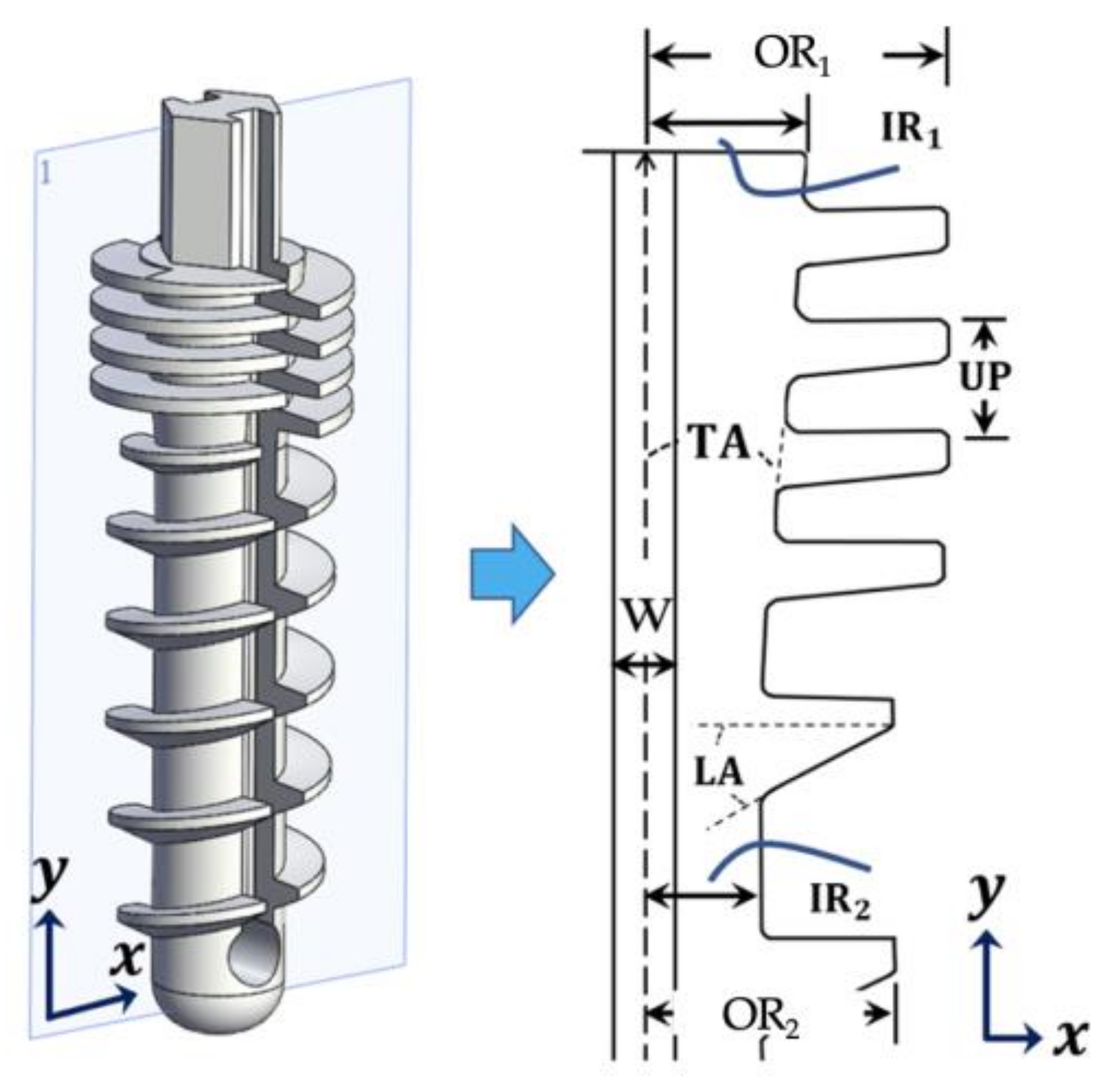

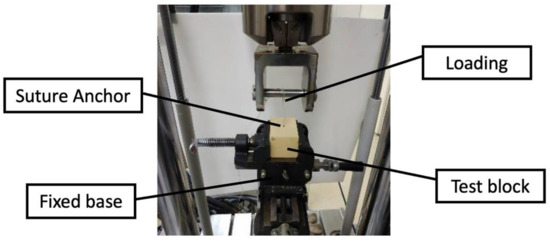

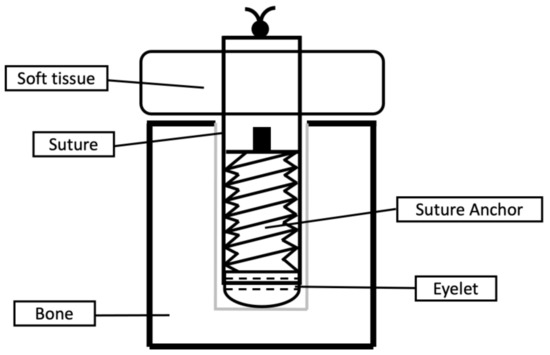

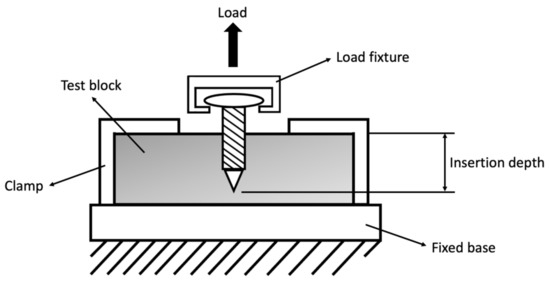

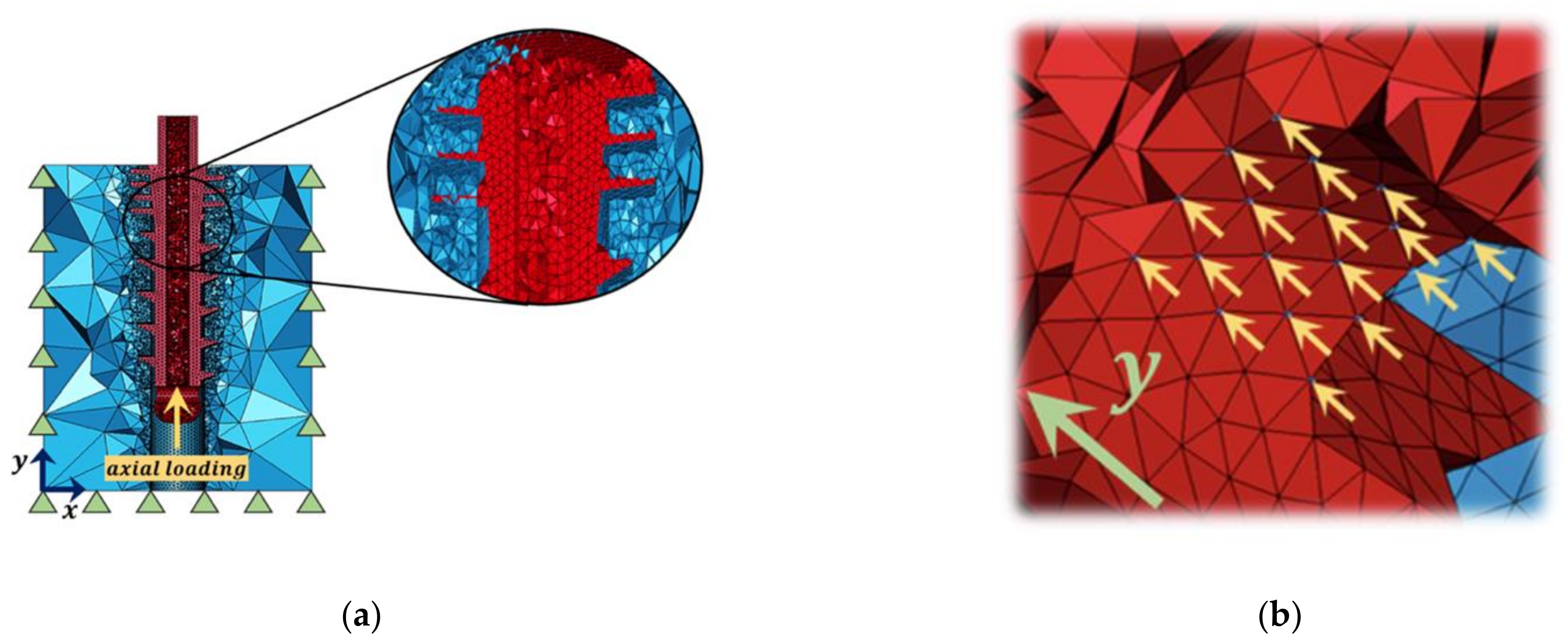

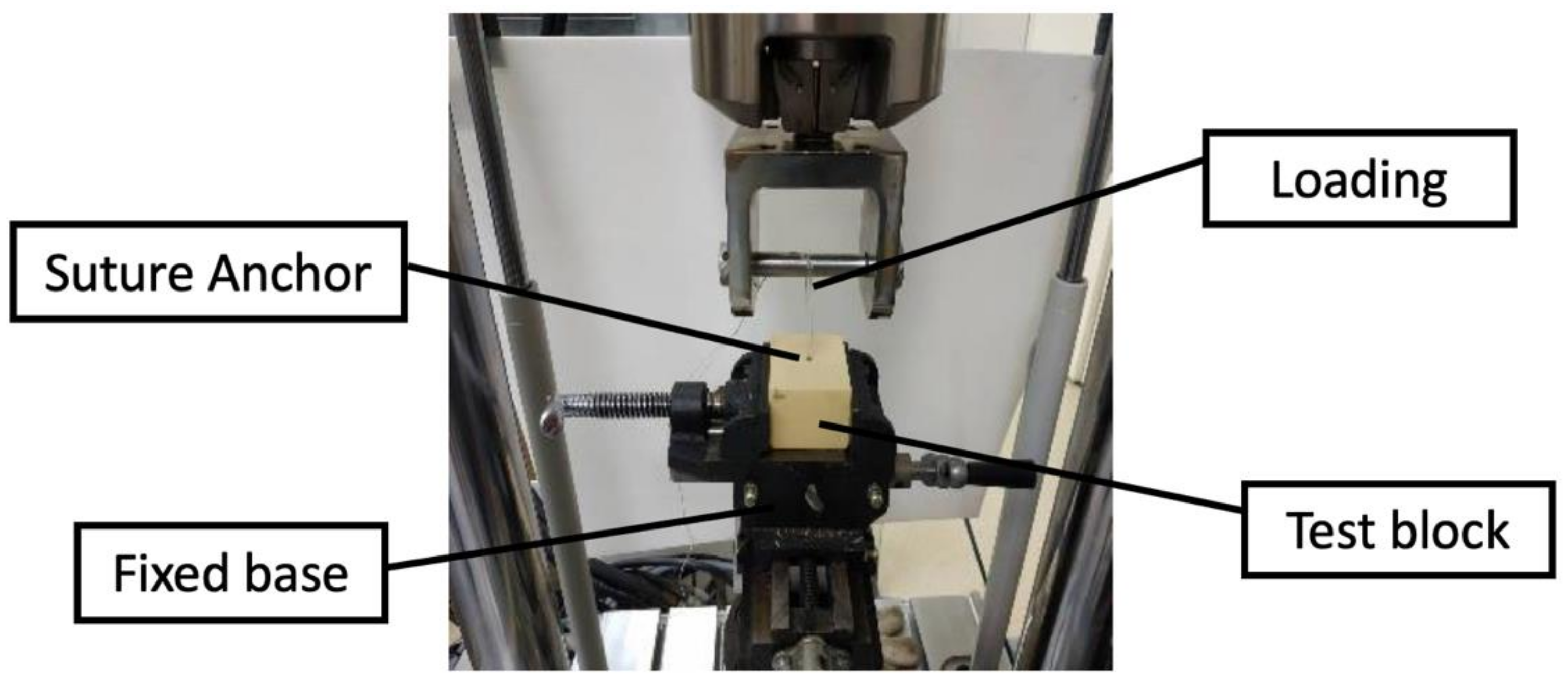

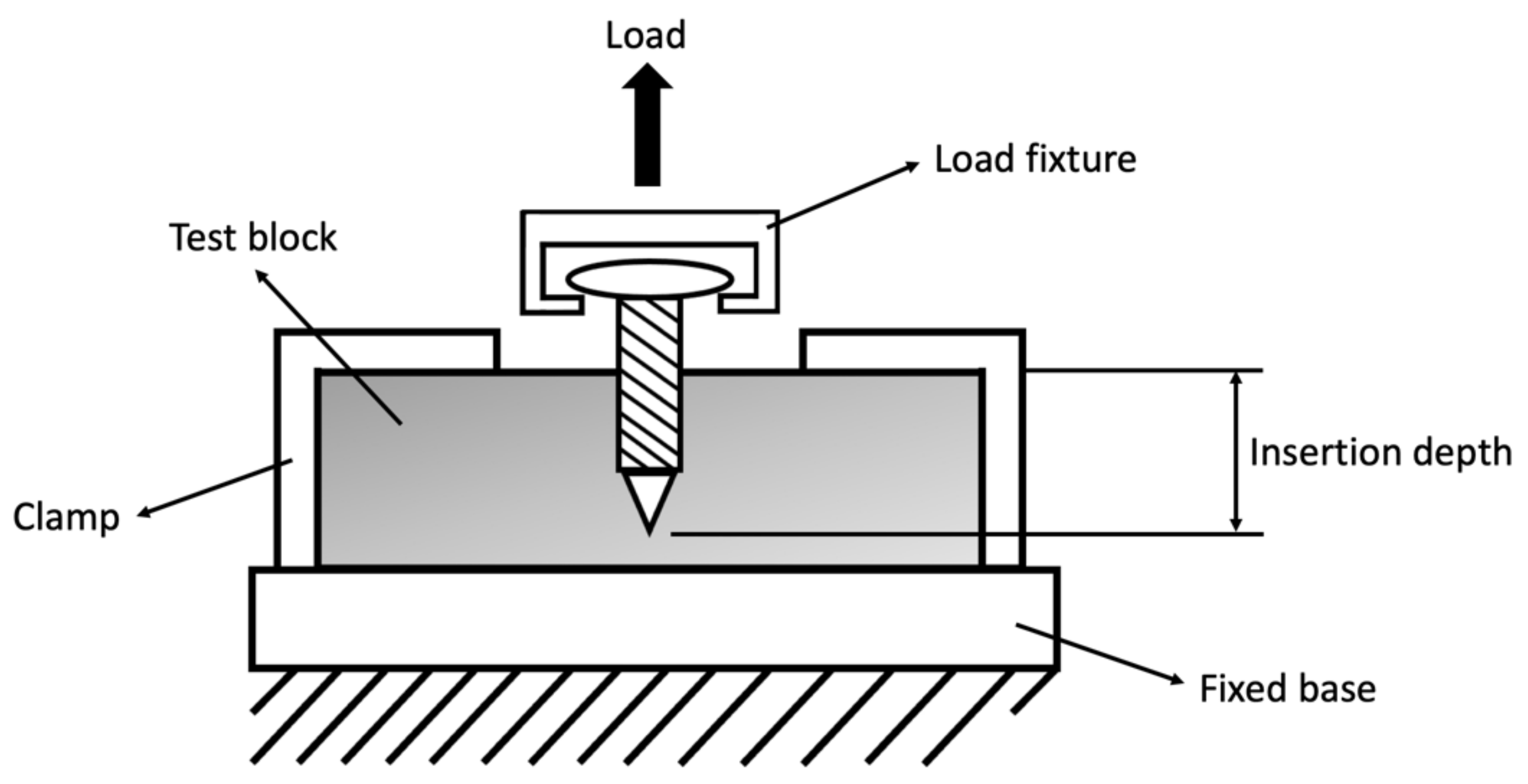

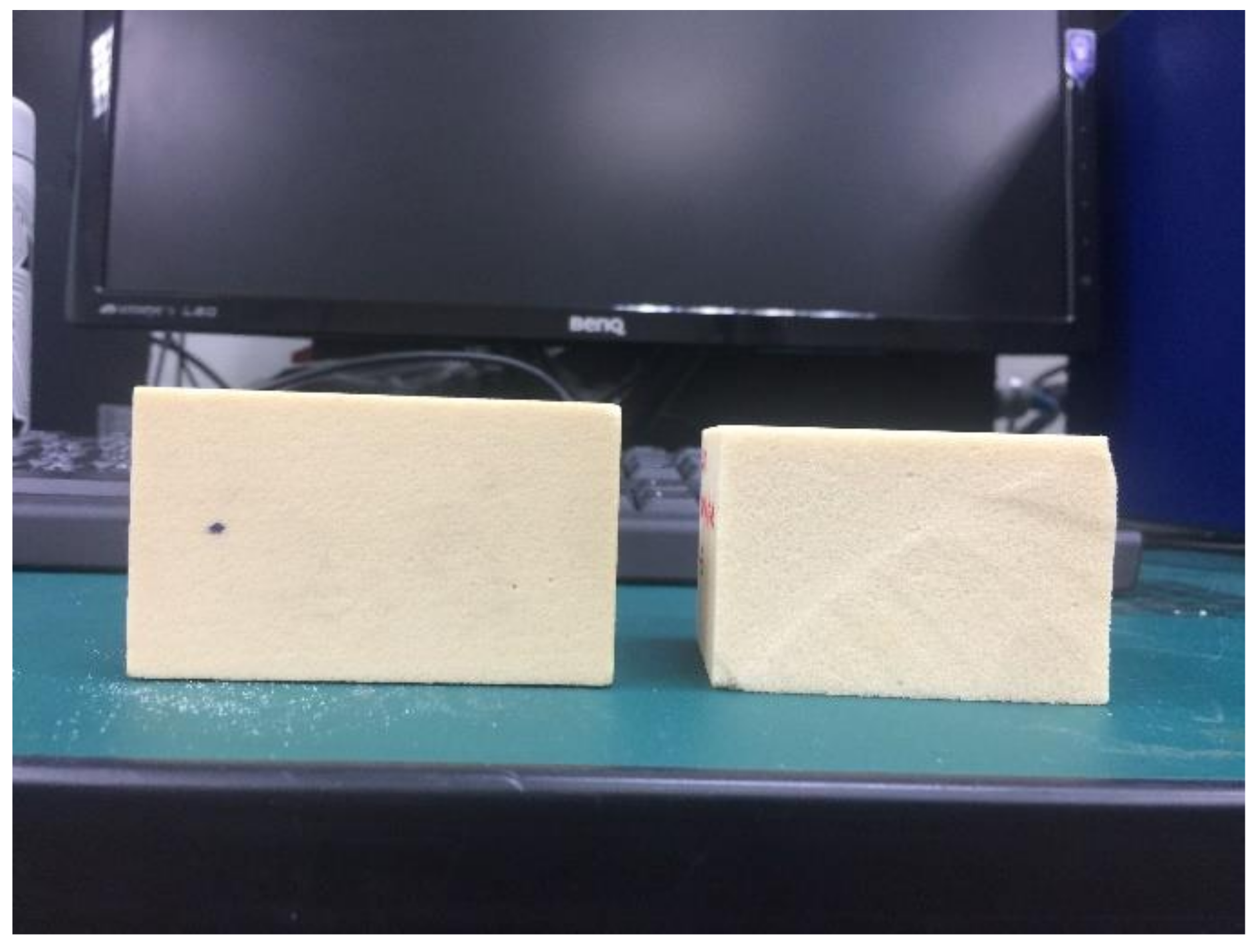

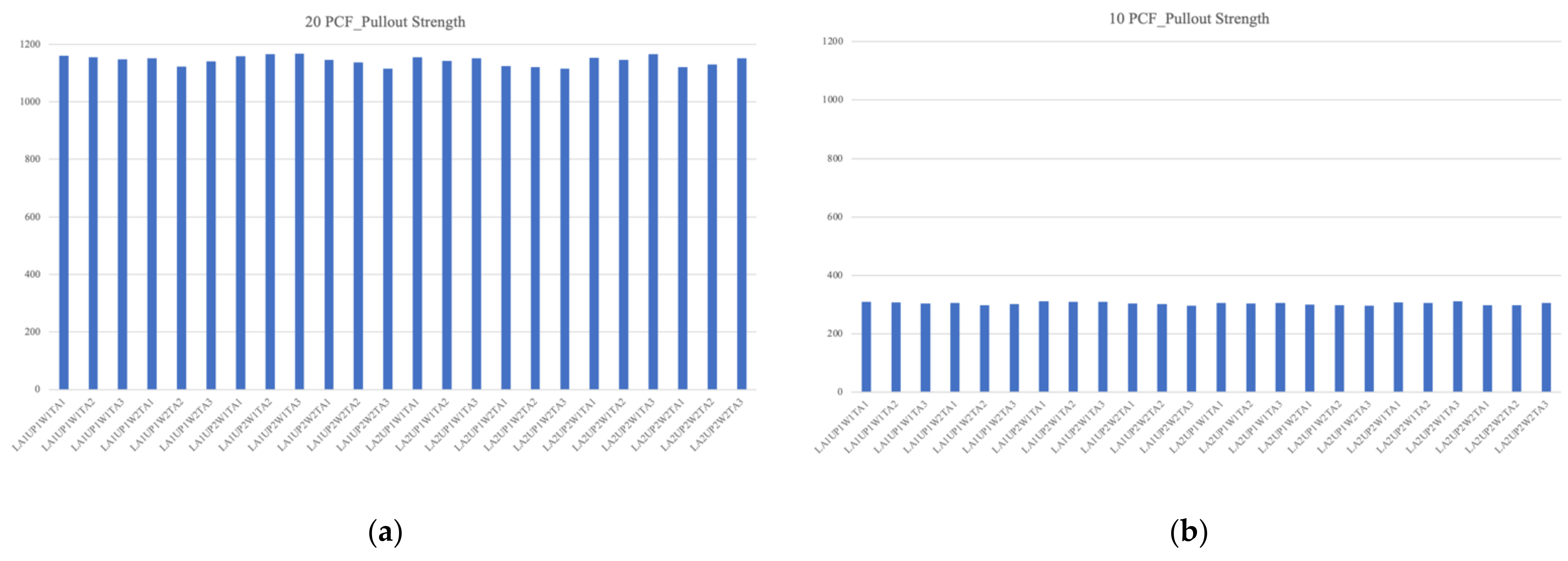

A suture anchor is a medical device commonly used in rotator cuff repair surgery to attach tendons to the greater tuberosity of the humerus. Patient- and device-related factors, such as structural designs and poor bone density, can cause unsatisfactory clinical results. In this study, a new suture anchor design with four distinctive parameters was proposed, and the structural performance was optimized in a full factorial experimental design using finite element analysis. Two types of bone blocks—normal and osteoporotic bone—which received screw implants, were simulated to investigate the parametrical effects on various bone qualities. The prescribed motion at a constant removal velocity was used to evaluate the pullout strength. The von Mises criterion was employed in a force control simulation for topology optimization. Moreover, mechanical tests guided by ASTM-F543-17 were conducted for validation. This paper demonstrates the comprehensive process for developing a suture anchor with sufficient mechanical integrity for clinical use and clarifies the contributions of each distinctive design parameter in this application. View Full-Text
Keywords: suture anchor; bone implant; finite element analysis; mechanical testing suture anchor; bone implant; finite element analysis; mechanical testing
Show Figures

Figure 1
