Analysis of Eddy-Current Probe Signals in Steam Generator U-Bend Tubes Using the Finite Element Method
Previous Article in Journal
Experimental Analysis of Ultrasonic Multiple Scattering Attenuation through the Air with Fine Dust
Article

An Easy-Implemented On-Chip Waveguide Coupled Single Photon Source Based on Self-Assembled Quantum Dots Membrane

by 1,*, 1, 1, 1 and 2
1
College of Science, China University of Petroleum, Changjiang West Road 66, Qingdao 266580, China
2
College of Geosciences, China University of Petroleum, Changjiang West Road 66, Qingdao 266580, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2021, 11(2), 695; https://doi.org/10.3390/app11020695
Received: 7 December 2020 / Revised: 7 January 2021 / Accepted: 8 January 2021 / Published: 13 January 2021
(This article belongs to the Collection Single Photon Technologies: Volume II)

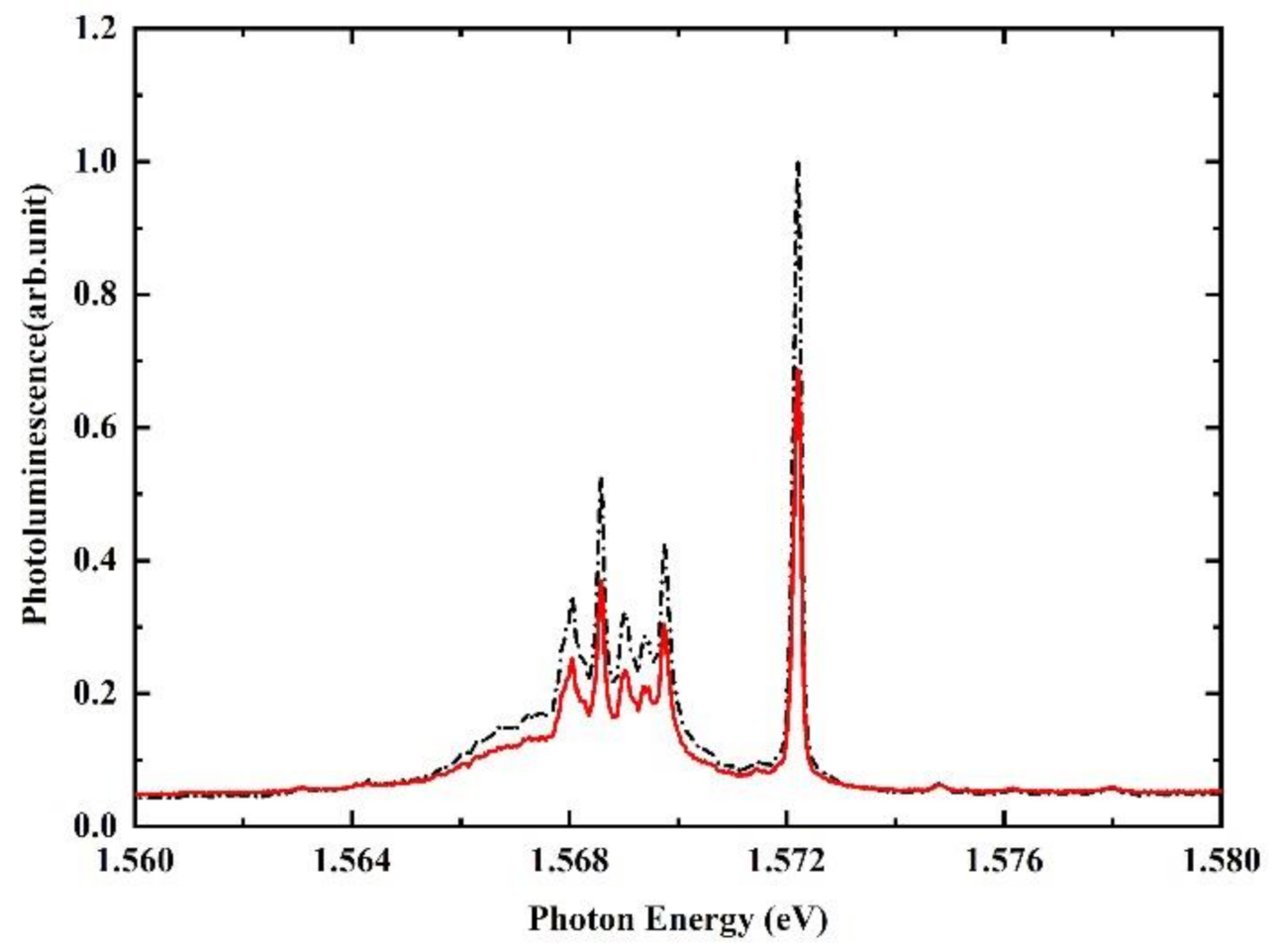

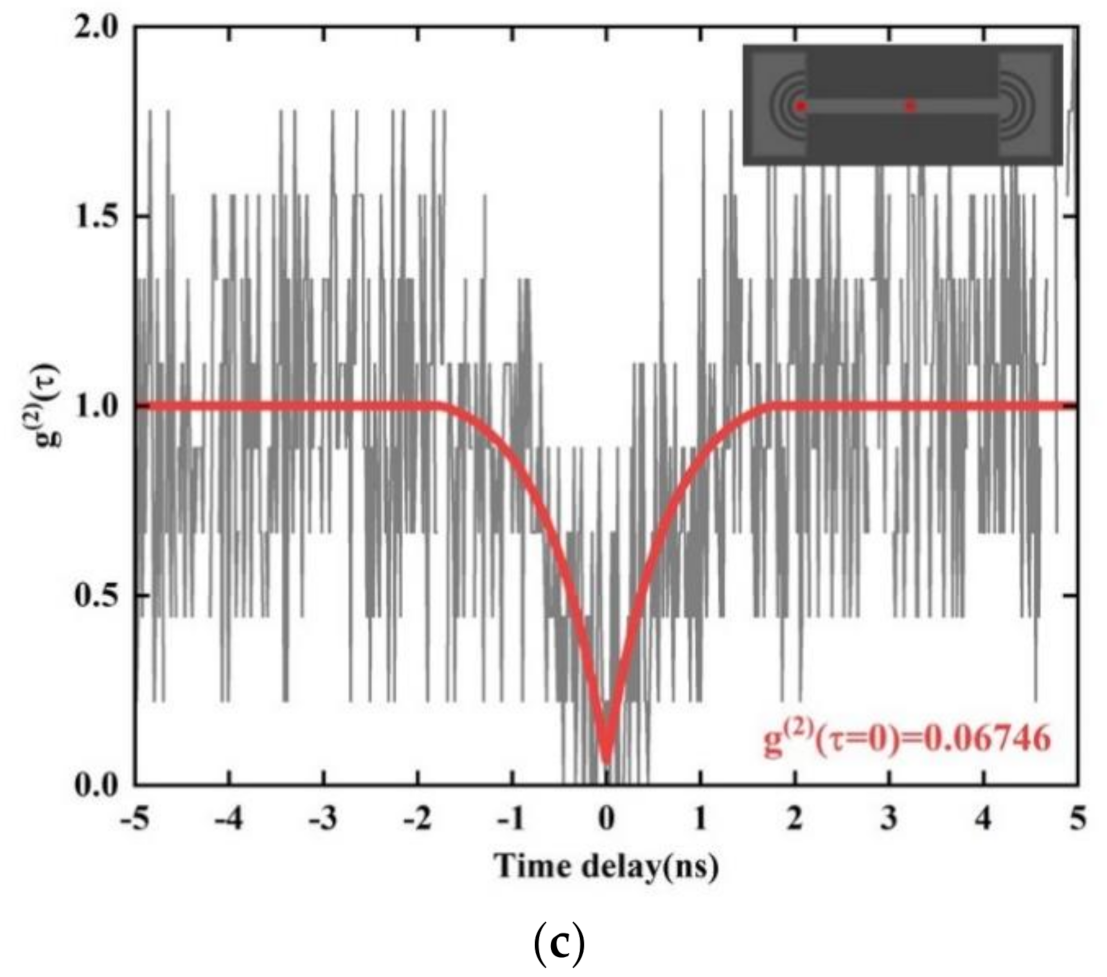

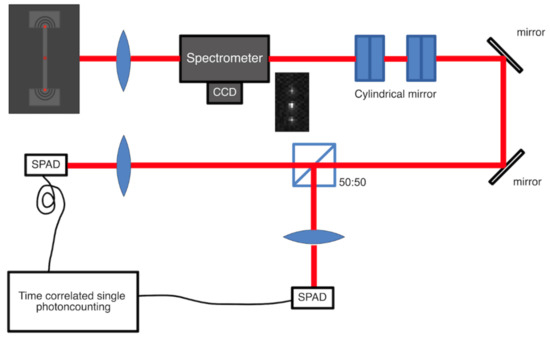

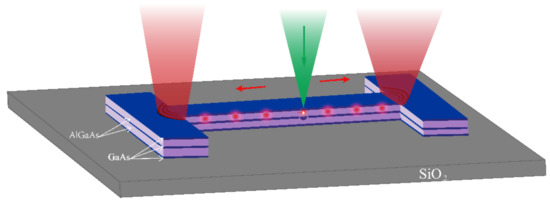

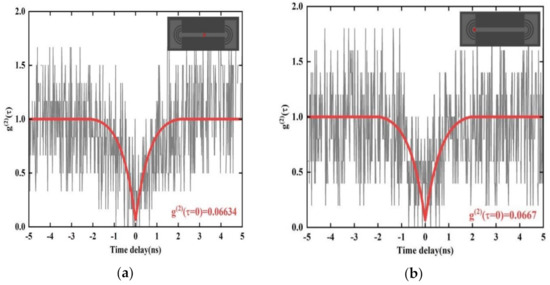

In recent years, many groups and institutions have been committed to the research of integrated quantum photonic circuit technologies, of which the key components are waveguide coupled single photon sources. In this study, we propose an on-chip waveguide-coupled single photon source that is easily implemented as the waveguide is directly made from the quantum dot membrane. In order to scatter light out of the on-chip waveguide plane into the detection apparatus, grating output couplers are made at both ends of the waveguide. The photon statistics of the on-chip photon source were investigated by second-order correlation function g(2)(τ) measurements using a Hanbury Brown and Twiss interferometer. From the spectra and cross-correlation experiments by collecting emission at the point of quantum dot and out coupler, the emitting of single photons from the same quantum dot and propagating via the waveguide to the out couplers was confirmed. These results show that we have achieved an on-chip single photon source that is easily implemented and easily integrated into quantum photonic circuits. View Full-Text
Keywords: quantum photonic circuit; single photon source; waveguide coupled; self-assembled quantum dot quantum photonic circuit; single photon source; waveguide coupled; self-assembled quantum dot
Show Figures

Figure 1

MDPI and ACS Style

Jiang, P.; Ma, N.; Liu, P.; Wu, W.; Zhang, K. An Easy-Implemented On-Chip Waveguide Coupled Single Photon Source Based on Self-Assembled Quantum Dots Membrane. Appl. Sci. 2021, 11, 695. https://doi.org/10.3390/app11020695

AMA Style

Jiang P, Ma N, Liu P, Wu W, Zhang K. An Easy-Implemented On-Chip Waveguide Coupled Single Photon Source Based on Self-Assembled Quantum Dots Membrane. Applied Sciences. 2021; 11(2):695. https://doi.org/10.3390/app11020695

Chicago/Turabian Style

Jiang, Ping, Na Ma, Peng Liu, Wenxuan Wu, and Kai Zhang. 2021. "An Easy-Implemented On-Chip Waveguide Coupled Single Photon Source Based on Self-Assembled Quantum Dots Membrane" Applied Sciences 11, no. 2: 695. https://doi.org/10.3390/app11020695
