The Application of a Linear Microphone Array in the Quantitative Evaluation of the Blade Trailing-Edge Noise Reduction
Abstract
:1. Introduction
2. The Assessment of the Array Data Processing Software Using Sarradj’s Benchmark Synthesized Input Data

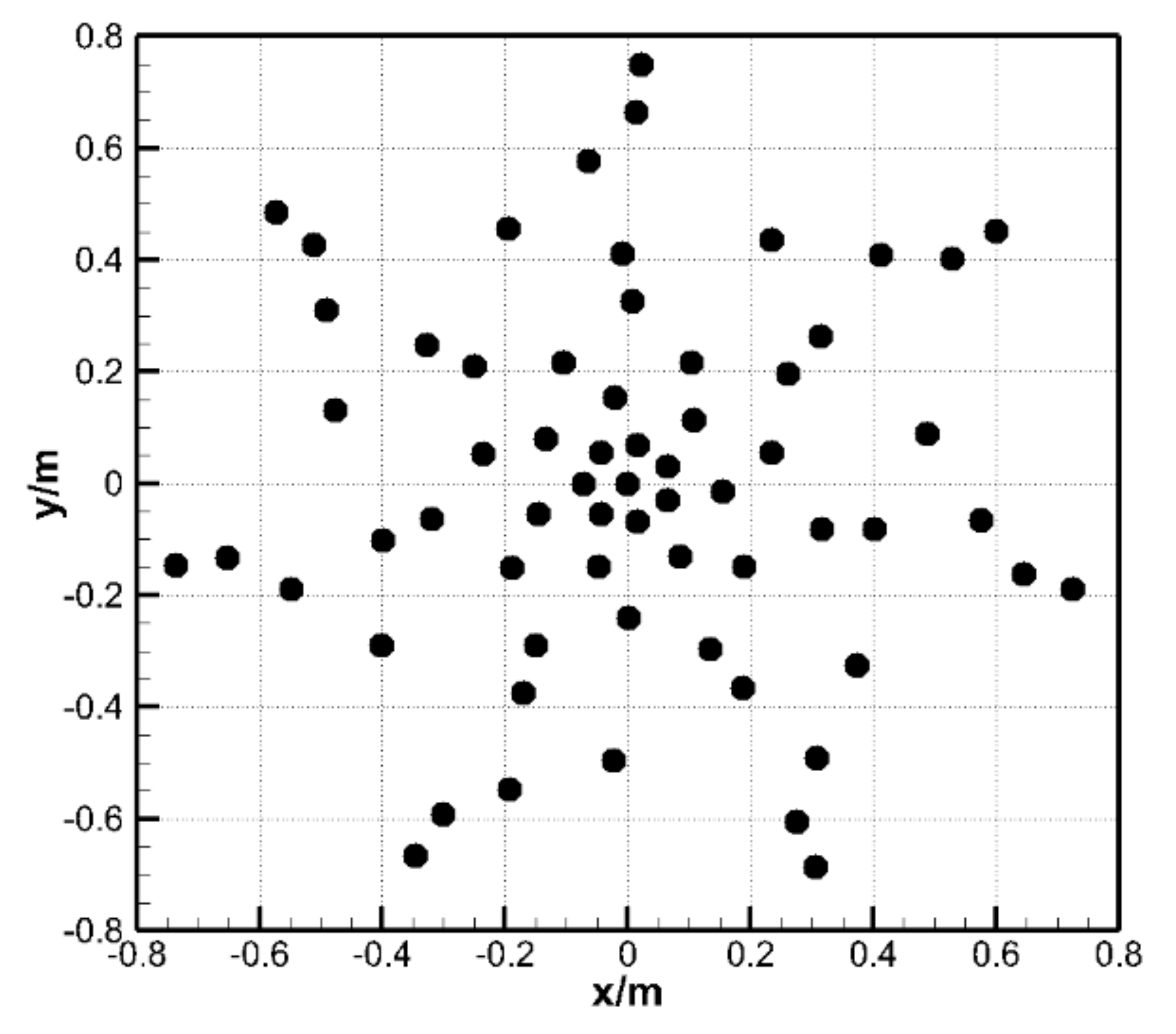

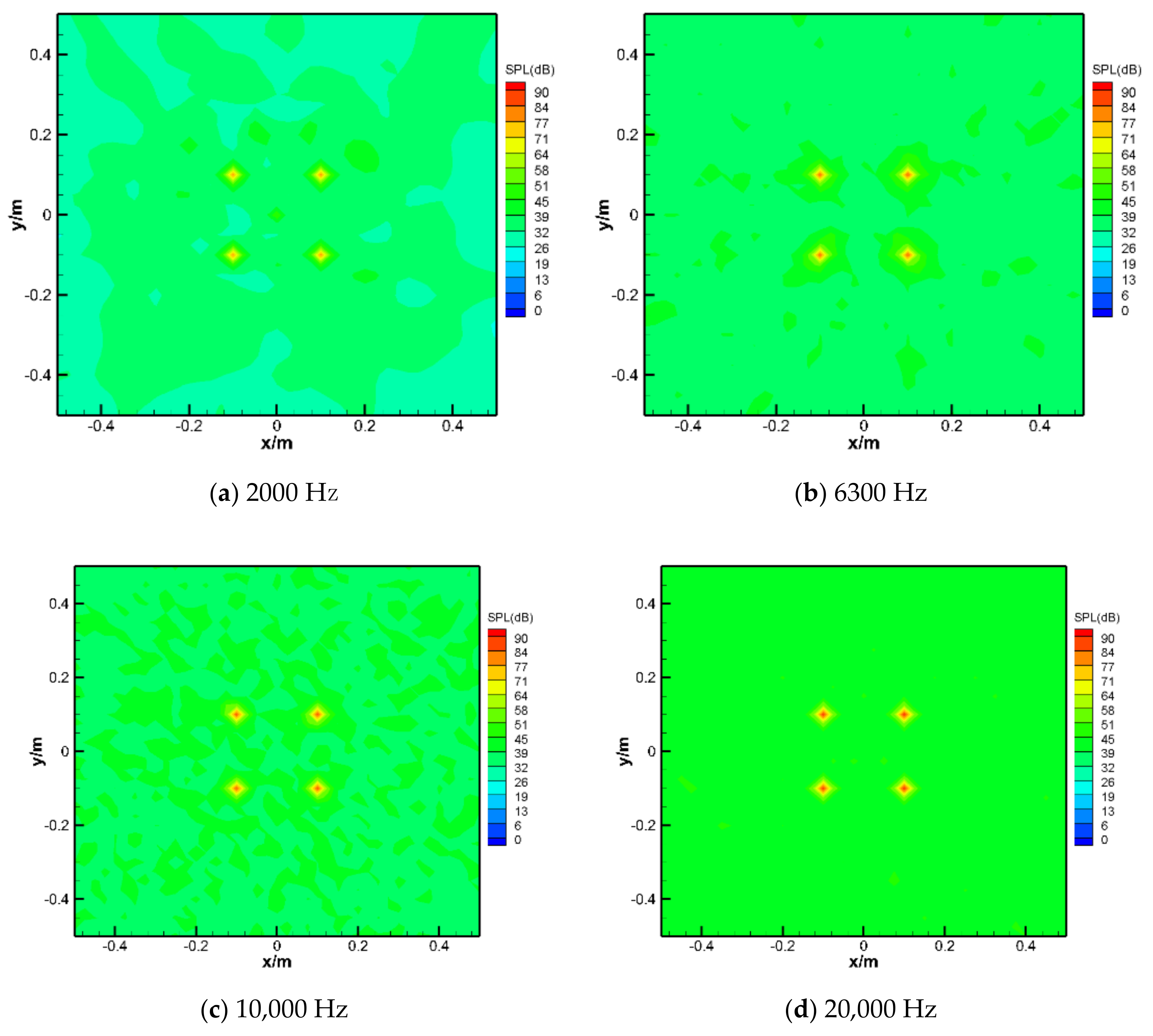

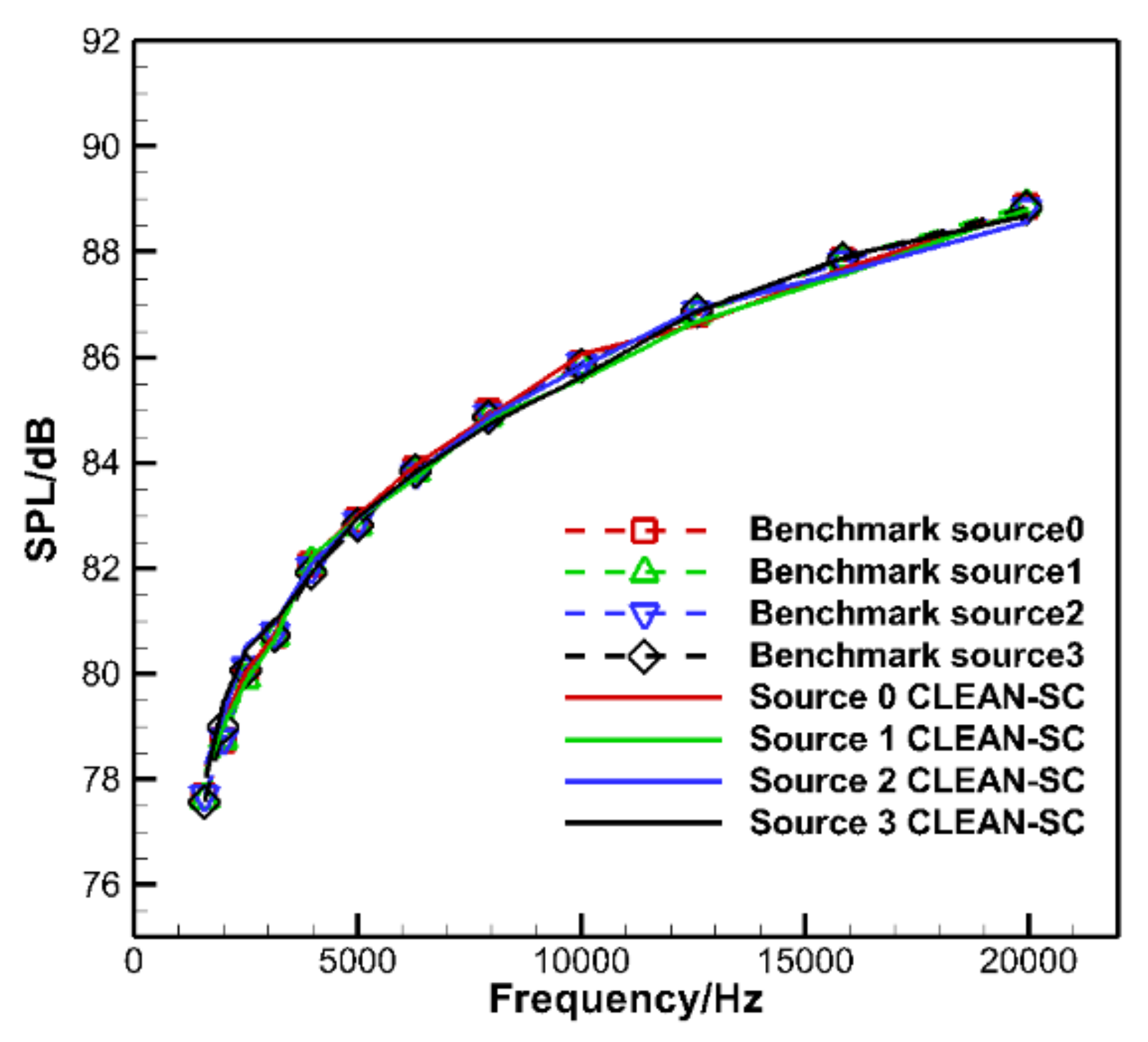

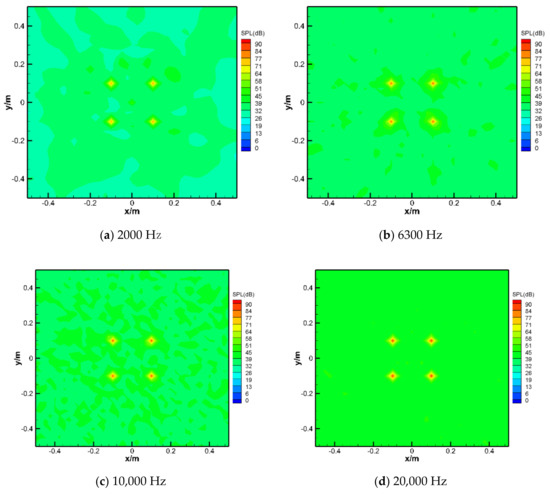

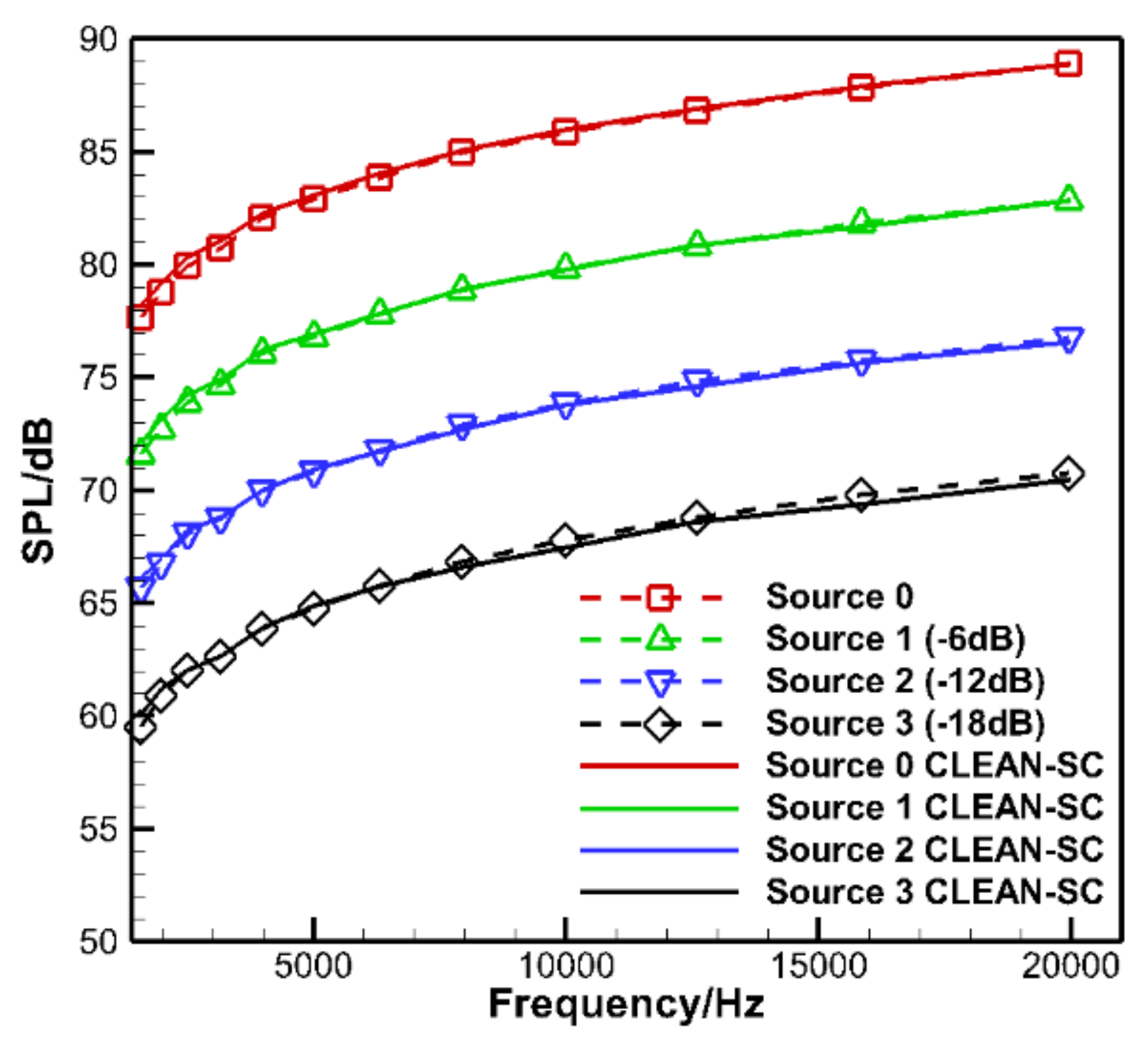

2.1. Results for Subcase A

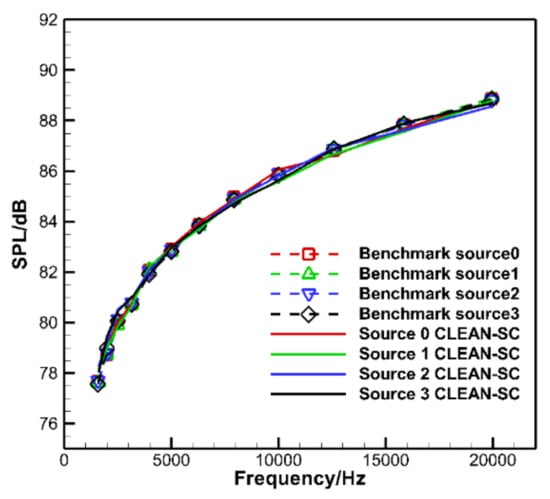

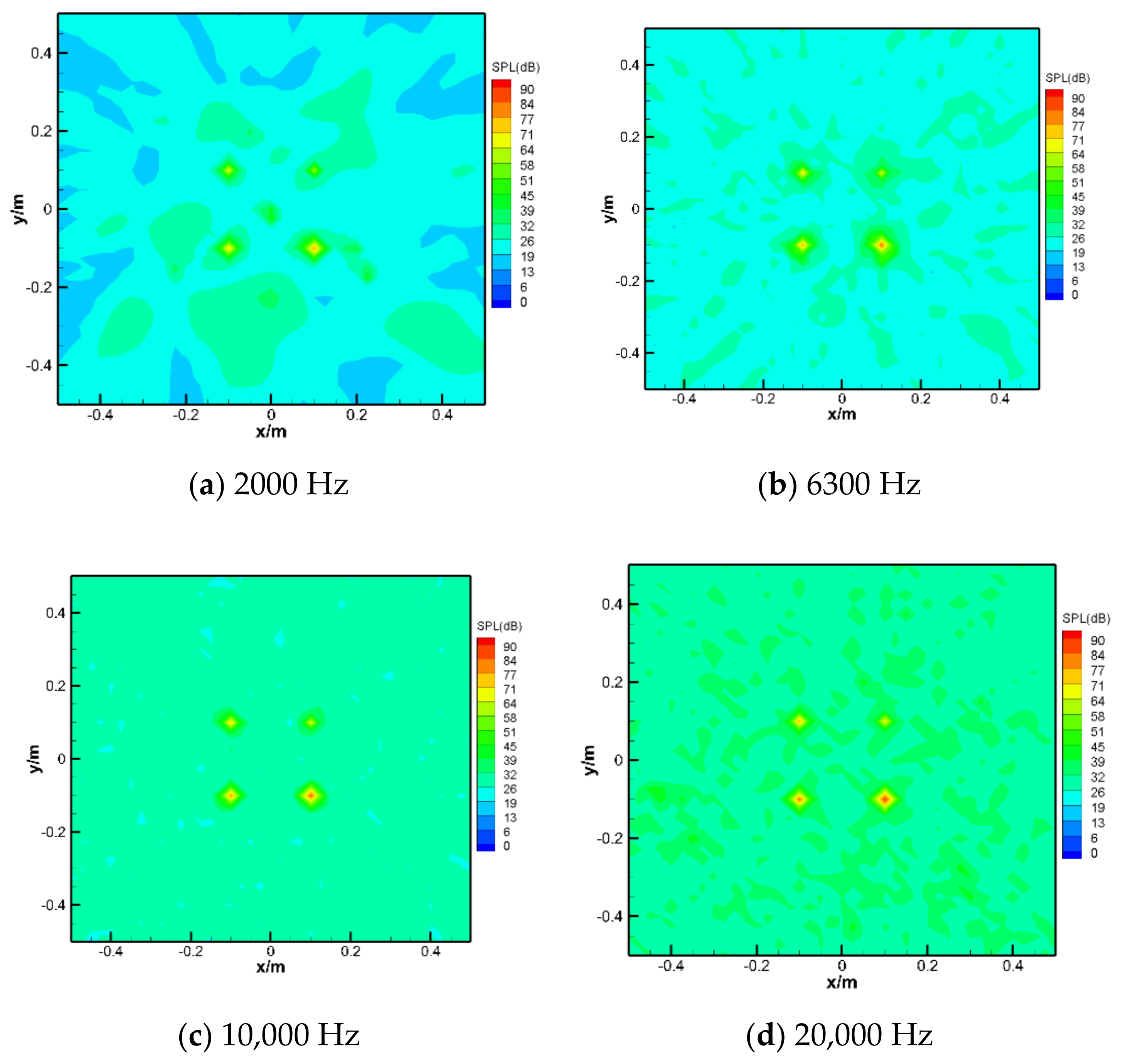

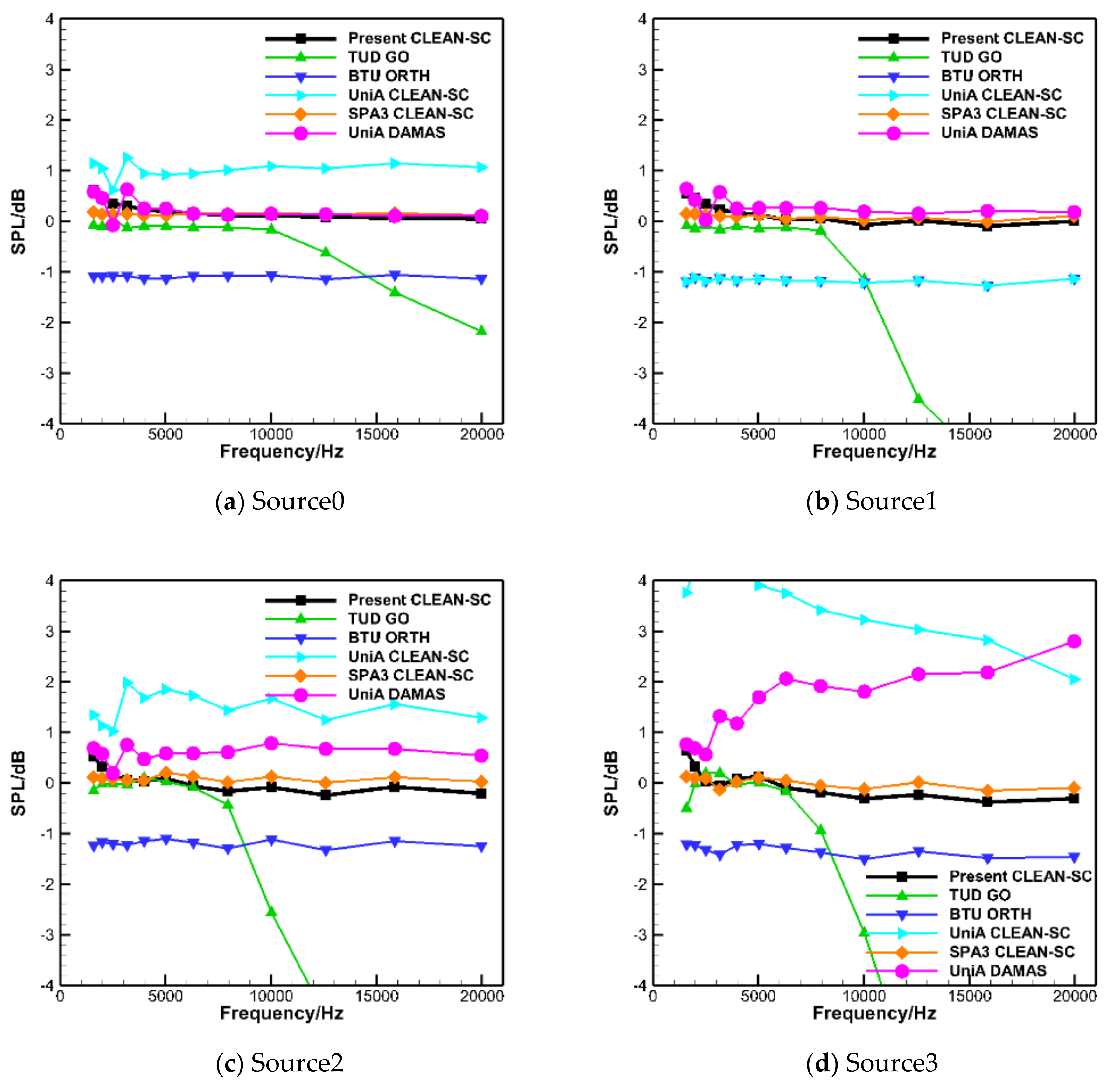

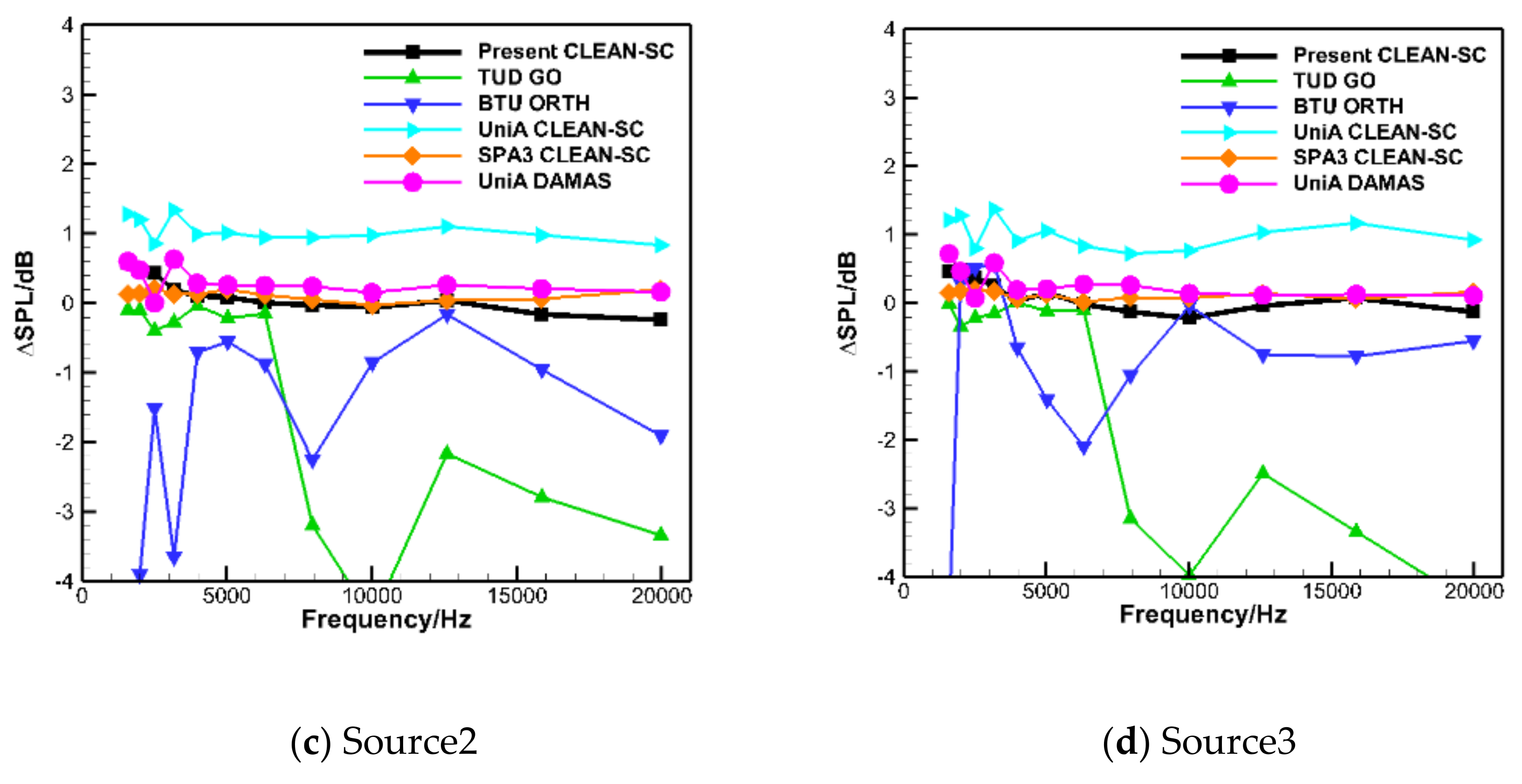

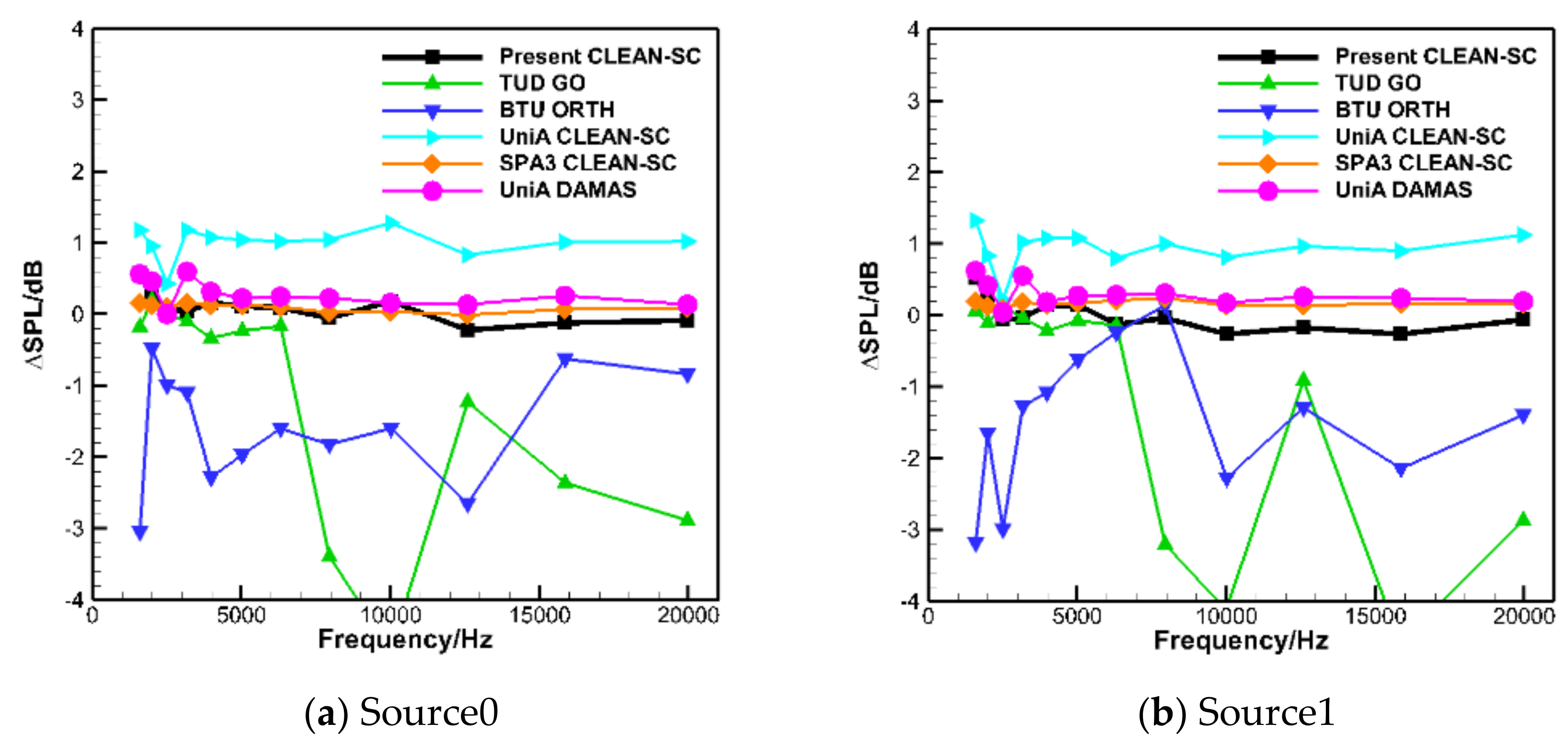

2.2. Results for Subcase B
3. The Application of a Linear Array for the Identification of LE and TE Noise Source
3.1. Experimental Setup

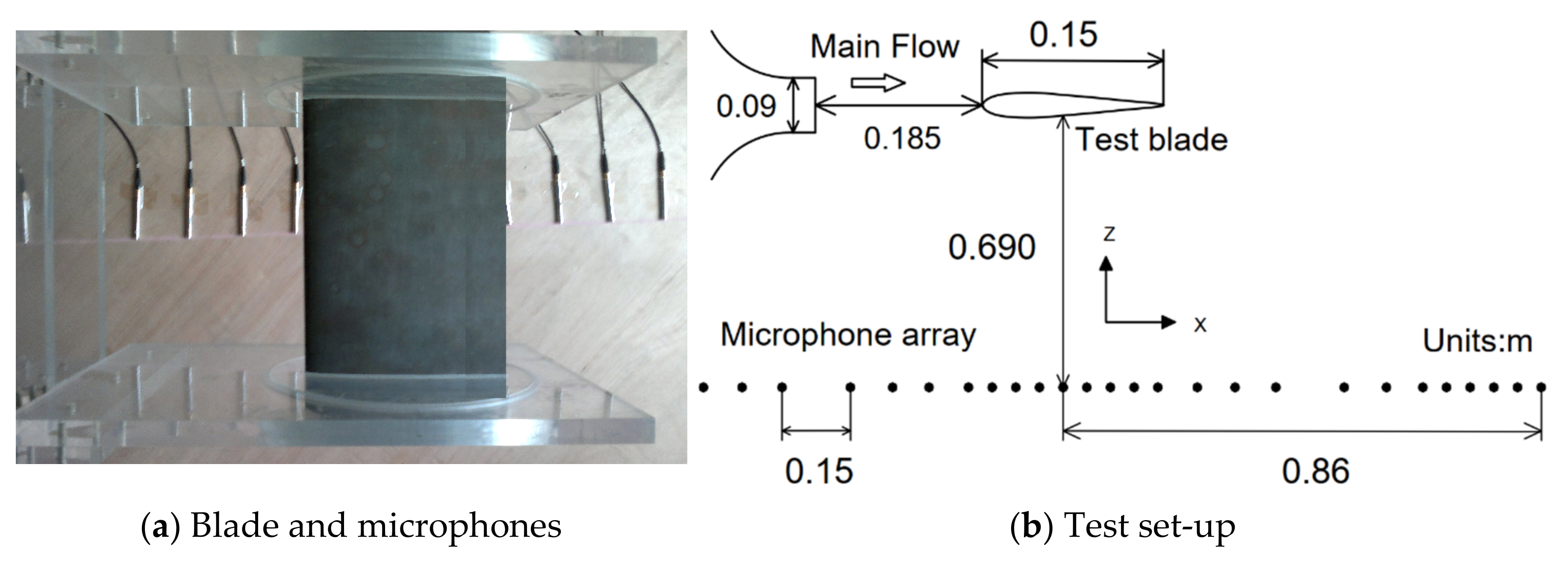

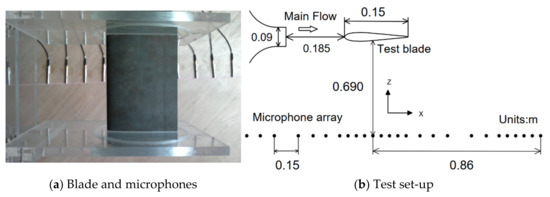

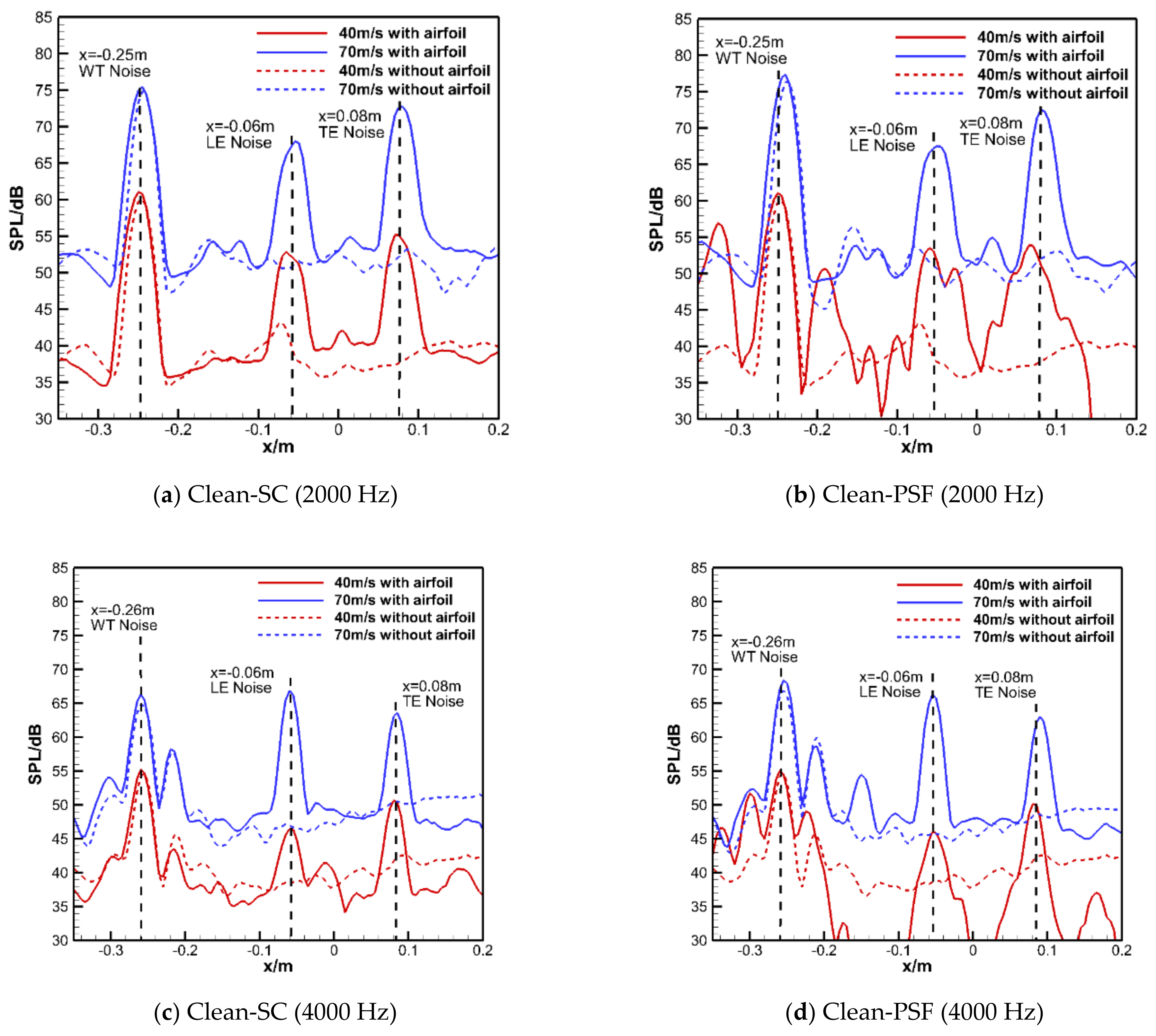

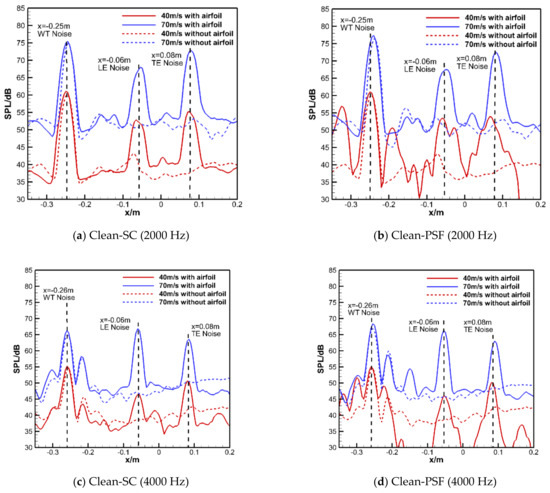

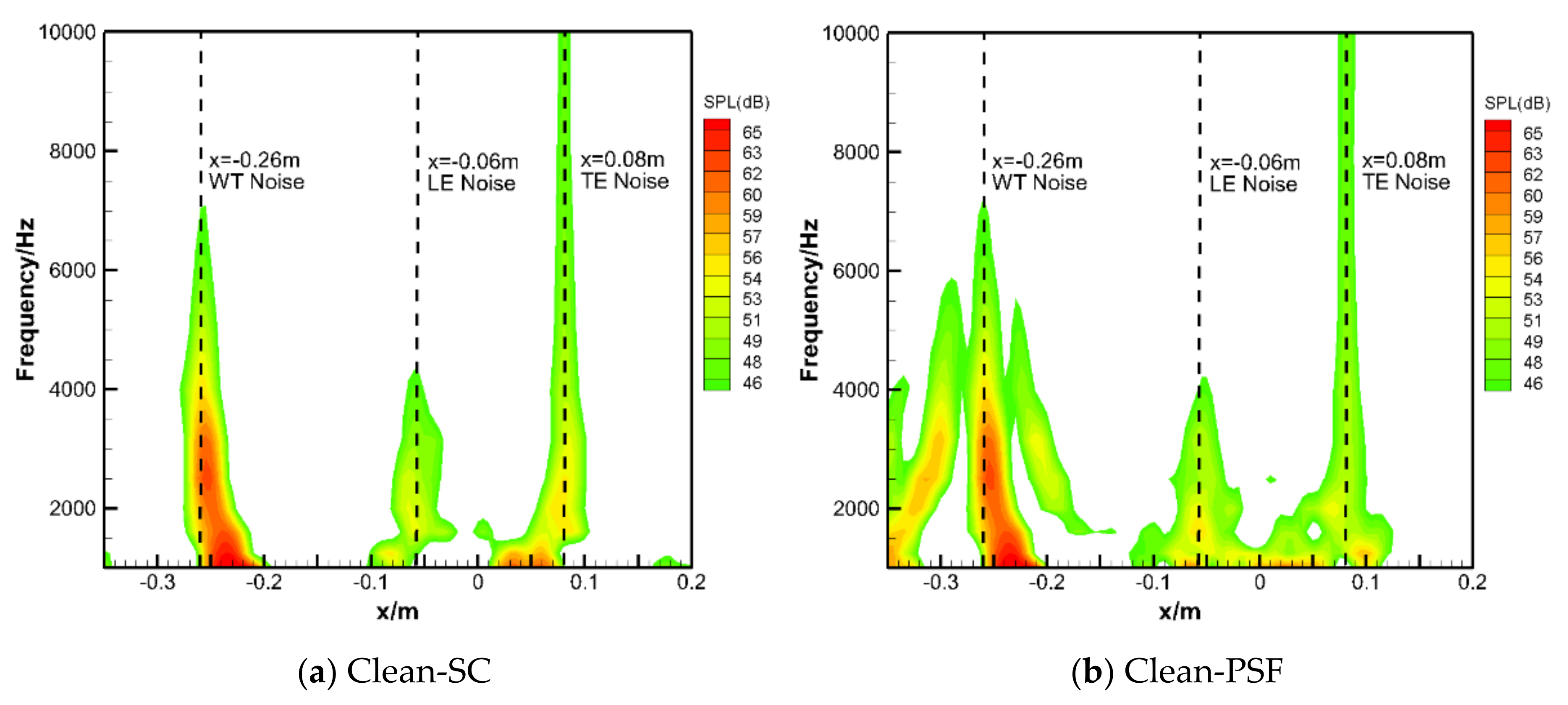

3.2. LE and TE Noise Sources Identification
4. Study of the TE Noise Reduction with Serrated Treatment Using Linear Microphone Array
4.1. Serrated TE Configurations

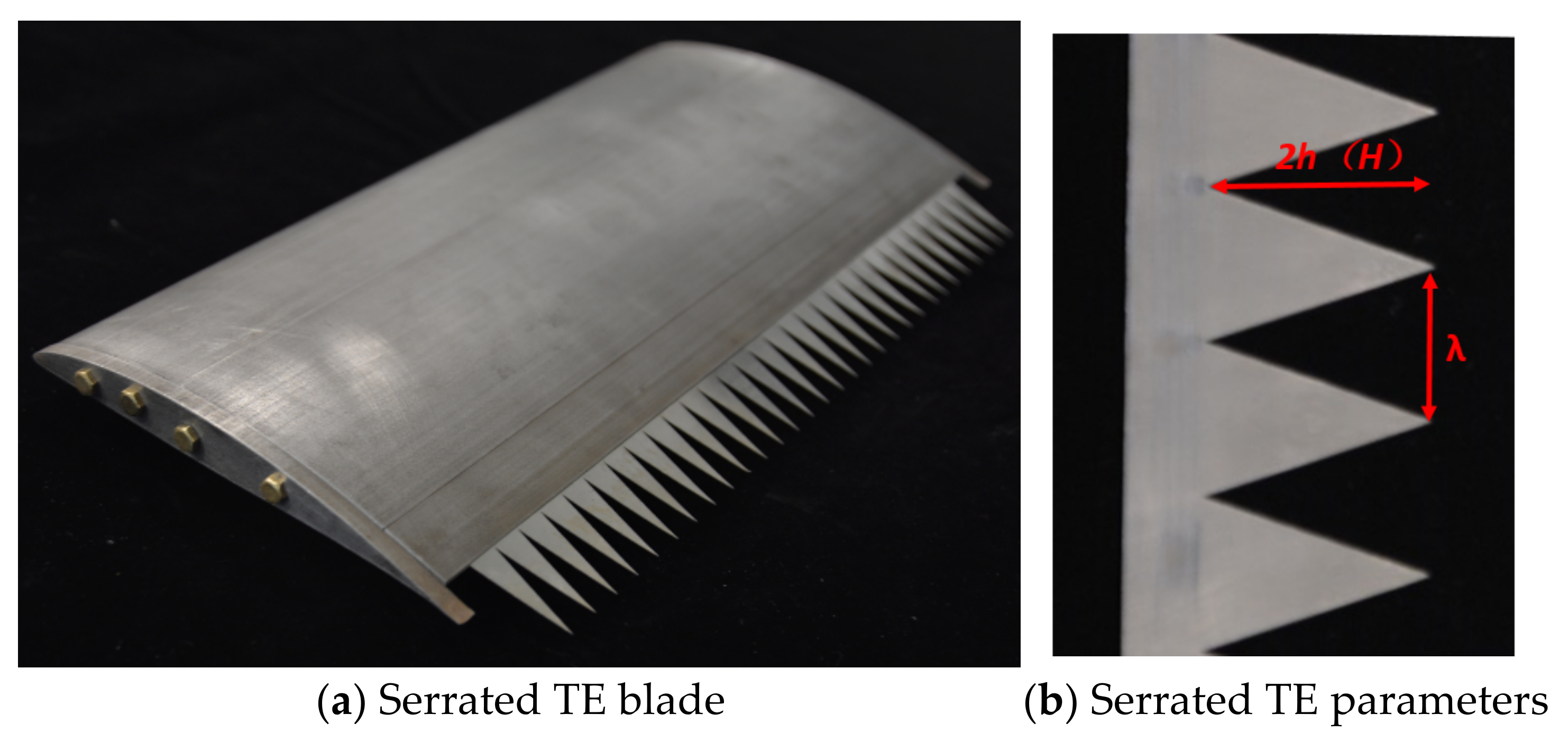

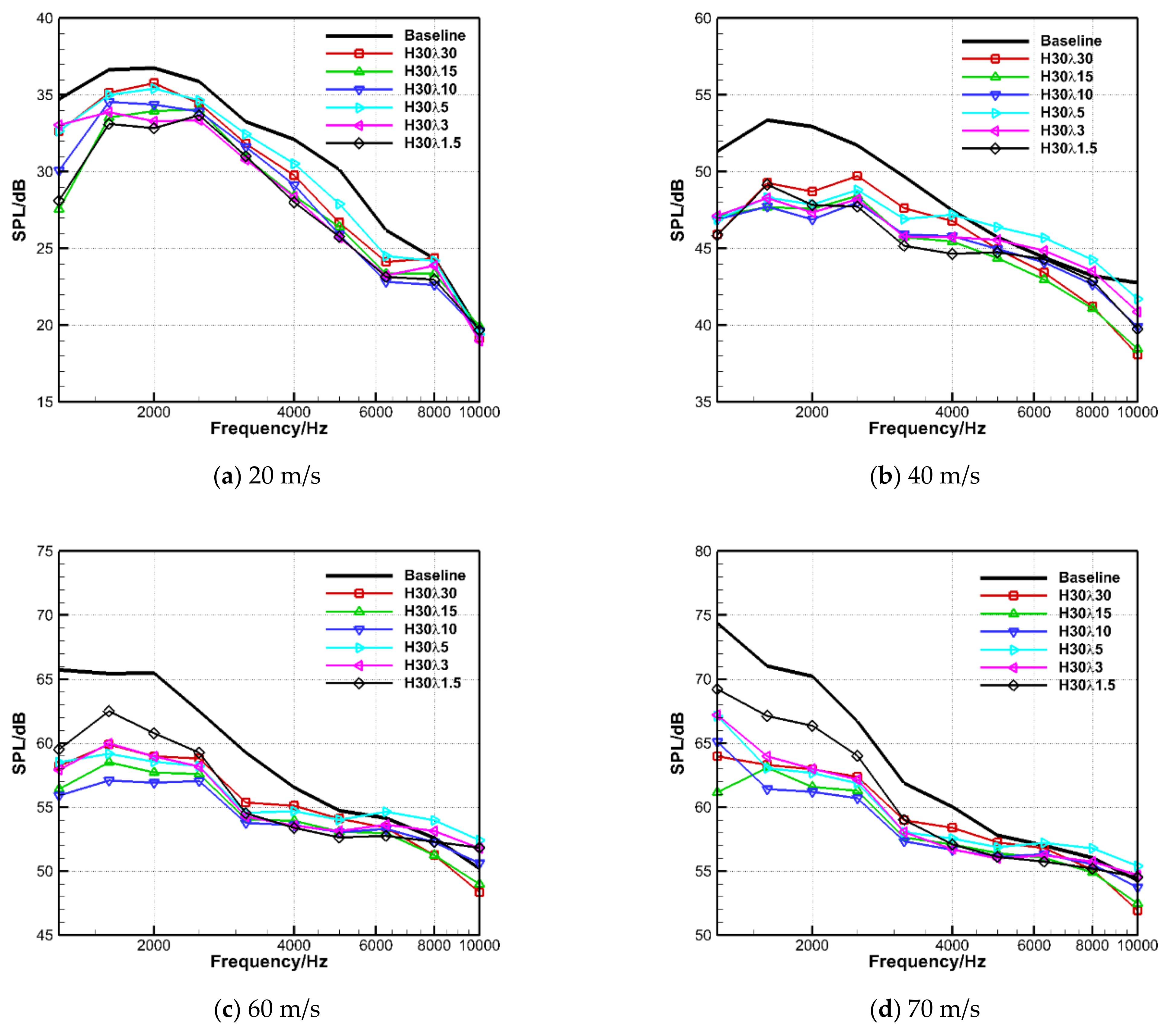

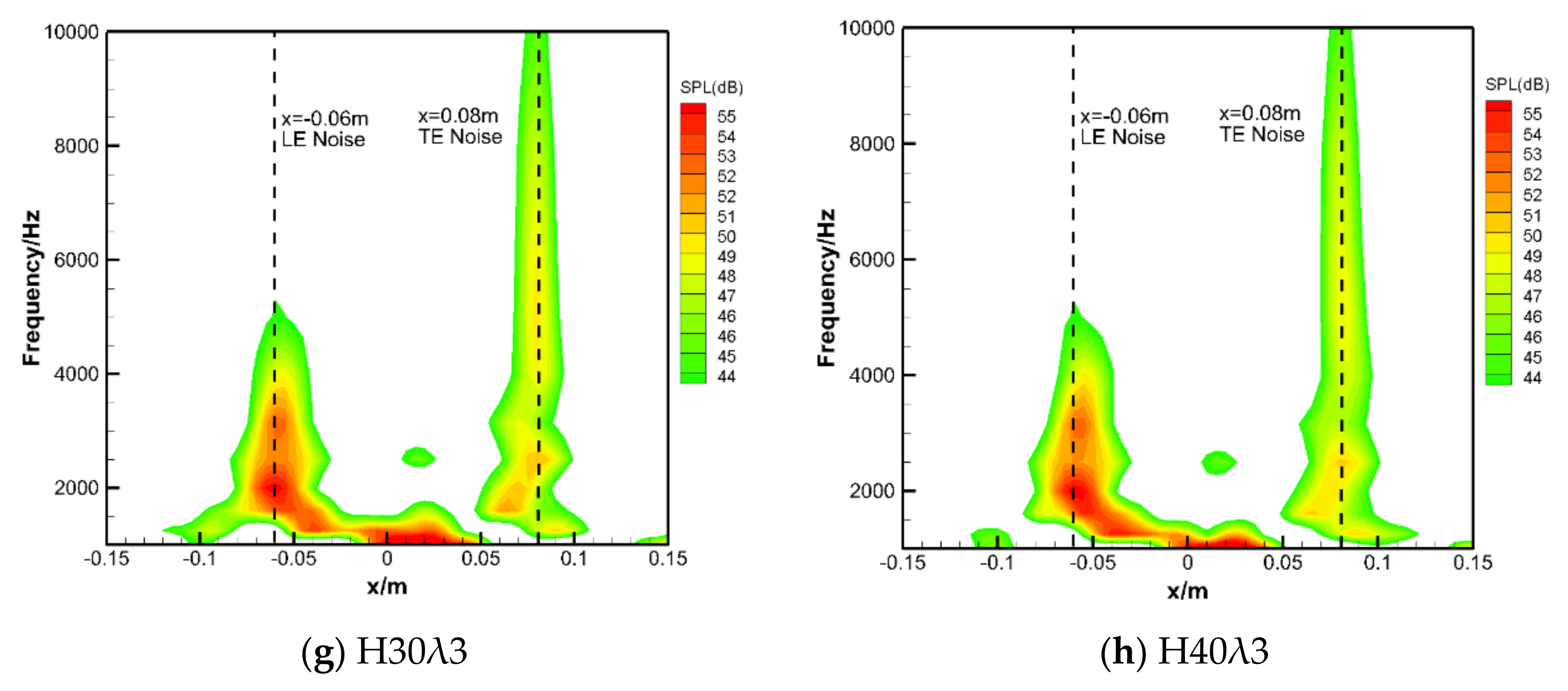

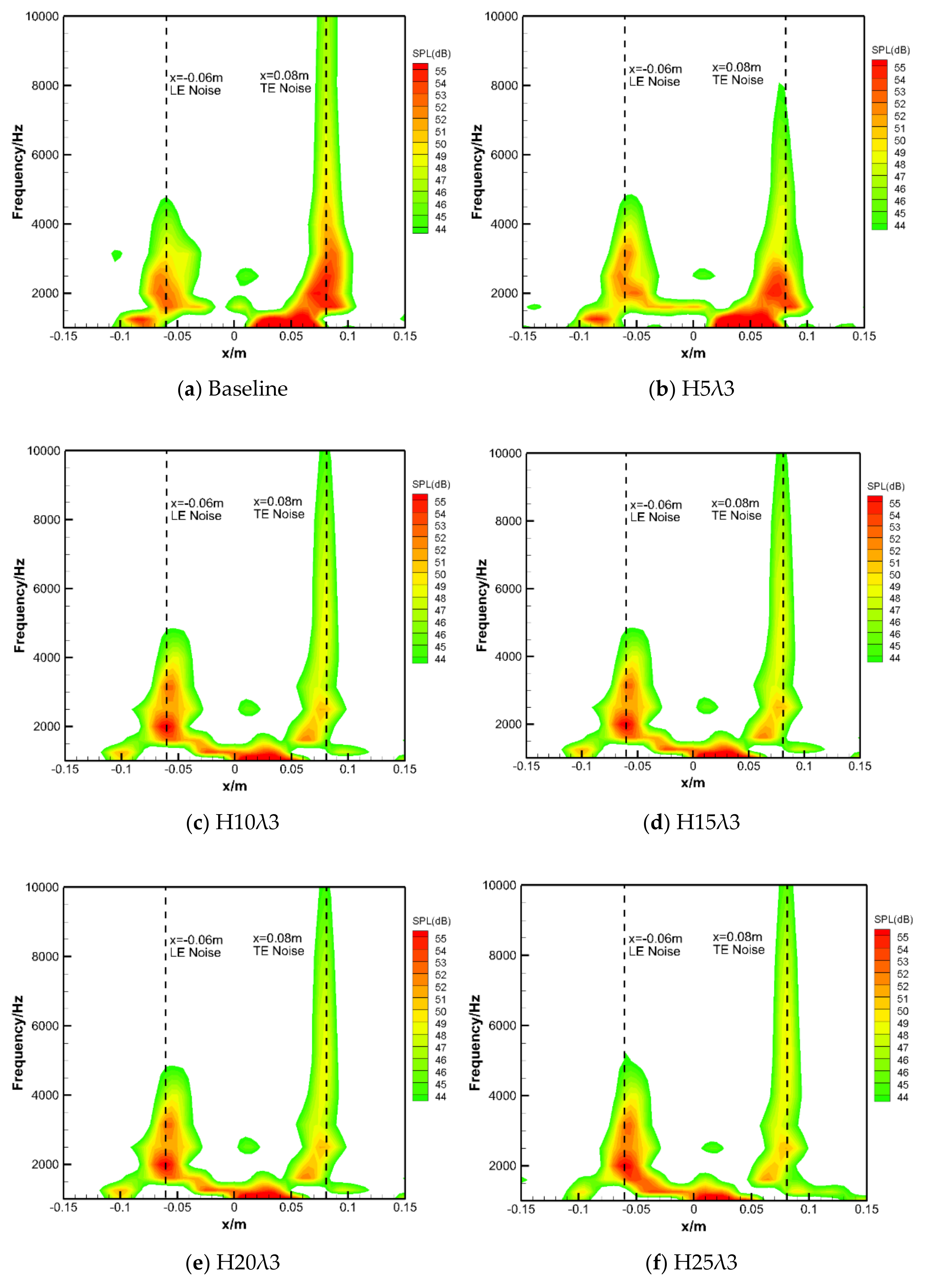

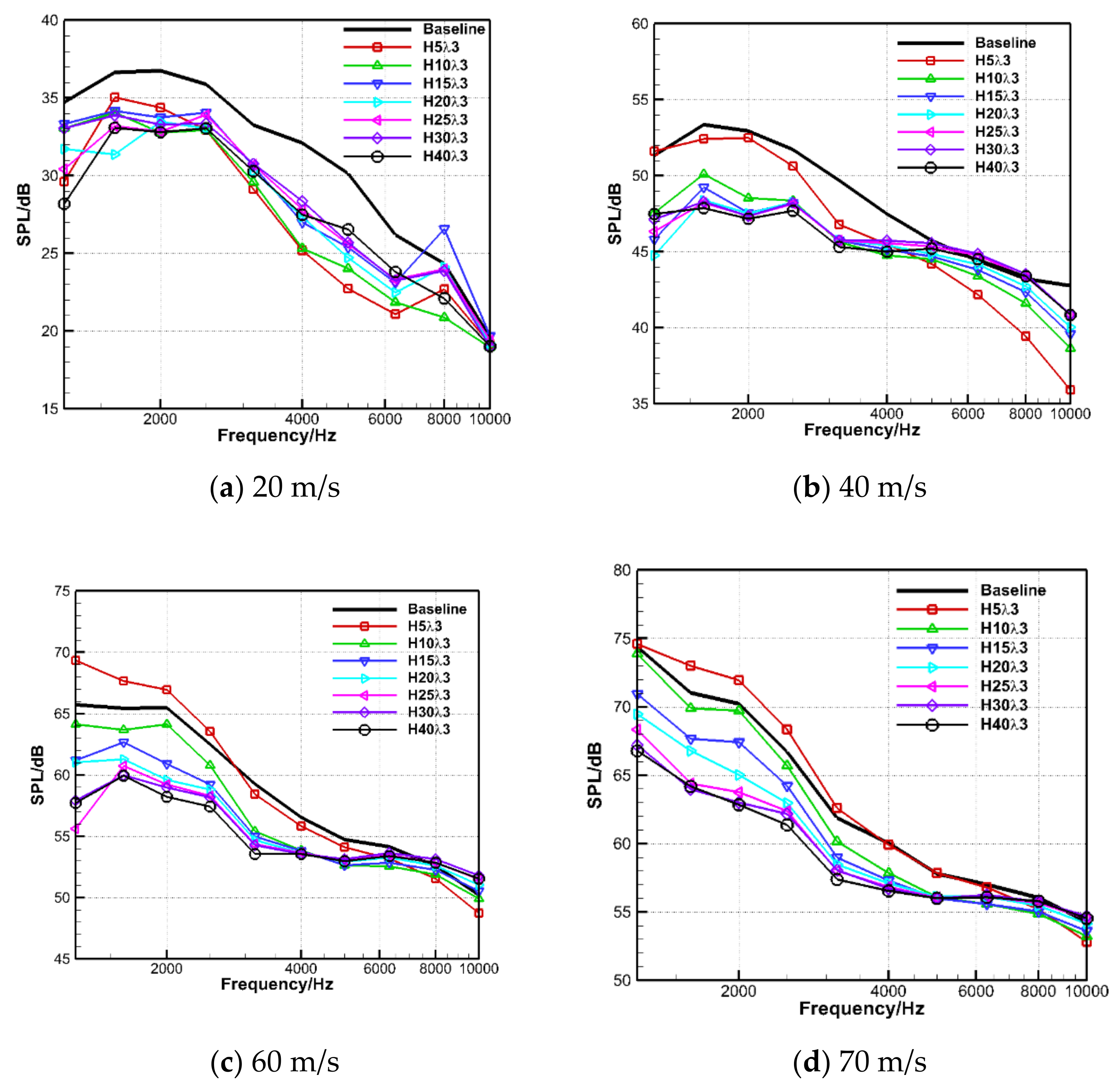

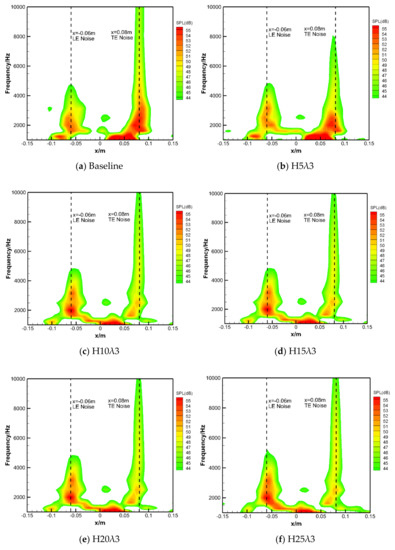

4.2. Results and Discussions
5. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
