Fresh State, Rheological and Microstructural Characteristics of Alkali-Activated Mortars Developed Using Novel Dry Mixing Technique under Ambient Conditions

Abstract

Ambient cured alkali-activated mortars (AAMs) are developed through the activation of supplementary cementitious materials (SCMs) by powder form reagents with silica sand using a novel dry-mixing method. The fresh state, rheological, compressive strength and microstructural characteristics of eight AAM mixes are comprehensively investigated. The effects of binary/ternary combinations/proportions of SCMs, different combinations/dosages of powder form reagents and the fundamental chemical ratios (SiO₂/Al₂O₃, Na₂O/SiO₂, CaO/SiO₂ and Na₂O/Al₂O₃) present in the precursors and the reagents are investigated. The AAM mixes obtained compressive strengths ranging from 34 to 42.6 MPa with initial and final setting times between 122 and 458 min and 215 and 483 min, respectively. The yield stress and viscosity of the mixes decreased with the increase in the slump flow spread. All the mixes demonstrated pseudoplastic behavior. The microstructural analysis revealed the formation of more longer polymeric chains comprising Si-Al linkages in N-C-A-S-H/N-A-S-H gels for reagent one (calcium hydroxide:sodium metasilicate = 1:2.5) mixes, which resulted in a lower slump flow, higher yield stress, higher plastic viscosity and quicker setting times compared to their reagent two (calcium hydroxide:sodium sulfate = 2.5:1) counterparts.

Highlights

• Development of supplementary cementitious materials-based alkali-activated mortars
• Use of powder-based reagents/activators, novel dry mixing techniques and ambient curing
• Evaluation of fresh state, rheological and microstructural characteristics
• Influence of binary/ternary combinations of supplementary cementitious materials and combinations/dosages of reagents
• Relationships between slump flow, yield stress, plastic viscosity and shear rate of mortars

1. Introduction

Geopolymers or alkali-activated materials are classified as novel sustainable construction materials developed through geopolymerization or an alkali activation reaction between alkaline activators and aluminosilicate rich source materials, mainly supplementary cementitious materials (SCMs) [1]. These cement-free alkali-activated materials having better fresh state and hardened properties are found to be more sustainable than the currently available green eco-friendly blended cements and concretes in the market incorporating industrial wastes and natural pozzolans such as fly ash, volcanic ash, volcanic pumice and other underused natural materials [1,2,3]. The alkali-activated materials are generally developed using a conventional two-part wet mixing technique incorporating solution-based reagents. The aluminosilicate-rich materials (precursors) and the alkaline solutions (reagents) are first separately prepared and mixed to obtain a wet mix. Various factors associated with this technique limit the commercial application or large-scale production of these materials. The first factor is using highly alkaline solutions and the heat curing of specimens to achieve desired mechanical and durability characteristics comparable to cement-based systems [4,5,6]. Additionally, preparing large quantities of these corrosive and viscous solutions creates a hostile environment for workers. The requirement of elevated temperature curing is energy-intensive, increases production costs and hinders construction applications [5,6].

In contrast, a one-part geopolymer development technique incorporating s solid/powder form of reagents to improve the reaction process of aluminosilicate-rich materials provides a sustainable solution to the issues associated with the two-part system. These one-part geopolymers developed in ambient curing conditions by adding water to the pre-blended dry mix of precursors and reagents can obtain comparable mechanical and microstructural characteristics to cement-based systems [7,8]. Moreover, the powder form reagents are required in significantly lesser quantities than their counterpart alkaline solutions typically used in the two-part system, which would reduce the production costs of the binders, making them commercially viable [6,7,8].

Understanding the influence of the ingredients of the alkali activation process on the workability, rheological, thixotropic and strength characteristics are crucial for developing alkali-activated materials from the point of view of their applications in construction industries.

The effect of the SCMs, type and molarity of the alkaline reagents and the aggregate content on the workability and rheological characteristics of alkali-activated slag (AAS) and fly ash (AAFA) mortars in comparison with ordinary Portland cement (OPC) mortars was investigated by Alonso et al. [9]. The slag-based mortars activated with water glass (WG) exhibited lower static yield stress at all the liquid to solid (L/S) ratios than the AAS-based mortars with NaOH due to WG’s better fluidizing characteristics. The percentage decrement between the first two static yield stress values for these mortars was consistently between 75–80%. The static yield stress in OPC mortars reduced with the increase in the L/S ratios. This was attributed to the reduction in inter-particle frictional forces because of the decrease in solid concentration with the additional water causing a decrement in mortar’s resistance to flow. A 74% reduction in static yield stress was seen in OPC mortars on increasing the L/S ratio from 0.13 to 0.15. The AAFA-based mortars observed lower values for initial static yield stress than OPC or AAS-based mortars due to the insignificant activation of fly ash. This, in turn, would also nullify the influence of fluidization by WG on the initial yield stress values. The percentage reduction between the first two static yield stress values for both the AAFA mortars was 80%. As a rule, lower values for static yield stress were observed for higher flow spreads, irrespective of the mortar type. A sharp decline in static yield stress values was noted for all the mortars at the specified L/S ratios before entering the plastic state (flow spread ranged between 140 mm and 190 mm) [9].

The slag-based mortars developed by Kwan and Li [10] exhibited a lower flow spread and higher initial torques than OPC and AAFA-based mortars at a specified L/S ratio. OPC mortars exhibited a substantial decrease in torque development initially from 115 to 9.94 N.mm when the L/S ratio was increased from 0.13 to 0.20 due to the decrement in inter-particle frictional forces. After the initial decline, the torque remained constant exhibiting thixotropic behavior till the test completion [10]. Another study reported a similar demonstration of thixotropic characteristics by AAS and AAFA-based mortars with slight deviations. Additionally, a reduction in torques was observed with an increase in the water to cement ratio (W/C) for OPC-based mortars. Similarly, at higher L/S ratios, lower values for torques were obtained for AAS and AAFA-based mortars. The addition of sand led to higher torques [11]. A similar observation was made in another study where the amount of liquid needed to obtain a required consistency was increased when a more significant amount of fine aggregates was used, as it led to higher yield stresses [12]. All the mortar mixes (AAS, AAFA and OPC), irrespective of reagents, fitted the Bingham model as per the rheological data [12,13,14]. However, an investigation by Palacios et al. revealed that slag-based mortars activated with WG better fit the Herschel–Bulkley model for rheological characteristics [15]. The other research studies [16,17] also reported that the activation of slag using WG followed the Herschel–Bulkley model for rheological parameters. The slag-based mortars activated using sodium hydroxide (NaOH) [15] or a combination of NaOH and sodium carbonate (Na₂CO₃) [18] fitted the Bingham rheological model [15,18]. The dynamic yield stress (γ) and plastic viscosity (η) of the Bingham model were reduced with an increased L/S ratio. This is due to reduced inter-particle frictional forces with decreased solids concentration because of the higher liquid content in the system. The fly ash-based mortars exhibited low plastic viscosity values, while the highest plastic viscosity was observed for OPC and slag-based mortars at the lowest L/S ratios. The slag-based mortars activated with WG demonstrated a higher viscosity value of 2.92 than the slag-mortars activated with NaOH and OPC mortars (0.72) at an L/S ratio of 0.15 [9,15].

The influence of water-reducing admixtures (WRAs) on the rheological characteristics of alkali-activated fly ash binders (AAFA) was investigated in another study [19]. The fly ash-based binders were synthesized by mixing fly ash with the alkaline reagent consisting of 12.5 M NaOH (85%) and Water glass (15%). Lignosulphonates, melamines (first and second generation) and polycarboxylates (latest generation) were used as WRAs. A carboxylate-based superplasticizer was determined to be the most effective based on flowability results. The fly ash-based binders with 0.8% WRAs exhibited similar flow curves in the ascending branch (when the shear stress increased) and the descending side (the shear stress was decreasing). A similar observation about flow curves was made in another study, reflecting that these alkali-activated mortars or pastes are not influenced by the de-clustering of flocci particles, a typical phenomenon in cement-based binders [20]. The flow curves for fly ash-based binders had a straight lower branch, indicating that these binders comply with the Bingham model. This means that these binders tend to flow when a slight initial force is applied. The binders with WRAs exhibited lower plastic viscosity values than the fly ash mixes without these admixtures. Moreover, the plastic viscosity values of fly ash binders were much larger than the cement-based binders. This can be attributed to the composition of the solution-based reagents. The silicates in the reagents react rapidly with aluminates released from fly ash dissolution forming alkaline aluminosilicate binding gels. These gels formed in the initial phases facilitate the setting and hardening of the pastes. However, the yield stress values for Portland cement binders (without WRAs) were greater than the fly ash systems. This is because the agglomeration of cement particles is taking place in cement pastes. Thus, the de-clustering of flocculated cement grains requires a more significant force, leading to higher yield stresses. A higher flow spread in alkali-activated fly ash systems was not always associated with lower viscosity values as observed for cement-based binders [21]. The slump is influenced by the yield stress and not viscosity determined using theoretical simulations based on the Bingham model [22].

The literature study suggests that there has been no research on the rheological characteristics of alkali-activated mortars (AAMs) incorporating powder form reagents under ambient conditions. Moreover, there is also a lack of a research database on the performance evaluation of AAMs incorporating silica sand as fine aggregates using the one-part dry-mixing technique. This paper addresses the above-mentioned research gaps by presenting a study on the development and comprehensive evaluation of one-part AAM mixes in terms of fresh state and hardened characteristics. The influence of the ingredients of the mix such as the combinations of reagents (calcium hydroxide, sodium metasilicate and sodium sulfate), binary/ternary combinations and proportions of precursors (fly ash class C, fly ash class F and ground granulated blast furnace slag) and the fundamental chemical ratios (SiO₂/Al₂O₃, Na₂O/SiO₂, CaO/SiO₂ and Na₂O/Al₂O₃) present in the precursors and the reagents on fresh state, rheological, compressive strength and microstructural characteristics has been investigated to ascertain their suitability for the development of alkali-activated composites (AACs). The findings (fresh state and hardened characteristics) of this research on mortar compositions will certainly facilitate engineers and researchers to further develop high-performing alkali-activated concrete and composites.

2. Experimental Program

The experimental program involved a comprehensive evaluation of geopolymer/alkali-activated mortars developed from the optimized paste mix compositions (from authors’ ongoing research) by incorporating a constant amount (30% by mass of total SCMs) of silica sand [23,24]. The performance of the developed mortars had been assessed in terms of fresh state (evolution of slump flow with time and setting times), rheological (yield stress and time dependent plastic viscosity), hardened state (compressive strength and density) and microstructural characteristics through scanning electron microscopy (SEM) coupled with energy-dispersive X-ray spectroscopy (EDS).

2.1. Materials

High calcium fly ash class C (FA-C), low calcium fly ash class F (FA-F), ground granulated blast furnace slag (GGBFS), silica sand (maximum particle size, 600 µ) as well as two types of powder-based reagents were used to develop AAM mixes using the dry mixing technique [24]. Reagent 1 was composed of a combination of calcium hydroxide (Ca(OH)₂) and sodium meta-silicate (Na₂SiO₃·5H₂O), having a modular ratio (SiO₂/Na₂O) of 1.0. The constituents of the reagent 2 were calcium hydroxide (Ca(OH)₂) and sodium sulfate (Na₂SO₄). The specific gravities of calcium hydroxide (CH), sodium metasilicate (SM) and sodium sulfate (SS) were 2.24, 1.81 and 2.70 g/cm³, respectively. The alkalinity in terms of pH values of CH, SM and SS were 12.4–12.6, 14 and 7, respectively. All the reagents were of lab-grade quality, having a purity of 95–100%. Additionally, Type GU-general use cement was used for producing control mortar mixes. A polycarboxylate ether-based superplasticizer having a pH of 6, a specific gravity of 1.06 g/cm³ and an approximate solid content of 40% was used as a high range water reducer admixture (HRWRA) to produce flowable mortar mixes. The chemical compositions obtained through X-ray fluorescence spectrometer analysis and the physical properties of SCMs and cement are presented in

Table 1. Chemical composition and physical characteristics of fly ash-class C, fly ash-class F, GGBFS and cement.

Chemical Composition (%)	FA-C	FA-F	GGBFS	Cement
SiO2	36.53	55.66	35.97	19.35
Al2O3	18.26	22.09	9.18	5.31
Fe2O3	5.66	4.26	0.50	3.10
CaO	20.97	7.97	38.61	62
MgO	5.08	1.16	10.99	3
K2O	0.68	1.49	0.36	-
Na2O	4.04	4.10	0.28	0.23
MnO	0.03	0.03	0.25	-
TiO2	1.26	0.61	0.39	-
P2O5	0.96	0.43	0.01	-
LOI.	2.18	1.05	0.74	2.40
Physical properties	FA-C	FA-F	GGBFS	Cement
Density (g/cm3)	2.61	2.02	2.87	3.15
Retained on 45 µ (%)	<5	<10	<5	<10
Blaine fineness (m2/kg)	315	306	489.30	410

. The grain size distribution of the SCMs, cement and silica sand are presented in Figure 1.

2.2. Mix Proportions

The eight optimized alkali-activated paste binders resulting from four binary/ternary combinations of SCMs, and two powder-based reagents’ having two different dosages (from authors’ research) were used to develop AAMs with a constant amount of silica sand [23]. The objective was to achieve fresh and rheological characteristics comparable to that of the control mortar (FP_CM) previously established at Ryerson University for producing fiber-reinforced engineered cementitious composites (ECCs) [25,26]. The mix proportions for one-part AAMs and control mortar are presented in

Table 2. Mix proportions for one-part alkali-activated and control mortars.

Mix-Des.	Total SCMs (Binder *)	Cement	FA-C	FA-F	GGBFS	Reagent Type	Reagent/ Binder	Silica Sand	Water/ Binder	HR-WRA **
Alkali activated mortars (AAMs)—CS: Binary and CFS: Ternary
CSM1	1	0	0.55	0	0.45	1	0.09	0.3	0.35	0.02
CSM1N	1	0	0.50	0	0.50	1	0.09	0.3	0.35	0.02
CFSM1	1	0	0.25	0.35	0.40	1	0.09	0.3	0.35	0.02
CFSM1N	1	0	0.25	0.25	0.50	1	0.09	0.3	0.35	0.02
CSM2	1	0	0.55	0	0.45	2	0.12	0.3	0.375	0.02
CSM2N	1	0	0.50	0	0.50	2	0.12	0.3	0.375	0.02
CFSM2	1	0	0.25	0.35	0.40	2	0.12	0.3	0.375	0.02
CFSM2N	1	0	0.25	0.25	0.50	2	0.12	0.3	0.375	0.02
Control mortar
FPCM	1	0.45	0	0.55	0	N.A.	NA.	0.36	0.27	0.006

All numbers are mass ratios of the binder. * Binder denotes supplementary cementitious materials (SCMs) and Portland cement (P_C). C: FA-C, F: FA-F, S: GGBFS, N denotes mixes with equal mass of fly ash (class C + class F) and GGBFS. Numeric value in the mix designation denotes reagent type. ** HRWRA: Poly-carboxylate ether-based superplasticizer.

. The total fly ash content varied from 50 to 60%, and the amount of ground granulated blast furnace slag (GGBFS) varied from 40 to 50% by mass of the total binder content similar to the fly ash and cement content in the control mortar (Table 2). Two dosages/combinations of powder-based reagents were used. A constant amount of silica sand (0.3 of total binder content) was added to the binder when it obtained the desired fluidity. One of the objectives was to use these mortars to develop engineered AACs in further studies. Therefore, the quantity of sand (sand to binder ratio of 0.3) was kept similar to fiber reinforced engineered cementitious and geopolymer composites (ranging from 0.3 to 0.36) from authors and other existing studies [25,26,27] to ensure adequate matrix fracture and crack-tip toughness Additionally, use of such low quantity sand will ensure adequate workability for the uniform dispersion of fibers responsible for strain hardening behavior [25,26,27]. The water to binder ratio varied from 0.35 to 0.375 to achieve a minimum slump flow diameter of 150 mm. The dosage of HRWRA was kept constant as it is acidic and should not act differently for varying mix compositions with alkaline reagents.

The reagent component and the initial chemical ratios in the mix compositions are presented in

Table 3. Reagent component and chemical ratios in mix compositions.

Mix Designation	R. Type	R. Component Ratio	Chemical Ratios (SCMs + Reagents)				28d-Compressive Strength (MPa)	28d-Density (kg/m3)
			SiO2/Al2O3	Na2O/SiO2	CaO/SiO2	Na2O/Al2O3
CSM1	1	1:2.5	2.62	0.09	0.84	0.23	42.6	2088
CSM1N	1	1:2.5	2.71	0.08	0.87	0.23	35.0	2075
CFSM1	1	1:2.5	2.75	0.08	0.59	0.22	40.4	2030
CFSM1N	1	1:2.5	2.86	0.07	0.69	0.21	34.0	2010
CSM2	2	2.5:1	2.56	0.14	1.02	0.35	41.2	2042
CSM2N	2	2.5:1	2.64	0.13	1.02	0.35	35.8	2032
CFSM2	2	2.5:1	2.69	0.12	0.73	0.32	42.0	1983
CFSM2N	2	2.5:1	2.80	0.12	0.84	0.33	38.1	2055
FPCM	-	-	2.70	0.06	0.82	0.16	43.5	1937

All numbers are mass ratios of the binder. Binder denotes supplementary cementitious materials (SCMs) and Portland cement (P_C). C: FA-C, F: FA-F, S: GGBFS, N denotes mixes with equal mass of fly ash (class C + class F) and GGBFS. The numerical value in the mix designation denotes reagent type.

. Reagent 1 has a reagent component ratio (calcium hydroxide to sodium metasilicate) of 1:2.5, while reagent 2 has a reagent component ratio (calcium hydroxide to sodium sulfate) of 2.5:1. The performed of these component ratios was superior in terms of compressive strength from authors’ research on AABs [23]. The fundamental chemical ratios in terms of silicon oxide to aluminum oxide, sodium oxide to silicon oxide, calcium oxide to silicon oxide and sodium oxide to aluminum oxide were evaluated from the XRF results of the precursors/source materials and the chemical composition of the reagents. These chemical ratios are found to fall within the range of AAMs with adequate workability and strength characteristics as per recent studies on fly ash and slag-based mortars [1].

2.3. Mixing, Casting and Curing of Specimens

The aluminosilicate-rich materials (binder constituents) and the reagents required for each mix composition were weighed per the proportions given in Table 2 and Table 3. The reagent components were first mixed thoroughly to form a multi-component reagent/activator. This multi-component reagent was then added to the precursors in the shear mixer. All the ingredients were dry mixed for about 3 min to obtain a uniform one-part geopolymer binder mixture. Then, two-thirds of the required water was gradually added to the mix, similarly to the development of cement-based binders. The HRWRA mixed with the remaining water was gradually added to make the paste flowable for incorporating silica sand as per the proportions given in Table 2. The incorporation of sand was followed once the paste became flowable so that the sand did not hinder the initial alkali activation reactions. After sand addition, the remaining HRWRA mixed with water was added gradually to the mortar. The total mixing procedure lasted about 12–15 min. At least 12 cube specimens having dimensions of 50 mm × 50 mm × 50 mm were prepared for each mix composition for compressive strength testing. All the specimens were kept in the curing room/chamber maintained at a temperature of 23 ± 3 °C and 95 ± 5% relative humidity (RH). The molds were demolded 24 h after casting and were kept in the curing chamber until the days of testing.

The above dry-mixing method avoided the handling of solution-based corrosive alkaline reagents. Additionally, it used powder form reagents in lesser quantities (0.09–0.12 of total binder content) than the conventional solution-based reagents (0.35 of total binder content) used in previous research works [23,24,28]. Thus, this method demonstrated the enhanced sustainability, user-friendliness and commercial viability to develop AAMs on a large scale compared to the conventional two-part method.

2.4. Test Methods

The rheological characteristics of the AAM mixes in terms of yield stress, time-dependent plastic viscosity and hysteretic plastic viscosity response were studied using the DV3TRV rheometer by Brookfield. The yield test was conducted using a vane spindle (V-73) rotating at a speed of 3.5 RPM as it can be easily immersed without disturbing the underlying sample. A rheological procedure was defined separately to generate a hysteresis loop for the viscosity of the AAM mixes. The hysteresis loop behavior program consisted of two phases for the shear rate in revolutions per minute (RPM): ramp-up and ramp-down, as indicated in Figure 2. The shear rate was gradually increased from 0.5 to 3.5 RPM, and then it was steadily decreased from 3.5 to 0.5 RPM in the ramp-down stage. Each RPM was administered for 60 s.

On the other hand, the time-dependent behavior of plastic viscosity was assessed using a stepped viscosity program in which viscosity measurements were made for 5-min duration with a spindle rotational speed of 3.5 RPM at 0, 30 and 60 min post mixing. A vane spindle (V-73) was administered for both the rheological programs to compare the behavior with the yield of the materials. Additionally, the slump flow measurements were made using a mini-slump cone at the same time intervals (0, 30 and 60 min post mixing) in compliance with ASTM C1437 [29]. The relative slump (T) was evaluated from the slump flow spread diameters based on the following equation (1) [28]:

$$T=\left[{\left(\frac{d}{d_0}\right)}^2\right]-1$$

(1)

where $d$ = average of two measured diameters of the matrix spread and $d_0$ = bottom diameter of the conical cone (100 mm). The initial and final setting times of the mortar mixes were determined as per ASTM C 191-a [30]. The compressive strength test at 28 days was conducted on 50 mm × 50 mm × 50 mm cube specimens according to ASTM C109/C109M-2016 [31].

The SEM micrographs coupled with EDS analysis were performed on the alkali-activated and control mortars to determine the reaction products. The specimens were taken from the core of the failed compression test cubes at 28 days for SEM/EDS analysis. The specimens were grounded and softly polished with sandpaper down to 30 µm. A gold coating was added to the specimens to make the surface conductive. The fracture surface was studied using the secondary electrons (SE) and the backscattered electron (BES) at 20 kV. The specimens’ morphology was studied at 100× (100 µm), and the reaction products assessment was performed at 2000× (10 µm).

3. Results and Discussions

Table 3 summarizes the 28-day compressive strength and density of the alkali-activated and control (cement-based) mortars. All the AAMs achieved satisfactory 28-day compressive strengths ranging from 34 to 42.6 MPa (>18 MPa specified for structural concrete as per ACI 318 [32]), which is comparable to 43.5 MPa (control cement-based mortar) and other conventional two-part FA and GGBFS based geopolymers from existing studies [23,24,28] (Table 3). The binary (FA-C + GGBFS designated as CS) mortars having higher CaO/SiO₂ ratios (as presented in Table 3) obtained higher compressive strengths (than their ternary (FA-C + FA-F + GGBFS designated as CFS) counterparts due to the formation of additional CSH binding phases/gels with C-A-S-H/N-C-A-S-H causing further densification of the matrix, as evident from the microstructural analysis (discussed later) and higher density (2032–2088 kg/m³ compared to 1983–2055 kg/m³ of their ternary counterparts) as presented in Table 3. The following subsections present the fresh state, rheological and microstructural characteristics of the alkali-activated and control (cement-based) mortars.

3.1. Fresh State and Rheological Characteristics

The fresh state and rheological characteristics of the cement and alkali-activated mortars in terms of mini-slump flow spread with the corresponding relative slump and viscosity at 0, 30 and 60 min of mixing, yield stress immediately after mixing; the shear modulus and setting times are presented in

Table 4. Fresh state and rheological characteristics of alkali-activated and cement mortars.

Mix-ID	Slump Flow (mm) with Time (min)			Relative Slump (T) with Time (min)			Viscosity (Pa.s) with Time (min)			Yield Stress (Pa)	Shear Modulus (Pa/rad)	Setting Time (min.)
	0	30	60	0	30	60	0	30	60			Initial	Final
FPcM	480	500	490	22.0	24.0	23.0	1.8	-	-	6.6	9.5	474	522
CSM1	200	105	100	3.0	0.1	0.0	64.7	92.2	120.1	160.8	300.1	216	248
CSM1N	150	105	100	1.2	0.1	0.0	99.8	123.1	133.0	129.8	373.4	225	250
CSM2	250	180	130	5.2	2.2	0.7	30.2	32.7	34.8	62.2	129.4	311	369
CSM2N	230	170	140	4.3	1.9	1.0	48.3	56.0	69.1	102.6	383.9	277	345
CFSM1	245	105	100	5.0	0.1	0.0	36.7	151.3	120.6	77.4	250.9	145	230
CFSM1N	235	100	100	4.5	0.0	0.0	73.2	149.8	-	65.4	163.9	122	215
CFSM2	300	290	170	8.0	7.4	1.9	12.7	26.9	22.0	54.4	128.0	458	483
CFSM2N	290	300	175	7.4	8.0	2.1	18.6	30.7	33.0	51.2	123.0	438	472

.

3.1.1. Slump Flow, Viscosity and Setting Times

The slump flow and viscosity were measured simultaneously at the same specified time intervals (0, 30 and 60 min) of post mixing to observe their relationship to time. The slump flow diameter measurements at a specified time were normalized by dividing the flow diameter at a specified time ‘t’ (D_T) by the initial slump flow diameter (D₀) at 0 min of post mixing (t₀) to determine the normalized slump flow spread (D_N). Additionally, the same kind of normalization was adopted for viscosity values to observe the relative viscosity (µ_N) with time. This normalization allowed making the relative comparison of slump flow and viscosity of different AAMs.

The slump flow spread, relative slump and viscosity of AAM mixes varied from 150 to 300 mm, 1.2 to 8.0 and 12.7 to 99.8 Pa.s, respectively, at 0 min post-mixing (Table 4). The initial setting times of the AAM mixes varied from 122 to 458 min, while the final setting times ranged between 215 and 483 min (Table 4). The viscosity of the mix compositions was observed to be related to the slump flow diameter values. In general, the slump flow diameter and relative slump gradually reduced as time progressed, resulting in higher viscosity values at 60 min of post-mixing. The variation of slump flow spread showing a reduction (from 290 mm to 175 mm) with time for a typical ternary mix CFSM2N is illustrated in Figure 3.

The evolution of normalized viscosity (µ_N) and relative slump flow spread (D_N) with time (0, 30 and 60 min) is presented in Figure 4a,b. It can be noted from Figure 4a,b that the normalized viscosity increased, and normalized slump flow decreased with the increase in time. The rate of increase or decrease was higher for ternary (CFS) mixes than their binary (CS) counterparts.

A linear correlation was observed between the slump flow spread and viscosity at different times of 0, 30 and 60 min (as noted in Figure 5) with good correlation coefficients of 0.87, 0.71 and 0.83, respectively. The viscosity of the mixes increased with the decrease in the slump flow at all time intervals, as represented by the equations noted in Figure 5. These correlation equations reveal that the elapsed time did not change the linear relation between viscosity and slump flow; however, the rate of decrease as indicated by the slope of the graphs decreased with respect to time.

The control cement-based mortar (FP_CM) produced the highest slump flow spread/relative slump of 480 mm/22.0 and the lowest viscosity of 1.8 Pa.s at 0 min after mixing. This control mix exhibited the highest initial (474 min) and final (522 min) setting times. Almost no change in slump flow spread/relative slump nor viscosity was observed with time in the control mortar produced with a high volume of fly ash (FA). The plastic viscosity values of all the AAM mixes were found to be higher than FP_CM.

The type of reagents influenced the slump flow, viscosity and setting times of AAM mixes. The mixes with reagent one having a higher SiO₂/Al₂O₃ ratio (as noted in Table 3) exhibited higher viscosity with a lower slump flow/relative slump and lower setting times than their counterparts incorporating reagent two and the control cement-based mortar. This can be attributed to the higher alkalinity of the sodium metasilicate and silicate content present in reagent one, which facilitated the faster dissolution of aluminum and silicate ions from the SCMs, leading to the quicker formation of reaction products. A similar observation was reported in an earlier study where the silicates present in the alkaline solutions reacted rapidly with aluminates released from fly ash dissolution forming alkaline aluminosilicate binding gels. These gels formed in the initial phases facilitate the pastes’ setting and hardening, leading to higher viscosities and lower slump flow spread with time [19,33]. Lower reductions in slump flow spread at 30 and 60 min of post-mixing were also evident for mortars with reagent two, as shown in Figure 4b. A reduction in the slump flow/relative slump from 250 to 180 mm (up to a 28% reduction))/5.2 to 2.2 for mortars with reagent two was observed compared to the reduction from 245 to 105 mm (up to 57% reduction)/5.0 to 0.1 for mortars with reagent one at 30 min (Table 4). For instance, the mortar mixed with reagent one, mix CFSM1, almost lost its entire workability at 30 min, exhibiting a decrease in slump flow spread/relative slump flow spread from 245 mm/5.0 at 0 min to 105.0 mm/0.1.

The water content and liquid to solid (L/S) ratio are also essential factors in producing mixes with higher slump flow and lower viscosity, as indicated in Figure 5. The presence of a higher water content and higher L/S ratios resulted in higher slump flow spread diameters/relative slump, higher setting times and lower viscosity values for mixes with reagent two compared to their reagent one counterparts, as can be seen from Table 2 and Table 3. Similar behavior was observed in previous studies on the two-part alkali-activated fly ash and slag mortars with the increase in L/S ratios [9,34]. This was attributed to the decreased interparticle frictional forces and increased particle spacing/thickness of the fluid film from the higher amount of suspended fluid in the suspension, which eventually led to a decrease in yield stress and plastic viscosity. Moreover, an increased water content also reduced the concentration of the alkali ions in the solution. This reduction in the alkali ion concentration resulted in an activation solution with lower viscosity, reducing yield stress and plastic viscosity values. An increase in viscosity was observed with the reduction in slump flow spread/relative slump over time. An increase in viscosity of up to 112% (12.7 to 26.9 Pa.s) and 312% (36.7 to 151.3 Pa.s) was noted for mortars with reagent two and reagent one, respectively, at 30 min post mixing, as presented in Table 4.

3.1.2. Hysteretic Viscosity Behavior of Mortars

Table 5. Hysteresis loop behavior of viscosity for mortars.

Speed	Shear Rate (RPM/60)	Mix-ID
		FPcM	CSM1	CSM1N	CSM2	CSM2N	CFSM1	CFSM1N	CFSM2	CFSM2N
(RPM)	(1/s)	Viscosity (Pa.s)
0.5	0.01	12.8	311.4	332.8	280.3	234.3	195.8	571.4	93.1	67.4
1	0.02	8.0	173.9	156.8	142.8	122.5	114.5	344.0	48.2	36.4
1.5	0.03	5.7	122.7	125.2	95.9	84.9	83.1	235.0	33.5	25.3
2.5	0.04	4.1	73.8	90.7	58.0	53.5	51.6	130.3	21.8	16.9
3.5	0.06	3.2	52.1	66.0	41.3	39.6	37.1	86.4	16.7	13.2
2.5	0.04	3.4	76.8	100.8	53.9	52.6	54.8	120.3	22.3	18.0
1.5	0.03	5.0	139.5	184.8	83.8	84.2	98.8	211.1	35.0	28.5
1	0.02	7.0	229.5	305.0	120.4	123.6	161.6	329.0	51.4	42.8
0.5	0.01	12.8	513.6	676.2	227.9	240.8	368.1	701.9	99.5	85.6

presents the shear rate (in RPM and 1/s) and the corresponding viscosity of different mix compositions with the increase followed by the decrease in RPM. The mortar (FP_CM, CSM2, CSM2N, CFSM2 and CFSM2N) mixes regained their initial viscosity at 0.5 RPM exhibiting hysteretic loop characteristics (Table 5).

The reduction in viscosity with an increase in shear rate (0.5 to 3.5 RPM) represented by a solid line (shear ramp-up) and the gain in viscosity with the decrease in shear rate (3.5 to 0.5 RPM) indicated by the dotted line (shear ramp-down) are presented in Figure 6a,b. The viscosity with shear rate plots indicates a rapid decrease in viscosity for all the mixes with a more rapid decrease for mixes with reagent one till 0.02/s (1 RPM). This can be attributed to the higher degree dissolution potential of sodium metasilicate, which led to the faster release of water during the initial periods of the alkali activation process. All the mortar mixes showed decreased viscosity with an increase in shear rate up to 3.5 RPM depicting pseudoplastic behavior. The viscosity of different mix compositions followed the same path backward initially when the RPM started to reduce from 3.5 to 0.5 RPM, obtaining equal or higher final viscosities in all the mortar mixes at 0.5 RPM with few (lower final viscosity for mortar mix CSM2) exceptions. A similar trend was noted in a previous study where the two-part fly ash-based binders exhibited similar flow curves in both directions (shear ramp up and ramp down) [19]. This reflects that these alkali-activated pastes or mortars are not influenced by the de-clustering of flocci, which is a typical phenomenon in cement-based materials [19].

The control mortar mix (FPcM) obtained the same final viscosity of 12.8 Pa.s at 0.5 RPM, as indicated in Table 5. A lower final value of viscosity was observed for AAM mix CSM2. Almost similar final and initial viscosity values were observed for the mixes CSM2N and CFSM2. These mixes with reagent two exhibited a higher slump flow, lower viscosity and yield stresses than those with reagent one. This can be attributed to the dominant formation of cementitious reaction products (C-A-S-H/C-S-H) in mixes with reagent two (CSM2, CSM2N, CFSM2 and CFSM2N) having shorter chains than the Si-Al linkages in N-A-S-H/N-C-A-S-H gels being formed predominantly in the mortar mixes with reagent one (CSM1, CSM1N, CFSM1 and CFSM1N). All the mortar mixes with reagent one obtained higher final viscosity values at 0.5 RPM due to their faster reaction process owing to the system’s high alkalinity. A similar observation was made in an earlier investigation on two-part fly ash-based geopolymer paste where sodium (Na) based activators resulted in considerably higher viscosities than potassium (K)-based activators with both a hydroxide and silicate-based solution [35]. Additionally, greater viscosity values were obtained for Na-based activators than their K-based counterparts due to the lower molecular weight of sodium. Consequently, more sodium silicate was needed than potassium silicate to achieve similar silica modulus and other ratios (Na₂O/FA and K₂O/FA). Higher values of these ratios mean an increase in the ionic concentrations of Na or K and Si in the solution. Such higher concentrations of alkali activators result in increased ion-dipole forces and a higher quantity of Si-O-H-Na/K within the solutions leading to higher viscosity values [35].

3.1.3. Yield Stress of Mortars

Figure 7a,b present the shear stress–strain relationship for binary and ternary mortar mixes. The starting point of the flat portion of the curve indicating no change in shear stress represents the material’s yield stress. The yield stress for binary and ternary mortars varied from 62 to 161 Pa and 51 to 77 Pa, respectively. The control mortar (FP_CM) obtained the lowest yield stress of 6.6 Pa due to the formation of shorter C-S-H linkages compared to long chains of geopolymerization/alkali activation consisting of Si-Al with shared oxygen atoms. The shear modulus is the ratio of shear stress to shear strain for pure shear within the elastic/proportional limit. The mortars with reagent one (CSM1, CSM1N, CFSM1 and CFSM1N) exhibited higher shear modulus (164 to 373 Pa/rad), resulting in more significant yield stresses in comparison to the mixes with reagent two (CSM2, CSM2N, CFSM2 and CFSM2N) and the control mix (FP_CM) presented in Table 4. This can be attributed to the higher ‘SiO₂/Al₂O_3′ ratio in the mixes incorporating reagent one, leading to comparatively more and the faster formation of Si-Al linkages and colloidal Si-O-H-Na complexes due to the high alkalinity (pH = 14) of sodium metasilicate. A similar formation of such aggregate complexes of few nanometers in dimension was seen in previous studies utilizing alkaline silicate solution-based reagents [33,36]. Additionally, the higher L/S ratio in mixes with reagent two compared to their counterparts with reagent one reduced the interparticle frictional forces and resulted in lower yield stresses. This behavior is consistent with the observations reported in a previous study where the yield stress of fly ash-Na/K-silicate suspensions was found to be influenced by interparticle forces [35]. However, the mix ‘CSM2N’ had the highest shear modulus owing to the comparatively 5% higher GGBFS content than its CSM2 counterparts. This is because the characteristic angular particle shape and high Blaine fineness of GGBFS provided a higher surface area for alkali activation and quicker reaction products comprising both C-S-H and C-A-S-H. This led to the faster densification of the reaction products resulting in higher yield stresses.

The ternary mortars exhibited lower yield stress varying from 51.2 to 77.4 Pa and correspondingly lower shear modulus (Table 4) than their binary counterparts. The presence of fly ash class F particles with a characteristic round shape in the mix composition enables quicker shear deformation of the material at lower stress values by inducing a ball-bearing-like effect (causing lower inter-particle friction) in the system. Additionally, high fly ash class F content of 55% by mass in the control mix led to lower yield stress for the same reasons mentioned above. Similar observations were reported in a previous study on fly ash-metakaolin-based two-part geopolymer grout, where an increase in the fly ash content decreased plastic viscosity and yield stress. This was attributed to the dense particle distribution and, thus, higher packing density of fly ash. Therefore, the substitution of metakaolin with fly ash improved the packing density and, eventually, enhanced the workability [37].

A decrease in yield stress was noted with the increased slump flow spread for the mortar mixes as per the equation (Slump flow = −1.6796 × yield stress + 397.02) presented in Figure 8, indicating a linear correlation with a coefficient of 0.70. Similar behavior was reported in a previous study on Portland cement-based mortar, where the slump flow was influenced by the yield stress determined using theoretical simulations based on the Bingham model [22].

3.2. Microstructural Analysis

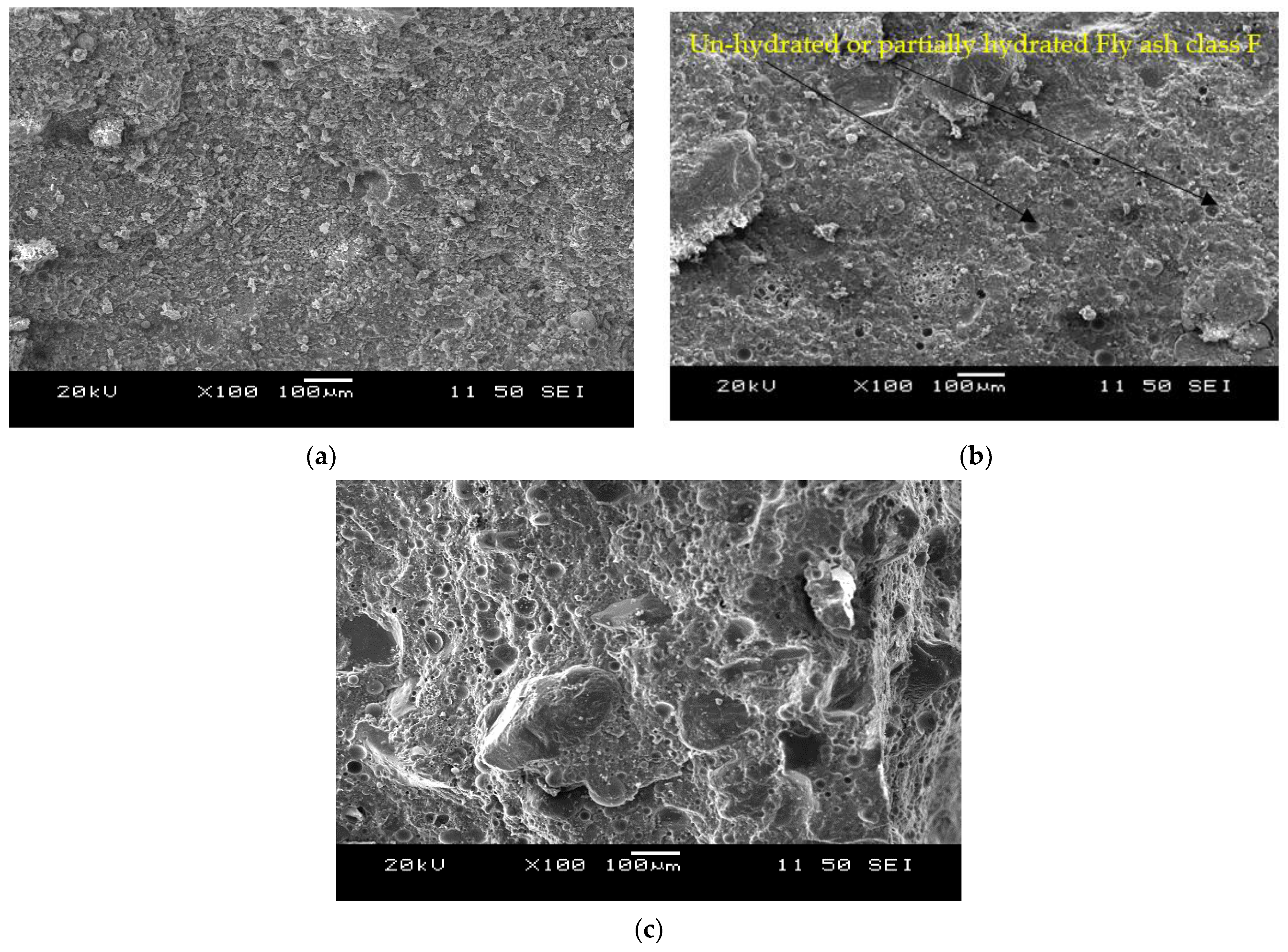

The morphology and microstructural characteristics of the mortar specimens were studied under a scanning electron microscope (SEM) at 28 days. The reaction products/elemental compositions determined using EDS analysis are discussed to relate their influence on fresh state and rheological properties.

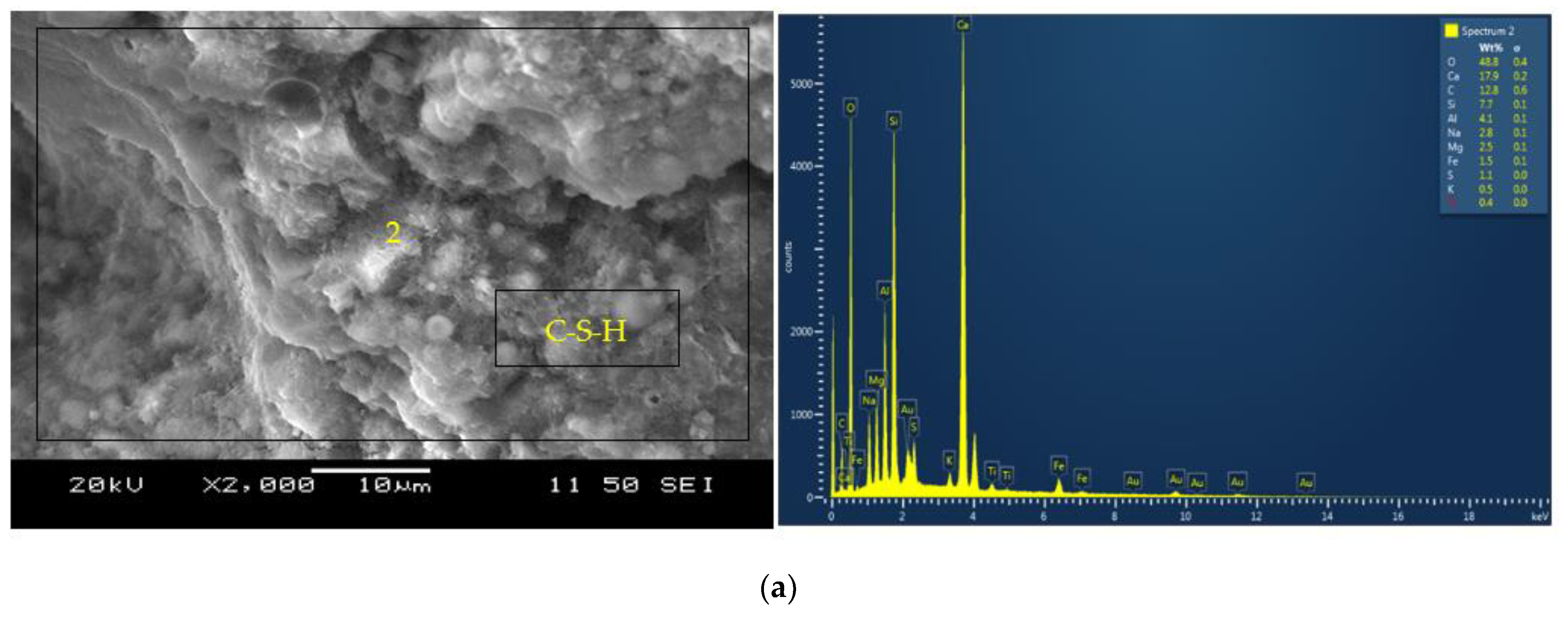

The morphology of the binary (CS) mortars appears to be denser with a smaller number of un-hydrated/partially hydrated fly ash particles than their ternary (CFS) counterparts, as shown in Figure 9a,b. The fly ash particles are seen to be embedded in the matrix of ternary CFSM2 mortar, as indicated in Figure 9b. This can be attributed to the relatively lower reactivity of fly ash class F particles in CFSM2. The control mortar (FP_CM) exhibited the highest compressive strength of 43.5 MPa (Table 3), and its matrix appeared to be the most compact among all the mortar specimens, with some of the FA-F particles acting as inert material filling up the void spaces, as noted in Figure 9c.

The dominant reaction product for binary CSM2 mortar with reagent two consisted of C-A-S-H as evidenced by the presence of higher percentages of elements (Ca = 17.9%, Si = 7.7%, Al = 4.1% and O = 48.8%) in the EDS analysis presented in Figure 10a. Additionally, the high calcium content in reagent two (Ca(OH)₂:Na₂SO₄ = 2.5:1) led to the formation of Portlandite (Ca(OH)₂), which facilitated the synthesis of additional C-S-H gel. The formation of these gels (C-A-S-H/C-S-H) was also identified in fly ash/slag-based binders from previous research studies [38].

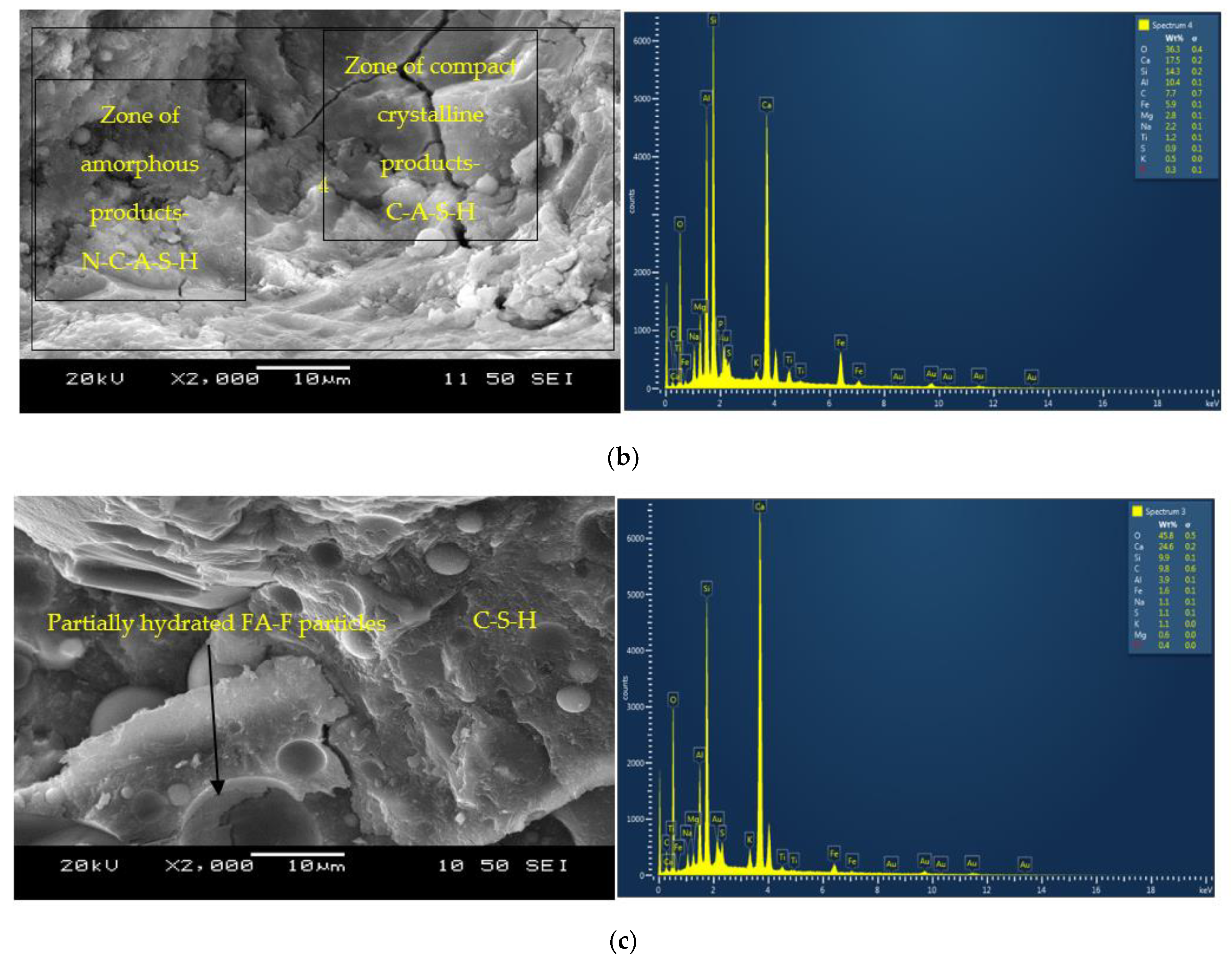

A mix of amorphous and crystalline products can be observed from the SEM micrograph of ternary mortar CFSM2 with reagent two presented in Figure 10b. The main reaction product consisted of C-A-S-H gel as determined from major elements (Ca = 17.5%, Si = 14.3%, Al = 10.4%, Na = 2.2% and O = 36.3%) in the EDS analysis. The higher calcium content in the CFSM2 composition facilitated silicate and aluminum ions’ dissolution from fly ash. This enhanced dissolution of ions led to an improved alkali activation with additional binding phases (C-S-H and N-C-A-S-H/N-A-S-H) responsible for higher strengths (Table 3) than their ternary counterpart with reagent one.

The formation of only crystalline C-A-S-H/C-S-H in binary (CS) mixes led to higher 28-day compressive strength (Table 3) than their ternary (CFS) counterparts, where a blend of crystalline (C-A-S-H) and amorphous (N-C-A-S-H/N-A-S-H) reaction products are formed with comparatively more un-hydrated or partially hydrated fly ash grains (Figure 10a,b). The production of C-A-S-H and C-S-H with shorter Si-Al linkages in both binary/ternary mixes with reagent two (Figure 10a,b) produced lower viscosity and yield stress with a higher slump flow (as confirmed from the fresh state and rheology test results presented earlier) compared to their reagent one counterparts, where the formation of N-C-A-S-H and N-A-S-H gels with comparatively longer polymeric chains in addition to C-A-S-H were found to be dominant as confirmed from authors’ previous research [23].

The partially hydrated fly ash class F (FA-F) particles observed as embedded in the control mortar matrix (FP_CM) shown in Figure 10c facilitated the densification of the matrix by filling up the void spaces. The dominant hydration product, crystalline C-S-H gel, determined from the ruling elements (Ca = 24.6%, Si = 9.9%, Al = 3.9% and O = 45.8%) in SEM/EDS analysis, is responsible for its highest compressive strength amongst all the mortars. The hydrated FA-F improved the workability of the mixes, and the presence of shorter linkages in C-S-H gels in comparison to the alkali-activated gels (N-C-A-S-H/N-A-S-H and C-A-S-H) resulted in the lowest plastic viscosity, lowest yield stress, highest slump flow spread and longest setting times among all the mortar mixes (as indicated in Table 4). On the other hand, the cement-free binary and ternary alkali-activated mortars exhibited the formation of a blend of crystalline (C-A-S-H/C-S-H) and amorphous (N-C-A-S-H/N-A-S-H) products (Figure 10a,b), showing comparable fresh state, rheological and strength characteristics to that of the control mortar.

4. Conclusions

The characteristics of one-part alkali-activated mortars (AAMs) developed from binary (fly ash-C ‘FA-C or C’ + ground granulated blast furnace slag ‘GGBFS or ‘S’) and ternary (FA-C + fly ash-F ‘FA-F or F’ + GGBFS) combinations of supplementary cementitious materials (SCMs) with two types of powder-based reagents (calcium hydroxide + sodium metasilicate and calcium hydroxide + sodium sulfate) incorporating silica sand is described. The conclusions drawn from fresh state, rheological, hardened and microstructural properties of the developed eight binary (combinations of C and S) and ternary (combinations of C, F and S) AAMs compared to a control high volume fly ash-based cement counterpart are as follows:

• The AAM mortars incorporating reagent one (Ca(OH)₂:Na₂SiO₃ = 1:2.5) obtained higher yield stresses than those with reagent two (Ca(OH)₂:Na₂SO₄ = 2.5:1) owing to the relatively more significant formation of colloidal complexes (Si-O-H-Na) and Si-Al binding phases. FA-F in ternary (CFS) mixes led to lower yield stress ranging from 51.2 to 77.4 Pa than their binary (CS) counterparts (62.2 to 160.8 Pa). The shear modulus and yield stress were observed to decrease with the increase in the slump flow spread of the mortar mixes.
• The slump flow gradually reduced, and the plastic viscosity increased with time from 0 to 60 min after mixing. Lower slump flow/relative slump reductions were noted for mortars with reagent two (250 to 180 mm)/(5.2 to 2.2) than their counterparts with reagent one (245 to 105 mm)/(5.0 to 0.1) after 30 min of mixing. This lower decrease in slump flow spread of mixes with reagent two can be attributed to their higher liquid to solid ratios and the predominant formation of cementitious reaction products having shorter chains than the Si-Al linkages in alkali-activation products formed in mixes with reagent one.
• There was no change in the slump flow of cement-based control mortar (FP_CM) with time (0 to 60 min after mixing). The high volume (55%) fly ash class F with characteristic round shape particles enhanced the workability, and the formation of shorter C-S-H linkages led to the lowest viscosity, lowest yield stress and highest compressive strength of the control mortar.
• All the AAM mixes showed decreased viscosity with an increase in shear rate up to 3.5 RPM depicting pseudoplastic behavior. The mixes with reagent two exhibited slightly lower or similar initial and final viscosities at 0.5 RPM. These binary and ternary mix compositions with reagent two (CSM2, CSM2N, CFSM2 and CFSM2N) also obtained lower viscosities/yield stresses and a higher slump flow spread than their counterparts with reagent one. This rheological behavior of reagent two mixes can be attributed to the dominant formation of cementitious gels (C-A-S-H and C-S-H) with shorter chains or linkages than the polymeric chains associated with geopolymeric products (N-A-S-H and N-C-A-S-H) formed in mixes with reagent one.
• The formation of both amorphous and crystalline phases in AAMs is evident from the SEM/EDS analysis. Portlandite formation in the mortars with reagent two is responsible for synthesizing additional binding phases resulting in higher compressive strengths than their counterparts with reagent one. The formation of C-A-S-H/C-S-H and C-A-S-H/N-C-A-S-H as the primary binding phases for binary and ternary mortars is characterized from the SEM/EDS analysis.
• The shorter linkages/chains present in the cementitious (C-A-S-H and C-S-H) binding phases and higher liquid to solid (L/S) ratios of mixes with reagent two resulted in a higher flow spread/relative slump, lower plastic viscosities and yield stresses compared to mixes with reagent one with a more significant formation of geopolymeric (N-C-A-S-H and N-A-S-H) products. However, the AAM mixes with reagent one exhibited lower setting times than their counterparts with reagent two due to the high alkalinity of sodium metasilicate, leading to a comparatively higher degree of alkali-activation with a quicker formation of reaction products.
• The findings of this research bolster the feasibility of producing commercially viable cement-free one-part ambient cured AAMs incorporating binary or ternary combinations of SCMs, powder form reagents in lesser quantities and fine aggregates with fresh and hardened properties comparable to their heat-cured two-part solution-based counterparts and control cement-based mortars.
