Sound-Absorbing Composites with Rubber Crumb from Used Tires

Abstract

Traditional sound-absorbing materials have a number of disadvantages: low water resistance, low compressive and tensile strengths, low weather resistance, etc. Therefore, new sound-absorbing materials need to be developed with improved properties including the involvement of industrial byproducts. The influence of the grain-size composition of the rubber crumb from used car tires on the sound insulation of cement and gypsum composites was studied in the paper. The results of the study contribute to the creation of a structural material for the manufacture of sound-absorbing as well as load-bearing structures. The field of application of the developed materials is very extensive.

1. Introduction

Sound is a physical phenomenon generated by the oscillatory movements of medium particles. Sound spreads well in air and is quite often a cause for concern for many people. People use sound-insulating and sound-absorbing materials for finishing rooms in which they are located in order to protect themselves from loud sounds. Sound-absorbing materials are also used to protect residential areas from high-speed highways [1,2,3].

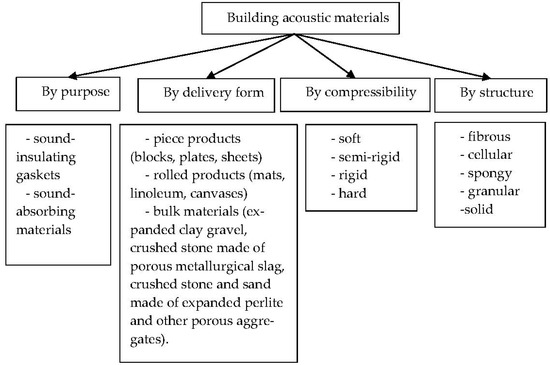

One of the classifications of acoustic materials is shown in Figure 1.

Traditional acoustic materials have a number of disadvantages: low water resistance; low compression and bending strength; high compressibility; and low weather resistance [4,5,6]. There is a need to develop new acoustic materials with the above-mentioned properties improved, including the involvement of natural materials [7,8,9], industrial byproducts and secondary resources [10,11,12,13]. This can be achieved by using cement and gypsum composites with appropriate structures and porosities [14,15,16]. The necessary porosity, namely porosity with interconnecting pores, can be created by using the rubber crumb from used car tires.

Cement concrete with fine and coarse aggregates based on rubber crumb from used car tires can have good sound-absorbing properties according to published data [17,18,19]. In addition, sound-absorbing cement composites can reduce the cost of walls by eliminating sound-absorbing layers, for example, based on polymer materials, as well as reduce the construction duration. There will be additional room for designers in the field of urban and industrial to creatively design constructions including technologies that make use of 3D-printed concrete [20,21].

The production of sound-absorbing concrete based on inorganic binders is possible according to the technology of monolithic concreting and prefabricated concrete products manufactured at plants. It is also possible to use a sound-absorbing plaster layer on the surface of a material that was not previously provided with sound insulation. Possible combinations of sound-absorbing plaster and base material are shown in Figure 2.

New sound-absorbing composites can be found in use as enclosing structures on high-speed highways as well as in industrial and residential neighborhoods.

One advantage of the new sound-absorbing composites from the point of view of ecology is the possibility of the utilization of multiple tons of waste rubber products [22,23]. Recently, rubber crumb made from used tires has been increasingly used in various composite materials and structures [24,25,26].

Sound-insulating and sound-absorbing materials work according to the principle of the passive reduction in the amplitude of sound oscillations due to their structure and thickness [27,28,29]. Creating the structure of a material with a certain porosity is the main direction of research in the development of acoustic materials [30,31,32].

Acoustic materials may have a certain porosity that can be achieved by regulating the quantity and grain composition of the rubber crumb. A sound-absorbing material is a material that has interconnected pores and a relatively high sound absorption coefficient (α > 0.2), which is equal to the ratio of the non-transmitted flow of sound energy through the material to the falling flow of the sound energy on the material or product. The main requirement for sound-absorbing materials is to produce these materials as precast concrete elements or as elements intended for use in sound-absorbing structures.

At present the number of production facilities for processing tires into rubber crumb is increasing [33,34,35]. However, published data on the effect of the grain-size composition of rubber crumb on the sound-absorbing properties of cement and gypsum composites are not sufficient and therefore require additional research. Rubber crumb has good adhesion with cement and gypsum matrices, including the cement matrices based on secondary resources [36,37,38], which should contribute to obtaining the adequate strength characteristics.

The aim of the paper is to study the effect of the grain-size composition of the rubber crumb from the used tires on the sound-absorbing coefficient of the composites and on the strength properties. The results of the study contribute to the creation of structural material for the manufacture of sound-absorbing as well as load-bearing structures. The field of application of the developed material is very extensive. This material is suitable for producing sound-absorbing, load-bearing and self-supporting structures which can be used in different applications depending on their final sound-absorbing as well as physical and mechanical properties.

By changing the type of binder, the amount of gypsum or cement and rubber crumb it is possible to adjust the properties of the acoustic material in a wide range, including such properties as water resistance, compressive and bending strength, and sound absorption coefficient.

2. Technologies of Making the Rubber Crumb

In practice two main methods of producing rubber crumb are used: the shock and wave method and the mechanical method [39,40].

The shock and wave method of grinding automobile tires and other rubber waste into crumb was invented relatively recently. The process consists in cooling the tires to ultralow temperatures followed by crushing with a shock wave. Such technology of processing worn-out automobile tires requires the installation of expensive equipment, which is economically profitable only for large enterprises with large volumes of raw materials.

The mechanical method is a classic technology of processing tires into rubber crumb, which is used everywhere, unlike the abovementioned one. The essence of the process is a step-by-step mechanical tire processing obtaining the required fraction of rubber crumb and byproducts. There are several methods of mechanical tire processing: grinding under normal temperature conditions; at high temperature; with cooling of raw materials; using an “ozone knife”; pushing the raw material with a powerful press through special matrices, etc.

3. Materials and Methods of Research

3.1. Material Characteristics

Two types of composites based on inorganic binders were studied: gypsum–cement–pozzolan binder and Portland cement.

The material based on gypsum–cement–pozzolan binder includes the following components:

• Semi-aqueous gypsum of the G5BII brand produced by JSC “Samara Gypsum Plant” in accordance with the Russian standard 125-2018;
• Portland cement CEM I 42.5 in accordance with the Russian standard 31108-2016;
• pozzolanic additive—metakaolin in accordance with the Technical Specifications 5729-098-12615988-2013;
• Tap water in accordance with the Russian standard 23732;
• Superplasticizer Melment F15G, which is a sulfonated powder product based on melamine. The additive is used to increase the workability and reduce the water demand of gypsum paste based on semi-aqueous gypsum. The additive meets the requirements of the Russian standard 24211-2008;

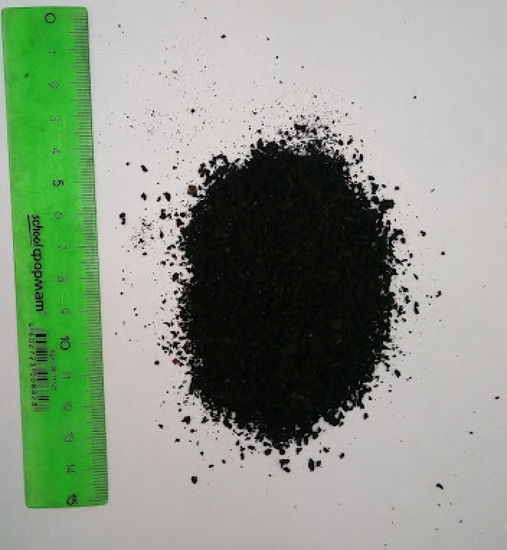

• Ground rubber crumb from used tires—in accordance with the Technical Specifications 2519-001-09691885-2016 “Rubber crumb”.

The sieve analysis was used to determine the grain composition according to

Table 1. Grain composition of rubber crumb.

Grain Composition	Residue on the Sieve	Residue on the Sieve, % by Mass						Passage through the Sieve No. 016 (Tray)
		5	2.5	1.25	0.63	0.315	0.16
Initial grain composition No. 1	Particular, %	0	18.2	51.8	21.6	5.4	2	1
	Total, %	0	18.2	70	91.6	97	99	100
Improved grain composition No. 2	Particular, %	0	6	29	29	28	7	1
	Total, %	0	6	35	64	92	99	100

.

The size modulus of rubber crumb No. 1 can be calculated:

$$M_k=\frac{18.2+70+91.6+97+99}{100}=3.6$$

The size modulus of rubber crumb No. 2 can be calculated:

$$M_k=\frac{6+35+64+92+99}{100}=2.96$$

The rubber crumb of both grain compositions can be attributed to a fine aggregate of increased fineness in terms of the size modulus as shown in Figure 3.

The compositions of the cement mortar are shown in

Table 2. Compositions of mortars based on Portland cement.

Composition Number	1	2	3	4	5	6	7
	No Rubber Crumb	Rubber Crumb of Initial Grain Composition No. 1, % of Sand Mass			Rubber Crumb of Improved Grain Composition No. 2, % of Sand Mass
		5	10	100	5	10	100
Portland cement, g	700	700	700	700	700	700	700
Sand, g	1400	1330	1260	0	1330	1260	0
Water, g	320	320	320	350	320	320	350
Superplasticizer 1.8%, g	12.6	12.6	12.6	12.6	12.6	12.6	12.6
Rubber crumb, g	0	70	140	320	70	140	320

.

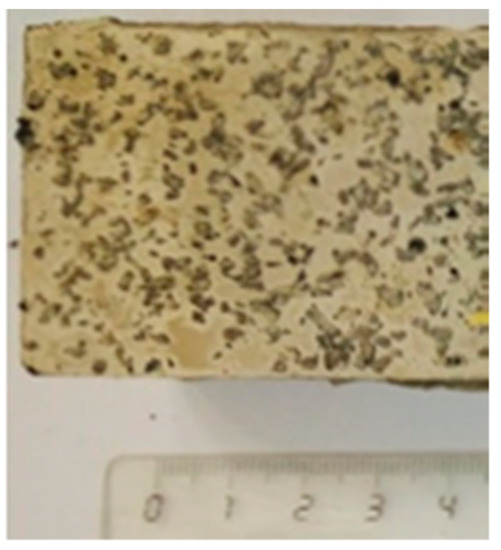

A sample of rubber crumb-based cement composite obtained is shown in Figure 4.

It can be assumed that the rubber crumb due to its large specific surface will increase the water demand of the mixture or will reduce the workability of the mixture. This can lead to a decrease in strength. Accordingly, a superplasticizer is added to the compositions to improve the workability of the fresh mixture.

The tile samples were made to evaluate the sound-absorbing properties of the gypsum–cement–pozzolan composition for plasters (Figure 5). The samples were made as follows: the needed amount of water is poured into a working mixer and then the superplasticizer is added to the water and mixed. Further, the Portland cement, semi-aqueous gypsum, metakaolin and rubber crumb are added and mixed.

3.2. Testing Method

The compression and bending tests were performed on a combined testing machine with the measurement results presented in digital form. For this purpose the prism samples with dimensions of 40 × 40 × 160 mm were prepared and tested according to the standard procedure.

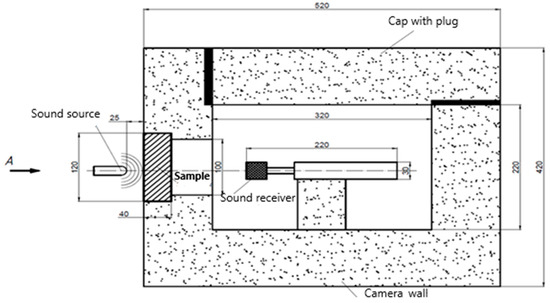

A stand was assembled for comparing the sound-absorbing properties of pure cement or gypsum composites and composites with the addition of rubber crumb. Its scheme is shown in Figure 6. This bench determined the sound absorption capacity of the 160 × 160 × 40 mm samples.

The body and the stand cover were made of a sound-absorbing material (foam). A device was placed into the stand to record the maximum noise level. A window was made in the stand body for mounting the test samples in. The constant sound source was at a constant distance from the test sample and the measurement time was 10 s. The relative humidity was 55% and the ambient temperature was 20 °C.

Sound-absorbing materials and products are characterized according to the Russian standard 23499-2009 “Materials and products of sound-insulating and sound-absorbing construction”. The effect of grain composition and quantity of rubber crumb on the composite properties was studied. The sound absorption coefficient was calculated as the ratio of the amount of sound energy absorbed by the barrier to the energy falling on it. It is measured from 0 to 1. The higher the coefficient value is, the greater the sound absorption.

4. Results of Research and Testing

4.1. Strength Properties

The effect of the amount of rubber crumbs on the workability of the mortar mixture is shown in Figure 7. The slump flow decreases with the increase in amount of rubber crumb of both grain compositions, but the rubber crumb of composition No. 2 reduces the slump flow to a lesser extent.

The results of the influence of the grain composition and the quantity of crumbs on the tensile strength in bending and compressive strength are presented in

Table 3. Compressive strength and tensile strength in bending.

Composition No.	1	2	3	4	5	6	7
Tensile strength in bending, MPa	7.79	5.84	6.51	1.4	6.68	6.81	1.6
Compressive strength, MPa	38.86	28.53	24.93	8.2	33.9	30.4	8.9

.

When analyzing the results of Table 3 it can be seen that the value of compressive strength decreases with the increase in the amount of rubber crumbs. The character of the destruction of samples changes from brittle destruction to softening (Figure 8). It should also be noted that the improved grain composition has a positive effect on the strength characteristics of the samples. This can be explained by the good workability of mixtures with grain composition No. 2, which reduced the amount of mixing water. Reducing the water demand increases the strength of the cement matrix and the composite itself.

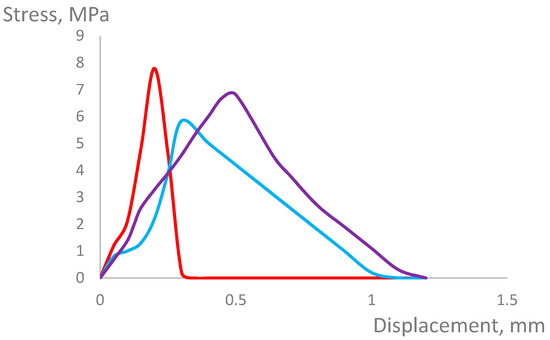

From the analysis of the results of Table 3 and Figure 9 it can be concluded that the rubber crumb in the amount of 5–10% of sand mass practically does not affect the value of the bending strength but the “stress—strain” curves for samples with crumb change significantly. The area under the stress–strain curve increases significantly for the samples with crumbs, which is associated with an increase in the work spent on the samples’ destruction. This confirms the increase in the deformation properties of the new cement composites with rubber crumbs. This dependence (Figure 9) can be explained by the fact that the rubber crumb inside the sample does not allow the instant destruction of the sample after the appearance of the first crack, unlike the samples without the rubber crumb (red graph). The red graph shows the brittle destruction of the material.

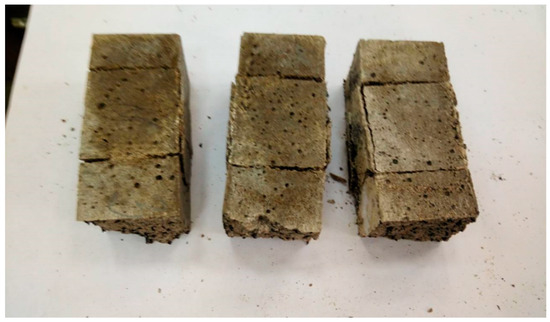

The rubber crumbs inside the material stretch and do not allow the sample to collapse quickly. After the bending tensile tests, the samples with the rubber crumb had to be broken in half by hand since the crumb was well bonded to the cement matrix.

4.2. Sound Absorption

The quantitative dependences between the noise level after crossing the barrier and the rubber crumb amount were obtained from the results of testing the developed sound-absorbing composites. They are shown in Figure 10.

Three compositions with different amounts of rubber crumb were tested. The first control composition contained no rubber crumb, the sixth composition contained only rubber crumb as aggregate. The graph shows that the sound absorption capacity of the material increases as the rubber crumb quantity increases. The results of determining the coefficient of the sound absorption of the material are shown in

Table 4. Sound absorption of developed composites.

Composition Number	Percentage of Rubber Crumb Amount Relative to Aggregate	Initial Noise Level, dB	Noise Level after Crossing the Barrier, dB	Coefficient of Sound Absorption
1	0%	83.80	69.2	0.17
6	10%	83.80	57.1	0.31
7	100%	83.80	45.0	0.46
4	100%	83.80	48.2	0.42

.

One can conclude that the most effective in terms of sound absorbing properties is the composition of concrete using only rubber crumb as an aggregate. The result was achieved due to the addition of the fractioned rubber crumb of fractions from 5 to 2.5 mm in a quantity of 6%; fractions from 2.5 to 1.25 in a quantity of 29%; fractions from 1.25 to 0.63 in a quantity of 29%; fractions from 0.63 to 0.315 mm in a quantity of 28%; and fractions from 0.315 to 0.16 mm in a quantity of 7%.

The use of fractioned rubber crumb enables us to obtain the necessary sound absorption since the large specific surface area of open pore walls contributes to the active conversion of sound vibration energy into thermal energy due to friction losses. The use of rubber crumb with larger grains significantly reduces the compressive strength of the developed material. The proposed grain composition of the rubber crumb was stated as a result of evaluating the strength and sound absorption properties of the material. The proposed composite is made from secondary resources, which contributes to the development of resource-and energy-saving technologies [41,42].

The gypsum–cement–pozzolan composition and the results of the sample tests are shown in

Table 5. Compositions and properties of material based on gypsum–cement–pozzolan binder.

No.	Composition	Mass, %	Average Density, kg/m3	Sound Absorption Coefficient at Frequencies, Hz
				63	80	100	200	400	800	1000	2000
1 Reference	semi-aqueous gypsum Portland cement superplasticizer metakaolin water	53.8 14.0 2.6 1.3 28.3	1012	0.31	0.31	0.33	0.39	0.39	0.43	0.43	0.48
2	semi-aqueous gypsum Portland cement metakaolin superplasticizer rubber crumb of fraction 5–2.5 mm rubber crumb of fraction 2.5–1.25 mm rubber crumb of fraction 1.25–0.63 mm rubber crumb of fraction 0.63–0.315 mm rubber crumb of fraction 0.315–0.16 mm water	35.5 10.6 1.3 0.9 1.255 7.5 6 7.56 7.56 1.255 26.51	478	0.49	0.49	0.57	0.57	0.57	0.62	0.67	0.70

.

The proposed gypsum–cement–pozzolan composition allows us to increase the sound absorption coefficient, which rises from values of 0.31–0.48 to values of 0.46–0.70 in the studied frequency range in comparison with the composition without rubber crumbs. These results confirm the published data in [43], in which it was shown that the sound absorption coefficient of cement concretes with rubber crumbs increases at high frequencies.

Summarizing the results obtained and the previously published data of other authors one can conclude that the sound absorption coefficient of gypsum and cement composites rises significantly with the increase in amount of rubber crumb from used car tires and it depends less on the properties of this rubber crumb. The mechanical properties of gypsum and cement composites significantly depend on both the amount and the properties of the rubber crumb.

In paper [43] the sound absorption at the low (63, 125, 250 and 500 Hz) and high (1000, 2000, 4000 and 5000 Hz) frequencies of small-scale panels based on cement and rubber crumb was determined. Studies have shown good results for the sound absorption of the material with the higher rubber crumb amount (15%). The sound absorption was evaluated for samples with different amounts of crumb rubber (7.5% and 15% of the fine aggregate mass) and with four different grades of crumb rubber that was previously subjected to freezing and heating. The compositions contained Portland cement as well as local fine and coarse aggregates. The coarse aggregate was the limestone crumb with a maximum size of 20 mm. It was shown that freezing and heating do not significantly affect the sound absorption of the samples.

Similar values of the sound absorption coefficient were obtained when evaluating the sound absorption of cement concrete based on rubber crumb [30]. The sound absorption coefficients were more than 0.5 for compositions with different water-to-cement ratios (0.45, 0.50 and 0.55) and the rubber crumb amount (5.0% and 7.5% by fine aggregate mass) in the frequency range of 200–3000 Hz. The reduction in the compressive strength of samples with the crumb amount of 5% and the water-to-cement ratio of 0.45 was 23–25% both in paper [30] and for composition No. 2. It should be noted that the reduction in the compressive strength of sample of composition No. 5, which differs in the grain composition of the rubber crumb, was only 13%.

In conclusion, in comparison with the results of other studies it can be noted that the values of compressive and tensile strength in bending are higher for samples with rubber crumb of improved grain composition. It is stated that the nature of the destruction of samples changes from brittle to plastic since the rubber crumb inside the material stretches and does not allow a sample to collapse quickly.

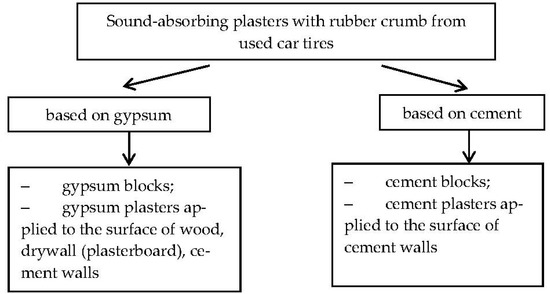

The field of the application of cement and gypsum sound-absorbing composites based on rubber crumb is quite extensive. For example, a gap of at least 20–30 mm should be left between the ceiling and the finishing row of groove-ridge gypsum boards when installing an interior wall. This gap is usually filled with mounting foam that reduces the sound insulation properties of the entire wall. The proposed composition of the gypsum composite can be used to fill this gap with the provision of sound insulation properties. In the case of the yield of the building foundation, the layer of the proposed gypsum composite can be deformed, which prevents cracking in the wall itself.

5. Conclusions

The development of eco-oriented technologies involving industrial waste products is of particular relevance. It should be noted that the most significant amount of waste is accounted for by used tires. The developed compositions can be used in the production of sound-absorbing partition walls and panels, and sound-absorbing mortars for internal and external parts of buildings. The gypsum–cement–pozzolan composition was developed with semi-aqueous gypsum, Portland cement, metakaolin, superplasticizer Melment F15G, fractioned rubber crumbs in the amount of 6% of the fraction from 5 to 2.5 mm, 29% of the fractions from 2.5 to 1.25, from 1.25 to 0.63, from 0.63 to 0.315 mm and 7% of the fraction from 0.315 to 0.16 mm and water. The proposed composition of the material contributes to an increase in the sound absorption coefficient from values of 0.31–0.48 to values of 0.46–0.70 in the studied frequency range in comparison with the control samples without rubber crumbs. This gypsum composite can be used to fill the gap between the ceiling and the finishing row of groove-ridge gypsum boards with the provision of sound insulation properties of wall.

The proposed grain composition of rubber crumb improves not only the sound absorption coefficient but also the mechanical properties. A decrease in strength is observed with an increase in rubber crumb amount. However, the reduction in the compressive strength of the samples with the crumb of the initial grain composition in the amount of 5% and the water-to-cement ratio of 0.45 was 23–25%, and the reduction in compressive strength for the sample with the crumb of the proposed grain composition was only 13%.

The cement composite with a rubber crumb as a fine aggregate and without sand is the most effective of the studied materials in terms of sound-absorbing properties, but at the same time a decrease in strength characteristics is observed. The use of fractionated rubber crumb allows us to obtain the necessary sound absorption with a less pronounced decrease in strength characteristics. The proposed grain composition of the rubber crumb was determined as a result of evaluating the strength and sound-absorbing properties of the material.
