Improvement of an InfraRed Pyroelectric Detector Performances in THz Range Using the Terajet Effect

School of Nondestructive Testing, Tomsk Polytechnic University, Lenin Avenue, 30, 634050 Tomsk, Russia
NanotechGroup, Facultad de Ciencias, Salamanca University, Plaza de la Merced, Edificio Trilingüe, 37008 Salamanca, Spain
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(15), 7011;
Received: 7 July 2021 / Revised: 26 July 2021 / Accepted: 27 July 2021 / Published: 29 July 2021
(This article belongs to the Special Issue Innovations in Plasmonic Nanojets 2021)


An infrared (IR) pyroelectric detector was investigated for terahertz (THz) detection using the principle of the terajet effect, which focuses the beam beyond the diffraction limit. The terahertz beam was coupled to the detector’s optical window through a two-wavelength-dimension dielectric cubic particle-lens based on the terajet effect. We experimentally demonstrate an enhancement of about 6 dB in the sensitivity under excitation of 0.2 THz without degradation of the noise equivalent power value. The results show that the proposed method could be applied to increase the sensitivity of various commercial IR sensors for THz applications that do not require modification of the internal structure, and it may apply also to acoustics and plasmonic detectors.

Graphical Abstract

1. Introduction

Terahertz (THz) waves have recently received unprecedented interest in product quality control, medicine, biology, 5G and 6G communication, nondestructive testing, and homeland security applications, to name a few [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17], that cannot be achieved at optical or infrared (IR) electromagnetic bands. THz detectors play a key role in terahertz technologies. The Golay cell [18] is a “photo-acoustic” device commonly used in the THz range. Bolometers, where the conductivity of the material changes with temperature induced by terahertz radiation, are cooled detectors and highly sensitive. The pyroelectric detector (PD), in which the output current is proportional to the changing rate of temperature of film material [19], has some important advantages such as room temperature operation and low cost. Various types of special THz PDs were developed in the last decade: a PD based on lithium tantalate crystal and film was considered in [20], a tetraaminediphenyl-based PD was investigated in [21], and a PD for THz time-domain spectroscopy (TDS) systems was developed in [22,23]. A PD consists of a pyroelectric polyvinylidene fluoride (PVDF) film coated with a metal oxide layers. It has been shown that to decrease the noise equivalent power value (NEP), the thickness of pyroelectric film should be reduced. However, all these and other similar developments require either the development of a new detector design or replacement of the material in the existing commercial detector. Moreover, the present PD, designed especially for THz range, is expensive and lacks reliability. Presently, PDs are one of the most used devices in uncooled IR detectors, providing a high efficiency of detection of the illuminated radiation, relative short response time, high signal-to-noise ratio, low cost, and high reliability [24,25,26,27].
Usually, the responsivity of PDs in the THz range is improved by: (i) a traditional gate structure with the grating-gate structure [28]; (ii) implementation of a silicon lens [29], diffractive grating [30], or wavelength-scaled dielectric cube [31,32]; and (iii) internal integration of an antenna structure [33,34]. All these methods, except for [31,32], require a change in the internal structure of the THz detector and its design and are intended for special operation in the THz range. In our work, we consider the use of an IR detector for operation in a non-standard THz range not intended by the detector manufacturer and show for the first time that without changing its internal design, it is possible to increase its sensitivity not in the IR but in the THz range. A THz detector based on an IR-PD (LHI778, Perkinelmer), initially designed for a wavelength range of 7–14 μ m and used in THz imaging applications, was studied in [35]. A special amplification circuit to amplify and capture the signal from the sensor was designed. A responsivity of about 1.2 kV/W at 1.89 THz was achieved. However, direct application of conventional IR-PD to the THz band faces a problem of decreasing the detector’s sensitivity.
Commercial IR-PD (MG-33) is a good substitute for special THz detector. Though it is designed for IR, it retains sensitivity at THz frequencies. Single-element IR-PD has the operation wavelength range between 3 and 20 μ m [36] and is based on a free organic films of the PVDF type [23]. An active area of 1 × 1 mm, ensure an NEP sensitivity threshold in the IR range lower than 5 × 10 10 W·Hz 0.5 and a sensitivity greater than 10 5 V/W [37]. To enhance the PD sensitivity in the THz band [38,39], a combination of a MG-33 detector and a metasurface-enabled absorber was considered in [40]. It was demonstrated that the efficient frequency- and polarization-selective detection in the range of 100–180 GHz with a degradation of NEP by a factor 2. However, this required a change in both the design of the detector itself (including the diameter of the optical window being specially increased from 3.5 mm to 5 mm in [40]) and the development of a new absorber. In addition, due to the nature of the metasurface, the detector has a pronounced resonance character.
The aim of this work is to demonstrate the possibility of the effective use of commercially IR-PD in the THz range without changing their internal design. One of the new approaches to increase the sensitivity of THz detector is based on the so-called terajet effect [41,42,43,44]. This effect is based on a reduction of the focused beam size caustic up to the sub-diffraction value at a distance close to the shadow surface of the wavelength-scaled particle-lens made from a conventional dielectric material [45]. The physics of the terajet effect is a complex interference and scattering phenomenon. The constructive interference between the incident field and diffracted and scattered fields by the wavelength-scaled dielectric particle leads to such a localization of electromagnetic wave in the form of terajet with a beam waist up to sub-diffraction limit. Like photonic jets in optics, it localizes intense electromagnetic beams formed near the shadow surface of a dielectric particle with a size greater or even equal to the illumination wavelength and propagating into the environment. It has recently been demonstrated that placing a dielectric cube in front of a sensitive area of strained silicon field effect transistor [32,46] and point contact detector [31] allows the sensitivity of THz detectors to be increased due to the localization of the incident radiation with the slight decreasing of NEP value. Here, we demonstrate that this method allows one to increase the sensitivity of IR commercial detectors in the THz range with room temperature operation.

2. Experimental Setup and Methods

The basic scheme of the experimental setup is shown in Figure 1a, where a terahertz source based on a backward-wave oscillator [47] (BWO) “OV-1” from Istok Co. was use to excite the detector. It was chosen because of its special features such as stability, relative high output power (6–15 mW), good wave-front quality and wavelength tunability between 177 and 260 GHz. A certified attenuator was coupled to the BWO and used to control and measure the emitted power. The horn antenna of BWO was placed at a distance of approximately 210 mm from the detector’s window (which corresponds to the far-field condition) to form a quasi-plane wavefront. A commercial Infrared PD (MG-33) was used for the detection of THz radiations (Figure 1b,c). The PD-MG33 sensor has a standard KT-3 package [36], which contains a primary amplifier located on the sensor chip, as shown in Figure 1. The THz beam was modulated by a chopper at 20 Hz rate, and the photoresponse was measured by a micro-voltmeter as well as an oscilloscope. A dielectric wavelength-scaled particle in the form of a cube was glued and placed directly on the PD window made of germanium and with a thickness around 70 μ m. To increase the coupling efficiency of the PD with THz radiation source at λ = 1.5 mm (frequency of about 0.2 THz), we use a terajet formed by a polytetrafluoroethylene (PTFE) cube with a dimension equal to 2 λ . The cubic shape of the dielectric particle was chosen because of the manufacturing simplicity and its attachment to the flat surface of the PD filter window. The refractive index of PTFE is n = 1.41 [48,49,50], and the beam waist of the terajet (in the unit of full width at half maximum) for the dimension of the PTFE cube is about 0.5 λ [41,42,43,44]. The maximum field intensity enhancement was observed at the distance of about 0.7 mm from the shadow surface of the cuboid [41,42,43,44]—see Figure 1c, taking into account the features of the constructive assembly of the PD shown in Figure 1a (minimal distance between window’s shadow surface and sensitive element is not equal to zero and has a fixed value (d), fixed by the manufacturer technology).
Full-wave electromagnetic simulations were performed using the software CST where the Maxwell equations were solved. It is a well known solver that is used to analyze electrically large structures where the physical size is much larger than the wavelength. The incident beam was considered as a plane propagating along the z direction (Figure 2a). Since the PTFE is a commercial one, the refractive index could vary depending on the density of the material, and two values of the refractive index (1.41 and 2.1) were simulated. Figure 2b shows the intensity of the electric field along the z direction for two values of the refractive index. A maximum was observed around z m a x = 1.7 mm and z m a x = 0.5 mm for n = 1.41 and 2.1, respectively. Those values are in agreement with the one found experimentally (0.7 mm). Figure 2c shows the intensity of the electric field fin and the x z plane for the cube with a length equal to 2 λ and n = 1.41 . As can be seen in the figure, the introduction of a cube induces the formation of an area in which the electric field is concentrated as a result of the terajet beam effect. The obtained gain from the simulation was around 9.5 and 12 dB for n = 1.41 and 2.1, respectively. The expected beam size was 1.44 × 1.38 × 6.15 mm 3 and 1.22 × 0.76 × 1.84 mm 3 in the x y z directions and for n = 1.41 and 2.1, respectively.

3. Results and Discussions

The detection measurements were performed with and without the cube particle with different emitted power. The measurements (Figure 3) show a linear dependence of the voltage (U) with the power at λ = 1.5 mm (this value gives the maximum output power from the BWO). The method for measuring the NEP was similar to that described in Reference [40]. The idea of this configuration is to exploit a dielectric PTFE particle that has a wavelength-scale size to concentrate the radiating THz waves into the sensitive area of PD with a diffraction-limited value. This allows increasing the intensity of signal to be measured, such that the signal-to-noise ratio (SNR) can be improved.
Figure 4 shows the measured photoresponse without the cube (black) and with the cube (red). To demonstrate the sensitivity enhancement, the detector was excited by the source at its lowest power idem when the signal from the receiver (without a particle) was at the noise level. Then, we placed the particle and looked at the increase in the signal and the noise level. The measured amplitude with the cube was 6.1 ± 0.06 mV, which was 5.6 dB higher than that without the enhancer. The standard error was calculated from eight distinct measurements and a Student’s (t) coefficient [51] of 2.132, corresponding to a 90% two-sided confidence interval. The standard deviations of the amplitude were measured for the cases without and with the PTFE particle, respectively. These results indicate that the proposed technique can enhance the detected THz intensity of 5.6 dB at 0.2 THz for MG-33 PD. Similar results were obtained for the MG-30 sensor, which has the same internal design as the MG-33 but differs only in standard 1203.15-1 package. The obtained gain is below the theoretical one because of the uncertainties in the setup such the dimension of the active area of the PD, and the distance from the optical window to the active element of the PD was fixed by the manufacturer and unknown. Furthermore, we did not verify the refractive index of particle material experimentally. From a practical point of view, it is quite difficult to perform a precise relative positioning between the cuboid and detector to ensure that the detector is located just at the point of maximum electric field generated by the cuboid. However, knowing the gain obtained experimentally, we can obtain an estimate of the real distance between the cuboid and the detector by looking at Figure 2b.

4. Conclusions

Commercial IR-PD performance was investigated in the THz range using the terajet effect. A gain enhancement of about 6 dB was experimentally obtained under excitation of 0.2 THz using the commercial PD without degradation of its NEP value. The research results confirm the prospects of pushing the operation frequency of the PD to the THz range where no design modification was required. The entire setup offers a cost-effective solution for sensitivity enhancement of IR-PDs in THz, which can be applied in many research fields, including imaging systems, THz wireless communication, etc. The method of increasing the sensitivity of commercial sensors can also be applied to both acoustics and plasmonics devices.

Author Contributions

Conceptualization, I.V.M. and O.V.M.; idea, I.V.M. and O.V.M.; formal analysis, all authors; investigation, all authors; Experiments, I.V.M. and O.V.M.; writing—review and editing, I.V.M. and Y.M.M.; terajet simulations, J.C.-G. All authors have read and agreed to the published version of the manuscript.


This research was supported by the Tomsk Polytechnic University development program. This research was funded by the Ministerio de Ciencia, Innovación y Universidades grant number RTI2018-097180-B-100 and by Junta de Castilla y León grant numbers SA256P18 and SA121P20.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.


The following abbreviations are used in this manuscript:
BWO Backward Wave Oscillator
IR Infrared
NEP Noise Equivalent Power
PD Pyroelectric Detector
PTFE Polytetrafluoroethylene
SNR Signal-to-noise ratio
TDS Time-domain spectroscopy
THz Terahertz


  1. Dhillon, S.S.; Vitiello, M.S.; Linfield, E.H.; Davies, A.G.; Hoffmann, M.C.; Booske, J.; Paoloni, C.; Gensch, M.; Weightman, P.; Williams, G.P.; et al. The 2017 terahertz science and technology roadmap. J. Phys. D Appl. Phys. 2017, 50, 043001. [Google Scholar] [CrossRef]
  2. Kawase, K.; Ogawa, Y.; Watanabe, Y.; Inoue, H. Non-destructive terahertz imaging of illicit drugs using spectral fingerprints. Opt. Express 2003, 11, 2549–2554. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Ferguson, B.; Wang, S.; Gray, D.; Abbot, D.; Zhang, X.C. T-ray computed tomography. Opt. Lett. 2002, 27, 1312–1314. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Federici, J.; Moeller, L. Review of terahertz and subterahertz wireless communications. J. Appl. Phys. 2010, 107, 111101. [Google Scholar] [CrossRef][Green Version]
  5. Siegel, P. Terahertz technology in biology and medicine. IEEE Trans. Microw. Theory Tech. 2004, 52, 2438–2447. [Google Scholar] [CrossRef]
  6. Hu, B.B.; Nuss, M.C. Imaging with terahertz waves. Opt. Lett. 1995, 20, 1716–1718. [Google Scholar] [CrossRef]
  7. Chernomyrdin, N.; Kucheryavenko, A.; Kolontaeva, G.; Katyba, G.; Karalkin, P.; Parfenov, V.; Gryadunova, A.; Norkin, N.; Smolyanskaya, O.; Minin, O.V.; et al. A potential of terahertz solid immersion microscopy for visualizing sub-wavelength-scale tissue spheroids. In Unconventional Optical Imaging; International Society for Optics and Photonics: Bellingham, WA, USA, 2018. [Google Scholar] [CrossRef]
  8. Minin, I.V.; Minin, O.V. System of microwave radiovision of three-dimensional objects in real time. In Subsurface Sensing Technologies and Applications II; International Society for Optics and Photonics: Bellingham, WA, USA, 2018; Volume 4129, pp. 616–619. [Google Scholar]
  9. Samura, Y.; Horio, K.; Antipov, V.B.; Shipilov, S.E.; Eremeev, A.I.; Minin, O.V.; Minin, I.V.; Hisatake, S. Characterization of Mesoscopic Dielectric Cuboid Antenna at Millimeter-Wave Band. IEEE Antennas Wirel. Propag. Lett. 2019, 18, 1828–1832. [Google Scholar] [CrossRef]
  10. Samura, Y.; Yamada, K.; Minin, O.V.; Kanno, A.; Sekine, N.; Nakajima, J.; Minin, I.V.; Hisatake, S. High-gain and Low-profile Dielectric Cuboid Antenna at J-band. In Proceedings of the 2020 14th European Conference on Antennas and Propagation (EuCAP), Copenhagen, Denmark, 15–20 March 2020; pp. 1–4. [Google Scholar] [CrossRef]
  11. Owda, A.Y.; Salmon, N.; Casson, A.J.; Owda, M. The Reflectance of Human Skin in the Millimeter-Wave Band. Sensors 2020, 20, 1480. [Google Scholar] [CrossRef][Green Version]
  12. Ajito, K.; Ueno, Y. THz Chemical Imaging for Biological Applications. IEEE Trans. Terahertz Sci. Technol. 2011, 1, 293–300. [Google Scholar] [CrossRef]
  13. Taylor, Z.D.; Garritano, J.; Sung, S.; Bajwa, N.; Bennett, D.B.; Nowroozi, B.; Tewari, P.; Sayre, J.W.; Hubschman, J.P.; Deng, S.X.; et al. THz and mm-Wave Sensing of Corneal Tissue Water Content: In Vivo Sensing and Imaging Results. IEEE Trans. Terahertz Sci. Technol. 2015, 5, 184–196. [Google Scholar] [CrossRef][Green Version]
  14. Pagano, M.; Baldacci, L.; Ottomaniello, A.; de Dato, G.; Chianucci, F.; Masini, L.; Carelli, G.; Toncelli, A.; Storchi, P.; Tredicucci, A.; et al. THz Water Transmittance and Leaf Surface Area: An Effective Nondestructive Method for Determining Leaf Water Content. Sensors 2019, 19, 4838. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Zang, Z.; Wang, J.; Cui, H.L.; Yan, S. Terahertz spectral imaging based quantitative determination of spatial distribution of plant leaf constituents. Plant Methods 2019, 15, 106. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Delgado Notario, J.A.; Clericò, V.; Diez, E.; Velázquez-Pérez, J.E.; Taniguchi, T.; Watanabe, K.; Otsuji, T.; Meziani, Y.M. Asymmetric dual-grating gates graphene FET for detection of terahertz radiations. APL Photonics 2020, 5, 066102. [Google Scholar] [CrossRef]
  17. Yamada, K.; Samura, Y.; Minin, O.V.; Kanno, A.; Sekine, N.; Nakajima, J.; Minin, I.V.; Hisatake, S. Short-range Wireless Transmitter Using Mesoscopic Dielectric Cuboid Antenna in 300-GHz Band. In Proceedings of the 2020 50th European Microwave Conference (EuMC), Utrecht, The Netherlands, 12–14 January 2021; pp. 195–198. [Google Scholar] [CrossRef]
  18. Golay, M.J.E. Theoretical Consideration in Heat and Infra-Red Detection, with Particular Reference to the Pneumatic Detector. Rev. Sci. Instrum. 1947, 18, 347–356. [Google Scholar] [CrossRef] [PubMed]
  19. Stenger, V.; Shnider, M.; Sriram, S.; Dooley, D.; Stout, M. Thin Film Lithium Tantalate (TFLT) pyroelectric detectors. In Terahertz Technology and Applications V; Sadwick, L.P., O’Sullivan, C.M., Eds.; International Society for Optics and Photonics: Bellingham, WA, USA, 2012; Volume 8261, pp. 174–182. [Google Scholar]
  20. Wang, J.; Gou, J.; Li, W. Preparation of room temperature terahertz detector with lithium tantalate crystal and thin film. AIP Adv. 2014, 4, 027106. [Google Scholar] [CrossRef]
  21. Paulish, A.G.; Gusachenko, A.V.; Morozov, A.O.; Dorozhkin, K.V.; Suslyaev, V.I.; Golyashov, V.A.; Minin, O.V.; Minin, I.V. Characterization of tetraaminediphenyl-based pyroelectric detector from visible to millimeter wave ranges. Opt. Eng. 2019, 59, 1–8. [Google Scholar] [CrossRef]
  22. Müller, R.; Bohmeyer, W.; Kehrt, M.; Lange, K.; Monte, C.; Steiger, A. Novel detectors for traceable THz power measurements. J. Infrared Millim. Terahertz Waves 2014, 35, 659–670. [Google Scholar] [CrossRef][Green Version]
  23. Müller, R.; Gutschwager, B.; Hollandt, J.; Kehrt, M.; Monte, C.; Müller, R.; Steiger, A. Characterization of a Large-Area Pyroelectric Detector from 300 GHz to 30 THz. J. Infrared Millim. Terahertz Waves 2015, 36, 654–661. [Google Scholar] [CrossRef][Green Version]
  24. Rogalski, A. Infrared Detectors; CRC Press: Boca Raton, FL, USA, 2010. [Google Scholar]
  25. Neumann, N.; Banta, V. Comparison of Pyroelectric and Thermopile Detectors. In Proceedings of the AMA Conferences 2013, Nurnberg, Germany, 14–16 May 2013; Volume 8261, pp. 139–143. [Google Scholar] [CrossRef]
  26. Zhao, J.; Zhu, R.; Chen, J.; Zhang, M.; Feng, P.; Jiao, J.; Wang, X.; Luo, H. Enhanced temperature stability of compensated pyroelectric infrared detector based on Mn:PMN-PT single crystals. Sens. Actuators A Phys. 2021, 327, 112757. [Google Scholar] [CrossRef]
  27. Ng, D.K.T.; Ho, C.P.; Zhang, T.; Xu, L.; Siow, L.Y.; Chung, W.W.; Cai, H.; Lee, L.Y.T.; Zhang, Q.; Singh, N. CMOS compatible MEMS pyroelectric infrared detectors: From AlN to ScAlN. In MOEMS and Miniaturized Systems XX; International Society for Optics and Photonics: Bellingham, WA, USA, 2021; Volume 11697, pp. 152–157. [Google Scholar]
  28. Huang, Y.D.; Yu, Y.; Qin, H.; Sun, J.D.; Zhang, Z.P.; Li, X.X.; Huang, J.J.; Cai, Y. Plasmonic terahertz modulator based on a grating-coupled two-dimensional electron system. Appl. Phys. Lett. 2016, 109, 201110. [Google Scholar] [CrossRef]
  29. Tu, X.; Kang, L.; Wan, C.; Xu, L.; Mao, Q.; Xiao, P.; Jia, X.; Dou, W.; Chen, J.; Wu, P. Diffractive microlens integrated into Nb5N6 microbolometers for THz detection. Opt. Express 2015, 23, 13794–13803. [Google Scholar] [CrossRef]
  30. Xiao, P.; Tu, X.; Kang, L.; Jiang, C.; Zhai, S.; Jiang, Z.; Pan, D.; Chen, J.; Jia, X.; Wu, P. Reflective grating-coupled structure improves the detection efficiency of THz array detectors. Sci. Rep. 2018, 8, 8032. [Google Scholar] [CrossRef]
  31. Minin, O.V.; Minin, I.V.; Meziani, Y.M.; Hisatake, S. Improvement of a Point-Contact Detector Performance Using the Terajet Effect Initiated by Photonics. Opt. Eng. 2020, 60, 082004. [Google Scholar] [CrossRef]
  32. Minin, I.V.; Calvo-Gallego, J.; Velázquez-Pérez, J.E.; Salvador-Sánchez, J.; Delgado-Notario, J.A.; Fobelets, K.; Ferrando-Bataller, M.; Minin, O.V.; Meziani, Y.M. Responsivity enhancement of a strained silicon field-effect transistor detector at 0.3 THz using the terajet effect. Opt. Lett. 2021, 46, 3061–3064. [Google Scholar] [CrossRef] [PubMed]
  33. Öjefors, E.; Lisauskas, A.; Glaab, D.; Roskos, H.G.; Pfeiffer, U.R. Terahertz Imaging Detectors in CMOS Technology. J. Infrared Millim. Terahertz Waves 2009, 30, 1269–1280. [Google Scholar] [CrossRef]
  34. Huang, Z.; Li, Z.; Dong, H.; Yang, F.; Yan, W.; Wang, X. Novel Broadband Slot-Spiral Antenna for Terahertz Applications. Photonics 2021, 8, 123. [Google Scholar] [CrossRef]
  35. Yang, J.; Gong, X.-J.; Zhang, Y.-D. Research of an infrared pyroelectric sensor based THz detector and its application in CW THz imaging. In International Symposium on Photoelectronic Detection and Imaging 2009: Terahertz and High Energy Radiation Detection Technologies and Applications; International Society for Optics and Photonics: Bellingham, WA, USA, 2009; Volume 7385, p. 738521. [Google Scholar]
  36. Murfet, D. Small-Size Pyroelectric Detector MG33 of Optical Radiation, Vostok Science and Production Enterprise. Available online: (accessed on 29 July 2021).
  37. Ivanov, S.D.; Kostsov, E.G. Thermal detectors of uncooled multi-element infrared imaging arrays. I. Thermally insulated elements. Optoelectron. Instrum. Data Process. 2015, 51, 601–608. [Google Scholar] [CrossRef]
  38. Dooley, D. Sensitivity of broadband pyroelectric terahertz detectors continues to improve. Laser Focus World 2010, 46, 49. [Google Scholar]
  39. Dégardin, A.; Jagtap, V.; Razanoelina, M.; Galiano, X.; Tonouchi, M.; Kreisler, A. Y-Ba-Cu-O semiconducting pyroelectric thermal sensors: Design and test of near-infrared amorphous thin film detectors and extension to antenna-coupled THz devices. In Millimetre Wave and Terahertz Sensors and Technology XII; Salmon, N.A., Gumbmann, F., Eds.; International Society for Optics and Photonics: Bellingham, WA, USA, 2019; Volume 11164, pp. 68–80. [Google Scholar]
  40. Kuznetsov, S.A.; Paulish, A.G.; Navarro-Cía, M.; Arzhannikov, A.V. Selective Pyroelectric Detection of Millimetre Waves Using Ultra-Thin Metasurface Absorbers. Sci. Rep. 2016, 6, 21079. [Google Scholar] [CrossRef][Green Version]
  41. Pacheco-Peña, V.; Beruete, M.; Minin, I.V.; Minin, O.V. Terajets produced by dielectric cuboids. Appl. Phys. Lett. 2014, 105, 084102. [Google Scholar] [CrossRef][Green Version]
  42. Minin, I.V.; Minin, O.V. Terahertz artificial dielectric cuboid lens on substrate for super-resolution images. Opt. Quantum Electron. 2017, 49, 326. [Google Scholar] [CrossRef]
  43. Yue, L.; Yang, B.; Monks, J.; Wang, Z.; Tung, N.; Lam, V.; Minin, O.V.; Minin, I.V. A millimetre-wave cuboid solid immersion lens with intensity-enhanced amplitude mask apodization. J. Infrared Millim. Terahertz Waves 2018, 39, 546–552. [Google Scholar] [CrossRef][Green Version]
  44. Nguyen Pham, H.H.; Hisatake, S.; Minin, I.V.; Minin, O.V.; Nagatsuma, T. Three-dimensional direct observation of Gouy phase shift in a terajet produced by a dielectric cuboid. Appl. Phys. Lett. 2016, 108, 191102. [Google Scholar] [CrossRef]
  45. Minin, O.V.; Minin, I.V. Method of Registration of Electromagnetic Radiation in IR, Microwave and THz Range of Wavelengths. Russia Patent 2,655,714, 12 December 2016. [Google Scholar]
  46. Minin, I.V.; Minin, O.V.; Delgado-Notario, J.A.; Calvo-Gallego, J.; Velázquez-Pérez, J.E.; Ferrando-Bataller, M.; Meziani, Y.M. Improvement of a Terahertz Detector Performance Using the Terajet Effect in a Mesoscale Dielectric Cube: Proof of Concept. Phys. Status Solidi (RRL)-Rapid Res. Lett. 2020, 14, 1900700. [Google Scholar] [CrossRef]
  47. Kompfner, R.; Williams, N.T. Backward-Wave Tubes. Proc. IRE 1953, 41, 1602–1611. [Google Scholar] [CrossRef]
  48. D’Angelo, F.; Mics, Z.; Bonn, M.; Turchinovic, D. Ultra-broadband THz time-domain spectroscopy of common polymers using THz air photonics. Opt. Express 2014, 22, 12475. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Folks, W.R.; Pandey, S.K.; Boreman, G. Refractive Index at THz Frequencies of Various Plastics. In Optical Terahertz SCIENCE and Technology; Optical Society of America: California, CA, USA, 2007; p. MD10. [Google Scholar] [CrossRef][Green Version]
  50. Jin, Y.S.; Kim, G.J.; Jeon, S.G. Terahertz Dielectric Properties of Polymers. J. Korean Phys. Soc. 2006, 49, 513–517. [Google Scholar]
  51. Hotelling, H. The Generalization of Student’s Ratio. Ann. Math. Stat. 1931, 2, 360–378. [Google Scholar] [CrossRef]

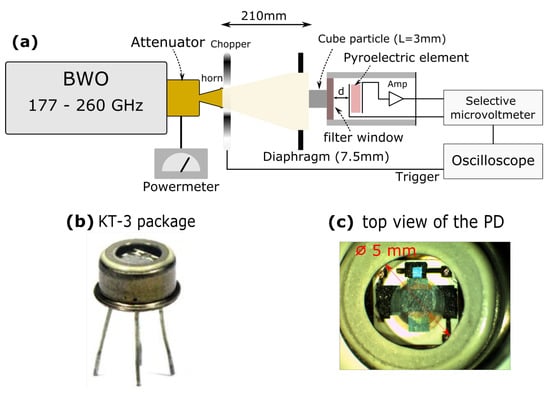

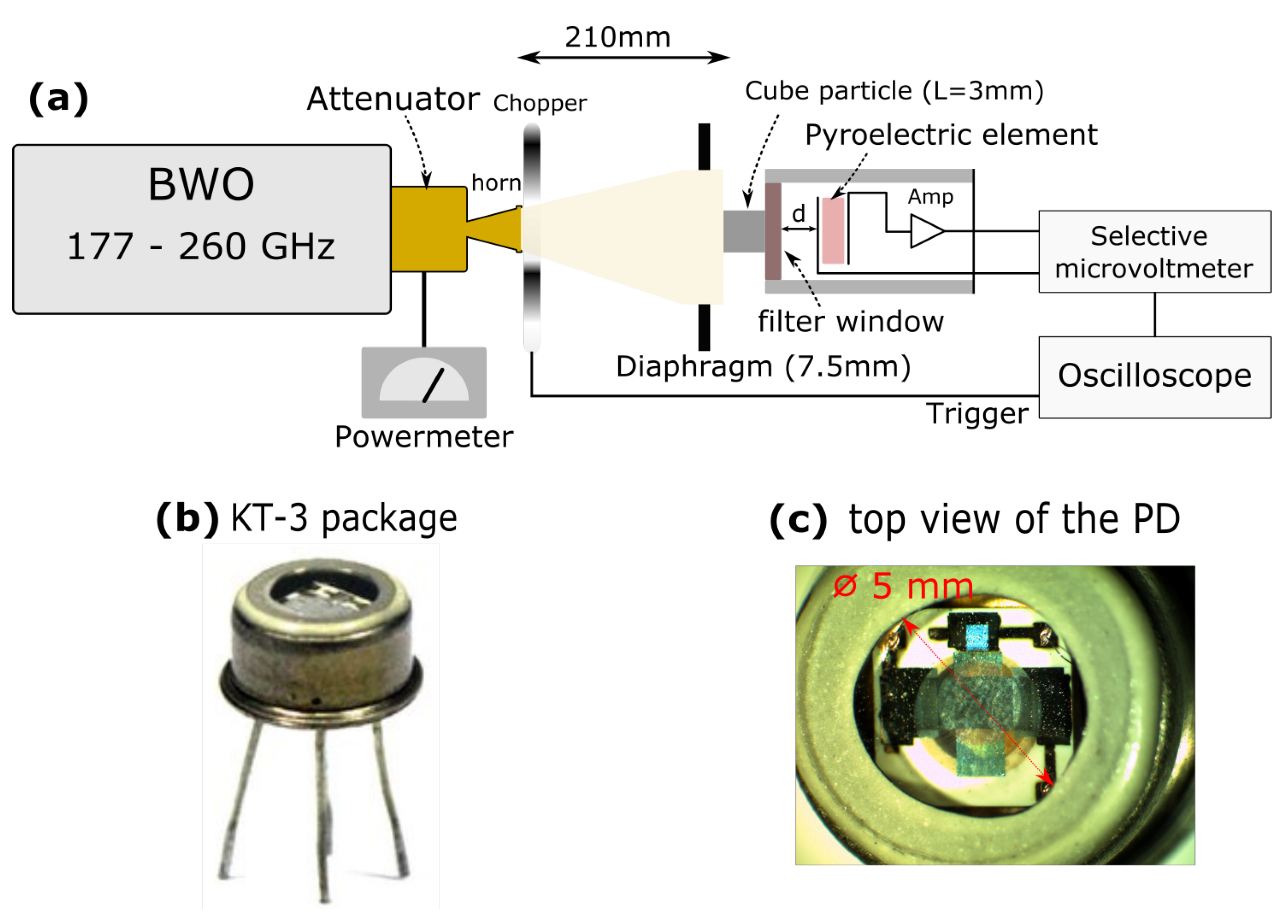

Figure 1. Schematic description of the terahertz measurement setup where a commercial PD MG-33 combined with the dielectric particle (not in scale) was used as a detector, (a); MG-33 detector at the standard KT-3 package (b) and the top view of the PD with standard-diameter of window of Ø = 5 mm, (c).
Figure 1. Schematic description of the terahertz measurement setup where a commercial PD MG-33 combined with the dielectric particle (not in scale) was used as a detector, (a); MG-33 detector at the standard KT-3 package (b) and the top view of the PD with standard-diameter of window of Ø = 5 mm, (c).
Applsci 11 07011 g001

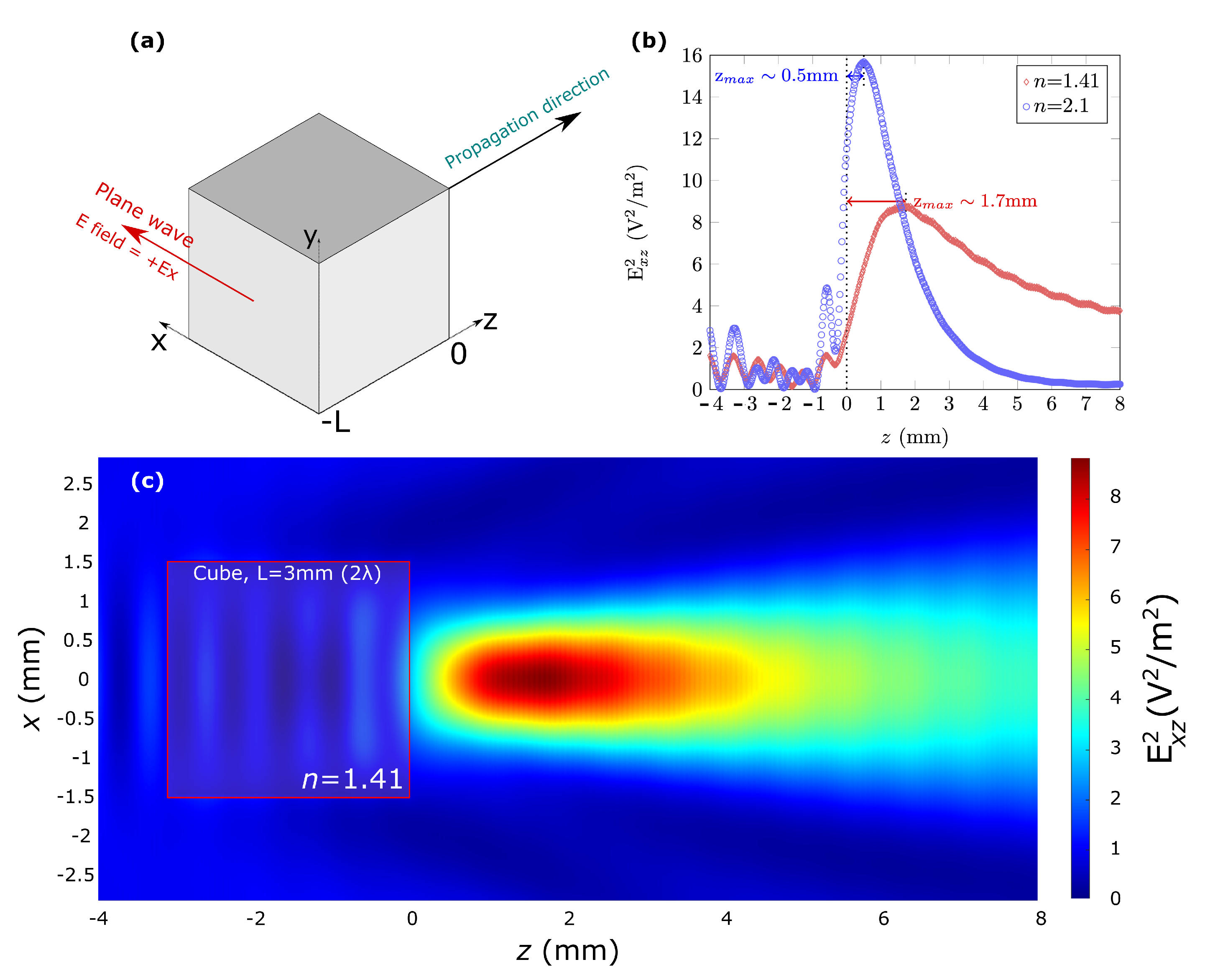

Figure 2. (a) Sketch description of the cube with the plane wave and the propagation directtion used in the simulations, (b) Electric field intensity along the x z direction versus the z direction for the case of two refractive index ( n = 1.4 and 2.1) and (c) the terajet formation from the cube with 2-wavelength dimensions by the finite integral technique realized in commercial software—the CST Microwave Studio.
Figure 2. (a) Sketch description of the cube with the plane wave and the propagation directtion used in the simulations, (b) Electric field intensity along the x z direction versus the z direction for the case of two refractive index ( n = 1.4 and 2.1) and (c) the terajet formation from the cube with 2-wavelength dimensions by the finite integral technique realized in commercial software—the CST Microwave Studio.
Applsci 11 07011 g002

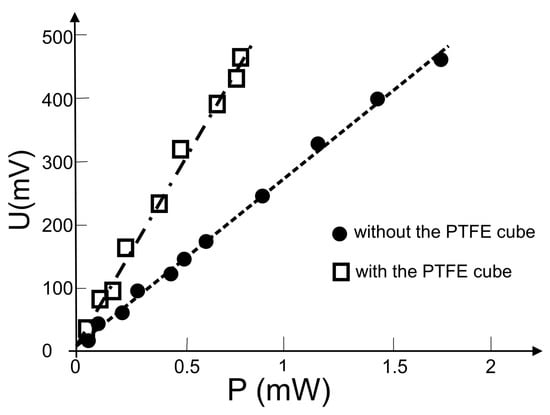

Figure 3. The voltage–power characteristics of the PD MG-33 measured at the wavelength of λ = 1.5 mm. NEP ≈ 6 × 10 9 W·Hz 1 / 2 , Sens ≈ 2.6 × 10 5 V/W for MD without the particle.
Figure 3. The voltage–power characteristics of the PD MG-33 measured at the wavelength of λ = 1.5 mm. NEP ≈ 6 × 10 9 W·Hz 1 / 2 , Sens ≈ 2.6 × 10 5 V/W for MD without the particle.
Applsci 11 07011 g003

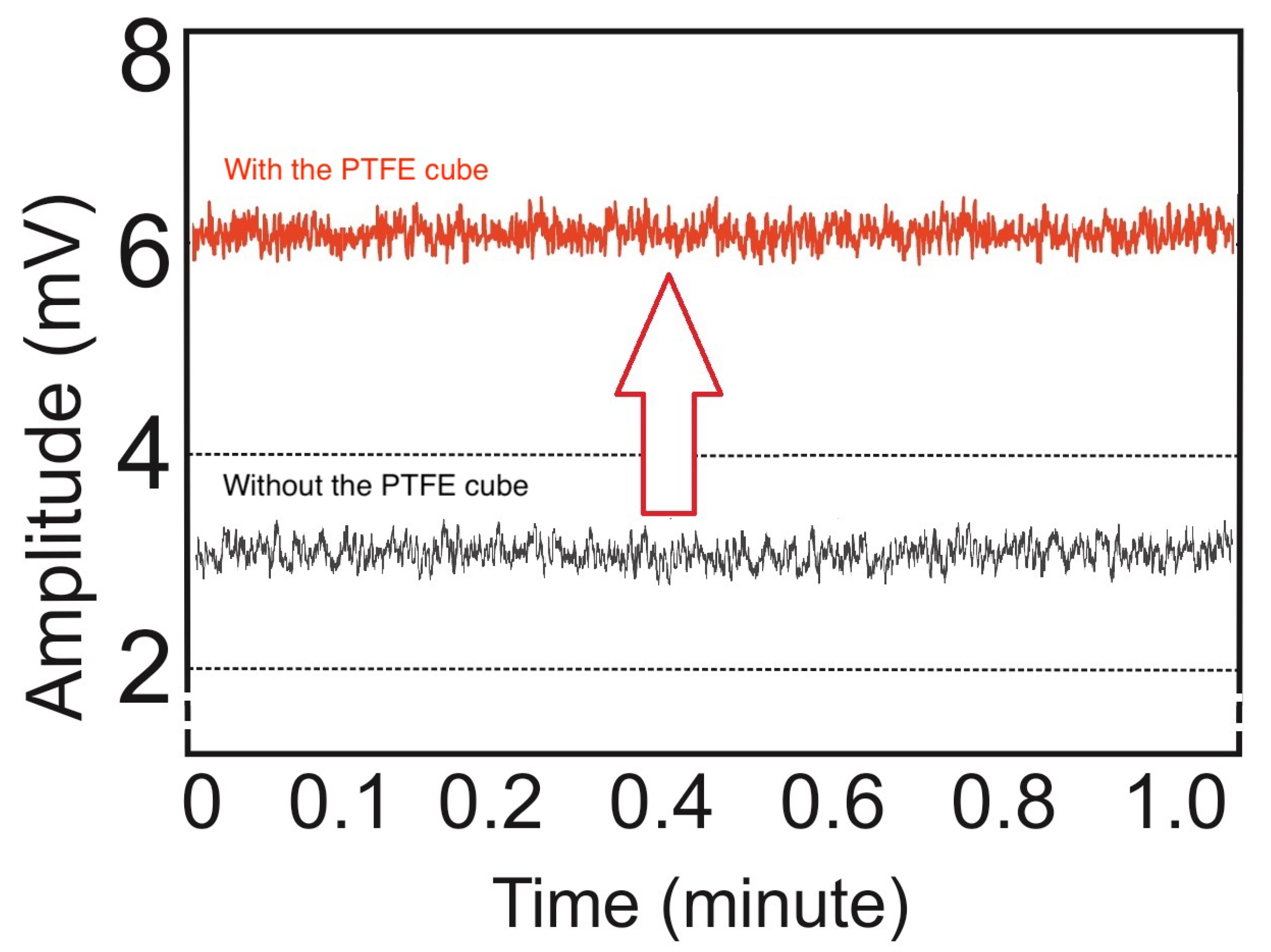

Figure 4. Measured amplitude without (black) and with (red) the PTFE cube at 200 GHz.
