Article

Automatic Wheels and Camera Calibration for Monocular and Differential Mobile Robots

Alexander Popov’s International Innovation Institute for Artificial Intelligence, Cybersecurity and Communication, SPbETU “LETI”, 197376 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Academic Editor: Oscar Reinoso García
Appl. Sci. 2021, 11(13), 5806; https://doi.org/10.3390/app11135806
Received: 29 April 2021 / Revised: 16 June 2021 / Accepted: 18 June 2021 / Published: 23 June 2021
(This article belongs to the Section Robotics and Automation)

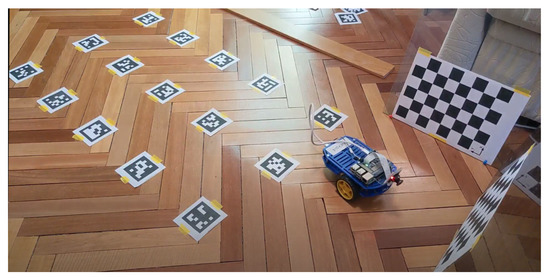

Mobile robotic systems are highly relevant today in various fields, both in an industrial environment and in terms of their applications in medicine. After assembling the robot, components such as the camera and wheels need to be calibrated. This requires human participation and depends on human factors. The article describes the approach to fully automatic calibration of a robot’s camera and wheels with a subsequent calibration refinement during the operation. It consists of placing the robot in an inaccurate position, but in a pre-marked area, and using data from the camera, information about the environment configuration, as well as the ability to move, in order to perform calibration without external observers or human participation. There are two stages in this process: the camera and the wheel calibrations. The camera calibration collects the necessary set of images by automatically moving the robot in front of the fiducial markers template, and then moving it on the marked floor, assessing its trajectory curvature. Upon calibration completion, the robot automatically moves to the area of its normal operation and it is proposed to refine the calibration during its operation without blocking its work. The suggested approach was experimentally tested on the Duckietown project base. Based on test results, the approach proved to be comparable to manual calibrations and is capable of replacing a human for this task. View Full-Text
Keywords: automatic calibration; Duckietown; wheel robot; camera calibration; wheel calibration; artificial intelligence; mobile systems; monocular systems automatic calibration; Duckietown; wheel robot; camera calibration; wheel calibration; artificial intelligence; mobile systems; monocular systems
