Facile Synthesis and Characterization of Palladium@Carbon Catalyst for the Suzuki-Miyaura and Mizoroki-Heck Coupling Reactions

by
Hamed M. Alshammari
1,
Obaid F. Aldosari
2,*,
Mohammad Hayal Alotaibi
3,*,
Raja L. Alotaibi
3,
Mosaed S. Alhumaimess
4,
Moataz H. Morad
5,
Syed Farooq Adil
6,*,
Mohammed Rafi Shaik
6,
Mohammad Shahidul Islam
6,
Mujeeb Khan
6 and
Abdulrahman Alwarthan
6
1
Chemistry Department, Faculty of Science, Ha’il University, P.O. Box 2440, Ha’il 81451, Saudi Arabia
2
Department of Chemistry, College of Science, Majmaah University, P.O. Box 66, Majmaah 11952, Saudi Arabia
3
National Center for Petrochemicals Technology, King Abdulaziz City for Science and Technology (KACST), P.O. Box 6086, Riyadh 11442, Saudi Arabia
4
Chemistry Department, College of Science, Jouf University, P.O. Box 2014, Sakaka 72351, Saudi Arabia
5
Chemistry Department, Faculty of Applied Sciences, Umm Al-Qura University, Makkah 21955, Saudi Arabia
6
Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(11), 4822; https://doi.org/10.3390/app11114822
Submission received: 4 March 2021 / Revised: 16 May 2021 / Accepted: 20 May 2021 / Published: 24 May 2021
Browse Figures
Versions Notes

Abstract

:
Palladium-based carbon catalysts (Pd/C) can be potentially applied as an efficient catalyst for Suzuki–Miyaura and Mizoroki–Heck coupling reactions. Herein, a variety of catalysts of palladium on activated carbon were prepared by varying the content of ‘Pd’ via an in situ reduction method, using hydrogen as a reducing agent. The as-prepared catalysts (0.5 wt % Pd/C, 1 wt % Pd/C, 2 wt % Pd/C and 3 wt % Pd/C) were characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDX) and Brunauer–Emmett–Teller (BET) analyses. The catalysts were tested as a coupling catalyst for Suzuki–Miyaura coupling reactions involving aryl halides and phenyl boronic acid. The optimization of the catalyst by varying the palladium content on the activated carbon yielded Pd/C catalysts with very high catalytic activity for Suzuki reactions of aryl halides and a Mizoroki–Heck cross-coupling reaction of 4-bromoanisol and acrylic acid in an aqueous medium. A high ‘Pd’ content and uniform ‘Pd’ impregnation significantly affected the activity of the catalysts. The catalytic activity of 3% Pd/C was found to make it a more efficient catalyst when compared with the other synthesized Pd/C catalysts. Furthermore, the catalyst reusability was also tested for Suzuki reactions by repeatedly performing the same reaction using the recovered catalyst. The 3% Pd/C catalyst displayed better reusability even after several reactions.

1. Introduction

Transition metal-facilitated cross-couplings, specifically Suzuki–Miyaura, Sonogashira, Heck, Hiyama, Stille, Negishi and Kumada reactions, are significant tools for C–C bond formation [1,2,3,4,5,6,7]. The significance of carbon–carbon bonds in establishing reactions is heavily acknowledged in various fields such as natural and biological products, polymers and particularly in catalysis [8,9]. The industrial significance of Suzuki and Heck couplings, along with several others, has particularly generated considerable advancement in the progress of C–C bond reactions. Suzuki–Miyaura couplings have been especially widely exploited in recent years [10,11], which potentially offer quick entry to biaryl frameworks via the sp2–sp2 connection [12]. Suzuki–Miyaura and Mizoroki–Heck cross-coupling reactions are extensively applied, owing to their excellent properties such as mild reaction conditions, easy availability of precursors, good stability under aerobic conditions and the use of nonhazardous boronic acids as precursors. So far, reports on the use of several palladium-, nickel- and gold-based compounds as catalysts for cross-coupling reactions have been published [13,14].
Among the various transition metals, Suzuki–Miyaura reactions are usually catalyzed by palladium-based homogenous catalysts that have shown high catalytic activity. However, under homogeneous conditions, catalysts require hazardous ligands like phosphine or other N-heterocyclic compounds [15], and moreover, separating the catalysts after the reaction is cumbersome process. This not only causes contamination of the product but also severely affects the recovery of the catalysts [16,17,18]. The separation of leached catalysts from the product solution requires the application of costly filtration membranes or other chromatographic techniques. Therefore, tremendous efforts have been made over the years to develop heterogeneous processes with the aim of replacing homogenous systems. Recently, the advancement of nanotechnology has led to the development of highly efficient palladium nanoparticle (Pd NP)-based heterogeneous catalysts [19,20]. These catalysts possess excellent catalytic activity due to their remarkable physicochemical properties (high surface area) and are successfully used as replacements for the conventional organometallic-based compounds for Suzuki–Miyaura coupling reactions [10,21,22,23,24].
Currently, ‘Pd’ is considered the most exciting heterogeneous catalyst in coupling reactions due to its size, shape and other catalytic activities [25,26,27]. Among various reactions, the palladium-catalyzed coupling reactions involving aryl halides and phenyl/aryl boronic acids are considered the most beneficial approaches for the development of biaryl units, which are highly useful as intermediates in numerous pharmaceuticals and polymers like electroluminescence materials [28]. However, in many cases, the application of Pd NPs has been seriously restricted due to the inefficiency of separation methods like centrifugation and filtration for the recovery of whole nanoparticle-based catalysts [25]. Additionally, NPs are also susceptible to agglomeration under reaction conditions. Therefore, to overcome these issues, supported Pd NPs are preferred for C–C cross coupling reactions. Thus far, significant efforts have been made toward improving a variety of novel and effective palladium-based supported catalysts for Suzuki–Miyaura coupling reactions [29]. Recently, the synthesis of Pd-based graphene nanocomposites for Suzuki–Miyaura coupling reactions have successfully reported [10,28,30,31,32].
Besides that, carbon nanotubes have also been developed as competent supports for palladium and applied extensively as catalysts for C–C cross-coupling reactions [33,34,35]. The carbon nanotubes can be uniformly dispersed in a solution, owing to their small size, thus enhancing the interactions among the reactants and the catalyst [33]. However, the sophisticated synthesis of CNTs and the difficulty in dispersing the nanoparticles on their surfaces seriously hinders their practical applications. Thus, the improvement of simple and efficient approaches for the synthesis of highly active, supported Pd–based nanocatalysts still remains challenging [36].
In this regard, palladium-based carbon support nanocomposite materials have been extensively useful in cross-coupling reactions [37,38]. Nevertheless, Pd/C or other heterogeneous, Pd-catalyzed C−C couplings are commonly established for the preparation of a variety of organic molecules. Moreover, carbon as a solid support certifies a greater surface area associated with the analogous silica and alumina-supported catalysts [38]. Palladium-based carbon catalysts are stated to be more stable in air and water, as well as acids and bases, and often do not require reactions to be performed under an inert atmosphere [38]. Indeed, Pd/C-catalyzed Suzuki reactions can be effectively accomplished under diverse reaction conditions, including in aqueous media [39,40], in organic media [41,42,43] and under microwave circumstances [44,45,46].
Here, we report on palladium on activated carbon catalysts, which were prepared by varying the content of ‘Pd’ via an in situ reduction method using hydrogen as a reducing agent. The as-prepared various concentrations of the Pd/C catalysts were characterized by a number of methods, comprising XRD, SEM, EDX and BET. The as-synthesized Pd/C catalysts were applied to Suzuki–Miyaura and Mizoroki–Heck cross-coupling reactions. The synthesized 3% Pd/C catalyst showed exceptional catalytic efficiency toward the Suzuki–Miyaura and Mizoroki–Heck reactions under facile environments in aqueous conditions.

2. Materials and Methods

2.1. Materials

Palladium (II) chloride (99.99%), chlorobenzene (99.5%), iodobenzene (99%), bromobenzene (99.5%), 4-bromoanisol (99.5%), acrylic acid (99%), sodium dodecyl sulfate (98%), phenyl boronic acid (95%), tripotassium phosphate (98%) and all organic solvents were procured from Sigma-Aldrich, St. Louis, MO, USA.

2.2. Methods

2.2.1. Catalyst Preparation

Pd loaded on activated carbon, designated Pd/C, was made by stirring activated carbon powder with a stoichiometric amount (wt %) of palladium (II) chloride (Sigma Aldrich) together in water at 80 °C for 24 h, followed by filtration and washing using distilled water. Then, the sample was dried at 100 °C, and the sample was reduced by a hydrogen flow at 250 °C for 2 h.

2.2.2. Suzuki–Miyaura Reaction Catalyzed by a Pd/C Nanocatalyst

The Suzuki–Miyaura coupling reaction procedure is provided in the Supplementary Materials.

2.3. Mizoroki–Heck Cross-Coupling Reaction

In an air-tied screw-capped vial (10 mL), a 3%Pd/C (10 mg) catalyst, K3PO4 (424 mg, 2.0 mmol), SDS (288 mg, 1.0 mmol) and water (4 mL) were charged with a small magnetic stir bar. Then, aryl halides (1.1 mmol) were added to it, followed by acrylic acid (72 mg, 1.0 mmol). The reaction was left stirring at 100 °C for 10 h. Then, the vial was cooled to room temperature. The reaction mass was basified with aqueous K2CO3 (4 M, 4 mL), followed by being washed with ethyl acetate (2 × 2 mL). Then, the aqueous layer was again acidified with HCl (4 M, PH = 1–2), and the product was extracted in ethyl acetate (3 × 5 mL). The combined ethyl acetate was dried over anhydrous Mg2SO4. The organic layer was concentrated under reduced pressure to afford pure compounds 3a–e. All the products were characterized by 1H-NMR and 13C-NMR spectra (Supplementary Materials, Figures S1–S10).

2.4. Characterization

The characterization and instrumental details are provided in the Supplementary Materials.

3. Results and Discussion

3.1. XRD Analysis

In the beginning, XRD was applied to examine the formation and crystallinity of the Pd/C catalyst. The first peak at the lower Bragg’s angle of 24.8° was related with the graphite (200) plane of the activated carbon support as shown in Figure 1. For the Pd/C catalyst, the typical diffraction peaked at 40.1° (111), 46.5° (200), 68.3° (220), 81.7° (311) or 86.4° (222), corresponding to the face-centered cubic crystalline structure. This confirmed the successful deposition of Pd on the surface of the activated carbon.

3.2. SEM and EDX Analysis

The texture of the as-prepared Pd/C catalyst was scrutinized by SEM analysis (Figure 2), and it was found that the catalysts prepared were found to possess a rugged, undefined morphology, and there was no effect when increasing the Pd upon the carbon support. The images obtained are given in Figure 3. The percentage of composition of Pd in the catalytic system was confirmed by EDX studies, which revealed that the Pd % in the 3% Pd/C catalyst contained 2.88% Pd, which was close to the theoretical percentage.

3.3. BET Analysis

The as-prepared Pd/C catalysts were studied to evaluate their adsorption profiles, and it was found that all the prepared materials exhibited that, with the increase in the percentage of Pd, the amount of N2 adsorbed increased, indicating enhanced interacting sites with the increase in the Pd percentage (Figure 4). The pore size distribution obtained from the studies revealed that the pore sizes of the 0.5–2% catalysts were found to be in the range of 200–600 nm, and the pore volume obtained indicated that the pores were deep channels in the range of 0.07–0.08 cm3/g. The catalyst with 3% Pd/C was found to possess a pore size distribution of 25–150 nm, and the pore volume indicated the formation of shallow pores. Moreover, the BET surface areas of the samples increased with the increasing of Pd content; the 0.5%, 1%, 2% and 3% Pd demonstrated surface areas of 837, 838, 841 and 933 m2/g, respectively.

3.4. Suzuki Reaction Catalyzed by the Pd/C Catalyst

In this study, the Pd/C catalyst was assessed in the Suzuki–Miyaura coupling of halobenzene with phenylboronic acid (Figure 5). S comparison between the catalytic performances of the prepared catalysts (i.e., 0.5% Pd/C, 1% Pd/C, 2% Pd/C and 3% Pd/C) was carried out for the substrate iodobenzene and phenyl boronic acid, and it was found that the amount of Pd in the catalytic system had a significant effect on the catalytic activity of the resultant catalyst. Among various catalysts, the 3% Pd/C yielded a 100% coupled product within 10 min, while the 1% Pd/C and 2% Pd/C catalysts yielded 100% coupled products within 20 min and 15 min, respectively. However, the 0.5% Pd/C catalyst yielded a ~80% coupled product in 60 min. The outcomes exposed that the iodo-substituted aryl compound yielded a 100% coupled product at the fastest reaction rate within 10 min when the 3% Pd/C catalyst was employed. However, when the same catalyst was used for the coupling of bromo- and chloro-substituted aryl substrates, it yielded a 100% coupled product within 40 min and ~85% within 150 min, respectively. The difference in the rate of the reaction can be ascribed to the increasing anionic nature among the halogens down the group. The reaction kinetics was done using the GC, which was scrutinized by accumulating the reaction mixture at equivalent time intervals and quenched straightaway. The data graphical representation is shown in Figure 6.
The as-synthesized Pd/C catalysts were evaluated for their reusability to investigate the reduction in the catalytic activity with repeated reuse. The reactions were performed in a similar approach to the aforementioned process. Using iodobenzene as the main reactant, the residual catalyst was collected by centrifugation after the reaction’s completion. The catalyst was washed away many times with water to exterminate any residual impurities. It was witnessed that there was a reduction in the product percentage formed upon reuse. The product percentage depreciated up to 76% when used up to 5 times.

3.5. Mizoroki–Heck Cross-Coupling Reaction by the Pd/C Catalyst

The Pd/C catalyst for the Mizoroki–Heck cross-coupling reaction of 4-bromoanisol and acrylic acid in an aqueous medium was optimized as follows (Figure 7).
In an air-tied screw-capped vial (10 mL), an x% Pd/C catalyst (5–15 mg), K3PO4 (1.0–2.5 mmol), SDS (0.5–1.5 mmol) and water (4 mL) were charged with a small magnetic stir bar. Then, p-bromoanisol 1a (1.0 mmol) was added, followed by acrylic acid (1.0 mmol). The reaction was left stirring at 70–100 °C for 2–20 h. The reaction was monitored by TLC chromatography and purified by acid–base purification techniques. The findings are reported in Table 1.
The catalytic activity of a newly synthesized Pd/C nanocatalyst for a Mizoroki–Heck cross-coupling reaction in an aqueous medium was tested. The 4-bromoanisol and acrylic acid were taken as the standard substrates for the reaction optimization process (Figure 8). Our initial results are summarized in Table 1. Initially, the MH-C coupling reactions were tried with 10 mg of the 3%Pd/C catalyst and 1 eq. of K3PO4 in water (4 mL) at 100 °C for 10 h. Without the use of sodium dodecyl sulfate, no reaction took place (Table 1, entry 1). However, with the use of 0.5 eq. of sodium dodecyl sulfate (SDS), a 27% yield was observed (Table 1, entry 2). Then, the reaction was carried out using the same 3%Pd/C catalyst in the presence of 1.0 eq. and 1.5 eq. of SDS while keeping the other parameters unchanged, but the yields remained almost the same (46% and 47%, respectively) (Table 1, entries 3 and 4). In order to increase the conversion, 1.5 eq. and 2.0 eq. of K3PO4 were used in the reaction under the same reaction conditions, and 63% and 89% yields were found, respectively (Table 1, entries 5 and 6), which shows a sharp improvement in conversion. We then further tried to improve the yields using 15 mg of the catalyst and 2.5 eq. of K3PO4 under similar conditions, but no further improvement was observed (87%, Table 1, entry 7). Similar reactions were tried using the 0.5%, 1.0% and 2% Pd/C catalysts, and the respective yields were found to be 45%, 57% and 76% (Table 1, entries 8–10). We further tried to optimize the reaction time and temperature, and it was observed that a reaction at 100 °C for 10 h gave the best results (Table 1, entries 11–15). It is evident from the above findings that the 3% Pd/C catalyst (10 mg) in the presence of 2 eq. of K3PO4 and 1 eq. of SDS at 100 °C in 10 h produced the best conversion.
Therefore, in order to investigate the substrate scope, an MH cross-coupling reaction was performed under the optimized reaction conditions with several aryl halides and acrylic acid. The results are summarized in Table 2.
The turnover frequency (TOF) and turnover number (TON) values for the 3% Pd/C catalyst were calculated and are graphically illustrated in Figure 9. It was found that the TOF and TON values for the Suzuki coupling reaction were 118 and 20 h−1. For the Heck coupling, the TOF and TON values were 1.2 and 12 h−1.
Under the optimized reaction conditions, all the aryl halides (1a–f) reacted with the acrylic acid very well, with moderate to good yields (Table 2). The lower yield in the case of 2-bromoanisol could be due to the steric hindrance of the ortho-substitution (2c, 72%) of bromoanisol. The highest yields were observed for iodobenzene (2e, 91%) and iodotoluene (2d, 87%). The reusability of the 3% Pd/C catalysts was tested for Mizoroki–Heck reaction efficiency. The reactions were done in a similar approach to the above-mentioned process. Using a standard p-bromoanisol substrate and acrylic acid, the residual catalyst was collected by filtration after the completion of the reaction. The catalyst was washed with copious amounts of water to eliminate any residual impurities. It was found that there was a decrease in the percentage of product formed upon repeated use. The product percentage depreciated up to 78% when used up to 3 times (Figure 10).

4. Conclusions

A Pd/C catalyst was synthesized via an in situ synthesis method, using hydrogen gas as a reducing agent. The incorporation of ‘Pd’ nanoparticles on the surface of active carbon led to strong catalytic activity of the resultant catalyst. To examine the effect of the amount of ‘Pd’ on the catalytic activity of the catalyst, various catalysts were prepared by varying the palladium content. The as-prepared catalysts were identified by XRD, SEM, EDX and BET. The Pd/C catalyst containing 3% Pd demonstrated excellent catalytic activity toward the Suzuki–Miyaura and Mizoroki–Heck reactions. Moreover, the catalyst’s reusability was also verified by repeated execution of the same reaction using the reused catalyst. The 3% Pd/C catalyst showed exceptional reusability even after numerous reactions.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/app11114822/s1. Figure S1: 1H-NMR of Compound 2a, Figure S2: 13C-NMR of Compound 2a, Figure S3: 1H-NMR of Compound 2b, Figure S4: 13C-NMR of Compound 2b, Figure S5: 1H-NMR of Compound 2c, Figure S6: 13C-NMR of Compound 2c, Figure S7: 1H-NMR of Compound 2d, Figure S8: 13C-NMR of Compound 2d, Figure S9: 1H-NMR of Compound 2e, Figure S10: 13C-NMR of Compound 2e.

Author Contributions

Conceptualization, H.M.A., O.F.A., M.H.A., S.F.A. and M.R.S.; methodology, H.M.A. and M.K.; software, M.R.S.; validation, O.F.A., S.F.A. and M.R.S.; formal analysis, M.H.A., R.L.A., M.S.A., M.H.M., M.S.I. and M.K.; investigation, S.F.A. and M.R.S.; resources, H.M.A., O.F.A., S.F.A. and M.R.S.; data curation, M.R.S.; writing—original draft preparation, O.F.A., S.F.A. and M.R.S.; writing—review and editing, S.F.A. and M.R.S.; visualization, O.F.A., M.H.A., S.F.A. and M.R.S.; supervision, A.A.; project administration, O.F.A.; funding acquisition, A.A. All authors have read and agreed to the published version of the manuscript.

Funding

O.F.A. extends his appreciation to the Deanship of Scientific Research at Majmaah University for funding this research (Grant No. R-2021-135).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Suzuki, A. Organoboron compounds in new synthetic reactions. Pure Appl. Chem. 1985, 57, 1749–1758. [Google Scholar] [CrossRef]
  2. Heck, R.F. Palladium-catalyzed vinylation of organic halides. Org. React. 2004, 27, 345–390. [Google Scholar]
  3. Milstein, D.; Stille, J. Palladium-catalyzed coupling of tetraorganotin compounds with aryl and benzyl halides. Synthetic utility and mechanism. J. Am. Chem. Soc. 1979, 101, 4992–4998. [Google Scholar] [CrossRef]
  4. Negishi, E. Palladium-or nickel-catalyzed cross coupling. A new selective method for carbon-carbon bond formation. Acc. Chem. Res. 1982, 15, 340–348. [Google Scholar] [CrossRef]
  5. Nakao, Y.; Hiyama, T. Silicon-based cross-coupling reaction: An environmentally benign version. Chem. Soc. Rev. 2011, 40, 4893–4901. [Google Scholar] [CrossRef] [PubMed]
  6. Chinchilla, R.; Nájera, C. Recent advances in Sonogashira reactions. Chem. Soc. Rev. 2011, 40, 5084–5121. [Google Scholar] [CrossRef]
  7. Handa, S.; Wang, Y.; Gallou, F.; Lipshutz, B.H. Sustainable Fe–ppm Pd nanoparticle catalysis of Suzuki-Miyaura cross-couplings in water. Science 2015, 349, 1087–1091. [Google Scholar] [CrossRef] [Green Version]
  8. Yokoyama, A.; Suzuki, H.; Kubota, Y.; Ohuchi, K.; Higashimura, H.; Yokozawa, T. Chain-growth polymerization for the synthesis of polyfluorene via suzuki-miyaura coupling reaction from an externally added initiator unit. J. Am. Chem. Soc. 2007, 129, 7236–7237. [Google Scholar] [CrossRef]
  9. Heravi, M.M.; Hashemi, E. Recent applications of the Suzuki reaction in total synthesis. Tetrahedron 2012, 68, 9145–9178. [Google Scholar] [CrossRef]
  10. Kuniyil, M.; Kumar, J.; Adil, S.F.; Shaik, M.R.; Khan, M.; Assal, M.E.; Siddiqui, M.R.H.; Al-Warthan, A. One-Pot synthesized Pd@ N-doped graphene: An efficient catalyst for suzuki–miyaura couplings. Catalysts 2019, 9, 469. [Google Scholar] [CrossRef] [Green Version]
  11. Nasrollahzadeh, M.; Sajadi, S.M.; Maham, M. Green synthesis of palladium nanoparticles using Hippophae rhamnoides Linn leaf extract and their catalytic activity for the Suzuki–Miyaura coupling in water. J. Mol. Catal. A Chem. 2015, 396, 297–303. [Google Scholar] [CrossRef]
  12. Ocansey, E.; Darkwa, J.; Makhubela, B.C. Synthesis, characterization and evaluation of bulky bis (pyrazolyl) palladium complexes in Suzuki–Miyaura cross-coupling reactions. RSC Adv. 2018, 8, 13826–13834. [Google Scholar] [CrossRef] [Green Version]
  13. Wolf, C.; Xu, H. Efficient synthesis of sterically crowded biaryls by palladium-phosphinous acid-catalyzed cross-coupling of aryl halides and aryl grignards. J. Org. Chem. 2008, 73, 162–167. [Google Scholar] [CrossRef] [PubMed]
  14. Tobisu, M.; Xu, T.; Shimasaki, T.; Chatani, N. Nickel-catalyzed Suzuki–Miyaura reaction of aryl fluorides. J. Am. Chem. Soc. 2011, 133, 19505–19511. [Google Scholar] [CrossRef] [PubMed]
  15. Meise, M.; Haag, R. A highly active water-soluble cross-coupling catalyst based on dendritic polyglycerol n-heterocyclic carbene palladium complexes. ChemSusChem Chem. Sustain. Energy Mater. 2008, 1, 637–642. [Google Scholar] [CrossRef] [PubMed]
  16. Doucet, H.; Hierso, J.-C. Palladium coupling catalysts for pharmaceutical applications. Curr. Opin. Drug Dis. Dev. 2007, 10, 672–690. [Google Scholar]
  17. King, A.O.; Yasuda, N. Palladium-catalyzed cross-coupling reactions in the synthesis of pharmaceuticals. In Organometallics in Process Chemistry; Springer: Berlin/Heidelberg, Germany, 2004; pp. 205–245. [Google Scholar]
  18. Torborg, C.; Beller, M. Recent applications of palladium-catalyzed coupling reactions in the pharmaceutical, agrochemical, and fine chemical industries. Adv. Synth. Catal. 2009, 351, 3027–3043. [Google Scholar] [CrossRef]
  19. Scheuermann, G.M.; Rumi, L.; Steurer, P.; Bannwarth, W.; Mülhaupt, R. Palladium nanoparticles on graphite oxide and its functionalized graphene derivatives as highly active catalysts for the Suzuki−Miyaura coupling reaction. J. Am. Chem. Soc. 2009, 131, 8262–8270. [Google Scholar] [CrossRef]
  20. Mpungose, P.P.; Vundla, Z.P.; Maguire, G.E.; Friedrich, H.B. The current status of heterogeneous palladium catalysed Heck and Suzuki cross-coupling reactions. Molecules 2018, 23, 1676. [Google Scholar] [CrossRef] [Green Version]
  21. Pérez-Lorenzo, M. Palladium nanoparticles as efficient catalysts for Suzuki cross-coupling reactions. J. Phys. Chem. Lett. 2012, 3, 167–174. [Google Scholar] [CrossRef]
  22. Das, P.; Linert, W. Schiff base-derived homogeneous and heterogeneous palladium catalysts for the Suzuki–Miyaura reaction. Coord. Chem. Rev. 2016, 311, 1–23. [Google Scholar] [CrossRef]
  23. Kim, S.-W.; Kim, M.; Lee, W.Y.; Hyeon, T. Fabrication of hollow palladium spheres and their successful application to the recyclable heterogeneous catalyst for Suzuki coupling reactions. J. Am. Chem. Soc. 2002, 124, 7642–7643. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, J.; Fu, Y.; He, G.; Sun, X.; Wang, X. Green Suzuki–Miyaura coupling reaction catalyzed by palladium nanoparticles supported on graphitic carbon nitride. Appl. Catal. B Environ. 2015, 165, 661–667. [Google Scholar] [CrossRef]
  25. Veerakumar, P.; Thanasekaran, P.; Lu, K.-L.; Liu, S.-B.; Rajagopal, S. Functionalized silica matrices and palladium: A versatile heterogeneous catalyst for Suzuki, Heck, and Sonogashira reactions. ACS Sustain. Chem. Eng. 2017, 5, 6357–6376. [Google Scholar] [CrossRef]
  26. Astakhov, A.V.; Khazipov, O.V.; Chernenko, A.Y.; Pasyukov, D.V.; Kashin, A.S.; Gordeev, E.G.; Khrustalev, V.N.; Chernyshev, V.M.; Ananikov, V.P. A new mode of operation of Pd-NHC systems studied in a catalytic Mizoroki–Heck reaction. Organometallics 2017, 36, 1981–1992. [Google Scholar] [CrossRef]
  27. Bej, A.; Ghosh, K.; Sarkar, A.; Knight, D.W. Palladium nanoparticles in the catalysis of coupling reactions. RSC Adv. 2016, 6, 11446–11453. [Google Scholar] [CrossRef]
  28. Khan, M.; Kuniyil, M.; Shaik, M.; Khan, M.; Adil, S.; Al-Warthan, A.; Alkhathlan, H.; Tremel, W.; Tahir, M.; Siddiqui, M. Plant extract mediated eco-friendly synthesis of Pd@ graphene nanocatalyst: An efficient and reusable catalyst for the Suzuki-Miyaura coupling. Catalysts 2017, 7, 20. [Google Scholar] [CrossRef] [Green Version]
  29. Oger, N.; Felpin, F.X. Heterogeneous palladium catalysts for Suzuki–Miyaura coupling reactions involving aryl diazonium salts. ChemCatChem 2016, 8, 1998–2009. [Google Scholar] [CrossRef]
  30. Movahed, S.K.; Dabiri, M.; Bazgir, A. Palladium nanoparticle decorated high nitrogen-doped graphene with high catalytic activity for Suzuki–Miyaura and Ullmann-type coupling reactions in aqueous media. Appl. Catal., A 2014, 488, 265–274. [Google Scholar] [CrossRef]
  31. Asadi, S.; Sedghi, R.; Heravi, M.M. Pd nanoparticles immobilized on supported magnetic GO@ PAMPS as an auspicious catalyst for Suzuki–Miyaura coupling reaction. Catal. Lett. 2017, 147, 2045–2056. [Google Scholar] [CrossRef]
  32. Yoshii, T.; Kuwahara, Y.; Mori, K.; Yamashita, H. Design of Pd–graphene–Au nanorod nanocomposite catalyst for boosting suzuki–miyaura coupling reaction by assistance of surface plasmon resonance. J. Phys. Chem. C 2019, 123, 24575–24583. [Google Scholar] [CrossRef]
  33. Khalili, D.; Banazadeh, A.R.; Etemadi-Davan, E. Palladium stabilized by amino-vinyl silica functionalized magnetic carbon nanotube: Application in suzuki–miyaura and heck–mizoroki coupling reactions. Catal. Lett. 2017, 147, 2674–2687. [Google Scholar] [CrossRef]
  34. Labulo, A.H.; Martincigh, B.S.; Omondi, B.; Nyamori, V.O. Advances in carbon nanotubes as efficacious supports for palladium-catalysed carbon–carbon cross-coupling reactions. J. Mater. Sci. 2017, 52, 9225–9248. [Google Scholar] [CrossRef]
  35. Lakshminarayana, B.; Mahendar, L.; Ghosal, P.; Satyanarayana, G.; Subrahmanyam, C. Nano-sized Recyclable PdO supported carbon nanostructures for heck reaction: Influence of carbon materials. ChemSelect 2017, 2, 2700–2707. [Google Scholar] [CrossRef]
  36. Chen, X.; Hou, Y.; Wang, H.; Cao, Y.; He, J. Facile deposition of Pd nanoparticles on carbon nanotube microparticles and their catalytic activity for Suzuki coupling reactions. J. Phys. Chem. C 2008, 112, 8172–8176. [Google Scholar] [CrossRef]
  37. Felpin, F.-X. Ten years of adventures with Pd/C catalysts: From reductive processes to coupling reactions. Synlett 2014, 25, 1055–1067. [Google Scholar] [CrossRef]
  38. Cini, E.; Petricci, E.; Taddei, M. Pd/C catalysis under microwave dielectric heating. Catalysts 2017, 7, 89. [Google Scholar] [CrossRef] [Green Version]
  39. Schmidt, B.; Riemer, M. Suzuki–Miyaura coupling of halophenols and phenol boronic acids: Systematic investigation of positional isomer effects and conclusions for the synthesis of phytoalexins from pyrinae. J. Org. Chem. 2014, 79, 4104–4118. [Google Scholar] [CrossRef]
  40. Yuan, Y.-Q.; Guo, S.-R. Remarkably facile Heck reactions in aqueous two-phase system catalyzed by reusable Pd/C under ligand-free conditions. Synth. Commun. 2012, 42, 1059–1069. [Google Scholar] [CrossRef]
  41. Zhou, X.-Y.; Chen, X.; Wang, L.-G. Recycled Pd/C-catalyzed heck reaction of 2-Iodoanilines under ligand-free conditions. Synthesis 2017, 49, 5364–5370. [Google Scholar] [CrossRef] [Green Version]
  42. Seki, M. Practical synthesis of multifunctional compounds through Pd/C-catalyzed coupling reactions. J. Synth. Org. Chem Jpn. 2006, 64, 853–866. [Google Scholar] [CrossRef] [Green Version]
  43. Dighe, M.G.; Lonkar, S.L.; Degani, M.S. Mechanistic insights into palladium leaching in novel Pd/C-catalyzed boron-Heck reaction of arylboronic acid. Synlett 2013, 24, 347–350. [Google Scholar]
  44. Horikoshi, S.; Serpone, N. Role of microwaves in heterogeneous catalytic systems. Catal. Sci. Technol. 2014, 4, 1197–1210. [Google Scholar] [CrossRef]
  45. Hattori, T.; Tsubone, A.; Sawama, Y.; Monguchi, Y.; Sajiki, H. Palladium on carbon-catalyzed Suzuki-Miyaura coupling reaction using an efficient and continuous flow system. Catalysts 2015, 5, 18–25. [Google Scholar] [CrossRef] [Green Version]
  46. García-Suárez, E.J.; Lara, P.; García, A.B.; Ojeda, M.; Luque, R.; Philippot, K. Efficient and recyclable carbon-supported Pd nanocatalysts for the Suzuki–Miyaura reaction in aqueous-based media: Microwave vs. conventional heating. Appl. Catal. A 2013, 468, 59–67. [Google Scholar] [CrossRef]
Applsci 11 04822 g001 550

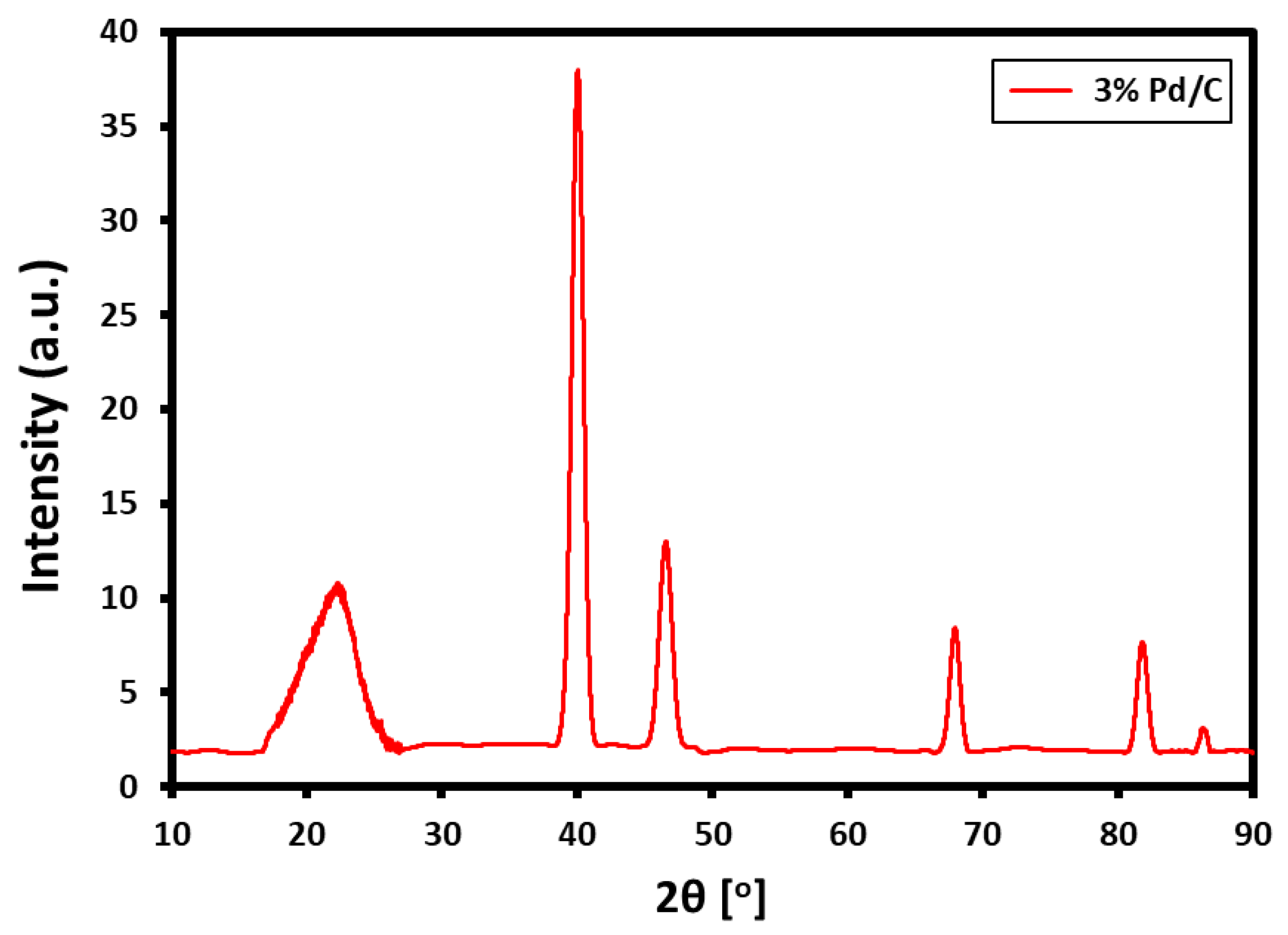

Figure 1. XRD analysis of 3% Pd/C.
Figure 1. XRD analysis of 3% Pd/C.
Applsci 11 04822 g001
Applsci 11 04822 g002 550
Figure 2. SEM images of the 0.5%, 1%, 2% and 3% Pd/C catalysts.
Figure 2. SEM images of the 0.5%, 1%, 2% and 3% Pd/C catalysts.
Applsci 11 04822 g002
Applsci 11 04822 g003 550

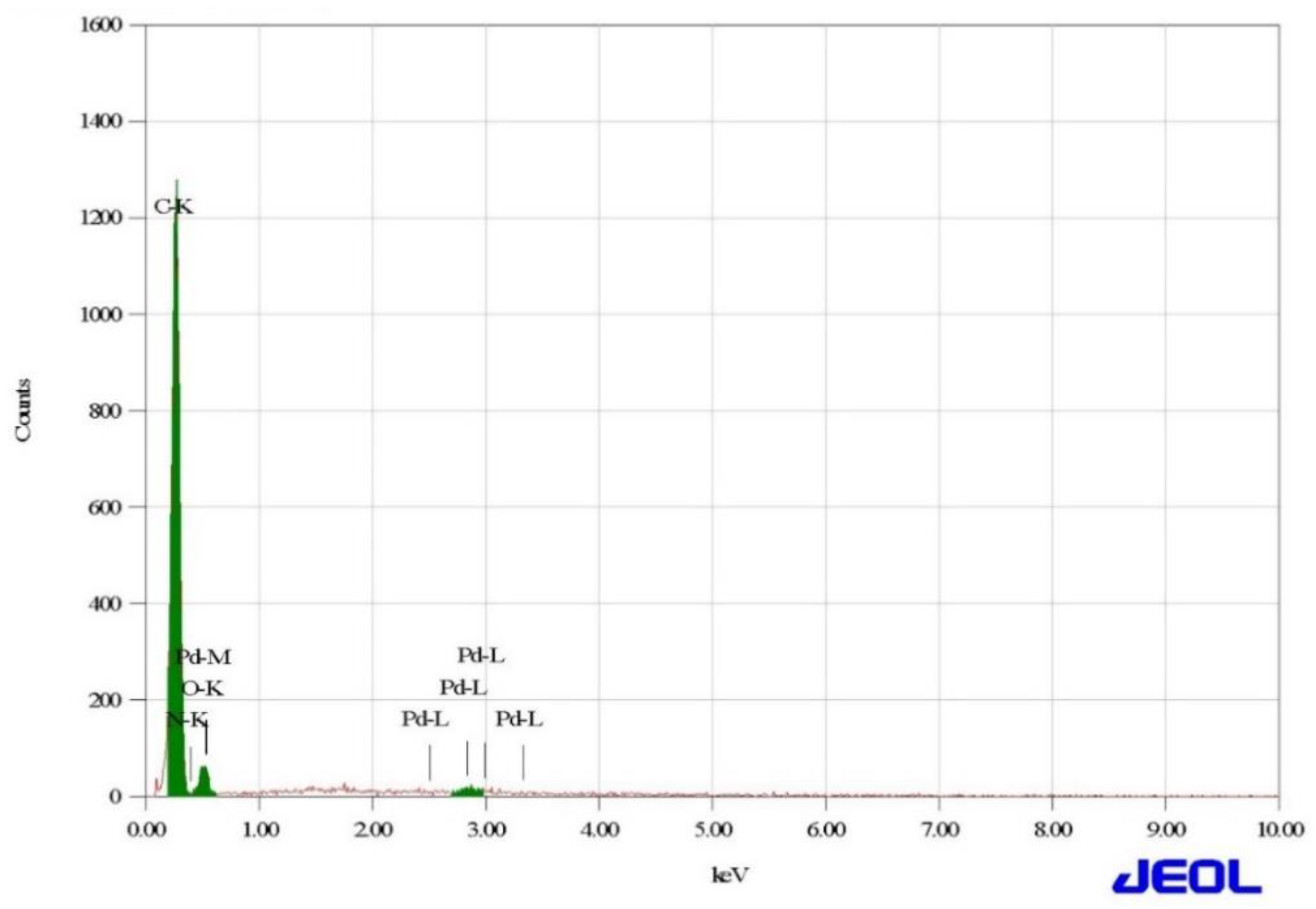

Figure 3. EDX analysis of 3% Pd/C.
Figure 3. EDX analysis of 3% Pd/C.
Applsci 11 04822 g003
Applsci 11 04822 g004 550

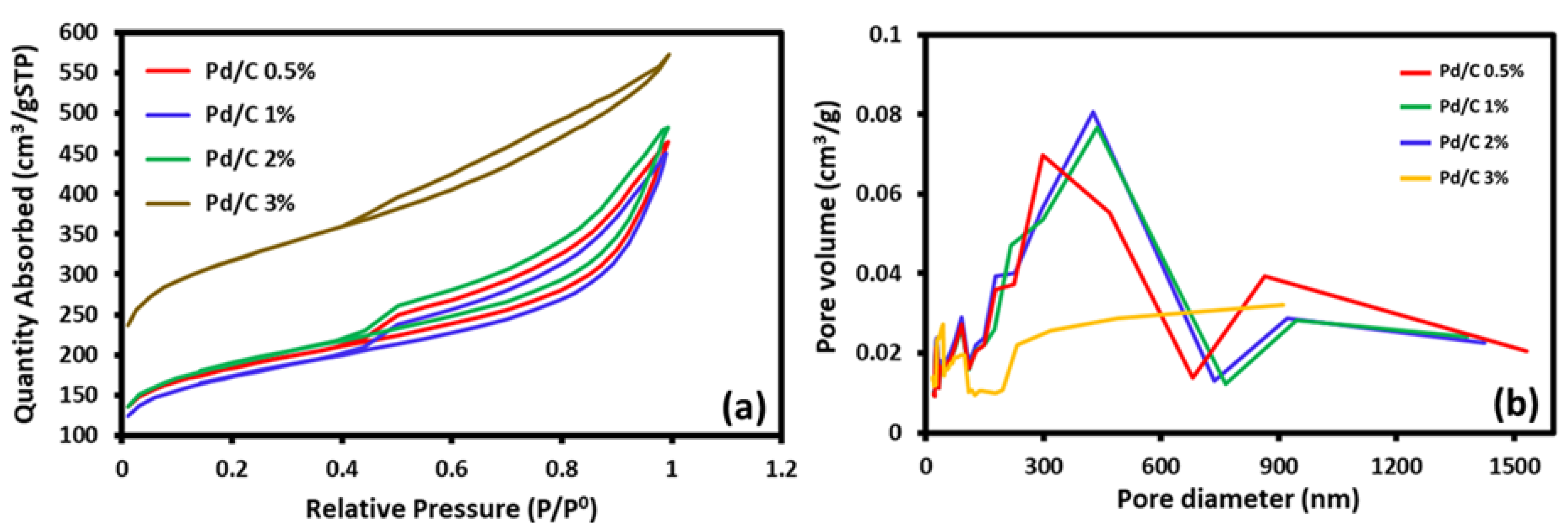

Figure 4. (a) Adsorption–desorption isotherms of the 0.5% Pd/C, 1% Pd/C, 2% Pd/C and 3% Pd/C catalysts. (b) Pore size distributions of the 0.5% Pd/C, 1% Pd/C, 2% Pd/C and 3% Pd/C catalysts.
Figure 4. (a) Adsorption–desorption isotherms of the 0.5% Pd/C, 1% Pd/C, 2% Pd/C and 3% Pd/C catalysts. (b) Pore size distributions of the 0.5% Pd/C, 1% Pd/C, 2% Pd/C and 3% Pd/C catalysts.
Applsci 11 04822 g004
Applsci 11 04822 g005 550

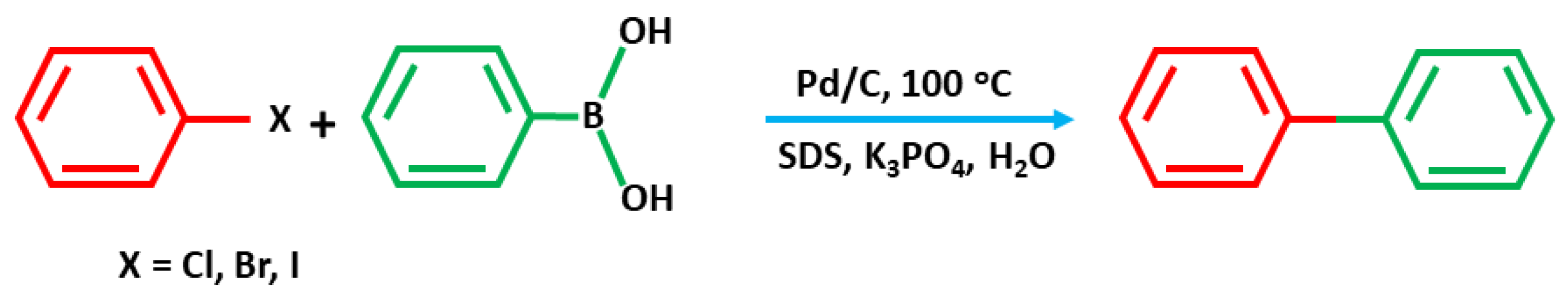

Figure 5. Graphical representation of the Suzuki reaction of iodobenzene, bromobenzene and chlorobenzene with phenylboronic acid under aqueous conditions.
Figure 5. Graphical representation of the Suzuki reaction of iodobenzene, bromobenzene and chlorobenzene with phenylboronic acid under aqueous conditions.
Applsci 11 04822 g005
Applsci 11 04822 g006 550

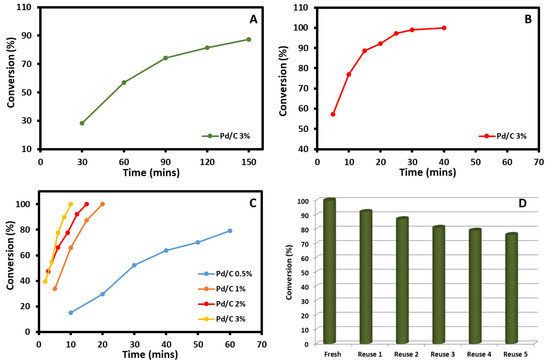

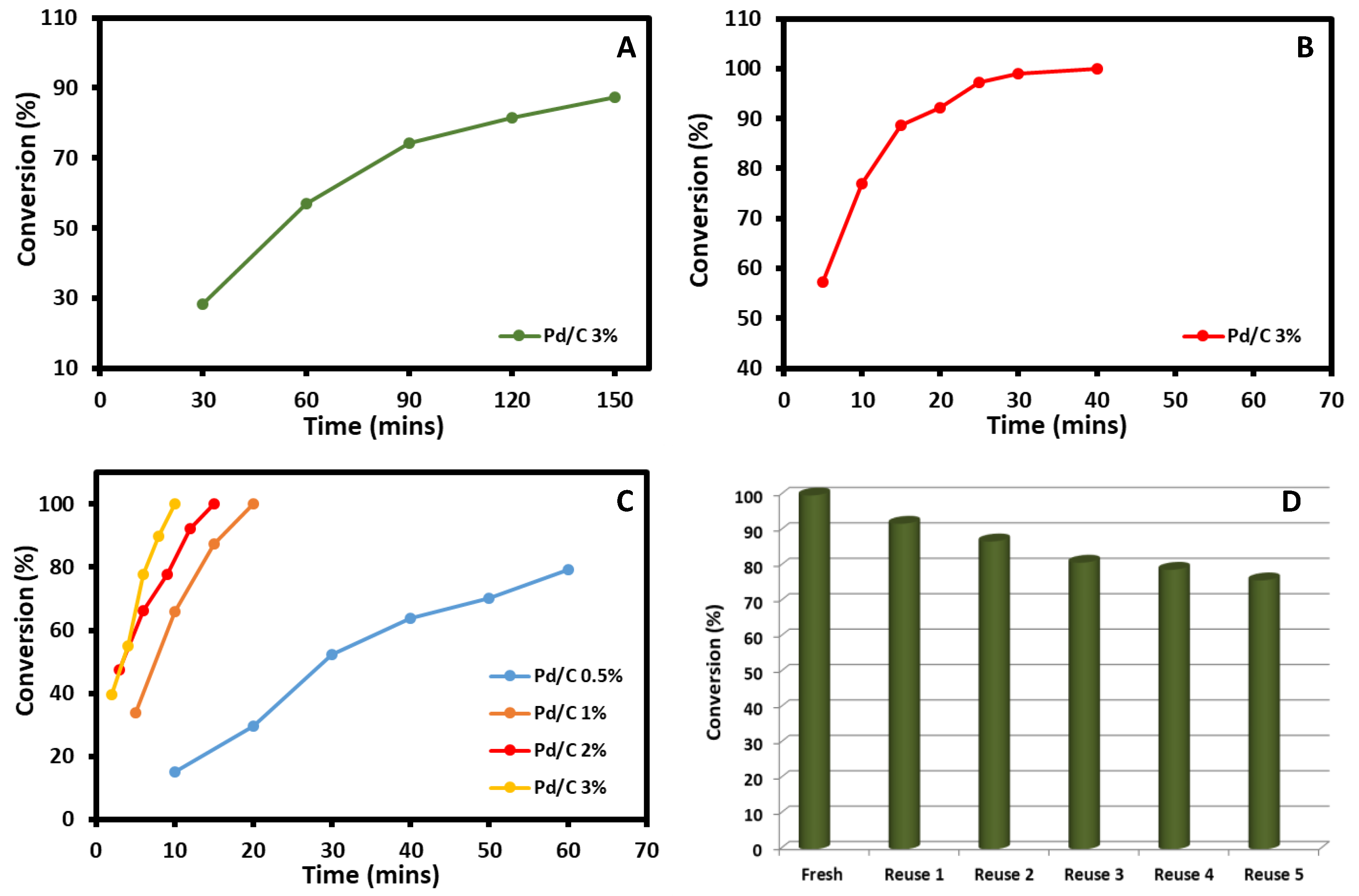

Figure 6. Chemical kinetics plot of the Suzuki reaction using a Pd/C catalyst for various substrates: (A) chlorobenzene, (B) bromobenzene and (C) iodobenzene. (D) Recyclability studies for the Pd/C 3% catalyst, using iodobenzene as the main reactant.
Figure 6. Chemical kinetics plot of the Suzuki reaction using a Pd/C catalyst for various substrates: (A) chlorobenzene, (B) bromobenzene and (C) iodobenzene. (D) Recyclability studies for the Pd/C 3% catalyst, using iodobenzene as the main reactant.
Applsci 11 04822 g006
Applsci 11 04822 g007 550

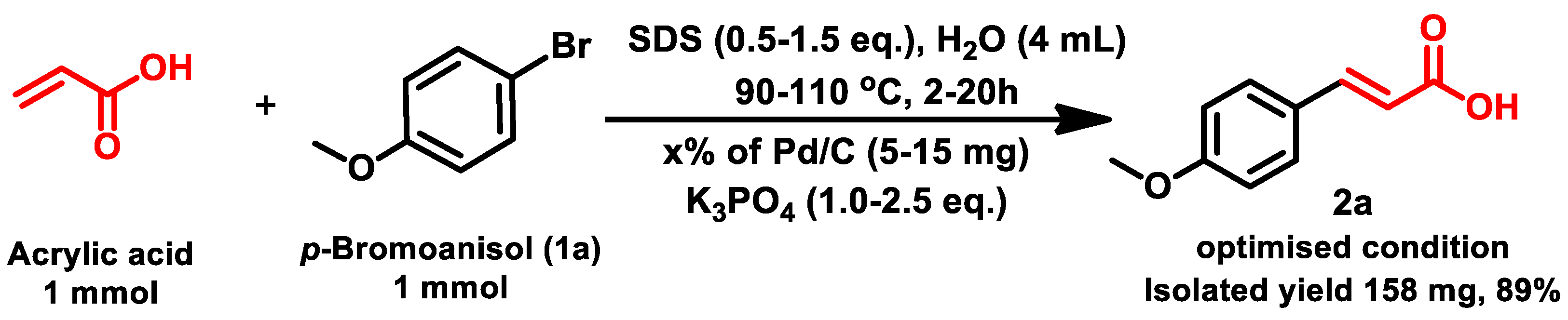

Figure 7. Pd/C-catalyzed MH-C reaction of p-bromoanisol (1a) and acrylic acid.
Figure 7. Pd/C-catalyzed MH-C reaction of p-bromoanisol (1a) and acrylic acid.
Applsci 11 04822 g007
Applsci 11 04822 g008 550

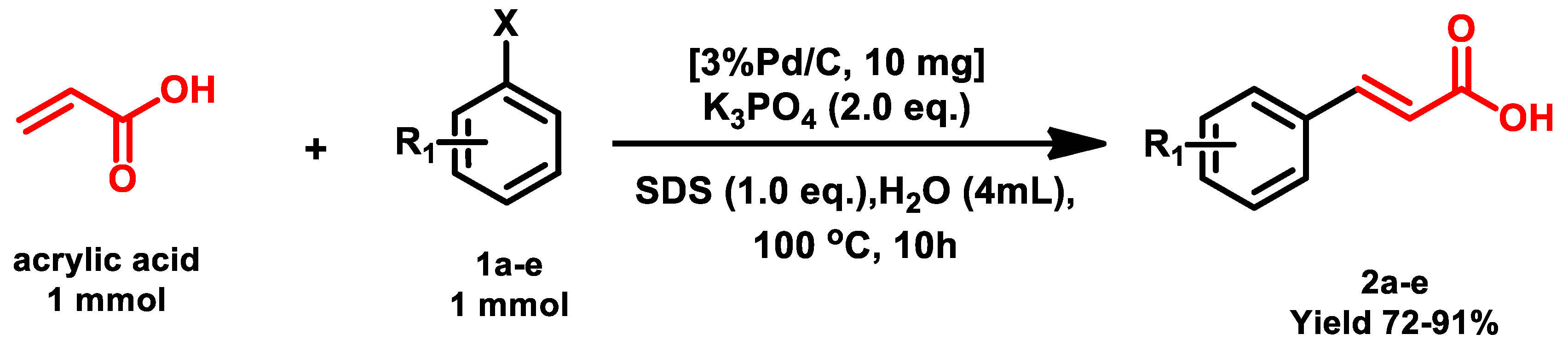

Figure 8. 3%Pd/C catalyzed Mizoroki–Heck reaction of aryl halides with acrylic acid under optimized conditions.
Figure 8. 3%Pd/C catalyzed Mizoroki–Heck reaction of aryl halides with acrylic acid under optimized conditions.
Applsci 11 04822 g008
Applsci 11 04822 g009 550

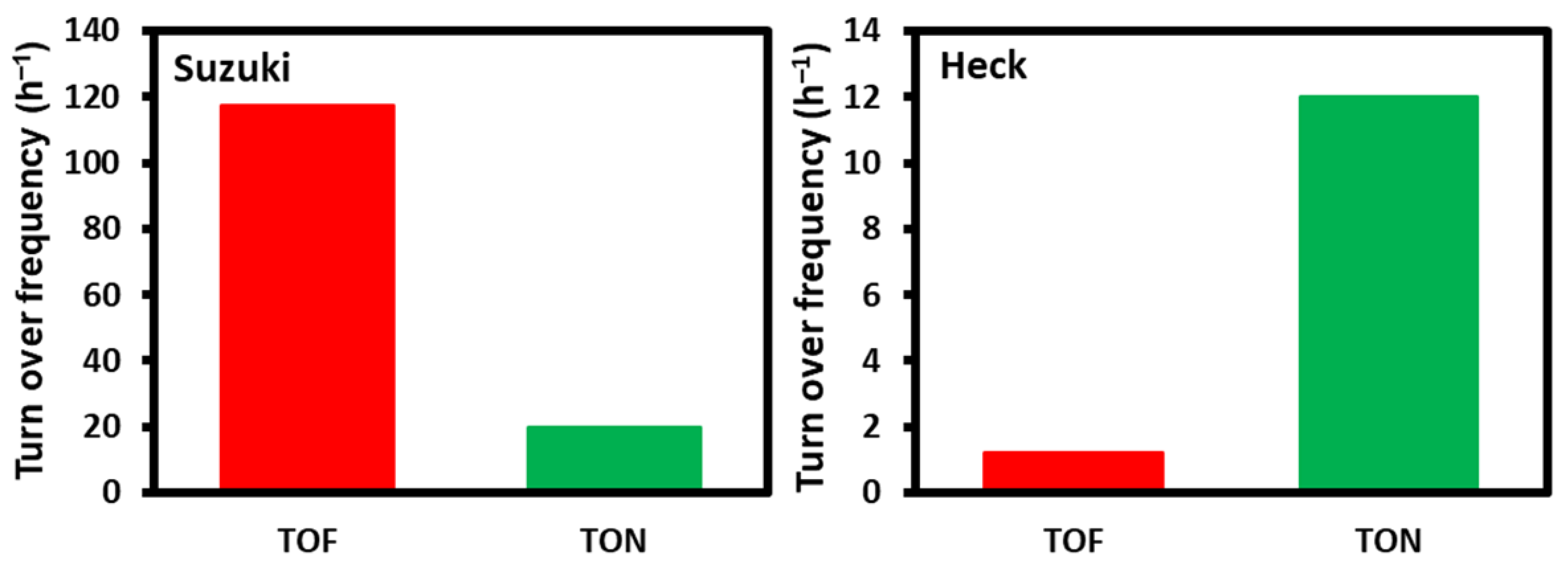

Figure 9. Graphical illustration of the comparative turnover frequency and turnover number (TON) values for the Suzuki and Heck coupling reactions of the 3% Pd/C catalyst.
Figure 9. Graphical illustration of the comparative turnover frequency and turnover number (TON) values for the Suzuki and Heck coupling reactions of the 3% Pd/C catalyst.
Applsci 11 04822 g009
Applsci 11 04822 g010 550

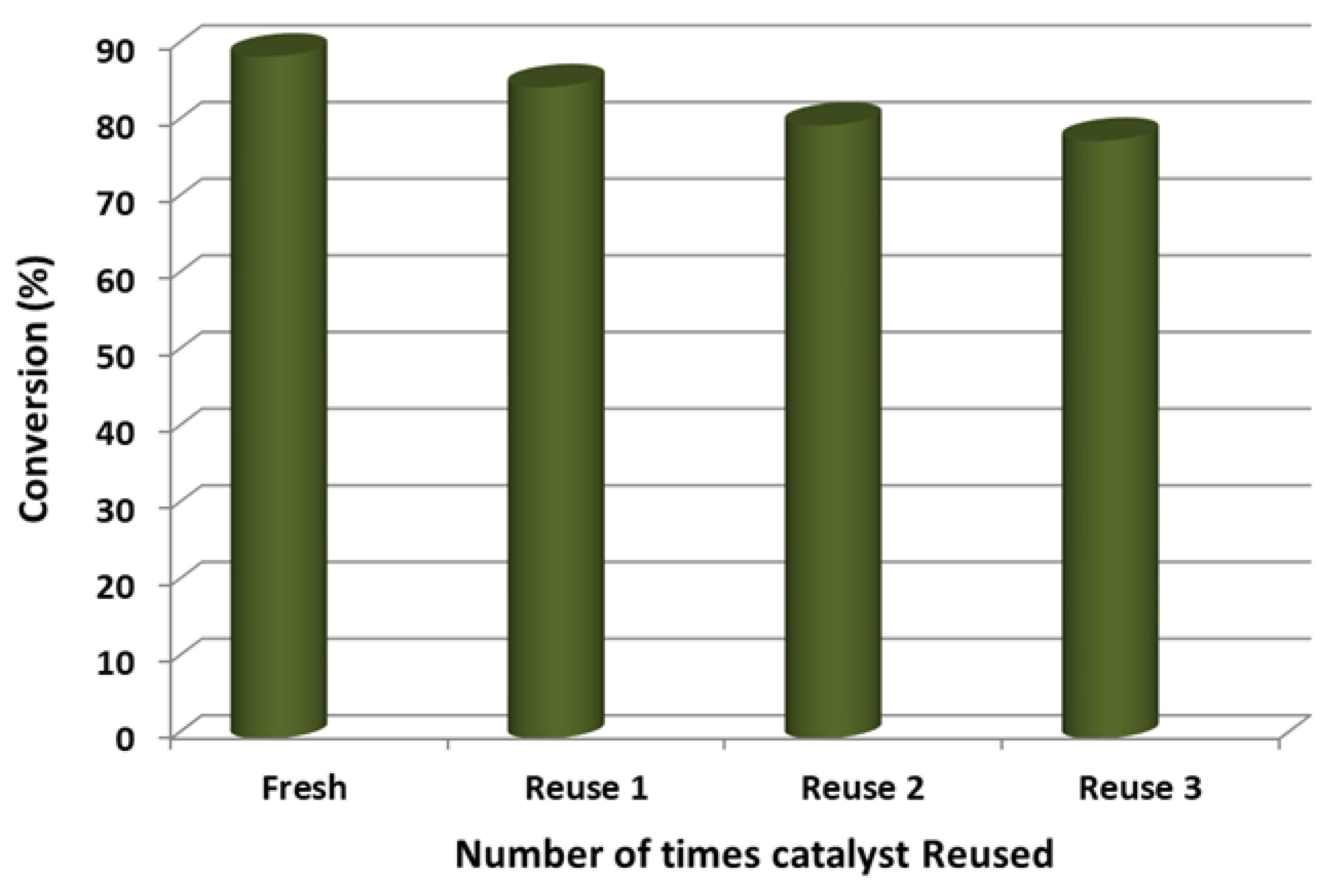

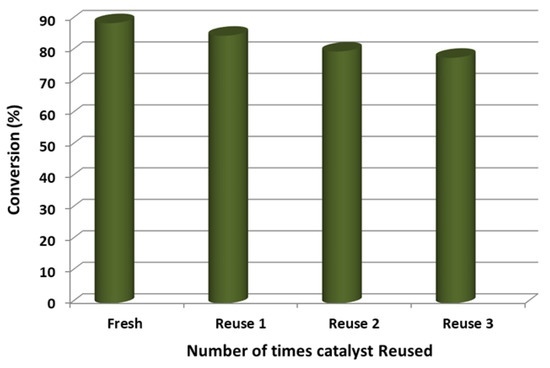

Figure 10. Recyclability studies for the Pd/C 3% catalyst, using p-bromoanisol as the main reactant for the Mizoroki–Heck reaction.
Figure 10. Recyclability studies for the Pd/C 3% catalyst, using p-bromoanisol as the main reactant for the Mizoroki–Heck reaction.
Applsci 11 04822 g010
Table
Table 1. Mizoroki–Heck reaction optimization of the Pd/C catalyst.
Table 1. Mizoroki–Heck reaction optimization of the Pd/C catalyst.
Sl. No.CatalystWt. of CatalystK3PO4SDSTemp. (°C)Time (h)Isolated Yield
13.0% Pd/C10 mg1.0 eq.-10010 hNo reaction
23.0% Pd/C10 mg1.0 eq.0.5 eq.10010 h27%
33.0% Pd/C10 mg1.0 eq.1.0 eq.10010 h46%
43.0% Pd/C10 mg1.0 eq.1.5 eq.10010 h47%
53.0% Pd/C10 mg1.5 eq.1.0 eq.10010 h63%
63.0% Pd/C10 mg2.0 eq.1.0 eq.10010 h89%
73.0% Pd/C15 mg2.5 eq.1.0 eq.10010 h87%
80.5% Pd/C10 mg2.0 eq.1.0 eq.10010 h45%
91.0% Pd/C10 mg2.0 eq.1.0 eq.10010 h57%
102.0% Pd/C10 mg2.0 eq.1.0 eq.10010 h76%
113.0% Pd/C10 mg2.0 eq.1.0 eq.1002 h17%
123.0% Pd/C10 mg2.0 eq.1.0 eq.1005 h34%
133.0% Pd/C10 mg2.0 eq.1.0 eq.10016 h86%
143.0% Pd/C10 mg2.0 eq.1.0 eq.9020 h11%
153.0% Pd/C10 mg2.0 eq.1.0 eq.11020 h83%
Table
Table 2. 3%Pd/C catalyst Mizoroki–Heck reaction of aryl halides with acrylic acid.
Table 2. 3%Pd/C catalyst Mizoroki–Heck reaction of aryl halides with acrylic acid.
Sl. No.Aryl Halides1a–f2a–eIsolated Yield
14-bromoanisol1a2a89%
23-bromoanisol1b2b85%
32-bromoanisol1c2c72%
44-Iodotoluene1d2d87%
54-Iodobenzene1e2e91%
64-bromobenzene1f2e88%
Reaction Conditions: 3% Pd/C (10 mg), K3PO4 (424 mg, 2 mmol), SDS (72 mg, 1 mmol), H2O (4 mL), aryl halide (1.0 mmol) and acrylic acid (1.0 mmol) at 100 °C for 10 h (isolated yields).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alshammari, H.M.; Aldosari, O.F.; Alotaibi, M.H.; Alotaibi, R.L.; Alhumaimess, M.S.; Morad, M.H.; Adil, S.F.; Shaik, M.R.; Islam, M.S.; Khan, M.; et al. Facile Synthesis and Characterization of Palladium@Carbon Catalyst for the Suzuki-Miyaura and Mizoroki-Heck Coupling Reactions. Appl. Sci. 2021, 11, 4822. https://doi.org/10.3390/app11114822

AMA Style

Alshammari HM, Aldosari OF, Alotaibi MH, Alotaibi RL, Alhumaimess MS, Morad MH, Adil SF, Shaik MR, Islam MS, Khan M, et al. Facile Synthesis and Characterization of Palladium@Carbon Catalyst for the Suzuki-Miyaura and Mizoroki-Heck Coupling Reactions. Applied Sciences. 2021; 11(11):4822. https://doi.org/10.3390/app11114822

Chicago/Turabian Style

Alshammari, Hamed M., Obaid F. Aldosari, Mohammad Hayal Alotaibi, Raja L. Alotaibi, Mosaed S. Alhumaimess, Moataz H. Morad, Syed Farooq Adil, Mohammed Rafi Shaik, Mohammad Shahidul Islam, Mujeeb Khan, and et al. 2021. "Facile Synthesis and Characterization of Palladium@Carbon Catalyst for the Suzuki-Miyaura and Mizoroki-Heck Coupling Reactions" Applied Sciences 11, no. 11: 4822. https://doi.org/10.3390/app11114822

APA Style

Alshammari, H. M., Aldosari, O. F., Alotaibi, M. H., Alotaibi, R. L., Alhumaimess, M. S., Morad, M. H., Adil, S. F., Shaik, M. R., Islam, M. S., Khan, M., & Alwarthan, A. (2021). Facile Synthesis and Characterization of Palladium@Carbon Catalyst for the Suzuki-Miyaura and Mizoroki-Heck Coupling Reactions. Applied Sciences, 11(11), 4822. https://doi.org/10.3390/app11114822

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
