# A Porous Media Model for the Numerical Simulation of Acoustic Attenuation by Perforated Liners in the Presence of Grazing Flows

^{1}

^{2}

^{*}

## Abstract

**:**

## Featured Application

**Passive control devices for combustion noise reduction in gas turbine engines and/or other general flow noises.**

## Abstract

## 1. Introduction

- Where the noise signal propagates in parallel with a perforated liner without a mean flow;
- Where the noise signal propagates in parallel with a perforated liner in the presence of a mean bias flow;
- Where the noise signal propagates in parallel with a perforated liner in the presence of a mean grazing flow;
- Where the noise signal propagates in parallel with a perforated liner in the presence of coexisting bias and grazing flows;
- Where the grazing flow is of higher temperatures.

## 2. Methods

#### 2.1. Background Theory

_{t}is the real liner thickness, d is the diameter of perforations,

_{b}is the bias flow velocity and U

_{ac}represents the acoustic velocity inside the perforations [32].

#### 2.2. Further Development of PVPM Model

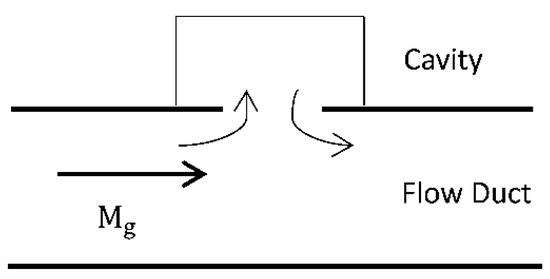

#### 2.2.1. Extra Flow Resistance Due to Grazing Flow Effect

_{b}, is directly resolved and accounted for by the current PVPM model, as discussed by Jianguo et al. [32]. The flow resistance due to a bias flow does not need to be imposed in the pressure loss source terms. However, the effect of grazing flows was not included in the original homogenous PVPM model. As a consequence, the overall flow resistance r of a perforated liner represented by the PVPM model is required to be amended by the grazing flow-induced resistance, as shown in Equation (14):

_{b}is the bias flow-induced resistance for the porous media region which is resolved by the PVPM model [32].

#### 2.2.2. Extra Porous Media Region Thickness Corrections Due to Grazing Flows

#### 2.3. Numerical Schemes

#### 2.4. Acoustic Data Processing Method

## 3. Results

#### 3.1. Grazing Acoustic Signal without Flow

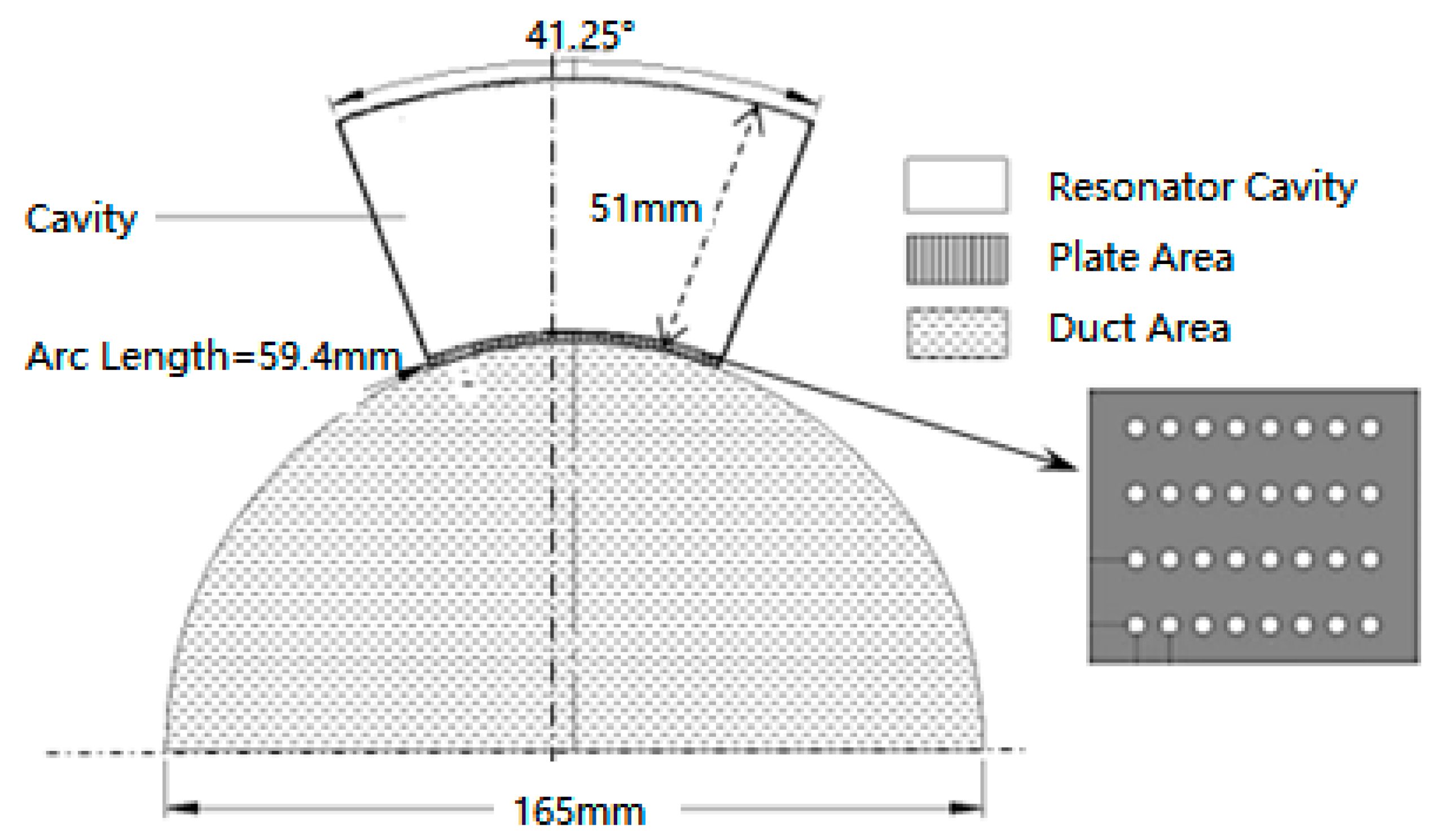

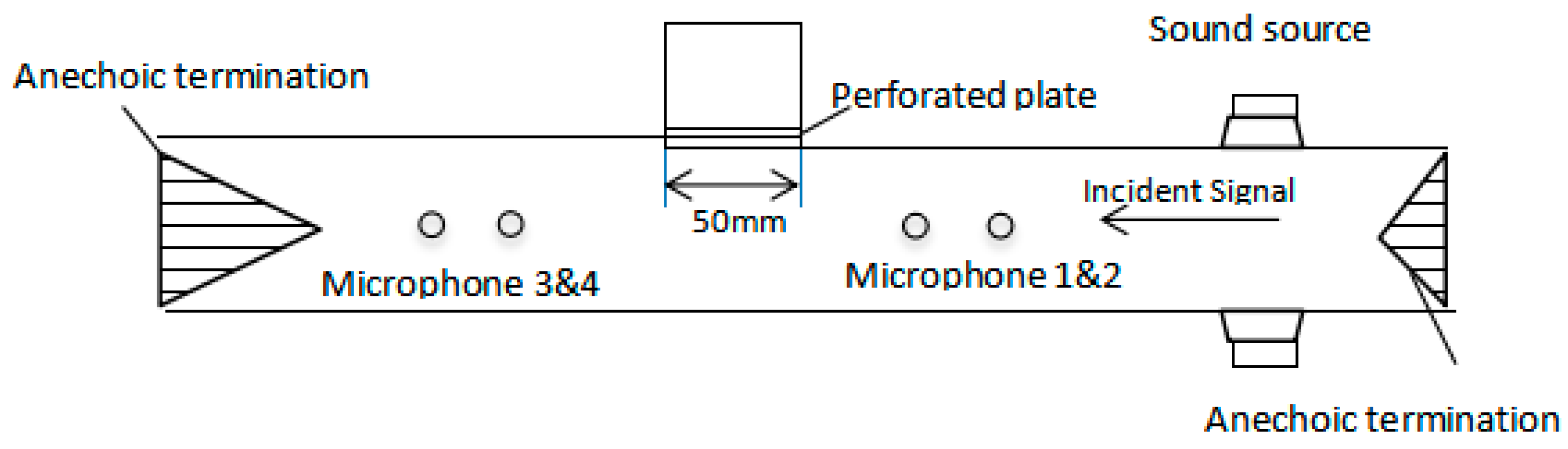

#### 3.1.1. Self-Designed Experiment Configuration

#### 3.1.2. Validation of the PVPM Model

#### 3.2. Grazing Acoustic Signal with Bias Flow

#### 3.3. Grazing Flow

#### 3.4. Simultaneous Grazing and Bias Flows

#### 3.5. Effects of Temperature of Grazing Flows

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Lieuwen, T.C.; Yang, V. (Eds.) Gas Turbine Emissions, 1st ed.; Cambridge University Press: Cambridge, UK, 2013; pp. 175–208. [Google Scholar]
- Lieuwen, T.; Neumeier, Y.; Zinn, B.T. The role of un-mixedness and chemical kinetics in driving combustion instabilities in lean premixed combustors. Combust. Sci. Technol.
**1998**, 135, 193–211. [Google Scholar] [CrossRef] - Huang, Y.; Yang, V. Dynamics and stability of lean-premixed swirl-stabilized combustion. Prog. Energ. Combust.
**2009**, 35, 293–364. [Google Scholar] [CrossRef] - Steele, R.C.; Cowell, L.H.; Cannon, S.M.; Smith, C.E. Passive control of combustion instability in lean premixed combustors. J. Eng. Gas Turbines Power
**2000**, 122, 412–419. [Google Scholar] [CrossRef] - Noiray, N.; Durox, D.; Schuller, T.; Candel, S. Passive control of combustion instabilities involving premixed flames anchored on perforated plates. Proc. Combust. Inst.
**2007**, 31, 1283–1290. [Google Scholar] [CrossRef] - Zhao, D.; Li, Y. A review of acoustic dampers applied to combustion chambers in aerospace industry. Prog. Aerosp. Sci.
**2015**, 74, 114–130. [Google Scholar] [CrossRef] - Farmer, G.; Brown, D.; Rutherford, M.E. Preferential Multi-Hole Combustor Liner. U.S. Patent 6,655,149, 2 December 2003. [Google Scholar]
- Wang, J.; Rubini, P.; Qin, Q.; Houston, B. A Model to Predict Acoustic Resonant Frequencies of Distributed Helmholtz Resonators on Gas Turbine Engines. Appl. Sci.
**2019**, 9, 1419. [Google Scholar] [CrossRef] [Green Version] - Lahiri, C. Acoustic Performance of Bias Flow Liners in Gas Turbine Combustors. Ph.D. Thesis, Technische Universität Berlin, Berlin, Germany, 2014. [Google Scholar]
- Grace, S.M.; Horan, P.; Howe, S. The influence of shape on the Rayleigh conductivity of a wall aperture in the presence of grazing flow. J. Fluids Struct.
**1998**, 12, 335–351. [Google Scholar] [CrossRef] - Lee, D.; Kwon, Y. Estimation of the absorption performance of multiple layer perforated panel systems by transfer matrix method. J. Sound Vib.
**2004**, 278, 847–860. [Google Scholar] [CrossRef] - Houston, B.; Wang, J.; Qin, Q.; Rubini, P. Experimental and numerical investigation of Helmholtz resonators and perforated liners as attenuation devices in industrial gas turbine combustors. Fuel
**2015**, 151, 31–39. [Google Scholar] [CrossRef] - Jing, X.; Sun, X. Effect of plate thickness on impedance of perforated plates with bias flow. AIAA J.
**2000**, 38, 1573–1578. [Google Scholar] [CrossRef] - Jing, X.; Sun, X. Experimental investigations of perforated liners with bias flow. J. Acoust. Soc. Am.
**1999**, 106, 2436–2441. [Google Scholar] [CrossRef] - Rupp, J.; Carrotte, J.; Macquisten, M. The use of perforated damping liners in aero gas turbine combustion systems. J. Eng. Gas Turbines Power
**2012**, 134. [Google Scholar] [CrossRef] - Zhao, D.; Ang, L.; Ji, Z. Numerical and experimental investigation of the acoustic damping effect of single-layer perforated liners with joint bias-grazing flow. J. Sound Vib.
**2015**, 342, 152–167. [Google Scholar] [CrossRef] - Liu, J.; Herrin, W. Enhancing micro-perforated panel attenuation by partitioning the adjoining cavity. Appl. Acoust.
**2010**, 71, 120–127. [Google Scholar] [CrossRef] - Jing, X.; Sun, X. Sound-excited flow and acoustic nonlinearity at an orifice. Phys. Fluids
**2002**, 14, 268–276. [Google Scholar] [CrossRef] - Ingard, U.; Ising, H. Acoustic nonlinearity of an orifice. J. Acoust. Soc. Am.
**1967**, 42, 6–17. [Google Scholar] [CrossRef] - Tayong, R.; Dupont, T.; Leclaire, P. On the variations of acoustic absorption peak with particle velocity in micro-perforated panels at high level of excitation. J. Acoust. Soc. Am.
**2010**, 127, 2875–2882. [Google Scholar] [CrossRef] [Green Version] - Eldredge, D.; Dowling, P. The absorption of axial acoustic waves by a perforated liner with bias flow. J. Fluid Mech.
**2003**, 485, 307–335. [Google Scholar] [CrossRef] - Sun, X.; Jing, X.; Zhang, H.; Shi, Y. Effect of grazing–bias flow interaction on acoustic impedance of perforated plates. J. Sound Vib.
**2002**, 254, 557–573. [Google Scholar] [CrossRef] - Jing, X.; Sun, X.; Wu, J.; Meng, K. Effect of grazing flow on the acoustic impedance of an orifice. AIAA J.
**2001**, 39, 1478–1484. [Google Scholar] [CrossRef] - Kirby, R.; Cummings, A. The impedance of perforated plates subjected to grazing gas flow and backed by porous media. J. Sound Vib.
**1998**, 217, 619–636. [Google Scholar] [CrossRef] - Elnady, T.; Bodén, H.; Kontio, T. Impedance of SDOF perforated liners at high temperatures. In Proceedings of the 10th AIAA/CEAS Aeroacoustics Conference, Manchester, UK, 10–12 May 2004. [Google Scholar]
- Rademaker, R.; Geurts, M. Hot-stream in-situ acoustic impedance measurements on various air-filled cavity and porous liners. J. Aircr.
**2019**, 56, 1–13. [Google Scholar] - Kabral, R. Determination of Liner Impedance under High Temperature and Grazing Flow Conditions. In Proceedings of the 20th AIAA/CEAS Aeroacoustics Conference, Atlanta, GA, USA, 16–20 June 2014. [Google Scholar]
- Liu, J. Advanced Studies on Series Impedance in Waveguides with an Emphasis on Source and Transfer Impedance. Ph.D. Thesis, University of Kentucky, Lexington, KY, USA, 2011. [Google Scholar]
- Dassé, J.; Mendez, S.; Nicoud, F. Large-eddy simulation of the acoustic response of a perforated plate. In Proceedings of the 14th AIAA/CEAS Aeroacoustics Conference, Vancouver, BC, Canada, 5–7 May 2008. [Google Scholar]
- Fan, W.; Guo, X. An Investigation of Acoustic Attenuation Performance of Silencers with Mean Flow Based on Three-Dimensional Numerical Simulation. Shock. Vib.
**2016**, 2016, 6797593. [Google Scholar] [CrossRef] [Green Version] - Liu, C.; Ji, Z. Computational fluid dynamics-based numerical analysis of acoustic attenuation and flow resistance characteristics of perforated tube silencers. J. Vib. Acoust.
**2014**, 136. [Google Scholar] [CrossRef] - Wang, J.; Rubini, P.; Qin, Q. Application of a porous media model for the acoustic damping of perforated plate absorbers. Appl. Acoust.
**2017**, 127, 324–335. [Google Scholar] [CrossRef] - ANSYS. Ansys Fluent 17.2. Theory Guide. Chapter 21: Solver Theory; ANSYS, Inc.: Canonsburg, PA, USA, 2013. [Google Scholar]
- Fok, W. Theoretical study of the conductance of a circular hole in a partition across a tube. Dokl. Akad. Nauk. SSSR
**1941**, 31, 875–882. [Google Scholar] - Tonon, D.; Moers, E.; Hirschberg, A. Quasi-steady acoustic response of wall perforations subject to a grazing-bias flow combination. J. Sound Vib.
**2013**, 332, 1654–1673. [Google Scholar] [CrossRef] - Rice, J. Theoretical study of the acoustic impedance of orifices in the presence of a steady grazing flow. J. Acoust. Soc. Am.
**1976**, 59. [Google Scholar] [CrossRef] [Green Version] - Syed, A.; Yu, J.; Kwan, W.; Chien, E.; Jones, G. The Steady Flow Resistance of Perforated Sheet Materials in High-Speed Grazing Flows; NASA: Cincinnati, OH, USA, 2002.
- Rao, N.; Munjal, L. Experimental evaluation of impedance of perforates with grazing flow. J. Sound Vib.
**1986**, 108, 283–295. [Google Scholar] - Bauer, B. Impedance theory and measurements on porous acoustic liners. J. Aircr.
**1977**, 14, 720–728. [Google Scholar] [CrossRef] - Heidelberg, J.; Rice, L. Experimental Evaluation of a Spinning-Mode Acoustic-Treatment Design Concept for Aircraft Inlets; NASA: Cleveland, OH, USA, 1980.
- Rice, J. A Model for the Acoustic Impedance of a Perforated Plate Liner with Multiple Frequency Excitation; NASA: Cleveland, OH, USA, 1971.
- Dean, D.; Tester, J. Duct Wall Impedance Control as an Advanced Concept for Acoustic Impression; NASA: Marietta, GA, USA, 1975.
- Elnady, T.; Boden, H. On semi-empirical liner impedance modelling with grazing flow. In Proceedings of the 9th AIAA/CEAS Aeroacoustics Conference and Exhibit, Hilton Head, SC, USA, 12–14 May 2003. [Google Scholar]
- Kooi, W.; Sarin, S.L. An experimental study of the acoustic impedance of Helmholtz resonator arrays under a turbulent boundary layer. In Proceedings of the 7th Aeroacoustics Conference, Palo Alto, CA, USA, 5–7 October 1981. [Google Scholar]
- Kaji, S.; Hiramoto, M.; Okazaki, T. Acoustic characteristics of orifice holes exposed to grazing flow. Bull. JSME
**1984**, 27, 2388–2396. [Google Scholar] [CrossRef] - Poinsot, J.; Lelef, K. Boundary conditions for direct simulations of compressible viscous flows. J. Comput. Phys.
**1992**, 101, 104–129. [Google Scholar] [CrossRef] - Selle, L.; Nicoud, F.; Poinsot, T. Actual impedance of non-reflecting boundary conditions: Implications for computation of resonators. AIAA J.
**2004**, 42, 958–964. [Google Scholar] [CrossRef] [Green Version] - Dean, D. An in-situ method of wall acoustic impedance measurement in flow ducts. J. Sound Vib.
**1974**, 34, 97–130. [Google Scholar] [CrossRef] - Elnady, T. Modelling and Characterization of Perforates in Lined Ducts and Mufflers. Ph.D. Thesis, KTH Royal Institute of Technology, Stockholm, Sweden, 2004. [Google Scholar]

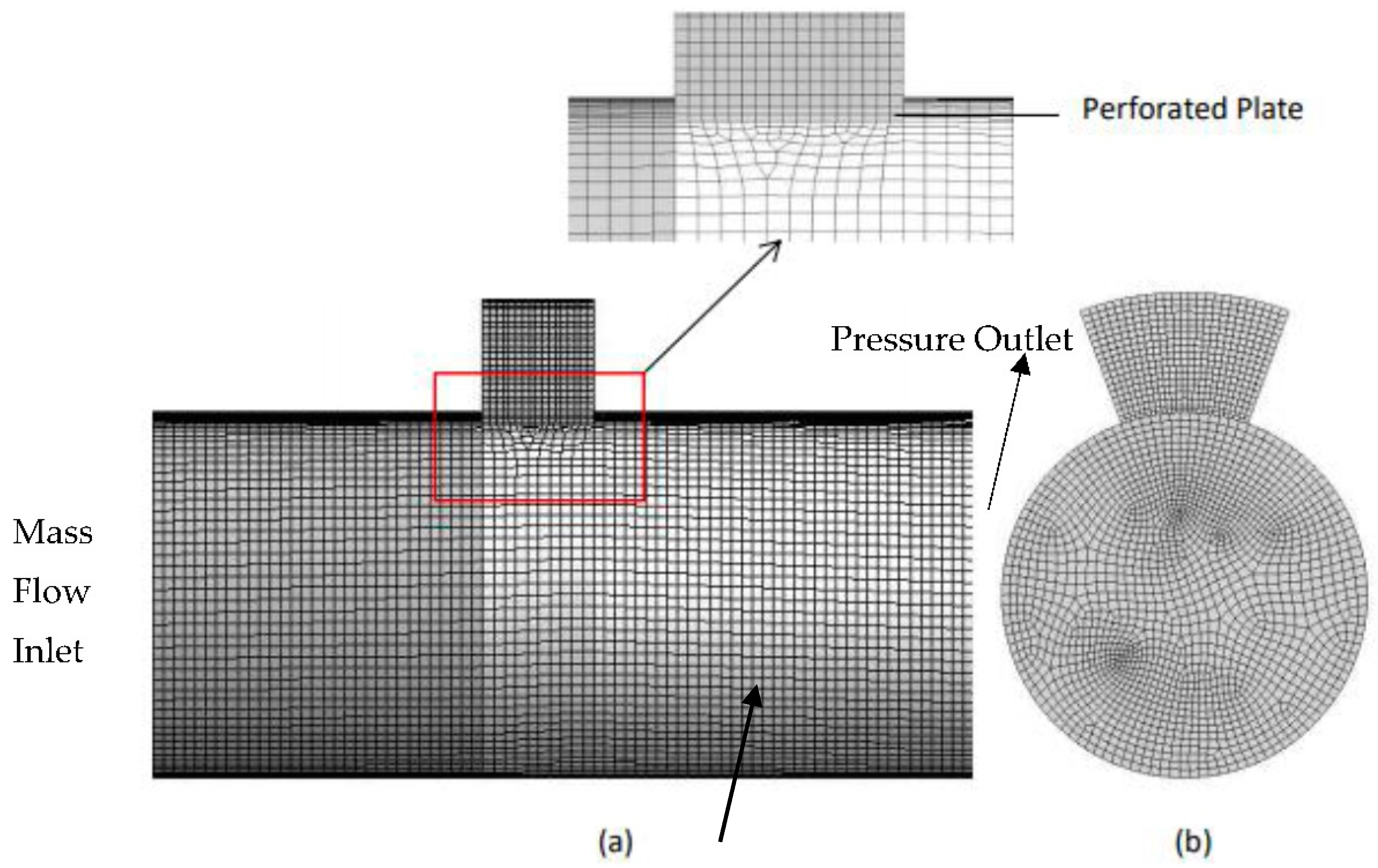

**Figure 4.**Mesh distribution for CFD simulations employing the PVPM model: (

**a**) front view; (

**b**) cross-sectional view.

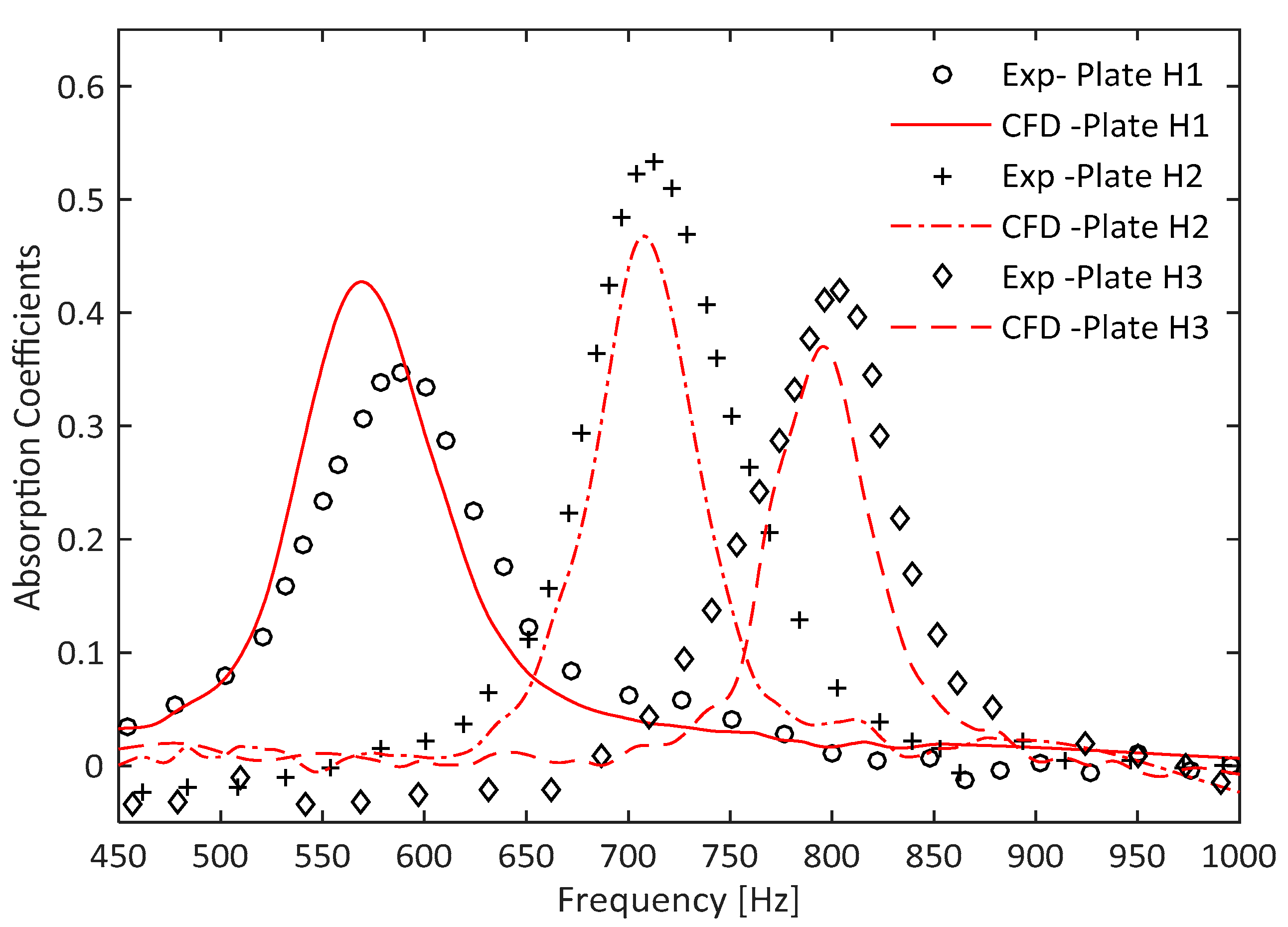

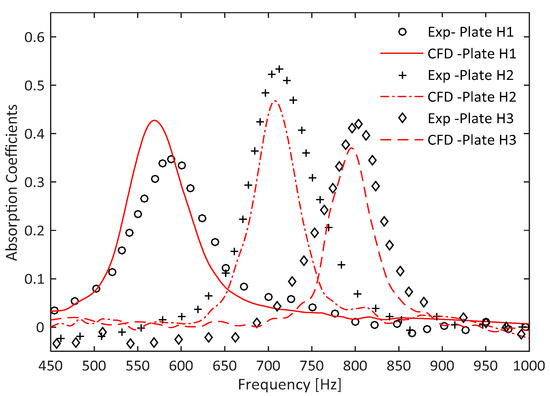

**Figure 5.**CFD and experimental comparison of absorption coefficients in sound grazing incidence conditions with closed cavity.

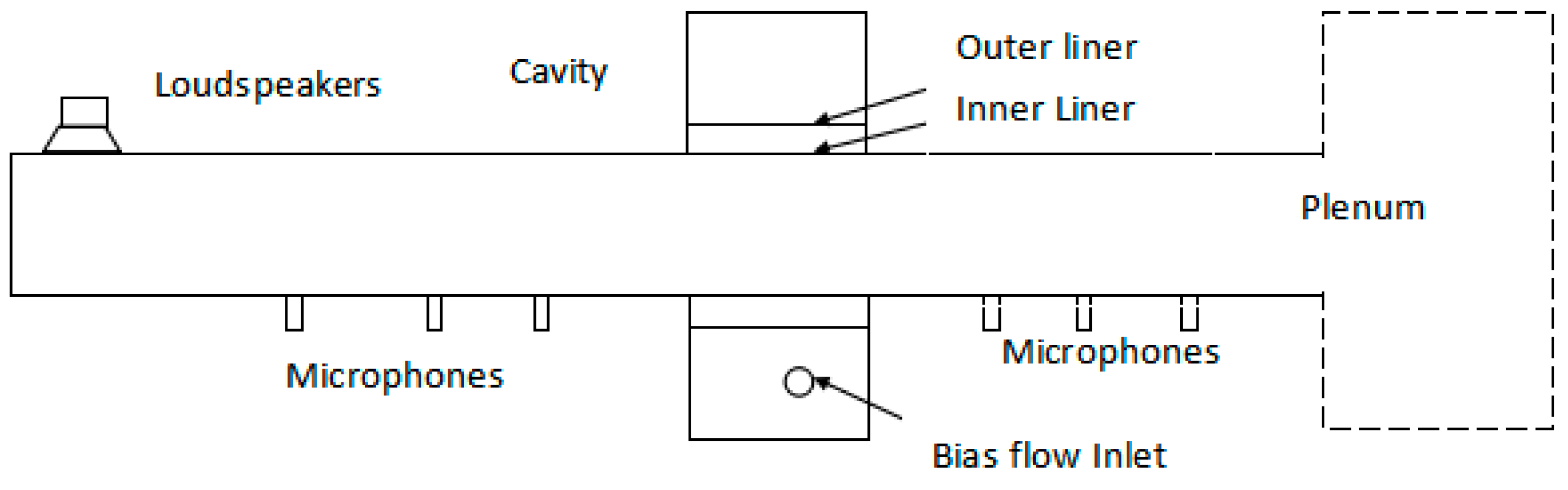

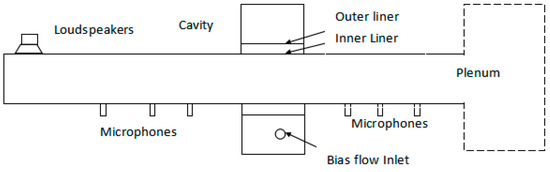

**Figure 6.**Test rig setup in the experiment by Eldredge and Dowling [21].

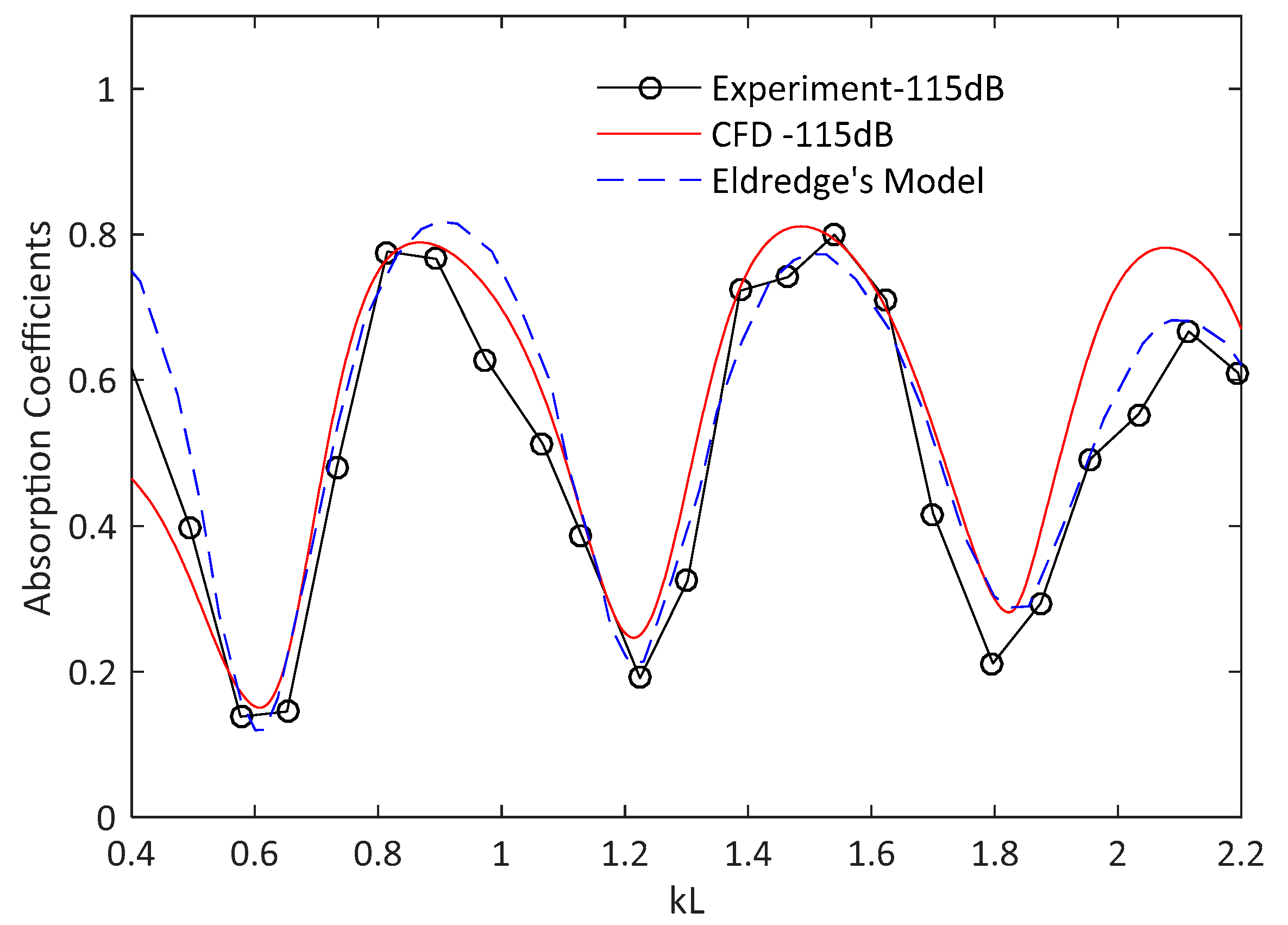

**Figure 7.**Numerical and experimental comparison of absorption coefficients at ${\mathrm{M}}_{\mathrm{in}}=0.023$ and zero grazing flow conditions [21].

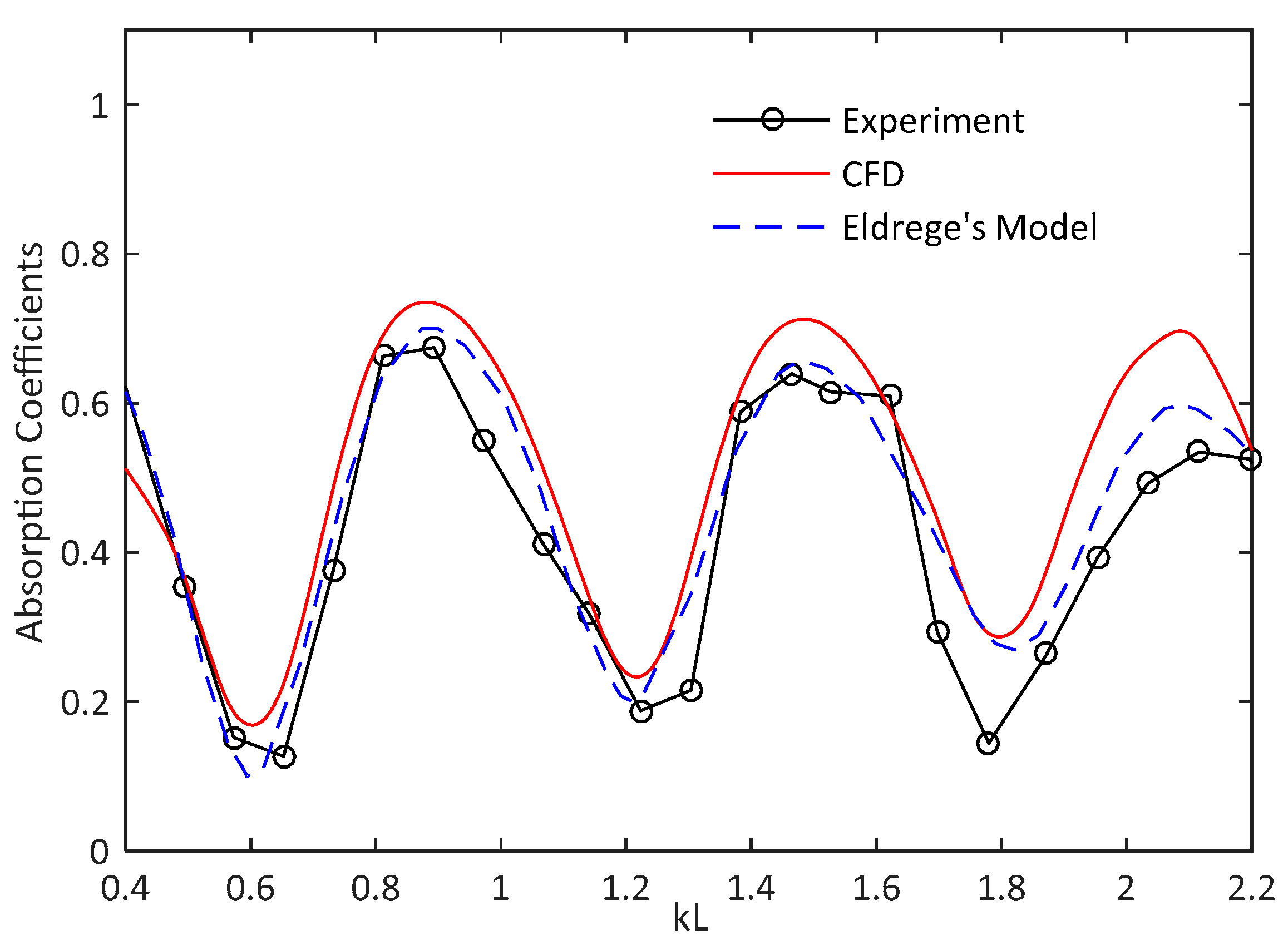

**Figure 8.**Numerical and experimental comparison of absorption coefficients at ${\mathrm{M}}_{\mathrm{in}}=0.041$ and zero grazing flow conditions [21].

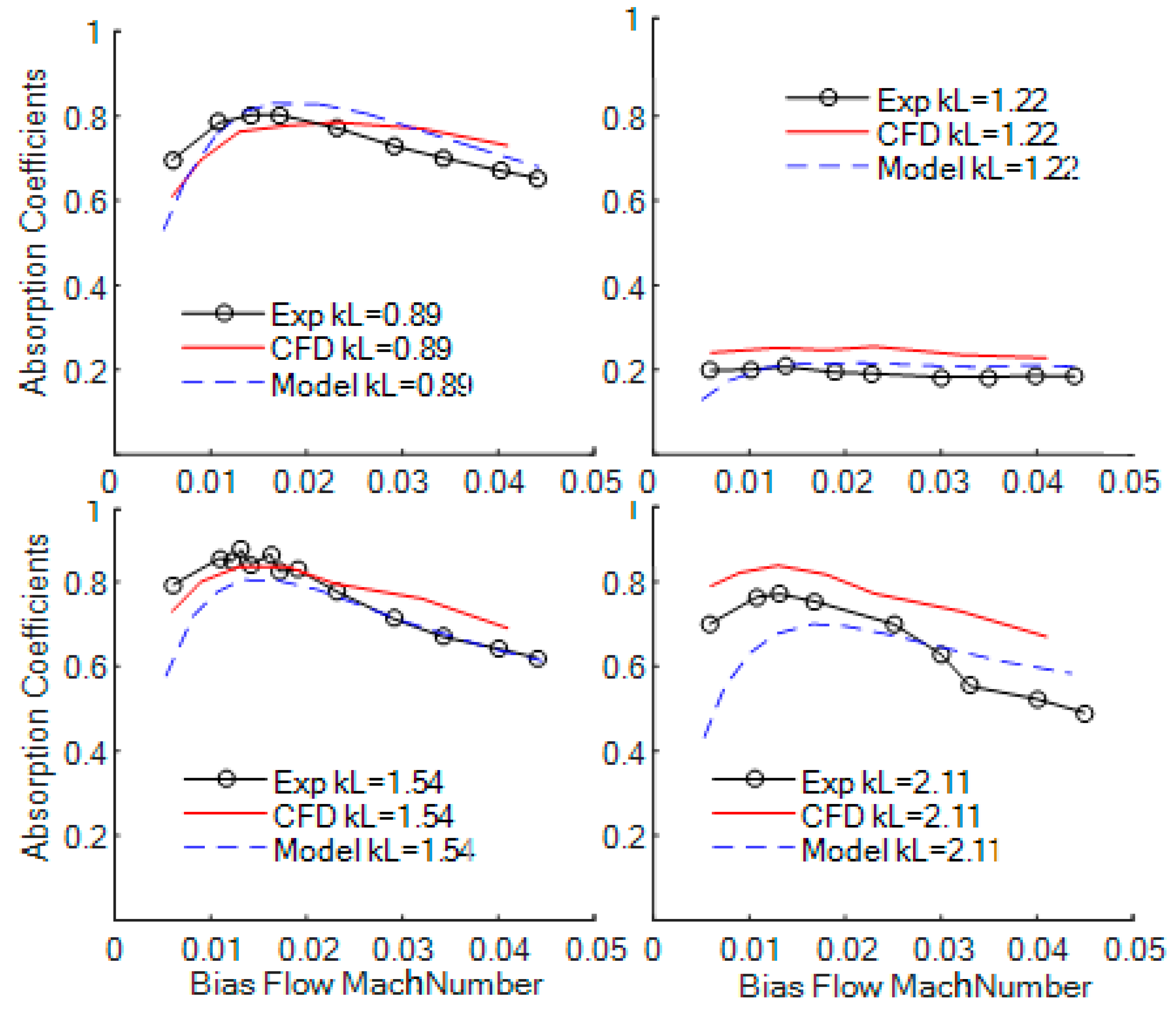

**Figure 9.**Numerical and experimental comparison of absorption coefficients variation with the bias flow speed in zero grazing flow conditions [21].

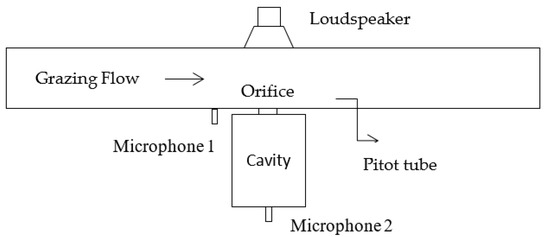

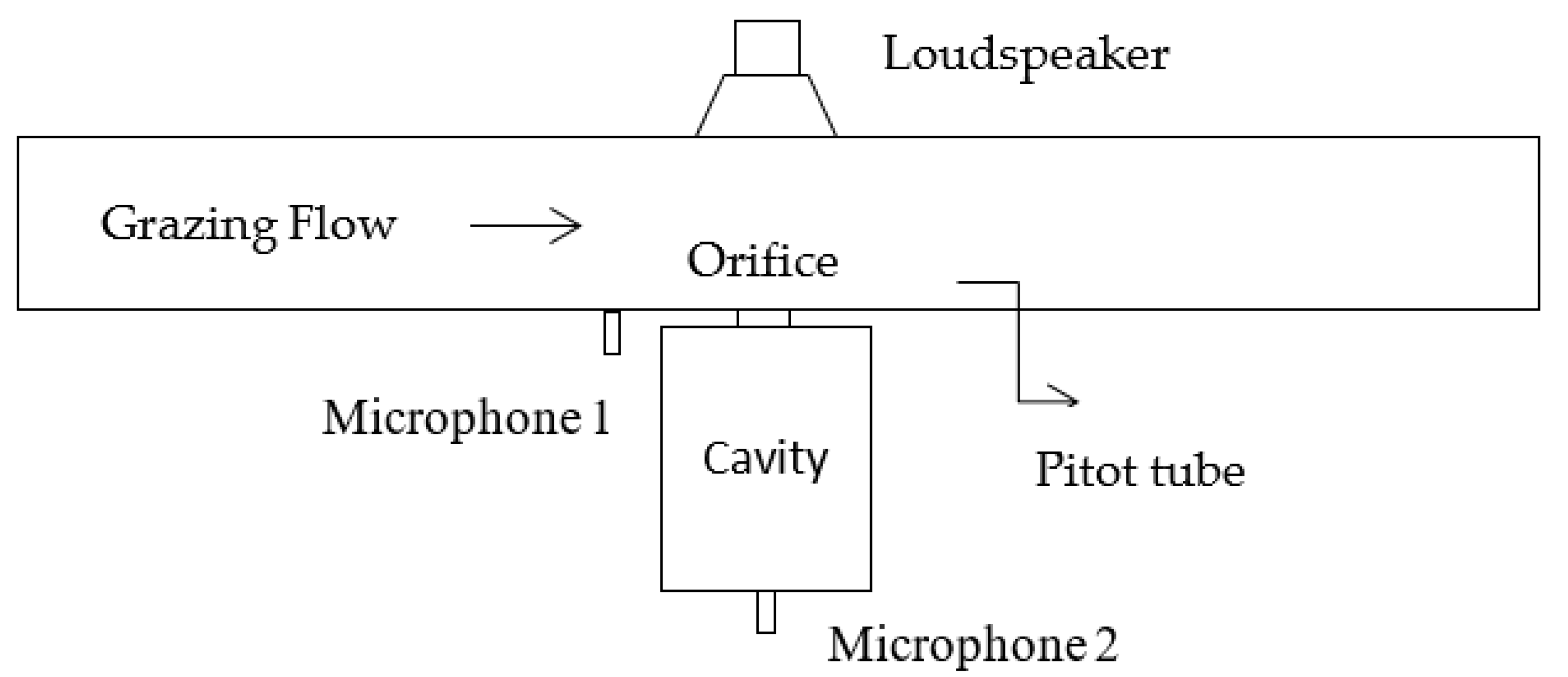

**Figure 10.**Test rig configuration for the investigation of grazing flow, Jing et al. [23].

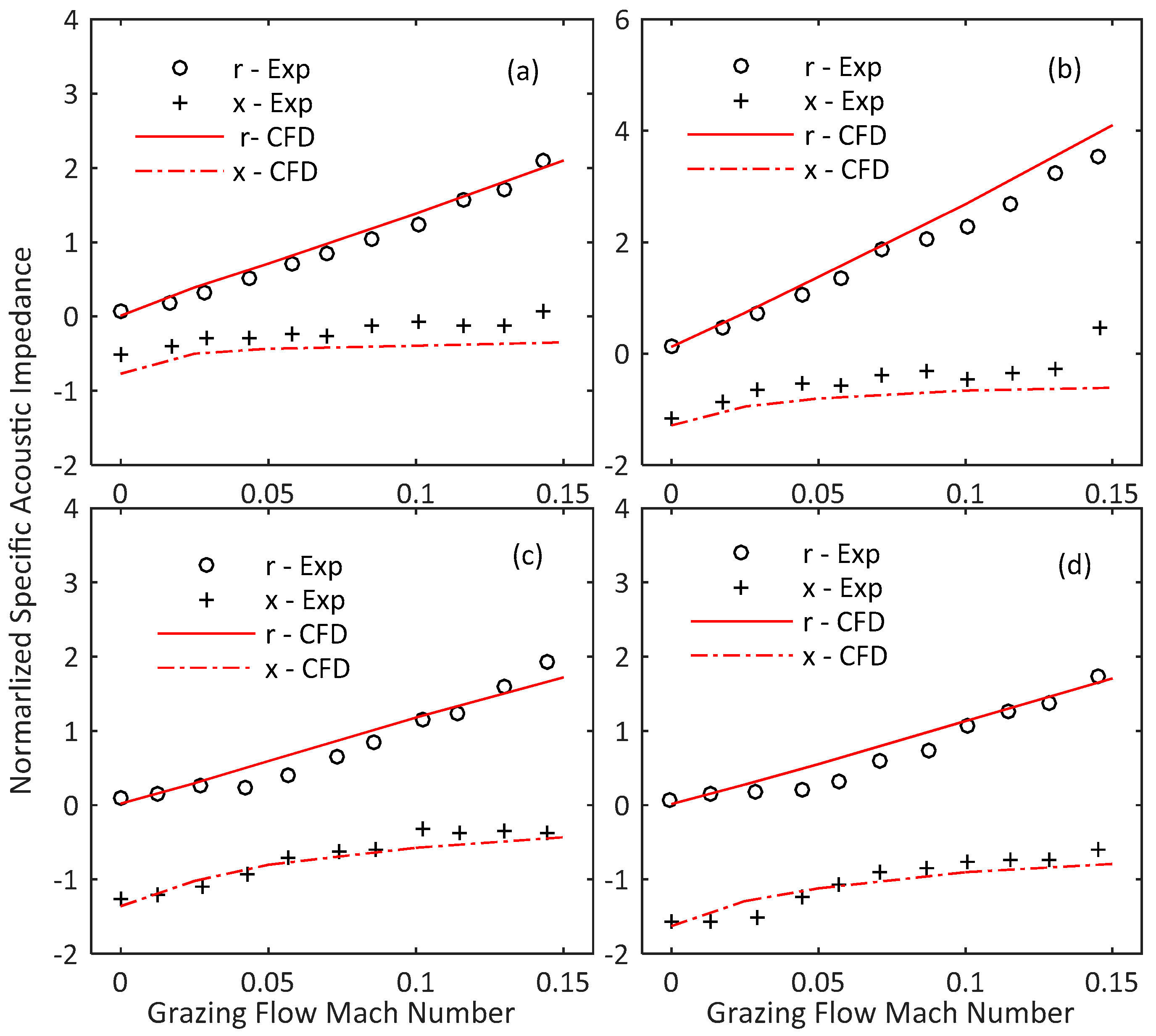

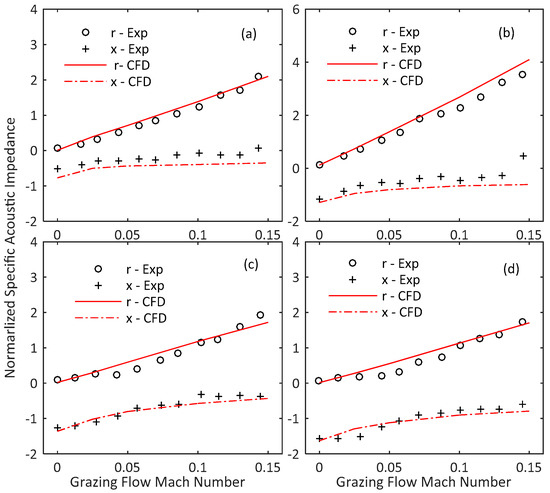

**Figure 11.**Numerical and experimental comparison of normalized specific acoustic impedance as a function of the grazing flow Mach number for (

**a**) liner JG1, (

**b**) liner JG2, (

**c**) liner JG3 and (

**d**) liner JG4 [23].

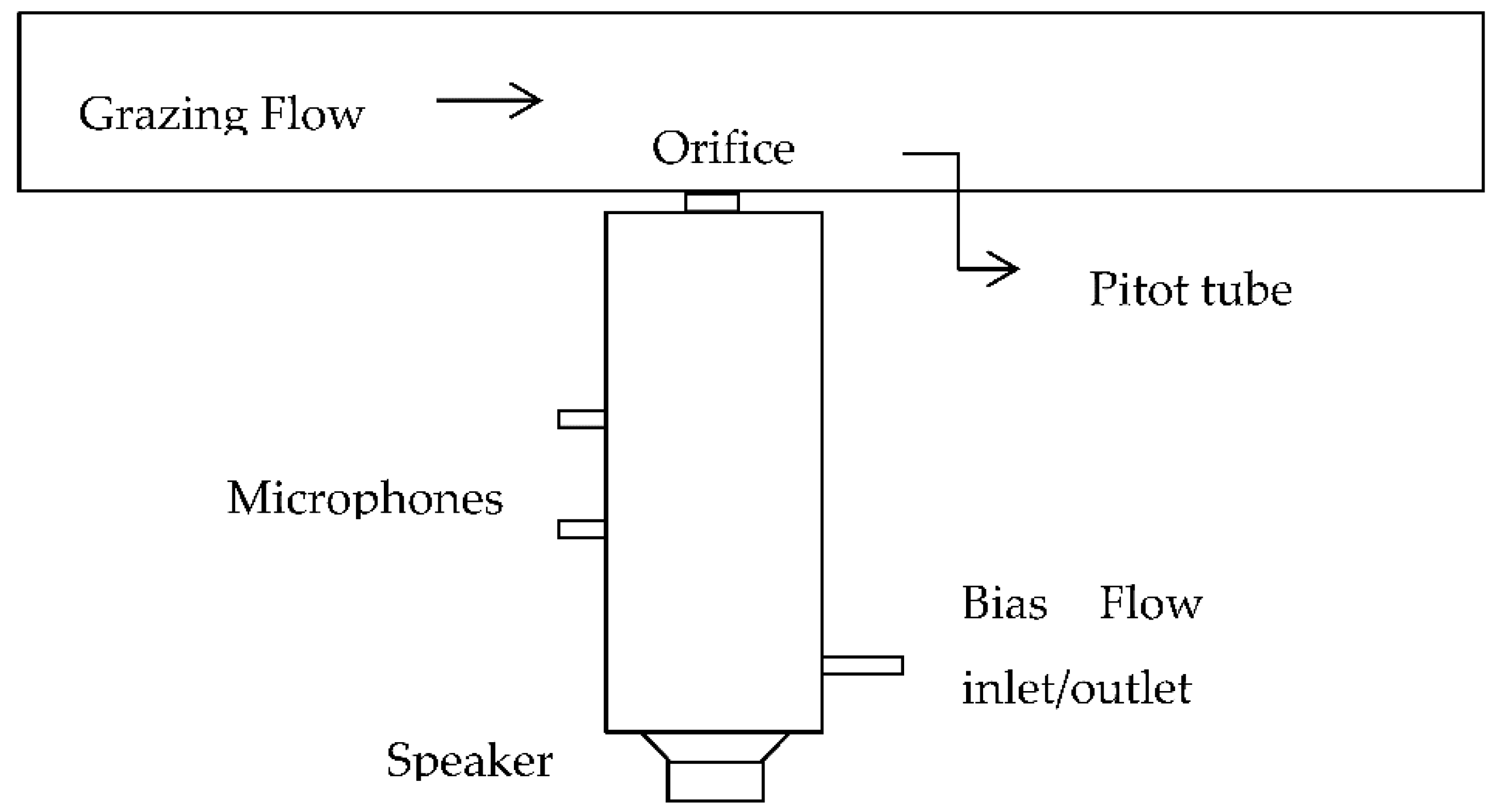

**Figure 12.**Test rig setup in experiment for the investigation of simultaneous bias/grazing flow effect, Sun et al. [22].

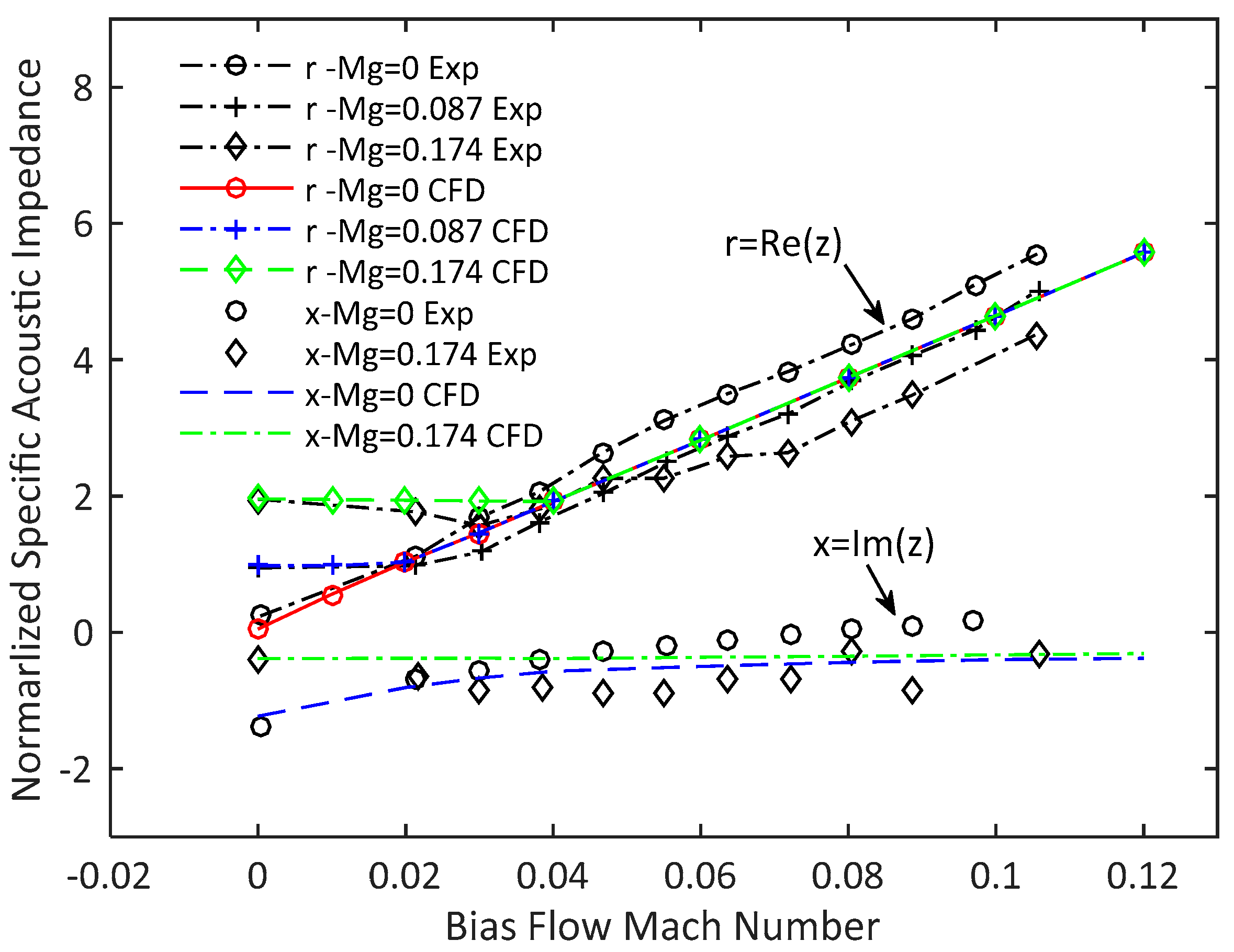

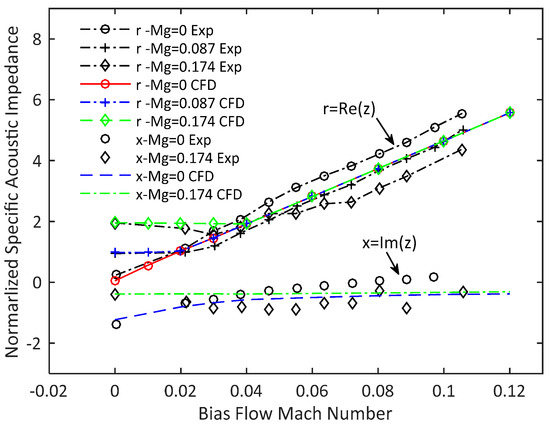

**Figure 13.**Numerical and experimental comparison of normalized specific acoustic impedance for liner JGB1 under various bias/grazing flow conditions [22].

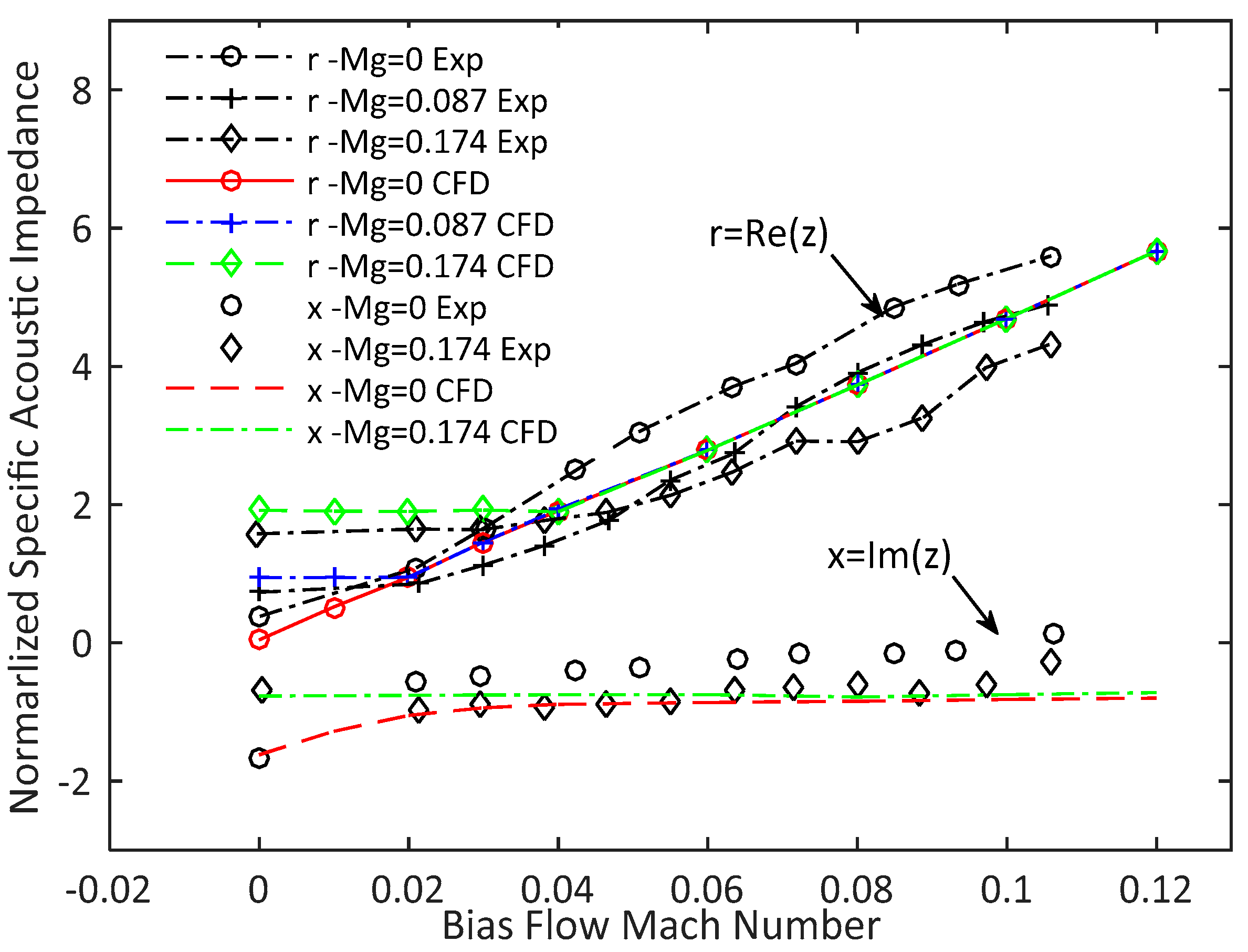

**Figure 14.**Numerical and experimental comparison of normalized specific acoustic impedance for liner JGB2 under various bias/grazing flow conditions [22].

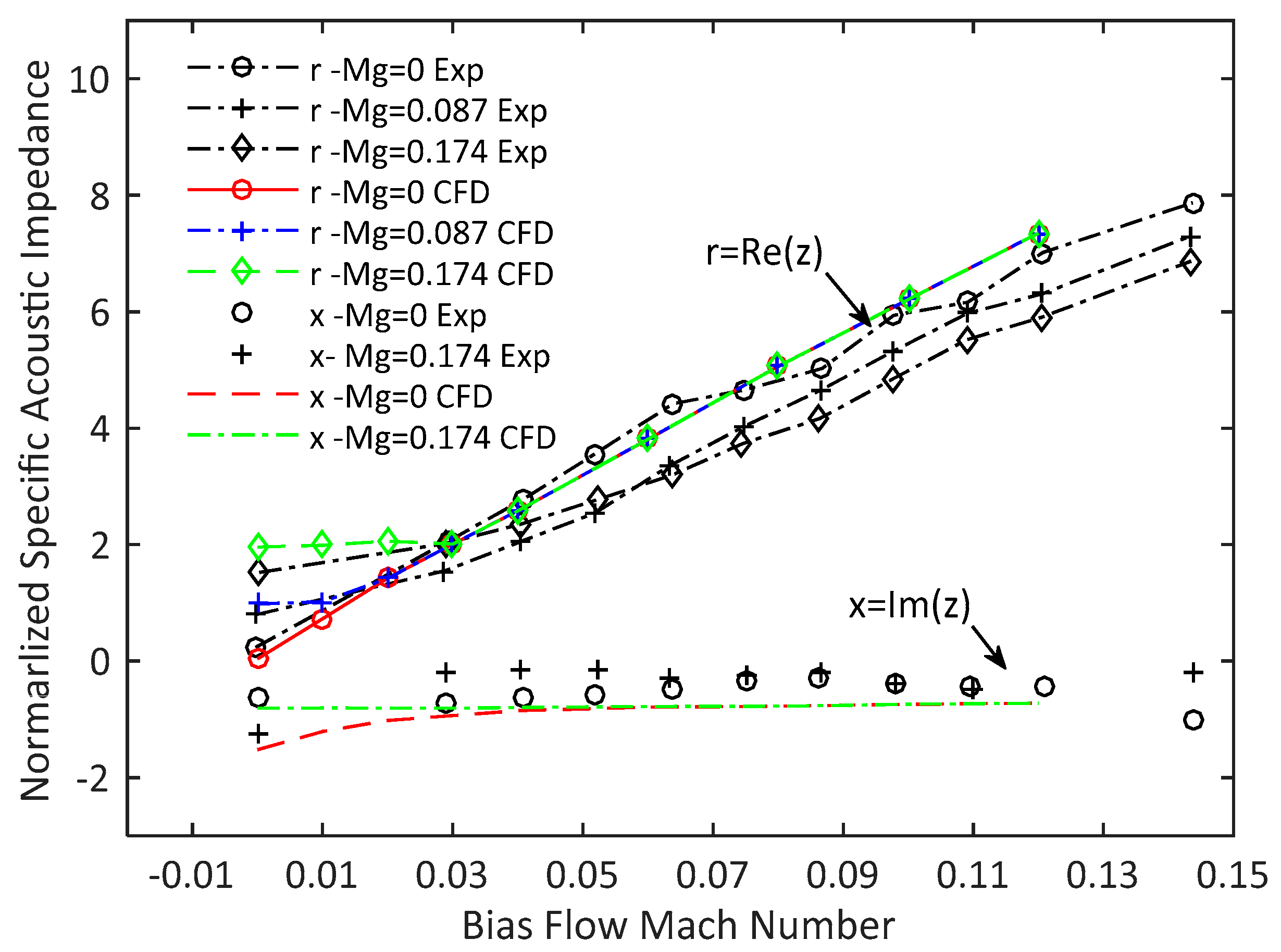

**Figure 15.**Numerical and experimental comparison of normalized specific acoustic impedance for liner JGB3 under various bias/grazing flow conditions [22].

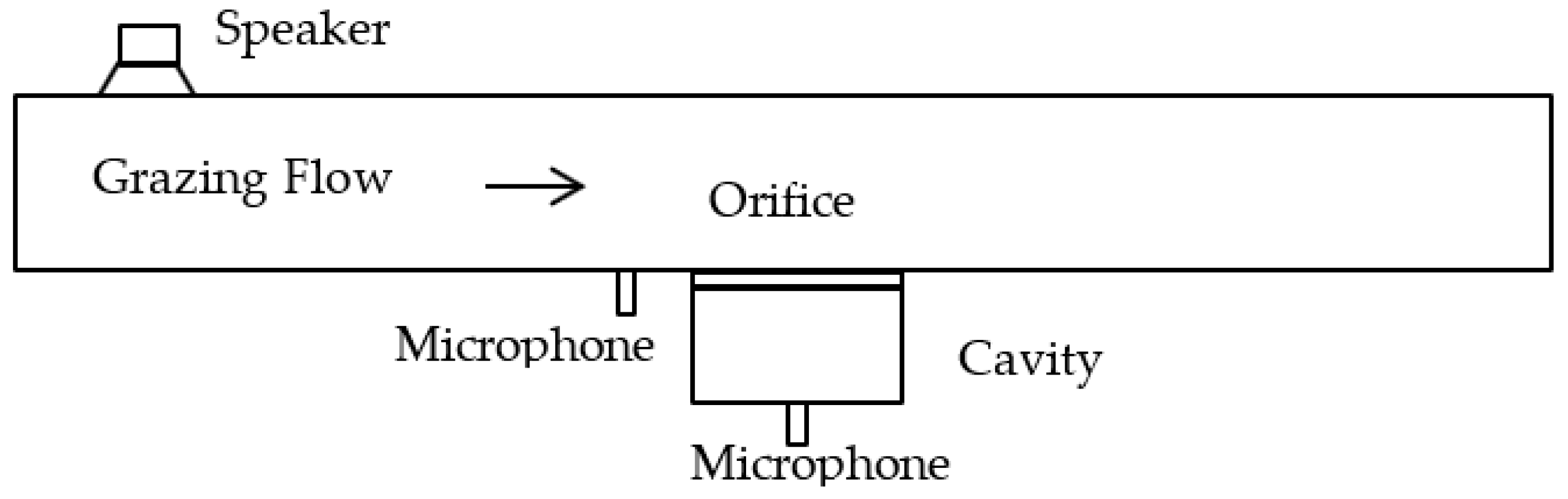

**Figure 16.**Schematic view of the test rig configuration in the experiment by Kabral [27].

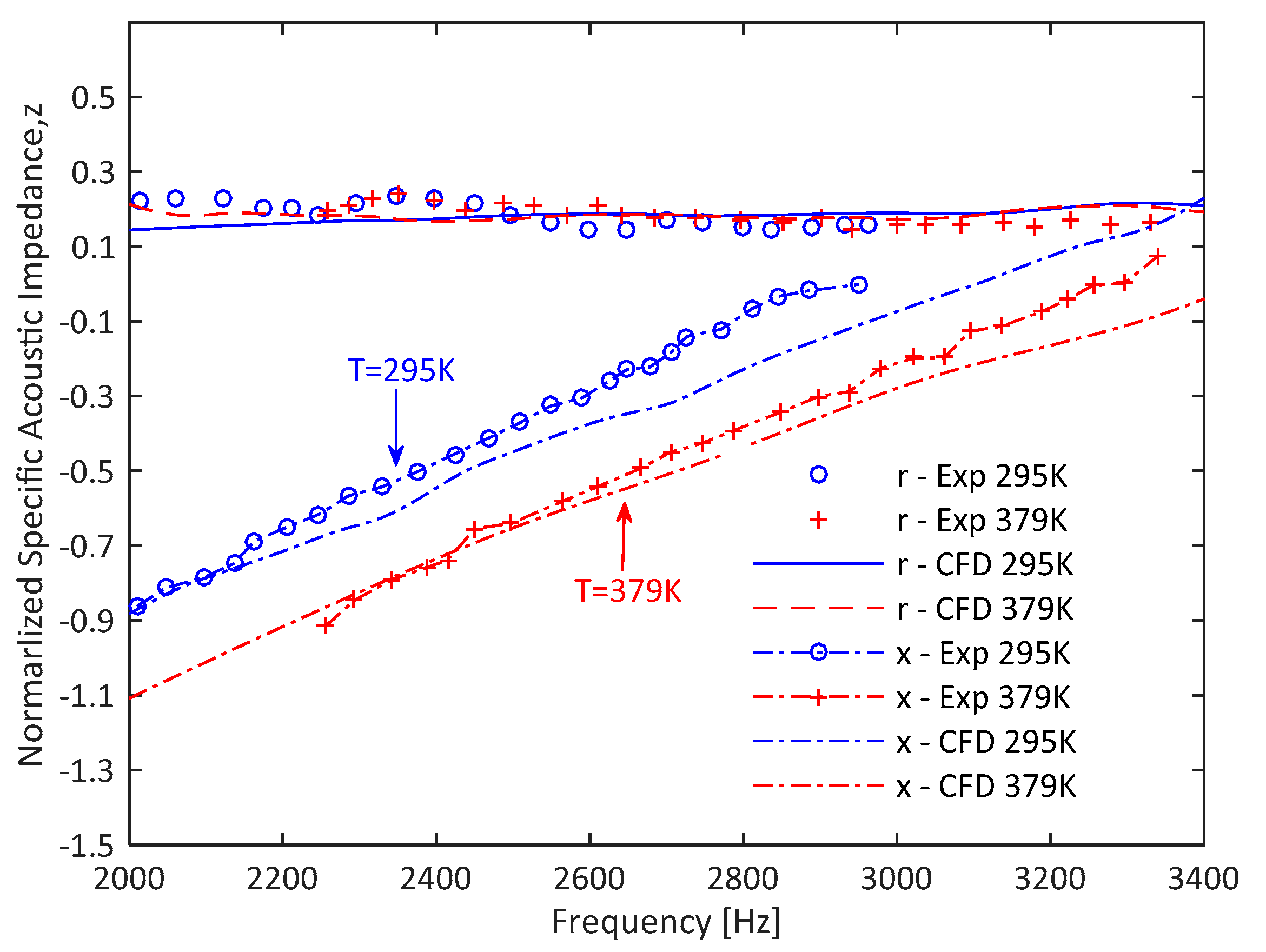

**Figure 17.**CFD and experimental comparison of normalized specific acoustic impedance (${\mathrm{M}}_{\mathrm{g}}=0.12$) [27].

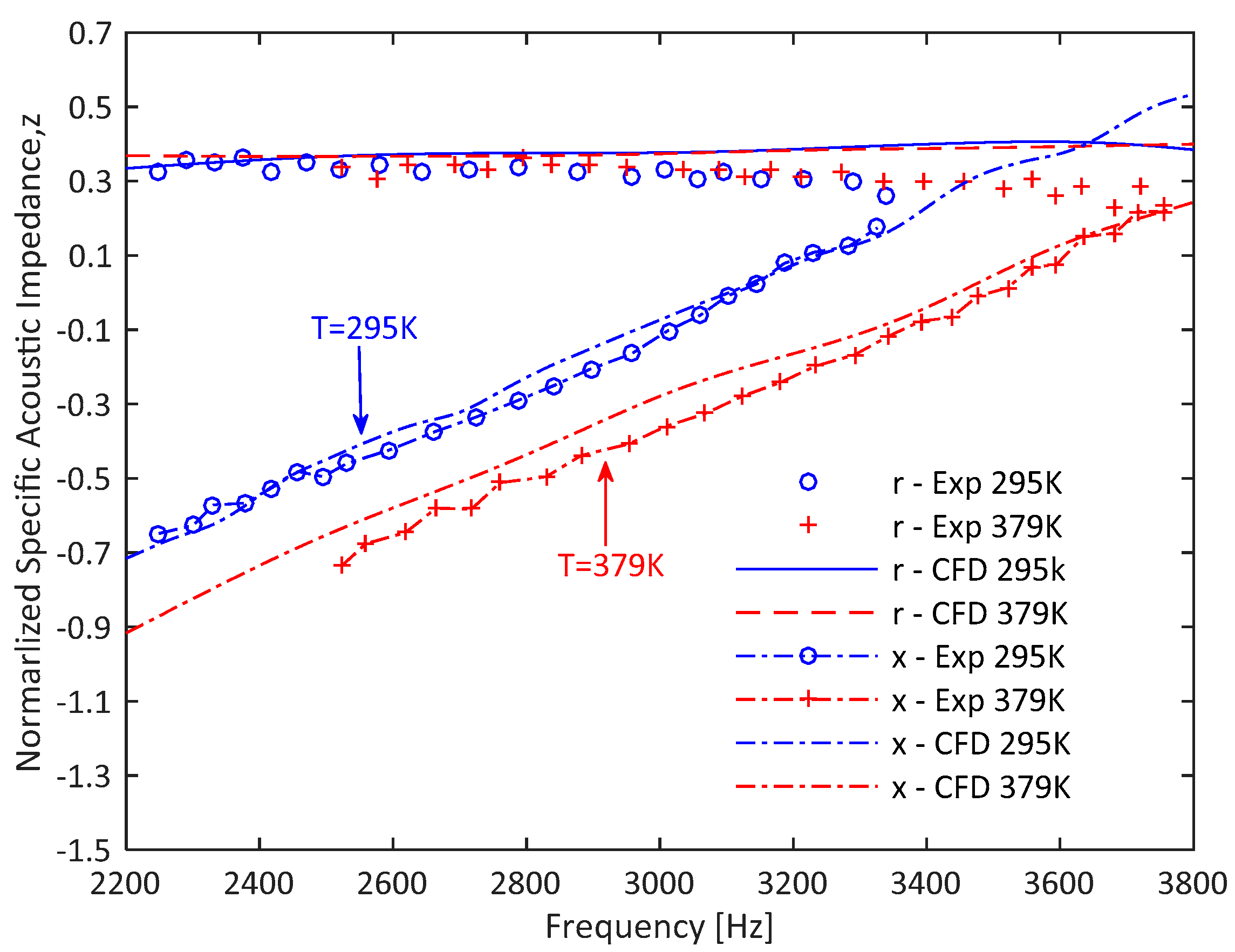

**Figure 18.**CFD and experimental comparison of normalized specific acoustic impedance (${\mathrm{M}}_{\mathrm{g}}=0.25$) [27].

Liner No. | Hole Diameter (mm) | Liner Circumferential Length (mm) | Liner Axial length (mm) | Pitch-y (mm) | Pitch-x (mm) | Porosity σ |
---|---|---|---|---|---|---|

H1 | 2.0 | 59.4 | 50 | 6.0 | 12 | 0.0338 |

H2 | 3.0 | 59.4 | 50 | 6.0 | 12 | 0.0762 |

H3 | 4.0 | 59.4 | 50 | 6.0 | 12 | 0.135 |

**Table 2.**Geometric specifications of the orifice liners from the experiment by Jing et al. [23].

Liner No. | Hole Diameter (mm) | Liner Thickness (mm) | Number of Orifices | Porosity |
---|---|---|---|---|

JG1 | 3 | 2 | 4 | 2.94% |

JG2 | 4.5 | 2 | 1 | 1.65% |

JG3 | 7 | 0.5 | 1 | 4% |

JG4 | 7 | 2 | 1 | 4% |

**Table 3.**Geometric specifications of the orifice liners, Sun et al. [22].

Liner No. | Hole Diameter (mm) | Liner Thickness (mm) | Number of Orifices | Porosity |
---|---|---|---|---|

JGB1 | 7 | 0.5 | 1 | 4% |

JGB2 | 7 | 2 | 1 | 4% |

JGB3 | 3 | 2 | 4 | 2.94% |
