Study on the Compatibility of Eco-Friendly Insulating Gas C5F10O/N2 and C5F10O/Air with Copper Materials in Gas-Insulated Switchgears

by
Yalong Li
1,
Xiaoxing Zhang
1,2,3,*,
Yalong Xia
4,*,
Yi Li
1,
Zhuo Wei
1,
Yi Wang
2 and
Song Xiao
1
1
School of Electrical Engineering and Automation, Wuhan University, Wuhan 430072, China
2
Hubei Key Laboratory for High-efficiency Utilization of Solar Energy and Operation Control of Energy Storage System, Hubei University of Technology, Wuhan 430068, China
3
State Key Lab oratory of Power Transmission Equipment & System Security and New Technology, Chongqing University, Chongqing 400044, China
4
State Grid Sichuan Electric Power Research Institute, Chengdu 610000, China
*
Authors to whom correspondence should be addressed.
Appl. Sci. 2021, 11(1), 197; https://doi.org/10.3390/app11010197
Submission received: 22 November 2020 / Revised: 18 December 2020 / Accepted: 20 December 2020 / Published: 28 December 2020
(This article belongs to the Section Electrical, Electronics and Communications Engineering)
Browse Figures
Versions Notes

Abstract

:
Sulfur hexafluoride (SF6) is widely used in the power industry because of its excellent insulation and arc extinguishing performance. However, the high greenhouse effect of this material is being restricted by many countries around the world, thereby discouraging its usage. As a potential alternative to SF6, the compatibility of C5F10O with conductive copper materials used in electrical equipment is of great significance in ensuring the safe and stable operation of environmentally friendly gas-insulated equipment. In this paper, the interaction among C5F10O/N2, C5F10O/air gas mixture, and copper was studied via experiments and simulations. When the C5F10O/N2 (or air) gas mixture comes in contact with copper at the gas–solid interface, a small portion of C5F10O is decomposed to form C3F6 (or C3F6 and C3F6O) at high temperatures. Meanwhile, at low temperatures (120 °C), the C5F10O/air gas mixture becomes more compatible with copper than with the C5F10O/N2 gas mixture. When the experiment temperatures range between 170 °C and 220 °C, the compatibility of the C5F10O/air gas mixture with copper is significantly inferior to its compatibility with copper. Under high temperatures, the C5F10O/air gas mixture shows severe corrosion on the copper surface due to the presence of O2, forms a thick cubic grain, and emits irritating gases. The simulations show that the carbonyl group in C5F10O is chemically active and can be easily adsorbed on the copper surface. An anti-corrosion treatment must be performed on copper materials in manufacturing equipment. The findings provide an important reference for the application of C5F10O gas mixture.

1. Introduction

Since its application in medium- and high-voltage gas-insulated switchgears (GIS) in the 1930s [1], sulfur hexafluoride (SF6) has been favored by the power industry for its excellent insulation and arc extinguishing performance. SF6 is a gas-insulating medium that is frequently used in high-voltage electrical equipment, such as GIS and gas insulated lines [2]. However, the global warming potential (GWP) of SF6 is 23,500 times higher than that of CO2. Given that SF6 is chemically stable and difficult to decompose, its lifetime in the atmosphere can be as long as 3200 years [3,4]. As early as 1997, the “Kyoto Protocol” named SF6 as one of the six greenhouse gases where usage needs to be restricted [5,6]. In addition, the Paris Agreement signed in 2016 requires the global average temperature to be controlled within two degrees Celsius above the pre-industrial temperature level. The EU and other legislatures also listed SF6 as a phase-out target [7]. The increasingly severe environmental situation has prompted researchers in the power industry to accelerate their search for environmentally friendly alternatives to SF6 [8].
Replacing SF6 with the perfluoroketone gas C5F10O and its gas mixture has attracted the attention of many scholars at home and abroad in recent years [9]. The insulation strength of C5F10O is twice that of SF6, its GWP 100 value is less than one, its ozone depletion potential is zero, and its lifetime in the atmosphere is only 15 days. However, C5F10O has a higher liquefaction temperature (26.9 °C at normal pressure) compared with SF6, thereby necessitating the mixture of this material with a buffer gas (N2, air, and CO2) with a low liquefaction temperature [10].
Many studies at home and abroad have examined C5F10O and its gas mixture. For instance, ABBTM tested the insulation properties of the C5F10O/air mixture and showed that the insulation performance of pure C5F10O is about twice that of SF6. The C5F10O (39 kPa)/air mixture with a gas pressure of 0.7 MPa has an insulation strength of approximately 95% of that of SF6 with a gas pressure of 0.45 MPa [11]. ABBTM also tested the insulation and breaking properties of the C5F10O/CO2/O2 mixture and found that the insulation performance of the C5F10O/CO2/O2 gas mixture is slightly lower than that of SF6 and that its arc breaking performance is about 30% lower than that of SF6. However, by increasing the total pressure of the C5F10O gas mixture, the electrical insulation strength can reach the equivalent insulation level of SF6 [12]. Xiaohua Wang and Mingzhe Rong of Xi’an Jiaotong University tested the power frequency withstand voltage and lightning impulse performance of C5F10O/CO2 and found that increasing the C5F10O content can effectively improve the insulation strength of the gas mixture and that increasing the total gas pressure of the C5F10O/CO2 gas mixture can increase the lightning impulse discharge voltage [13]. Xingwen Li et al. calculated the thermodynamic properties and transmission coefficients of C5F10O/CO2 mixtures and found that as the concentration of C5F10O increases, most thermophysical properties, including thermal conductivity, viscosity, and electrical conductivity, of C5F10O/CO2 mixtures become closer to those of SF6 [14]. Li Yi et al. calculated the stability and possible decomposition path of C5F10O molecules via a density functional theory simulation and detected decomposition products, such as CF4, C2F6, C3F8, C3F6, C4F10, C5F12, and C6F14, by performing discharge experiments [15]. Xiao Dengming et al. calculated the plasma behavior of C5F10O/N2 gas mixture under the assumption of local thermodynamic equilibrium. It is found that when the temperature is less than 7500 K, as the concentration of C5F10O increases, the enthalpy of gas mixture increases, and when the temperature exceeds 7500 K, the result is the opposite [16].
Although studies have investigated the insulation properties and arc extinguishing characteristics of the C5F10O gas mixture, only few have examined the compatibility of this gas mixture with metal materials. The insulating medium used in electrical equipment should show good compatibility with the metal materials inside this equipment. Copper is widely used as a conductive material in various equipment, including GIS. When using this equipment, the temperature of the conductive copper material increases due to the thermal effect of the current, whereas the poor contact of the conductive contacts may cause partial overheating [17,18]. Therefore, the compatibility of the C5F10O gas mixture with metal materials at different temperatures is of great significance in extending the service life and ensuring the safe and stable operation of equipment.
In this paper, a gas–solid compatibility experiment platform was designed to investigate the compatibility of C5F10O/N2, C5F10O/air gas mixture, and copper materials when aging at different temperatures [19]. The surface morphology and element content of the gas decomposition products and copper samples after the experiments were studied by using a gas chromatography mass spectrometer (GC–MS), field emission scanning electron microscope (FESEM), and X-ray photoelectron spectroscopy (XPS). The interaction principle of the C5F10O on the Cu13 nanocluster surface was calculated via simulation. The related findings provide a reference for the engineering application of C5F10O gas mixture instead of SF6.

2. Experiment Platform

The experiment platform shown in Figure 1 mainly comprises a heating system, a temperature feedback monitoring control system, and a detection system. The heating system includes a heat source and a copper outer casing outside of the heat source, whereas the heat source transfers heat to the surface of the heating device through the copper outer casing. The copper shell has the same material as the experiment copper sheet sample, whereas the air chamber shell is made from stainless steel. To prevent the heating device from transmitting the high temperature to the inner wall of the air chamber, the heating device does not directly contact the air chamber wall, thereby avoiding stainless steel interference during the experiments. The temperature feedback monitoring control system includes a temperature sensor and a proportional–integral–derivative (PID) controller. The copper sample and temperature sensor for the PID controller feedback control are fixed on the copper casing to monitor the temperature of the copper sample in real time and to control the experiment process. The detection system includes GC–MS and FESEM. GC–MS is a GCMS-QP2010 Ultra manufactured by Shimadzu for analyzing the composition of matter in gas mixture. The column type, film thickness, length, inner diameter, inlet temperature, and mass ion source temperature were CP-SIL 5 CB, 8 μm, 60 m, 0.32 mm, 200 °C, and 200 °C, respectively [20]. This tool can also be used to check whether C5F10O decomposes after coming in contact with the C5F10O/N2 and C5F10O/air gas mixture under different temperature conditions. FESEM is a Zeiss SIGMA FESEM produced by Carl Zeiss for observing the surface morphology of the test sample. The acceleration voltage range of FESEM is 0.1–30 kV, and the maximum resolution is 1.3 nm at 20 kV. The changes in the microstructure of the copper surface after coming into contact with the C5F10O/N2 and C5F10O/air gas mixture under different temperature conditions are also studied.
The copper samples were fastened to the surface of the copper casing before performing the experiments in order for the samples to adhere to the heat source during the experiments. The C5F10O gas has a volume fraction of 7.5%. After the gas filling, the mixtures were allowed to stand for 24 h to thoroughly mix the gas mixture. The experiment group temperatures were 120 °C, 170 °C, and 220 °C, whereas the heating time was 8 h. After 1 h of natural cooling, the experiment was terminated. Given that the C5F10O gas at a pressure of 0.1 MPa had a liquefaction temperature of 26.9 °C, the compatibility of the pure C5F10O gas with the copper material at a gas pressure of 0.3 MPa cannot be studied. Therefore, the pressure of the pure C5F10O gas was set to 0.1 MPa for the experimental group, and the results are compared with those of the C5F10O/N2 and C5F10O/air gas mixture experimental group.

3. Experiment

A photo of the copper samples after the C5F10O/N2 gas mixtures came in contact with the copper material under high temperature conditions is presented in Figure 2. The copper material in the control group before the experiment was purple–red and bright in color. When the experiment temperatures range between 120 °C and 170 °C, the copper surface color gradually turns golden yellow. When the experiment temperature is 220 °C, the copper surface color turns pink.
Figure 3 shows the change in the color of the copper surface after the C5F10O/Air gas mixture comes in contact with the copper sample under different experiment temperature conditions. Meanwhile, Figure 3a shows that the copper surface of the pure C5F10O experimental group is brown and uniform in color. One can observe through optical microscopy that the copper surface is darkened and that the metallic luster is lost. The original fine lines on the surface of the copper sample are covered by the corrosion layer, and the corrosion layer is thicker than the other experiment groups. Therefore, the pure C5F10O gas has poor compatibility with copper. Figure 2d and Figure 3e show that the C5F10O/air gas mixture at an experiment temperature of 120 °C has a similar color to the copper surface of the C5F10O/N2 gas mixture experiment group at an experiment temperature of 220 °C. When the experiment temperature is 170 °C, the copper casing of the heat source turns red, whereas the copper sheet fixed on the surface turns brown. When the experiment temperature is 220 °C, the surface color of the copper turns dark brown and a strong pungent odor is emitted. The change in the color of the copper surface is most obvious at this time.
The color of the copper surface turned red or pink in the experiment mainly because the copper on the surface was oxidized to red cuprous oxide. As the temperature increased, the cuprous oxide further oxidized to black copper oxide. Meanwhile, the change in the color of the copper surface from purple to red or from pink to black in the experiment was due to the continuous oxidation of copper.

4. Results Characterization

4.1. GC–MS Results

In the presence of metallic copper, certain chemical reactions may lead to the decomposition of C5F10O, and these reaction products can be analyzed by GC–MS. After the end of the experiments, the sample gas bag was used to collect the gas sample inside the reaction vessel for the gas chromatography mass spectrometry, and the obtained chromatogram is shown in Figure 4. Given that the decomposition products of the C5F10O gas mixture have unknown compositions after they come in contact with copper under superheated conditions, all possible decomposition products were scanned by using SCAN mode during the GC–MS analysis and were tested for qualitative analysis. To avoid the interference of N2, H2O, and CO2 in the air, the small molecular substances with a mass-to-charge ratios (m/z) of less than 44 were not considered in the mass spectrometry.
As shown in Figure 4a and Table 1, the C5F10O/N2 gas mixture of the experiment group was partially decomposed when it came into contact with the copper surface at a high temperature. The mass spectrum corresponding to the peak of 5.762 min to 5.964 min obtained an m/z = 131, the molecular ion obtained m/z = 150, and the matching molecule was searched for C3F6 by using the National Institute of Science and Technology (NIST) standard reference database 14.0. The mass spectrum corresponding to the peak of 6.013 min to 6.373 min obtained m/z = 69, and the matching molecule was searched for C3F7H.
Figure 4b shows that the C5F10O/air gas mixture comes in contact with the copper surface at a high temperature, the decomposition of C5F10O is similar to that shown in Figure 4a, and that C3F6 is detected. The difference is that the C5F10O/air gas mixture experiment group produced C3F6O and C3F7H. The GCMS results show that the C5F10O reacted at the gas–solid interface at high temperature to break the chemical bond of C5F10O, to form small fragment particles, and to produce a series of decomposition products. The pure C5F10O not only detected the above decomposition products but also separated CF4 at 5.106 min to 5.295 min, and no CF4 was detected in the C5F10O/N2 and C5F10O/air gas mixture experimental group. Both N2 and air act as buffer gases that affect the decomposition reaction of C5F10O at high temperatures and inhibit the production of CF4. At the same time, with the presence of O2 in N2 and air, the gas mixture also showed different chemical properties.

4.2. FESEM Characterization

At the end of the experiment, the copper samples were taken out and their surface topography was characterized by FESEM. The surface photomicrographs are shown in Figure 5 and Figure 6.
Figure 5 shows the surface morphology of copper in the C5F10O/N2 gas mixture experiment group and the control group. In the control group, the copper surface is smooth and flat, while its structure is fine and compact. The small grooves appearing under the microstructure are inevitable due to the limitations of the manufacturing process. When the experiment temperature is 120 °C, corrosion spots appear on some parts of the copper surface. Figure 5b presents the morphology of the corrosion point, which in turn shows an island-like irregular distribution in the field of view and a flat crystal structure. When the experiment temperature is 170 °C, the distribution of the corrosion points gradually increases while its distribution remains relatively uniform. The crystal structure of the corrosion points in the entire field of view becomes more three-dimensional, and the crystal exhibits a certain regularity. When the experiment temperature is 220 °C, the corrosion layer evenly covers the entire copper surface, and the density of the corrosion point increases. However, the corrosion layer remains in the shallow region of the copper surface during the experiment.
When the copper surface temperature increases, the corrosion point is initially concentrated in the position where the copper surface has a small flaw. As the temperature increases, the corrosion point gradually spreads across the surface of the copper sample. The temperature further increases, and the corrosion point becomes dense, thereby covering the entire copper surface.
Figure 6 shows the surface morphology of the copper in the C5F10O/air gas mixture experiment group and the pure C5F10O experiment group. When viewed under an electron microscope, the surface of the copper sample of the pure C5F10O experimental group is very corroded, and at high magnification, coarse and irregular cubic grains are observed on the surface. When the experiment temperature of the C5F10O/air gas mixture experiment group is 120 °C, no obvious corrosion point is observed on the copper surface. The copper surface color of the C5F10O/air gas mixture experiment group at 120 °C becomes similar to that of the C5F10O/N2 gas mixture experiment group at a temperature of 220 °C. However, the micrograph does not show a similar morphology, thereby suggesting that the change in the color of the copper surface cannot accurately determine whether the copper is corroded. Therefore, FESEM testing must be applied on the copper samples. When the experiment temperature is 170 °C, a dense cubic block crystal appears on the copper surface, thereby suggesting a severe corrosion on the copper surface. Meanwhile, when the experiment temperature is 220 °C, a rough and uniform crystal is observed on the surface when viewed under a microscope, and a more serious degree of corrosion is recorded.
The differences in the compatibility of the C5F10O/N2 gas mixture and the C5F10O/air gas mixture with copper can be mainly attributed to the action of O2. Researchers from ABBTM have proposed that in accordance with the requirements of International Electrotechnical Commission (IEC) 62271-200, O2, as part of the insulating medium in the C5F10O/air mixture, must be silver-plated at the contacts through which the primary current flows in the electrical equipment [21]. As a buffer gas, N2 has high stability and low liquefaction temperature. This gas is chemically inert and does not participate in the chemical reaction between C5F10O and copper. Therefore, the surface morphology of the C5F10O/N2 gas mixture after coming in contact with copper at different experiment temperatures can be mainly ascribed to the reaction of C5F10O with metallic copper at high temperatures. Due to the presence of O2 in the air, the C5F10O/air gas mixture experiment group shows a high chemical stability at 120 °C and exhibits good compatibility at low temperatures. However, at high temperatures, copper reacts with O2 to form metal oxide.

4.3. XPS Characterization

To further study the changes in the elements (Cu 2p, F 1s, C 1s, O 1s, and N 1s) and materials on the surface of copper samples, an energy spectrum scanning test was performed with XPS. The best spatial resolution of XPS is better than 20 μm, and the imaging spatial resolution is better than 3 μm. The track of the element being tested was selected according to internationally accepted test rules. After using the XPS Peak software to perform a Shirley-type fitting deduction on the energy spectrum background [22], the Gaussian algorithm was used for peak fitting, and the chemical state of the element was determined by using the National Institute of Standards and Technology (NIST) XPS database and previous studies as references [23,24,25].
Figure 7a presents the photoelectron spectroscopy curve of the 2p orbital of Cu element on the surface of a copper sample. After the peak photo-matching of the secondary photoelectron emission peak of the copper element, the five peaks with electron binding energies of 932.7, 934.6, 944.8, 952.5, and 952.7 eV were Cu2O 2p3/2, CuO 2p3/2, CuO 2p3/2, Cu2O 2p1/2, and CuO 2p1/2, respectively. The secondary photoelectron emission peak at 954.90 eV in Figure 7a exceeds the photoelectron binding energy generated by the transition of the Cu element level. Therefore, this peak should be the photoelectron emission peak of the other elements. The change in CuO and Cu2O content in Figure 7a corresponds to the change in the color of the copper surface. The copper energy spectrum scanning results indicate that the surface of the copper sample mainly contains CuO and Cu2O produced via oxidation of the copper surface. Copper and pure C5F10O and C5F10O/N2 gas mixtures react at high temperatures to form CuF2 (Figure 7b). Some Cu also reacts with the C5F10O/N2 gas to form compounds that contain Cu, C, and N (Figure 7e). The surface copper detection results recorded at 120 °C are consistent with the control group, thereby indicating that copper shows good compatibility with the C5F10O/air gas mixture at 120 °C (the XPS test results are consistent with the FESEM results). Some Cu participates in the reaction as the experimental temperature increases.
Figure 7b presents the photoelectron spectroscopy of the 1s orbital of the F element on the surface of the copper sample. No F element was detected in the control group. In the pure C5F10O experimental group, some C5F10O was decomposed on the copper surface at a high temperature, and CuF2 and C–F bonds were detected at binding energies of 684.7 eV and 688.8 eV. The detected CuF2 is a product of the reaction of C5F10O molecules with CuO on the copper surface. CuF2 and C–F bonds were detected in the C5F10O/N2 experiment group, thereby suggesting that the C5F10O/N2 gas mixture reacted with copper at an elevated temperature and that the relative content of CuF2 and C–F bonds increased along with the experiment temperature. By contrast, the C5F10O/air gas mixture experiment group tended to decrease the relative content of CuF2 and C–F bonds as the experiment temperature increased. CuF2 was not detected at 220 °C, and the fluorine element on the copper surface was mainly present as a C–F bond. In the experiment group, the fluorine element mainly existed in the form of a C–F bond, a small amount of fluorine existed in the form of CuF2, and the C–F bond did not show much difference across each experimental group. The C–F bond may be a C5F10O molecule adsorbed on the surface of a copper sample or a small molecule product containing C and F that was produced after the decomposition of C5F10O.
Figure 7c presents the photoelectron spectroscopy of the 1s orbital of the C element on the surface of the copper sample. The energy peaks detected at photoelectron binding energies of 284.70, 286.30, and 286.60 eV were C 1s, COO, and C=O, respectively. The peaks of COO and C=O did not differ between the control group and each experimental group, and the relative content of the C 1s peak was slightly reduced.
Figure 7d presents the photoelectron spectroscopy of the 1s orbital of the O element on the surface of the copper sample. In the C5F10O/air gas mixture experiment groups, the three peaks with electron binding energies of 529.8, 530.3, and 531.8 eV were Cu2+(CuO or CuF2), Cu+(Cu2O), and O2/Cu (oxygen on copper, O2−, O2− or O−), respectively. In other gas mixture experiment groups or the control group, Cu+(Cu2O) was detected at photoelectron binding energies of 530.3 eV and 530.7 eV. O2/Cu (oxygen on copper, O2−, O2− or O−) was detected at photoelectron binding energies of 531.8 eV and 532.9 eV. Cu2+ (or Cu+) with different binding energies are copper oxide or cuprous oxide crystals of different crystal types, and the oxygen on copper was detected in the control group because oxygen in the air was adsorbed on the surface.
Figure 7e presents the photoelectron spectroscopy of the N-element 1s orbital of the copper sample surface. Cu–C–N compounds and N–O bonds were detected at photoelectron binding energies of 398.60 eV and 400.10 eV. As the experiment temperature increased, the relative content of the N–O bond gradually decreased and an N–O bond was not detected in the C5F10O/air gas mixture experiment group at high temperatures. Meanwhile, a Cu–C–N compound was detected in the C5F10O/N2 gas mixture experiment group.
The results of the XPS test reveal that C5F10O reacts with Cu at the gas–solid interface and that C5F10O reacts differently with N2 and air buffer gas. This finding is consistent with the results of previous research.

5. Simulations

C5F10O and Cu reacted at the gas–solid interface. To further understand the interaction mechanism between C5F10O and Cu, a theoretical calculation was performed based on density functional theory (DFT) by using the DMol3 module of Materials Studio [26,27]. The Dmol3 module is a unique DFT quantum mechanics software that can study gas phase, solution, surface, and solid systems. Furthermore, the Dmol3 module is the fastest in molecular density functional calculation, which can quickly optimize the structure of molecules and solid systems, saving calculation time and other advantages. Copper clusters have many isomers, and the number of isomers rapidly increases along with the number of atoms in the cluster. Cu13 clusters were selected for the calculation. According to previous studies [28,29,30], the icosahedron structure that comprises 13 copper atoms is considered the most stable (Figure 8a). In this structure, 12 copper atoms form an icosahedral shell and the most stable Cu13 nanoclusters with a core copper atom. The copper atoms on the outer shell have a coordination number of six. Therefore, the Cu13 nanocluster only has three adsorption sites, namely top, bridge, and Hcp (Figure 8b). Generalized gradient approximation with the Perdew–Burke–Ernzerhof function was employed to calculate the electronic exchange correlation, and the double numerical plus basis set with a polarization d-function was used to expand the valence electron functions. The smearing value was set as 0.005 Ha. To determine the accurate activation barrier of the Cu and C5F10O reaction, the complete linear synchronous transit and quadratic synchronous transit (LST/QST) approach was used to search for the transition state of the Cu and C5F10O reaction [31,32].
The molecular structure of C5F10O suggests that C5F10O has three adsorption sites, namely O, F, and F3 (Figure 8a). Therefore, the C5F10O and Cu13 nanoclusters have nine adsorption modes, and the calculation results are shown in Figure 8c–e.
Before the calculation, the target atom in C5F10O was given a distance from the Cu13 nanocluster core-shell structure, and then the intermolecular adsorption was calculated. Figure 8c shows that the F in Figure 8a can react with the Cu13 nanocluster at the bridge and Hcp adsorption sites of the Cu13 nanocluster to form a chemical bond with the Cu nanocluster, thereby resulting in the cleavage of the C–F bond of the alpha (α) carbon atom. At the same time, given the close position of the upper F and O atoms in the C5F10O molecular space structure, when the distance between the F atom and the Cu13 nanocluster is small, the distance between the O atom and Cu13 nanocluster is also small. The chemical nature of the carbonyl group is relatively active. In the chemical reaction, the C=O double bond is easily broken. Therefore, O reacts with the Cu nanocluster to break the C=O double bond and to form a Cu–O metal ion bond. The carbon of the carbonyl group combines with the carbon atom at the alpha position to form a carbon–carbon double bond (Figure 8e). At the top adsorption site, only one Cu atom in the Cu13 nanocluster is located close to the C5F10O molecule, and F cannot form a chemical bond with the Cu nanocluster. The calculations reveal that only the carbonyl group reacts with Cu to break the carbon–oxygen double bond into a single bond and that the F atom on the α-position carbon atom can react with the Cu nanocluster to break the fluorocarbon bond at the α-position carbon atom and form a carbon–carbon double bond.
Figure 8d reveals that the chemical properties of CF3–(trifluoromethyl) are relatively stable and cannot be adsorbed at the three adsorption sites of the Cu13 nanocluster. When close to the Cu13 nanocluster, the oxygen atom of the carbonyl group is adsorbed and interacted. This result also reflects the chemical activity of the oxygen atom on the carbonyl group of C5F10O. This conclusion is verified in Figure 8e. At the Hcp adsorption site, the carbon–oxygen double bond of the carbonyl group is broken, and O interacts with three copper atoms. The three Cu atoms demonstrate a strong attraction to electrons, thereby breaking the carbon–oxygen double bond and forming an ionic bond. Two and one Cu atoms interact with O at the bridge and top adsorption sites, respectively. When the number of Cu atoms is less than three, the attraction to the outer electrons of the O atom is insufficient to break the carbon–oxygen double bond of the carbonyl group. Therefore, the O atom forms a covalent bond with one or two copper atoms in the Cu13 nanocluster.
The above calculation results and analysis reveal that C5F10O decomposes on the surface of the Cu13 nanocluster. Figure 9 shows the total energy change of the system before and after the calculation. The statistical value is computed as the difference between the energies of the product and reactant. Figure 9 shows that energy is released during the above reaction, with the energy released at the F-bridge and F-Hcp adsorption sites being the highest, thereby suggesting that these two reactions are most likely to occur. The detection of C3F6 in the previous GC–MS results also demonstrates that the reaction at the F-bridge and F-Hcp adsorption sites has resulted in the formation of a carbon–carbon double bond (C=C).

6. Conclusions

C5F10O/N2 and C5F10O/air mixtures have good application prospects as electrical insulating mediums that can replace SF6. Studying the compatibility of materials before their application in engineering practice is of great significance to ensure the safe and stable operation of electrical equipment throughout their design lifecycle. In this paper, the compatibility of the environmentally friendly insulating medium C5F10O/N2, C5F10O/air gas mixture, and metallic material copper inside GIS equipment at different temperatures (120 °C to 220 °C) was examined. The test gas and copper samples were analyzed via GC–MS and FESEM characterization, and the interaction between the C5F10O and Cu13 nanoclusters was calculated via a simulation. The following conclusions were drawn:
(1)
When the experiment temperature varies between 120 °C and 220 °C, the surface color of the copper material of the C5F10O/N2 gas mixture experimental group changes from purple to golden yellow and then to pink. In the C5F10O/air gas mixture experimental group, the surface color of the copper material changes from purple to brown and then to dark brown as irritating gases are emitted.
(2)
The GC–MS characterization results show that the C5F10O/N2 and C5F10O/air gas mixtures have a small amount of C5F10O decomposition. The C5F10O/N2 gas mixture decomposes to produce C3F6 and C3F7H, and the C5F10O/air gas mixture decomposes to produce C3F6, C3F7H and C3F6O.
(3)
The FESEM characterization results show that the compatibility of the C5F10O/air gas mixture with copper at a low experiment temperature (120 °C) is better than that of the C5F10O/N2 gas mixture with copper. However, due to the effect of O2, when the experiment temperature is high (170 °C and 220 °C), the compatibility of the C5F10O/Air gas mixture with copper is significantly inferior when compared with that of C5F10O/N2 gas mixture and copper. Therefore, when using the C5F10O/air gas mixture as the insulating medium in engineering applications, special attention should be paid to the condition of the copper material inside the equipment when local overheating occurs. At the same time, operation and maintenance personnel should wear gas masks to prevent the inhalation of toxic decomposition products from harming their health.
(4)
The molecular adsorption of the C5F10O and Cu13 nanocluster is an exothermic reaction. The F atom on the α-position carbon atom of the C5F10O molecule and the oxygen atom on the carbonyl group have high chemical activity and are most likely to interact with Cu during the interaction process.

Author Contributions

Conceptualization, X.Z. and Y.L. (Yalong Li); methodology, Y.L. (Yalong Li); software, Y.L. (Yalong Li); validation, Y.L. (Yalong Li), Z.W. and Y.W.; formal analysis, Y.L. (Yalong Li); investigation, Y.L. (Yalong Li); resources, Y.L. (Yalong Li); data curation, Y.L. (Yalong Li); writing—original draft preparation, Y.L. (Yalong Li); writing—review and editing, X.Z. and Y.L. (Yi Li); visualization, Y.X.; supervision, X. Z.; project administration, S.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Science and Technology Project of State Grid Sichuan Electric Power Company, grant number 4Z20W1970018.

Data Availability Statement

The data presented in this study are available in article.

Acknowledgments

Yalong Li thanks the support from the China Scholarship Council (grant no. 202006270108).

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Zhang, G.; Zhang, X.; Cheng, H.; Tang, J. Ladder-Wise calculation method for z -coordinate of transformer PD source based on planar layout UHF antenna sensors. IEEJ Trans. Electr. Electron. Eng. 2020, 15, 340–345. [Google Scholar] [CrossRef]
  2. Li, Y.; Zhang, Y.; Li, Y.; Tang, F.; Lv, Q.; Zhang, J.; Xiao, S.; Tang, J.; Zhang, X. Experimental study on compatibility of eco-friendly insulating medium C5F10O/CO2 gas mixture with copper and aluminum. IEEE Access 2019, 7, 83994–84002. [Google Scholar] [CrossRef]
  3. Zhang, Y.; Li, Y.; Cui, Z.; Chen, D.; Zhang, X. Simulation and experiment on the catalytic degradation of high-concentration SF6 on TiO2 surface under UV light. AIP Adv. 2018, 8, 055215. [Google Scholar] [CrossRef]
  4. Andersen, M.P.S.; Kyte, M.; Andersen, S.T.; Nielsen, C.J.; Nielsen, O.J. Atmospheric chemistry of (CF3)2CF–C≡N: A replacement compound for the most potent industrial greenhouse gas, SF6. Environ. Sci. Technol. 2017, 51, 1321–1329. [Google Scholar] [CrossRef] [PubMed]
  5. Xiao, S.; Gao, B.; Pang, X.; Zhang, X.; Li, Y.; Tian, S.; Tang, J.; Luo, Y. The sensitivity of C4F7N to electric field and its influence to environment-friendly insulating gas mixture C4F7N/CO2. J. Phys. D Appl. Phys. 2021, 54, 055501. [Google Scholar] [CrossRef]
  6. Reilly, J.; Prinn, R.G.; Harnisch, J.; Fitzmaurice, J.; Jacoby, H.D.; Kicklighter, D.; Melillo, J.; Stone, P.H.; Sokolov, A.P.; Wang, C. Multi-gas assessment of the Kyoto Protocol. Nature 1999, 401, 549–555. [Google Scholar] [CrossRef]
  7. Mong, R. Investigation of Electrical Properties of a New Low-GWP Insulation Gas-Comparison of AirPlus and Synthetic Air; NTNU: Trondheim, Norway, 2018. [Google Scholar]
  8. Romero, A.; Racz, L.; Matrai, A.; Bokor, T.; Cselko, R. A review of sulfur-hexafluoride reduction by dielectric coatings and alternative gases. In Proceedings of the 2017 6th International Youth Conference on Energy (IYCE), Budapest, Hungary, 21–24 June 2017; pp. 1–5. [Google Scholar]
  9. Mantilla, J.; Claessens, M.; Kriegel, M. Environmentally Friendly Perfluoroketones-Based Mixture as Switching Medium in High Voltage Circuit Breakers; Paper A3-113; CIGRE: Paris, France, 2016. [Google Scholar]
  10. Li, Y.; Zhang, X.; Wang, Y.; Li, Y.; Zhang, Y.; Wei, Z.; Xiao, S. Experimental study on the effect of O2 on the discharge decomposition products of C5-PFK/N2 mixtures. J. Mater. Sci. Mater. Electron. 2019, 30, 19353–19361. [Google Scholar] [CrossRef]
  11. Simka, P.; Ranjan, N. Dielectric strength of C5 perfluoroketone. In Proceedings of the 19th International Symposium on High Voltage Engineering, Pilsen, Czech Republic, 23–28 August 2015; pp. 23–28. [Google Scholar]
  12. Stoller, P.C.; Doiron, C.B.; Tehlar, D.; Simka, P.; Ranjan, N. Mixtures of CO2 and C5F10O perfluoroketone for high voltage applications. IEEE Trans. Dielectr. Electr. Insul. 2017, 24, 2712–2721. [Google Scholar] [CrossRef]
  13. Zhong, J.; Fu, X.; Yang, A.; Han, G.; Liu, J.; Lu, Y.; Wang, X.; Rong, M. Insulation performance and liquefaction characteristic of C5F10O/CO2 gas mixture. In Proceedings of the 2017 4th International Conference on Electric Power Equipment—Switching Technology (ICEPE-ST), Xi’an, China, 22–25 October 2017; pp. 291–294. [Google Scholar]
  14. Li, X.; Guo, X.; Murphy, A.B.; Zhao, H.; Wu, J.; Guo, Z. Calculation of thermodynamic properties and transport coefficients of C5F10O-CO2 thermal plasmas. J. Appl. Phys. 2017, 122, 143302. [Google Scholar] [CrossRef]
  15. Li, Y.; Zhang, X.; Xiao, S.; Chen, Q.; Wang, D. Decomposition characteristics of C5F10O/air mixture as substitutes for SF6 to reduce global warming. J. Fluor. Chem. 2018, 208, 65–72. [Google Scholar] [CrossRef]
  16. Deng, Y.; Chen, L.; Ma, Y.; Wang, D.; Zhao, S.; Xiao, D. Calculation and analysis of the thermophysical properties of C5F10O-N2 mixtures. AIP Adv. 2019, 9, 105019. [Google Scholar] [CrossRef]
  17. Yoon, J.-H.; Ahn, H.-S.; Choi, J.; Oh, I.-S. An estimation technology of temperature rise in GIS bus bar using three-dimensional coupled-field multiphysics. In Proceedings of the Conference Record of the 2008 IEEE International Symposium on Electrical Insulation, Vancouver, BC, Canada, 9–12 June 2008; pp. 432–436. [Google Scholar]
  18. Li, Y.; Zhang, X.; Li, X.; Cui, Z.; Xiao, H. Detection of ozone and nitric oxide in decomposition products of air-insulated switchgear using ultraviolet differential optical absorption spectroscopy (UV-DOAS). Appl. Spectrosc. 2018, 72, 1244–1251. [Google Scholar] [CrossRef] [PubMed]
  19. Dervos, C.T.; Vassiliou, P.; Mergos, J.A. Thermal stability of SF6associated with metallic conductors incorporated in gas insulated switchgear power substations. J. Phys. D Appl. Phys. 2007, 40, 6942–6952. [Google Scholar] [CrossRef]
  20. Li, Y.; Zhang, X.; Li, Y.; Wei, Z.; Wang, Y.; Ye, F.; Xiao, S. Effect of oxygen on power frequency breakdown characteristics and decomposition properties of C5-PFK/CO2 gas mixture. IEEE Trans. Dielectr. Electr. Insul. 2021. [Google Scholar]
  21. Hyrenbach, M.; Hintzen, T.; Müller, P.; Owens, J. Alternative gas insulation in medium-voltage switchgear. In Proceedings of the 23rd International Conference on Electricity Distribution, Lyon, France, 15–18 June 2015; pp. 15–18. [Google Scholar]
  22. Miranda, F.M.; Miranda, F.M.; Caporali, S. SERS and DFT study of copper surfaces coated with corrosion inhibitor. Beilstein J. Nanotechnol. 2014, 5, 2489–2497. [Google Scholar] [CrossRef] [Green Version]
  23. Li, Y.; Zhang, X.; Tian, S.; Xiao, S.; Chen, Q.; Chen, D.; Cui, Z.; Tang, J. Insight into the compatibility between C6F12O and metal materials: Experiment and theory. IEEE Access 2018, 6, 58154–58160. [Google Scholar] [CrossRef]
  24. Wang, Y.; Lü, Y.; Zhan, W.; Xie, Z.; Kuang, Q.; Zheng, L. Synthesis of porous Cu2O/CuO cages using Cu-based metal–organic frameworks as templates and their gas-sensing properties. J. Mater. Chem. A 2015, 3, 12796–12803. [Google Scholar] [CrossRef]
  25. Zeng, J.; Zhuang, J.; He, T.; Chen, Q.; Liu, Y. Microstructure and dielectric response of Mg doped Cu3Ti2Ta2O12 ceramics. J. Mater. Sci. Mater. Electron. 2018, 30, 2652–2658. [Google Scholar] [CrossRef]
  26. Delley, B. From molecules to solids with the DMol3 approach. J. Chem. Phys. 2000, 113, 7756–7764. [Google Scholar] [CrossRef]
  27. Zhang, X.; Li, Y.; Chen, D.; Xiao, S.; Tian, S.; Tang, J.; Wang, D. Dissociative adsorption of environment-friendly insulating medium C3F7CN on Cu(111) and Al(111) surface: A theoretical evaluation. Appl. Surf. Sci. 2018, 434, 549–560. [Google Scholar] [CrossRef]
  28. Zhang, R.; Peng, M.; Duan, T.; Wang, B. Insight into size dependence of C2 oxygenate synthesis from syngas on Cu cluster: The effect of cluster size on the selectivity. Appl. Surf. Sci. 2017, 407, 282–296. [Google Scholar] [CrossRef]
  29. Özçelik, S.; Güvenç, Z.B. Structures and melting of Cun (n = 13, 14, 19, 55, 56) clusters. Surf. Sci. 2003, 532, 312–316. [Google Scholar] [CrossRef]
  30. Shin, K.; Kim, D.H.; Yeo, S.C.; Lee, H.M. Structural stability of AgCu bimetallic nanoparticles and their application as a catalyst: A DFT study. Catal. Today 2012, 185, 94–98. [Google Scholar] [CrossRef]
  31. Govind, N.; Petersen, M.; Fitzgerald, G.; King-Smith, D.; Andzelm, J. A generalized synchronous transit method for transition state location. Comput. Mater. Sci. 2003, 28, 250–258. [Google Scholar] [CrossRef]
  32. Halgren, T.A.; Lipscomb, W.N. The synchronous-transit method for determining reaction pathways and locating molecular transition states. Chem. Phys. Lett. 1977, 49, 225–232. [Google Scholar] [CrossRef]
Applsci 11 00197 g001 550

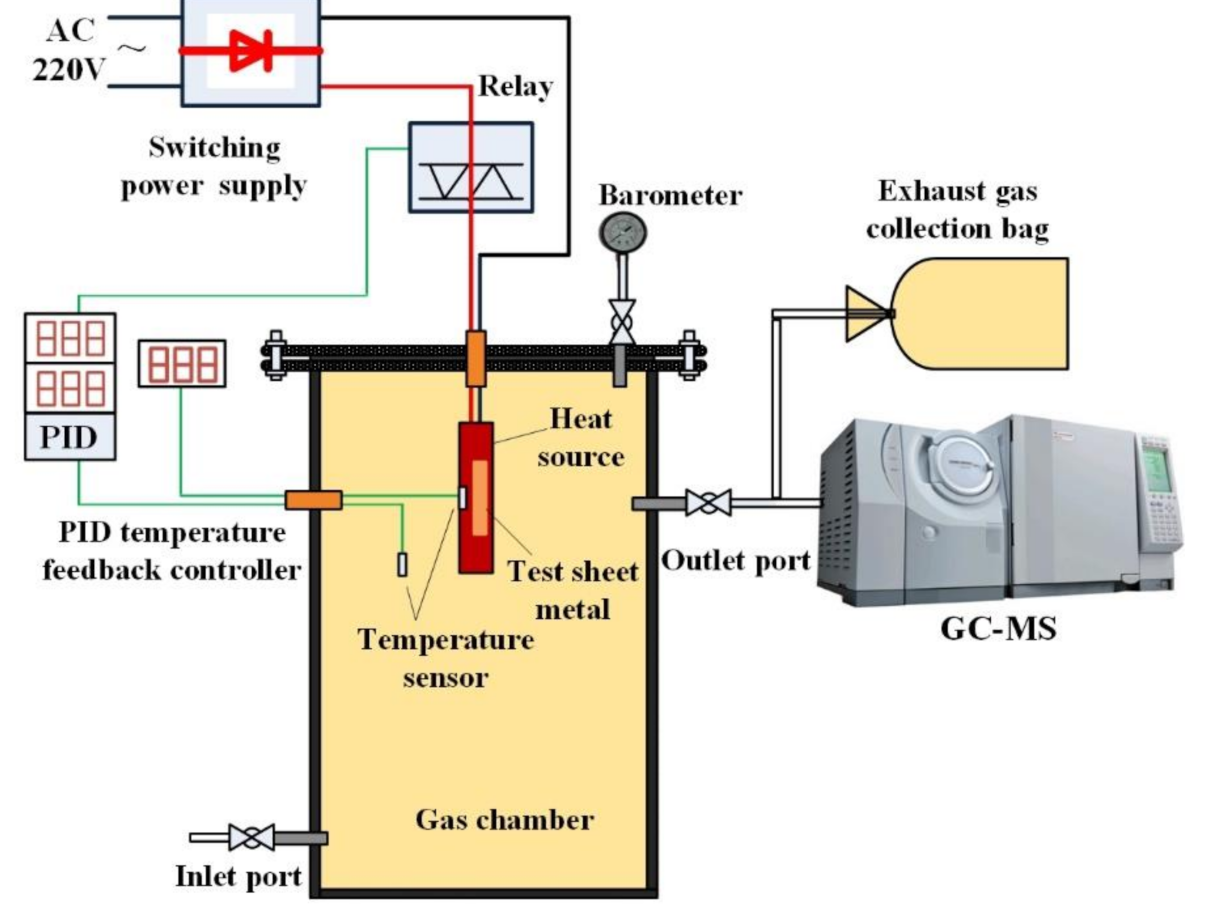

Figure 1. Experiment platform.
Figure 1. Experiment platform.
Applsci 11 00197 g001
Applsci 11 00197 g002a 550Applsci 11 00197 g002b 550

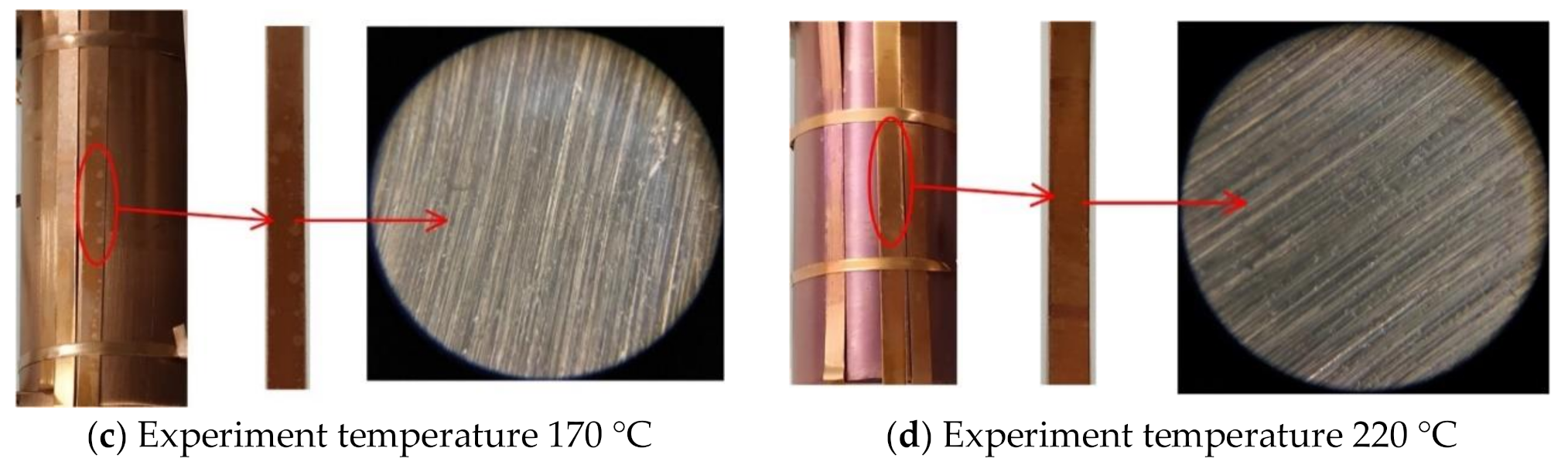

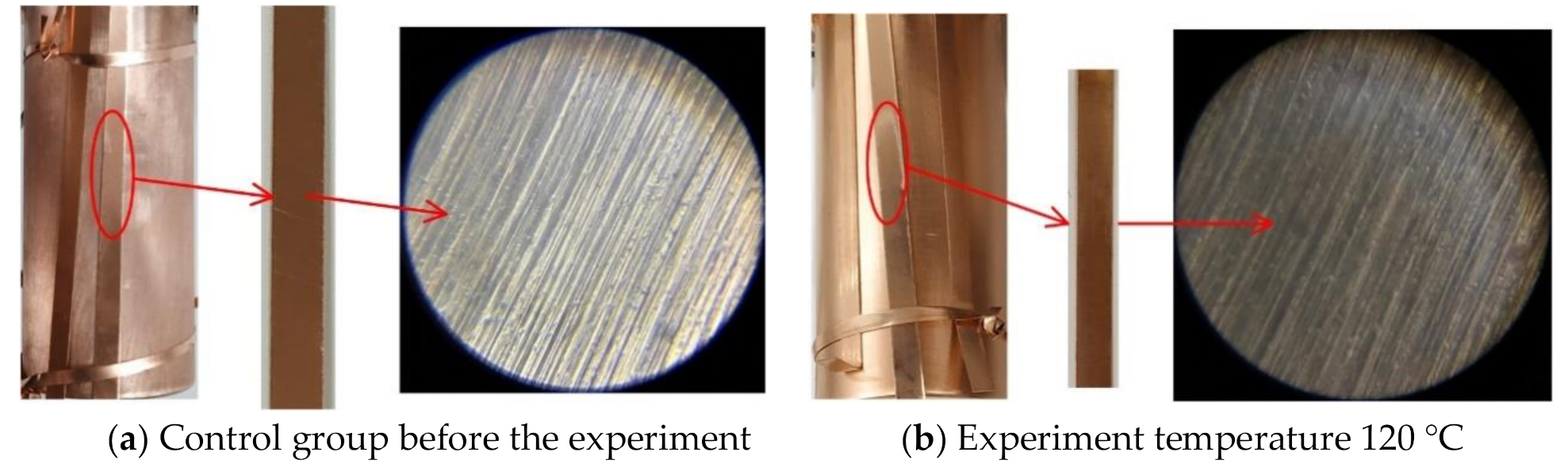

Figure 2. Surface photo of copper before and after contact with C5F10O/N2 gas mixture.
Figure 2. Surface photo of copper before and after contact with C5F10O/N2 gas mixture.
Applsci 11 00197 g002aApplsci 11 00197 g002b
Applsci 11 00197 g003 550

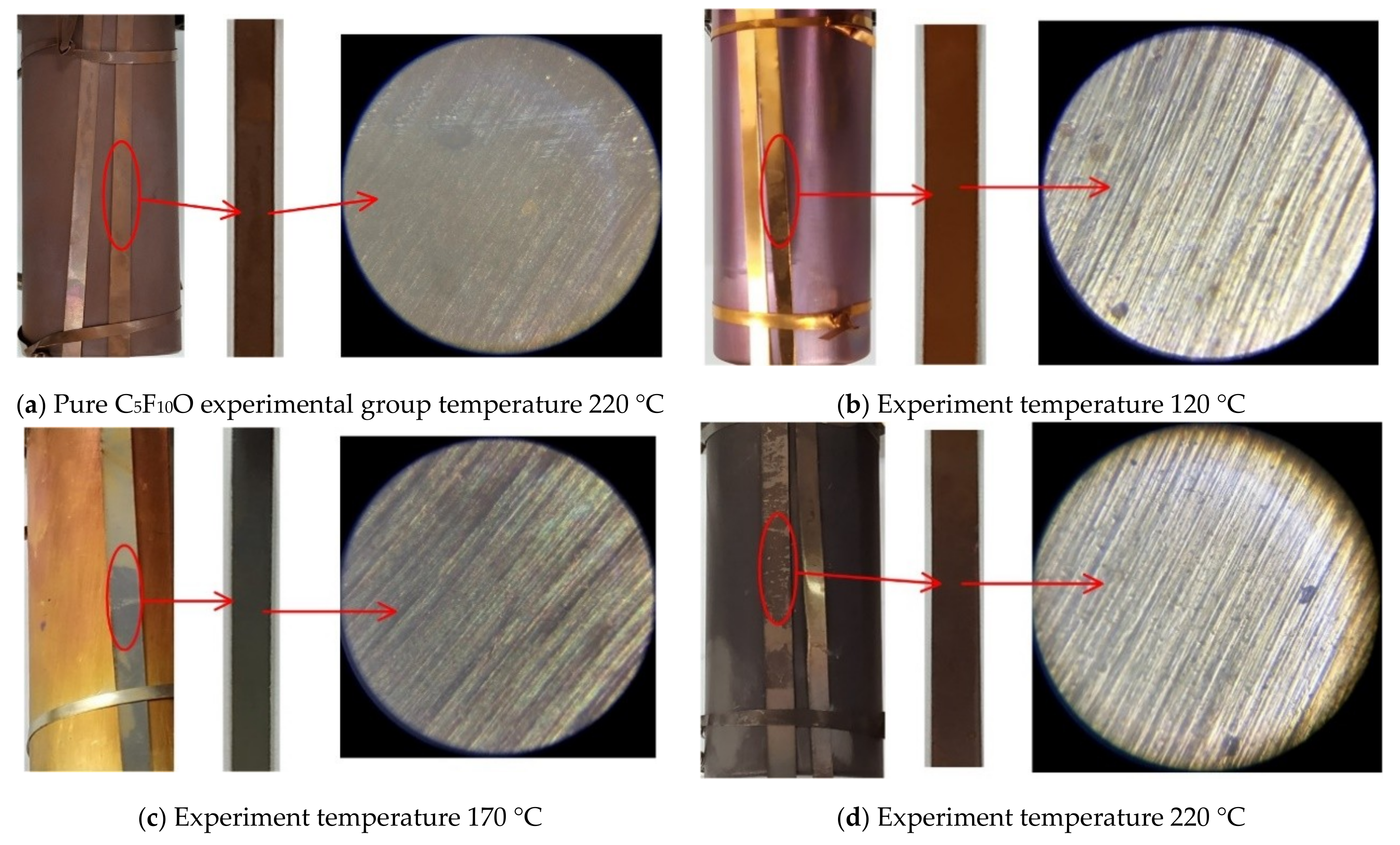

Figure 3. Surface photo of copper before and after contact with C5F10O/air gas mixture.
Figure 3. Surface photo of copper before and after contact with C5F10O/air gas mixture.
Applsci 11 00197 g003
Applsci 11 00197 g004 550

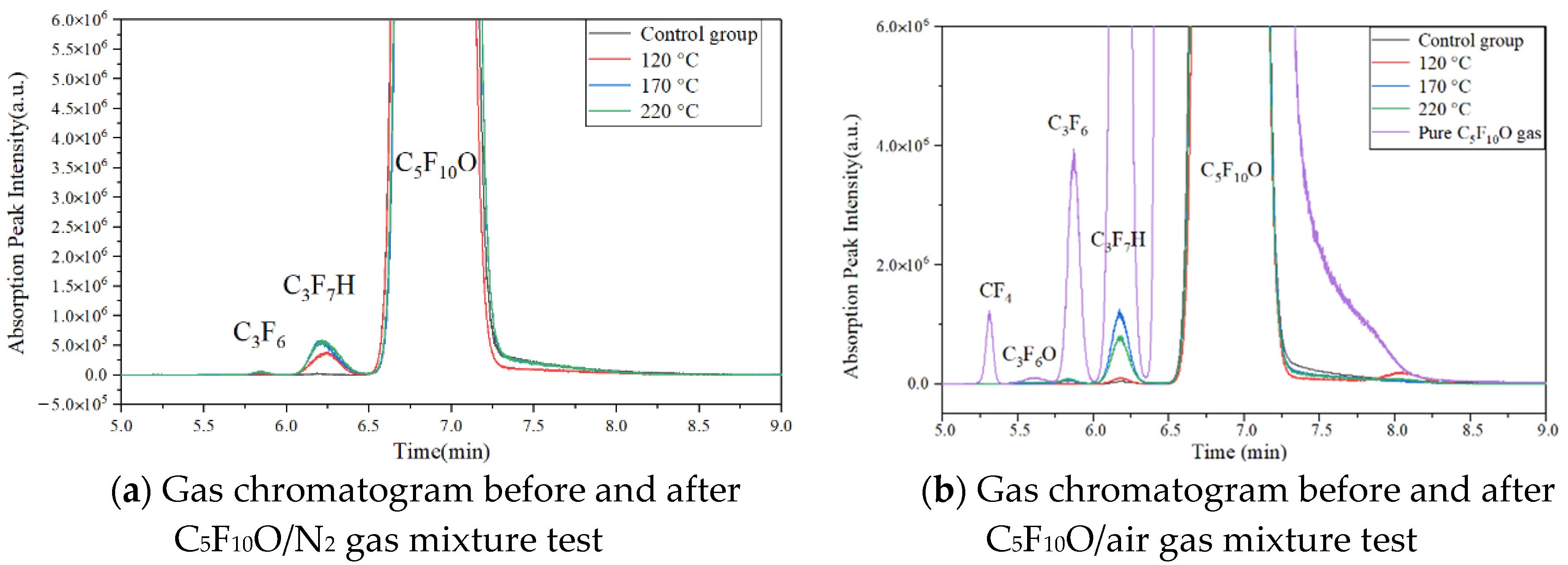

Figure 4. Gas chromatogram of C5F10O gas.
Figure 4. Gas chromatogram of C5F10O gas.
Applsci 11 00197 g004
Applsci 11 00197 g005 550
Figure 5. FESEM morphology of the surface after contact of copper with C5F10O/N2 gas mixture.
Figure 5. FESEM morphology of the surface after contact of copper with C5F10O/N2 gas mixture.
Applsci 11 00197 g005
Applsci 11 00197 g006 550

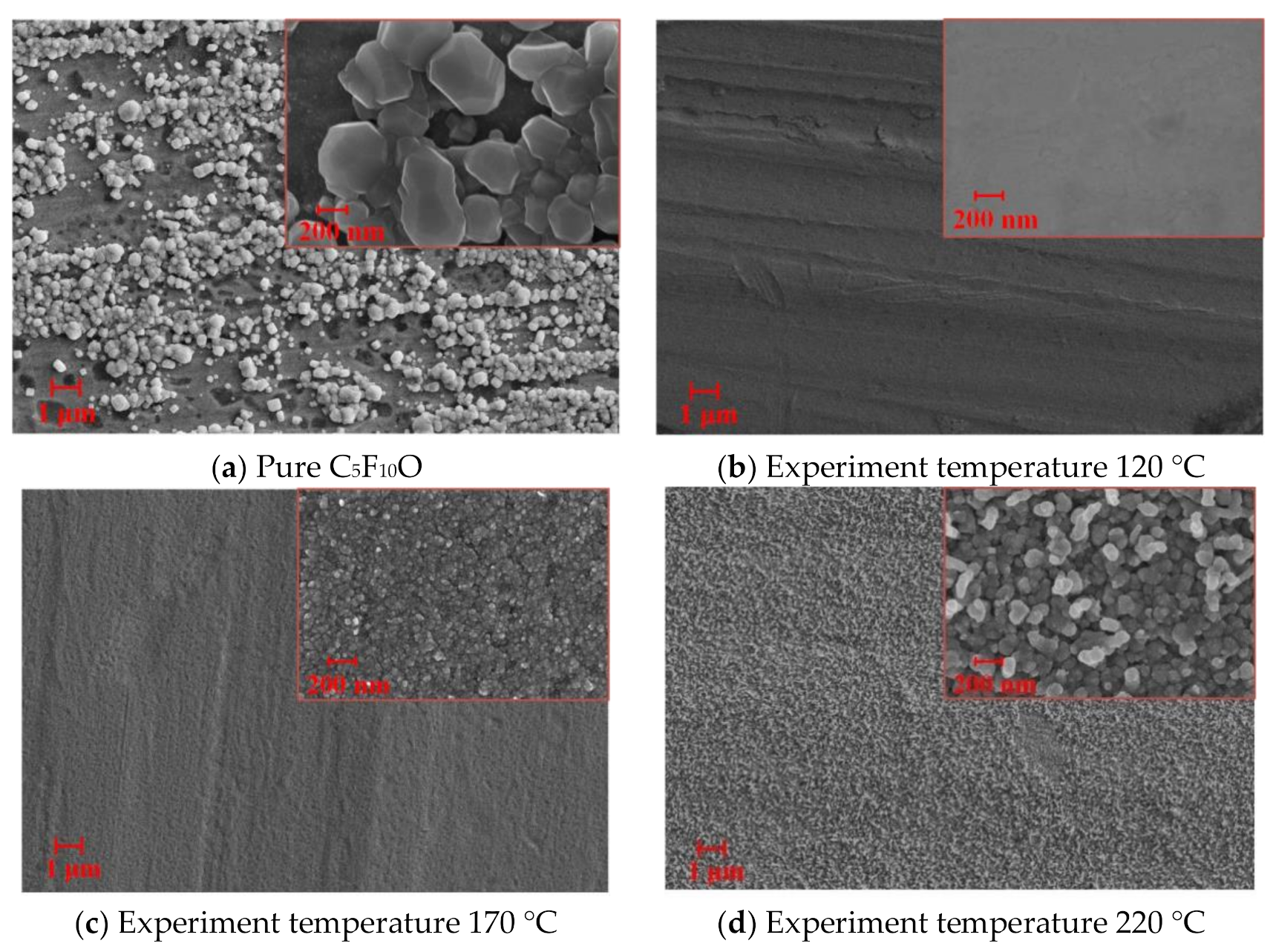

Figure 6. FESEM morphology of the surface after contact of copper with C5F10O/air gas mixtures.
Figure 6. FESEM morphology of the surface after contact of copper with C5F10O/air gas mixtures.
Applsci 11 00197 g006
Applsci 11 00197 g007a 550Applsci 11 00197 g007b 550

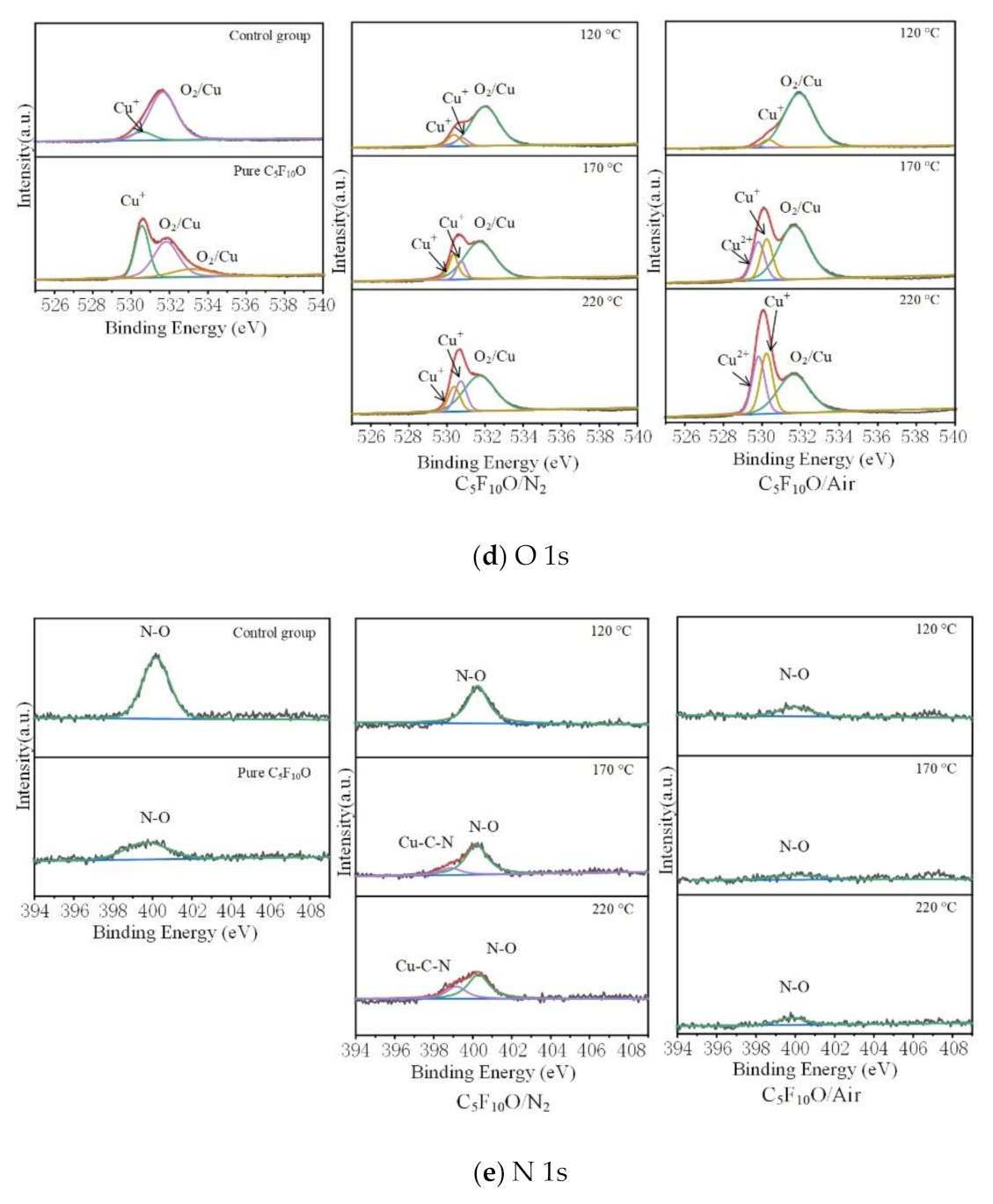

Figure 7. Copper surface element XPS energy spectrum.
Figure 7. Copper surface element XPS energy spectrum.
Applsci 11 00197 g007aApplsci 11 00197 g007b
Applsci 11 00197 g008a 550Applsci 11 00197 g008b 550
Figure 8. Simulation results of the reaction process between C5F10O and copper.
Figure 8. Simulation results of the reaction process between C5F10O and copper.
Applsci 11 00197 g008aApplsci 11 00197 g008b
Applsci 11 00197 g009 550
Figure 9. Total energy change before and after simulation calculation.
Figure 9. Total energy change before and after simulation calculation.
Applsci 11 00197 g009
Table
Table 1. C5F10O gas and its decomposition product mass-to-charge ratios (m/z) and separation time.
Table 1. C5F10O gas and its decomposition product mass-to-charge ratios (m/z) and separation time.
Gas TypeMass-to-Charge Ratios (m/z)Separation Time (min)
C5F10O69, 97, 169, 197, 2666.423–7.254
C3F7H69, 1516.013–6.373
C3F669, 100, 131, 1505.762–5.964
CF451, 695.106–5.295
C3F6O69, 97, 1475.339–5.631
