Article

Preparation and Performance of a Waterborne UV/Al Low Infrared Emissivity Coating

by
Xiaoxing Yan
1,2,* and
Lin Wang
2
1
Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, Nanjing Forestry University, Nanjing 210037, China
2
College of Furnishings and Industrial Design, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(18), 6423; https://doi.org/10.3390/app10186423
Submission received: 24 August 2020 / Revised: 8 September 2020 / Accepted: 14 September 2020 / Published: 15 September 2020
Browse Figures
Versions Notes

Abstract

:
An Al powder filler, nano silica slurry and KH560 were mixed with a prepared waterborne UV-curable coating, and the coating was optimized by an orthogonal experiment. Influences of the Al powder concentration on the gloss, infrared emissivity, brightness, mechanical properties, corrosion resistance and other related properties of the coating were further discussed. The results show that the influence of the Al powder concentration on the gloss was more significant, followed by the UV curing time and nano silica slurry concentration. After studying the key role of the concentration of the Al powder, we found that as the concentration of the Al powder is augmented from 10.0% to 25.0%, the gloss lessened from 19.1% to 8.5%. As the concentration of the Al powder was augmented from 10.0% to 40.0%, the infrared emissivity lessened from 0.649 to 0.083 and the brightness L’ value of the coating was step-by-step augmented and inclined to be stable; in addition, the coating’s mechanical properties reached an excellent level. The coating containing 25.0% Al powder had the best corrosion resistance, surface morphology and comprehensive properties, which can potentially be used for infrared stealth technology.

1. Introduction

Infrared low emissivity coatings can not only benefit infrared stealth militarily, but also reduce the harm of infrared light to the human body in daily life by virtue of its ability to reflect more and absorb less infrared light [1]. As a special functional coating, it is widely used in military investigation and other aspects [2]. Lv et al. [3] fabricated a polydimethylsiloxane (PDMS)-modified polyurethane (PU)/Ag composite coating with super-hydrophobicity and low infrared emissivity via the glass rod scraping method. The results indicated that at the 10 μm particle size of flaky Ag powder and a 50% concentration of Ag powder in the coating, the coating had a dense surface structure and the lowest infrared emissivity. He et al. [4] fabricated a low infrared emissivity coating using graphene surface-modified flaky aluminum complex powders (rGO-FAl) as fillers. Compared with pure flaky aluminum, the Vis-NIR diffuse reflectance of the rGO-FAl complex powders was significantly decreased, which was good for the low gloss of the coating. In addition, the coating maintained low infrared emissivity. Voti et al. [5] designed and simulated VO2/metal multilayers to obtain a large tunability of the thermal emissivity of the infrared (IR) filters in the typical mid wave IR window of many infrared cameras. The multilayer structure was optimized to realize a low emissivity filter at high temperatures, useful for military purposes.
With strict national control of the environmental protection industry, waterborne coatings have been vigorously promoted [6,7]. Among them, waterborne UV-curable coatings have gradually become the research hotspot of domestic and foreign scholars due to their advantages of easy adjustment of concentration, fast drying speed [8], harmless volatiles and wide application range [9]. However, at the same time, it also has the disadvantages of poor corrosion resistance [10] and high gloss [11], which is less propitious regarding compatibility with visible light, thus limiting its domain in infrared low-emission materials. Therefore, an effective solution for achieving compatibility between low infrared emissivity and visible light is the only way to expand the application field of waterborne UV coatings.
Currently, most of the infrared low emissivity coatings are produced by giving the metal a strong infrared reflection ability, via a filler added into the coating [12]. For instance, Qi et al. [13] prepared low infrared emissivity coatings with outstanding thermal stability utilizing silicone resin as a binder, flake Al powder as a pigment and a low-melting glass powder as a functional filler. The results investigated that the low emissivity coating displayed favorable thermal stability at a 1.5 Al/polysiloxane ratio and the coating infrared emissivity was about 0.25 at 600 °C, which can show a good application prospect. Zhang et al. [14] prepared a polydimethylsiloxane (PDMS)-modified polyurethane (PU)/Al composite paint coat with super-hydrophobicity and low infrared emissivity. Research suggested that the paint coat possessed the lowest infrared emissivity and gloss performances at an 80 °C curing temperature. Hu et al. [15] made low infrared emissivity paint coats owning excellent heat resistance, choosing epoxy-siloxane and Al as the binder together with pigment. Detailed conclusions indicated that the cured composite paint coats still possess low emissivity, profitable heat ageing and anti-thermal shock after the stability test. From the above research, we see that the metal Al powder stands out among numerous metal fillers on account of its low-cost, accessibility and satisfactory manifestation. However, these studies are based on silicone resin, polydimethylsiloxane-modified polyurethane, and epoxy-siloxane, but less based on waterborne UV coatings.
In a preliminary study [16], the influence of infrared emissivity, chromaticity distortion and corrosion resistance of Al/waterborne acrylic coatings were investigated. For infrared emissivity coatings, the drying speed of the waterborne coatings is relatively slow [17], while the waterborne UV-curable coatings prepared in this paper are environmentally friendly and fast in drying. Waterborne UV-curable coatings not only eliminate volatile organic compounds (VOC) pollution, but also have the characteristics of rapid curing and energy saving.
As a crosslinking agent, a silane coupling agent can promote the interface combination between a coating and resin and improve the corrosion resistance of the coating [18]. In addition, a nano silica slurry can effectively reduce the coating gloss [19]. In this paper, an orthogonal experiment was utilized to optimize the process parameters, in order to obtain the waterborne UV coating possessing a low infrared emissivity, low gloss, low brightness as well as favorable corrosion resistance and mechanical properties. We also probe the influence of the Al powder concentration on the coating, so as to lay the foundation for the technical production of UV-curable, infrared and low emissivity coatings.

2. Materials and Methods

2.1. Experimental Materials

Isophorone diisocyanate (IPDI, resin, Mw: 222.28 g/mol, CAS No.: 4098-7-19), polyether diols (PED, resin, Mw: 2000 g/mol, CAS No.: 25322-69-4), hydroxyethyl methacrylate (HM, resin, Mw: 130.14, CAS No.: 868-77-9), 2,2-dihydroxymethylpropionic acid (DMPA, Chain extender, Mw: 134.13 g/mol, CAS No.: 4767-03-7), tripropylene glycol diacrylate (TGD, Active diluent, Mw: 300.35 g/mol, CAS No.: 42978-66-5) and 2,4,6-trimethylbenzoyl-diphenylphosphine oxide (TBDPO, Photoinitiator, Mw: 348.4 g/mol, CAS No.: 75980-60-8) were offered by Linyi Dongyi Chemical Co., Ltd., Shandong, China. Filler: Al powder 4017 (piece diameter: 10 μm, thickness: 220 nm, solid concentration: 65.0%, 65.0% Al powder mixed with 35.0% oleic acid) was offered by Xuhui New Material Technology Co., Ltd., Shandong, China. Dispersant: KH560 was offered by Zhongjie Chemical Technology Co., Ltd., Guangzhou, China. Other auxiliary materials: nano silica slurry (particle size: 150 nm, solid concentration: 15.0%) was offered by Nanjing Tianxing New Material Co., Ltd., Jiangsu, China. Anhydrous ethanol was offered by Zhongji Chemical Co., Ltd., Shandong, China. Al substrate (100 mm × 50 mm × 1 mm) was provided by Wuxi Dongyue metal material Co., Ltd. All reagents were pure without further treatment.

2.2. Preparation of Coatings

The compositions are based on mass/mass% values. The pre weighed IPDI, HM, DMPA, TGD and TBDPO were mixed with PED, and then added into a four-neck flask with a condensator, mixer and thermometer for mixing. The rotating speed of this system was set to 100 r/min, and it reacted at 75 °C for 4 h, and afterwards the temperature at a slow speed fell to room temperature to acquire the waterborne UV-curable coating. The pH value and solid concentration of the waterborne UV-curable coating were approximately 7.0 and 26.5%, respectively. Among them, the IPDI concentration was 35.0%, PED concentration was 15.2%, DPA concentration was 5.8%, HM concentration was 30.0%, TGD concentration was 10.0% and TBDPO concentration was 4.0%. TBDPO in waterborne UV-curable coatings can generate active radicals or cations afterwards, absorbing the high-intensity UV light produced by the Fumax 650 UV curing apparatus (Kunshan Honest Electronic Technology Co., Ltd., Kunshan, China), which can stimulate polymerization, cross-linking and a graft reaction, causing the coating to cure at a certain time.
An orthogonal experiment is a method to study multi factors and multi levels. It selects some representative points from the overall test according to the orthogonality. These representative points have the characteristics of uniform dispersion, integrity, and comparability. Orthogonal experimental design is the main method of fractional factorial design, and is a high-efficiency, fast and economic experimental design method. Table 1 showed the configuration information of the experimental samples, among which Samples 1–4 were the preparation samples of the 3-factor and 2-level orthogonal experiments. It was determined that the Al powder concentration was 20.0–40.0%, and the silica slurry concentration was 2.0–10.0%. The Al powder as well as silica slurry was put into the waterborne UV-curable coating, and afterwards 2.0% KH560 was added, then mixed and stirred at room temperature for 1 h. Samples 5–11 were an independent test based on the orthogonal test. The fixed silica slurry concentration was 2.0% and the drying time was 6.0 min, and then 2.0% KH560 was added. The concentration of the Al powder was changed.
First, the substrate was pretreated; that is, sanded, degreased, and dried. The waterborne UV/Al low infrared emissivity coating was applied on the Al substrate by an SZQ tetrahedral fabricator (Beijing Zhongjian road industry instrument and Equipment Co., Ltd., Beijing, China). The coating was dried in a blast dryer (Wujiang Tongfeng Oven Electric Furnace Co., Ltd., Wujiang, China) at 40 °C for 10 min, and afterwards cured by UV radiation of 365 nm medium pressure mercury lamp (400W) in a Fumax 650 UV curing instrument. Radiation curing control and drying curing time control was 2.0–6.0 min. After the coating was cured to a constant weight, the coating was burnished via #1000 sandpaper, the dust was wiped off using dry cloth, and the aforementioned coating steps were repeated 3 times.

2.3. Testing and Characterization

The coating impact resistance was determined using a QCG-50 coating impact tester (Ningbo Yinzhou Rijin testing equipment Co., Ltd., Ningbo, China). The coating of the sample was positioned horizontally on the iron plate, and the weight hammer was fastened on a certain height of the sliding cylinder through the control device. As the control button was pressed, the heavy hammer would fall freely on the press. When lifting the heavy hammer to take out the experimentation plate, the deformation degree of the coating surface was observed, and the height of the heavy hammer falling on the experimentation plate was recorded. Impact resistance referred to the maximum height on the test plate without damaging the coating.
The adhesion was tested according to ISO 2409-2007 [20]. The coating adhesion was determined with a QFH-HG600 coating scriber (Zhongxi Yuanda Technology Co., Ltd., Beijing, China). The handle was held and a multiblade tool was used on the plate. The coating was cut at 20–50 mm/s under uniform pressure. Then, the manipulate was repeated by rotating it 90° to form a 1 mm × 1 mm grid pattern. The 3M brand 600-1PK transparent pressure-sensitive adhesive tape (19 mm wide) was applied to the entire grid and revealed at a minimum angle. The coating damage was observed. The adhesion level was judged in line with the damage degree. The adhesion of the coating was 0, which made known that the coating adhesion was the best. Coating hardness was determined via a QHQ-A coating hardness tester (Flora Automation Technology Co., Ltd., Tianjin, China).
Coating gloss was determined with a BGD512-60 gloss meter (3NH Technology Co., Ltd., Shenzhen, China). The color of the coating shall be tested using a SEGT-J colorimeter (Shenyang Guoti Precision Testing Instrument, Liaoning, China). L, a* and b*, respectively, stand for the lightness, red-green axis color index and yellow-blue axis color index of the Al plate, while L’, a*’ and b*’ represent the surface coating of Al plate. ΔL, Δa* and Δb* represent the lightness difference, red-green index difference and yellow-blue index difference of the two samples, respectively. According to the color difference Formula (1), the color difference ΔE was computed:
ΔE = [(ΔL)2 + (Δa*)2 + (Δb*)2]1/2
Coating microstructure was characterized with SEM. A Vertex 80V infrared spectrometer was used to measure the influence of different Al powder concentrations on the waterborne UV-curable coating. Far-infrared emissivity of the coating in the range of 8–14 μm was determined using an IR-2 far-infrared emissivity tester (Chinese Academy of Sciences Shanghai Institute of Technological Physics, Shanghai, China). The emissivity measurement instrument uses an active blackbody radiation source to measure the normal reflectivity of the object to be measured, and then measures its normal emissivity in the 8–14 μm infrared band. First, the temperature was set to 250 °C, the power was 43% and the calibration started after the value was stable. Then the copper reference plate was placed so that the emissivity was 0.45. The aluminum-coated compensation reference plate was placed on the bracket directly below the test head, and the mirror reflection (MR) was adjusted to make the emissivity reach 0.05. After adjustment, the infrared emissivity of the coating was tested. The corrosion resistance of the waterborne UV-curable coating was determined by a CHI660E electrochemical workstation (Beijing Jinyang Wanda Technology Co., Ltd., Beijing, China) in line with GB/T 15748-2013 [21], and the NaCl concentration was 3.5% at room temperature. A three-electrode cell structure was utilized for the electrochemical experiment. A saturated calomel electrode (SCE) was used as the reference electrode and a platinum electrode as the counter electrode. Each sample was soaked in a 3.5% NaCl solution and the open circuit potential (OCP) was monitored until constant. The polarization experiment began from scanning with respect to OCP-0.3V and stopped with respect to OCP+0.3V, and the scanning rate was 10 mV/s. All the experiments were repeated four times with an error of less than 5.0%.

3. Results and Discussion

3.1. Orthogonal Test Analysis of the Al/Waterborne UV-Curable Coating

According to the range analysis in Table 2 and the influence factors of the orthogonal experiment in Figure 1, compared with the drying time and the concentration of silica slurry, the influence of the Al powder concentration to the gloss was more significant. k1 and k2 are the average value of the two levels. The interaction between the Al powder concentration and silica slurry is shown in Table 3. When the silica slurry was 10.0% and Al powder concentration was 20.0%, the gloss was low. The F-test (Table 4) showed that the three factors had no significant effect. Combined with the values of k1 and k2, the optimal level was as follows: the Al powder concentration was 40.0%, silica slurry concentration was 10.0% and UV drying time was 6.0 min. It can be seen from the gloss test results that the gloss of Samples 3 and 4 was relatively low, but the silica slurry concentration of Sample 4 was relatively large, considering that the material was more expensive and was not conducive to industrial batches. Based on the above results, it was necessary to conduct further independent experiments on the concentration of the Al powder. Therefore, in the following independent experiments, the drying time was fixed at 6.0 min, the silica slurry concentration was controlled at 2.0% and Al the powder concentration was altered to 10.0%, 15.0%, 20.0%, 25.0%, 30.0%, 35.0% and 40.0%. The influences of the Al powder concentration on the coating properties, such as gloss, infrared emissivity, and color difference, were examined.

3.2. Influence of the Al Powder Concentration on the Gloss

The results of the influence of the Al powder concentration on gloss are exhibited in Figure 2. The trend of the whole gloss showed a “U” pattern. The results show that the gloss lessened at first and then augmented slowly with the augmentation of the Al powder concentration. Figure 2 reflect that when the Al powder concentration is augmented from 10.0% to 25.0%, the gloss lessened from 19.1 GU to 8.5 GU. As the Al powder concentration is augmented from 25.0% to 40.0%, the gloss slowly augmented from 8.5 GU to 10.3 GU, and as the concentration of Al powder exceeded 15.0%, the coating was lusterless. This may be because the augmentation of the concentration of the Al powder meant that the concentration of the coating lessened, the main coat-forming substances in the coating became less, the reflection of light became smaller and the gloss also lessened [19].

3.3. Influence of Al Powder Concentration on Infrared Emissivity

Emissivity was the main parameter to assess the stealth influence of the coating in the far infrared band. The influence of the Al powder concentration on infrared emissivity is exhibited in Figure 3, from which we can find that the infrared emissivity value of the coating lessened gradually with the Al powder concentration increasing. As the Al powder concentration is augmented from 10.0% to 40.0%, the coating infrared emissivity lessened from 0.649 to 0.083. As the Al powder concentration was 35.0%, the infrared emissivity was 0.128, which was also very low. This was because the augmentation of the Al powder concentration could enhance the reflection of the visible light from the coating, thus weakening the reflection of the invisible light and reducing the infrared emissivity [22].

3.4. Influence of Al Powder Concentration on Color Difference

Chromaticity refer to the color value when a multi-color light was used as the light source. In the visible light band, color was the main characteristic parameter of its visible light stealth ability. The L’ in Table 5 represented the brightness of the waterborne UV-curable coating, indicating the reflection degree of the object to the incident light on its surface. The higher the L’, the whiter the object and the higher the brightness. Along with the augmented Al powder concentration, the lightness L’ value was gradually augmented and stabilized. As the Al powder concentration was augmented from 10.0% to 30.0%, the lightness L’ value of the coating was augmented from 65.8 to 75.2, while when the Al powder concentration was augmented from 30.0% to 40.0%, the lightness L’ value of the coating was only augmented from 75.2 to 76.8, with a small change in lightness. The reason was that the gloss was augmented with the augmentation of the sheet metal Al powder concentration, which lead to the augmentation of the luminosity L’ value of the coating. A low infrared emissivity coating needs to reduce the brightness value of the coating for the sake of reducing the detection of infrared detection equipment, so the darker coating was better. According to Table 5, the coating with a low Al powder concentration had a lower brightness.

3.5. Influence of Al Powder Concentration on Mechanical Properties

The mechanical properties of the waterborne UV/Al coating with a low infrared emissivity were excellent. As the concentration was 10.0–40.0%, the coating hardness was 6H (Table 6). This may be due to the high degree of crosslinking of the UV-curable coatings [23]. When the concentration of the Al powder was increasing, the adhesion was good, and the level was 0. This was because the Al powder can be well distributed in the coating with the no agglomeration. The impact resistance can reflect the flexibility and rigidity of the coating. The experimental data exhibited that, as the concentration was 10.0–40.0%, the impact resistance was better, which was greater than 50.0 kg cm. This showed that good adhesion provided strong support for the coating with high impact resistance.

3.6. Chemical Composition of the Waterborne UV/Al Low Infrared Emissivity Coating

According to Figure 4 and Table 7, the wavenumber of 3343 cm−1 was an -OH stretching vibration [24]. A wavenumber of 1724 cm−1 was the characteristic absorption peak of C=O [25], while wavenumber 1530 cm−1 was the N–H bending vibration of the amide Ⅱ band [26], indicating that there were a large number of carbamate bonds in the product. At wavenumber 1670 cm−1, the characteristic absorption peak of the C=C double bond could appear [27]. Moreover, the characteristic absorption peaks of -CH were 2930 cm−1 and 1462 cm−1 [28], and the C–O located at 1049 cm−1 and 1120 cm−1 [29]. In addition, the N–C–O stretching vibration at 1256 cm−1 was found too [30]. According to the intensity of the wave peak, at the 40.0% concentration, the wave peak of the infrared spectrum was basically the same, which had a high reflectivity to the infrared, so it was more instrumental in reducing the coating surface emissivity.

3.7. Chemical Composition of the Waterborne UV/Al Low Infrared Emissivity Coating

After the infrared emissivity, lightness, mechanical properties and infrared spectrum tests, it was found that the comprehensive properties of samples with the 20.0–30.0% Al powder were better. Therefore, the electrochemical polarization curve in Figure 5 was obtained after the corrosion resistance test of coating with a concentration of 20.0–30.0%. The main electrochemical parameters of Figure 5 were acquired from the Tafel polarization curves in Table 8. RP is the polarization resistance of the coated substrate; Ecorr is the corrosion potential of the coating, Icorr is the corrosion current density; and βa and βc are the anode constant and cathode constant, respectively. The corrosion resistance was positively correlated with the potential Ecorr (V). The corrosion resistance of the waterborne UV coating at 25.0% Al powder was the best.

3.8. Surface Morphology of Waterborne UV/Al Coatings with Low Infrared Emissivity

From the SEM in Figure 6, it can be seen that the continuous and dense flake Al powder structure with a good spreading property was formed on different coating surfaces, and the morphology of the three was not different. However, compared with other Al powders, when the concentration of the Al powder was 25.0%, there was no gap on the surface of the coating, the distribution of the flake Al was more uniform and the coating performance was better.
The performance of the waterborne UV/Al coating was compared with those of epoxy-lacquer-based coatings [31], PU-based coatings [32,33,34] and waterborne acrylic-based coatings [16], as shown in Table 9. Compared with other coatings, the infrared emissivity of the waterborne UV/Al coating was slightly higher than other coatings with a value of 0.361. The gloss of the waterborne UV/Al coating was lower than that of the PU-based coatings, which was like that of the epoxy-lacquer-based coatings and Al/waterborne acrylic coating. The adhesion of the waterborne UV/Al coating was as high as the Al/waterborne acrylic coating, which was at level 0. The impact resistance of the waterborne UV/Al coating was the largest, which exceeded 50.0 kg cm. The impact resistance of the waterborne UV/Al coating was better than the other coatings.

4. Conclusions

Among the three factors, the most significant one was the concentration of the Al powder. By changing the concentration of the Al powder, the influence of the Al powder on the infrared emissivity, gloss, color difference, hardness, corrosion resistance as well as other properties of the waterborne UV-curable coating was studied. The optimal concentration of the Al powder was explored when the original good performance was ensured, and the low infrared emissivity, low sub light and low brightness values were simultaneously possessed. The results demonstrated that at the 25.0% Al powder concentration, the hardness, adhesion, impact resistance and corrosion resistance of the waterborne UV-curable coating were higher; the infrared emissivity and gloss were also lower. Conclusively, it is acknowledged that the value of the paper lies in the methodology adopted to fabricate waterborne UV/Al low infrared emissivity coatings.

Author Contributions

Conceptualization, X.Y.; Methodology, X.Y.; Validation, X.Y.; Resources, X.Y.; Data Curation, X.Y.; Writing—Original Draft Preparation, X.Y.; Supervision, X.Y.; Data Analysis, L.W.; Investigation, L.W.; Writing—Review and Editing, L.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the General Program of Jiangsu Natural Science Foundation in 2020 (Project title: Study on the relationship between microstructure control of self repairing coating and wood based on microcapsule technology) and the Youth Science and Technology Innovation Fund of Nanjing Forestry University, Grant Number (CX2016018).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dong, H.L.; Wang, J.C.; Zeng, Y.R.; Chen, Z.S.; Shi, J.M. Reflection spectrum study of THz wave by infrared low emissivity stealth coating. Spectrosc. Spect. Anal. 2019, 39, 3007–3012. [Google Scholar]
  2. Li, Q.Y.; Cheng, X.D.; Gong, D.Q.; Ye, W.P. Effect of N2 flow rate on structural and infrared properties of multi-layer AlCrN/Cr/AlCrN coatings deposited by cathodic arc ion plating for low emissivity applications. Thin Solid Films 2019, 675, 74–85. [Google Scholar] [CrossRef]
  3. Lv, D.D.; Fang, N.; Zhang, W.G. A PDMS modified polyurethane/Ag composite coating with super-hydrophobicity and low infrared emissivity. Infrared Phys. Technol. 2020, 108, 103351. [Google Scholar] [CrossRef]
  4. He, L.H.; Zhao, Y.; Xing, L.Y.; Liu, P.G.; Zhang, Y.W.; Wang, Z.Y. Low infrared emissivity coating based on graphene surface-modified flaky aluminum. Materials 2018, 11, 1502. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Voti, R.L.; Larciprete, M.C.; Leahu, G.; Sibilia, C.; Bertolotti, M. Optimization of thermochromic VO2 based structures with tunable thermal emissivity. J. Appl. Phys. 2012, 112, 034305. [Google Scholar] [CrossRef] [Green Version]
  6. Yang, F.; Wu, Y.; Zhang, S.Q.; Zhang, H.M.; Zhao, S.L.; Zhang, J.L.; Fei, B.H. Mechanical and thermal properties of waterborne polyurethane coating modified through one-step cellulose nanocrystals/graphene materials sols method. Coatings 2020, 10, 40. [Google Scholar] [CrossRef] [Green Version]
  7. Wu, Y.; Wu, J.M.; Wang, S.Q.; Feng, X.H.; Chen, H.; Tang, Q.W.; Zhang, H.Q. Measurement of mechanical properties of multilayer waterborne coatings on wood by nanoindentation. Holzforschung 2019, 73, 871–877. [Google Scholar] [CrossRef]
  8. Aizpurua, J.; Martin, L.; Fernandez, M.; Gonzalez, A.; Irusta, L. Recyclable, remendable and healing polyurethane/acrylic coatings from UV curable waterborne dispersions containing Diels-Alder moieties. Prog. Org. Coat. 2020, 139, 105460. [Google Scholar] [CrossRef]
  9. Wu, Y.; Wu, X.Y.; Yang, F.; Ye, J.Y. Preparation and characterization of waterborne UV lacquer product modified by zinc oxide with flower shape. Polymers 2020, 12, 668. [Google Scholar] [CrossRef] [Green Version]
  10. Chen, J.H.; Yuan, T.; Tu, W.P.; Peng, K.M.; Hu, J.Q.; Wang, F. Electrophoretic deposition of waterborne ultraviolet (UV)-curable coatings based on microgels. J. Coat. Technol. Res. 2019, 16, 1367–1378. [Google Scholar] [CrossRef]
  11. Hwang, H.D.; Moon, J.I.; Choi, J.H.; Kim, H.J.; Do Kim, S.; Park, J.C. Effect of water drying conditions on the surface property and morphology of waterborne UV-curable coatings for engineered flooring. J. Ind. Eng. Chem. 2009, 15, 381–387. [Google Scholar] [CrossRef]
  12. Zhao, J.; Luo, W.; Qi, L.; Yuan, L.; Huang, G.; Huang, Y.; Weng, X.L. The high-temperature resistance properties of polysiloxane/Al coatings with low infrared emissivity. Coatings 2018, 8, 125. [Google Scholar] [CrossRef] [Green Version]
  13. Qi, L.; Weng, X.L.; Wei, B.; Yuan, L.; Huang, G.; Du, X.B.; Wu, X.Y.; Liu, H.X. Effects of low-melting glass powder on the thermal stabilities of low infrared emissivity Al/polysiloxane coatings. Prog. Org. Coat. 2020, 142, 105579. [Google Scholar] [CrossRef]
  14. Zhang, W.G.; Jiang, S.N.; Lv, D.D. Fabrication and characterization of a PDMS modified polyurethane/Al composite coating with super-hydrophobicity and low infrared emissivity. Prog. Org. Coat. 2020, 143, 105622. [Google Scholar] [CrossRef]
  15. Hu, C.; Xu, G.Y.; Shen, X.M.; Shao, C.M.; Yan, X.X. The epoxy-siloxane/Al composite coatings with low infrared emissivity for high temperature applications. Appl. Surf. Sci. 2010, 256, 3459–3463. [Google Scholar] [CrossRef]
  16. Yan, X.X.; Wang, L.; Qian, X.Y. Preparation and characterization of low infrared emissive aluminum/waterborne acrylic coatings. Coatings 2020, 10, 35. [Google Scholar] [CrossRef] [Green Version]
  17. Liu, Q.Q.; Gao, D.; Xu, W. Effect of sanding processes on the surface properties of modified Poplar coated by primer compared with Mahogany. Coatings 2020, 10, 856. [Google Scholar]
  18. Xia, Y.Q.; He, Y.; Chen, C.L.; Wu, Y.Q.; Zhong, F.; Chen, J.Y. Co-modification of polydopamine and KH560 on g-C3N4 nanosheets for enhancing the corrosion protection property of waterborne epoxy coating. React. Funct. Polym. 2020, 146, 104405. [Google Scholar] [CrossRef]
  19. Sow, C.; Riedl, B.; Blanchet, P. UV-waterborne polyurethane-acrylate nanocomposite coatings containing alumina and silica nanoparticles for wood: Mechanical, optical, and thermal properties assessment. J. Coat. Technol. Res. 2011, 8, 211–221. [Google Scholar] [CrossRef]
  20. International Organization for Standardization. ISO 2409-2007 Paints and Varnishes—Cross-Cut Test; International Organization for Standardization: Geneva, The Switzerland, 2007. [Google Scholar]
  21. Standardization Administration of the People’s Republic of China. GB/T15748-2013 The Method of Galvanic Corrosion Test for Metallic Ship Materials; Standardization Administration of the People’s Republic of China: Beijing, China, 2013; pp. 1–4. (In Chinese) [Google Scholar]
  22. Yuan, L.; Hu, J.; Weng, X.L.; Zhang, Q.Y.; Deng, L.J. Galvanic displacement synthesis of Al/Ni core-shell pigments and their low infrared emissivity application. J. Alloys Compd. 2016, 670, 275–280. [Google Scholar] [CrossRef]
  23. Liang, B.; Li, R.P.; Zhang, C.Q.; Yang, Z.H.; Yuan, T. Synthesis and characterization of a novel tri-functional bio-based methacrylate prepolymer from castor oil and its application in UV-curable coatings. Ind. Crop. Prod. 2019, 135, 170–178. [Google Scholar] [CrossRef]
  24. Sahlberg, A.L.; Hot, D.; Lyngbye-Pedersen, R.; Zhou, J.F.; Alden, M.; Li, Z.S. Mid-infrared polarization spectroscopy measurements of species concentrations and temperature in a low-pressure flame. Appl. Spectrosc. 2019, 73, 653–664. [Google Scholar] [CrossRef] [Green Version]
  25. Xu, H.P.; Qiu, F.X.; Wang, Y.Y.; Wu, W.L.; Yang, D.Y.; Guo, Q. UV-curable waterborne polyurethane-acrylate: Preparation, characterization and properties. Prog. Org. Coat. 2012, 73, 47–53. [Google Scholar] [CrossRef]
  26. Feng, C.G.; Bai, L.S.; Rein, Q.S. Preparation and FTIR properties of amino compounds modified glutaraldehyde crosslinked chitosan resin activated with cyanuric chloride. Spectrosc. Spect. Anal. 2004, 24, 1315–1318. [Google Scholar]
  27. Kwag, G. A highly reactive and monomeric neodymium catalyst. Macromolecules 2002, 35, 4875–4879. [Google Scholar] [CrossRef]
  28. Sun, D.W.; Zhang, H.; Tang, X.Z.; Yang, J.L. Water resistant reactive microcapsules for self-healing coatings in harsh environments. Polymer 2016, 91, 33–40. [Google Scholar] [CrossRef]
  29. Habuka, A.; Yamada, T.; Nakashima, S. Interactions of glycerol, diglycerol, and water studied using attenuated total reflection infrared spectroscopy. Appl. Spectrosc. 2020, 74, 767–779. [Google Scholar] [CrossRef]
  30. Chen, H.; Yu, X.L.; Zhou, W.Y.; Peng, S.X.; Zhao, X.P. Highly toughened polylactide (PLA) by reactive blending with novel polycaprolactone-based polyurethane (PCLU) blends. Polym. Test. 2018, 70, 275–280. [Google Scholar] [CrossRef]
  31. Yan, X.X.; Cai, Y.T.; Lu, R.; Miyakoshi, T. Development and characterization of new coating material of blended epoxy-lacquer with aluminum. Int. J. Polym. Sci. 2017, 2017, 5017356. [Google Scholar] [CrossRef]
  32. Yan, X.X.; Xu, G.Y. Effect of surface modification of Cu with Ag by ball-milling on the corrosion resistance of low infrared emissivity coating. Mater. Sci. Eng. B Adv. 2010, 166, 152–157. [Google Scholar] [CrossRef]
  33. Yan, X.X.; Xu, G.Y. Influence of silane coupling agent on corrosion-resistant property in low infrared emissivity Cu/polyurethane coating. Prog. Org. Coat. 2012, 73, 232–238. [Google Scholar] [CrossRef]
  34. Yan, X.X.; Xu, G.Y. Corrosion and mechanical properties of polyurethane/Al composite coatings with low infrared emissivity. J. Alloys Compd. 2010, 491, 649–653. [Google Scholar] [CrossRef]
Applsci 10 06423 g001 550

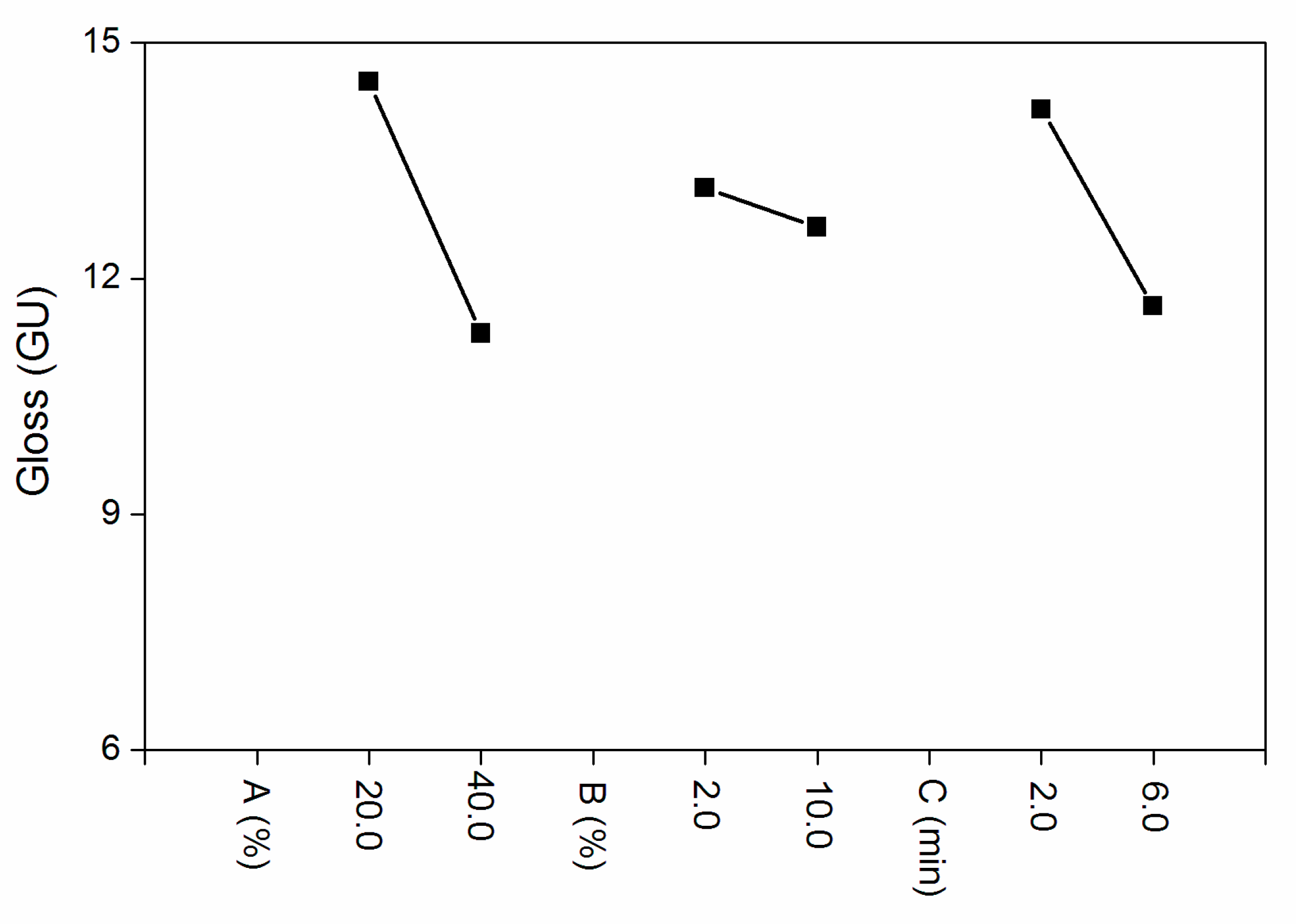

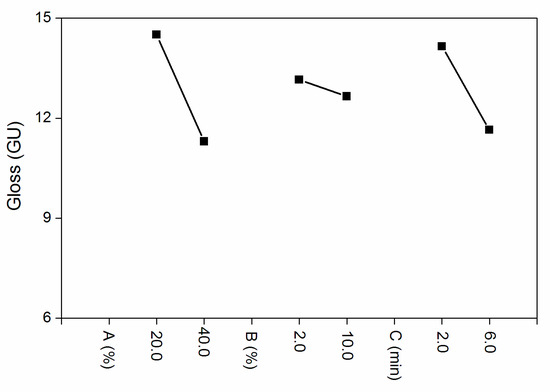

Figure 1. Orthogonal experimental effects of the (A) Al powder, (B) silica slurry concentration and (C) UV drying time.
Figure 1. Orthogonal experimental effects of the (A) Al powder, (B) silica slurry concentration and (C) UV drying time.
Applsci 10 06423 g001
Applsci 10 06423 g002 550

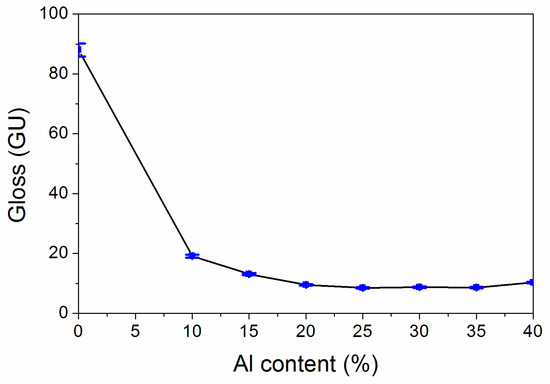

Figure 2. Influence of the Al powder concentration on gloss.
Figure 2. Influence of the Al powder concentration on gloss.
Applsci 10 06423 g002
Applsci 10 06423 g003 550

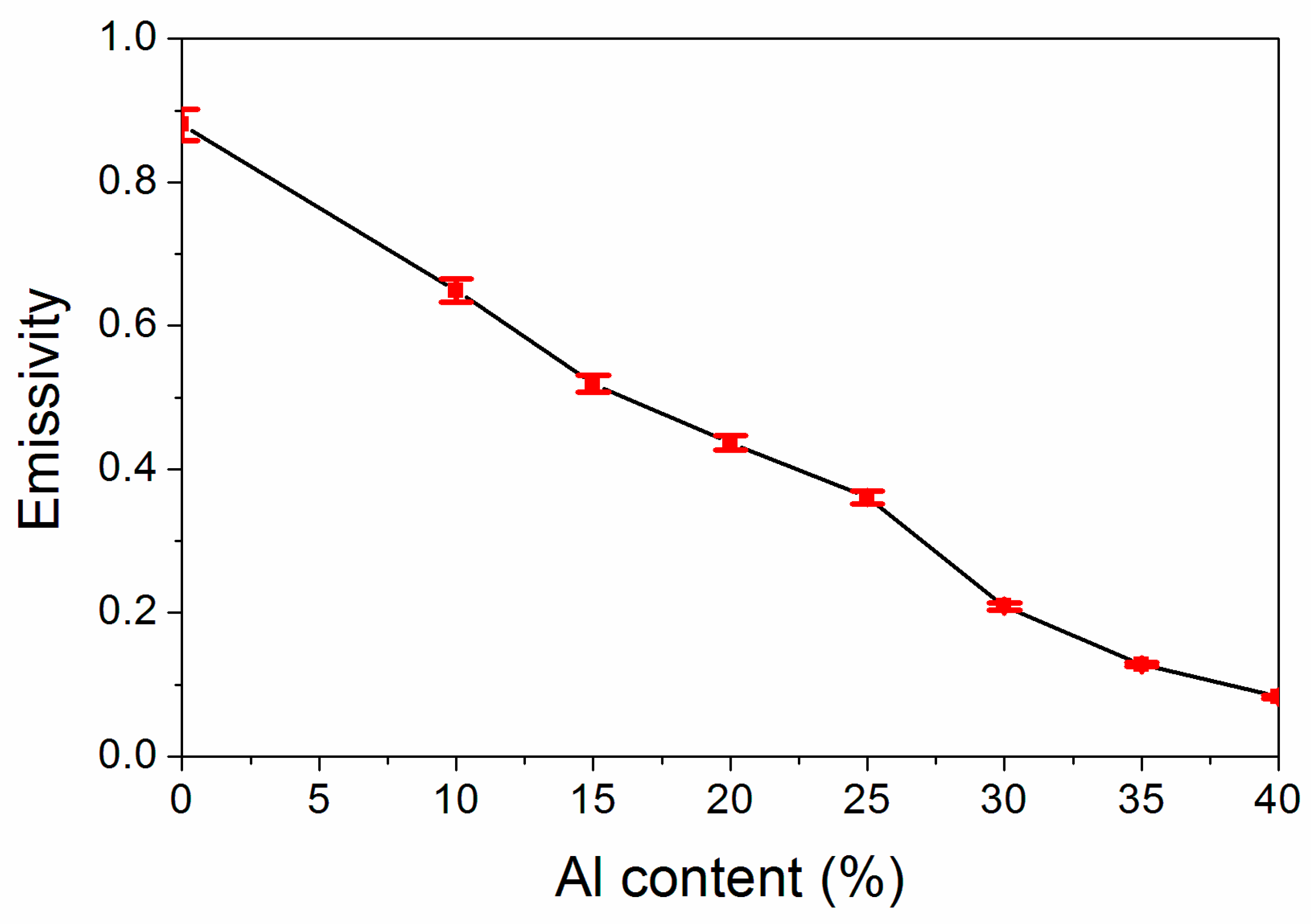

Figure 3. Influence of Al powder concentration on the coating’s infrared emissivity.
Figure 3. Influence of Al powder concentration on the coating’s infrared emissivity.
Applsci 10 06423 g003
Applsci 10 06423 g004 550

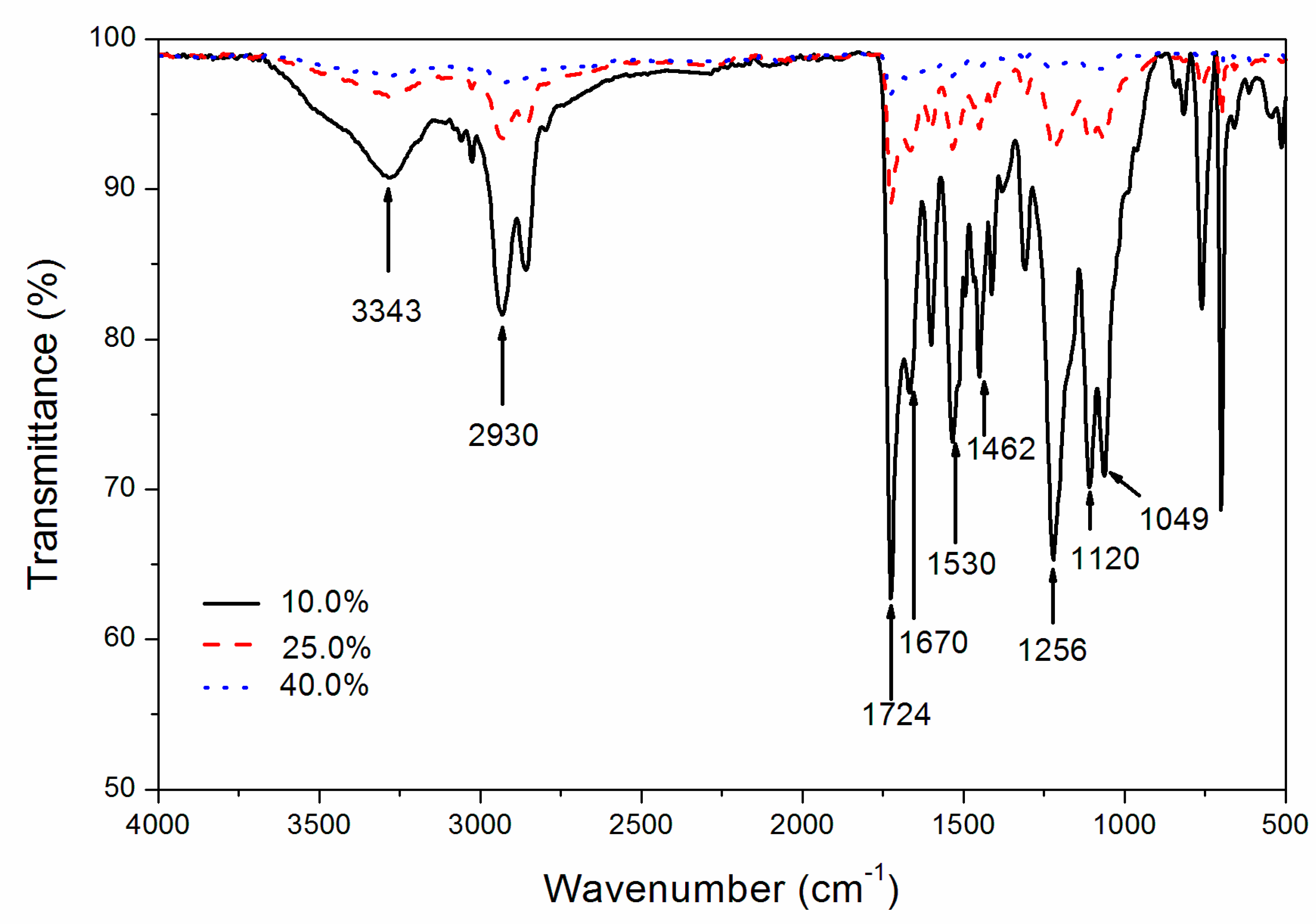

Figure 4. Influence of the Al powder concentration on the infrared spectrum.
Figure 4. Influence of the Al powder concentration on the infrared spectrum.
Applsci 10 06423 g004
Applsci 10 06423 g005 550

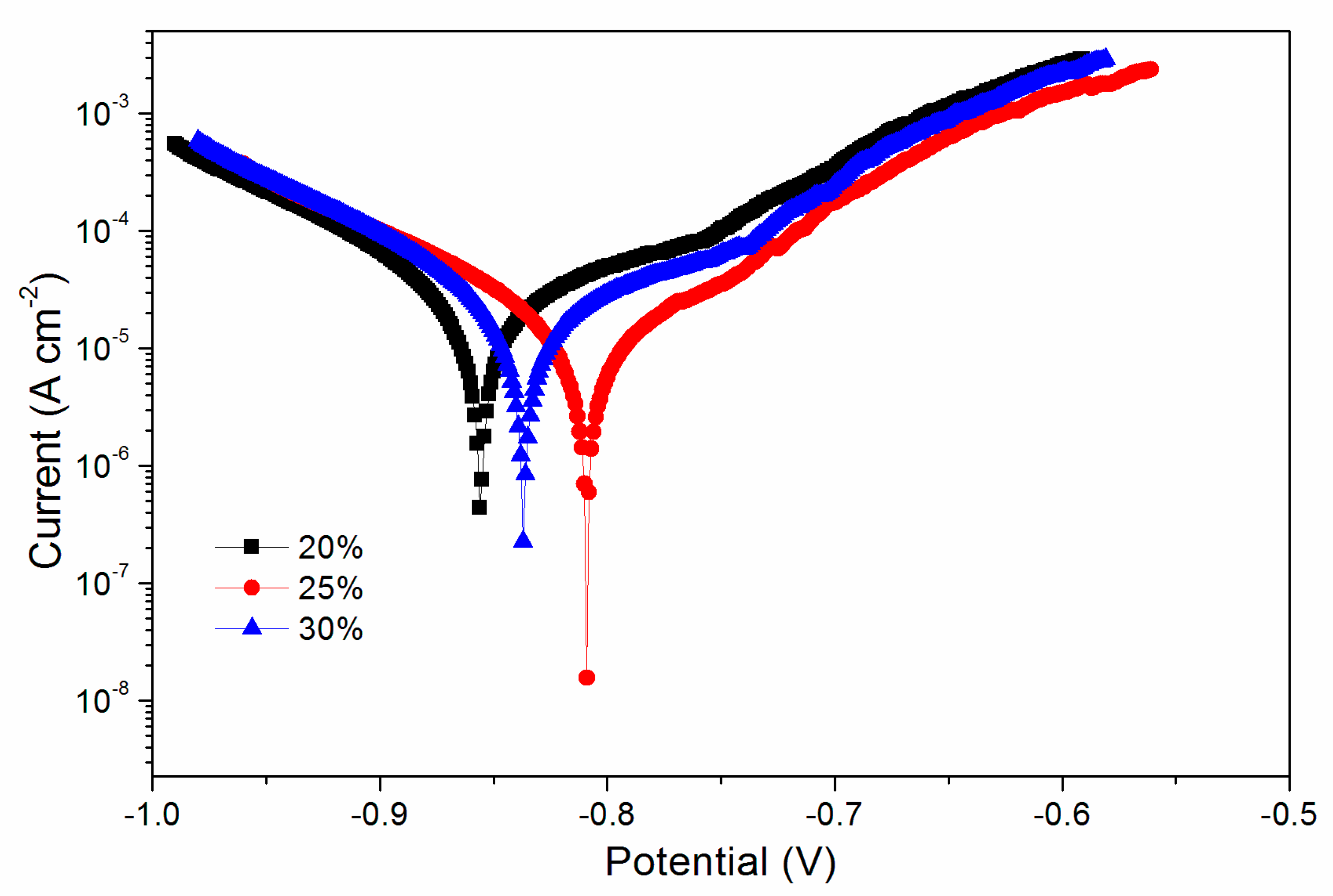

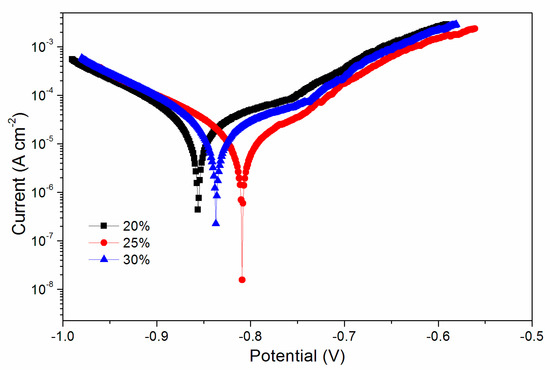

Figure 5. Electrochemical curve of the coating with an Al powder concentration of 20.0%, 25.0% and 30.0%.
Figure 5. Electrochemical curve of the coating with an Al powder concentration of 20.0%, 25.0% and 30.0%.
Applsci 10 06423 g005
Applsci 10 06423 g006 550
Figure 6. SEM of coating with Al powder: (A) 20.0%, (B) 25.0% and (C) 30.0%.
Figure 6. SEM of coating with Al powder: (A) 20.0%, (B) 25.0% and (C) 30.0%.
Applsci 10 06423 g006
Table
Table 1. Configuration information of the waterborne UV/Al low infrared emissivity coating.
Table 1. Configuration information of the waterborne UV/Al low infrared emissivity coating.
Sample (#)IPDI (g)HM (g)DMPA (g)TGD (g)TBDPO (g)PED (g)KH560 (g)Al Powder (g)Nano Silica Slurry (g)Drying Time (min)
126.622.84.47.63.0411.62.020.02.02.0
223.820.43.96.82.7210.32.020.010.06.0
319.616.83.25.62.248.52.040.02.06.0
416.814.42.84.81.927.32.040.010.02.0
530.125.85.08.63.4413.12.010.02.06.0
628.324.34.78.13.2412.32.015.02.06.0
726.622.84.47.63.0411.62.020.02.06.0
824.821.34.17.12.8410.82.025.02.06.0
923.119.83.86.62.6410.02.030.02.06.0
1021.318.33.56.12.449.32.035.02.06.0
1119.616.83.25.62.248.52.040.02.06.0
Table
Table 2. Orthogonal experiment table for gloss.
Table 2. Orthogonal experiment table for gloss.
Samples (#)Al Powder (%)Silica Slurry (%)UV Curing Time (min)60° Gloss (GU)
120.02.02.016.0
220.010.06.013.0
340.02.06.010.3
440.010.02.012.3
k114.513.1514.15
k211.312.6511.65
range3.20.52.5
Table
Table 3. Interaction table between the silica slurry and Al powder.
Table 3. Interaction table between the silica slurry and Al powder.
Silica Slurry (%)Al Powder (%)
20.040.0
2.016.012.3
10.010.313.0
Table
Table 4. F tests.
Table 4. F tests.
FactorSum of Squares of DeviationsFreedomF RatioF Critical ValueSignificance
Al powder (%)10.24011.638161.000—
Silica slurry (%)0.25010.040161.000—
UV drying time (min)6.25011.000161.000—
Table
Table 5. Influence of the Al powder concentration on the L’ value of the coating.
Table 5. Influence of the Al powder concentration on the L’ value of the coating.
Al Powder Concentration (%)La*b*L’a*’b*’ΔLΔa*Δb*ΔE
025.9 ± 0.35.2 ± 0.1−3.1 ± 0.237.6 ± 0.56.9 ± 0.2−12.1 ± 0.411.7 ± 0.21.7 ± 0.0−9.0 ± 0.214.9 ± 0.2
10.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.265.8 ± 0.12.3 ± 0−2.9 ± 039.9 ± 0.4−2.9 ± 00.2 ± 040.0 ± 1.3
15.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.269.1 ± 0.41.8 ± 0−2.7 ± 043.2 ± 0.5−3.4 ± 0.20.4 ± 043.3 ± 0.9
20.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.271.9 ± 0.52.0 ± 0−3.7 ± 046.0 ± 1.9−3.2 ± 0.2−0.6 ± 046.1 ± 0
25.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.274.7 ± 0.52.3 ± 0−3.9 ± 048.8 ± 0.3−2.9 ± 0.2−0.8 ± 048.9 ± 0.3
30.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.275.2 ± 0.12.1 ± 0−3.7 ± 049.3 ± 1.2−3.1 ± 0.2−0.6 ± 049.4 ± 1.7
35.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.275.5 ± 0.32.9 ± 0−5.1 ± 0.149.6 ± 0.1−2.3 ± 0.1−2.0 ± 049.7 ± 1.2
40.025.9 ± 0.35.2 ± 0.1−3.1 ± 0.276.8 ± 0.63.2 ± 0−5.8 ± 0.150.9 ± 1.2−2.0 ± 0.1−2.7 ± 051.0 ± 1.4
Table
Table 6. Effect of the Al powder concentration on hardness, adhesion and impact resistance.
Table 6. Effect of the Al powder concentration on hardness, adhesion and impact resistance.
Al Powder Concentration (%)HardnessAdhesion (level)Impact Resistance (kg cm)
0H ± 03 ± 025.00 ± 0.02
10.06H ± 00 ± 050.00 ± 0.20
15.06H ± 00 ± 050.00 ± 0.20
20.06H ± 00 ± 050.00 ± 0.10
25.06H ± 00 ± 050.00 ± 0.40
30.06H ± 00 ± 050.00 ± 0.36
35.06H ± 00 ± 050.00 ± 0.30
40.06H ± 00 ± 050.00 ± 0.28
Table
Table 7. Assignment of the bands.
Table 7. Assignment of the bands.
Band (cm−1)Assignment
3343-OH stretching vibration
1724C=O absorption
1530N–H bending vibration of the amide Ⅱ band
1670C=C absorption
2930, 1642-CH absorption
1049, 1120C–O absorption
1256N–C–O stretching vibration
Table
Table 8. Influence of the Al powder concentration on corrosion resistance.
Table 8. Influence of the Al powder concentration on corrosion resistance.
Al Powder Concentration (%)Ecorr (V)Rp (Ω/cm2)Icorr (A/cm2)βa (mV/dec)βc (mV/dec)
20.0−0.856883.62.992 × 10−5139.0108.0
25.0−0.8091534.41.250 × 10−570.8117.0
30.0−0.8371026.22.276 × 10−5107.0108.0
Table
Table 9. Performance comparison of the waterborne UV-based coating with epoxy-lacquer-based coatings, PU-based coatings and waterborne acrylic-based coatings.
Table 9. Performance comparison of the waterborne UV-based coating with epoxy-lacquer-based coatings, PU-based coatings and waterborne acrylic-based coatings.
CoatingFiller Concentration (%)EmissivityGloss (GU)Adhesion (level)Impact Resistance (kg cm)
Epoxy-lacquer/Al30.00.0655.7150.0
PU/Cu50.00.10045.2320.0
PU/(ball-milled Ag-Cu)50.00.12935.6320.0
PU/Al40.00.06838.3140.0
Al/waterborne acrylic coating30.00.1137.7015.0
Waterborne UV/Al25.00.3618.5050.0

Share and Cite

MDPI and ACS Style

Yan, X.; Wang, L. Preparation and Performance of a Waterborne UV/Al Low Infrared Emissivity Coating. Appl. Sci. 2020, 10, 6423. https://doi.org/10.3390/app10186423

AMA Style

Yan X, Wang L. Preparation and Performance of a Waterborne UV/Al Low Infrared Emissivity Coating. Applied Sciences. 2020; 10(18):6423. https://doi.org/10.3390/app10186423

Chicago/Turabian Style

Yan, Xiaoxing, and Lin Wang. 2020. "Preparation and Performance of a Waterborne UV/Al Low Infrared Emissivity Coating" Applied Sciences 10, no. 18: 6423. https://doi.org/10.3390/app10186423

APA Style

Yan, X., & Wang, L. (2020). Preparation and Performance of a Waterborne UV/Al Low Infrared Emissivity Coating. Applied Sciences, 10(18), 6423. https://doi.org/10.3390/app10186423

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
