Appl. Sci. 2020, 10(14), 5018;
Submission received: 17 June 2020 / Revised: 10 July 2020 / Accepted: 15 July 2020 / Published: 21 July 2020
(This article belongs to the Special Issue Recent Advances in Smart Mining Technology)


In this study, applications of the Arduino platform in the mining industry were reviewed. Arduino, a representative and popular open-source hardware, can acquire information from various sensors, transmit data using communication technology, and control devices through actuators. The review was conducted by classifying previous studies into three types of Arduino applications: field monitoring systems, wearable systems, and autonomous systems. With regard to field monitoring systems, most studies in mines were classified as atmospheric or geotechnical monitoring. In wearable systems, the health status of the miner was an important consideration, in addition to the environmental conditions of the mine. Arduino can be a useful tool as an initial prototype for autonomous mine systems. Arduino has advantages in that it can be combined with various electronic products and is cost-effective. Therefore, although many studies have been conducted in the laboratory (as opposed to field tests), Arduino applications can be further expanded in the mining field in the future.

1. Introduction

In the fourth industrial revolution, information and communication technologies such as the Internet of Things (IoT), artificial intelligence, big data, 3D printing, and robotics have played important roles in various fields. To increase safety and productivity in the mining industry, smart mining technologies combining the above-mentioned technologies have been developed [1,2]. Mining equipment, such as drills, trucks, shovels, and conveyors, can be automated, and various valuable data can be collected from them. However, they are expensive and difficult to use in small mining companies. Therefore, recently, attempts have been made to utilize inexpensive open-source technology for mining. Open-source technology has provided key building blocks for interoperability and flexibility and is expected to play a key role in the future [3]. Since the 90s, the term “open-source” has been used to describe free software, i.e., the public can use the source code freely [4]. Many open-source organizations, such as the Apache Software Foundation, Linux Professional Institute, Eclipse Foundation, and Mozilla Foundation, have successfully used open-source technology in industry [5]. Recently, in addition to open-source software, open-source hardware has also been employed in various fields, including the mining industry. Open-source hardware refers to the design specifications of a physical object that can be studied, modified, produced, and distributed by anyone [6]. With permissive licenses, open-source hardware can be freely redistributed and modified, helping manufacturers to accelerate design and improve interoperability, by supporting faster prototyping and customization of reprogrammable components [7]. In addition, open-source hardware can be a low-cost alternative to scientific instrumentation and research requiring the collection of data for a particular process or event [8].
Open-source hardware has been used in many sectors, such as in education [9,10,11], agriculture [12,13,14,15,16,17,18], ecology [19,20], and energy [8,21] and is continuously expanding, owing to its advantages regarding self-development objectives and higher cost efficiencies [22]. Numerous open-source hardware projects exist in sectors such as computer systems, communications, robotics, machines and production tools, and science, as shown in Table 1 [23]. In particular, there are many types of open-source computing hardware related to computer systems. [24]. Therefore, it is impossible to manage all types of open-source hardware. Accordingly, this study targets Arduino, one of the most popular open-source computing hardware platforms.
Arduino is an open-source electronics platform created at the Ivrea Interaction Design Institute. It consists of a programmable microcontroller mounted on a circuit board. Arduino can convert input information obtained from a connected sensor to output and extend functionality through add-on boards called “shields.” It can perform physical control by using an actuator such as a motor or light-emitting diode (LED). Arduino is relatively inexpensive compared to other microcontroller platforms and is sufficiently versatile to run on Windows, Macintosh OSX, and Linux operating systems [25]. The language of Arduino software can be extended through C++ libraries, and the Arduino hardware is also extensible, i.e., users can develop their own version of the module. As a result, researchers have made low-cost instruments suitable for their needs by utilizing the Arduino platform.
Recently, the research and development of products for IoT applications, wearables, and automation using the Arduino board have been increasing in the mining industry [26,27]. For example, Jo and Khan [28] monitored the environment of an underground mine by connecting gas, temperature, and humidity sensors to an Arduino Mega and installing them on site. The results were transmitted to a base station via Bluetooth low energy (BLE). In addition, the BLE-based Arduino Mega board was used to track the location of a miner, in connection with a mobile node. Arduino can play important roles in wearable systems, e.g., in recognizing the condition of mine workers, as well as environmental information in mines. Alam et al. [29] designed a prototype intelligent helmet using Arduino Mega for heart rate and air quality monitoring. Information such as the mine worker’s heart rate and the gas, temperature, and humidity inside the mine was obtained from the sensors of the intelligent helmet. The results were transferred to a storage device using the ZigBee module and could be used to provide an alarm through a screen and/or buzzer. The number of Arduino applications in autonomous systems is also increasing. Sakthi et al. [30] used Arduino UNO to automate bucket control for a load haul dumper (LHD). The bucket control module controlled a bucket actuator after detecting forces in the boom using a pressure sensor connected to the Arduino UNO. Although many studies have been conducted, no use cases for the Arduino open-source hardware platform in the mining industry have been reviewed.
Therefore, the purpose of this study is to review the Arduino applications currently used in the mining industry. Keywords (e.g., Arduino, open-source hardware, underground mine, or open-pit mine) were input into the websites of Google Scholar, SCOPUS, and the Web of Science to search for published literature, and 73 articles were found in the first stage. After excluding papers with duplicate content or articles with poor quality, 48 articles were selected for review. Figure 1 shows the literature search process. Although there are many cases where open-source hardware has been used in the mining industry in addition to Arduino, it is impossible to investigate all research related to open-source hardware owing to the wide range of products. Similarly, this study did not target smart mining itself, and the scope of this review was confined to published literature related to Arduino applications in the mining industry. Arduino-based research is currently being used in diverse applications; thus, it can best represent the overall trend. The reviewed literature was classified into studies on field monitoring, wearable systems, and autonomous systems, depending on what the Arduino was used for. This classification was also linked to the functional characteristics and purpose(s) of the Arduino application.

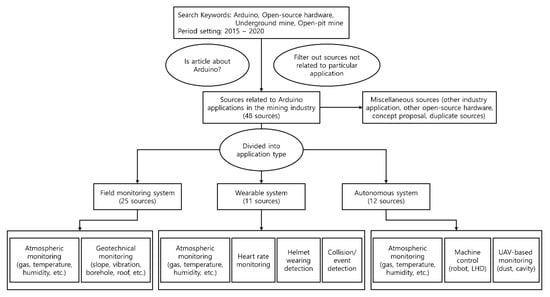

The remainder of this paper is organized as follows. Section 2 describes studies in which Arduino is used in obtaining air quality data or geotechnical data at mining sites. Section 3 reviews how Arduino can be incorporated into wearable systems for various purposes at mine sites. Section 4 addresses studies involving Arduino related to automation, such as unmanned aerial vehicles (UAV) or unmanned robots. In Section 5, all of the papers reviewed in this study are statistically classified, and the trends are discussed according to purpose, mine type, Arduino type, sensor, communication, and actuator. Finally, Section 6 summarizes these articles and presents the implications of this study.

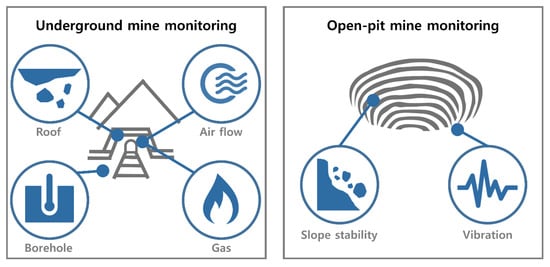

2. Arduino in Field Monitoring Systems

2.1. Overview

Mining operations are exposed to dangerous environments, regardless of whether they are underground mines or open-pit mines. In underground mines, workers can be exposed to toxic gases, and there is a risk of explosion and fire from coal dust. In addition, there is a risk of roof collapse in underground mines and risk of slope collapse in open-pit mines. Therefore, for safety, it is very important to continuously acquire atmospheric data and geotechnical data from the mine to detect dangers in advance. As Arduino can be combined with various sensors and communication technologies, it is very cost-effective and useful for data acquisition based on IoT technology. Based on the reviewed literature, air quality data is usually measured in underground mines, and geotechnical data is usually measured in open-pit mines. The types of monitoring systems discussed in each article are summarized in Table 2. Figure 2 depicts the applications of these monitoring systems according to the type of mine. The microcontrollers used in the reviewed papers were mostly the Arduino UNO and Arduino Mega. The Arduino UNO is the most popular Arduino board; it is powered by the Atmega328 processor and is compatible with most development board shields. The Arduino Mega is powered by the ATmega2560 processor and has more I/O pins and larger memory space than the UNO. However, this can be disadvantageous, as it is more expensive and larger in size. In some studies, the Arduino Nano was used. The Arduino Nano has the same performance as the UNO, but its smaller size makes it suitable for tight environments. However, as compared to the UNO, the disadvantage is that it cannot be combined with Arduino shields [31]. The type of Arduino board discussed in each article is summarized in Table 2.

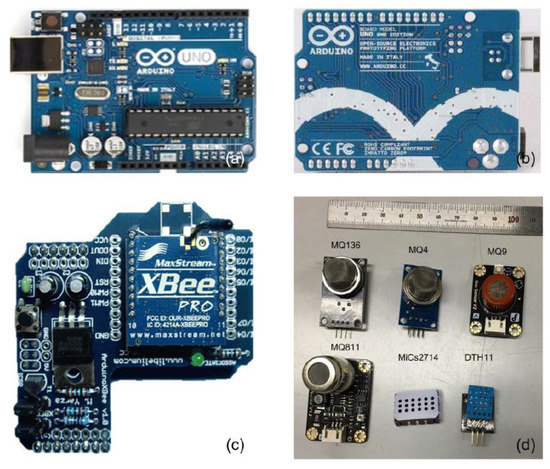

Arduino-compatible sensors can be used (depending on the type of gas) to evaluate the level of gas, which is directly related to worker safety in underground mines. In open-pit mines, geotechnical problems may be more critical than air quality problems, and some studies based on Arduino have been conducted to acquire geotechnical data. As it is difficult to communicate in an underground mine, it is necessary to configure wireless sensor networks (WSNs) to transmit information to the outside. Sensor nodes with computing power can configure a WSN to send data to a main location or sink, where the data can be observed and analyzed [32]. Many of the reviewed studies built WSNs with Arduino-based sensor nodes. Even in open-pit mines, wireless communication instead of physical cables can be useful, in that it is cost-effective and has no physical constraints. For data communication, wireless technologies such as Bluetooth, Wi-Fi, and ZigBee were used. Table 2 summarizes the sensors and wireless communication technologies used in the reviewed studies. Several sensors have been used in many studies to measure atmospheric and geological information. The main functions of these sensors are listed in Table 3.
Some studies are not only concerned with acquiring data, but also address taking additional measures, such as providing alarms using actuators. Table 2 summarizes the actuators used in each study. Most studies in field monitoring systems are directly or indirectly related to safety at the mining site.

2.2. Atmospheric Monitoring

Naidu et al. [33] developed a system for measuring hazardous gases and temperatures in underground mines and providing warning messages using light fidelity (Li-Fi) technology. Li-Fi uses light from the infrared to the near-ultraviolet spectrum. An LM35 sensor was used to measure the temperature in the underground environment, and an MQ2 sensor was used to detect combustible gases such as liquefied petroleum gas (LPG), propane, hydrogen (H2), and methane (CH4). A system using the Arduino UNO as a microcontroller was built in each of the mining and control rooms. The system in the mining area transmitted information to the control room through Li-Fi after measuring the gas and temperature, and the control room served to collect information from multiple mining areas. As Li-Fi was used as the communication technology, this study had the advantage of being secure; there was no interference with radio frequencies. However, there were limitations; only laboratory tests were conducted, without application to actual mines.
Anitha and Seshagiri [34] established a monitoring system based on ZigBee communication for safety in coal mines. The temperature was measured using the LM35 sensor, and the gas was detected using an MQ6 sensor. The MQ6 sensor is used to detect gases such as propane, butane, LPG, and natural gas. In addition, a fire sensor that could detect fires within 1 m was used to prevent fires. The measured value could be checked through a liquid crystal display (LCD), and an alarm could be triggered through a buzzer. The fire could be extinguished using a motor and fan, but the effectiveness of this approach was not verified, as it was not applied to an actual mine site. Using Arduino UNO as a microcontroller, it involved connecting sensors and actuators and building a ZigBee-based WSN. The monitoring system consisted of an underground section and ground section. The underground section acquired and transmitted information, and the ground section received information.

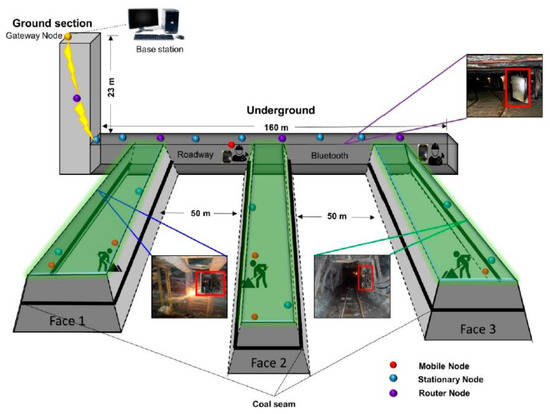

In a similar way, a real-time monitoring system for underground mines [35] was constructed using Arduino UNO and ZigBee modules. In this study, an MQ7 sensor for carbon monoxide (CO) detection, an MQ4 sensor for CH4 detection, an MG811 sensor for carbon dioxide (CO2) detection, and a DHT11 sensor for temperature and humidity were used. When a value above a threshold was measured, it was possible to provide an alert through a buzzer and LCD. The measured value was transmitted to a personal computer through the ZigBee module. However, this study was again conducted only in the laboratory. Although the types of sensors and communication modules are different, similar studies [36,37] in the mining industry are gradually increasing. In underground or abandoned mines, it is generally difficult to supply power through electric wires; thus, these wireless sensor-based systems need to be operated with batteries.
Ünsal et al. [38] analyzed the battery life when sensors such as MQ4, MQ7, MQ9, and DHT22 were connected to an Arduino UNO. In addition, they proposed a method for optimizing the battery life by performing experiments, so that the system could be operated for as long as possible. In general, similar types of sensors are used to measure hazardous gases in mines, but new sensors were proposed and verified by Nath et al. [39]. To detect hazardous gas more efficiently in mines, a nanogas-sensing device was proposed, based on a sol–gel method of depositing gold particles on ZnO, WO3, TiO2, and CuO thin films. As a result of experiments on CH4, H2, and N2 gases, it was reported that the selectivity and sensitivity were improved as compared to existing sensors. The measured values were acquired wirelessly through the Wi-Fi module of the Node MCU (ESP8266), as programmed via the Arduino IDE. If applied to actual mines in the future, the results of this study will improve the accuracy of gas detection in mines. Most air quality monitoring studies have been conducted inside underground mines, but some studies have been conducted to measure air quality outside a mine.
Shah et al. [40] built a monitoring system using the Arduino Mega and a Wi-Fi module (ESP8266) to measure sewer gas discharged through a pipeline. DHT11 and DHT22 sensors were used to measure the temperature and humidity, and gases such as LPG, CH4, CO2, and CO were measured using MQ2, MQ4, MQ135, and MQ7 sensors, respectively. The measurement results are displayed on an LCD and transmitted to the IBM Bluemix, and execution of IBM’s Open Cloud Architecture via Wi-Fi. Rajalakshmi and Vidhya [41] developed a monitoring system for gases emitted from an environment polluted by mining. MQ2 sensors (for flammable gas), MQ7 sensors (for CO), MQ8 sensors (for hydrogen (H2)), and MQ9 sensors (for LPG) were connected to an Arduino UNO, and LM35 sensors were used for temperature measurement. When a measured value reached a dangerous level, an SMS message was transmitted to a mobile phone through a global system for mobile communication (GSM) module. In practice, the main technology applied to gas monitoring outside a mine is not much different from that used in studies in underground mines. However, because communication outside the mine is simpler, it is possible to directly connect to a server, or to send a message from the monitoring system without the construction of a WSN.
The studies discussed above considered approaches that transmit and monitor data in real time. However, it is difficult for mineworkers to respond immediately to dangerous situations based simply on monitoring the current conditions. Therefore, to respond immediately to an emergency, it is necessary to predict and prepare for situations. Some studies are designed to predict or respond to dangerous situations in advance through additional analysis based on monitoring data. Sudila and Elvitigala [42] connected MQ2 and MQ7 gas sensors to an Arduino UNO and installed them as local sensor nodes at different levels of a mine. Each sensor node was connected to an Arduino Mega-based main controlling system and transmitted data to the internet using a GSM module. When a gas sensor value exceeded a threshold, an alarm was triggered through a buzzer, and the gas level was predicted by applying a regression algorithm. The prediction results provided feedback to the system, including gas level fluctuations and predicted the gas inhalations of workers. Some studies have detected anomalies from the measurement of dangerous gases.

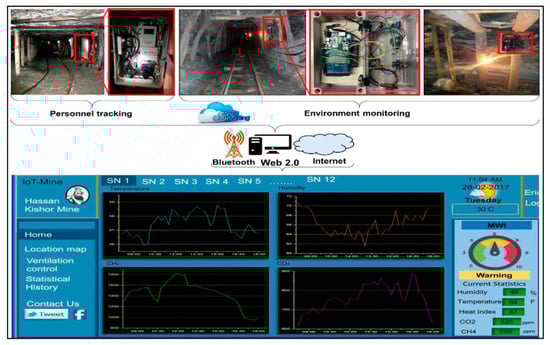

Jo and Khan [28] established an integrated system capable of gas monitoring, miner tracking, and cloud computing for the Hassan Kishore coal mine in Punjab, Pakistan (Figure 3). DTH11, MQ135, MQ9, and MQ4 sensors were connected to an Arduino Mega with a BLE shield to measure the temperature and humidity, CO2, CO, and CH4, respectively. Some stationary nodes for collecting data were connected to router nodes, and the collected data were transmitted to a base station capable of a global internet connection (Figure 4). In addition, by using a mobile node connected through BLE, a miner could send an emergency signal, and the location could be tracked. In this study, a “mine warning index” (MWI) was proposed for comprehensively analyzing the measured values, and abnormal events were detected using K-means clustering. As each stationary node had its own built-in algorithm, event detection was possible even if the node was disconnected from the network.

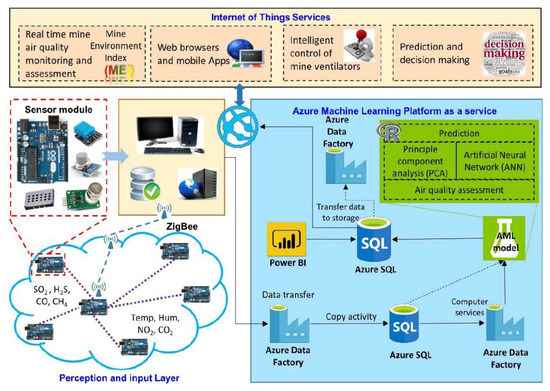

Durán et al. [43] constructed an electronic nose by arranging various gas detection sensors (MQ2, 3, 6–9) into one chamber. The sensors were connected to an Arduino UNO. The electronic nose inhaled and exhaled the gas using two vacuum pumps. After the measured values were transmitted through ZigBee communication, the types of gas were classified using principal component analysis (PCA) and linear discriminant analysis. As a result of classifying butane, CH4, CO, and mixed gases using the measured values, the system demonstrated a classification accuracy of approximately 97%. As even one type of sensor can be sensitive to multiple gases, this analysis was expected to help in identifying harmful gases. Although the study was conducted for application in coal mines, it was only tested in the laboratory.
Jo and Khan [44] also used PCA to identify the most influential gases among CH4, CO, sulfur dioxide (SO2), and hydrogen sulfide (H2S) in an actual underground coal mine (Shangwan Coal Mine, Erdos, China). The PCA results were used as variables of an artificial neural network (ANN), to predict future air pollution. To obtain the data necessary for PCA analysis, some sensors (DHT11, MQ4, MQ9, MG811, MQ136, and MiCs2714) were connected to the Arduino UNO (Figure 5), and the data were transferred to the Azure machine learning (AML) platform using a ZigBee communication module (Figure 6). Although Arduino does not directly perform PCA or ANN analysis, an IoT system based on Arduino can interact with an AML platform in real time. To detect flammable and toxic gases, such as H2, CH4, and CO, Mondal et al. [45] used an ANN-based pattern recognition technique. An array of ZnO-based sensors was fabricated in the laboratory and was used to measure gas concentrations. A feed-forward back-propagation neural network was used for the classification of the gases at critical concentrations. The optimized ANN was implemented in an Arduino Due based on the Atmel (SAM3X8E ARM Cortex-M3 CPU) 32-bit ARM core microcontroller. The results of this experiment were verified under laboratory conditions. These studies monitored air quality and produced new information through additional analysis of the data. These results can help prepare for risks, by providing more useful information to mineworkers. However, most of them only interpret information regarding air quality and do not provide information on how to manage possible dangers.
Several studies have modeled situations for ventilation or escape from underground mines using atmospheric data. These results can help miners manage serious problems. To analyze the ventilation networks in small-scale underground mines, Rodriguez-Diaz et al. [46] used an Arduino Mega board with various types of sensors. The network, scaled down to a 1:500 scale, was configured using pipes; centrifugal fans were used as actuators to drive the air flow. A hot wire sensor, mass flow sensor, and orifice plate sensor were used to measure the air flow. As a result, it was possible to effectively observe the air flow and control the ventilation system; however, this study has not been applied to various other gases. In addition, it is necessary to apply the study to real mine sites.
Adjiski et al. [47] simulated CO inhalation as a carboxyhemoglobin (COHb) level (%) according to the escape route when a fire occurred in an underground mine. Arduino Nano 3.0 and MQ7 sensors were used to detect CO and to transmit the measured values to a mobile phone through a Bluetooth module. The COHb level was predicted from an application installed on the mobile phone, thereby suggesting a suitable escape route. Adjiski et al. [48] further developed this study, in conjunction with other software. An Arduino board was used for monitoring and transmitting data. Thus, the role of Arduino was similar to that of the previous study, but a specific situation was simulated in three dimensions using VentFIRE (a part of the ventilation software Ventsim (Howden, Australia)). In addition, a scaled-down model was constructed for testing the monitoring and alarm system using Arduino. As a result, the mobile application connected with the Arduino suggested a proper location for a self-rescuer device according to the data and could provide a warning when a dangerous situation occurred. To evaluate potentially explosive areas in underground coal mines, Pop et al. [49] considered three conditions potentially affecting the explosion (i.e., flammable material, sufficient oxygen, and energy supply). An MQ2 sensor was connected to an Arduino UNO to measure CH4, and a WSN was configured via ZigBee. A probabilistic strategy was presented by analyzing the measured data and other conditions to simulate a potential area.

2.3. Geotechnical Monitoring

To prevent disasters in the mining industry caused by ground movements, applications in electronics, instrumentation, and computer science are very important [57]. To precisely measure ground movements, expensive instruments have generally been required. However, relatively low-cost auxiliary sensors combined with Arduino are becoming more useful. In addition, there have been some cases where communication using Arduino has been used to transmit data obtained from precise instruments and other sensors.
Slope stability is a major geological problem in open-pit mines. Several studies have reported on Arduino applications for ensuring the slope stability of open-pit mines. Jayanthu et al. [50] monitored the ground deformation of a slope of the Dongri Buzurg open-pit mine (India) using time domain reflectometry (TDR). TDR, a cable-based radar approach, measures a change in cable impedance when a cable is deformed by ground movements. In the study, the measured value was transmitted to an office in real time through an Arduino Mega combined with a ZigBee module (Xbee Pro). In addition, to select the appropriate installation benches for the monitoring instrument, the results of the ZigBee module range test and numerical modeling were considered [51].
A similar study using products with the same specifications was conducted at the Panna Diamond Mine (National Mineral Development Corporation Ltd., India) [52]. In this study, various conditions and communication ranges were tested, so that the developed system could be applied to typical mines. Jayanthu et al. [53] monitored the angle of a surface slope in the Dongri Buzurg open-pit mine using an Arduino UNO and accelerometers (ADXL345); this approach was cheaper than TDR. By installing multiple accelerometers and constructing a dense network, it was possible to detect rock movements that were difficult for certain precise instruments to detect. The measured values were transmitted to mobile or related platforms using a GSM module (SIM800). In the mining industry, slope stability is closely related to blasting. The ground vibration induced by blasting can cause severe damage to the surrounding structures and slopes.
Prashanth and Nimaje [54] measured peak particle velocity (PPV) by connecting an accelerometer (ADXL335) with an Arduino UNO. Compared to existing instruments connected by cables, which are expensive and cannot transmit information in real time, the proposed system was able to monitor PPV using the GSM module cost-effectively. Monitoring was conducted for 11 d at a mine in India. As a result, it was observed that as the distance from the blast face increased, the PPV value tended to decrease.
Research on geotechnical monitoring has yet to focus on open-pit mines. However, there have been some articles on the use of Arduino to understand the geological states in underground mines. In particular, roof-falls in underground mines can be a fatal danger to mineworkers; Arduino is being used in attempts to prevent this. Tiwari et al. [55] developed a wireless borehole extensometer using an acoustic wave propagation technique employing ultrasonic sensors, an Arduino UNO, and ZigBee modules. The ultrasonic sensors were connected to the Arduino and detected changes in the borehole by calculating the distance between the device and stratum. However, as this experiment was only tested on polyvinyl chloride pipes, field validation is required for practical use.
Alzahrani [56] developed an integrated system for detecting roof movements and providing warning notifications in underground mines. To test whether an inexpensive Light detection and ranging (LiDAR) sensor (M16 scanner) could detect ground movements, a rock displacement simulator controllable at a submillimeter resolution was developed. An electromechanical linear actuator (EZC4-05M, Oriental Motor USA Corporation) was connected to an Arduino UNO using a stepper motor controller. The measured distance was checked through an LCD, and remote control and data transmission was possible using the ZigBee module. As a result of the experiment, anomalies were included in the measured values, but they could be removed through statistical analysis. As a result, the M16 scanner could detect a simulated target plate profile with a precision between 0.1 mm and 3 mm per integration period. However, as this approach was only applied to a controlled experiment, it needs to be applied to a real mine.

3. Arduino in Wearable Systems

3.1. Overview

Numerous accidents in underground mines (mainly coal mines) are caused by gas leakages, roof collapses, collisions with equipment, low oxygen concentrations, and other operating conditions. Thus, the mining industry has attempted to monitor positions of equipment, environmental quality, and ground vulnerability and to inform mine workers of this information to secure their safety and health. Toward this aim, in addition to field monitoring methods, various wearable devices and technologies for mine workers have recently been developed [58], particularly since Google Inc. launched head-mounted displays. The purpose of wearable device-based monitoring is similar to that of the aforementioned field monitoring. However, there are differences between the two systems, in that the measured value from the wearable system is more realistic to miners; an alarm can be activated immediately. A wearable safety management system in a mine environment can play a vital role in reducing the risk of accidents and in ensuring the safety and health of each miner. In this process, the Arduino has been applied in the mining industry as a controller for connecting sensing to an actuator, to develop wearable safety management systems such as a (smart or intelligent) helmet or belt.

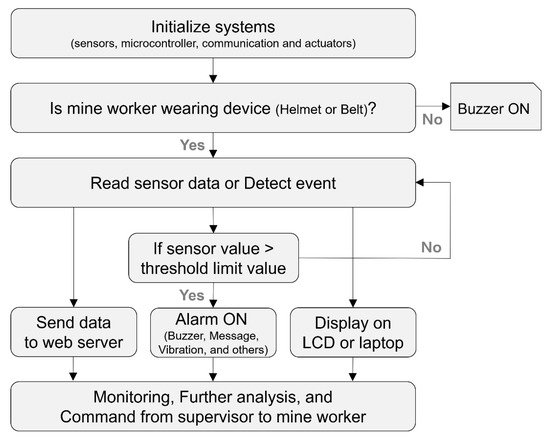

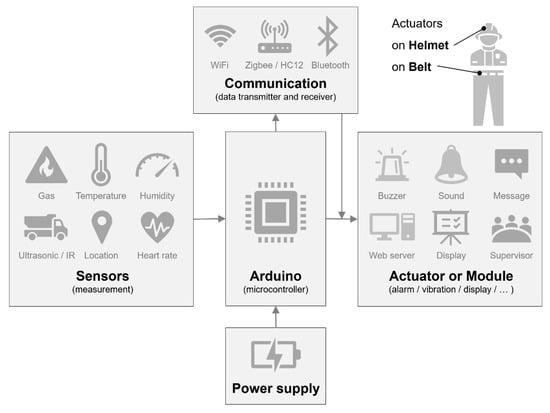

Most wearable systems using Arduino in the mining industry consist of four parts: sensor, microcontroller (Arduino board), communication, and actuator elements (Figure 7).
  • The sensor in wearable systems is closely related to the purpose of the system being developed. Various types of sensors are available on the market and are usually found on consumer wearable devices according to the intended application, such as environmental sensors, biosensors, and position tracking sensors. These sensors are embedded in wearable devices for observing or measuring real-time underground parameters, such as the gas concentration, temperature, humidity, atmospheric pressure, oxygen concentration (for air quality or air density monitoring purposes), piezoelectric characteristics (for device wearing status monitoring purposes), vibrations (for destructive event or collision detection purpose), human heart rates or pulse rates (for human biocharacteristics monitoring purposes), and positions of machines or workers (for location monitoring purposes).
  • The microcontroller serves as a platform for receiving the data measured by sensors (sensor output) and for transmitting the data to monitoring stations through wireless communication or actuating a device (e.g., providing alarms such as a buzzer) under specific conditions (called threshold limit values or critical safety values) using the measured data, based on coding or programming an Arduino IDE or Python. Arduino is a widely used hardware with low power usage and an easy-to-use open-source software platform for most electronics projects. Thus, the Arduino Mega, Arduino Nano, and Arduino UNO board (models) are frequently used to control microcontroller boards in systems.
  • A wireless communication function is necessary to transmit data to a remote office or web server at a control station, as a communication network is generally not installed in underground mines. To establish a wireless communication network, various wireless communication technologies for data transmission and receiving have been utilized in the reviewed published literature, such as ZigBee, Bluetooth, and radio frequency identification.
  • An actuator refers to something (e.g., wearable device) that actuates something else (e.g., a sound, message, display, or vibration). In particular, an actuator is usually an electric device that causes a mechanical device to switch in some fashion. Various wearable devices have been developed, such as smartwatches, smart eyewear, fitness trackers, smart clothing, and wearable cameras, according to their functional properties and capabilities (Figure 8) [58]. However, most of the studies reviewed in this section employed a (smart) helmet as an actuator. The reason for this is as follows. All mine workers must wear a helmet during work hours for safety, regardless of the type of mine. Therefore, designing a system on a helmet has an advantage in that miners can always wear it, and it can reduce unnecessary costs, e.g., purchasing other wearable equipment.
In this wearable systems section, 13 papers were reviewed. Table 4 summarizes the Arduino applications for wearable safety management systems. All of the studies reviewed in this section were applied in underground mines (mostly underground coal mines, owing to gas leakage and ground instability). According to the sensing items of the wearable devices, the published literature on applications of Arduino in wearable systems in underground mines are divided into those regarding surrounding (in situ) information and those regarding human bioinformation.

3.2. Surrounding Information

Surrounding information refers to information on the underground mine environment, such as that regarding the air quality (e.g., gas concentration, temperature, humidity, and air density), collisions, and destructive events (vibrations, ultrasonic events, and ground stability). Most studies on the development of wearable systems with Arduino for surrounding information have employed a smart helmet as an actuator. One case, using a belt, was also reported to trigger a buzzer, message, and display, in addition to other forms of alarms.
Some studies have been published on the development of wearable systems for measuring the air quality in underground coal mines and providing alerts. Majee [59] proposed IoT-based automation of the safety and monitoring system operations in underground coal mines, as several workers have lost their lives owing to the absence of means of communication in emergency situations inside mines. To monitor air quality and air density via a helmet-type system, various sensors have been embedded in an Arduino Nano board (ATmega328), such as gas sensors (MQ2 for combustible gas and smoke, MQ4 for methane, butane, and natural gas, and MQ135 for sulfides, benzene, and ammonia), air density, temperature, and humidity (DHT11). This study utilized ZigBee technology and the ESP8266 Wi-Fi module as a wireless transmission network for transferring the measured data from the helmets of workers to a web server (central hub station). If a sensor measurement value exceeded the threshold limit value, as in the example in Table 5 (these values may vary depending on the study), an alarm sounded in the helmet to alert the worker. Similarly, Harshitha et al. [60] suggested a ZigBee-based intelligent helmet for coal miner safety purposes. The air quality was monitored using a gas sensor (MQ2), temperature sensor (LM35), and humidity sensor (DHT11). The three sensors were connected to an Arduino UNO board (ATmega328P) to activate a buzzer when the measurements exceeded certain levels (e.g., temperature >40 °C). In addition, the measured values were transmitted to a web server at a control station using ZigBee wireless communication technology, to enable further analysis and/or monitoring.
Based on an air quality monitoring function, Roja and Srihari [61] proposed a smart helmet system for indicating whether miners were wearing their helmets or not. Similar to the aforementioned study, they selected the Arduino UNO board as a microcontroller and used two gas sensors (MQ6 and MQ7 for CO and CO2, respectively). In addition, an infrared (IR) ray sensor was used to recognize the status of helmet removal. The IR sensor was laid out to transmit a continual signal from one end. If the signal was obstructed, it indicated that the mine worker was wearing a helmet; otherwise, the miner was not wearing it. For the wireless transmission of data, this study employed a GSM modem (SIM800L), a specialized type of wireless modem that works with a GSM wireless network. As actuators, a piezo buzzer on a helmet and LCD were used. To trigger the piezo buzzer, a sound generator used in electronic circuits and piezoelectric sensors were used. The measured data were displayed on the LCD.
In addition to monitoring the air quality in underground mines, some studies have reported the development of wearable systems for preventing collisions with equipment or uneven roofs. Bhuttoa et al. [62] developed a leather belt-type safety management system for measuring air quality and detecting collisions with various mining equipment or machines. Toward this aim, this study employed an Arduino Nano board and a prototype ultrasonic sensor (HC-SR04) for distance measurements between a worker (belt) and a machine, in addition to a gas sensor (MQ2) and temperature and humidity sensor (DHT11). The ultrasonic sensor-generated high-frequency sound waves and evaluated the echo received by the sensor for distance measurement. It could accurately measure distances ranging from 2 cm to 400 cm, with a resolution of 0.3 cm. The measurement angle was 30°. The experimental results showed that the detection rate by the safety device for a motor car at 3 m was 95%, and that at 2.5 m was 97%. The detection rates at 2, 1.5, 1, and 0.5 m were all found to be 100%. Moreover, an Arduino Nano board (ATMEGA32) connected to the ultrasonic sensor was used to acquire the data and to activate a buzzer on the belt. From these results, it can be concluded that the proposed wearable device can be used for collision avoidance.
Noorin and Suma [63] developed an IoT-based helmet-type safety management system for monitoring air quality and detecting collisions with uneven roofs in underground mines. A gas sensor (MQ4), temperature and humidity sensor (DHT11), and collision detection vibration sensor (SW420) were connected to an Arduino Nano board within a Wi-Fi wireless sensor network. Using the wireless sensor network, various sensor data with alerts were transmitted to a supervisor at a control station. The levels of temperature and humidity were communicated to the miner by displaying them on a helmet. In the case of gas, a threshold was set, and a buzzer alert was activated if the gas value was beyond the threshold limit value. Additionally, uneven roofs in underground mines can be dangerous to humans, e.g., by causing head injuries. Before a hit on a miner’s head occurs, it is essential to detect it. To address this problem, a vibration sensor (SW420) was used. It was a closed-type vibration sensor and provided a clear digital output for currents above 15 mA. The threshold was set by using a comparator with the sensor. In addition, a circuit was built in a proposed helmet for enabling the data to be provided as “1” or “0” according to the status of wearing the helmet; this was because all of the factors could only be noted if the miners were wearing the helmets.

3.3. Human Bioinformation

Human bioinformation refers to information related to the status of human health, such as heart rate/pulse rate (hereafter heart rate), blood pressure, glucose level, and electrocardiogram data. In fact, these types of biosensors have expanded with the increasing demand for human health monitoring. These sensors can continuously provide data on human health status, and thus, people can prevent disease. A heart rate monitoring sensor is frequently used to measure the electrical activity of the heart.
The main purpose of most studies addressing human bioinformation reviewed in this section is to monitor the heart rate using a sensor. This is because gas leakages, oxygen concentration reductions, and rapid temperature and humidity changes in underground mine environments can adversely affect the health of mine workers. Naturally, the proposed wearable systems also include functions for measuring air quality or detecting collisions in underground mine environments. Wearable systems for connecting the heart rate sensors used in the mining industry with field monitoring systems or unmanned aerial systems are difficult to develop. Furthermore, unlike systems that collect surrounding information, e.g., in the case of a wearable system for measuring human bioinformation, an actuator is configured so that the measured data is always transmitted to a supervisor or a ground control station, to check the status of the miner in real time (Figure 9).
Recently, many researchers have proposed wearable systems for connecting heart rate sensors, to check the heart rates of miners working in underground mines. Herein, these studies are classified according to the type of actuator, such as data transmission to a control center, vibrating belt, or helmet with both alarm and data transmission functions.
Priyadarsini et al. [64] developed a LabVIEW-based real-time heart rate monitoring kit for coal mine workers. They connected an ECG sensor (AD8232) to an Arduino UNO board (ATmega328) to check the electrical behavior of the heart. The ECG sensor pad was attached to human skin (e.g., the wrist or elbow) and measured the biopotentials produced by the heart (electrocardiogram) or other biopotentials from the human body. The device monitored the heart rates and analyzed the health conditions of workers using LabVIEW software. LabVIEW was used as an integration platform for acquiring, processing, and transmitting the data in the study. The analyzed data could be continuously monitored by the authority of the control station. If a worker was suffocating owing to an abnormal mining environment, a webpage would immediately pop up. LabVIEW continuously compared the sensed value with the predefined threshold limit value, and then provided an alert indication signal according to the heart rate of the worker. Via LabVIEW, the processed data could be transmitted to servers or webpages.
Dudwadkar et al. [65] proposed a design for a wireless mine surveillance system using Arduino and ZigBee (XBEE) technology. They measured not only the gas concentration using the MQ35 sensor, temperature, and humidity using a DHT11 sensor, but also the heart rate, based on an IR light reflection and refraction approach. The heart rate sensor was based on the Lambert–Beer Law and obtained the pulse rate using tactile measurement. The logged data were transmitted via a ZigBee module (Xbee transmitter), and a control room at a ground station received them via another ZigBee module (Xbee receiver). Thus, the proposed system not only monitored all types of parameters under the coal mine, but could also provide an automatic alarm when environmental parameters exceeded their limitations, helping to improve the level of monitoring safety in production and to reduce accidents in coal mines.
Oliveira et al. [66] developed a prototype vibrotactile belt for navigation in an underground mine with heart rate monitoring. Unlike the aforementioned studies, this system did not consider air quality, collisions, or destructive event detection in the underground mine. This study redesigned and evaluated a tactile vocabulary via a vibrotactile belt to assist navigation in an underground mine for the safety of miners. In addition, they designed a vibrotactile display shaped like a belt. Thus, the mine worker could wear the tactile display, improving the ease of its use. Moreover, it is more appropriate to deliver tactile cues to a user’s waist when the task concerns navigation. An Arduino Mega board was used to control the vibrators. During the navigation task, the heart rate data were collected using a Polar heart rate monitor interface (SEN-08661). The results of a virtual simulation of an emergency in an underground mine showed that the average heart rate increased between trials for all users. As the users performed the navigation in a standing position, the variation in their heart rate could have been associated with fatigue or anxiety. Nevertheless, heart rate data could be used to indicate important characteristics for a sense of immersion in virtual environments.

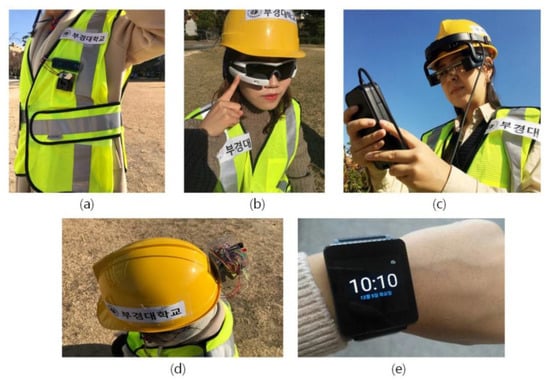

Some studies have designed smart helmets for measuring and monitoring both the air quality in the underground mine and the heart rates of mine workers. Alam et al. [29] designed a prototype intelligent helmet for mine workers, intended for monitoring heart rates and air quality. The system comprised three environmental sensors related to gas (MQ5), temperature, and humidity (HSM-20G) in an underground mine and heartbeat detection sensor (ear clip kit). This kit was highly sensitive, yet consumed little power. The measured heart rate could be displayed on a screen via a serial port and could be saved for further analysis. The Arduino Mega (ATmega2560) microcontroller and ZigBee modules were selected to send or receive all of the electrical signals. After rapid changes in the environmental parameters in underground mines, it was possible to alert the workers via a buzzer on the helmet, and the time series signals could be displayed on an LCD or laptop at a ground station by the ZigBee module.
In a similar way, Dewarkar et al. [67] designed a smart helmet system for the security of coal mine workers. The system was divided into a transmitter section and receiving section. An Arduino (ATmega328p) microcontroller was connected to two environmental sensors for monitoring carbon monoxide and temperature inside the coal mine, a pulse rate sensor for monitoring the heartbeat of miners, and a global positioning system (GPS) sensor for locating the position of workers. For the wireless network, HC12 (a half-duplex communication module) was used for the data transmitter and receiver. A display screen was used to display the parameters. A buzzer was designed to trigger a buzzer under harmful and dangerous conditions. Sanjay et al. [68] developed a helmet-type safety management system for destructive event detection, as well as for detecting air quality and heart rates of mine workers. However, the system design, including the types of sensors (air quality, such as for gas, humidity, atmospheric pressure, and temperature; destructive event detection, such for as falling rocks; heart rate), microcontroller (Arduino Nano), communicator (ZigBee S2C), and actuators (buzzer, LED indications on the helmet, and alerts to supervisors) were similar to those in previous studies. The system was developed by programming based on Arduino IDE and Python.

4. Arduino in Autonomous Mine Systems

Mining is one of the most hazardous and labor-intensive industries [69]. Therefore, the mining industry has tried to use autonomous systems such as automated haul trucks, monitoring robots, and underground UAVs to effectively enhance safety and productivity in mining operations. Automation in mine environments can play a critical role in improving worker safety and mine productivity. Arduino has been used in the mining industry to develop an initial prototype for supporting mine operations (Table 6).
Ledange and Mathurkar [70] developed a robot-based underground coal mine monitoring system using Arduino. The system consisted of two parts (transmitter and receiver). In the transmitter, different sensors such as MQ2 for gas, DHT11 for temperature, and ADXL335 for tilt were attached to an Arduino UNO board to monitor the underground mine environment in real time. In addition, a ZigBee wireless communication module (Xbee) was used to send the monitoring data to the receiver. A buzzer module was used to trigger a sound when the measured values obtained from the sensors exceeded threshold levels. The transmitter was mounted on a small rear wheel-type robot with DC motors, controlled by a motor driver IC L293D. In the receiver part, the keypad and ZigBee (Xbee) modules were connected to the Arduino UNO board to receive data from the transmitter and to control the movement of the robot. The developed robot system was tested only in the laboratory, and no field test results were presented.
In a similar study, Salazar et al. [71] developed an autonomous robot for accessing dangerous areas by remote control and for measuring the concentrations of harmful and flammable gases such as carbon monoxide (CO), carbon dioxide (CO2), methane (CH4), and nitrates (NOx). A motor driver module L298N, Bluetooth module HC05, and gas sensor MQ135 were used and attached to the Arduino Mega to implement the robot. A wireless camera was mounted on the robot to support remote operation. The robot was only tested in the laboratory with a remote distance of up to 10 m, owing to the limited range of wireless communication provided by the Bluetooth module. Cekova et al. [72] used an Arduino UNO board to develop a mobile sensor robot for detecting toxic gases in underground mines. Various sensors were attached to an Arduino UNO, such as DHT11 for temperature and humidity, MQ2 for CH4, MQ7 for CO, and MQ135 for CO2. A Wi-Fi module (ЕЅР8266 ЅР8266) for facilitating TCP/IP wireless communication was integrated with the board. The robot could be remotely controlled using a smartphone. The developed robot was tested in a nonmetallic surface mine. The concentration of toxic gases generated during an explosion owing to blasting was measured in real time, at a distance of 100 m. However, a field test was not performed in an underground mine.
To detect gas from coal mines and carry out rescue operations, Bai et al. [73] developed an experimental prototype of a hexapod robot that could be more precisely controlled. This robot used a high-pressure nitrogen cylinder as a power source, and the leg mechanism had three degrees of freedom to allow straight walking and turning motions. The robot was driven by a cylinder that was controlled by an electromagnetic valve. An Arduino Leonardo with a magnetic valve drive board was used to compile the control circuit of the electromagnetic valve. In addition, the gyroscope was used to measure the changing signals of the joint rotation angle and angular velocity. However, this prototype was only tested in a laboratory environment.
Sakthi et al. [30] used an Arduino UNO to test an automated bucket control module for an LHD used in underground mines. The bucket control module incorporated two major subsystems to be controlled: boom and bucket actuators. A pressure sensor was connected to the Arduino UNO board, so that the bucket control module could sense the forces in the boom actuation to control the velocity of the bucket actuator. An indoor test using a miniature LHD was performed with the bucket control module.
The localization and tracking of moving objects are also critical issues in the development of unmanned robots for underground mines. Traditional techniques based on GPS and other location sensors have been widely utilized in surface mines for simultaneous localization and mapping. However, a different approach is necessary in an underground environment, as GPS does not work in such locations. Azizi and Tarshizi [69] developed a lab-scale automated haul truck that could be autonomously controlled and navigated along an underground tunnel. LiDAR sensors were integrated with an Arduino Mega to estimate the autonomous truck position, using a navigation algorithm based on a triangulation method. The simulation results showed the effectiveness of the developed navigation and control algorithms; however, the study should be extended to consider real-size mine haul trucks. Kumar et al. [74] proposed a prototype for an underground localization system for an unmanned robot using an Arduino Mega board with IR sensors (FC51) for obstacle detection, a gas sensor (MQ2) for detecting the presence of harmful gases, and a temperature sensor (LM35) for gauging the temperature. A ZigBee module (Xbee) was used to transmit data from the system to a base station (desktop PC). The localization of the robot was conducted by only considering the moving direction (north, south, east, and west), as controlled by a motor driver. An indoor experiment showed that the system could track the robot with reasonable precision. However, it was too simple to be used in real underground mines, as only four types of moving directions were used for localization. Additional sensors and mapping techniques are required to improve the system.

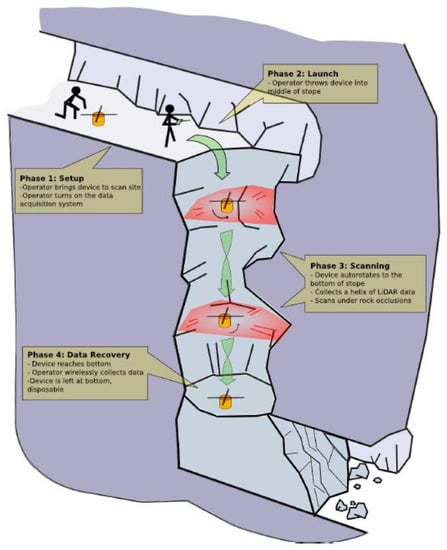

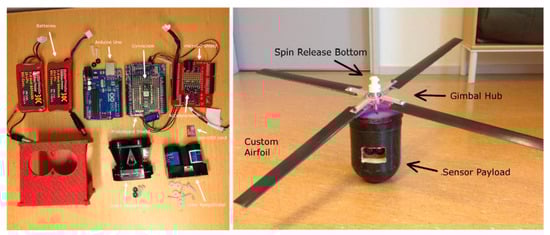

The Arduino has also been used to develop a small UAV for monitoring dust particles after blasting at open-pit mines [75]. Two dust sensors, GP2Y10 (SHARP) and DSM501A (Samyoung), a temperature and humidity sensor (SEN51035P), GPS logger (GP635T), and ZigBee module (Xbee) were connected to an Arduino Mega board to develop a low-weight and size-constrained dust sensing system for mounting on a small UAV. Figure 10 shows the system architecture for the modular dust sensor in detail. All data collected from the dust sensors were transmitted and logged on a ground station in real time. The Arduino-based dust sensing system was mounted on a multirotor UAV, and a field test was conducted using talcum powder (composed of mass fraction with a particle diameter no greater than 10 μm) lifted into the atmosphere (Figure 11).
In combination with a UAV, Arduino can also be used to detect areas polluted by mining activities. For example, in Cornwall, England, mining of uranium has resulted in a significant amount of radioactive contamination in the surrounding area. To effectively detect polluted areas, Martin et al. [76] combined a UAV with gamma radiation mapping technology. To construct an unmanned radiation detection system, a gamma-ray spectrometer was used with a GPS module to measure the spectrum of incident radiation energy. The height of the device was also recorded using a laser rangefinder system (AR2500, Acuity), and these data streams were combined using an Arduino Mega. The data were stored locally on the instrument itself and concurrently transmitted to a remote base station.

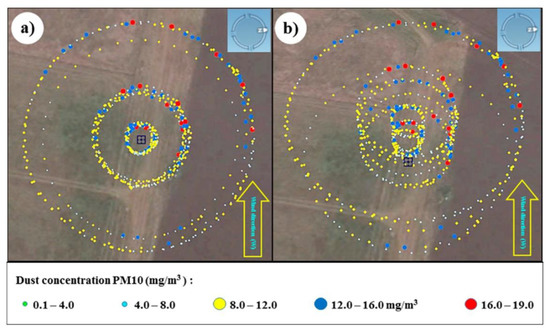

A cavity monitoring system (CMS) has been utilized in underground mines to collect information regarding mine stopes, openings, ore passes, and any other cavity with limited accessibility [80]. Mitchell and Marshall [77] used an Arduino UNO board to develop a CMS based on UAVs. The system was designed as an autorotating surveying system using a single-point LiDAR sensor. A rotating falling body could gather 3D survey data in underground cavities, as shown in Figure 12. To develop the CMS, the Arduino UNO board was integrated with a horizontal facing LiDAR sensor (LiDAR-Lite V2) for surveying the cavity walls during descent and a vertical facing LiDAR sensor (SF30/B) for monitoring the vertical position. In addition, a gyroscope (ADXRS649) and an accelerometer (ADXL345) were used to monitor the angular velocity and acceleration, respectively, along the vertical axis during the flight of the UAV. Figure 13 shows the electronics used for developing the initial prototype autorotating cavity surveyor in Mitchell and Marshall [77]. The system was tested in the laboratory; however, more complicated conditions in a real underground cavity were not considered, such as air currents from ventilation, and harsh humidity and temperature conditions.
The deterioration of mineral grades is an important issue to be overcome in the mining industry, as the development of mines has continued over time. To solve this problem, techniques for improving recovery efficiency have been studied. Arduinos are being used in part as an auxiliary role to help with these studies. Videla et al. [78] conducted a study to improve the flotation of copper sulfides inside tailings using ultrasounds. Ultrasounds can improve the overall recovery by removing the oxidized layer from the particle surface and aiding in desliming. The ‘Denver’ flotation cell was modified to control the ultrasound in the flotation test. A calibrated probe designed to measure cavitating acoustic fields converted external mechanical disturbances into electrical signals. These signals were processed through the code input to the Arduino board. As a result, the distribution of the absolute critical pressure inside the Denver flotation cell could be analyzed. Zn and Cu are often mineralized together and both the Cu extraction from CuFeS2 and the electrodeposition of Zn are highly energy-intensive processes. To increase economic efficiency, Deen and Asselin [79] integrated the two energy-intensive metallurgical processes into a battery-like device called a trifunctional battery (TFB), which is capable of extracting Cu as well as storing energy. To demonstrate the practical use of the TFB, the cell was charged and connected to an LED mounted on the Arduino board. The Arduino measures the voltage of the cell, and the LED blinks when the voltage falls below a threshold value.

5. Discussion

In this paper, research cases employing Arduino in mining were collected, and the statistical trends were analyzed. Arduino has the advantage of being a microcontroller that can be applied to various environments and tools. However, in the mining field, its use has been biased towards field monitoring systems (25 papers) more than wearable systems (11 papers) and autonomous systems (12 papers). In addition, it was found that in all systems, Arduino was mainly applied in underground mines (total 36 papers) rather than open-pit mines (total of seven papers, Table 7). In particular, in the case of wearable systems, all studies (11 papers) were conducted for applications in underground mines. In the field monitoring systems, some studies were conducted to acquire geological information of open-pit mines (five papers) or air quality information of polluted areas (two papers), but there were more cases addressing underground mines (18 papers). In the autonomous system field, there were studies on automating work in open-pit mines (two papers) as well as underground mine studies (seven papers), but the absolute number was not large. The reason why the number of studies related to underground mines is higher than that for open-pit mines is attributed to the communication technologies and cost-saving advantages of Arduino. In underground mines, there have been difficulties in the use of equipment and safety problems relating to open-pit mines, owing to communication difficulties. However, Arduino is able to acquire information and perform communication at a low cost; thus, it can be understood why research using the Arduino in underground mines has increased. In contrast, as existing equipment can be used in open-pit mines, there are fewer research cases using the Arduino.
The usage of Arduino according to specific purposes is summarized in Table 8. The sum of the statistically analyzed items and the literature reviewed in this study do not necessarily match; as in some papers, two or more items are related. For example, as air quality, temperature, and humidity are very important factors that directly affect safety in mines (especially underground mines), there are cases of atmospheric monitoring in all three types of systems. Field monitoring systems have been used to monitor geotechnical mining information such as information regarding the slope (four papers), vibration (one paper), borehole (one paper), and mine roof (one paper), as well as atmospheric data. However, there have not been many cases. In addition, in wearable systems, most of the research is related to atmospheric monitoring (10 papers). Other important observations are whether a helmet is worn (two papers), whether a collision has occurred (three papers), and the heart rate (six papers) or location (two papers) of a mine worker. In autonomous systems, atmospheric monitoring through a robot is an important research topic (six papers). In addition, Arduino has been used to control the operation of machines (seven papers), or to monitor a mine environment in combination with a UAV (three papers).
Table 9 summarizes the Arduino types employed in the reviewed articles, according to the system type. There are many types of Arduino devices, but the Arduino UNO, Nano, and Mega were used in most studies. Although the Arduino UNO has been used in the most studies (22 papers), the use of Arduino Nano has also been reported in wearable systems, where a relatively small size may be advantageous. In addition, there have been some papers utilizing an Arduino Mega in autonomous systems that require connection to a variety of sensors and actuators. In many studies, various sensors are used to perform monitoring, regardless of the system type. This is because the Arduino can be easily connected to various sensors and can record and transmit the values obtained from the sensors. The statistics of the sensor types in the reviewed papers are summarized in Table 10. Gas, temperature, and humidity sensors are frequently used as atmospheric monitoring is the most common topic. In addition, it can be seen that various sensors suitable for the research purpose(s) were used. The information acquired through monitoring is often transmitted through various communication technologies that can be combined with Arduino. Table 11 shows the statistics of the applied communication techniques. ZigBee, which makes it easy to build WSNs, was used the most frequently (18 papers), and technologies such as GSM, Wi-Fi, and Bluetooth were used according to each need and purpose. In addition, actuators such as buzzers, LCDs, and LEDs were used to promptly respond to monitoring results. In another example, in autonomous systems, the actuators related to the control of the machine were important. Table 12 summarizes the actuators in the reviewed papers.

6. Conclusions

In this review, we have presented numerous studies utilizing open-source hardware Arduino platforms in the mining industry. A total of 48 recently published articles were identified, and the detailed contents regarding the applications of Arduino were analyzed for the literature review. It was confirmed that many of the studies reviewed in this paper were conducted in developing countries rather than developed countries. This trend may be attributed to the cost-effectiveness of Arduino. In the mining industry, the utilization of microcontrollers, such as Arduinos, has increased rapidly in recent years. These studies will serve as the basis for the development of smart mining and further advanced use of microcontrollers in the future. For systematic reviews, the articles were classified under three topics, considering the purpose of the applications: field monitoring, wearable systems, and autonomous systems.
For field monitoring, a number of applications of fixed monitoring systems based on Arduino were reported. These studies can be divided into the monitoring of air quality information and geotechnical information. In underground mines, various gas, temperature, and humidity sensors are mainly used to acquire air quality data. Generally, the acquired data is transmitted outside the underground mine through a WSN and gateway. Some studies have been conducted to predict possible risks through the interpretation of the acquired monitoring data. In addition, studies have been conducted on ventilation networks and evacuation to help mineworkers respond appropriately to potential hazards. Some studies have been applied to real mines, but otherwise, most of the studies have been conducted in laboratory environments. There have been some Arduino-based articles addressing slope stability and roof-falls in mines. Although the accuracy may be lower than that of existing expensive instruments, monitoring sensors combined with Arduino have advantages in being low cost and having high efficiency; therefore, multiple sensors can be installed in the field. In addition, as the developer can easily customize the product, various attempts can be made, and it can be easily integrated with other analysis methods. However, as there are few applications for real mines, verification at a mine site is necessary to improve accuracy and effectiveness.
A wearable system for mining workers developed using an Arduino board, various sensors, and wireless networks was proven to be useful for gas detection, air quality measurement, proximity detection between miners and machines, collapse notifications, and heart rate monitoring in an underground (mostly coal) mining environment. As the wearable system is worn by miners, it has the advantage of measuring the environmental parameters that the miners face more accurately than other systems. Therefore, if risks are identified at early stages, mine workers can take immediate action to avoid accidents. In particular, real-time monitoring of the heart rates and health of mine workers using biosensors can be considered as the most effective application of an Arduino-based wearable system as doing so with field-based or UAV systems remains difficult. However, as there are various commercially available wearable devices (e.g., smart glasses) and biosensors, it is necessary to develop diverse applications for enhancing work efficiency and securing the safety of miners.
Many applications of Arduino have been reported in the literature. For example, Arduino was useful for developing initial prototypes of autonomous mine systems such as underground monitoring robots, automated buckets for LHDs, automated haul trucks, and UAVs for dust sensing and cavity monitoring. In these applications, the Arduino UNO or Mega board was integrated with various sensors for measuring gas, temperature, humidity, tilt, pressure, distance, infrared, dust, acceleration, etc. The ZigBee wireless communication module (Xbee) is often used to send data from the transmitter to the receiver. Although the Arduino-based prototype systems were tested in the laboratory, few field test results have been reported in the literature. A real mining site presents more complications than the laboratory environment; therefore, further research is necessary to use these autonomous mine systems in the real world.

Author Contributions

All the authors gathered, reviewed, analyzed and wrote the published literature; Y.C. implemented the final work for the paper submission. All authors have read and agreed to the published version of the manuscript.


This work was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Science and ICT (2020R1G1A1010789).

Conflicts of Interest

The authors declare no conflicts of interest.
