# Error Analysis Method of Geometrically Incomplete Similarity of End-Plate Connection Based on Linear Regression

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methods

#### 2.1. Derivation of Completely Similar Macro Conditions for Semi-Rigid Connections

_{1}, x

_{2}, x

_{3,}and x

_{4}, the equation representing M (moment) in the form of basic parameters is expressed as followed:

_{1}= 1, thus,

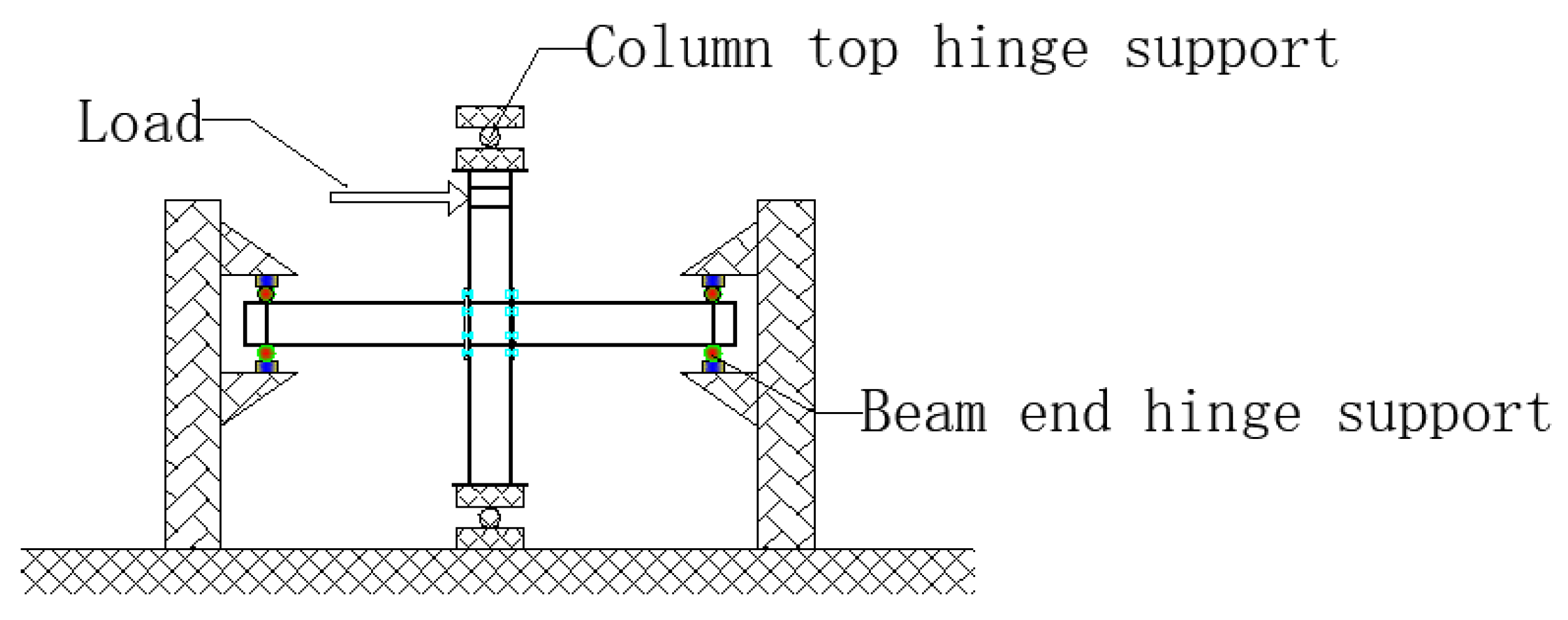

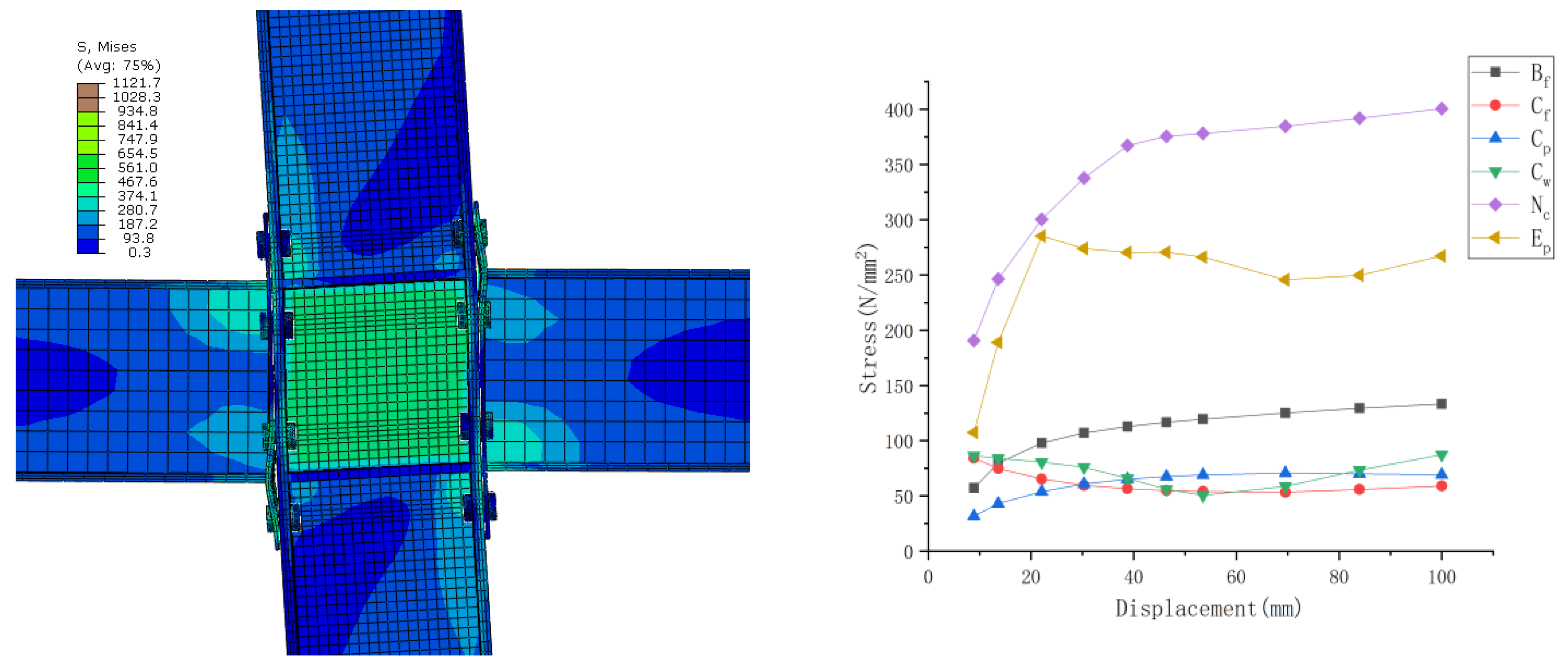

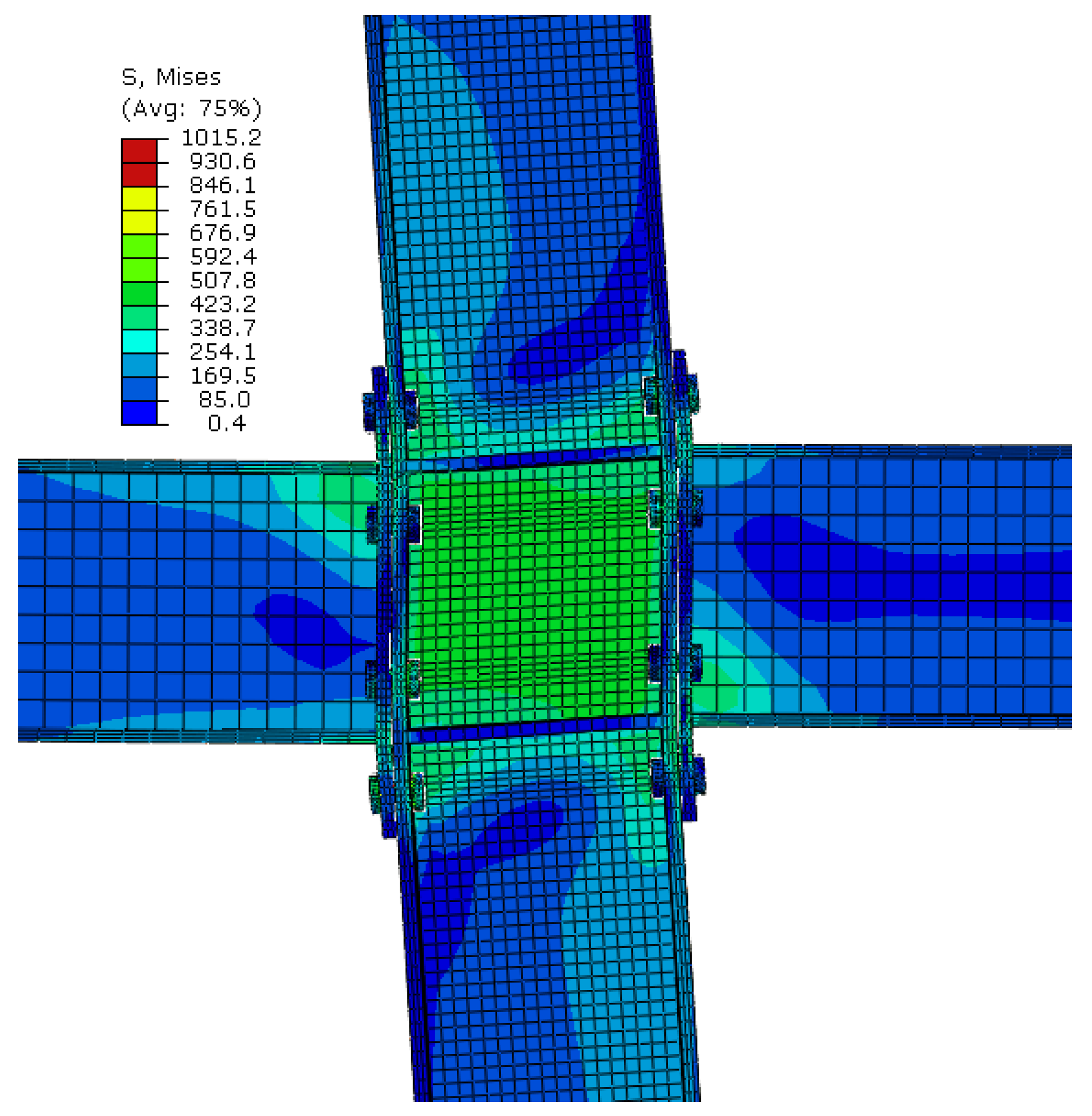

#### 2.2. Numerical Simulation Method

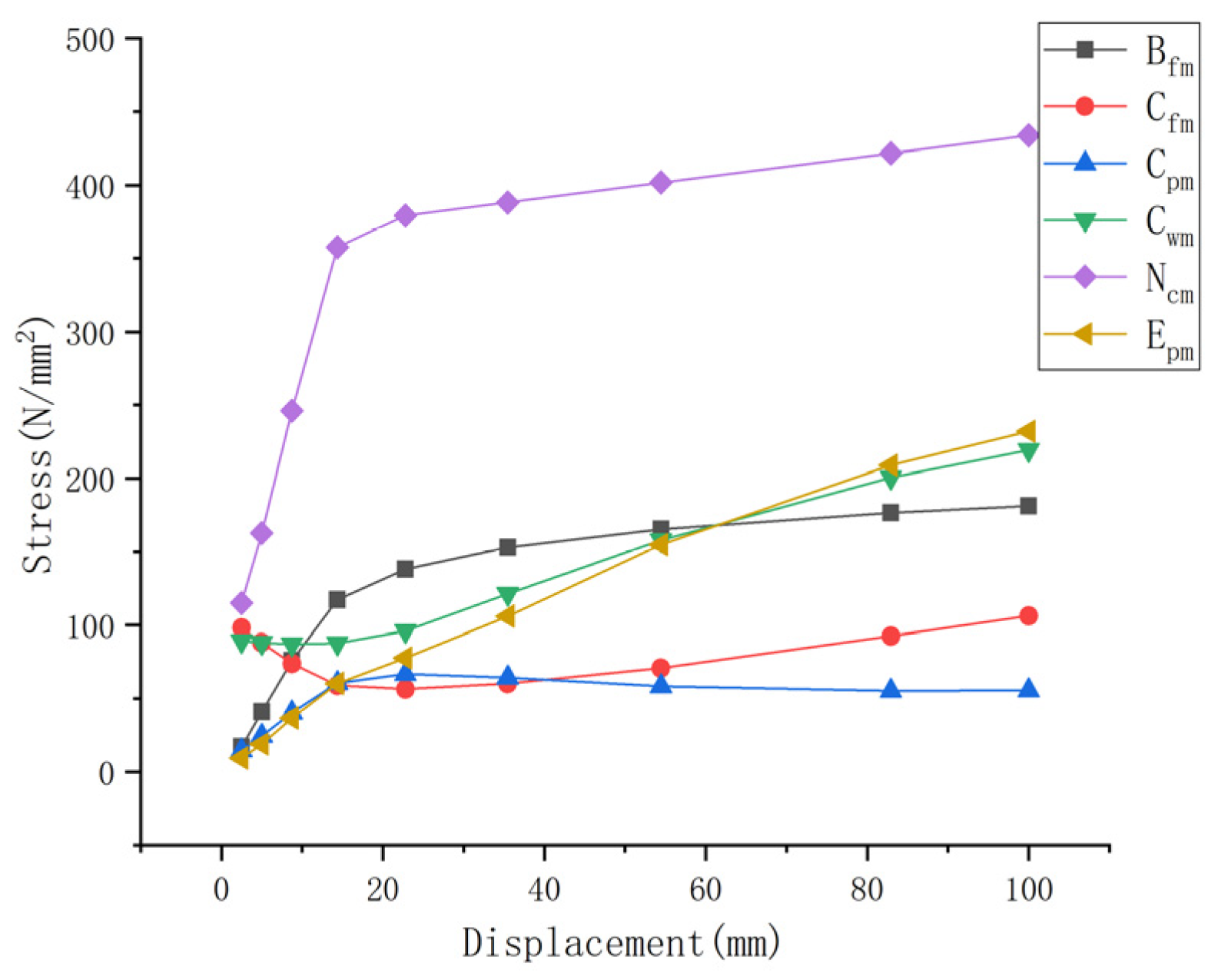

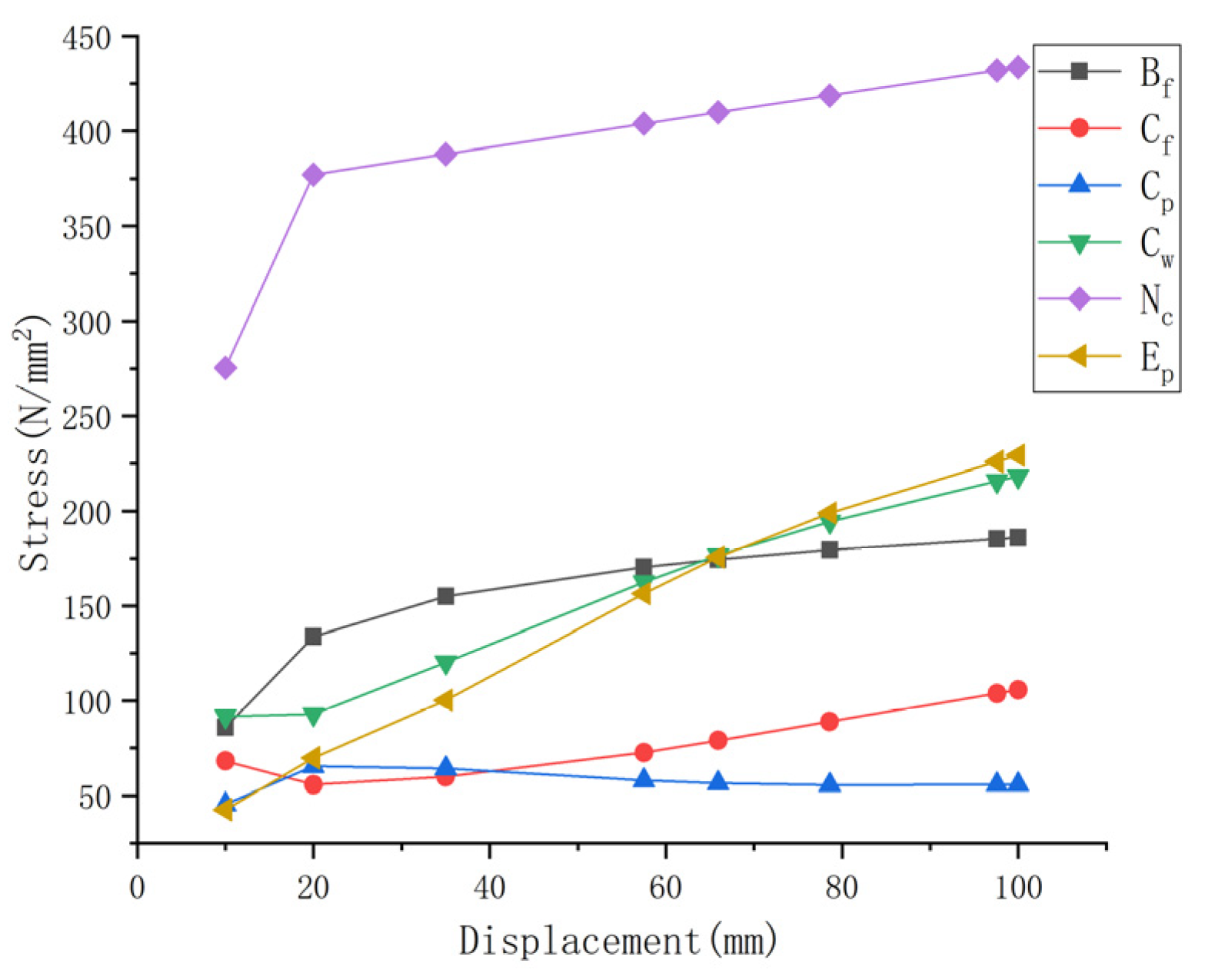

_{f}: the upper flange of the beam and 75 mm away from the end-plate; C

_{f}: the flange of the column and 75 mm away from the top of the beam; C

_{p}: the central position of the upper partition of the column; C

_{w}: the web of the column and 75 mm away from the surface of the upper partition; N

_{c}: the central position of the core area of the node; and E

_{p}: the upper and middle parts of the end-plate 27.5 mm away from the top of the beam.

## 3. Results

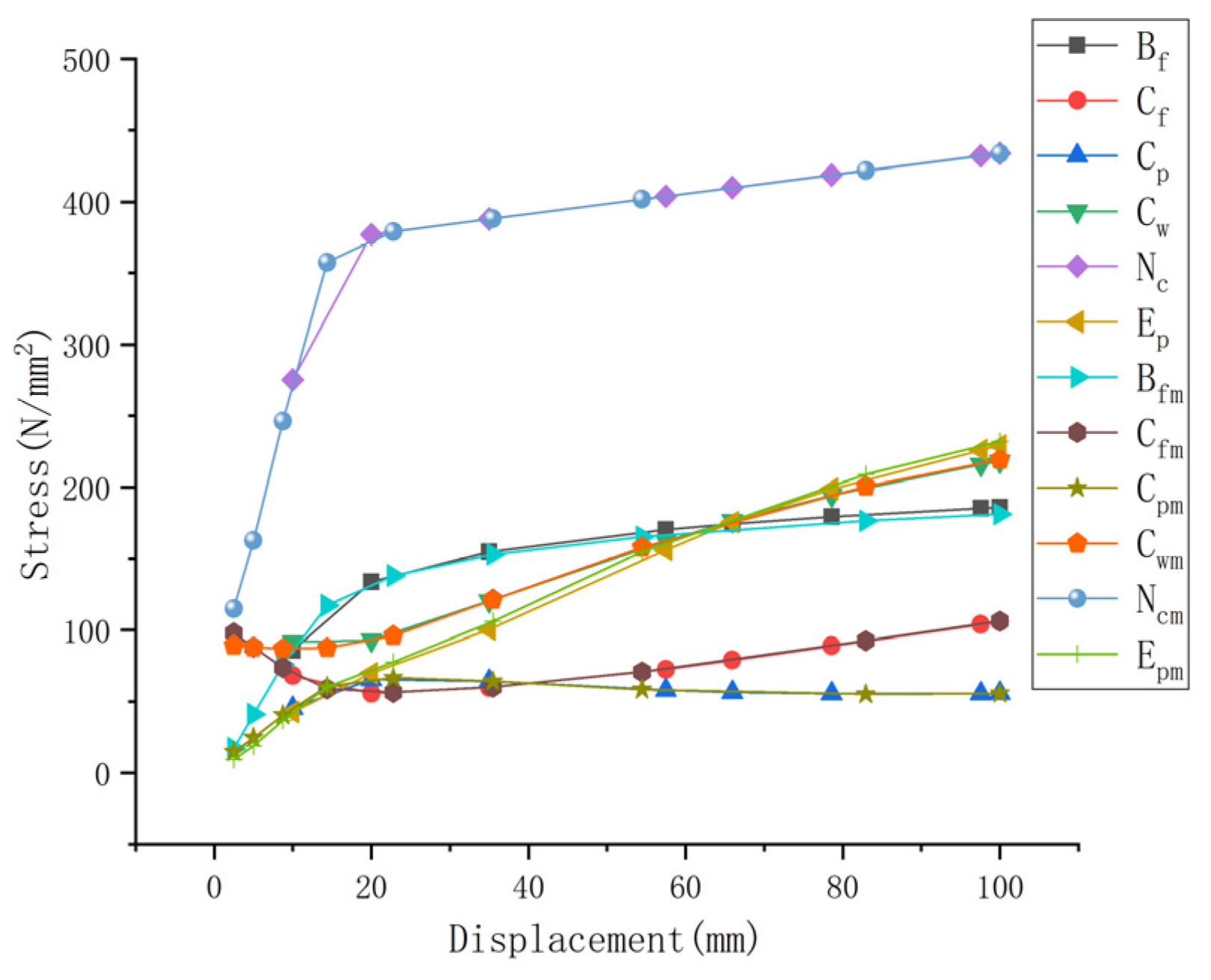

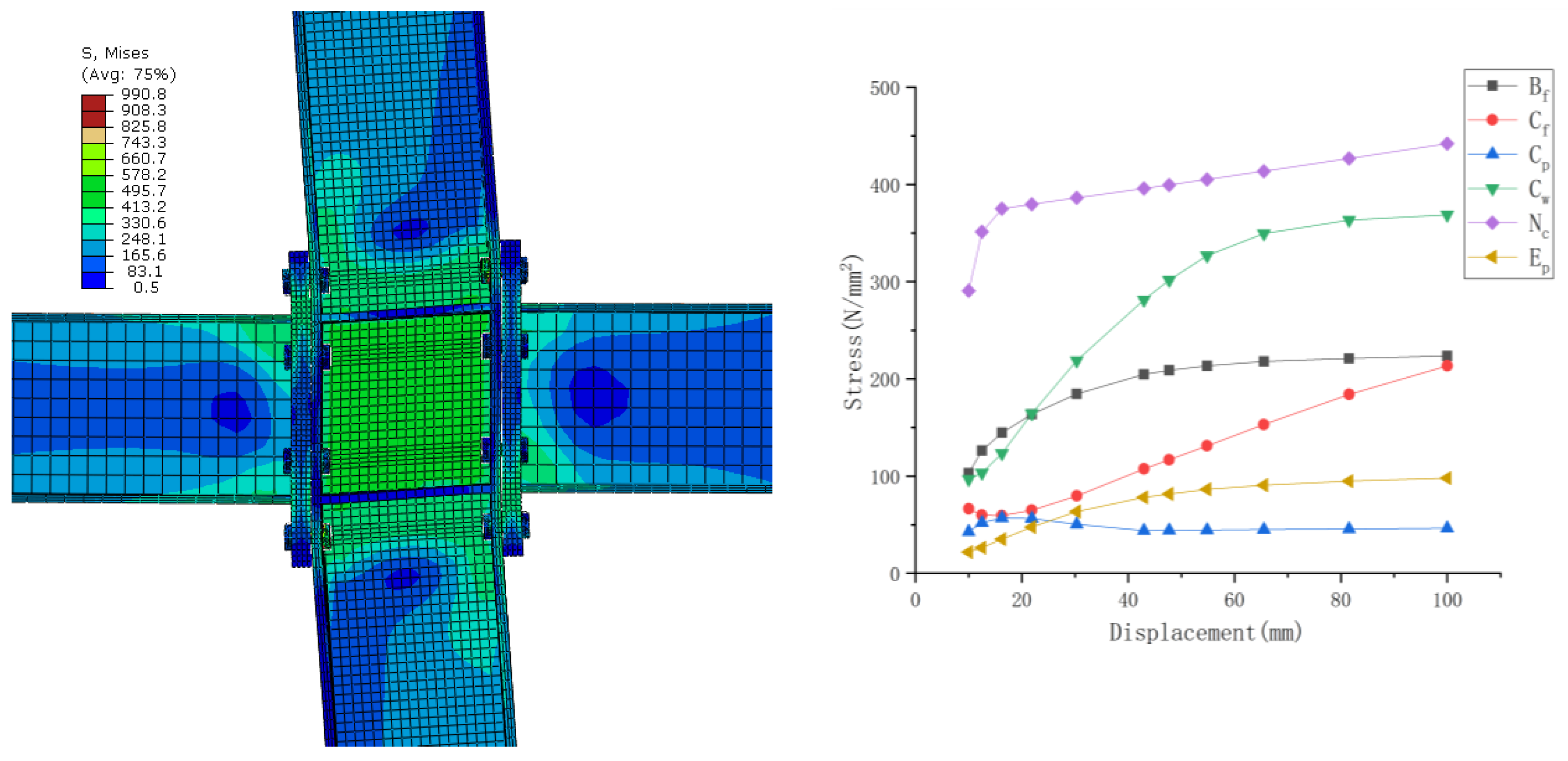

#### 3.1. Comparison of Semi-Rigid Node Indicators Under Completely Similar Conditions

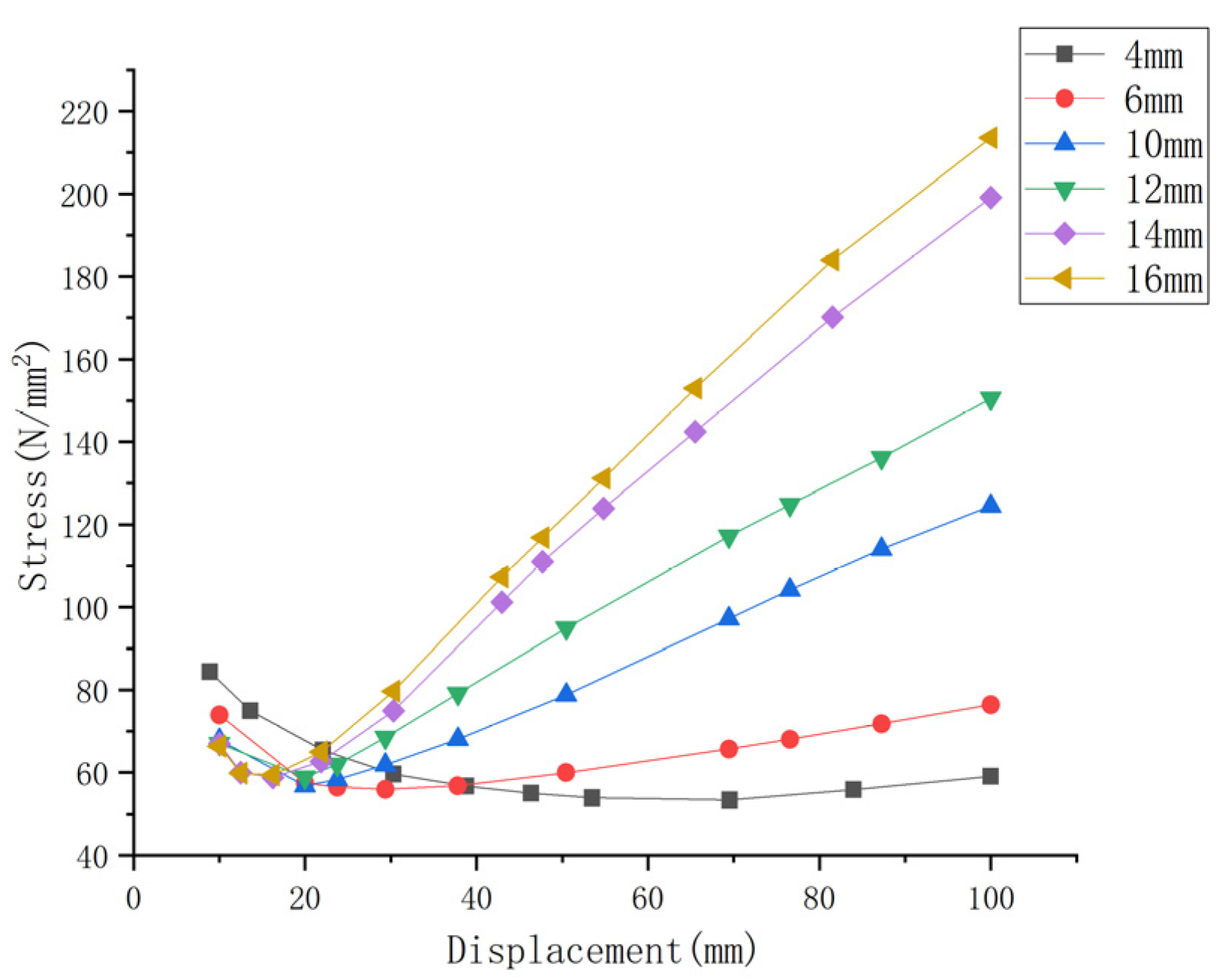

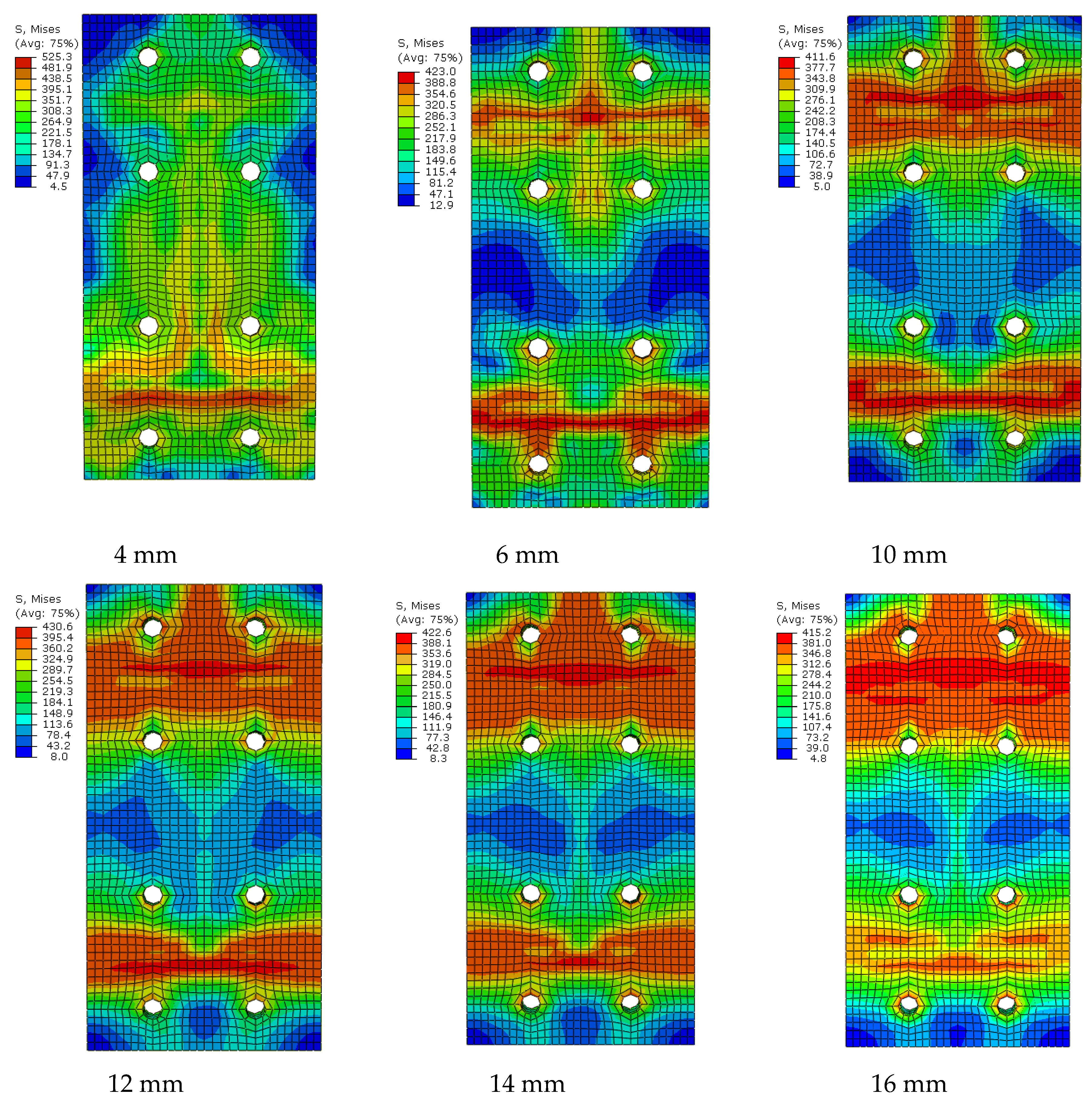

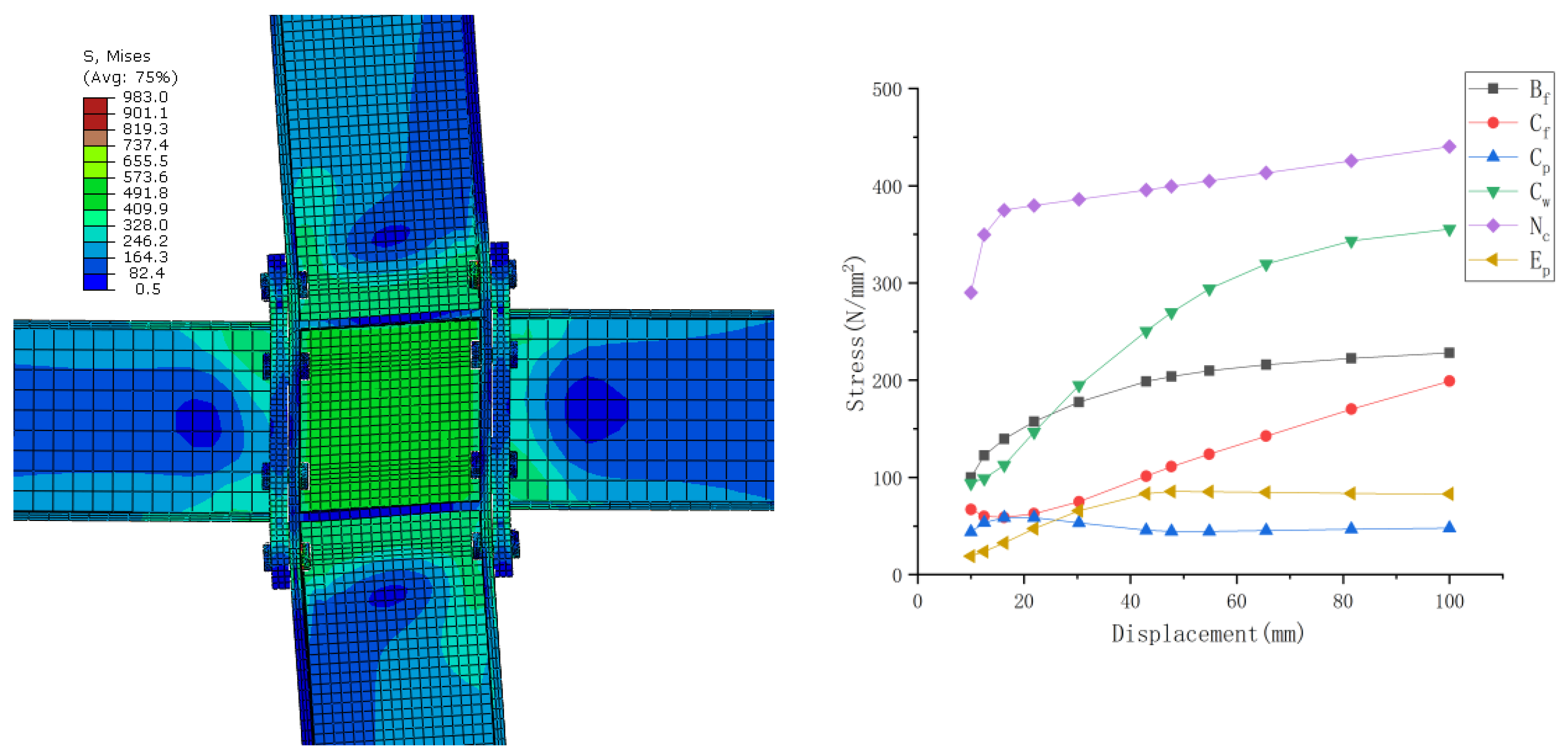

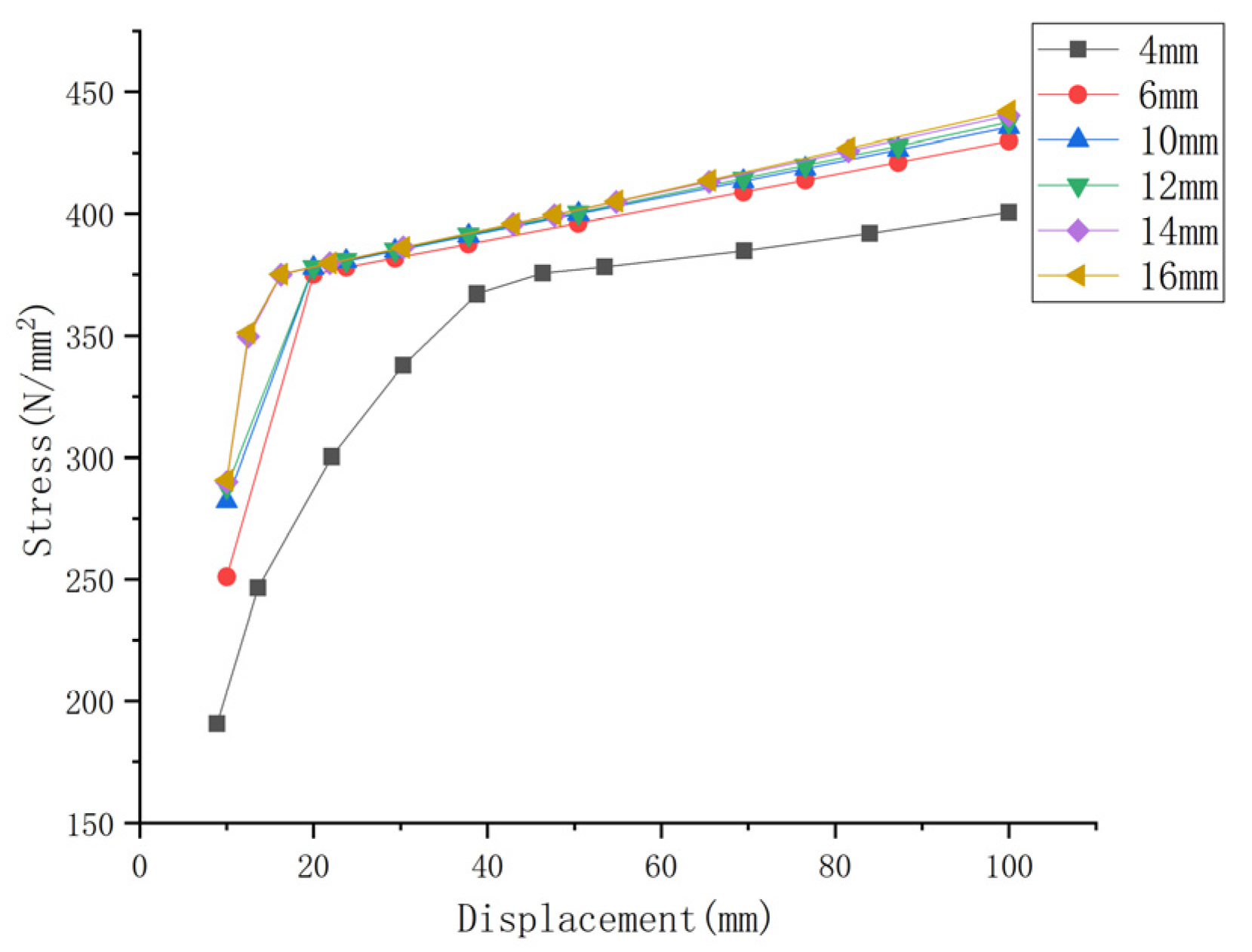

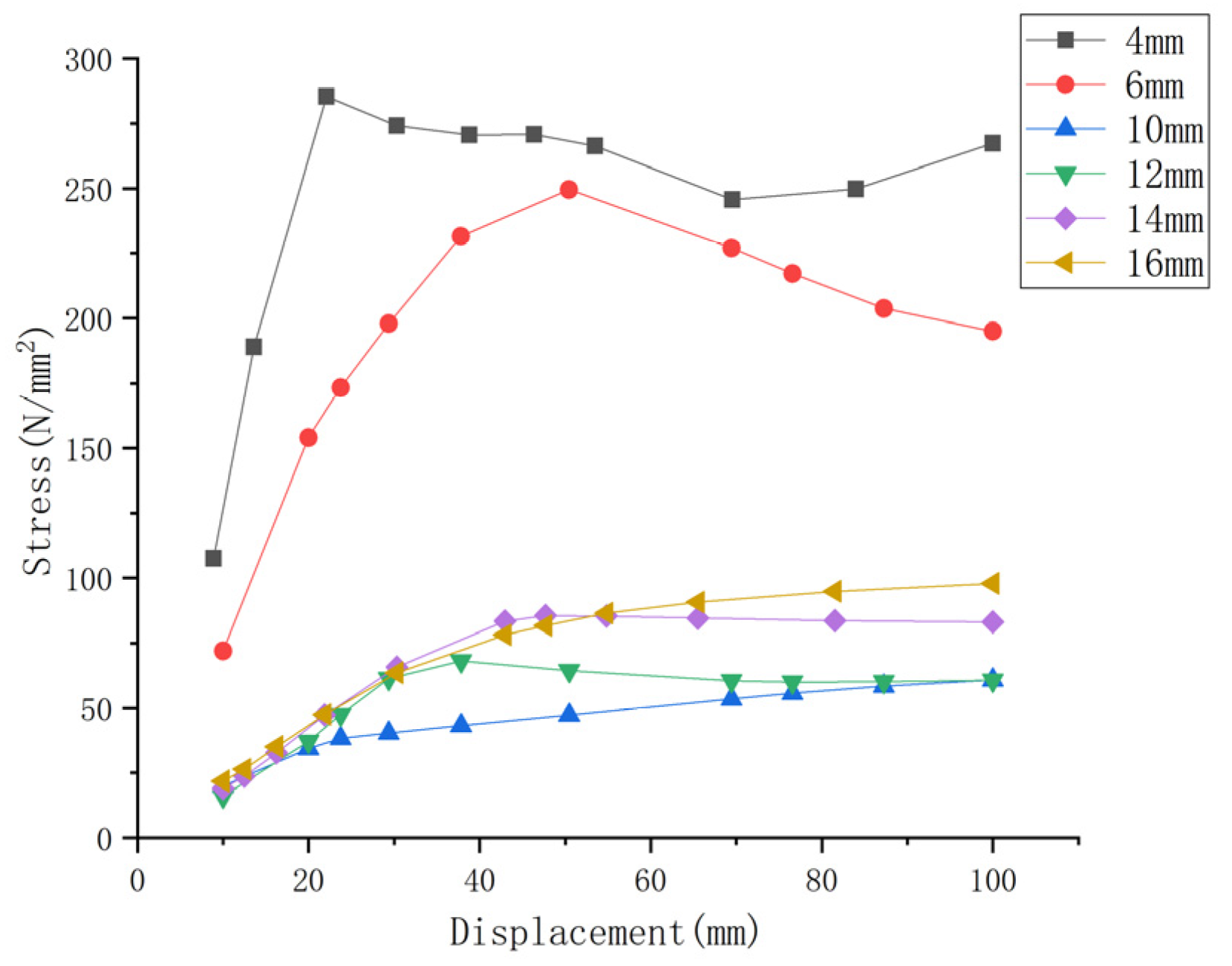

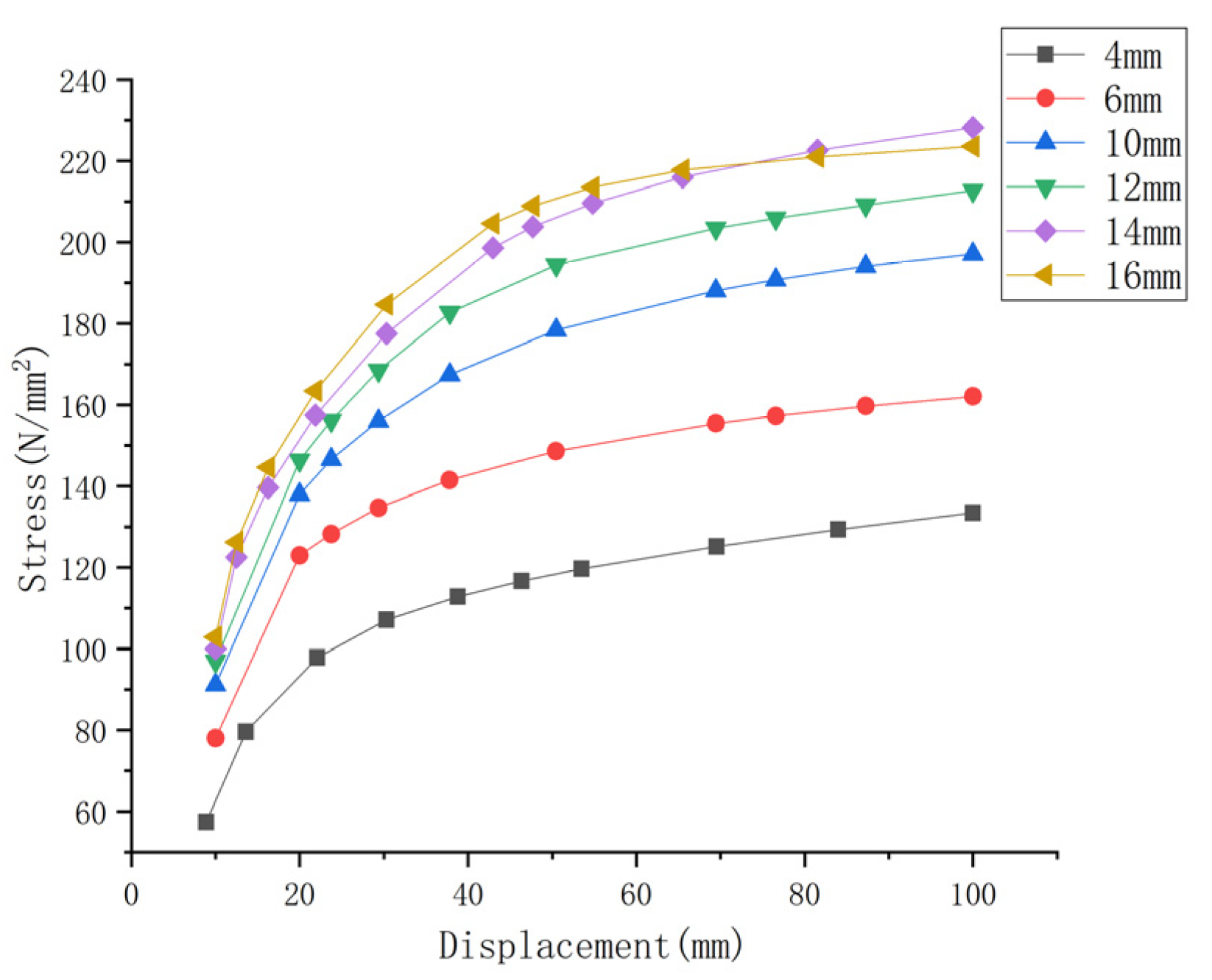

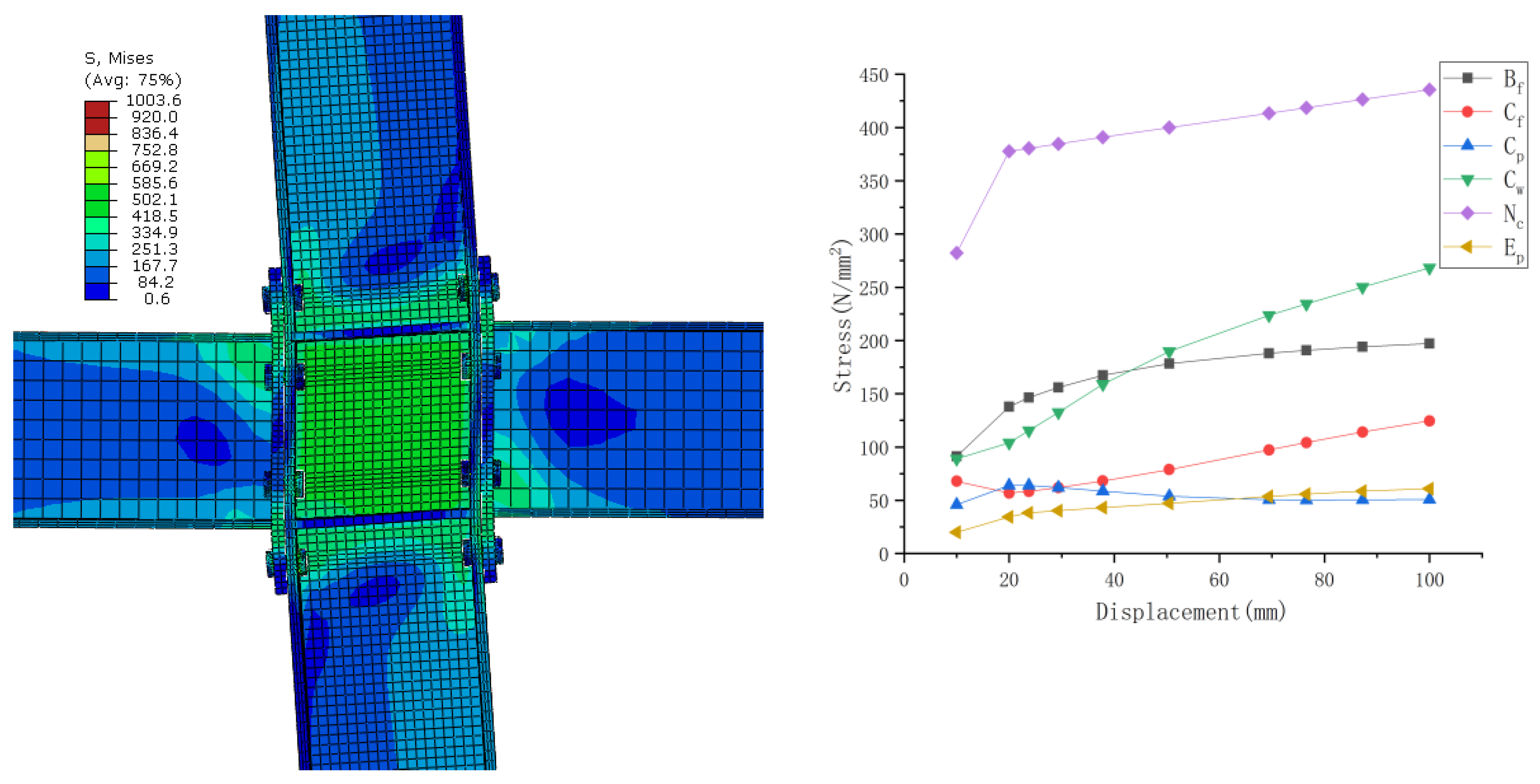

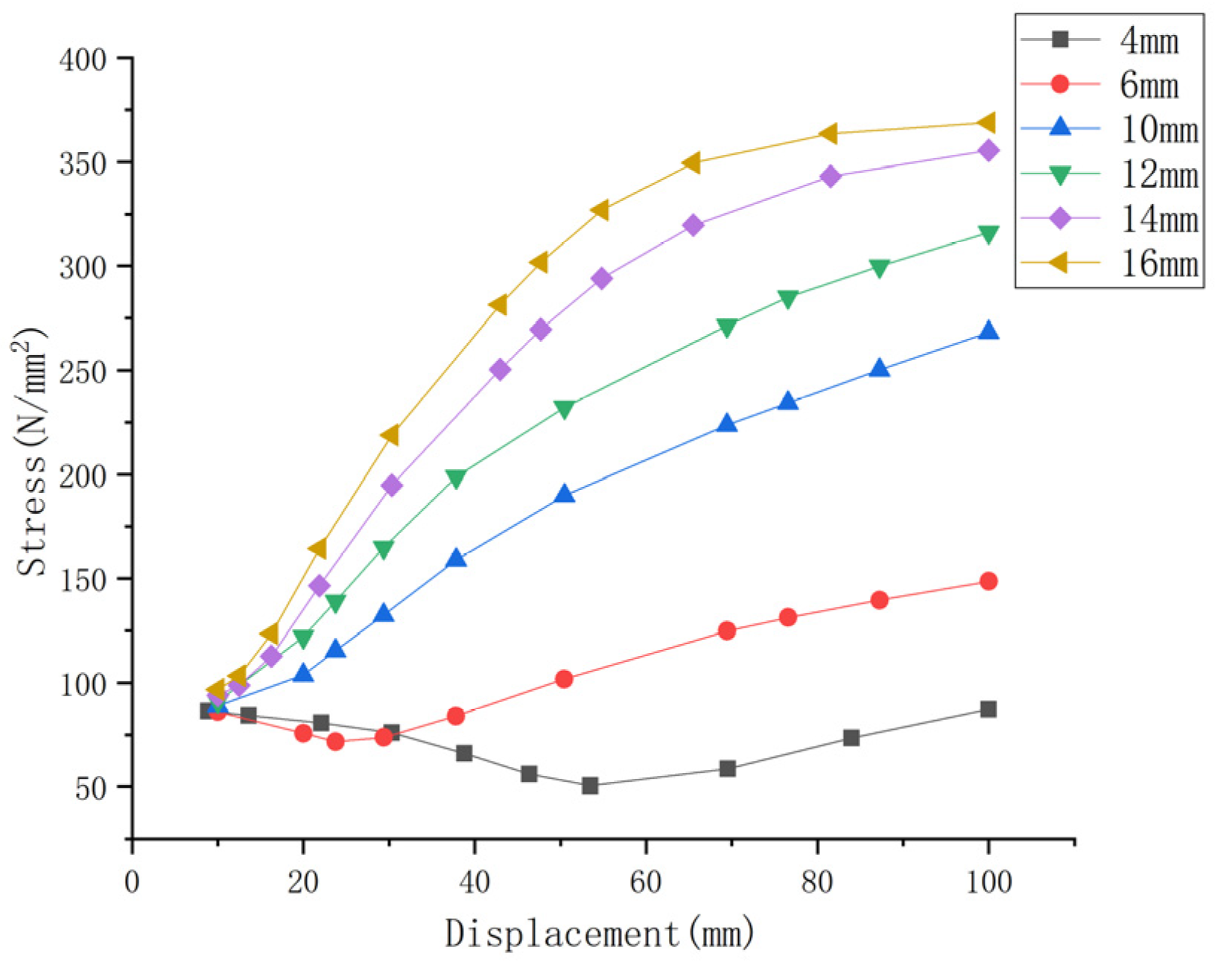

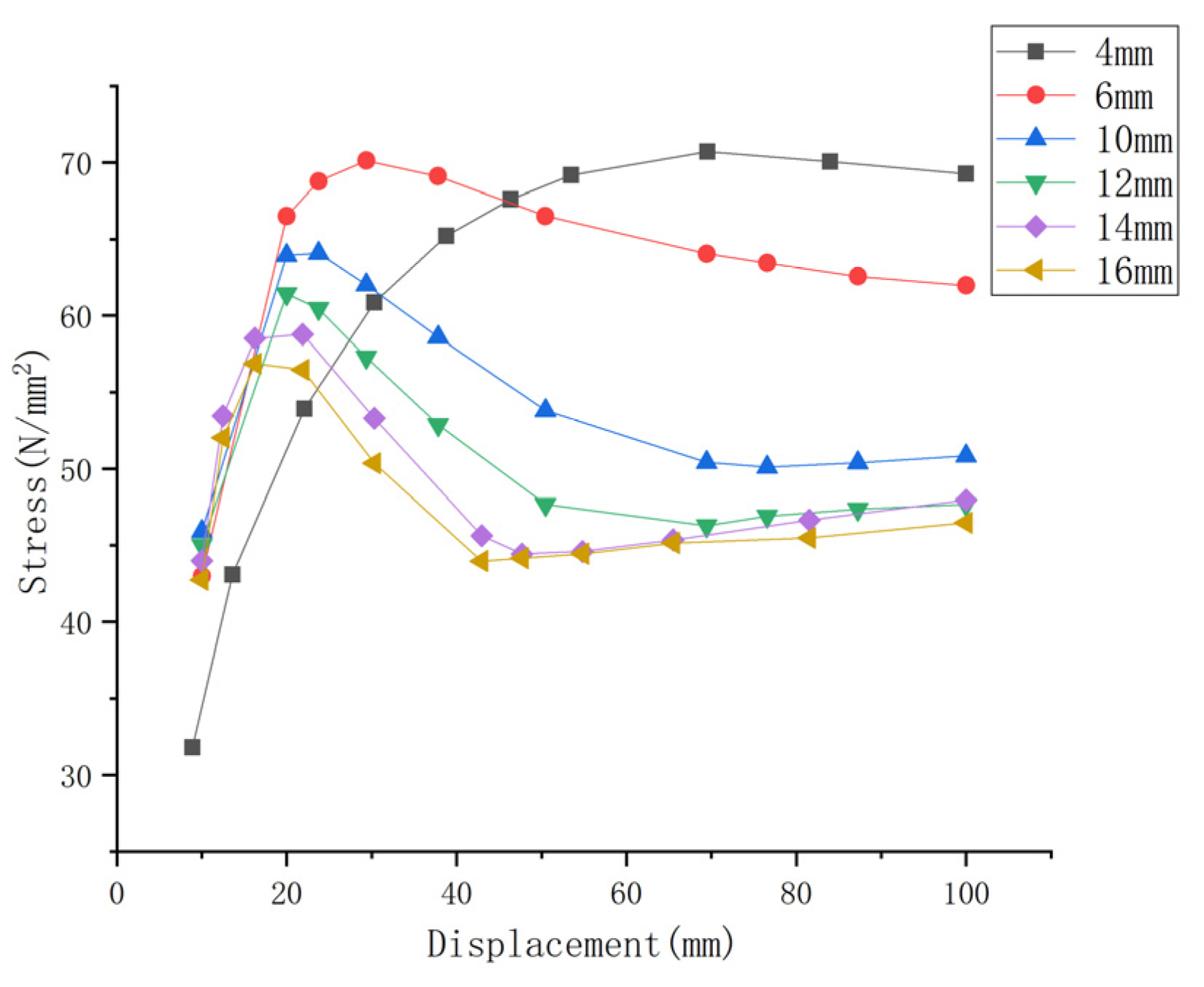

#### 3.2. Effect of End-Plate Thickness on Similar Errors

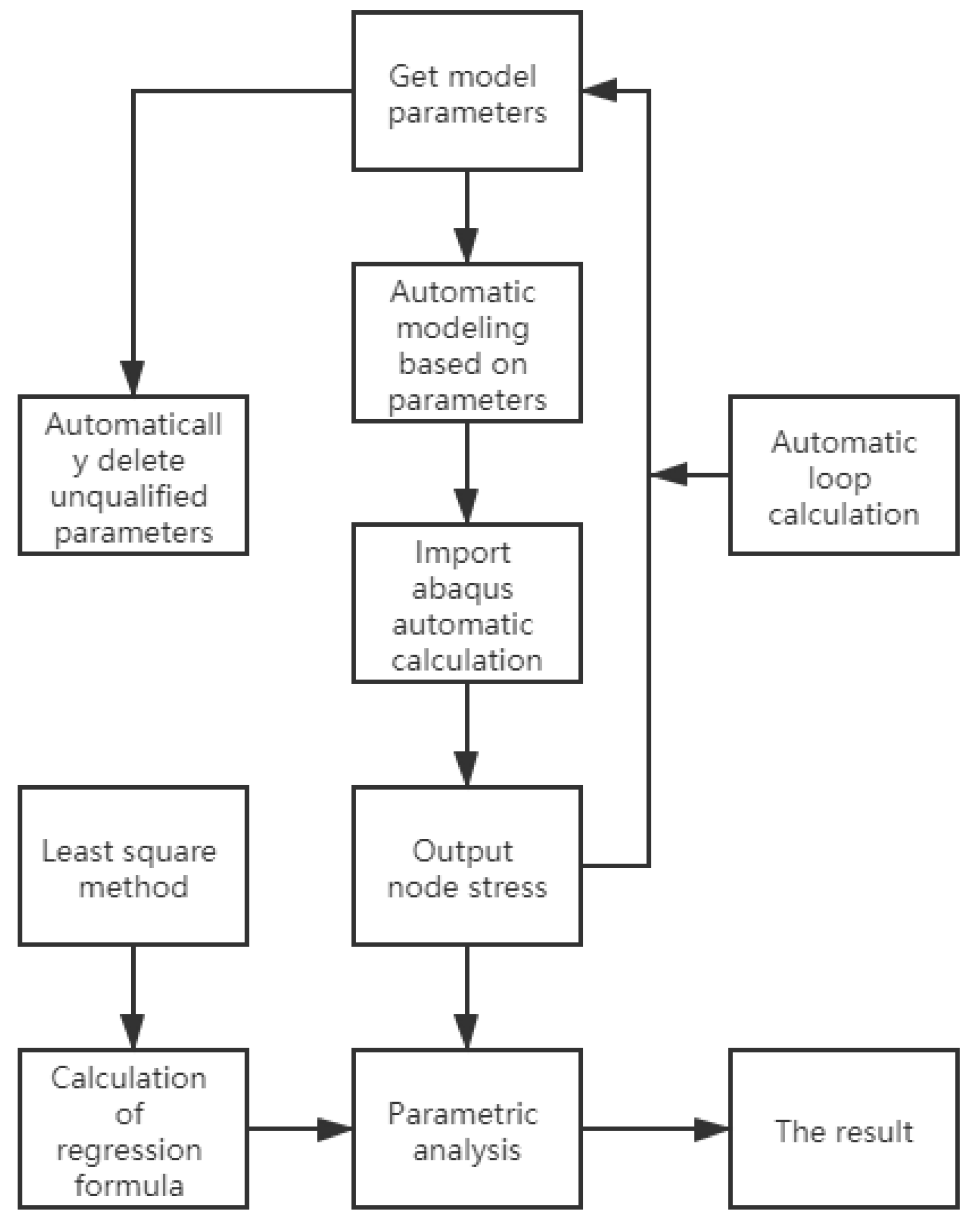

## 4. Error Analysis Method

_{pi}is the predicted value of the node, y

_{i}is the known value of the node, and n is the number of node models.

## 5. Discussion

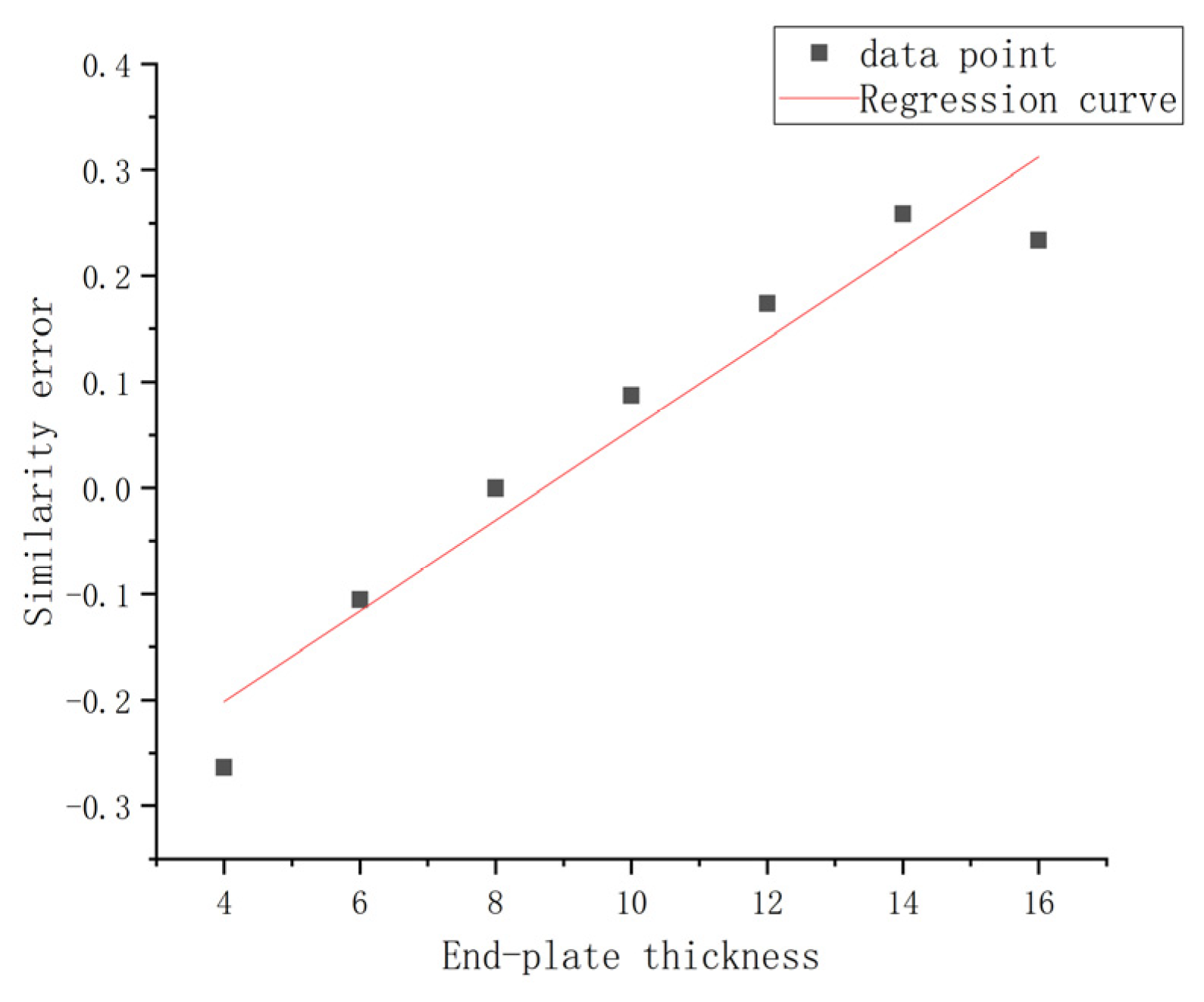

_{f}: $Y=-0.3727+0.0428x$. The correlation coefficient: 0.9349.

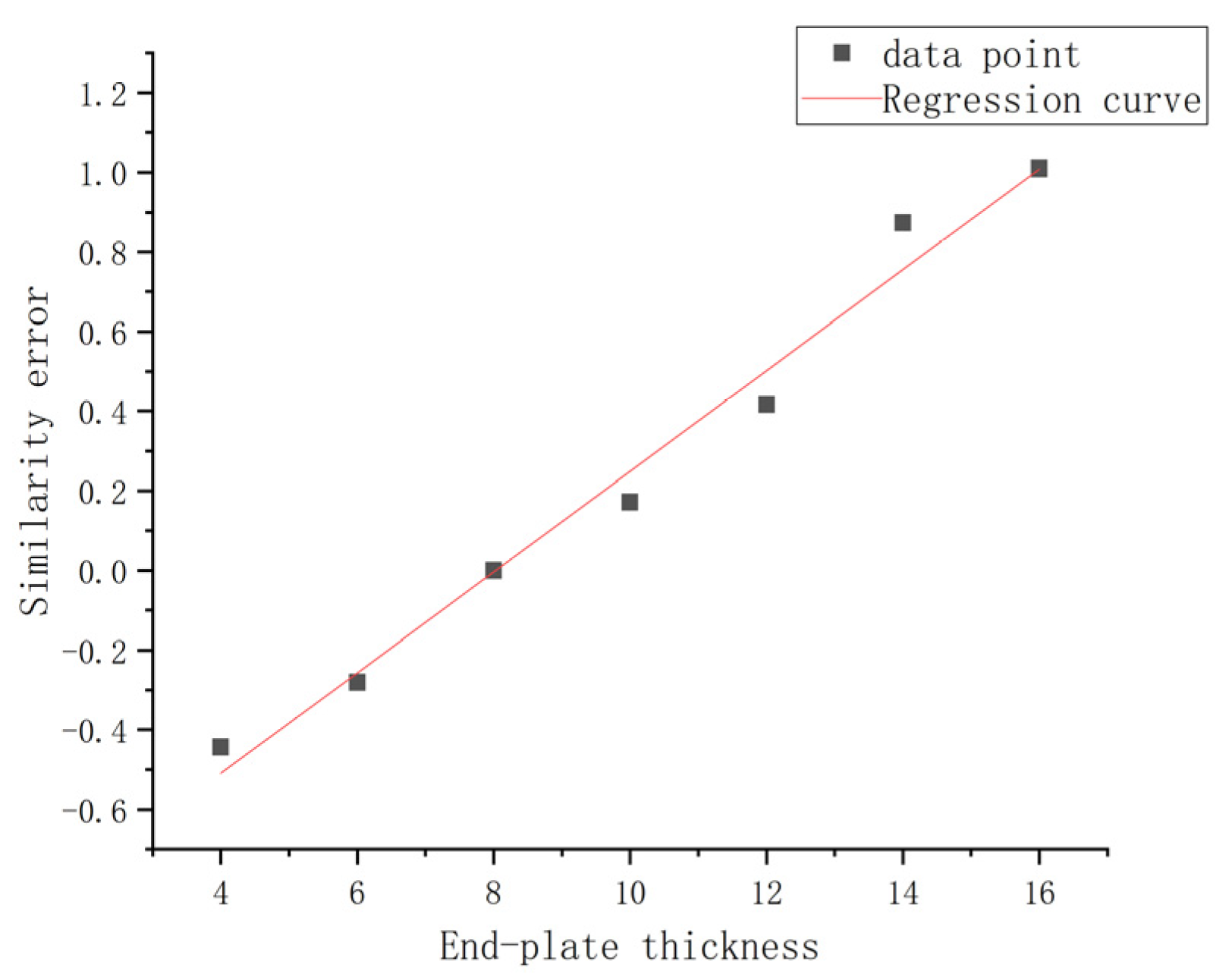

_{f}: $Y=-1.0157+0.1265x$. The correlation coefficient: 0.9823.

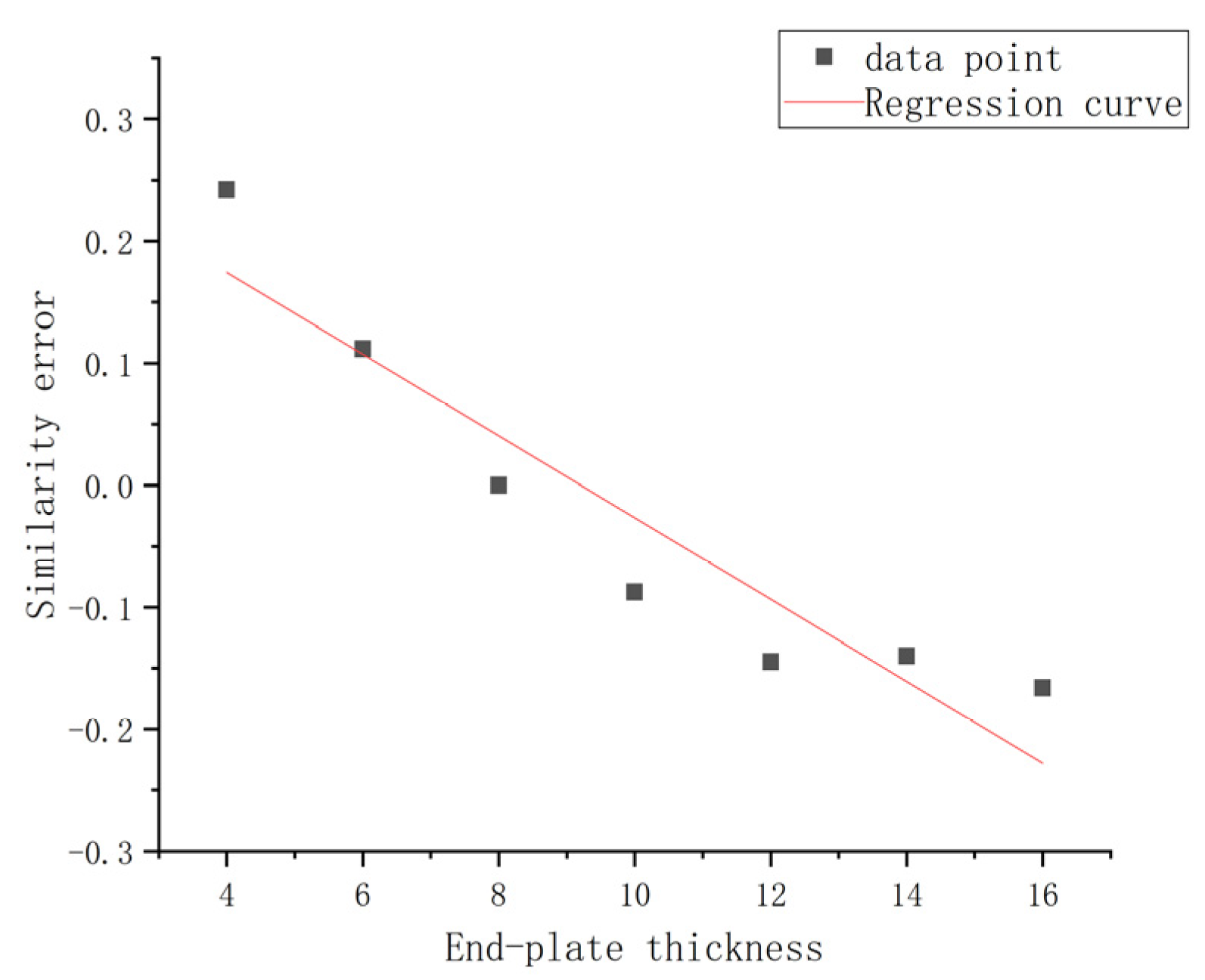

_{p}: $Y=0.3083-0.0335x$. The correlation coefficient: 0.8817.

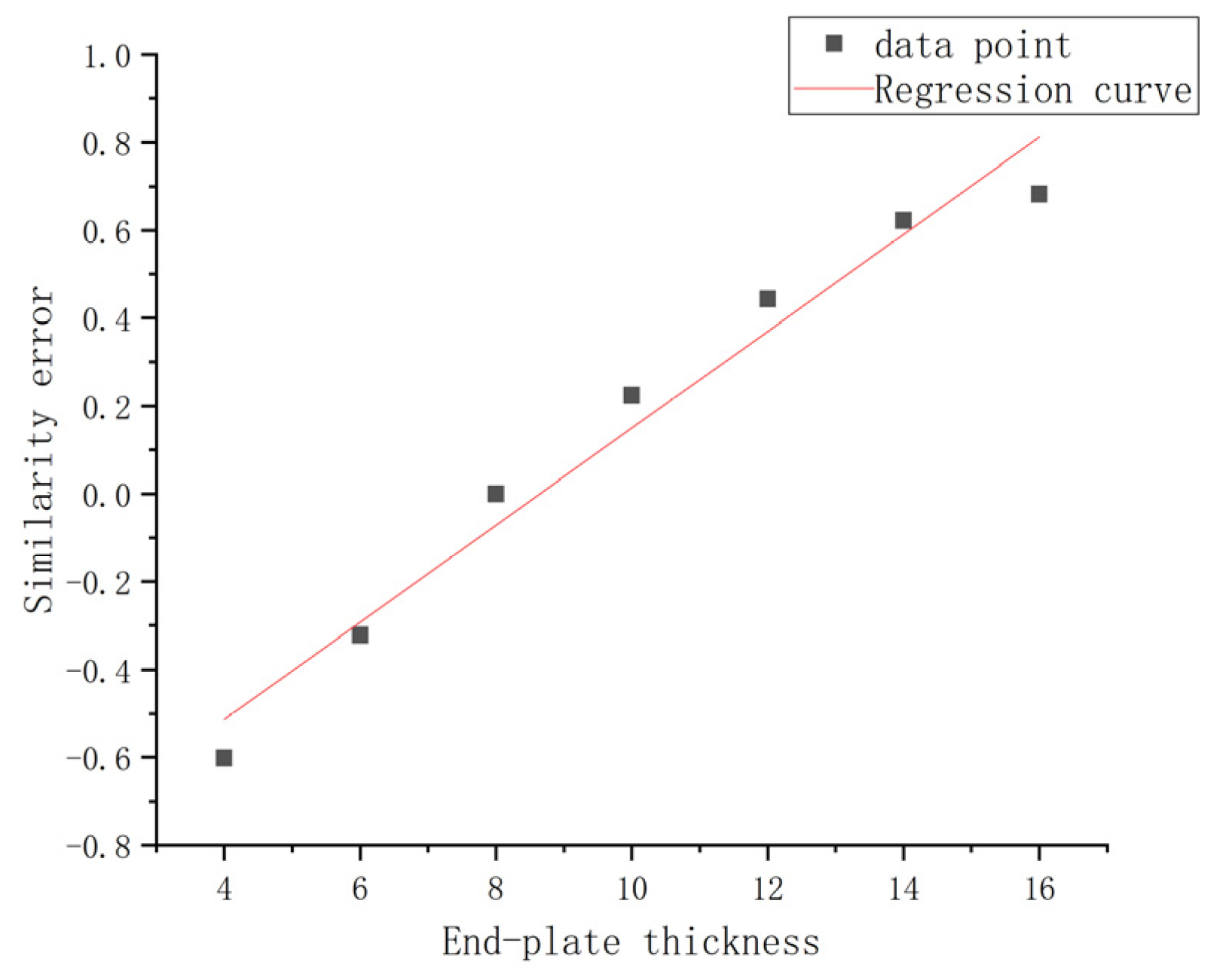

_{w}: $Y=-0.9547+0.1104x$. The correlation coefficient: 0.9699.

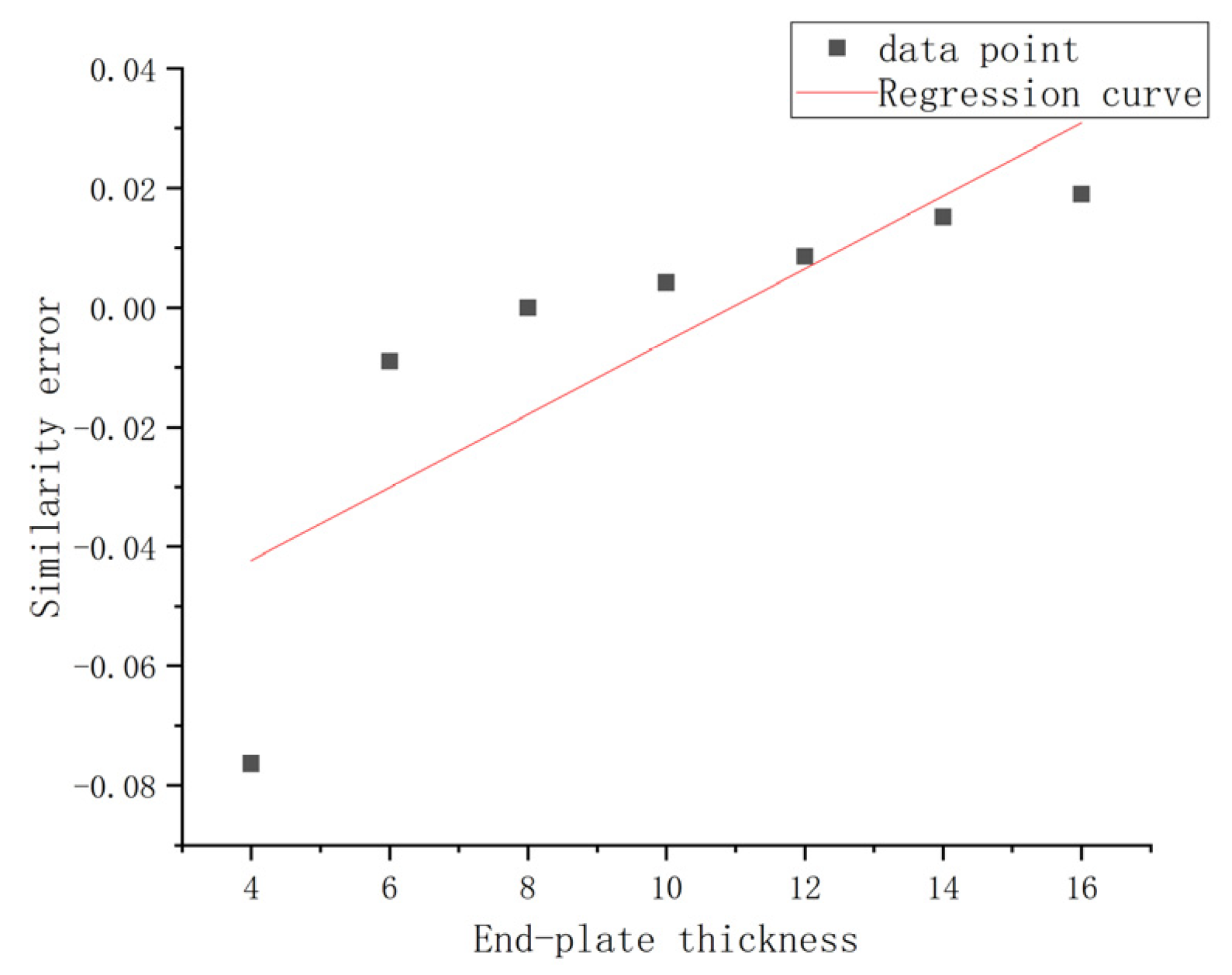

_{c}: $Y=-0.0667+0.0061x$. The correlation coefficient: 0.6579.

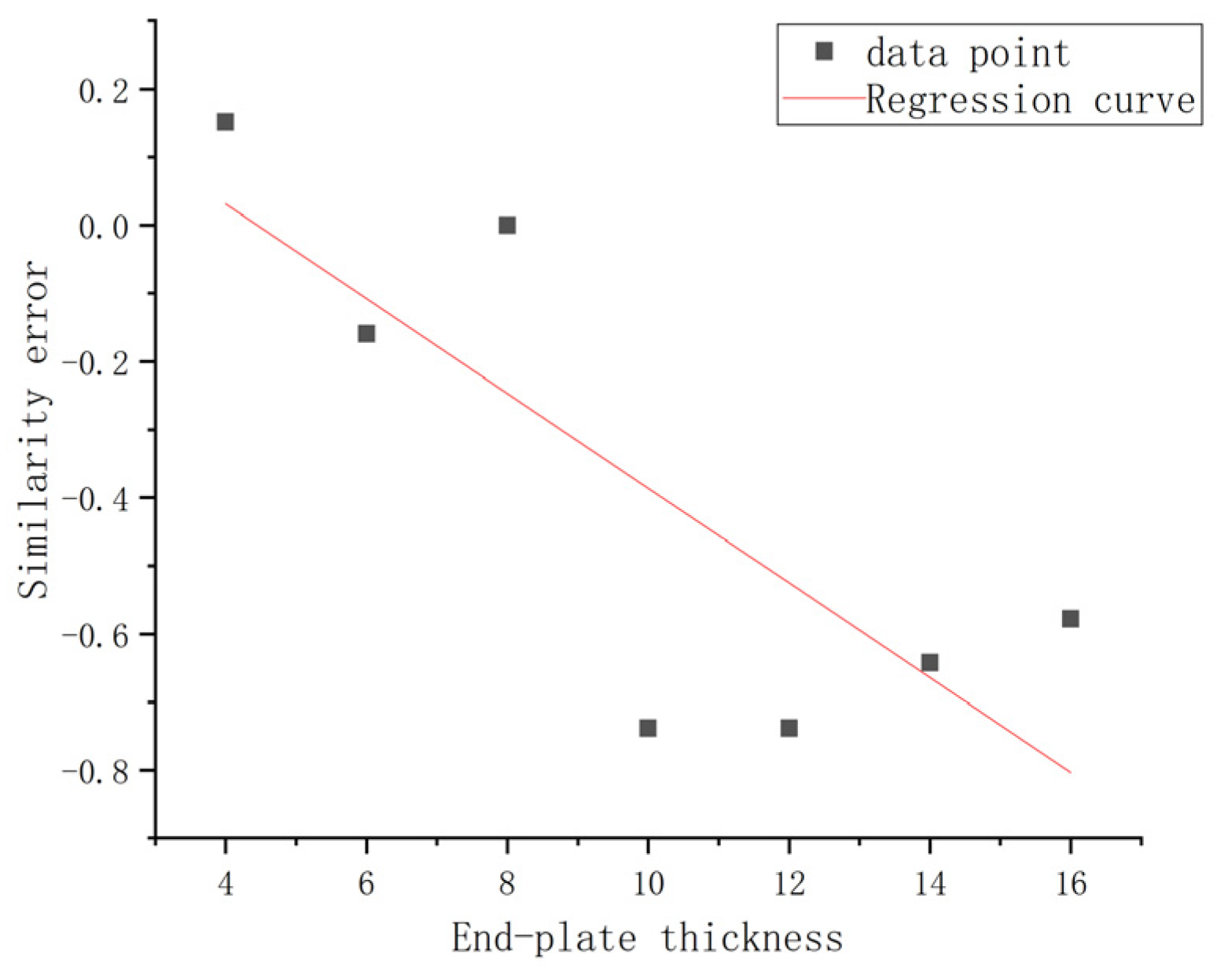

_{p}: $Y=0.3089-0.0695x$. The correlation coefficient: 0.6445.

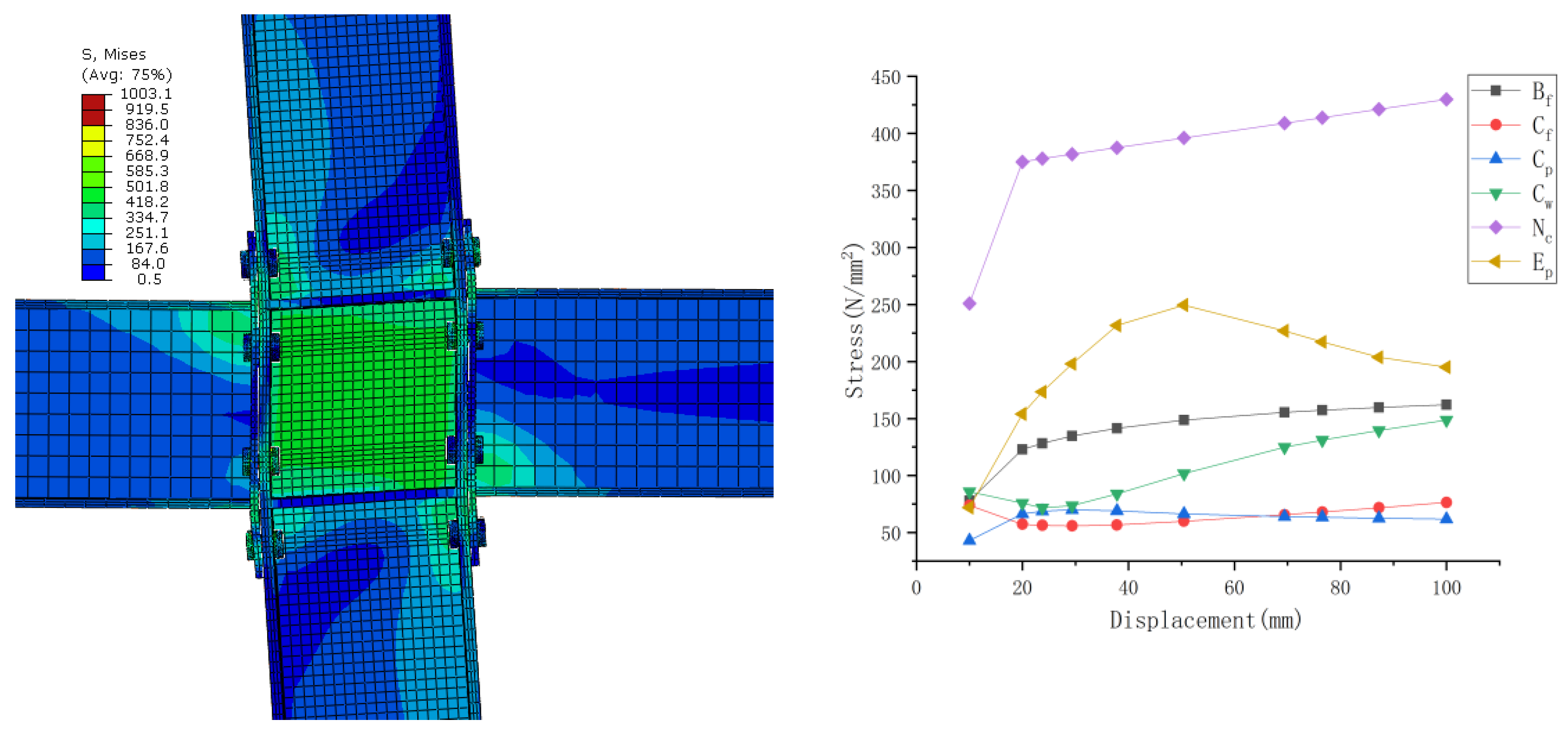

_{f}: the upper flange of the beam and 75 mm away from the end-plate; C

_{f}: the flange of the column and 75 mm away from the top of the beam; C

_{p}: the central position of the upper partition of the column; C

_{w}: the web of the column and 75 mm away from the surface of the upper partition; N

_{c}: the central position of the core area of the node; and E

_{p}: the upper and middle parts of the end-plate 27.5 mm away from the top of the beam.

## 6. Conclusions

- (1)
- Through the derivation, the completely similar conditions of the semi-rigid beam–column connection structure were obtained, and the constraints of the similar factors were clarified. This paper analyzed the limitations of the classic similarity theory and provided a theoretical basis for further research on similarity errors.
- (2)
- The numerical model proves that under the premise of meeting the completely similar conditions, the prototype and the model’s stress distribution law and development process are completely consistent.
- (3)
- This paper took the thickness of the end-plate as a similar factor, established six incomplete scale models, selected the stress development history of six points as the research object, analyzed, in detail, the influence of the end-plate thickness on the model’s stress development process and distribution when it does not meet the exact similar conditions, and summarized the stress development law of typical points of the end-plate connection.
- (4)
- This paper calculated the similarity errors due to the incomplete end-plate thicknesses. The analysis shows that the similarity error and the similarity factor are roughly monotonic and linear. A regression analysis was performed, and a regression formula for similar error and end-plate thickness was obtained. The correlation coefficient of the corresponding formula was calculated, and the results show that except for the stress at the end-plate points, the univariate linear regression equations at other points are more significant. Similar error analysis methods were provided which can be applied to other types of models.
- (5)
- The analysis results in this paper show that even if the stress distribution of the model only approximately meets the linear distribution law, the linear regression method can still reduce the incomplete similarity error to a large extent, which provides a reference for future study of the similarity error distribution law.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Kawecki, P.; Kozlowski, A. Experimental investigation of end-plate splices with multiple bolt rows of large girders. J. Constr. Steel Res.
**2019**, 105859. [Google Scholar] [CrossRef] - Sun, F.F.; Xue, X.Y.; Jin, H.J.; Sun, M.; Tang, Z.M.; Xiao, Y.; Li, G.Q. Hysteretic behavior and simplified simulation method of high-strength steel end-plate connections under cyclic loading. J. Constr. Steel Res.
**2019**, 158, 429–442. [Google Scholar] [CrossRef] - Peng, Z.; Dai, S.-B.; Pi, Y.-L.; Zhang, Y.-C.; Huang, J. Similitude and scaling of large structural elements: Case study. J. Constr. Steel Res.
**2018**, 145, 167–183. [Google Scholar] [CrossRef] - Pan, J.; Wang, Z.; Li, M. Error analysis of geometrical non-full-similar models for steel connections. China Civ. Eng. J.
**2011**, 44, 45–51. [Google Scholar] - Pan, J. Analytical Method on Semi-Rigid Joint of Framework Based on Correlations. Ph.D. Thesis, Shantou University, Shantou, China, 2009. [Google Scholar]
- Liu, H. Similarity of Aeroelastic Model of Tensile Membrane Structure. Master’s Thesis, Harbin Institute of Technology, Harbin, China, 2017. [Google Scholar]
- Hamit, K.; Oktay, A. Design of scaled down model of a tower crane mast by using similitude theory. Eng. Struct.
**2020**, 220, 110985. [Google Scholar] [CrossRef] - Lu, L.F.; Xu, Y.L.; Zheng, H.; Zhou, T.H.; Huang, P.G. Experimental study of weak-axis composite connections with cantilever beam splicing under cyclic loading. J. Build. Struct.
**2018**, 39, 66–75. [Google Scholar] - Liu, X.Y.; Wang, Y.Q.; Shi, Y.J.; Tan, Q.H. Experimental study on low-cycle fatigue fracture behavior of high strength steel beam-to-column connection. J. Build. Struct.
**2018**, 39, 28–36. [Google Scholar] - Huang, H.; Wang, G.; Guo, K.; Zhao, Z.T.; Wang, H.H.; Zhang, B. Model experiment study on complicated joints for a steel structure. Build. Struct.
**2016**, 46, 383–386. [Google Scholar] - Xia, Y.-Q.; Xiao, N. Initial rotational stiffness formula of semi-rigid joint with T-stub in beam-to-column connection. J. Zhejiang Univ.
**2018**, 52, 1935–1942. [Google Scholar] [CrossRef] - Ma, H.H.; Ren, S.; Fan, F. Experimental and numerical research on a new semi-rigid joint for single-layer reticulated structures. Eng. Struct.
**2016**, 126, 725–738. [Google Scholar] [CrossRef] - Guo, X.N.; Xiong, Z.; Luo, Y.F.; Qiu, L.Q.; Liu, J. Experimental investigation on the semi-rigid behaviour of aluminium alloy gusset joints. Thin-Walled Struct.
**2015**, 87, 30–40. [Google Scholar] [CrossRef] - Reinosa, J.M.; Loureiro, A.; Gutierrez, R.; Lopez, M. Mechanical stiffness prediction of beam-to-column stiffened angle joints. J. Constr. Steel Res.
**2019**, 105875. [Google Scholar] [CrossRef] - Shehadeh, M.; Shennawy, Y.; El-Gamal, H. Similitude and scaling of large structural elements: Case study. Alex. Eng. J.
**2015**, 54, 147–154. [Google Scholar] [CrossRef][Green Version] - Carrillo, J.; Jose, A.P.; Leonardo, E.F. Quasi-static cyclic tests of confined masonry walls retrofitted with mortar overlays reinforced with either welded-wire mesh or steel fibers. J. Build. Eng.
**2020**, 27, 100975. [Google Scholar] [CrossRef] - Dackermann, U.; Elsener, R.; Li, J.; Crews, K. A comparative study of using static and ultrasonic material testing methods to determine the anisotropic material properties of wood. Constr. Build. Mater.
**2016**, 102, 963–976. [Google Scholar] [CrossRef] - Daniel, M.D.; Bruneaub, M. Quasi-static cyclic testing and analytical investigation of steel plate shear walls with different post-tensioned beam-to-column rocking connections. Eng. Struct.
**2019**, 187, 43–56. [Google Scholar] - Hossdorf, H. Model Analysis of Structures, 1st ed.; Van Nostrand Reinhold: London, UK, 1974; ISBN 978-0442300180. [Google Scholar]
- Gibbings, J.C. Dimensional Analysis, 1st ed.; Springer: London, UK, 2011; ISBN 978-1849963169. [Google Scholar]

Physical Quantity 1 | Physical Quantity 2 |
---|---|

L: geometric dimension. | A: sectional area. |

g: acceleration of gravity. | γ: Poisson ratio. |

F: static load. | ρ: density. |

M: moment | σ: stress. |

E: elastic modulus. | ε: strain. |

G: shear modulus. | s: displacement. |

K: initial stiffness of semi-rigid joint. | θ: angle. |

I: moment of inertia | T: time. |

Basic Dimension | L | g | F | M | E | G | K | I |
---|---|---|---|---|---|---|---|---|

F | 0 | 0 | 1 | 1 | 1 | 1 | 1 | 1 |

L | 1 | 1 | 0 | 1 | −2 | −2 | 1 | 2 |

T | 0 | −2 | 0 | 0 | 0 | 0 | 0 | 1 |

Basic Dimension | A | γ | ρ | σ | ε | s | θ | T |

F | 0 | 0 | 1 | 1 | 0 | 0 | 0 | 0 |

L | 2 | 0 | −4 | −2 | 0 | 1 | 0 | 0 |

T | 0 | 0 | 2 | 0 | 0 | 0 | 0 | 1 |

Factor | Similarity Ratio | Factor | Similarity Ratio |
---|---|---|---|

S_{L} | 1:2 | S_{A} | 1:4 |

S_{F} | 1:4 | S_{y} | 1:1 |

S_{M} | 1:8 | S_{σ} | 1:1 |

S_{E} | 1:1 | S_{ε} | 1:1 |

S_{G} | 1:1 | S_{s} | 1:2 |

S_{K} | 1:8 | S_{θ} | 1:1 |

Prototype | Component Modulus (mm) | Model | Component Modulus of Completely Similar Conditions (mm) |
---|---|---|---|

B_{p} | HN300 × 200 × 8 × 12 | B_{m} | 150 × 100 × 4 × 6 |

C_{p} | HN300 × 300 × 10 × 15 | C_{m} | 150 × 150 × 5 × 7.5 |

E_{p} | 250 × 500 × 16 | E_{m} | 125 × 250 × 8 |

BL_{p} | M20 | BL_{m} | M10 |

_{p}: beam of prototype; C

_{p}: column of prototype; E

_{p}: end plate of prototype; BL

_{p}: bolt of prototype; B

_{m}: beam of model; C

_{m}: column of model; E

_{m}: end-plate of model; BL

_{m}: bolt of model. HN: Narrow flange H-beam. M: Bolt specifications.

Index | Bolt | Beam and Column |
---|---|---|

Yield strength | 940 | 373.2 |

Ultimate strength | 1130 | 540.7 |

Yield strain | 0.05 | 0.08375 |

Ultimate strain | 0.1 | 0.3 |

Position | Prototype (mm) | Model (mm) |
---|---|---|

Beam | 30 | 15 |

Column | 30 | 15 |

End-plate | 8 | 4 |

Bolt | 2.8 | 1.4 |

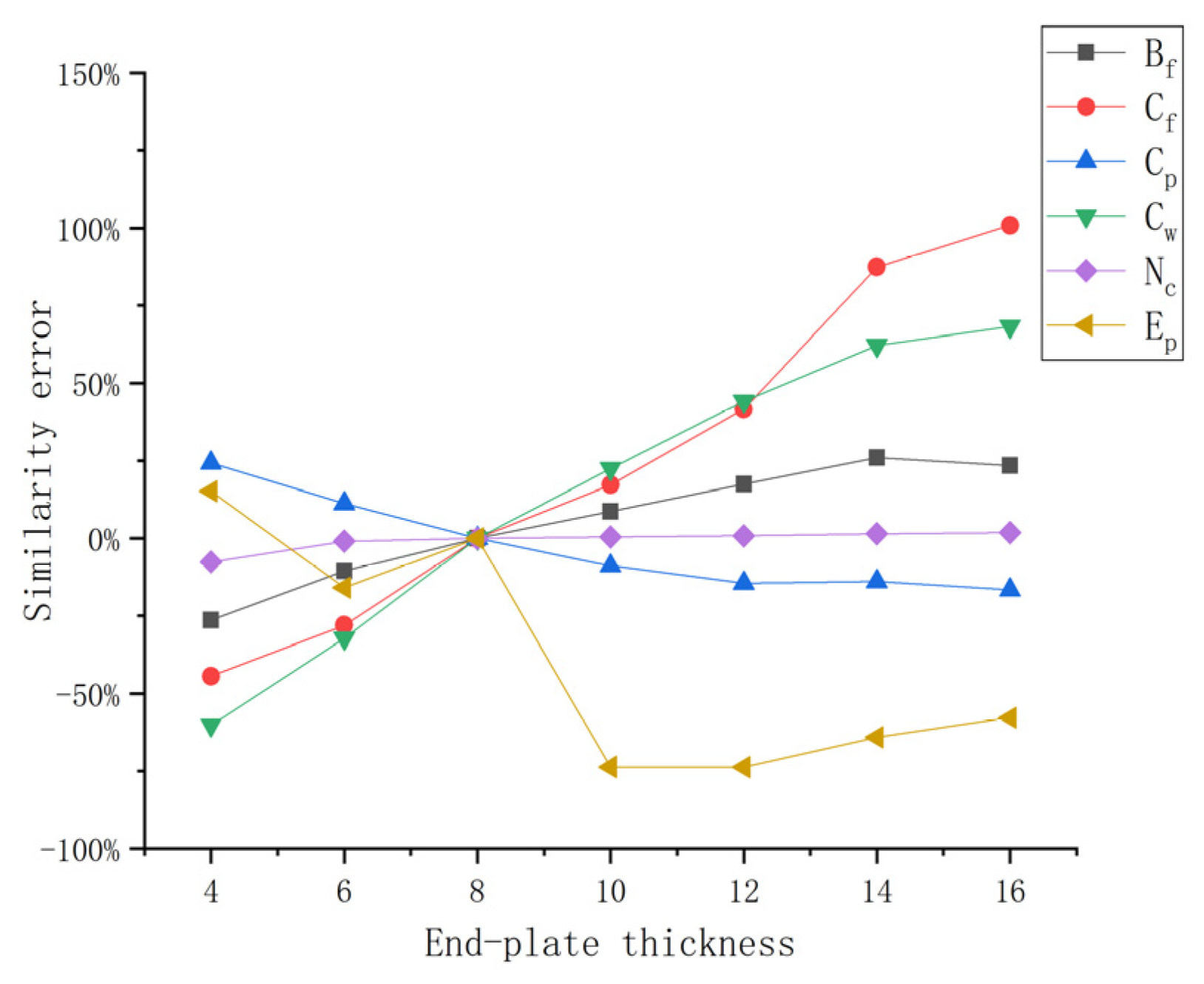

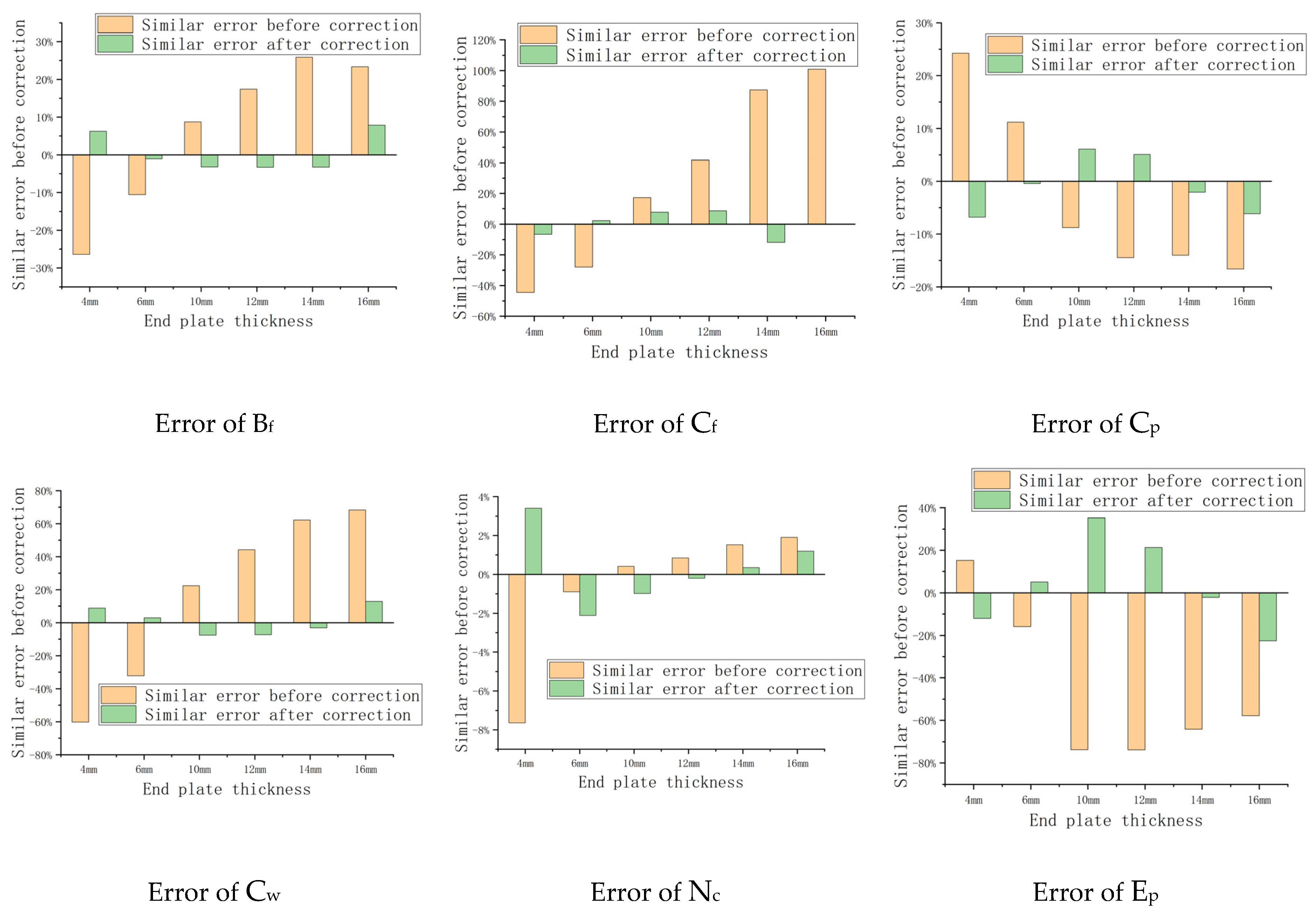

Name | Status | 4 (mm) | 6 (mm) | 8 (mm) | 10 (mm) | 12 (mm) | 14 (mm) | 16 (mm) |
---|---|---|---|---|---|---|---|---|

B_{f} | before | −26.38% | −10.55% | 0.00% | 8.75% | 17.40% | 25.89% | 23.35% |

after | 6.23% | −1.04% | −3.03% | −3.22% | −3.31% | −3.24% | 7.86% | |

C_{f} | before | −44.40% | −28.07% | 0.00% | 17.22% | 41.65% | 87.37% | 100.94% |

after | −6.57% | 2.40% | −0.37% | 7.71% | 8.58% | −11.84% | −0.11% | |

C_{p} | before | 24.24% | 11.18% | 0.00% | −8.78% | −14.46% | −14.00% | −16.62% |

after | −6.81% | −0.45% | 4.03% | 6.11% | 5.09% | −2.07% | −6.15% | |

C_{w} | before | −60.19% | −32.18% | 0.00% | 22.44% | 44.27% | 62.22% | 68.29% |

after | 8.88% | 2.95% | −7.15% | −7.51% | −7.26% | −3.13% | 12.88% | |

N_{c} | before | −7.64% | −0.90% | 0.00% | 0.42% | 0.85% | 1.52% | 1.90% |

after | 3.41% | −2.11% | −1.79% | −0.99% | −0.20% | 0.35% | 1.19% | |

E_{p} | before | 15.17% | −15.96% | 0.00% | −73.79% | −73.85% | −64.23% | −57.81% |

after | −12.08% | 5.15% | −24.71% | 35.18% | 21.34% | −2.18% | −22.50% |

_{f}: the upper flange of the beam and 75 mm away from the end-plate; C

_{f}: the flange of the column and 75 mm away from the top of the beam; C

_{p}: the central position of the upper partition of the column; C

_{w}: the web of the column and 75 mm away from the surface of the upper partition; N

_{c}: the central position of the core area of the node; and E

_{p}: the upper and middle parts of the end-plate 27.5 mm away from the top of the beam.
