Design and Simulation Analysis of a New Type of Assembled UHPC Collision Avoidance
Abstract
:Featured Application
Abstract
1. Introduction
2. Device Construction Design and Finite Element Modeling

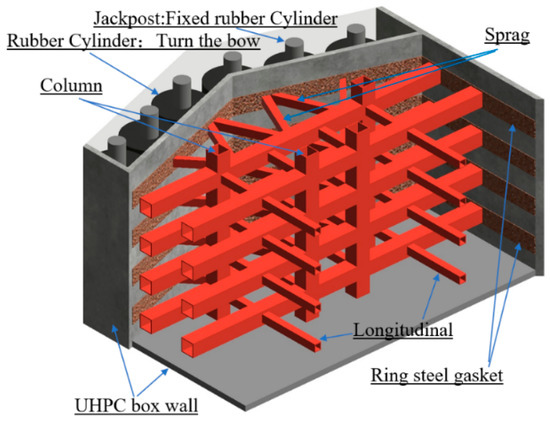

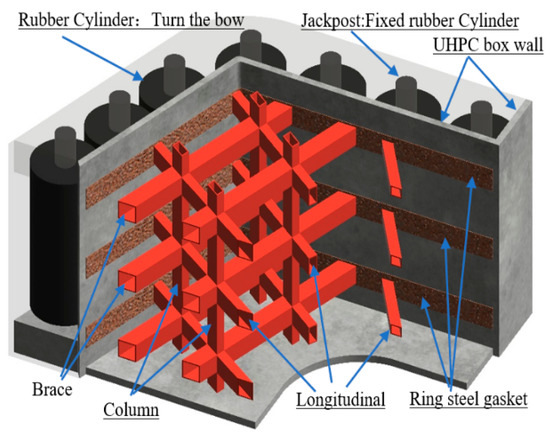

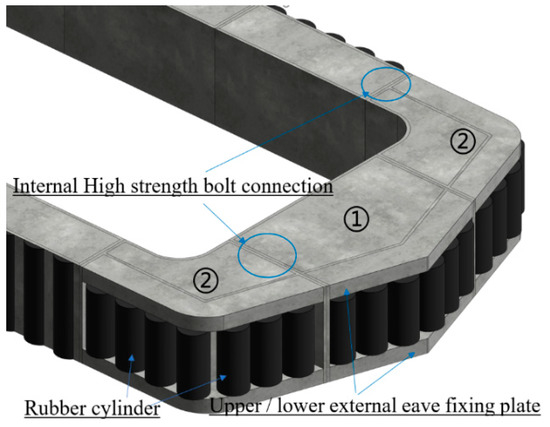

2.1. Device Construction Design
2.1.1. Design of No.1 Box
2.1.2. Design of No.2 Box
2.1.3. Design and Construction of No.3 Box
2.2. Finite Element Modeling

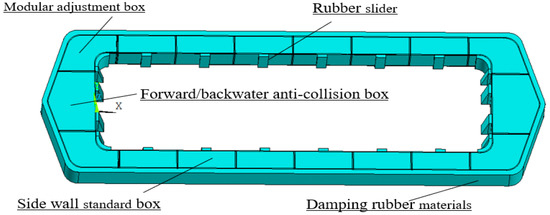

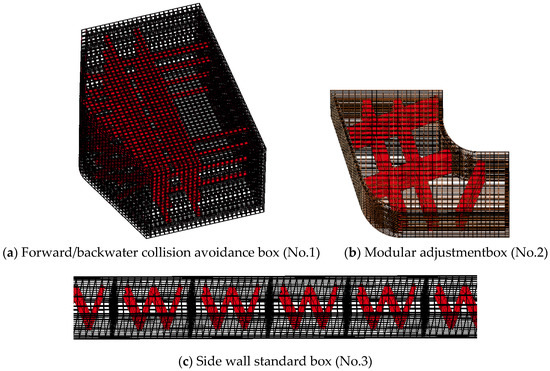

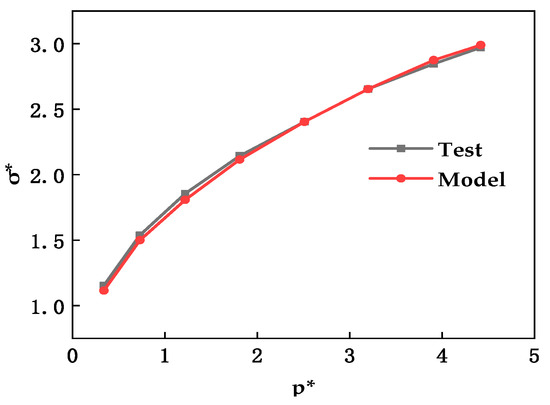

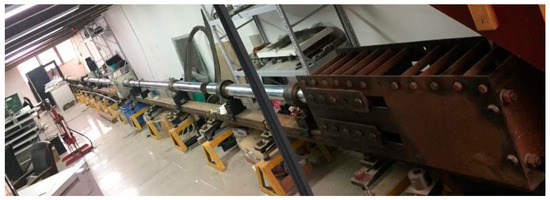

2.2.1. Finite Element Modeling of UHPC Collision Avoidance Device

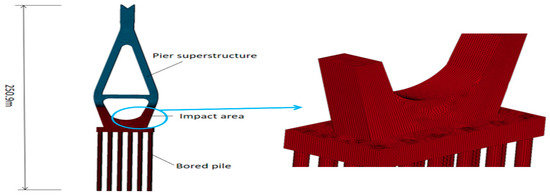

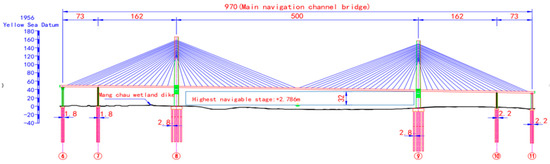

2.2.2. Finite Element Modeling of Piers

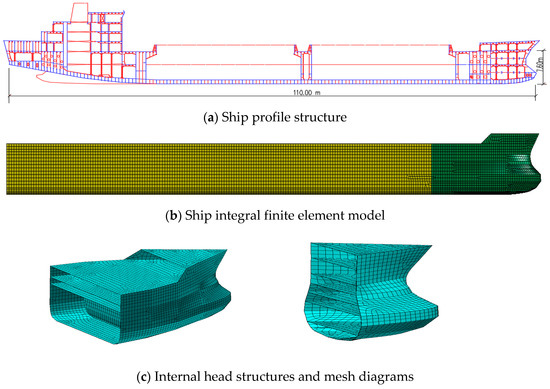

2.2.3. Ship Finite Element Modeling
2.2.4. Contact Definition
3. Performance Analysis of Design Parameters

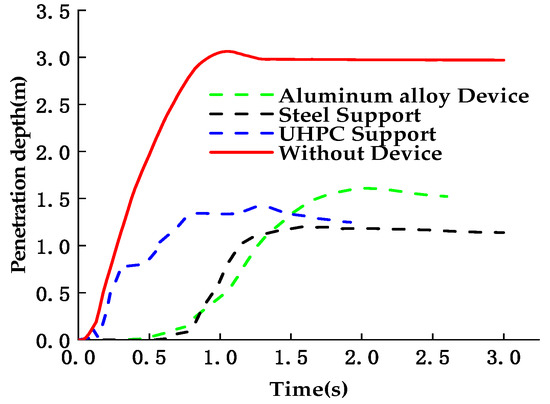

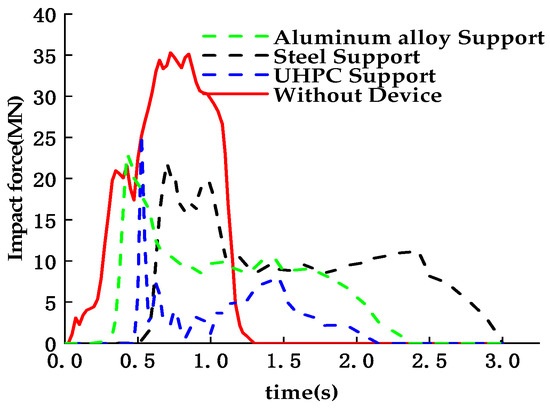

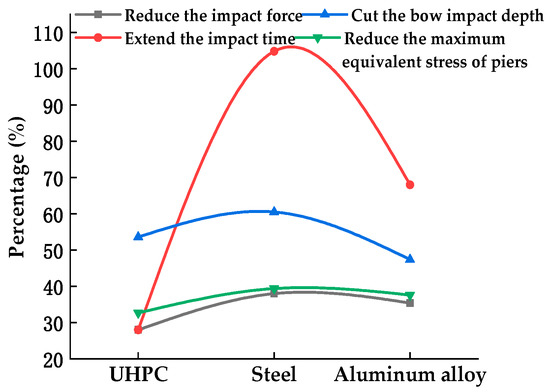

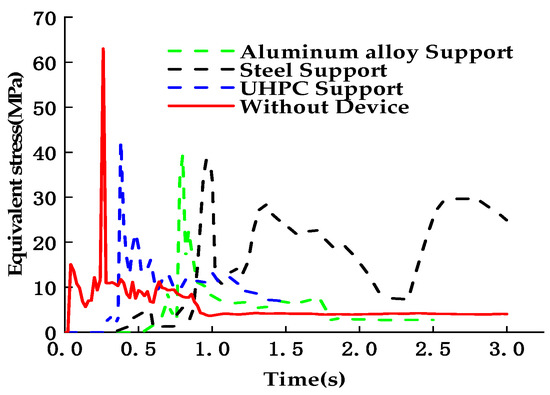

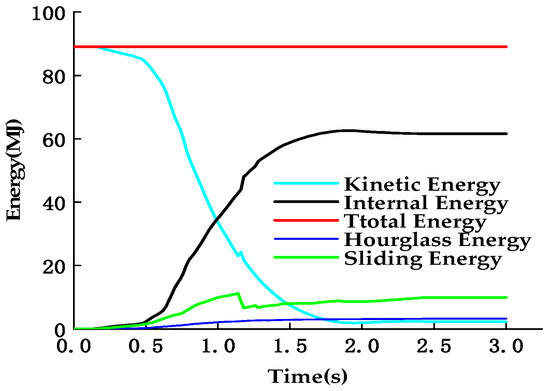

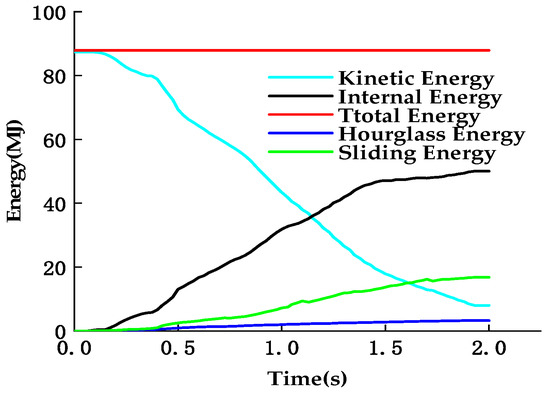

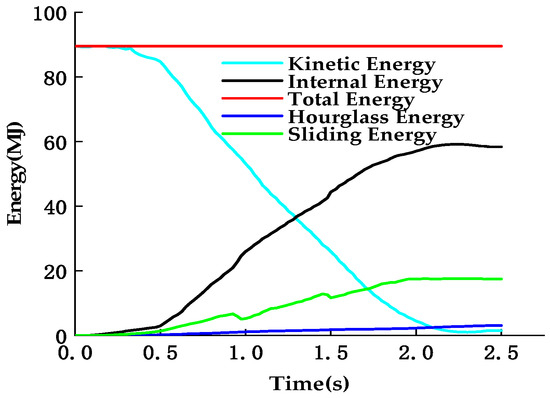

3.1. Analysis of Material Properties of Internal Support Elements of Floating Tank

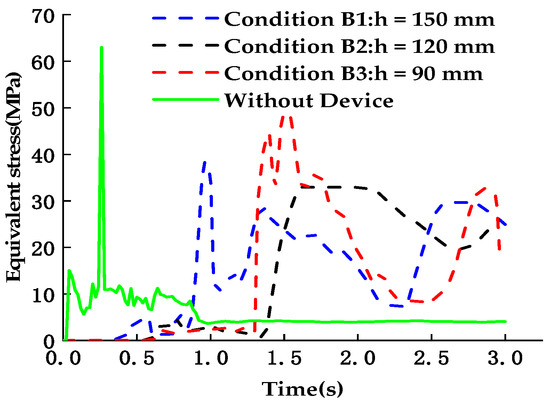

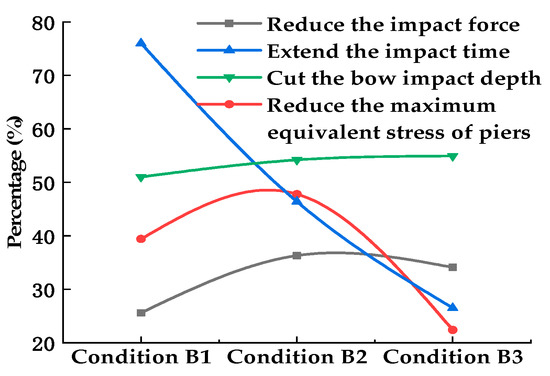

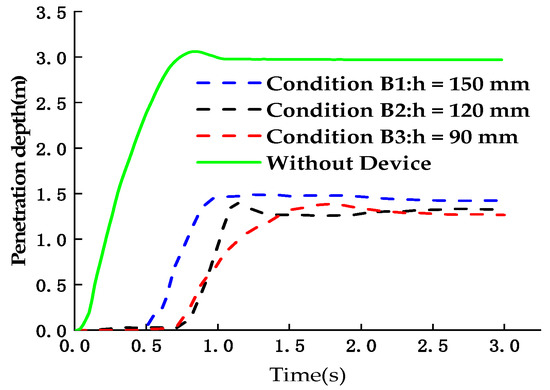

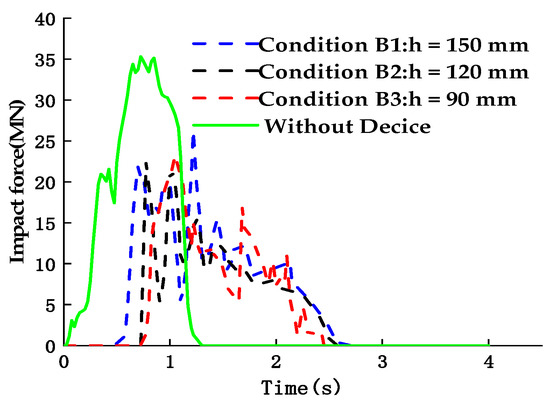

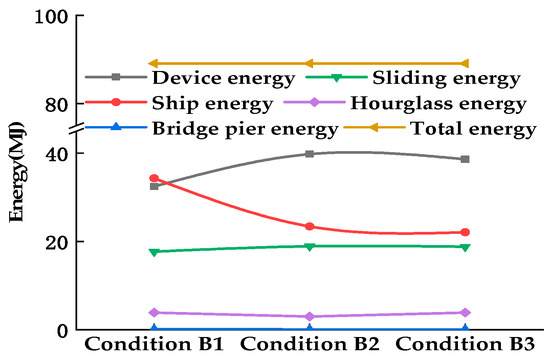

3.2. Performance Analysis of UHPC Floating Tank Wall Thickness Parameters

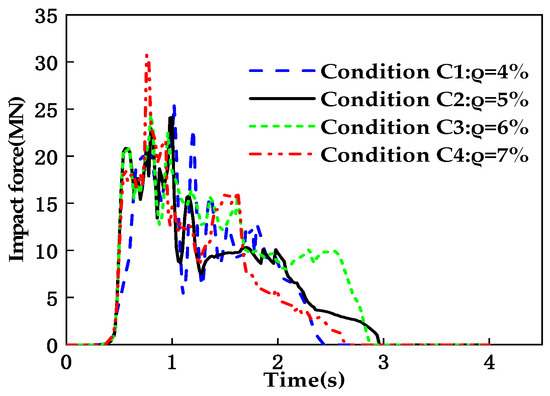

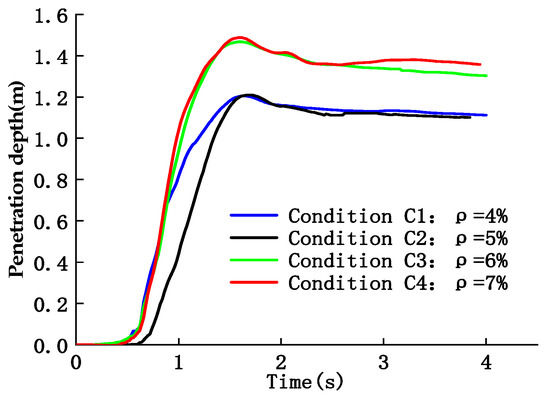

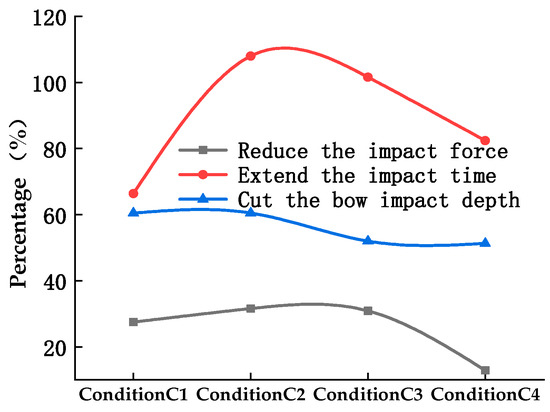

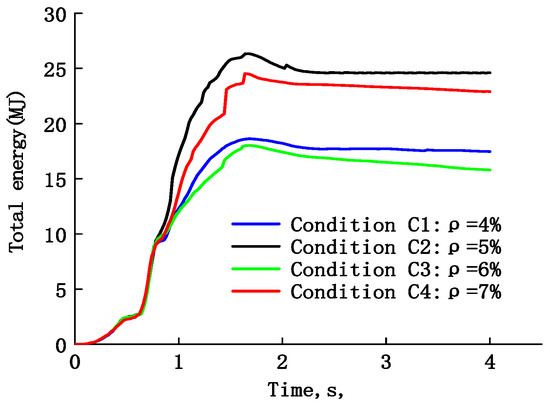

3.3. Performance Analysis of UHPC Tank Wall Reinforcement Ratio Parameters

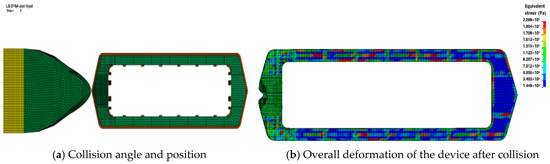

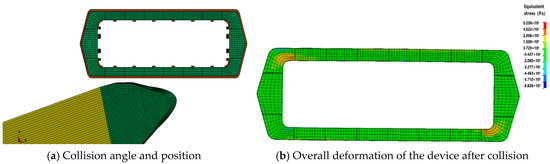

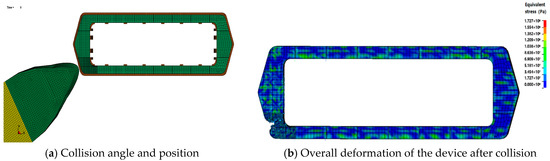

4. Research on Performance of Collision Avoidance Device under Optimal Parameters
5. Discussion
6. Conclusions
- (1)

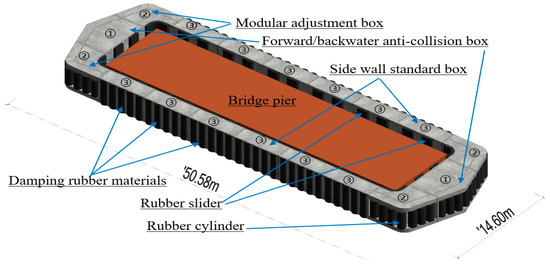

- The new type of assembled UHPC collision avoidance device proposed in this paper consists of three types of modular collision avoidance floating boxes and intermittent rubber sliders. Each collision avoidance floating box is composed of rubber drums, rubber damper material, a double-layer, double-direction, densely reinforced, and super high-performance concrete shell structure, and steel supporting elements. This device can take full advantage of its plastic deformation, strong energy absorption, excellent corrosion resistance and durability, modular production and assembly, high efficiency of on-site installation, convenient replacement of damaged floating boxes, and low maintenance cost.
- (2)
- The newly assembled UHPC collision avoidance device can significantly reduce the maximum impact force and extend the impact duration of the pier in a ship–bridge collision. For the forward collision conditions, which occur frequently and result in serious damage in engineering practice, the peak impact force acting on the pier can be reduced by 41.8%, the impact duration can be extended by 100.0%, and the damage deformation energy to the bow can be reduced by 34.6%. The collision avoidance device can protect bridge piers and ships efficiently.
- (3)
- The damage to and deformation of the collision avoidance device itself is mainly concentrated in any of the floating boxes directly impacted by the ship, the rubber drums on the external side of the floating boxes, and the rubber sliders on the internal side. The other, not directly impacted, floating boxes will not undergo damage or deformation.
- (4)

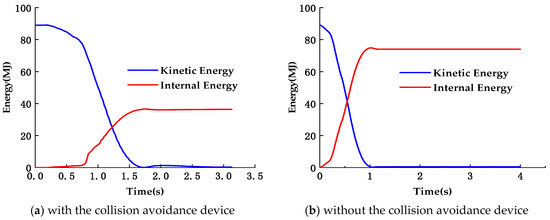

- The new collision avoidance device has good collision avoidance and energy dissipation performance, which mainly comes from the UHPC floating boxes that have double-layer two-way dense reinforcement and the internal steel supporting elements. The floating box wall can take full advantage of its strength to improve the overall strength of the device. The internal supporting elements fully absorb the impact kinetic energy by elastic-plastic deformation and buckling. The discontinuous rubber sliders on the internal side of the collision avoidance device can improve the hard contact environment between the device and the pier, and significantly reduce the peak impact force of the pier.
- (5)

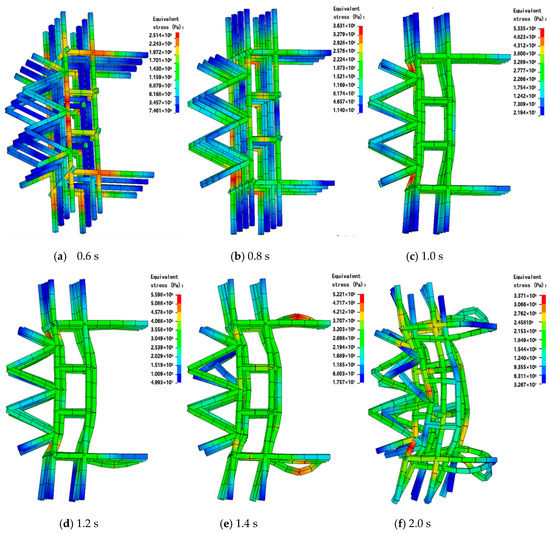

- Because of its reasonable design and layout, the internal steel support has a high flexibility and viscous energy dissipation response during the impact process of 5000 DWT ships, so it can be used as a flexible energy dissipation and impact resistance component, especially under impact conditions, and has good economic application prospects.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Xia, C.Y.; Ma, Q.; Song, F.D.; Wu, X.; Xia, H. Dynamic analysis of high-speed railway train-Bridge system after barge collision. Struct. Eng. Mech. 2018, 67, 9–20. [Google Scholar] [CrossRef]
- Larsen, O.D. Ship Collision with Bridges, the Interaction between Vessel Traffic and Bridge Structures; IABSE: Zuerich, Switzerland, 1993. [Google Scholar]
- Gholipour, G.; Zhang, C.W.; Mousavi, A.A. Nonlinear numerical analysis and progressive damage assessment of a cable-stayed bridge pier subjected to ship collision. Mar. Struct. 2020, 69, 102662. [Google Scholar] [CrossRef]
- Jiang, L.Q.; Ye, J.H.; Zheng, H. Collapse mechanism analysis of the FIU pedestrian bridge based on the improved structural vulnerability theory (ISVT). Eng. Fail. Anal. 2019, 104, 1064–1075. [Google Scholar] [CrossRef]
- Jiang, L.Q.; Ye, J.H. Redundancy of a mid-rise CFS composite shear wall building based on seismic response sensitivity analysis. Eng. Struct. 2019, 200, 109647. [Google Scholar] [CrossRef]
- Jiang, L.Q.; Ye, J.H. Collapse Mechanism and shaking table test validation of a 3D mid-rise CFS composite shear wall building. Thin Walled Struct. 2020, 146, 106470. [Google Scholar] [CrossRef]
- Wang, J.J.; Song, Y.C.; Wang, W.; Chen, C.J. Evaluation of flexible floating anti-collision device subjected to ship impact using finite-element method. Ocean. Eng. 2019, 178, 321–330. [Google Scholar] [CrossRef]
- Toyama, Y. Drift-wood collision load on bow structure of high-speed vessels. Mar. Struct. 2009, 22, 24–41. [Google Scholar] [CrossRef]
- Rong, Z.D.; Sun, W.; Zhang, Y.S. Dynamic compression behavior of ultra-high performance cement based composites. Int. J. Impact. Eng. 2010, 37, 515–520. [Google Scholar] [CrossRef]
- Bragov, A.M.; Petrov, Y.V.; Karihaloo, B.L.; Konstantinov, A.Y.; Lamzin, D.A.; Lomunov, A.K.; Smirnov, I.V. Dynamic Strengths and Toughness of an Ultra High Performance Fibre Reinforced Concrete. Eng. Fract. Mech. 2013, 110, 477–488. [Google Scholar] [CrossRef]
- Millard, S.G.; Molyneaux, T.C.K.; Barnetts, S.J.; Gao, X. Dynamic Enhancement of Blast-resistant Ultra High Performance Fibre-reinforced Concrete Under Flexural and Shear loading. Int. J. Impact. Eng. 2010, 37, 405–413. [Google Scholar] [CrossRef] [Green Version]
- Graybeal, B.A.; Tanesi, J. Durability of an ultra high performance concrete. J. Mater. Civil. Eng. 2007, 19, 848–854. [Google Scholar] [CrossRef]
- Reju, R.; Jacob, G.J. Investigations on the Chemical Durability Properties of Ultra High Performance Fibre Reinforced Concrete. In Proceedings of the 2012 International Conference on Green Technologies (ICGT), Trivandrum, India, 18–20 December 2012. [Google Scholar]
- Hoang, A.L.; Fehling, E. Assessment of stress-strain model for UHPC confined by steel tube stub columns. Struct. Eng. Mech. 2017, 63, 371–384. [Google Scholar]
- Wan Yl Zhu, L.; Fang, H.; Liu, W.Q.; Mao, Y.F. Experimental testing and numerical simulations of ship impact on axially loaded reinforced concrete piers. Int. J. Impact. Eng. 2019, 125, 246–262. [Google Scholar]
- Consolazio, G.R.; Cook, R.A.; McVay, M.C. Barge Impact Testing of the St. George Island Causeway Bridge, Phase III: Physical Testing and Data Interpretation; University of Florida: Gainesville, FL, USA, 2006. [Google Scholar]
- Chu, L.M.; Zhang, L.M. Centrifuge modeling of ship impact loads on bridge pile foundations. J. Geotech. Geoenviron. 2011, 137, 405–420. [Google Scholar] [CrossRef]
- Zeng, L.; Xiao, Y.; Chen, Y.; Jin, S.; Xie, W.; Li, X. Seismic Damage Evaluation of Concrete-Encased Steel Frame-Reinforced Concrete Core Tube Buildings Based on Dynamic Characteristics. Appl. Sci. 2017, 7, 314. [Google Scholar] [CrossRef]
- Zhu, L.; Liu, W.Q.; Fang, H.; Chen, J.Y.; Zhuang, Y.; Han, J. Design and simulation of innovative foam-filled Lattice Composite Bumper System for bridge protection in ship collisions. Compos. Part B Eng. 2019, 157, 24–35. [Google Scholar] [CrossRef]
- Consolazio, G.R.; Cowan, D.R. Nonlinear analysis of barge crush behavior and its relationship to impact resistant bridge design. Comput. Struct. 2003, 81, 547–557. [Google Scholar] [CrossRef]
- Kameshwar, S.; Padgett, J.E. Response and fragility assessment of bridge columns subjected to barge-bridge collision and scour. Eng. Struct. 2018, 168, 308–319. [Google Scholar] [CrossRef]
- Song, Y.C.; Wang, J.J. Development of the impact force time-history for determining the responses of bridges subjected to ship collisions. Ocean. Eng. 2019, 187, 106182. [Google Scholar] [CrossRef]
- Sha, Y.Y.; Hao, H. Laboratory tests and numerical simulations of barge impact on circular reinforced concrete piers. Eng. Struct. 2013, 46, 593–605. [Google Scholar] [CrossRef]
- Korucu, H. Polypropylene fiber reinforced concrete plates under fluid impact. Part II: Modeling and simulation. Struct Eng. Mech. 2016, 60, 225–235. [Google Scholar] [CrossRef]
- Wang, P.F.; Zhang, X.; Zhang, H.; Li, X.T.; He, P.G.; Lu, G.X.; Yu, T.X.; Yang, J.L. Energy absorption mechanisms of modified double-aluminum layers under low-velocity impact. Int. J. Appl. Mech. 2015, 7, 1550086. [Google Scholar] [CrossRef]
- Travanca, J.; Hao, H. Numerical analysis of steel tubular member response to ship bow impacts. Int. J. Impact. Eng. 2014, 64, 101–121. [Google Scholar] [CrossRef] [Green Version]
- Xu, G.; Wang, Y.; Du, Y.; Zhao, W.; Wang, L. Static Strength of Friction-Type High-Strength Bolted T-Stub Connections under Shear and Compression. Appl. Sci. 2020, 10, 3600. [Google Scholar] [CrossRef]
- Song, M.; Kim, E.; Amdahl, J.; Ma, J.; Huang, Y. A comparative analysis of the fluid-structure interaction method and the constant added mass method for ice-structure collisions. Mar. Struct. 2016, 49, 58–75. [Google Scholar] [CrossRef] [Green Version]
- Hallquist, J.O. LS-DYNA Keyword User’s Manual; Livermore Software Technology Corporation: Livermore, CA, USA, 2013. [Google Scholar]
- Zhou, L.Y.; Pu, X.X.; Wei, J. Precast UHPC protection system for bridge pier against ship collision. J. Cent. South Univ. (Sci. Technol.) 2019, 50, 923–930. [Google Scholar]
- Kong, X.Z.; Fang, Q.; Wu, H.; Peng, Y. Numerical predictions of cratering and scabbing in concrete slabs subjected to projectile impact using a modified version of HJC material model. Int. J. Impact. Eng. 2016, 95, 61–71. [Google Scholar] [CrossRef]
- Liu, K. Experimental study on Dynamic Constitutive Model of Ultra-High Performance Concrete. Master’s Thesis, Central South University, Changsha, China, 2019. [Google Scholar]
- Tai, Y.S. Flat ended projectile penetrating ultra- high strength concrete plate target. Theor. Appl. Fract. Mec. 2009, 51, 117–128. [Google Scholar] [CrossRef]
- Xie, B.J.; Yan, Z.; Du, Y.J.; Zhao, Z.M.; Zhang, X.Q. Determination of Holmquist-Johnson-Cook Constitutive Parameters of Coal: Laboratory Study and Numerical Simulation. Processes 2019, 7, 386. [Google Scholar] [CrossRef] [Green Version]
- Holomquist, T.J.; Johnson, G.R.; Cook, W.H. A computational constitutive model for concrete subjective to large strains, high strain rates, and high pressures. In Proceedings of the 14th International Symposium on Ballistics, Quebec City, QC, Canada, 26–29 September 1993. [Google Scholar]
- Sha, Y.Y.; Hao, H. Nonlinear finite element analysis of barge collision with a single bridge pier. Eng. Struct. 2012, 41, 63–76. [Google Scholar] [CrossRef]
- Fan, W.; Yuan, W.C. Numerical simulation and analytical modeling of pile-supported structures subjected to ship collisions including soil-structure interaction. Ocean Eng. 2014, 91, 11–27. [Google Scholar] [CrossRef]
- Kang, H.; Kim, J. Response of a steel column-footing connection subjected to vehicle impact. Struct. Eng. Mech. 2017, 63, 125–136. [Google Scholar]
- Fang, H.; Mao, Y.F.; Liu, W.Q. Manufacturing and evaluation of large-scale composite bumper system for bridge pier protection against ship collision. Compos. Struct. 2016, 158, 187–198. [Google Scholar] [CrossRef]
- Jiang, H.; Geng, B.; Zhang, X.X. A new fender system for bridge pier protection against vessel collision. J. Vib. Shock. 2014, 33, 154–160. [Google Scholar] [CrossRef]
- Pu, X.X. Research on Ship-bridge Collision and Precast UHPC Anti-collision Device. Master’s Thesis, Central South University, Changsha, China, 2019. [Google Scholar]
- Shang, X.J.; Su, J.Y. ANSYS/LS-DYNA Dynamic Analysis Method and Engineering Example; China Water & Power Press: Beijing, China, 2005. [Google Scholar]
- General Specifications for Design of Highway Bridges and Culverts (JTG D60—2015); China Communications Press Co. Ltd.: Beijing, China, 2015.
- Code for Design on Railway Bridge and Culvert (TB10002—2017); China Railway Publishing House: Beijing, China, 2017.
- Guide Specifications and Commentary for Vessel Collision Design of Highway Bridges (AASHTO); American Association of State Highway and Transportation Officials: Washington, DC, USA, 2009.
- Vrouwenvelder, A.C. Design for Ship Impact According to Eurocode 1 part 2.7, Ship Collision Analysis; TNO Bouw: Rotterdam, The Netherlands, 1998. [Google Scholar]
r (kg/m3) | G(GPa) | A | B | C | N | fc(MPa) | T(MPa) | ε0 | EFMIN |
---|---|---|---|---|---|---|---|---|---|
2487 | 20.42 | 0.78 | 1.67 | 0.0076 | 0.39 | 141.01 | 12.38 | 1.0 | 0.0158 |
SMAX | Pc(MPa) | µc | P1(GPa) | µ1 | D1 | D2 | K1(GPa) | K2(GPa) | K3(GPa) |
3.7 | 47.0 | 1.726 × 10−3 | 0.8 | 0.1 | 0.069 | 1.0 | 12.0 | 135 | 698 |
Material Property | LS-DYNA Parameter | Values |
---|---|---|
Mass density | RO | 2500 kg·m−3 |
Initial shear modulus | G | 11 GPa |
Initial bulk modulus, K. | BULK | 14 GPa |
Failure envelope parameter, α | ALPHA | 2.7 × 107 |
Failure envelope linear coefficient, θ. | THETA | 0.11 |
Failure envelope exponential coefficient, γ | GAMMA | 8 × 106 |
Failure envelope exponent, β | BETA | 1.4 × 10−7 |
Cap, surface axis ratio. | R | 4.43 |
Hardening law exponent. | D | 4.6 × 10−10 |
Hardening law coefficient | W | 0.42 |
Hardening law exponent | X 0 | 1.1 × 108 |
Type | Bow | Water Separator | The Adjustment Tank | Side Wall Standard Box | Rubber Material | Pier |
---|---|---|---|---|---|---|
Bow | 1 | 2 | 2 | 2 | 2 | 2 |
Water separator | 2 | 1 | 1 | 1 | — | 2 |
The adjustment tank | 2 | 1 | 1 | 1 | — | 2 |
Side wall standard Box | 2 | 1 | 1 | 1 | — | 2 |
Steel bar | 3 | — | — | — | — | 3 |
Rubber Material | 2 | — | — | — | 1 | 2 |

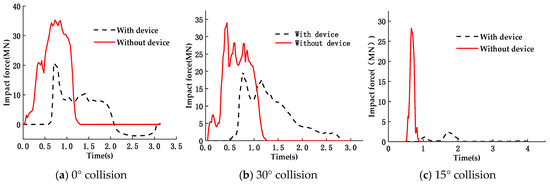

Impact Angle | Collision Case without Device | Collision Case with Device | 1-PNc/PN | TNc/TN-1 | ||||||
---|---|---|---|---|---|---|---|---|---|---|
Highway Bridge Code Ph/MN | Railway Bridge Code Pr/MN | AASHTO PA/MN | Eurocode PE/MN | Peak Impact Fore PN(MN) | Time Duration TN(s) | Peak Impact Fore PNc(MN) | Time Duration TNc(s) | |||
0° | 34.23 | 17.38 | 42.43 | 50.66 | 35.30 | 1.25 | 20.55 | 2.50 | 41.8% | 100.0% |
15° | - | - | - | - | 28.24 | 0.48 | 2.44 | 1.38 | 91.4% | 187.5% |
30° | - | - | - | - | 33.99 | 1.20 | 19.90 | 2.30 | 41.5% | 91.7% |
