Stability Tests of Agricultural and Operating Machines by Means of an Installation Composed by a Rotating Platform (the “Turntable”) with Four Weighting Quadrants
Abstract
:Featured Application
Abstract
1. Introduction
2. Materials and Methods
2.1. The Test Rig

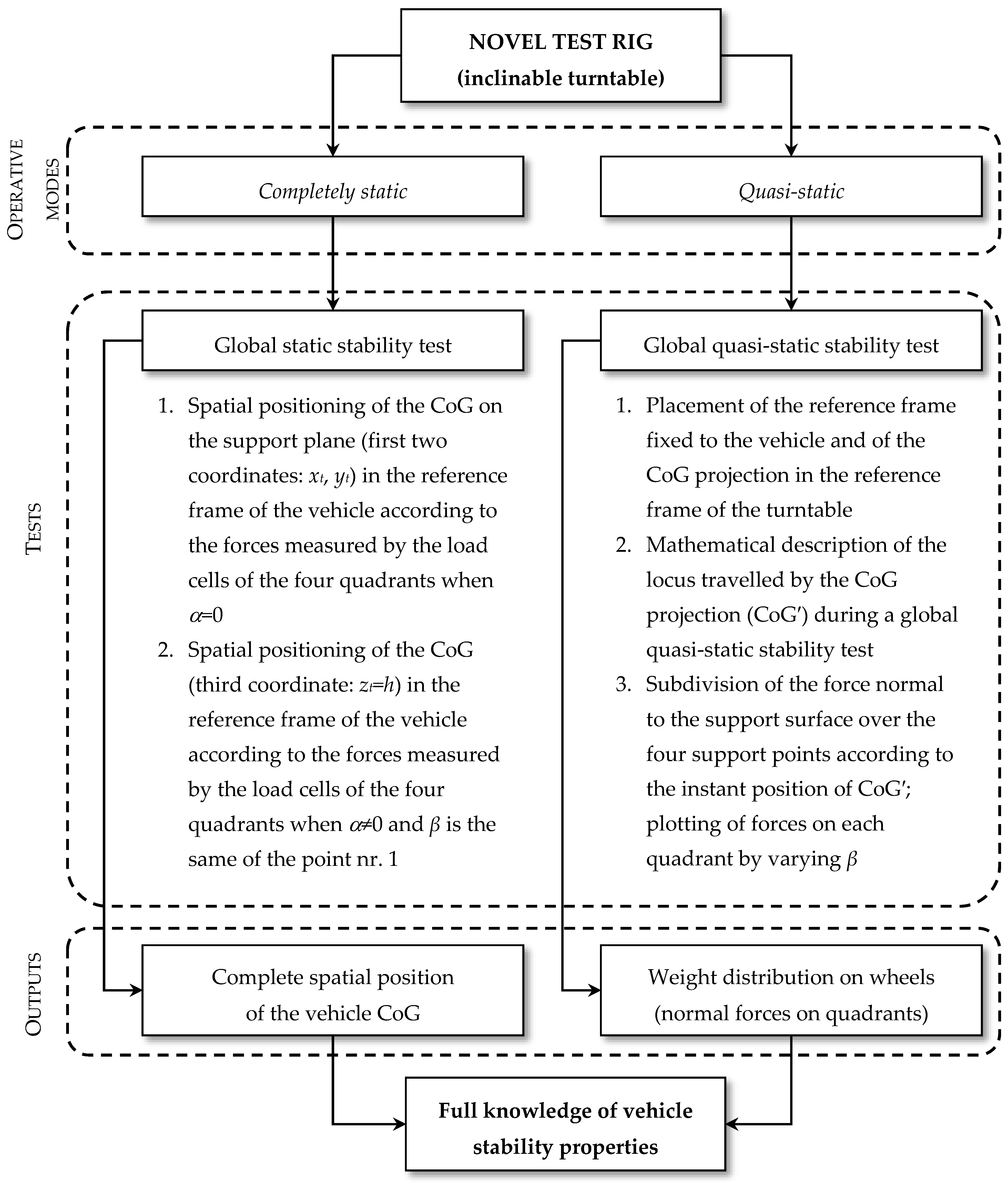

2.2. The Approach
3. Results and Discussion

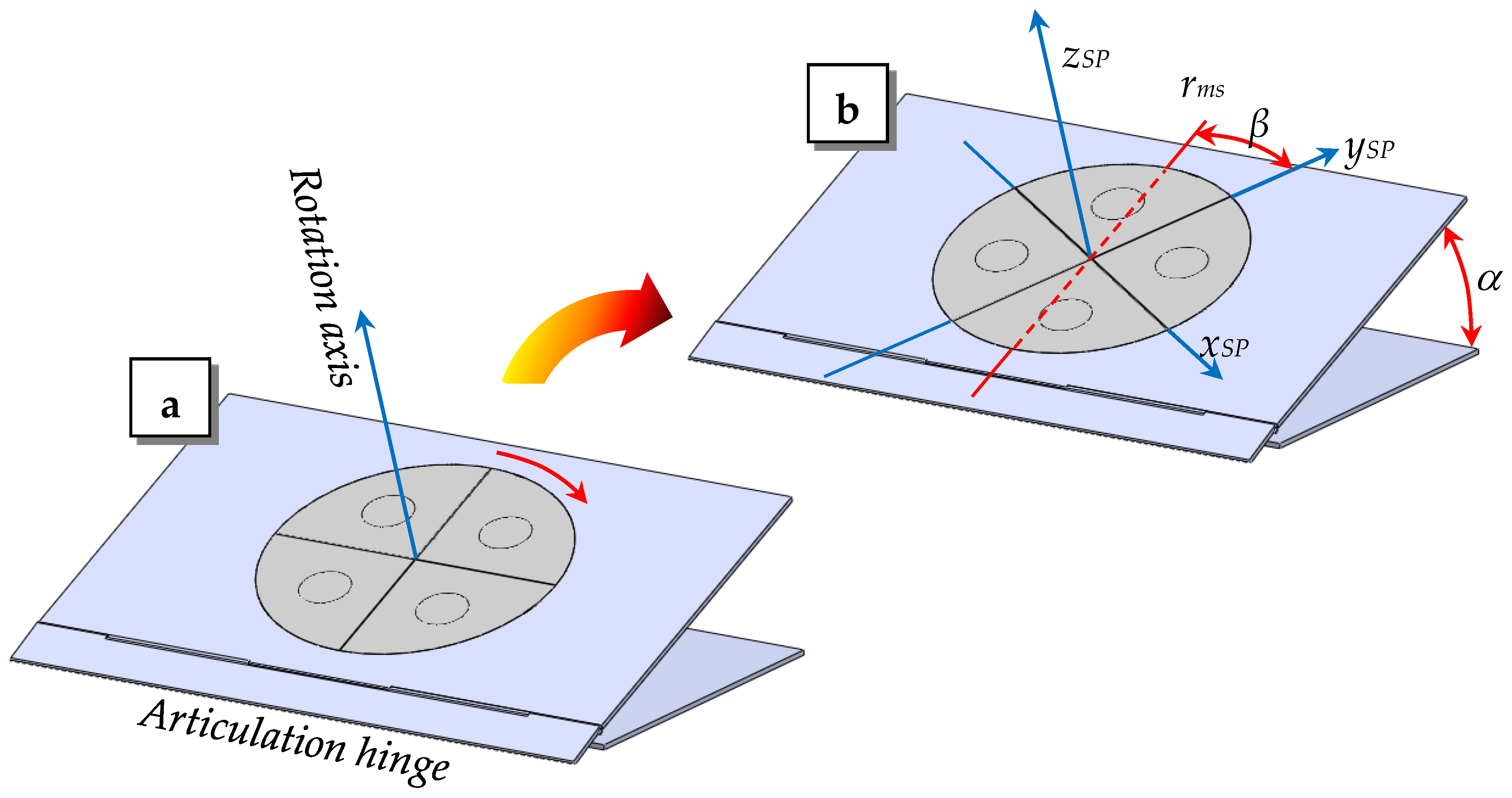

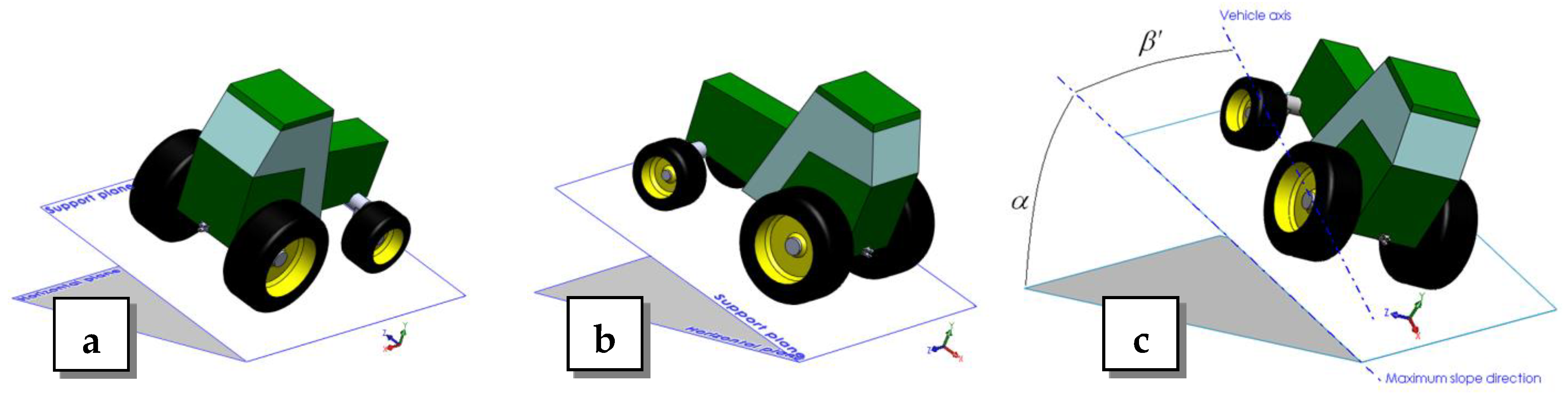

3.1. Correlation between the Operative Angles of the Rig and the Orientation Angles of a Vehicle under Test

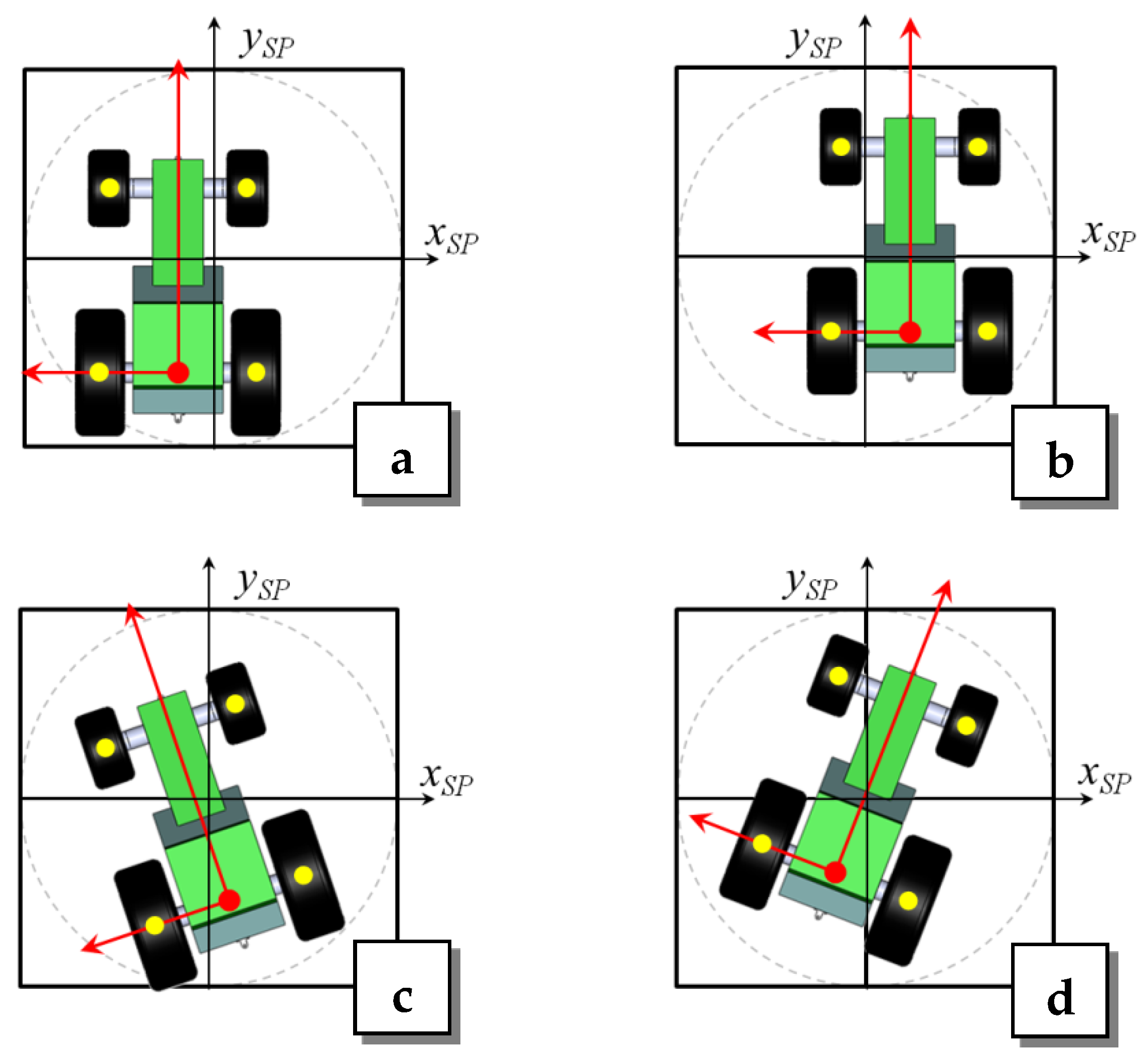

3.2. Possible Operative Modes of the Test Rig
- completely static mode (i.e., no revolution of the turntable around its axis of rotation) to have a global static stability test; (phase 1) the vehicle is placed on the platform when the support structure is horizontal (α = 0°) and the sides of the quadrant are aligned with the inclination hinge (β = 0° or β = ±90° or β = ±180°), thanks to the measurement of the weights supported by each quadrant, it is possible to place the center of gravity in relation to the center of the platform; (phase 2) subsequently, without moving the vehicle (its wheels are fixed to the quadrants), the support structure is tilted at a fixed angle (however far from the vehicle rollover); by doing so it is therefore possible to identify the height of the CoG of the machines under test; (phase 3) the support structure is tilted until the (lateral, frontal) overturning angle is reached;
- quasi-static mode (i.e., very slow rotation of the turntable and of the vehicle on it) to have a global quasi-static stability test; (phase 1) when the support structure is horizontal, the vehicle is positioned on the platform and the vehicle wheels are fixed to the quadrants; (phase 2) the support structure is tilted at different angles with respect to the horizontal plane and, at each fixed inclinations, the rotating subsystem is then activated thus making the vehicle revolute around the turntable rotation axis (the rotation speed should be around 0.026 rad·s−1 as declared in [41], i.e., a full rotation is completed in about 4 min); in the meantime, the weights supported by each quadrant (hence, supported by each wheel of the vehicle) are measured, thus characterizing the balance of the vehicle at different angles of roll, pitch and yaw (see next paragraphs); (phase 3) the procedure described in the previous phase is repeated till reaching an overturning condition. It is worth noting that the slowness of movement should make it possible to avoid (or, at least, mitigate) the vibrations that unfortunately occur in structures in which there are rotating organs [44], that can be a serious disturbance when measurements are made. However, another possibility to consider after first real-scale tests is eventually transforming the continuous movement into an intermittent one. This would allow exploring the stability of vehicles at a limited number of angles, equally-spaced by a fixed angle (e.g., 10° or 20°) until the turntable performs a complete rotation with a low number of stop-and-go not to lengthen a test too much. Then, it will be possible to thicken the measurements close to the angle of rotation where the stability conditions will be more critical.

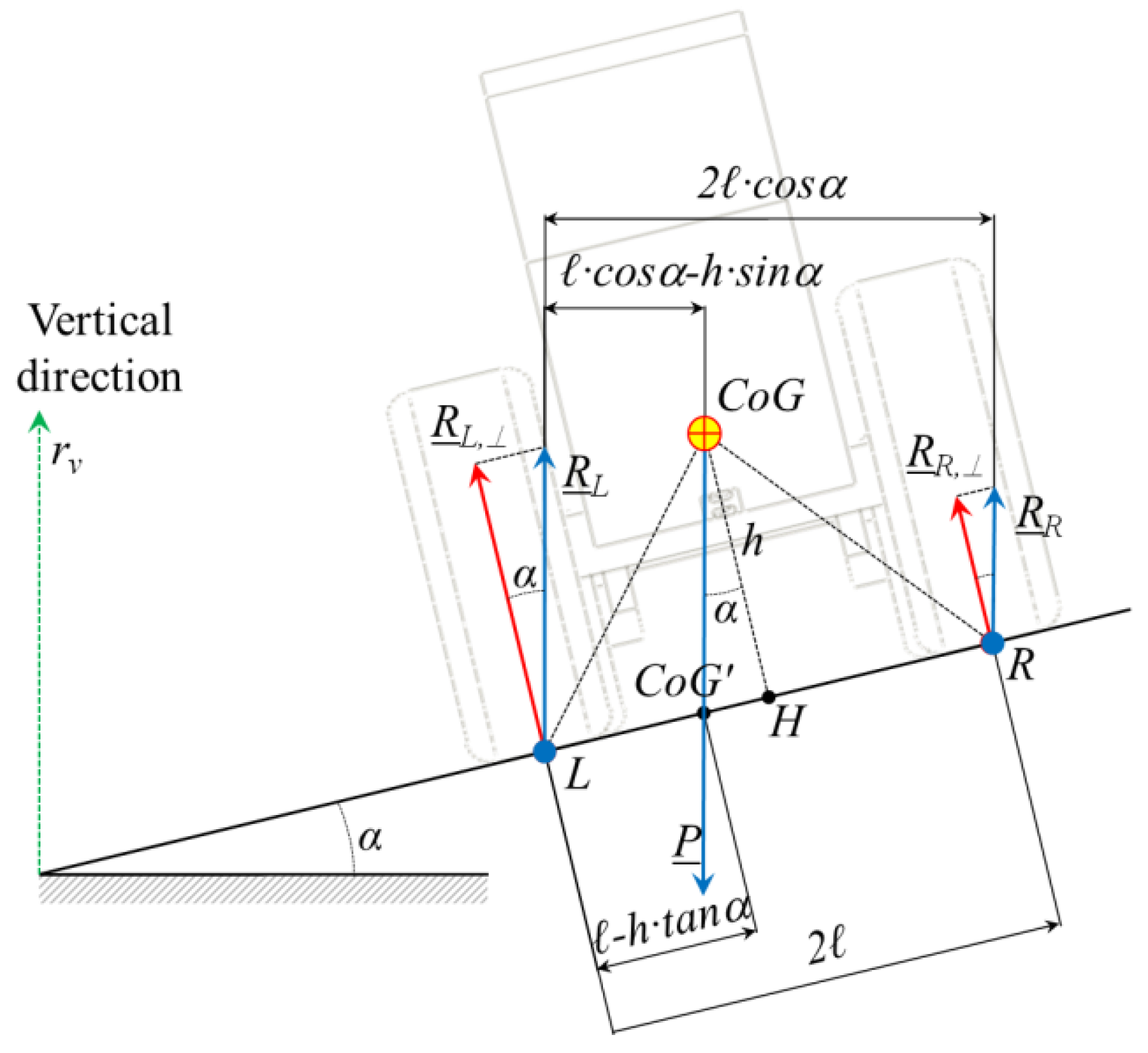

3.3. Possibility of Using the Position of the CoG Projection to Express the Incipient Roll-over Condition
- the front and rear tracks have the same width, hence L and R (i.e., the centers of the left/right tires) are limit points for the rollover also in the transversal plane containing the CoG;
- the tractor CoG is exactly in the median longitudinal plane of the vehicle (hence: ).
3.4. Completely Static Operative Mode of the Test Rig

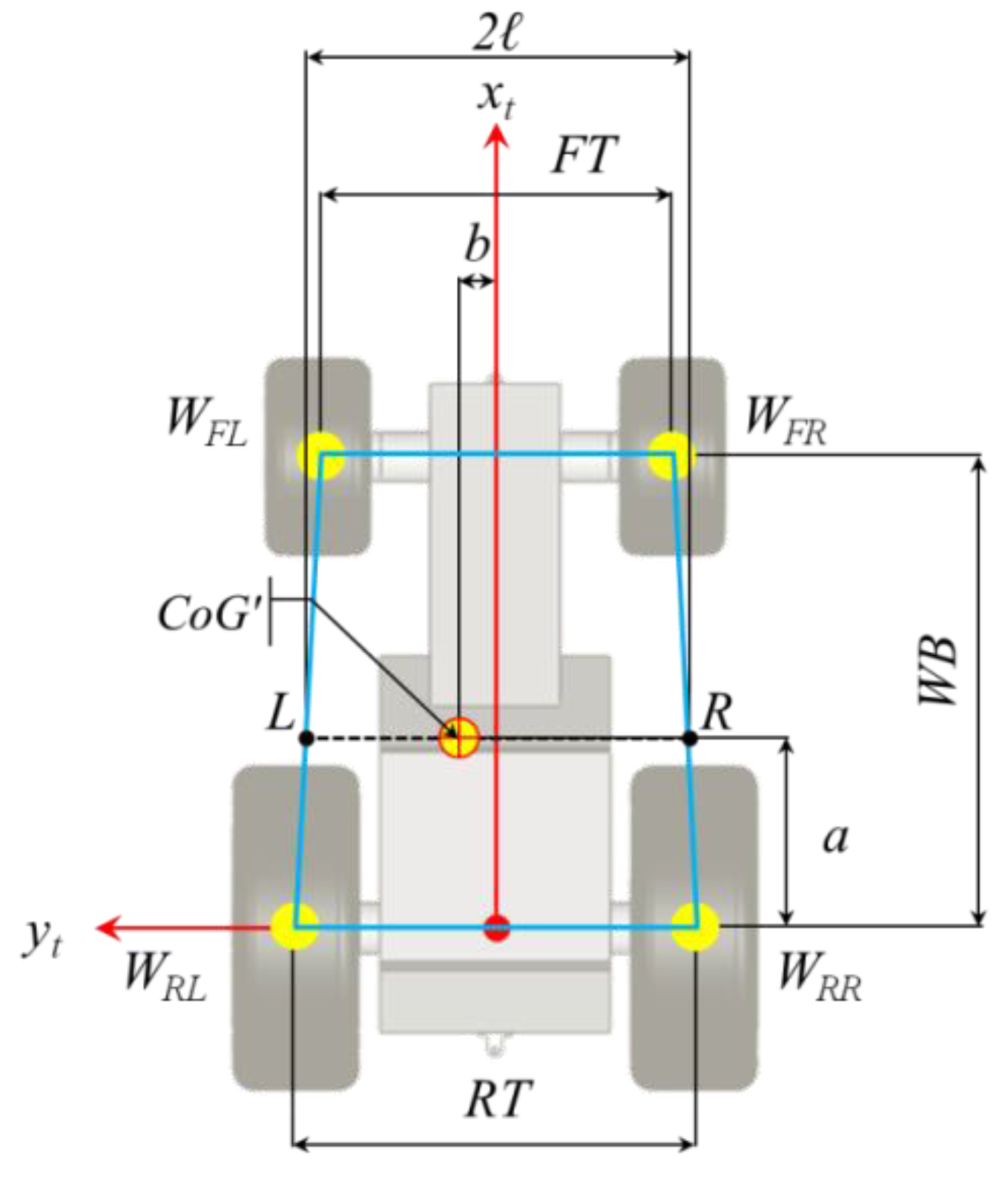

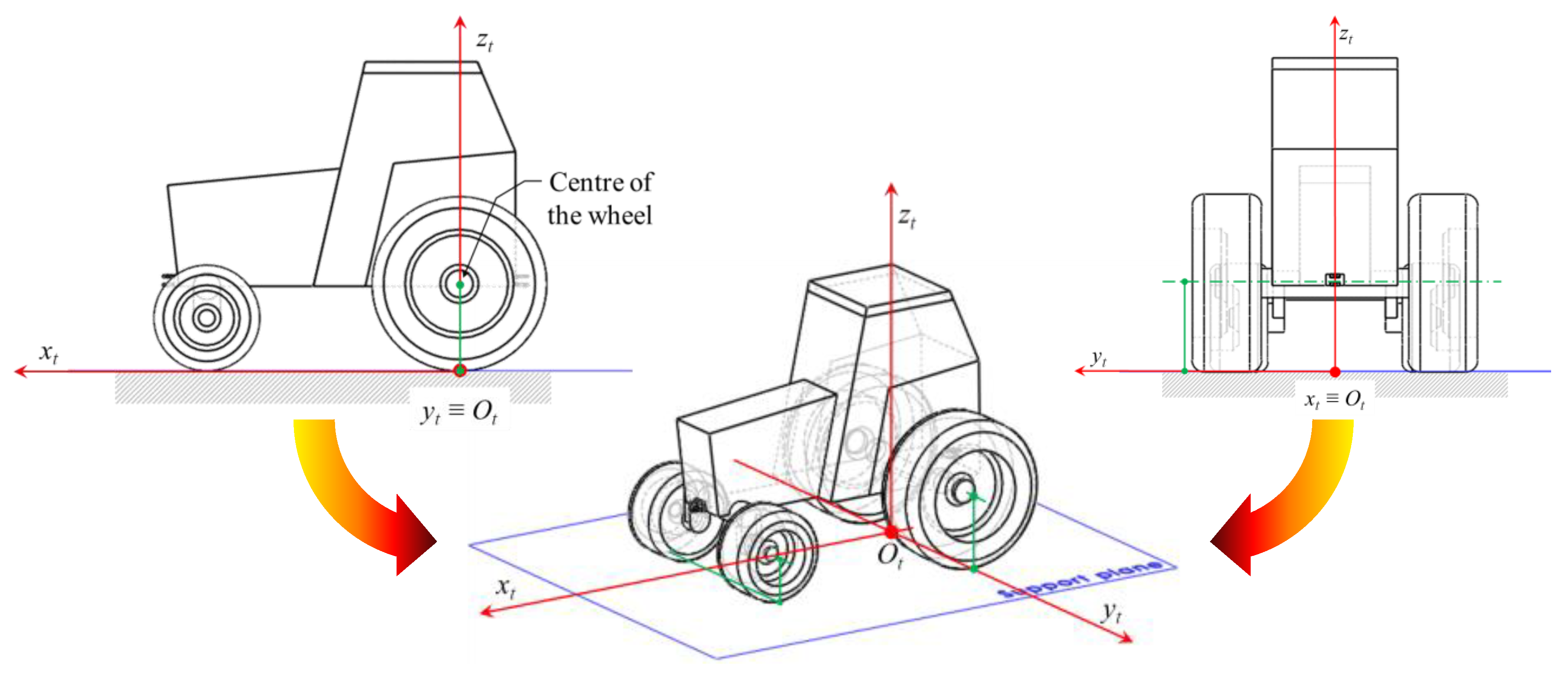

3.4.1. Setting of a Frame of Reference Fixed to the Vehicle
- xt axis: aligned with the tractor median axis, contained in the tractor support plane;
- yt axle: aligned with the rear axle of the tractor, passing through the center of the rear tyre traces and, hence, contained in the tractor support plane; the point of the passage of the yt axle can be identified by taking the center of the rear wheel hub as reference (see Figure 6);
- zt axis: perpendicular to the other two axles, and therefore also perpendicular to the support plane of the tractor;
- Origin Ot: positioned at the center of the tractor rear axle, contained in the support plane of the tractor.

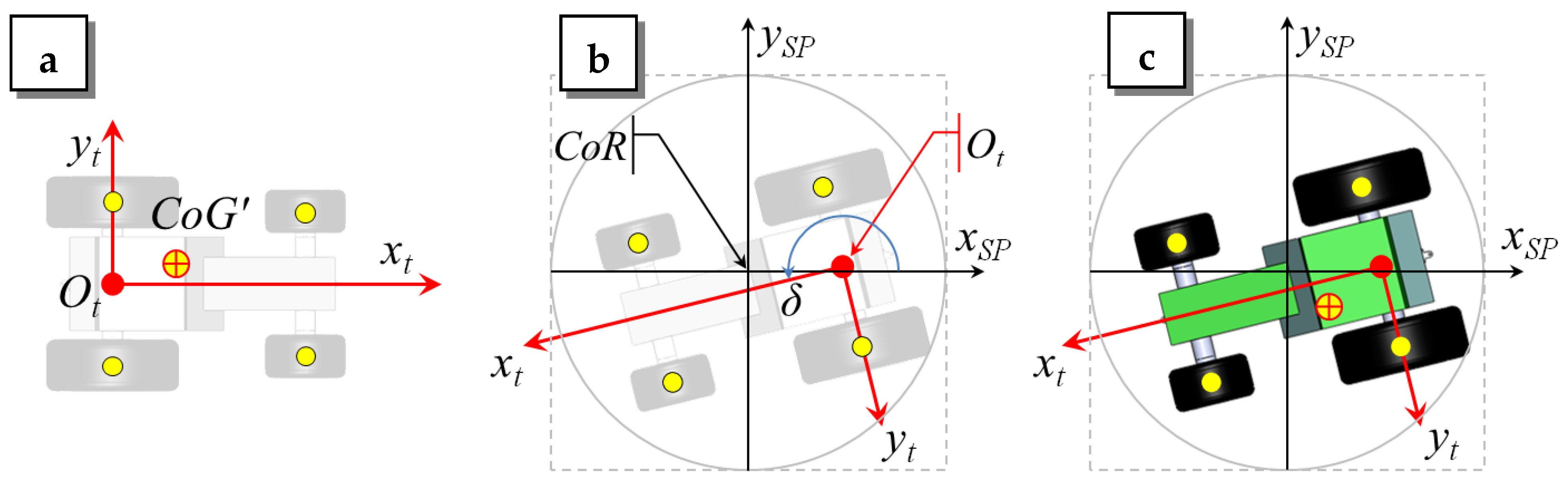

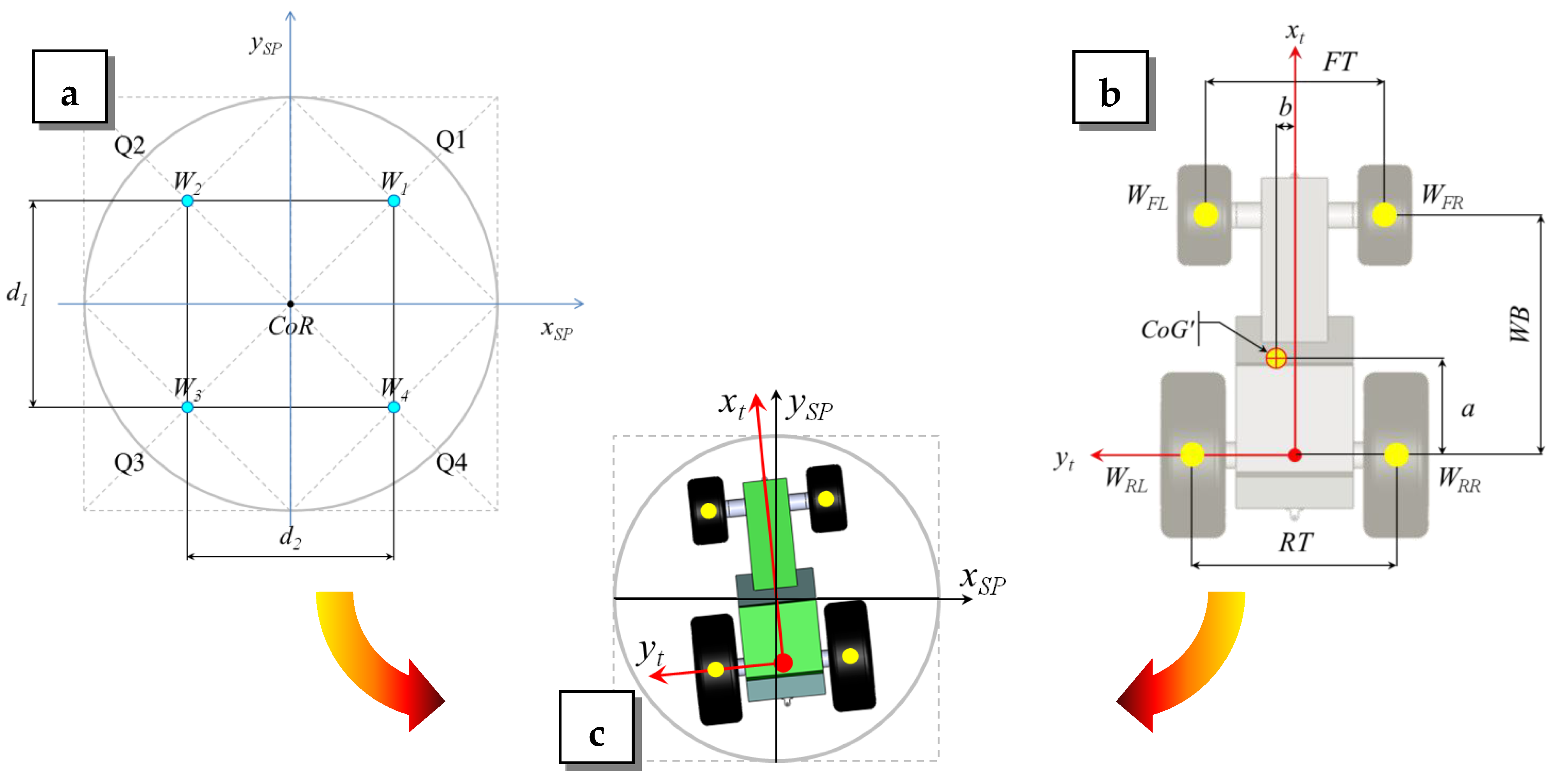

3.4.2. Positioning of the CoG Projection in the Support Plane Frame of Reference According to the Forces Measured by the Load Cells of the Four Quadrants

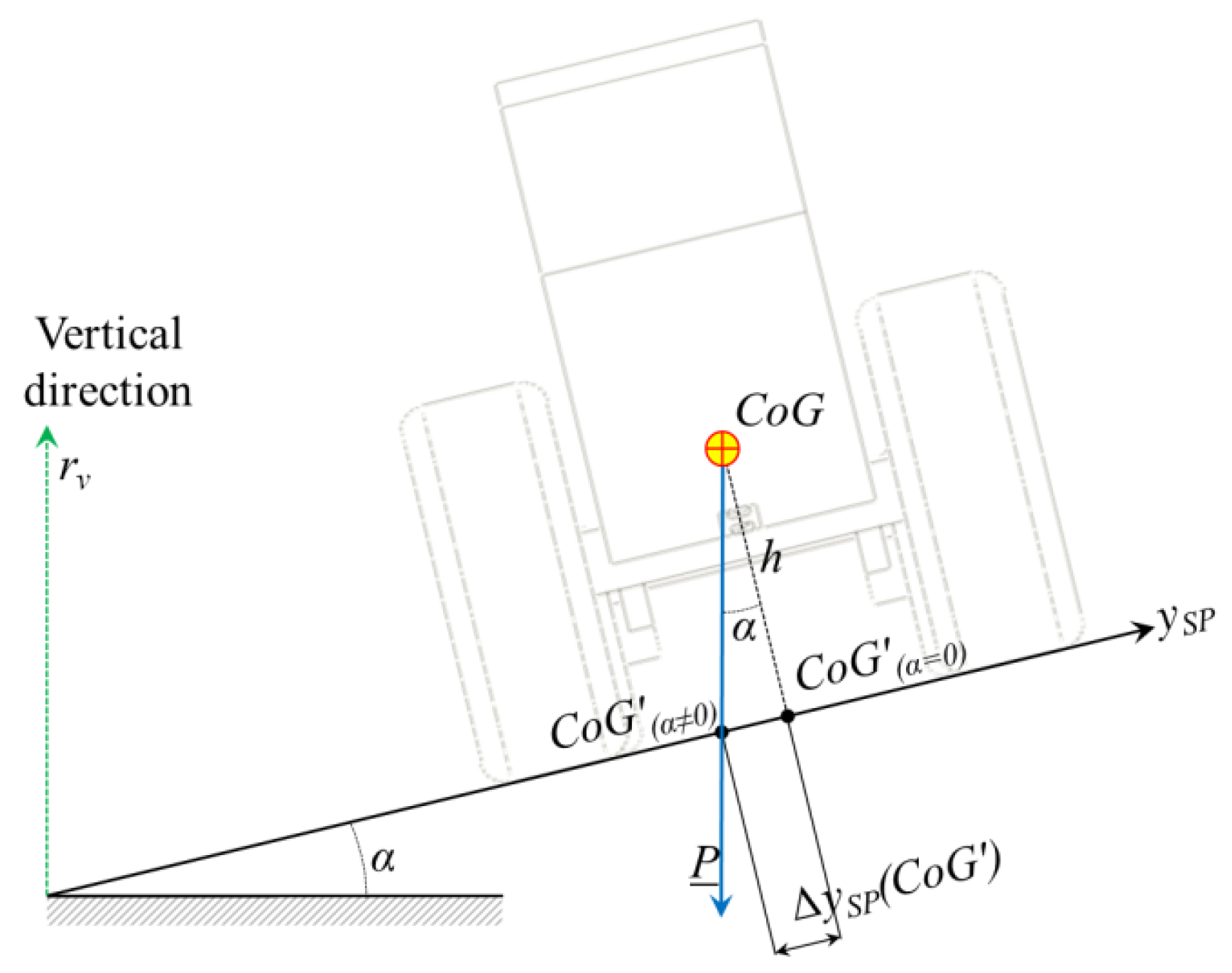

3.4.3. Calculation of the CoG Height
3.5. Quasi-Static Operative Mode of the Test Rig
3.5.1. Expressing the Coordinates of CoG′ in the Support Plane Frame of Reference

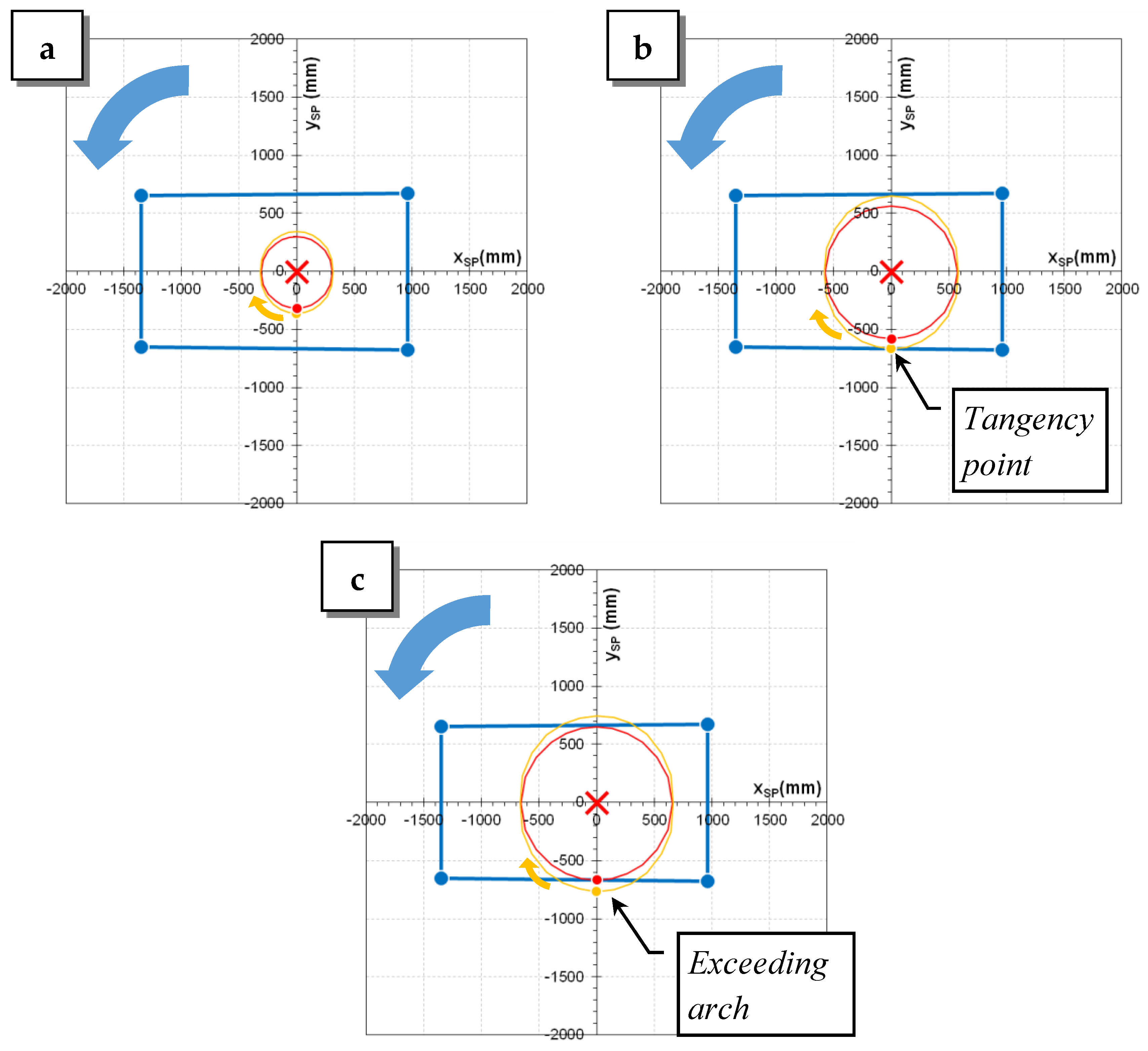

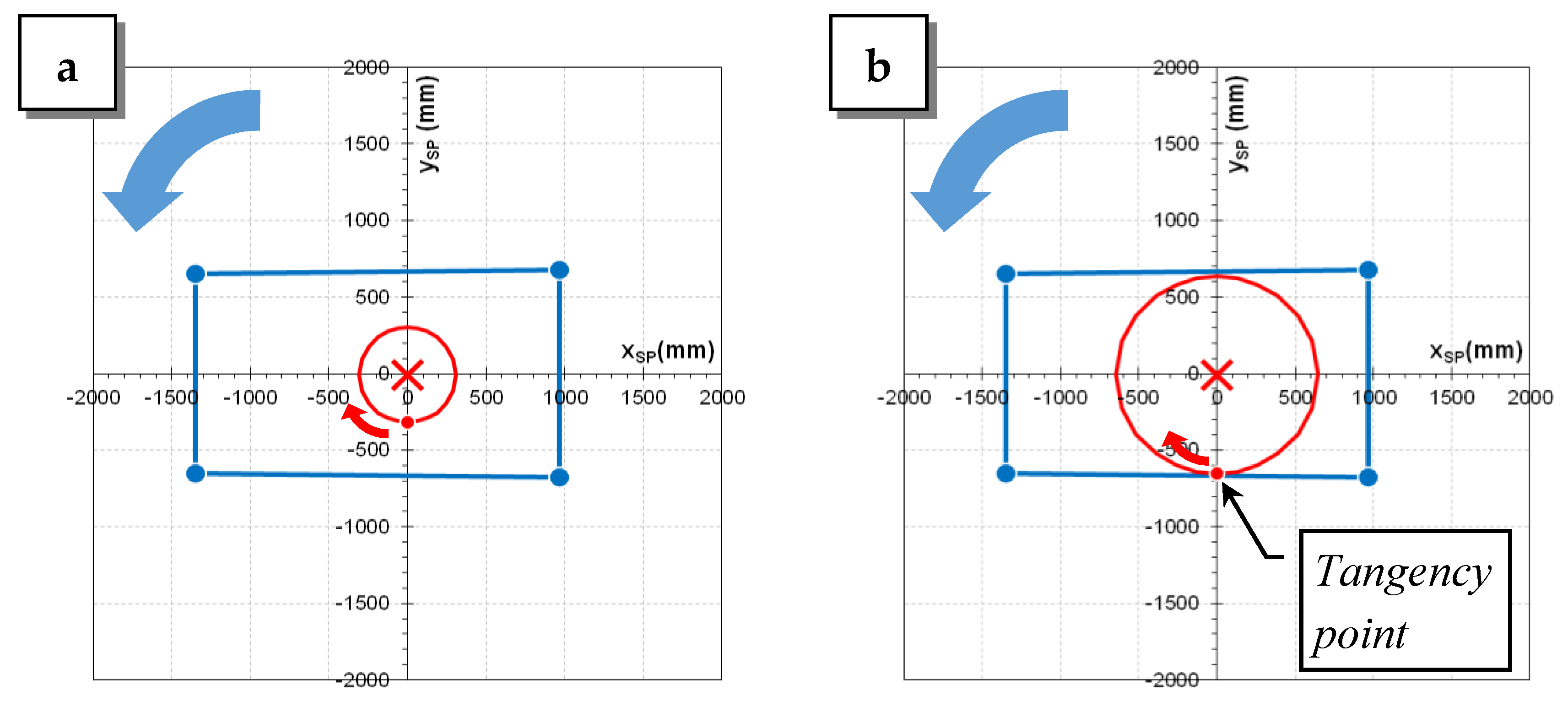

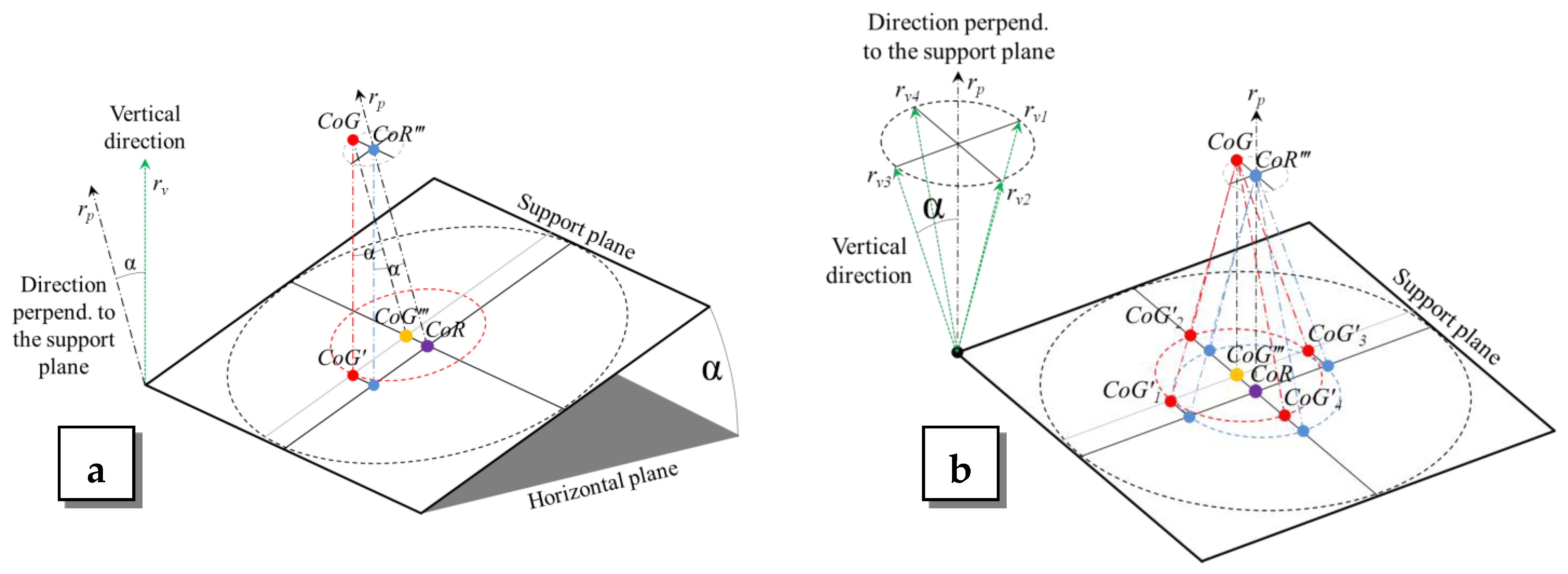

3.5.2. Locus Described by the CoG Projection during a Global Quasi-Static Stability Test

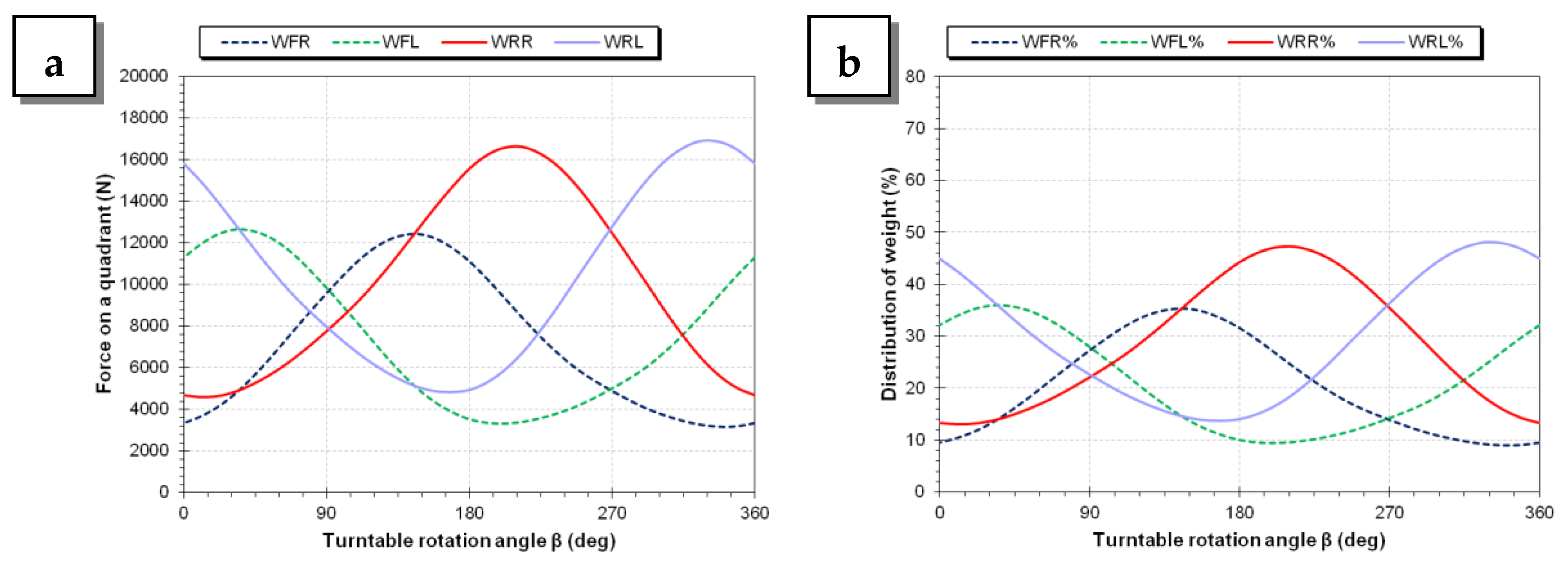

3.5.3. Subdivision of the Force Normal to the Support Surface over the Four Support Points According to the Position of the CoG Projection (CoG′)

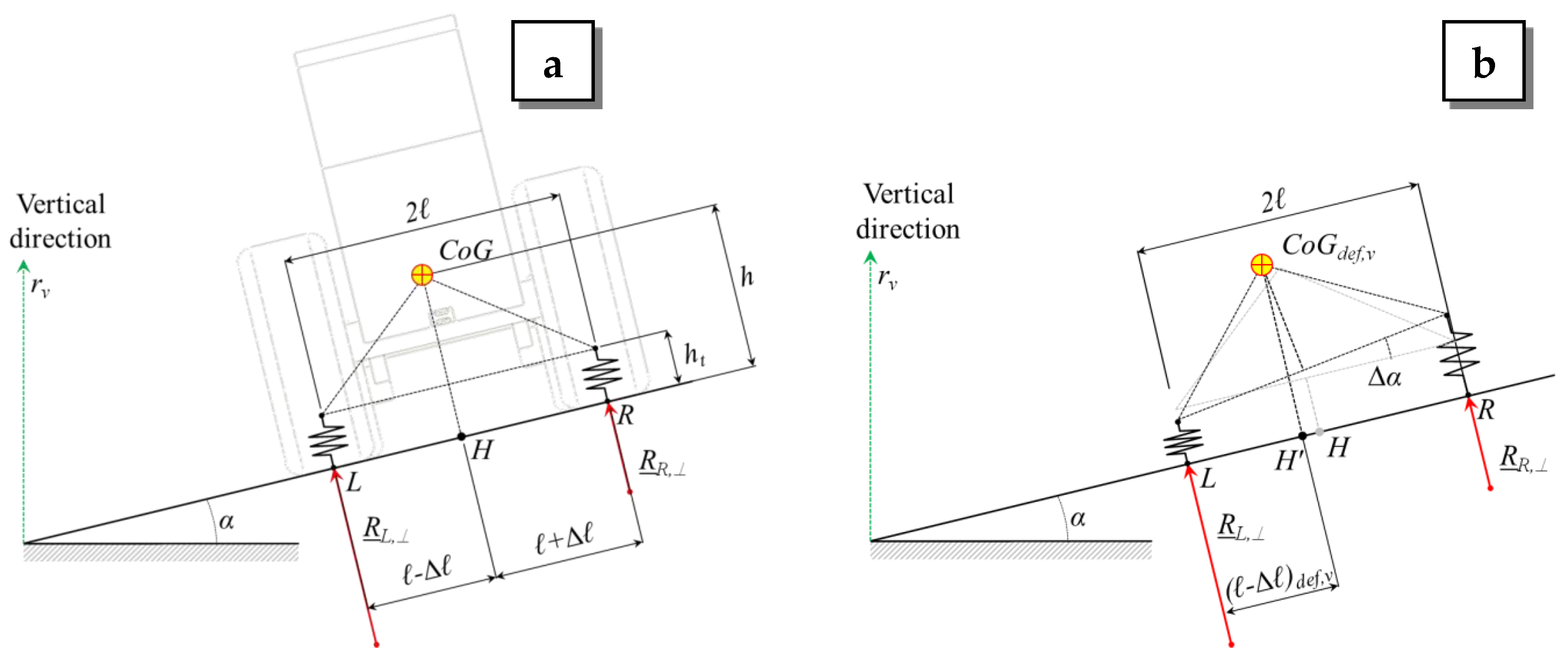

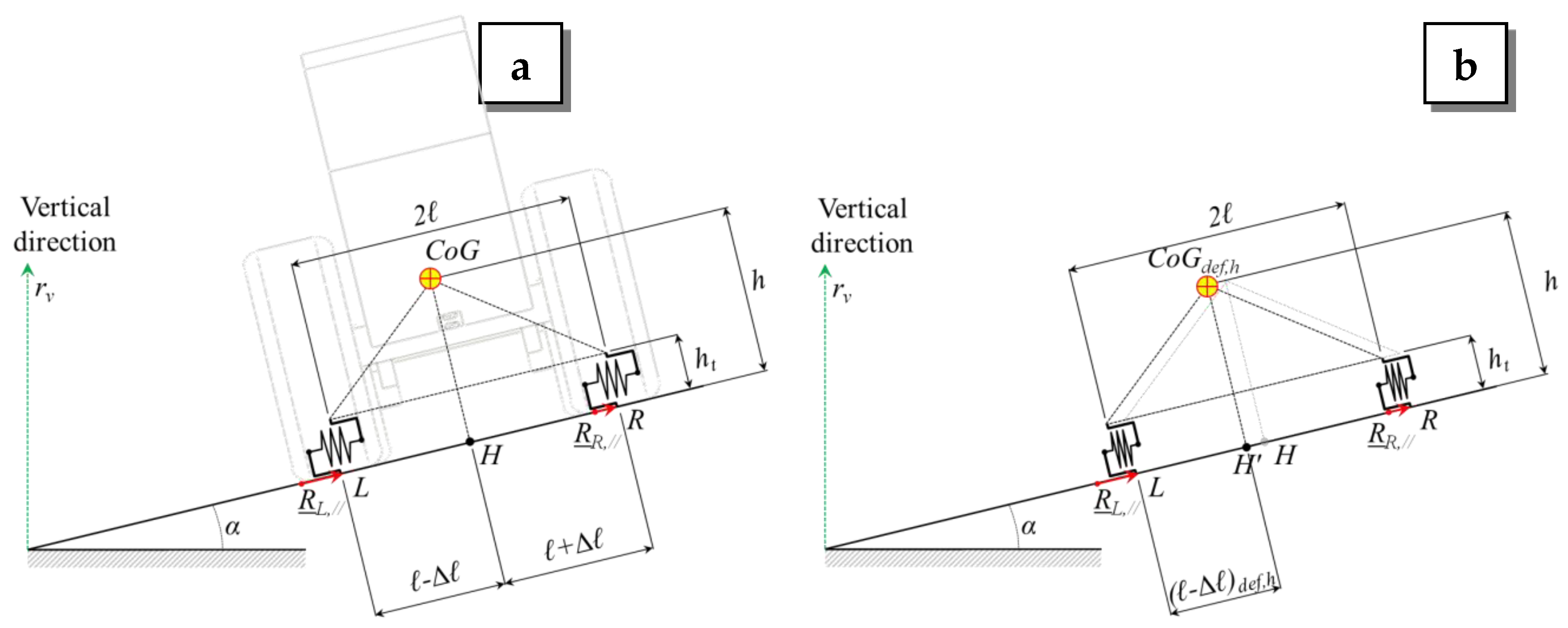

3.6. Effect of the Tyres Deformation on the Vehicle Stability
- a load perpendicular to the support plane, which causes a flattening of the tyres (i.e., they undergo a decrease in height), thus causing the chassis having a rigid rotation downstream as a consequence of the increase in the roll and pitch angles;

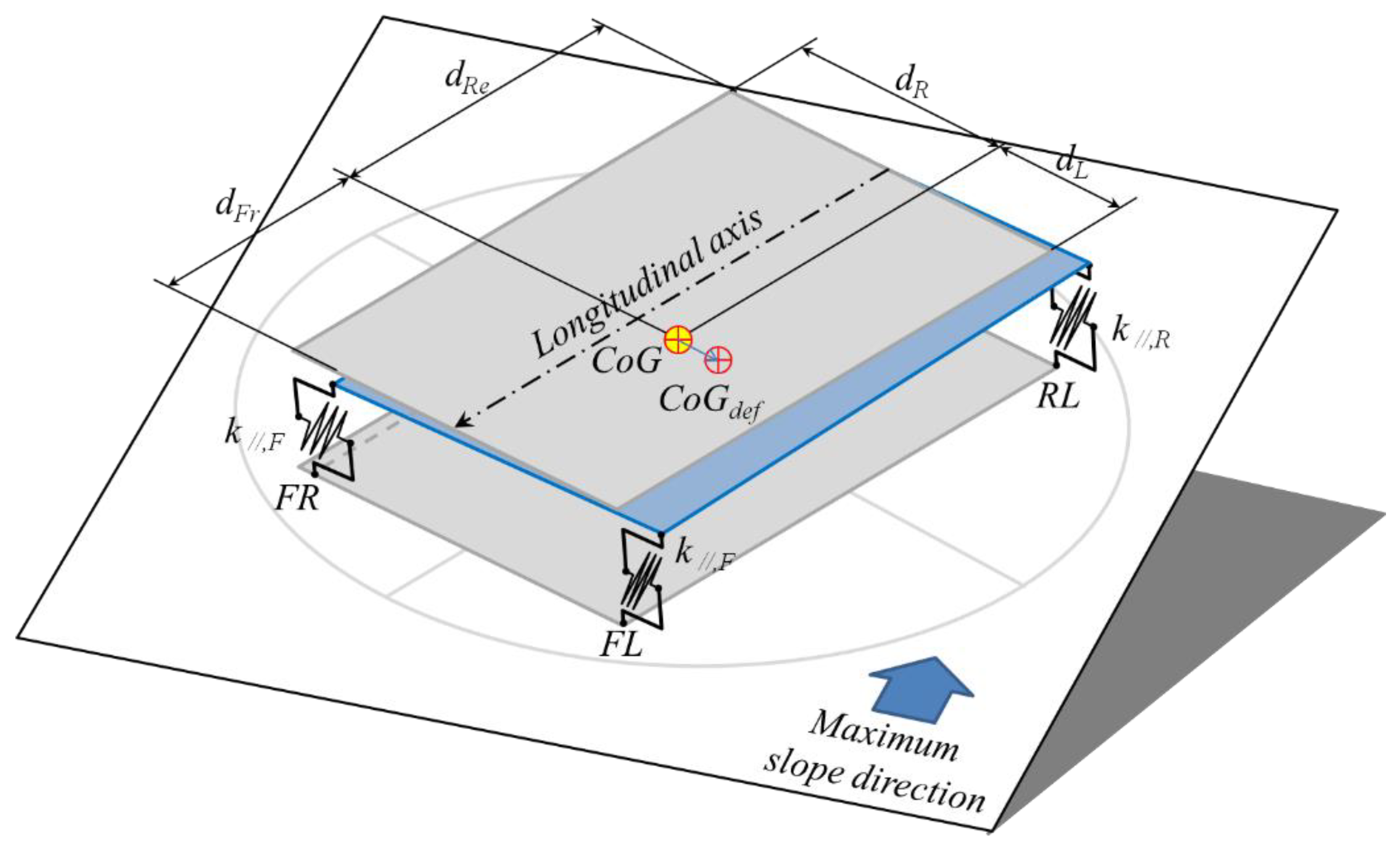

- a load parallel to the supporting plane; in particular, the component of this load parallel to the axis of the wheel (called: the lateral horizontal load) is the one of greatest interest, as it is responsible for a lateral deformation of the tyre and, therefore, it causes a translation of the entire chassis downstream.

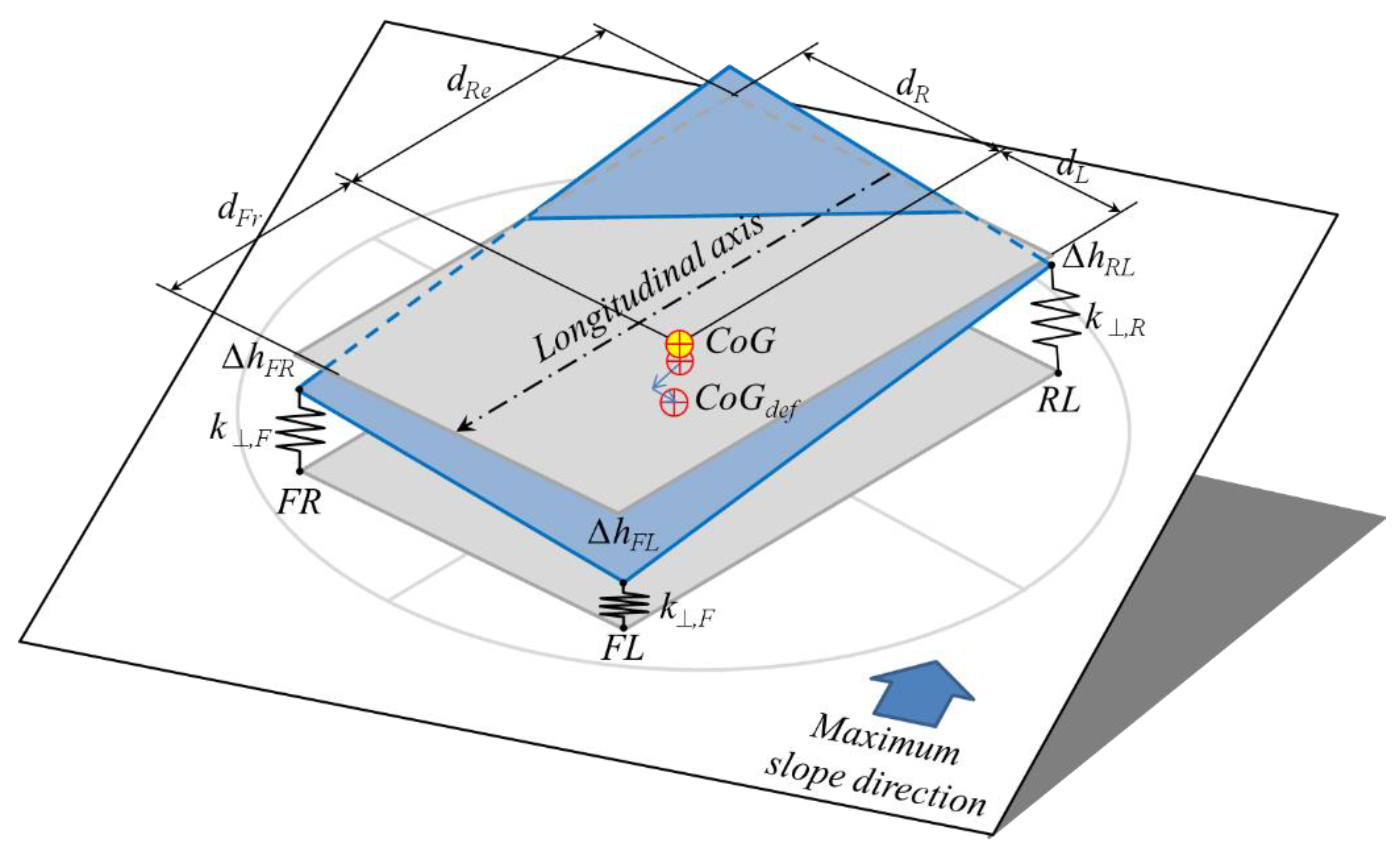

3.6.1. Effect on the CoG Position of a Load on the Tyres Perpendicular to the Vehicle Support Plane
3.6.2. Effect on the CoG Position of a Load on the Tyres Parallel to the Vehicle Support Plane
3.7. Case-Study: Simulation of the Test of a Farm Tractor
3.7.1. Static Test (Without Tyres Deflection)

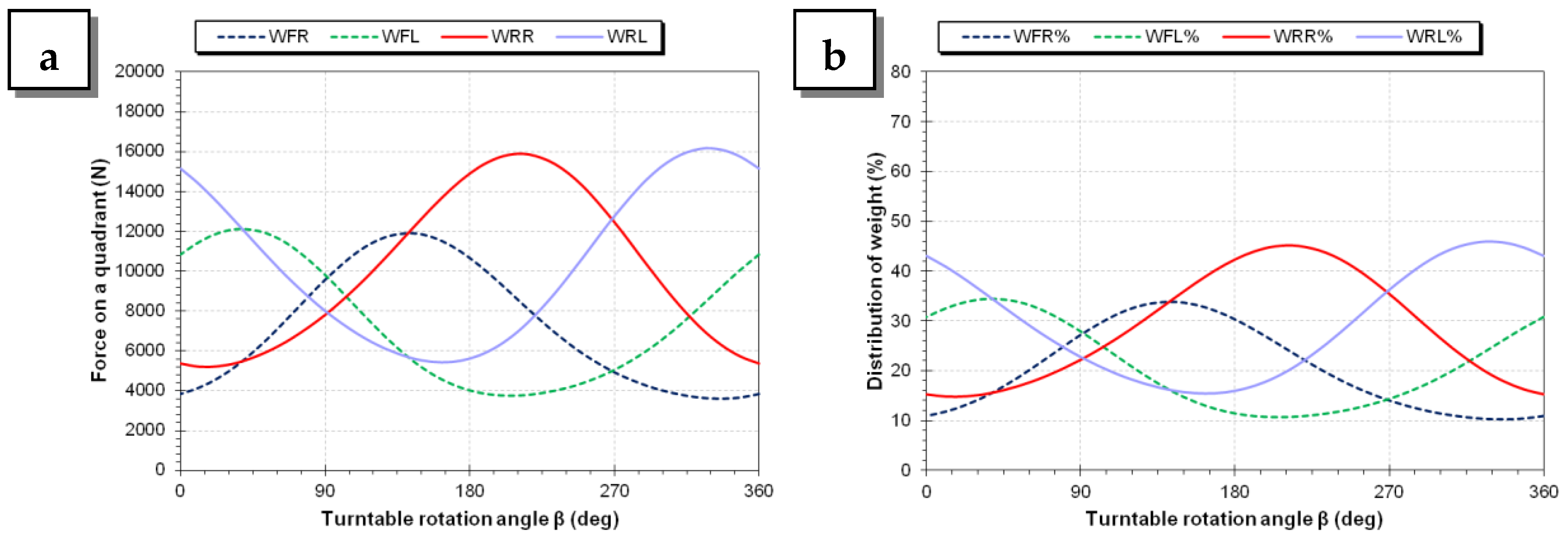

3.7.2. Quasi-Static Test (Without Tyres Deflection)
3.7.3. Quasi-Static Test (Considering Also the Tyres Deflection)
- for a 20° inclination of the support, with the assumption of tyre deformability, the maximum loads are higher than 5% whilst the minimum loads are lower than 10%, a clear sign of the worsening of the situation due to the deformation of the tyres downstream, which has affected the position of the CoG and caused a load transfer;
- for an inclination of the support at the limit of incipient rollover for the tractor (respectively of 37.73° and 33.95° in the two examined cases), the maximum loads recorded under the assumption of tyre deformability are greater by 2–3%, due to the lower inclination of the support platform, which results in a greater normal component on each wheel.

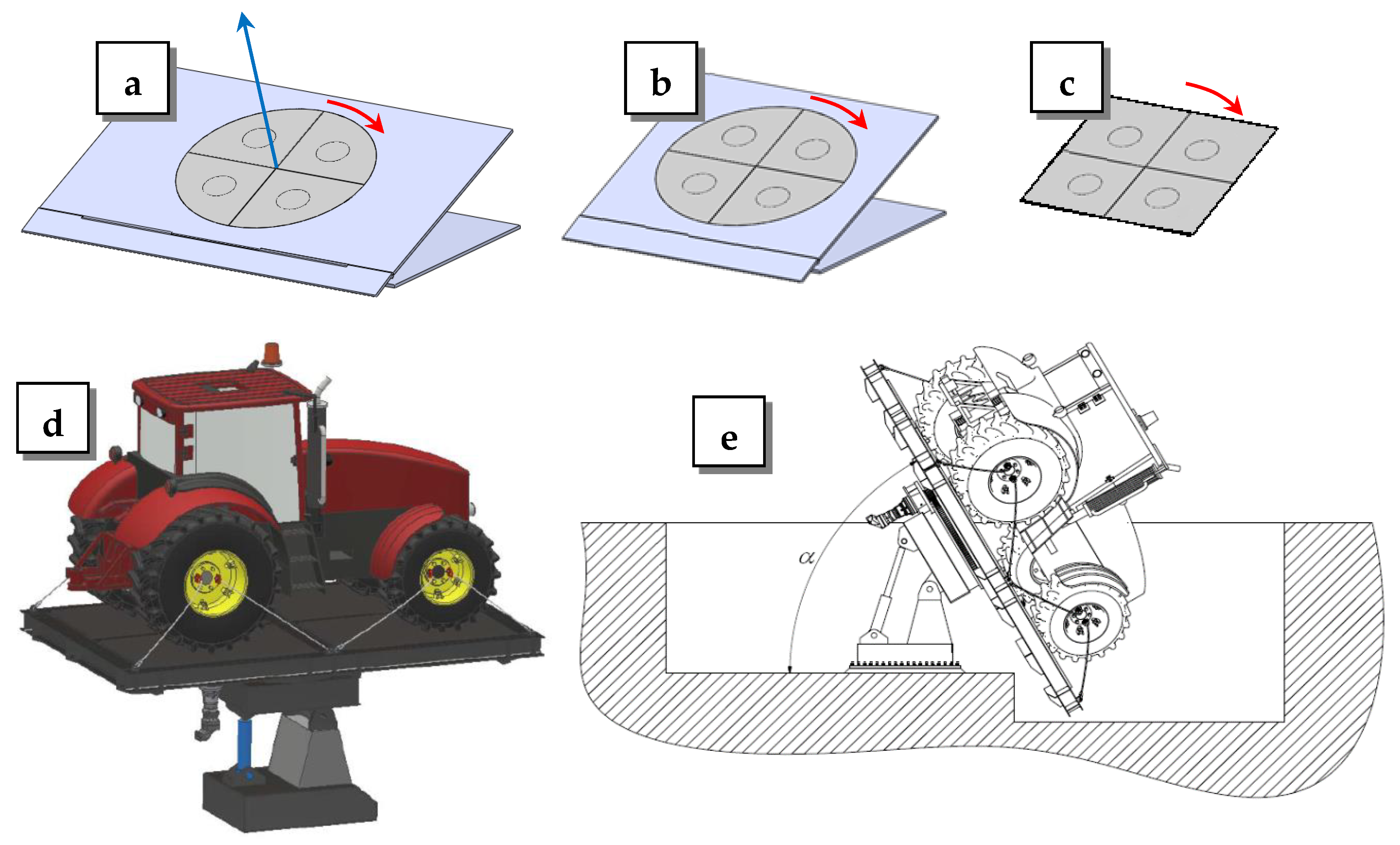

3.8. Possible Realization of the Described Test Rig
4. Conclusions
