Participatory Evaluation of Water Management Options for Climate Change Adaptation in River Basins
2. Materials and Methods

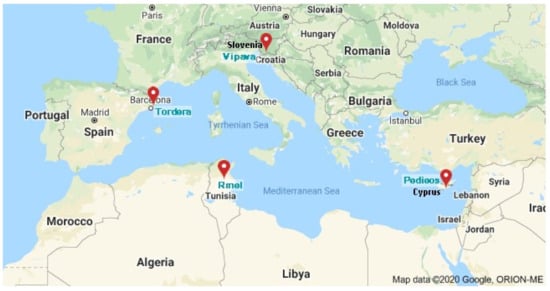

2.1. Case Study River Basins: Characteristics and Stakeholders
2.2. Challenges and Water Management Options in Each Basin
2.3. Fuzzy Cognitive Maps
2.4. Impact of the Water Management Options on the River Basin
2.5. Multi-Criteria Analysis
3.1. Definition and Comparison of Challenges in the Four River Basins
3.2. Comparison of Water Management Options Characteristics
- Character: Pedieos and Tordera had the highest percentage of water demand-oriented WMOs, while Vipava and Rmel had the highest percentage of water supply-oriented ones. Pedieos had the highest support-oriented percentage, and Tordera the highest with environmental conservation character.
- Approach to adaptation: Pedieos had the highest percentage of WMOs adopting a green approach, while Rmel had the highest percentage of WMOs adopting a grey approach. Tordera was, by far, the basic with the most WMOs adopting a soft approach.
- Feasibility: Vipava had the lowest percentage of WMOs with no obstacles for their implementation. The least number of WMOs with major obstacles was found in Pedieos and Vipava, while Tordera and Rmel had a higher rate of major obstacles to overcome regarding WMO implementation.
- Acceptability: In all of the river basins except Rmel, most of the WMOs were considered to have high acceptability.
3.3. Analysis of How the Water Management Options Tackle the River Basin’s Challenges
- For Pedieos (see Table S6 in the Supplementary Materials), 30 WMOs were identified. A total of ten of then tackled ‘flood risk reduction’, ten tackled ‘quality and quantity of groundwater’, and ten tackled ‘quality and quantity of surface water’ bodies. Although most of the WMOs tackled more than one challenge, each WMO was assigned to the challenge that it addressed the most.
- In Rmel (see Table S7 in the Supplementary Materials), each of the 19 WMOs that were identified tackled one specific challenge. There were three WMOs that simultaneously tackled ‘water quantity’ and ‘water quality’. There were four WMOs that addressed ‘forest and biodiversity management’, four that addressed ‘agriculture’, and three that addressed ‘awareness of civil society’.
- In Tordera (see Table S4 in the Supplementary Materials), most of the 33 WMOs that were identified tackled one specific challenge. There were five that addressed ‘water quality’, ten that addressed ‘water quantity’, eleven that addressed the ‘health of forest and water ecosystems’, and ten that addressed ‘integrated water management’.
- For Vipava (see Table S5 in the Supplementary Materials), from a total of 20 WMOs, six addressed all of the challenges, as they were related to raising awareness, governance, and environmental restoration as a strategy to reduce vulnerability. The other WMOs addressed at least two challenges. There were sixteen WMOs that addressed ‘water quantity’, ten that addressed ‘flood risk reduction’, and thirteen that addressed ‘water quality’.
3.4. Analysis of the Impact of Water Management Options on the River Basin
- For the Pedieos river basin (Figure S7 in the Supplementary Materials), the smallest improvements were observed for the ‘water quantity and quality of surface water’ challenge for all WMOs compared to the baseline, and the highest were observed for ‘flood risk reduction’. The ‘water quantity and quality of groundwater’ challenge had the highest number of WMOs contributing to a positive impact.
- For the Rmel river basin (Figure S5 in the Supplementary Materials), the impact of the WMOs determined both positive and negative changes in the challenges compared to the baseline situation. The challenge achieving a larger improvement and less negative effects resulting from the WMOs implemented in the map was ‘agriculture’, followed by ‘human resources and employment’. On the other hand, the challenges of ‘water quality’ and ‘forest and biodiversity management’ showed the highest negative impact from some of the WMOs considered.

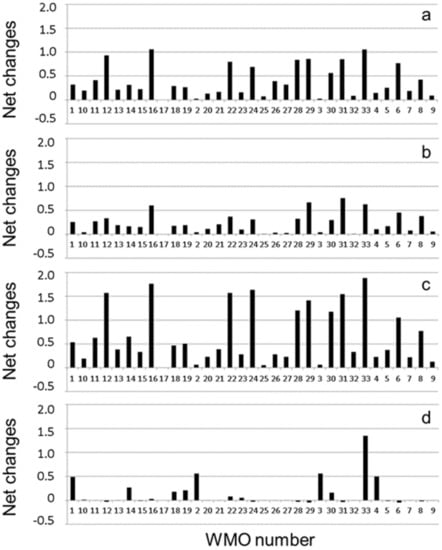

- In the Tordera river basin (Figure 2), the analysed WMOs had an overall positive impact, improving the state of the challenges compared to the baseline situation. The highest positive impacts were in the ‘health of water ecosystems’ challenge. It is interesting to note that the case for the ‘water quality’ challenge, where most of the best performing WMOs were, were initially designed to tackle the ‘health of forests and water ecosystems’ challenge.
- For the Vipava river basin (Figure S6 in the Supplementary Materials), the majority of WMOs had a very limited impact on the basin’s challenges compared to the baseline. Few WMOs were able to provide improvement. Several WMOs induced worsening baseline conditions: reducing ‘water quality’ and ‘water quantity’ and producing decreases on ‘flood risk reduction’.

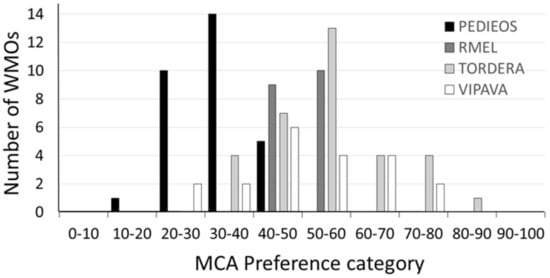

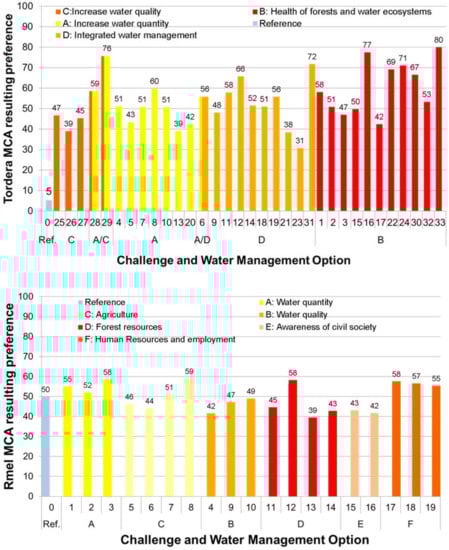

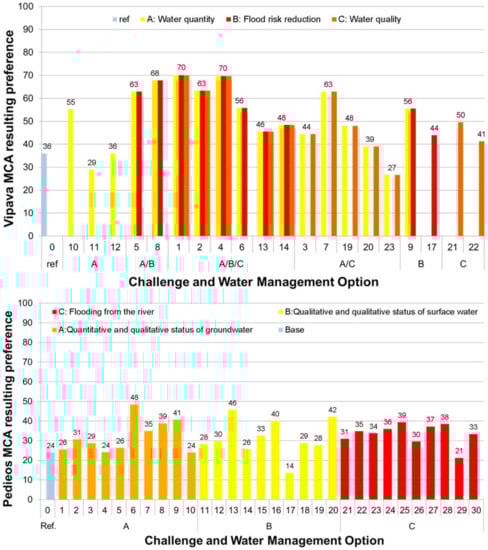

3.5. Evaluation of Stakeholder’s Preferences Regarding Water Management Options
Data Availability Statement
Conflicts of Interest
- UNESCO; World Water Assessment Programme (United Nations); UN-Water. Leaving No One Behind: The United Nations World Water Development Report 2019; United Nations Educational, Scientific and Cultural Organization: Paris, France, 2019. [Google Scholar]
- Jiménez Cisneros, B.E.; Oki, T.; Arnell, N.W.; Benito, G.; Cogley, J.G.; Döll, P.; Jiang, T.; Mwakalila, S.S. Freshwater Resources. In Climate Change 2014: Impacts, Adaptation, and Vulnerability. Part A: Global and Sectoral Aspects. Contribution of Working Group II to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Field, C.B., Barros, V.R., Dokken, D.J., Mach, K.J., Mastrandrea, M.D., Bilir, T.E., Chatterjee, M., Ebi, K.L., Estrada, Y.O., Genova, R.C., et al., Eds.; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2014; pp. 229–269. [Google Scholar]
- IPCC. Summary for policymakers. In Climate Change: Impacts, Adaptation, and Vulnerability. Part A: Global and Sectoral Aspects. Contribution of Working Group II to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Field, C.B., Barros, V.R., Dokken, D.J., Mach, K.J., Mastrandrea, M.D., Bilir, T.E., Chatterjee, M., Ebi, K.L., Estrada, Y.O., Genova, R.C., et al., Eds.; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2014; pp. 1–32. [Google Scholar]
- Pouget, L.; Escaler, I.; Guiu, R.; Mc Ennis, S.; Versini, P.A. Global Change adaptation in water resources management: The Water Change project. Sci. Total Environ. 2012, 440, 186–193. [Google Scholar] [CrossRef] [PubMed]
- European Commission. Directive 2000/60/EC of the European Parliament and of the Council of 23 October 2000 Establishing a Framework for Community Action in the Field of Water Policy. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=celex%3A32000L0060 (accessed on 20 November 2020).
- European Commission. Directive 2007/60/EC of the European Parliament and of the Council of 23 October 2007 on the assessment and management of flood risks. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32007L0060&from=EN (accessed on 27 November 2020).
- European Commission. Communication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions. 2012. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:52012DC0672 (accessed on 27 November 2020).
- European Commission. Guidance Document N° 24. River Basin Management in a Changing Climate. Common Implementation Strategy for the Water Framework Directive (2000/60/E). 2009. Available online: https://climate-adapt.eea.europa.eu/metadata/guidances/river-basin-management-in-a-changingclimate (accessed on 30 November 2020).
- European Commission. Report on the Progress in Implementation of the Water Framework Directive Programmes of Measures. 2015. Available online: https://circabc.europa.eu/sd/a/a88369ef-df4d-43b1-8c8c-306ac7c2d6e1/Guidance%20document%20n%2024%20-%20River%20Basin%20Management%20in%20a%20Changing%20Climate_FINAL.pdf (accessed on 2 December 2020).
- European Commission. Report from the Commission to the European Parliament and the Council. 2019. Available online: https://eur-lex.europa.eu/resource.html?uri=cellar:bee2c9d9-39d2-11e9-8d04-01aa75ed71a1.0005.02/DOC_1&format=PDF (accessed on 2 December 2020).
- Carvalho, L.; Mackay, E.B.; Cardoso, A.C.; Baattrup-Pedersen, A.; Birk, S.; Blackstock, K.L.; Borics, G.; Borja, A.; Feld, C.K.; Ferreira, M.T.; et al. Protecting and restoring Europe’s waters: An analysis of the future development needs of the Water Framework Directive. Sci. Total Environ. 2019, 658, 1228–1238. [Google Scholar] [CrossRef] [PubMed]
- Shepherd, E.; Milner-Gulland, E.J.; Knight, A.T.; Ling, M.A.; Darrah, S.; van Soesbergen, A.; Burgess, N.D. Status and Trends in Global Ecosystem Services and Natural Capital: Assessing Progress Toward Aichi Biodiversity Target 14. Conserv. Lett. 2016, 9, 429–437. [Google Scholar] [CrossRef]
- Giakoumis, T.; Voulvoulis, N. The Transition of EU Water Policy Towards the Water Framework Directive’s Integrated River Basin Management Paradigm. Environ. Manag. 2018, 62, 819–831. [Google Scholar] [CrossRef][Green Version]
- Jager, N.W.; Challies, E.; Kochskämper, E.; Newig, J.; Benson, D.; Blackstock, K.; Collins, K.; Ernst, A.; Evers, M.; Feichtinger, J.; et al. Transforming European Water Governance? Participation and River Basin Management under the EU Water Framework Directive in 13 Member States. Water 2016, 8, 156. [Google Scholar] [CrossRef]
- Gardner, J.; Dowd, A.M.; Mason, C.; Ashworth, P. A Framework for Stakeholder Engagement on Climate Adaptation. Commonwealth Scientific and Industrial Research Organisation Climate Adaptation Flagship Working Paper no. 3; 2009; Available online: https://research.csiro.au/climate/wp-content/uploads/sites/54/2016/03/3_CAF_WorkingPaper03_pdf-Standard.pdf (accessed on 10 September 2021).
- Knieling, J. (Ed.) Climate Adaptation Governance in Cities and Regions: Theoretical Fundamentals and Practical Evidence; Wiley Blackwell: Hoboken, NJ, USA, 2019; 448p, ISBN 978-1-118-45171-7. [Google Scholar]
- Tompkins, E.L.; Adger, W.N. Does adaptive management of natural resources enhance resilience to climate change? Ecol. Soc. 2004, 9, 10. [Google Scholar] [CrossRef]
- Lemos, M.C. Usable climate knowledge for adaptive and co-managed water governance. Curr. Opin. Environ. Sustain. 2015, 12, 48–52. [Google Scholar] [CrossRef]
- Amaru, S.; Chhetr, N.B. Climate adaptation: Institutional response to environmental constraints, and the need for increased flexibility, participation, and integration of approaches. Appl. Geogr. 2013, 39, 128–139. [Google Scholar] [CrossRef]
- Voinov, A.; Bousquet, F. Modelling with stakeholders. Environ. Model. Softw. 2010, 25, 1268–1281. [Google Scholar] [CrossRef]
- Voinov, A.; Kolagani, N.; McCall, M.K.; Glynn, P.D.; Kragt, M.E.; Ostermann, F.O.; Pierce, S.A.; Ramu, P. Modelling with stakeholders–next generation. Environ. Model. Softw. 2016, 77, 196–220. [Google Scholar] [CrossRef]
- De Vente, J.; Reed, M.S.; Stringer, L.C.; Valente, S.; Newig, J. How does the context and design of participatory decision making processes affect their outcomes? Evidence from sustainable land management in global drylands. Ecol. Soc. 2016, 21, 24. [Google Scholar] [CrossRef][Green Version]
- Martinez, P.; Blanco, M.; Castro-Campos, B. The Water–Energy–Food Nexus: A Fuzzy-Cognitive Mapping Approach to Support Nexus-Compliant Policies in Andalusia (Spain). Water 2018, 10, 664. [Google Scholar] [CrossRef][Green Version]
- Verkerk, P.J.; Sanchez, A.; Libbrecht, S.; Broekman, A.; Bruggeman, A.; Daly-Hassen, H.; Giannakis, E.; Jebari, S.; Kok, K.; Krivograd Klemenčič, A.; et al. A Participatory Approach for Adapting River Basins to Climate Change. Water 2017, 9, 958. [Google Scholar] [CrossRef][Green Version]
- Broekman, A.; Sanchez, A. Tordera River Basin Adaptation Plan. 2016. Available online: https://doi.org/10.5281/zenodo.439491 (accessed on 20 November 2020).
- Giannakis, E.; Bruggeman, A.; Zoumides, C.; Charalambous, K. Pedieos River Basin Adaptation Plan. 2016. Available online: https://doi.org/10.5281/zenodo.439477 (accessed on 25 November 2020).
- Jebari, S.; Daly, H.; Saidi, I.; Ezzeddine, H.; Oussaifi, D. Rmel River Basin Adaptation Plan. 2016. Available online: https://doi.org/10.5281/zenodo.439489 (accessed on 25 November 2020).
- Magjar, M.; Suhadolnik, P.; Šantl, S.; Vrhovec, Š.; Klemencic, A.K.; Smolar, N. Vipava River Basin Adaptation Plan. 2016. Available online: https://doi.org/10.5281/zenodo.439502 (accessed on 20 November 2020).
- Gramberger, M.; Zellmer, K.; Kok, K.; Metzger, M. Stakeholder integrated research (STIR): A new approach tested in climate change adaptation research. Clim. Chang. 2015, 128, 201–214. [Google Scholar] [CrossRef]
- European Environmental Agency. Adaptation in Europe. Addressing Risks and Opportunities from Climate Change in the Context of Socio-Economic Developments. 2013. Available online: https://www.eea.europa.eu/publications/adaptation-in-europe (accessed on 9 December 2020).
- Kosko, B. Fuzzy cognitive maps. Int. J. Man-Mach. Stud. 1986, 24, 65–75. [Google Scholar] [CrossRef]
- Özesmi, U.; Özesmi, S.L. Ecological models based on people’s knowledge: A multi-step fuzzy cognitive mapping approach. Ecol. Model. 2004, 176, 43–64. [Google Scholar] [CrossRef][Green Version]
- Papageorgiou, E.; Salmeron, J.L. A review of fuzzy cognitive maps research during the last decade. IEEE Trans. Fuzzy Syst. 2013, 21, 66–79. [Google Scholar] [CrossRef]
- Kok, K. The potential of Fuzzy Cognitive Maps for semi-quantitative scenario development, with an exemple from Brazil. Glob. Environ. Chang. 2009, 19, 122–133. [Google Scholar] [CrossRef]
- Penn, A.S.; Knight, C.J.K.; Lloyd, D.J.B.; Avitabile, D.; Kok, K.; Schiller, F.; Basson, L. Co-creation and Analysis of a Fuzzy Cognitive Map of the Establishment of a Bio-Based Economy in the Humber Region. PLoS ONE 2013, 8, e78319. [Google Scholar] [CrossRef][Green Version]
- Jetter, A.J.; Kok, K. Fuzzy Cognitive Maps for futures studies: A methodological assessment of concepts and methods. Futures 2014, 61, 45–57. [Google Scholar] [CrossRef]
- Hobbs, B.F.; Ludsin, S.A.; Knight, R.L.; Ryan, P.A.; Biberhofer, J.; Ciborowski, J.J. Fuzzy cognitive mapping as a tool to define management objectives for complex ecosystems. Ecol. Appl. 2002, 12, 1548–1565. [Google Scholar] [CrossRef]
- Kafetzis, A.; McRoberts, N.; Mouratiadou, I. Using fuzzy cognitive maps to support the analysis of stakeholders’ views of water resource use and water quality policy. In Fuzzy Cognitive Maps; Springer: Berlin/Heidelberg, Germany, 2010; pp. 383–402. [Google Scholar]
- Wildenberg, M.; Bachhofer, M.; Adamescu, M.; De Blust, G.; Diaz-Delgado, R.; Isak, K.G.Q.; Riku, V. Linking thoughts to flows-Fuzzy cognitive mapping as tool for integrated landscape modelling. In Proceedings of the 2010 International Conference on Integrative Landscape Modelling, Montpellier, France, 3–5 February 2010. [Google Scholar]
- Solana-Gutiérrez, J.; Rincón, G.; Alonso, C.; García-de-Jalón, D. Using fuzzy cognitive maps for predicting river management responses: A case study of the Esla River basin, Spain. Ecol. Model. 2013, 360, 260–269. [Google Scholar] [CrossRef]
- Vasslides, J.M.; Jensen, O.P. Fuzzy cognitive mapping in support of integrated ecosystem assessments: Developing a shared conceptual model among stakeholders. J. Environ. Manag. 2016, 166, 348–356. [Google Scholar] [CrossRef] [PubMed]
- Bosma, C.; Glenk, K.; Novo, P. How do individuals and groups perceive wetland functioning? Fuzzy cognitive mapping of wetland perceptions in Uganda. Land Use Policy 2017, 60, 181–196. [Google Scholar] [CrossRef]
- Reckien, D. Weather extremes and street life in India: Implications of Fuzzy Cognitive Mapping as a new tool for semi-quantitative impact assessment and ranking of adaptation measures. Glob. Environ. Chang. 2014, 26, 1–13. [Google Scholar] [CrossRef]
- Olazabal, M.; Chiabai, A.; Foudi, S.; Neumann, M.B. Emergence of new knowledge for climate change adaptation. Environ. Sci. Policy 2018, 83, 46–53. [Google Scholar] [CrossRef]
- Hajkowicz, S.; Collins, K. A Review of Multiple Criteria Analysis for Water Resource Planning and Management. Water Resour. Manag. 2006, 21, 1553–1566. [Google Scholar] [CrossRef]
- Guiot, J.; Cramer, W. Climate change: The 2015 Paris Agreement thresholds and Mediterranean basin ecosystems. Science 2016, 354, 465–468. [Google Scholar] [CrossRef]
- Centobelli, P.; Cerchione, R.; Esposito, E. Pursuing supply chain sustainable development goals through the adoption of green practices and enabling technologies: A cross-country analysis of LSPs. Technol. Forecast. Soc. Chang. 2020, 153, 119920. [Google Scholar] [CrossRef]
- Iglesias, A.; Garrote, L.; Flores, F.; Moneo, M. Challenges to Manage the Risk of Water Scarcity and Climate Change in the Mediterranean. Water Resour. Manag. 2007, 21, 775–788. [Google Scholar] [CrossRef]
- Buurman, J.; Babovic, V. Adaptation Pathways and Real Options Analysis: An approach to deep uncertainty in climate change adaptation policies. Policy Soc. 2016, 35, 137–150. [Google Scholar] [CrossRef][Green Version]
- Li, M.; Xu, W.; Rosegrant, M.W. Irrigation, risk aversion, and water right priority under water supply uncertainty. Water Resour. Res. 2017, 53, 7885–7903. [Google Scholar] [CrossRef] [PubMed][Green Version]
- Hjerpe, M.; Storbjörk, S.; Alberth, J. “There is nothing political in it”: Triggers of local political leaders’ engagement in climate adaptation. Local Environ. 2015, 20, 855–873. [Google Scholar] [CrossRef]
- Gillard, R.; Gouldson, A.; Paavola, J.; Van Alstine, J. Transformational responses to climate change: Beyond a systems per-spective of social change in mitigation and adaptation. Adv. Rev. 2016, 7, 251–265. [Google Scholar]
|Area (km2)||120 km2||870 km2||865 km2||589 km2|
|Mean annual temperature |
|Mean annual precipitation (mm) 1||320 to 670||350 to 600||650 to 1050||1500 to 2000|
|Main land uses||Forest (23%) |
|Forest (24%), |
|Forest (81%), |
|Forest (61%), |
|Key issues||High pressure on|
|High pressure on |
by multiple users
|Limited resources |
|Character||Demand||Option targeting the need for water|
|Supply||Option targeting the availability of water|
|Support||Option targeting improved governance (including awareness raising, monitoring, and stakeholder involvement)|
|Environmental conservation||Option targeting the recovery of the ecological status|
|Approach to adaptation 1||Green||Ecosystem-based approaches|
|Grey||Technological and engineering solutions|
|Soft||Managerial, legal, and policy approaches that change human behaviour and styles of governance|
|Feasibility||No major obstacles||The implementation could be initiated straightaway, e.g., missing information or technical details or no obstacles at all|
|Minor obstacles||Some interventions are needed, but the implementation can be planned, e.g., costs and timing, responsibilities, political context|
|Serious obstacles||The implementation will not happen until the obstacle is removed, e.g., legal barriers, serious cost or timing mismatches, and administrative hindrances|
|Acceptability||High||There are no significant reasons a priori for anyone to reject the option|
|Low||There are significant reasons a priori for someone to reject the option|
|Water quality||√ 1||√||√||√|
|Water quantity||√ 1||√||√||√|
|Flood risk reduction||√||√|
|Health of forest and water ecosystems||√|
|Forest and biodiversity management||√|
|Integrated water management||√|
|Awareness of civil society||√|
|Human resource and employment||√|
|Character||Demand||20||5 *||24 *||10|
|Supply||7||32 *||6 *||30|
|Support||36||32 *||24 *||30|
|37||42 *||48 *||30|
|Approach to adaptation||Green||40 *||11||12||25|
