Modification of Hardwood Derived Biochar to Improve Phosphorus Adsorption

School of Engineering and Built Environment, Griffith University, Nathan, QLD 4111, Australia
School of Environment and Science, Griffith University, Nathan, QLD 4111, Australia
Australian Rivers Institute, Griffith University, Nathan, QLD 4111, Australia
Author to whom correspondence should be addressed.
Environments 2021, 8(5), 41;
Submission received: 10 February 2021 / Revised: 29 April 2021 / Accepted: 2 May 2021 / Published: 6 May 2021
(This article belongs to the Special Issue Restorative Agriculture)


The excessive application of phosphorus in agricultural lands leads to serious environmental issues. Efficient application is beneficial from an economic and environmental perspectives. Biochar can be used as a carrier for slow release of phosphate. However, its adsorption capacity is limited. In this work, biochar was prepared at different pyrolysis temperatures (350–550 °C). The biochar prepared at 550 °C had the highest adsorption capacity and was selected for modification by magnesium impregnation. Magnesium modification enhanced the adsorption capacity by 34% to a theoretical max adsorption capacity of 463.5 mg·g−1. The adsorbed phosphate can be desorbed. The desorption was bi-phasic with fast- and slow-release fractions. The distribution of the phosphate fractions was pH dependent with slow release being most prominent in neutral conditions. Mg modified biochar can be used to recover phosphate and then used as a carrier for slow release of phosphate. The bi-phasic desorption behaviour is useful as the fast release fraction can provide the immediate phosphate needed during plant establishment, while the slow-release fraction maintains steady supply over extended periods.

1. Introduction

Phosphate is an essential and irreplaceable nutrient required for plants development and growth. However, it has become a matter of major concern due to the rapid depletion of phosphorus reserves, the increasing demand for fertiliser in the agricultural sector and the negative environmental impacts it has in water bodies (eutrophication) [1,2,3]. Therefore, in terms of coping with the increasing demand for fertiliser and minimising the environmental impact caused by phosphate runoff, different approaches should be employed to ensure effective delivery of the phosphate as needed.
Biochar is an organic porous material, resulting from the thermochemical conversion or thermal decomposition of biomass in a limited oxygen environment. It is a solid and carbon-rich material which can be used as an adsorbent agent because of its physicochemical properties such as high surface area and cation exchange capacity [4]. Wu and Wei [5] presented several benefits of biochar, among them it helps to improve fertility in soils, contributes to reduce nutrient leaching—a major cause for eutrophication in water bodies—and improves crop production. Other soil and environmental benefits of biochar are shown in Figure 1. Because of all its potential uses and benefits, biochar has received much attention as it is perceived as an environmentally sound and low-cost material with promising applications in agricultural and environmental fields [4,6,7]. When placed in the soil, biochar can hold carbon for thousands of years as well as retaining nutrients for the plant; this makes it more stable and effective than other organic matters used as fertilisers, such as compost and manure [8]. In addition, biochar has also been shown to enhance soil physical properties such as porosity, water holding capacity and soil aggregate stability [9,10]. Therefore, biochar has potential as a soil amendment contributing to long term soil fertility for plants under drought conditions. However, most studies are focused on enhancing biochar phosphate adsorption and less attention has been given to phosphate desorption processes [2,11]. Understanding not only the adsorption of phosphate by biochar but also how this recovered phosphate can be effectively released (desorption) will improve phosphate management in soils as well as its bioavailability for plants and crops in the future.
For the synthesis of modified biochar, different kinds of biomass have been used, among these are sludge waste, agricultural waste (e.g., wheat, corn and sugar beet tailing), animal litter and wood waste. Wood waste has been used in different studies to harness its capacity for phosphate adsorption as well as its properties as biochar [12]. This material has various advantages for the production of biochar as it contains low moisture and ash content and has shown promising results for the adsorption of phosphate with adsorption concentrations of 118 and 142.7 mg-P·g−1 by woody biochar derived from oak sawdust and wood waste, respectively [13,14].
Woody residue can be found in the form of sawdust, woodchip, shavings and bark. Apart from its low cost and high availability, hardwood has presented promising results when used for the synthesis of biochar for the adsorption of phosphate. Dugdug and Chang [15] concluded hardwood biochar had better performance in the adsorption of phosphate compared wheat straw biochar. Therefore, hardwood can be a potential candidate for low-cost biomass to produce modified biochar with the objective of phosphate delivery to crops. This can contribute to addressing the issue of a suitable end-use for this raw material, while acting as a potential source of phosphate for crops located in places under drought stress conditions.

1.1. Biomass Used to Produce Biochar for the Adsorption of Phosphate

Biochar properties and its potential use as a soil amendment for the increase of nutrient availability depends significantly on the type of biomass employed for its synthesis as well as the pyrolysis conditions [15]. Biomass has significant effects on different properties of biochar, including ash content, H/C ratio, pH, surface area and cation and anion exchange capacity according to the authors of [16].
The selection of biomass is paramount to enhance the properties of biochar; the authors of [14] suggested biomass with low moisture content is suitable for biochar synthesis, as it requires low demand of heat energy and time for the pyrolysis, avoiding inhibition of char formation making it a low-cost process. Ash content can also be a determining factor for selecting a biomass source to produce biochar; the authors of [16] studied 12 different biochars produced from different feedstocks and concluded that biochar produced from feedstock with lower ash content can be easily applied in soils as there is less loss by wind. The study recommended woody-based biomass as it showed lower ash content than the non-woody biomass (turkey litter and walnut shell). Similar results are presented in [1], where oak wood biomass had lower ash content compared to greenhouse waste. Furthermore, woody biomass has been reported to produce biochars with higher surface area than other sources such as straw biochar, green waste biochar and algae biochar [16]. Biochar yield is also influenced by the type of feedstock employed. According to the authors of [12], higher yield production of biochar results from the pyrolysis of animal litter and solid wastes biomass than from crop and wood biomass. This can be related to the high inorganic content of waste-based biomass. Table 1 presents a summary of some of the promising material for biochar production for phosphate adsorption.

1.2. Adsorption of Phosphate by Biochar

Efficient adsorption of phosphate by raw biochar is low due to its negatively charged surface, lack of compatible functional groups and imperfect porosity structure [5]. Therefore, it is necessary to chemically modify biochar to enhance its phosphate adsorption capacity. A variety of agents have been used to modify biochar to promote phosphate capture, as shown in Table 2, but the use of metals has been the most frequently employed technique because they present high efficiency, low cost and are abundant in the biosphere [23].
The use of magnesium (Mg) has resulted in positive effects on the adsorption of phosphate by biochar. Mg is an abundant, environmentally friendly and low-cost material, with high affinity to phosphate [17]. Wu and Wei [5] reported that modified biochar with MgO adsorbed twice the rate of raw biochar. Xu and Zhang [4] compared the efficiency of different modification agents (Mg, Al, Fe and Ca) showing Mg-biochar had the best phosphate adsorption capacity. Lanthanum (La), which is a relativity low-cost material, with low harm to the environment and is generally abundant, has also been used to modify biochar for phosphate adsorption. Wang and Guo [20] reported that La modified biochar has 4.5-fold improvement over raw biochar. Other agents used to modify the biochar to enhance it phosphate adsorption capacity include iron (Fe) and aluminium (Al). Table 2 presents some of the latest development in metal-biochar works for phosphate adsorption.

1.3. Desorption of Phosphate by Biochar

The desorption process of phosphate by modified biochar is important to understand its potential use as a fertiliser and soil amendment. Different factors can affect the desorption process of nutrients from biochar such as pyrolysis temperature, type of biomass employed and biochar application rate [9]. However, in the literature, studies regarding desorption of phosphate by modified biochar are limited. The information focuses on biochar’s recyclability and reusability for the adsorption of phosphate, the cost-efficiency of the adsorption process and the benefits of biochar application for crop development and soil function [3]. Few studies focused on the release of phosphate from biochar for its potential use as a slow-release fertiliser. Hale and Alling [38] reported cacao shell biochar had a phosphate desorption value of 1.48 mg·g−1 and corn cob 0.172 mg·g−1 in two months. Fang et al. [39] reported that the release rate of phosphate by Mg biochar at different pyrolysis temperatures 300, 450 and 600 °C were 3.3% (8 mg·g−1), 3.9% (9.2 mg·g−1) and 4.4% (10.8 mg·g−1), respectively, over a period of 90 h. However, it is important to note that the latter experiments were carried at acidic conditions.
Other studies related to desorption of phosphate have not reported the rate of phosphate release from biochar. Morales and Comerford [11] developed a study of adsorption and desorption of phosphate focused on comparing three different feedstock at different pyrolysis temperatures. However, desorption analysis was more concentrated on how the biochar characteristics influenced phosphate release rates. Takaya and Fletcher [1] also analysed the desorption process of modified biochar. However, they reported further investigation is required to know its potential uses as a soil fertiliser. Chen and Qin [18] studied the potential of engineered biochar from agricultural waste (cow dung) for the slow release of phosphate and its use as a fertiliser. Biochar produced from cow dung when used as fertiliser in lettuce crops improved phosphate availability, soil pH, soil moisture content and organic carbon content, as well as crop growth and yield.
Despite the promising results, no studies have been conducted to evaluate the desorption rate of modified biochar employing post-treatment by modification agents to enhance its capacity as a potential slow nutrient carrier. Hence, the objective of this project was to synthesise a biochar for the effective adsorption and release of phosphate. In this paper, we report on adsorption and desorption behaviour for a Mg-treated biochar. We envisage that our work will help improve understanding of phosphate availability in agronomic settings, which is highly relevant as alternative and resilient phosphorus fertilisers are sought.

2. Materials and Methods

2.1. Biochar Preparation and MgCl2 Modified Biochar Preparation

Eucalypt stem tree chips were obtained locally, to produce HW-biochar and HW-modified biochar. This raw material was washed with deionised water (DW) to remove impurities and then oven dried at 105 °C for approximately 24 h. Measured quantities of the biomass was pyrolysed at three different temperatures 350, 450 and 550 °C in a tube furnace in an oxygen starved environment. Pyrolysis was carried out for 1.5 h at 10 °C/min, and then the furnace was allowed to cool to room temperature to retrieve the samples. The yield is calculated as follows:
Y i e l d B i o c h a r = m b i o c h a r m r a w   b i o m a s s × 100 % .
where YieldBiochar is the mass yield of biochar in per cent, mbiochar is mass of biochar in g and mraw biomass is the mass of raw biomass in g.
The biochar samples were crushed and sieved into small pieces of 0.5–0.2 mm size. Biochar samples were then submerged in 0.5 M HCl at a ratio of 1 g:10 mL for 24 h to remove impurities and ash and enhance the porous structure. Then, samples were rinsed with DW to remove impurities and oven dried at 105 °C. The raw biochar samples were stored in labelled airtight plastic containers. The modified biochar was prepared by impregnation following procedure described in [24] with slight modification. Briefly, biochar was soaked in 1 M MgCl2 solution prepared by dissolving 203.3 g of MgCl2·6H2O in 1000 mL of DW. The raw biochar sample was submerged into the MgCl2 [4], with constant shaking for 24 h. Then, the samples were filtered with 90 mm Whatman filter paper, and modified biochar was oven dried at 105 °C for 24 h and stored in containers labelled as Mg-Biochar.

2.2. Biochar Characterisation and Proximate Analysis

The pH of the samples was determined according to the ASTM Standard Method (D3838-05). First, 0.1 g of each sample were added to 10 mL of DW followed by shaking. Then, pH was measured using a pH meter. Fourier-transform infrared spectroscopy (FTIR) was employed for the characterisation of the functional groups of the biochar samples.
Ash content (ASH) of biochar was measured following the ASTM Standard method (D3174) by calculating the difference between the masses after combustion of 1 g of the sample in the furnace at 650 °C for 3 h. The volatile matter (VM) was determined following the ASTM Standard method (D1762-84) by calculating the mass difference after the combustion of 1 g of sample in the furnace at 350 °C for 3 min. Fixed carbon content was calculated as the difference of the total original weigh of the sample and the sum of ASH and VM. Scanning electron microscope (SEM) imaging were used to inspect the surface and structure of the biochar.

2.3. Specific Surface Area and Electron Microscopy

The BET specific surface area (SSA) and pore volume of raw biochar and Mg-biochar was determined using N2 adsorption at 77 K (Micrometrics TriStar II 3020 3.02, Norcross, GA, USA). Electron microscopy images and scans were obtained using a JEOL JSM7100F scanning electron microscope

2.4. Point of Zero Charge (pHPZC)

The Point of zero charge of raw biochar and modified biochar was measured according to procedure described in [39]. First, 0.15 g of each biochar were mixed with 15 mL of 0.01 M NaCl solution with pH range from 2 to 12. The pH was adjusted using 0.1 M of HCl and NaOH. The final pH of the solution was measured after 24 h of shaking.

2.5. Phosphate Adsorption Screening Experiments

Phosphate solution was prepared by dissolving 176.16 g potassium phosphate dibasic anhydrous (K2HPO4) in 1 L of DW for the adsorption experiments. Working solutions were prepared from the stock solution as needed. Screening tests were performed to determine the biochar with the highest potential for further investigation; 0.2 g of the samples were loaded into a flask with 20 mL of the phosphorus solution with a concentration of 30 mg·L−1. Then, the containers were put in a shaker and mixed vigorously at room temperature for 24 h. The phosphate adsorption performance was calculated by the difference in concentration between the initial concentration of phosphate and the final concentration. The amount of P adsorbed by the biochar samples (qe) was calculated using Equation (2):
q e = V ( C 0 C e ) / M
where qe (mg·g−1) is the amount of P adsorbed on biochar, C0 (mg·L−1) is the initial concentration of P in the solution at starting time (t = 0), Ce (mg·L−1) is the final concentration, V (L) is the volume of the P solution and M (g) is the mass of biochar added.
Phosphate concentration was measured following APHA 2005 standard methods. Internal standards were used to validate the results (concentration 0 to 1 mg PO4-P·L−1). To determine PO4-P, samples were withdrawn using 0.45 μm filter syringe. The filtered solutions were then analysed using colorimetric methods with a Discrete Chemistry Analyser (Westco Smartchem 200, Danbury, CT, USA). All PO43− values are reported as mg-PO4-P.

2.6. Adsorption Kinetics

P adsorption kinetics was studied following the procedure of Li et al. [26], in which 0.2 g of the biochar sample were added to a solution of 20 mL of a 30 mg PO4-P·L−1 phosphate solution in a 100 mL flask and then shaken at room temperature. The samples were drawn at 5, 10, 20, 30, 60, 120 and 240 min and 24 h. The kinetics of the adsorption of P were modelled using the pseudo-first- and pseudo-second-order equations (Equations (3) and (4)).
Pseudo-first-order equation:
q t = q e ( 1 e k t )
Pseudo-second-order equation:
q t = K 2 q e 2 t 1 + K 2 q e t
where qt is the adsorption capacity at time t (mg·g−1). k and K2 are the rate constant of pseudo-first order and pseudo-second order, respectively. t is the time (min).

2.7. Adsorption Isotherms

Following the procedure in [25] with modifications, 0.2 g of the adsorbent were added to 20 mL of PO4-P solution at different concentrations (5, 10, 15, 30 and 50 mg PO4-P·L−1) as well as 30 g PO4-P·L−1. The pH was adjusted by adding 0.1 M of NaOH or HCl as required to maintain pH ~ 6. The samples were drawn, and the total P concentration was measured as described previously. The results were fitted to the Langmuir and Freundlich isotherms models (Equations (5) and (6), respectively):
Langmuir equation:
q e = q m a x K L C e q 1 + K L C e q
where qmax (mg·g−1) is the monolayer adsorption capacity, Ceq (mg·L−1) is the equilibrium concentration of the adsorbate (mg·g−1) and KL (L·mg−1) is the Langmuir constant.
Freundlich equation:
q e = K F C e q 1 n
where KF is the distribution coefficient (Freundlich adsorption constant) and n is the correction factor.

2.8. Phosphate Desorption Experiments

The desorption experiments were conducted to study the slow-release capacity of biochar. Biochar was first loaded with phosphate by soaking biochar samples in phosphate solutions (20 and 40 mg·L−1) for 24 h at pH = 6. The loaded biochar was first rinsed with DI water and then dried in the oven for 2 h at 105 °C. The amount of phosphate adsorbed onto the biochar were determined by measuring the concentration remaining in the solution. Then, 0.2 g of biochar samples were added to 20 mL DI water and left for different periods of time (5, 30, 60, 180, 360 and 1440 min) at two different pH values (7 and 4.6) to simulate the potential release of phosphate in neutral and acidic environments. The final concentration was measured. The amount of phosphate released can be calculated as m = C × V, where C is the concentration and V is the volume.

2.9. Desorption Kinetics Modelling

To model the kinetics of phosphate desorption, the first rate of decay (FRD) and the two-compartment first-order rate constant (TFRC) models were used. The FRD model is a commonly used decay model which assumes constant rate of release (k) of the adsorbate from the adsorbent over time. The FRD model is mathematically presented as:
q t = q 0 e k t
TFRC is one of the most common empirical equations to obtain the desorption rates [40]. The model assumes bi-phasic release of adsorbate and is represented in the following equation:
q t q 0 = a e k f t + ( 1 a ) e k s t
qt is the adsorbate mass per mass adsorbent remaining in the solid phase (mg·g−1) at time t; q0 is the initial adsorbate mass held by the adsorbent (mg·g−1); a is the fraction of the fast-desorbing adsorbate; kf is the first-order desorption rate constant of the fast-desorbing adsorbate (min−1); and ks is the first-order decay rate of the slow-release adsorbate (min−1).

2.10. Quality Control and Data Analysis

All experiments were run in duplicate and average values are reported. If the difference between the duplicates was more than 10%, the experiment was repeated. To compare the results and determine the significance of the differences before and after treatment, student t-test was used. Analysis of the variance (One-way ANOVA) was used to compare the performance of the different biochars. Significance level (α = 0.05) was used in all statistical tests.

3. Results and Discussion

3.1. Biomass and Biochar Properties

The composition of biomass is presented in Table 3. The moisture content of the biomass was 1.73%. Low moisture content is commonly reported in the literature for wood waste biomass [13,14]. The ash content (31.5%) is similar to results reported by Chen and Chen [41] for hardwood (38.55%). Biochar yield for the three different pyrolysis temperatures 350, 450 and 550 °C are shown in Table 3. Biochar yield had an inverse relation with pyrolysis temperature. This behaviour was expected as wood biomass has a high content of cellulose, lignin and hemicellulose [14,42]. In addition, a decrease in yield as the temperature increased can be attributed to great decomposition of primary biomass or to secondary decomposition of biochar according to Ola and Jekayinfa [43]. The P content in the raw biochar ranged 0.0482–0.345 mg·g−1, as shown in Table 3. Experiments were performed to determine the amount of P released from raw biochar to evaluate its availability. The release of P from biochar was very low, thus it is unlikely to be readily available.
The pH of biochar prepared at 350, 450 and 550 °C was alkaline in nature with values 8.1, 8.2 and 8.4, respectively. The increase in pH values with increase in pyrolysis temperature can be caused by the separation of alkali salts from organic materials, as well as the loss of acidic functional groups and the appearance of basic functional groups [42,44]. Oginni and Yakaboylu [45] reported an increase in pH after pyrolysis of wood biomass from longleaf pine, red oak and hard maple at 500 °C; their pH values were 8.6, 9.0 and 9.8, respectively. The modified biochar, Mg-biochar, had alkaline nature (pH = 8.5). Generally, very little change in the pH was observed after the modification process.
Figure 2 shows the SEM and EDS spectrum of the biochar (before modification) with MgCl2 and after modification (Mg-Biochar). The SEM scans reveal that the pore size of the Mg-Biochar is larger and more developed. Furthermore, the EDS spectra confirms that the Mg presence is more prominent in the Mg-Biochar than in the unmodified biochar.
The specific surface area of the biochar prepared at 500 °C was 1.49 m2·g−1 and the pore volume is 0.000427 m3·g−1. Similar results were reported for brown marine macroalgae and woody derived biochar by Oginni and Yakaboylu [45] and Jung and Ahn [7] with SSAs of 2.39 and 0.26 m2 g−1, respectively. For the Mg-biochar (500 °C) produced here, the SSA was 0.97 m2·g−1 and the pore volume was 0.0003 m3·g−1. The development of larger pores with wider diameters in the modified can explain the reduction in the BET SSA. As the pore diameter grew, it consumed the smaller pores surrounding it, resulting in loss of nano-surface area. This is not necessarily bad because, for many of the small pores, despite providing higher surface area, the surface area and the active sites within them may not be accessible. Other studies have reflected the influence of residence time and pore clogging to be the some of the causes that affect SSA. Lu and Zong [46] reported an increase of SSA in maize straw and rice biochar pyrolysed at 550 °C when residence time was increased from 2 to 5 h. Li and Dong [47] noted how high pyrolysis temperatures can cause the pores to collapse reducing the SSA of biochar. Furthermore, it is important to note that the MB method measures the mesoporous surface area of the biochar, which means MB may not reflect the total surface area available for adsorption which includes the micropores. It was also found that the pHpzc of the biochar increased from 7 (raw) to 8 for the Mg-biochar (550 °C), as shown in Figure 3.
FTIR analysis was performed to analyse the functional groups in both raw and modified biochar. The resulting FTIR spectra are shown in Figure 4. Biochar produced at 350 °C exhibited a broad band between 3000 and 3500 cm−1 (peak maximum at 3327 cm−1) which represents vibrations of hydrogen-bonded O-H groups (alcoholic and phenolic) as well as the double-bonded groups C=O broad band between 1500 and 2000 cm−1 (peak maximum at 1689 cm−1) [14]. For all raw biochar, adsorption in the region between 2843 and 2981 cm−1 C-H stretching is allocated to aliphatic functional groups and another strong band at 1055 cm−1 represents the C-O stretching oxygenated groups. The strong band at 1224 cm−1 represents phenolic -OH groups [42]. As temperature increases from 350 to 550 °C, OH functional groups, as well as C=O groups, decrease.
The strong aromatic band of C=C at 1602 cm−1 is observed in the biochar synthesised at 350 °C, and this vibration is strongly present until the temperature reached 550 °C, at which the band is reduced. This behaviour in biochar produced at high temperatures can be related to their low H/C ratio according to Zhang and Chen [48]. The intensities of C-H (2843 and 2981 cm−1) aliphatic stretching, -OH phenolic (1224 cm−1) and C-O bands (1055 cm−1) exhibited a significant decrease because of the dehydration and degradation of ligneous and cellulosic compounds [43]. Functional groups present after modification of biochar by MgCl2 and adsorption of phosphorus are shown in Figure 4. There is a significant peak for all biochar in the band stretching from 1500 to 2000 cm−1 (1578 cm−1), indicating functional groups C=C and C=O aromatic bonds for modified biochar and modified biochar loaded with phosphorus as well as for raw biochar loaded with phosphorus. For modified biochar in the bands of 3299 and 699 cm−1, groups assigned Mg-OH and Mg-O were detected confirming the incorporation of Mg in the biochar [25,49]. Another significant change for biochar after modification was a sharp increase in the band 1577 cm−1 for all biochar samples except raw biochar, which can be attributed to the aromatic functional groups C=C and C=O. Compared with raw biochar, Mg-biochar contained groups in the intensity bands from 2500 to 3000 cm−1 (2906 cm−1) and 1000 to 1500 cm−1 and these were assigned to CH2 groups and C-O groups [50]. After the HW-biochar and Mg-biochar were loaded with phosphorus, a significant increase in the stretching bands of 1408, 1023, 874 and 559 cm−1 were observed for HW-biochar with functional groups C-H alkene, C-O and C-H aromatic out of plane. Regarding modified biochar, with the loading of P, the peaks located at 3299 and 699 cm−1 disappeared, indicating this group can be linked to the adsorption of phosphorus into the Mg-biochar [25].

3.2. Adsorption of Phosphorus by HW-Biochar and Mg-Biochar

The phosphorus adsorption capacities of raw biochar (HW-biochar) and Mg modified biochar (Mg-biochar) are shown in Figure 5. The raw biochar pyrolysed at 350 and 450 °C showed low adsorption capacity (0.26 and 0.25 mg-P·g−1, respectively), as shown in Figure 5a. On the other hand, raw biochar synthesised at 550 °C showed the highest adsorption of phosphorus with 0.44 mg-P·g−1; although the ANOVA test failed to confirm that the results were significantly different (p = 0.22), the BC550 adsorbed almost double the amount of phosphate compared to the other biochars. As pyrolysis temperature increases, biochar surface area and pore formation increase enhancing biochar adsorption capacity of phosphorus [26,51]. Similar results were found by Zhou and Xu [52] and Yin and Liu [25] with the increase in adsorption capacity of P for raw biochar with an increase in pyrolysis temperature. Because of its adsorption capacity, HW-biochar at 550 °C was chosen to be modified with Mg.
Biochar pyrolysed at 550 °C was selected to be modified with MgCl2. Modified biochar with Mg showed an increase in the adsorption of P from 0.44 to 0.59 mg-P·g−1 (Figure 5). Although t-test failed to confirm the significance of the improvement (p = 0.2), the change represents 34% improvement over unmodified biochar. Improvement in the performance of biochar by the addition of Mg has been presented in the literature. Fang and Zhang [24] reported maximum adsorption of P of modified corn biochar was higher compared to raw biochar (239 and 225 mg·g−1). Similar results were published by Yin and Liu [25], describing biochar modified with Mg dramatically increased phosphate adsorption. However, the results reported in [24,25] were obtained using extremely high initial concentrations of phosphate solutions. The Mg-biochar developed in this study was also able to achieve 238 mg·g−1 when it was subjected to PO4-P solution with initial concentration of 30 g·L−1. The dramatic increase may be explained by the increased driving force due to the extreme difference between the PO4-P concentration in the solid and liquid phases. The modification with magnesium proved to be crucial for enhancing the adsorption capacity of raw biochar as it increased the positive surface charge on the biochar, thus increasing the tendency to attract anions. Mg modified biochar in the literature has shown a high affinity to anions due to the high pHPZC (12), as this causes the surface to be positively charged [45,53]. In our study, the HW-biochar and Mg-biochar pHPZC values were 7.0 and 7.9. As the pHPZC was higher than pH from the solution (pH = 5), a positive surface in the Mg-biochar can be expected, which, due to electrostatic adsorption between the adsorbate and the biochar, can contribute to improving adsorption of PO43− [6,25]. Moreover, the adsorption of phosphate increased 34% over the raw biochar to Mg-biochar despite the decrease in the SSA.
Figure 6 shows the EDS spectra of the biochar before and after adsorption. It can be seen that Mg has played a role in phosphate adsorption in the unmodified and modified biochar. However, Mg’s role can be easily seen in the modified biochar with the peak around 1.27 (corresponding to Mg) disappearing after adsorption. It can also be seen that the chloride (around 2.65) and calcium (3.73) have also have been involved in the adsorption of phosphate. Marshall and Morton [54] proposed a multi-step mechanism for the formation of calcium phosphate on biochar in which Cl played an important role. We propose a similar mechanism for the formation of magnesium phosphate on biochar.

3.3. Adsorption Isotherms

Figure 7 shows the adsorption isotherm for the Mg-modified biochar produced at 550 °C. The isotherm parameters for both models, including the determination coefficients (R2) and the root mean squared error (RMSE), are presented in Table 4. The Langmuir model describes homogenous adsorption in which all sites have equal affinity for the adsorbate [55]. On the other hand, the Freundlich model describes multilayer adsorption but with non-uniform distribution implied. The Langmuir maximum adsorption capacity of Mg-biochar was 463.5 mg PO4-P·g−1; however, this is unlikely to be achieved at realistic P concentrations. To confirm this, an adsorption experiment was conducted with initial PO4-P concentration 30 g·L−1 and found qe to be 283 mg·g−1. This behaviour may suggest that the adsorption is not conformant to Type I adsorption isotherm, which may violate the inherent assumption of Langmuir and Freundlich isotherm equations of Type I adsorption. Therefore, the results of the fitting from the models used in this study should be interpreted with caution. Table 5 shows selected values from reported P adsorption capacities of different Mg modified biochar. However, comparisons should proceed with caution as it is difficult to directly compare the values due to variations in experimental conditions. Furthermore, the reported qmax values are based on Langmuir calculated maximum capacity which may entail extrapolating the results beyond the experimental range.

3.4. Adsorption Kinetics

The adsorption of phosphate by Mg-biochar as a function of time is presented in Figure 8. It is clear that adsorption of PO43− at the initial time is fast and then becomes relatively slow. Maximum adsorption was reached in 60 min. The fast initial adsorption of PO43− can be caused by electrostatic forces between the positively charged Mg surface and the slow adsorption later might be due to intraparticle diffusion [5,53,56]. The data from the kinetic experiment were further fitted using the pseudo-first- (PFO) and pseudo-second-order (PSO) kinetic models. The pseudo-first- and the pseudo-second-order models fitted the experimental data with correlation coefficients R2 = 0.71 and 0.73, respectively. The fitted parameters are shown in Table 6. The PSO model assumes the mechanism of P adsorption onto Mg-biochar can be determined by chemisorption interaction, which agrees with the isotherm results [5,53].
The kinetics data indicate a degree of overshooting behaviour with qt oscillating as time progresses. One possibility to explain this phenomenon is that, as the biochar has more active positive surface due to the addition of Mg, P is attached to this surface; however, the bonding seems to be weak. When the surface of biochar reaches the critical charge density, the new surface charge of biochar is negative because of the phosphate, therefore it starts repelling the incoming phosphate (Figure 9), which looks like there is a release instead of adsorption until equilibrium is reached.

3.5. Desorption of P from Mg-Biochar

The phosphate release was found to be higher in acidic than in neutral environments, as shown in Figure 10. This is expected, given the dissociation of magnesium and calcium phosphate behaviours. The initial loading of the biochar did not have significant impact on the rate or quantity of the phosphate released. In the case of acidic environment, within the first 5 min the phosphate concentration released reached 10.6 mg PO4-P·L−1 and then remained relatively constant, most likely due to reaching equilibrium between the liquid–solid phase. This demonstrates that Mg-biochar can be used as a carrier to deliver phosphate, but it may not be suitable as a slow-release medium in acidic soils. On the other hand, in neutral environment, the rate of phosphate release was much slower (~5.5%) in 24 h with the curve showing the release continue to climb over time. This percentage is higher than the values reported by Fang and Zhang [24] for Mg biochar derived from corn with release values of 4.4% over a period of 90 h. This suggests that Mg-biochar may be a good carrier for slow delivery of phosphate in neutral soils.
Judging by the R2 and RMSE values shown in Table 7, the release of the phosphate followed the bi-phasic desorption model with the fast release component being more prominent in the acidic environment mainly due to the solubilisation of magnesium phosphate. In the case of the neutral environment (pH = 7), only a small fraction of the adsorbed phosphate is immediately available, while the majority of the adsorbed phosphate is being held in the slow-release component. This can be very useful if the biochar is to be used as a carrier for the delivery of phosphate in agricultural applications as the fast release component can provide the phosphate during plant establishment while the slow-release component can ensure steady supply over extended periods of time.

4. Conclusions

Impregnation of biochar with Mg enhanced the phosphate adsorption capacity of the biochar by 34%. Formation of magnesium phosphate is the likely cause for the observed increase in capacity. The adsorption isotherm was best described by the Freundlich isotherm model and the kinetics were best described by the pseudo-second-order equation, suggesting that multiple mechanisms were involved in the adsorption of phosphate. Desorption experiments revealed that the desorption behaviour of the phosphate from biochar follows bi-phasic exponential decay model with fast- and slow-release components. The pH plays an important role in determining the distribution of the phosphate between the fast- and slow-release components. This behaviour is very useful if the exhausted biochar were to be used as a carrier for phosphate delivery in agricultural settings. The fast release component can provide the phosphate dose required during plant establishment while the slow-release component ensures the steady supply of phosphate over extended periods of time.

Author Contributions

Conceptualisation, A.E.H.; methodology, A.E.H.; software, L.A.B. and A.E.H.; validation, A.E.H.; formal analysis, L.A.B. and A.E.H.; investigation, L.A.B. and Z.M.; resources, A.E.H. and C.P.; data curation, L.A.B.; writing—original draft preparation, L.A.B.; writing—review and editing, A.E.H., Z.M. and C.P.; visualisation, L.A.B. and A.E.H.; supervision, A.E.H.; project administration, A.E.H. and C.P.; and funding acquisition, C.P. and A.E.H. All authors have read and agreed to the published version of the manuscript.


This research was funded by Griffith University’s School of Environment and Science ENGAGE Initiative.

Institutional Review Board Statement

No human or animal subjects were involved in this study. Note applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Takaya, C.; Fletcher, L.; Singh, S.; Anyikude, K.; Ross, A. Phosphate and ammonium sorption capacity of biochar and hydrochar from different wastes. Chemosphere 2016, 145, 518–527. [Google Scholar] [CrossRef] [PubMed]
  2. Qian, T.; Zhang, X.; Hu, J.; Jiang, H. Effects of environmental conditions on the release of phosphorus from biochar. Chemosphere 2013, 93, 2069–2075. [Google Scholar] [CrossRef]
  3. Jung, K.-W.; Lee, S.; Lee, Y.J. Synthesis of novel magnesium ferrite (MgFe2O4)/biochar magnetic composites and its adsorption behavior for phosphate in aqueous solutions. Bioresour. Technol. 2017, 245, 751–759. [Google Scholar] [CrossRef]
  4. Xu, K.; Zhang, C.; Dou, X.; Ma, W.; Wang, C. Optimizing the modification of wood waste biochar via metal oxides to remove and recover phosphate from human urine. Environ. Geochem. Health 2019, 41, 1767–1776. [Google Scholar] [CrossRef]
  5. Wu, L.; Wei, C.; Zhang, S.; Wang, Y.; Kuzyakov, Y.; Ding, X. MgO-modified biochar increases phosphate retention and rice yields in saline-alkaline soil. J. Clean. Prod. 2019, 235, 901–909. [Google Scholar] [CrossRef]
  6. Yin, Q.; Wang, R.; Zhao, Z. Application of Mg-Al-modified biochar for simultaneous removal of ammonium, nitrate, and phosphate from eutrophic water. J. Clean. Prod. 2018, 176, 230–240. [Google Scholar] [CrossRef]
  7. Jung, K.-W.; Ahn, K.-H. Fabrication of porosity-enhanced MgO/biochar for removal of phosphate from aqueous solution: Application of a novel combined electrochemical modification method. Bioresour. Technol. 2016, 200, 1029–1032. [Google Scholar] [CrossRef]
  8. Saxena, J.; Rawat, J.; Kumar, R. Conversion of biomass waste into biochar and the effect on Mung bean crop production. Clean Soil Air Water 2017, 45. [Google Scholar] [CrossRef]
  9. Ding, Y.; Liu, Y.; Liu, S.; Huang, X.; Li, Z.; Tan, X.; Zeng, G.; Zhou, L. Potential benefits of biochar in agricultural soils: A review. Pedosphere 2017, 27, 645–661. [Google Scholar] [CrossRef]
  10. Kavitha, B.; Reddy, P.V.L.; Kim, B.; Lee, S.S.; Pandey, S.K.; Kim, K.-H. Benefits and limitations of biochar amendment in agricultural soils: A review. J. Environ. Manag. 2018, 227, 146–154. [Google Scholar] [CrossRef] [PubMed]
  11. Morales, M.M.; Comerford, N.; Guerrini, I.A.; Falcão, N.P.S.; Reeves, J.B. Sorption and desorption of phosphate on biochar and biochar-soil mixtures. Soil Use Manag. 2013, 29, 306–314. [Google Scholar] [CrossRef]
  12. Amin, F.R.; Huang, Y.; He, Y.; Zhang, R.; Liu, G.; Chen, C. Biochar applications and modern techniques for characterization. Clean Technol. Environ. Policy 2016, 18, 1457–1473. [Google Scholar] [CrossRef]
  13. Ndirangu, S.M.; Liu, Y.; Xu, K.; Song, S. Risk evaluation of pyrolyzed biochar from multiple wastes. J. Chem. 2019, 2019, 4506314. [Google Scholar] [CrossRef] [Green Version]
  14. Tomczyk, A.; Sokołowska, Z.; Boguta, P. Biochar physicochemical properties: Pyrolysis temperature and feedstock kind effects. Rev. Environ. Sci. Bio/Technol. 2020, 19, 191–215. [Google Scholar] [CrossRef] [Green Version]
  15. Dugdug, A.A.; Chang, S.X.; Ok, Y.S.; Rajapaksha, A.U.; Anyia, A. Phosphorus sorption capacity of biochars varies with biochar type and salinity level. Environ. Sci. Pollut. Res. 2018, 25, 25799–25812. [Google Scholar] [CrossRef]
  16. Mukome, F.N.D.; Zhang, X.; Silva, L.C.R.; Six, J.; Parikh, S.J. Use of chemical and physical characteristics to investigate trends in biochar feedstocks. J. Agric. Food Chem. 2013, 61, 2196–2204. [Google Scholar] [CrossRef]
  17. Man, Y.; Chen, Y. Enhanced phosphate adsorption on Ca-Mg-loaded biochar derived from tobacco stems. Water Sci. Technol. 2018, 78, 2427–2436. [Google Scholar]
  18. Chen, Q.; Qin, J.; Sun, P.; Cheng, Z.; Shen, G. Cow dung-derived engineered biochar for reclaiming phosphate from aqueous solution and its validation as slow-release fertilizer in soil-crop system. J. Clean. Prod. 2018, 172, 2009–2018. [Google Scholar] [CrossRef]
  19. Yang, Q.; Wang, X.; Luo, W.; Sun, J.; Xu, Q.; Chen, F.; Zhao, J.; Wang, S.; Yao, F.; Wang, D.; et al. Effectiveness and mechanisms of phosphate adsorption on iron-modified biochars derived from waste activated sludge. Bioresour. Technol. 2018, 247, 537–544. [Google Scholar] [CrossRef] [PubMed]
  20. Wang, Z.; Guo, H.; Shen, F.; Yang, G.; Zhang, Y.; Zeng, Y.; Wang, L.; Xiao, H.; Deng, S. Biochar produced from oak sawdust by Lanthanum (La)-involved pyrolysis for adsorption of ammonium (NH4+), nitrate (NO3−), and phosphate (PO43−). Chemosphere 2015, 119, 646–653. [Google Scholar] [CrossRef]
  21. Micháleková-Richveisová, B.; Frišták, V.; Pipíška, M.; Ďuriška, L.; Moreno-Jimenez, E.; Soja, G. Iron-impregnated biochars as effective phosphate sorption materials. Environ. Sci. Pollut. Res. 2017, 24, 463–475. [Google Scholar] [CrossRef]
  22. Wang, Z.; Shen, D.; Shen, F.; Li, T. Phosphate adsorption on lanthanum loaded biochar. Chemosphere 2016, 150, 1–7. [Google Scholar] [CrossRef]
  23. Kuppusamy, S.; Thavamani, P.; Megharaj, M.; Venkateswarlu, K.; Naidu, R. Agronomic and remedial benefits and risks of applying biochar to soil: Current knowledge and future research directions. Environ. Int. 2016, 87, 1–12. [Google Scholar] [CrossRef]
  24. Fang, C.; Zhang, T.; Li, P.; Jiang, R.-F.; Wang, Y.-C. Application of magnesium modified corn biochar for phosphorus removal and recovery from swine wastewater. Int. J. Environ. Res. Public Health 2014, 11, 9217–9237. [Google Scholar] [CrossRef] [Green Version]
  25. Yin, Q.Q.; Liu, M.T.; Ren, H.P. Removal of ammonium and phosphate from water by Mg-modified biochar: Influence of Mg pretreatment and pyrolysis temperature. Bioresources 2019, 14, 6203–6218. [Google Scholar]
  26. Takaya, C.; Fletcher, L.; Singh, S.; Okwuosa, U.; Ross, A. Recovery of phosphate with chemically modified biochars. J. Environ. Chem. Eng. 2016, 4, 1156–1165. [Google Scholar] [CrossRef]
  27. Wan, S.; Wang, S.; Li, Y.; Gao, B. Functionalizing biochar with Mg-Al and Mg-Fe layered double hydroxides for removal of phosphate from aqueous solutions. J. Ind. Eng. Chem. 2017, 47, 246–253. [Google Scholar] [CrossRef]
  28. Park, J.H.; Ok, Y.S.; Kim, S.H.; Cho, J.S.; Heo, J.S.; Delaune, R.D.; Seo, D.C. Evaluation of phosphorus adsorption capacity of sesame straw biochar on aqueous solution: Influence of activation methods and pyrolysis temperatures. Environ. Geochem. Health 2015, 37, 969–983. [Google Scholar] [CrossRef]
  29. Liao, T.; Li, T.; Su, X.; Yu, X.; Song, H.; Zhu, Y.; Zhang, Y. La(OH)3-modified magnetic pineapple biochar as novel adsorbents for efficient phosphate removal. Bioresour. Technol. 2018, 263, 207–213. [Google Scholar] [CrossRef] [PubMed]
  30. Li, J.; Li, B.; Huang, H.; Zhao, N.; Zhang, M.; Cao, L. Investigation into lanthanum-coated biochar obtained from urban dewatered sewage sludge for enhanced phosphate adsorption. Sci. Total. Environ. 2020, 714, 136839. [Google Scholar] [CrossRef] [PubMed]
  31. Wang, L.; Wang, J.; He, C.; Lyu, W.; Zhang, W.; Yan, W.; Yang, L. Development of rare earth element doped magnetic biochars with enhanced phosphate adsorption performance. Colloids Surf. A Physicochem. Eng. Asp. 2019, 561, 236–243. [Google Scholar] [CrossRef]
  32. Yang, B.; Feng, Y.; Yu, Y.; He, S.; Liu, H.; Xue, L.; Yang, L. Lanthanum ferrite nanoparticles modification onto biochar: Derivation from four different methods and high performance for phosphate adsorption. Environ. Sci. Pollut. Res. 2019, 26, 22010–22020. [Google Scholar] [CrossRef] [PubMed]
  33. Nguyen, T.A.; Ngo, H.H.; Guo, W.S.; Zhang, J.; Liang, S.; Tung, K.L. Feasibility of iron loaded ‘okara’ for biosorption of phosphorous in aqueous solutions. Bioresour. Technol. 2013, 150, 42–49. [Google Scholar] [CrossRef]
  34. Li, Z.; Liu, X.; Wang, Y. Modification of sludge-based biochar and its application to phosphorus adsorption from aqueous solution. J. Mater. Cycles Waste Manag. 2019, 22, 123–132. [Google Scholar] [CrossRef]
  35. Ren, J.; Li, N.; Li, L.; An, J.-K.; Zhao, L.; Ren, N.-Q. Granulation and ferric oxides loading enable biochar derived from cotton stalk to remove phosphate from water. Bioresour. Technol. 2015, 178, 119–125. [Google Scholar] [CrossRef] [PubMed]
  36. Novais, S.V.; Zenero, M.D.O.; Barreto, M.S.C.; Montes, C.R.; Cerri, C.E.P. Phosphorus removal from eutrophic water using modified biochar. Sci. Total. Environ. 2018, 633, 825–835. [Google Scholar] [CrossRef] [PubMed]
  37. Akgül, G.; Maden, T.B.; Diaz, E.; Jiménez, E.M. Modification of tea biochar with Mg, Fe, Mn and Al salts for efficient sorption of PO43− and Cd2+ from aqueous solutions. J. Water Reuse Desalination 2019, 9, 57–66. [Google Scholar] [CrossRef]
  38. Hale, S.E.; Alling, V.; Martinsen, V.; Mulder, J.; Breedveld, G.D.; Cornelissen, G. The sorption and desorption of phosphate-P, ammonium-N and nitrate-N in cacao shell and corn cob biochars. Chemosphere 2013, 91, 1612–1619. [Google Scholar] [CrossRef]
  39. Mahdi, Z.; El Hanandeh, A.; Yu, Q. Influence of pyrolysis conditions on surface characteristics and methylene blue adsorption of biochar derived from date seed biomass. Waste Biomass Valorization 2016, 8, 2061–2073. [Google Scholar] [CrossRef]
  40. Birdwell, J.; Cook, R.L.; Thibodeaux, L.J. Desorption kinetics of hydrophobic organic chemicals from sediment to water: A review of data and models. Environ. Toxicol. Chem. 2007, 26, 424–434. [Google Scholar] [CrossRef]
  41. Chen, X.; Chen, G.; Chen, L.; Chen, Y.; Lehmann, J.; McBride, M.B.; Hay, A.G. Adsorption of copper and zinc by biochars produced from pyrolysis of hardwood and corn straw in aqueous solution. Bioresour. Technol. 2011, 102, 8877–8884. [Google Scholar] [CrossRef]
  42. Domingues, R.R.; Trugilho, P.F.; Silva, C.A.; De Melo, I.C.N.A.; Melo, L.C.A.; Magriotis, Z.M.; Sánchez-Monedero, M.A. Properties of biochar derived from wood and high-nutrient biomasses with the aim of agronomic and environmental benefits. PLoS ONE 2017, 12, e0176884. [Google Scholar] [CrossRef] [Green Version]
  43. Ola, F.; Jekayinfa, S. Pyrolysis of sandbox (Hura crepitans) shell: Effect of pyrolysis parameters on biochar yield. Res. Agric. Eng. 2016, 61, 170–176. [Google Scholar] [CrossRef] [Green Version]
  44. Tag, A.T.; Duman, G.; Ucar, S.; Yanik, J. Effects of feedstock type and pyrolysis temperature on potential applications of biochar. J. Anal. Appl. Pyrolysis 2016, 120, 200–206. [Google Scholar] [CrossRef]
  45. Oginni, O.; Yakaboylu, G.A.; Singh, K.; Sabolsky, E.M.; Unal-Tosun, G.; Jaisi, D.; Khanal, S.; Shah, A. Phosphorus adsorption behaviors of MgO modified biochars derived from waste woody biomass resources. J. Environ. Chem. Eng. 2020, 8. [Google Scholar] [CrossRef]
  46. Lu, S.; Zong, Y. Pore structure and environmental serves of biochars derived from different feedstocks and pyrolysis conditions. Environ. Sci. Pollut. Res. 2018, 25, 30401–30409. [Google Scholar] [CrossRef] [PubMed]
  47. Li, H.; Dong, X.; da Silva, E.B.; de Oliveira, L.M.; Chen, Y.; Ma, L.Q. Mechanisms of metal sorption by biochars: Biochar characteristics and modifications. Chemosphere 2017, 178, 466–478. [Google Scholar] [CrossRef] [PubMed]
  48. Zhang, H.; Chen, C.; Gray, E.M.; Boyd, S.E. Effect of feedstock and pyrolysis temperature on properties of biochar governing end use efficacy. Biomass Bioenergy 2017, 105, 136–146. [Google Scholar] [CrossRef]
  49. Cui, X.; Dai, X.; Khan, K.Y.; Li, T.; Yang, X.; He, Z. Removal of phosphate from aqueous solution using magnesium-alginate/chitosan modified biochar microspheres derived from Thalia dealbata. Bioresour. Technol. 2016, 218, 1123–1132. [Google Scholar] [CrossRef]
  50. Coates, J. Interpretation of infrared spectra, A practical approach. In Encyclopedia of Analytical Chemistry: Applications, Theory and Instrumentation; John Wiley & Sons Ltd.: Chichester, UK, 2000; pp. 10815–10837. [Google Scholar]
  51. Jung, K.-W.; Kim, K.; Jeong, T.-U.; Ahn, K.-H. Influence of pyrolysis temperature on characteristics and phosphate adsorption capability of biochar derived from waste-marine macroalgae (Undaria pinnatifida roots). Bioresour. Technol. 2016, 200, 1024–1028. [Google Scholar] [CrossRef] [PubMed]
  52. Zhou, L.; Xu, D.; Li, Y.; Pan, Q.; Wang, J.; Xue, L.; Howard, A. Phosphorus and nitrogen adsorption capacities of biochars derived from feedstocks at different pyrolysis temperatures. Water 2019, 11, 1559. [Google Scholar] [CrossRef] [Green Version]
  53. Li, R.; Wang, J.J.; Zhou, B.; Zhang, Z.; Liu, S.; Lei, S.; Xiao, R. Simultaneous capture removal of phosphate, ammonium and organic substances by MgO impregnated biochar and its potential use in swine wastewater treatment. J. Clean. Prod. 2017, 147, 96–107. [Google Scholar] [CrossRef] [Green Version]
  54. Marshall, J.A.; Morton, B.J.; Muhlack, R.; Chittleborough, D.; Kwong, C.W. Recovery of phosphate from calcium-containing aqueous solution resulting from biochar-induced calcium phosphate precipitation. J. Clean. Prod. 2017, 165, 27–35. [Google Scholar] [CrossRef]
  55. Foo, K.; Hameed, B. Insights into the modeling of adsorption isotherm systems. Chem. Eng. J. 2010, 156, 2–10. [Google Scholar] [CrossRef]
  56. Huang, H.; Zhang, P.; Zhang, Z.; Liu, J.; Xiao, J.; Gao, F. Simultaneous removal of ammonia nitrogen and recovery of phosphate from swine wastewater by struvite electrochemical precipitation and recycling technology. J. Clean. Prod. 2016, 127, 302–310. [Google Scholar] [CrossRef]

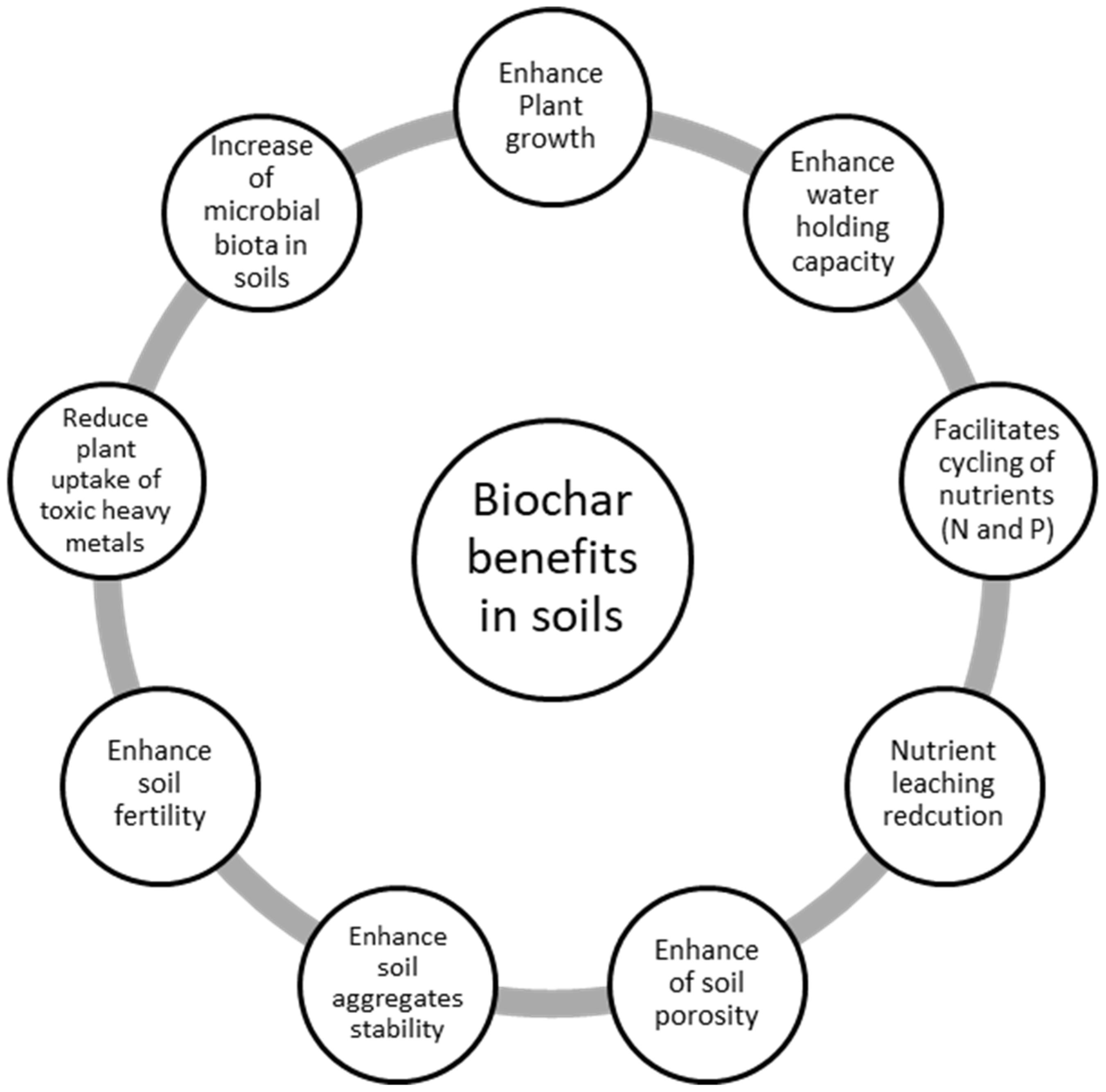

Figure 1. Potential biochar benefits in soils. Adapted from [9,10,12].
Figure 1. Potential biochar benefits in soils. Adapted from [9,10,12].
Environments 08 00041 g001

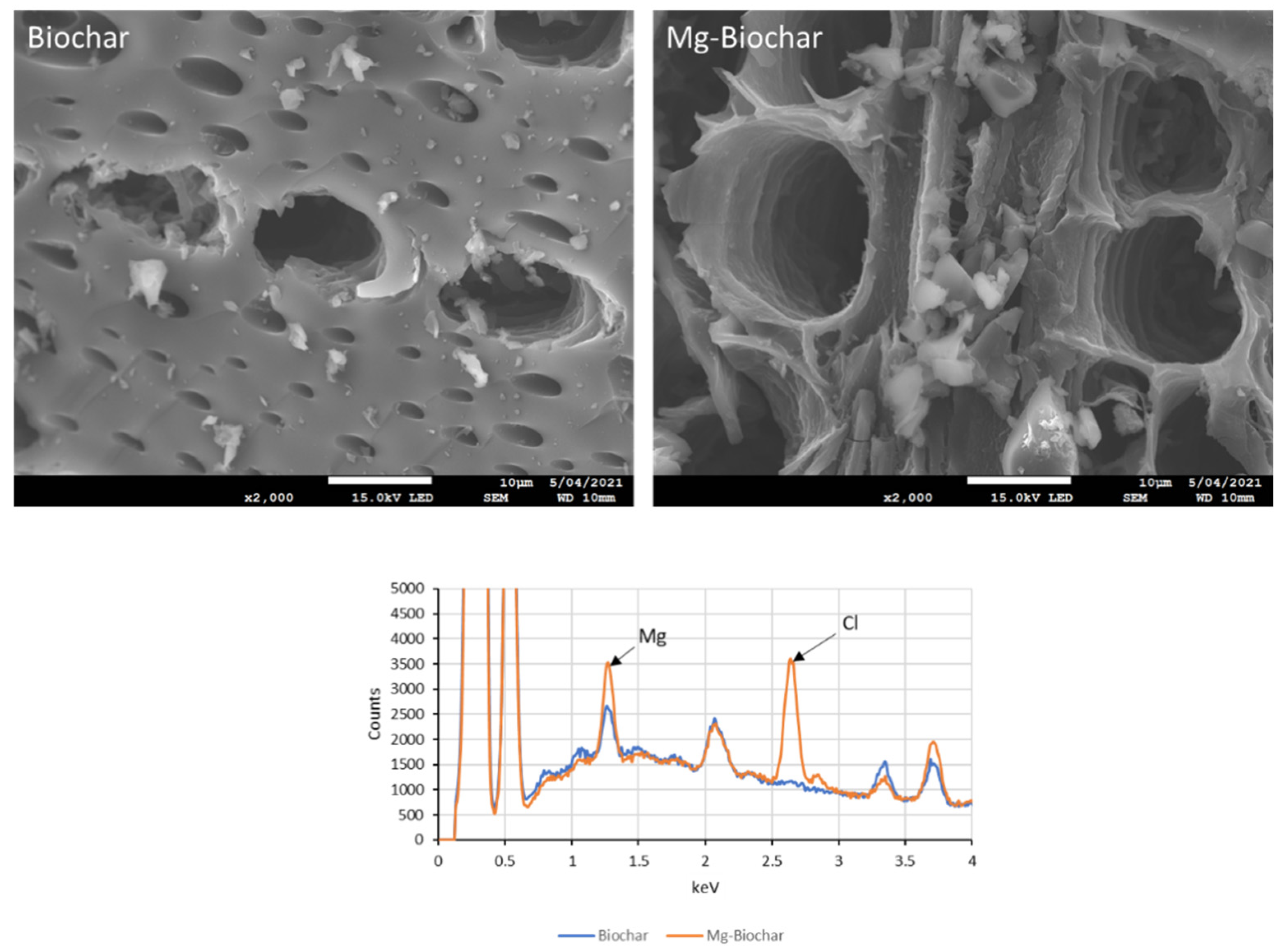

Figure 2. SEM scans and EDS spectrum of the biochar before and after modification.
Figure 2. SEM scans and EDS spectrum of the biochar before and after modification.
Environments 08 00041 g002

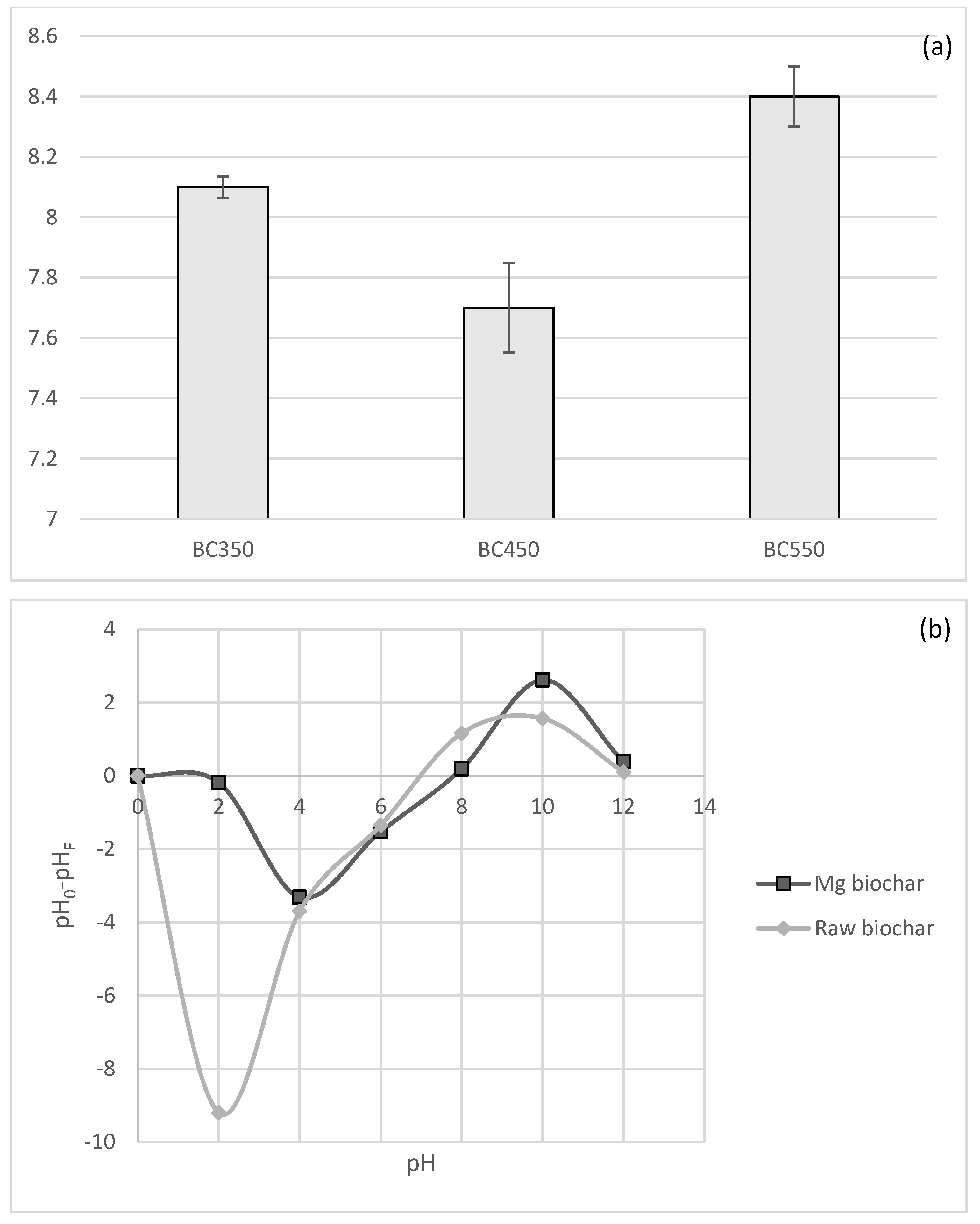

Figure 3. (a) pH values of raw biochar obtained from the pyrolysis of hardwood; and (b) point of zero charged pHPZC from raw biochar and modified biochar (550 °C).
Figure 3. (a) pH values of raw biochar obtained from the pyrolysis of hardwood; and (b) point of zero charged pHPZC from raw biochar and modified biochar (550 °C).
Environments 08 00041 g003

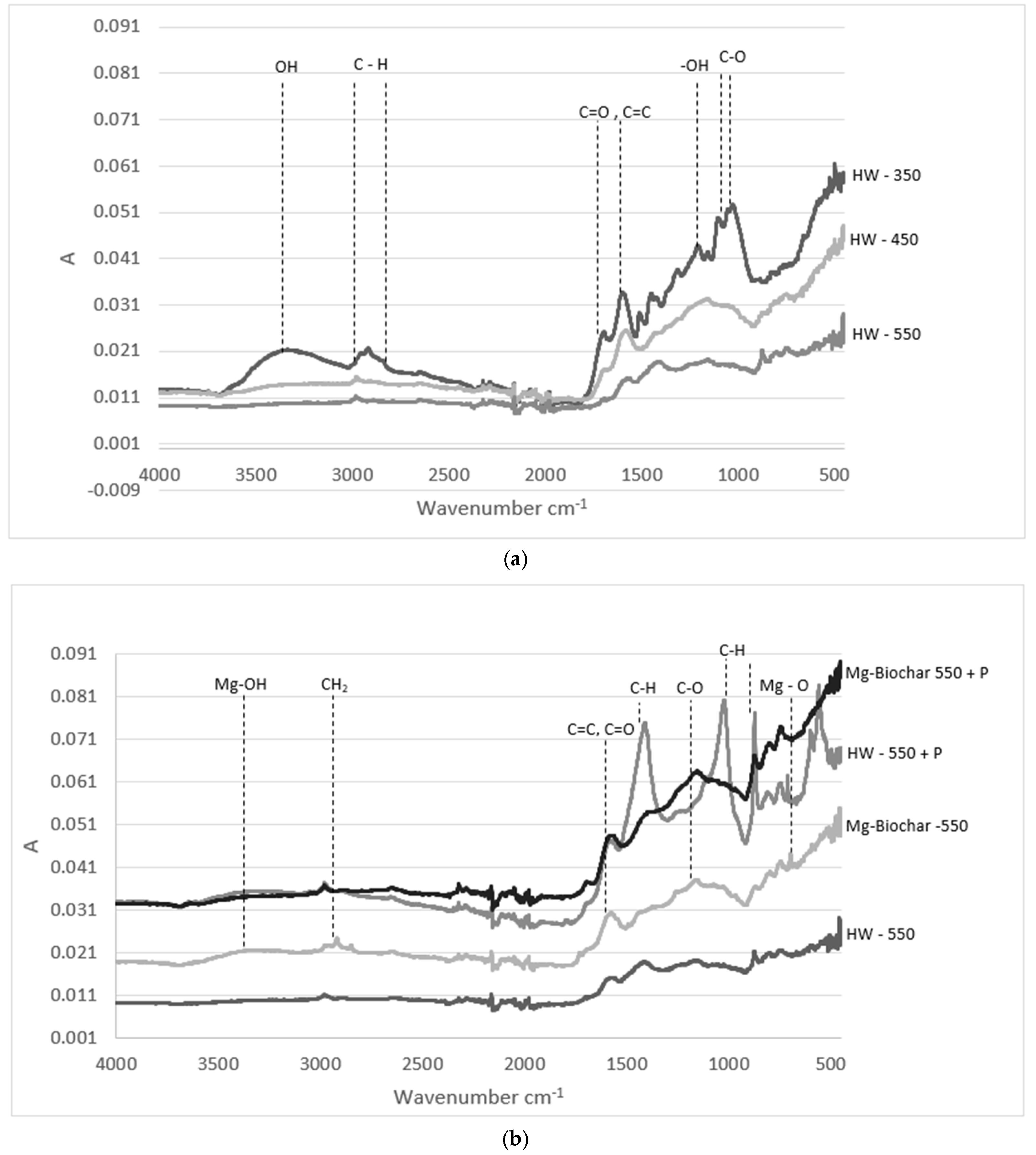

Figure 4. Fourier-transform infrared spectroscopy: (a) biochars prepared at different pyrolysis temperatures; and (b) modified and unmodified biochar before and after P adsorption.
Figure 4. Fourier-transform infrared spectroscopy: (a) biochars prepared at different pyrolysis temperatures; and (b) modified and unmodified biochar before and after P adsorption.
Environments 08 00041 g004

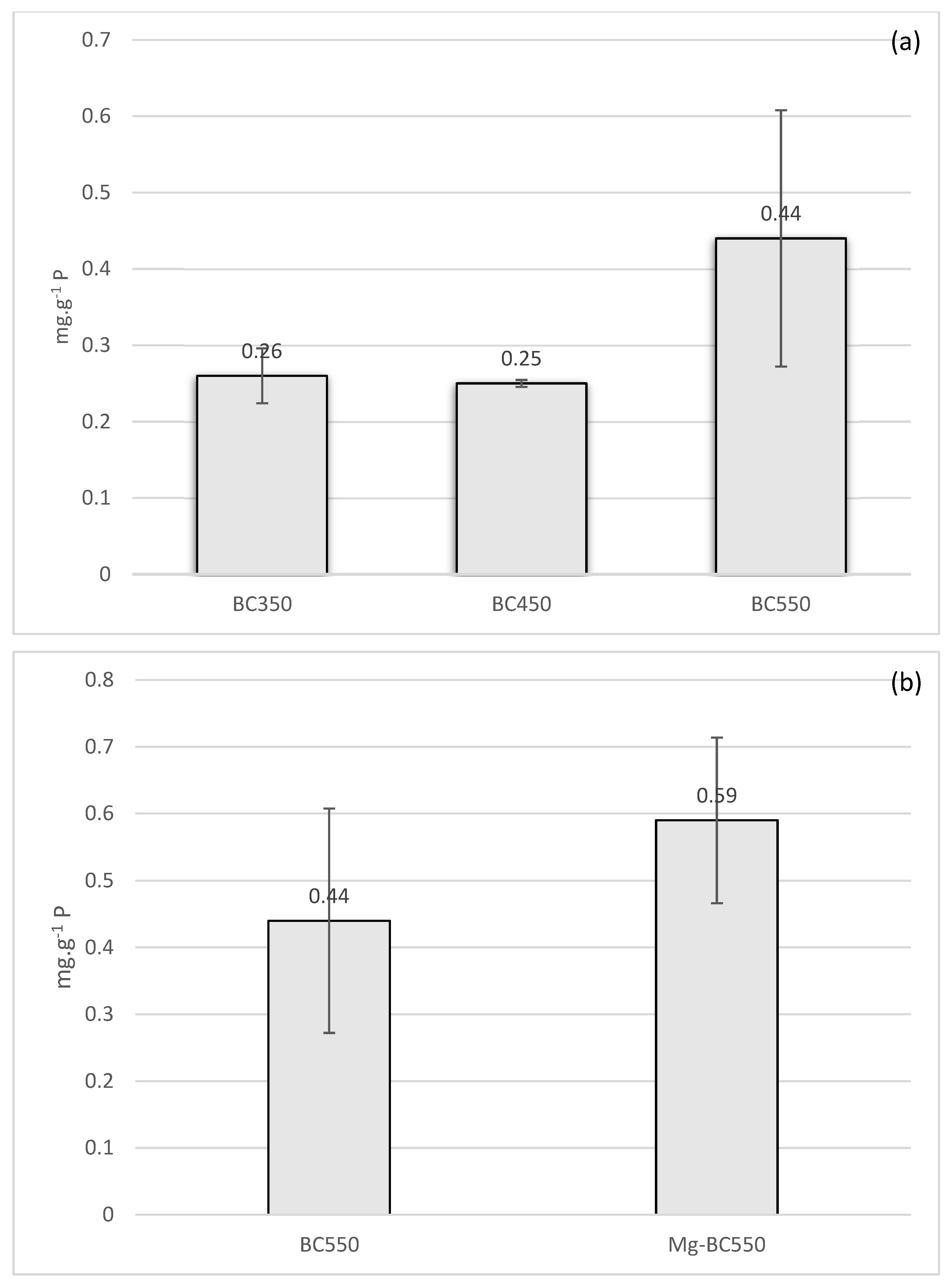

Figure 5. Adsorption of P by: (a) unmodified biochar at different pyrolysis temperatures; and (b) unmodified and Mg modified biochar at 550 °C (mean ± standard deviation).
Figure 5. Adsorption of P by: (a) unmodified biochar at different pyrolysis temperatures; and (b) unmodified and Mg modified biochar at 550 °C (mean ± standard deviation).
Environments 08 00041 g005

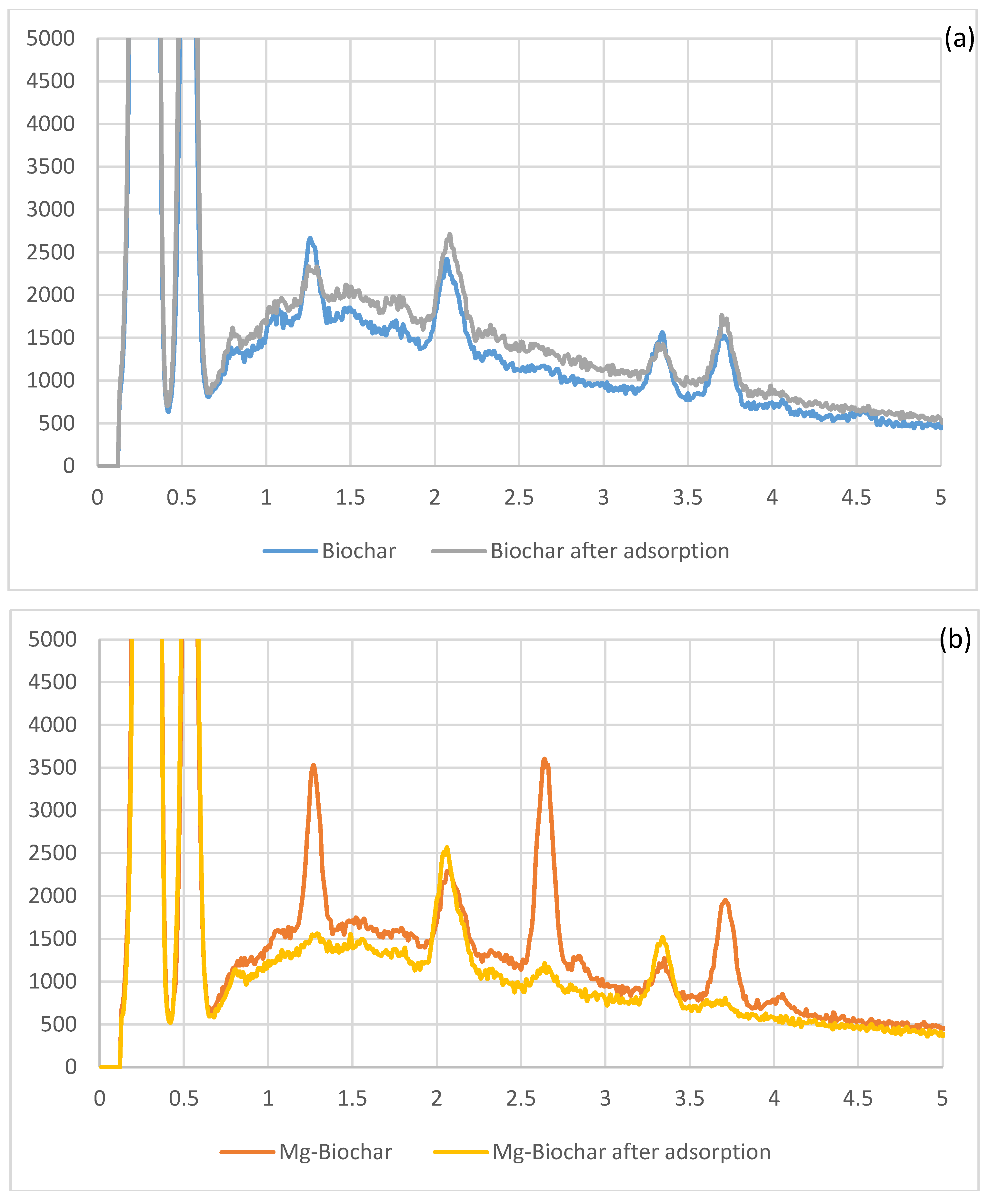

Figure 6. EDS scans before and after adsorption: (a) unmodified biochar; and (b) modified biochar.
Figure 6. EDS scans before and after adsorption: (a) unmodified biochar; and (b) modified biochar.
Environments 08 00041 g006

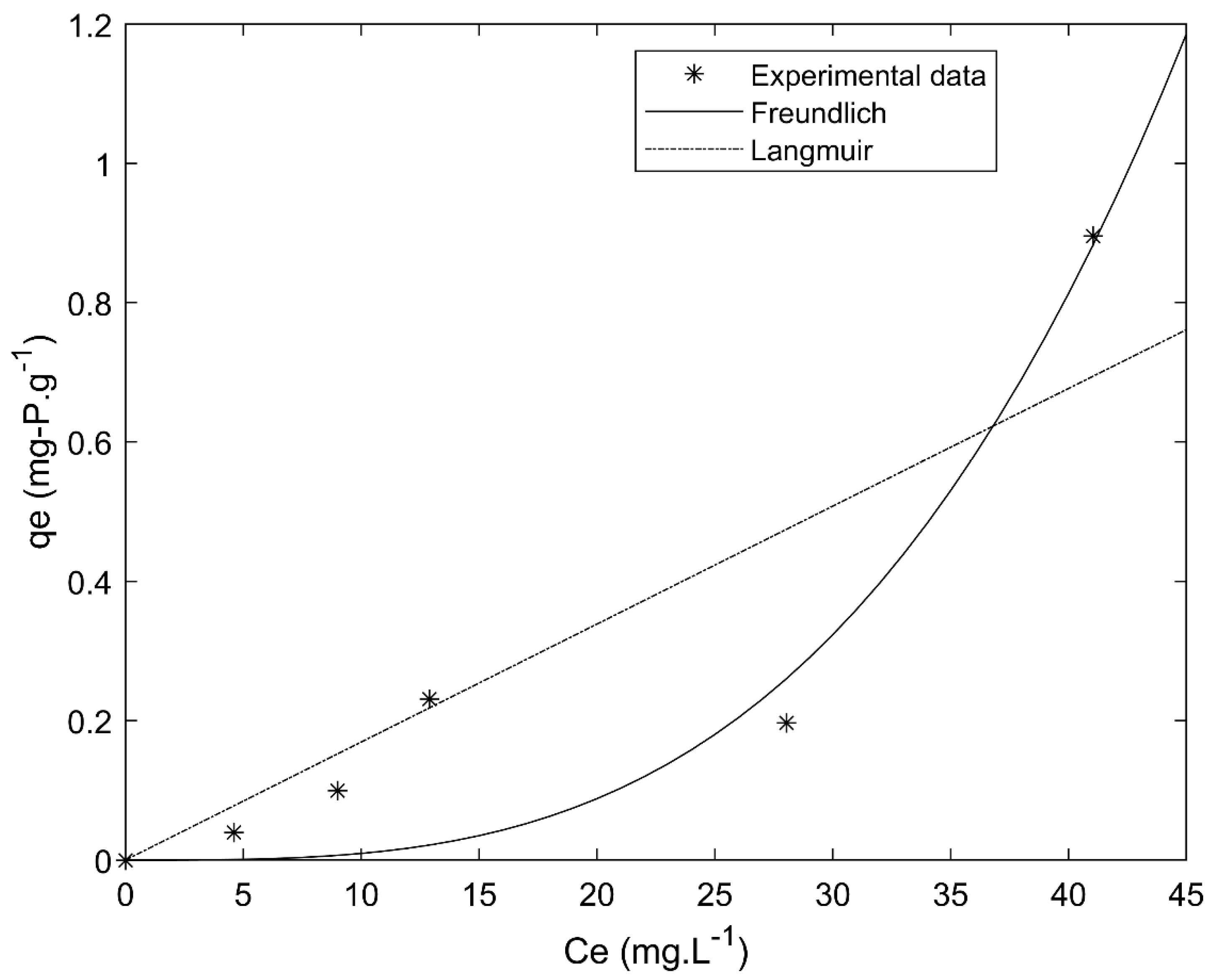

Figure 7. Phosphate adsorption isotherms of Mg-biochar derived from pyrolysis of hardwood.
Figure 7. Phosphate adsorption isotherms of Mg-biochar derived from pyrolysis of hardwood.
Environments 08 00041 g007

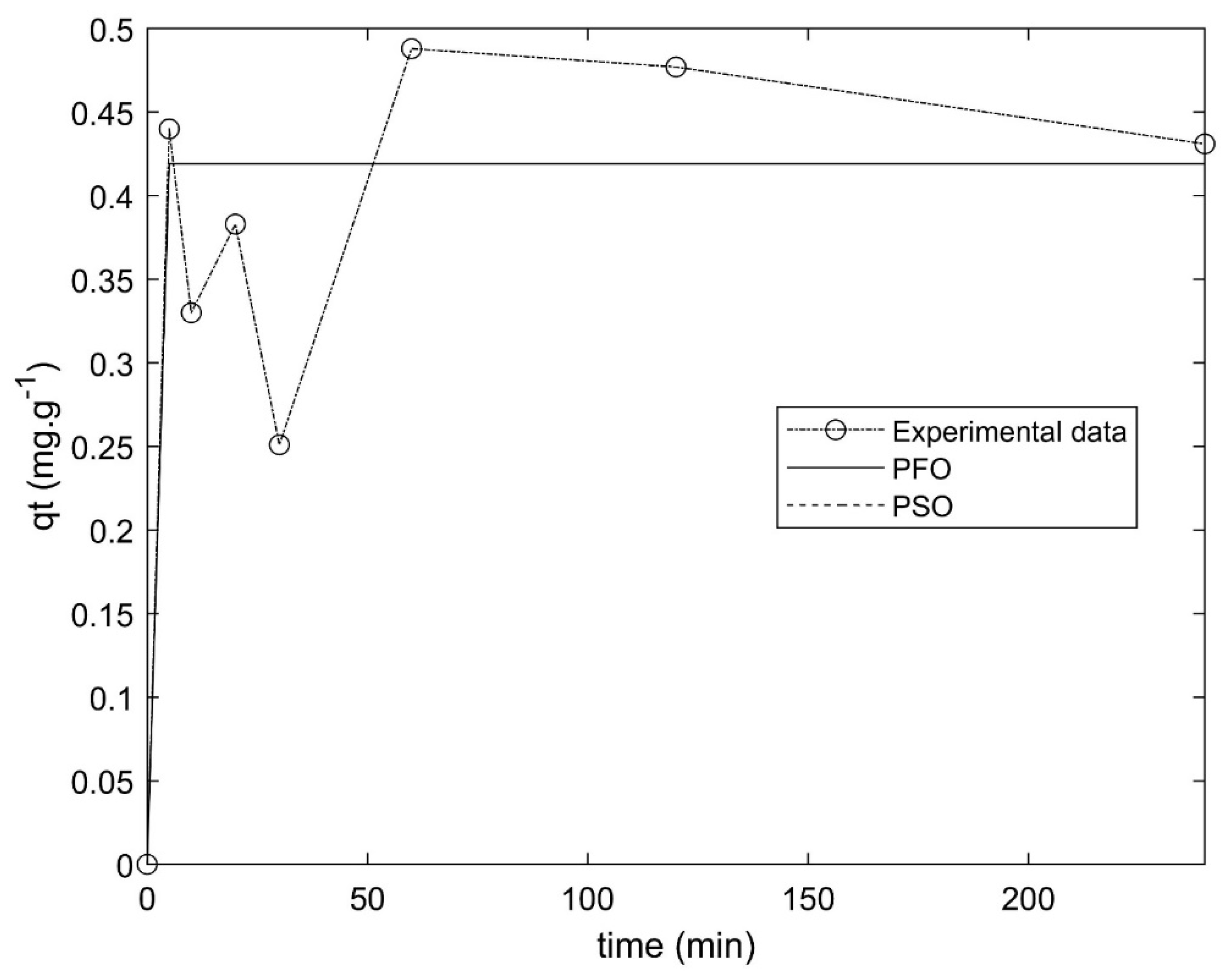

Figure 8. Adsorption kinetics data and modelling for P adsorption on the Mg-biochar.
Figure 8. Adsorption kinetics data and modelling for P adsorption on the Mg-biochar.
Environments 08 00041 g008

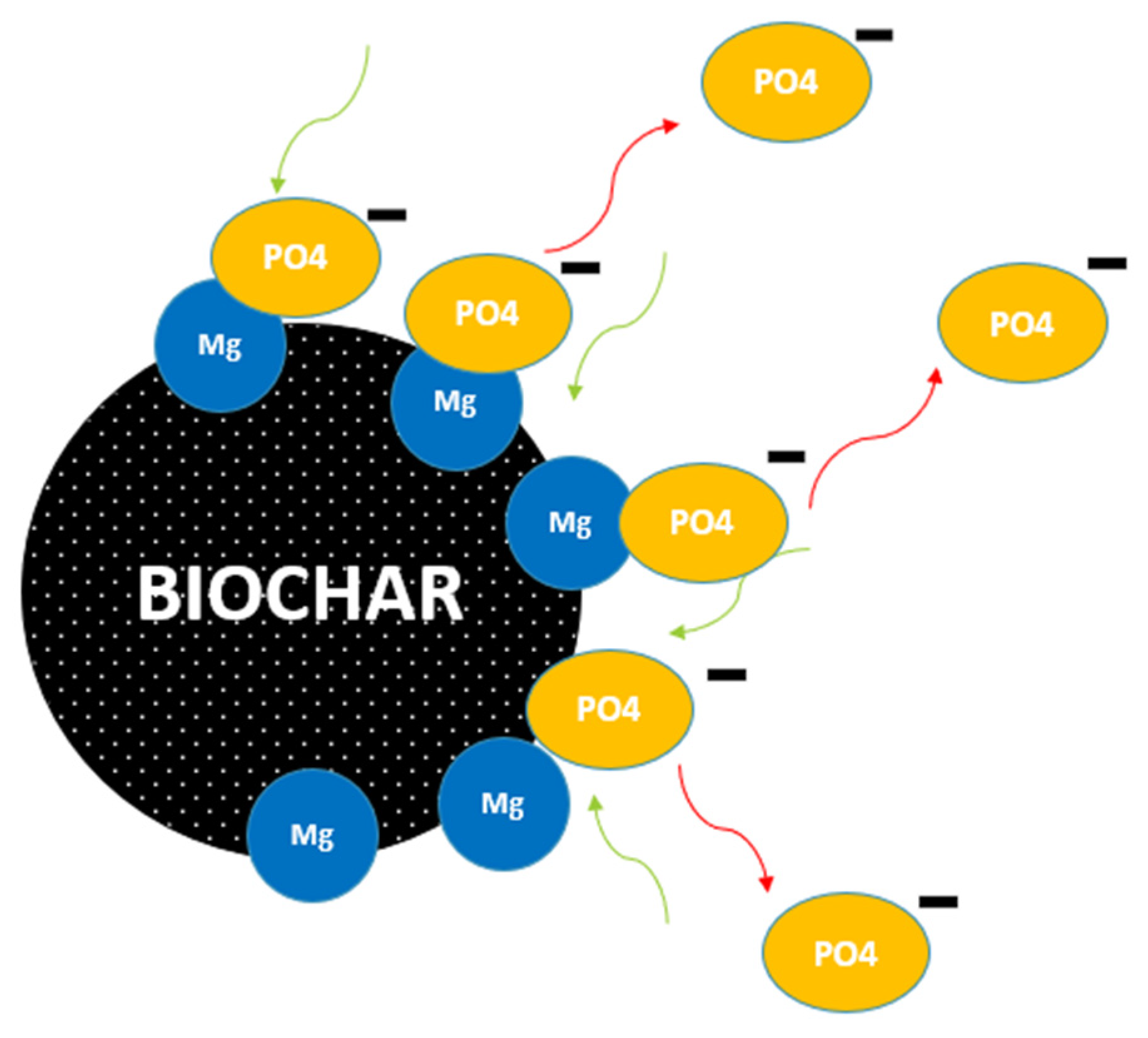

Figure 9. Overshooting phenomena of Mg-biochar.
Figure 9. Overshooting phenomena of Mg-biochar.
Environments 08 00041 g009

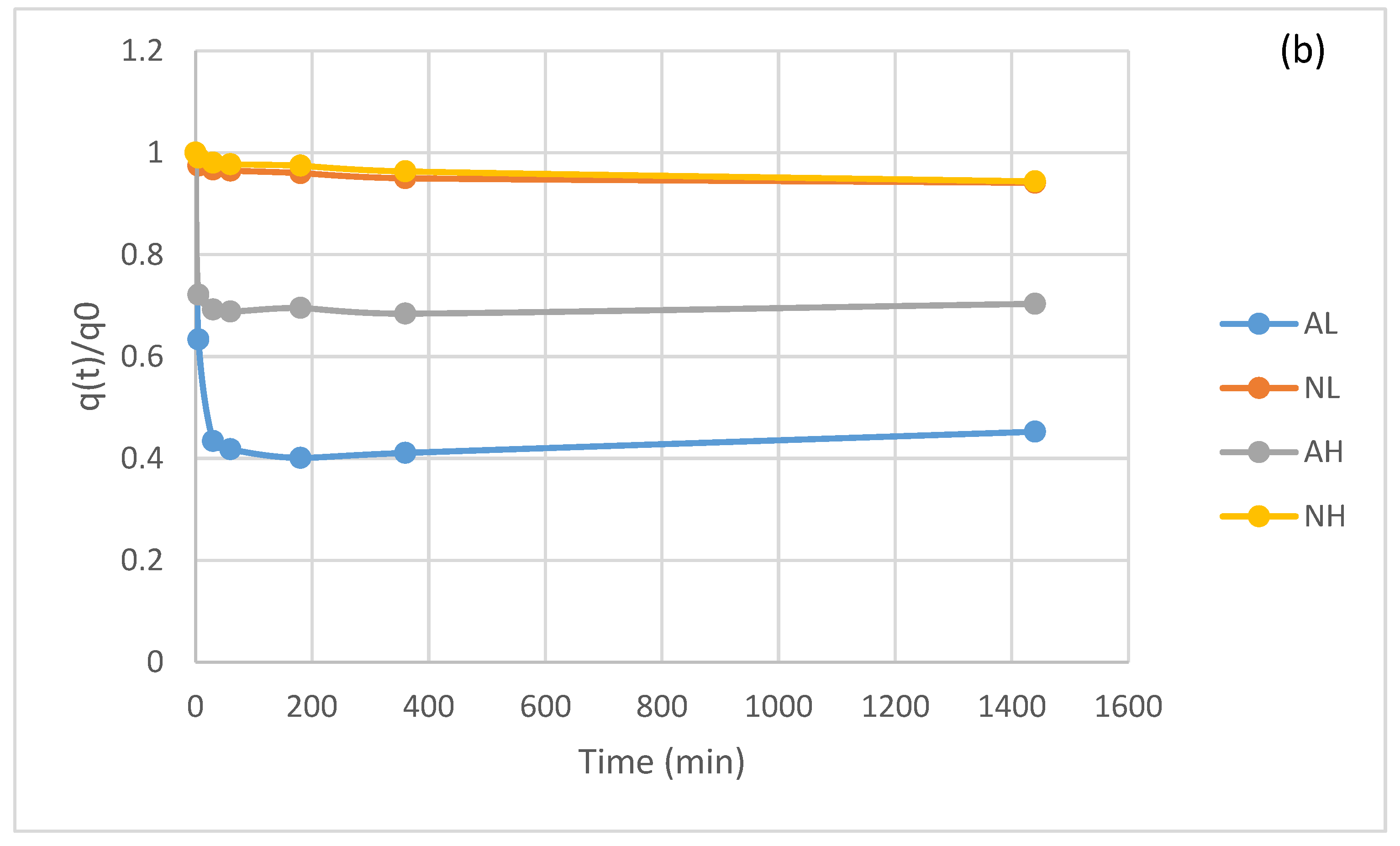

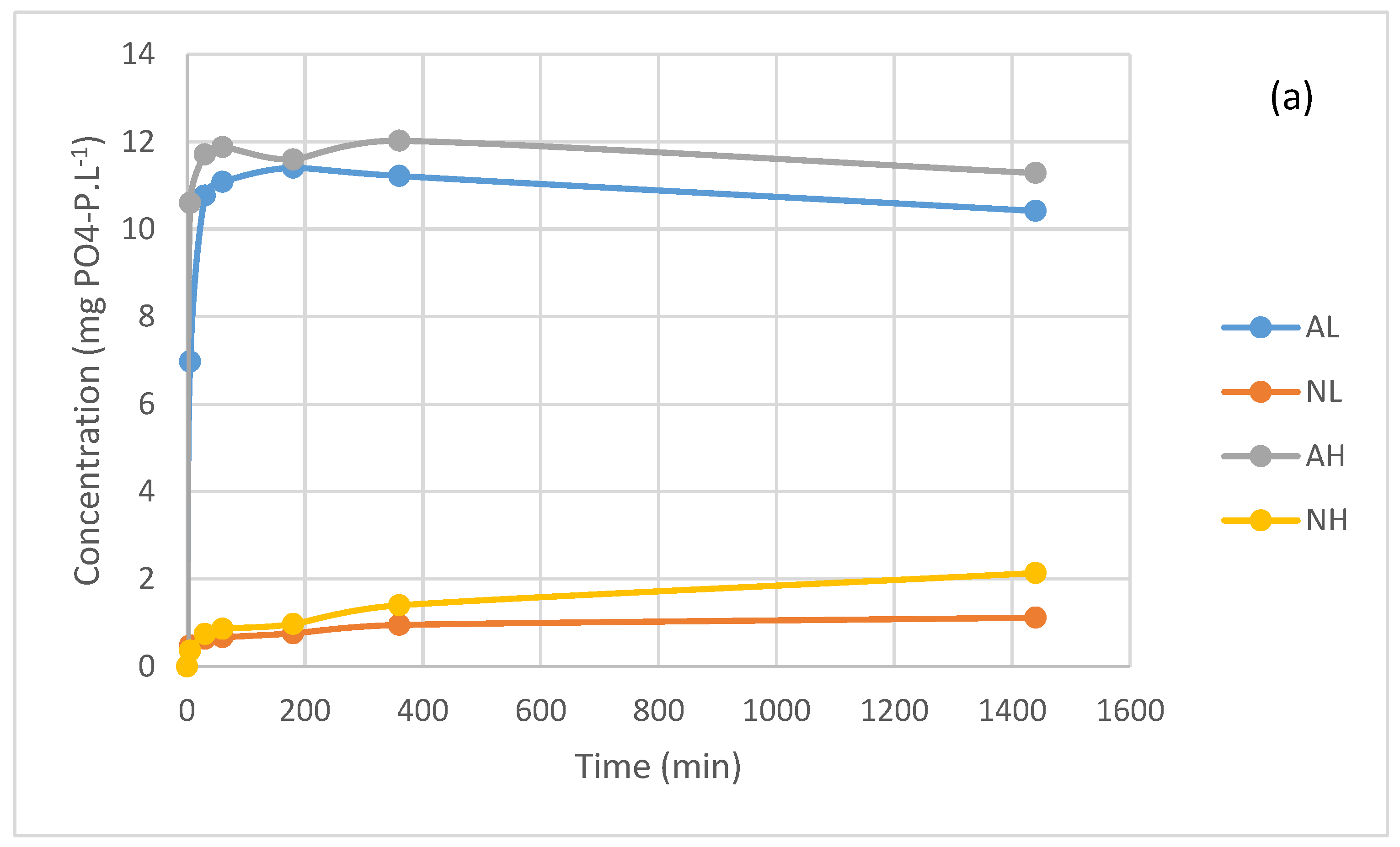

Figure 10. Phosphate release overtime (AL: pH = 4.6, initial loading = 1.904 mg·g−1; AH: pH = 4.6, initial loading = 3.875 mg·g−1; NL: pH = 7, initial loading = 1.904 mg·g−1 and NH: pH = 7, initial Loading = 3.875 mg·g−1): (a) Phosphate concentration in the solution; (b) Phosphate release from solid phase.
Figure 10. Phosphate release overtime (AL: pH = 4.6, initial loading = 1.904 mg·g−1; AH: pH = 4.6, initial loading = 3.875 mg·g−1; NL: pH = 7, initial loading = 1.904 mg·g−1 and NH: pH = 7, initial Loading = 3.875 mg·g−1): (a) Phosphate concentration in the solution; (b) Phosphate release from solid phase.
Environments 08 00041 g010aEnvironments 08 00041 g010b
Table 1. Sources of biomass used for the synthesis of biochar for the adsorption of phosphate, pyrolysis temperature and time.
Table 1. Sources of biomass used for the synthesis of biochar for the adsorption of phosphate, pyrolysis temperature and time.
BiomassPhosphate Adsorption Capacity mg-P·g−1Pyrolysis Temperature °CPyrolysis Time References
Agricultural waste
Soybean straw74.475002 h[6]
Tobacco stems90.917504 h[17]
Animal waste
Cow dung240.837001 h[18]
Sludge waste
Waste activated sludge1115502 h[19]
Oak sawdust142.750030 min[20]
Wood chips 3.2015002 h[21]
Wood waste: Populus X Canadensis Moench and Sophora japonica Linn 1186001 h[4]
Oak chips46.3750030 min[22]
Table 2. P adsorption capacity of biochar using different modification agents.
Table 2. P adsorption capacity of biochar using different modification agents.
Biochar FeedstockModification/Activation AgentsPhosphate Adsorption Capacity mg-P·g−1References
Ground corn biocharMgCl2239[24]
Poplar chipsMgCl2·6H2O89[25]
Holm oakMgCl2·6H2O64.6[26]
Greenhouse paprika wasteMgCl2·6H2O65.1[26]
Bamboo feedstockMg–Fe LDH7.58[27]
Bamboo feedstockMg-Al LDH13.11[27]
Sesame strawMgO8.42[28]
Pineapple peelsLa(OH)3101.16[29]
Sewage sludgeLa(NO3)393.91[30]
Oak chipsLa(NO3)346.37[22]
Phragmites australisLaCl3/Fe3O425[31]
Powdered strawLaFeO3209.25[32]
Waste activated sludgeFeSO4·7H2O and FeCl3·6H2O34.2[19]
Waste activated sludgeFeCl3·6H2O111[19]
Sludge-based biocharFeSO43.14[34]
Sludge-based biocharFe(NO3)32.34[34]
Corn cobsFe(NO3)31.99[21]
Garden wood wasteFe(NO3)32.75[21]
Wood chipsFe(NO3)33.2[21]
Cotton stalkFeCl30.399[35]
Poultry manureAlCl3701.65[36]
Industrial tea wasteAl(NO3)3.9H2O5[37]
Sludge-based biocharAl(NO3)32.69[34]
Table 3. Proximate composition of biochar at different temperatures.
Table 3. Proximate composition of biochar at different temperatures.
Proximate Analysis of Dry Biomass (% Dry Basis)
Ash content 31.5%
Fixed carbon21%
Volatile matter 47.1%
Yield (%)
Amount of P (mg·g−1)
Table 4. Langmuir and Freundlich isotherms parameters for the PO4 adsorption using Mg-biochar.
Table 4. Langmuir and Freundlich isotherms parameters for the PO4 adsorption using Mg-biochar.
Langmuir ModelFreundlich Model
qmax (mg PO4-P·g−1)KL (L·g−1)R2RMSEKFnR2RMSE
463.5 3.65 × 10 5 0.780.17 6.05 × 10 6 0.310.890.12
Table 5. Adsorption capacities of PO4 by other biochar modified with Mg.
Table 5. Adsorption capacities of PO4 by other biochar modified with Mg.
Biochar FeedstockPyrolysis Temperature °C/Residence Time C0 of Phosphate mg·L−1qmax (mg PO4-P·g−1)References
Longleaf Pine500/30 min10 to 6004.97[45]
Red Oak500/30 min10 to 6006.72[45]
Poplar chips600/2 h100 to 50028.94[25]
Sugarcane crop550/1 h 1 to 500 129.49[53]
Hardwood 550/1.5 h5 to 30 463.5This study
Table 6. Kinetics models fitting parameters.
Table 6. Kinetics models fitting parameters.
qe 0.41920.4436
Table 7. Desorption two term exponential model fitting parameters.
Table 7. Desorption two term exponential model fitting parameters.
Desorption Environmentq0kR2RMSE
AL1.1043.048× 10−40.096280.4358
AH2.8847.731 × 10−50.060520.4648
NL1.8532.678 × 10−50.4940.3928
NH3.7513.234× 10−50.77880.03592
Desorption EnvironmentakfksR2RMSE
AL0.5754−0.2017−1.342 × 10−40.99880.01293
AH0.3072−0.4727−2.49 × 10−50.99930.005097
NL0.03642−0.2318−1.761 × 10−50.92770.005075
NH0.02195−0.05333−2.415 × 10−50.98010.003657
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arbelaez Breton, L.; Mahdi, Z.; Pratt, C.; El Hanandeh, A. Modification of Hardwood Derived Biochar to Improve Phosphorus Adsorption. Environments 2021, 8, 41.

AMA Style

Arbelaez Breton L, Mahdi Z, Pratt C, El Hanandeh A. Modification of Hardwood Derived Biochar to Improve Phosphorus Adsorption. Environments. 2021; 8(5):41.

Chicago/Turabian Style

Arbelaez Breton, Laura, Zainab Mahdi, Chris Pratt, and Ali El Hanandeh. 2021. "Modification of Hardwood Derived Biochar to Improve Phosphorus Adsorption" Environments 8, no. 5: 41.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
