# Error Models for the Kinetic Evaluation of Chemical Degradation Data

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## Simple Summary

## Abstract

## 1. Introduction

## 2. Theory and Methods

#### 2.1. Constant Variance

#### 2.2. Variance by Variable

#### 2.3. Two-Component Error Model

#### 2.4. Likelihood Functions

#### 2.5. Algorithms for Parameter Estimation

#### 2.6. Result Comparison Criteria

#### 2.7. Example Datasets

## 3. Results

#### 3.1. Algorithms

#### 3.2. Parent Only Data

#### 3.3. Coupled Fits

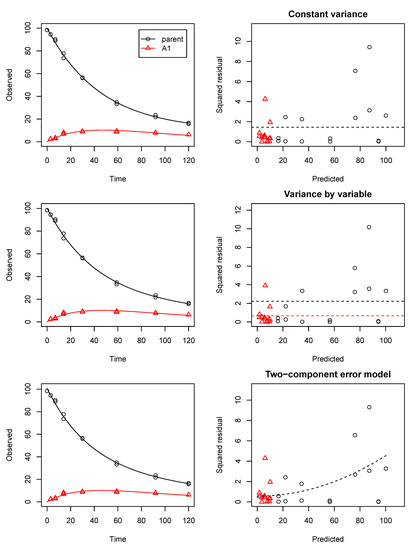

`k_A1`for metabolite A1 was nearly the same for all three fits, an interesting observation could be made for the rate constant

`k2`for the second phase of the biphasic decline of the parent compound. While in the OLS fit, it had a very low value of 1.2e-5 per day and would not be deemed significantly different from zero, it took on an appreciable value of about 0.007 per day when the variance by variable error model was used. While the p-value was still far from the usual significance trigger of 0.05 using variance by variable, it dropped to 0.04 if the two-component error model was used, and the estimate for

`k2`rose to around 0.008 per day.

## 4. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Liess, M.; Ratte, T.; Ebke, P.; Hollert, H. 20 years SETAC GLB: Increasing realism of pesticide risk assessment. Environ. Sci. Eur.
**2019**. [Google Scholar] [CrossRef][Green Version] - Knäbel, A.; Stehle, S.; Schäfer, R.B.; Schulz, R. Regulatory FOCUS Surface Water Models Fail to Predict Insecticide Concentrations in the Field. Environ. Sci. Technol.
**2012**, 46, 8397–8404. [Google Scholar] [CrossRef] [PubMed] - Knäbel, A.; Meyer, K.; Rapp, J.; Schulz, R. Fungicide Field Concentrations Exceed FOCUS Surface Water Predictions: Urgent Need of Model Improvement. Environ. Sci. Technol.
**2014**, 48, 455–463. [Google Scholar] [CrossRef] [PubMed] - Knäbel, A.; Scheringer, M.; Stehle, S.; Schulz, R. Aquatic Exposure Predictions of Insecticide Field Concentrations Using a Multimedia Mass-Balance Model. Environ. Sci. Technol.
**2016**, 50, 3721–3728. [Google Scholar] [CrossRef] [PubMed] - Boesten, J. Effects of Random and Systematic Errors on Freundlich Parameters for Pesticide Sorption. Soil Sci. Soc. Am. J.
**2015**, 79, 1306–1318. [Google Scholar] [CrossRef] - Gao, Z.; Green, J.; Vanderborght, J.; Schmitt, W. Improving uncertainty analysis in kinetic evaluations using iteratively reweighted least squares. Environ. Sci. Technol.
**2011**, 45, 4429–4437. [Google Scholar] [CrossRef] [PubMed] - Görlitz, L.; Gao, Z.; Schmitt, W. Statistical analysis of chemical transformation kinetics using Markov-Chain Monte Carlo Methods. Environ. Sci. Technol.
**2011**, 45, 4429–4437. [Google Scholar] [CrossRef] [PubMed] - Honti, M.; Fenner, K. Deriving Persistence Indicators from Regulatory Water-Sediment Studies—Opportunities and Limitations in OECD 308 Data. Environ. Sci. Technol.
**2015**, 49, 5879–5886. [Google Scholar] [CrossRef] [PubMed] - Honti, M.; Hahn, S.; Hennecke, D.; Junker, T.; Shrestha, P.; Fenner, K. Bridging across OECD 308 and 309 Data in Search of a Robust Biotransformation Indicator. Environ. Sci. Technol.
**2016**, 50, 6865–6872. [Google Scholar] [CrossRef] [PubMed] - Witt, J.; Gao, Z.; Meyer, H. KinGUII v2.1. 2014. Available online: http://kinguii.vrbka.net/KinGUIIv2.1.zip (accessed on 9 December 2019).
- Tessella Technology and Consulting. CAKE 3.3: Computer Assisted Kinetic Evaluation. 2016. Available online: https://www.tessella.com/showcase/computer-assisted-kinetic-evaluation (accessed on 9 December 2019).
- Werner, M.; Brooks, S.H.; Knott, L.B. Additive, Multiplicative, and Mixed Analytical Errors. Clin. Chem.
**1978**, 24, 1895–1898. [Google Scholar] [PubMed] - Schwartz, L.M. Calibration Curves with Nonuniform Variance. Anal. Chem.
**1979**, 51, 723–727. [Google Scholar] [CrossRef] - Rocke, D.M.; Lorenzato, S. A two-component model for measurement error in analytical chemistry. Technometrics
**1995**, 37, 176–184. [Google Scholar] [CrossRef] - Wilson, M.D.; Rocke, D.M.; Durbin, B.; Kahn, H.D. Detection limits and goodness-of-fit measures for the two-component model of chemical analytical error. Anal. Chim. Acta
**2004**, 509, 197–208. [Google Scholar] [CrossRef][Green Version] - Ranke, J. mkin 0.9.49.7: Kinetic Evaluation of Chemical Degradation Data. Available online: https://pkgdown.jrwb.de/mkin (accessed on 9 December 2019).
- FOCUS. Guidance Document on Estimating Persistence and Degradation Kinetics from Environmental Fate Studies on Pesticides in EU Registration. Report of the FOCUS Work Group on Degradation Kinetics, EC Doc. Ref. Sanco/10058/2005, version 2.0, Work Group on Degradation Kinetics of FOCUS (FOrum for the Co-ordination of Pesticide Fate Models and Their USe). 2006. Available online: https://esdac.jrc.ec.europa.eu/projects/degradation-kinetics (accessed on 9 December 2019).
- Akaike, H. A new look at the statistical model identification. IEEE Trans. Autom. Control
**1974**, 19, 716–723. [Google Scholar] [CrossRef] - Davidian, M.; Carroll, R.J. Variance Function Estimation. J. Am. Stat. Assoc.
**1987**, 82, 1079–1091. [Google Scholar] [CrossRef] - FOCUS. Generic guidance for estimating persistence and degradation kinetics from environmental fate studies on pesticides in EU registration. Report Version 1.1, Work Group on Degradation Kinetics of FOCUS (FOrum for the Co-Ordination of Pesticide Fate Models and Their USe). 2014. Available online: https://esdac.jrc.ec.europa.eu/projects/degradation-kinetics (accessed on 9 December 2019).
- Ranke, J.; Wöltjen, J.; Meinecke, S. Comparison of software tools for kinetic evaluation of chemical degradation data. Environ. Sci. Eur.
**2018**. [Google Scholar] [CrossRef] [PubMed][Green Version] - Burnham, K.P.; Anderson, D.R. Multimodel Inference: Understanding AIC and BIC in Model Selection. Sociol. Methods Res.
**2004**, 33, 261–304. [Google Scholar] [CrossRef]

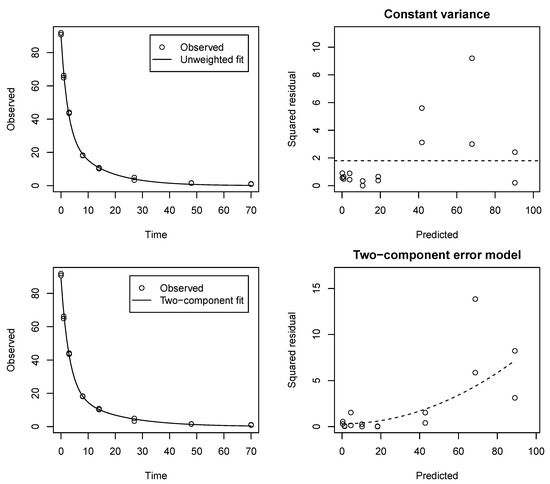

**Figure 1.**Comparison of bi-exponential (DFOP) kinetic fits assuming constant variance (top panels) and the two-component error model (bottom panels) for Soil Dataset 8. The fitted error models are shown in the plots of the squared residuals to the right as dashed lines.

**Table 1.**Error model parameters obtained for simple first order (SFO) fits to the FOCUS datasets (see text).

Dataset | OLS | Two-Component | |||||
---|---|---|---|---|---|---|---|

$\mathit{\sigma}$ | ${\mathit{\chi}}^{2}$ (%) | AIC | ${\mathit{\sigma}}_{\mathbf{low}}$ | ${\mathbf{rsd}}_{\mathbf{high}}$ | ${\mathit{\chi}}^{2}$ (%) | AIC | |

FOCUS A | 5.27 | 8.39 | 55.3 | 0.00 | 0.09 | 13.77 | 37.5 |

FOCUS B | 1.96 | 4.46 | 39.5 | 0.32 | 0.04 | 4.89 | 31.0 |

FOCUS C | 4.67 | 15.85 | 59.3 | 4.67 | 0.00 | 15.85 | 61.3 |

FOCUS D | 3.40 | 6.45 | 101.1 | 0.00 | 0.07 | 6.59 | 46.8 |

**Table 2.**Overview of AIC values (lowest in bold) obtained for simple first order (SFO) and dual first order in parallel (DFOP) (bi-exponential decline) fits to simple soil datasets.

Dataset | SFO | DFOP | ||
---|---|---|---|---|

OLS | Two-Component | OLS | Two-Component | |

Soil 1 | 131.2 | 133.2 | 107.9 | 109.9 |

Soil 2 | 137.9 | 138.1 | 80.3 | 82.3 |

Soil 3 | 78.8 | 80.8 | 67.0 | 65.9 |

Soil 4 | 82.0 | 84.0 | 75.0 | 77.0 |

Soil 5 | 172.4 | 174.4 | 176.0 | 178.0 |

Soil 6 | 128.3 | 122.9 | 79.0 | 81.0 |

Soil 7 | 127.3 | 129.3 | 89.8 | 88.7 |

Soil 8 | 93.1 | 93.2 | 64.8 | 55.7 |

Soil 9 | 137.4 | 134.9 | 109.0 | 111.0 |

Soil 10 | 111.3 | 110.7 | 76.6 | 75.3 |

Soil 11 | 125.5 | 127.5 | 129.5 | 131.5 |

Soil 12 | 82.0 | 82.0 | 65.9 | 66.9 |

**Table 3.**Overview of AIC values (lowest in bold) obtained for the coupled fits to soil datasets with metabolites.

Dataset | OLS | Variance by Variable | Two-Component |
---|---|---|---|

Soil 1 | 252.0 | 242.9 | 231.5 |

Soil 2 | 207.5 | 210.9 | 209.5 |

Soil 3 | 110.2 | 108.0 | 104.0 |

Soil 4 | 125.7 | 124.4 | 125.4 |

Soil 5 | 266.9 | 201.3 | 210.2 |

Soil 6 | 138.6 | 139.8 | 139.0 |

Soil 7 | 156.7 | 155.6 | 150.5 |

Soil 8 | 106.8 | 105.5 | 99.6 |

Soil 9 | 181.5 | 165.8 | 178.7 |

Soil 10 | 130.5 | 129.0 | 123.4 |

Soil 11 | 268.4 | 216.7 | 238.5 |

Parameter | OLS | Variance by Variable | Two-Component | |||
---|---|---|---|---|---|---|

Estimate | Pr(>t) | Estimate | Pr(>t) | Estimate | Pr(>t) | |

parent_0 | 100 | 5.3 × 10${}^{-37}$ | 100 | 2.9 × 10${}^{-33}$ | 101 | 5.04 × 10${}^{-30}$ |

k1 | 0.0218 | 8.65 × 10${}^{-8}$ | 0.0261 | 0.00358 | 0.0294 | 0.00115 |

k2 | 1.22 × 10${}^{-5}$ | 0.499 | 0.00707 | 0.199 | 0.00826 | 0.0407 |

g | 0.901 | 2.8 × 10${}^{-7}$ | 0.697 | 0.0477 | 0.615 | 0.0162 |

f_parent_to_A1 | 0.299 | 3.16 × 10${}^{-10}$ | 0.298 | 2.45 × 10${}^{-12}$ | 0.288 | 2.2 × 10${}^{-12}$ |

k_A1 | 0.0204 | 2.98 × 10${}^{-7}$ | 0.0204 | 2.44e × 10${}^{-9}$ | 0.0195 | 1.01 × 10${}^{-9}$ |
