Greenhouse Gas Assessment and Compensation on Brazilian Low Volume Rural Roads Using CarbonROAD—The Santa Rosa de Lima Case

Abstract

The “Santa Catarina Rural” is a Program co-funded by The World Bank for improvements on 1300 km of low volume rural roads on Southern Brazil. The pioneer project under the program was on the municipality of Santa Rosa de Lima, where the greenhouse gas (GHG) emissions resulting from the road improvement activities as well as the regular traffic were assessed on an experimental basis using the CarbonROAD software application. Here, we show details of the CarbonROAD software application and the construction emissions assessment procedure as well as the mitigating effect of the plants used for compensation. It was found that most of the emissions come from the road improvement work. This includes earthworks, fuel for motor graders, bulldozers and other machines, and materials and gravel extraction, industrialization and transportation, etc. Only a smaller portion comprises regular road traffic. The accumulated emission balance shows that the carbon absorption is larger than construction emissions after just 15 months. The potential for price appraisal of the generated carbon credits is explored.

1. Introduction

The “Santa Catarina Rural”, a program co-funded by The World Bank is currently being pursued in Southern Brazil. The scope is to improve about 1300 km of low volume rural roads with the support of farmers in the area.

A new experimental design method was developed as existing simplified engineering procedures were not suitable for the present project. It is focused on the municipality of Santa Rosa de Lima, a small rural town 120 km from Florianópolis with around 2000 habitants. Most of them have a German heritage. The economy is based on organic vegetables and milk production, and country tourism. The road project comprises of improvements of 12 roads, with a total length of 14.85 km, to facilitate the production transportation as well as the access for tourists. The key information used for this study, such as traffic and work activities, was taken from the engineering plans and studies.

As part of the experimental design method, we performed a greenhouse gas (GHG) assessment for the emissions related to the road works by using the software CarbonROAD. It calculates all emissions from the construction per se, and that from maintenance activities and traffic as well.

In addition, the project includes the mitigation of GHG by selected suitable vegetation planted for this purpose. The idea is to calculate a compensation for the emissions caused by the road work and further traffic.

2. Developing a Mathematical Model for GHG Assessment

One of main challenges to launch software for the emission assessment is the development of a solid mathematical model to calculate the emissions for each maintenance or road construction activity. For the CarbonROAD development, a substantial number of sources and published researches were evaluated and considered. The Environmental Protection Agency (EPA) published standards for gasoline and diesel emissions [1], including the carbon dioxide itself as well as equivalent greenhouse gases, like methane and nitrous oxide; this information together with the fuel consumption per kilometer or per hour allows for the calculation of the emission for a large number of vehicles and machinery activities. Chehovits and Galehouse [2] did some interesting research around the emissions from hot and cold asphalt concrete production, asphalt emulsion industrialization and production, pavement layer construction, pavement recycling, Portland cement concrete production and pavement layer construction and aggregate production, among other items. The emissions for many different pavement materials were also subject of a study made by Chappat and Bilal [3]. The fact is that the data published by different sources may have large differences on the reported emissions, due to the different methodologies used for the assessments and other factors.

The lack of an official and standardized methodology, with normalized values is a gap that must to be filled. In 2013, the Swedish Construction sector started an initiative to develop a standard for reporting of CO₂ in civil engineering projects. Among the goals is to create an Environmental Product Declaration (EPD) according to EN 15804 standard, based on the product life cycle assessment (LCA) and product category rules (PCR). The embodied carbon is one of the main aspects for LCA; other factors are acidification, toxicity and stratospheric ozone depletion, among others.

According Miljöstyrningsrådet, The Swedish Environmental Management Council [4], the organization which maintains EPD-System in Sweden, the EPD declaration may have many uses, like:

• Tenders, e.g., “higher” value of CO₂ optimized projects;
• Reporting, e.g., compare two projects;
• Internal environmental work, e.g., key parameters for each project, to set a project located goal to minimize CO₂;
• Marketing, e.g., CO₂ optimized projects;
• Assist purchasers and users to make informed comparisons between products;
• Encourage improvement of environmental performance; and,
• Provide information for assessing the environmental aspects of products over their life cycle.

According to the Swedish Construction companies [5] the expected results for the initiative are:

• Developing of a verification procedure to issue EPD/climate declaration for infrastructural projects according to Trafikverket’s (Transport Administration) PCR. The EPD will be used in the public procurement to choose the best offer by Trafikverket;
• Scanning of practical limitations for the climate declaration, technical requirements to LCA software, LCA methodology, using of the verified LCA databases, general/project specific data, etc.;
• Recommendation on how to stimulate the contractors and the sub-contractors to minimize and report CO₂ in the infrastructural projects;
• How to integrate GHG/Carbon Footprint reporting system on the company level with the CO₂ reporting system by EPD on the building project level.

3. CarbonROAD, the GHG Emission Assessment Tool for Roads

The CarbonROAD is a software application developed in Sweden with the first version 1.0 released in 2012. Its objective is to provide a robust, quick and convenient way to estimate the GHG emission for most work related to highway and infrastructure construction as well as to the further traffic operation.

The implementation of the mathematical model in the software required as much as 23 thousand lines of source code (Delphi language). An artificial voice is being used to facilitate the experience for the user and remind them of important aspects. The Figure 1 and Figure 2 show two sample screens.

CarbonROAD version 1.0 is able to assess the emissions due the material extraction at quarries or production, transportation and layer construction or whatever application performed, among others, for the following services and activities:

• Asphalt concrete, including hot and cold mixed, dense or open graded;
• Bituminous macadam, both, hot and cold mixed;
• Portland cement concrete;
• Sand-asphalt mixtures, hot and cold;
• Unbounded base and sub-base granular layers;
• Soil or stone reinforcement layers;
• Earthworks, including soils and stones, fillings and stockpile;
• Use of water for general purposes;
• Usage of diluted asphalt and asphalt emulsions for general purposes, including priming/sealing and layer bonding;
• Existing pavement milling and stockpiling;
• Cold and hot pavement recycling, in-situ and off-site;
• Site preparation, vegetation removal and sanitization;
• Drainage;
• Bridges and related construction activities;
• Usage of vehicles and machinery for general purposes, including trucks of many sizes, off-road trucks, scrapers, bulldozers, motor grader, compactors of many types, excavator, tankers trucks of many sizes, cranes of different sizes, wheeled or tracked tractors, loaders, sweepers, patching specialized trucks, wheeled or tracked ultra-compact machinery (“Bob-Cat” like), cars and vans running diesel, gasoline or ethanol, buses of many sizes, and a set of full customizable vehicles or machinery;
• Goods transportation by train or boat;
• Traffic emission on regular road operation.

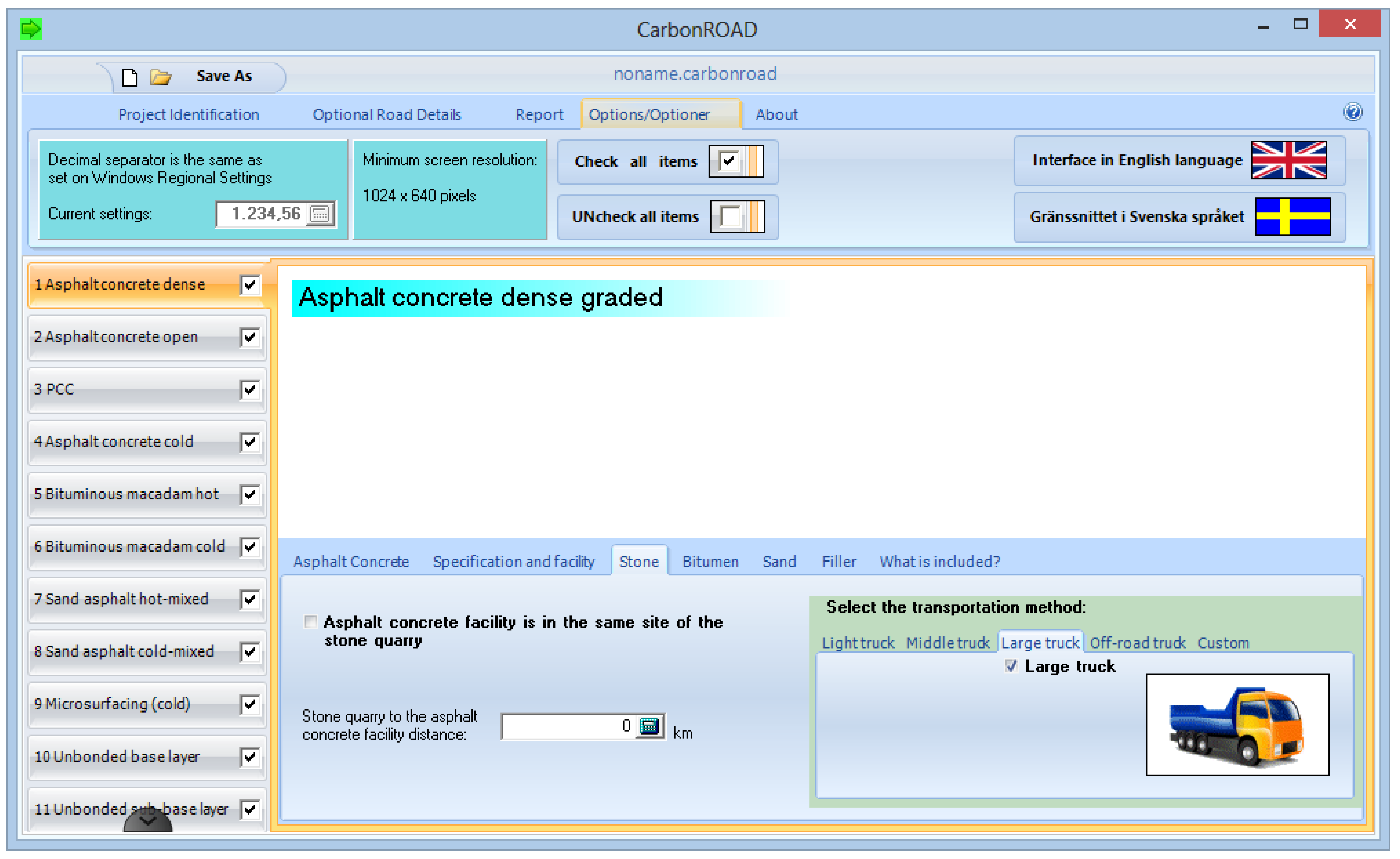

Figure 1. Screen to fill up the input data for calculation.

Figure 1. Screen to fill up the input data for calculation.

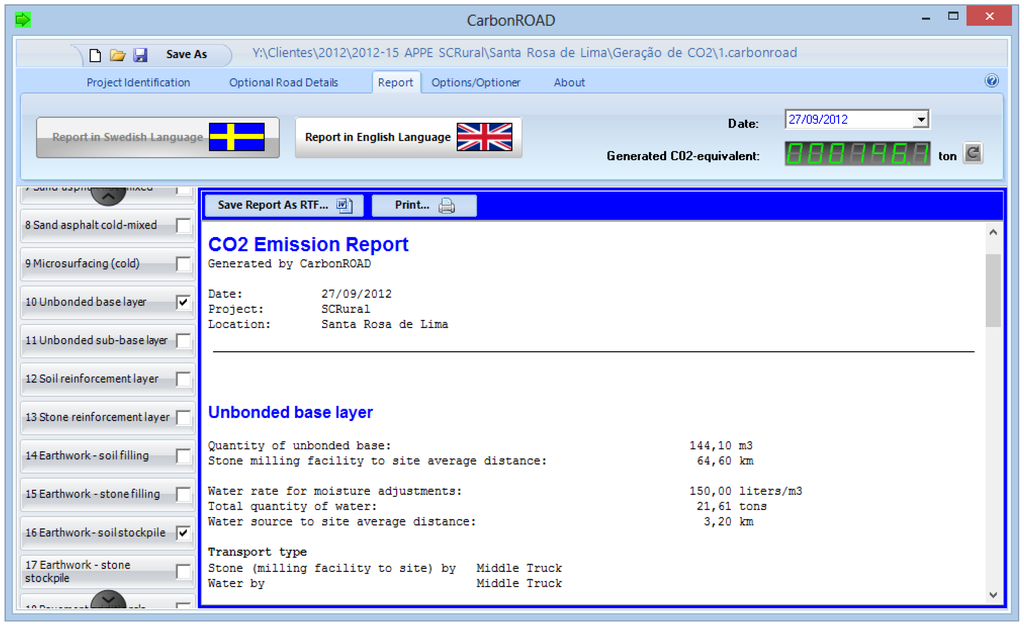

Figure 2. CarbonROAD report.

Figure 2. CarbonROAD report.

A large part of the emissions on road construction is related to transporting materials. To improve the accuracy of the calculation, the CarbonROAD software allows to choose the size of the used truck among light, middle or large truck, or off-road truck and scraper, when appropriate, for all activities that transport is required; in addition, the user has the option to enter a customized truck, by filling the diesel consumption and load capacity, as shown on Figure 3.

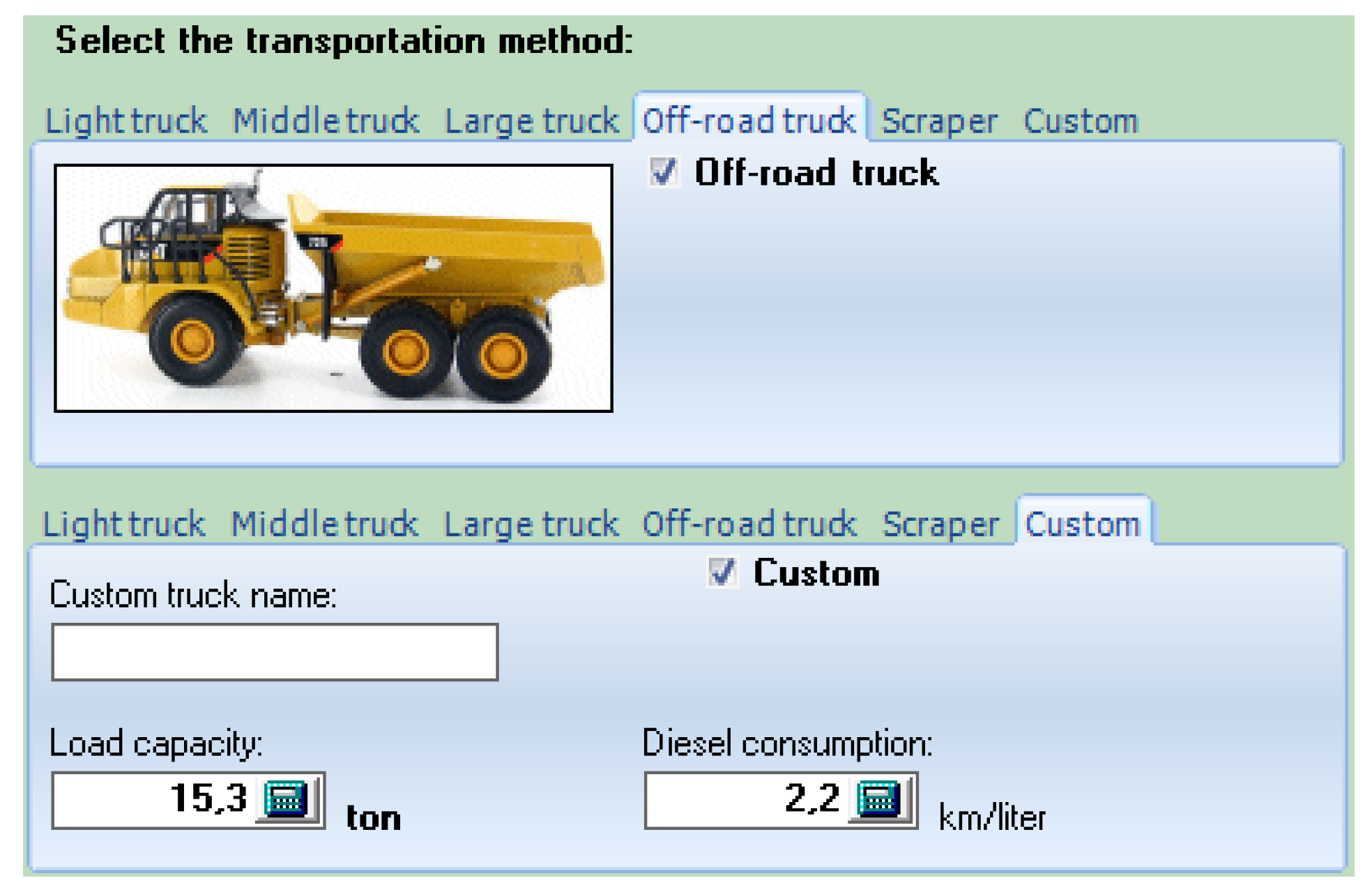

Figure 3. Transportation method selection.

Figure 3. Transportation method selection.

4. Calculating the Emission for Santa Rosa de Lima, Brazil

CarbonROAD is used for important projects. One of the first was on a small project for improvements of roads at the municipality of Santa Rosa de Lima, Brazil. The project includes 12 segments of low volume rural roads with a total of 14.85 km. The roads are used basically for organic vegetables and milk production transport, and for rural tourism. It is the first project of the “Santa Catarina Rural” Program.

The main improvements include road geometry changes, especially curves and grades rectifications, construction of a new and improved drainage system, interlocking concrete pavement on critical points and gravel/grit on all the length, with a total of 500 interventions, an average of one intervention every 30 m. Figure 4 shows one segment of such road when the team was checking the required length for a culvert.

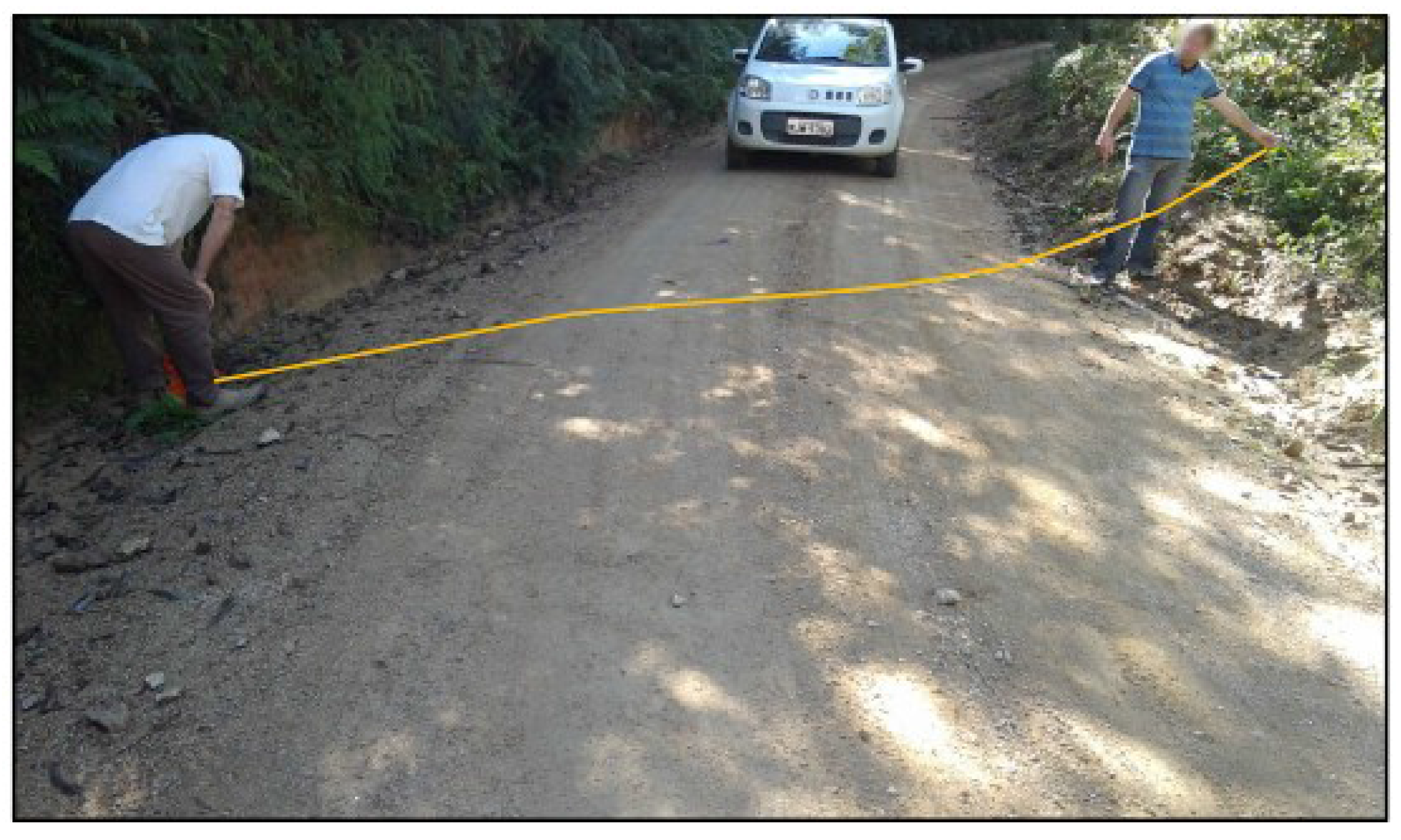

Figure 4. Checking the required length for a culvert.

Figure 4. Checking the required length for a culvert.

Table 1 shows the calculation result, including the activities or services and its quantities, generated CO₂-Equivalent as well as the description of what is included on the calculation. Figure 5 is showing the sub-totals, according to the activity. An important number of bus trips to transport the personnel from the base camp to the working places on the roads, and back, every day, are required and its emissions were included.

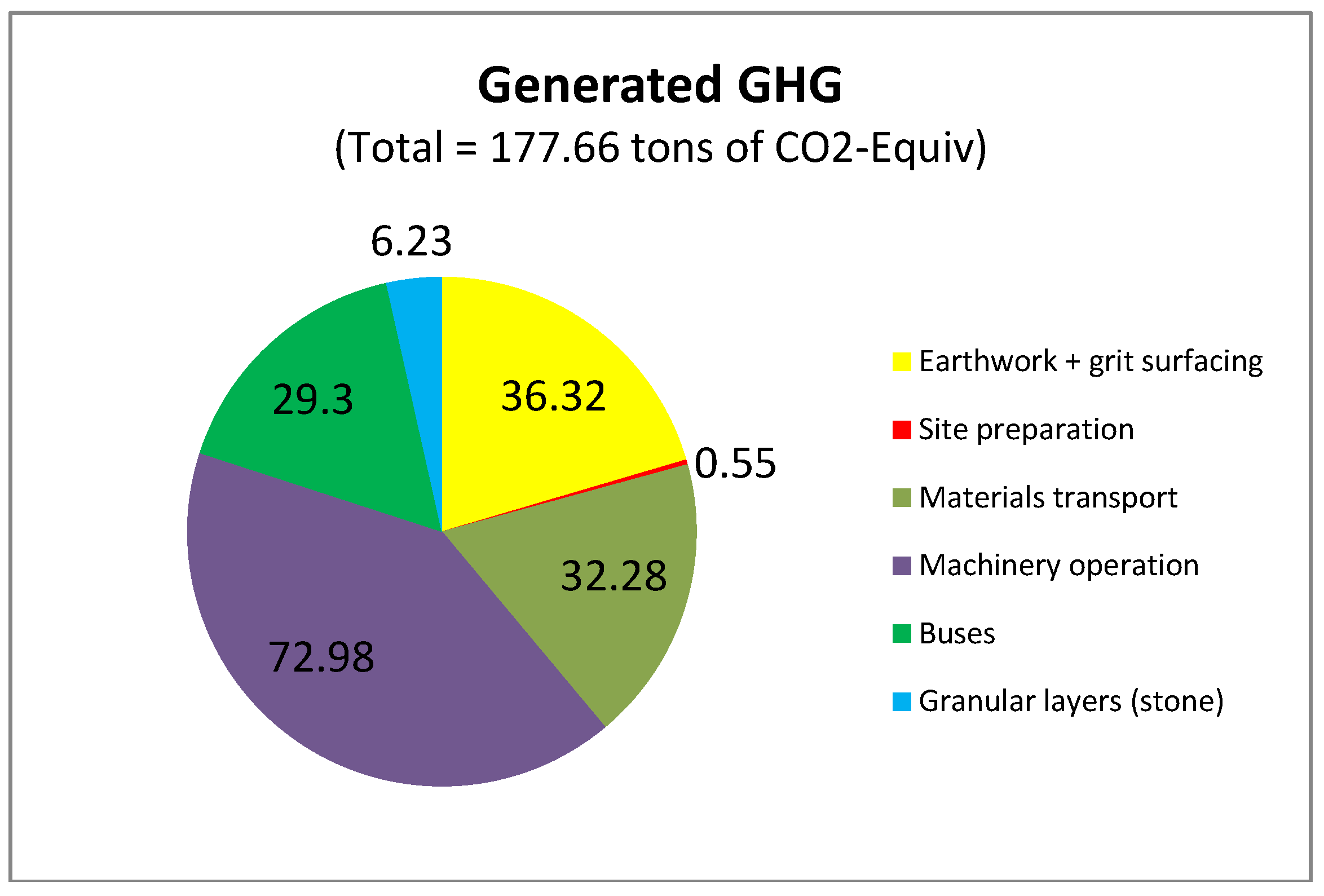

Figure 5. Generated greenhouse gas (GHG) according to the group of activities.

Figure 5. Generated greenhouse gas (GHG) according to the group of activities.

Table 1. Total GHG emission generated on Santa Rosa de Lima Project.

Activity or Service	Quantity	Generated Tons of CO2-Equivalent	Are Included on GHG Calculation
Granular layers (materials)			MATERIALS PRODUCTION: drilling for explosives for stones production; explosives usage; stones transportation to milling facility; stones milling and screening/classification; TRANSPORTATION: stones from the milling facility to the construction site; water from the source to the construction site; UNBOUNDED LAYER CONSTRUCTION: materials spreading/paver; roller working time.
Quantity of stone materials:	144.10 m3	6.23
Stone milling facility to site average distance:	64.60 km
Earthwork + grit surfacing			MATERIALS EXTRACTION: soil/grit excavation and loading. TRANSPORTATION: soil from the construction site to the stockpile place; grit from the quarry to the construction site.
Quantity of soil + grit:	16382.40 m3	36.32
Construction site to stockpile place average distance:	7.50 km
Site Preparation			SITE CLEANING AND VEGETATION REMOVAL: vegetation loading and transport to the stockpiling place; superficial soil layer loading and transport to the stockpiling place.
Surface to be sanitized:	3843.60 m2	0.55
Soil thickness to be removed:	0.30 m
Construction site to stockpile distance:	0.20 km
Transportation, Vehicles and Machinery			Fuel consumption
Transport of grass (Light truck)		0.73
Transport of Vetiveria zizanioides and grass (Middle truck)		3.85
Transport of culverts (Middle truck)		5.86
Transport of large culverts (Large truck)		0.54
Transport of bush (Middle truck)		1.35
Transport of paver (Middle truck)		14.96
Transport of sand (Middle truck)		4.66
Transport of steel (Middle truck)		0.33
Bulldozer operation		1.96
Motor grader operation		22.37
Compactor operation		10.81
Excavator operation		36.79
Crane operation		1.05
Buses		29.30
TOTAL GENERATED CO2-Equivalent		177.66 tons

Table 1. Total GHG emission generated on Santa Rosa de Lima Project.

Activity or Service	Quantity	Generated Tons of CO2-Equivalent	Are Included on GHG Calculation
Granular layers (materials)			MATERIALS PRODUCTION: drilling for explosives for stones production; explosives usage; stones transportation to milling facility; stones milling and screening/classification; TRANSPORTATION: stones from the milling facility to the construction site; water from the source to the construction site; UNBOUNDED LAYER CONSTRUCTION: materials spreading/paver; roller working time.
Quantity of stone materials:	144.10 m3	6.23
Stone milling facility to site average distance:	64.60 km
Earthwork + grit surfacing			MATERIALS EXTRACTION: soil/grit excavation and loading. TRANSPORTATION: soil from the construction site to the stockpile place; grit from the quarry to the construction site.
Quantity of soil + grit:	16382.40 m3	36.32
Construction site to stockpile place average distance:	7.50 km
Site Preparation			SITE CLEANING AND VEGETATION REMOVAL: vegetation loading and transport to the stockpiling place; superficial soil layer loading and transport to the stockpiling place.
Surface to be sanitized:	3843.60 m2	0.55
Soil thickness to be removed:	0.30 m
Construction site to stockpile distance:	0.20 km
Transportation, Vehicles and Machinery			Fuel consumption
Transport of grass (Light truck)		0.73
Transport of Vetiveria zizanioides and grass (Middle truck)		3.85
Transport of culverts (Middle truck)		5.86
Transport of large culverts (Large truck)		0.54
Transport of bush (Middle truck)		1.35
Transport of paver (Middle truck)		14.96
Transport of sand (Middle truck)		4.66
Transport of steel (Middle truck)		0.33
Bulldozer operation		1.96
Motor grader operation		22.37
Compactor operation		10.81
Excavator operation		36.79
Crane operation		1.05
Buses		29.30
TOTAL GENERATED CO2-Equivalent		177.66 tons

5. GHG Generated by the Regular Road Traffic

The GHG due the traffic was calculated using CarbonROAD for a period of 10 years, an average trip length of 14.8 km and traffic rising rate of 3% a year, according to the information available on the engineering plans. As shown in Table 2, the generated GHG for the period is 398.31 tons, or a yearly average of 39.83 tons. It is a relatively small quantity, but the main purpose here is work on a small scale project in order to develop simplified engineering design methodology for low volume rural roads where the GHG assessment and compensation is included.

Table 2. GHG emission due the road operation for a 10 year period.

Vehicle Type	Fuel	Number of Vehicles (10 Years)	Generated GHG (Tons of CO2-Equivalent)
Motorcycles	Gasoline	8369	6.35
Cars	Gasoline	48,956	135.06
Cars	Ethanol	5440	5.90
Small trucks	Diesel	8369	62.99
Light trucks	Diesel	8369	112.44
Middle trucks	Diesel	4184	75.56
Total		83,686	398.31

Table 2. GHG emission due the road operation for a 10 year period.

Vehicle Type	Fuel	Number of Vehicles (10 Years)	Generated GHG (Tons of CO2-Equivalent)
Motorcycles	Gasoline	8369	6.35
Cars	Gasoline	48,956	135.06
Cars	Ethanol	5440	5.90
Small trucks	Diesel	8369	62.99
Light trucks	Diesel	8369	112.44
Middle trucks	Diesel	4184	75.56
Total		83,686	398.31

6. GHG Mitigation

On the Santa Rosa de Lima project, the emission mitigation and compensation is done by the usage of vegetal protection for exposed land due the earthworks or due natural factors, as well as additional vegetation for slope protection and scenic beautifying. This particular project is prone to landslides close to the river shores; the stabilization with vegetation is part of the overall strategy.

The selected vegetal species are:

• Euterpe Edulis: It is a native specie on the project area and able to absorb 300 kg of CO₂ until it is fully grown, according to the Secretaria de Estado do Meio Ambiente e Recursos Hidricos do Paraná [6]. After full growth, Euterpe Edulis is able to absorb 5.5 kg of CO₂ per tree per year, according Ribeiro [7].
• Native grass: Studies done by Moreno [8] shows that is has the ability to absorb 85 tons of CO₂ per year per hectare, being 80 tons fixed on the soil and 5 tons aerial.
• Vetiveria zizanioides: It has the ability to absorb 5 kg of CO₂ per year per plant, fixed on the soil, according Ramalho [9].

The quoted CO₂ capturing quantities are suitable for Brazil and may have important changes due the soil, climate and other variables.

The selected vegetal species are shown on Figure 6 and on the Table 3 is shown the quantities of each vegetal species and the total CO₂ yearly capture.

Table 3. Vegetal species quantities and GHG capture per year.

Specie	Quantity	CO2 Capture	Total CO2 Capture (Tons/Year)
Euterpe Edulis	1002 units	0.0055 tons/tree/year	5.5
Native grass	0.6735 hectare	85 tons/hectare/year	57.2
Vetiveria zizanioides	23,812 units	0.005 tons/tree/year	119.0
		Total	181.7

Table 3. Vegetal species quantities and GHG capture per year.

Specie	Quantity	CO2 Capture	Total CO2 Capture (Tons/Year)
Euterpe Edulis	1002 units	0.0055 tons/tree/year	5.5
Native grass	0.6735 hectare	85 tons/hectare/year	57.2
Vetiveria zizanioides	23,812 units	0.005 tons/tree/year	119.0
		Total	181.7

Figure 6. Species used for vegetal protection and emission compensation.

Figure 6. Species used for vegetal protection and emission compensation.

It can be seen in Figure 7 that after about 1 year and 3 months the absorbed CO₂ quantity pass over the generated one. The year zero is when the emission due the road works happens; starting at year one, the traffic emission is added.

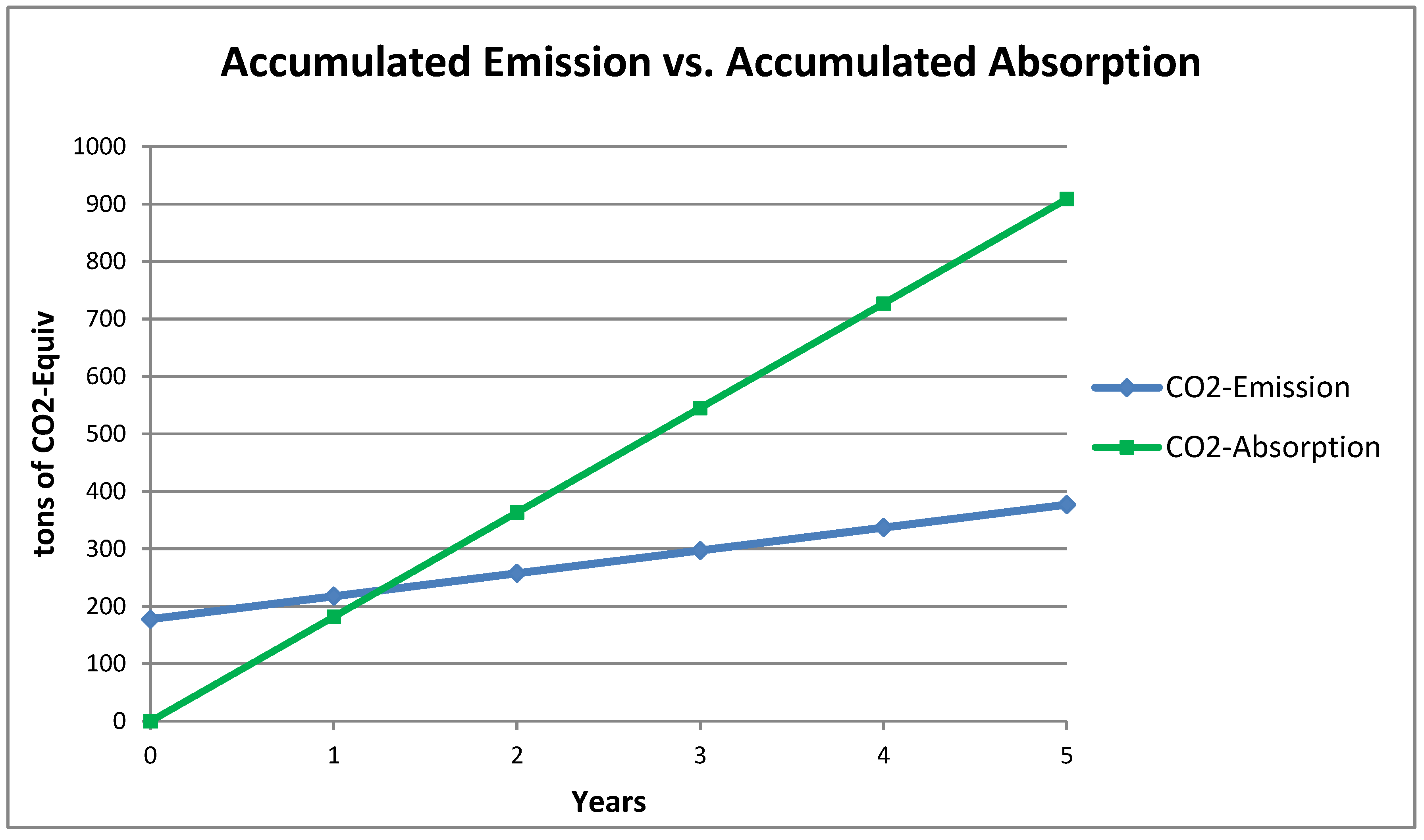

Figure 7. GHG emission balance.

Figure 7. GHG emission balance.

7. Monetizing the Absorbed Carbon Dioxide

The Kyoto Protocol introduced the clean development mechanism and the emission trading for the carbon avoided, removed or sequestered through the carbon credits.

The market price for the carbon credits changes freely according the supply and demand. According the Brazil Carbon Institute [10] the carbon credit price on November 2013 was around 4.80 EUR per ton, but had prices over 15 EUR on the previous years.

For the Santa Rosa de Lima project, with 14.85 km and looking over a 30-year long period, the CO₂ balance (absorbed less emission) is 4078.44 ton, i.e., 274.6 tons of CO₂ per km. Considering a carbon credit average price of 10.00 euro this means a value around 2746 EUR per km; it represents about 16% of the roads improvement costs for the same length.

The generated carbon credits can be used to pay back part of the World Bank loan or to construct other public infrastructures for the population on the project area. For the whole “Santa Catarina Rural” Program, with 1300 km of low volume rural roads, it represents a potential monetizing of 3.5 million euro.

8. Conclusions

Most of the emissions due the road works are related to fuel consumption. Machinery operation is the construction activity with the largest emission.

The correct infrastructure design and working plans facilitates the calculation of emission compensation on rural roads. For the Santa Rosa de Lima project the GHG plant absorption pass over emissions after just 1.25 years.

The positive carbon balance can be a suitable and efficient way to pay back part of the funds used to improve low volume rural roads; for the Santa Rosa de Lima project it represents 16% of the investment on the roads. The World Bank as well as other international banks may consider including this method of assessing sustainability as a standard practice for this kind of loan.

Emission assessment for works on rural roads projects can be successfully done by CarbonROAD software.

The government promoted standards with normalized emission values and harmonized calculation procedures will be required in the future to keep the GHG assessment consistence among the studies done by different actors including software developers.
