# How to Understand Behavioral Patterns in Big Data: The Case of Human Collective Memory

## Abstract

**:**

## 1. Introduction

## 2. The Biexponential Pattern

## 3. Candia et al.’s Mechanistic Model

## 4. Alternative Mechanistic Models

#### 4.1. Structure of Alternative Process

#### 4.2. Additive Parallel Model

#### 4.3. Multiplicative Series Model

#### 4.4. Exponential Decay with Feedback

## 5. Frequency Interpretation of Process

#### 5.1. Exponential Decay as a Low Pass Filter

#### 5.2. Combining Low Pass Filters

#### 5.3. High Pass Filters Ignore Slowly Changing Inputs

#### 5.4. Feedback and Resonant Frequencies

## 6. Conclusions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Arshad, S.; Hu, S.; Ashraf, B.N. Zipf’s law and city size distribution: A survey of the literature and future research agenda. Physica A
**2018**, 492, 75–92. [Google Scholar] [CrossRef] - Axtell, R.L. Zipf distribution of U.S. firm sizes. Science
**2001**, 293, 1818–1820. [Google Scholar] [CrossRef] - Zipf, G.K. The Psychobiology of Language; Houghton Mifflin: Boston, MA, USA, 1935. [Google Scholar]
- Shepard, R.N. Toward a universal law of generalization for psychological science. Science
**1987**, 237, 1317–1323. [Google Scholar] [CrossRef] - Baldridge, E.; Harris, D.J.; Xiao, X.; White, E.P. An extensive comparison of species-abundance distribution models. PeerJ
**2016**, 4, e2823. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Frank, S.A. A multistage theory of age-specific acceleration in human mortality. BMC Biol.
**2004**, 2, 16. [Google Scholar] [CrossRef] [PubMed] - Jaynes, E.T. Probability Theory: The Logic of Science; Cambridge University Press: New York, NY, USA, 2003. [Google Scholar]
- Frank, S.A. The common patterns of nature. J. Evol. Biol.
**2009**, 22, 1563–1585. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Candia, C.; Jara-Figueroa, C.; Rodriguez-Sickert, C.; Barabási, A.L.; Hidalgo, C.A. The universal decay of collective memory and attention. Nat. Hum. Behav.
**2018**. [Google Scholar] [CrossRef] [PubMed] - Oppenheim, A.V.; Willsky, A.S.; Hamid, S. Signals and Systems, 2nd ed.; Pearson: New York, NY, USA, 1996. [Google Scholar]
- Ogata, K. Modern Control Engineering, 5th ed.; Prentice Hall: New York, NY, USA, 2009. [Google Scholar]
- Frank, S.A. Control Theory Tutorial: Basic Concepts Illustrated by Software Examples; Springer: Cham, Switzerland, 2018. [Google Scholar]
- Halbwachs, M. On Collective Memory; University of Chicago Press: Chicago, IL, USA, 1992. [Google Scholar]
- Assmann, J. Communicative and cultural memory. In Cultural Memories: The Geographic Point of View; Meusburger, P., Heffernan, M., Wunder, E., Eds.; Springer: Heidelberg, Germany, 2011; pp. 15–27. [Google Scholar]
- Rubin, D.C. How quickly we forget. Science
**2014**, 346, 1059. [Google Scholar] [CrossRef] [PubMed] - García-Gavilanes, R.; Mollgaard, A.; Tsvetkova, M.; Yasseri, T. The memory remains: Understanding collective memory in the digital age. Sci. Adv.
**2017**, 3, e1602368. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hirst, W.; Yamashiro, J.K.; Coman, A. Collective memory from a psychological perspective. Trends Cogn. Sci.
**2018**, 22, 438–451. [Google Scholar] [CrossRef] [PubMed]

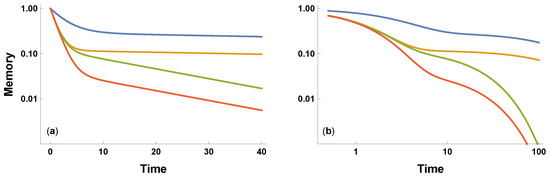

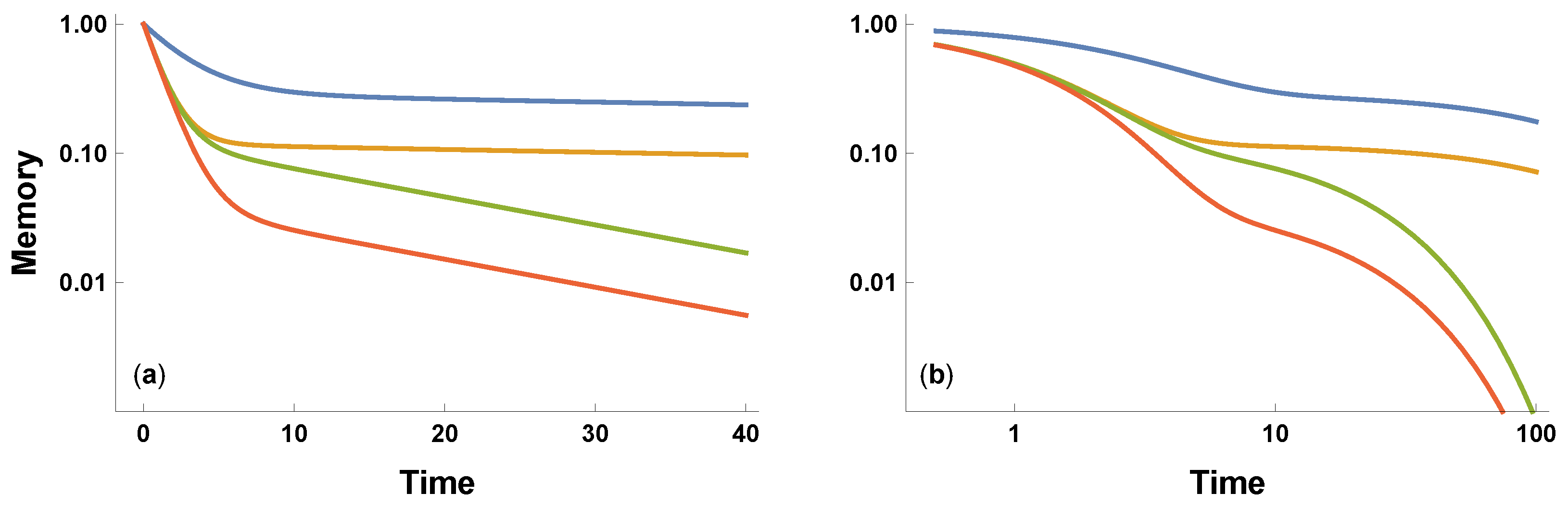

**Figure 1.**Biexponential decay of a signal in Equation (1). The same parameters are used for the plots on (

**a**) semi-log axes and (

**b**) log-log axes. The parameters for the curves from top to bottom are: $(a,b,c)=(0.35,0.005,0.408),(0.85,0.005,0.134),(0.85,0.05,0.143),(0.78,0.05,0.043)$. The parameters match Figure 2 of Candia et al. [9], associated with their parameterization given in Equation (2) and the parameter equivalences: $a=p+r$; $b=q$; $c=r/(p-q)$; and $N=1$. The inverse parameter equivalences are also useful: $p=(a+bc)/(1+c)$; $q=b$; and $r=c(a-b)/(1+c)$.

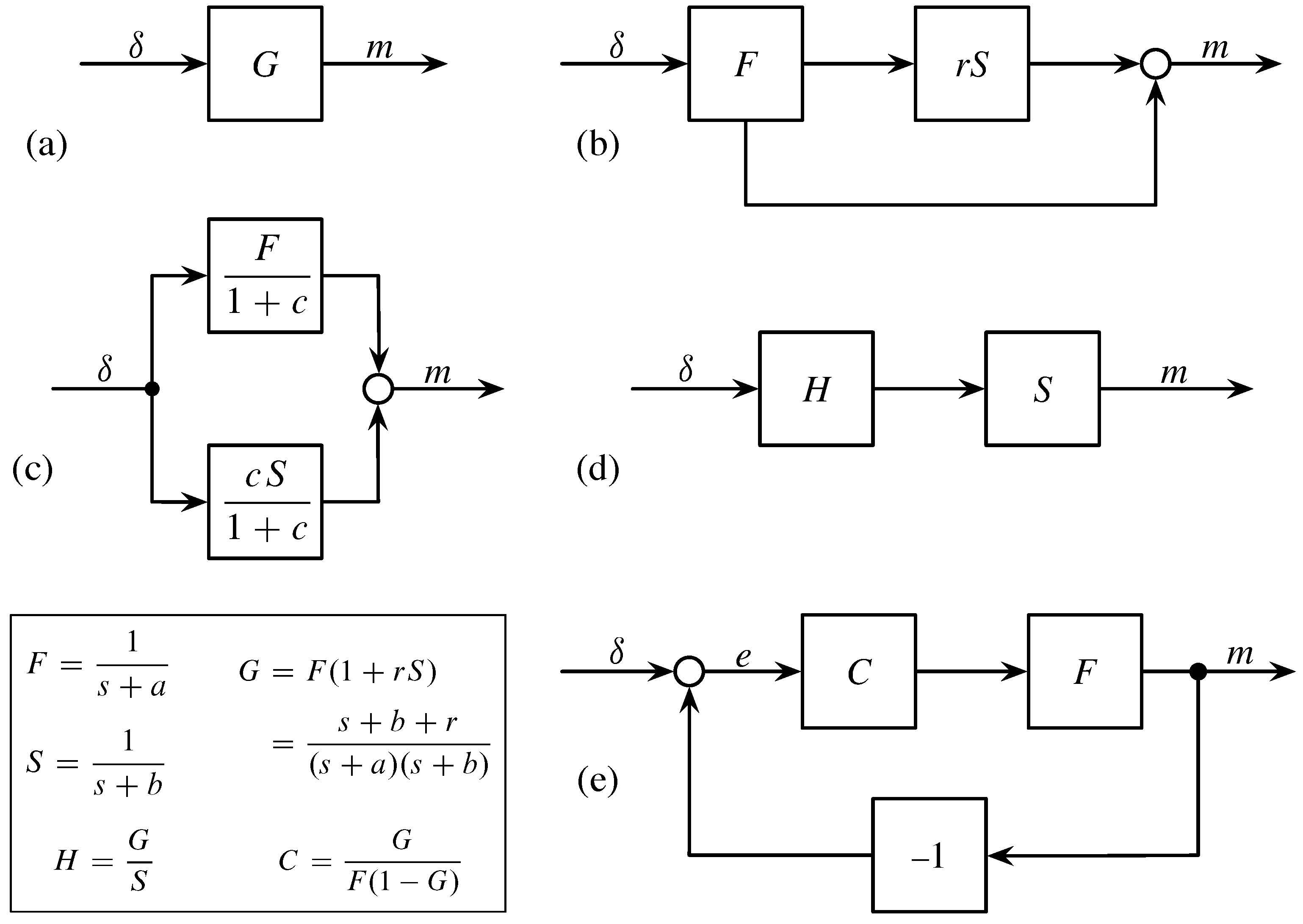

**Figure 2.**Alternative models that yield identical biexponential decay. The text describes each panel. The parameters can be matched to the generic model in Equation (1). with $r=c(a-b)/(1+c)$.

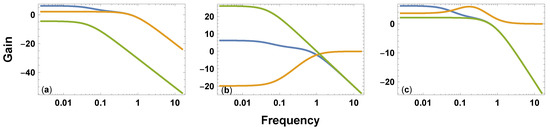

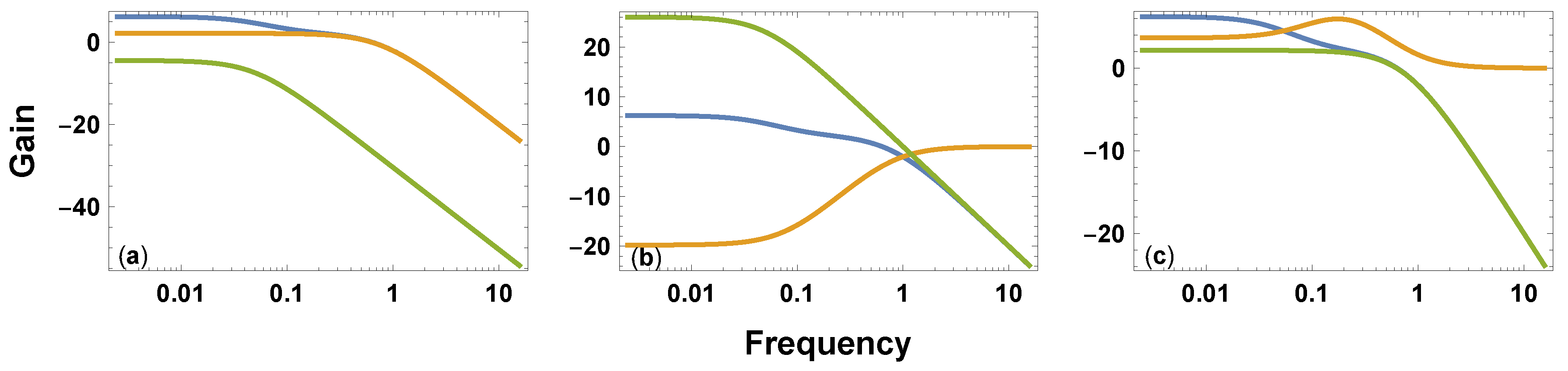

**Figure 3.**Frequency response of alternative models that yield identical biexponential decay. Each curve shows the relation between the frequency of input and the gain, which is the amount by which a process multiplies an input signal. The parameters match the red curve of Figure 1. The blue curve is the response of the total system, G, which is the same in all cases. The gain expresses the classic signal processing scale of $20{log}_{10}(\mathrm{gain})$. A value of zero corresponds to gain of one, which means that the process passes the signal without change. Values of less than zero reduce the signal intensity, and values above zero enhance the signal intensity. (

**a**) The combination of two low pass filters in Candia et al.’s model of Figure 2b. A similar pattern describes the additive parallel model in Figure 2c. (

**b**) The combination of high and low pass pass filters in series in Figure 2d. (

**c**) A low pass filter in green combined in a self-correcting feedback loop with a filter that enhances intermediate resonant frequencies in gold.
