# Determining Shrinkage Cracks Based on the Small-Strain Shear Modulus–Suction Relationship

^{1}

^{2}

^{*}

## Abstract

**:**

_{0}) at various moisture contents. The small-strain moduli from the SASW tests on the intact ground were generally higher than those from the FFR tests due to the effect of confining stress. A drop in the small-strain modulus determined using the SASW test was observed as an increase in suction-induced cracks and it relieved the horizontal stress. The crack depth measured in the field was then modelled using a semi-empirical procedure that can be used to predict crack depth relative to suction.

## 1. Introduction

## 2. Materials and Methods

#### 2.1. Study Area and Instrumentation

^{6}kPa, were installed at a depth of 0.5 m at the top, middle, and base of the embankment. TDR sensors were installed at a depth of 0.1 m in the same locations as the MPS6 sensors, so that the surface boundary condition could also be investigated. The measurements from the low-capacity tensiometers (A1, A2, A3) and flushable tensiometers (UNSUC1, UNSUC2) during the dry season were not considered in further shrinkage analysis due to cavitation problems, as higher suctions than the working range of the tensiometers were observed in the field in this period.

_{c}), defined as the ratio of the plasticity index to clay fraction was also considered as an indicator for expansion potential of the soil. A

_{c}based on the soil properties in Table 1 was 0.54, which indicates possible clay minerals of kaolinite or illite [19]. Despite the medium expansion potential based on the Atterberg’s limits, it is not uncommon for shrinkage cracks to occur even for soil with a PI as low as 6.9 or clay with illite mineralogy [13]. According to [20,21,22], swelling potential is not necessarily equal to that of shrinkage, and it is the soil properties such as initial density, initial moisture content, and magnitude of suction change that are the main factors affecting the swelling and shrinkage behavior.

#### 2.2. Soil Water Retention Curve (SWRC)

#### 2.3. Free-Free Resonant Frequency (FFR) Test

_{s}, and the shear modulus, G

_{0}, using Equations (1) and (2):

#### 2.4. Spectral Analysis of Surface Waves (SASW) Test

#### 2.5. Measurement of Shrinkage Cracks

## 3. Results and Discussions

#### 3.1. Instrumentation Results

#### 3.2. Soil Water Retention Curve (SWRC)

#### 3.3. FFR Results

_{0}with moisture content and suction is bi-linear, with the turning point at a moisture content of about 10% and suction about 26 MPa.

_{0}with decreasing moisture content (or increasing suction) at the initial stage of drying (suction from zero to 26 MPa) was expected and due to the greater influence of suction stress on the modulus [37] in this stage, as well as the initial decrease in the void ratio on the initial drying that could further induce a rise in modulus (Figure 6b and Figure 9b). This process continued until the turning point (at a suction of around 26 MPa) was reached where shrinkage became minimal, after which the rate of change in G

_{0}became less. It is noteworthy that the moisture content at 26 MPa suction was 10.2%, which was lower than the soil’s shrinkage limit of 13.5% and smaller than the second air-entry point of the SWRC (Figure 6 and Figure 7). As drying continued, the sample showed a more gradual rate of increase in G

_{0}for suction higher than 26 MPa as shrinkage became progressively less with increasing suction.

#### 3.4. SASW Results

_{0}) with varying in-situ suctions. Shear wave velocity (Vs) profiles for the embankment at different periods are shown in Figure 10. Only the Vs values obtained from zero to 0.5 m depth were used to calculate the G

_{0}of the upper layer of soil where the shrinkage crack was observed.

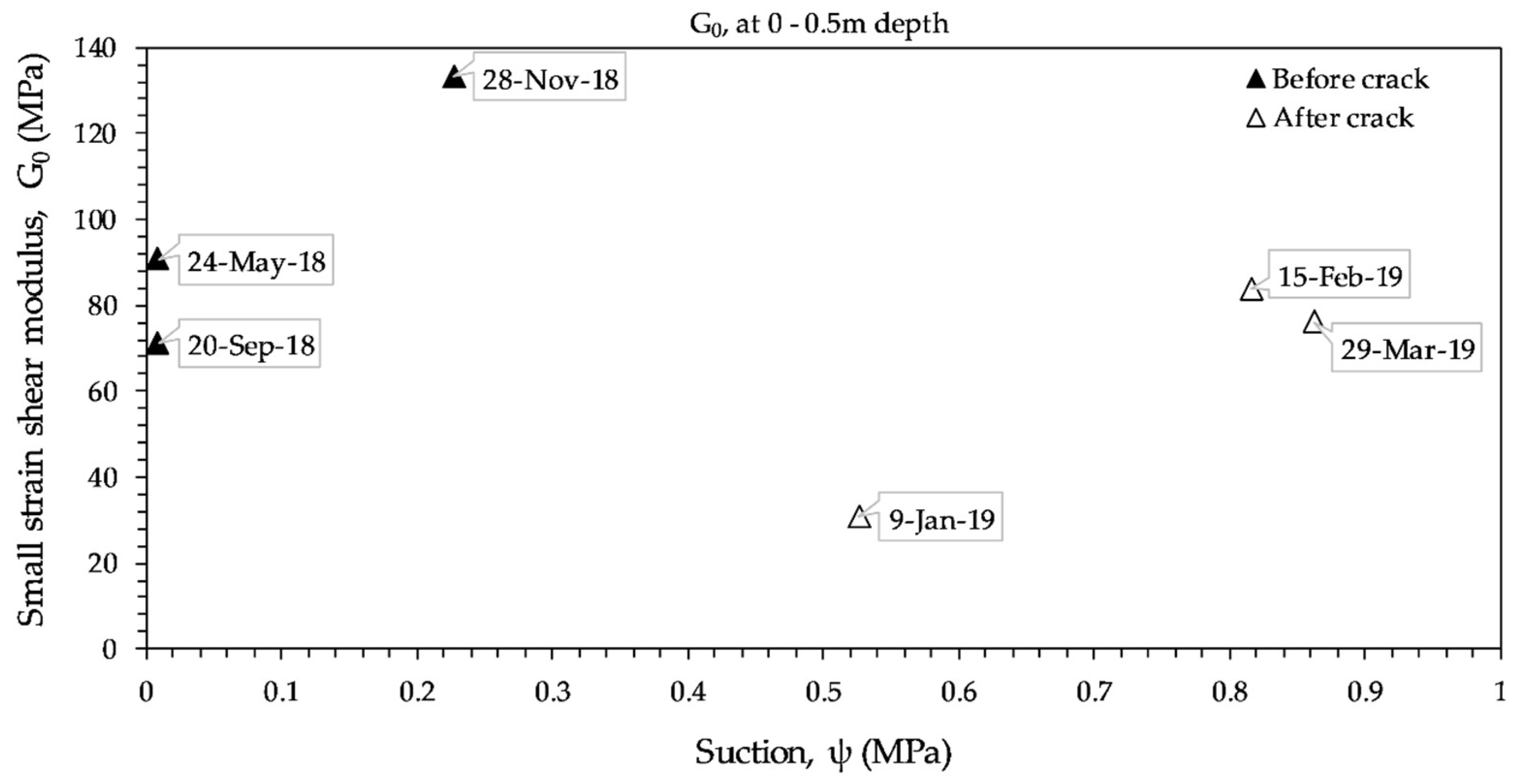

_{0}as shown in Figure 11. The G

_{0}values from May to November 2018 positively correlate with measured suctions, while from January to March 2019, after the shrinkage crack occurred in December, the G

_{0}appeared to decrease significantly and varied disproportionately with suction. In general, G

_{0}values from January to March should have been higher than those from May to November, since the suction values were higher for those periods, if they were to follow the trend of intact soil. A possible explanation is that the crack was responsible for the reduced values of G

_{0}.

#### 3.5. Suction–Small-Strain Shear Modulus Relationship

_{0}) is dependent on net stress, suction history, void ratio, over-consolidation ratio (OCR), strain rate, and plasticity index [24,36,38,39,40,41]. Many empirical and semi-empirical expressions have been proposed for describing the relationship between suction and modulus. In this study, a modelling approach by [42] was used to determine the relationship between G

_{0}, suction ($\mathsf{\psi}$), and water content due to its viability and directness. Amongst various modeling options, the model that considers the influence of suction stress and net stress separately is depicted in Equation (6),

^{2}) and is the void ratio function given by [43] for sands and clays, A, C, and k are empirical parameters for obtaining the best fit between measured and predicted values.

^{2}ranging between 0.77 and 0.98) was observed for the relationships G

_{0}—$\mathsf{\psi}$ (Figure 12a) and G

_{0}—${\mathsf{\sigma}}_{\mathrm{s}}$ (Figure 12b) for both the SASW and FFR results. In the FFR tests, the soil followed a bilinear relationship for both G

_{0}—$\mathsf{\psi}$ and G

_{0}—${\mathsf{\sigma}}_{\mathrm{s}}$ as explained earlier. Regarding the SASW, the G

_{0}—$\mathsf{\psi}$ relationship holds well (R

^{2}= 0.905) until the initiation of the crack after which, despite the increase of suction, G

_{0}decreased. It is interesting to note that after the crack, the values of G

_{0}, in comparison to the expected G

_{0}—$\mathsf{\psi}$ and G

_{0}—${\mathsf{\sigma}}_{\mathrm{s}}$ relationships, reduced and became similar to the FFR test. This may be because the effect of the crack was to reduce the net confining stress effect and thus to reduce the constant D in Equation (7). The values of D and C obtained by curve fitting (Figure 12b) for different test conditions are listed in Table 4.

#### 3.6. Modelling of Crack Depth

#### 3.7. Potential Use of the Proposed Technique

_{0}—$\mathsf{\psi}$ or G

_{0}—${\mathsf{\sigma}}_{\mathrm{s}}$ were dependent on test conditions and the presence of cracks. The G

_{0}value of intact ground determined using the SASW test was normally greater than that of FFR at a given suction due to the influence of net confining pressure. However, as the increase in suction induced cracks in the ground, the horizontal stress was relieved, and the SASW tests yielded the G

_{0}value similar to that of FFR as shown in Figure 14. Thus, with periodic measurement of suction and small-strain modulus using the SASW method, the presence of shrinkage cracks could be predicted underneath the soil layer where visual inspection may not be possible.

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Kaniraj, S.R.; Abdullah, H. Effect of berms and tension crack on the stability of embankments on soft soils. Soils Found.
**1993**, 33, 99–107. [Google Scholar] [CrossRef] - Lee, F.H.; Lo, K.W.; Lee, S.L. Tension crack development in soils. J. Geotech. Eng.
**1988**, 114, 915–929. [Google Scholar] [CrossRef] - Day, R.W.; Axten, G.W. Surficial stability of compacted clay slopes. J. Geotech. Eng.
**1989**, 115, 577–580. [Google Scholar] [CrossRef] - Baker, R. Tensile strength, tension cracks, and stability of slopes. Soils Found.
**1981**, 21, 1–17. [Google Scholar] [CrossRef] - Morris, P.H.; Graham, J.; Williams, D.J. Cracking in drying soils. Can. Geotech. J.
**1992**, 29, 263–277. [Google Scholar] [CrossRef] - Pufahl, D.; Fredlund, D.; Rahardjo, H. Lateral earth pressures in expansive clay soils. Can. Geotech. J.
**1983**, 20, 228–241. [Google Scholar] [CrossRef] - Jotisankasa, A.; Vadhanabhuti, B.; Lousuphap, K.; Sawangsuriya, A. Mechanisms of Longitudinal Cracks Along Pavement Shoulder in Central Thailand. In Unsaturated Soils: Theory and Practice; Kasetsart University: Bangkok, Thailand, 2011; pp. 699–705. [Google Scholar]
- Albright, W.H.; Benson, C.H.; Gee, G.W.; Abichou, T.; Tyler, S.W.; Rock, S.A. Field performance of three compacted clay landfill covers. Vadose Zone J.
**2006**, 5, 1157–1171. [Google Scholar] [CrossRef] - Inoubli, N.; Raclot, D.; Moussa, R.; Habaieb, H.; Le Bissonnais, Y. Soil cracking effects on hydrological and erosive processes: A study case in Mediterranean cultivated vertisols. Hydrol. Proc.
**2016**, 30, 4154–4167. [Google Scholar] [CrossRef] - Prendergast, J.B. Soil water bypass and solute transport under irrigated pasture. Soil Sci. Soc. Am. J.
**1995**, 59, 1531–1539. [Google Scholar] [CrossRef] - Wijesooriya, R.M.S.D. Modelling of desiccation crack depths in clay soils. Ph.D. Thesis, Monash University, Melbourne, Australia, December 2012. [Google Scholar]
- Fredlund, D.G.; Rahardjo, H. Soil Mechanics for Unsaturated Soils; John Wiley & Sons: Austin, TX, USA, 1993. [Google Scholar]
- Miller, C.J.; Mi, H.; Yesiller, N. Experimental analysis of desiccation crack propagation in clay liners 1. JAWRA J. Am. Water Resour. Assoc.
**1998**, 34, 677–686. [Google Scholar] [CrossRef] - Amarasiri, A.L.; Kodikara, J.K.; Costa, S. Numerical modelling of desiccation cracking. Int. J. Numer. Anal. Methods Geomech.
**2011**, 35, 82–96. [Google Scholar] [CrossRef] - Vo, T.D.; Pouya, A.; Hemmati, S.; Tang, A.M. Modelling desiccation crack geometry evolution in clayey soils by analytical and numerical approaches. Can. Geotech. J.
**2018**, 56, 720–729. [Google Scholar] [CrossRef] - Jotisankasa, A.; Pramusandi, S.; Nishimura, S.; Chaiprakaikeow, S. Field Response of an Instrumented Dyke subjected to Rainfall. Geotech. Eng. J. SEAGS AGSSEA
**2019**, 50. [Google Scholar] - Mairaing, W.; Jotisankasa, A.; Soralump, S. Some applications of unsaturated soil mechanics in Thailand: an appropriate technology approach. Geotech. Eng.
**2012**, 43, 1–11. [Google Scholar] - Peck, R.B.; Hanson, W.E.; Thornburn, T.H. Foundation Engineering; Wiley: New York, NY, USA, 1974; Volume 10. [Google Scholar]
- Skempton, A. The colloidal activity of clays. Sel. Pap. Soil Mech.
**1953**, 106–118. [Google Scholar] - Nelson, J.D.; Chao, K.C.; Overton, D.D.; Nelson, E.J. Foundation Engineering for Expansive Soils; Wiley Online Library: Austin, TX, USA, 2015. [Google Scholar]
- Chen, F.H. Foundations on Expansive Soils; Elsevier: Berkeley, CA, USA, 2012; Volume 12. [Google Scholar]
- Sawangsuriya, A.; Jotisankasa, A.; Anuvechsirikiat, S. Classification of Shrinkage and Swelling Potential of a Subgrade Soil in Central Thailand. In Unsaturated Soils: Research and Applications; Springer: New York, NY, USA, 2012; pp. 325–331. [Google Scholar]
- Jotisankasa, A.; Mairaing, W. Suction-monitored direct shear testing of residual soils from landslide-prone areas. J. Geotech. Geoenviron. Eng.
**2009**, 136, 533–537. [Google Scholar] [CrossRef] - Barus, R.M.N.; Jotisankasa, A.; Chaiprakaikeow, S.; Sawangsuriya, A. Laboratory and field evaluation of modulus-suction-moisture relationship for a silty sand subgrade. Transp. Geotech.
**2019**, 19, 126–134. [Google Scholar] [CrossRef] - Nazarian, S.; Stokoe, K.H. In Situ Determination of Elastic Moduli of Pavement Systems by Spectral-Analysis-of-Surface-Waves Method: Practical Aspects; The Center: Austin, TX, USA, 1985. [Google Scholar]
- Chaiprakaikeow, S.; Soponpong, C.; Sukolrat, J. Development of a Quality Control Index of Cement Stabilized Road Structures using Shear Wave Velocity. In Proceedings of the 2nd World Congress on Civil, Structural, and Environmental Engineering (CSEE’17), Barcelona, Spain, 2–4 April 2017; pp. ICGRE113-110–ICGRE113-111. [Google Scholar]
- Ismail, M.; Samsudin, A.; Rafek, A.; Nayan, K. Road pavement stiffness determination using SASW method. J. Civ. Eng., Sci. Technol.
**2012**, 3, 9–16. [Google Scholar] [CrossRef] - Nazarian, S.; Stokoe, I.; Kenneth, H.; Briggs, R.C.; Rogers, R.C. Determination of Pavement Layer Thicknesses and Moduli by SASW Method; Transportation Research Board: Washington, DC, USA, 1988. [Google Scholar]
- Bay, J.A.; Chaiprakaikeow, S. Spectral Analysis of Surface Waves (SASW) testing of Sirikit and Rajjaprabha Dams. In Electricity Generating Authority of Thailand (EGAT) Report, Bangkok, Thailand; Electricity Generating Authority of Thailand: Nonthaburi, Thailand, 2009. [Google Scholar]
- Chaiprakaikeow, S.; Bay, J.A.; Chaowalittrakul, N. Study of Dynamic Properties of Mae Chang Dam using Spectral Analysis of Surface Waves and Resonance Tests. In Proceedings of the 21th National Convention on Civil Engineering, Songkla, Thailand, 28–30 June 2016. [Google Scholar]
- Chaiprakaikeow, S.; Bay, J.A.; Chaowalittrakul, N.; Brohmsubha, P. Evaluation of the Effect of Concrete Blocks on Seismic Response of Bhumibol Dam using In-Situ Dynamic Tests. In Proceedings of the 85th Annual Meeting of International Commission on Large Dams (ICOLD2017), Prague, Czech Republic, 3–7 July 2017. [Google Scholar]
- Bay, J.A.; Chaiprakaikeow, S. Spectral Analysis of Surface Waves (SASW) testing of Srinakarind and Vajiralongkorn Dams. In Electricity Generating Authority of Thailand (EGAT) Report, Bangkok, Thailand; Electricity Generating Authority of Thailand: Nonthaburi, Thailand, 2006. [Google Scholar]
- Joh, S.H.; Stokoe, K.H. Advances in Interpretation and Analysis Techniques for Spectral-Analysis-of-Surface-Waves (SASW) Measurements; Offshore Technology Research Center: College Station, TX, USA, 1997. [Google Scholar]
- De FN Gitirana, G., Jr.; Fredlund, D.G. Soil-water characteristic curve equation with independent properties. J. Geotech. Geoenviron. Eng.
**2004**, 130, 209–212. [Google Scholar] [CrossRef] - Mendoza, C.; Colmenares, J.; Merchan, V. Stiffness of an unsaturated compacted clayey soil at very small strains. In Proceedings of the International Symposium on Advanced Experimental Unsaturated Soil Mechanics, Trento, Italy, 27–29 June 2005; pp. 199–204. [Google Scholar]
- Kaewsong, R.; Zhou, C.; Ng, C. Modelling effects of recent suction history on small-strain stiffness of unsaturated soil. Can. Geotech. J.
**2018**, 56, 1–11. [Google Scholar] [CrossRef] - Lu, N.; Likos, W.J. Suction stress characteristic curve for unsaturated soil. J. Geotech. Geoenviron. Eng.
**2006**, 132, 131–142. [Google Scholar] [CrossRef] - Hardin, B.O.; Richart, F., Jr. Elastic wave velocities in granular soils. J. Soil Mech. Found. Div.
**1963**, 89, 3407. [Google Scholar] - Sorensen, K.K.; Baudet, B.; Simpson, B. Influence of strain rate and acceleration on the behaviour of reconstituted clays at small strains. Géotechnique
**2010**, 60, 751. [Google Scholar] [CrossRef] - Santos, J.; Correia, A.G. Shear modulus of soils under cyclic loading at small and medium strain level. In Proceedings of the 12th World Conference on Earthquake Engineering, Auckland, New Zealand, 30 January–4 February 2000. [Google Scholar]
- Khosravi, A.; Shahbazan, P.; Pak, A. Impact of hydraulic hysteresis on the small strain shear modulus of unsaturated sand. Soils Found.
**2018**, 58, 344–354. [Google Scholar] [CrossRef] - Sawangsuriya, A.; Edil, T.B.; Bosscher, P.J. Modulus-suction-moisture relationship for compacted soils in postcompaction state. J. Geotech. Geoenviron. Eng.
**2009**, 135, 1390–1403. [Google Scholar] [CrossRef] - Hardin, B.O. The nature of stress-strain behavior for soils. In Proceedings of the ASCE Geotechnical Engineering Division Specialty Conference, Pasadena, CA, USA, 19–21 June 1978. [Google Scholar]
- Miller, G.; Hassanikhah, A.; Varsei, M. Desiccation crack depth and tensile strength in compacted soil. In Proceedings of the 6th Asia Pacific Conference on Unsaturated Soils, Guilin, China, 23–26 October 2015. [Google Scholar]
- Picornell, M.; Lytton, R.L. Field measurement of shrinkage crack depth in expansive soils. Transp. Res. Rec.
**1989**, 1219, 121–130. [Google Scholar]

**Figure 2.**Experimental setup and an example of data acquisition through the free-free resonant frequency (FFR) test. (

**a**) Sample with an accelerometer attached at one end. (

**b**) Accelerometer data of the frequency domain with the fundamental frequency indicated by a peak.

**Figure 3.**Shrinkage crack at the top of the embankment on 15 February 2019 (

**a**) Top (drone) view of the crack (

**b**) Measurement of the crack.

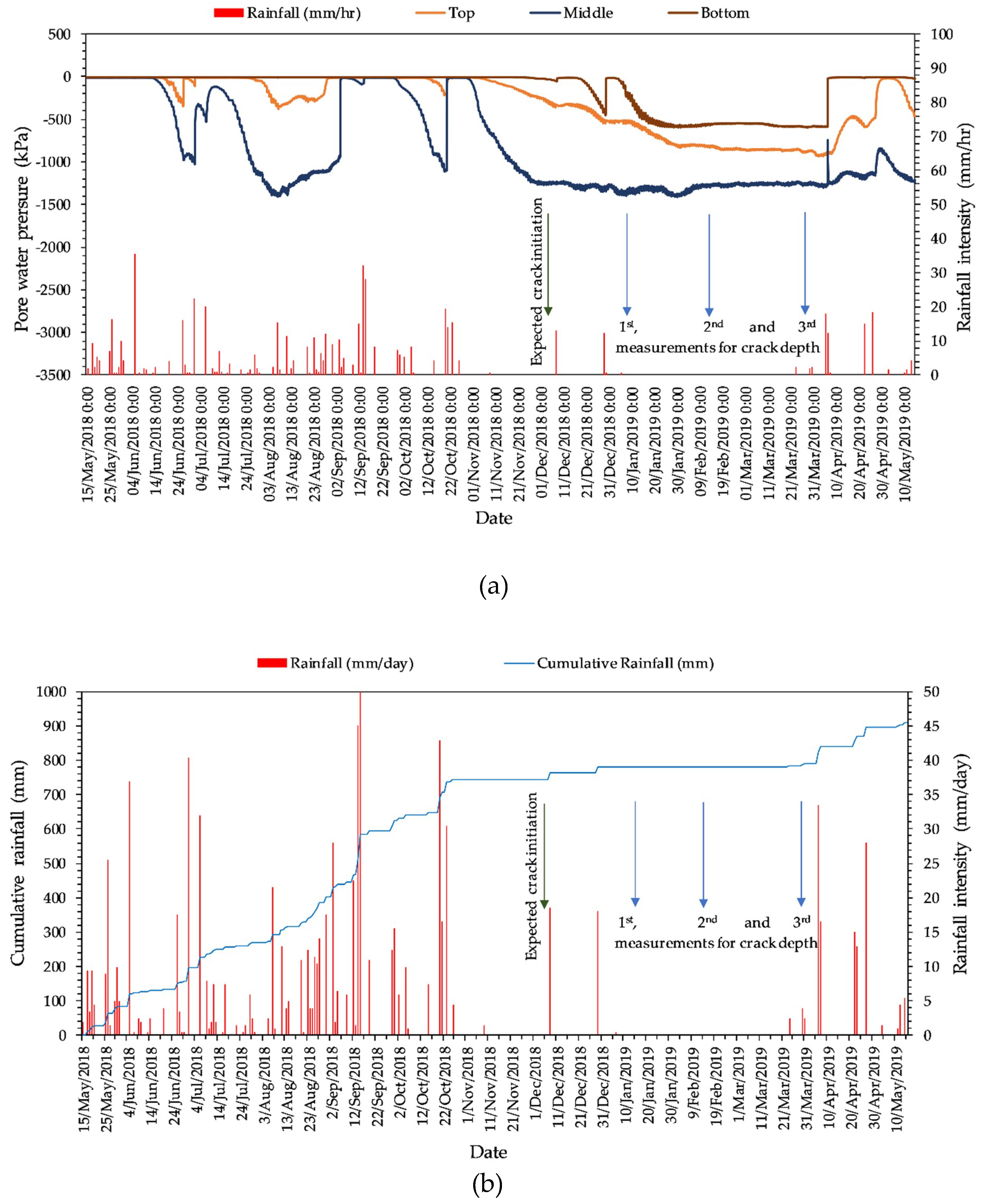

**Figure 4.**Results from MPS sensors and rain gauge for a period of one year. (

**a**) Pore water pressure (kPa) and rainfall intensity (mm/hr). (

**b**) Rainfall intensity (mm/hr) and cumulative rainfall (mm).

**Figure 6.**Soil water retention curve (SWRC) results. (

**a**) A plot of degree of saturation against soil suction. (

**b**) A plot showing the change in void ratio with respect to suction.

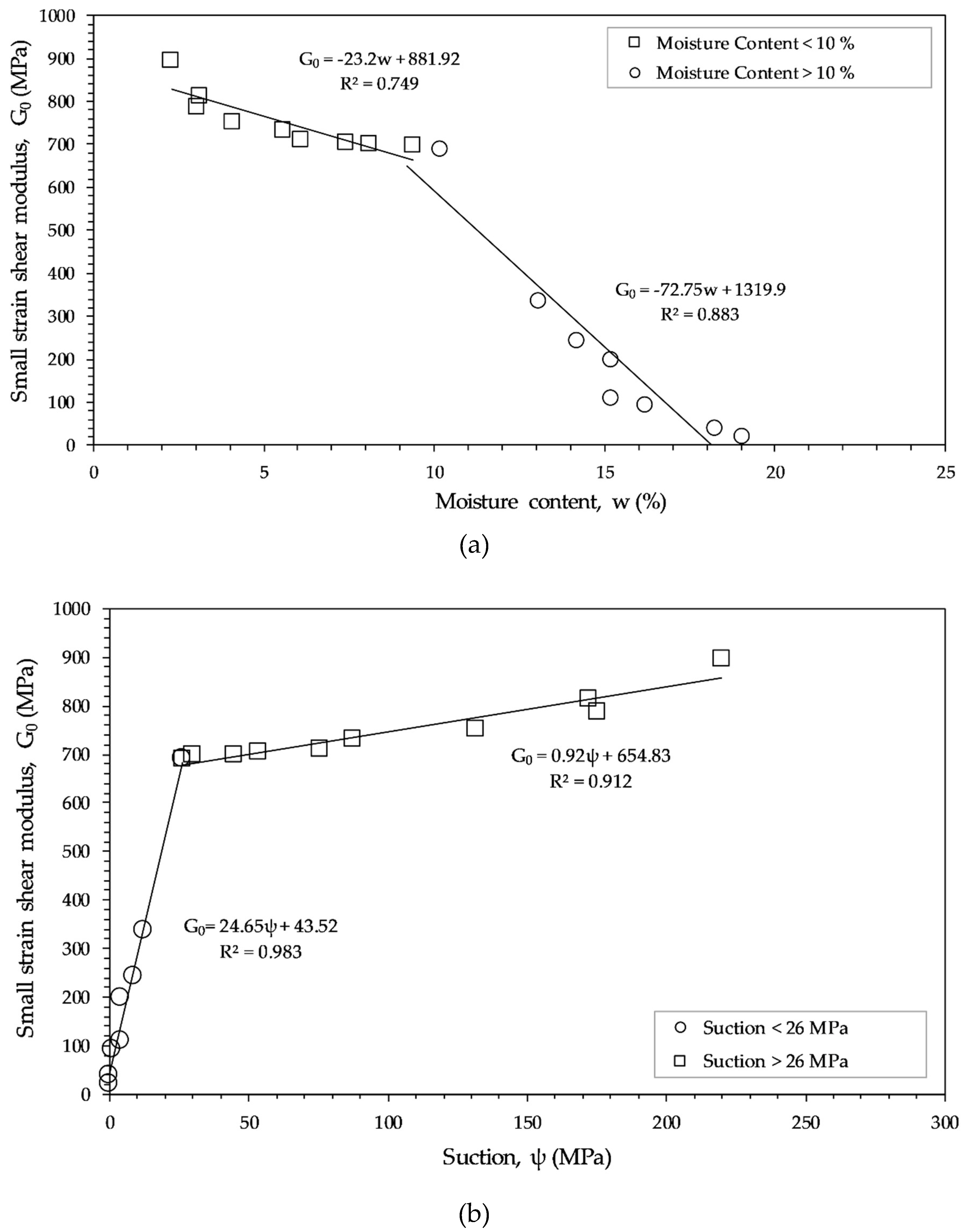

**Figure 9.**Bilinear variation of the small-strain shear modulus (G

_{0}) from the FFR tests with (

**a**) moisture content (

**b**) suction.

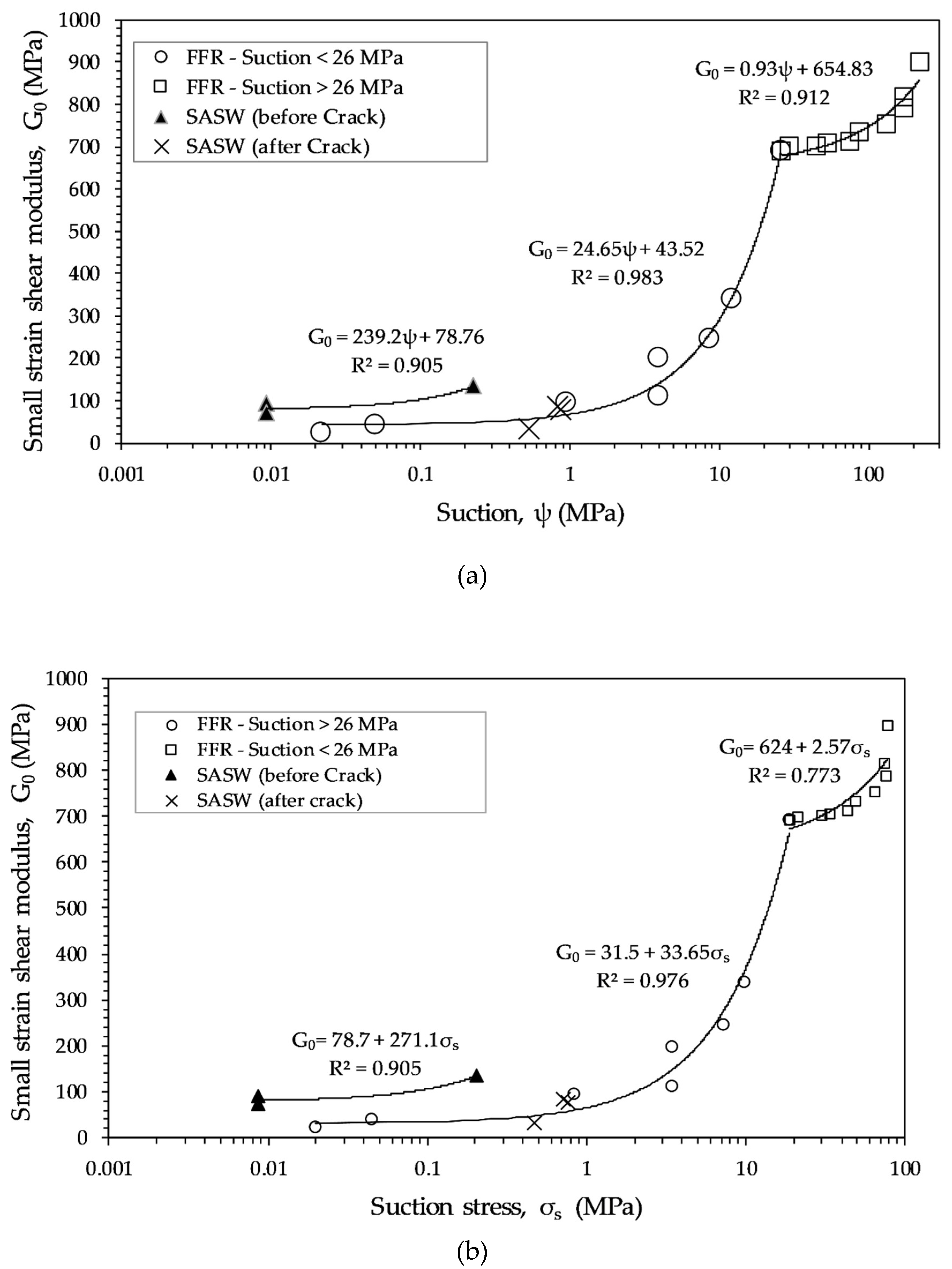

**Figure 12.**Modelling of the suction modulus relationship (

**a**) G

_{0}—$\mathsf{\psi}$ plot (

**b**) G

_{0}—${\mathsf{\sigma}}_{\mathrm{s}}$ plot. SASW = spectral analysis of surface wave.

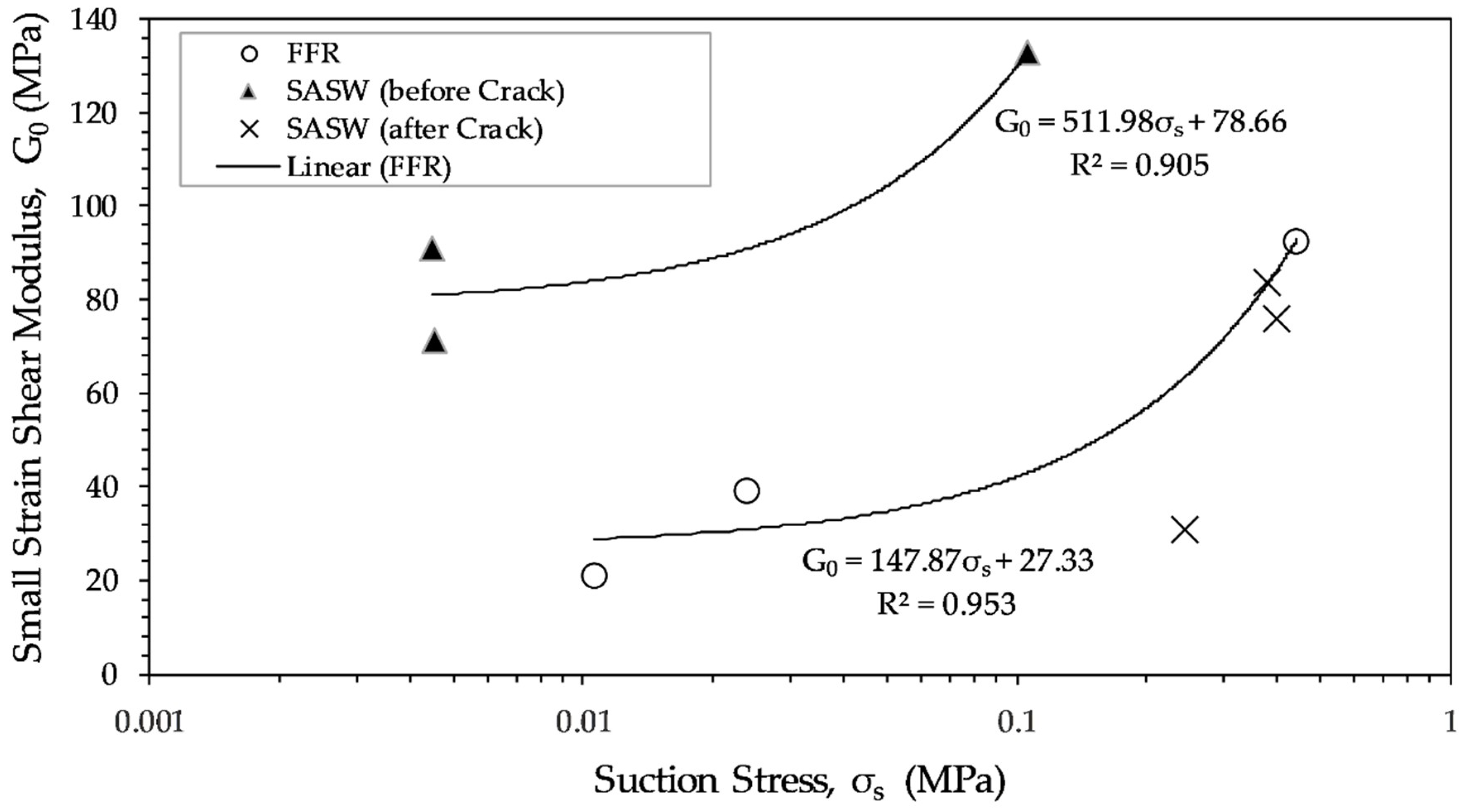

**Figure 14.**G

_{0}—${\mathsf{\sigma}}_{\mathrm{s}}$ relationship for a range of suction stresses occurring in the embankment.

**Table 1.**Basic physical properties of soil along with the unified soil classification system (USCS) classification. CL = low-plasticity clay.

Depth of Soil Sample Taken from on Top of the Embankment | Gravel (%) | Sand (%) | Silt (%) | Clay (%) | Liquid Limit (LL) % | Plasticity Index (PI) | Shrinkage Limit (SL) % | USCS |
---|---|---|---|---|---|---|---|---|

(>4.75 mm) | (4.75–0.074 mm) | (0.074–0.002 mm) | (<0.002 mm) | |||||

0.0–0.5 m | 12.0 | 22.8 | 23.9 | 41.3 | 43.8 | 22.4 | 13.5 | CL |

Month | Crack Depth (cm) | Suction (kPa) |
---|---|---|

09 January | 17.5 | 527.3 |

15 February | 27.0 | 815.9 |

29 March | 28.0 | 863.0 |

28 April | - | 167.9 |

Fitting Parameters | ||||||||
---|---|---|---|---|---|---|---|---|

$\mathrm{a}$ | ${\mathsf{\psi}}_{\mathrm{b}1}$ | ${\mathsf{\psi}}_{\mathrm{r}\mathrm{e}\mathrm{s}1}$ | ${\mathrm{S}}_{\mathrm{r}\mathrm{e}\mathrm{s}1}$ | ${\mathsf{\psi}}_{\mathrm{b}2}$ | ${\mathrm{S}}_{\mathrm{b}2}$ | ${\mathsf{\psi}}_{\mathrm{r}\mathrm{e}\mathrm{s}2}$ | ${\mathrm{S}}_{\mathrm{r}\mathrm{e}\mathrm{s}2}$ | ${\mathrm{S}}_{\mathrm{m}\mathrm{a}\mathrm{x}}$ |

0.05 | 3.5 | 12 | 0.85 | 8500 | 0.8 | 365621 | 0.007 | 0.94 |

G_{0}—${\mathsf{\sigma}}_{\mathbf{s}}$ Relationship | C | D (MPa) | R^{2} |
---|---|---|---|

SASW (before crack) | 271.1 | 78.7 | 0.905 |

FFR ($\mathsf{\psi}$ = 0.02–26 MPa) | 33.65 | 31.5 | 0.976 |

FFR ($\mathsf{\psi}$ = 26–220 MPa) | 2.57 | 624 | 0.773 |

Properties | Values | Units |
---|---|---|

Suction value at the onset of crack | 318 | kPa |

H modulus at that suction | 9683 | kPa |

k_{0} | 0.53 | - |

Poisson’s ratio, µ | 0.35 | - |

Young’s Modulus, E (large-strain) | 650 | kPa |

Total unit weight, γ | 18.3 | kN/m^{3} |

σt/(k_{0}*γ) | 3.36 | m |
