Catalogue of the Geological Effects of Earthquakes in Spain Based on the ESI-07 Macroseismic Scale: A New Database for Seismic Hazard Analysis

Abstract

This paper summarizes the content and scope of the “Catalogue of Earthquake Geological Effects in Spain”. The catalogue has been published by the Geological Survey of Spain (IGME) and constitutes the first official publication (in Spain) on seismic hazard containing geological information. The catalogue gathers the 51 stronger earthquakes that have occurred in Spain since the Neolithic period to the present and classifies earthquakes with geological or archaeological seismic records in paleoseismic, ancient, historical and instrumental earthquakes. The catalogue offers a variety of parametric information, quality indexes (Qe, Qi, Qg), and Environmental Seismic Intensity Scale (ESI-07) based description of environmental damage structured in individual “event files”. Sixteen of the 51 catalogued events present full information files (full event files), with individualized analyses of the geological and geoarchaeological data as well as graphic information with hybrid ESI-EMS intensity maps, ShakeMaps (seismic scenarios) and complementary kmz files (Google Earth) for each of the sixteen selected earthquakes; among which is the well-known AD 1755 Lisbon earthquake-tsunami. These selected earthquakes present individual environmental earthquake effects (EEE) or earthquake archaeoseismological effects (EAE) files for each catalogued effect containing specific site geo-information and graphic data (photos, graphs, maps, etc.). The second edition of the catalogue record 1027 EEEs and 187 EAEs, of which 322 effects have individual files.

1. Introduction to the Environmental Seismic Intensity Scale ESI-07

Recent evaluations of the geological and environmental effects of earthquakes (environmental earthquake effects (EEEs)) indicate that such effects can be certainly parameterized and used for relative intensity assessments [1,2]. The introduction of the geological analysis of earthquake effects is primarily based on the application of the Environmental Seismic Intensity Scale (ESI-07) developed by the INQUA Paleoseismology International Focus Group in 2007 [3]. The ESI-07 scale itself constitutes the quantification and parameterization of the environmental effects considered in qualitative terms by the traditional macroseismic scales, such as the Mercalli–Cancani–Sieberg (MCS), the Medvéded–Sponheuer–Karnik (MSK) or the Mercalli Modified Scale (MMS). Unfortunately, recent macroseismic practices in the European Union (European Macroseismic Sacale EMS-98) do not consider earthquake environmental or ground effects for intensity assessments [4]. In this byzantine situation the ESI-07 scale provides tools for intensity assessments independent from building damage and help to understand the contribution of EEEs to the global damage recorded in localities within epicentral areas [1,5].

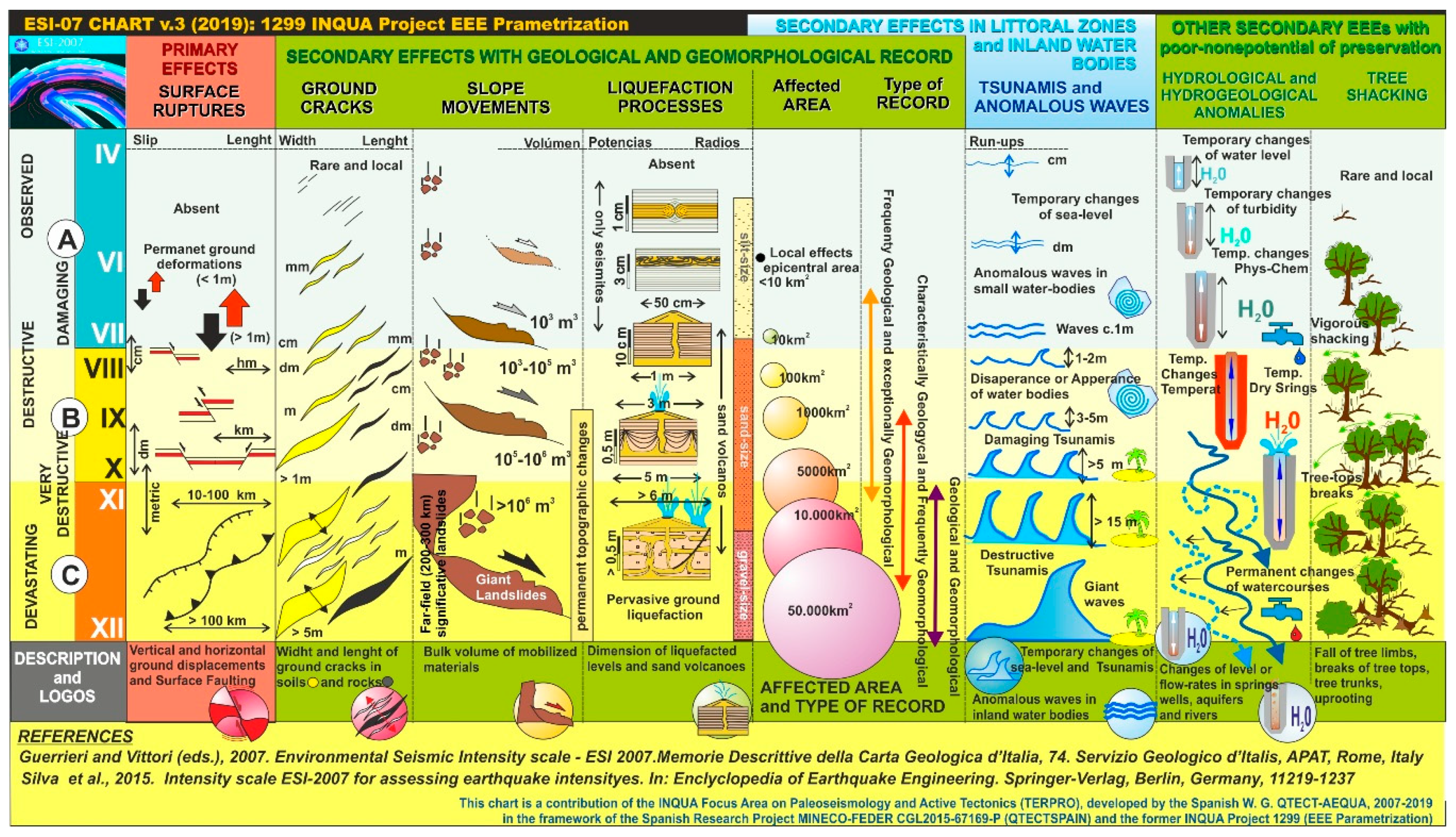

As with the traditional scales, the ESI-07 scale is a 12-degree intensity scale (Figure 1) only based on analysis and dimensions of EEEs, whose documentation has seen a considerable growth in the past decades, considering secondary (i.e., landslides, liquefaction, tsunamis, etc.) and primary (surface faulting, tectonic uplift) EEEs [3]. However, EEEs in the ESI-07 scale start to be observable, but marginal, from intensities up to IV–V; evident and noticeable from intensities VI–VII; but evident and characteristic triggering permanent changes in the geological and geomorphological record for intensities ≥IX [5] (Figure 1). In this last group EEEs become dominant, characteristic and diagnostic for intensities IX–X, when commonly building damage is nearly saturated in the traditional macroseismic scales. From intensities up to X building damage is saturated in most of the cases and EEEs are the unique tool for an adequate intensity assessment [1]. The ESI-07 scale aims to catalogue EEEs with a multiple purpose [5]:

• To complete historical records of earthquakes for a more fine-tuning of intensity assessments.
• To link historical EEE records with paleoseismological data in the zone/fault of interest.
• To include paleoseismological and geological earthquake records in seismic hazard assessments (SHA).
• To assess intensities in modern earthquakes both in urban and no-urban areas where EEEs occurred and participated in the recorded damage. This point is critical for the future refinement of the scale.

In summary, analyses of EEEs try to enlarge the temporal period of macroseismic observations and data some thousand years ago to the more recent geological past, commonly to the last 10,000–12,000 years BP (i.e., Holocene epoch) [1,5,6]. This fact is essential to perform the scientific analysis of a particular geological process (Seismic Cycle) which normally exceeds the temporal scales commonly considered in the conventional seismic catalogues [5]. In the case of Spain, the official catalogue of historical earthquakes extends to the year 800 BCE [7]. However, as noticed in recent macroseismic reviews, the historical data are scarce and doubtful before the year 1000 CE, and nearly accurate for strong events from the 14th–15th centuries [8,9,10]. This implies about 500–600 years of useful macroseismic record for Spain, which in turn are the approximate return periods used in SHA for seismic codes [11,12].

2. The Content of the Catalogue

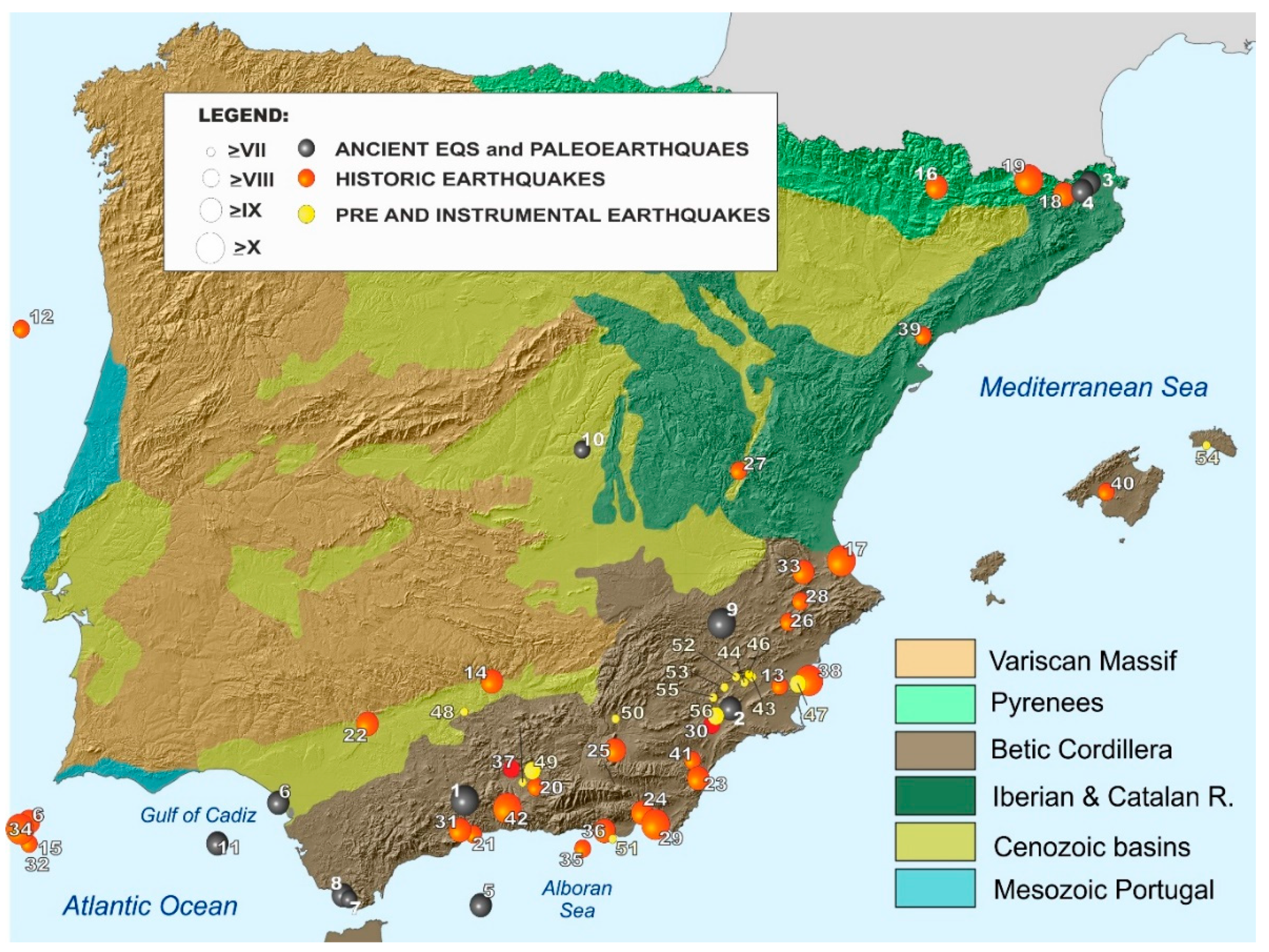

The catalogue includes data for the 51 strongest earthquakes felt in the Iberian Peninsula from the Neolithic period to the present (Figure 2). The reviewed earthquake list also incorporates the well-known AD 1755 Lisbon earthquake-tsunami with 753 catalogued EEEs including the far-field natural anomalies recorded in the British Islands, Central-Northern Europe, Africa and The Caribbean Sea. The catalogue also considers geological information for ancient earthquakes only documented in archaeological sites, differentiating several types of earthquake archeological effects (EAEs) of the classification [13]. Among the most ancient events included in the catalogue are those of the Cueva del Toro in Antequera (Málaga) of Neolithic age (c. 3700 BCE) [14] and the Bronze Age event of La Tira del Lienzo in Totana, Murcia (c. 1550 BCE) [15]. A surface rupture affecting dry masonry walls along the well-known Lorca-Alhama de Murcia left-lateral fault in the Eastern Betic Cordillera documents this Bronze Age earthquake. This fault is also responsible for the last damaging earthquake that occurred in Spain, the 2011 CE Lorca event (5.1 Mw) which produced about 250 EEEs (mainly slope movements) with a maximum intensity of VIII ESI-07 [16] of which the more relevant 49 EEEs have been catalogued [10]. The macroseismic area of this instrumental earthquake was located few kilometers north of Lorca in a nearly depopulated area without EMS assessments, but in which important collapses of the subvertical slopes of dry creeks massively occurred coinciding with the area where the earthquake epicenter was located [10]. This fact illustrates the value of the ESI-07 scale even for instrumental events, since this area of massive slope collapses identified an ESI intensity VIII, whilst the EMS assessments only quoted a maximum intensity of VII EMS in the locality of Lorca [16]. Figure 2 illustrates the distribution of the 51 catalogued events around the Iberian Peninsula identifying the Betic Cordillera (southeast) and the Pyrenees (north) as the two main zones where the convergence between the two large tectonic plates of Eurasia and Africa trigger the ongoing seismotectonic activity. A third important zone is the Gulf of Cádiz and the southern Portugal offshore area, “locus” of nucleation of strong historical earthquake-tsunami events in response to the suspected lithospheric delamination of the Atlantic oceanic floor beneath the Iberian Peninsula (Figure 2) [17,18].

The newly edited catalogue is an official publication of the Geological Survey of Spain (IGME) and does not aim to substitute the running seismological catalogues based on historical data written in EMS language [7]. Furthermore, the published ESI-07 Catalogue [10] incorporates all the available EMS macroseismic data to produce hybrid ESI-EMS Intensity maps as suggested in the guidelines of the ESI-07 scale [3]. Therefore, the variety of geological, geoarchaeological, archaeological and historic information summarized in the catalogue aims to complement the existing EMS seismic catalogues to improve (or refine) seismic scenarios for historical and instrumental earthquakes for their further application to SHA studies [19] and to earthquake drills [20]. The compilation of the information started in the year 2008 [12] leading to the first edition of the catalogue in 2014 [20] and this second edition (revised and expanded) in the present year [9], resulting in the most complete edition of a catalogue on geological effects of the earthquakes at national scale [10]. The next sections explain the content, structure and the variety of graphical information included in the Spanish EEEs catalogue.

3. Type of Catalogued Earthquakes

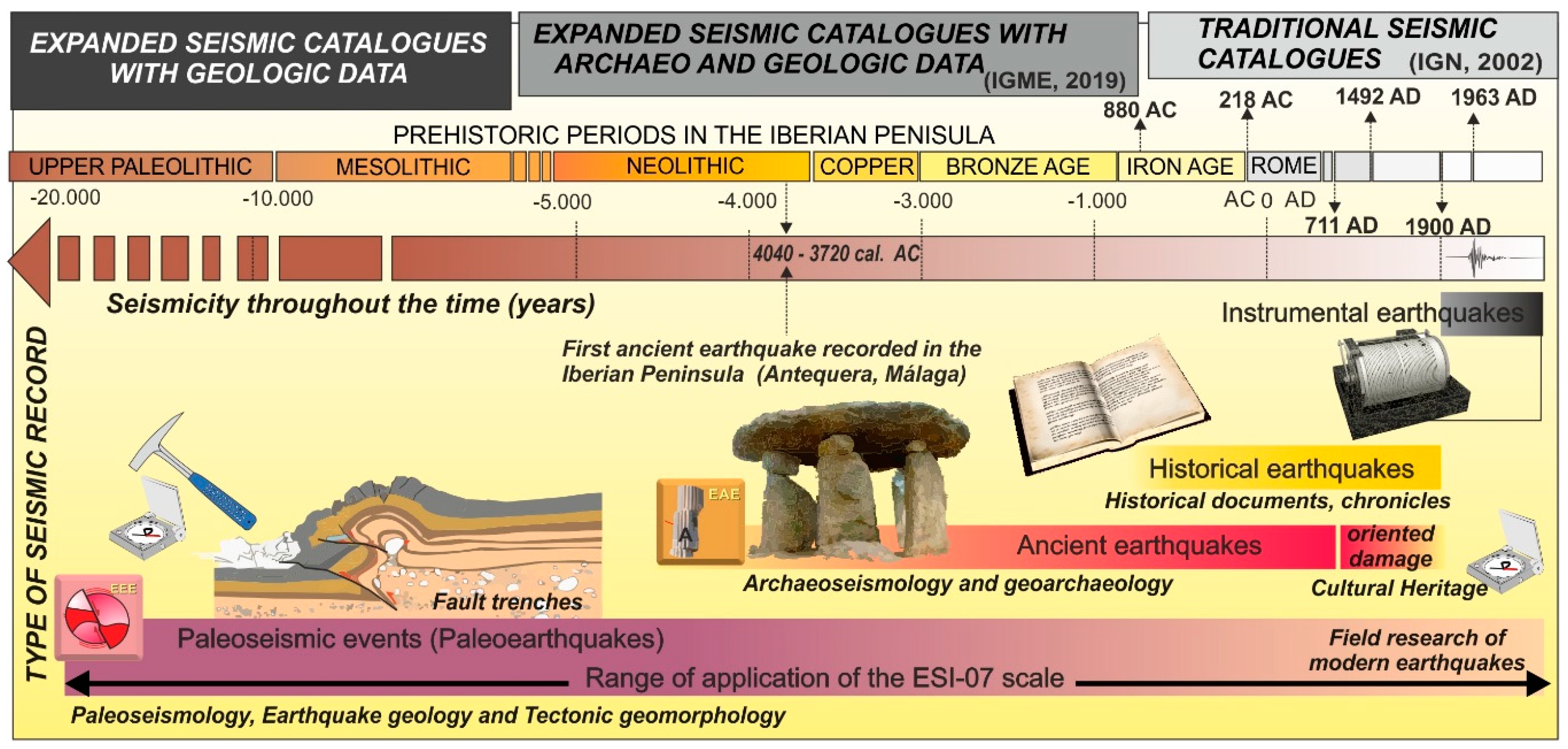

Conventional seismic catalogues include information for historical and instrumental earthquakes, the last commonly available from the first quarter of the 20th century for most of the European countries. In contrast, the Spanish catalogue differentiates five types (or periods) of seismic events for which the seismic information comes from different sources, with a variety of geological, archaeological or geoarchaeological data. Figure 3 illustrates the provenance and use of the different typology of macroseismic information used for the elaboration of the ESI-07 catalogue [10]. The different types of events are the following:

(a)

Instrumental Earthquakes (Code: INS) occurred since AD 1963 to the present and recorded by the National Seismic Network of the “Instituto Geográfico Nacional” (IGN). These types of events have the more precise instrumental records, mainly from 1988 CE [21], complemented with quality macroseismic information. In some cases, there are specific field reports produced by official institutions (i.e., IGN, IGME and IAG) or Civil Protection for those that occurred from 1995 CE. Five events of this type have been catalogued, one of them with complete information (

Table 1. Parametric list of pre-instrumental (1900–1963) and instrumental earthquakes (after 1963) included in the Spanish catalogue [10] with their corresponding “Quality indexes” discussed in text. Earthquakes in bold corresponds to those with “full event files”; the remainder events have only summarized information in “event files”. Two earthquakes are still under study. See Figure 2 for earthquake location.

Year (CE)	Month & Day	Longitude	Latitude	Quality Qe Qi Qg	Magnitude	EMS-98	ESI-07	Location	Code Number
1911	Mar 21	1°15′ O	38°01′ N	AIC	5.7 Ms	VII-VIII		Torres de Cotilla. Murcia	43. PRE 19110321
1911	Apr 03	1°12′ O	38°06′ N	AIC	5.3 Ms	VIII	VIII	Lorquí. Murcia	44. PRE 19110403
1911	May 31	3°42′ O	37°12′ N	AIC	4.9 Ms	VII-VIII	VIII	Santa Fe. Granada	45. PRE 19119531
1917	Jan 28	1°21′ O	38°01′ N	AIC		VI-VII		Torres de Cotilla. Murcia	46. PRE 19170128
1919	Sep 10	0°50′ O	38°05′ N	AIB	5.2 Ms	VIII	VIII	Jacarilla. Alicante	47. PRE 19191010
1930	Jul 05	4°38′ O	37°35′ N	AIB	5.4 Ms	VII-VIII		Montilla. Cordoba	48. Under study
1956	Apr 19	3°41′ O	37°11′ N	IIB	5.0 Ms	VIII	VIII	Albolote. Granada	49. PRE 19560419
1964	Jun 09	2°34′ O	37°44′ N	IIB	4.8 mb	VIII	VIII	Galera. Granada	50. PRE 19640609
1993	Dec 23	2°55′ O	36°46′ N	III	5.0 Mw	VII		Adra. Almería	51. Under study
1999	Feb 2	1°50′ O	38°10′ N	III	4.8 Mw	VII	VII	Mula. Murcia	52. INS 19990202
2002	Aug 6	1°51′ O	37°53′ N	III	5.0 Mw	VI	VI	Bullas. Murcia	53. INS 20020806
2003	May 21	3°42′ O	36°541′ N	III	6.8 Mw	I	VI*	Mahón (tsunami*) Balearic Islandas	54. INS 20030521
2005	Jan 29	1°45′ O	37°51′ N	III	4.8 Mw	VII	VII	La Paca. Murcia	55. INS 20050129
2011	May 11	1°42′ O	37°43′ N	III	5.2 Mw	VII	VIII	Lorca. Murcia	56. INS 20110511

) which corresponds to the Lorca 2011 CE earthquake—the only one with a specific geological field report produced by the Geological Survey of Spain [22].

(b)

Pre-Instrumental Earthquakes (Code: PRE) occurred between the years AD 1900 and 1962. This is a special period in Spain between the installation of the first mechanical seismographs and the implementation of the National Seismic Network (“Red Sísmica Nacional”) [21]. These types of events have macroseismic information of different quality from old seismic records and field reports. In general, most of this type of events are the worst documented ones from the point of view of the geological effects. The catalogue includes seven (7) events of this type, two of them with complete macroseismic information (Table 1).

(c)

Historical Earthquakes (Code: HST) are documented by written historical sources from the year 800 BCE to 1900 CE. For this type of events the information is of macroseismic character but strongly supported by the analysis of the geological effects (EEEs) reported in historic documents and newly studied archaeoseismological data (EAEs), especially for those occurred after the 1755 CE Lisbon Earthquake-Tsunami for which field earthquake reports are common. Forty-one events of this type have been catalogued, nine of them with complete macroseismic information (

Table 2. Parametric list of historical, ancient and paleoseismic events included in the catalogue with their corresponding “Quality indexes” discussed in text. Earthquakes in bold corresponds to those with “full event files”; the remainder events have only summarized information in “Event files”. Two historical earthquakes are still under study. See Figure 2 for earthquake location.

Year (CE)	Month & Day	Longitude	Latitude	Quality Qe Qi Qg	Magnitude	EMS-98	ESI-07	Location	Code Number
4200–3700 BCE		4°32′ O	36°57′ N	CCG	≥ 6.7 Mw		≥ IX	Cueva del Toro. Antequera. Málaga	1. APQ 004AC3700
1900–1550 BCE		1°29′ O	37°47′ N	GGG	6.4 Mw	≥ VIII	≥ VIII	Tira del Lienzo. Totana, Murcia	2. APQ 002AC1550
800 BCE		2°46′ E	42°20′ N	CCC			≥ VIII	Pirineos Orientales Alto Ampurdán. Gerona	3. HST 001AC800
575–500 BCE		2°46′ E	42°20′ N	CCC			≥ VIII	Pirineos Orientales Alto Ampurdán. Gerona	4. HST 001AC 575
570–500 BCE		10°00′ O	36°28′ N	CCC			≥ VIII	Andalucía, Mar Alborán. Mediterranean	5. HST 001AC500
218–209 BCE		9°42′ O	36°38′ N	GGG	≥ 8.0 Mw		≥ IX	Lacus Ligustinus: SW Cabo San Vicente, Atlantic Ocean	6. GEO 001AC218
040–060 CE		5°46′ O	36°05′ N	QQG	≥ 5.5 Mw	≥ VIII	≥ VIII	Baelo Claudia. Bolonia. Cádiz	7. ARQ 004060
260–280 CE		5°46′ O	36°05′ N	QQG	≥ 5.5 Mw	≥ VIII	≥ VIII	Baelo Claudia. Bolonia. Cádiz	8. ARQ 0260280
300–400 CE		1°39′ O	38°35′ N	GGG	6.8 Mw		X	Illunum Tobarra. Albacete	9. GEO 0300400
350–400 CE		3°19′ O	40°30′ N	QQG	≥ 5.5 Mw	≥ VIII	≥ VIII	Complutum, Alcalá de Henares, Madrid	10. ARQ 0350400
881 CE	May 26	8°00′ O	36°00′ N	DCC	7.2 Mw	XI-X	XI	Golfo de Cádiz. Atlantic Ocean	11. HST 08810000
949 CE				DCC				Zamora - Oporto. Atlantic Ocean	12. HST 09490000
1048 CE		0°55′ O	38°05′ N	DCQ		VIII	VIII	Orihuela. Alicante	13. HST 10480000
1169 CE	Jan 21	4°00′ O	38°00′ N	DCQ	6.0 Mw	VIII-IX	IX	Andújar. Jaén	14. HST 11690121
1356 CE	Agu 24	10°00′ O	36°30′ N	DCC	6.5 Mw	VIII		SW. Cabo San Vicente. Atlantic Ocean	15. HST 13560824
1373 CE	Mar 02	0°45′ O	42°30′ N	CCG	6.2 Mw	VIII-IX	IX	Ribagorça, Lerida	16. HST 13730302
1396 CE	Dec 18	0°13′ O	39°05′ N	BBB	6.5 Mw	VIII-IX	X	Tavernes de Valldigna. Valencia	17. HST 13961218
1427 CE	May 15	2°30′ E	42°12′ N	BBG		VIII-IX	IX-X	Olot. Gerona	18. Under study
1428 CE	Feb 02	2°10′ E	42°21′ N	BBG		IX-X	IX-X	Queralbs. Gerona	19. Under study
1431 CE	Apr 24	3°38′ O	37°08′ N	CBB	6.7 Mw	VIII-IX	≥ VIII	Sierra Elvira. Granada	20. HST 14310424
1494 CE	Jan 26	4°20′ O	36°35′ N	CBB		VIII	VIII	Málaga. Málaga	21. HST 14940126
1504 CE	Apr 05	5°28′ O	37°23′ N	BAA	6.8 Mw	VIII-IX	IX	Carmona. Sevilla	22. HST 15040405
1518 CE	Nov 09	1°52′ O	37°14′ N	BBA		VIII-IX	IX	Vera. Almaría	23. HST 15181109
1522 CE	Sep 22	2°40′ O	36°58′ N	DBB	6.5 Mw	VIII-IX	IX	W. Alhama de Almería. Almería	24. HST 15220922
1531 CE	Sep 30	2°44′ O	37°32′ N	CBB		VIII-IX	IX	Baza. Granada	25. HST 15310930
1620 CE	Dec 02	0°28′ O	38°42′ N	CBB		VII-VIII	VIII	Alcoy. Alicante	26. HST 16201202
1656 CE	Jun 07	1°14′ O	40°05′ N	BBB		VIII	VIII	Ademuz. Valencia	27. HST 16560607
1644 CE	Jun 19	0°25′ O	38°48′ N	CBB		VIII		Muro de Alcoy. Alicante	28. HST 16440619
1658 CE	Dec 31	2°28′ O	36°50′ N	DBC		VIII	X	Almería. Almería	29. HST 16581231
1674 CE	Agu 28	1°42′ O	37°41′ N	BBB		VIII		Lorca. Murcia	30. HST 16740828
1680 CE	Oct 9	4°36′ O	36°48′ N	BAB	6.8 Mw	VIII-IX	IX	NW de Málaga. Málaga	31. HST 16801009
1722 CE	Dec 27	7°46′ O	36°24′ N	CBC	6.5 Mw	VIII		Golfo de Cádiz. Atlantic Ocean	32. Under study
1748 CE	Mar 23	0°38 O	39°02′ N	AAA	6.2 Mw	IX	IX	Estubeny. Valencia	33. HST 17480323
1755 CE	Nov 01	10°00′ O	36°30′ N	DAA	8.5 Mw	XI-XII	XI	Lisbon Event: SW Cabo San Vicente. Atlantic Oc.	34. HST 17551101
1804 CE	Jan 13	3°35′ O	36°05′ N	CAB	6.7 Mw	VII-VIII	VIII	Almería, Mar Alborán Mediterranean	35. HST 18040113
1804 CE	Agu 25	2°50′ O	36°46′ N	BAB	6.4 Mw	VIII-IX	IX	Dalías. Almería	36. HST 18040825
1806 CE	Oct 27	3°44′ O	37°14′ N	ABB	5.3 M	VIII		Pinos-Puente. Granada	37. HST 18061027
1829 CE	Mar 21	0°41′ O	38°05′ N	AAA	6.6–6.9 Mw	IX-X	X	Torrevieja. Alicante	38. HST 18290321
1845 CE	Oct 07	0°45′ E	41°02′ N	BBA	5.1 Mw	VI-VII	VII	Tivissa. Tarragona	39. HST 18451007
1851 CE	May 15	2°40′ E	39°38′ N	BAA	≥ 4.5 Mw	VII	VII	NE Palma de Mallorca. Balearic Islands	40. HST 18510515
1863 CE	Jun 10	1°56′ O	37°22′ N	AAA	4.2–4.6 Mw	VI-VII	VIII	Huércal-Overa. Almería	41. HST 18630610
1884 CE	Dec 25	3°59′ O	37°00′ N	AAA	6.5–6.7 Mw	IX-X	X	Arenas del Rey. Granda	42. HST 18841225

).

(d)

Ancient Earthquakes (Code: ARQ). Mainly documented by archaeological and geoarchaeological data (EAEs) and supported by a variety of geological data (EEEs), but still not included in the conventional EMS catalogues [7] or in the updated on-line databases of the National Seismic Network [23]. As aforementioned, within this category the more ancient ones are the Neolithic event documented in “La Cueva del Toro” in Antequera (Málaga) and the Bronze Age event of “La Tira del Lienzo” (Murcia) located just above the trace of the Lorca-Alhama de Murcia fault. However, the more significant events included in this category are those that occurred during the Roman Period in Spain documented in the archaeological sites of “Baelo Claudia” [24] in Tarifa (Cádiz) and “Complutum” [25] in Alcalá de Henares, 25 km south of the city of Madrid. There are five (5) events catalogued for this category, three of them with complete macroseismic information (Table 2).

(e)

Paleoearthquakes or paleoseismic events (Code: GEO) with only geological record, albeit in some cases supported by limited geoarchaeological data. This type of event covers from the most ancient historical periods in Spain (c. 10th century CE) to the onset of the Holocene epoch (c. 11.2 ka BP) and they are not included in the conventional seismic catalogues as commonly occurs with the ancient earthquakes. These events are documented in scientific papers published during the 21st century, and they correspond to fault-trenching analyses (primary surface ruptures) or EEEs analysis (primary and secondary effects). Those related to fault-trenching studies correspond to surface-faulting events (≥7.0 Mw) that occurred during the late Holocene. However, there are fault-trenching data for some ancient earthquakes such as the Tobarra (Albacete) that occurred around the 500 CE [26] or Historical events such as the Arenas del Rey (Granada) that occurred in 1884 CE [27]. Another case of paleoearthquake largely documented by secondary EEEs is the 218 BCE Lacus Ligustinus event recorded in the present “Doñana Marshlands” (an ancient lake by that time) at the Guadalquivir river outlet in the Gulf of Cádiz (Atlantic Ocean) [28]. These authors identify an earthquake-tsunami event similar to the 1755 CE Lisbon event flooding the ancient roman embayment and breaking the existing littoral spit-bars. Other authors document this event in turbidite layers obtained in deep sea cores in the Atlantic ocean near the Gorringe Bank [29] or in other marshlands of the Gulf of Cádiz, such as the Odiel and Tinto river mouths at Huelva or the Guadalete river mouth near Cádiz [30,31]. It is to note that the Lacus Ligustinus event is the unique geological event with historical written records describing the destruction of Cádiz just before the march of Hannibal to Rome across the Alps in the beginning of the Second Punic War in 218 BCE [32]. All these paleoseismic events are supported by a significant number of geochronologic data (¹⁴C, OSL and TL data), as is also the case for most of the ancient earthquakes further documented by archaeological data.

4. Type of Information for the Catalogued Earthquakes.

The written documentary information is unequal for the different historical periods of Spain [8]. The conventional seismic catalogues only include eighteen (18) earthquakes previous to the sixth century CE, most of them suspected strong events that occurred in the Gulf of Cádiz, the Atlantic Portuguese coast or the Pyrenees [7]. The oldest ones (years 800 to 500 BCE) correspond to suspected events that occurred near the first settlements of the Phoenicians in the Pyrenees (Emporiom, Gerona) or in the Gibraltar Strait (Gadir, Cádiz). However, most of these old historic earthquakes correspond to those that occurred during the Roman period (third century BCE to fifth century CE) in the southern zone of the Iberian Peninsula. More consistent historical data appear from 800 CE by Muslim historians [5], but is not until the Reconquest of the Iberian Peninsula by the Catholic Kings in the 1492 CE, when earthquake data start to be really of quality and representative. Fifty-eight earthquakes are catalogued before this date, half of them (29) for the period between the 11th and 16th centuries CE [10]. The number of historical events catalogued between 1500 and 1800 CE is around 500 which contrast with the about 1200 ones catalogued for the 19th century alone [19]. These numbers help to illustrate the unequal written historical information for seismic events in Spain, even though a majority of the strong earthquakes (≥VIII EMS) occurred after the 10th century can be considered catalogued. This situation is not the same for those historic events that occurred before the 10th century, when the near absence of written seismic information is noticeable including the roman and visigothic periods (218 BCE–711 CE). The low quality of historical data for these period implied that most of these historical earthquakes were removed from the official seismic database of the IGN [23]. After the critical review of Udías [5], only 32 earthquakes remain catalogued before 1500 CE, all them within the present Common Era (CE), and 23 of them occurred in the period 1000–1500 CE (Figure 4). This seismic account contrasts with the about 480 events catalogued for the period 1500–1800 CE and the near 1200 earthquakes catalogued for the 19th century (excluding foreshocks and aftershocks events) still remaining in the official seismic databases (Figure 4) [23].

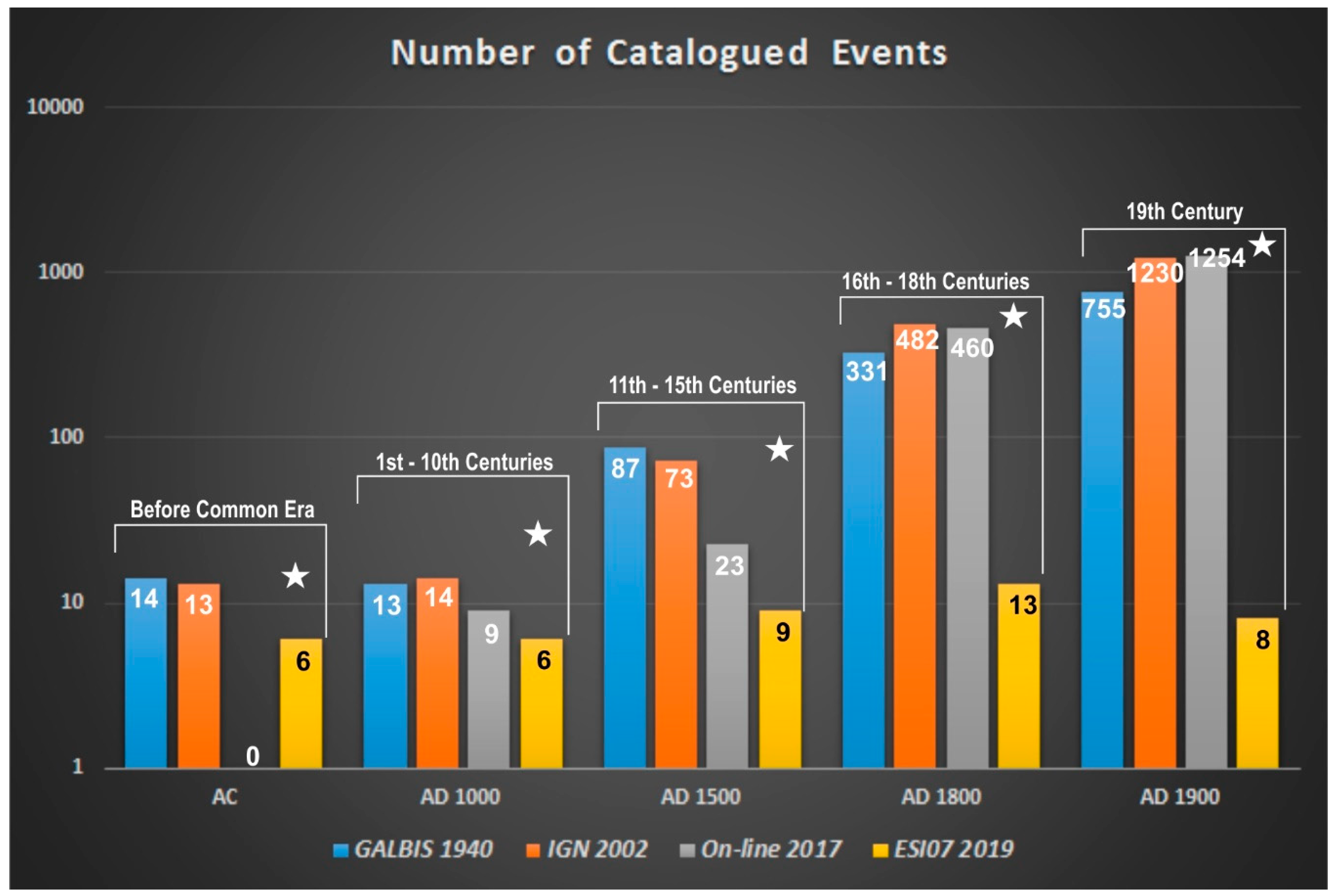

Figure 4 displays the evolution on the number of earthquake events catalogued for the different historic periods of interest discussed here. It is evident than independently of the nature of seismic information (written sources, archaeological or geological), there is a clear incompleteness of the record of seismic events before the year 1500 CE, and especially for those that occurred prior to 1000 CE. This is a typical artifact present in nearly all the seismic catalogs for the Mediterranean region [33].

These modern seismic practices largely contrast with the increasing number of ancient events recovered from paleoseismological and archaeoseismological studies for the visigothic, roman, phoenician periods and earlier ones (i.e., Bronze Age, Neolithic) [10] in Spain. It is for these ancient periods that geological and archaeological information is critical to recuperate old “lost events” no documented by written sources, leading to expand the seismic catalogues to the most recent geological record [34]. As evidence of these trends, since the end of the compilation of information for the published catalogue, three more ancient earthquakes were recovered. This is the case of the roman events of Idanha (Portugal) and Mulva-Munigua (Sevilla) that occurred during the 4th–5th centuries CE [35,36], as well as the suspected seismic event of Phoenician age (7th century BCE) documented in the Lower Segura Basin at Alicante [37].

Nevertheless, the geological and archaeological research of historical earthquakes has also been largely incorporated in the published catalogue, especially that related to damage to the historic heritage. This ESI-based investigation complements the EMS data allowing upgrading and completing macroseismic information especially in the county-side and depopulated areas, as does the geological investigation of instrumental earthquakes. This last will help to improve and refine data to update the ESI-07 scale in the future, but also to understand the assemblages and patterns of oriented building damage in relation to well-constrained seismic sources by instrumental data, as was the case of the 2011 Lorca earthquake in Spain [22,38].

The different nature of the information incorporated in the catalogue made necessary the use and combination of different types of macroseismic scales or classifications, such as the earthquake environmental effects (EEEs) of the ESI-07 scale, the destructive effects, or the tsunami environmental effects (TEEs) recently classified in the TEE-16 Scale [39]. These last are a complement and refinement to the ESI-07 scale on paleo-tsunami records. In the same way, the archaeological record of earthquake archaeological effects (EAEs) scaled in the works of Rodríguez-Pascua et al. [13,40] have been considered. Regarding EEEs in the ESI-07 scale, the Spanish catalogue [10] differentiates between tsunami effects (TSU) and anomalous waves (AW) in inland water bodies, such lakes, dams, rivers, etc. (Figure 1). In the same way, ESI-07 hydrologic effects have been split in two different categories: (1) hydrological effects (HA) such as changes in level or flow rates in water wells, springs and fountains; and (2) hydrogeological effects (HD) related to changes in physico-chemical properties, temperature, turbidity, etc. The rest of secondary EEEs, such as ground cracks (GK), slope movements (SM), liquefaction (LIQ) and other effects (OT), maintain their status and meaning as originally defined in the ESI-07 scale (Figure 1) [3].

5. Quality of the Seismic and Geological Information for the Catalogued Earthquakes

For all the catalogued earthquakes, source location parameters (date, origin time and geographical coordinates) correspond to those published in the catalogue of historical earthquakes of the IGN [7], except for those events not catalogued by this institution. Likewise, we consider convenient to introduce the indicative quality parameters on the “epicentral source location” (Qe) and “maximum epicentral intensity” (Qi) implemented for the abovementioned IGN catalogue, as well as the evaluation of the related theoretical “Moment Magnitude” (Mw) estimated by means of empirical relationships of magnitude–intensity specifically developed for that catalogue [7]. In spite of the publication of more recent source location and size parametric data on the historical and pre-instrumental seismicity for Spain [41], we preferred to keep the original source parameters listed in the official catalogue and databases of the IGN [7,23] since the new published data are not official data.

5.1. Quality of Source Location Determinations (Qe)

Regarding the source location data, the geographical coordinates of the macroseismic epicenters are given as sexagesimal degrees and full minutes, equivalent to a precision of about ± 1.5 km sufficient for the entire historical catalogued period [7]. However, for the most recent earthquakes that have occurred since the year 1900 more detailed source location data were extracted from the IGN databases [23].

The quality parameter for the source location (Qe) presents five different classes with the following quality indexes:

• Quality A (location error <10 km): macroseismic epicenter surrounded by several macroseismic data-points, whose density allows estimating the source location with an uncertainty ± 5 km. This category, of course includes those earthquakes instrumentally recorded after the year 1963 CE (labelled as Quality I).
• Quality B (location error <20 km): macroseismic epicenter defined by a small number of macroseismic data-points, which density allows estimating the source location with an uncertainty ± 10 km. The epicentral determinations for some of the earthquakes recorded between 1900 and 1963 CE (Spanish pre-instrumental period) are very imprecise and most of the events occurred in that period hold B quality (some even C).
• Quality C (location error 20–50 km): macroseismic epicenter located in a continental area defined by a single macroseismic data-point or by a few ones very distant each other. These can present an uncertainty above ± 25 km, normally within a radius of 50 km.
• Quality D (location error >50 km): macroseismic epicenter located in a coastal locality as the unique macroseismic data-point, or those that occurred offshore which can be poorly defined assuming location uncertainties above ± 25 km. This quality-class also includes very ancient historical earthquakes recorded by vague and generic written descriptions refereed to very broad regions, such as Gulf of Cádiz, Atlantic Ocean, Mediterranean coast and the Pyrenees. This is the general case for most of the catalogued historical earthquakes before the 10th century BCE around the Iberian Peninsula.
• Quality Q (location error <20 km): Events not recorded by written sources with an only point, or very few points with archaeoseismic and/or paleoseismic information. This quality-class includes those earthquakes with limited archaeoseismic information indicating ground shaking (building fabric EAEs) or occasional paleoseismic information related to secondary earthquake environmental effects (EEEs), avoiding the identification of any reliable epicenter. In these cases, the provided geographical coordinates correspond to the more relevant archaeoseismic or paleoseismic data-points related to the catalogued event. In most cases, these correspond to near-field effects occurring to epicentral distances down to 20 km, and by the acquired experience, the uncertainty would be even down to ±5 km considered for the “Quality A” events.
• Quality G (location error <10 km): The available information is only of geologic nature, providing the geographical coordinates to the investigated points with paleoseismic information regarding primary EEEs of the ESI-07 scale, such as surface ruptures, fault scarps or fault-trenching analysis defining the seismic source. Consequently, this quality-class may hold more accurate locations than the “Quality A” events. In the case of the record of an important number of secondary EEEs the provided geographical coordinates are those corresponding to the zones where EEEs display largest dimensions, frequency or number (consequently intensity). These zones generally define areas no larger than a few squared kilometers wide, where the true macroseismic epicenters are located. This is not valid for strong offshore events or zones with an important proved susceptibility to ground shaking amplification.

These two last quality-classes (Q and G) were introduced in the Catalogue of geological effects of earthquakes by Silva et al. [10,12], whilst the previous classes (A, B, C, and D) are those already developed for the Catalogue of historical earthquakes in Spain [7]. Classes Q and G also include the generic date of the earthquake as provided by the battery of isotopic dates (¹⁴C, Th/U, OSL, TL, ESR, etc.) available for the archaeoseismic or paleoseismic data-points, as well as morphometric or archaeological relative dates for particular cases.

5.2. Quality of Earthquake Intensity Assessments (Qi)

The new published Spanish ESI-07 catalogue introduces the maximum intensity value assessed from the ESI-07 scale, but earthquake intensities estimated from other macroseismic scales are also listed and considered. This is the case for the intensity values corresponding to the European Macroseismic Scale (EMS-98) [7] and the Mevdéved–Sponheuer–Karnik Scale (MSK-81) applied in previous Spanish catalogues [42]. As is known, the MSK and EMS scales are nearly equivalent, with the exception that EMS mainly considers building damage, with the exclusion of environmental damage and geological effects of earthquakes for intensity assessments, which is one of the causes for the development of the ESI-07 scale [2].

It is also convenient to indicate that the EMS-98 scale does not consider damage on buildings of historical heritage (Castles, Fortress, Cathedrals, Old Churches, etc.) for intensity assessments [4]. This is a serious inconvenience for evaluating the intensity of historical earthquakes for which the most complete information comes from the description of the damage that occurred in this type of building. This fact has an important impact for earthquakes that occurred before AD 1500, for which written documentation is sparse, and only the analyses of EAEs preserved in these patrimonial buildings or archaeological sites allow estimating the earthquake size [38]. Accordingly, intensity assessments developed for the catalogue display better similarity to those of the ancient catalogues with the MSK scale than the most recent ones based on the EMS scale. In general, an old maximum intensity IX MSK is nowadays converted in a maximum intensity VIII–IX or VIII EMS in the most recent catalogues and databases of the IGN [7,23]. This generally occurs for most of the historical earthquakes between VIII and X intensity in the previous MSK catalogues. This means that the application of the EMS-98 scale in Spain resulted in the reduction of one to half degree with respect to those corresponding to the MSK-81 or ESI-07 scales, which has special negative incidence in the more recent SHA studies in Spain [11]. These evaluate horizontal ground accelerations from the conversion of EMS intensities from historical events (last 450 years) by means of complex combinations of empirical relationships developed for other traditional (i.e, MM or MCS) macroseismic scales, inducing very probable underestimations for the ground movement [19]. As stated in the published catalogue [10], the EMS-98 scale is a nice technical guide for the quantification of building damage produced by recent earthquakes, but of limited application for historical events. Data on old historical events in Spain mainly provide information on environmental damage and significant buildings, now catalogued in the national cultural heritage lists, and the EMS scale does not consider damage on historical buildings and environmental effects for intensity assessments [4]. It is necessary to note that the intensity degrees ≥IX EMS-98 mainly base the intensity assessments on the effects on metallic structure buildings or quake-resistant ones, since the rest of buildings are destroyed at this stage. However, these types of buildings are virtually absent for all the historical periods of Spain, where the first modern seismic code was introduced at the end of the 20th century in the year 1994 (NCS-94). Consequently, the EMS-98 scale has a poor application for historical earthquakes not only in Spain, but also for most of the European territory.

The published catalogue attempts to document and graphically illustrate (photos, diagrams, sketches, drawings, maps, etc.) in the most exhaustive mode possible the large variety of EEEs recorded during the 51 stronger events that occurred in Spain. These have normally intensities ≥VIII for the pre-instrumental period, but some well-documented events of intensity VII that occurred after the year 1900 produced significant EEEs (Table 1). Nevertheless, the catalogue also lists the other important earthquake size parameter: the magnitude. In this case, all the events before the year 1900 have estimated magnitude (Mw) values coming from empirical relationships published in previous Spanish catalogues or recent scientific papers. In many cases the estimated Mw values may appear as bracketed values (i.e., 6.2–6.6) since published data provide different, but similar, magnitude values. This is relevant for those earthquakes only catalogued from paleoseismological data after fault-trenching analyses, where Mw evaluations came specifically from empirical relationships based on the work of Wells and Coppersmith [43]. Instead, events that occurred after the year 1900 are instrumentally recorded and magnitude values are well constrained.

In this way, the catalogue differentiates several quality classes in relation to the maximum known or geologically recorded intensity using the ESI-07 scale. In addition to the intensity points assessed by means of EEEs or EAEs, quality class also considers all macroseismic data-points with EMS information. The quality classes (Qi) are the following:

• Quality A: Density of points with macroseismic information is sufficient to undertake reliable intensity assessment. Normally, this class includes those earthquakes with more than 30 data-points, which generally refers to events that occurred after the 17th century CE.
• Quality C: The available points with macroseismic information are insufficient to undertake reliable intensity assessments. In some cases, there is a single data-point. These earthquakes include old events historically documented, but with little to no geological information, normally occurring before the year 1000 CE.
• Quality B: The accuracy of the intensity assessments is between the two previously mentioned quality classes. This is normally the case of those events that occurred between the 10th and 17th centuries CE. However, for some of them, macroseismic data-points are up to 15–20, including a variety of geological information on secondary EEEs.
• Quality D: EEEs ambiguously or roughly described in historical documents in reference to a region instead to particular localities, which lack modern geological studies. This is normally the case of all the catalogued events for the first millennia of the present era, but also most of the earthquakes that occurred before the present common era, with poor to no geological evidence. Descriptions such as “mountains and plains opened; the earth guzzled and engorged villages and hills; the sea shrank away, islands and islets disappeared; many villages in the southern and western coasts of Spain were totally ruined”, characterize this type of events. This corresponds to the translation of original Arabic text for the 881CE earthquake affecting the old Al-Andalus in South Spain.
• Quality G: EEEs related to historical or prehistoric events, normally not included in the conventional seismic catalogues. They are only documented by geological information coming from recent scientific paleoseismic and archaeoseismic published papers. In general, this quality class includes earthquakes that occurred during the first millennia of the present common era, particularly those that occurred during the Roman and Visigoth period in Spain, but also those only geologically documented.
• Quality I: EEEs linked to recent earthquakes that occurred during the 20th century and the onset of the 21st century. These events are instrumentally recorded and geological effects have been documented “in situ” after the earthquake by scientific commissions or groups of earthquake geologists interested in the event. This quality class normally has the best Qe, Qi and Qg quality indexes. However, as aforementioned some of the pre-instrumental period events (1900–1962 CE) have a poor Qg index with poorly defined descriptions of geological effects, similar to those of Quality B.

5.3. Quality of the Geological Information (Qg)

The published Spanish catalogue introduces a third quality index related to the value of available information on geological and environments effects of the earthquakes (EEEs) listed in the ESI-07 Scale. This quality index was specifically developed for this catalogue and considers the following quality classes:

• Quality A: EEEs widely documented by technical or field reports, scientific papers and journals of the earthquake epoch that have undergone modern geological research published in scientific papers, allowing the quantification of primary and or secondary effects. Generally, this class includes those events that occurred after 1800 CE (19th century), although some 18th century events were also well documented in this time (i.e., 1755 CE Lisbon Earthquake).
• Quality B: EEEs vaguely described in historical documents, but subject of modern published geological research. These events mainly correspond to those that occurred between the 15th and 19th centuries and most of those that occurred during the so-called “pre-instrumental period” in Spain (1900–1962 CE). These normally have good Qe and Qi indexes, but poor geological information, since the progressive implementation of seismographs in Spain during the first half of the 20th century resulted in increasingly worse field-reports.
• Quality C: EEEs ambiguously or roughly described in historical documents in reference to a region instead to particular localities, which lack modern geological studies. This is normally the case of all the catalogued events for the first millennia of the present Common Era, but also most of the earthquakes that occurred before the present Common Era, with poor to no geological evidence, with historical descriptions similar to that transcribed for the Quality C events of the Qi index.
• Quality G: EEEs related to historical or prehistoric events, normally not included in the conventional seismic catalogues. They are only documented by geological information coming from recent scientific paleoseismic and archaeoseismic published papers. In general, this quality class includes earthquakes that occurred during the first millennia of the present common era, particularly those that occurred during the Roman and Visigoth period in Spain, such as those recorded in Baelo Claudia [44], but also those only geologically documented.
• Quality I: EEEs linked to earthquakes that occurred during the 20th century and the onset of the 21st century. These events are instrumentally recorded and geological effects have been documented “in situ” after the earthquake by scientific commissions or groups of earthquake geologists interested in the event. This quality class commonly holds the best Qe, Qi and Qg quality indexes. However, as aforementioned some of the events of the pre-instrumental period (1900–1962 CE) have a poor Qg index with poorly defined descriptions of geological effects, similar to those of Quality B events.

5.4. Overall Quality for Earthquake Information

Taking into account these three different quality indexes (Qe, Qi, Qg) we have different quality-type events for which macroseismic information allows labelling the earthquakes as credited or poorly credited. In this way, “triple A” (AAA) and “triple I” (III) events can be considered as fully credited events with the most accurate assessments for source location, date and intensity. However, GGG and GQG events are credited with a similar quality than the AAA ones, these are also well-constrained events, but source locations in the near field are still doubtful (Table 1 and Table 2). On the contrary, CCC or DCC events are the poorly constrained events. In fact, most of this type of events included in the ESI-07 catalogue [10] have been recently removed from the official macroseismic databases of the IGN [23]. In that exercise, some of the well constrained geologically documented GGG, BGG or QGG earthquakes included in the new published catalogue [10] were also removed from the official macroseismic databases, since these still do not consider geological information [8]. This is the case of the 218 BCE Lacus Ligustinus event, which aside from being historically documented, has been identified by tsunamite deposits in all the littoral spit-bars and marshlands of the Gulf of Cádiz, as well as in offshore turbidite deposits near the suspected earthquake source area [28,29,30,31,32]. Whatever the case, all the double AA, double BB, AB or AI–BI events certainly occurred, but source parameters present some uncertainty. Only those labelled as CCC or some DCC are doubtful events (Table 2). These mainly correspond to those that occurred before the present common era (BCE) which are vaguely documented by historical written reports in relation to the first Phoenician and Greek settlements on the Spanish coast, around or fairly before the 500 BCE in the Pyrenees (Emporium) and the Gibraltar Strait (Gadir).

6. Event Files: Summarized Information for the 51 Catalogued Earthquakes

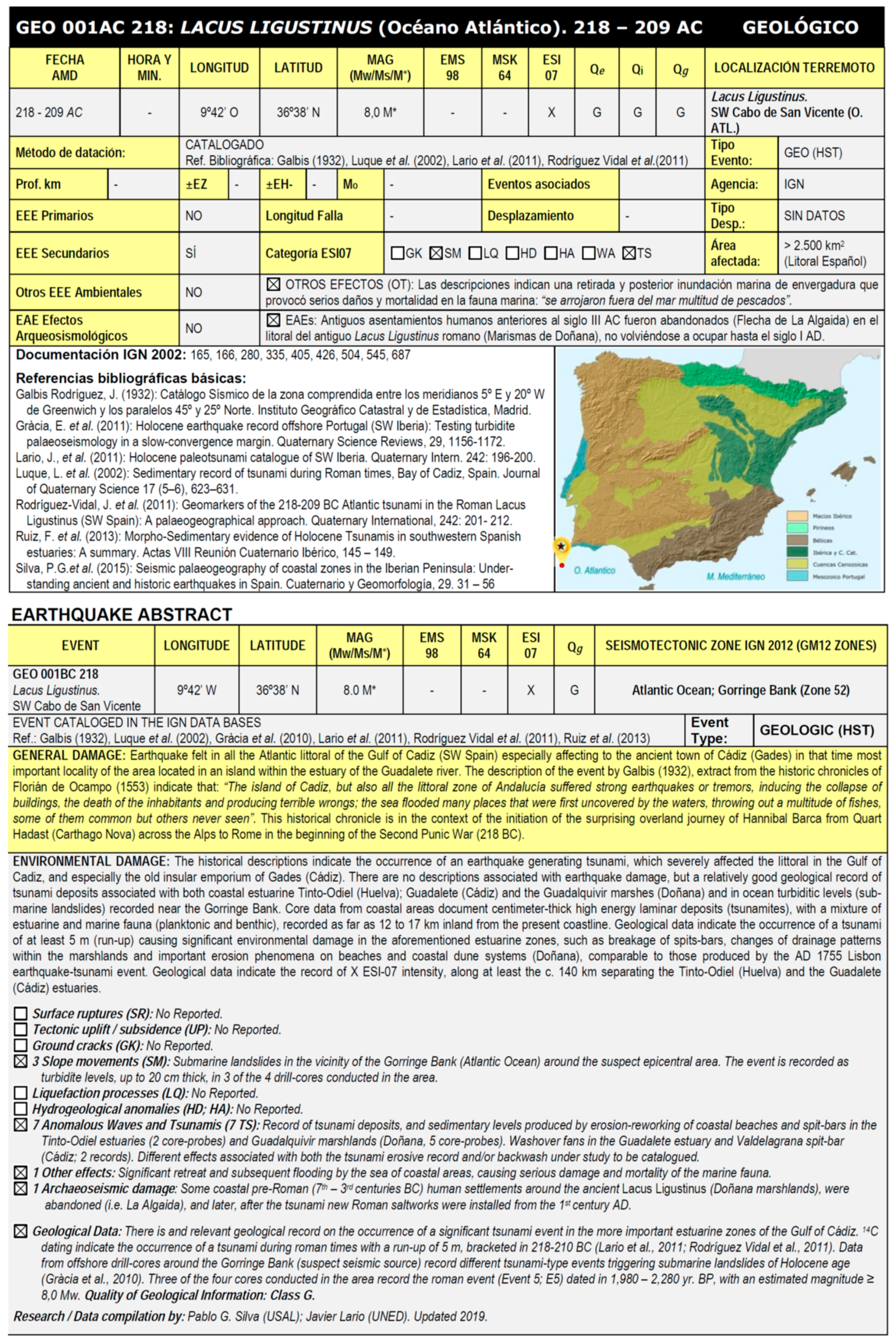

The information for each catalogued event has been summarized in a two-page file format (Event files) with one-page versions in Spanish and English (Figure 5). These files are available for the 51 catalogued events. They display a numerical summary of the abovementioned source and size parametric data and quality indexes. In the case of instrumental events (INS Code), data on source depth, location errors, recorded magnitude and occurrence of foreshocks and aftershocks is also included in the parametric summary. The maximum intensity in the different scales applied in Spain (MSK-80, EMS-98 and ESI-07) are displayed for all the events, as well as summarized data on the number and size of catalogued EEEs and significant EAEs where pertinent. Event files also include a numerical list of the historical documentation referring to the catalogued earthquake listed in the official catalogue of the IGN [7], as well as five to six key bibliographic references documenting earthquake environmental and building damage.

All the events have a Spanish “resumen” and an English “abstract” summarizing the type and number of the ESI-07 catalogued EEEs, as well as a brief description of the extension/nature of environmental damage (ESI-based) and general information on affected localities and building damage (EMS-based). The info also includes the location of the earthquake within the different “seismotectonic zones” (GM12 Zones) defined for the new “Upgraded Seismic Hazard Maps for Spain” elaborated after the 5.1 Mw 2011 Lorca earthquake to update the present Spanish Seismic Code [11]. Additionally, the “Event files” include a simplified geological map of the Iberian Peninsula displaying the location of the earthquake epicenter within the different structural units of Spain depicted in Figure 2: Alpine Cordilleras (Betics, Pyrenees, Iberian range, Catalan ranges); Palaoezoic-Variscan massif (west Iberia); and Cenozoic sedimentary basins (Tagus, Duero, Guadalquivir, Ebro basins). In the endnote of each “Event file” are displayed the name(s) and affiliation(s) of the author(s) in charge of the compilation and structuring of the macroseismic information.

The 51 catalogued events appear listed and ordered temporally (by date). Each “Event file” displays a code identifying the type of catalogued event (GEO, ARQ, HST, PRE or INS) followed by the corresponding date in numerical format YYYYMMDD (year/month/day); as an example, the most recent event catalogued, the 2011 Lorca earthquake has the code INS 20110511 (Table 1). The code for paleoseismic (GEO), archaeoseismic (ARQ) or historical (HST) events that occurred before the present Common Era (BCE or BC), for which there is only information of the year, the code identifies the millennia and the year (Table 2).

In the case of paleoseismic events with bracketed ages resulting from the uncertainty errors of the applied dating method documenting the earthquake always use the more recent date (year). As an example, the date of the most ancient catalogued earthquake (La Cueva del Toro, Antequera, Málaga) is bracketed by ¹⁴C dating in the fourth millennia BC (4200–3700 BCE) and has the code ARQ 04 3700BC (Table 2). Figure 5 displays the structure and format of the English version of the “Event files” included in the published catalogue.

7. Full Event and EEE Files: Full Information for Selected Catalogued Earthquakes

The second edition of the catalogue offers full information for 16 selected events representative of each earthquake type or period (GEO, ARQ, HST, PRE, INS). For these events, a complete analysis of the catalogued environmental (EEEs) or archaeoseismological (EAEs) effects is available. A total amount of 1027 effects has been identified of which 840 are EEEs and 187 EAEs. From this large amount of catalogued effects, about 680 are briefly analyzed in “Event files” and 322 in detailed individual “EEE files” (Figure 6). These last cover all the typologies of EEEs observed in the ESI-07 scale [3], including 84 tsunami effects analyzed by means of the upgraded TEE scale [39]. Some of the earthquakes with a large amount of information over the 75 effects, such as the 2011 Lorca (79 EEEs), 1829 Torrevieja (78 EEEs) and 1755 Lisbon (674 EEEs) have been simplified to a representative number of about 45–50 “EEE files”.

Aside from the information summarized in the “event file”, earthquakes with complete information have a section in which the original descriptions of the early seismic catalogues for Spain (e.g., Galbis Catalogues) are literally transcribed including the prime references used by Galbis [45]. The “full event files” also include descriptive and interpretative sections in which the source location and maximum intensity of the earthquakes are evaluated in relation to the catalogued EEEs, EAEs, and data from other recent scientific publications. In those cases in which published geological data, ESI-07 parametric evaluations (EEEs) or archaeoseismic oriented damage (EAEs), point to different source locations than those listed in the IGN catalogue [7] the parametric data of the earthquake is disused in the interpretative section. For those recent earthquakes not included in the Galbis catalogues [45], previous to AD 1940, the section of the original descriptions by Galbis have been substituted by a section of “general information” summarized from available seismic reports or field reports developed by different institutions (IGN; IGME; IAG or Civil Protection). For ancient or paleoseismic events not catalogued by Galbis [45], the general information section includes data on the archaeological site or fault-trench site documenting the respective earthquakes. The descriptive and interpretative sections for these full-information events are structured in the style of four–five-page short papers and include a complete reference list of historical sources and recent scientific publications analyzing the corresponding earthquake.

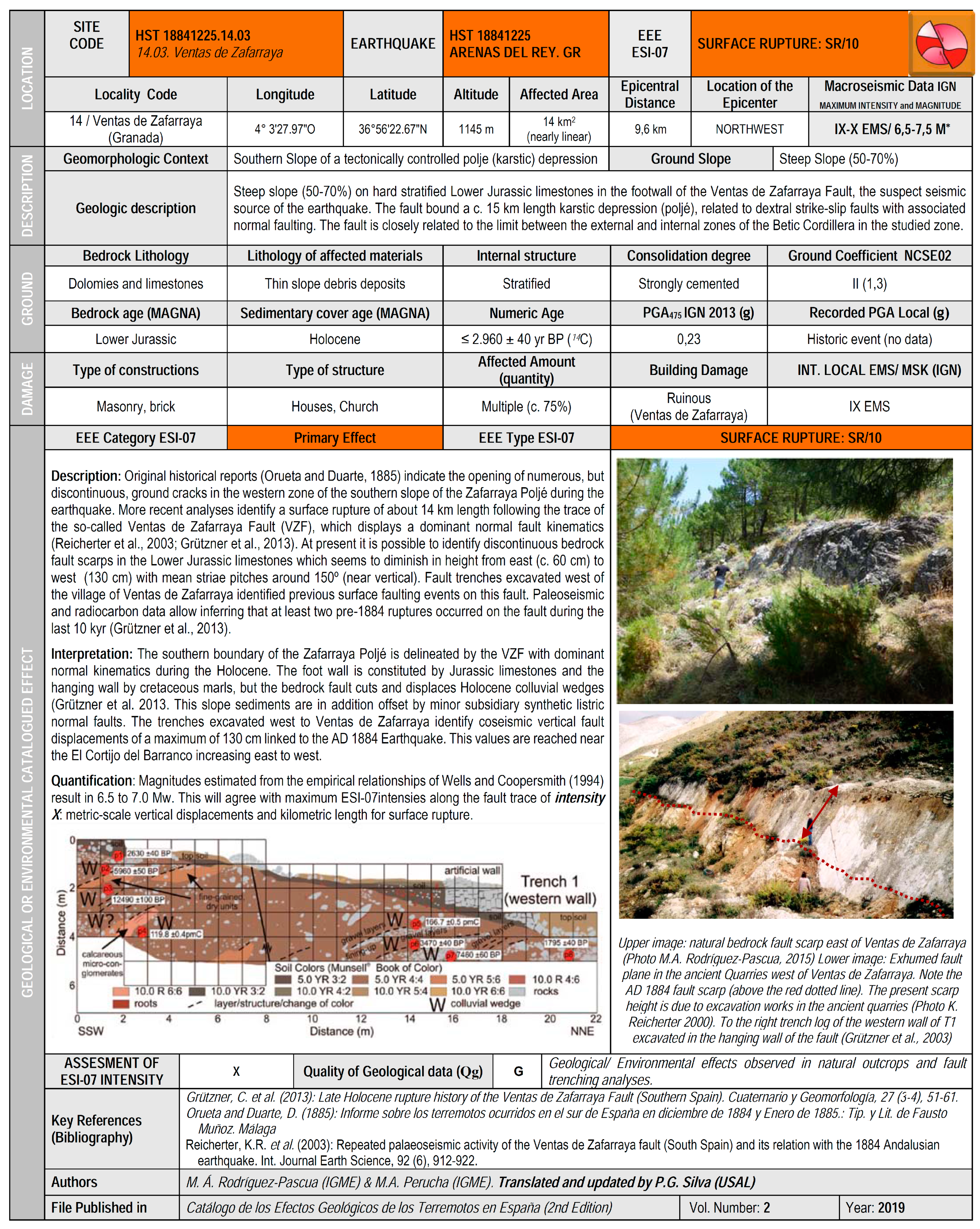

7.1. EEE Files: Detailed Information for Each Catalogued Event

The detailed information of each catalogued EEEs or EAEs is implemented in individual “EEE files”, which offer parametric macroseismic information on geographical coordinates, epicentral distances, epicentral orientation, affected area by the EEE (km² or m²) and the assessed local intensities (EMS/MSK) by building damage coming from previous catalogues. These “EEE files” also include normalized data on the local geomorphology (landscape context and terrain slope), geology (age and nature of affected material and substratum, if the case), but also geotechnical data. This latter information considers the different soil classes observed by the present Spanish Seismic Code [46], as well as normalized PGA values (%g) considered by this seismic code for the affected zone. This geotechnical section also offers normalized descriptions for the construction-types, building-types, amount and damage level that occurred in the locality affected by the particular catalogued EEE in each individual “EEE file”. In a last section the “EEE file” displays geological information on the category (primary/secondary), type (liquefaction, slope Movement, etc.) and ESI-07 intensity of the catalogued EEE, as well as individual abridged information on the description, interpretation, quantification (intensity assessment) and the particular Quality index (Qg) of the catalogued effect. This ESI-07 section of the file also includes graphical information of the catalogued EEE, such as photos, drawings, sketches, maps, GoogleEarth imagery, etc., depending on the period of the corresponding earthquake. Finally, the “EEE files” offer four to five key bibliographic references that specifically document, describe or analyze the catalogued EEE. Figure 6 illustrates the above-described structure of the EEE/EAE files.

7.2. Graphic Information Included in the “Full Event Files”

The full event files content a variety of info-graphic data. The primary info is a parametric list of effects (EEEs and EAEs) identified for a specific symbol developed for the scale (see symbol effects in Figure 1) and ordered alphabetically by locality and locality-site when precise (Figure 7). Selected Google Earth images of the kmz files developed for each earthquake (Figure 8) illustrate these parametric lists. The kmz files (and selected views) identify each catalogued EEE or EAE type-effect by its corresponding symbols (Figure 7 and Figure 8). In the future, these kmz event files will be uploaded in a public geo-information database of the Geological Survey of Spain (IGM) for the interactive on-line search of the entire catalogue. Additionally, the “full event files” include two basic graphic databases in form of intensity maps and seismic scenarios (ShakeMaps). When sufficient data hybrid ESI-EMS intensity maps were produced following the guidelines of the ESI-07 scale [3].

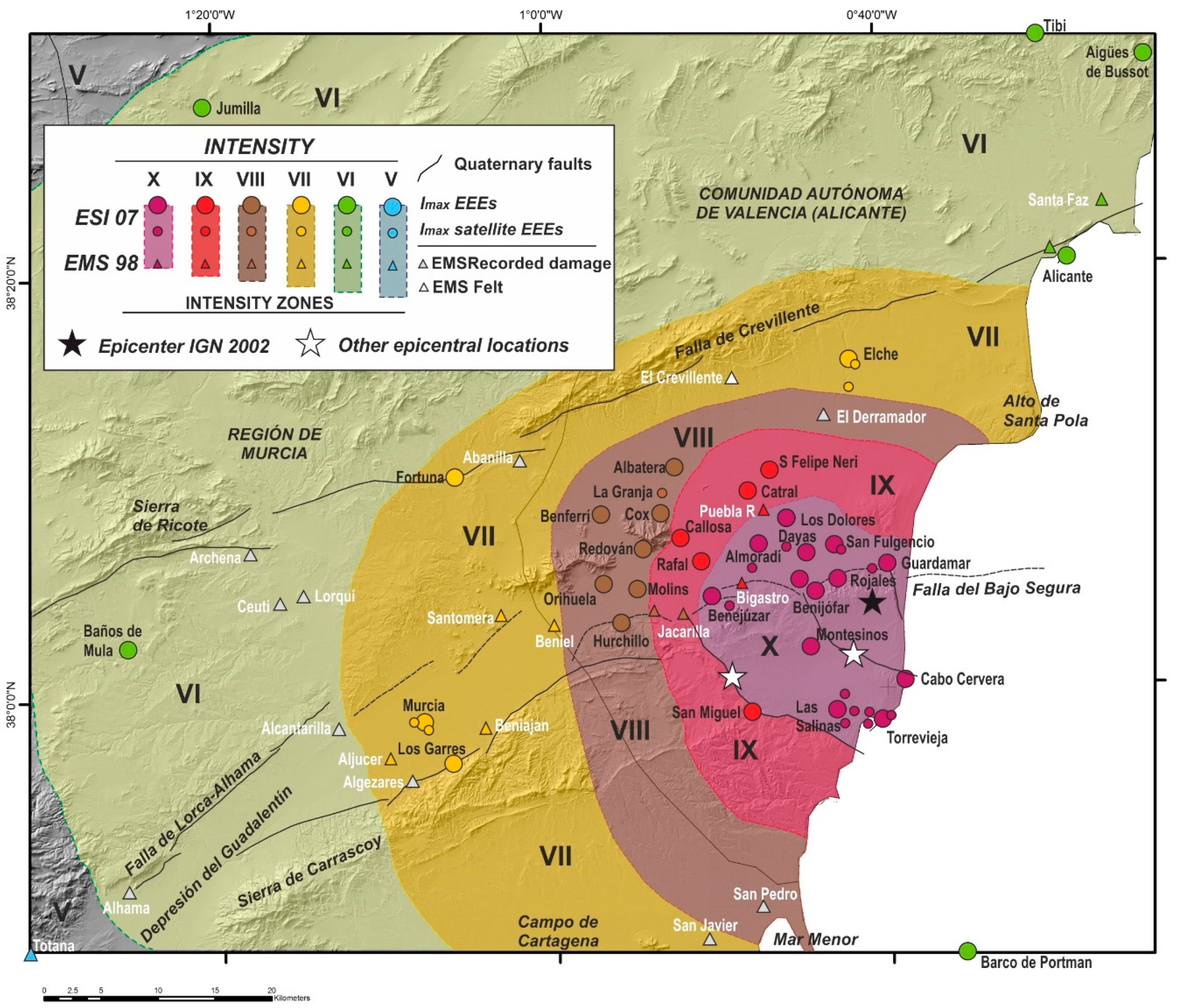

The intensity maps, implemented in shaded-relief models of the affected areas, illustrate the intensity distribution in relation to the Quaternary active faults of the zone and the set of catalogued EEEs for each event (Figure 9). The style of the intensity maps tries to resemble the color-scales used in the instrumental seismicity maps of the USGS Earthquake hazard program (https://earthquake.usgs.gov/) [47]. As mentioned, the hybrid intensity maps incorporate all the EMS information (when available) coming from previous catalogues [7]. The EMS information is also provided at the end of the parametric list illustrated in Figure 7.

In the intensity maps EEEs localities are identified with circles of the same color of the corresponding intensity level (Figure 9). In many cases, the localities have “satellite data-points” represented by smaller colored circles representing other EEEs or EAEs around the stronger (or more important) one that occurred in that locality. The use of “satellite data-points” is based on the recommendations of the International Atomic Energy Agency (IAEA) on the guidelines of paleoseismic analyses to seismic hazard assessments in site evaluation for nuclear installations [48]. The identification and delineation of the geometry of intensity zones was done taking into account the location of the more important Quaternary faults of the region (black lines), but also the geology and geomorphology of the affected areas. In particular, the distribution of poorly consolidated Quaternary deposits and the different topographic contexts on which the documented EEEs occurred was key for the production of intensity maps. As illustrated in Figure 9, colored triangles identify complementary EMS data for different intensity levels. EMS data are especially important for a more accurate definition of the geometry for intensity zones VI to IV in the lower limit of sensitivity of the ESI-07 scale [5]. The intensity maps are not available for ancient or paleoseismic events only documented in one archaeological site of fault-trench excavation. In these cases the intensity maps are substituted by another type of graphic information from geoarchaeological or pure geological sources, such as a maps and sketches of oriented damage (ancient events) or the log of the fault-trench documenting the earthquake (paleoseismic events).

For the best-documented cases the production of seismic scenarios (ShakeMaps) has been possible in terms of the peak ground acceleration (PGA: %g) deduced from the intensity maps. These ShakeMaps have been produced following a similar methodology to that used by the USGS ShakeMap Programm [47], but specifically adapted to the Iberian Peninsula by Silva et al. [19]. The elaborated seismic scenarios are based on the implementation of “Ground Motion Prediction Equations” (GMPE) on detailed digital terrain models (5m/pixel DTMs) pixel by pixel. The selected pixel size (5m) is clearly sufficient to identify individual EEEs and to upload detailed slope and geological data into the resulting shake models. This pixel size upgrades the 900 m/pixel DTMs used in the USGS earthquake hazard program [47] and allows one to define the contribution of topography (slope) and geology (loose soils) to the triggered environmental damage [19]. The selected GMPE for the production of seismic scenarios in the Spanish catalogue corresponds to those used in the first versions of the USGS Earthquake Hazard Program [49]. These equations are first generation GMPE, specifically designed for geodynamic contexts dominated by strike-slip faults in the SW EEUU [49], which in turn are similar to the geodynamic framework of southern Spain (Betic Cordillera; Figure 1), where the main strong earthquakes of the catalogue are placed [19].

These GMPE offer broad seismic scenarios in the range of the expected uncertainties for the hypothetical seismic source characterization of the historic, ancient and paleoseismic events analyzed in the catalogue. On the other hand, these basic first generation GMPE allow to implement simple source parameters (i.e. source location, fault type, fault dimensions/geometry and earthquake magnitude) in relation to epicentral distance (Joyner–Boore radius) [49], deduced Vs30 values from proxy data [50] and topographic and geologic correction factors specifically produced for Spain [19]. The modelling of seismic scenarios (shakemaps) for Spain is based on the large set of instrumental, macroseismic and geological data resulting from the last important earthquake that occurred in Spain (2011 Lorca Earthquake; 5.1 Mw; VIII ESI-07), which was used as a check-model in a ArcGis environment [19]. The Figure 10 illustrates the updated shakemap developed for the AD 1755 Lisbon earthquake-tsunami included in the catalogue.

7.3. Summary on the Structure and Content of the “Full Event Files”

The information contained in the “full event files” is summarized in the following items:

• Event file (51 earthquakes): These files contain parametric data, earthquake type, quality indexes, summarized information on building (EMS-based) and environmental damage (ESI-based), a list of identified EEEs for the different categories of ESI-07 effects, and archaeoseismic damage (EAEs). Additionally, these files display summarized information on the geological data supporting the earthquake, a geological sketch of the Iberian Peninsula for location (Figure 2), five to six key references documenting the earthquake and a list of the authors compiling the information. Fifty one-page files in Spanish and English (Figure 5).
• Earthquake description in the Galbis Catalogue (16 selected Earthquakes): Transcription of original descriptions and references in these initial seismic catalogues. For those events not listed in the Galbis catalogue this section is substituted by a “general information” section including data from field, technical, scientific reports and scientific publications available for those earthquakes. Sixteen one-page sections.
• Earthquake environmental effects (16 selected earthquakes): Analysis and discussion of the catalogued EEEs in the format of a two-page short paper.
• Earthquake archaeological effects (16 selected earthquakes): Analysis and discussion of the catalogued EAEs in the format of a two-page short paper. In modern earthquakes, the analysis of EAEs is focused on its impact on the cultural heritage of the affected area. As in the previous case, this section has also a two-page format.

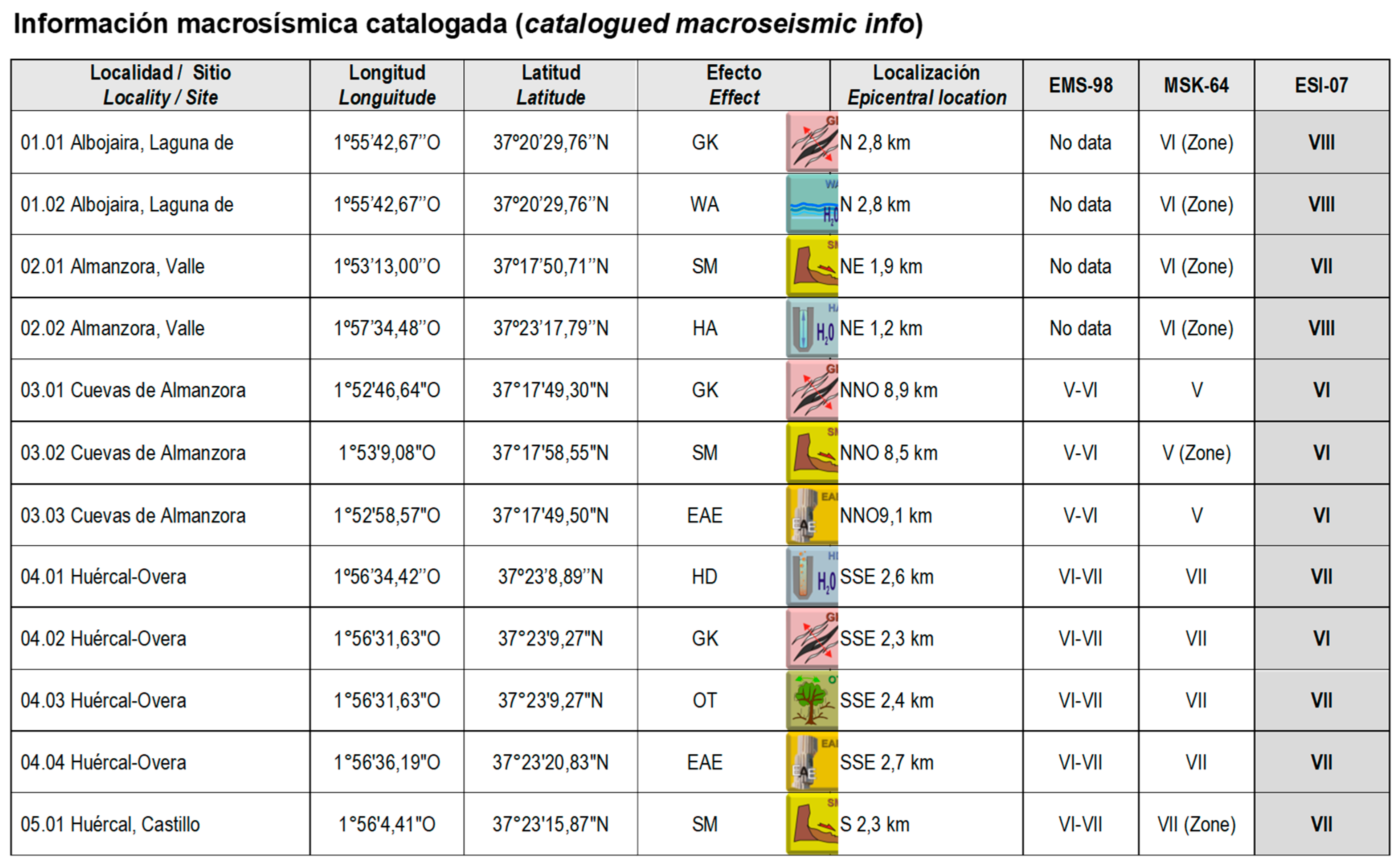

• Parametric list of the particular EEEs and EAEs (16 selected earthquakes), identified for each earthquake. For those cases with a great number of effects (above 50) the number of published EEEs/EAEs files was normalized to about 50 representative files (Figure 7).
• Parametric list of EMS data available for each earthquake (16 selected earthquakes) coming from the existing official databases of the IGN [7,23].
• EEE and EAE files (totaling 322) for the 16 selected earthquakes, with detailed information in the geological and geomorphological context, ground conditions, as well as descriptions, interpretation and quantification of the particular EEE or EAE catalogued effect.

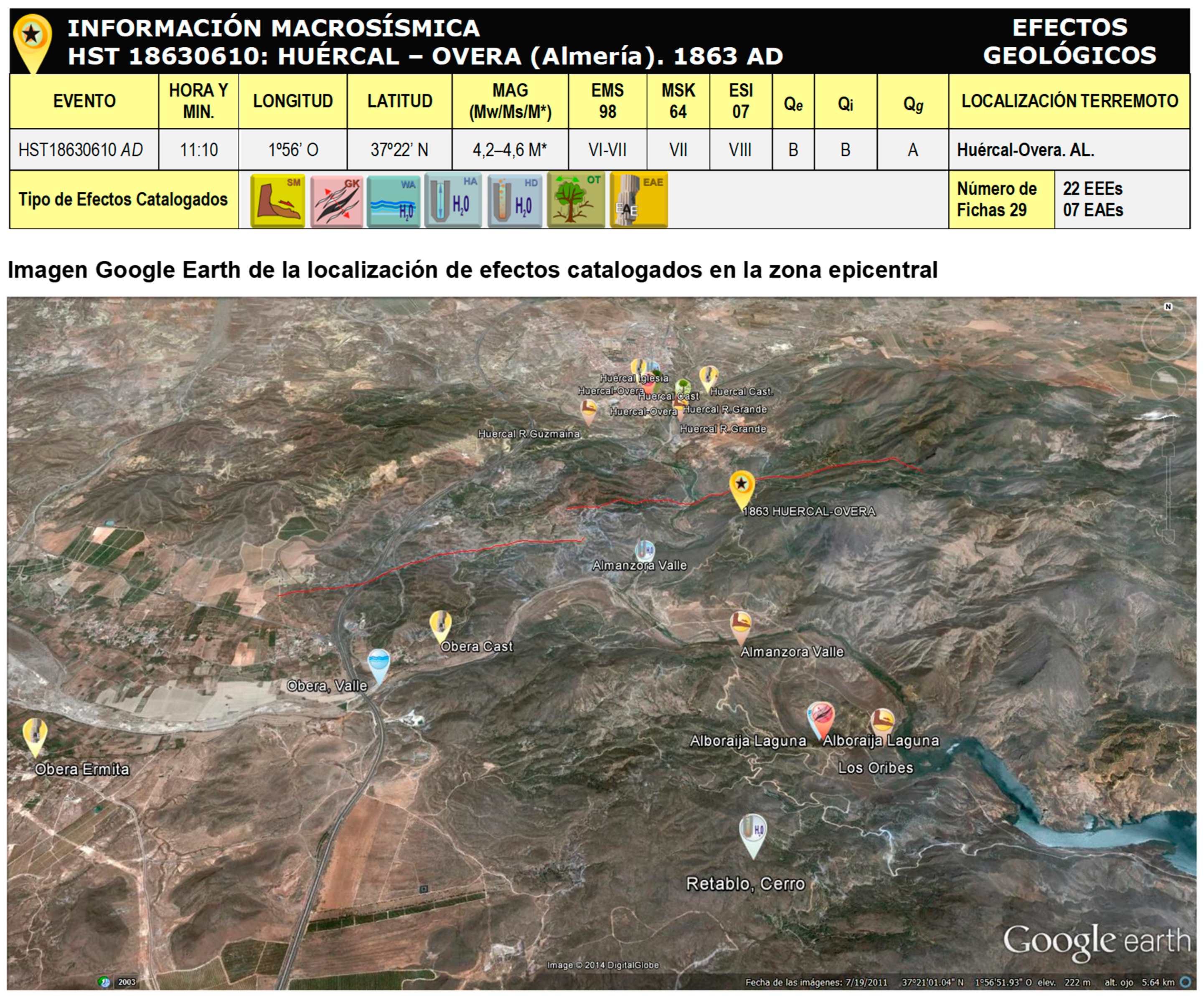

• Google Earth image (16 selected earthquakes) representative of the distribution of EEEs and EAEs coming from the kmz files produced for the catalogue which will be implemented in the near future in an online public database of the Geological Survey of Spain (Figure 8).
• ESI-07/EMS-98 hybrid intensity maps (16 selected earthquakes) on shaded relief models, specifically designed for the published catalogue. In the case of earthquakes with few intensity data, like ancient or paleoseismic events, the intensity map is substituted by damage maps/sketches or by the log of the fault-trench documenting the event (Figure 9).
• Seismic Scenarios or ShakeMaps (16 selected earthquakes) in terms of PGA values, based on those developed by the USGS ShakeMap Program but specifically adapted for the Iberian Peninsula (Figure 10).
• Reference list (16 selected earthquakes): Complete bibliographic list with the old historic documents and modern research papers documenting or analyzing the catalogued earthquake.

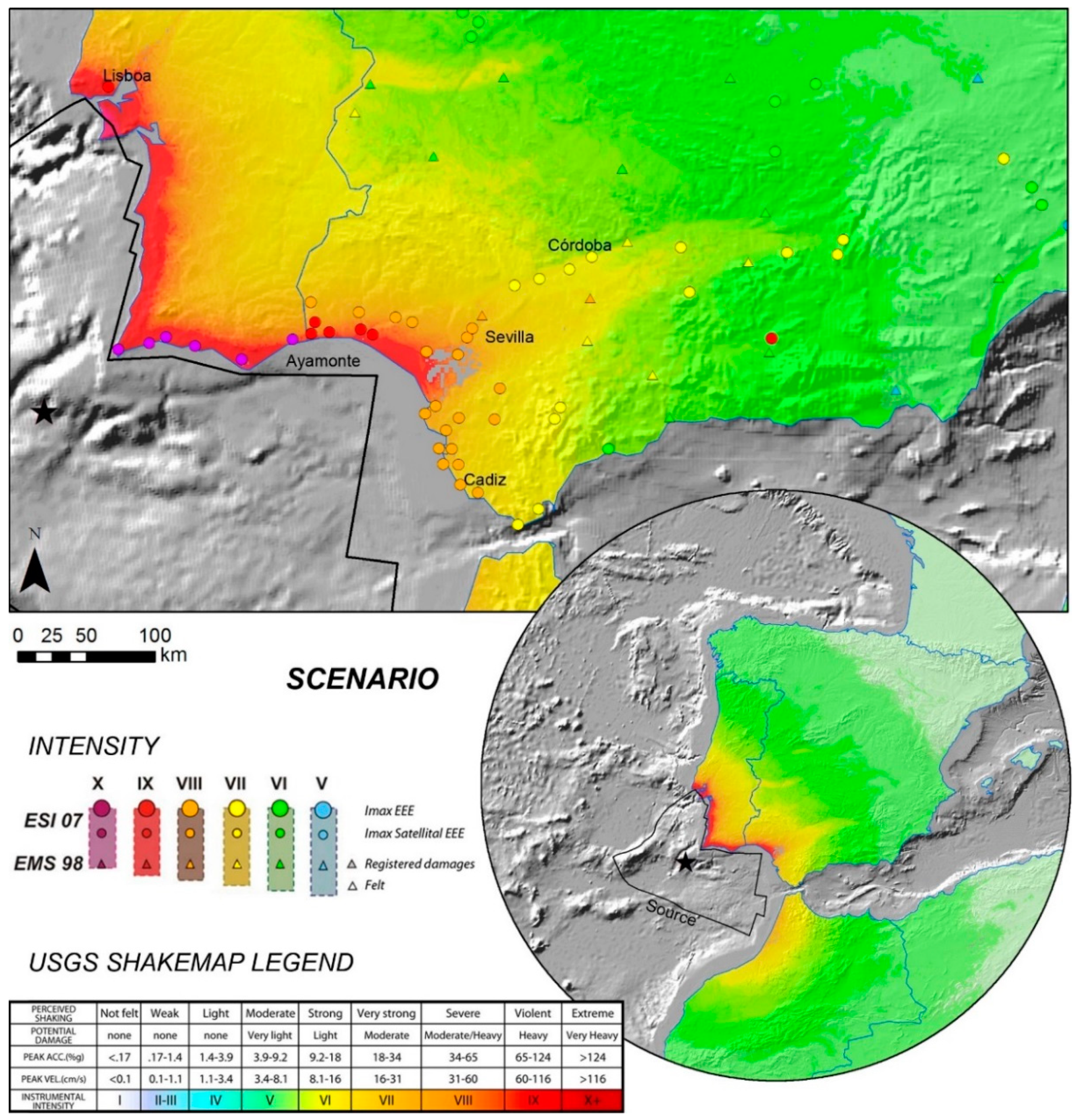

7.4. Special “Full Event File” for the AD 1755 Lisbon Earthquake-Tsunami Event

Due to the special features and size and large area affected for this earthquake its full event file contains additional information. This file has different independent sections on the analysis of tsunami effects, geological effects extracted from the examination of the about 1300 individual locality-reports for this earthquake kept in the Spanish Historical National Archives (Archivo Histórico Nacional; AHN) [51], from which 673 localities reported natural effects [17]. This file also has a section on the large set of far-field hydrological and hydrogeological anomalous effects reported for the northern area of the Iberian Peninsula, British islands, Europe, Africa, the Caribbean Sea and the oceanic islands of Canary, Madeira and Azores. Though most of the far-field effects are related to the tsunami propagation, some of them occurred in inland water bodies at Reading, Sussex, Plymouth, London (England); Lake district (Cumbria); Lakes Lomod and Ness (Scotland); Lake Binnenalster of Hamburg (Germany); Lakes Léman, Neuchatel and Zürichsee (Switzerland); Telpice Baths (Prague) and the Dal River in Sweden (Baltic Sea). Some of these last effects occurred more than 2000–3000 km away from the epicenter. This event has a total of 753 catalogued EEEs, 673 of them occurring in Spain [10].

All the above mentioned far-field natural effects were compiled in the volume 69 of the "Philosophical transactions of the Royal Society of London" published in December 1755 and reprinted in 1809 [52]. This volume contains an special section entitled: “An Extraordinary and Surprising Agitation of the Waters though without any perceptible Motion of the Earth having been observed in various parts of this Island, both Maritime and Inland, on the same Day and chiefly about the Time that the more Violent Commotion of both Earth and Waters so extensively affected many very distant Parts of the Globe” (pages 646 to 656). This special section collects 17 letters describing tsunami effects in littoral zones of the Atlantic Ocean, but also other 12 letters on the anomalous effects observed in inland water bodies at different parts of Europe. These very far-field effects represent an anomaly in relation to recent strong earthquake-tsunami events of similar size (i.e., 2004 Sumatra, 2010 Chile, 2011 Japan), which did not cause that variety of far-field anomalous effects [17,30].

The Lisbon event also has a particular section regarding other effects not truly considered by the ESI-07 scale [52], but of interest for this particular earthquake [10,51]. Long period waves on standing waters were recorded at 29 localities several hundreds of kilometers away in the whole of Spain, mostly in Central Castilla, but also in Cataluña (1200 km away) where the earthquake was not felt. Perception of an underground noise occurred almost simultaneously to ground shacking in 285 locations covering the whole of mainland Spain, except the north and northeast zones. Perception of ground waving and anomalous tree shaking was observed in many localities throughout the Guadalquivir valley. Finally, luminous effects observed in the sky (51 records) 5–4 hours before the earthquake along the western sector of the Iberian Peninsula throughout a SW–NE band 600 km long (Huelva to Palencia) which have been also catalogued. These effects are interpreted as the occurrence of a comet or meteor crossing the sky [51], eventually exploding over the north of the Duero river basin (north Spain) with a great luminosity and a strong noise [10]. All the far-field EEEs, tree shaking and luminous effects were catalogued totaling 753 effects, but only 49 of them have individual “EEE files” in the recently published catalogue [10]. Taking into account the abovementioned other effects not considered in the ESI-07 (long period waves, underground noise, ground waving, etc.) the total number of effects would amount to over 1000 EEEs for the AD 1755 Lisbon event, which would deserve a separate analysis and catalogue.

8. Brief Numerical Analysis of the Catalogued EEEs

This section introduces a short analysis of the catalogued events for the 51 analyzed earthquakes for the maximum intensity of the events (Figure 11) and for the different intensity levels (Figure 12). As observed in the bar-diagram of Figure 11, the AD 1755 Lisbon event produced a large variety of effects in the entire range of intensity levels, even where the earthquake was not felt. The most conspicuous reported effects were those related to hydrological (HA), hydrogeological (HD) or anomalous waves in inland water bodies (WA), which were more frequent and widely observed for intensities IV to VII (Figure 11). Noticeable ground effects were also liquefaction (LQ), ground cracks (GK) and slope movements (SM) for intensities VI to IX and strong tsunami damage from intensity VIII (Figure 11). Due to the offshore nature of the event, primary effects were few and mostly related to cases of subsidence of the coastal area around the Gulf of Cádiz.

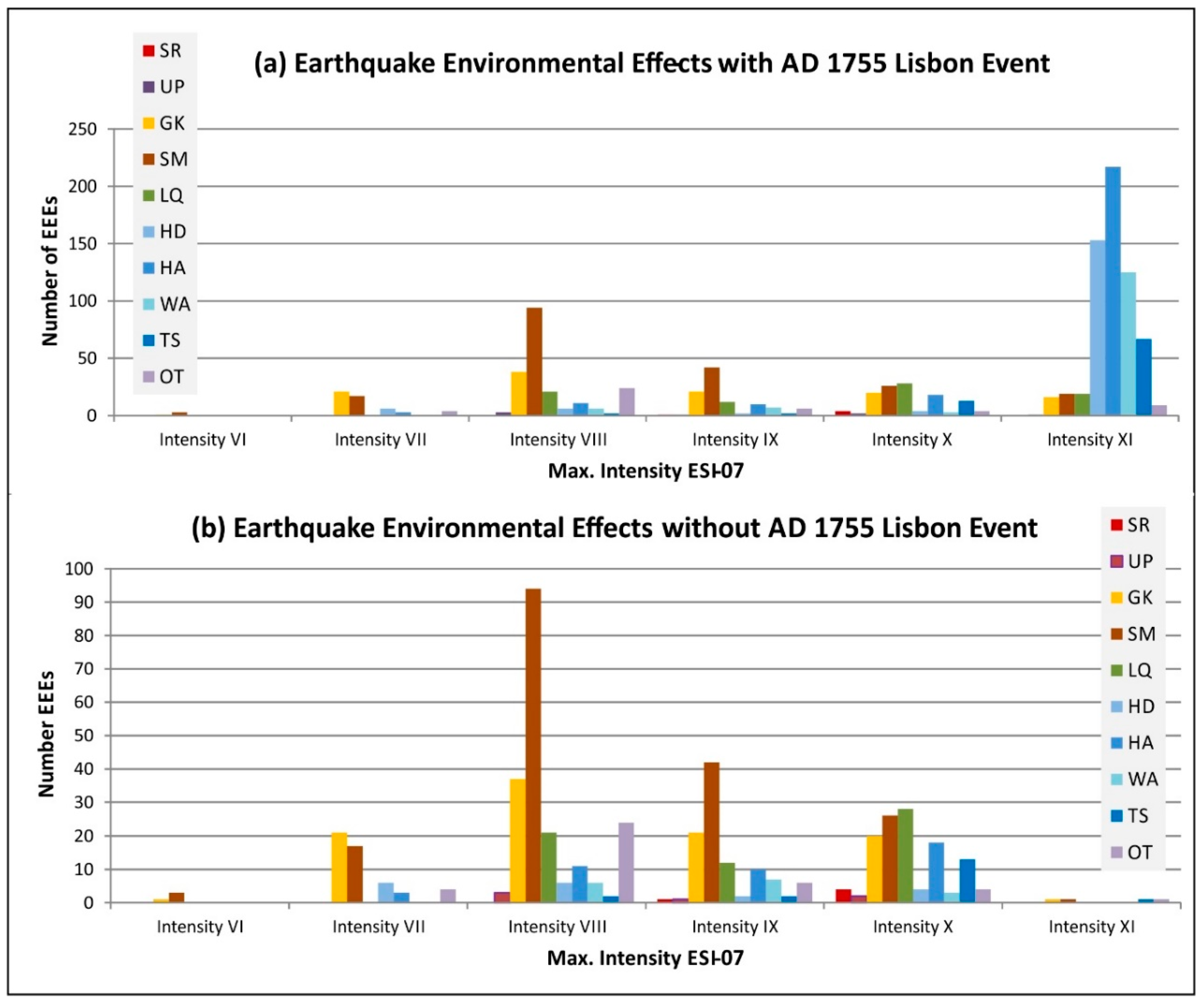

The Figure 11 illustrates the distribution of triggered EEEs listed in the “event files” for the whole number of catalogued earthquakes by their maximum intensity. The analyzed data total 976 EEEs including those of the AD 1755 (Figure 11a) but are only 489 without the mentioned event (Figure 11b). The different distribution of EEEs is also noticeable when considering or not the Lisbon Event, which displaces the statistical mode to intensity XI due to the large number of hydrological effects (HA, HD and WA) reported for this earthquake (Figure 11a). On the contrary, removing the Lisbon EEEs, the statistical mode is clearly located in intensity VIII, where the most frequent effects are slope movements (SM), ground cracks (GK) and ground liquefaction (LQ) with an amount of 204 EEEs (Figure 11b), which practically doubles the number of EEEs for intensities IX and X (around 100 each). This is a statistical bias because intensity VIII events are the most numerous among the catalogued Spanish events (Table 1 and Table 2). In any case, it seems clear that the minimum I_max value to produce secondary earthquake effects with a relative long-lasting geological record is intensity VII.

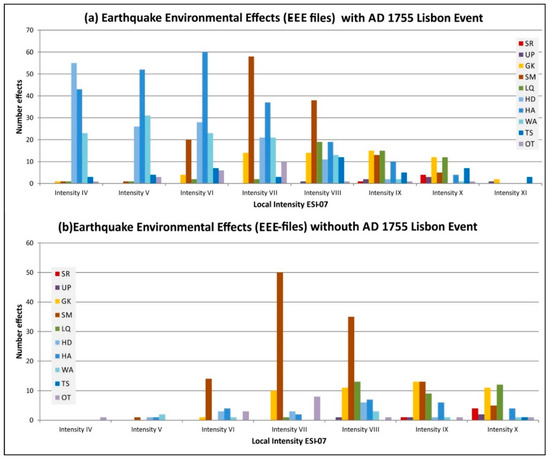

Figure 12 displays the catalogued EEEs by their intensity level, but only for the 16 selected earthquakes with “full event files”, which sum up to a total of 811 records. Again, the comparison of the diagrams with and without the AD 1755 Lisbon event offers a very different distribution of the number and type of catalogued EEEs. Once the large amount of hydrological and tsunami effects produced by the Lisbon event are removed, again intensities VII and VIII collect the largest number of ground effects (SM, GK and LIQ) (Figure 12b). In many cases, the catalogued ground cracks are related to lateral spreading linked to ground liquefaction or to slope movements. This last category of ESI-07 effects is the more abundant one in the analyzed earthquakes, but the SM peak for intensity VII in Figure 12 is again a statistical bias due to the large amount of slope movements catalogued for the 2011 Lorca earthquake (Figure 12b). It is also noticeable that primary effects start to be observable for intensity VIII, but the few cases of surface ruptures occur for events of intensity ≥IX (Figure 12b). This is the general case for inland Spain, where surface faulting events are very rare, but the occurrence of extensive secondary earthquake effects is common. These mainly include hazardous slope movements, ground liquefaction and ground cracking processes in inland events, but also damaging tsunamis in the Gulf of Cádiz (Atlantic Ocean) and Alborán Sea (Mediterranean Sea) around the Gibraltar strait (Figure 2). In fact, the strongest earthquakes occurred within the Iberian Peninsula have moderate magnitudes around 6.0–7.0 Mw [7,19,23] but they triggered strong intensity levels up to IX–X as a consequence of the participation of geological effects in environmental and building damage. This is of special interest for the dangerous earthquake-tsunami events around the Gibraltar strait zone. In this sense, Figure 11 and Figure 12 display the number of catalogued EEEs with and without the data corresponding to the 1755 Lisbon earthquake-tsunami. In both cases, the noise introduced by this special “Atlantic Event” is clear in relation to the EEEs commonly triggered by the strongest earthquakes that occurred within the Iberian Peninsula.

9. Achievements and Future Perspectives

In spite of the existence of databases with information on earthquake environmental effects—like that developed by the Italian Geological Survey (ISPRA), which includes data on about 200 globally distributed earthquakes (http://193.206.192.211/wfd/eee_catalog/viewer.php) [53], or databases with paleoseismic and active faults information [2]—none of them proceed to a proper ESI-07-based classification and interpretation. In this way, as noted by Serva [2] after the devastating 2011 Japan earthquake-tsunami (Tohoku) the IAEA recommended to the members states to carefully consider secondary earthquake ground effects in order to envisage a more accurate definition of the seismic hazard (in terms of intensity) in zones with nuclear installations [47] and the ESI-07 scale was largely considered in the published recommendations [54]. Some very recent catalogues and on-line databases, like that developed by the “Italian National Geophysics and Volcanologic Survey (INGV)” [55], consider ground effects, but they are treated in a descriptive-informative way and are not used for true intensity assessments following the ESI-07 guidelines. As a consequence, currently there is no similar catalogue like that recently published in Spain [10] considering geological and archaeoseismological data extending the earthquake records to the recent geological past. However, the growing data on earthquake environmental effects, and complementary archaeoseismological analyses, will improve our knowledge on the seismic history of a region in the future, by the recovering of lost earthquakes from the geological record. The future of SHA studies needs in a mandatory way the incorporation of geological and archaeoseismological data to offer to the modern societies more comprehensive data within the temporal range (recurrence periods) of the seismic cycle. In this sense, the Spanish catalogue incorporates seismic scenarios for historical events (i.e., Figure 10) which will help to develop a better definition of the seismic hazard for forthcoming SHA studies but also for the preparation of future earthquake drills [20].
