The Sedimentary Origin of Black and White Banded Cherts of the Buck Reef, Barberton, South Africa

Abstract

The Buck Reef is a 250–400 m thick sequence of banded black and white (B&W) cherts deposited ca. 3416 Ma ago in a shallow basin. We provide field, petrological and geochemical constraints on the chert-forming process and the origin of the banding. White layers consist of nearly pure microquartz, while black layers are mixed with detrital carbonaceous matter, quartz grains and carbonaceous microlaminae, interpreted as remnants of microbial mats. The circulation of Si-rich fluid is recorded by abundant chert veins and pervasive silicification. However, the high purity of the white layers, their lack of internal structures and extremely low Al, Ti and high-field-strength elements preclude an origin by silicification of sedimentary or volcanic precursors. Moreover, their reworking at the surface into slab conglomerates, and sediment-like contacts with black layers rule out a diagenetic origin. We propose a new model whereby the white layers were periodically deposited as precipitates of pure silica; and the micro-layering within the black layers formed by annual temperature fluctuations, favouring microbial activity in summer and inorganic silica precipitation in winter. Outcrop-scale alternation of B&W layers was associated with major, thousand-year-long climate events: white cherts represent massive silica precipitation resulting from changes in ocean circulation and temperature during cold intervals.

1. Introduction

Banded cherts and iron formations are widespread in Precambrian sediment. In both types of sediment, bands of nearly pure, white or beige-coloured silica alternate with darker bands of carbonaceous, iron-rich, carbon-rich siliceous or detrital sediments (e.g., [1,2,3]).

Several hypotheses have been proposed to explain the banding: (1) inheritance from a bedded sedimentary or volcanosedimentary precursor now silicified to chert [4,5,6]; (2) diagenetic segregation of individual bands from a homogeneous mixture of silica and other components [2,7], and (3) primary deposition of alternating ferruginous/carbonaceous and pure silica sediments, with a periodicity controlled by cyclic volcanic activity and/or periodic upwelling in a stratified ocean (e.g., [8,9,10,11,12]), or by climate-induced temperature variations [13].

The origin of layers of almost pure silica is important because these layers represent our best chance to determine the composition of precipitating fluids and our best access to the Archean near-surface environment. A common approach is to compare the trace-element composition of the cherts with those of modern seawater and hydrothermal fluids, and on this basis to decide on the nature of the source (e.g., [1,14,15,16]). In addition, the Si and O isotopic compositions of cherts provide insights on the origin of the silica and/or past ocean temperatures [12,17,18,19,20,21,22,23,24].

However, before the compositions of banded deposits can be used as paleo-environment proxies, several key issues must be resolved: how did they form and what is the origin of the banding? What is the trigger of silica precipitation and what is the origin of nearly pure silica layers? This study addresses these questions using the Buck Reef, a well-known sequence of black and white cherts from the Barberton Greenstone Belt, South Africa. Using field, petrologic and geochemical criteria, we constrain the origin of the cherts and develop a novel model that explains the nature of the involved fluids, the mechanisms of silica precipitation and the origin of the banding.

2. Geological Context

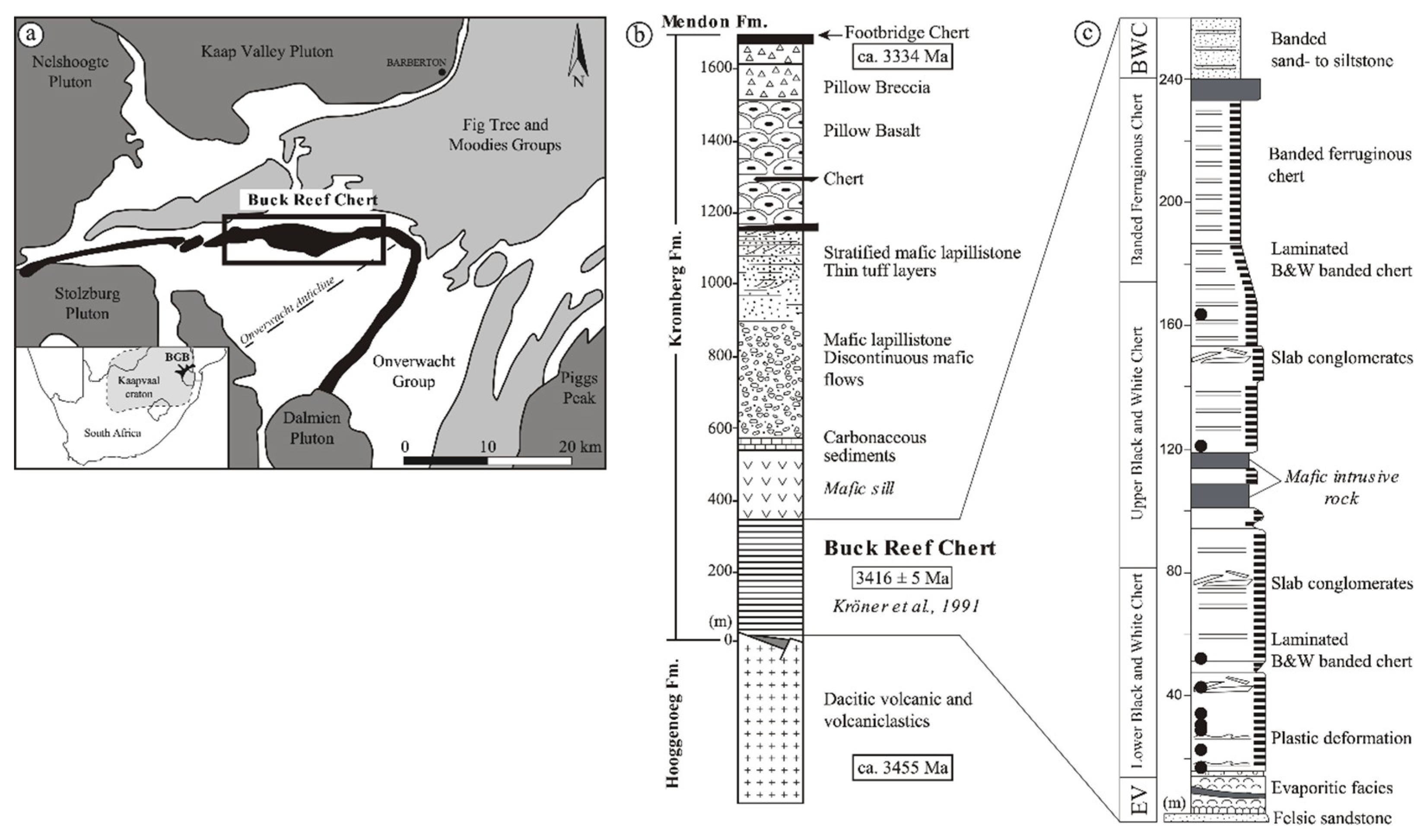

The Barberton Greenstone Belt (3.57–3.21 Ga) is a well-preserved, 12–15 km thick volcano-sedimentary succession that encompasses about 320 Ma of early Earth history (see, e.g., [25,26,27,28,29,30] for geological context).

The Buck Reef Chert (3416 Ma, [27]) is a thick siliceous sedimentary unit that crops out continuously for more than 30 km along the west limb of the Onverwacht anticline (Figure 1a) [2,7]. It is located above shallow water, intrusively to extrusive dacitic volcanic rocks and volcaniclastic units of the Hooggenoeg Fm. (Figure 1b) [5,6,25,30,31,32,33,34]. At the base, the volcaniclastics are dacite-derived conglomerate and sandstones, interpreted by Lowe and Fisher Worrell [7] as coastal or braidplan deposits. They were deposited during extension, as revealed by numerous listric normal faults [6], and are conformably overlain by 250–400 m of black and white banded cherts. As shown in Figure 1c, the sequence starts with evaporitic facies of silicified sandstones, cherts and nahcolite pseudomorphs deposited in a shallow-water, lagoonal environment [2,7]. The overlying 200–300 m records a gradational transition from detritus-rich black and white banded cherts marked by medium- to low-energy current structures, to continuous, finely-laminated cherts; that recoded deposition being under quieter conditions, away from coastal turbulence [2]. The banded carbonaceous cherts evolve upward through banded ferruginous cherts to a capping unit of sandstone and siltstone.

The banded cherts were deposited in a setting where continent-derived detritus was rare, favouring chemical sedimentation driven by oceanic processes. Lowe and Byerly [7] and Tice and Lowe [2] proposed that the sequence accumulated on a subsiding platform, with conditions evolving from a shallow coastal lagoon to a shelf-like setting, then to open-ocean deeper basinal conditions. De Vries et al. [5] argued instead that the whole unit is a transgressive sequence deposited under shallow water conditions, close to base level, and evolved from a lagoon-like setting with local emersion to a littoral setting. The presence of microfossils and microbial mats in the Buck Reef Chert [2,35,36,37], and the unusual thickness and excellent exposure of the banded chert sequence, make this an area of special interest.

3. Field Descriptions

This study focuses on the well-developed banded chert units forming the core of the sequence; i.e., the lower and upper units of black and white chert in Figure 1b. The banding consists of alternating and equally abundant black carbonaceous chert and white-weathering translucent chert (Figure 2a,b). The thickness of the bands decreases up the section, from 5–10 cm in the lower unit to < 5 cm on average in the upper unit. The black chert bands in the lower unit contain light-grey, fine-grained particles (< 1 mm in average) that lie in a siliceous translucent matrix (Figure 2b) and preserve thin laminations and current-induced structures, such as ripple marks and cross-laminations. Higher in the section, black cherts contain fewer particles, with few to no sedimentary structures, and have pale rusty-weathering colours, revealing the presence of ferruginous components. White chert layers are almost entirely composed of massive, homogeneous, finely crystallized silica (Figure 2a,b). They lack obvious detrital grains, iron oxides and other impurities, and even sedimentary structures. In places, sub-rounded white chert fragments can be found in the adjacent black chert.

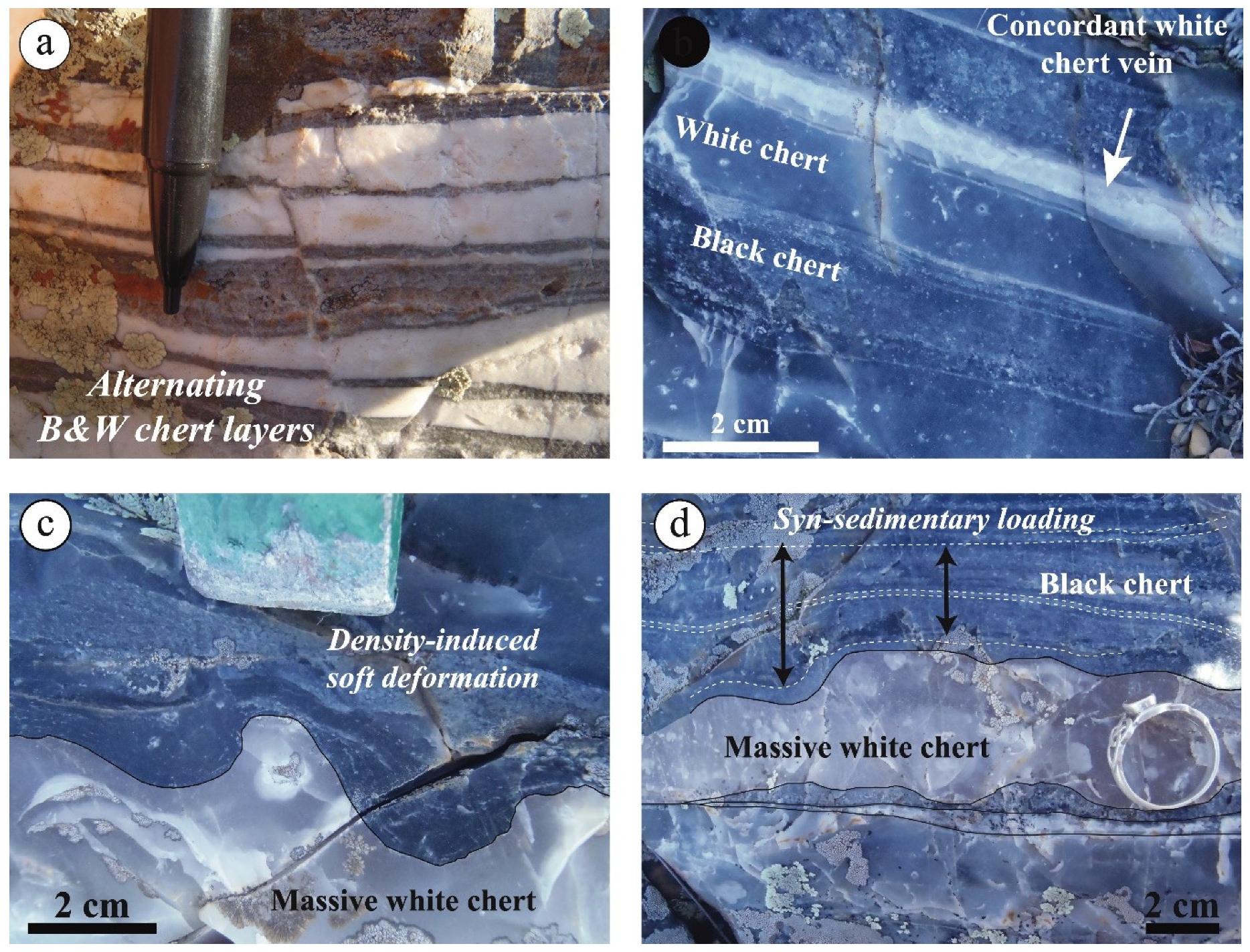

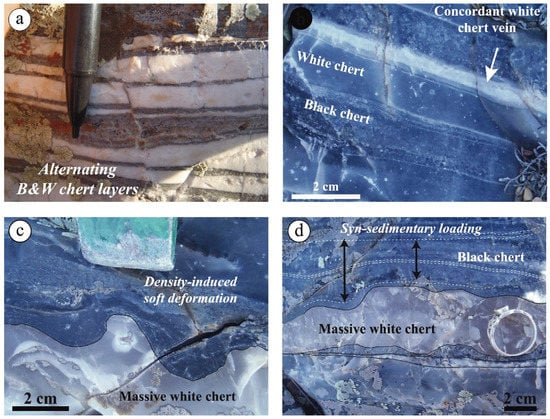

Contacts between layers of white and black chert are sharp and frequently undulating (Figure 2c,d). In Figure 2d, the laminations in the overlying black facies are disturbed close to the undulations but become regular and undeformed within 1–3 cm of the contact. Undulation troughs lack obvious onlaps or fan-like sedimentary structures, indicating that the deformation was not syn-sedimentary but occurred by density contrast during very shallow burial, soon after the deposition of black chert onto still soft and deformable white chert.

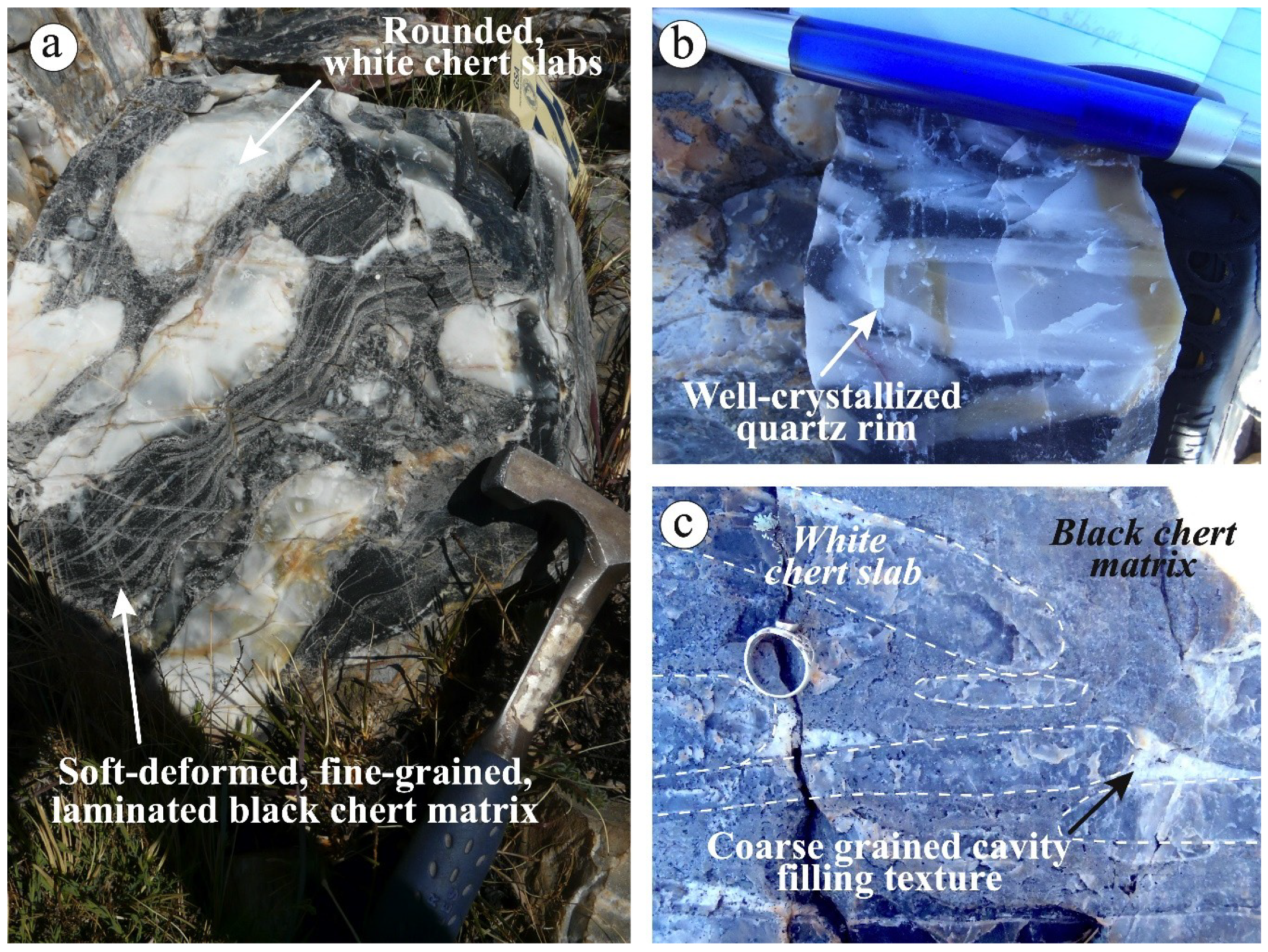

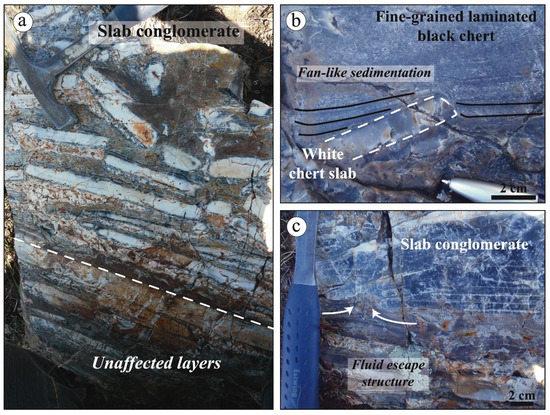

Distinctive "slab conglomerates" alternate with the regular banding (Figure 3a) within the lower unit. These layers reach 1–2 m in thickness (generally < 50cm) and commonly disappear laterally after several meters. They consist of elongated slabs of white chert, typically 2 to 50 cm long and 1 to 10 cm thick, in a matrix of grey to black chert. The upper contacts of conglomerate beds are irregular due to the disposition of the slabs, and the overlying detritus has rich, black chert filled troughs with typical fan structures, as shown in Figure 3b. At the lower contact (Figure 3c), fluid-escape structures point to conglomerate deposition on a still soft and hydrated substratum.

The slabs and interstitial material are lithologically similar to undisrupted white and black chert layers, respectively (Figure 3 and Figure 4), and no conglomerates consist of black chert slabs in a white chert matrix. The fragments are usually oriented at angles of less than 10°–15° to the bedding, but in some examples, are strongly disrupted and oriented at higher angles. The slabs are elongated with angular to rounded margins (Figure 3a), indicating they were rigid at the time they were disrupted. In contrast, the black matrix shows systematic plastic deformation, highlighted by flowage of the detrital material around chert fragments (Figure 4a). In places, part of the matrix consists of well-crystallized quartz that resembles cavity-filling textures (Figure 4c).

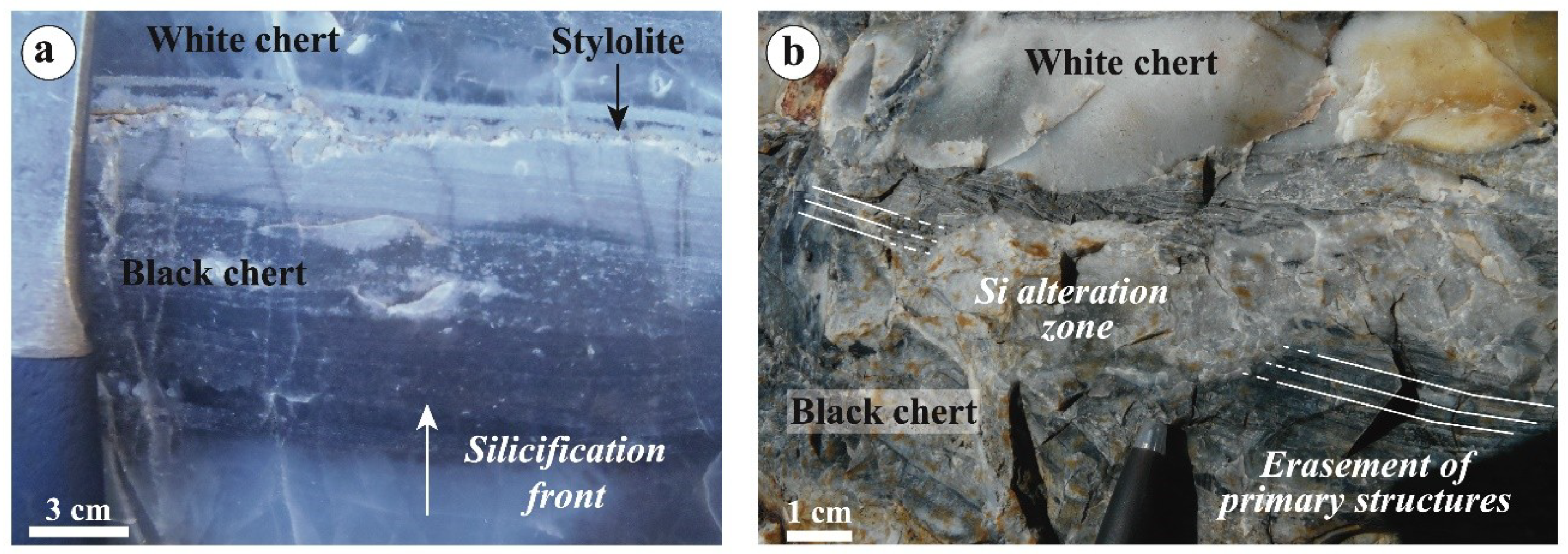

Parts of the Buck Reef cherts were affected by strong silicification after deposition, as shown by abundant white chert veins or fractures and the presence of silicification fronts that affected internal structures of some black cherts. White veins cut across both white and black chert facies at very low angles (e.g., Figure 2b); they can be traced only over small distances along outcrops and vary in thickness from < 1 mm to 20 cm. They are distinct from massive white layers in that they are well crystallized and coarser grained, commonly with colloform structures. Silicification fronts, on the contrary, are pervasive and transgress either homogeneously (Figure 5a) or randomly (Figure 5b) across the layering. The latest stage of silica mobilization occurred via pressure-dissolution processes during deep burial, as expressed by the abundance of stylolites (Figure 5a).

4. Sample Selection and Description of Thin Sections

Based on the assumption that the white, detritus-free chert layers are most likely to represent primary precipitates, we collected five samples at interfaces with surrounding black cherts. An additional 11 samples were taken from massive black chert layers, white chert veins, and slab conglomerates.

4.1. White Chert Facies

Massive translucent white chert bands are entirely composed of equigranular microcrystalline a-quartz (> 99%) with individual grains < 5–10 μm in size (i.e., microquartz) (Figure 6a,b). These grains have irregular, crenulated boundaries and sweeping extinctions (Figure 6b). The closely intergrown framework contains little porosity, and internal sedimentary structures are lacking. Minute grains (< 1 μm) of chromite and iron oxide are disseminated within the microquartzitic matrix and rare ankerite and siderite grains occur as secondary phases associated with mm- to μm-thick silica-veins (Figure 6c,d). Minor iron oxides (e.g., hematite), siderite and stilpnomelane occur as secondary minerals in white cherts in the upper ferruginous part of the sequence.

White chert veins, irrespective of their thickness, have diffuse and irregular (Figure 7) or sharp (Figure 8) contacts with surrounding rocks; they commonly cut across internal structures of surrounding chert layers. A typical internal organization (Figure 7) consists of microquartz at the margin, through a zone with chalcedony-like textures, to coarsely crystalline quartz in the centre. The quartz crystals are up to 1 mm long and are commonly aligned perpendicular to the contact. The central parts of these veins often contain siderite or ankerite grains that are intergrown with macroquartz crystals and represent the final crystallization product.

4.2. Black Chert Facies

The massive black cherts are more heterogeneous. They contain abundant and morphologically diverse types of carbonaceous matter (Figure 8 and Figure 9) in association with variable quantities of sand- to silt-sized particles that are interpreted as detrital quartz grains (Figure 8 and Figure 9a). Carbonaceous matter occurs as (1) rounded and undeformed agglomerates (up to 1 mm) with well-defined boundaries (Figure 8); (2) homogeneous grains (< 0.5 mm) usually elongated along a bedding plane (Figure 8 and Figure 9b) and commonly coated with clear, Si-rich zones (Figure 9b); and (3) thin laminations and films trapped within the silicified sediments (< 10–15 μm thick) (Figure 8). Carbonaceous matter comprises up to about 20% of the black chert, the rest being microcrystalline quartz (< 5 μm).

Thin carbonaceous laminations are characteristic of black cherts from the shallow-deposited layers in the lower unit They alternate at the micrometre scale with pure, finely crystallized silica layers < 10–15 μm in thickness. In Figure 8, the structures can be followed laterally with laminations characterized by irregular undulations, dome-like shapes and local detachments or fenestrae filled by microquartz. This structure strongly resembles microbial mat remnants fossilized in a microquartzitic matrix, like those observed by Walsh [35], Tice and Lowe [2] and Westall [36]. Sand- to silt-sized detrital particles, either ghosts of rounded grains now recrystallized to microquartz or carbonaceous grains, are commonly trapped within and draped by these thin layers (Figure 8b), which is interpreted to record microbial growth in a detrital environment (e.g., [38]).

Fine biogenic laminations are absent in black cherts from the upper unit (Figure 9a). Here, carbonaceous material is massive, homogeneous and concentrated between whitish microquartzitic zones. The highly irregular shape and very fine-grained texture of most of the whitish zones are inconsistent with a detrital or fenestrae origin, although some detrital quartz grains are observed (Figure 9a). Instead, the texture resembles sedimentation/compaction structures in a heterogeneous, mud-like sediment composed of a carbonaceous and silica mixture.

Within the core of the black chert layers, primary textures can be partially erased behind pervasive silicification fronts (Figure 9c), especially in the lower part of the lower unit. In Figure 9c, carbonaceous matter is locally redistributed, and concentrated at neo-formed crystal edges, thus highlighting the colloform texture. It is difficult to judge the extent of silicification, but we estimate that it affected about 10–30% of the outcrop. Further silicification occurred in the form of numerous generations of chert veins (Figure 6, Figure 7, Figure 8, Figure 9 and Figure 10), themselves affected by stylolites (Figure 9d) which record the latest stage of silica migration.

4.3. Slabs and Matrix in Slab Conglomerates

The lithology and texture of the white chert slabs strongly resemble massive white layers; they consist entirely of homogeneous quartz that varies little in grain size, from microquartz < 5 μm to mesoquartz up to 20–30 μm (Figure 10a,b). Carbonaceous matter is nearly absent within fragments but is commonly concentrated along their rims (Figure 10b).

The black matrix is very similar to massive black chert layers. Carbonaceous matter is abundant (Figure 9a,b), both as detrital rounded particles or carbonaceous aggregates, and the surrounding matrix is essentially composed of microquartz (< 5 μm). Rare pieces of microbial mat are preserved as thin, discontinuous laminations. In Figure 10c, a well-preserved piece of mat displays a roll-up structure typical of biofilms reworked when still alive.

Part of the matrix is devoid of carbonaceous matter and shows void-filling textures (Figure 10a) typical of silica precipitation from Si-rich fluids circulating in cavities left between the slabs. Towards the centre of each cavity, the crystal size abruptly increases from < 5 μm to 1 mm and large chalcedony grains (up to 2 mm) and colloform textures may be preserved. Numerous chert veins (< 1 mm-thick) cross cut both the slab and matrix in conglomerates (Figure 10a) and are further evidence of secondary fluid infiltration in those layers.

4.4. Contacts between Black and White Layers

Contacts between black and white layers are sharp, with small-scale irregularities (Figure 11c,d), dome-like structures (Figure 11a) and/or small-scale load cast structures (Figure 11c) that resemble syn-sedimentary, soft-deformation structures. Internal structures in the black chert strata, interpreted as biogenic laminations or abiological structures, generally follow the contacts with surrounding white chert layers (Figure 11a). Concentrations of carbonaceous matter (Figure 11c) or more densely packed carbonaceous laminae (Figure 11b,d) are common at the very top of the black layers, at the contact with the overlying white chert. Underlying laminations are undeformed, and there is no evidence of silica infiltration between the two facies, suggesting the texture developed during the early compaction of the topmost carbonaceous laminae while the next layer was deposited on the seafloor.

On average, non-compacted microbial mats are continuous laterally for the dimensions of thin sections (Figure 11b) but local disruptions may be observed in the uppermost laminations. In Figure 11a, fine fractures penetrate perpendicularly to the bedding; thin veins, then filled by microquartz (< 20 μm), are connected with each other by lateral branching along the mats. This networking, although observed in two dimensions, resembles desiccation cracks or fluid infiltration structures that may have formed during the deposition of white chert onto living microbial communities.

5. Chemical Compositions

5.1. Analytical Techniques

Geochemical analyses were performed at ISTerre, Grenoble using a Perkin Elmer Optima 3000 DV ICP-AES for major elements, and an Agilent 7500ce ICP-MS for trace elements. The sample preparation procedure, detailed in the Supplementary Materials, is from Chauvel et al. [39]. Samples were digested in bombs to ensure the complete dissolution of possible resistant minerals. The international rock reference material BHVO-2 was used for calibration, and standards AGV1, BIR1 and DTS2 were run as unknowns (

Table 1. Major and trace elements of standards.

	BHVO-1 Values Used to Calibrate the Signal	Average BIR (n = 2)	BIR Réf	Reproduc- Ibility (%)	Accuracy (%)	AGV1	AGV-1 Réf	Accuracy (%)	Average DTS-2 (n = 4)	Reproduc- ibility (%)
(wt%)	(wt%)
SiO2	49.9
TiO2	2.73
Al2O3	13.5
Fe2O3 t	12.3
MnO	0.17
MgO	7.23
CaO	11.4
Na2O	2.22
K2O	0.52
LOI
Sum	99.97
(ppm)
Ti	16300	5709.5	5630	2	3	6221	6080	2	41.8	2
Cs	0.1		0.00543			1.35	1.29	5
Rb	9.11	0.179	0.239	2	-24	70.9	66.8	6	0.04925	27
Ba	131	6.03	6.47	2	-6	1253	1230	2	11.7	2
Li	4.8	3.6	3.37	2	8	10.7	10.9	-2	2.025	2
Pb	1.54	2.875	3.01	2	-3	39.9	35.9	11	3.795	1
Sr	396	109.5	106	2	5	695	657	6	0.4225	1
Th	1.22	0.02745	0.0299	2	-7	6.33	6.35	0	0.00375
U	0.403	0.00898	0.00981	2	-7	1.86	1.83	2	0.00181	5
Nb	18.1	0.5275	0.521	2	3	14.4	13.9	4	0.01468	4
Ta	1.14	0.0373	0.0384	2	-2	0.85	0.825	3
Zr	172	13.5	13.8	2	-1	237	237	0
Hf	4.36	0.5795	0.574	2	2	5.06	5.05	0
Sc	32	43.4	42.4	2	4	12.7	12.8	-1	2.64	1
V	317	324.5	319	2	3	121	117	3	18.8	1
Cr	280	384	368	2	6	7.54	8.05	-6	12283	1
Co	45.0	53.2	51.1	2	5	15.9	15.3	4	104	2
Ni	119	172.5	165	2	6	14.9	14.5	3	2646	2
Cu	127	120.5	115	2	6	58	57.2	1	1.535	15
Zn	103	68.5	68.4	2	1	95.9	91.7	5	39.2	2
(ppt)	(ppm)
La	15.2	0.606	0.598	2	3	38.1	38	0	0.0127	8
Ce	37.5	1.835	1.87	2	-1	70.3	69	2	0.02363	8
Pr	5.35	0.375	0.374	2	2	8.52	8.47	1	0.00303	21
Nd	24.5	2.355	2.36	2	1	32.3	31.8	2	0.01283	8
Sm	6.07	1.075	1.1	2	-1	5.85	5.77	1	0.0035	14
Eu	2.07	0.516	0.523	2	0	1.63	1.61	1	0.0011	39
Gd	6.24	1.835	1.83	2	2	4.78	4.69	2	0.00503	7
Tb	0.92	0.358	0.355	2	2	0.639	0.632	1	0.00065	15
Dy	5.31	2.515	2.56	2	0	3.64	3.55	3	0.00487	7
Ho	0.98	0.567	0.571	2	1	0.682	0.675	1	0.001305	7
Y	26	15.4	15.1	2	3	20.1	19.5	3	0.0292	4
Er	2.54	1.695	1.72	2	0	1.88	1.84	2	0.005303	6
Yb	2	1.66	1.65	2	2	1.7	1.65	3	0.010375	2
Lu	0.274	0.2445	0.244	2	2	0.244	0.241	1	0.002255	3

). The accuracy and precision of the data, evaluated using these analyses, were found to be within 5% and < 0.6% of the accepted values for major and trace elements respectively. Uncertainty on the measurements (1σ) varied from 0.01% to 1.35% for major elements, and was better than 5% for trace elements (except for Zn, Mo and Cd, with uncertainties up to 10%), showing the very good reproducibility of our data despite extremely low concentrations. Representative analyses of black and white cherts are listed in Table 2 and full data are available in the Supplementary Materials. During trace element analyses, anomalously high Sm contents were measured in some white chert samples. This is interpreted as an artefact from contamination with an Sm of unknown origin. The procedure adopted to evaluate and correct the anomaly is discussed in the Supplementary Materials.

5.2. Results

Both black and white cherts contain close to 100% SiO₂ with most other major elements below the detection limit (Table 1 and Table 2). The black cherts contain low Al₂O₃ (< 0.2 wt%), TiO₂ (< 0.01 wt%) and K₂O (< 0.07 wt%) attributed to the carbonaceous matter and/or the rare rounded detrital grains preserved as ghosts in the matrix. In the upper units, both chert types contain low, yet significant iron contents, from 0.15 to 0.33 wt% (Table 1), probably in the minute disseminated oxides (cf. Section 4).

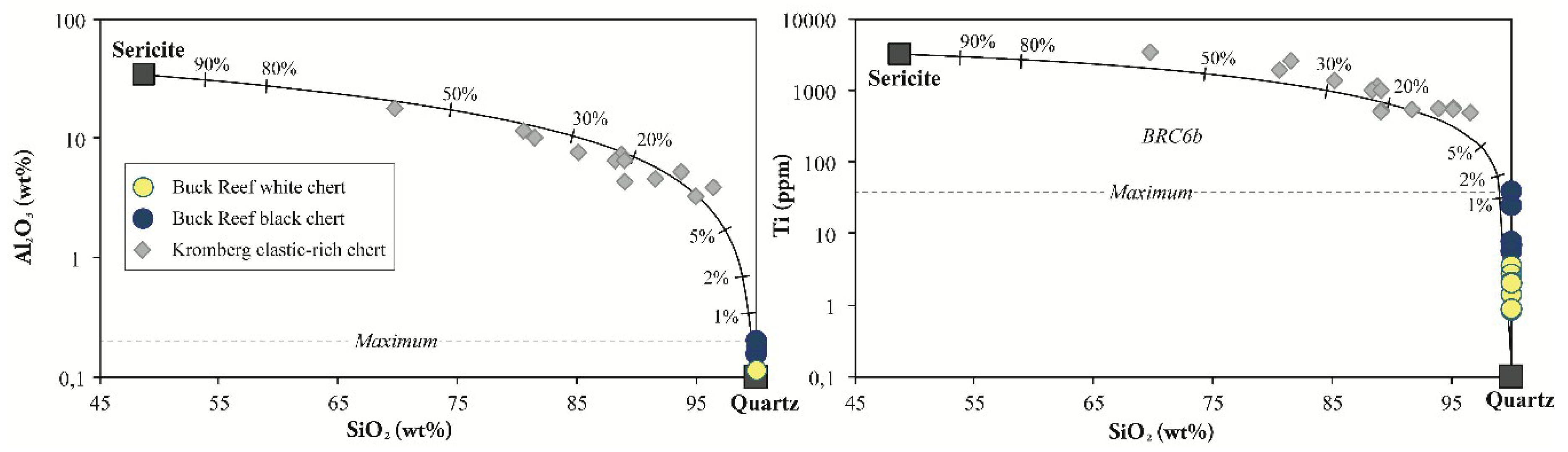

In Figure 12, the chert compositions are compared to siliceous sediments from the Kromberg type section, which were interpreted by Ledevin et al. [40] as seawater-derived cherts deposited together with a small amount of detrital K-feldspar and clay minerals (now sericite). These cherts lie on mixing curves between pure silica and sericite endmembers, with 5% to 50% sericite accounting for both aluminium and titanium contents. The Buck Reef cherts, in contrast, plot close to the pure silica endmember and contain virtually no clay in white cherts, and no more than 1% in black cherts.

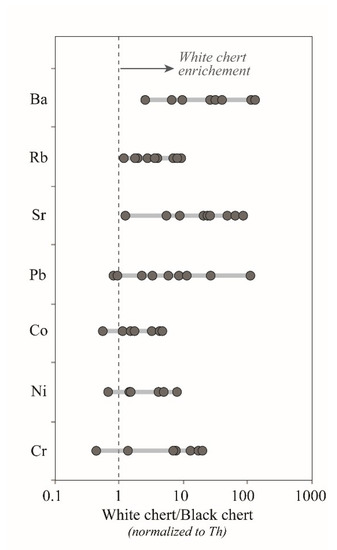

Trace element concentrations are extremely low (Table 1 and Table 2), with a total rare earth element (REE) + Y contents below 1 ppm (< 0.5 ppm on average) in white cherts and up to 6.4 ppm in the black cherts that contain significant Al₂O₃ and K₂O (Figure 12 and Figure 13). Total contents of large ion lithophile elements (LILE) and high-field-strength elements (HFSE) are below 20 ppm and 0.5 ppm respectively in the white cherts, but are two to 13 times greater in the adjacent black layers. One sample of slab conglomerate (BRC6b) is systematically enriched compared to the other white chert samples, in line with the enrichment of Al₂O₃, K₂O and the REE in the black matrix of this sample (Table 1). When normalized to Th (Figure 13), certain elements—Ba, Rb, Sr, Pb, Co, Ni and Cr—are enriched in the white chert compared to the adjacent black layer. The degree of enrichment is highly variable between black–white chert couplets, from two to 100.

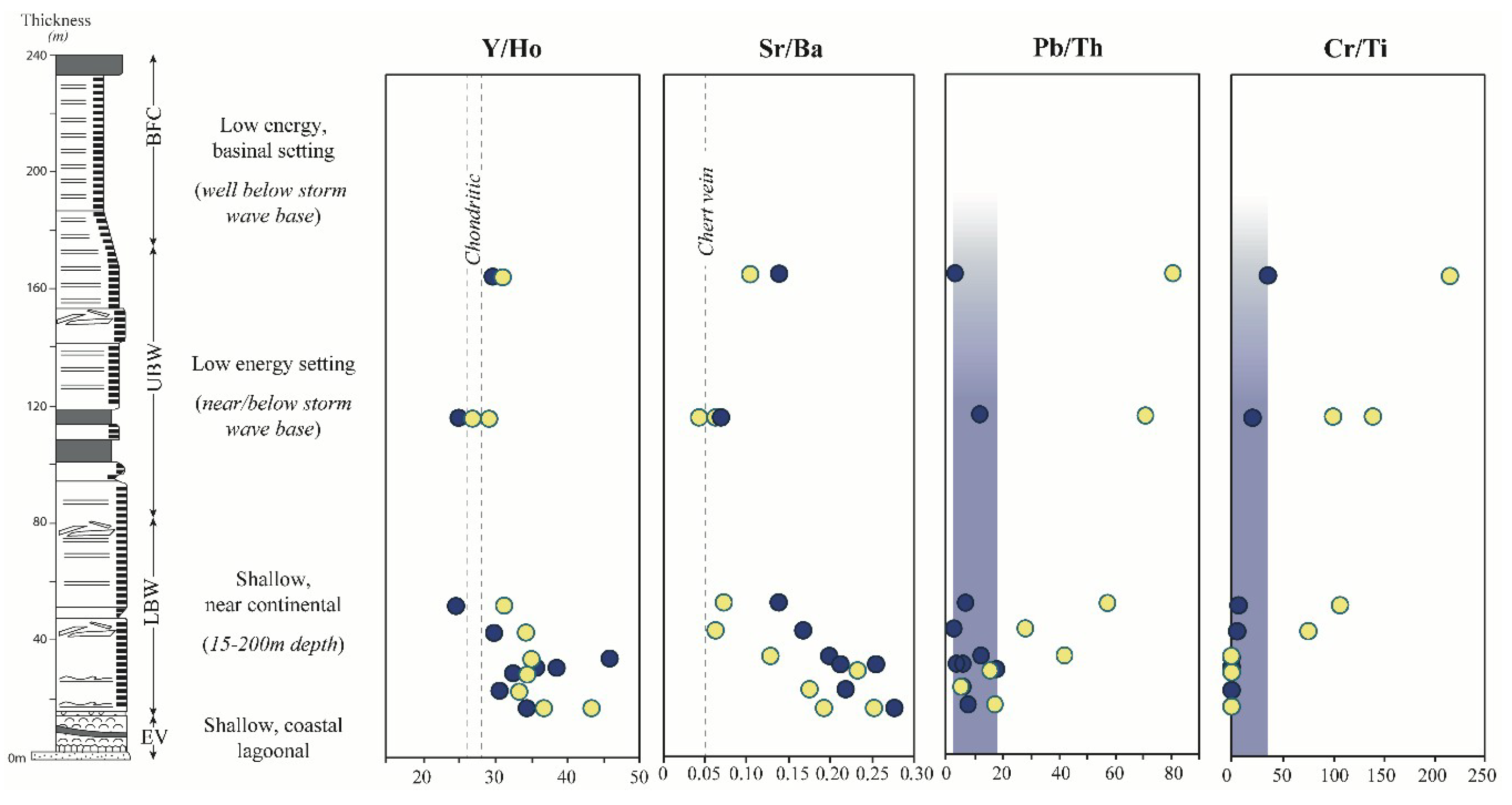

Interesting patterns emerge from the stratigraphic variations in Figure 14, where we observe a decoupling up-section of the white and black chert characteristics: the black cherts maintain a relatively constant composition while the white cherts become increasingly enriched in Pb, Co, Ni and Cr relative to incompatible elements, like Ti (Figure 14). Both Sr/Ba and Y/Ho decrease towards the upper unit (Figure 14).

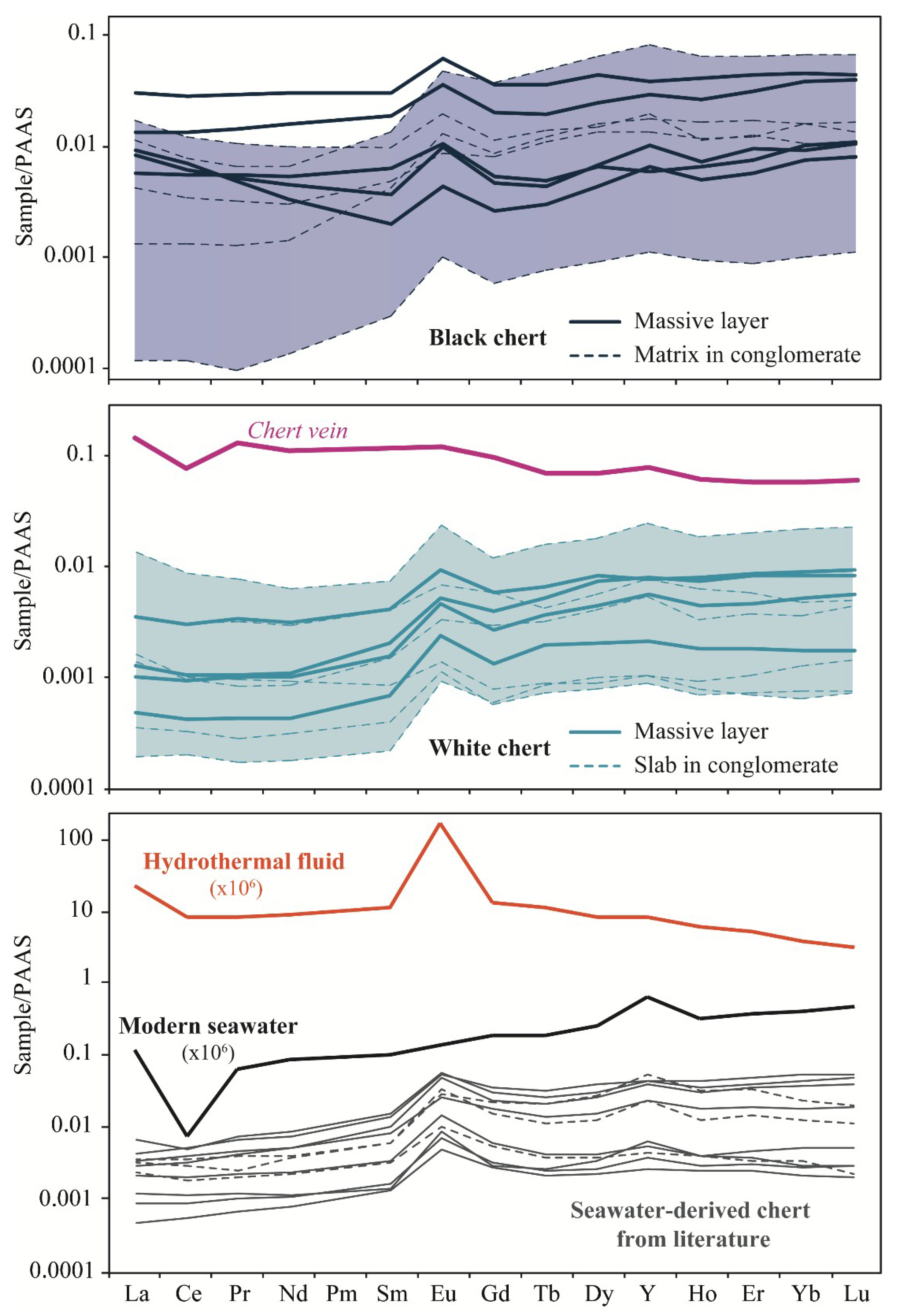

Trace element patterns (normalized to Post-Archean Australian shale [41]) of Buck Reef banded cherts and a vein of white chert (BRC2-V; Table 1) are shown in Figure 15, together with modern seawater, hydrothermal fluids and seawater-derived cherts typical patterns [42,43,44]. Black cherts, both in massive or conglomerate layers, show large variability: the LREE are either flat or strongly depleted (Pr/Yb_SN = 0.09–1.00); La and Ce anomalies are absent or weakly to strongly positive (La/La* = 1.0–7.8; Ce/Ce* = 0.98–2.15; Table 1); the Eu anomaly is strongly positive (Eu/Eu* = 1.37–2.44); and Y/Ho ranges from subchondritic to superchondritic (Y/Ho = 25 to 46). The presence of variable amounts and types of carbonaceous matter and/or detrital quartz and clay is thought to explain the range of compositions.

White cherts, both in massive layers and chert slabs, are less variable and display highly fractionated REE patterns characterized by strong LREE depletion (Pr/Yb_SN = 0.13–0.66) and nearly flat HREEs (Figure 15). One slab (BRC1) is distinguished by LREE enrichment (Pr/Yb_SN = 1.5). The La and Eu anomalies are weakly to strongly positive, with La/La* ranging from 1 to 1.7 and Eu/Eu* from 1.42 to 2.41, and the Ce anomaly is absent to positive (Ce/Ce* up to 1.3), except for one sample with a negative value of 0.58. Yttrium is variably enriched, producing chondritic to superchondritic Y/Ho ratios from 26 up to 43. The white chert slabs in conglomerates show the highest Y/Ho ratio.

The chert vein sample BRC2-V has overall higher REE contents and stronger enrichment in LREE, with a Pr/Yb_SN ratio of 2.2. It lacks a La-anomaly (La/La* = 0.87) and has a small positive Eu-anomaly (Eu/Eu* = 1.20).

6. Discussion: Origin of the Buck Reef Cherts

Despite the controversy surrounding the mode of silica precipitation and origin of the banding, cherts are widely used to investigate the environmental conditions prevailing in Archean oceans. A better knowledge of how they form is crucial to any evaluation of the potential of such chemical sediments as paleo-environment recorders.

As mentioned in the introduction, three main hypotheses have been proposed to explain the banding in B&W cherts: (1) silicification of a finely bedded protolith ([4,5,6]; (2) diagenetic segregation from a homogeneous silica-carbonaceous mixture [2,7]; or (3) primary deposition of alternating carbonaceous-rich and pure silica sediments [12,24,44].

In the following discussion, field, petrological and geochemical evidence is used to advocate that the cherts are primary chemical sediments. We then propose a model that explains their formation, the origin of the silica and that of the banding.

6.1. The Banding is Not Inherited from Bedding in a Sedimentary or Volcanic Precursor

In Archean terrains, metamorphism and Si- and K-metasomatism commonly transform volcanic and volcaniclastic rocks into a mosaic of secondary microquartz and sericite and strongly change the chemistry of the protolith (e.g., [40,45,46,47]. However, unless disturbed by synchronous or later deformation, petrological and chemical traces of the protolith usually remain in the form of primary structures, pseudomorphs after precursor mineral, remnants of refractory minerals and preservations of metasomatism-resistant elements, such as Al, Ti and the REEs [14,22,23,48,49].

In the Buck Reef cherts, we found abundant evidence for Si-rich fluid circulation in the form of silica veins, cavity-filling textures and the disappearance of primary textures behind pervasive silicification fronts (Section 3 and Section 4). However, an absence of relicts of clastic minerals in the black layers (zircon, Ti-oxide, silicates, etc; Section 4.2), the purity of the white layers (Figure 6), and the extremely low concentrations of elements resistant to Si-K metasomatism (i.e., Al₂O₃, Ti, HFSE), suggest that the cherts were not produced by silicification of a sedimentary precursor. Additional arguments are the marked contrast in texture and composition of black and white layers, repeated hundreds of times up through the sequence, and the sharp contacts between the layers, which resemble contacts between sedimentary beds and are very different from diffuse contacts between silicification fronts. We find it difficult to accept that silicification could be sufficiently selective that it produced the alternation of almost pure silica layers with adjacent layers that contain significantly higher contents of biogenic organic matter.

An alternative explanation is that the white chert bands are hydrothermal veins, injected lit-par-lit into a sedimentary sequence. This interpretation is negated by the uniform thickness of the white bands, which systematically is similar to that of adjacent black bands, and the concordance of the bands, which never cut across the other strata. In addition, the white bands consist almost entirely of SiO₂, without the potassium and other fluid-mobile elements that are present when other types of rock are silicified [49].

In their overall form and internal organization, the banded black and white cherts resemble banded iron formations, which most authorities interpret as finely bedded sedimentary rocks ([47] and references therein).

6.2. The Banding is Not Diagenetic.

Tice and Lowe [2] and Lowe and Fisher Worrell [7], proposed a diagenetic origin for the banding, also advocated for banded iron formations (e.g., [50,51,52]) and younger bedded chert-shale sequences [53,54]. These authors argued that during the diagenesis of a mixture of chemical sediment, detrital particles and organic matter on the seafloor—the silica segregated to form the white chert bands, the rest forming the black chert layers. Lowe [34] advanced two key arguments in favour of the model: (a) the thickness of the white bands varies little across the outcrop, both in space and time, which they consider to be inconsistent with primary deposition; and (b) if white cherts were rapidly deposited sediments, they would have mixed to some extent with carbonaceous matter. The following arguments call into question these interpretations:

(1) Sediment-like contacts. As described in Section 3 and Section 4.4, contacts between black and white chert layers are sharp and frequently marked by large- and small-scale soft deformation structures typical of seafloor sedimentation. In some places, detritus-rich black chert fills troughs with typical fan structures in underlying white chert. With the exception of local and thin quartz veins, and silicification fronts of limited extent, there is no evidence for fluid migration between the two facies. Finally, we interpret the densely packed laminae at the top of some black layers as early compaction features, developed as the following white chert layer was deposited on the seafloor.

(2) Slab conglomerates. From their structure, texture and mineralogy, it is evident that the slabs are the disrupted equivalent of massive white chert layers. The angular to sub-angular shapes of the slabs indicate that the white layers were first deposited, then became indurated, at most a few tens of centimetres from the sediment-water interface.

(3) Preservation of microbial mats in black cherts. The micro-scale carbonaceous laminations (< 15 μm-thick) in black cherts are interpreted as remnants of microbial mats. The sharpness of contacts with surrounding white cherts, the lack of abundant silica diffusion features and the lateral continuity and preservation of such delicate biogenic structures, are inconsistent with the diagenetic segregation hypothesis.

(4) Evidence for “granule-like” sedimentation. Stefurak et al. [24,44], observed silica granules in Buck Reef cherts and proposed that they are primary silica deposits from ambient seawater, further challenging the diagenesis hypothesis.

6.3. Limitations of the Hydrothermal Plume Model

From the above discussion, we conclude that the black and white cherts formed at the seafloor, by the deposition of almost pure, orthochemical silica, periodically accompanied by organic and detrital components. The process was cyclic and repetitive; it prevailed over a large area consistent with the spatial extension of the Buck Reef, and it persisted over a long period of time that coincided with increasing depth of deposition.

Geilert et al. [12] invoked mixing of hydrothermal plumes and water mass in a stratified ocean, a popular model for banded iron formations [8,9,10], to explain the banding in the Buck Reef. In this model, the black bands formed during enhanced hydrothermal activity, when a hydrothermal plume passed above the chemocline, mixed with surface waters and incorporated organic matter that was concentrated in the euphotic zone. The dissolved metals within the plume reacted with any available oxygen and served as nuclei for silica precipitation. During periods of low hydrothermal activity, the plume mixed and interacted with bottom waters: most of the metals remained dissolved under reducing conditions while low temperatures reduced silica solubility and promoted pure silica precipitation. Geilert et al. [12] noted that the silicon isotope ratio of the black layers resembled that of hydrothermal fluids.

We question this model not because we doubt a hydrothermal origin of many of the components of B&W cherts but because we do not understand how the flux of hydrothermal fluid could be regulated in the regular and repetitive manner needed to explain the banding. More specifically:

(1) Variation in the intensity of hydrothermal activity cannot explain the remarkably uniformity of the black and white chert bands. Hydrothermal activity at modern ocean ridges or other sites of submarine volcanism occurs at multiple sites, all of which operate sporadically. There is little reason to suspect that Archean systems, which operated when magma fluxes were higher and oceanic crust or plateaus more widely dispersed, would have functioned differently. On this basis we believe the combined hydrothermal flux from these sites, the inferred shallow lagoonal setting of the lower part of the Buck Reef sequence, was unlikely to be switched on and off in a regular and repeated manner.

(2) It is not evident how mixtures of hydrothermal fluids in cold bottom seawater would be transported into shallow-water depositional settings at the margins of continents. Upwelling of bottom seawater might occur sporadically, but unless controlled by external forcing, is unlikely to be repeated regularly and repeatedly. Geochemical modelling (e.g., [55]) indicates that at 3.5 Ga, only 20–50% of the mass of modern continental crust had formed, and because ocean volumes were greater at this time [55,56], most of these continents were submerged. Consequently, today’s large, north–south aligned continents that regulate modern ocean circulation probably did not exist. It is difficult to model the circulation of ocean currents and the upwelling of deep ocean waters around the small, probably isolated, land masses that constituted the Archean continents, but there is little to suggest that upwelling at the margin of nascent South Africa would have fluctuated in a regularly repeated manner (see also the discussion in Section 6.4.3).

(3) The involvement of a hydrothermal plume is inconsistent with the very low concentrations of iron and other metals in the Buck Reef cherts. We recognize that the plume might have lost most of its metals as it precipitated Fe oxides following interaction with oxidizing surface waters. However, it is unlikely in this case that the plume retained enough silica to generate massive cherts.

Positive europium anomalies are common features in Archean sediments from a variety of depositional settings, which suggests global Eu-enrichment of Archean seawater due to enhanced hydrothermal inputs at that time ([1,57,58,59,60]. Throughout the Buck Reef stratigraphy, the positive Eu-anomaly is relatively constant and strongly positive (Eu/Eu* from 1.37 to 2.41), which we attribute to the wide scale Eu-enrichment of Archean oceans. We rule out a local high-T hydrothermal origin due to the lack of obvious plumbing structures (i.e., vent mounds, chimney or dikes), and the lack of an identifiable heat source [2].

6.4. A New Model for the Buck Reef Chert

Based on field, petrological and geochemical evidence, we developed a model that explains the source of the silica, the origin of the two types of cherts and the cause of the banding. We considered two types of banding: macro-banding (5 to 20 cm thick) that persists through the entire unit, and micro-banding (5–15 μm thick) that is restricted to the black bands, especially in the lower unit.

6.4.1. Origin of the Silica: Shallow Marine, Low Temperature Hydrothermalism

Tice and Lowe [2] Lowe and Fisher Worrell [7] considered the Buck Reef setting to have been free of active hydrothermalism, based on the absence of active heat sources at the time it formed, and the lack of venting structures, spring mounds and tufas in the area. De Vries et al. [5] disputed this conclusion on the basis that they had identified hydrothermal breccias and possible sinter deposits within the base of the sequence. Instead, they attributed the breccia pods and layers to locally explosive hydrothermal activity that alternated with low-energy sedimentation.

In this study, we found evidence of circulation of Si-rich fluids, such as the silicification fronts, the abundant silica veins cutting through the cherts and the occurrence of void-filling textures within conglomeratic layers (Section 4). The preservation of fibrous quartz (Section 4), the lack of oxygen isotope resetting across the sequence (e.g., [61]) and microthermometric analyses on fluid inclusions (e.g., [62]) indicate relatively low temperatures for the fluids, probably below 150 °C.

The massive white chert layers, with their almost pure silica mineralogy and spectacularly low concentrations of all elements other than SiO₂ (Figure 12 and Figure 15), provide the best opportunity to estimate the chemical signature of pure silica component, and therefore, investigate the presence of possible hydrothermal contribution to the local basin chemistry. In both massive layers and chert slabs, the REE + Y composition shares some characteristics with modern seawater and seawater-derived silica precipitates [57,63] (Figure 15; namely, strong depletion of the LREE and more moderate enrichment of La, Y and Sr. However, the positive Eu-anomaly and enrichment in key elements, such as Ba, Pb (± Rb), Co and Ni, confirm additional contributions from fluids that had interacted with the Archean oceanic crust. The barium enrichment, in particular, is diagnostic of low temperature hydrothermal inputs, as observed in other hydrothermally altered, Si- and Ba-rich greenstones from Barberton [64,65] or Pilbara [66]. Moreover, the lack of barite deposits, despite the Ba enrichment, suggests the basin was poor in sulfate, and therefore, most likely unaffected by fluid contributions from any magmatic intrusion. Instead, the lack of significant Fe, Zn, Mn and Cu, and absence of Fe-rich and S-rich deposits in most of the Buck Reef sequence is more consistent with low temperature fluids, close in composition to modern white smokers or continental epithermal fluids (e.g., [67,68,69]).

The Buck Reef cherts were deposited on a kilometre-thick sequence of felsic volcanics, fluvial conglomerates, sandstones and diamictites [70], all strongly silicified [47]. The notable absence of iron in the cherts requires that fluid circulation did not reach the mafic-ultramafic rocks that lie at least 1 km beneath the felsic units and that the fluids interacted only with the felsic volcanics and fluvial sedimentary rocks. Fluid-rock interaction, devitrification of volcanic glasses and alteration of feldspars to clay minerals in these felsic lithologies would release acidic fluids highly enriched in silica, and Eu, Ba, Pb, Sr and Rb [71], thus explaining their enrichment in the surface sediments. Similar low-temperature, shallow convection cells were also inferred from other parts of the Barberton belt [47,72] and from the Pilbara craton [20,73].

Tice and Lowe [2] Lowe and Fisher Worrell [7] considered the Buck Reef area as a shallow, near-continental platform that progressively subsided and eventually connected to the open ocean. On the other hand, Grosch et al. [74] argued that the basin was more likely an epeiric sea partially or fully isolated from the open ocean. In such a restricted setting, local and diffuse low-temperature fluid discharges from the seafloor may have played an important role in controlling the composition of local seawater, as is typical of areas remote from oceanic ridges and back-arc settings.

From the above discussion, we conclude that the Buck Reef resembles a modern near-continental epithermal system, where local seawater was nourished by pervasive, low temperature hydrothermal discharges issuing from intense fluid-rock interaction in the sub-seafloor. Continental weathering and riverine inputs may constitute an additional, although minor source of silica [75,76,77,78,79]. Mixing of warm, acidic, Si-rich fluids from the seafloor with colder, more alkaline, Si-rich seawater triggered continuous precipitation of abundant silica, leading to deposition of the cherts.

Upwards through the stratigraphy; the concomitant decrease in Sr/Ba ratio; the slight shift from superchondritic to chondritic Y/Ho ratio; and the increasing Ba, Pb, Co and Cr contents (Figure 14), are all features we tentatively attribute to increasing contributions from hydrothermal fluids at the expense of the oceanic signal [80,81]. Geilert et al., [12] also reported a shift from positive (+0.33‰) to negative (–1.27‰) δ³⁰Si values in the white layers from the base to the top of the Buck Reef, which is consistent with increasing involvement of silica that interacted with the oceanic crust.

The successive lithologies recorded a progressive deepening of the basin [2], from evaporitic conditions (i.e., braided sandstone with nahcolite pseudomorphs); to medium-energy conditions (i.e., detritus-rich, B&W chert, slab conglomerates); and then a deep, quiet environment, far from coastal turbulence (i.e., finely laminated B&W cherts). Greater depth resulted in a decrease of wave activity and coastal turbulences, which would have affected the extent of seawater and hydrothermal fluid mixing at the surface: efficient mixing under shallow, high-energy conditions would dilute the hydrothermal signal, whereas quiet conditions would promote hydrothermal fluid concentrations and more pronounced contribution to the deep-sea deposited cherts. Alternatively, as the basin depth increased, chemically distinct water masses became involved: the depth might have passed below a chemocline that separated surface water from more hydrothermally-influenced bottom seawater, or the basin might have progressively connected to the open ocean, itself more widely controlled by widespread, high temperature hydrothermalism. Eventually, mixing of iron-rich, Si-poor bottom waters and/or open ocean waters with ambient marine fluids led to the precipitation of the iron-rich cherts at the top of the unit.

6.4.2. The Origins of the Fine Layering: Seasonal Variations Recorded within the Black Layers

Mixing of hydrothermal fluids with seawater might have triggered continuous precipitation of abundant silica but does not explain the origin of the banding itself. Tidal and solar cycles, or annual seasonal cycles, have been proposed to explain rhythmic banding in banded iron formations [82,83], but the time scales of these cycles are probably too short to explain the cm- to dm-thick alternation of black and white layers in the Buck Reef. If we assume a thickness of 400 m for the entire sequence, an average thickness of 5 cm for each band and suppose that a black-white couplet represents an annual cycle, then the whole sequence would have been deposited in about 4000 years. The corresponding sedimentation rate would be 5 cm/yr, which is higher than the 0.03 to 1 mm/yr proposed for Precambrian BIF [84,85,86,87], far greater than the average 0.01–0.04 mm/yr accumulation rate of modern, biogenic siliceous ooze (e.g., [88]) and many orders of magnitude greater than the accumulation rate of red clays and other deep-sea sediments.

However, annual or seasonal variations may explain the far finer micro-layering within individual black chert layers from the lower part of the sequence. As described in Section 4.2, carbonaceous laminations of microbial mats are intercalated with thin silica bands, each of which is 10–15 μm-thick in average (Section 4.2, Figure 8 and Figure 11). Konhauser et al. [86] interpreted similar structures in modern siliceous sinters from Iceland as seasonal microbial deposits, with active growth during summer onto a silica-rich substratum, followed by quiescence during winter when abiological silica precipitation exceeds the bacteria growth capacity. We estimate that that one black layer (on average 5 cm-thick) contains between 1600 and 2500 black-white couplets, and if these are annual cycles, the sedimentation rate would be 0.02–0.03 mm/yr, which is very similar to the estimates for modern or ancient siliceous ooze.

Although such calculations are subject to major uncertainties, the orders of magnitude are probably correct. Therefore, we suggest that the massive black layers represent "normal" sedimentation in the Buck Reef basin: each black band formed within a few thousand years, by annual cycles of silica precipitation and microbial growth similar to those reported by Konhauser et al. [89]. The silica mostly came from the diffuse hydrothermal circulation (Section 6.4.1) with a possible minor contribution from river waters. The silica content probably was close to saturation in the water column, while carbonaceous matter was produced by organisms confined to the upper euphotic zone [2]. Detrital carbonaceous grains could have served as nuclei that aided silica precipitation, as suggested by the silica coatings commonly observed around detrital carbonaceous grains (Section 4.2; Figure 9b). In the water column, the carbonaceous and siliceous snow would settle as ooze on the seafloor, where it served as substrate for the microbial colonies.

The presence of the warm, nutrient-rich emanations from the seafloor, the possible contribution from continental weathering (e.g., phosphorus; [90]) and the initial shallowness of the basin might have concurred to build favourable conditions for life. The lack of negative cerium anomalies in the studied cherts is inconsistent with an oxygenated niche in the Buck Reef basin, and supports Tice and Lowe's [2] conclusion for the development of anoxygenic photosynthetic microbial mats.

In the deeper part of the basin (> 200 m) microbial mats were absent and micro-bands were poorly developed, rendering difficult the recognition of varve-like deposits (e.g., Figure 9a). Instead, carbonaceous matter deposited as detrital grains and/or agglomerates, likely derived from shallower parts of the system. While settling through the water column, these particles mixed with precipitating silica to form a heterogeneous carbonaceous- and silica-rich mud on the seafloor (Section 4.2).

6.4.3. Origin of the Coarse Layering: Astronomically-Forced White Chert

The origin of the massive white chert layers is more enigmatic. They are entirely composed of cryptocrystalline silica, with negligible organic or detrital material; they lack internal structures; and they contain extremely low concentrations of immobile elements, such as the REE and Th, all indicating rapid deposition without continental or organic contributions. What is required is a process that is repeated regularly, probably in tens of thousands of years, in order to explain the alternation between periods of rapid and subdued precipitation of silica recorded in the black and white cherts. We rejected geological or tectonic processes, such as shallowing of the basin; periodic exposure of continental crust and increased riverine input; changes in ocean circulation; and external drivers, such as fluctuations in volcanic outgassing and periods of increased acid rain, because we have difficulty imagining that any of these processes could be repeated with sufficient regularity, hundreds of times. Instead, to explain these features, we call on global events that periodically interrupted the “normal” sedimentation of the black cherts, shut down or overwhelmed external contributions from the continent, and inhibited microbial activity while promoting massive and rapid silica precipitation on the seafloor.

Although the Archean climate is believed to have been generally warm and humid (e.g., [19,91,92,93] and references therein) glaciation is recorded at 3.0–2.9 Ga in the Pongola Supergroup in South Africa [94] and de Wit and Furnes [95] identified diamictites in the 3.45 Ga Etimambeni section of the Barberton belt, which conformably underlies the felsic lavas beneath the Buck Reef Chert. De Wit et al. [33], Grosch et al. [74] and de Wit and Furnes [70] argue for a moderately cold climate with local glacial conditions as early as 3.4–3.5Ga. The cooler periods did not necessary lead to the development of ice sheets but could have been limited to strong variations of mean surface temperatures, possibly accompanied by significant eustatic variations of sea level and ocean circulation (e.g., [85,95,96]).

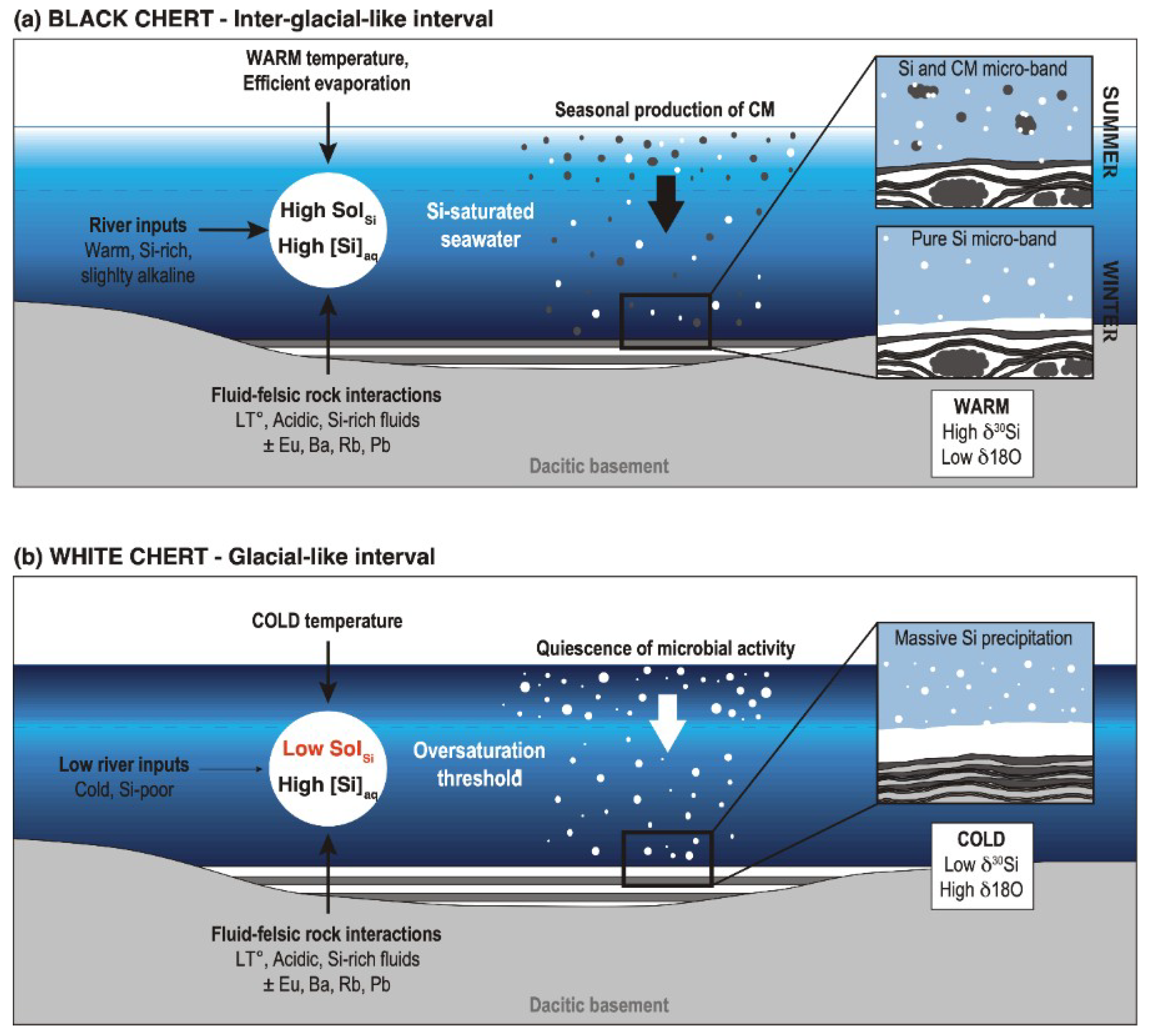

As a possible cause of the macro-banding illustrated in Figure 16, we invoke major events of the type that perturbed global climate in the recent past and led to the alternation of glacial and interglacial periods. We accept the hypothesis (e.g., [97,98]) that astronomical factors—the interplay of orbital parameters, mainly precession and obliquity—influenced insolation and that this led to changes in average global temperatures. The magnitude of these changes was only a few degrees but their impact was multiplied by feedback, such as changes in global albedo or patterns of ocean circulation, that resulted in more drastic temperature fluctuations that led to oscillations between glacial and interglacial periods [99,100,101].

Recent geological history is, again, of limited application to the Archean situation because the Archean world was so different from that of today. In the absence of abundant emergent crust, the large continents that channel today’s ocean circulation were missing. The absence of large continents and a rarity of land meant there were fewer influxes of freshwater of the type that are thought to have triggered recent climate perturbations.

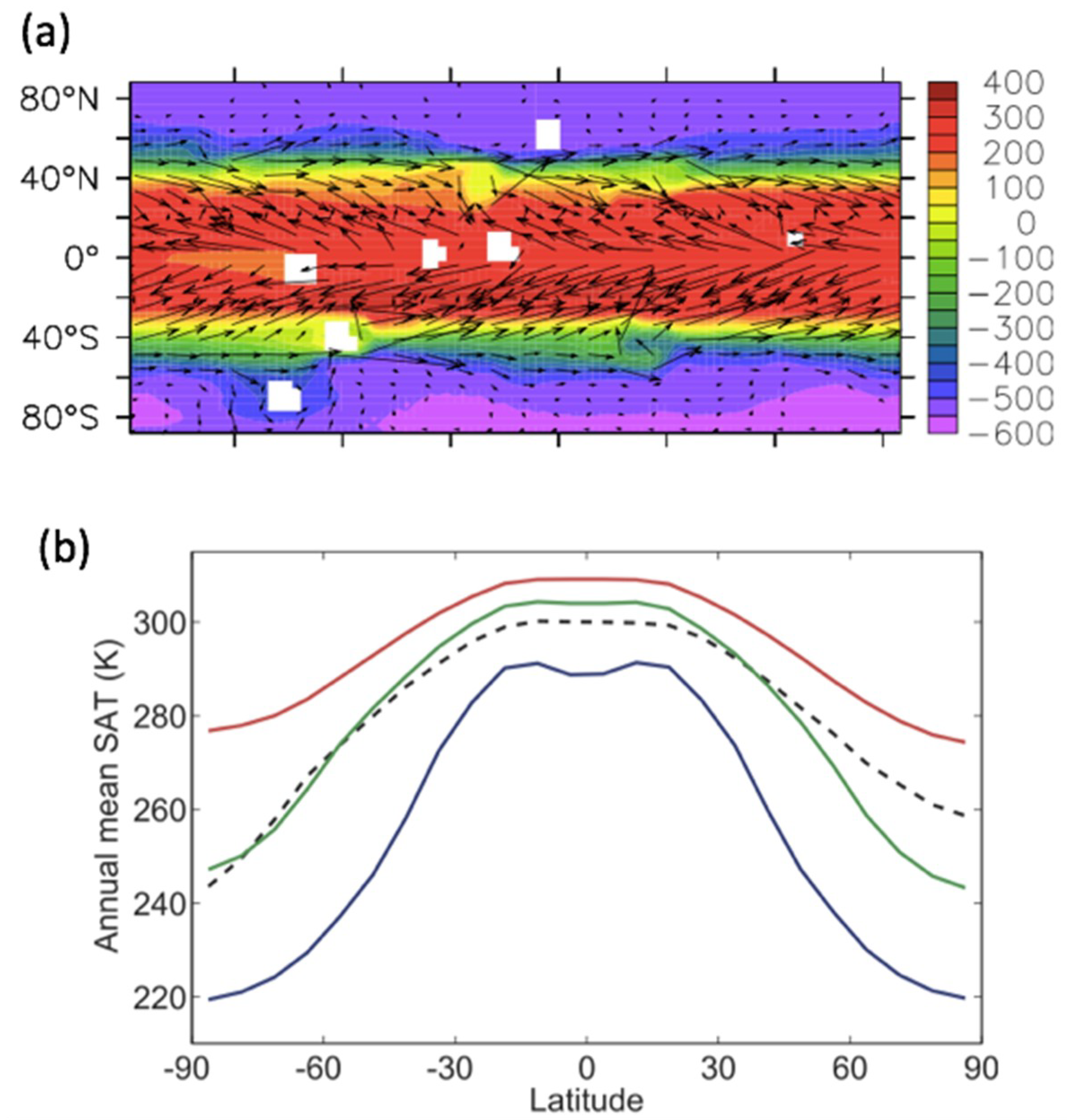

On the Archean waterworld, ocean circulation may have been trimodal, with a westward equatorial current sandwiched between two eastward polar currents, as illustrated in the model of Keinert et al. ([99], Figure 17). Because of the high albedo contrast between snow-covered sea ice at the poles and the low-albedo oceans that covered most of the planet, the latitudinal temperature gradient was steep, with a temperature difference of almost 50 K between latitudes 30° and 60°. Under these conditions, the minor temperature changes caused by astronomically-forced fluctuations in solar radiation would trigger latitudinal migration of the boundary between ocean circulation currents, provoking major changes not only in temperature but also to other temperature-sensitive parameters. The major flux of fresh water would be from snow deposited on sea ice at the poles. During cold glacial periods, this reservoir grew larger and freshwater flow ceased. During interglacials, increasing temperatures melted the snow, causing an influx of freshwater into the polar oceans, decreasing both the salinity and the concentration of dissolved silica. Nascent continents located in temporal zones would have been particularly sensitive to fluctuations in local conditions.

The solubility of Si in ocean waters depends mainly on temperature and salinity, the effect of pH being very minor except in very alkaline solutions (e.g., [102,103]). Whether or not silica precipitates also depends on the Si concentration, which influences how far the solution is from silica saturation, and on the activities of marine microorganisms. These factors are relatively well understood in modern ocean waters but are less well known in the Archean ocean. Temperatures may have been higher (e.g., [104]) or very similar to today’s [105]. There is general agreement that the acidity was slightly lower but little consensus about oxidation state, salinity and other compositional aspects (e.g., [106,107,108,109]). Quantitative information about Si solubility in Archean seawater is sparse, and the role of marine biota, which control the silica content of modern seawater, is virtually unknown. These uncertainties preclude quantitative modelling of the behaviour of silica in Archean oceans, but some inferences can be made.

During the warm periods, migration of circum-equator current towards the poles leads to considerable warming at the junction between the two currents (Figure 17). This warming, combined with the decrease in salinity caused by freshwater influx, inhibited silica precipitation. These conditions would have been favourable for the long-term establishment of microbial communities in shallow basins at the margins of land masses, producing the large amount of organic matter now fossilized in the black cherts. A continuous supply of silica from low-temperature seafloor venting (Section 6.4.1) and high evaporation rates (e.g., [110,111]) at the ocean-atmosphere interface, combined to promote high silica concentrations within a restricted basin of the type envisaged for the deposition of Buck Reef cherts. While these conditions prevailed, limited sedimentation of silica flocs and silica uptake by biota, combined with growth of microbioal mats at the sediment-water interface, produced the black chert layers.

A change to a cooler climate would have decreased surface temperatures and arrested freshwater inputs, decreasing the solubility of silica and destabilizing the water column: seawater temporarily passed through its silica saturation level, leading to the sudden and dramatic flocculation and sedimentation of massive amounts of pure silica. At the same time, the biota entered a quiescent period, or they were simply swamped by rapid accumulation of abiogenic silica. Then, a new warm evaporative period allowed the slow recharge in dissolved silica of the surface layer, which lasted until the next climate perturbation.

Climate variations, such as modern glacial/interglacial-like periods, meet the inferred thousand-year periodicity of the banding process. Such a model explains the purity of the white cherts; i.e., their lack of continental input and organic matter, the regularity of the banding and its homogeneous lateral extent. The temperature variations are also consistent with the isotopic fractionation observed between the black and white cherts [12,17,24,63]: assuming a similar origin for the silica, the white layers have lighter δ³⁰Si and higher δ¹⁸O compositions, both indicating cooler conditions during their formation.

7. Implications

A shorter Milankovitch cycle related to periodic axial precession of the Earth could account for the substantial temperature fluctuations proposed here. The periods for precession would have been much shorter during the Archean because of the dynamics of the Earth–Moon system at that time: Lantink et al. [87] calculated two periods, 405 ky and 1.4–1.6 myr at 2.5 Ga; Berger and Loutre [112] envisaged periods of 11.3 and 12.7 kyr also at 2.5 Ga, while Ito et al. [113] proposed even shorter periods of 5000 to 7000 yrs. The latter estimation, in particular, is consistent with the conditions we infer from the deposition of the 3.4 Ga Buck Reef sequence. If our model is correct and the periodicity of deposition of B&W cherts can be calibrated, it provides the means to constrain the timing of the Milankovitch cycle and other climate-forcing events in the early history of our planet.

Finally, by providing new evidence for the formation of banded chert units through chemical precipitation from ambient marine fluids, we strengthen the idea that these sediments may be used for paleo-environmental reconstruction. Their chemical composition may have recorded key features of the originally precipitating fluid, perhaps complicated by additional signals from secondary processes such as diagenesis, late-stage silicification, weathering and/or metamorphism.

8. Conclusions

From our study of the Buck Reef cherts we conclude:

• The sediment-like contacts between the black and white layers; the high purity of the white bands and their lack of internal structures; and the common reworking of white bands at the surface into slab conglomerates, are all evidence that the banding is not inherited from the silicification of a previously bedded sedimentary precursor, nor was it produced during diagenesis. Instead, we argue that alternating bands of black and white chert were formed by the chemical precipitation of silica and carbonaceous matter on the seafloor from Si-saturated seawater.
• The basin chemistry and silica content were influenced by the seepage of low-temperature fluids that had interacted with felsic volcanics and volcaniclastics beneath the sea floor. Stratigraphic variations and an increasing hydrothermal signal in the cherts resulted from mixing with seawater and progressive deepening of the basin.
• Micro-scale alternations of silica and carbonaceous laminae within the black bands are attributed to seasonal (annual) fluctuations similar to those observed in modern siliceous sinters: white micro-bands formed during winter by abiologic silica precipitation, while microbial activity was inhibited by the cold temperatures; black micro-bands formed during summer, when warmer conditions promoted carbonaceous matter production and the colonization of the euphotic zone by anoxygenic photosynthetic microorganisms.
• The outcrop-scale macro-layering resulted from temperature variations at a much greater timescale, likely associated with glacial/interglacial intervals of a few thousand years periodicity. Warm periods were suitable for black chert formation, and promoted silica solubility and saturated Si content in the restricted basin. During cold intervals, the decrease of surface temperature, freshwater inputs and water pH led to a drastic decrease of silica solubility: ambient seawater temporarily passed through its saturation level, resulting in the sudden and dramatic flocculation and sedimentation of a massive amount of pure silica. The quiescence of microbial activity at that time explains the remarkable absence of carbonaceous matter in these layers.

Our model provides strong evidence that banded cherts are primary chemical sediments that may be used to investigate surface conditions on the early Earth; however, not only hydrothermal and oceanic paleo-fluid compositions, but also large scale processes, such as the timing of the Milankovitch cycle and other climate-forcing events back in the Archean.
