As a major part of the cryosphere, snow is an important component of the hydrological cycle and with its unique physical properties, it is an essential environmental variable directly affecting the Earth’s energy balance. Proper description and assimilation of snow information into hydrological, land surface, meteorological and climate models is therefore important to address the impact of snow on various phenomena such as hydrological monitoring, avalanche forecast, and weather forecast, to predict snow water resources and to warn about snow-related natural hazards [1
Understanding the microstructural, macrophysical, thermal and optical properties of snowpack is essential [10
] and there is a great need for accurate snow data at different spatial and temporal resolutions to address the challenges of changing snow conditions.
Distinctive snow properties are currently determined by traditional ground-based measurements as well as remote sensing, over a range of scales, following considerable developments in instrument technology over recent years. Snow measurements are becoming increasingly important for freshwater management, mitigation of climate changes, adaptation to new climate conditions, and risk assessments such as avalanches, floods [11
], and droughts [12
At the present time in situ measurements of the snowpack state are performed on the ground at numerous stations (e.g., WMO synoptic stations) and during intensive field campaigns (e.g., [13
]). Simultaneous measurements of snow properties and soil properties are of further advantage [18
] but only available at selected stations. However, depending on the region, in situ measurements could have a relatively coarse spatial coverage and are only representative of a limited area due to spatial heterogeneities of snow [19
]. An increase in the number of snow measurements from national high-resolution weather networks integrated into the WMO GTS (Global Telecommunication System) and WIS (WMO Information System) would thus provide a clear benefit [22
]. With the implementation of the Global Cryosphere Watch (GCW) in 2011, the WMO established a program that considers the growing demand for authoritative information on past, present and future state of the world’s snow and ice resources [23
]. Although GCW is global in scope, the program needs activities at all scales, including regional, national and local levels [24
] and recognizes the requirements for assimilation, model development and validation.
Space-born remote sensing data have the potential to provide estimates of certain snow properties [25
]. In the visible (VIS) and near infrared (NIR) spectral range space-borne remote sensors (e.g., MODIS, AVHRR, Sentinel-2) can determine the snow cover extent (SCE) and snow cover fraction (SCF) at a high spatial resolution and long time-series of these data exist (e.g., [26
]). The observation of snow cover area is of particular value in headwaters of mountainous regions [34
] and one can expect to obtain volume information thanks to recent advances in photogrammetry and in the availability of stereo image [37
]. In addition, remotely sensed daily SCE has been shown to improve performance of hydrological models applied to various catchments in Austria [38
], Italy [40
], Switzerland [8
], Turkey [34
], Iceland [47
] and the USA [48
Optically derived snow cover products are considerably limited by the presence of clouds [49
], which results in spatiotemporal gaps [25
]. This limitation was quantified by [38
], who found that, on average, clouds obscured 63 % of Austria in MODIS daily snow maps, from February 2000 to December 2005. Similarly, [50
] found that, on average, clouds obscured 55% (MODIS Aqua) and 50% (MODIS Terra) of Po river basin (Northern Italy), for the period 2003-2012. Interestingly, they have pointed out that in the Alpine region of the basin (>1000 m.a.s.l.), the presence of clouds increases during the melting season when SCE and SCF products are most relevant: on average the percentage of cloud obstruction is 70%. Thus, cloud removal procedures are necessary to mask clouds for the snow product to be used or assimilated in hydrologic and land surface models. In the literature, different cloud removal procedures were developed based on temporal and spatial filters, see, e.g., for MODIS products [39
]. In addition, digital imagery for snow extent monitoring [56
] are conducted with a newly developed system for acquisition, processing and visualization of image time series from multiple camera networks [57
]. These systems could connect in situ measurements and remote-sensing products and could provide SCE information in overcast conditions.
Passive microwave sensors can measure snow mass (snow water equivalent, SWE) and are not affected by illumination (night, clouds), which limits optical data during much of the high latitude snow season [58
]. However, the spatial resolution of passive microwave SWE data is currently too coarse for many watershed-scale hydrological applications in mountainous regions [30
], and point gauge snow data have sparse and uneven spatial coverage [62
] and their accuracy is sensitive to the assumptions used, the topography, and properties of the snow pack (e.g., [63
]). Alternatively, active microwave sensors have the potential to determine snow depth or mass from space with higher resolution but require spaceborne measurements at appropriate frequencies (Ku-band) [25
] and the time resolution is more limited than for passive microwave sensors. In addition, the signal is sensitive to the snow layer properties, which complicates direct estimation of SWE from the satellite signal. For example, based on the Synthetic Aperture Radar (SAR) Interferometry technique and Sentinel-1 data, Snow Water Equivalent (SWE) temporal variations with sub-centimeter measurement accuracy can be retrieved with up to 20 m spatial resolution in any weather and sun illumination condition [72
In addition to the determination of snow characteristics by in situ and remotely sensed measurements, another approach to obtain snow properties is to use physical or conceptual snow evolution modeling. Three major classes of snowpack models are employed for various applications [73
]: single-layer snow scheme (e.g., [74
]), scheme of intermediate complexity (e.g., [75
]) and detailed snowpack models, which differ in the description and the parameterization of the properties inside the snowpack and the related processes [76
]. Single-layer representations of snow thermodynamics are still used in operational NWP models [20
]. In more advanced land surface schemes employed by operational models multi-layer snow options with fixed or variable numbers of layers are available [20
], e.g., HTESSEL at ECMWF [79
], JULES at the Met Office [80
], ISBA-ES in SURFEX [81
], and TERRA in the ICON model at DWD [82
]. Detailed snowpack models include in addition state variables for snow microstructure, namely grain sizes and shapes in layers [20
]. However, continuous estimates of the snow state from numerical model predictions are still limited by scarcity and uncertainties in meteorological forcing data (see [84
] for an example) and model structural problems for snow processes in land surface models [25
Assimilation of remotely sensed snow-related observations and ground-based snow measurements has been proven to be an effective method to improve hydrological and snow model simulations [88
]. Therefore, the potential of data assimilation methods to consistently improve model simulations of the snow state by assimilation of measurements from in situ as well as from remote sensing has received continuously increasing attention [25
]. With data assimilation (DA hereinafter) techniques, an improvement of the simulated snow properties from numerical models can be obtained by the combination of observational datasets with numerical model predictions and consideration of the uncertainties of observed and modeled variables [103
]. Several studies report the assimilation of in situ snow observations [62
] even for operational applications [2
]. A number of snow DA experiments taking into account remotely sensed snow properties have been performed with different observational datasets, including snow covered area and SWE [59
However, visible or near-infrared observations do not allow assimilation updates under cloudy conditions and the updates depend on the snow depletion curve used to relate SCE or SCF to SWE [25
]. Direct assimilation of SWE from passive microwave remote sensing data exists [88
] but radiance assimilation may be more effective [25
]. The latter approach is indeed able to overcome the difficulty arising from the non-unique and complex relationship linking the passive microwave signal and several snow properties (e.g., density, grain size/microstructure parameters, temperature and wetness). To assimilate radiance, radiative transfer modeling is needed to play the role of the ‘observation operator’ in the DA scheme, that is to relate the snow properties predicted by the dynamical snow scheme to the remotely-sensed observed variables as well as to provide the associated uncertainties [119
]. Many such numerical models have been developed and evaluated over the last decade for the passive microwave such as HUT [120
], MEMLS [121
], DMRT-QMS [122
], DMRT-ML [123
]. Although their performances appear to be comparable (e.g., [124
]), the formulations and parameterizations used in each model are diverse. This apparent paradox is only partially understood (e.g., [125
]), which has motivated the development of a uniform, harmonized, modeling platform called the Snow Microwave Radiative Transfer Model (SMRT, [127
]). This new model is also able to better represent the snow microstructure, which currently remains the main bottleneck for SWE estimation [114
The European Cooperation in Science and Technology (COST) promoted and funded the Action ES1404 called “A European network for a harmonized monitoring of snow for the benefit of climate change scenarios, hydrology, and numerical weather prediction,” or “HarmoSnow” for short. The HarmoSnow project (2014‒2018) coordinates efforts towards harmonized snow data processing and handling practices by promoting new observing strategies, bringing together different communities, facilitating data transfer, upgrading and enlarging knowledge through networking, exchange and training, and linking them to activities in international agencies and global networks [129
]. Due to the large heterogeneity of methods and tools for manual measurement of snow and their assimilation in numerical models one of the first activities of HarmoSnow was to carry out surveys to obtain an updated picture of the existing variety of a) snow measurement practices and instrumentations, and b) the data assimilation methods and snow data processing used in NWP, hydrology, and climate studies by the European institutions. The results of the first survey are published in [11
]. This paper aims to assess the current situation and understand the diversity of usage of snow observations in DA, forcing, monitoring, validation, or verification within NWP, hydrology, snow and climate models. Our findings are based on the responses from the community to the second survey, on snow DA methods and processing, and on literature review.
The results of the survey are presented in this section, grouped into sub-sections according to the thematic topic that the survey questions address. Description and interpretation of the results is therefore separated into: the range of participants in the survey; the modeling environments used by participants, the data assimilation methods used; snow observations used in these DA methods; treatment of background and observation errors; quality control methods used; data exchange policy and requirements; and plans for future observation use.
3.1. Participating Countries and Institutions
The distribution of the number of answers among the countries is shown in Figure 1
. It shows that all responses were from countries from the northern hemisphere, with the majority from central Europe (27). With the Nordic countries, Russian Federation, the USA and Canada, most countries in the boreal forest belt answered the survey. These countries contain regions that always have seasonal snow in northern hemisphere winter, while for countries in central and southern Europe the number of days with snow cover is more variable and depends on several factors. For reporting countries having relatively lower latitude and high altitudes, snow in the climatological mean is limited to the mountains, however it is an important factor for meteorological and hydrological applications. Most European countries involved in the COST action provided at least one answer, thus the dataset of answers provides a solid base for analysis to obtain an overview on the utilization of snow data in NWP systems, hydrological models, special snow models and treatment of snow in other model environments (Figure 2
In general, multiple responses from each country were not expected since most snow DA activity takes place within the national met service of that country, which is a fairly standard situation in most European countries. The national weather services in the countries with huge territories (Russia, Canada and the USA) include regional institutions with their own capabilities to produce local weather forecasts.
3.2. Modeling Environment, Model Domain and Resolution

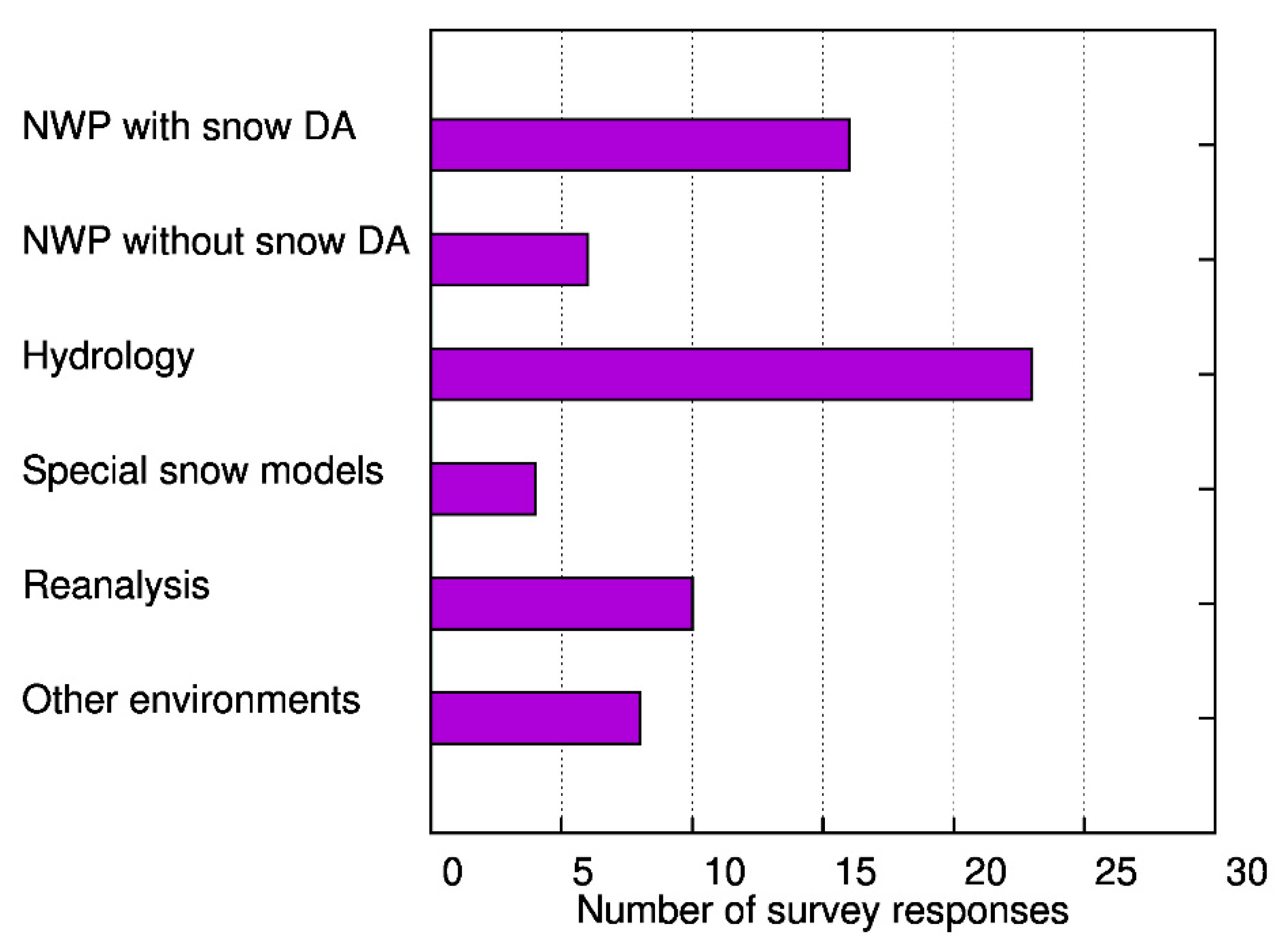

The assessment results have been partitioned according to the type of modeling environment that the respondent has identified as using. Among respondents, 16 institutes use numerical weather prediction models (full or limited area) with DA, six without DA, 23 institutes use hydrological models (e.g., conceptual, operational, snowmelt models, runoff models, etc.), 10 institutes use reanalysis and four institutes employ special snow models. In eight institutes other (miscellaneous) models (e.g., snow cover, land surface, multi-layer snow), with snow observations are used (Figure 2
). In addition to meteorological and hydrological services, 11 universities and two companies participated in the survey. The resolutions of the models span from the global scales down to kilometer scale resolutions and even to the river catchment areas according to the modeling environment, clearly proving the declared importance of snow observations over a range of spatial scales.
3.3. Data Assimilation Methods
There are differences in the snow DA methods used by the various model environments as well as in the update frequency of snow observations and the required time interval for consideration of the measurement. Depending on their degree of complexity, DA techniques are characterized by different performances. The sequential DA techniques are widely used for real-time applications. They sequentially update the model state using observational data as they become available [102
]. Basic approaches are based on direct insertion (DI) methods [104
] or Cressman interpolation [2
]. Other approaches include optimal interpolation (OI) schemes [103
] and the nudging method [135
], which take into account the observational uncertainty [102
The Kalman filters [137
] are approaches based on least-squares analysis method. The standard version of the Kalman Filter (KF) [138
] still depends on the assumption of system linearity since it explicitly takes into account the dynamical nature of model and observation errors, which evolve with time, to produce a statistically optimal model state estimates for linear systems. The Extended Kalman Filter (EKF) [139
] allows consideration of nonlinear dynamic models using a linearized statistical approach [59
]. With the Ensemble Kalman Filter (EnKF) the inaccuracy of the linearization procedure, which affects the filter performance due to possible strong model nonlinearities [140
], can be avoided [141
]. An ensemble of possible model realizations is needed based on the Monte Carlo approach [142
] to determine the error estimates instead of a model linearization. Other, more sophisticated methods, that include for example particle filter [143
], are also used for snow data assimilation in hydrology. Similar to the EnKF, the particle filter (PF) is a sequential Monte Carlo simulation [43
] and accounts for uncertainties in the forcing data, model structure and observations. However, in contrast to the EnKF the PF does not depend on the assumptions of Gaussian distribution of errors or the assumption of Gaussian joint probability density function (PDF) on the state variables and observations [19
]. This allows the PF to characterize the full probability distribution of state variables and consequently their uncertainties more accurately by resampling sets of state variables, i.e., particles with higher posterior weights, as opposed to the linear model state updating of the EnKF [19
]. Another DA approach is the variational Moving Horizon Estimation (MHE), which optimizes an objective function within an assimilation window using numerical approximations [149
]. This type of methods is also applied in Model Prediction Control applications when the assimilation window is shifted to the predictive horizon [150
]. Recently, [151
] extended this approach to consider multi-parametric conditions in consideration with snow DA.
Despite the previous drawbacks, EnKF techniques have been widely implemented to process snow observation data [19
]. Also in snow hydrology, an increasing number of studies confirm the advantages of EnKF as a data assimilation method, which improves the accuracy of hydrological simulations through the assimilation of snow-related observations [25
]. Other studies have shown the benefits of assimilation of snow using EKF [59
] or PF [19
], while [100
] applied the MHE to evaluate different satellite products, including snow observations, within the DA procedure.
The results of the survey show that the OI method and EnKF are the most commonly used methods (Figure 3
). The survey revealed that snow DA for NWP mostly relies on optimal interpolation (OI) schemes [107
] or Cressman interpolation [131
], on the other hand Kalman filters [137
] or EnKF methods [141
] are generally used for hydrological applications. Other answers in the survey include Moving Horizon Estimation, Nudging, Asynchronous EnKF, Bias Detecting Ensemble, simple exchange of initial values, and simple update method. However, it should be noted that for complex multi-layered snow models, the application of conceptually simple DA schemes is not straightforward due to possible model spin-up behavior resulting from physical inconsistencies among state variables [97
The survey results confirm the existing gap of applied sophistication in DA methods for operational NWP, i.e., the DA methods used for snow analyses in NWP are much simpler than the state of the art in DA [20
] and lag behind the level of sophistication used for the initialization of other surface variables (e.g., soil moisture). Furthermore, operational NWP systems assimilate snow depth from in situ ground measurements and satellite-derived snow extent [2
] but SWE is not considered during the assimilation cycle [20
]. Recent effort to implement advanced techniques such as the particle filter [163
], show promising results, although the path toward operational use is long [97
3.4. Snow Observations in Data Assimilation through Different Models

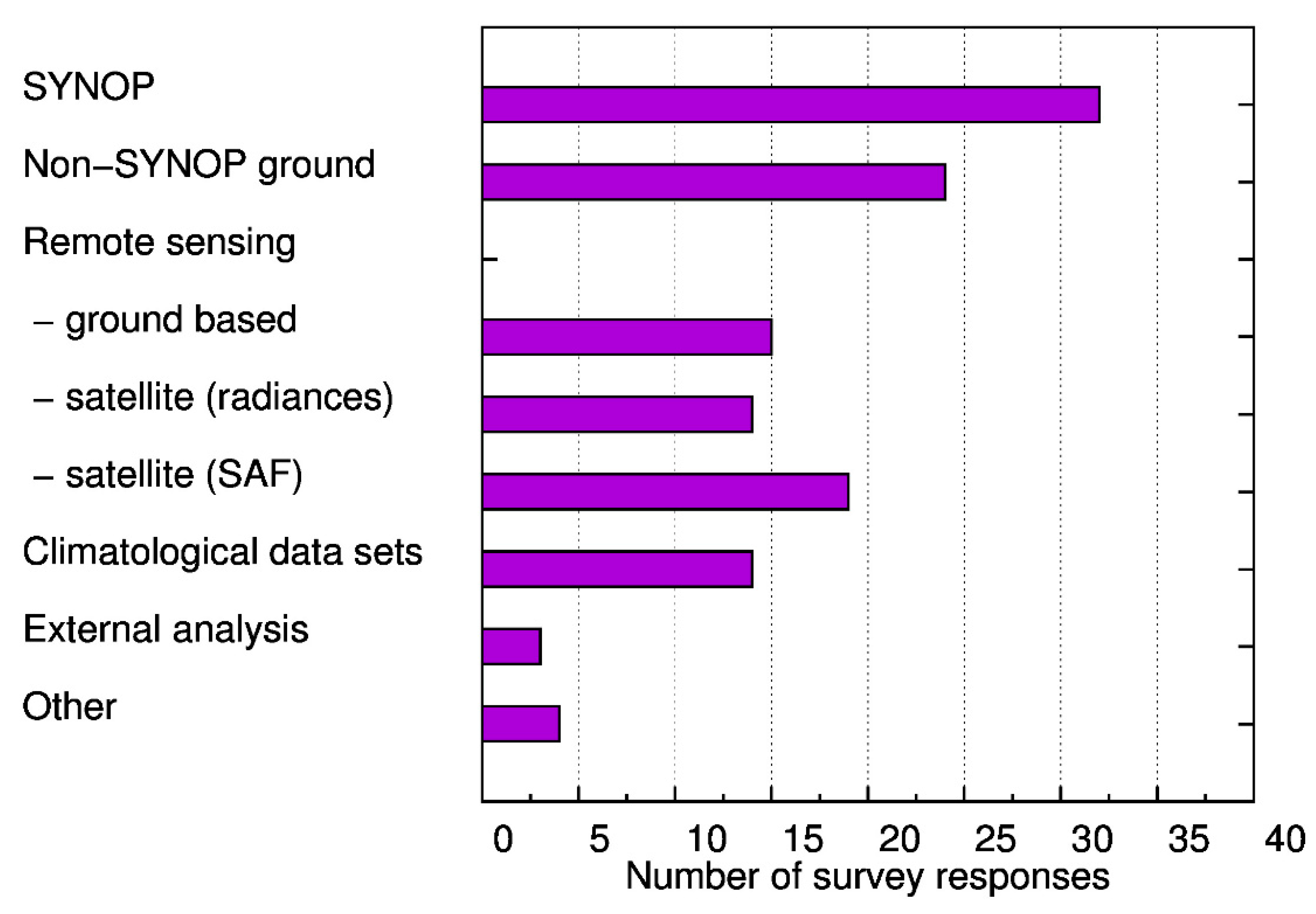

Snow observations from SYNOP and additionally ground-based measurements are the most important data sources for NWP and hydrologic models (Figure 4
). For the latter, ground-based remote sensing data are also very important. The most important snow parameters used in DA are snow depth and SWE, which are processed by incremental update for NWP or update of absolute values in hydrologic and other snow models.
According to the answers, snow height (depth) is the most preferable information for DA in NWP models. For these data, the importance of an active reporting of snow-free conditions (zero snow depth) in the SYNOP messages together with the exchange of non-GTS stations data is crucial. For hydrologic models, both snow height (depth) and SWE are popular for use in DA, as complementary products to streamflow assimilation. For this group of models, forcing variables (precipitation, temperature) can also be used in the assimilation process to update state variables. The main snow variable analyzed in almost every type of model is SWE.
Most hydrologic model users that responded to the survey use ground-based remote sensing measurements, while this is not the case for NWP or reanalysis users. The ground-based measurement systems include ultrasonic or laser distance sensors, photogrammetry, COSMIC neutron sensors and others. Further details on in situ snow measurements are given in the results of the parallel COST HarmoSnow survey on in situ snow measurement practices and techniques, [11
Preprocessed remote sensing satellite products are also often used in both NWP and hydrology. Satellite radiances are used much less and climatological data are appropriated for hydrological applications. Additional data, used by survey participants include external snow analysis or multi-sensor satellite products. Preprocessed snow products are used in all model environments but these products have special importance in NWP without DA, reanalysis and miscellaneous models. The used products are, e.g., from IMS snow cover, satellite (MODIS, SEVIRI, AVHRR), SAF (H-SAF, LSA-SAF), NWP-based snow analysis or reanalysis.
The process of analyzing variables is mostly incremental update of first guess from model forecast for NWP models and update of absolute values for hydrological models. However, the modelers use both processes together in some applications. Model forecasts are the main background field used in snow data assimilation for all model types. However, a very limited number of answers include pre-analysis or external analysis and climatology as a background field.
Independently of the modeling environment most DA systems perform a snow analysis every 24 h (Figure 5
). This is important for the assimilation of remote sensing data since not all satellite products are available on a daily basis. Even daily products for SWE based on passive microwave remote sensing data have a coarse resolution (in the order of tens of kilometers) while SWE products from active microwave sensors can reach a resolution of tens of meters but are only available every few days (e.g., 35 days with ERS and Environmental Satellite (ENVISAT) in the past decades and nowadays six days with Sentinel 1).
The observation data latency, i.e., the time from the measurement acquisition to the availability in a numerical model is another important parameter, which has to be considered for time-critical applications. More than 50% of the survey answers indicate that the observation latency should not exceed 24 h. For research applications or in climate studies, a longer latency might be acceptable. However, more than 25% of the answers show that the observations should be available within 3 h, which is a strong constraint for the observation data processing and exchange.
3.5. Background and Observation Error Estimations Used in Snow Data Assimilation
The background error estimates are done either by distance weighting or taken as a fixed value in most of the NWP models, the former is more commonly used compared to the latter. The variance of ensembles is another method used in limited applications. A few institutes working on NWP also indicated that background errors are not accounted for in their system. For the other model communities, the answers are more varied and include no estimate, fixed value, distance weights, stochastic noise, defined algorithms with clearly more emphasis on variance of ensembles, which is most likely due to the choice of EnKF for DA methodology.
According to the survey there is no standard approach for observation error estimates. Generally, standard deviations or fixed values according to the measurement errors (in principle different for different observation types) are used in NWP models. Some of the institutes do not use error estimates assuming uncorrelated observed data except for the anomalous observations identified and rejected by quality control procedures. In the other modeling environments, observation errors are defined by measurement errors, standard deviations, confidence intervals, rough estimates, stochastic noise, error covariance matrices, or error estimates are simply not accounted for.
Observation error specification has a large impact on DA efficiency. Figure 6

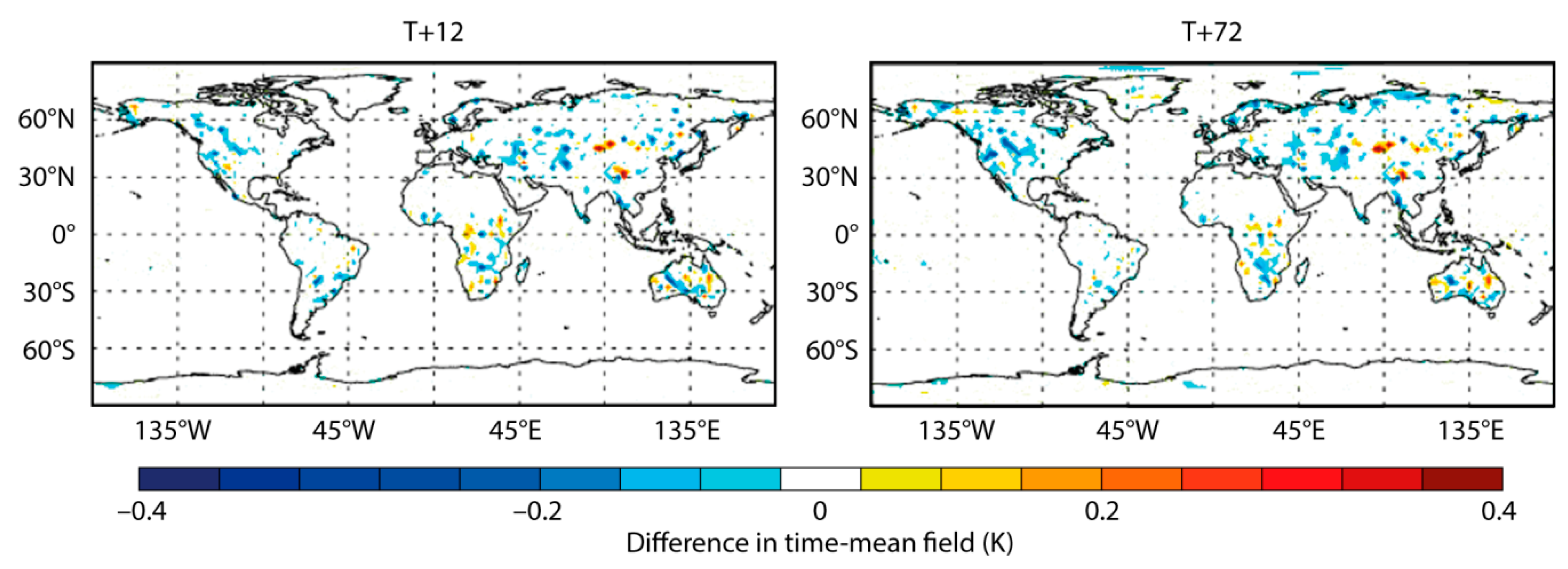

illustrates the two-meter air temperature forecast (range 12-h and 3-day) difference from December 2016 to February 2017, between a test experiment, where the snow observation error was doubled in the ECMWF snow DA, and a reference experiment, using the ECMWF operational system [134
]. It shows generally colder conditions in the northern hemisphere. Doubling the observation error gives relatively more weight to the model background in the test experiment compared to the reference experiment. Since the ECMWF model tends to overestimate snow, this results in more snow on the ground in the test than in the reference experiment, and therefore generally lower air temperature forecasts. Slight and noisy differences in non-snow-covered areas are non-significant and due to the fact that the test and the control experiments differ.
3.6. Quality Control of Snow Observations or Products
One of the important features of DA systems is the quality control of the data [164
]. It is performed by using previous model forecasts for comparison with observations. This allows identification and elimination of spurious data. Furthermore, it is possible to calibrate observing systems and identify biases or changes in observation system performance when this comparison is performed repeatedly [165

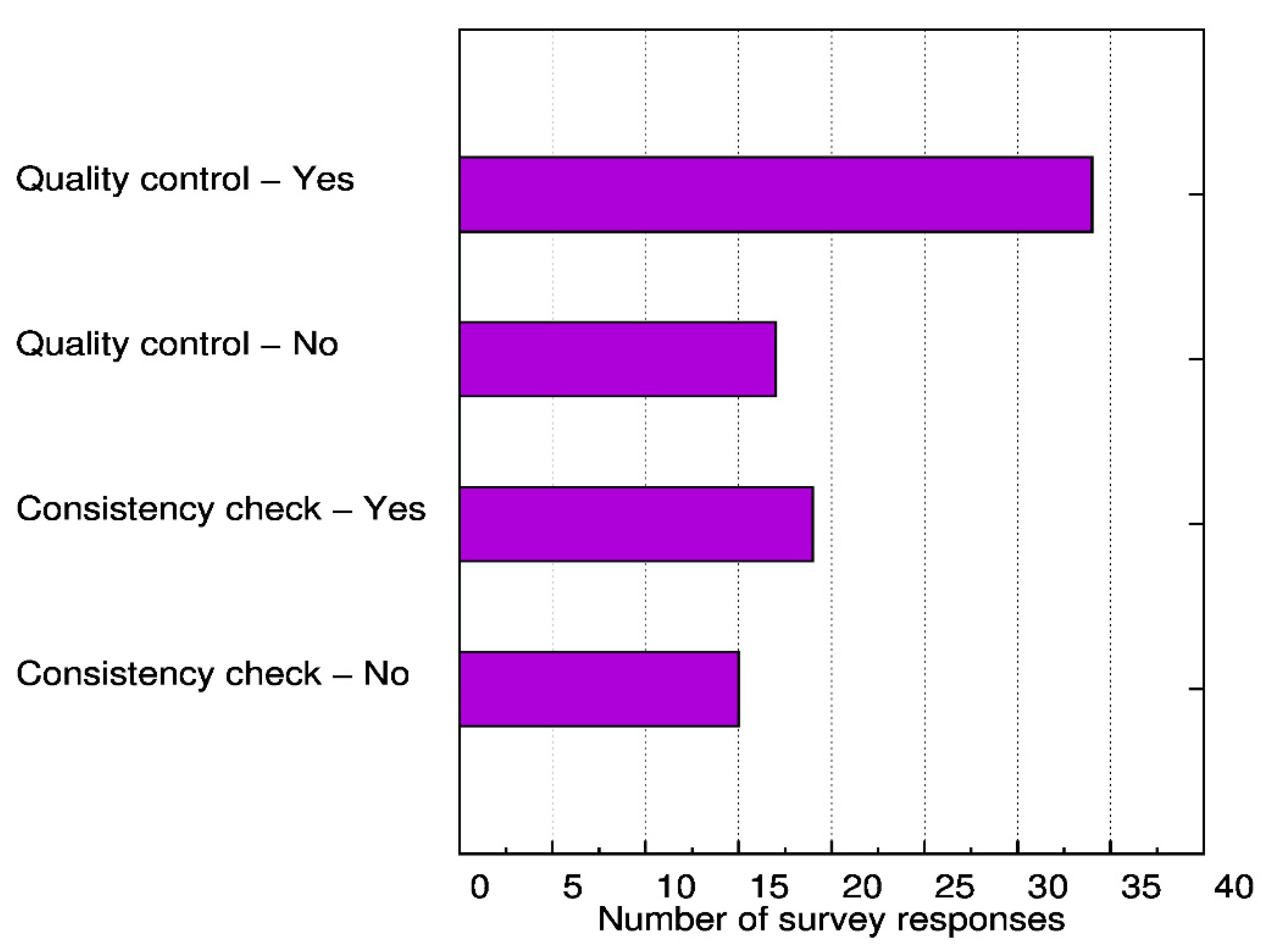

Quality control of snow observations and products is performed in the large majority of the model environments used in this survey (Figure 7
.). Filtering of outliers, manual and automatic treatment of missing data or implausible values is used in all model environments with different levels of sophistication. DA in NWP is used for this purpose, as some responses from the survey show.
Consistency or sanity checks are used to examine whether the observation absolute value or rate of change with time is physically realistic or not [165
]. In addition, buddy checks are used for the comparison of observations close together and background checks consider a realistic change of the observation in comparison to the model prediction [165
]. In comparison with a quality control, the number of institutes performing a snow data consistency check is lower. For this data preprocessing manual and automatic methods exist, based on basic physical principles, where the snow cover field is of particular importance. Consistency of snow height with the existence of snow cover is one of the commonly used checks, i.e., check if snow cover is present where observations of non-zero snow depth exist.
3.7. Data Exchange Policy and Access Requirements for the Observations
The survey indicates that two thirds of all answers were positive towards the possibility of snow data exchange with other groups. The NWP community seems more flexible compared to other modeling groups in this sense. This should be moderated by the fact that a relatively higher spatial resolution and catchment scale of hydrological applications could be a constraint on the feasibility of data exchange. In most cases GTS for NWP models and FTP protocol for the other models is required for data access, but web access or central data hubs are also used.
3.8. The Plans to Use the New or Upcoming Observation Sources
Concrete plans for using new or upcoming data sources of snow observations exist for all model environments, in particular for NWP with DA, hydrology, and reanalysis. In detailed answers of the survey, the use of more satellite data (optical, microwave) and also more ground-based remote sensing data, GPS or COSMIC ray sensors, or additional non-SYNOP networks are of interest. Current barriers and limitations for the use of these data are primarily data availability and lack of resources needed to integrate the data into the model environment. Survey responses showed these barriers to be common across model environments used.
Based on the practices of a number of countries, review of the literature, and evaluation of the survey on use of snow observations in the modelling environment, conclusions can be drawn on: (i) the status and future evolution of conventional snow observations from national networks and satellite products for DA and model validation, including availability, error characteristics and reliability, towards an improved usage of conventional snow observations from national networks for data assimilation and model validation; (ii) the review of the methods to combine remote sensing and conventional snow observations with modeling results for user applications; and (iii) snow observations errors for data assimilation and modelling systems.
The results of the survey show that the measurement networks, instruments, and techniques are exploited well by existing DA systems and used in model environments for NWP, hydrology, or special snow models. The survey reveals that there is a fit between the snow macro-physical variables required for DA and those provided by the measurement environment, since snow depth, snow presence, snow density and SWE are the most measured variables. It is also important to take into consideration that in many cases these variables are measured with different instruments and techniques, in particular snow depth and SWE. On the other hand, developments in DA systems are necessary to exploit the evolving capabilities of the observing systems, and vice versa. The increasing automation of the measurements requires enhanced data management in the DA system (quality control, consistency). There is a requirement for remotely sensed snow depth or SWE observations from satellite, to provide snow data in regions with sparse measurement networks, but this necessitates developments in instrument technology (e.g., automatic measurement of snow microstructural properties) and also development of DA systems in order to make use of such observations. There are also concrete future plans on using enhanced snow observations for all model environments, in particular for NWP with DA, hydrology, and reanalysis. Data availability and resources to integrate the data in the model environment are the current barriers and limitations for the use of new or upcoming snow data sources independent of the model environment used.
The further outcomes from the survey support new, innovative and upgraded observing strategies; enhanced usage of snow data for scientific research and applications; a broader overview and easier access to existing snow measurements and snow model data for the benefit of different applications, such as NWP models, hydrological, climatology and climate change research. Further support of these aims is provided by the related COST HarmoSnow activities of the parallel survey on snow measurements and the training school on data assimilation in Europe [179
]. The monitoring of floods, droughts, snow avalanches and hydropower production could benefit from improved real-time snow measurements for assimilation into operational prediction models to improve hydrological, meteorological and climate forecasting while a further integration and harmonization of the European snow network into global networks (e.g., WMO GCW) supports the strengthening WMO and EUMETSAT activities on snow observations. The main scientific impact will emerge from improved snow and weather products via better knowledge of snow properties and their evolution. It will induce a lasting structural improvement of the interaction between participating communities, thus very relevant for the Intergovernmental Panel on Climate Change (IPCC) and Copernicus (Global Monitoring for Environment and Security). Policy and decision makers at all levels from local safety to global environment policy will benefit from improved knowledge on current and future snow cover and climate conditions.
