A New Geospatial Model Integrating a Fuzzy Rule-Based System in a GIS Platform to Partition a Complex Urban System in Homogeneous Urban Contexts

Abstract

Here, we present a new unsupervised method aimed at obtaining a partition of a complex urban system in homogenous urban areas, called urban contexts. Our model integrates spatial analysis processes and a fuzzy rule-based system applied to manage the knowledge of domain experts; it is implemented using a GIS platform. The area of study is initially partitioned in microzones, homogeneous portions of the urban system, which are the atomic reference elements for the census data. With the contribution of domain experts, we identify the physical, morphological, environmental, and socio-economic indicators needed to identify synthetic characteristics of urban contexts and create the fuzzy rule set necessary for determining the type of urban context. We implement the set of spatial analysis processes required to calculate the indicators for the microzones and apply a Mamdani fuzzy rule system to classify the microzones. Finally, the partition of the area of study in urban contexts is obtained by dissolving continuous microzones belonging to the same type of urban context. Tests are performed on the Municipality of Pozzuoli (Naples, Italy); the reliability of the out model is measured by comparing the results with the ones obtained through a detailed analysis.

1. Introduction

An urban system is a complex entity, composed of various elements with specific physical, morphological, environmental, and socio-economic characteristics. Often, in order to analyze an area of study related to urban analysis problems, it is useful to partition it into a set of homogeneous areas with respect to specific characteristics. In literature, there are various studies in which unsupervised methods are proposed to segment the area of study into homogeneous zones in order to analyze specific problems. Various authors propose automatic classification methods to partition urban areas and elements using raster remote sensing data. In Reference [1] a genetic algorithm is applied in order to automatically extract the classification rules of urban areas from remote sensing data. In Reference [2], a framework based on expert knowledge is applied in order to segment coastal areas using raster remote sensing data. In Reference [3], a new method based on unsupervised change detection focused on individual buildings is applied to very high-resolution remote sensing imagers to extract elements in urban systems. In Reference [4], a hierarchical object-oriented model is proposed to classify objects in an urban area from high-resolution satellite images. In Reference [5], a multiple-kernel learning model is proposed to classify urban areas from spectral and LiDAR raster data. A review of classification methods proposed to classify urban land cover through the use of raster LiDAR remote sensing images is presented in Reference [6].

Other recent studies propose decision-making spatial analysis models in which GIS and fuzzy systems are applied in engineering optimization analysis to solve decision-making problems, such as selection of the best logistic locations [7], the study of the prevention of a stroke [8], the optimization of green routes for city logistics centers [9], and the selection of the most suitable sites for wind-farm installments [10].

Recently, thanks to the availability of various thematic data at different scales from different institutional sources, together with the use of socio-demographic census data, it has been possible to implement methods for the unsupervised classification of urban systems that take into consideration knowledge of the urban system and expert knowledge of the problem being analyzed. In Reference [11], the area of study is partitioned into homogeneous zones based on morphological and soil characteristics in order to analyze the vulnerability of the aquifer to pollution; a fuzzy algebraic structure is applied to assess the aquifer vulnerability in any zone. In Reference [12], a multiple-level association rule mining method is applied to spatiotemporal socio-economic and land cover datasets based on a hierarchical classification scheme to extract relations between objects in the area of study and classify them.

In Reference [13], a simulated annealing method is applied to partition an area of study into homogeneous zones based on socio-economic characteristics. In Reference [14], a partition of the urban system in census zones is performed in order to study the spatial distribution of socio-economic characteristics. In Reference [15], a multi-objective approach is applied in order to partition the municipalities of the region of Parana in Brazil into microregions; this approach maximizes population homogeneity and the medical procedure used in any microregion and minimizes inter-microregion traveling.

In this study, we propose a novel model based on a Mamdani fuzzy rule-based system [16,17] aimed at partitioning an urban system into homogeneous zones, called urban contexts; each urban context is labeled with a specific urban class based on a specific taxonomy related to the problem being studied. Our goal is to model the knowledge and approximate reasoning of domain experts in order to apply them to partition the urban system.

Fuzzy logic plays a key role in approximate reasoning, and Fuzzy Logic Systems [18,19,20] are implemented to manage approximate knowledge in order to solve specific problems through the use of approximate reasoning. The Mamdani fuzzy rule-based model is the most well-known fuzzy logic system model; it has been successfully applied in many fields, such as automatic control [21], expert systems [22], mobile robots [23], and computer vision [24].

In References [25,26], approaches based on the Mamdani fuzzy rule-based system model for unsupervised classification are proposed. Our objective is to use a Mamdani fuzzy rule-based system to manage the experts’ approximate reasoning applied to classify urban contexts.

Our approach is independent of the problem analyzed; initially, we partition the area of study into homogeneous zones provided by census atomic elements called microzones. We follow Italian Presidential Decree no. 138 of 1998, Article 1 (http://def.finanze.it/DocTribFrontend/getAttoNormativoDetail.do?ACTION=getSommario&id={CE130656-7850-4531-9B95-F17CC19790C4}) of which defines a microzone as a homogeneous portion of the urban system, which may include one municipality, a portion thereof, or groups of municipalities, characterized by similar environmental and socio-economic characteristics. The microzone represents a portion of the municipality or, in the case of areas consisting of groups of municipalities, an entire municipal territory homogeneous in terms of its urban, historical-environmental, and socio-economic characteristics, as well as in the provision of urban services and infrastructure. For example, in each microzone, buildings are predominantly uniform in terms of their construction features, construction period, and residential/industrial/commercial use.

The first step of our method concerns the acquisition of different, not normalized thematic data from various institutional sources, including from the last microzone census database.

Subsequently, a homogeneous knowledge base of the urban system analyzed is created, in order to extract a set of synthetic indicators representing the characteristics of the urban system related to the problem analyzed. These indicators express the input variables of a fuzzy rule set extracted by domain experts, in which the output variable expresses an urban class.

A Mamdani fuzzy rule system is applied to classify the microzones, assigning them a specific class; finally, a dissolve spatial operator is used to aggregate microzones that are spatially contiguous classified in the same urban class in urban contexts; in addition, we assess the membership degree of each urban context to its class, by using a weighted average of the membership degrees to this category calculated in any microzone included in the urban context. This membership degree represents the uncertainty of the attribution of the urban context to its urban class and provides an evaluation of the reliability of the classification.

The main advantages of the proposed model are its independence from the problem analyzed and its usability. In fact, our framework can be applied to any type of problem concerning the analysis of urban systems and streamlines and make the construction of knowledge transferred by domain experts more efficient. Finally, the assessment of the membership degree of the urban contexts to their urban classes allows the analyst to evaluate the reliability of the resultant partition.

In the next section, the proposed model is described in detail; in order to show the ways in which the components of our model are applied, a case study concerned with partitioning an urban system in the contexts in which urban classes are typified according to different residential densities is explored.

In Section 3, the area of study and the institutional datasets used in our experiments are described; Section 4 presents the results of our experiments; and some final considerations are reported in Section 5.

2. The Proposed Model

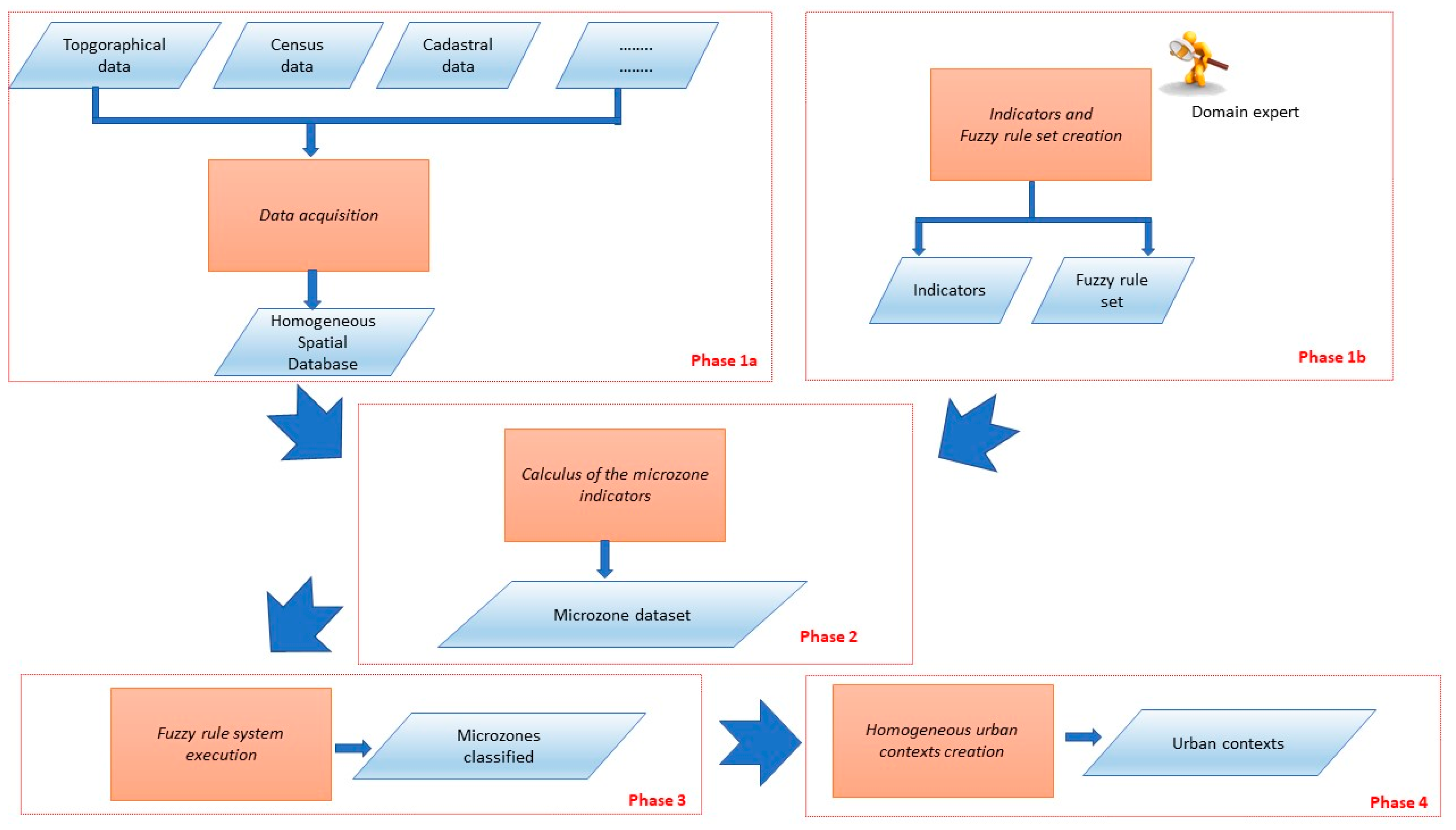

Our model is composed of a set of five phases, as shown in Figure 1.

Phases 1a and 1b are executable in parallel.

Phase 1a (Data acquisition) concerns the acquisition of the datasets from institutional sources. A set of staging procedures are required to allow for the reconciliation of these inhomogeneous data (for example, to carry out the transformation and conversions of spatial data in a unique coordinate system and to correct spatial topological errors) and the creations of relations between the various datasets. The output of this phase is given by the homogeneous spatial database of the area of study.

In phase 1b (Indicators and fuzzy rule set creation) the various physical, environmental, and socio-economic indicators are defined and the fuzzy rule set is created; this phase is executed with the contribution of domain experts. To model the expert knowledge and construct the fuzzy rules, we created a fuzzy partition of the domain of each indicator in which any fuzzy set is assigned by using a triangular or semi-trapezoidal fuzzy number and is titled with a linguistic label assigned by the domain expert.

In phase 2 (Calculus of the microzone indicators), the spatial analysis processes need to calculate the indicators are implemented. Each indicator represents a summary of the specific characteristics of the microzone; it is calculated by applying the formulas created in phase 1b and by using a set of geoprocessing and statistical operators applied to entities and characteristics in the spatial database.

In phase 3 (Fuzzy rule system execution) for each microzone the Mamdani fuzzy rule system is executed in order to assign the microzone to a specific urban class. The indicators are fuzzified using a fuzzification component; then, the fuzzy inference component is applied by using the Mamdani min and max operators; and the urban class assigned to the microzone is given by the consequent of the fuzzy rule with the greatest strength.

In phase 4 (Homogeneous urban contexts creation), the adjoining microzones belonging to the same urban class are dissolved and the thematic map of the urban contexts of the area of study is created.

2.1. Phase 1a—Data Acquisition

In this phase, data concerning the area of study are acquired from various institutional sources. The output of this phase is a spatial database implementing the homogenous knowledge base of the area of study. A spatial dataset is provided by the microzone census data, including the polygon spatial data corresponding to the microzones. Other datasets are needed to extract the synthetic indicators related to different information layers, such as population, buildings, roads, urban green, schools, and infrastructures.

A set of geoprocessing activities are required in order to normalize the spatial datasets; all the datasets must be converted using a unique coordinate system and a topological check is necessary to verify the integrity of the dataset. Other geoprocessing activities could be carried out to extract and normalize the thematic data, such as:

-

Extracting themes from a dataset in various formats;

-

Merging datasets corresponding to a theme and distributed per tiles, clipped onto the area of study;

-

Applying spatial operators related to any feature of the theme information, inserted as annotation texts (for example, the road name assigned to any polyline of a road network).

A data cleaning activity on the data fields it required in order to verify their integrity and accuracy, to delete outliers, and to correct inconsistent data and redundancies.

Finally, all the themes and tables are imported in a spatial database and the relation between them is established.

2.2. Phase 1b—Indicators and Fuzzy Rule Set Creation

The indicators needed to classify the microzones are evaluated by domain experts. In our experiment, the experts consider 14 indicators related to various thematic layers that characterize the areas of study and which are needed to evaluate to which urban class the microzone belongs. In

Table 1. Indicators used to classify the microzones of the area of study.

Indicator	Type	Description	Unit of Measurement
	Buildings	Mean square meters of residential buildings per resident	Square meters
I2	Buildings	Percent of industrial areas with respect to total built areas	Percent
I3	Urban green	Mean square meters of green areas per resident	Square meters
I4	Urban green	Percent of green areas with respect to area of the microzone	Percent
I5	Roads	Percent of the overall length of district urban roads 1 with respect to the overall length of roads in the microzone	Percent
I6	Roads	Percent of overall length of the district urban roads with a width of less than 7 m with respect to the overall length of all the district urban roads in the microzone	Percent
I7	Population	Number of residents per square kilometer	(Square kilometers)−1
I8	Buildings	Percent of the number of residential buildings built before 1945 with respect to all residential buildings	Percent
I9	buildings	Mean number of dwellings with at least one resident in the residential buildings
I10	Buildings	Percent of residential buildings with at least 16 dwellings with respect to all residential buildings	Percent
I11	Schools	Accessibility and proximity of schools in the microzone	Percent
I12	Public transportation	Usability of public transport networks	Percent
I13	Coastal/marine zone	Coastal/marine area	Percent
I14	Large public infrastructure	Presence of large public infrastructures	Percent

¹Urban district road: single carriageway with at least two lanes, paved quays, and sidewalks.

, all the indicators are described; each indicator is assigned an identify and the type of indicator is reported, i.e., the thematic layer to which it refers, a brief description, and the unit of measurement.

After defining the indicators, the domain experts create a fuzzy partition of each indicator by using triangular and semi-trapezoidal fuzzy numbers to create the fuzzy sets. The fuzzy partitions of the indicators in Table 1 are shown in

Table 2. Fuzzy partitions of the indicators (ST = Semi-Trapezoidal, TR = Triangular).

Indicator	Label	Inf	Mean	Sup	Type of Fuzzy Set
I1	Scanty	0	10	30	ST
	Mean	20	30	50	TR
	Discrete	40	60	80	TR
	High	70	100	∞	ST
I2	Null	0	10	20	ST
	Mean	10	30	50	TR
	Discrete	40	50	70	TR
	High	60	70	100	ST
I3	Scanty	0	10	40	ST
	Mean	30	50	70	TR
	Discrete	60	80	90	TR
	High	90	200	∞	ST
I4	Null	0	10	30	ST
	Mean	10	30	50	TR
	Discrete	30	50	70	TR
	High	50	70	100	ST
I5	Null	0	20	30	ST
	Mean	15	40	50	TR
	Discrete	40	50	70	TR
	High	60	70	100	ST
I6	Null	0	10	20	ST
	Mean	10	30	50	TR
	Discrete	40	50	70	TR
	High	60	70	100	ST
I7	Scanty	0	100	1000	ST
	Mean	100	1000	5000	TR
	Discrete	1000	5000	10000	TR
	High	5000	10000	∞	ST
I8	Null	0	10	20	ST
	Mean	10	30	50	TR
	Discrete	40	50	70	TR
	High	60	80	100	ST
I9	Scanty	0	5	10	ST
	Mean	5	20	30	TR
	Discrete	30	40	60	TR
	High	40	60	∞	ST
I10	Null	0	10	20	ST
	Mean	10	30	50	TR
	Discrete	40	60	80	TR
	High	60	80	100	ST
I11	Null	0	10	20	ST
	Mean	10	30	50	TR
	Discrete	50	70	90	TR
	High	70	90	100	ST
I12	Null	0	10	20	ST
	Mean	10	30	50	TR
	Discrete	40	50	70	TR
	High	60	70	100	ST
I13	Null	0	10	30	ST
	Mean	30	50	70	TR
	High	60	90	100	ST
I14	Null	0	10	20	ST
	Mean	10	50	70	TR
	Discrete	50	80	90	TR
	High	60	90	100	ST

, in which the identifier of the indicator, a label assigned to the fuzzy sets, the inf, mean and sup values of the fuzzy number and the type of fuzzy set (ST = Semi-Trapezoidal, TR = Triangular) are reported.

In order to extract the fuzzy rules, the experts define the taxonomy of the urban area classes. In our experiment, the following set of urban area classes is considered, in which each class characterizes a type of residential or rural zone of the urban system.

Each class in

Table 3. Urban area classes.

Urban area class	Description
Residential old town	Residential agglomeration of ancient or recent formation characterized by historical, artistic, and environmental goods even if tampered with or degraded or not present at the same time
Comfortable residential zone	Dwelling place equipped with comfortable and modern/contemporary dwellings, infrastructures, sports facilities, and green spaces
Downtrodden residential zone	Dwelling place equipped with uncomfortable dwellings and lacking infrastructures, sports facilities, and green spaces
Industrial zone	Zone with prevalent or mixed industrial areas
Coastal residential zone	Area inclusive of a border with sea or great lakes with mainly maritime services
Fragmented rural/wooded zone	Mainly rural or wooded area with reduced settlement development
Sprawl	Informal modern/contemporary urban settlement

corresponds to a fuzzy set of output linguistic variable Z defined in the domain [0,1] and, following an increasing order from 0 to 1, represents the impact of residential settlements on the area. The first fuzzy set is a semi-trapezoidal fuzzy set representing a predominantly rural or wooded area; the last fuzzy set is a semi-trapezoidal fuzzy set representing a compact residential old town. The intermediate fuzzy sets are triangular. These fuzzy sets are defined in

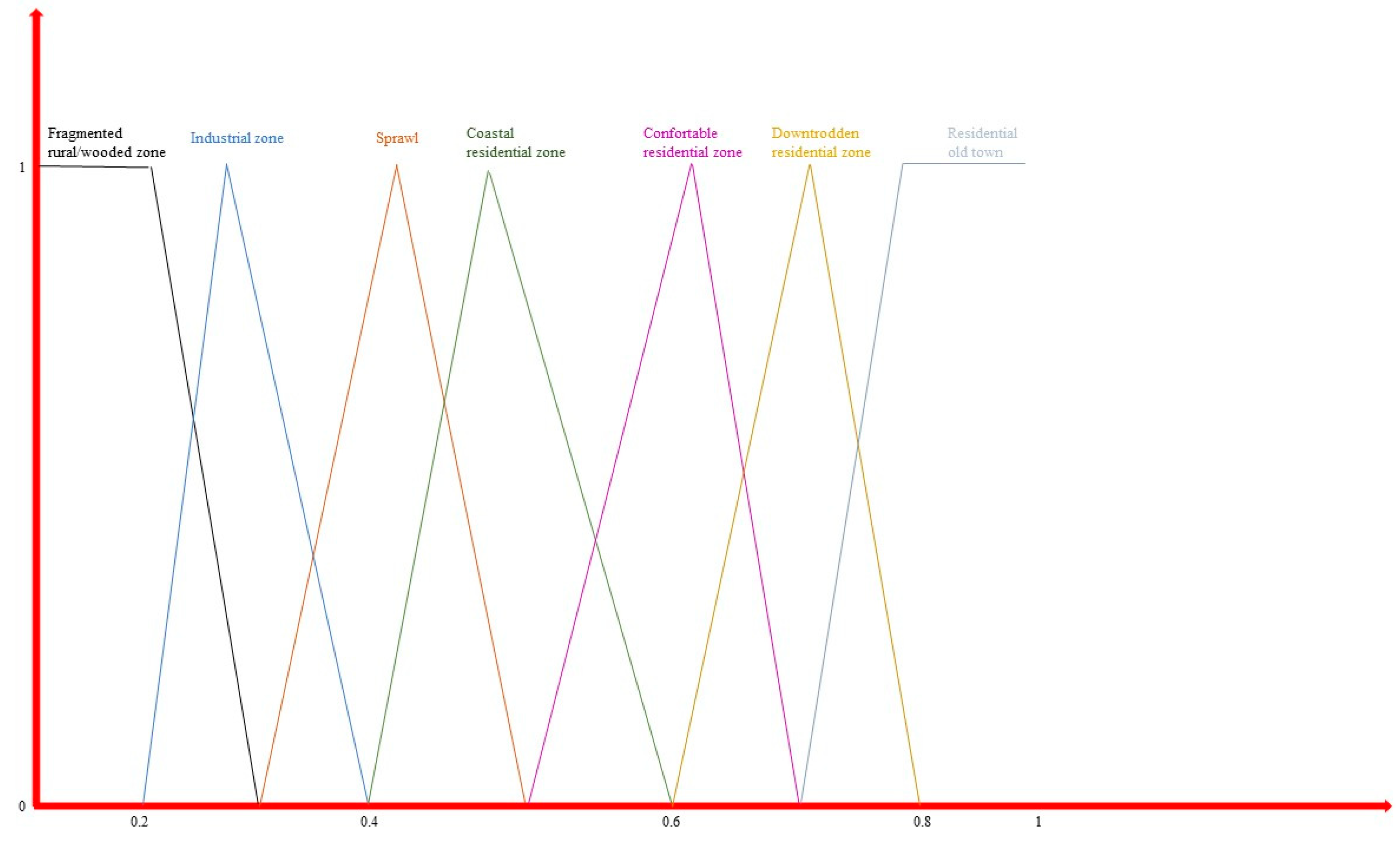

Table 4. Fuzzy partitions of the urban area classes.

Urban Area Class	Inf	Mean	Sup	Type of Fuzzy Set
Fragmented rural/wooded zone	0	0.2	0.3	ST
Industrial zone	0.2	0.3	0.4	TR
Sprawl	0.3	0.4	0.5	TR
Coastal residential zone	0.4	0.5	0.6	TR
Comfortable residential zone	0.5	0.6	0.7	TR
Downtrodden residential zone	0.6	0.7	0.8	TR
Residential old town	0.7	0.8	1	ST

and are graphically presented in Figure 2.

Based on their knowledge, the experts extract the set of fuzzy rules needed to evaluate the urban class to which each microzone belongs. In our experiment, the 14 indicators are used as input variables in the antecedent of each rule and output variable Z is used in the consequent, labeled as presented in Table 3. The fuzzy rule set is composed of fuzzy rules extracted by the experts, written in the following form:

R_k: IF (I₁ = I_1k) Δ₁ (I₂ = I2_k) Δ₂ … Δ_n (I_n = I_nk) THEN (Z = Z_k)

(1)

where I₁, I₂, I_n, are the input variables given by the linguistic labels of the fuzzy sets of the indicators and Z is the output variable. The operator Δ_i (i = 1, …, n) is given by an AND or an OR connective. We construct the fuzzy rule set considering only AND connectives, splitting rules in which there are OR connectives in the antecedent. To show the splitting process of the rules, we take into consideration the following subset of fuzzy rules created by the experts:

IF

(I₄ == Null) AND (I₆ == Discrete OR I₆ == High) AND (I₇ == High) THEN Z == Residential old town

IF

(I₁ == Discrete OR I₁ == High) AND (I₃ == Discrete OR I₃ == High) AND (I₈ == Null) AND (I₁₂ == High) THEN Z == Comfortable residential zone

IF

(I₂ == Null) AND (I₇ == Scanty OR I₇ == Mean) AND (I₁₂ == High) AND (I₁₄ == Discrete OR I₁₄ == High) THEN Z == Comfortable residential zone

IF

(I₂ == Discrete OR I₂ == High) AND (I₆ == Null) AND (I₇ == Scanty) THEN Z == Industrial zone

After the rule-splitting process, we obtain the following final fuzzy rules:

R₁:

IF (I₄ == Null) AND (I₆ == Discrete OR I₆ == High) AND (I₇ == High) THEN Z == Residential old town

R₂:

IF (I₄ == Null) AND (I₆ == High) AND (I₇ == High) THEN Z == Residential old town

R₃:

IF (I₁ == Discrete) AND (I₃ == Discrete) AND (I₈ == Null) AND (I₁₂ == High) THEN Z == Comfortable residential zone

R₄:

IF (I₁ == High) AND (I₃ == Discrete) AND (I₈ == Null) AND (I₁₂ == High) THEN Z == Comfortable residential zone

R₅:

IF (I₁ == Discrete) AND (I₃ == High) AND (I₈ == Null) AND (I₁₂ == High) THEN Z == Comfortable residential zone

R₆:

IF (I₁ == High) AND (I₃ == High) AND (I₈ == Null) AND (I₁₂ == High) THEN Z == Comfortable residential zone

R₇:

IF (I₂ == Null) AND (I₇ == Scanty) AND (I₁₂ == High) AND (I₁₄ == Discrete) THEN Z == Comfortable residential zone

R₈:

IF (I₂ == Null) AND (I₇ == Mean) AND (I₁₂ == High) AND (I₁₄ == Discrete) THEN Z == Comfortable residential zone

R₉:

IF (I₂ == Null) AND (I₇ == Scanty) AND (I₁₂ == High) AND (I₁₄ == High) THEN Z == Comfortable residential zone

R₁₀:

IF (I₂ == Null) AND (I₇ == Mean) AND (I₁₂ == High) AND (I₁₄ == High) THEN Z == Comfortable residential zone

R₁₁:

IF (I₂ == Discrete) AND (I₆ == Null) AND (I₇ == Scanty) THEN Z == Industrial zone

R₁₂:

IF (I₂ == High) AND (I₆ == Null) AND (I₇ == Scanty) THEN Z == Industrial zone

2.3. Phase 2—Calculus of the Microzone Indicators

To calculate the indicators in each microzone, specific spatial analysis functions are applied. For example, the indicator I₁ in Table 1 is calculated by selecting the residential buildings in the area of study and extracting the total surface area covered by residential buildings and the number of residents per microzone. Finally, for each microzone, the ratio between this total surface area and the number of residents is calculated.

A hierarchy of spatial analysis processes could be needed in order to calculate the value of an indicator. In our experiment, to calculate the indicators I₁₁, I₁₂, I₁₃ and I₁₄, is necessary to calculate further parameters, labeled as II level indicators, described in

Table 5. II level indicators used to classify the microzones of the area of study.

Indicator	II Level Indicator	Type	Description	Unit of Measurement
I11	I11a	Schools	Percent ratio between the service area (500 m radius around the primary school) and the extension of the microzone	Percent
	I11b	Schools	Percent ratio between the service area (500 m radius around the lower secondary school) and the extension of the microzone	Percent
	I11c	Schools	Percent ratio between the service area (500 m radius around the secondary school) and the extension of the microzone	Percent
I12	I12a	Public transportation	Percent ratio between the bus stop service area (100 m radius around the bus stop) and the extension of the microzone	Percent
	I12b	Public transportation	Percent ratio between the railway/subway station service area (300 m radius around the railway/subway station) and the extension of the microzone	Percent
I13	I13a	Coastal/marine zone	Coastal area (1 if the microzone is a coastal area; 0 otherwise)	{0,1}
	I13b	Coastal/marine zone	Maritime terminal (1 if it is present in the microzone; 0 otherwise)	{0,1}
I14	I14a	Large public infrastructures	Presence of large public sport facilities (1 if large sports facilities are present in the microzone; 0 otherwise)	{0,1}
	I14b	Large public infrastructures	Presence of public hospitals (1 if hospitals are present in the microzone; 0 otherwise)	{0,1}

.

The indicator I₁₁ is obtained as a weighted mean of the indicators I_11a, I_11b and I_11b, where the weights are, respectively, residents aged between 5 and 9 years, residents aged between 10 and 14 years, and residents aged between 15 and 19 years.

Formally, let n_5–9 be the number of residents in the microzone with an age in the range of 5–9 years, let n_10–14 be the number of residents in the microzone with an age in the range of 10–14 years, and let n_15–19 be the number of residents in the microzone with an age in the range of 15–19 years.

The indicator I₁₁ is given by the formula:

$${\mathrm{I}}_{11}=\frac{{\mathrm{I}}_{11\mathrm{a}}\times {\mathrm{n}}_{5\text{-}9}{+\mathrm{I}}_{11\mathrm{b}}\times {\mathrm{n}}_{10\text{-}14}{+\mathrm{I}}_{11\mathrm{c}}\times {\mathrm{n}}_{15\text{-}19}}{{\mathrm{n}}_{5\text{-}9}{+\mathrm{n}}_{10\text{-}14}{+\mathrm{n}}_{15\text{-}19}}$$

(2)

The indicator I₁₂ is obtained as a weighted mean of the indicators I_12a and I_12b.

$${\mathrm{I}}_{12}=\frac{{\mathrm{I}}_{12\mathrm{a}}\times {\mathrm{w}}_{12\mathrm{a}}{+\mathrm{I}}_{12\mathrm{b}}\times {\mathrm{w}}_{12\mathrm{b}}}{{\mathrm{w}}_{12\mathrm{a}}{+\mathrm{w}}_{12\mathrm{b}}}$$

(3)

where w_12a and w_12b are the weights assigned, respectively, to the indicators I_11a and I_11b. The experts set w_12a = 3 and w_12b = 7, considering the influence of railway/subway station services to be greater than that of bus services.

The indicator I₁₃ is calculated as:

$${\mathrm{I}}_{13}=\{\begin{array}{ll}0\%\hfill & \hspace{1em}\mathrm{IF}{\mathrm{I}}_{13\mathrm{a}}=0\hfill \\ 50\%\hfill & \hspace{1em}\mathrm{IF}{\mathrm{I}}_{13\mathrm{a}}=1\mathrm{AND}{\mathrm{I}}_{13\mathrm{b}}=0\hfill \\ 100\%& \hspace{1em}\mathrm{IF}{\mathrm{I}}_{13\mathrm{a}}=1\mathrm{AND}{\mathrm{I}}_{13\mathrm{b}}=1\hfill \end{array}$$

(4)

The indicator I₁₄ is calculated as:

$${\mathrm{I}}_{14}=\{\begin{array}{ll}0\%\hfill & {\mathrm{IF}\mathrm{I}}_{14\mathrm{a}}{=0\mathrm{AND}\mathrm{I}}_{14\mathrm{b}}=0\hfill \\ 50\%\hfill & {\mathrm{IF}\mathrm{I}}_{14\mathrm{a}}{=1\mathrm{AND}\mathrm{I}}_{14\mathrm{b}}=0\hfill \\ 80\%& {\mathrm{IF}\mathrm{I}}_{14\mathrm{a}}{=0\mathrm{AND}\mathrm{I}}_{14\mathrm{b}}=1\hfill \\ 100\%\hfill & {\mathrm{IF}\mathrm{I}}_{14\mathrm{a}}{=1\mathrm{AND}\mathrm{I}}_{14\mathrm{b}}=1\hfill \end{array}$$

(5)

2.4. Phase 3—Fuzzy Rule System Execution

In this phase, a Mamdani fuzzy rule-based system is used to classify the microzones.

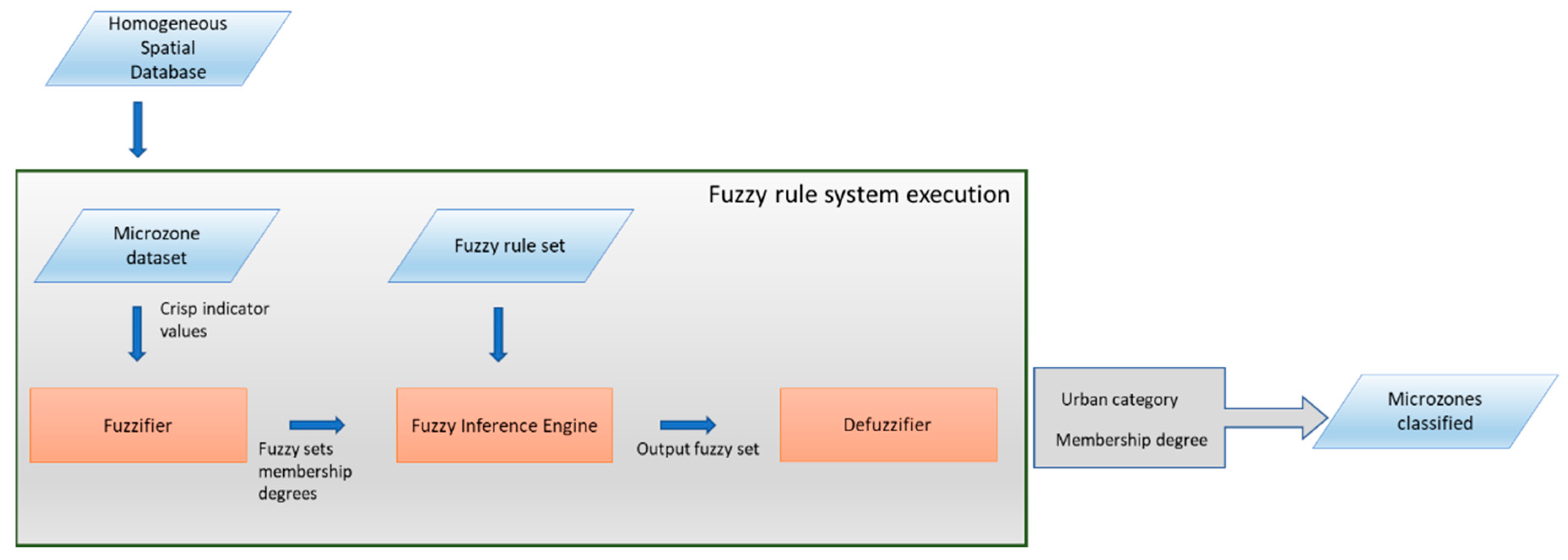

In Figure 3, the fuzzy rule-based system used is schematized.

From the spatial database constructed in the previous phase, the microzone dataset containing the crisp values of the indicators calculated for each microzone is extracted. The Fuzzifier component imports these indicator values and assigns each indicator the membership degree to its fuzzy sets. Then, the Fuzzy Inference Engine component reads the membership degree of the fuzzy sets related to each indicator and performs the inference process by calculating the strength of each fuzzy rule in the fuzzy rule set.

The min operator is applied to the AND connectives in the antecedent of the fuzzy rule to calculate its strength. The Fuzzy Inference Engine carries out the aggregation process to construct the output final fuzzy set. Aggregation is the process by which the truncated output fuzzy sets in each rule are combined into a single fuzzy set that represents the output aggregated fuzzy set.

In order to show the aggregation process, we consider a system formed of two fuzzy rules in the form:

$$\{\begin{array}{l}{\mathrm{R}}_1:\mathrm{IF}\left({\mathrm{I}}_1{\mathrm{is}\mathrm{A}}_1\right)\mathrm{AND}\left({\mathrm{I}}_2{\mathrm{is}\mathrm{B}}_1\right){\mathrm{THEN}\mathrm{Z}\mathrm{is}\mathrm{C}}_1\\ {\mathrm{R}}_2:\mathrm{IF}\left({\mathrm{I}}_1{\mathrm{is}\mathrm{A}}_2\right)\mathrm{AND}\left({\mathrm{I}}_2{\mathrm{is}\mathrm{B}}_2\right)\mathrm{THEN}\mathrm{Z}{\mathrm{is}\mathrm{C}}_2\end{array}$$

(6)

where A₁ and A₂ are two fuzzy sets of the linguistic input variable I₁, B₁ and B₂ are two fuzzy sets of the input linguistic variable I₂, and C₁ and C₂ are two fuzzy sets of the output variable Z.

Now let us suppose that, after the fuzzification process, we obtain the following membership degree for the input variables: A₁ = 0.3, B₁ = 0.5, A₂ = 0.7, B₁ = 0.8.

The strengths of the two rules are given by:

S(R₁) = min(0.3, 0.5) = 0.3    S(R₂) = min(0.7, 0.8) = 0.7.

In the aggregation process, we construct the output fuzzy set given by:

$$\mathrm{C}\left(\mathrm{Z}\right)=\max \left\{\min \left[{\mathrm{C}}_1\left(\mathrm{Z}\right),\mathrm{S}\left({\mathrm{R}}_1\right)\right],\min \left[{\mathrm{C}}_2\left(\mathrm{Z}\right),\mathrm{S}\left({\mathrm{R}}_2\right)\right]\right\}$$

(7)

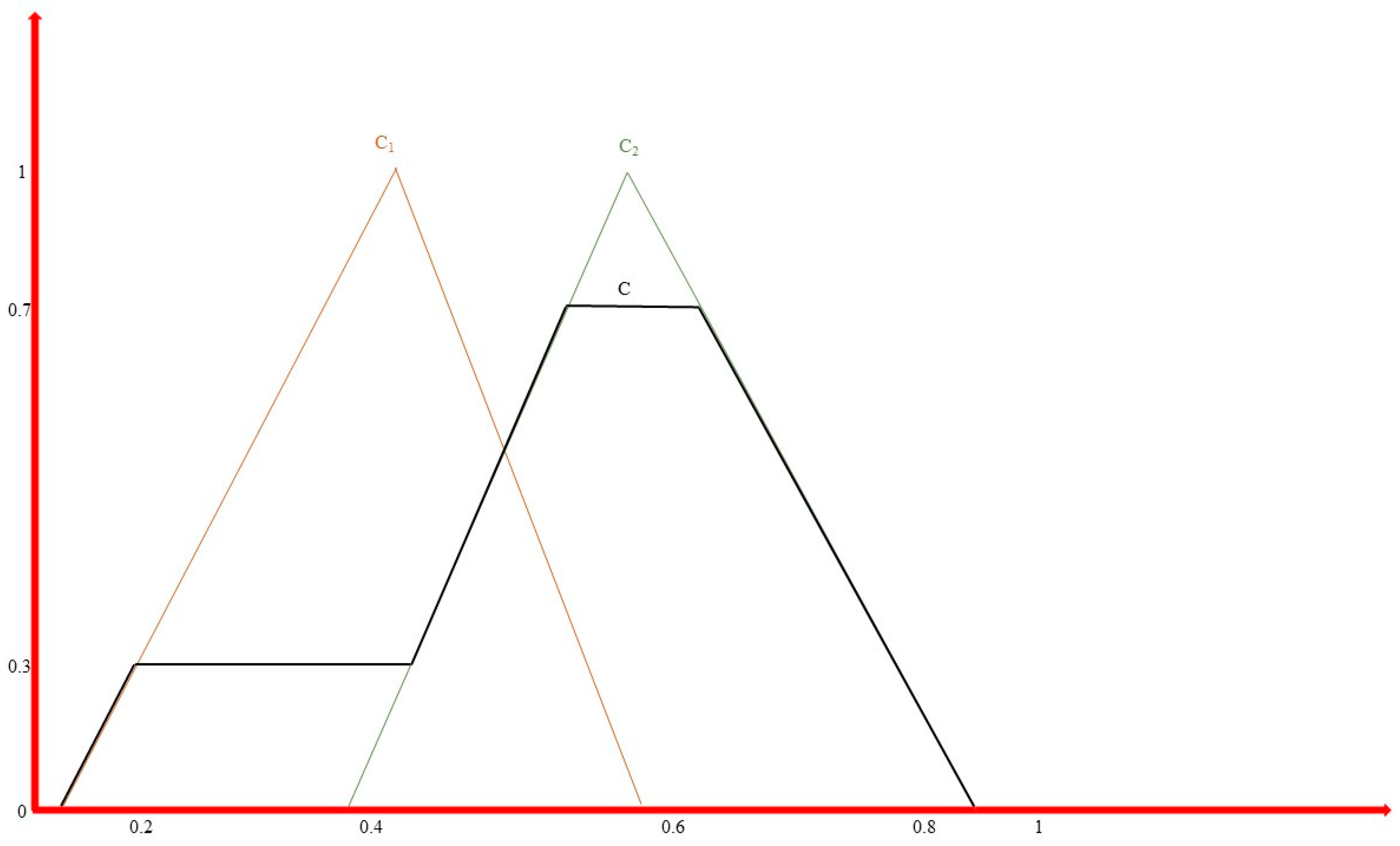

In Figure 4, the output fuzzy set constructed in this example is presented.

The defuzzification process of the output fuzzy set is carried out using the discrete Center of Gravity (CoG) method, with the following formula:

$$\widehat{\mathrm{Z}}=\frac{{\displaystyle \underset{0}{\overset{1}{\int }}\mathrm{Z}\times \mathrm{C}\left(\mathrm{Z}\right)\mathrm{dZ}}}{{\displaystyle \underset{0}{\overset{1}{\int }}\mathrm{C}\left(\mathrm{Z}\right)\mathrm{dZ}}}$$

(8)

where the two integrals are extended in the range [0,1], which is the domain of the output variable Z.

We classify the microzone by assigning it to urban class label of the output variable fuzzy set with a greater membership degree in the point $\widehat{\mathrm{Z}}$; the degree of membership of the microzone to this class is given by the degree of membership of the output variable to C in the point $\widehat{\mathrm{Z}}$.

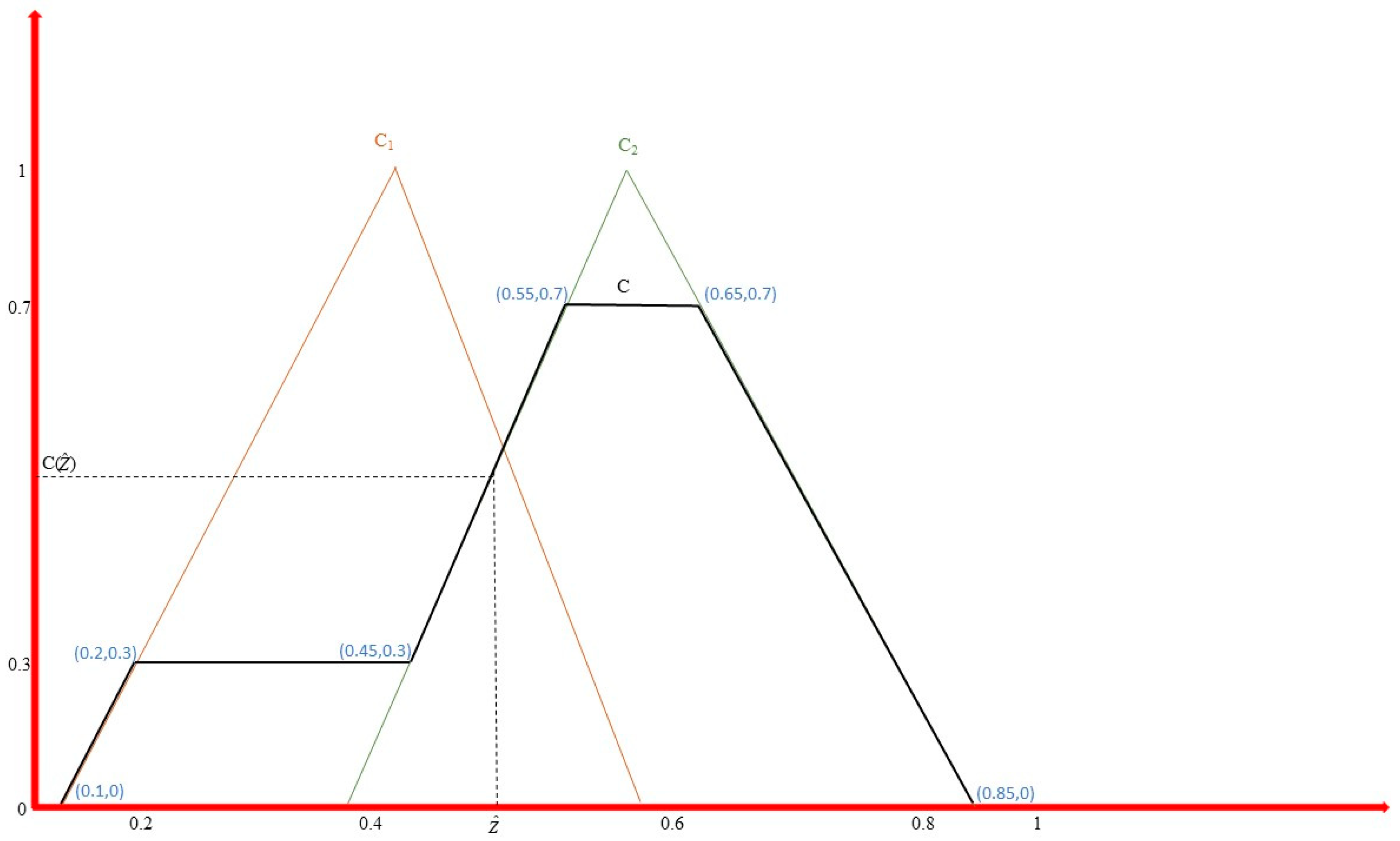

In Figure 5, the results of the defuzzification process are shown. As ${\mathrm{C}}_1\left(\widehat{\mathrm{Z}}\right)$ is greater than ${\mathrm{C}}_2\left(\widehat{\mathrm{Z}}\right)$, we assign the microzone to class C₁ with a membership degree given by $\mathrm{C}\left(\widehat{\mathrm{Z}}\right)$.

The Center of Gravity $\widehat{\mathrm{Z}}$ can be easily calculated considering N discrete points of C(Z) and discretizing the formula (7), obtaining:

$$\widehat{\mathrm{Z}}=\frac{{\displaystyle \sum _{\mathrm{i}=1}^{\mathrm{N}}{\mathrm{Z}}_{\mathrm{i}}\times {\mathrm{C}(\mathrm{Z}}_{\mathrm{i}})}}{{\displaystyle \sum _{\mathrm{i}=1}^{\mathrm{N}}{\mathrm{Z}}_{\mathrm{i}}}}$$

(9)

In Figure 5, we consider six points corresponding to the boundaries of the segments of the broken line Z, obtaining using the formula (9) $\widehat{\mathrm{Z}}$ = 0.52.

2.5. Phase 4—Homogeneous Urban Context Creation

In this phase, the area of study is partitioned into urban contexts. Each urban context is obtained by dissolving adjoining microzones belonging to the same urban class; then, the thematic map of the urban contexts of the area of study is created.

A weighted mean of the membership degree of the microzones forming an urban context is calculated, to extract the reliability of the urban context; the weight is given by the area of the microzone as the greater the surface of a microzone included in a context, the greater its impact on the reliability of the classification of the context.

3. Application to an Area of Study

We tested our model by applying it to an urban system in order to partition the area of study into urban contexts by considering the taxonomy of the urban area classes in Table 3.

3.1. The Area of Study

The area of study was given by the Municipality of Pozzuoli (Naples, Italy). The municipality of Pozzuoli comprises a multiplicity of urban area classes; it contains industrial areas, modern residential zones, a dense hold town, and highly uncultivated/wooded green areas. In Reference [27], historical land use, photogrammetric and airborne LiDAR data are used to detect buried landfill sites in the area of Campi Flegrei, which contains the municipality of Pozzuoli; this study showed that this area includes modifications to the landscape associated with urban development and quarrying activities. The presence of volcanic hills within the municipal area has allowed for urban development, mainly below them and towards the coastal areas. A survey of the seismic activities produced by the Campi Flegrei caldera in densely inhabited areas and the consequent risk for the population was carried out in Reference [28] and recently in Reference [29]. A study of all the different cultural resources present in the Municipality of Pozzuoli performed using GIS technologies is presented in Reference [30].

It is interesting to study how the various contexts in the municipality are distributed in relation to its different natural, social, and urban characteristics. We applied our model to obtain a partitioning of the municipality in these different contexts.

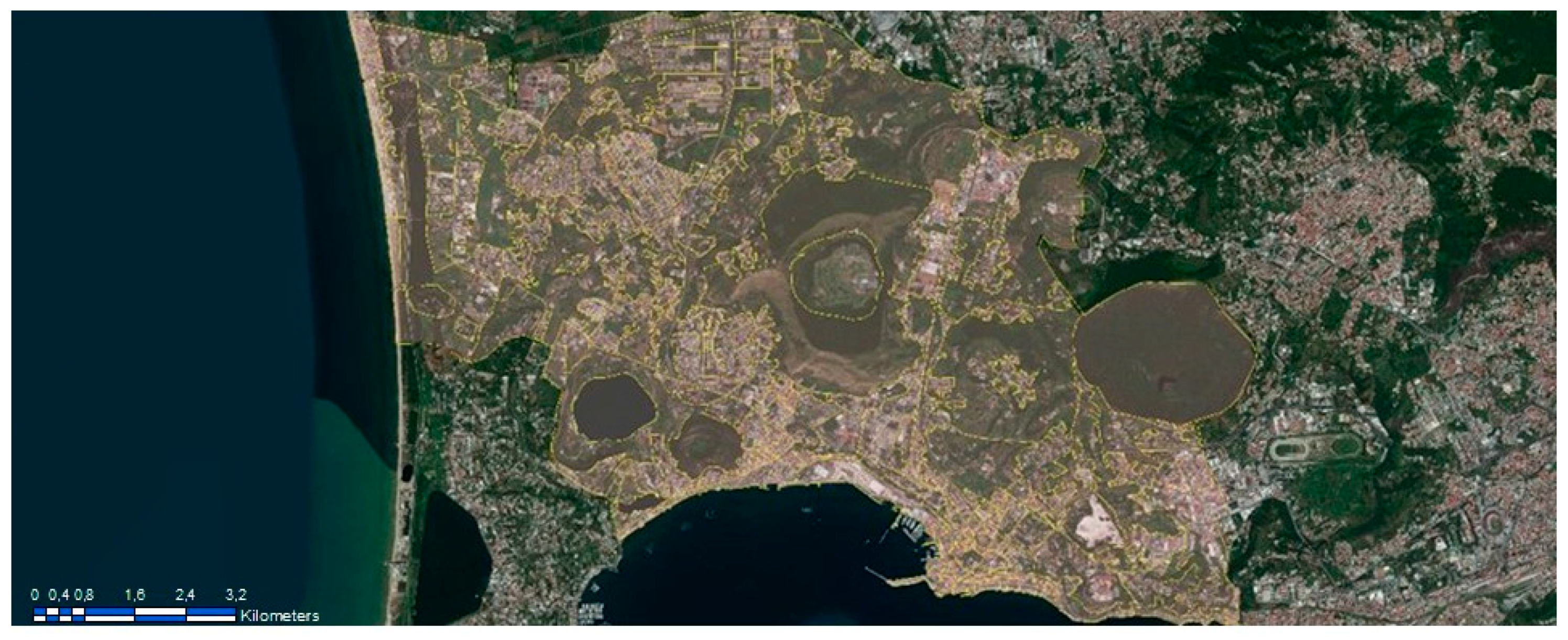

Figure 6 shows the area of study; the microzones are outlined in yellow. The satellite base map was extracted using the ESRI satellite World Imagery database.

3.2. Spatial Data Sources

The microzone dataset collected for the study was provided by the ISTAT, Italian National Statistical Institute, the Italian public research body that deals with censuses and surveys their social and economic characteristics.

The geo-topographic dataset used to extract the base theme of the municipality was the topographical database provided by the Campania Region in a 1:5000 scale, from which it was possible to extract information on buildings and their intended use, the presence of urban green, and the presence of infrastructure such as hospitals and schools. The area under study was a municipality bordering the seal; it was necessary to make some indicators for our set, to identify the coastal microzones.

The datasets needed to calculate the 14 indicators were extracted from four institutional data sources: the regional geo-topographic database in a scale of 1:5000, the census database provided with the last Italian census data per microzone, the aero-photogrammetric spatial database provided by the Municipality of Pozzuoli, and the free spatial database provided by the Open StreetMap community.

The datasets extracted were limited to the extension of the municipality of Pozzuoli.

All the data sources used in our tests are described in

Table 6. Data sources and datasets used in the tests.

Geo-Topographic Datasets
Institution	Campania Region
Data Source	Municipality of Pozzuoli—2012 Geo-Topographic Database in a scale of 1:5000, coordinate system UTM WGS84 zone 33 N, plane coordinates.
Datasets	Industrial and residential buildings Schools Urban streets Urban green areas Woodlands and barred areas Transport facilities Hospitals Sports facilities
Institution	ISTAT—Italian National Institute of Statistics
Data Source	2011 Census database–Socio-Demographic Database per census tract in a scale of 1:10,000, coordinate system UTM WGS84 zone 32 N, plane coordinates. Website: https://www.istat.it/it/archivio/104317.
Datasets	Census tracts Population dataset Building and dwelling dataset
Institution	Municipality of Pozzuoli
Data Source	Municipality spatial database, coordinate system UTM WGS84 zone 33 N, scale 1:4000, coordinate system UTM WGS84 zone 33 N, plane coordinates.
Datasets	Municipality Ortho Images Road network, railway network
Institution	OpenStreetMap (OSM) community
Data Source	OpenStreetMap spatial database, coordinate system UTM WGS84 zone 32 N, coordinate system UTM WGS84 zone 33 N, plane coordinates. Website: http://download.geofabrik.de/osm-data
Datasets	Road network Schools Transport facilities Bus and railway stops

.

The polygonal census tracts dataset provided by the ISTAT institute was used as the base dataset to calculate the indicators; the census tracts corresponds to the microzones used in our model. The Municipality of Pozzuoli is partitioned into 283 microzones. For each microzone, we extracted the population dataset, composed of data concerning various sections of residents, such as the number of residents in a specific age range, and the building dataset composed of data related to the number of buildings and dwellings with specific characteristics, such as the number of buildings built in a given period, the mean number of dwellings in each residential building, etc.

The polygonal building theme was acquired from the 2011 geo-topographic database in a scale of 1:5000, distributed by the Campania Region in an Italian National geo-topographic structure following the InSpire GeoUML data model [31,32].

Other datasets concerning streets, infrastructures, and schools were extracted from the aero-photogrammetric municipality data in a scale of 1:4000, provided by the municipality of Pozzuoli and the OpenStreetMap community spatial database.

All the datasets were converted inti the plane coordinate system UTM WGS84 zone 33 N. The same data layers provided by different data sources were normalized and integrated.

4. Test Results

We tested our framework on a Pentium I7 dual core platform using the tool GIS ESRI ArcGIS 10.5; all the spatial analysis processes were implemented as functions in the tool GIS; and the fuzzy inference system was implemented in C++ language and incapsulated in the tool GIS.

In order to calculate the indicators needed to test our model, a set of spatial operators, such as spatial intersects and spatial joins, was used to calculate the indicators assigned to the microzones starting from the data acquired from the various spatial datasets. Then, the processes applied to extract the indicators were synthetized.

To calculate the indicators I₁ and I₂, the polygonal building dataset was partitioned into residential and industrial buildings in order to extract, respectively, the area covered by residential and industrial buildings per microzone.

Indicator I₃, given by the mean square meters of green areas per resident, was calculated by selecting the urban green areas and calculating the sum of urban green areas covering any microzone. Finally, this area was divided by the number of residents in the microzone.

Indicator I₄ was calculated by dividing the sum of green areas in the microzone by the area of the microzone.

To calculate the indicators I₅, the district urban roads were selected from the road network layer and the sum of the lengths of the selected arcs falling in each microzone was calculated; finally, this value was divided by the sum of the length of all the road arcs falling in the microzone. Indicator I₆ was calculated by selecting the district urban roads with a width of less than 7 m and dividing the sum of the selected arcs fallings in any microzone by the sum of the district urban road arcs falling in the microzone.

Indicator I₇ was calculated by dividing the number of residents in any microzone by the area of the microzone in square kilometers.

To calculate the indicators I₈, I₉, and I₁₀, the building and dwelling census dataset was used, extracting, for each microzone, respectively, the number of residential buildings built before 1945, the number of dwellings with at least one resident, and the number of residential buildings with at least 16 dwellings, and dividing them, respectively, by the number of residential buildings, the number of dwellings, and the number of residential buildings in the microzone.

The II level indicators I_11a, I_11b and I_11c were calculated by extracting from the point school layer, respectively, the primary, low secondary, and secondary schools, and constructing circular buffer areas with a radius of 500 m centered in any school. Then, for any type of school, the area of the microzone covered by the calculated buffer areas was extracted and divided by the area of the microzone.

The II level indicators I_12a and I_12b were calculated by extracting from the point transport facility layers, respectively, the bus stops and the railway stops, and constructing circular buffer areas with a radius of 100 and 300, respectively, centered in any stop. Then, for any type of stop, the area of the microzone covered by the buffer areas calculated was extracted and divided by the area of the microzone.

The II level indicators I_13a and I_13b were calculated by selecting, respectively, microzones including coastal areas and those containing a maritime terminal.

The II level indicators I_14a and I_14b were calculated by extracting, respectively, the polygon hospital and sports facility layers and selecting the microzones including the selected elements.

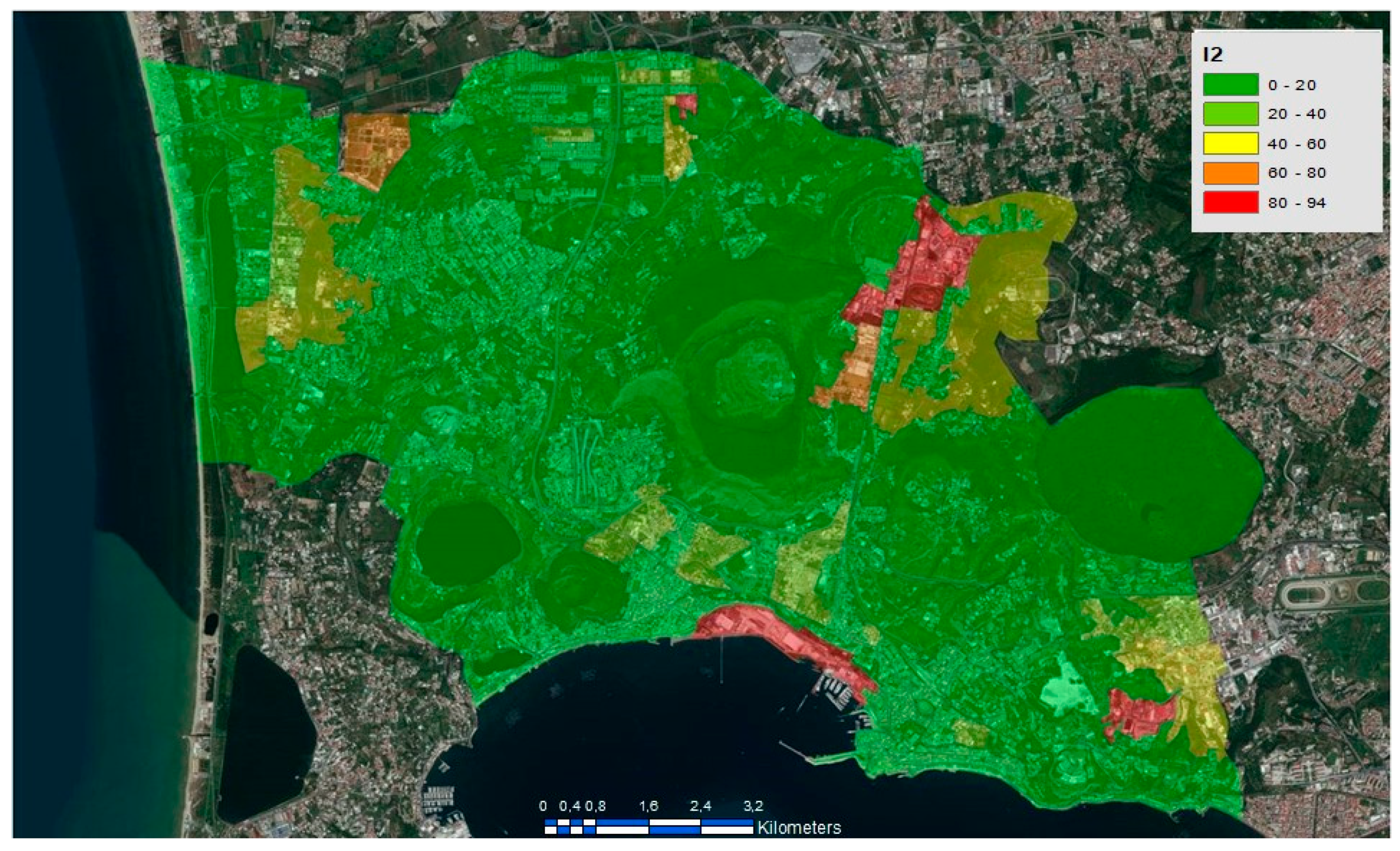

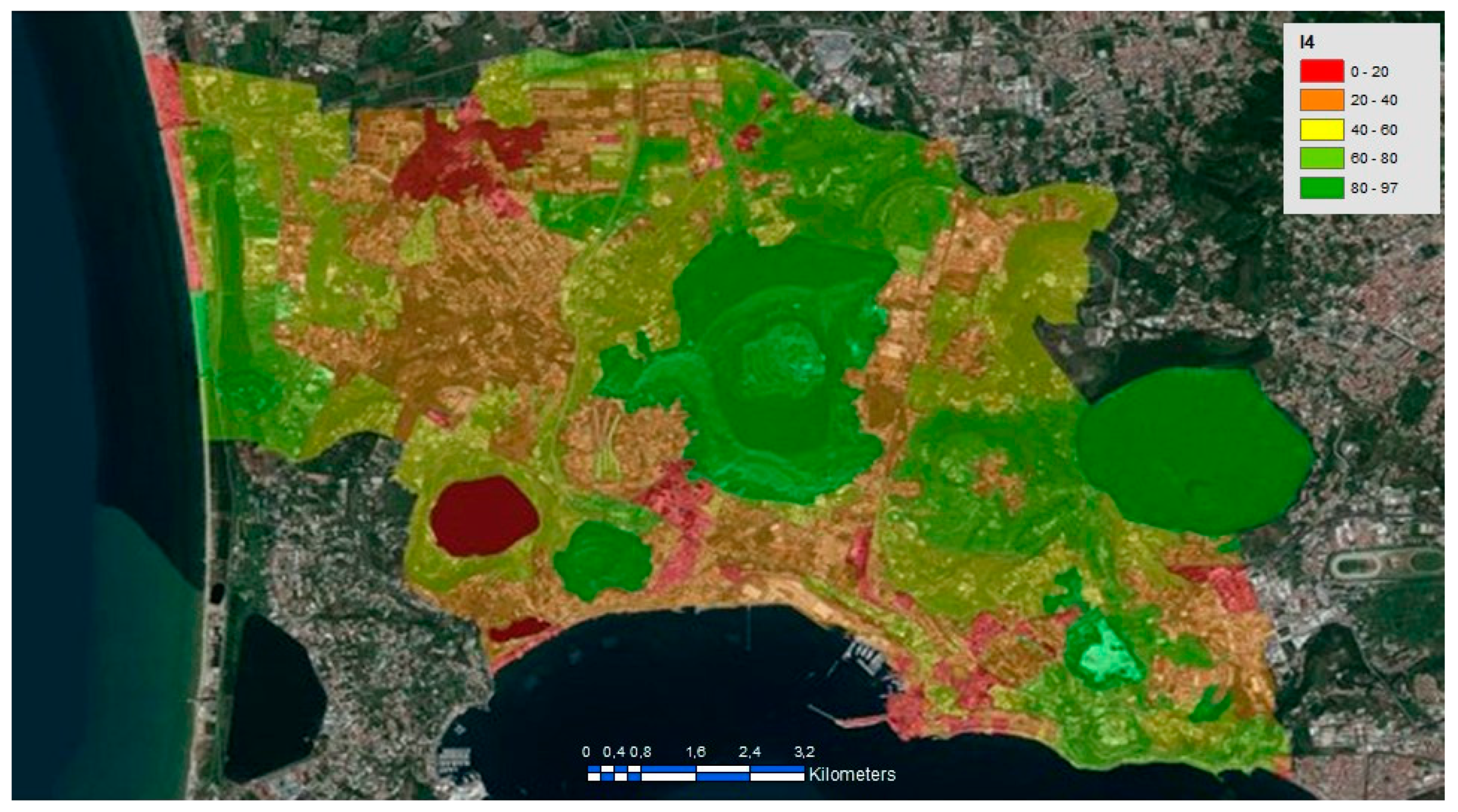

For brevity, we showed the thematic maps obtained for the indicators I₂ (Figure 7) and I₄ (Figure 8) in which an equal interval classification method of the indicator is applied.

After calculating the crisp values of the indicators, we applied the fuzzification process, executing the fuzzifier component of the fuzzy rule system.

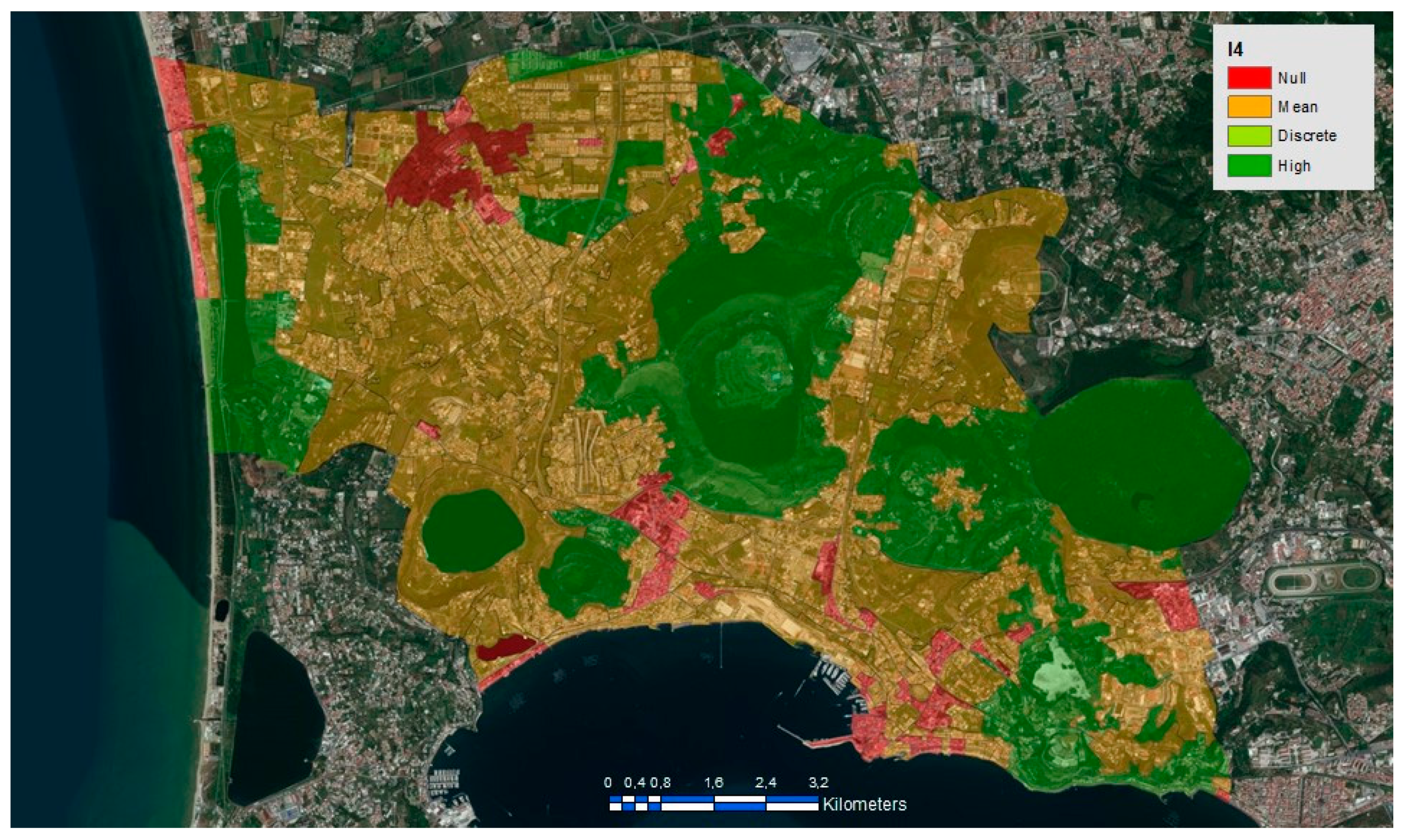

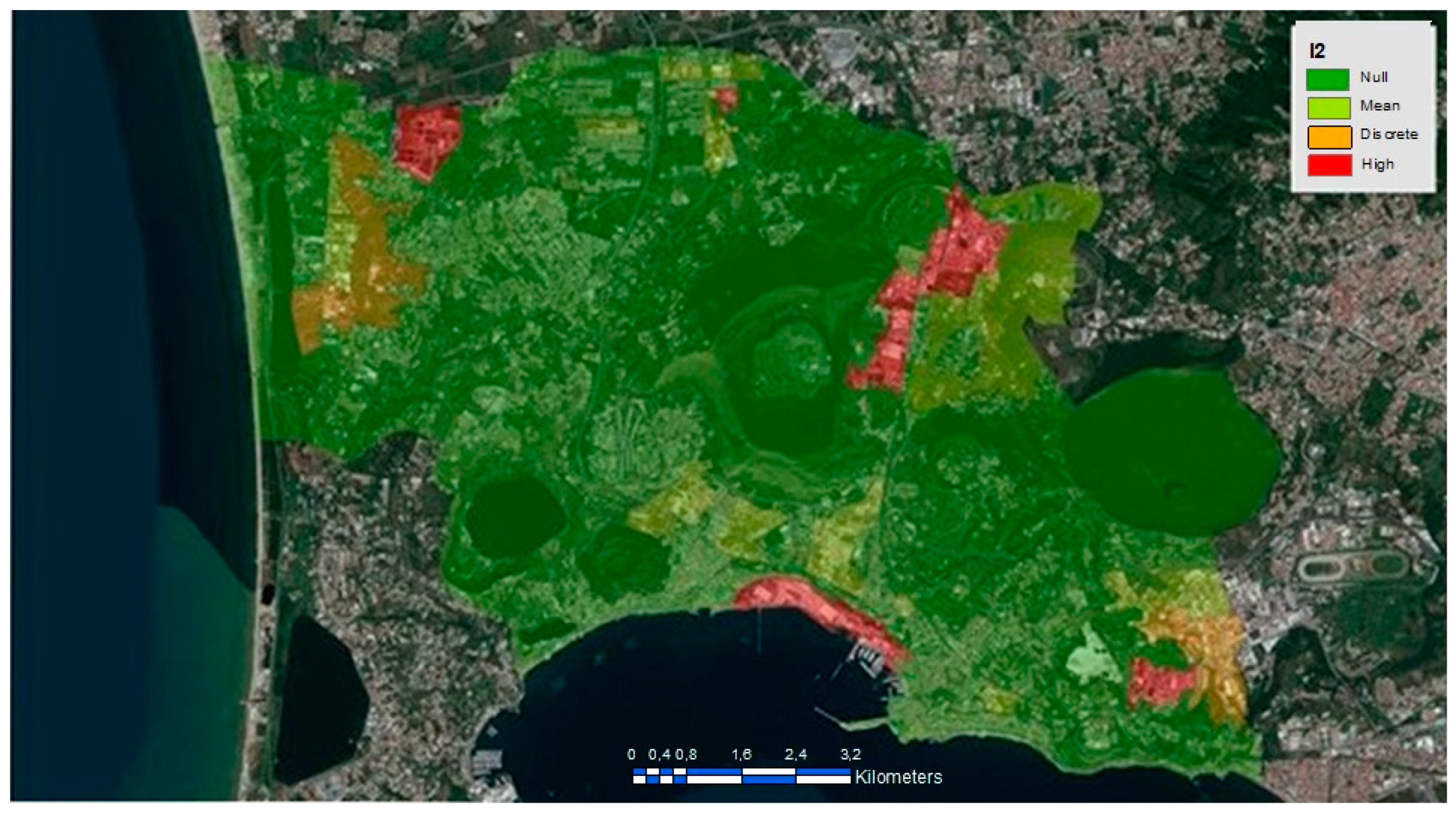

Figure 9 and Figure 10 present two thematic maps of, respectively, the indicators I₂ and I₄, in which each microzone is assigned the label of the fuzzy set to which the microzone belongs with the highest membership degree.

The two maps in Figure 9 and Figure 10 were obtained after the fuzzification process and highlight the microzones characterized by the indicator. In Figure 9, the microzones classified as High (in red) are characterized by a strong presence of industrial areas. In Figure 10, the microzones classified as High (in dark green) are largely covered by urban or overgrown green.

After the fuzzification process, the fuzzy inference engine component was initiated; a set of about 100 fuzzy rules created by the domain experts was used. Finally, the defuzzification process was executed and the appropriated urban area class was assigned to each microzone.

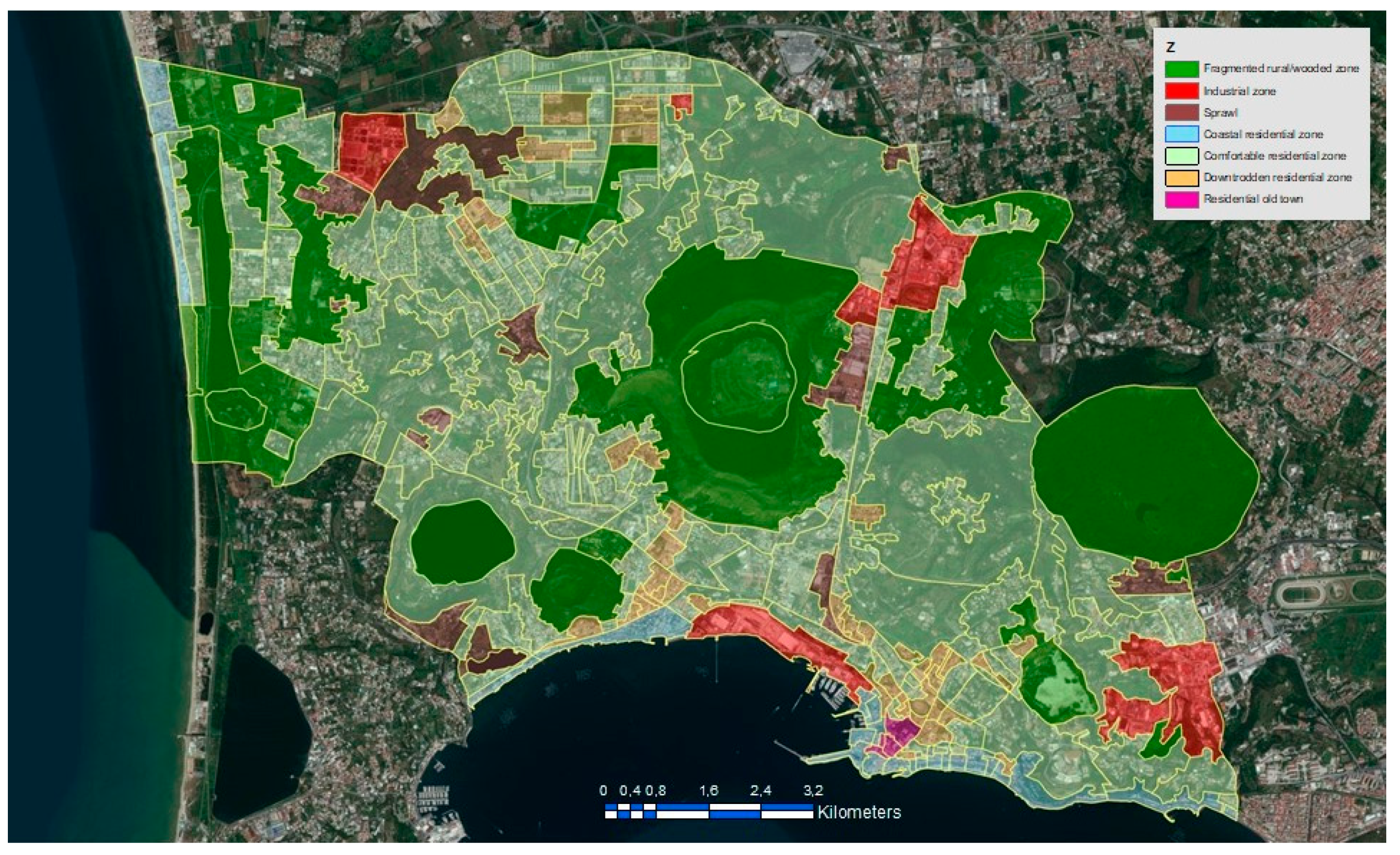

The thematic map in Figure 11 show the classification results. In this map, the urban area classification of the microzone is shown.

In order to evaluate the performance of the classification, we compared the results with the supervised urban area classification of the microzones performed by the experts. For each class, we calculated the accuracy, precision, and recall (or sensitivity) indexes. This calculus was performed by extracting, from the confusion matrix, the TP, TN, FP, and FN parameters, where:

-

TP (True Positive) is the number of microzones correctly assigned to the class;

-

TN (True Negative) is the number of microzones correctly not assigned to the class;

-

FP (False Positive) is the number of microzones wrongly assigned to the class;

-

FN (False Negative) is the number of microzones wrongly not assigned to the class.

The three indexes are given by:

$$\begin{array}{l}\mathrm{accuracy}=\frac{\mathrm{TP}+\mathrm{TN}}{\mathrm{TP}+\mathrm{TN}+\mathrm{FP}+\mathrm{FN}}\times 100\hfill \\ \mathrm{precision}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FP}}\times 100\hfill \\ \mathrm{recall}=\frac{\mathrm{TP}}{\mathrm{TP}+\mathrm{FN}}\times 100\hfill \end{array}$$

(10)

Table 7. Classification results obtained by comparing the urban area classifications of the microzones obtained by applying our method with the supervised classification performed by the experts.

Urban Area Class	Accuracy	Precision	Recall
Fragmented rural/wooded zone	99.29%	100.00%	88.89%
Industrial zone	100.00%	100.00%	100.00%
Sprawl	100.00%	84.62%	100.00%
Coastal residential zone	100.00%	100.00%	100.00%
Comfortable residential zone	100.00%	100.00%	100.00%
Downtrodden residential zone	100.00%	100.00%	100.00%
Residential old town	100.00%	100.00%	100.00%

show the classification results; the three indexes were calculated for any class.

These results show that the classification of the microzones obtained by applying our model is almost similar to the supervised one attributed by the experts. The only deviations are present for the indexes Accuracy and Recall in the classes Fragmented rural/wooded zone and Sprawl; two of the 18 microzones classified by the experts as Fragmented rural/wooded zone by using our model are classified as Sprawl.

Finally, adjoining microzones belonging to the same class were dissolved, forming urban contexts.

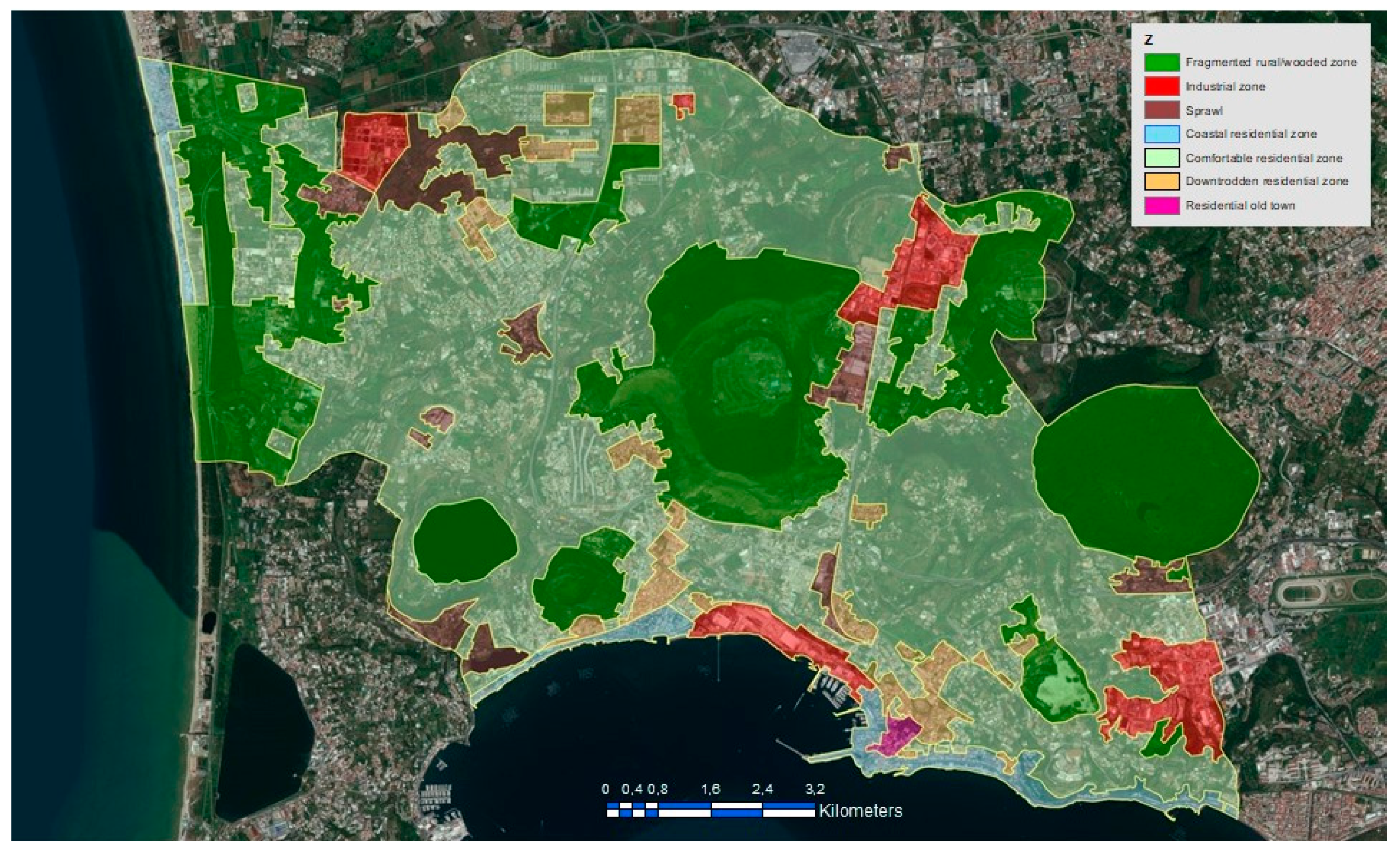

The Municipality of Pozzuoli is partitioned into 60 urban contexts, as shown in the map in Figure 12.

The only urban context classified as Residential old town (in magenta) is an area that includes the historical center of Pozzuoli. The urban contexts classified as Coastal residential zone (in light blue) are residential coastal areas. The other coastal areas are, respectively, the maritime industrial area, classified as Industrial zone, and an area given by a maritime non-residential microzone, classified as Fragmented rural/wooded zone since it is not a residential zone and a high percentage of the zone is covered by vegetation. All the contexts classified as Industrial zone (in red) are areas where most of the buildings are industrial buildings or warehouses. The contexts classified as Downtrodden residential zone (in orange) are residential areas with a high density of residential housings and with a high population density. The other average residential contexts are classified as Comfortable residential zone (in light green); in these zones, the population density and the number of dwellings per residential building are not high; in addition, these zones are mostly covered by transportation services and schools and contain public green areas. The contexts classified as Sprawl (in brown) are areas where the density of residential buildings is sparse; they are probably urban agglomerations in recent, slow, and unplanned expansion. Finally, the contexts classified as Fragmented rural/wooded zone (in green) are areas predominantly or completely covered with vegetation.

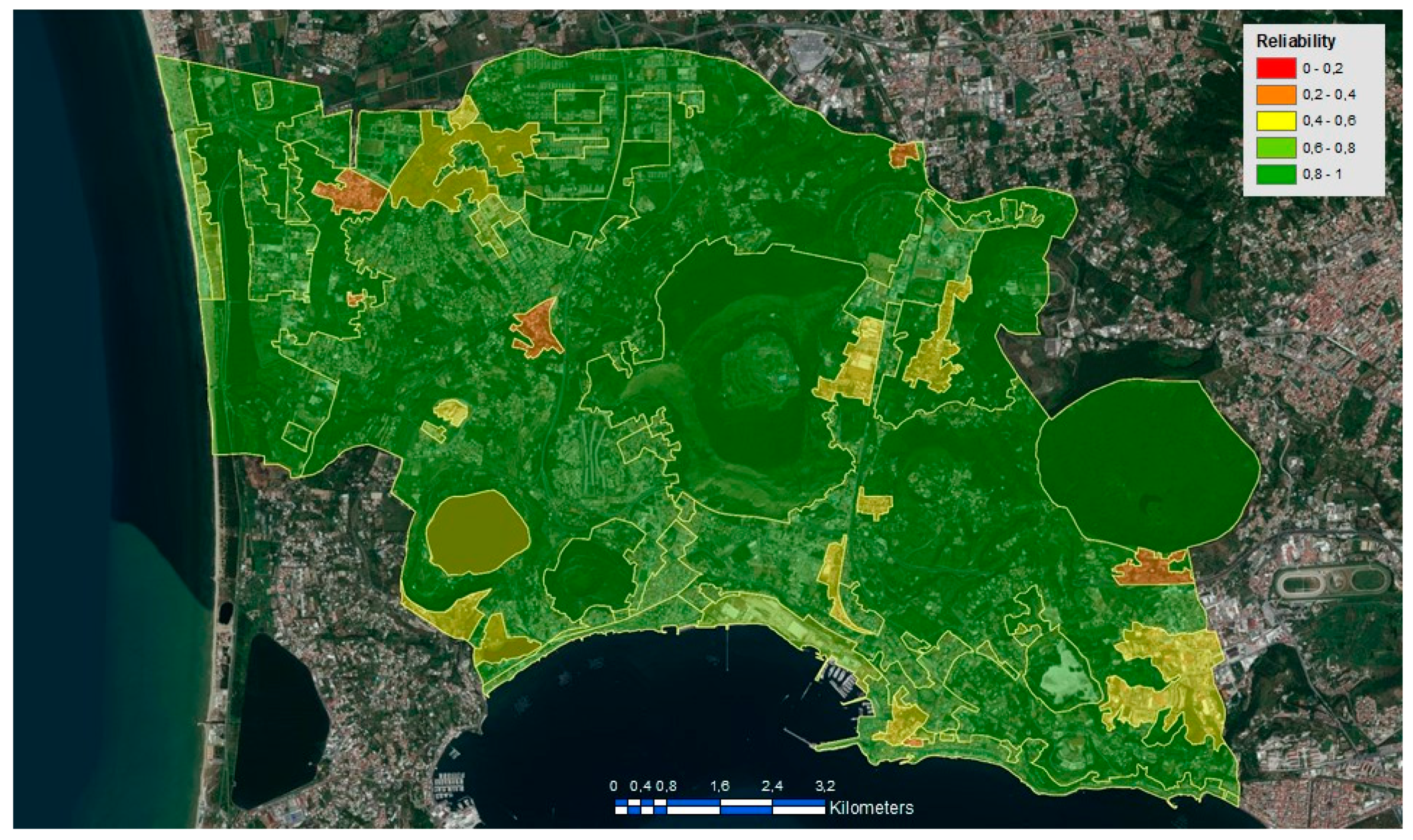

In Figure 13, a thematic map with the reliability of the results is presented. The reliability is calculated as a weighted average of the membership degree to the urban area class of the microzones included in the context where the weight is given by the area of the microzone.

There are four contexts with a low reliability, in the range of 0.2–0.4: three of these contexts are classified as Sprawl and the last as Downtrodden residential zone. In all these contexts, microzones with a not high degree of membership to their urban area class, meanly under the value of 0.4, are included.

These results suggest the need for a finer classification of urban areas in order to improve the reliability of urban contexts with a low reliability. In fact, in microzones classified as a specified urban area with a low membership degree, there are probably different types of urban areas; a finer classification could also take into account classes of urban areas to which microzones belong with a slightly lower degree of membership. For example, the context with low reliability classified as Downtrodden residential zone is given by a microzone classified as Downtrodden residential zone with a membership degree of 0.36 and belonging to the class Industrial zone with a membership degree of 0.31; this microzone included a densely populated residential area and a non-residential area with industrial premises; a finer classification of this microzone could consider both these classes in order to characterize the type of urban area that it represents in greater detail.

5. Final Considerations

We have presented a new model based on a Mamdani fuzzy rule system to partition an urban system into homogeneous urban contexts. We implemented our model using a GIS platform and constructed the urban contexts by initially considering the urban system partitioned into microzones. A set of indicators was defined to characterize the urban areas; these indicators were fuzzified and used as variables in a fuzzy rule set used to classify the microzones; the urban contexts were obtained by dissolving adjoining microzones belonging to the same urban area class. We assessed the reliability of our classification, assigning each urban context the weighted average of the membership degree of the microzones within in it, where the weight was given by the area of the microzone.

We tested our model by applying it to the Municipality of Pozzuoli (Italy) in order to partition the municipality into contexts classified based on the type of residential or rural area.

A comparison of the results with the results of a supervised classification obtained by experts showed that our model had a high classification performance in terms of accuracy, precision, and recall. The results show that the contexts where reliability is low include microzones in which zones with different characteristics are present. Our approach could be a valid support for decision makers in analyzing how the urban fabric is characterized and how it is spatially distributed in areas with complex characteristics for the purposes of proper management and planning.

In the future, we intend to improve this model in order to obtain a finer partition of the urban system by considering all the most relevant classes of urban areas characterizing microzones.
