Article

Speleothem Records of the Hydroclimate Variability throughout the Last Glacial Cycle from Manita peć Cave (Velebit Mountain, Croatia)

1
Department of Geography, University of Zadar, 23000 Zadar, Croatia
2
Croatian Geological Survey, 10000 Zagreb, Croatia
3
School of Geography, Faculty of Science, The University of Melbourne, Melbourne, VIC 3010, Australia
4
School of Earth Sciences, University of Melbourne, Melbourne, VIC 3053, Australia
5
Australian Nuclear Science and Technology Organisation, Lucas Heights, NSW 2234, Australia
*
Author to whom correspondence should be addressed.
Academic Editors: Mohammad Valipour and Jesus Martinez-Frias
Geosciences 2021, 11(8), 347; https://doi.org/10.3390/geosciences11080347
Received: 5 July 2021 / Revised: 4 August 2021 / Accepted: 17 August 2021 / Published: 19 August 2021
(This article belongs to the Special Issue Changing Quaternary Environment in the Mediterranean)

Abstract

We present stable carbon (δ13C) and oxygen (δ18O) isotope records from two partially coeval speleothems from Manita peć Cave, Croatia. The cave is located close to the Adriatic coast (3.7 km) at an elevation of 570 m a.s.l. The site experienced competing Mediterranean and continental climate influences throughout the last glacial cycle and was situated close to the ice limit during the glacial phases. U-Th dating constrains the growth history from Marine Isotope Stage (MIS) 5 to MIS 3 and the transition from MIS 2 to MIS 1. 14C dating was used to estimate the age of the youngest part of one stalagmite found to be rich in detrital thorium and thus undatable by U-Th. On a millennial scale, δ18O variations partly mimic the Dansgaard–Oeschger interstadials recorded in Greenland ice cores (Greenland Interstadials, GI) from GI 22 to GI 13. We interpret our δ18O record as a proxy for variations in precipitation amount and/or moisture sources, and the δ13C record is interpreted as a proxy for changes in soil bioproductivity. The latter indicates a generally reduced vegetation cover towards MIS 3–MIS 4, with shifts of ~8‰ and approaching values close to those of the host rock. However, even during the coldest phases, when a periglacial setting and enhanced aridity sustained long-residence-time groundwater, carbonic-acid dissolution remains the driving force of the karstification processes. Speleothem morphology follows changes in environmental conditions and complements regional results of submerged speleothems findings. Specifically, narrow sections of light porous spelaean calcite precipitated during the glacial/stadial sea-level lowstands, while the warmer and wetter conditions were marked with compact calcite and hiatuses in submerged speleothems due to sea-level highstands. Presumably, the transformation of this littoral site to a continental one with somewhat higher amounts of orographic precipitation was a site-specific effect that masked regional environmental changes.
Keywords: speleothem; cave; hydroclimate; palaeoenvironmental changes; Croatia speleothem; cave; hydroclimate; palaeoenvironmental changes; Croatia

1. Introduction

The last glacial cycle, as revealed from Greenland ice cores [1,2], was marked by a series of rapid, millennial-scale climate oscillations known as Dansgaard–Oeschger (DO) cycles [1]. In total, 25 such cycles show a sawtooth pattern of abrupt increase in temperature and humidity, referred to as Greenland Interstadials (GI), and relatively slow gradual cooling, which led to dry and cold Greenland Stadials (GS) [3,4]. These oscillations have been documented in various terrestrial and marine records, particularly their climate-driven isotopic (δ18O and δ13C) variations. The timing and duration of certain events substantially differ in various archives, among which radiometrically dated speleothems appear to be very valuable material due to their absolute dating of high precision and accuracy [5].
Provided the deposition of spelaean calcite occurs in isotopic equilibrium with dripwater, speleothem δ18O variations are governed solely by dripwater δ18O and cave temperature [6]. Cave temperature is usually thought to be stable and to reflect the mean annual air temperature (MAAT) of the surface [7], but dripwater δ18O depends on numerous factors affecting meteoric water on its way from the vapour source via the atmosphere, soil and epikarst to the drip site in the cave, such as altitude, latitude, continentality and rainfall amount [8]. Consequently, the dominant influence on speleothem δ18O is strictly site-specific. In the Mediterranean, rainfall amount is the dominant factor controlling speleothem δ18O in Spain [9,10,11,12], Portugal [13,14], Italy [15,16,17,18,19,20,21,22,23,24,25], Croatia [26,27,28,29], Greece [30,31] and Israel [32,33,34]. These speleothem records are characterized by δ18O decreases at times of increased precipitation amount, associated with generally warm and humid periods; higher δ18O values are thus related to dry and cold conditions. On the other hand, temperature-controlled δ18O signals, as reconstructed from Greenland ice cores [2], revealed in six caves along the 475 km-long transect of the northern rim of the European Alps [4,35,36,37,38,39], but also in Turkey [40], Ireland [41] and Belgium [42], that decreased δ18O represents cold stadials and increased values mark warm interstadials. Along with δ18O variations, stable carbon isotopic composition (δ13C) of spelaean calcite provides insight into climate-controlled environmental changes via its dependence on vegetation cover and soil biogenic activity, which respond to temperature changes and moisture availability [43,44].
The Adriatic Sea, located in the northernmost part of the central Mediterranean, is the contact zone of competing continental European and maritime climate influences. Its eastern Croatian coast, rich in karst features, offers good potential for palaeoenvironmental studies, not only speleothem-based [26,27,28,45,46,47,48,49,50] but also based on other proxies and archives [51,52,53,54,55,56,57]. Palaeoenvironmental studies concerning sea-level changes, conducted on eastern Adriatic submerged speleothems, revealed speleothem deposition during cold climate phases, apparently even during the Last Glacial Maximum (LGM) [45]. Evidence of more or less interrupted speleothem growth throughout the last glacial cycle is provided also from the Tyrrhenian coast (see review in [58]), Apulia [25] and Israel [32].
Here, we present stable isotope (δ18O and δ13C) records from two partially coeval speleothems collected from the monitored cave of Manita peć [49] (hereafter MP). It is located in the littoral part of the Croatian Dinaric karst, in the Velebit Mountain, 3.7 km from the coastline. Proxy data from U-Th- and 14C-dated stalagmites enable partial reconstruction of environmental changes during the last 110 ka. Given the cave’s position between the Mediterranean and continental Europe, we compare our results with concurrent Mediterranean and Alpine records (Figure 1a) in order to identify the prevailing influences and factors controlling isotopic variations in speleothems, as well as their different intensity and spatiotemporal extent at the regional to local scale.

2. Regional Settings and Study Site

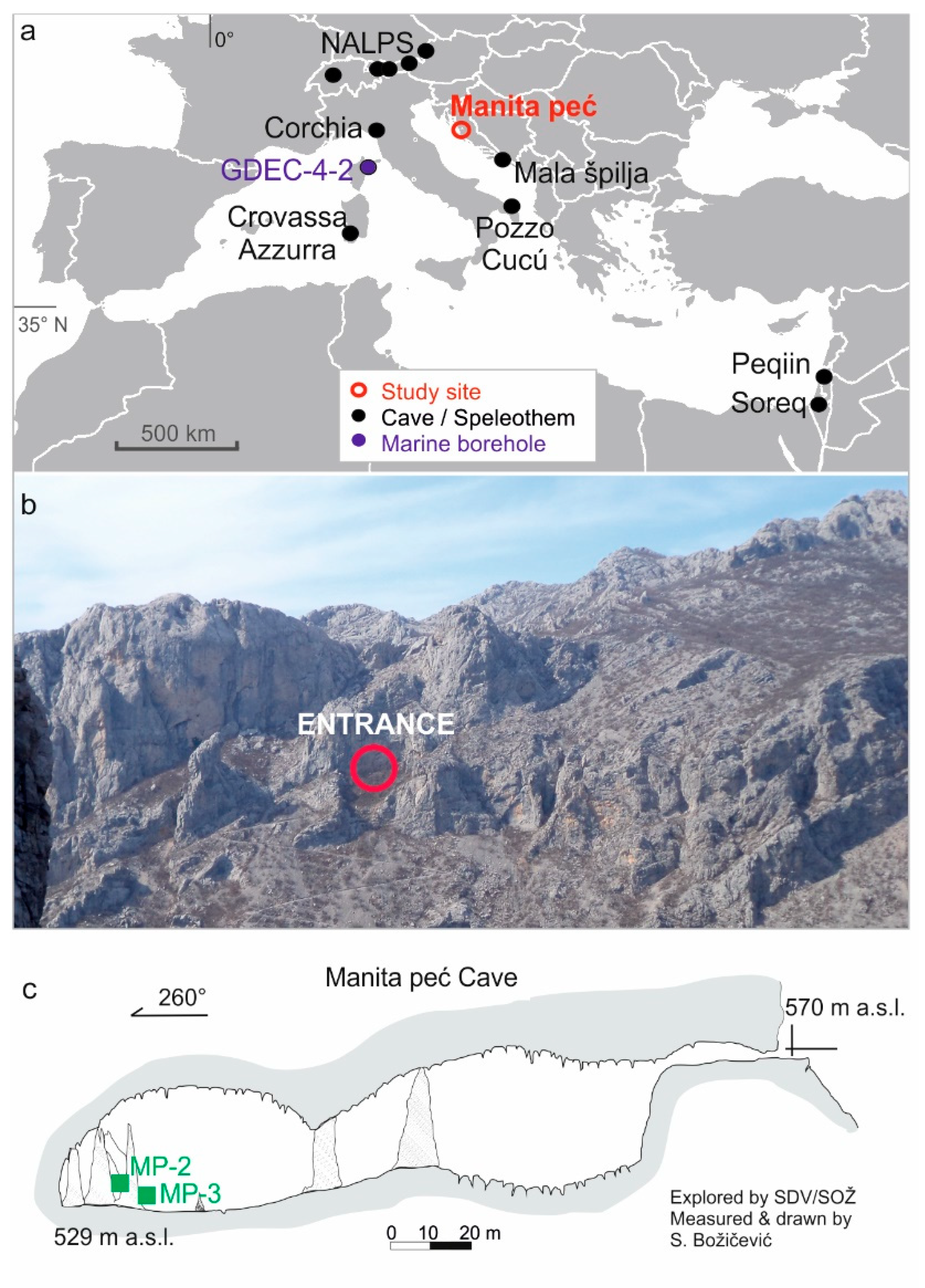

Manita peć Cave (44°18′ N, 15°28′ E) is located at 570 m a.s.l. in the side of the Paklenica canyon carved perpendicularly into the Velebit Mountain. It was formed in Upper Jurassic limestone and consists of simple descending spacious chambers with heights up to 38.5 m. Our study site, where the monitoring was conducted and in which speleothems were collected, was at the end of the cave, 150 m from and 40 m below the entrance level. Presently, the surface is mostly bare karst with sparse grass and shrubs (Figure 1b). The recharge area is limited, and the origin of the cave dripwater is restricted to the local meteoric input due to the cave position in epikarst near the summit and relatively shallow overburden (80 m). The infiltration elevation (i.e., altitude of the catchment) is just slightly above the elevation of the cave.
Owing to the relative vicinity to the Adriatic coast (3.7 km) and the altitude (570 m a.s.l.), the climate type is Cfa—temperate humid climate with hot summers (according to the Köppen–Geiger climate classification [60]), but bordering with Cfb—temperate humid climate with warm summers. The MAAT measured in front of the cave (February 2014–February 2015) was 13.7 °C, while the cave MAAT measured in the innermost part of MP (July 2012–July 2014) was 9.04 °C [49]. Relative humidity (RH) of the cave air is constantly 100%, despite the influence of cold and dry bora winds associated with high pressure, which was recorded by small but abrupt drops of cave air temperature. With the MAAT standard deviation of 0.4 °C (1σ) and constant RH throughout the 2012–2014 period, the MP cave environment may be regarded as stable, and thus favourable for the near-equilibrium precipitation of the spelaean calcite [49]. Discrepancy between the outside and cave MAAT is ascribed to the cave morphology, which, by its descending chambers, acts as a cold trap [61]. Mean annual precipitation of the closest rain gauge station at a similar altitude (Parići village, 3.5 km to the north, 555 m a.s.l.) was 1037 mm for the 1991–2000 period, and shows a bimodal distribution with the maxima during spring and autumn [62]. Precipitation δ18O indicates influences from both Atlantic and Western Mediterranean vapor masses [63].

3. Materials and Analytical Methods

Two stalagmites, namely MP-2 and MP-3, were collected from below the active dripping sites, both from the niches elevated ca. 2 m from the cave floor. Upon collection, Stalagmate® drip-loggers were installed to record the drip rates, which were, along with the rainfall records, used for the characterization of the karst aquifer. At the same locations, composite monthly water samples were collected for the comparison of the stable isotope composition with meteoric water samples [49]. We also collected two modern calcite samples precipitated on glass plates for the 1/2013–2/2014 period and a third sample from the 2/2014–1/2015 period.
After longitudinal cutting into the halves and polishing, solid pieces of the spelaean carbonate for U-Th dating were extracted using a hand-held dental air drill. The samples were chemically processed and analysed following the methods given in [64,65]. The samples were dissolved in nitric acid and spiked with a mixed 229Th-233U-236U tracer solution. The U and Th were eluted in Eichrom TRU-spec selective ion-exchange resin. Dried samples were then dissolved in diluted nitric acid. Measurements were performed using a Nu Instruments Plasma MC-ICPMS at The University of Melbourne. An initial 230Th/232Th ratio was estimated by using the method provided in [66].
For the 14C analyses, solid pieces of MP-3 speleothem were also used to avoid possible contamination with modern atmospheric CO2 on the outer surface of the samples. Approx. 8–10 mg of each sample was reacted with ~2 mL 85% H3PO4 at 90 °C. In the first 5 min of the hydrolysis reaction, CO2 gas evolved from the outer surface was evacuated from the reaction vessel and not used for 14C analysis. The hydrolysis reaction was maintained at 90 °C for another 1 h. The CO2 gas derived from the remaining carbonate material was converted to graphite using excess H2 over an Fe catalyst [67] and the graphite was rear-pressed into an aluminium cathode for accelerator mass spectrometry (AMS) analyses. All stalagmite 14C samples were analysed using the STAR facility at ANSTO [68]. The results were corrected for background and isotopic fractionation using measured δ13C, and normalized to a 95% oxalic acid (HOx-I) standard.
Sampling for stable isotope analysis was done at 1 mm resolution along the growth axis of each stalagmite and along seven growth laminae for the purpose of the Hendy test, using a tungsten carbide dental drill attached to a Taig CNC micromilling lathe. In addition, the isotopic composition of four samples of modern calcite collected on glass plates (1/2013–2/2014 and 2/2014–1/2015) were measured. A total of ca. 600 stable isotope analyses were conducted at The University of Melbourne (Australia) on an AP2003 continuous-flow mass spectrometer. The results are expressed in delta notation with respect to the VPDB standard. Long-term analytical precision of an in-house reference standard (Carrara marble), previously calibrated to international reference materials NBS-18 and NBS-19, was better than 0.05‰ and 0.1‰ (1σ) for δ13C and δ18O, respectively.

4. Results and Discussion

4.1. Monitoring Background

Results from the monitoring of cave microclimate, characterization of the karst aquifer and hydrological behaviour of the MP-2 and MP-3 drip sites conducted between 7/2012 and 7/2014 have been discussed in [49,63]. In short, while MP-3 showed a fracture flow response to rain events (coefficient of variation (CV) of 140%), MP-2 displayed a more stable drip regime (CV of 59%), very close to the seepage-flow class. Throughout the monitoring period, both sites showed no dripflow interruptions—even during the dry season, the highly responsive MP-3 discharged at ca. 30 drops/hour. Seasonal variations in rainwater stable isotope composition (δ18O between −9.4‰ and −3.4‰) were attenuated to an amplitude of 0.9‰ for MP-2 and 1.3‰ for MP-3, indicating that the residence time of the infiltrated water in the epikarst is sufficient for homogenization prior to discharge. The discharge is most likely a mixture of slow diffuse (matrix) flow from the overlying beds and fast preferential (fissure) flow [49]. Furthermore, within the relatively stable microclimate conditions in the cave and with well-homogenized dripwater, modern calcite appeared to be deposited close to isotopic equilibrium with the dripwater, when the expression of [69] is applied [49].

4.2. Speleothem Samples

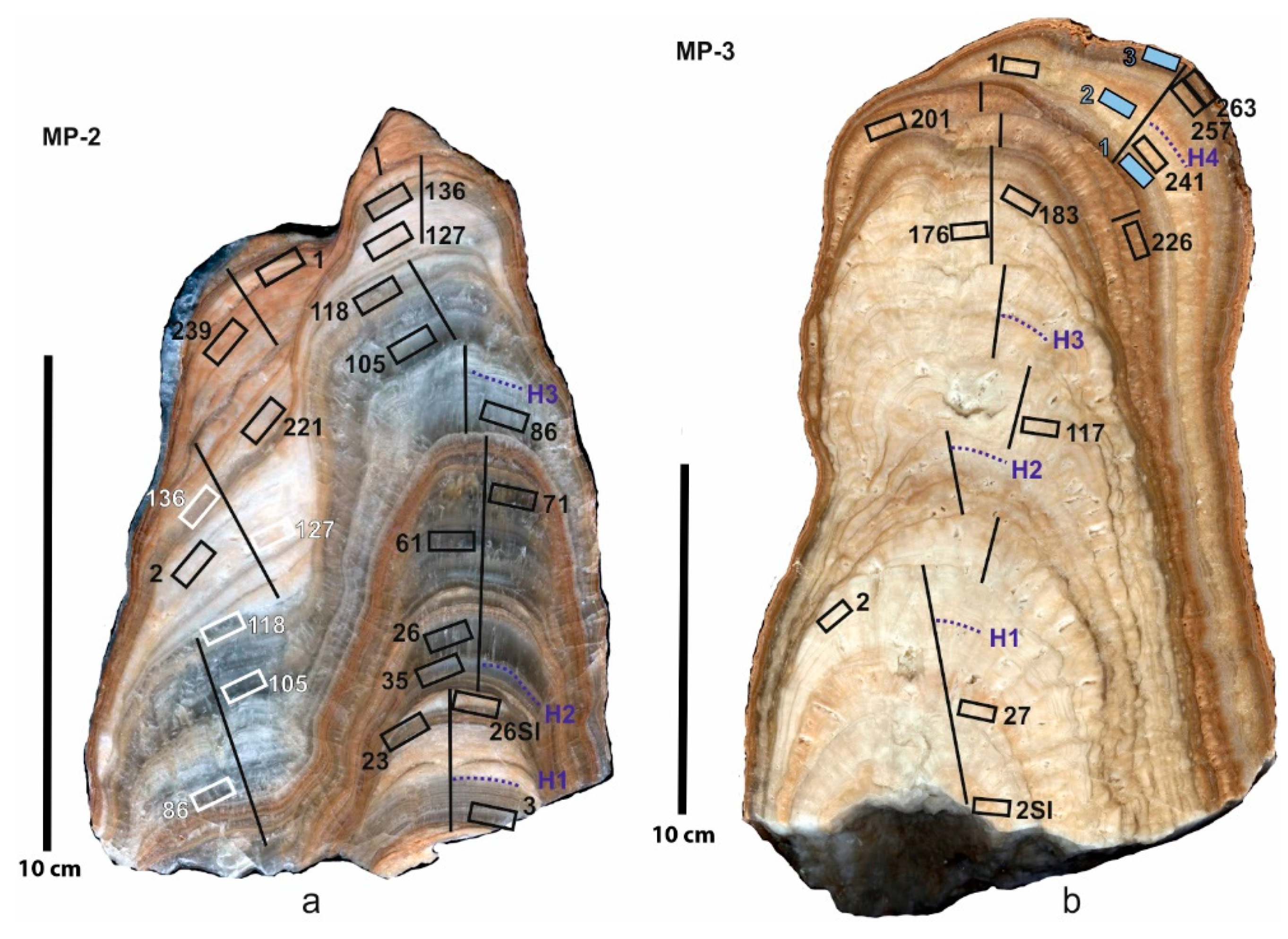

Both speleothems show a relatively inhomogeneous internal structure (Figure 2). The actively growing 15-cm long MP-2 sample consists of two parts formed by the lateral shifting of the drip site (Figure 2). Its interior is marked with clearly visible alterations of different calcite fabrics—from light porous, which becomes laterally narrower in an upwards direction along the growth axis, to dark and compact layers, which drape laterally over the whole speleothem body. A prominent hiatus marked by an eroded layer can be observed at ca. 80 mm from the bottom of the right half of the MP-2 stalagmite.
Stalagmite MP-3 is 25 cm long and also displays a small lateral shift in its growth axis (Figure 2). Prior to collecting, it had been fed by fracture flow, sometimes with a drip intensity of >10,000 drops/hour, and modern calcite has not precipitated, neither on the top of the stalagmite nor on the glass plate installed after removing the speleothem [49]. It seems that, over time, the feeding fracture has widened, enabling transmission of occasionally high discharge and potentially aggressive dripwater, which are unfavourable for calcite deposition.

4.3. Chronology

4.3.1. U-Th Dating and Age–Depth Models

The U-Th dating results are given in Table 1. Uranium concentrations ranged from 17 to 127 ppb with an average value of 63 ppb. At the same time, the 230Th/232Th activity ratio was very low and ranged from 1.4 to 22.5, implying a significant contribution of detrital Th in these stalagmites. Consequently, these speleothems proved to be challenging material for U-Th dating. Seven out of 28 age determinations were out of the stratigraphic order (marked with suffix * in the Table 1) and were not included in the age–depth models. Furthermore, five of these age determinations did not yield a meaningful result at all. In the case of the MP-2 speleothem, only one age determination was unsuccessful out of sixteen, while for MP-3 half of the age determinations were rejected (i.e., six out of twelve). Isotopic ratio data of the MP-3 stalagmite point to significant U loss and/or Th gain that is likely a result of post depositional alteration in the upper 70 mm of this stalagmite. We employed the stratigraphic constraint method of [66] to determine the initial 230Th/232Th activity ratio of 1.37 ± 0.26 for these speleothems. Corrected ages were calculated by using the U and Th decay constants of [70].

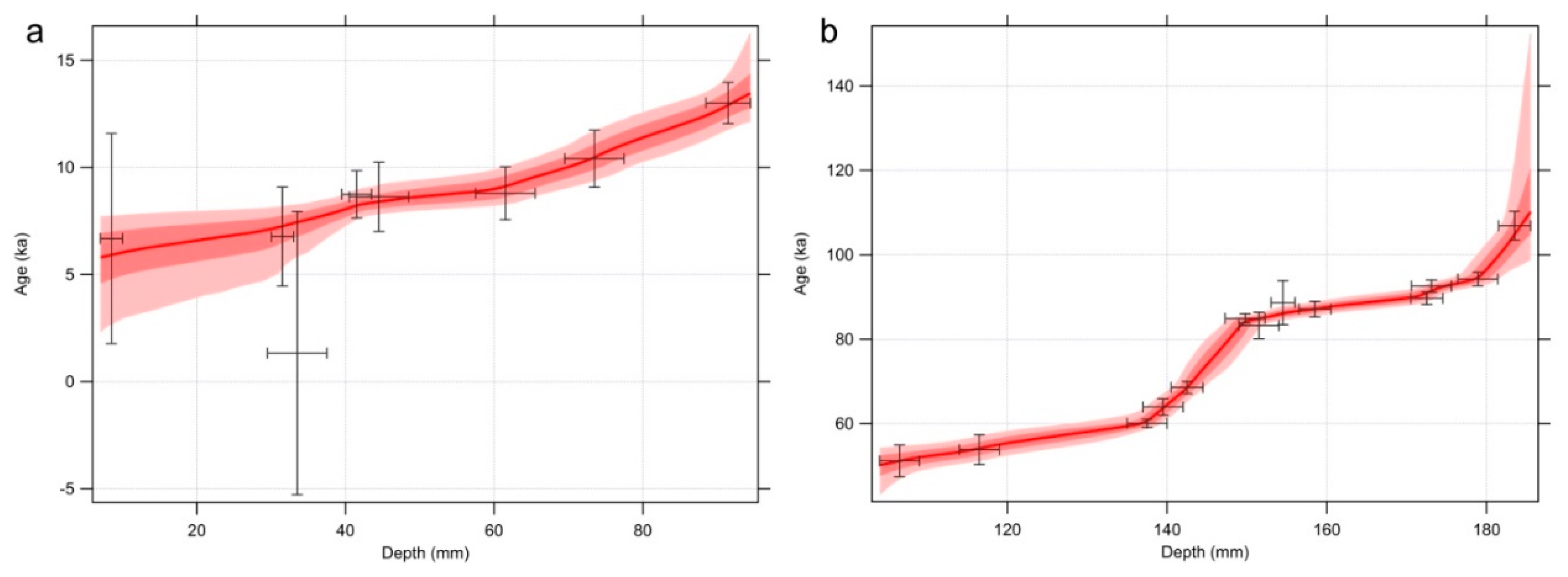

A Monte-Carlo finite positive growth rate model [65,71,72] was employed to construct two independent age–depth models. The first encompasses age data from the upper (younger) portion of the MP-2 stalagmite. During this time period, MP-2 experienced partial contemporaneous growth along two parallel growth axes (Figure 2a). To make use of all U-Th data collected, we transposed the data from the shorter transect to the longer one and ran a unique age–depth model. The five U-Th dates were transposed onto the longer transect based on visual similarity of the two transects and thanks to the pronounced layering of this speleothem. To account for possible extra uncertainty introduced by this procedure, we doubled the original depth uncertainty for all transposed samples and used this value (presented in Table 1) in the age–depth modelling procedure. The positions of the transposed data are indicated with white boxes in Figure 2a and the age–depth model output is presented in Figure 3a.
The second age–depth model spanned the 110 ka to 45 ka time period, and it is partially presented by both speleothems. In order to produce a single age–depth model, we merged the chronology data from both speleothems. Synchronization was performed following the similar procedure published in [17,73]. In the tuning protocol, the MP-2 dataset was used as the main record because it covered the longer time span compared to the MP-3 speleothem. Eight tie points were selected in MP-3, i.e., the MP-2 δ18O depth profiles, to transpose δ18O and δ13C as well as the corresponding U-Th data of the MP-3 speleothem onto the MP-2 depth scale. Tuning and tie point selection was performed based on visual similarity between the two δ18O depth series. Linear interpolation was performed in between tie points to transpose all MP-3 data onto the MP2 depth scale. Original depth uncertainty of the MP-3 U-Th samples was increased for at least 25% to account for an extra error introduced by this tuning protocol and this increased uncertainty was then applied in the age–depth modelling procedure. All accepted ages are in stratigraphic order as presented in Figure 3b.

4.3.2. 14C Dating

As pointed out in the previous section, U-Th dating of the uppermost part of the MP-3 speleothem was unsuccessful due to a likely open-system behaviour [74]. Consequently, it was not possible to reliably synchronise this part of MP-3 with MP-2, so those analyses were rejected from the cross-tuning (Figure 3b). To constrain the broad time frame of the youngest deposition phase of MP-3, we employed radiocarbon dating. Its minor role in speleothem geochronology is due to the ‘dead (14C-free) carbon’ issue [75], where unknown and variable portions of 14C-depleted carbon derive from dissolved old limestone and aged soil-derived carbon. This is expressed as the % dead carbon fraction (DCF) and it varies not only spatially, but also reflects the environmental changes through time [75,76]. An overview of the published speleothem DCF is given in [77] and it ranges from 5% to 37% (with few special cases, such as in Corchia Cave where it is ~60% [76]). Given the measured 14C activities (Table 2), and unknown DCF, we just estimate the youngest portion of the MP-3 speleothem to the MIS-3 period.

4.4. Stable Isotope Records

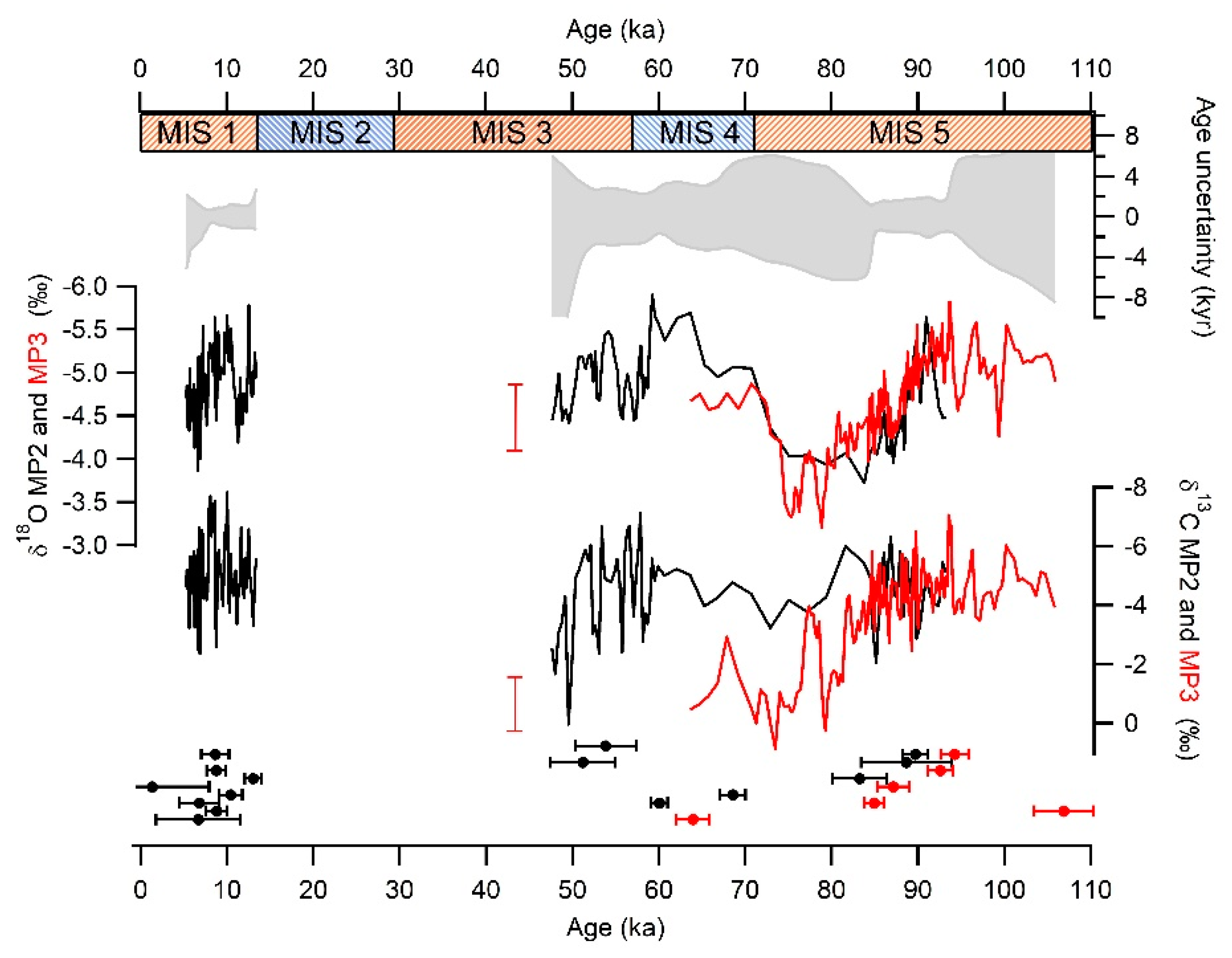

Time series of the δ18O and δ13C values of the MP-2 and MP-3 speleothems are shown in Figure 4. In MP-2, the δ18O varies between −5.9‰ and −3.7‰ with an average of −4.8‰, while the δ13C values are in the range from −7.8‰ to 0.04‰, with an average of −4.9‰. In MP-3, variations in δ18O are from −5.8‰ to −3.2‰ (average −4.7‰), and δ13C varies between −7.1‰ and 1.4‰, with an average of −3.6‰. As for MP-3, the δ18O and δ13C curves are plotted only for the lower 240 mm (first 242 stable isotope results); that is, from 105.9 ka to 63.7 ka, since the upper part could not be U-Th dated with appropriate certainty. The δ18O and δ13C values of the youngest part of MP-3, with roughly estimated 14C ages to MIS-3, vary from −4.9‰ to −4.1‰ and from −1.6‰ to 0.1‰, respectively. Four modern calcite samples collected in the MP cave during the 2/2013–2/2014 and 2/2014–2/2015 periods have an average δ18O and δ13C value of −5.4‰ and −10.3‰, respectively.
Since the credible hydroclimate interpretation of the stable isotope records requires near-equilibrium isotopic fractionation during calcite precipitation from the dripwater [6,43], we employed three different approaches to assess the equilibrium condition. Confirmation of near-equilibrium precipitation during most of the speleothems’ growth is given in Appendix A.

4.4.1. Environmental Changes Documented in the δ13C Signal

δ13C values along the MP-2 and MP-3 growth axes were within ranges of −7.8 to 0.04‰ and −7.1 to 1.4‰, respectively. Both speleothems recorded significant enrichment in calcite δ13C; ~8.5‰ towards the end of MIS 5 in MP-3, and almost 8.0‰ during MIS 3 in MP-2 (Figure 4), while the lowest δ13C values, down to −11.1‰, were measured in the modern calcite samples. Such large δ13C shifts (max. 1.4‰ and min. −11.1‰) in spelaean carbonate usually point to shifts between the C3 and C4 plant communities, where higher values (−6‰ to 2‰) reflect the dominance of C4 plants adapted to arid conditions and lower δ13C (−14‰ to −6‰) are typical for C3-dominated vegetation [43]. Given the geographical position of MP cave in the temperate zone, and lack of any palynological evidence, we could exclude alteration from a C3 to C4 plant assemblage during the Quaternary climate changes. In the Mediterranean region, the speleothem δ13C has been used as a proxy for the surface vegetation and soil microbial activity, as revealed in surrounding regions (e.g., [17,20,25,26,27,28,30,78,79,80]). Lower δ13C values are associated with increased soil pCO2 produced by intensive soil microbial activity and root respiration during warmer and wetter conditions and/or presence of forest cover, while higher δ13C values reflect reduced bioproductivity due to enhanced aridity. However, a longer residence time of water within the host rock during the arid periods leads to δ13C shifting towards higher bedrock-like δ13C values, and the same effect derives from prior calcite precipitation (PCP), which is again caused by reduced groundwater percolation within the karst aquifer [43,81].
δ13C variations can be discussed in relation to the speleothem fabrics and growth mode alteration, since the carbonate production, which is controlled by ecological factors and depends on the water chemistry and water supply, determines speleothem geometry [82]. Light porous calcite associated with a retractional growth pattern, i.e., a diameter decrease, was ascribed to reduced hydrologic activity, i.e., dry periods [82,83,84], while compact layers draping over the stalagmite flanks mark more humid conditions [85]. Such a speleothem architecture is elaborated in the conceptual model in [7], describing the factors influencing stalagmite properties, and is already known from the nearby Modrič Cave [26] as well as from some Spanish [84,86] and Belgian [85] sites. In our MP-2 sample (Figure 2), alteration of calcite fabrics and speleothem geometry are also consistent with δ13C variations; the white porous parts have high δ13C values, indicating deprived plant and soil activity in response to enhanced aridity, and are reflected in the narrowing of successive layers, while the darker compact parts, which overlap the preceding layers, coupled with lower δ13C, apparently derive from the wetter phases. In MP-3, the major part of the stalagmite consists of white porous calcite that also gradually narrows towards the top (Figure 2), along with increasing δ13C values. However, in the subsequent darker layers (in alteration with the lighter ones), δ13C also remains high. Similarly, in Tana che Urla Cave (central Italy), brown clastic-rich calcite has high isotopic values connected with lower growth rates during drier periods [20]. Apparently, those dark and compact layers derived from phases with limited water availability and decreased soil activity, which might have enhanced soil erosion and induced a higher flux of clastic material in the cave [87]. Evidence of clastic input into MP-3 stalagmite is clearly obvious in the high concentration of detrital thorium (232Th) (Table 1), which prevents precise U-Th dating of the youngest part of MP-3. We presume that part was formed during phases of climatic deterioration within MIS 3, when reduced rainfall increased the residence time of percolating groundwater within the host rock, resulting in enriched δ13C due to the heavier carbon isotopic composition of the limestone [88]. The dominance of the bedrock isotopic composition (higher δ13C), i.e., lack of δ13C-lighter soil-derived organic carbon in the system, is best pronounced in LGM-speleothems formed underneath an ice cover [35] or presently in near-freezing conditions [89], where the carbonic acid dissolution (CAD) has been replaced by the sulphuric acid dissolution (SAD) [76] throughout periods when conditions are unfavourable for the production of pedogenic CO2. However, in accordance with the local sulphur-free lithology (Upper Jurassic limestone), this consistently high δ13C values of the youngest part of MP-3, roughly dated at mid-MIS 3, are presumably the result of CAD, which took place in an environment with minimal but apparently sufficient biological activity. Namely, glacial periods left some landmarks in the surroundings of MP, such as LGM terminal moraine in Rujanska kosa (6 km NW from MP cave) at the present altitude of 920 m a.s.l. [90], and tills reaching a minimum altitude of 800 m a.s.l. [91]. Given the fact that the recharge area and the source of pedogenic CO2 that reaches MP cave is mostly at the altitude of ca. 700 m a.s.l., this was the glacier-free area, but most likely the periglacial setting maintained low plant and soil bioactivity levels. Hence, the lack of δ13C-lighter soil-derived organic carbon, and the apparent aridity that could sustain PCP and prolong the interaction between the percolating groundwater and the host rock, resulted in an overall δ13C increase.
As our time constraint based on 14C dating is not completely confident, the MIS 3 record from adjacent Modrič Cave (9 km SE from MP) might confirm our findings; namely, that stalagmite MOD-21 deposited from 54.6 ka to 44.0 ka recorded the same increasing trend within the δ13C range of 8‰, associated with a dry phase, and followed by a non-depositional period [26]. Likewise, growth of MP-3, after the cessation within MIS-3, was not restored.
The other extreme, the lowermost δ13C values within the MP cave, were recorded in modern samples (from −11.1‰ to −9.2‰), although the terrain above the cave, in fact the whole recharge area, is presently almost bare bedrock with scarce bush patches (Figure 1b). Such a landscape is the result of anthropogenic and natural processes that led to deforestation due to the overuse of the Velebit Mountain woodlands during the 16th–17th c. by the invaders (Venetians, Otomans and Habsburgs) [92] and growing local population. The Little Ice Age also reinforced forest logging. In spite of reforestation, organized already in the late 19th century [93] and naturally intensified upon the ban of goat breeding in 1950s, the recovery of the woodland has been slow, if happening at all. At the moment, it seems unrealistic that such negative δ13C values of modern calcite can be produced by such modest pedologic and vegetation cover; however, this has been repeatedly confirmed. Similarly, a low modern calcite δ13C has been measured in adjacent Modrič Cave (32 m a.s.l; 9 km SE from MP) and Strašna peć Cave (74 m a.s.l; 48 km SW from MP). In modern calcite precipitated during 1999–2007 in Modrič Cave, δ13C was −8.2‰ and −9.8‰ [48], while in Strašna peć Cave, calcite deposited through 2013–2014 had values from −12.1‰ to −8.7‰ (mean −10.8‰, n = 8) ([49] and unpublished data). Both sites are also characterized by patches of soil with sparse Mediterranean maquis, slightly more developed than the above MP Cave, which apparently gives enough biological activity to sustain such low δ13C values.

4.4.2. Hydroclimate Variations from MIS 5 to MIS 3 as Recorded by Spelean δ18O

In contrast to δ13C, variations in δ18O in MP-2 and MP-3 are much smaller, with similar ranges of −5.9 to −3.7‰ and −5.8 to −3.2‰, respectively. Although not of the highest resolution and precision, their pattern is comparable to the millennial-scale climate variability in Greenland [2] (Figure 5), which has already been recognized in other speleothem records in the Mediterranean realm, e.g., [12,24,25], in the southern Alps [23] and the north Alpine speleothem records [4,36,37,38,39].
As already mentioned, the precipitation amount is a dominant factor controlling speleothem δ18O in the Mediterranean (e.g., [9,10,11,12,13,14,15,16,17,18,20,21,22,23,24,25,26,27,28,29,30,31,32,33]); but, as the source of the moisture can also vary with time [25,94,95], both the amount and source effects must be taken into consideration. Contemporary spatio-temporal variations in Atlantic and Mediterranean vapour-source influences on Eastern Adriatic coast are discussed in [49,63,96,97,98,99].

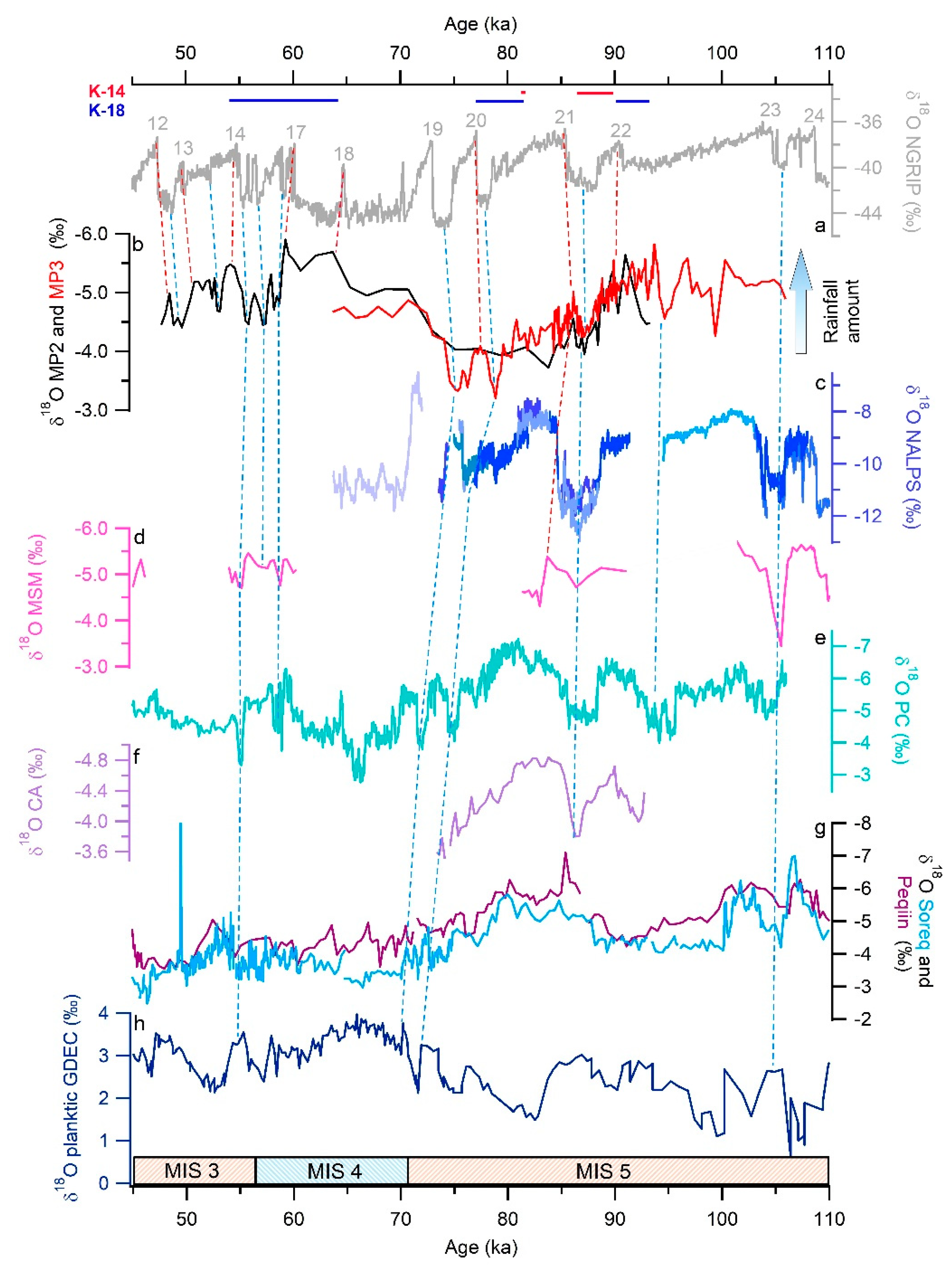

The δ18O record from the MP cave starts at GS 24, which is, unlike in our record, very well expressed by a positive shift in other regional records, such as from Croatian Mljet Island (MSM) [27], Corchia Cave in the Apuan Alps [100], Apulian Pozzo Cucú Cave (PC) [25], Israeli Soreq and Peqiin caves [33], but also in North Alpine stalagmites (NALPS) [4] and Western Mediterranean marine core GDEC-4-2 [58] (Figure 5). It was obviously an event of broad regional significance characterized by cooling of the SW and S Europe due to the renewed Northern Hemisphere ice-sheet growth after the end of the last interglacial, and a reduction in atmospheric moisture [100]. During the next 15 ka, which in NGRIP is documented by gradual climate deterioration from GI 23 throughout the relatively long GS 23, our MP-3 recorded several δ18O excursions, similar to the PC record [25]. Since this part of MP history is supported only by a single speleothem, we refrain from drawing any specific conclusions except that the MP-3 speleothem architecture and fabrics suggest arid conditions.
The following period, from MIS 5c to MIS 4, is instead covered by both MP stalagmites, complemented by the earlier findings from submerged speleothems [101]; namely, one of the consequences of global climate changes is sea-level changes caused by the accumulation and melting of continental ice. In the shallow northern part of the Adriatic Sea, this generated substantial palaeogeography changes throughout the Quaternary due to shifting coastlines (Figure 6c) and exposing of the carbonate landscape to karstification, including speleothem precipitation. Two such speleothems are K-14 and K-18 from submerged U Vode Pit near Krk Island (96 km NW from MP), whose deposition was repeatedly interrupted by the MIS 5 sea-level fluctuations [101] (Figure 6a,b).
The oldest part of K-18 precipitated from >93 to 90 ka in a similarly narrowing manner as the MP samples by the end of cool and dry GS 23 (Figure 5). The subsequent GS 22 was even more pronounced as recorded by the δ18O increase in MP speleothems and those from Mljet Island, Apulia and Sardinia, and the most prominent decrease in the NALPS record. It was associated with the MIS 5b sea-level fall, enabling K-18 deposition from 90 to 87 ka. Its porous white calcite (Figure 6a) resembles that of MP-3, pointing to the similar environmental setting. An abrupt shift in δ18O towards more negative values in Mediterranean speleothems (and towards positive in NALPS) marks the beginning of GI 21 and the MIS 5a sea-level highstand that flooded U Vode Pit and temporarily ceased K-14 and K-18 growth. Towards the MIS 4 glacial, increasing speleothem δ18O suggest progressive climate deterioration (cooling and drying) and resulting sea-level fall during which K-18 reactivated. Its dark and compact calcite precipitated from 82 ka to 77 ka—the short period presumably related to the mild stadial of GS 20, which is, along with GS 21, GI 20 and GI 19, relatively well expressed in the MP-3 record.
The most pronounced temperature drop during the studied period occurred in MIS 4, at least as far as the Greenland temperature is concerned (Figure 5). At its peak (~65 ka), with an ~80 m lower sea level [102], the coastline of the NE Adriatic nearest to the MP cave receded ~70 km away from the present position (3.7 km from the coast). Environmental conditions certainly changed and climate type most probably altered to Df (humid continental), which today dominates the highest peaks of the Velebit Mountain [49]. Nevertheless, the δ18O in both the MP-2 and MP-3 speleothems remains relatively low. It is apparent that the glacial climate in the eastern Adriatic, as recently shown on the western coast of Apulia [25], was milder and sufficiently moist for speleothem deposition. The growth episode of speleothem K-18 between 64 ka and 54 ka (Figure 5) confirms this [101].
The end of MIS 5 was a period of decoupled MP δ13C and δ18O series, with a general rise in δ18O, and not so much increased or stable δ13C (Figure 4). Such a situation is regionally interpreted as a time of prevailing source effect over amount effect [24,25], which is attributed to the less efficient Atlantic Meridional overturning circulation during ice-sheet growth [18,103]; namely, with lower production of Atlantic moisture and changed westerlies trajectories, the relative proportion of Atlantic (more negative δ18O) and Mediterranean (less negative δ18O) moisture changes, and the region receives isotopically enriched precipitation. The opposite situation, i.e., covarying δ13C and δ18O, is ascribed to periods of similar climate control [24]; that is, the amount of precipitation that governs vegetation growth and soil bioactivity. Our record only partially follows this scheme. One of the possible causes of that discrepancy might derive from a reorganized geographical setting, since the MP site with a lowered sea level became a region with more pronounced orographic precipitation instead (or in spite) of enhanced aridity.
According to the δ18O variations in MP-2, the transition from MIS 4 to MIS 3 is characterized by short and rapid oscillations matching GI 17 to GS 13. It was also a depositional period of the MSM-1 stalagmite from Mljet Island and K-18 from Krk Island, both of which, however, stopped growing after the dry and cold stadial GS 15, the one also very prominent in Apulia [25] and SE Spain [12]. The same period in MP cave is marked with oscillating and finally increasing δ13C, leading to the highest δ13C values and therefore quite arid conditions. Meanwhile, in the Apulian karst, a soil bioproductivity plateau was reached (δ13C = ~−8‰) despite the gradual δ18O increase; i.e., a precipitation decrease [25].

4.4.3. MIS 2 to MIS 1 Transition in δ18O Record

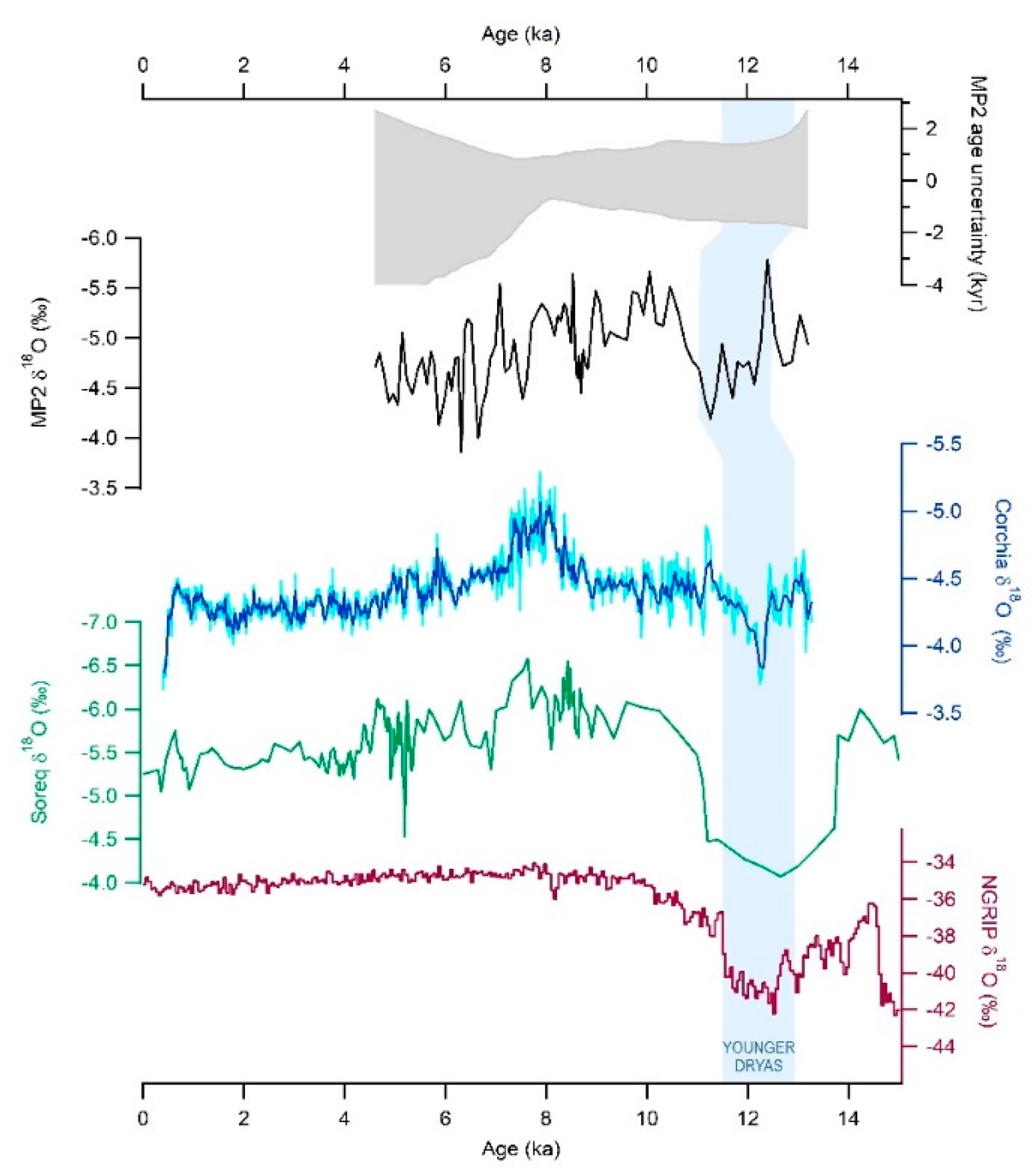

The transition from MIS 2 to MIS 1 is captured in the youngest part of the MP-2 stalagmite. According to the age–depth model, deposition of the youngest part of MP-2 recommenced around 13.8 ka (Figure 7), and our last time series data is at 5.3 ka (actively growing topmost part was not dated). The δ18O values are in range between −5.8‰ and −3.9‰ (average −4.9‰). The lowest δ18O value implies relatively warm and humid conditions at 12.57 +1.11/−1.08 ka, followed by abrupt climate deterioration and high isotopic values at 11.33 +1.15/−1.10 ka, which may, within the corresponding age uncertainties, correspond to the cool and dry Younger Dryas event (12.9–11.7 ka). However, the apparent delay from the δ18O excursion recorded in, e.g., the Corchia [15] and Soreq Cave speleothems [33], as well as in the NGRIP core [2], should be checked in other contemporaneous speleothems or other archives, rather than be prematurely ascribed to specific local conditions.

5. Conclusions

Manita peć Cave preserves speleothem records of environmental conditions over the last glacial cycle at a very specific location—the littoral part of the northern Mediterranean (eastern Adriatic coast), but at an elevation close to the glaciation limit during the glacial phases. The main features of the changing environment obtained from the δ18O and δ13C records from two partially coeval speleothems can be summarized as follows:
  • Millennial scale climate events, i.e., Dansgaard–Oeschger (DO) cycles, reconstructed from δ18O variations were superimposed upon longer-lasting climate fluctuations, and within the MIS 5–MIS 3 period the δ18O variations were synchronous with GI-GS 22, GI-GS 21, GI-GS 20, GI 19 and from GI-GS 17 to GI-GS 13. Most of these shifts, related to the change in precipitation amount, are consistent with speleothem records from the Adriatic and western Mediterranean regions.
  • The presumed Younger Dryas δ18O signal requires confirmation by a coeval MP speleothem or other local proxy records.
  • δ13C, as a proxy for the vegetation status and microbial activity in the soil, showed increasing values on longer time scales, pointing to general drying trend towards MIS 3 and MIS 4. With a positive shift of ~8‰, δ13C approached the values of the host rock due to the long residence time of the groundwater within epikarst fractures and probable enhanced prior calcite precipitation—both a consequence of intensive aridity. According to geomorphic studies, the MP area was glacier-free, and carbonic acid dissolution was the driving force of the karstification processes throughout all deposition periods, no matter how modest the vegetation was.

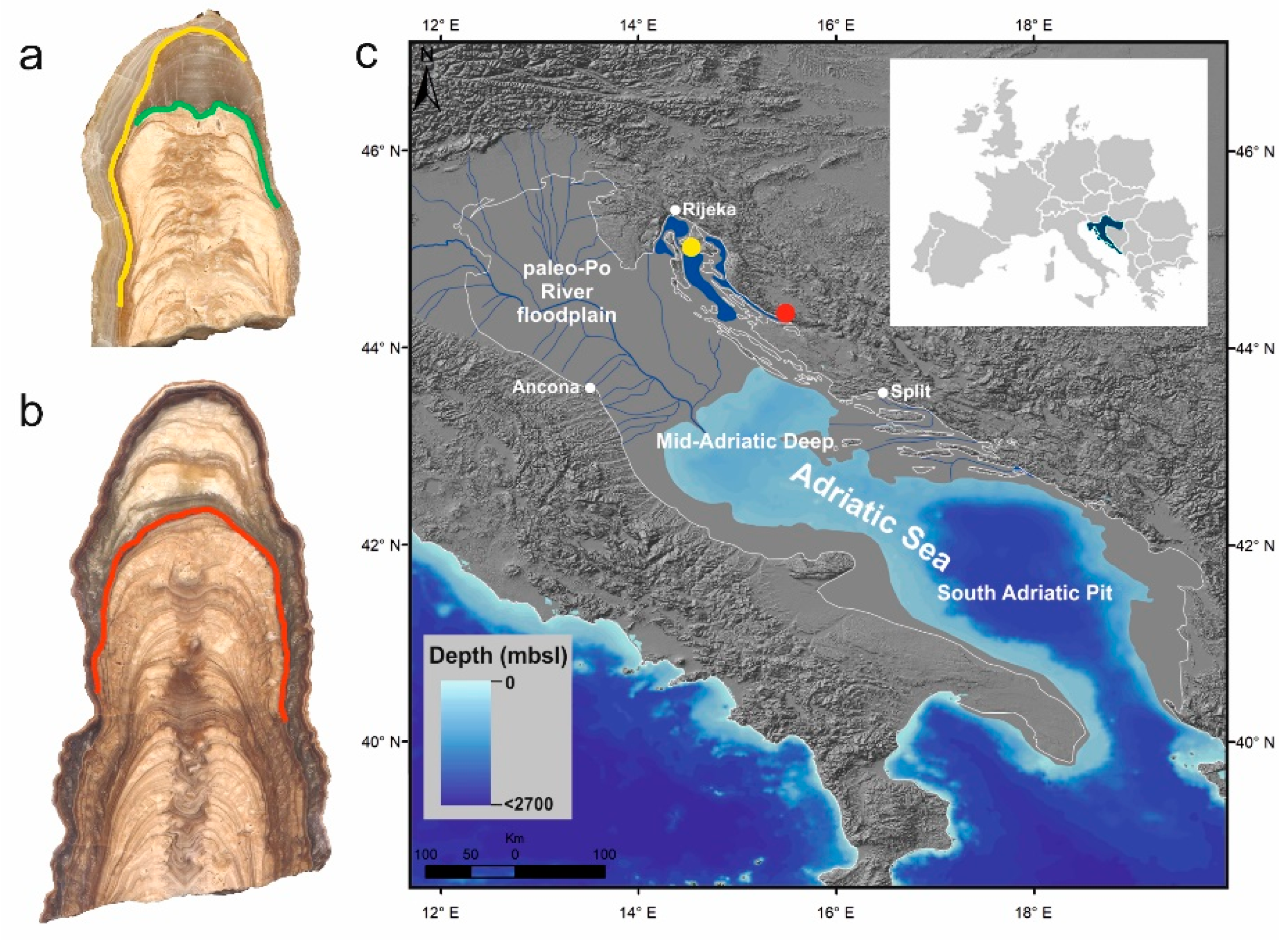

  • The MP results complement findings from adjacent submerged speleothems: parts of the samples from both sites consist of white porous calcite, with a narrowing trend from the colder and drier periods and glacial/stadial sea-level lowstands. Warmer and wetter conditions and consequent sea-levels highstands are marked with hiatuses within the submerged speleothems and compact calcite draping over the narrow cold-phase stalagmite bodies.
  • In terms of palaeogeography, the recorded climate changes played a key role in land-sea distribution, transforming the near-coastal site of MP into a continental one during the glacial/stadial stages. We assume that such settings during the MIS 4 attenuated aridity of the glacial period by promoting the MP cave into a site receiving somewhat higher amounts of orographic precipitation.
  • Accordingly, we also assume that switching the predominance between the amount and source effect, which was proven regionally, might be overprinted by local site-specific features, such as in the MP site.

Author Contributions

Conceptualization, M.S., R.L. and N.L.; methodology, M.S., R.N.D., P.B., J.C.H. and Q.H.; investigation, M.S., R.L., N.L. and P.B.; resources, M.S., R.N.D. and J.C.H.; writing—original draft preparation, M.S., P.B. and R.L.; writing—review and editing, M.S., R.N.D., P.B., R.L., N.L. and Q.H.; visualization, M.S. and P.B.; funding acquisition, M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Zadar (Scientific Project 60200 Reconstruction of the regional palaeoclimate change—speleothem records from the North Dalmatia (Croatia).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Stable and U-series isotope data are archived in the SISAL database and will be freely available by the next update (SISAL_v3).

Acknowledgments

The management and the stuff of the National Park Paklenica are gratefully acknowledged for the cooperation and logistic support, and Nenad Buzjak for the field assistance. We thank Dea Brunović for providing the background for Figure 6c. Two anonymous reviewers are acknowledged for their constructive suggestions.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Appendix A

Isotopic Equilibrium

A prerequisite for credible interpretation of palaeoenvironmental changes from δ18O and δ13C records is near-equilibrium isotopic fractionation during calcite precipitation from the dripwater [6,43]. To assess this, we used three conventional approaches: the Hendy test [6], replication test [104] and a comparison of the measured cave air temperature with that calculated from the modern calcite, according to empirical relationships for water–calcite oxygen isotope fractionation [69]; namely, according to [105], if the modern calcite equilibrium conditions can be confirmed, then we can assume that ancient speleothems from the same cave should also have been precipitated at or near isotopic equilibrium.
Graphical presentations of the Hendy tests performed along three growth laminae on MP-2 and four laminae on MP-3 stalagmite are given on Figure A1 and Figure A2. The first Hendy criterion of the δ18O values remaining constant along a single growth layer in support of equilibrium deposition [6] was fulfilled in all cases since the maximal δ18O variations were 0.53‰ and 0.49‰ within the MP-2 and MP-3 layers, respectively (Figure A1), both below the threshold value of 0.8‰ defined by [106]. The only slight enrichment in calcite δ18O with distance from the growth axis was observed in the MP-3 H3 series. The second criterion of no correlation between the δ18O and δ13C values along a single lamina [6] was also satisfied (Figure A2), with the exception of laminae H1 in MP-2 and H3 in MP-3, which returned Pearson’s correlation coefficients of r = 0.80 and r = 0.83, respectively, while their p-value describing the statistical significance of the correlations were p < 0.05, pointing to significant correlations. However, possible covariation in certain growth phases is not exclusively proof of kinetic fractionation, since both δ18O and δ13C can be controlled by climate (via hydrological response and plant/soil activity) and thus might covary [104].
Figure A1. δ18O and δ13C values along the MP-2 and MP-3 growth layers selected for the Hendy tests [6]. For the location of the sampling tracks, see Figure 2. Equilibrium deposition is presumed due to the lack of a significant trend in the isotopic ratios towards heavier isotopic values away from the growth axis.
Figure A1. δ18O and δ13C values along the MP-2 and MP-3 growth layers selected for the Hendy tests [6]. For the location of the sampling tracks, see Figure 2. Equilibrium deposition is presumed due to the lack of a significant trend in the isotopic ratios towards heavier isotopic values away from the growth axis.
Geosciences 11 00347 g0a1
Since the Hendy test is not considered as explicit proof, the replication test is more reliable [104] and was used to additionally support the independence of isotopic composition on kinetic processes; namely, similarity of the isotopic profiles could have occurred either because the kinetic and/or vadose zone processes affected both speleothems equally (which is hardly possible) or, more likely, it was absent [104]. As the resemblance of δ18O shifts between an older part of MP-2 and MP-3 is evident (Figure A1), we can assume that, at least during that period, precipitation of calcite was close to isotopic equilibrium with cave water, and spelaean δ18O was controlled exclusively by the cave temperature and water δ18O, in response to palaeoenvironmental changes above the MP cave.
Knowing the oxygen values of the modern calcite (δ18OC) and dripwater (δ18OW), an additional proof of near-equilibrium condition can be provided based on the matching of the measured cave air temperature (Tm) with the one calculated (Tc) after the empirical relationships for water–calcite oxygen isotope fractionation given by the equation 1000 ln α = 16.1(103 T−1) − 24.6 [69], where α = (1000 + δ18OC)/(1000 + δ18OW). As established earlier in [49] using four modern MP calcite samples, the Tc range from 9.1 ± 0.1 °C to 10.4 ± 0.1 °C matches well the Tm = 9.04 °C, giving further confidence in the isotopic record as a reliable source for palaeoenvironmental reconstruction.
Figure A2. Plots of δ18O–δ13C pairs from single growth layers in MP-2 (left column) and MP-3 (right column) stalagmites. For the location of the sampling tracks, see Figure 2.
Figure A2. Plots of δ18O–δ13C pairs from single growth layers in MP-2 (left column) and MP-3 (right column) stalagmites. For the location of the sampling tracks, see Figure 2.
Geosciences 11 00347 g0a2
