Fast Directional Changes during Geomagnetic Transitions: Global Reversals or Local Fluctuations?

Abstract

Paleomagnetic investigations from sediments in Central and Southern Italy found directional changes of the order of 10${}^{\circ }$ per year during the last geomagnetic field reversal (which took place about 780,000 years ago). These values are orders of magnitudes larger than what is expected from the estimated millennial timescales for geomagnetic field reversals. It is yet unclear whether these extreme changes define the timescale of global dipolar change or whether they indicate a rapid, but spatially localised feature that is not indicative of global variations. Here, we address this issue by calculating the minimum amount of kinetic energy that flows at the top of the core required to instantaneously reproduce these two scenarios. We found that optimised flow structures compatible with the global-scale interpretation of directional change require about one order of magnitude more energy than those that reproduce local change. In particular, we found that the most recently reported directional variations from the Sulmona Basin, in Central Italy, can be reproduced by a core-surface flow with rms values comparable to, or significantly lower than, present-day estimates of about 8 to 22 km/y. Conversely, interpreting the observations as global changes requires rms flow values in excess of 77 km/y, with pointwise maximal velocities of 127 km/y, which we deem improbable. We therefore concluded that the extreme variations reported for the Sulmona Basin were likely caused by a local, transient feature during a longer transition.

1. Introduction

Direct observations of geomagnetic field intensity have been recorded in permanent observatories since the 19th Century [1,2], and directional measurements (i.e., inclination and declination) annotated in maritime logbooks can extend the wealth of direct geomagnetic observations as far back as the 16th Century [3]. Paleomagnetic evidence suggests that a planetary magnetic field generated by internal dynamo processes has existed for the past 3.5–4 billion years [4,5,6,7]. It is clear that the majority of the geomagnetic history of our planet is solely accessible via indirect observations, such as paleointensities and paleodirections from sedimentary or igneous sequences [8,9]. It is therefore far from trivial to establish whether the observed temporal and geographical characteristics of the present geomagnetic field are in line with past behaviour or whether they are somewhat anomalous.

Evidence for paleomagnetic variations that far exceed the average rate of change of currently observed geomagnetic quantities are mounting as new paleomagnetic records are being discovered and analysed. See Figure 1 for a (not complete) compilation of rapid directional variations reported in the literature. A well-known example of such extreme behaviour is the Sheep Creek (California) lava flow records, dated to be 15.58 million years old, from which directional paleomagnetic variations of the order of up to 1${}^{\circ }$ per week [10] have been reported during geomagnetic polarity reversals. These values are astonishing when we consider that the rate of change of the geomagnetic pole latitude during the last 10,000 years, as measured by the CALS10k.2 field model [11], has been at most $4\times {10}^{-2}{}^{\circ }$ per year. A number of independent studies [12,13,14,15,16,17,17] have also reported more recent directional paleomagnetic variations of the order of 10 degrees per year, primarily during geomagnetic reversals and excursions (see Figure 1).

Analysis of lacustrine sedimentary records from the Sulmona Basin (SUL location), in Central Italy, suggest a subcentennial duration for the Matuyama-Brunhes (M-B) pole reversal [13,14], which took place at an epoch of about 780 ka. Specifically, Reference [13] reported inclination and Virtual Geomagnetic Pole (VGP) latitudinal changes of $O{\left(1\right)}^{\circ }/\mathrm{y}$ from which the M-B reversal is estimated to occur in a fraction of a century. Strictly speaking, the lack of measurement of a transitional field indicated that the reversal occurred during an interval equal to or less than the temporal resolution given by the 2 cm thickness of the analysed samples. These considerations led the authors to refine the sampling to 0.3 cm in a subsequent study [14]. Again, no transitional field was recorded, leading the authors to conclude that the M-B reversal occurred over a temporal span of about $13\pm 6$ y, requiring inclination and VGP latitudinal changes of $O{\left(10\right)}^{\circ }/\mathrm{y}$. Whether the temporal resolution of the SUL stratigraphic record is suitable for paleomagnetic studies is debated [23,24]. However, independent reports of similarly rapid paleomagnetic directional variations exist [10,12,15,16,17], compelling us to seek corroborative evidence for the existence of such extreme variations in the Earth’s past. In particular, on-land marine stratigraphic studies in Southern Italy [16] corroborate the observation that the M-B reversal, as observed in the Mediterranean region, had a duration of the order of less than a century. Note that these studies are based on the measurement of locally defined quantities: the geomagnetic inclination and the VGP latitude (which requires knowledge of both inclination and declination). A geomagnetic polarity reversal can unambiguously be defined via global quantities, such as the geomagnetic dipole latitude, whose change in sign defines a global reversal. Although the dipole latitude and the VGP latitude are commensurable quantities, the latter is of a local nature and, depending on location, does not necessarily reflect the global behaviour of the planetary geomagnetic field.

In contrast with the above-mentioned studies, the IMMAB4 geomagnetic field model encompassing the M-B reversal [21] suggests mean VGP latitudinal changes at SUL of about $0.{05}^{\circ }/\mathrm{y}$ during a 10 millennia-long transitional period and peak values of about $0.6^{\circ }/\mathrm{y}$ (see

Table A1. Numerical values of ${\dot{\theta }}_d$, $\dot{I}\left(SUL\right)$ and ${\dot{\lambda }}_P\left(SUL\right)$ for optimal flow calculations (indicated by the different flow geometries) with $T_0=13$ km/y, from the measurements at Sulmona (SUL14 and SUL16) and from the IMMAB4 geomagnetic field model. The optimal values reported here are the maxima from the time series illustrated in Figure A2a. Values indicated with “IMMAB4, M-B avg” values were obtained by calculating differences between points at the beginning and at the end the M-B transition. Values indicated with “IMMAB4, max” refer to the maximum rates of change calculated via first differences. See the main text (Section 1 and Section 5) for details.

Flow Geometry/Model	${\left.{\dot{\mathit{\theta }}}_{\mathit{d}}\right|}_{\mathit{max}}/{(}^{\circ }/\mathit{y})$	${\left.\dot{\mathit{I}}\left(\mathit{SUL}\right)\right|}_{\mathit{max}}/{(}^{\circ }/\mathit{y})$	${\left.{\dot{\mathit{\lambda }}}_{\mathit{P}}\left(\mathit{SUL}\right)\right|}_{\mathit{max}}/{(}^{\circ }/\mathit{y})$
Unrestricted	1.87	8.57	6.21
Poloidal	1.53	6.23	4.51
Toroidal	1.40	5.88	4.27
Columnar	1.27	5.54	4.50
SUL14	-	1.30	1.65
SUL16	-	8.44	11.16
IMMAB4, M-B avg	0.074	0.039	0.054
IMMAB4, max	0.41	0.43	0.57

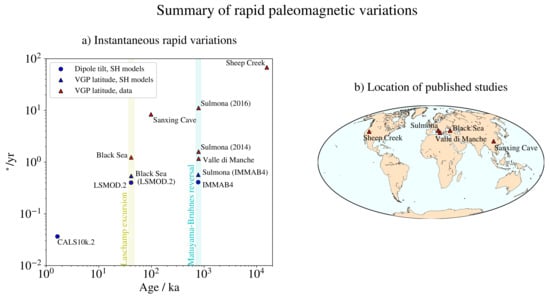

and Figure 1). The comparison of the temporal changes at the Black Sea location between the LSMOD.2 field model (a state-of-the-art model of the Laschamp excursion [22]) and sediment records [18,19,20] is similar to the comparison between the IMMAB4 model and the SUL14 and SUL16 measurements, suggesting a common limitation of the techniques used in geomagnetic field models. Spherical harmonics-based field models suffer from a sparsity and paucity of input observations and make use of spatiotemporal smoothing, which limits their resolution to the largest spatial scales of the geomagnetic field. The IMMAB4 and LSMOD.2 field models have a maximum spherical harmonic degree of $L_B=4$ and $L_B=10$, respectively, in contrast with state-of-the art models of the modern field [25], which are able to capture the spatial variability of the field of internal origin up to $L_B=20$. Nevertheless, geomagnetic field models contain a fully consistent description of all geomagnetic quantities (intensity, inclination and declination) globally and continuously in time. Furthermore, it was reported that [26], when sampled every 10 y (as opposed to 100 y, as done in Figure 1), directional rates of change exceeding ${20}^{\circ }/\mathrm{y}$, though rare, have been found in the LSMOD.2 model, primarily at low latitudes and during epochs of low dipole field intensity, in agreement with numerical studies. In [26], it was argued that rapid variations are caused by the migration of reversed flux patches on the CMB. This justifies the observation of rapid events preferentially at times of low dipole intensity and at low latitudes, where the dipolar field is weaker, since these are the configurations for which more reverse flux patches are observed. This explanation was also corroborated by the present study, since we show that as the nondipolar content of the CMB field is increased, higher rates of change of magnetic inclination, VGP latitude and dipole tilt are instantaneously possible (see Section 4.2 and Section 5 below).

From the calculations reported in Figure 1 and from the results of [26] discussed above, it appears that paleomagnetic field models are capable of reproducing faster variations as the sampling rate is reduced. We investigated the issue and found results similar to [26]. With a sampling rate of 50 y (equal to the temporal spline knot-point spacing of the LSMOD.2 model), we found maximal VGP latitudinal changes at the Black Sea location of the order of $1^{\circ }/\mathrm{y}$, which is about double the value reported in Figure 1. This suggests that faster directional changes can be obtained from the LSMOD.2 model (at least in this case) by increasing the sampling rate of its coefficients. Given the temporal regularisation employed in the creation of the model, it is unclear whether subcentennial variability can be meaningfully captured by the LSMOD.2 model, and we therefore decided to adopt a sampling rate of 100 y in the present study.

Another avenue for investigating rapid variations and, in particular, the dynamics within the core that drive them are numerical simulations of the equations governing the evolution of the geodynamo. This approach offers insights into the link between observed paleomagnetic variations and, for example, the thermal history of the core [27] and the effect of small-scale geomagnetic features, not captured by paleomagnetic observations or field models. Geodynamo simulations are limited by their inability to simulate the Earth’s outer core at planetary parameter values [28,29]. This limitation, which calls for caution when interpreting the result of numerical studies, is even more severe in studies targeting the long-term dynamics involving polarity reversals and geomagnetic excursions, for which multiple geomagnetic diffusion times (of the order of no less than ${10}^4$ years for the Earth) need to be simulated in order to obtain satisfactory statistical convergence. Nevertheless, upon the careful choice of the input parameters, geodynamo simulations are found to be able to reproduce at least some features of the paleomagnetic observations [30,31]. In particular, most numerical findings [32,33,34] suggest a duration of millennia of polarity reversals, in agreement with paleomagnetic observations and paleomagnetic field models (see for example [21,35,36,37,38,39] and the references therein). Furthermore, recent geodynamo simulations [26] have been able to reproduce VGP latitudinal changes of up to ∼1${}^{\circ }/\mathrm{y}$, compatible with the results from [13], and total directional changes of the order of ∼10${}^{\circ }/\mathrm{y}$. These extreme changes appear to be preferentially recorded at low latitudes and are caused by the movement of reversed flux patches at the core surface. Geodynamo simulations are also capable of core-surface resolution that cannot be captured by observations and geomagnetic field models. Therefore, numerical results can be used to test for the effect of geomagnetic field structures that are not resolved by field models, for both the geological past and the present. For example, the results presented in [26] suggested that geomagnetic features on spatial scales of the order of a few degrees in longitude and latitude, not captured by paleomagnetic observations, are crucial for triggering localised, rapid directional variations. However, as mentioned above, temporal variation calculated using first differences from the LSMOD.2 model sampled every 10 y have similar magnitudes, suggesting that state-of-the-art field models can capture the geomagnetic field features relevant to the generation of rapid directional changes.

A consequence of the lack of high-resolution models of the geomagnetic field during the M-B reversal is that the core-surface velocity field is also largely unknown, barring us from a dynamical and global description of the geomagnetic temporal variations at the surface of the Earth. A derivation of the velocity field is challenging even with today’s high-quality observations, due to the intrinsic nonuniqueness of obtaining core-surface flows from geomagnetic field observations [40]. Satellite-era estimates of the root-mean-squared (rms) velocity at the surface of the core range from 8 to 22 km/y [41,42,43], depending on the epoch, dataset, and methodology, and it has been estimated that undetectable, small-scale flows could contribute to an increase up to a value of 50 km/y [43]. On top of observational limitations, estimating the core-surface flows during the M-B transition is further complicated by a lack of knowledge concerning energy balances in the geodynamo during polarity reversals. For example, some studies suggest that the kinetic energy increases [44,45], while others [46,47] do not show such systematic variations.

An alternative approach to the study of extreme paleomagnetic events was presented in [48], where the authors aimed at reproducing extreme intensity spikes reported for epochs around 1000 BCE in the Middle East [49,50,51,52,53]. The approach of [48] consisted of calculating optimised fluid flows at the top of the core that maximise the rate of change of magnetic intensity at selected archaeological sites. In the context of rapid paleomagnetic variations, for which the global geomagnetic field and the core-surface flows are poorly constrained, the methodology permits a derivation of the maximum rate of change of intensity for a given surface energy budget and for a given configuration of the radial geomagnetic field (which we term the “background field”); equivalently, the method also provides a lower bound to the kinetic energy that is required for flows at the surface of the core to drive a given, observed variation. It was found that optimised flows of rms magnitudes consistent with present-day core flow inversions [43,54] were able to reproduce variations of up to $1.2$ $\mathsf{\mu }$T/y, inconsistent with the earlier estimates of 4–5 $\mathsf{\mu }$T/y [49,50], but in agreement with the revised values of 0.75–1.5 $\mathsf{\mu }$T/y [52].

In the present paper, we expand the methodology presented in [48] and apply it to the study of rapid paleomagnetic directional changes. Our aim was to estimate the configuration and kinetic energy of the core-surface flows that are required by the geomagnetic directional variations reported in [13,14] (SUL14 and SUL16) with focus on both local (inclination and VGP latitude) and global (dipole latitude) geomagnetic quantities. We derived optimised solutions for core-surface flows that can be used to estimate the minimal kinetic energy required to reproduce the SUL observations, both via localised and global flow configurations. In considering local quantities, we favoured the use of inclination, rather than the VGP latitude. The VGP latitude is a function of not only the inclination, but also of the declination and of the site location, and a nontrivial assumption of the geomagnetic field being a geocentric dipole is required in order to efficiently interpret the VGP latitude. Although this assumption has proven useful and robust over long temporal scales (see for example [55], Chapters 2, 14 and 16, and the references therein), its use for the study of rapid variations on short timescales is not, strictly speaking, justified. On the other hand, the interpretation of inclination variations do not require additional assumptions for our purposes. The temporal evolution of the VGP location is commonly calculated and reported in paleomagnetic studies focussing on reversals. We therefore considered the temporal changes of VGP latitude together with the changes in inclination and dipole latitude, for the sake of completeness and comparison with previous work.

The paper is structured as follows: In Section 2, we briefly summarise the optimisation algorithm used to derive core-surface flows that drive the maximal instantaneous changes in dipole tilt, geomagnetic inclination and VGP latitude for a given flow kinetic energy. To build the physical understanding of the algorithm and to highlight the difference in flows that optimise the rate of change of global and local quantities, pedagogical examples are presented in Section 3. Section 4 is devoted to the application of the optimisation algorithm to background magnetic fields provided by the output of a numerical geodynamo simulation in which directional variations of magnitude comparable to SUL16 have been observed [26]. We furthermore examine the sensitivity of the optimal solution to the resolution of the background magnetic field. In Section 5, we apply the optimisation algorithm to rapid directional variations during the M-B reversal, with particular focus on the SUL location: optimal variations are compared with the results from SUL14 and SUL16 in order to estimate the kinetic energy of core-surface flows required to drive the measured variations. A discussion of the results and conclusions are presented in Section 6 and Section 7, respectively.

2. Methodology

The optimisation algorithm described here is analogous to that presented in [48] and has the objective of finding the minimal rms core-surface flow speed required to reproduce the rate of change $\dot{\mathcal{Q}}$ of a generic geomagnetic quantity $\mathcal{Q}$. In [48], the quantity of interest was solely the magnetic field intensity at the Earth’s surface $F=\left|\mathbf{B}\right|$, where $\mathbf{B}$ is the geomagnetic field. Here, we generalise that approach to consider arbitrary functions of $\mathbf{B}$ and, in general, of the Gauss coefficients (see below). We then specialise the algorithm for the calculation of optimal rates of changes of dipole tilt, inclination and VGP latitude.

Temporal changes in geomagnetic quantities (often referred to as secular variation (SV)) are driven by horizontal fluid flows ${\mathbf{u}}_H$ at the top of the core, which we refer to as the core-mantle boundary (CMB) and that we approximate as a spherical surface with radius $c=3485$ km [56]. Note that here, the flow is evaluated not exactly at the CMB, where all components of the velocity field u vanish, but at the top of the free-stream, where only the radial component of the flow vanishes and above which the horizontal components drops to zero across the boundary layer. The thickness of this layer is proportional to $\left(E{k}^{1/2}\right)c$, where $Ek$ is the Ekman number, the ratio of viscous dissipation over rotational forces (see [57] and the references therein). Given that $Ek=O\left({10}^{-15}\right)$ in the core, where the notation $O\left(\right)$ signifies “order of magnitude”, the distinction between the top of the free-stream and the CMB is negligible for our purposes. All variables, unless otherwise stated, are represented in a spherical coordinate system with the origin at the centre of the Earth and with coordinates $(r,\theta ,\varphi )$ where r is the distance from the centre of the Earth, $\theta$ is the colatitude, measured from the direction determined by the Earth’s axis of rotation, and $\varphi$ is the longitude, measured in the equatorial plane as the angular distance (positive Eastward) from the Greenwich meridian.

The radial induction equation evaluated at the CMB [58], in its diffusionless form, can be written as:

$${\dot{B}}_r=-{\nabla }_H·\left({\mathbf{u}}_H{B}_r\right),$$

(1)

where $B_r$ is the radial component of B and ${\nabla }_H=\nabla -\widehat{\mathbf{r}}{\partial }_r$ is the horizontal part of the spatial gradient operator. At a location $(r,\theta ,\varphi )$ outside the core, the geomagnetic field is commonly described as an expansion in its Gauss coefficients $(g_l^m,h_l^m)$:

$$\mathbf{B}=-a\nabla \left[\sum _{l=1}^{L_B}\sum _{m=0}^l{\left(\frac{a}{r}\right)}^{l+1}\left[g_l^{m}cos\left(m\varphi \right)+h_l^{m}sin\left(m\varphi \right)\right]P_l^m(cos\left(\theta \right))\right],$$

(2)

where $a=6371$ km is the radius of the Earth, $P_l^m(cos\left(\theta \right))$ are Schmidt semi-normalised associated Legendre polynomials of degree l and order m and $L_B$ is the highest degree of the expansion. In a more compact notation, useful to simplify the following discussion, the expansion (2) can be written as:

$$\mathbf{B}=-a\nabla \left[\sum _{l,m}{\left(\frac{a}{r}\right)}^{l+1}{\beta }_l^m{Y}_l^m(\theta ,\varphi )\right],$$

(3)

where ${\beta }_l^m=(g_l^m,h_l^m)$ are the Gauss coefficients and $Y_l^m(\theta ,\varphi )=({}_c{Y}_l^m(\theta ,\varphi ),{}_s{Y}_l^m(\theta ,\varphi ))$, with ${}_c{Y}_l^m(\theta ,\varphi )=cos\left(m\varphi \right)P_l^m(cos\left(\theta \right))$ and ${}_s{Y}_l^m(\theta ,\varphi )=sin\left(m\varphi \right)P_l^m(cos\left(\theta \right))$ real-valued Schmidt semi-normalised spherical harmonics. Similarly, we express the CMB flow ${\mathbf{u}}_H$ as an expansion over a set of modes ${\mathbf{u}}_k$:

$${\mathbf{u}}_H=\sum _k{q}_k{\mathbf{u}}_k,$$

(4)

where k is a shorthand notation for the indexes $(l,m)$, with $1<l\le L_U$, $0\le m\le l$, $q_k$ the coefficients, measured in km/y of the expansion and ${\mathbf{u}}_k$ the k-th element of a divergence-free basis set consisting of both toroidal and poloidal modes, respectively:

$$\begin{array}{c}{\mathbf{u}}_k^t=\nabla \times \left[Y_l^m(\theta ,\varphi )\mathbf{r}\right],\end{array}$$

(5)

$$\begin{array}{c}{\mathbf{u}}_k^s={\nabla }_H\left[Y_l^m(\theta ,\varphi )r\right].\end{array}$$

(6)

Expansion (4) can then be more explicitly written as:

$$\begin{array}{cc}\hfill {\mathbf{u}}_H=& \sum _{l,m}\left\{{}_c{t}_l^m\nabla \times \left[{}_c{Y}_l^m(\theta ,\varphi )\mathbf{r}\right]+{}_s{t}_l^m\nabla \times \left[{}_s{Y}_l^m(\theta ,\varphi )\mathbf{r}\right]\right\}\hfill \\ \hfill +& \sum _{l,m}\left\{{}_c{s}_l^m{\nabla }_H\left[{}_c{Y}_l^m(\theta ,\varphi )r\right]+{}_s{s}_l^m{\nabla }_H\left[{}_s{Y}_l^m(\theta ,\varphi )r\right]\right\},\hfill \end{array}$$

(7)

where ${}_c{t}_l^m$ and ${}_s{t}_l^m$ are the real-valued toroidal flow coefficients and ${}_c{s}_l^m$ and ${}_s{s}_l^m$ are the real-valued poloidal flow coefficients.

Given a geomagnetic quantity $\mathcal{Q}$, which is a function of the Gauss components ${\beta }_l^m$, we seek the minimum rms speed $T_0$ of the CMB flows required to reproduce a given rate of change value of $\mathcal{Q}$, given a CMB background magnetic field $B_r$. An easier way of formulating this is to calculate the flows ${\mathbf{u}}_{\mathrm{opt}}$ at the CMB, with a given value of $T_0$, that optimise $\dot{\mathcal{Q}}$, which can then be rescaled by the linearity of Equation (1) to achieve the observed value of $\dot{\mathcal{Q}}$. Following the same notation as in [48], the rate of change of $\mathcal{Q}$ can be generally expressed (by manipulating Equation (1)) as:

$$\dot{\mathcal{Q}}={\mathbf{G}}^T\mathbf{q},$$

(8)

with the vector $\mathbf{G}$ being a function of the CMB background geomagnetic field $B_r$, through the coefficients ${\beta }_l^m$ and of the basis set ${\mathbf{u}}_k$. The exact shape of $\mathbf{G}$ depends on the functional dependence of $\dot{\mathcal{Q}}$ on ${\beta }_l^m$ and ${\dot{\beta }}_l^m$. Each component $G_k$ represents the contribution to $\dot{\mathcal{Q}}$ from the flow mode ${\mathbf{u}}_k$, given the CMB background field $B_r$. We note that this is a well-defined optimisation problem. For a fixed structure of the flow, Equations (1) and (8) relate $\dot{\mathcal{Q}}$ and $\mathcal{Q}$ defining an rms flow energy.

In the analysis outlined above, the rms flow speed $T_0$ is:

$$T_0\equiv \sqrt{\frac{1}{4\pi }{\int }_{r=c}{\left|{\mathbf{u}}_H\right|}^{2}d\mathsf{\Omega }}=\sqrt{{\mathbf{q}}^T\mathbf{E}\mathbf{q}}$$

(9)

where $d\mathsf{\Omega }=sin\theta d\theta d\varphi$ is the surface element in spherical coordinates and the integral is evaluated on the surface of the CMB and $\mathbf{E}$ is a diagonal matrix with elements $E_k=l(l+1){(2l+1)}^{-1}$. The procedure to calculate the coefficients $\mathbf{q}$ that optimise $\dot{\mathcal{Q}}$ is formally equivalent to the one reported in [48] and rests on finding a solution to the following maximisation problem:

$${\left.\dot{\mathcal{Q}}\right|}_{\max }={\max }_{\mathbf{q}}\left[{\mathbf{G}}^T\mathbf{q}-\lambda ({\mathbf{q}}^T\mathbf{E}\mathbf{q}-T_0^2)\right],$$

(10)

which allows us to maximise (8) subject to the constraint (expressed via the Lagrange multiplier $\lambda$) that the rms velocity of the optimal flow be equal to $T_0$. The solution to (10) gives us the coefficients ${\mathbf{q}}_{\mathrm{opt}}$ to the optimal flow ${\mathbf{u}}_{\mathrm{opt}}$:

$${\mathbf{q}}_{\mathrm{opt}}=\frac{1}{2\lambda }{\mathbf{E}}^{-1}\mathbf{G},$$

(11)

where:

$$\lambda =\pm \frac{1}{2T_0}\sqrt{{\mathbf{G}}^T{\mathbf{E}}^{-1}\mathbf{G}},$$

(12)

is found by scaling the coefficients ${\mathbf{q}}_{\mathrm{opt}}$, so that:

$${\mathbf{q}}_{\mathrm{opt}}^T\mathbf{E}{\mathbf{q}}_{\mathrm{opt}}=T_0^2.$$

(13)

Notice that this implies that ${\mathbf{q}}_{\mathrm{opt}}$, and by Equation (8), $\dot{\mathcal{Q}}$ are both directly proportional to $T_0$. However, the form of the optimal flows and of the SV they drive are not affected by $T_0$.

In summary, via the optimisation algorithm described above, we found the coefficients ${\mathbf{q}}_{\mathrm{opt}}$ of the CMB horizontal flows that drive the fastest possible instantaneous variations of a given geomagnetic quantity $\mathcal{Q}$. The algorithm requires one input (the Gauss coefficients ${\beta }_l^m$ of the background magnetic field $B_r$) and one parameter (the required rms speed of the horizontal CMB flows $T_0$).

The optimisation algorithm permits us to enforce specific flow geometries by, for example, setting some of the elements of q to zero or by imposing specific relations between them. In the remainder of this study, we considered the following flow geometries:

• Unrestricted: no restriction is imposed on the coefficients $q_k$, and both toroidal and poloidal components are present;
• Poloidal: obtained by setting the toroidal flows to zero, i.e., ${}_c{t}_l^m={}_s{t}_l^m=0$. A distinguishing feature of purely poloidal flows is the presence of regions of flow downwelling and upwelling, which have been considered as a proxy for enhanced magnetic diffusion [59] and have been connected to the formation of reverse flux patches at the CMB [60], both potentially important features in the interpretation of rapid geomagnetic field variations;
• Toroidal: obtained by setting the poloidal flow to zero, i.e., ${}_c{s}_l^m={}_s{s}_l^m=0$. A purely toroidal flow allows no upwelling/downwelling since ${\nabla }_H·{\mathbf{u}}_k^t=0$. The physical motivation for a purely toroidal flow derives from the widespread agreement among core flow inversion studies that the toroidal kinetic energy dominates the poloidal kinetic energy at the CMB (see for example [61]). This observation has been considered to confirm the presence of a stratified layer at the top of the outer core [62]. Note however that various studies (e.g., [63,64,65]) suggested that a small poloidal component is necessary to explain the observed SV;
• Columnar: obtained by constraining the flows at the CMB to be the surface expression of columnar flows in the interior of the core and obtained by setting to zero the poloidal coefficients ${(}_c{s}_l^m,{}_s{s}_l^m)$ for which $l-m$ is odd and the toroidal coefficients ${(}_c{t}_l^m,{}_s{t}_l^m)$ for which $l-m$ is even [66,67]. This representation, encoding equatorial symmetry, is motivated by the evidence for a quasigeostrophic force balance within the outer core [68,69]. The significance of the columnar flows’ approximation to the present study lies in its expected validity over interannual to decadal timescales [68,70]. The columnar flows’ approximation can therefore be considered appropriate for subcentennial field variations, such us the ones presented in SUL14, SUL16, and [16].

The optimisation procedure was implemented numerically by a code written in Fortran 90 that makes use of fftw3 libraries and the Gauss–Legendre quadrature needed by the, respectively, Fourier and Legendre transforms needed to calculate the elements of the vector G. The code is freely available through a GitHub repository (https://github.com/smaffei/OptimalFlow.git).

We note that the elements of the vector G, in Equation (8), can be interpreted as a discrete representation of a Green’s function relating the coefficients $q_k$ of each core flow component ${\mathbf{u}}_k$ to temporal changes of $\mathcal{Q}$ at the Earth’s surface. This differs from the Green functions theory conventionally applied to geomagnetism [71,72], in which changes of $\mathcal{Q}$ are related to the radial magnetic field at the CMB, $B_r\left(c\right)$, and its temporal variations, ${\dot{B}}_r\left(c\right)$. The methodology presented here introduces an additional dynamical aspect to the traditional Green function theory, since we relate the radial SV, ${\dot{B}}_r\left(c\right)$, to the coefficients of the flows producing it (see Appendix A).

Geomagnetic Directional Quantities

We focussed on the rate of change of geomagnetic dipole tilt ${\theta }_d$, magnetic inclination I and VGP latitude ${\lambda }_p$. While ${\theta }_d$ is a global quantity, I and ${\lambda }_p$ are local quantities. A crucial point of the present study is to investigate how rapidly local, as opposed to global, quantities can change in time.

The geomagnetic dipole tilt is defined as:

$${\theta }_d={\cos }^{-1}\left(\frac{g_1^0}{\sqrt{{\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2}}\right),$$

(14)

and represents the colatitude of the geomagnetic pole (the geographical location where the axis of the geomagnetic dipole intercepts the surface of the Earth). Its rate of change is:

$$\begin{array}{cc}\hfill {\dot{\theta }}_d& =-\frac{1}{\sqrt{1-\frac{{\left(g_1^0\right)}^2}{{\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2}}}\left[\frac{{\dot{g}}_1^0}{\sqrt{{\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2}}-\frac{g_1^0(g_1^0{\dot{g}}_1^0+g_1^1{\dot{g}}_1^1+h_1^1{\dot{h}}_1^1)}{{({\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2)}^{3/2}}\right]\hfill \\ \hfill & =-\sqrt{\frac{{\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2}{{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2}}\left[\frac{{\dot{g}}_1^0({\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2)-g_1^0(g_1^0{\dot{g}}_1^0+g_1^1{\dot{g}}_1^1+h_1^1{\dot{h}}_1^1)}{{({\left(g_1^0\right)}^2+{\left(g_1^1\right)}^2+{\left(h_1^1\right)}^2)}^{3/2}}\right].\hfill \end{array}$$

(15)

The rate of change of the dipole tilt can be used to investigate a global geomagnetic reversal, independent of the observer’s location at the surface of the Earth: a global polarity transition can be defined through the position of the dipole axis with respect to the geographic equator.

The magnetic inclination, or dip angle, is the angle between the Earth’s magnetic field lines and the local horizontal direction at a specific location on the surface of the Earth and is defined as:

$$I={tan}^{-1}\frac{Z}{H},$$

(16)

where $Z=-B_r$ is the local vertical magnetic field component (downward positive) and $H=\sqrt{X^2+Y^2}$ is the local horizontal magnetic intensity, with $X=-B_{\theta }$ and $Y=B_{\varphi }$, respectively, the local northward and eastward magnetic field components. The temporal rate of change of the magnetic inclination is then:

$$\dot{I}=\frac{-XZ\dot{X}-YZ\dot{Y}+H^2\dot{Z}}{H{F}^2}=\frac{B_{\theta }{B}_r\dot{B_{\theta }}+B_{\varphi }{B}_r\dot{B_{\varphi }}-H^2\dot{B_r}}{H{F}^2},$$

(17)

where $F=X^2+Y^2+Z^2$ is the magnetic field intensity. The magnetic inclination is a quantity measured in paleomagnetic studies and is influenced by the local details of the background magnetic field.

For completeness, we also considered instantaneous variations of the VGP latitude ${\lambda }_p$, calculated from inclination, declination, D, and the coordinates $({\lambda }_s,{\varphi }_s)$ of the observation site [73]:

$${\lambda }_p={sin}^{-1}(sin{\lambda }_{s}cosp+cos{\lambda }_{s}sinpcosD),$$

(18)

where:

$$p={tan}^{-1}\left(\frac{2}{tanI}\right)$$

(19)

is the great circle distance between the observation site and the VGP. The rate of change of ${\lambda }_p$ is:

$${\dot{\lambda }}_p=\frac{1}{\sqrt{1-y_p^2}}\left[-(sin{\lambda }_{s}sinp)\dot{p}+(cos{\lambda }_{s}cospcosD)\dot{p}-(cos{\lambda }_{s}sinpsinD)\dot{D}\right],$$

(20)

where:

$$\begin{array}{c}{y}_p=sin{\lambda }_{s}cosp+cos{\lambda }_{s}sinpcosD,\end{array}$$

(21)

$$\begin{array}{c}\dot{p}=-\frac{4}{5+3cos\left(2I\right)}\dot{I},\end{array}$$

(22)

$$\begin{array}{c}\dot{D}=\frac{B_{\varphi }{\dot{B}}_{\theta }-B_{\theta }{\dot{B}}_{\varphi }}{H^2}.\end{array}$$

(23)

The quantity ${\lambda }_p$ is, in a limited way, comparable to ${\theta }_d$ in the sense that ${\lambda }_p={90}^{\circ }-{\theta }_d$ for a geocentric axial dipole (GAD) field. In reality, since the geomagnetic field contains nondipolar components, the GAD approximation does not hold exactly, and departures between the VGP latitude and the dipole latitude are to be expected. Here, we neglect the VGP longitudinal variations, since a primary purpose of the study was to link the core-surface kinetic energy with the short reversal times found in SUL14 and SUL16. However, the exclusion of the VGP longitude might prevent us from finding the fastest possible directional changes. Similarly, flows that optimise the temporal changes in inclination do not necessarily result in the optimal directional variations, since the declination is not being concurrently optimised.

Rates of change of dipole tilt, inclination and VGP latitude are expressed in terms of spherical harmonic expansions and can be optimised by substituting $\mathcal{Q}$ with, respectively, ${\theta }_d$, I and ${\lambda }_p$ in Equations (8) and (10) and computing the relevant mathematical form of the elements of G in Equations (11) and (12). Given a background magnetic field, $B_r$, at the CMB and the rms flow speed value, $T_0$, this allows us to find the numerical values of the optimal flow coefficients ${\mathbf{q}}_{opt}$. The optimal variation $\dot{\mathcal{Q}}$ can then be obtained from Equation (8). Note that, by the relationships (11) and (12), all optimal rates of change are linear functions of the rms velocity $T_0$. Furthermore, note that the geomagnetic inclination, I, and the VGP latitude, ${\lambda }_p$, are inherently local quantities that are observed at the surface of the Earth, while the dipole tilt, ${\theta }_d$, is purely a function of the Gauss coefficients themselves.

3. Pedagogical Examples

In order to validate the numerical code and gain some fundamental understanding of the process presented in Section 2, here we report on the results from the calculation of flows that optimise the rate of change of the dipole tilt ${\theta }_d$ and the magnetic inclination I for background magnetic fields (the $B_r$ that, together with the choice of $\mathcal{Q}$, defines the elements of G in Equation (8)) restricted to dipolar geometries.

3.1. Global vs. Local Quantities

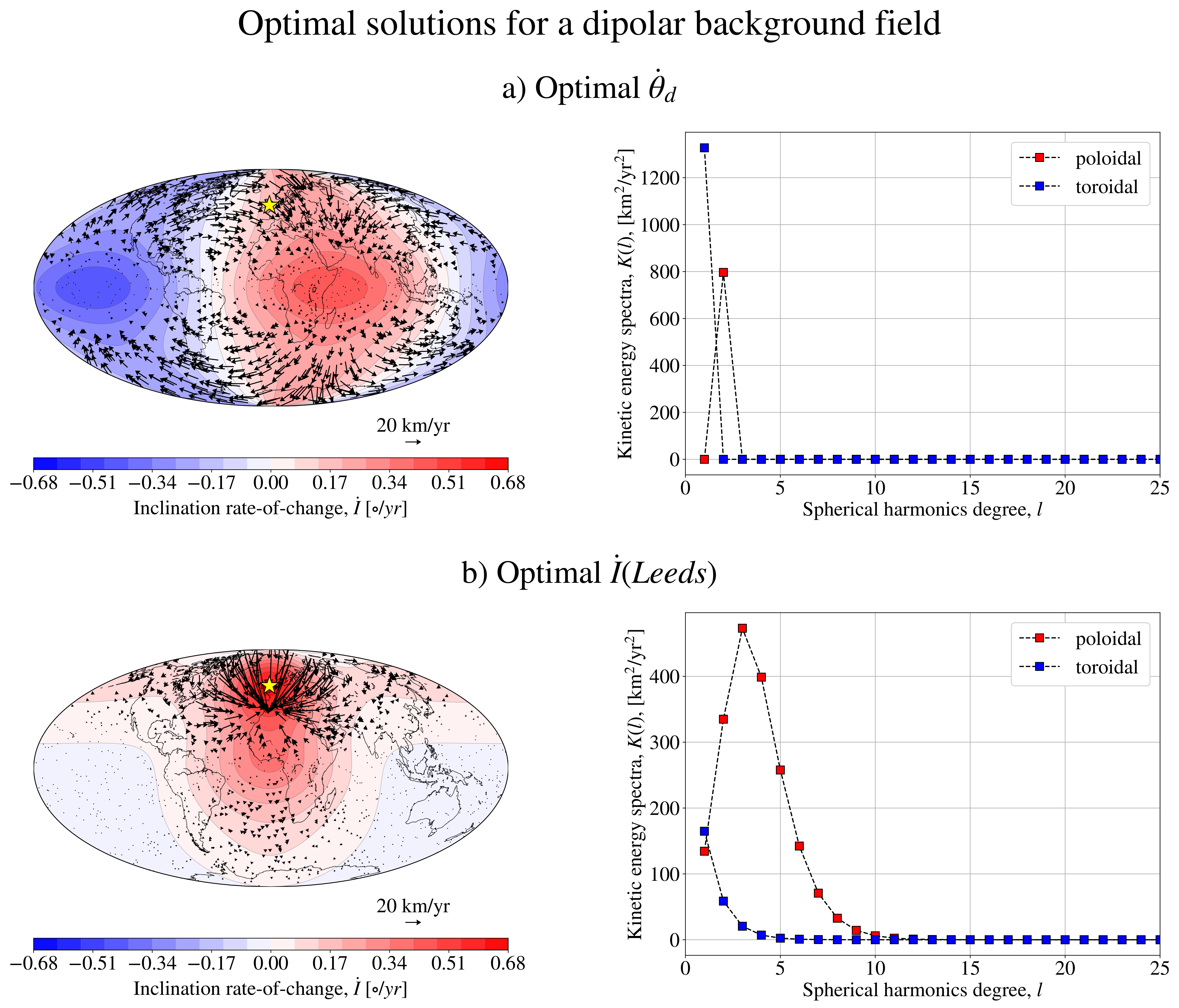

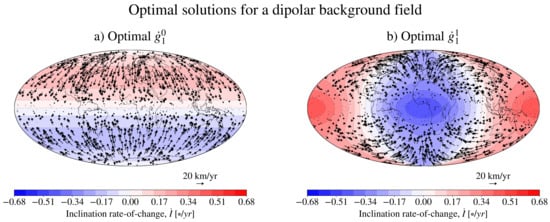

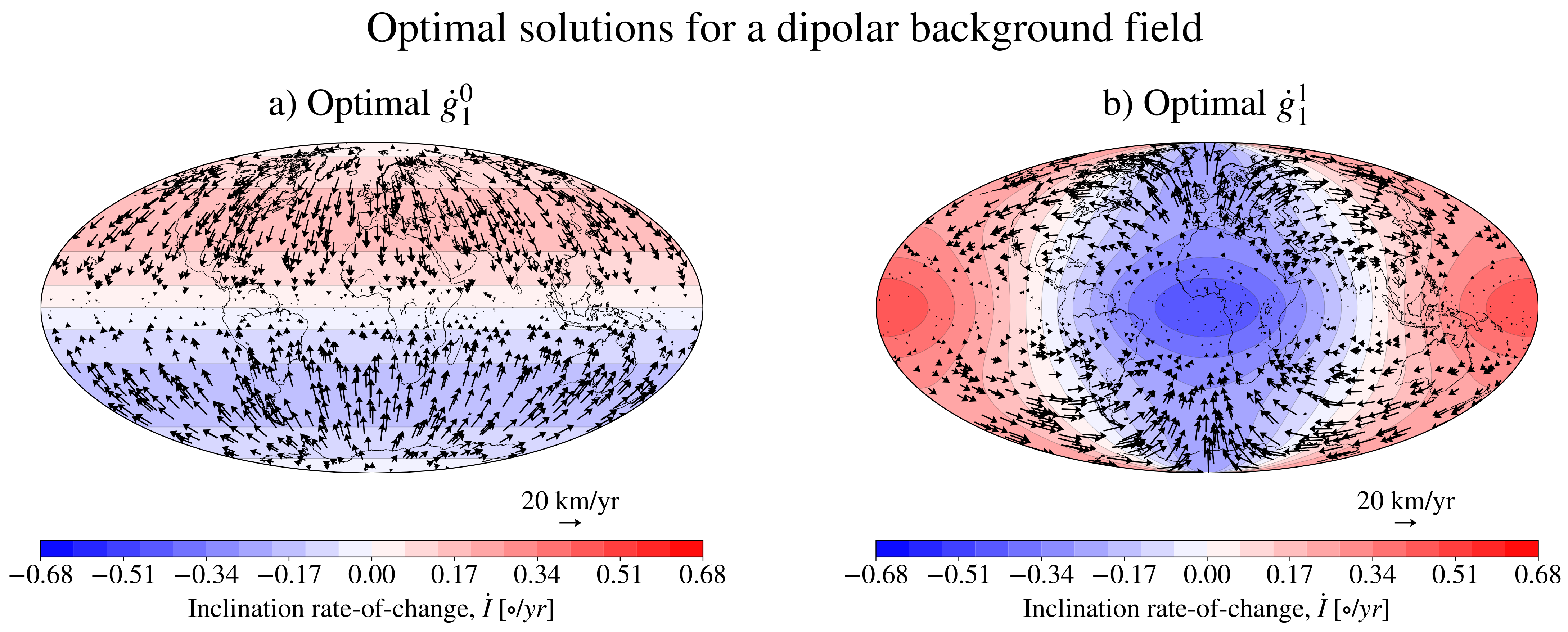

In Figure 2, we show the results of the optimisation algorithm, where $\mathcal{Q}$ in Equation (8) is ${\theta }_d$, and $I\left(Leeds\right)$ for the unrestricted flow configuration, where $I\left(Leeds\right)$ is the inclination evaluated at Leeds (U.K.), chosen arbitrarily as the home affiliation of the authors. See Equations (14)–(17) for the definitions of ${\theta }_d$, I and of their temporal variations. For the solution optimising $\dot{I}\left(Leeds\right)$, the background field is solely described by the axial dipole coefficient $g_1^0=-29410.65$ nT (the value in 2019 from the CHAOS-6-x9 geomagnetic model [25]); for the ${\dot{\theta }}_d$ case, the background is given by a dominant $g_1^0=-29410.65$ nT component and $g_1^1=h_1^1={10}^{-5}$ nT, to numerically remove an ambiguity issue that is illustrated in Appendix B.3. The flow that optimises ${\dot{\theta }}_d$ is clearly global in nature, with no preferred geographical region where flows horizontally converge or diverge. To better quantify the global nature of these flows, we calculated their energy spectra $K\left(l\right)$ as the total energy contained in each degree l:

$$K\left(l\right)=\sum _{m}4\pi \frac{l(l+1)}{2l+1}{q}_{(l,m)}^2.$$

(24)

With this definition:

$$\sqrt{\frac{{\sum }_{l}K\left(l\right)}{4\pi }}=T_0.$$

(25)

Flow energy spectra are illustrated in the right column of Figure 2. The flow that optimises ${\dot{\theta }}_d$ (Panel a) has only the $l=2$ poloidal and the $l=1$ toroidal modes (as confirmed by the analytical solution (A32)). Conversely, the flow that optimises $\dot{I}\left(Leeds\right)$ (Panel b) is distinctively of a local nature, focussed on the geographical vicinity of the optimisation location’s projection on the CMB and characterised by a more continuous spectra that only for $l>10$ converges towards zero.

3.2. Influence of Flow Geometry

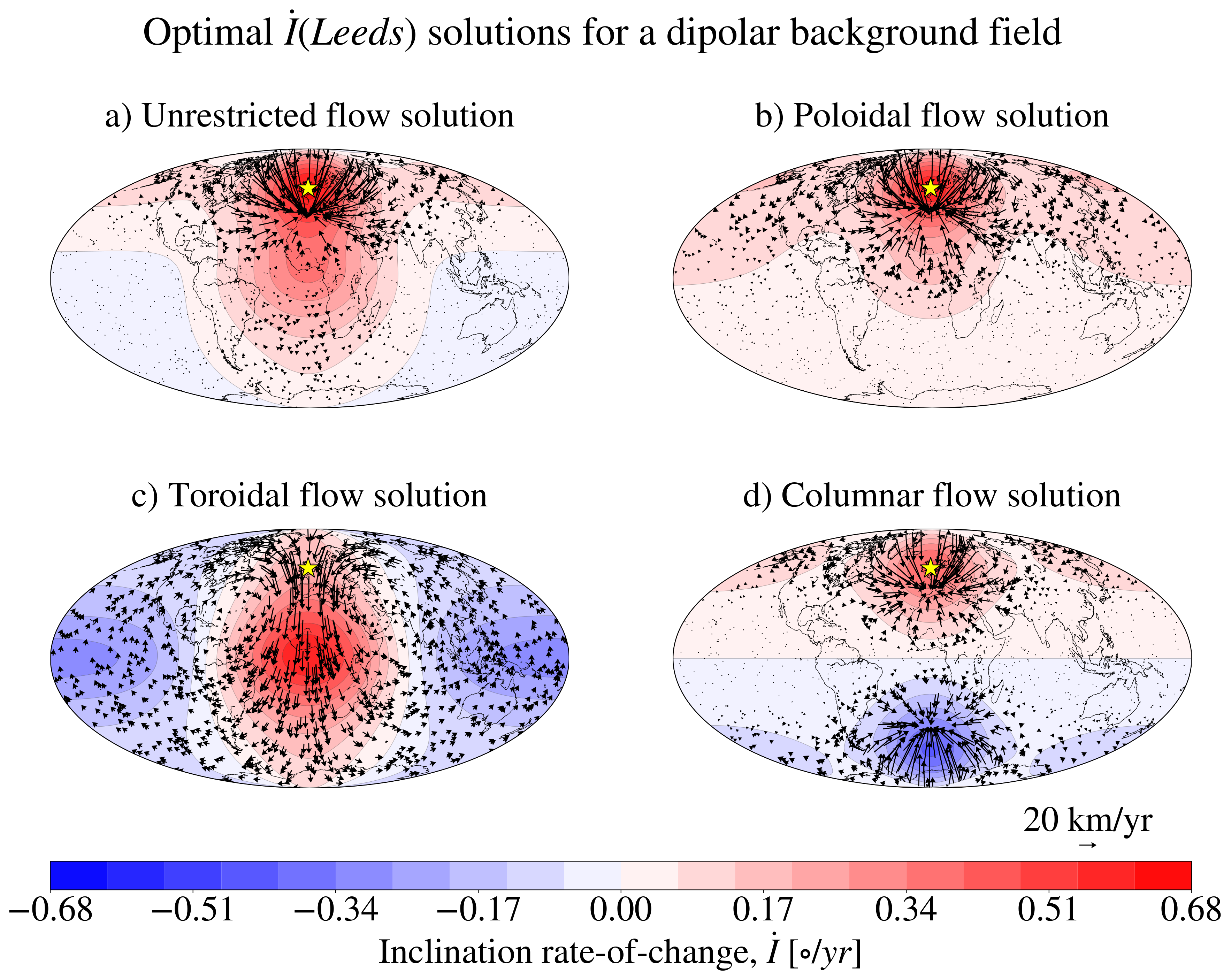

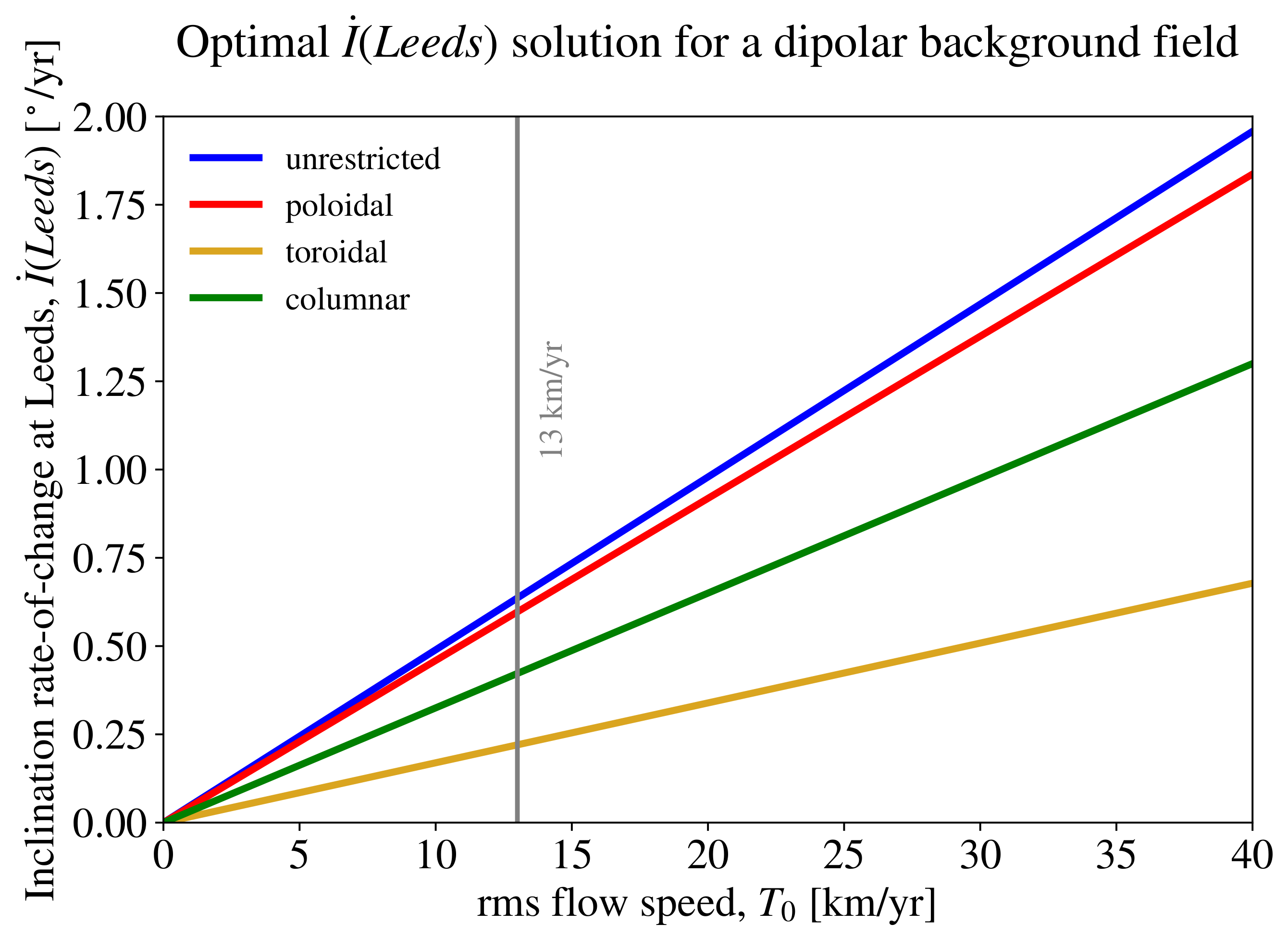

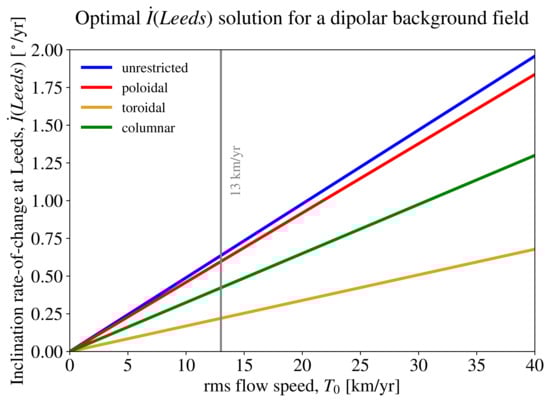

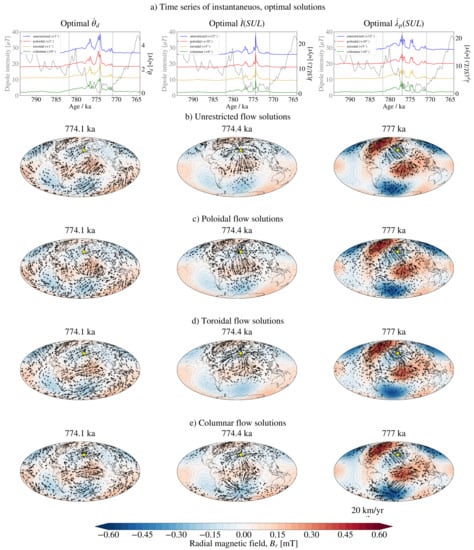

In Figure 3 and Figure 4, we show the effect of different flow geometries on the solution that optimises $\dot{I}$ at Leeds. The background field is an axial dipole with $g_1^0$ = −29,410.65 nT. Inspection of Figure 3 reveals that, since it is the most general, the unrestricted flow is capable of the fastest rate of change for the same value of $T_0$. Since the poloidal flow components dominate the toroidal contribution (see Figure 2b), the purely poloidal flow drives a rate of change that is not significantly lower than the unrestricted flow solution. As the allowed geometry becomes more restrictive, the flows cannot organise in the most efficient way, and the optimal $\dot{I}$ decreases. The toroidal flows are incapable of upwelling/ downwelling, which are efficient structures for driving localised changes, and they produce a pattern of $\dot{I}$ that is significantly (with respect to the value at the optimisation location) distributed across the globe. In the vicinity of the optimisation location, the optimal columnar flows are morphologically similar to the unrestricted solution, but they are forced to distribute energy in the Southern Hemisphere as well, producing a second region of rapid $\dot{I}$, which is equal in magnitude, but opposite in sign to $\dot{I}\left(Leeds\right)$ (equatorially antisymmetric). Note that this is a consequence of the background field being equatorially antisymmetric: in general, an equatorially symmetric flow does not produce an equatorially antisymmetric inclination rate of change.

4. Comparison with Geodynamo Results

4.1. Extreme Directional Changes

As previously mentioned, the IMMAB4 model (which is be used as the background for the optimal solutions presented in Section 5) has a resolution of $L_B=4$. On the other hand, the time-dependent component of the magnetic field of core origin can be detected up to degree $L_B=13$ at the Earth’s surface [74]. Smaller scales likely play an important role at the CMB, but their effect on observable scales can presently only be inferred through statistical algorithms [75,76,77,78]. Previous applications of the optimisation algorithm [48] showed that optimal intensity variations do not converge to a stable value even for background magnetic fields with small scales extrapolated up to $L_B=135$, independent of the flow geometry.

In this section and the next (Section 4.2), we explore the effect of under-resolved magnetic field scales by applying the optimisation algorithm to a background magnetic field provided by a numerical geodynamo simulation. State-of-the-art numerical simulations are capable of resolving up to $L_B=O({10}^2-{10}^3)$ [26,69,79,80], well beyond the resolution of both IMMAB4 and modern-day field models, and offer the possibility of studying the effect of small-scale physically generated geomagnetic features, without the need for extrapolation. This exercise also has the purpose of comparing the optimal flows obtained from our calculation with fluid flows that cause extreme events at the modelled Earth’s surface, a task that is not possible for the true Earth’s core. We selected the $Rm=450$ (where $Rm$ is the magnetic Reynolds number, the ratio of magnetic field diffusion and advection timescales) simulation from [26] as a test case, since it reproduced localised, instantaneous directional changes of $O({10}^{\circ }$ y${}^{-1})$, consistent with the SUL16 values.

For computational convenience, the optimal calculation was restricted to $L_B=32$ and $L_U=50$, still well beyond the resolution used in Section 5 below, with a value of $T_0=1.45$ km/y that reproduces the simulation’s $\dot{I}$ value at the optimisation location. The results of the optimal calculation, for unrestricted flow geometry, are shown in Figure 5b. The rate of change of inclination at Earth’s surface (top of Figure 5b) is concentrated around the optimisation location, with much smaller changes at other locations, in analogy with the simulation output. Note that, as shown in Figure 2b and Figure 4 and in agreement with [48], the maximal value of $\dot{I}$ is not reached at the optimisation location: in this case, the maximal value of $21.5^{\circ }$/y is found to the East of the yellow star.

We optimised the rate of change of inclination for the same instantaneous magnetic field configuration and location for which maximal directional variations were observed in [26] (see their Figure 1b,e). By calculating the rate of change of inclination at the Earth’s surface via first differences, a maximal dimensional value of $\dot{I}=7.{43}^{\circ }$/y was obtained from the simulation’s results at a single point (in the location indicated by the yellow star in Figure 5) and instant, with a region of strongly positive variations surrounding it (see the top row of Figure 5a). Note that for the $Rm=450$ model, we chose here the thermal boundary conditions at the CMB to be geographically homogeneous, and the longitudinal location of the $\dot{I}$ maximal value is not physically significant. The location of velocity and magnetic field features in Figure 5a with respect to the continents is purely for reference.

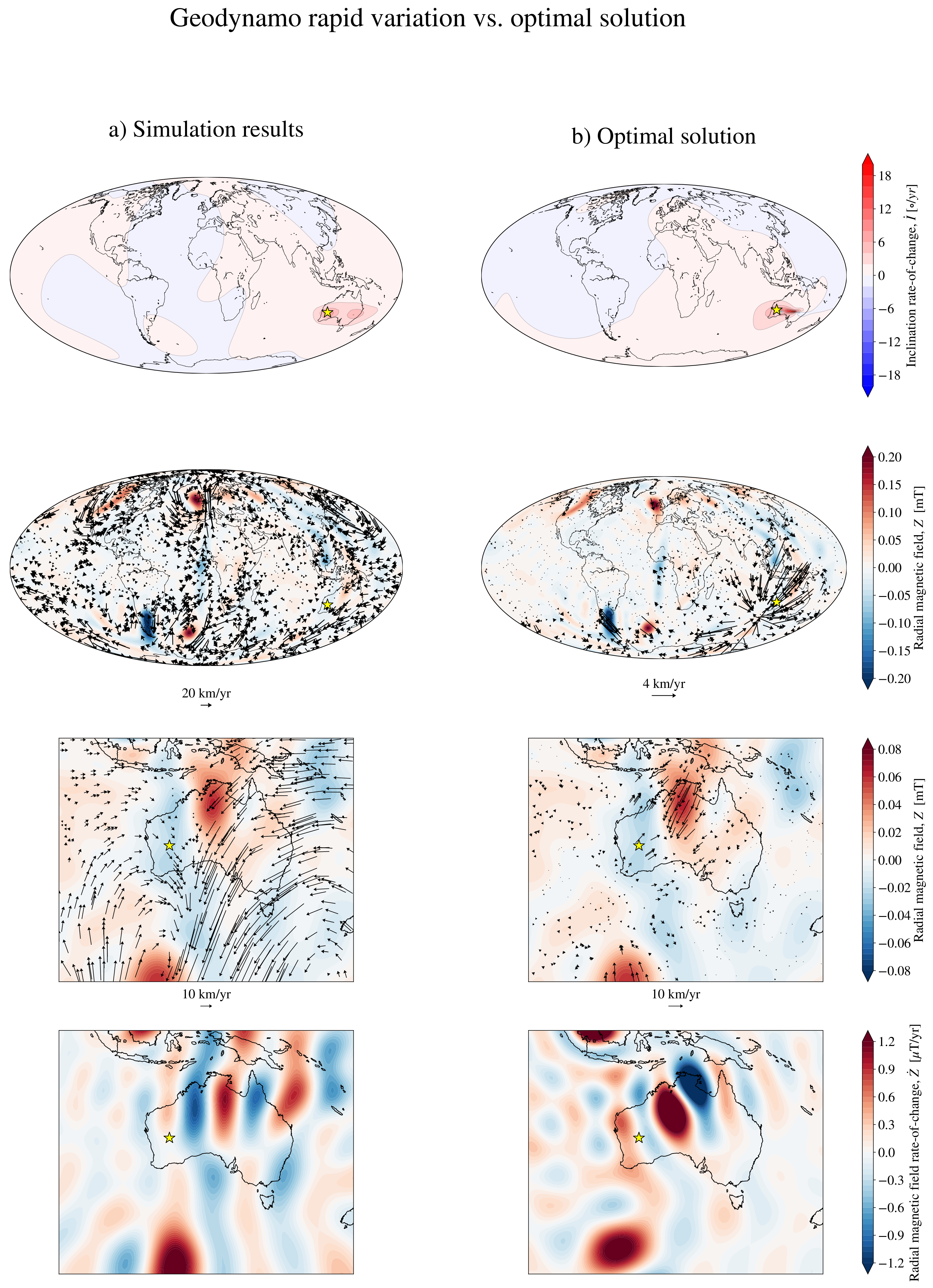

The second and third rows of Figure 5 illustrate the flows from the simulation (a) and from the optimal calculations (b). Note that the mechanical boundary conditions used in the original simulations are of the no-slip kind: all components of the velocity field $\mathbf{u}$ vanish at the CMB. The relevant quantity to compare the optimal surface flows is the horizontal flows at the bottom of the velocity boundary layer (see [81] and the references therein). In particular, the horizontal flows illustrated in Figure 5a refer to a depth of 32.9 km below the CMB, where the rms horizontal velocity (calculated over spherical surfaces of different radii) reaches a maximum value before decaying monotonically to zero as the boundary is approached. Note that this depth is consistent with the estimate of the boundary layer thickness based on the Ekman number used in this simulation. At this depth, the dimensional rms value of the horizontal flow is 14.1 km/y, and the radial flows are an order of magnitude weaker. Inspection of the velocity field closer to the CMB confirmed that the morphological features change only marginally with radius, so that we can confidently consider the chosen horizontal flows to be responsible for the SV observed at the boundary of the simulation. The flows from the simulation do not show any localisation in the region around the yellow star, but, locally, they are in agreement with the westward motion of the strong outward field to the east of the yellow star, in agreement with the behaviour observed in [26]. On the other hand, the optimal flows are highly localised around the optimisation location, though the presence of strong, small-scale patches of radial field generates strong flows even at large distances from the optimisation location (see for example the blue patch and strong flows localised below South America). The kinetic energy in the two cases is also different, with the simulated flow rms intensity exceeding by one order of magnitude the $T_0$ required by the optimal flows to reproduce the same $\dot{I}$ value at the optimisation location. The differences in flow morphology and speed magnitude can be explained by noting that the directional variations identified in the $Rm=450$ run might not be the fastest allowed by the numerical simulation. In this case, a longer simulation run might reveal free-stream flow configurations that are closer to optimal and that might drive considerably faster local directional changes. Alternatively, it is possible that the optimal flow configuration is not realisable due to dynamical constraints that are taken into account in the geodynamo model (for example, via the choice of boundary conditions), but not in the optimisation algorithm. Regardless, there is no guarantee that the directional variations reported in [26] are the fastest attainable by the numerical model.

Locally, the differences in CMB flow morphology and intensity between the simulation output and the optimal calculation are reduced, in particular in correspondence with the patch of positive Z to the northeast of the projection of the optimisation location (see the third row of Figure 5). As a consequence of these similarities, the locally produced SV in the simulation and by optimal flows presents significant analogies. The bottom row of Figure 5 shows the radial SV as obtained via first differences from the simulation results (a) and from the optimal flows (b) via Equation (1). In both cases, the radial SV has a banded structure in the region below the yellow star, although the quantitative details differ. Furthermore, in agreement with the simulation results, the optimal flows produce the directional variations observed at the optimisation location by advecting a patch of strong outward field (the red patch below central Australia) westward.

The results of this section suggest that, when reproducing local extreme directional changes, the optimal flows and resulting SV can be in agreement with the local geomagnetic structure. However, nonlocal features generally will not be reproduced by the optimisation algorithm. We found the $T_0$ required by the optimal solution to be a lower limit for the true rms velocity below the CMB. Optimal calculations performed with different flow geometries (not shown) produce, for the same value of $T_0$, similar results for $\dot{I}$ (top row of Figure 5b) and the radial SV (bottom row of Figure 5b), with differences in the flow configuration and magnitude of $\dot{I}$ at the Earth’s surface, which are akin to those shown in Figure 4, which suggests that the reproduction of extreme directional variations does not provide enough information to deduce the geometry of the flow causing it.

4.2. Influence of Truncation

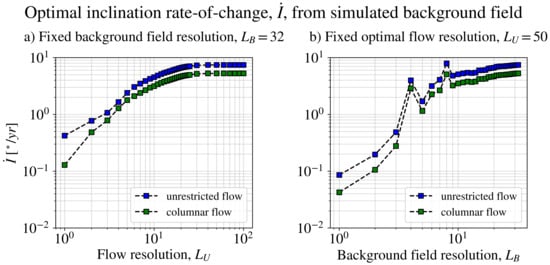

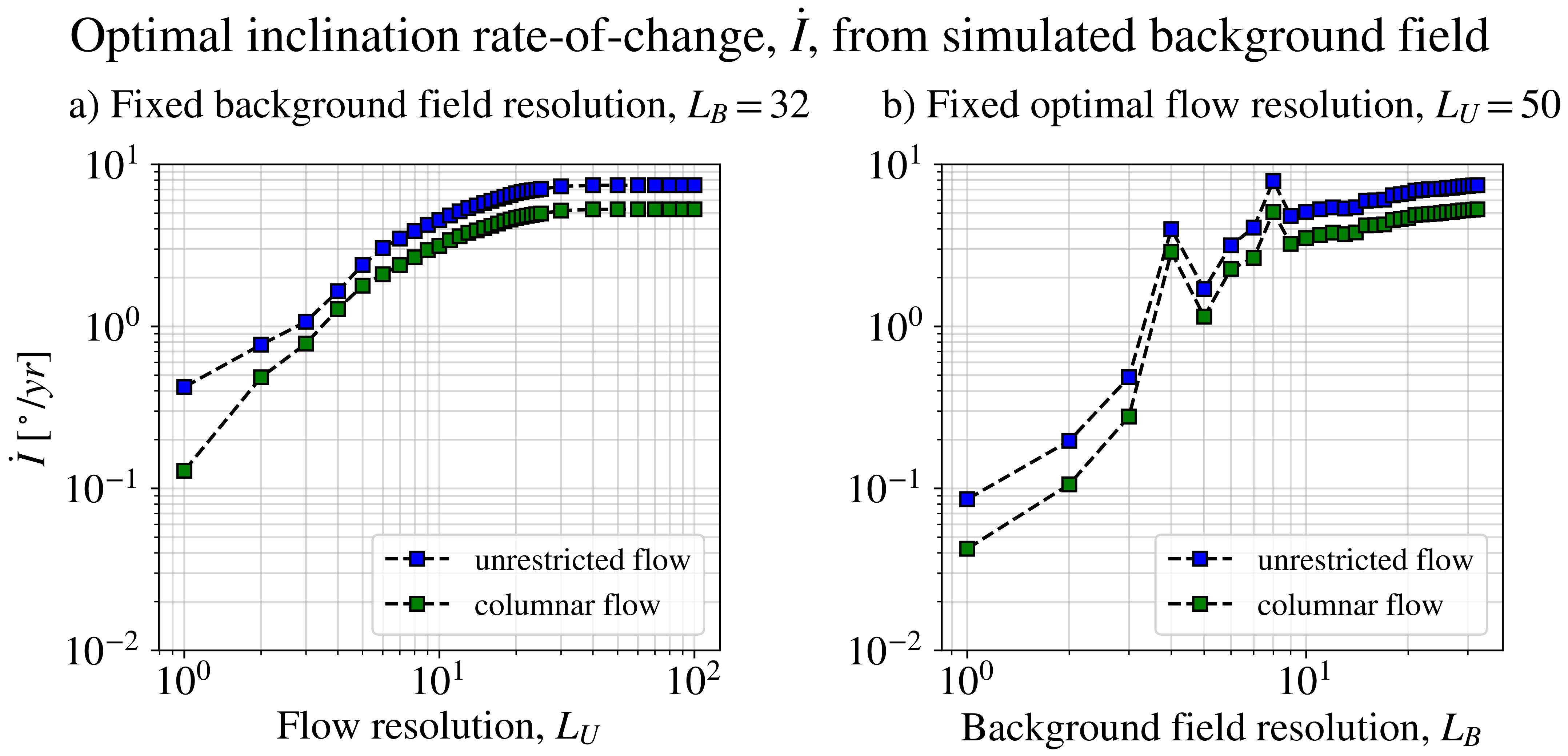

We now quantify the effect of the velocity and background magnetic field resolution on the optimal solution. We performed two sets of calculations: in the first, we kept the geomagnetic field resolution fixed at $L_B=32$ (the maximum resolution adopted in the previous section) and varied the allowed optimal flow resolution, up to $L_U=100$; in the second, we kept $L_U=50$ fixed and varied the resolution of the background magnetic field from $L_B=1$ to $L_B=32$. We remind the reader that $L_B=32$ far exceeds the resolution of state-of-the-art paleomagnetic field models. As illustrated in Figure 6, this calculation was performed for both unrestricted and columnar flow geometries, giving, respectively, the upper and lower bound for the optimal $\dot{I}$ calculations for the same value of $T_0$ (as in Figure 3). Figure 6a shows that the choice of $L_U=50$ guarantees converged results for the chosen background magnetic field, in line with the observation from [48] that $L_U\simeq L_B+10$ is enough to achieve convergence, for a fixed value of $L_B$. Figure 6b suggests that convergence in $L_B$ is harder to achieve: though the optimal $\dot{I}$ appears to be converging to a stationary value for $L_B>30$, values calculated at $L_B=4$ or at the resolution of other paleo- and archeo-magnetic models (for example, $L_B=10$ for the LSMOD field models [22,82]) are significantly smaller than the $L_B=32$ value. Furthermore, the sensitivity to the background field resolution is generally nonmonotonic, as indicated by the local maxima at $L_B=4$ and $L_B=8$. The same calculation, performed with background fields given by various geomagnetic field models with different resolutions (not shown), suggests that the location of these local maxima is sensitive to the instantaneous magnetic field configuration and that their location in Figure 6b should be regarded as coincidental. The same exercise, replicated for optimal ${\dot{\theta }}_d$ calculations and with background fields from different models and simulations, results in behaviours qualitatively similar to Figure 6.

We can conclude that the optimal calculations based on the IMMAB4 model and presented in the following Section 5 likely underestimate the “true” optimal solution. In turn, this means that the $T_0$ required by the optimal solution to reproduce a given observation is an overestimate of the value required by a fully converged optimal solution. However, our numerical experiments also suggest that for $L_B\ge 4$, the optimal solutions are all within the same order of magnitude, so that, considering all other uncertainties regarding the background magnetic field configuration, dating and CMB kinetic energy involved in the optimal calculations, the solutions presented in Section 5 below still provide a valid order of magnitude estimate of the fully converged optima.

5. Paleomagnetic Calculations

We now calculate optimal, instantaneous solutions across the M-B transition, with the IMMAB4 model as the background. We first calculated optimal flows that instantaneously optimise the rate of change of the dipole tilt, ${\theta }_d$, the geomagnetic inclination, $I\left(SUL\right)$, and the VPG latitude, ${\lambda }_p\left(SUL\right)$, at the SUL location (42.1512 N, 13.8229 E) during the whole temporal interval covered by the IMMAB4 model (from 794.0 ka to 764.1 ka), sampled every 100 years. For this calculation, we set $T_0=13$ km/y (for illustrative purposes and in line with [48]), $L_B=4$ (the full resolution of the IMMAB4 model) and $L_U=25$ (which guarantees converged results; see Section 4.2). The results, for unrestricted flow configurations, are shown in Figure 7 and Figure 8. The solutions for different flow configurations are shown in Appendix C. Figure 7 shows that the optimal solutions produce the fastest changes during epochs of weak dipole intensity, when the global field is in a multipolar configuration. Specifically, the fastest dipole tilt change is obtained at 774.1 ka for unrestricted, toroidal and columnar flow configurations, while for the poloidal flow, the maximum is obtained at 774.5 ka; the maximum rate of change of inclination at SUL is obtained at 774.4 ka independently of the flow geometry; the optimal VGP latitude rate of change is maximised at 777 ka, for all flow geometries (see Figure A2 and Table A1). To clarify, the optimal solutions represented by the coloured curves in Figure 7 are not estimates of the indicated quantities from the IMMAB4 model. Notice that the maximal value of $\dot{I}\left(SUL\right)$ is higher than the maximal value of ${\dot{\theta }}_d$ (8.57${}^{\circ }$/y and 1.87${}^{\circ }$/y, respectively, and indicated by the arrows in Figure 7). This illustrates how local flows are capable of driving faster changes than global ones, for the same value of $T_0$.

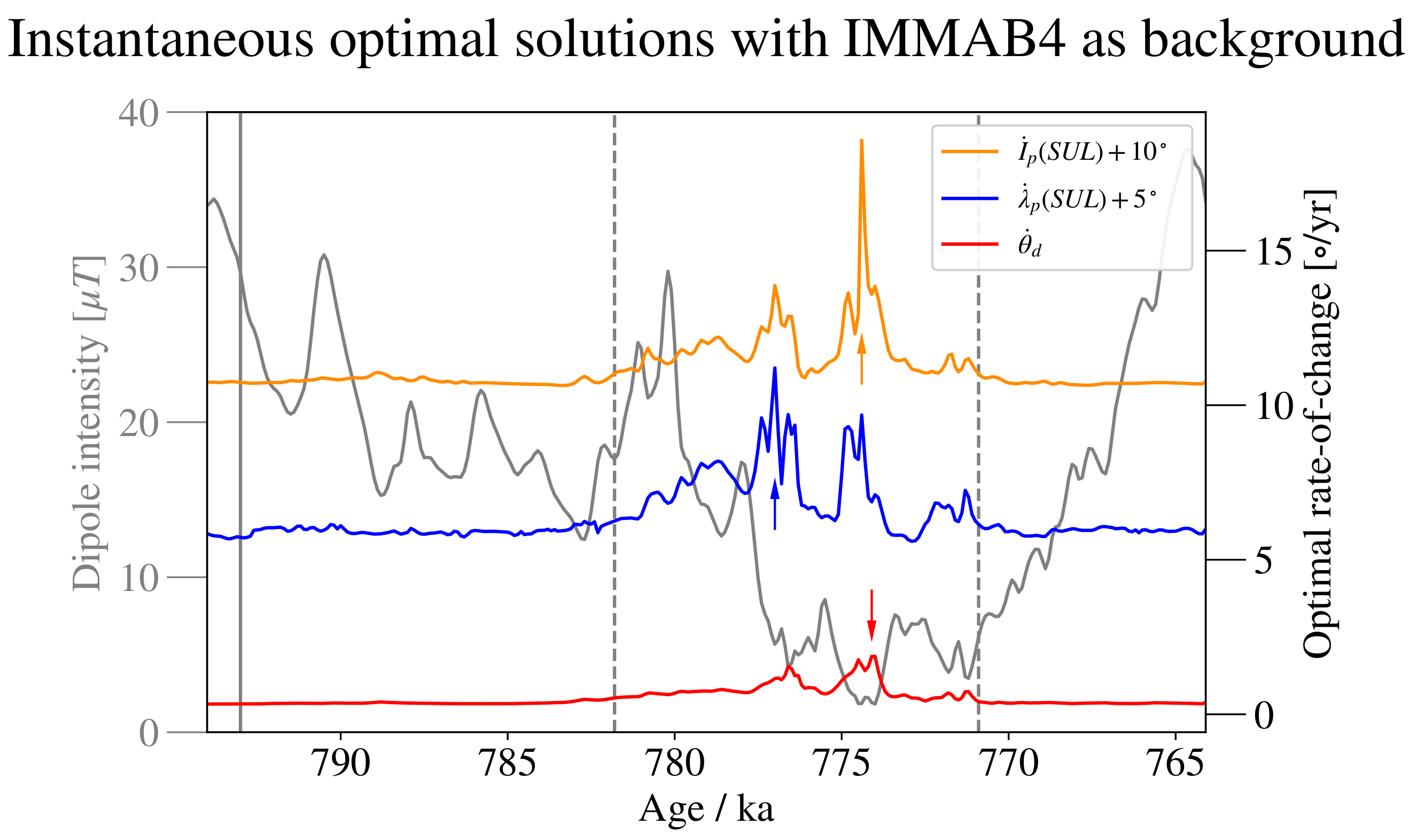

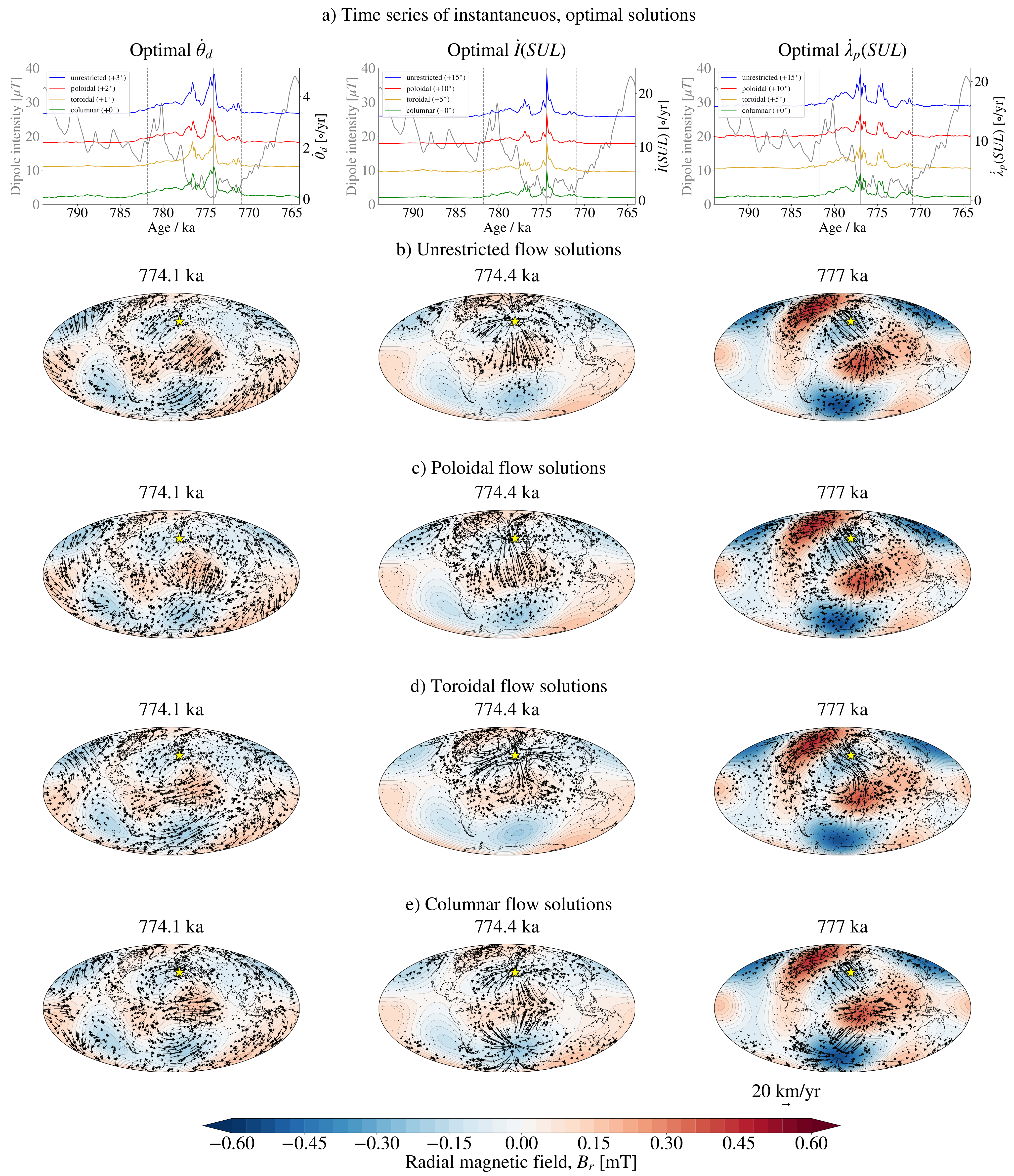

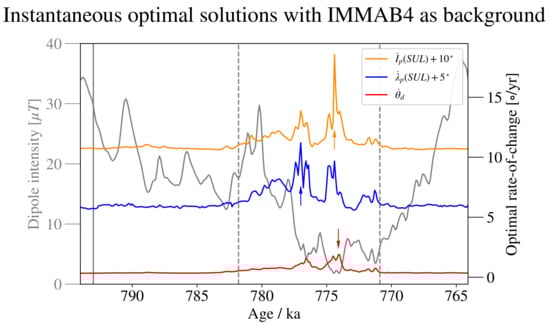

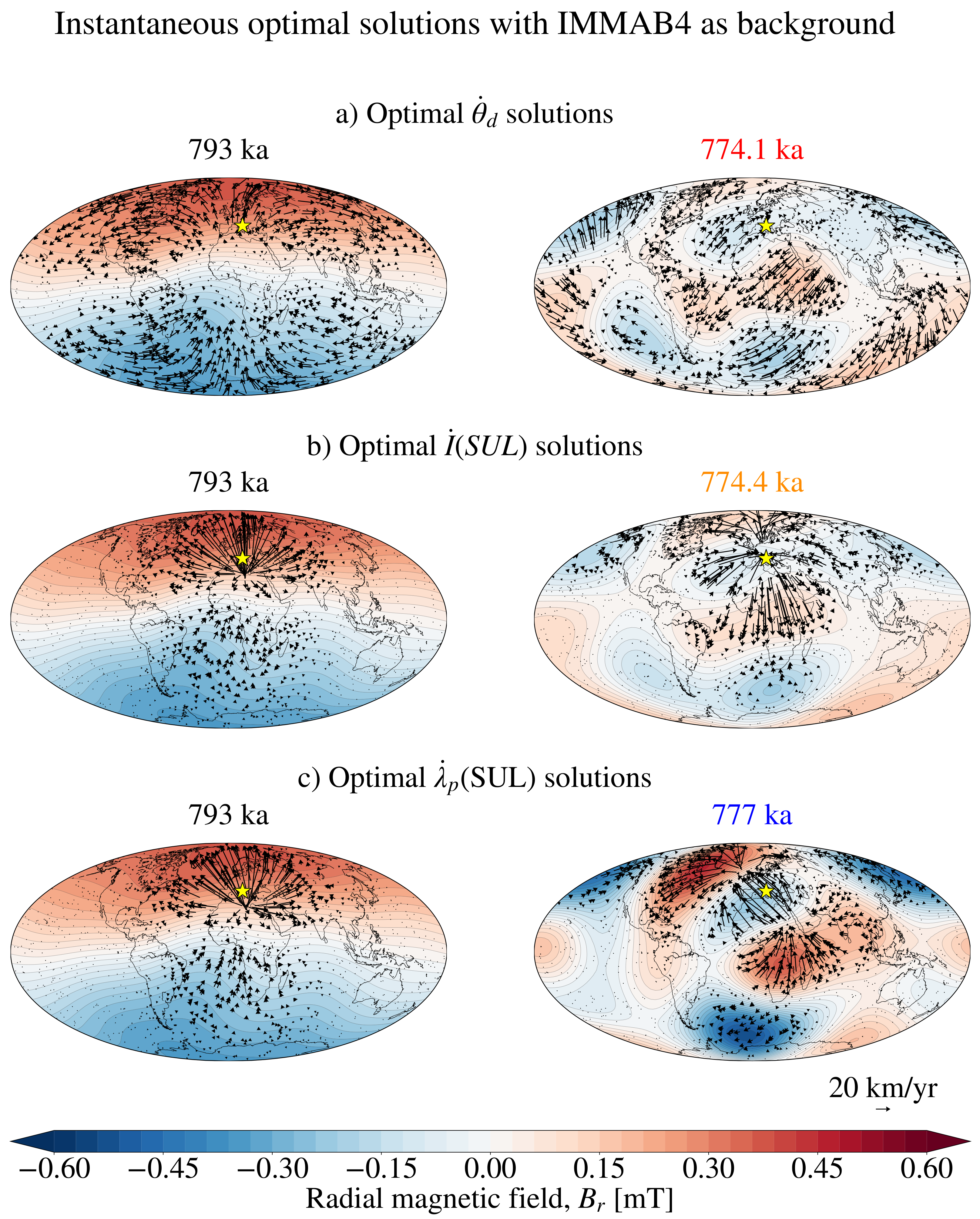

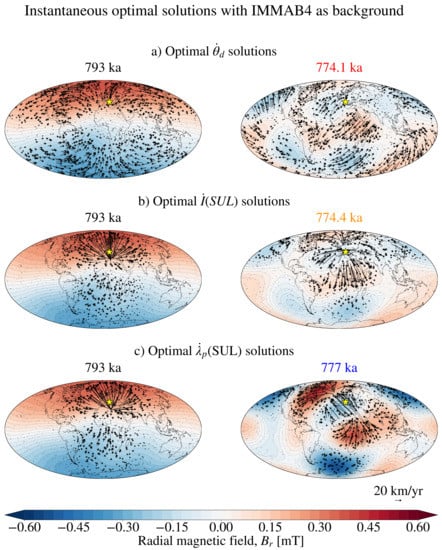

Figure 8 shows the flows that optimise (a) ${\dot{\theta }}_d$, (b)$\dot{I}\left(SUL\right)$ and (c) ${\dot{\lambda }}_p\left(SUL\right)$ at 793 ka (indicated by the vertical continuous line in Figure 7 and referring to an arbitrary dipole-dominated epoch) and at epochs of maximum optimal variation for each case (marked by the arrows in Figure 7). As expected, the flows displayed on the left panels of Figure 8 show the same qualitative characteristics as those in Section 3.2, namely the global circulation visible in the flows optimising ${\dot{\theta }}_d$ and the localised nature of the flows optimising $\dot{I}\left(SUL\right)$. Note that Figure 2b shows that the flow optimising $\dot{I}$ is dominated by a downwelling, whereas the corresponding flow in Figure 8b is dominated by an upwelling, caused by the opposite polarity of the axial dipole field (the epoch 793 ka is still in the Matuyama polarity). The flows in the right panels of Figure 8, calculated for a multipolar background field, display more spatial complexity than the pedagogical examples of Section 3.2.

In line with what was discussed in Section 2 and Section 3, the optimal values shown in Figure 7 are linear in $T_0$. This is illustrated in Figure 9, where we show the optimal rates of change for $I\left(SUL\right)$, ${\lambda }_d\left(SUL\right)$ and ${\theta }_d$ as a function of the rms velocity $T_0$, as well as $\dot{I}\left(SUL\right)$ produced by the flow optimising ${\dot{\theta }}_d$, calculated at the epochs for which the optimal solution is maximal (see Figure 7 and Figure A2). The optimal solutions are compared to the values from SUL14 and SUL16 and to the highest, instantaneous rates of change predicted by the IMMAB4 model, also indicated in Figure 9 (see Table A1 for numerical values). Note that in Panel (d) of Figure 9, the optimal ${\dot{\theta }}_d$ are compared to the SUL14 and SUL16 values of ${\dot{\lambda }}_p$. The intersection of the coloured, continuous lines with the horizontal dashed lines provides the $T_0$ value required by optimal flows to reproduce the paleomagnetic observations SUL14 and SUL16. Figure 9 compares the locally observed SUL14 and SUL16 rapid changes with the variations produced by local and global optimal flows.

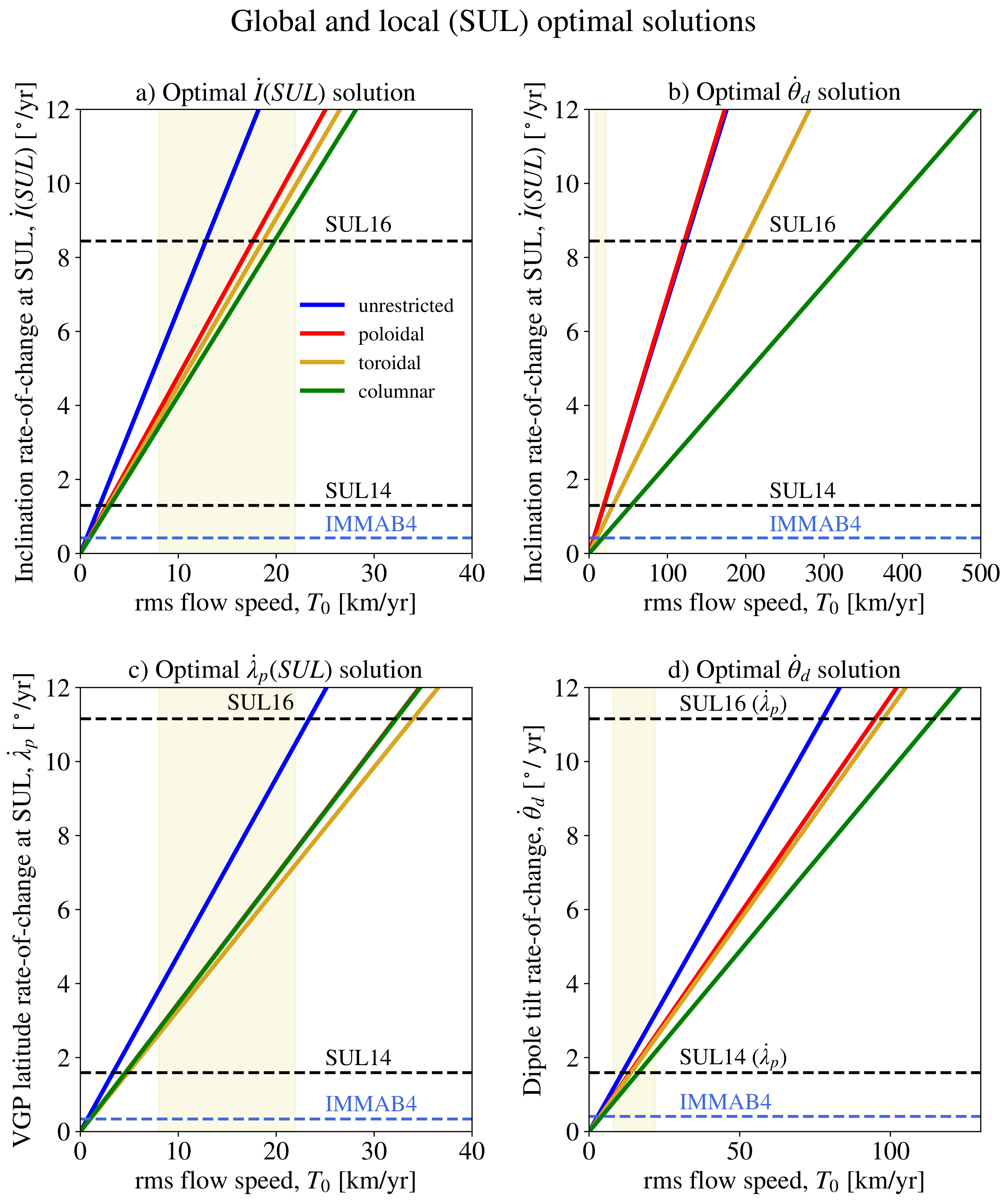

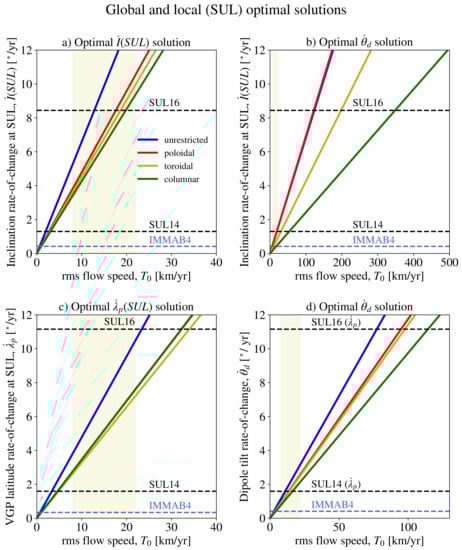

Since the flows represented in Figure 9 are optimal, we can interpret the $T_0$ values required to reproduce SUL14 and SUL16 as a lower bound for the rms flow intensity on the CMB during the M-B reversal (not accounting for the resolution-dependent corrections indicated in Section 4.2). Panel (a) suggests, for example, that if the SUL16 observation of $\dot{I}$ is generated by localised flows, then $T_0$ values at least as large as the present day are required. For this scenario, pointwise maximal velocities of 54 km/y are observed in the unrestricted flow configuration that reproduces the SUL16 observations. Panel (c) shows similar results, with $T_0$ values required to reproduce SUL16 values of ${\dot{\lambda }}_p$ that are about double the values required by $\dot{I}$. In this case, the unrestricted flow configuration that reproduces SUL16 observations requires pointwise maximal velocities of 125 km/y. Panels (b) and (d) suggest that if the SUL16 observation is associated with flows that optimise ${\dot{\theta }}_d$, considerably higher (possibly by an order of magnitude) values of $T_0$ are needed: the SUL16 observed ${\dot{\lambda }}_p$ value requires an rms intensity of at least 77 km/y, with pointwise maximal velocities of 127 km/y for the unrestricted configuration. The SUL16 $\dot{I}$ value requires, for flows driving a global directional change, rms values of no less than 120 km/y, with pointwise maxima of 241 km/y achieved in the unrestricted configuration; the SUL14 $\dot{I}$ observations, however, could be produced by flows with kinetic energies in line with present-day values.

Figure 9 suggests that flows driving a global polarity reversal are unlikely to be solely responsible for rapid changes of the kind reported in SUL16. However, flows that optimise local variations can reproduce SUL16 observations with values of $T_0$ that are in line with present-day estimates. On the other hand, the (locally observed) SUL14 values can be reproduced by flows driving global directional changes with values of $T_0$ analogous to present-day estimates. Though these flows are optimised, they suggest that SUL14-like local variations can be driven concurrently with a polarity reversal, with CMB flows having kinetic energy that are in line with the energy budget considerations derived from geodynamo simulations of polarity reversals [44,45].

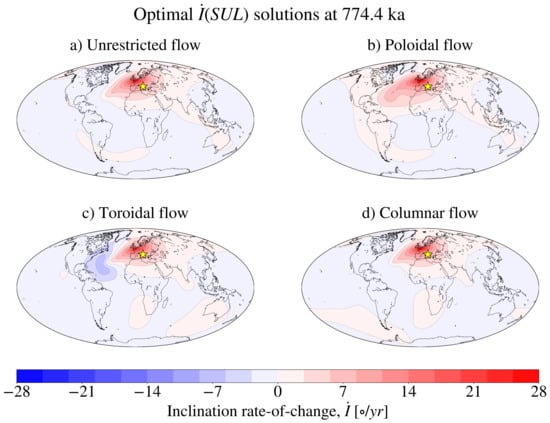

We now focus on the global inclination changes driven by flows that optimise $\dot{I}\left(SUL\right)$. Figure 10 shows maps of the inclination rate of change driven by flows of different geometries that optimise $\dot{I}\left(SUL\right)$ with the values of $T_0$ required to reproduce the SUL16 values (see Figure 9a). Figure 10 shows that the SV driven by optimal flows with different geometries is morphologically similar. Most prominently, in all cases, the highest values of inclination variation are produced to the northwest of the SUL location (the yellow star). A wider area of high $\dot{I}$ is furthermore located in the European region, which appears to corroborate the findings of anomalously high directional paleomagnetic changes in the Italian peninsula during the M-B reversal [13,14,16]. Other qualitative features that can be reproduced by one or more flow configurations are a sharp dipolar feature located to the south of the Gulf of California (in particular, in the unrestricted and poloidal flows solutions), an extensive region of negative $\dot{I}$ values over Antarctica, mostly positive values of $\dot{I}$ over the entire Eurasian continent, an elongated region of positive $\dot{I}$ values over South America and the South Atlantic ocean (see the unrestricted and poloidal flows solutions) and a patch of positive $\dot{I}$ values over southern African (see the toroidal and columnar flow solutions).

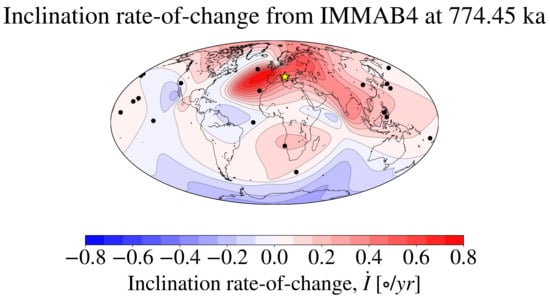

Figure 11 shows the inclination rate of change calculated via first differences between the epochs 774.4 ka and 774.5 ka from the IMMAB4 model. The most prominent feature of the $\dot{I}$ field predicted by the IMMAB4 model is the positive maxima localised in the North Atlantic Ocean, to the west of the Iberian peninsula, accompanied by positive values of $\dot{I}$ on the majority of the Eurasian continent. Apart from the magnitude of these variations, the IMMAB4 prediction is morphologically similar to the result from optimal flow calculations (see Figure 10). Other qualitative features predicted by the IMMAB4 model are present in the optimal solution, depending on the flow geometry, namely a sharp dipolar feature located to the south of the Gulf of California (particularly visible in the unrestricted and poloidal flows solutions), an extensive region of negative $\dot{I}$ values over Antarctica, an elongated region of positive $\dot{I}$ values over South America and the South Atlantic ocean (see the unrestricted and poloidal flows solutions) and a patch of positive $\dot{I}$ values over the southern African region (see the toroidal and columnar flow solutions). These similarities suggest that the CMB flows during the M-B reversals (and in particular at the 774.5 ka epoch, according to the IMMAB4 model) could have been morphologically close to an optimal configuration. It is however difficult to assess which flow restriction produced inclination changes that are closest to the IMMAB4 model, since all configurations give rise to a strong patch of positive $\dot{I}$ over northwestern Europe, the main feature of both the optimal solution and the IMMAB4 model at this epoch.

The presence, in the IMMAB4 model, of an extended area of positive inclination change in Europe appears to corroborate the findings of anomalously high directional paleomagnetic changes in the Italian peninsula during the M-B reversal [13,14,16]. The origin of this anomaly in the model is attributable to a localised flip in inclination (i.e., a local reversal) between 774.5 ka and 774.3 ka. The timing of this sharp inclination transition is very close to that of the most rapid, optimal variation of inclination at SUL (see Figure 7). Note, however, that the magnitude of the inclination change at SUL from the IMMAB4 model (see Figure 11) is about an order of magnitude lower than the SUL observations (see Table A1). This is due to the fact that the IMMAB4 model is not required to reproduce the levels of variation reported by SUL14 and SUL16. It is also important to note that the North Atlantic $\dot{I}$ maxima in the IMMAB4 model shown in Figure 11 is not well constrained by the observations employed to construct the field model (shown by the black dots in Figure 11). Geographically, the paleomagnetic records closest to the European region that are present in the dataset used to create the IMMAB4 model are located in the North Atlantic region [83,84,85]. The duration of the M-B reversal as recorded from these samples was analysed in [21,86], and all predict a duration time greater than ∼4000 years, in line with the observations of [86,87]. Further analysis is therefore required to ascertain which particular records contain the information of the European rapid inclination event shown in Figure 11 and the effect of the inclusion of the Italian data in the modelling process.

6. Discussion

We estimated the magnitude of the core-surface flows during the last polarity reversal. Well established methods of core flow inversion [54] are not applicable in this context due to the lack of spatiotemporal data coverage and resolution in the pre-observatory era. The optimal flow calculations presented in this paper allow a lower bound to be placed on the rms flow speeds required by the SUL14 and SUL16 observations. How the kinetic energy at the CMB during the M-B reversal compares to today’s estimates is an open question; however, geodynamo simulations suggest that during times of low magnetic energy (such as during reversals), the kinetic energy in the core either increases (see for example Figure 5 from [44]) or does not statistically change [46,47]. On the other hand, multiple studies (see [9] and the references therein) suggest that present-day magnetic field intensity is higher than or approximately equal to its maximum value over the past two billion years. Taken together, the evidence suggests that the current rms flow speed value at the CMB represents a low to average value over the same timespan. Therefore, present-day $T_0$ values (which range from 8 to 22 km/y [43]) can be taken as a representative to low estimate for the actual values during the M-B reversal.

The optimal calculations performed in an attempt to reproduce extreme variations found in geodynamo simulations (performed in Section 4.2) warrant some caution in the interpretation of the results presented in Section 5 and in the conclusions we can draw from them. We showed that the inclusion of the CMB magnetic structure up to order $L_B=32$ results in lower values of $T_0$, possibly by an order of magnitude, required to reproduce the same rapid directional changes. If we combine this consideration with the results reported in Figure 9, high values of $T_0$ and optimal flow configurations may not be required to locally reproduce neither SUL14 nor SUL16 observations. On the other hand, to reproduce SUL16 values with flows that cause a global directional change, even considering an order of magnitude correction due to resolution, optimised flows require $T_0$ values that are at least similar to present-day estimates. Although there is not enough evidence to rule out a scenario in which the observed SUL16 variations are caused by flows that drive an optimised global change, we deem it improbable, since the CMB flows are unlikely to be in a configuration that optimises ${\dot{\theta }}_d$. Only the enhanced resolution of the large-scale field during the M-B transition will resolve this issue.

Inspection of Figure 10 shows that, were the flows required to reproduce SUL16 observations close to optimal, they would drive global inclination changes that are morphologically similar, regardless of the flow geometry. Further analysis and future paleomagnetic data collection should focus on the global distribution of $\dot{I}$ during the M-B reversal, with particular attention to the identification of possible high regional values in the European region. Potential sites include the Za Hájovnou cave, in the Czech Republic [88,89], and the Gran Dolina archeological site, in Spain [90,91,92]. However additional work is required to consider the dating uncertainties of the available paleomagnetic measurements for these locations in relation to SUL14 and SUL16, for example within the context of an updated version of the IMMAB4 field model. Confirming the existence of this and other features displayed in Figure 10 via paleomagnetic observations would suggest that the CMB flows were close to an optimal configuration during the M-B reversal, and at least instantaneously, the lower bounds on $T_0$ that can be derived from Figure 9 would be closer to actual values in the past.

In the present study, we made use of the IMMAB4 model as a spatiotemporal representation of the M-B geomagnetic field reversal. Although, to our knowledge, this is currently the most recent field model that predicts the evolution of nondipolar geomagnetic coefficients up to $L_B=4$ during the reversal, it has been pointed out [93] that the model might not be a reliable representation of the M-B reversal due to the paucity and uneven distribution of the paleomagnetic records used in its generation. In particular, the paleomagnetic records are distributed unevenly in longitude, and the large majority of them were collected in the Northern Hemisphere. It will be desirable, in the future, to produce an updated version of this model, including the latest paleomagnetic record for the M-B reversal (including those from the Italian peninsula discussed in the present paper [14,16]) and that uses different modelling techniques and temporal uncertainty treatments [22,94]. Though it is unlikely that the resolution beyond degree $L_B=4$ will improve, this would lead to a better representation of the background magnetic field considered here and better estimates of the optimal flows and corresponding temporal variations at the surface of the Earth.

7. Conclusions

In summary, we derived estimates for the minimal rms flow speed at the surface of the core that are in agreement with extremely rapid directional changes recorded in the Italian peninsula during the last geomagnetic field reversal.

In particular, we showed that instantaneous directional variations reported in paleomagnetic measurement studies from depositional sequences in the Sulmona Basin [13,14] can be reproduced by localised fluid flows with rms magnitudes that are either consistent with present-day estimates (between 8 and 22 km/y [43]) or significantly lower. These results suggest that it is at least physically possible that the values reported in both [13] and [14] could be indicative of secular variation produced by localised fluid flows on top of the Earth’s outer core, similar to the flows in Figure 8b,c. We also showed that flows driving global directional change (similar to the ones depicted in Figure 8a) with an rms magnitude consistent with present-day estimates can account for the SUL14 observations reported in [13], but not for the revised SUL16 values [14], for which optimised flows with rms values in excess of 77 km/y are required, which is much higher than present-day estimates. Finally, we could not exclude that the observations of [13] can be reproduced by flows capable of global directional change with kinetic energy values available during the M-B reversal. However, given that the subcentennial reversal times that can be derived from these observations are not corroborated by the majority of independent studies (see for example [21,37,38,39] and the references therein), this scenario seems at odds with our current understanding of geomagnetic field reversals’ phenomenology. Taken together, these considerations suggest that it is unlikely that global directional changes are responsible for the rapid directional changes observed in the Sulmona Basin. Rapid variations reported in both [13,14] are therefore likely to be a purely local phenomenon, driven by localised CMB flows that possibly produced rapid variations over the whole European continent.
