Article

Constraining the Passive to Active Margin Tectonics of the Internal Central Apennines: Insights from Biostratigraphy, Structural, and Seismic Analysis

1
Department of Earth Sciences, Sapienza University of Rome, 00185 Rome, Italy
2
Department of Chemistry and Pharmacy, University of Sassari, 07100 Sassari, Italy
3
Department of Land, Environmental and Infrastructure Engineering (DIATI), Polytechnic of Turin, 10129 Turin, Italy
4
Department of Mathematics and Geosciences, University of Trieste, 34128 Trieste, Italy
5
Geological Survey of Italy (ISPRA), 00144 Rome, Italy
6
Department of Earth, Environmental and Resources Sciences (DISTAR), Federico II University of Naples, 80126 Naples, Italy
7
Istituto Nazionale di Geofisica e Vulcanologia, 00143 Rome, Italy
*
Author to whom correspondence should be addressed.
Geosciences 2021, 11(4), 160; https://doi.org/10.3390/geosciences11040160
Submission received: 1 February 2021 / Revised: 26 March 2021 / Accepted: 28 March 2021 / Published: 1 April 2021

Abstract

:
The polyphase structural evolution of a sector of the internal Central Apennines, where the significance of pelagic deposits atop neritic carbonate platform and active margin sediments has been long debated, is here documented. The results of a new geological survey in the Volsci Range, supported by new stratigraphic constraints from the syn-orogenic deposits, are integrated with the analysis of 2D seismic reflection lines and available wells in the adjacent Latin Valley. Late Cretaceous syn-sedimentary faults are documented and interpreted as steps linking a carbonate platform to the adjacent pelagic basin, located to the west. During Tortonian time, the pelagic deposits were squeezed off and juxtaposed as mélange units on top of the carbonate platform. Subsurface data highlighted stacked thrust sheets that were first involved into an initial in-sequence propagation with top-to-the-ENE, synchronous to late Tortonian foredeep to wedge-top sedimentation. We distinguish up to four groups of thrust faults that occurred during in-sequence shortening (thrusts 1–3; about 55–60 km) and backthrusting (thrust 4). During Pliocene to recent times, the area has been uplifted and subsequently extended by normal faults cross-cutting the accretionary wedge. Beside regional interest, our findings bear implications on the kinematic evolution of an orogenic wedge affected by far-traveled units.

1. Introduction

Carbonate platforms are a type of passive margin sedimentary succession that can be commonly involved in the thrust-sheet imbrication of an orogenic wedge [1,2,3]. During in-sequence ongoing deformation, the wedge propagates by incorporating new portions of the foreland, which is commonly made up of crystalline basement, clastic and/or carbonatic successions, and overriding foredeep/foreland clastics with variable thickness and composition [4,5,6]. The so formed fold-and-thrust belt, incorporating distinctive tectono-stratigraphic units, is the combined product of inherited syn-sedimentary structures and orogenic dynamics [7,8]. Thus, the wedge-related deformation style may strongly depend on the stratigraphic architecture and in particular on the presence and depth of décollement layers within the stratigraphic successions (i.e., salt [9]). In this sense, thick-skinned deformation (see, e.g., in [10]) can dominate when there is no suitable detachment horizon. On the contrary, when preferred slip-levels occur, thin-skinned tectonics develop, generating flat-ramp-flat geometries and disharmonic folding, which, for example, can occur within base-of-slope to pelagic successions [11,12]. At the transition between such structural domains, strain localization can occur, nucleating thrusts by inverting previous listric boundary extensional faults (see, e.g., in [13]).
During inversion of hyperextended passive margins, orogenesis forms far-traveled units that can reach a high-degree of internal deformation [14,15,16]. The chaotic structure of these so-formed mélange units is the result of the superposition of tectonic, sedimentary, and mud-diapiric processes [17], to which gravitative processes add, by incorporating both allochthonous and autochthonous blocks [18]. Despite the subsequent orogenic deformation overprint, occurring within far-traveled thrust-sheets, the structural heritage may be preserved and studied (see, e.g., in [19,20,21,22]).
The Apennines are a fold-and-thrust belt involving basinal and platform-derived thrust sheets and mélange units (Figure 1) that offer well-outcropping structures representative of inverted hyperextended passive margins. The present-day deep structure of the Apennines has been a long matter of debate, as the amount of thrust allochthony and the involvement of the crystalline basement are widely discussed (see, e.g., in [23,24,25,26,27,28,29]. In this frame, the recognition of inherited structures also bears implications on the reconstructions of the pre- to syn-orogenic evolution [30,31,32,33]. For the Central Apennines, timing of deformation and shortening rates through time were reconstructed by coupling kinematic reconstructions with dating of the deposits overlying the forebulge unconformity [34] or, more classically, by dating the siliciclastic syn-orogenic deposits of the foredeep and wedge-top basins by using biostratigraphy (see, e.g., in [35,36,37,38]). However, controversial age interpretations may be derived due to the occurrence of few index fossils or reworked specimens from cannibalized foredeep and wedge-top deposits (see, e.g., in [34,35,36,37,38,39]). Recently, thermo-chronological studies have provided absolute dating of calcite and fault-gouge that have supported the reconstruction of regional thrust evolution [40,41,42,43].
Considering that the central Apennines represent an orogen that involves large volumes of the Adriatic plate, identification and description of the most internal thrust sheets are fundamental to highlight the role of inherited structures in determining the dynamics of far-traveled thrusting. In particular, one of the most crucial problems is deciphering the degree of distance covered by the units after detachment within foreland, foredeep, and wedge-top basins during shortening. In this paper, we provide (i) a review of the existing literature of the Volsci Range (VR; Figure 1) and of the adjacent Latin Valley; (ii) a comprehensive stratigraphic and structural analysis based on new age determinations of the syn-orogenic deposits; and (iii) a reinterpretation of a composite dataset of public well data and seismic lines, integrated by unpublished data provided by Pentex Italia Limited. We recognize a polyphase structural evolution based on the documentation of the characteristic mélange structures in the Chaotic complex and the distinction of foreland-directed thrusts cross-cut by younger hinterland-directed reverse faults. As a brand-new outcome, the reconstruction of the pre-orogenic heritage and the syn-orogenic Miocene structures allows us to constrain a previously unpublished regional inversion tectonic process and its peculiar evolution of thrusting. In this frame, the internal Central Apennines represent an example of the kinematic evolution of platform and basin-derived thrust sheets. Our study can help unravel the evolution of similar belts worldwide, and more specifically contributes to the understanding of far-traveled thrust sheets.

2. Geological Setting

2.1. The Central Apennines

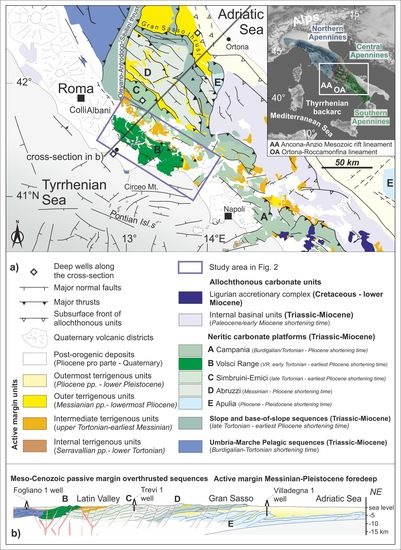

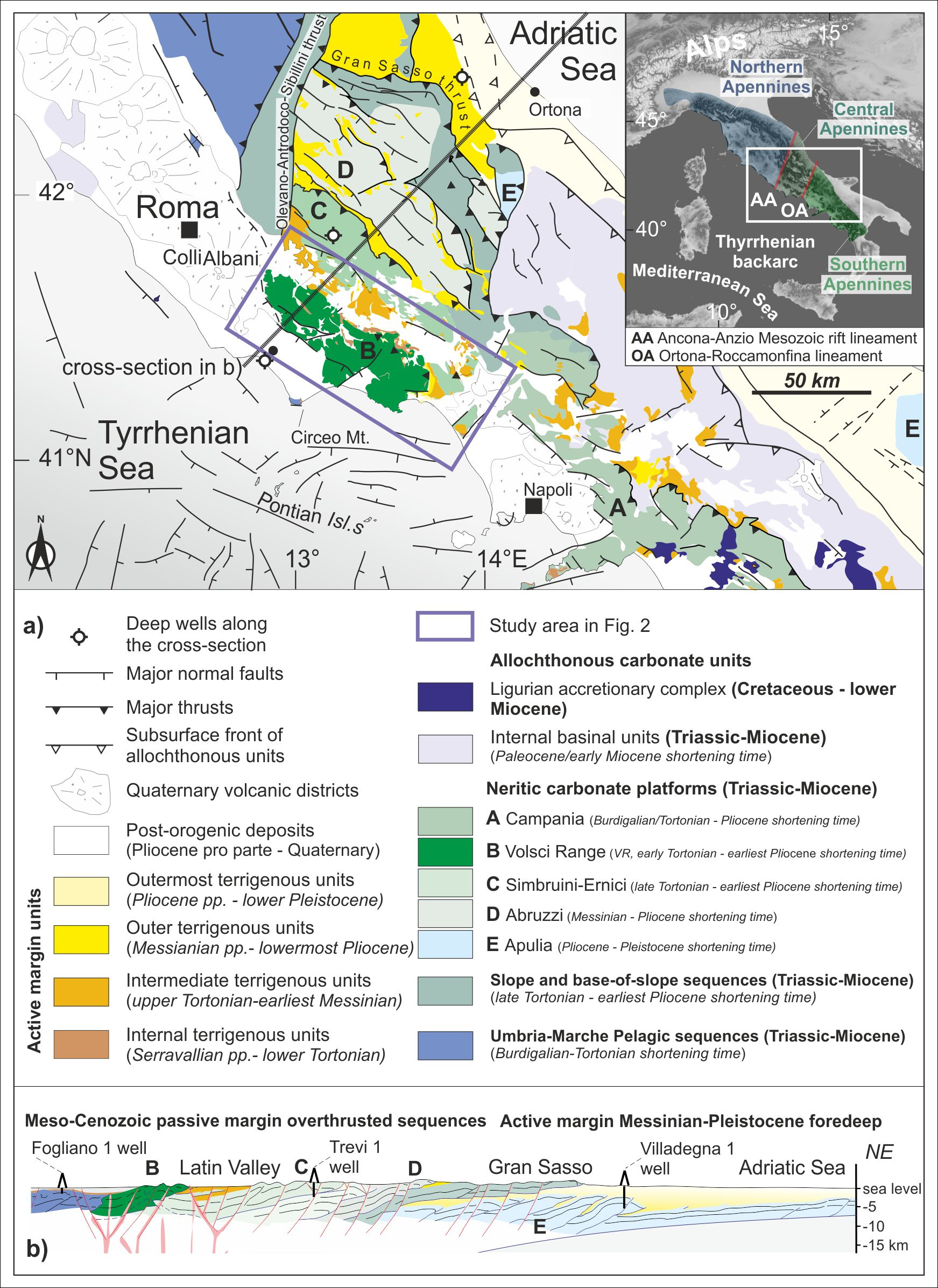

The Apennines (Figure 1) are a ~1500 km long accretionary wedge made of different pre-orogenic and syn-orogenic units accreted together during the progressive E/NE-ward migration of leading-edge frontal thrusts and associated active margin units deposited within foredeep and wedge-top basins (see, e.g., in [46,47,48,49,50]. From Miocene time, the Apennine foreland became progressively involved in pre-thrusting bulging, uplift, and erosion resulting from the wedge migration [51,52,53,54,55,56]. Since Tortonian time (~11 Ma), the west-directed subduction of the Adriatic slab drove the development of the accretionary wedge now exposed in the central sector of the Apennine belt [49,54]. Subsequently, the fold-and-thrust belt underwent severe crustal stretching, related to back-arc extension that progressively migrated from the Sardinian margin to the axial part of the central Apennines [49,57]. The chain is now uplifted and cross-cut by Quaternary normal faults and also affected by several volcanic centers along the Tyrrhenian margin [45,47,49,58,59].
The central Apennines constitute a mountain chain sector bounded by two major NNE-trending tectonic lines (Figure 1), comprised between two arcs with polyphase activity: the Ortona–Roccamonfina and the Olevano–Antrodoco–Sibillini lines [60,61]. The latter can be considered as the positive transpressive reactivation (see in [7] and the references therein) of a Mesozoic extensional fault system associated with continental rifting, the Ancona–Anzio line [62] (Figure 1).
The Mesozoic paleogeography was characterized by different domains defined by peculiar stratigraphic successions. West of the Olevano–Antrodoco–Sibillini line, Meso-Cenozoic pelagic sequences occur in the northern Apennines. East of the Ancona–Anzio line, the central Apennines are mainly formed by neritic carbonate platform units that are bounded by base-of-slope to basinal domains (e.g., Gran Sasso [30]). According to the works in [63,64], drowning of the Mesozoic carbonate platform of the VR occurred during the latest Cretaceous or Cenozoic times and is testified by basinal deposits lying on top of platform carbonates. More internal basinal/oceanic units, referred to the Sicilide and Ligurian Accretionary Complex, crop out both in the southern Apennines [44] and along the coast west of Rome (i.e., Tolfa region [65,66]; Figure 1). These units are traditionally recognized as allochthonous units that were involved into the wedge in Miocene time. The occurrence of similar internal allochthonous units in the central Apennines is still debated. A stratigraphic correlation between the deposits atop the neritic carbonates of the VR and the Ligurian-Sicilian basinal units of Sicily and southern Apennines was first made by [67]. A different interpretation was proposed by the authors of [65,66], who recognized the marly–terrigenous terrains atop the VR carbonates as the remobilization of the Cenozoic basinal succession.
The terrigenous units cropping out in the central Apennines mostly occur in NW-striking valleys (e.g., Latin Valley [68]; Figure 2). These units are representative of foreland basin deposits, whose formation nomenclature varies from region to region, i.e., the Frosinone Formation [64] shares similar timing and facies with the Termini and Pietraroja formations of the southern Apennines [69,70]. To harmonize their occurrence throughout the central and southern Apennines, we have grouped them in four different units, representative of progressively more external and younger stages of the wedge accretion towards the east (Figure 1a). To the south, as shown by well logs and outcrops in the Pontian islands and at Circeo Mt., Mesozoic basinal units overthrust Oligocene to early Miocene flysch units [42,71]. South of Naples (Figure 1), Serravallian to lower Tortonian flysch represent internal terrigenous foredeep units [44]. Serravallian syn-orogenic units, indicative of plate flexuration, were recognized as well in more internal positions within the Volsci Range [72]. Such flexural deposits rejuvenate towards the east suggesting a progressive shift of the wedge towards the outer portions of the arc. Intermediate terrigenous units of late Tortonian–earliest Messinian age occur in the Latin Valley and underneath the overthrusted platform carbonates of Campanian age.
North of the Latin Valley, the Simbruini-Ernici Mts are built up of NW-striking imbricate carbonate thrust sheets that overthrusted onto the outer terrigenous units of Messinian age (e.g., within the Latin valley, Figure 1 [73,74]). This is well evidenced by the Trevi well that shows the juxtaposition, at considerable depths (3000 m), of Triassic terrains onto Cretaceous and Miocene carbonates, testifying for the doubling of the Mesozoic succession [75]. A horizontal displacement in the order of 30 km and vertical offset of about 5 km has been proposed for this thrust [76,77], although field evidence from the Simbruini thrust front is at odds with this interpretation [49]. These ridges constitute the backbone of the internal sectors of the Central Apennines (internal Central Apennines), which first overthrust onto the outer active margin deposits and, during late Messinian time, were involved into renewed shortening [43]. Differently from the Internal Apennines, the axial and external parts of the chain, that occur more to the northeast, were involved into the wedge respectively during Messinian (Abruzzi) and Pliocene (Majella Mountain deformed Apulian terrains; Figure 1; see in [78]) times. During middle Pliocene time, the outermost terrigenous units experienced compression, while back-arc extension was affecting the internal part of the chain.

2.2. The Volsci Range and the Latin Valley

The VR is traditionally subdivided into major mountain groups, i.e., West Lepini, East Lepini, Ausoni, and West and East Aurunci Mts (Figure 2), that are separated by major valleys or mountain passes. More to the SW, the Mount Massico structural high occurs. These groups share a similar tectonic and stratigraphic evolution. The VR is mostly composed of passive margin Mesozoic neritic carbonates belonging to the Latium and Abruzzi platform or Apennine carbonate platform (see, e.g., in [79,80,81]). The Mesozoic dominant facies are representative of inner to rim carbonate platform environments (see, e.g., in [63,64,82,83]).
A compilation of the Mesozoic lithostratigraphic units cropping out in the Lepini sectors is presented in Figure 2. The Upper and Lower Volsci thrust sheets differ from the Upper Ernici unit on the basis of the Cenozoic stratigraphy. Of note, the VR succession generally bears a thin and incomplete succession of Paleocene to Miocene deposits [84] atop late Cretaceous formations of different ages, possibly due to progressive drowning of some sectors of the platform during Late Cretaceous time [63]. On the other hand, in the Latin Valley, the Ernici unit is thicker and also contains Eocene to early Tortonian foreland units and late Tortonian to earliest Pliocene active margin siliciclastic formations (see in [63] and the references therein).
Seismic interpretation studies in the Latin Valley, carried out by AGIP and other companies (www.videpi.com) (accessed on 20 January 2021), trace top-platform seismic horizons that allowed us to locally outline a fold-and-thrust structure [85]. According to the authors of [64,86], the VR front propagation affected the Latin Valley foredeep deposits that were doubled or even triplicated [45]. Upper and lower units in the Volsci Range and in the Ernici units of the Latin Valley were thus distinguished. As also shown in the cross sections in [64], thrusting involved the Cretaceous carbonates of the Ernici unit together with upper Tortonian foredeep sediments of the Frosinone Formation [63,64]. Finally, out-of-sequence thrusting during and after the Messinian salinity crisis was documented in [77,87], possibly related to backthrusting, like at Carpineto Romano [88]. The thrust front does not crop out, but according to the most recent reconstructions, it is offset by normal faults [45,86]. At least from Middle Pliocene time, the study area experienced regional uplift, accompanied by subaerial exposure and consequent diffuse erosional processes that generated erosional surfaces, now found at different elevations [63].
According to the authors of [89], just north of VR the uplift rate increased during the last 2.4 Myr. In the VR, no such detail was reached yet. However, early to late Pleistocene slope, river, and lacustrine paralic and continental deposits were mapped within depressions bounded by high-angle NW- and NE-striking normal faults that dissected the fold-and-thrust fabric. Further, E-striking transtensional faults contribute to generate middle Pleistocene wrench zones and basins between the Latin Valley and the Pontina Plain. Syn- to post-tectonic upper Pliocene–middle Pleistocene continental successions are preserved in the Middle Latin Valley, the Pontina Plain, and locally in the VR intermontane depressions [64]. Further, during late Pliocene to possibly Holocene times, the fold-and-thrust belt was progressively cross-cut by a system of conjugate synthetic and antithetic normal faults determining the formation of the coastal plain and intra-mountain depressions [64,90,91]. The VR hosts volcanic terrains of Pleistocene age from both nearby volcanic districts and local eruptive centers belonging to the Volsci Volcanic Field (VVF; Figure 1 [64,92]).

3. Materials and Methods

3.1. Stratigraphic Review and New Paleontological Determinations

The lithostratigraphic architecture of the Meso-Cenozoic carbonate platform succession has been reviewed, following the scheme in [45], and it has been integrated with a stratigraphic chart that compares eighteen different key localities representative of pre-orogenic passive margin to syn-orogenic foreland basin lithostratigraphic units throughout the study area (Figure 2). Erosive submarine and karst-related unconformities are reported to support the regional review of the syn-orogenic evolution, also constrained by the absolute ages provided in [43] for the Massico Mt ridge. The overall stratigraphic setting allowed us to correlate diachronous events among different structural units from the Volsci Range and Latin Valley. Lithologies not constrained by biomarkers are traced by a question mark, whereas lithologic and biostratigraphic information coming from the review of the existing literature is resumed in the table of Appendix A. We have harmonized the stratigraphic information published in the 1:100,000 maps (i.e., Latina, Frosinone, and Alatri; https://www.isprambiente.gov.it/) (accessed on 20 January 2021), and in the more recent and detailed 1:50,000 maps (i.e., Anagni, Ceccano, and Velletri; https://www.isprambiente.gov.it/) (accessed on 20 January 2021) as well as and in other papers (i.e., in [72,84,86,87,88,93,94] and, using the stratigraphic nomenclature after that in [64], then grouped the deposits into the broader informal lithostratigraphic subdivision of Figure 2.
New biostratigraphic information was acquired by studying Upper Cretaceous–Miocene to early Pliocene samples collected from fifteen localities at Colle Cantocchio, Gorga, Gavignano, Carpineto Romano, Caccume Mt., and Siserno Mt. (Figure 2). Further sampling through the Latin Valley at Morolo, Ferentino, and Frosinone localities was performed in order to determine facies and fossil content of syn-orogenic deposits. Hard rock samples have been prepared for thin sections analysis, which provided thirty-three new age determinations. Further, we collected seventeen samples for nannoplankton using samples prepared under smear slide technique, and following the procedures described in [95]. We observed the nannoplankton content through the polarized light microscope Zeiss Axioscop equipped with an ×100 oil immersion objective lens. We performed a qualitative evaluation of the assemblages on all the samples, but only twelve of them proved to be fossiliferous, while five other ones are barren or poorly fossiliferous. Important time maker nannoplankton taxa were identified up to species level, as presented in Supplementary Material. We base our time determination on the micro-biostratigraphic frames in [82,96,97,98] for the shallow-water carbonate assemblage and the biostratigraphic scale in [99,100,101] for the nannoplankton.

3.2. Structural Analysis

A new structural-geological survey of the carbonate and siliciclastic succession integrates previous work of the Geological Survey of Italy (ISPRA) (i.e., in [64,102,103] and the references therein). The resulting new geological map is built also considering a specific review of the 1:50,000 geological sheets “Anagni” and “Ceccano” in order to avoid lithostratigraphic synonymy (see Appendix A) [64,103].
Bedding attitude was retrieved from existing map sheet tables at the scale 1:25,000 on a stripe of about one kilometer to each side of the main cross section (Figure 3). In order to constrain fault kinematics, field measurements of faults, fractures, and slicken-fibers were collected at key localities and plotted by means of TectonicsFP software [104] with lower-hemisphere projections and rose diagrams. In particular, at each locality eigen vectors are calculated from the bedding and are indicative of the orientation of the axes of deformation, where the gray circles are representative of the plane between the principal and minimal eigenvector. In general, an eigenvector is a vector which gets stretched, but not rotated, when operated on by the matrix. Considering that eigenvectors have corresponding eigenvalues, the amount of squeezing or stretching (the strain) is called the eigenvalue. Eigenvectors from key localities are reported in Table S1 (Supplementary material).

3.3. Borehole Data from the Latin Valley

Composite well log data from the exploration and production of hydrocarbon activity were used to calibrate the seismic lines (Figure 3). Fifteen wells were drilled through the syn-orogenic lithologies, and they provide insights on late Miocene siliciclastic deposits. Four wells are from a public database (www.videpi.com) (accessed on 20 January 2021), the others were extrapolated from the literature [64,106,107] or confidential reports provided by Pentex Italia Ltd. The stratigraphic calibration of the seismic profiles was performed by using (i) the Frosinone 1 well, which is located within a relatively dense network of seismic lines and drilled at total depth of 684 m, reaching the Orbulina Marl Fm at 526 m and the CBZ at 551 m, while the Cretaceous carbonate platform top was encountered at 620 m, and (ii) the Anagni 1 well, which encountered mesozoic platform carbonates between 47 and 162 m and reached again the carbonate top at 862 m after having crossed a thick siliciclastic succession (Figure 2 and Figure 3). Three wells were characterized by velocity data that allowed us to calibrate seismic data and/or calculate average and interval velocity for the identified macro-units. Where velocity logs were not available, an average interval velocity based on our calculations was applied to fit with the correspondent lithology and reflector detected on seismic profile. In few cases, velocity logs were available for a direct local time-depth chart; in the other cases, average velocity obtained by the analysis of the available logs and from literature was used. These two velocity laws were used to depth-convert the two-way-time interpretation on seismic dataset, in order to define thickness and depth of the main top interpreted horizons to set the geological cross section (Figure 14). Biostratigraphic data are available only for a few key wells (i.e., Paliano 1, Gavignano 1, Anagni 1, Frosinone 1, Liri 1, and Farnese 1) and have been anchored using the regional scale in [96].

3.4. Seismic Dataset

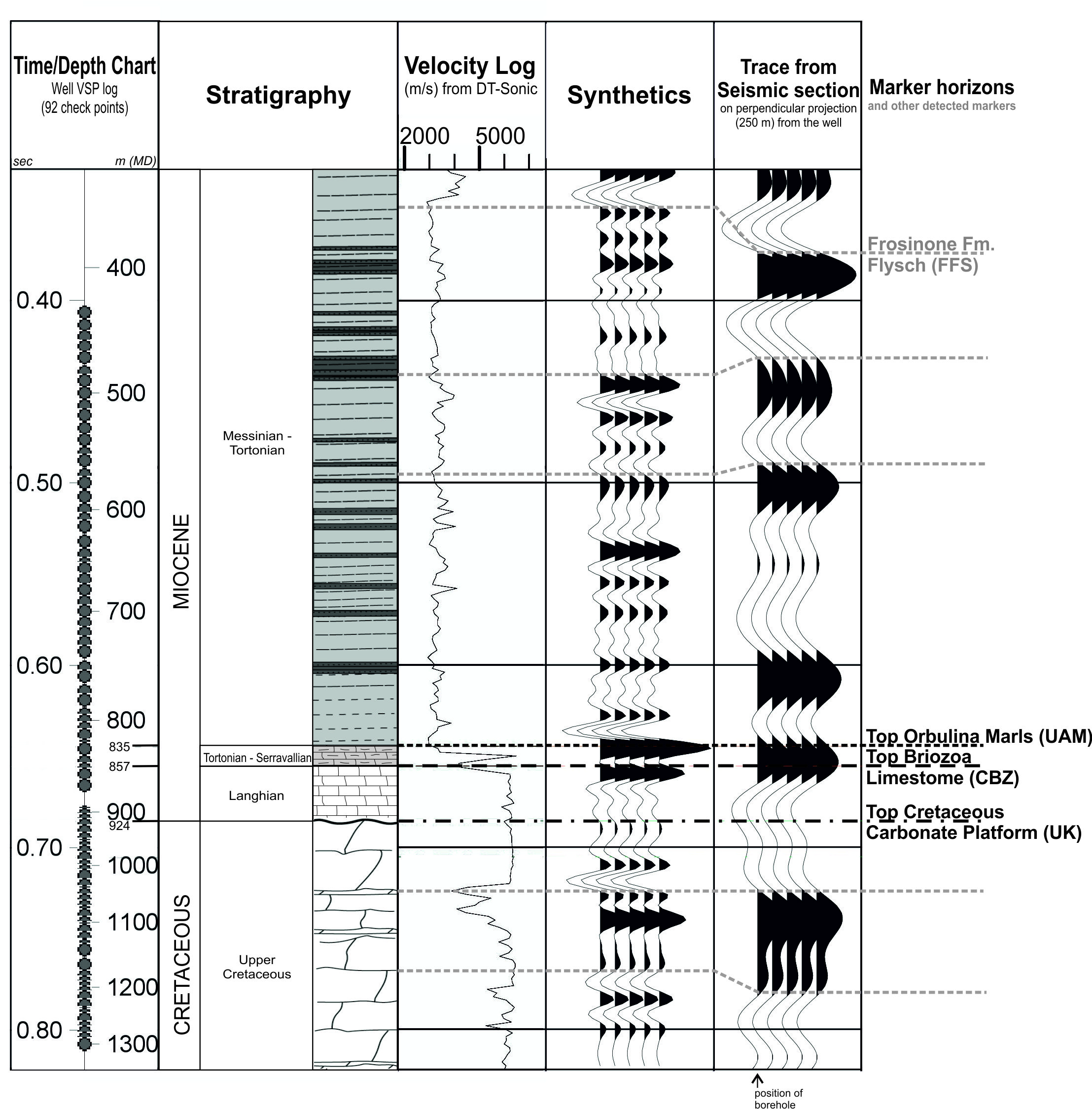

The structural setting of the Latin Valley presented in this study largely relies on thirty-eight 2D seismic reflection profiles irregularly arranged (map view Figure 3b). In the north, some seismic lines gather around the Gavignano 1 and the Anagni 1 wells, while in the south they occur together with different wells (Figure 3). The seismic sections originate from different acquisition campaigns carried out in the 1980s and 1990s for the exploration of hydrocarbons by AGIP and recently by Sovereign and Pentex. Most seismic lines are part of a public dataset (ViDEPI Project. Available online: https://www.videpi.com accessed on: 20 January 2021. This public network has been integrated by a few other seismic lines from different surveys, to better constrain the structural setting of the Latin Valley. The interpreted seismic dataset was a stack version. Public data were in raster format, so we produced segy files for each raster seismic line in order to be able to import all the dataset into the interpretation software (OpendTect). This was achieved using Kogeo© 2.7, a free and open software for 2D/3D seismic data analysis that allows to create a geo referenced seg-y file from a scanned seismic image (http://www.kogeo.de/index.htm) (accessed on 20 January 2021). Seismic quality is good to poor, probably due to a lack of reprocessing and therefore interpretation may be inaccurate in some points. In those cases, we have integrated the outcropping geological information to reconstruct a geological model along the seismic profile, identifying when possible the main reflectors.
The most evident reflectors are the unconformities at the top of the upper Cretaceous carbonates (Figure 4), and of the Orbulina Marl Fm. (UAM; Figure 2). To calibrate and detect the main reflectors/markers in the Latin Valley, a synthetic seismogram was created for the Anagni-1 well (Figure 4) by focusing on the following formation discontinuities (from the bottom to the top): at the top of the Cretaceous limestones (UK), at the top of the Bryozoa and Lithothamnium limestone (CBZ), and at the base of the Frosinone Formation (FFS). For the interpretation of the seismic profiles, we identified the top-CBZ as the key reflector with the strongest acoustic impedance contrast observed over the entire Latin Valley. This often corresponds to the UAM lithostratigraphic unit (Figure 2), which at the basin scale corresponds with one of the most used reflectors that tie wells with seismic lines [108,109,110]. Miocene and Cretaceous near-top reflectors are well recognizable because of the characteristic geometry and energy picks that are stronger than the adjacent reflectors. In particular, the marly layers reflect most of the down-going seismic energy, obscuring the siliciclastic sequence or the underthrusted carbonate units. Despite the limited thickness of UAM, this reflector was followed also on the poorer quality seismic lines.

4. Results

4.1. Stratigraphic Constraints

4.1.1. Stratigraphic Review

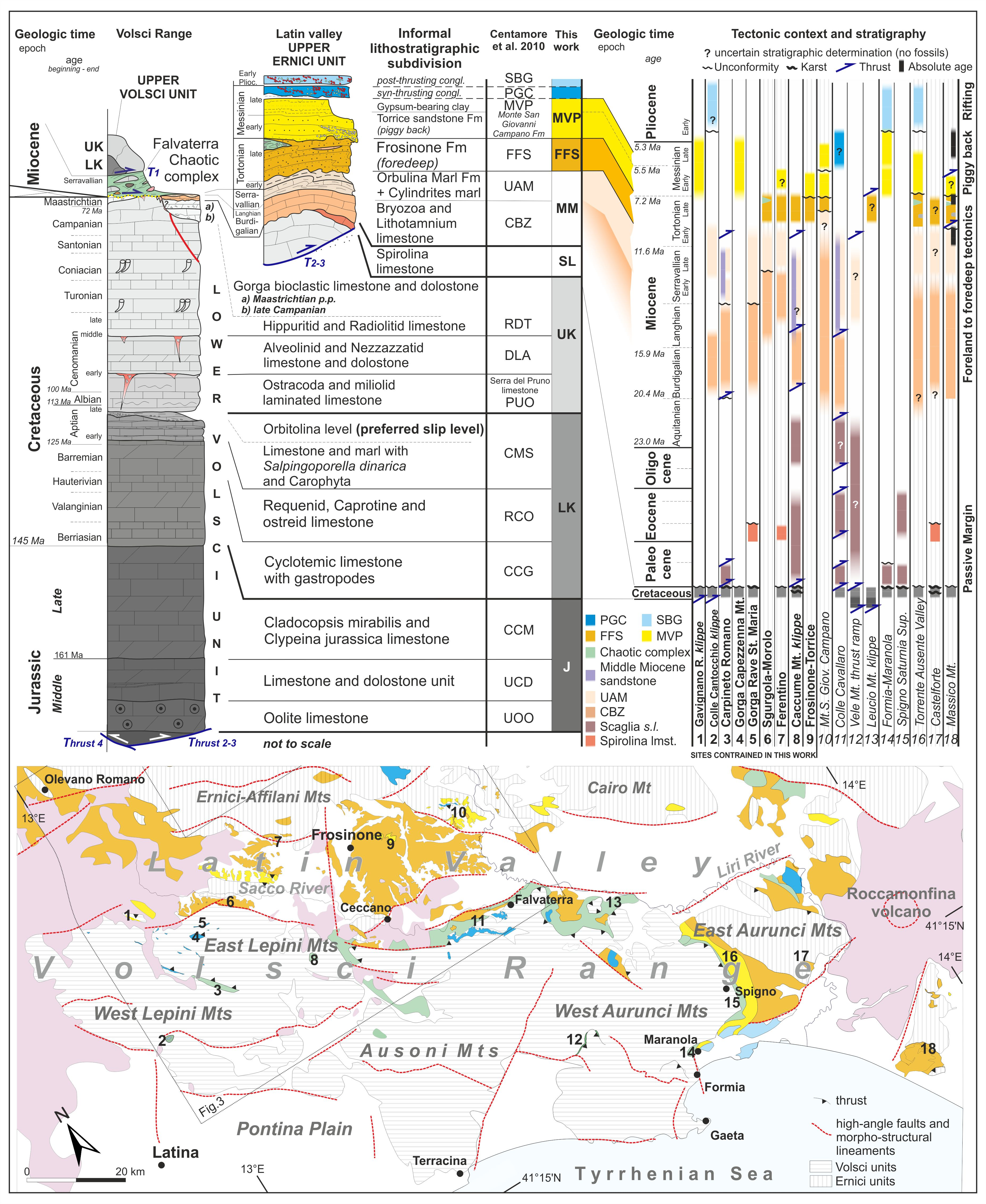

The stratigraphy of the study area is schematically reported from the literature in Figure 2, where the lithostratigraphic units are anchored to the exposed sections at each of the eighteen localities presented in the map. The basics of the different tectonic units are exposed in Section 2.2. A new set of ages is proposed for the succession cropping out at the northern Volsci Range, as shown in the next section.
The Upper Campanian to Eocene carbonate platform succession that rest on the Hippuritid and Radiolitid limestone is generally missing [64], possibly due to a widespread depositional hiatus, although it locally crops out (e.g., at Gorga [103,111]). Note that the shallow-water Spirolina limestone (lower to mid-Eocene [112]), which crops out only in rare patches comprised between two unconformities—probably related to emersion events—was found at Gorga [112], Ferentino, and Castelforte (Figure 2; see also in [96,113], while it was recognized in well logs of Paliano 1 DIR and Farnese 001dir (Figure 3). In the Volsci Range, the Bryozoa and Lithothamnium limestone (CBZ) was dated as middle Miocene (see, e.g., in [64,87]). However, our data from the Volsci Range show that at least the CBZ base is early Miocene in age (see Section 4.1.2). Locally in the Volsci Range (e.g., Carpineto Romano, Figure 2), the CBZ lithotype is reported to occur within and beneath the allochthonous sub-Ligurian units [72], that can be compared with the Falvaterra Chaotic complex in [63].
Overall, the Falvaterra Chaotic complex is an ensemble of Paleocene to middle Miocene lithoclasts (from dm to decametric) wrapped within a matrix, whose best age constraints were provided mostly from the outcrops of Colle Cavallaro [114]. The basal contact of the Chaotic complex, although tectonically overprinted [63], is often marked by a ferruginous-limonitic veneer that occurs as a calcareous-detrital iron-oxide cruston. Differently from the classical carbonate hardgrounds, that are surfaces of synsedimentarily cemented carbonate layers that have been exposed on the seafloor under an extremely low sedimentation rate, the crustons of the Volsci Range could be either of karstic origin and/or the product of fluids involved into thrust faulting. Near Formia these crustons occur on top of peritidal limestones with benthic foraminifera (redetermined after the work in [63]) including Spirolina sp. [115], which can be possibly attributed to the early Eocene [111]. In particular, the foraminifera shown in [63] (their Figure 4) appear closer to some shallow-water discorbidae rather than planktonic forams. However, this need to be verified with new determinations. Our data constrain the top platform units providing new insights on the correlation, envisaged in [63], between these crustons and the Upper Cretaceous–lower Miocene succession preserved in the Chaotic complex (cf. Section 5.1 on the basis of the new stratigraphic constraints presented in Section 4.1.2.). Concerning the stratigraphic evidence from the Paleogene-early Aquitanian pelagic terms atop (Figure 2), they are mostly represented by Scaglia lithotypes (e.g., Formia and Spigno Saturnia, Figure 2). These lithotypes also crop out beneath the thrust south of Carpineto Romano, and beneath the Caccume Mt. and Colle Cavallaro klippen (Figure 2). Further, Scaglia sensu latu lithotypes were found as blocks of various dimensions wrapped in clayey matrix together with: early-middle Miocene lithoclasts (Figure 2; Appendix A), upper Serravallian cherty marl, and massive to laminated arcosic greywackes with mica [103]. The latter resulted sterile at the Caccume Mt. [84]. Lithologies of clasts involved into the Chaotic complex belong to a wide chronostratigraphic interval (i.e., Paleogene-Serravallian pro parte; Figure 2). More to the south, beneath the Vele Mt. thrust, siliciclastic marly deposits, mapped as Chaotic complex equivalent units, occur. Our data provide age constraints for the northern Volsci Range, see Section 4.1.2, and provide insights on the stratigraphic development of the sedimentary succession later deformed as Chaotic complex.
In the Latin Valley, the Frosinone Fm. was homogeneously attributed to late Tortonian time, while on the northeastern edge of the valley the base seems to be younger (i.e., uppermost Tortonian [87]). The upper part of the Frosinone Fm. unit bears olistoliths and olistostromes [115], from Mesozoic platform and Chaotic complex equivalent lithologies. They are reported at Sgurgola [35] and in the Torre Ausente Valley [64,116], although not as nicely cropping out as at the Massico Mt. [37].
Well data show a highly variable facies pattern of the siliciclastic units that include carbonate intercalations and thick marly successions with minor to rare sandstone horizons (Gavignano 1; Anagni 1; Frosinone 01; Farnese 001 wells; Figure 3). Due to tectonic juxtaposition, these successions may appear repeated at least twice and thus also reaching a total thickness of about 1.8 to 2.5 km at Gavignano and Liri and Farnese wells. Single thrust-bounded siliciclastic units are up to some 0.7 km thick.
In particular, the Gavignano 1 well hits four repeated siliciclastic-marly sequences bounded by thrust faults juxtaposing older terrains above younger ones. The uppermost unit is constituted of Upper Cretaceous (UK) limestones (cf. Anagni 1 well). The deeper fault-bounded units are about 600–900 m thick. Their siliciclastic sequence is defined by different lithofacies associations including alternations of sandstone, marl, and limestone. By correlating the wells providing detailed biostratigraphic information (e.g., Paliano, Gavignano, and Frosinone), we have correlated similar lithostratigraphic units, thus providing a formation identification. Biostratigraphic data from wells do not report Messinian taxa. Thus, we consider the Messinian Monte San Giovanni Campano unit (MVP) following the work in [63] and composed of wedge-top clastics [87], including other formally defined lithostratigraphic units (i.e., Torrice Sandstone Fm, Figure 2). Despite this lack of subsurface biostratigraphic information, its occurrence at depth cannot be excluded. Further, the correlation among conglomerates bearing exotic clasts of granitoids (SBG) is not clear as not supported by resolutive available stratigraphic information. However, their occurrence is of regional relevance as they could be representative of the transition from late orogenic [117] to backarc settings (i.e., Formia; Figure 2).

4.1.2. New Stratigraphic Constraints

New stratigraphic data from the northern Volsci Range and Latin Valley constrain the age of sedimentary units (Appendix B). The uppermost Cretaceous carbonate units were studied at different localities to reconstruct the tectono-stratigraphic setting of the top of the platform before thrusting. This information is provided by the variable thickness and facies distribution of the carbonate units between the Hippuritid and Radiolitid limestone and the ferruginous cruston on top, which usually marks the top of the platform. East of Gorga (Figure 2), the Hippuritid and Radiolitid limestone is overlain by some decameters of Maastrichtian bioclastic limestone and dolostone. This unit is truncated at the top by breccias, indicating an unconformity on the Upper Cretaceous succession. Those breccias are intercalated with a middle Burdigalian shallow-water marly level (Lep 12c, Appendix B) passing upward to typical CBZ limestone.

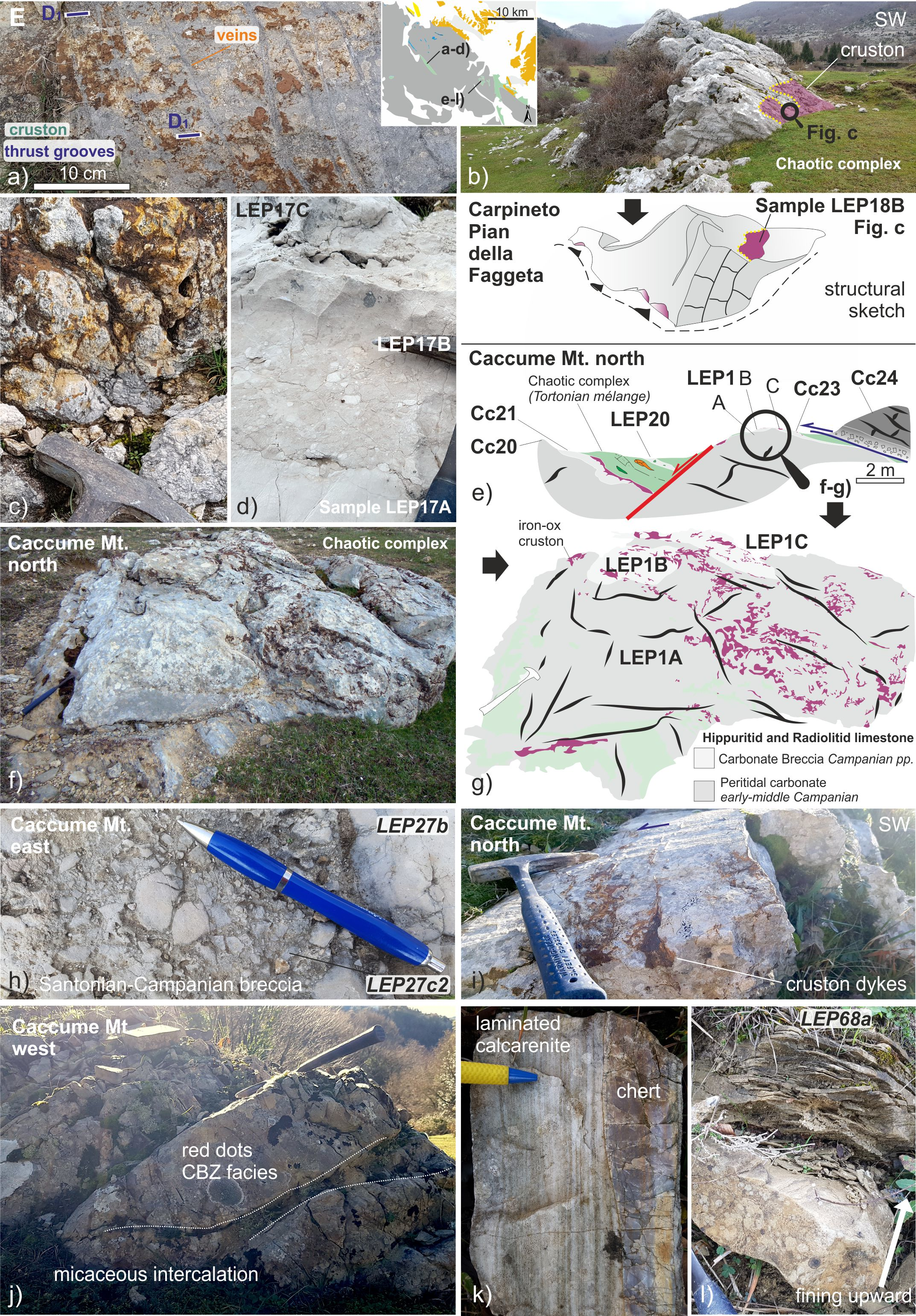

The Mesozoic platform top was found on top of the Lower Volsci Unit at the Caccume Mt., where it occurs as an encrusted breccia. At Carpineto Romano (Figure 5), atop of the platform succession of the Lower Volsci Unit, when preserved, discontinuous thin patches of proximal early Miocene CBZ limestone and middle Miocene Orbulina Marl formations occur (cf. Cosentino et al., 2002). At Colle Cantocchio (Figure 2; Appendix B), the early Miocene CBZ limestone was found disconformable on the Jurassic-Cretaceous limestone, which is marked by a hardground (structural details in Section 4.2.1).
Atop the Meso-Cenozoic carbonate units, the Chaotic complex occurs as a mélange that contains both native and exotic blocks, the latter being Cretaceous to Miocene basinal to distal ramp deposits that are coeval with the in situ formerly described proximal succession (Figure 5). Both block types are internally folded. South of Carpineto Romano (Figure 3), the deformed platform blocks involved within the Chaotic complex are stratigraphically comparable with the encrusted carbonates that are preserved at the top of the Lower Volsci Unit (cf. Figure 2). In particular, within the Chaotic complex, we have mapped several lenses of Cenomanian to early Campanian limestones covered by middle Campanian karstic breccias and ferruginous to limonitic cruston (Figure 5; structural details in Section 4.2.2).
Differently from the native blocks, the Scaglia-type pelagic to hemipelagic limestones (with rare planktonic foraminifera and iron oxides) occur as exotic inclusions. In this category, at Carpineto Romano and Caccume Mt. (Figure 2 and Figure 5; Appendix B), we have found CBZ blocks of early Miocene age represented by red dots (iron oxide spherules) glauconitic calcarenite associated with micaceous intercalations and chert (Figure 5). Minor lenses of hemipelagic middle Miocene marl and sandstone occur as well. Overall, the blocks are wrapped within a sandy-clayey matrix that is alternated with shales, foliated brownish marl, greenish arenaceous beds with exotic lithic, and coarse-grained micro-conglomerate with carbonatic and crystalline elements.
The matrix of the Chaotic complex at the base of the Caccume and Siserno mounts, includes Paleocene-Eocene, Oligocene-early Miocene, middle Miocene, and perhaps also late Tortonian-Messinian nannofossil assemblages (Appendix B). A similar wide span of ages was obtained from the shaly units of Colle Cantocchio (Figure 2), where Mesozoic to Tortonian nannoplankton reworked specimens were found beneath a major thrust (Appendix B; see also Section 4.2.1).
In the Latin Valley, the nannoplankton from the Frosinone Fm. can be referred, although rare or hardly diagnostic, to late Tortonian time. Wedge-top conglomerate deposits were studied at two key localities. At Gavignano (Figure 3), folded calcareous conglomerate occurs atop karstified Cenomanian limestones that according to the well data are juxtaposed on arenaceous deposits (cf. Figure 3). The clasts of mixed origin are from the Upper Cretaceous carbonates (i.e., Coniacian-Campanian and Albian-Cenomanian; see also Farinacci, 1965) and from the Tortonian Orbulina Marl Fm. The embedding matrix is made of abundant quartz grains along with reworked Amphistegina and Elphidium that make it possible to refer the whole Gavignano clastic deposit to the MVP unItal. In particular, the fining upward series with rare sandy matrix at the base (LEP10L) are dated to the latest Tortonian-earliest Zanclean and the clay marl at the top (LEP10M) to the Messinian. Thus, we consider this topmost constrain as indicative of the Messinian age of the MVP unit in the Latin Valley.
Within the eastern Lepini backbone, the conglomerates of Gorga are composed of pebbles and rounded blocks of reworked conglomerates whose clayey matrix and a bioturbated marly pebble were investigated. The age of these samples is late Tortonian for the marly pebble due to the presence of the coccolithophore Discoaster surculus, and top Tortonian–earliest Zanclean for the clay matrix bearing the marker Amaurolithus primus.

4.2. Structural Analysis of the Volsci Range

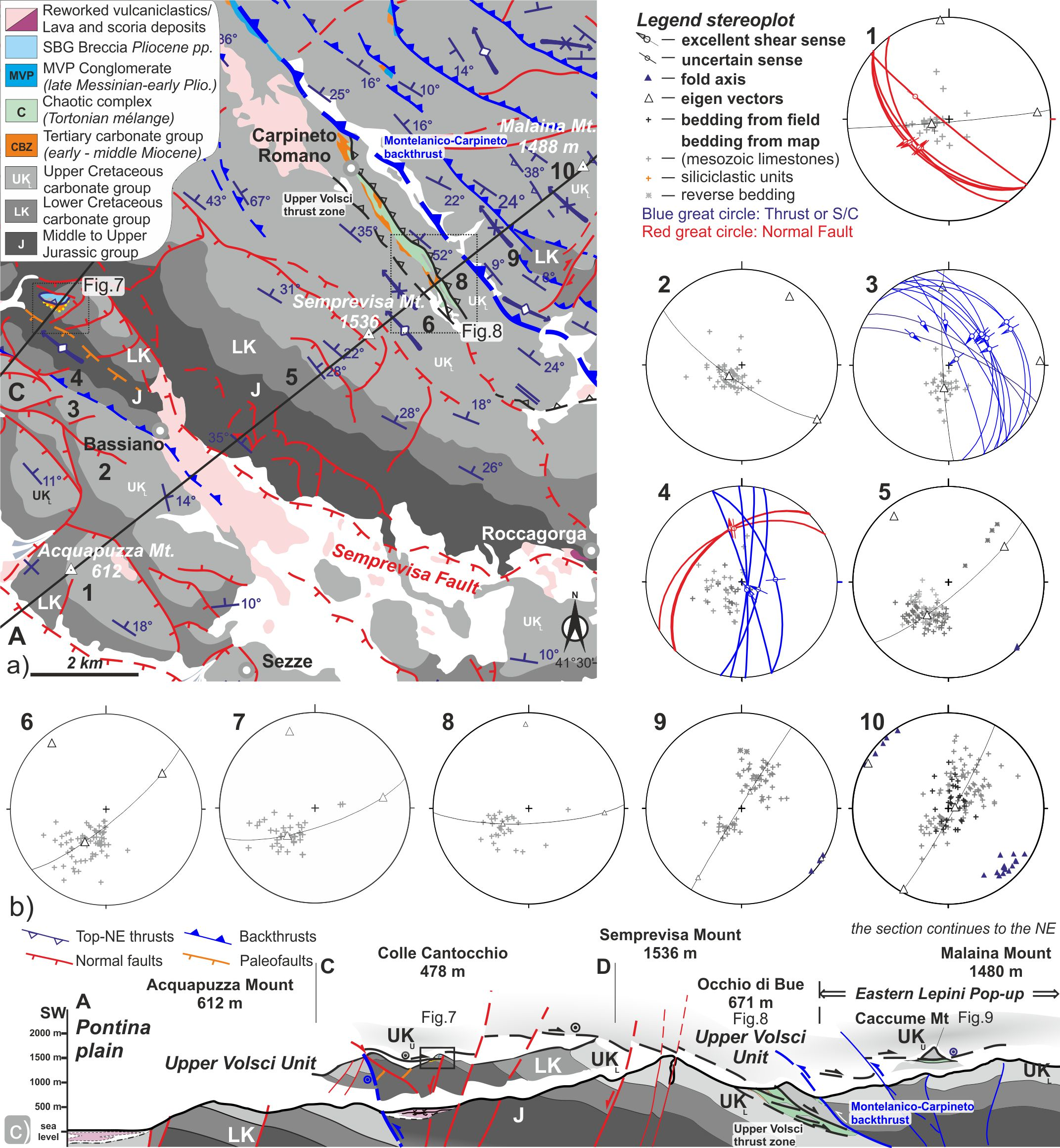

In this section, we document the field data used to reconstruct a geological cross section across the northern Volsci Range. The Western Lepini Mounts essentially consist of a 3 km thick Jurassic to Cretaceous carbonates dipping to (E)NE, whose local variations are shown in the stereoplots from 1 to 6 in Figure 6. The Neogene lithostratigraphic units atop are locally preserved beneath a few klippen structures that we document in detail in the next paragraphs. In the map and in the cross section of Figure 6, two areas are highlighted and described in detail as they preserve novel insights about pre-orogenic and syn-orogenic tectonics, which are presented from the oldest to the youngest event.

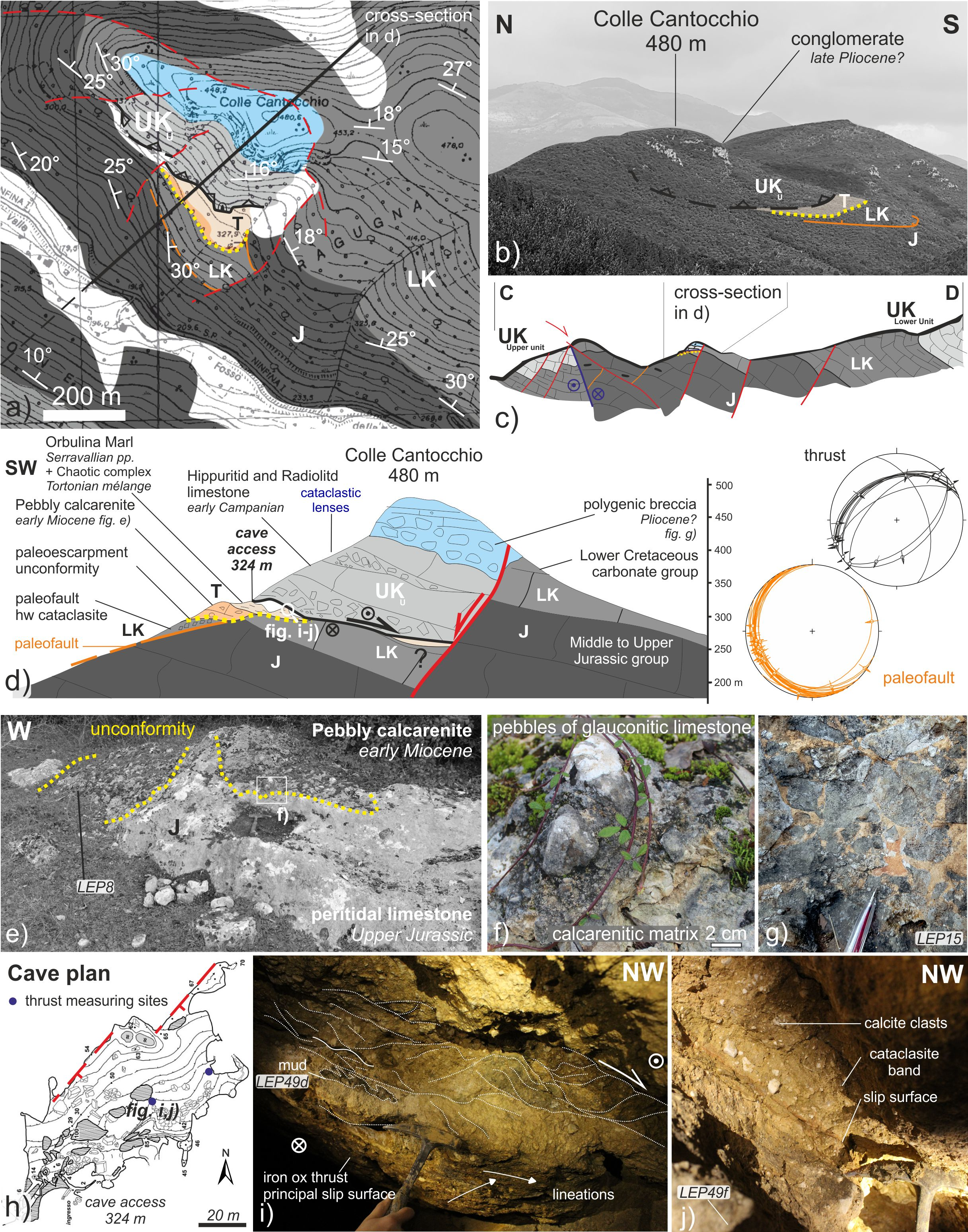

Near the western edge of the Western Lepini Mounts, a detailed survey performed at Colle Cantocchio allowed us to update the previous work by providing details on the stratigraphic contacts and fault kinematics (Figure 7). In particular, we integrate the data from in [93] by describing the pre-orogenic contacts and the low-angle fault juxtaposing Cretaceous rocks onto the Orbulina Marl Fm. As we can see from the panoramic view and cross section (Figure 7), lower Cretaceous calcareous dolostones (LK) are juxtaposed to a thick Jurassic-Cretaceous succession. The LK unit is downthrown towards the WSW and it overall consists of a striated proto-cataclasite of a normal fault (in orange). The fault has a cut off angle of about 40° with the footwall bedding. On top of this fault (paleofault, orange line in Figure 7), patches of lower Miocene CBZ occur sealing the contact (see Section 4.1.2). At the contact, an oxidized bluish rim of Mesozoic limestones marks the paleoescarpment (yellow dotted line in Figure 7), which is surrounded by altered shales (late Serravallian-Tortonian pp. Orbulina Marl Fm).
Such an inherited tectono-stratigraphic setting is preserved at the footwall of a thrust, whose hanging wall consists of a one-hundred-meter-thick pile of Upper Cretaceous (early-mid Campanian) limestone, and whose base constitutes the roof of a cave. The cave is defined by an iron oxide-rich striated principal slip surface. In the hanging wall, cataclastic bands are crosscut by minor mirror-like faults.
As constrained by nannoplankton analysis on samples from the fault core, both clasts and matrix (see Appendix B) are representative of different levels of a basinal sedimentary succession. The cataclasite also includes fragments of calcite mineralizations. The internal fabric is marked by the occurrence of slip surfaces associated with transpressive S/C structures indicating top-to-the-NE thrusting. Overall, the thrust seems to cut up-section although bounded and possibly tilted by later normal faults. The NW edge of the cave is bounded by a NE-striking normal fault with a displacement in the order of 20–40 of meters (red line in Figure 7h). At the top of the hill, the overall structure is topped by transgressive polygenic marine breccia composed by Miocene and Cretaceous calcareous clasts with a reddish cement and calcareous matrix, possibly crosscut by a SW-dipping normal fault with a displacement in the order of 150 m.

4.2.1. Thrusting at the top of Lower Volsci Unit

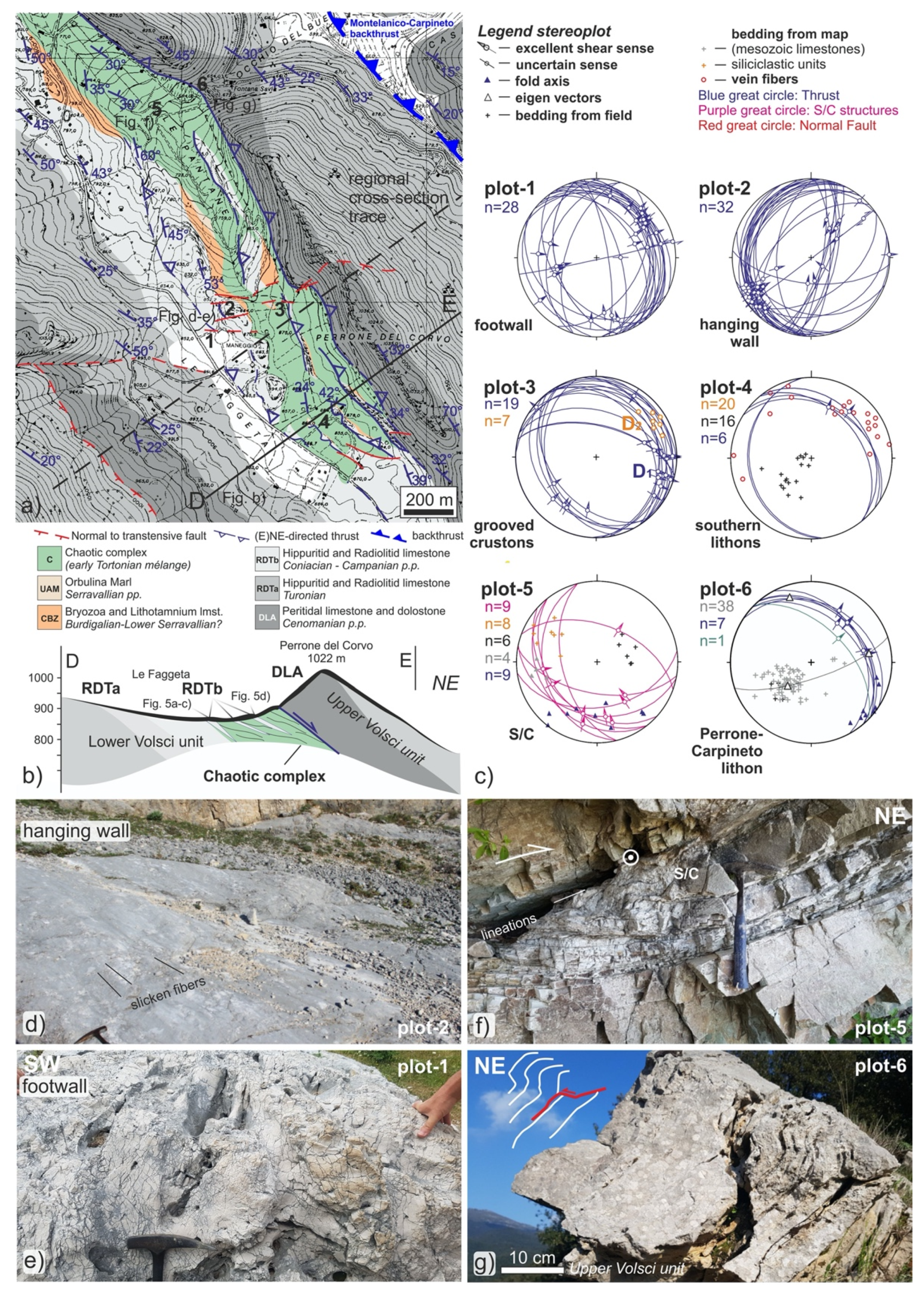

Figure 8 summarizes the kinematic indicators affecting the top of the Mesozoic platform and the Chaotic complex in six localities at the top of the Mesozoic succession of the Lower Volsci Unit in the Western Lepini Mounts.
Starting from the base of this deformed area, the Hippuritid and Radiolitid limestone (Campanian RDTb; Appendix B) of the Lower Volsci Unit is affected by bedding-parallel proto-cataclasite bands crossed at low-angle by striated curvy fault mirrors with dm2 to m2 dimensions (Figure 8). Across the most evident fault mirror (Figure 8), both footwall (plot-1) and hanging wall (plot-2) are characterized by top-to-the-NE slicken fibers, measured also on smaller fault mirrors. Crustons are disconformably topped by veined and laminated beige sandy calcarenites (plot-3). The thin carbonate blocks embedded in the Chaotic complex at Pian della Faggeta (plot-4) have variable thickness (up a few meters thick) and limited lateral extent (up to some dozens of meters). The native carbonate lithons are internally deformed and in places, display a sharp contact at their base with the siliciclastic units, and can be internally affected by top-to-the-(E)NE asymmetric folding. On the top of some of these slices, E-trending thrust grooves are cross-cut by NE-stretching mode-I veins. Beside the dominant NE-stretching, provided by the fiber direction of veins, more to the south (plot-4, Figure 8), veins crossing carbonate slices in similar structural positions also show NW-directed stretching.
At Occhio di bue locality (plot-5), a block of middle Miocene limestones and marls with chert topped by light green clay of late Serravallian age (c.f., Cosentino et al., 2003) is affected by S/C structures indicating top-to-the NE shear. Coherently, at the contact with the Cenomanian limestone on top, 1–2 m of foliated proto-cataclasite bands are topped by (E)NE verging folds (plot-6; Figure 8). In the same plot, top-to-the-NE striated bedding is reported as it crops out more to the north at the top of the same lithon. While bedding is folded around N- to NNW-striking axes (cf. stereoplots 7–8; Figure 6), northeast of a major backthrust it is folded around NW-striking axes of folds (stereoplots 9–10).
As the Chaotic complex is concerned, field data from the Eastern Lepini Mounts highlight the top-to-the-ENE juxtaposition of the Upper Volsci unit above the Chaotic complex (i.e., Caccume Mt., Siserno Mt.), which in the Volsci Range is preserved in a few klippen atop the Lower Volsci Unit, whereas in the Latin Valley it is found on top of the Frosinone Formation (Figure 9a and Figure 10a). At the Caccume Mt., we report structural information from the juxtaposition of folded Cenomanian Lower Cretaceous limestone on the Chaotic complex. The regional folding affecting the Lower Volsci Unit defines a well-marked NW-striking open fold while the Upper Volsci unit of the Caccume Mt. displays rather dipping beds folded around an NNW-striking axis. The basal contact of the Chaotic complex is marked by thrust grooves and ferruginous faint slicken lines along the crustons, while at the top of the Chaotic complex, S/C and C’ structures display top-to-(E)NE shearing. Cross-cutting field relationships show that thrust grooves are further cross-cut by high-angle en-échelon shear zones and normal faults.

4.2.2. The Volsci Range Thrust Front and the Latin Valley Structures

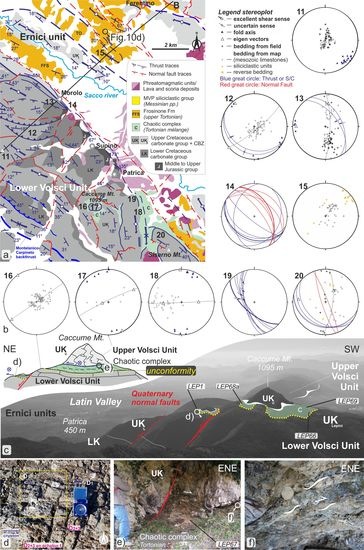

The geometries of the frontal part of the Volsci Range and Latin Valley are shown from the SW to the NE (stereoplots 11–15, Figure 9). The thrust front between the Ernici and Lower Volsci units occurs as a series of imbricates of overturned Cretaceous to CBZ layers (i.e., NW of Morolo; Figure 9). New data allowed us to recognize a salient at the front of the Eastern Lepini Mounts. This structure is accompanied by a change in the fold trend from NW to W (plots 12 and 13; Figure 9) and by transpressive top-to-the-NE kinematics. The frontal part is defined by a large-scale anticline in the west and a syncline in the east (Figure 9). The two folds are separated by a series of NNW-striking tear faults with inferred right-lateral kinematics (Figure 9). More to the east (plot-18), the N-S trending flank of the salient is associated with transpressive S/C structures in Cretaceous limestones (plot 19). Overall, the fold-and-thrust fabric is cross-cut by NE-dipping normal faults at the northeastern VR edge. As it is downfaulted, the thrust front does not outcrop further north. In the VR, a salient has been mapped between Morolo and Patrica (Figure 9), its most external point being characterized by the outcrop of Jurassic limestones. Upper Cretaceous units occur as klippe above the imbricated Chaotic complex juxtaposed to the foredeep deposits of the Frosinone Fm.
At the southern edge of the studied area of the Latin Valley (Figure 10a), the Chaotic complex was mapped as juxtaposed on the Frosinone Fm., and it reaches its maximum thickness west of the Siserno Mt. (about 250 m).

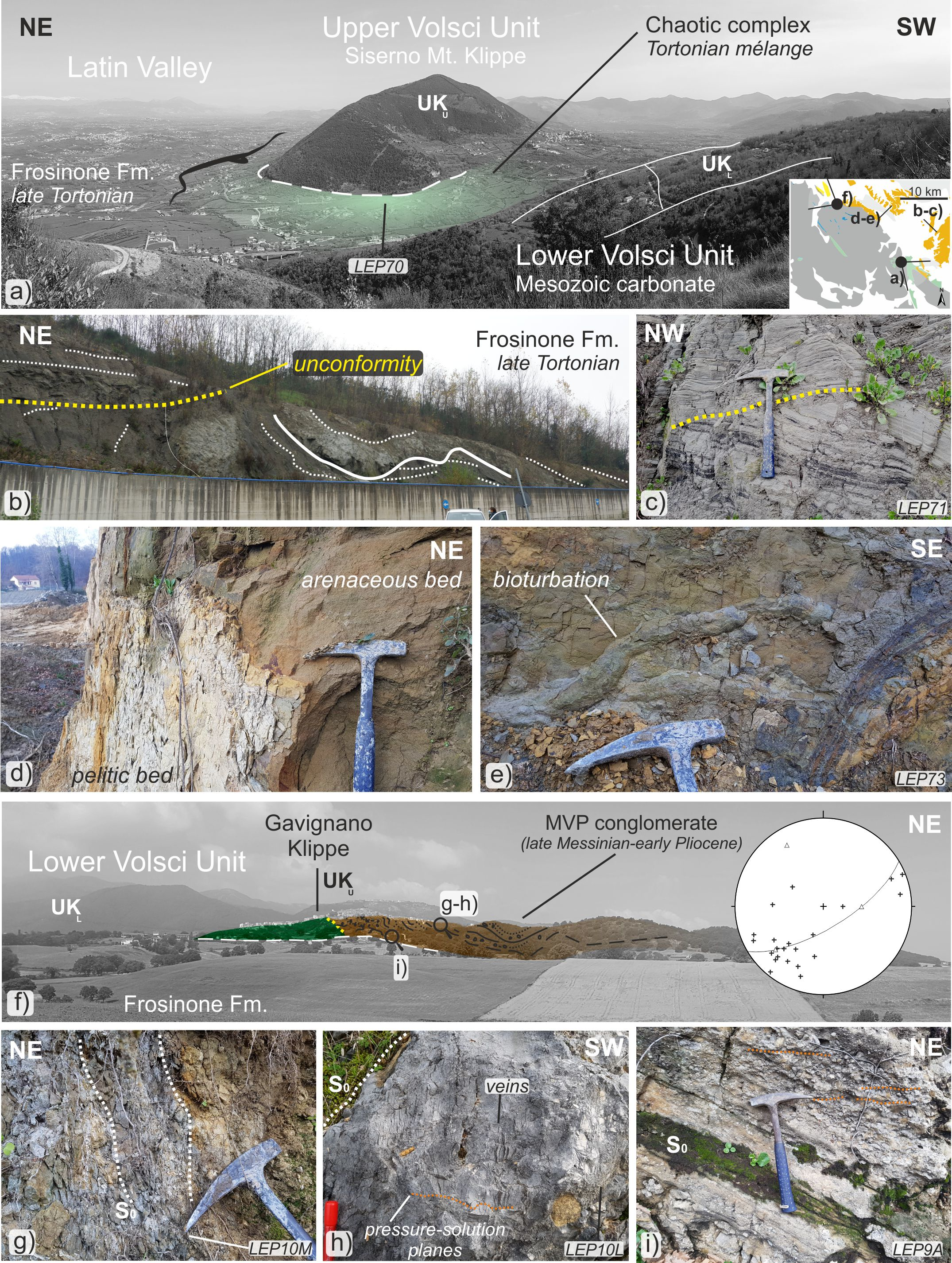

There (Figure 10a), we identify two thrusts: one juxtaposing the Upper Volsci Unit on the Chaotic complex (white dashed line) and the other juxtaposing the Chaotic complex onto the Frosinone Formation (black thrust). At Frosinone, a new road cut exposes a major intraformational unconformity within the Frosinone Fm. (yellow dotted line, Figure 10b, c) between folded layers beneath and sub-horizontal channelized deposits atop.
The channelized facies is made of arenaceous-pelitic associations with sets of thin pelitic-arenaceous and marly beds intercalated in thick massive arenaceous-pelitic layers. Southwest of Ferentino, paleocurrents are marked by a NW–SE direction, whereas the Frosinone formation is internally deformed and displays verticalized to overturned successions (Figure 9 and Figure 10). There, the facies consists of an arenaceous association of amalgamated massive beds with arenaceous-pelitic and pelitic-arenaceous sets. As shown on the map (Figure 3), north of Sgurgola and north of the Siserno Mt., an anticline with upper Cretaceous and CBZ limestone belonging to the Ernici Unit emerges from the Latin Valley siliciclastics, which are locally bioturbated. In the syncline between this ridge and the Volsci Range, pelitic facies of the Frosinone Fm. occur.
At Gavignano (Figure 10f), the MVP Messinian calcareous conglomerate occurring on top of the Upper Volsci Unit overthrusting the Frosinone Formation is folded along an NNW-striking axis and is near vertical in places. In the most calcareous layers, pressure solution seams and veins crosscut the pebbles as typical of load-driven compaction.

4.2.3. Backthrusts and Normal Faults

Backthrusts best crop out in the northwestern part of the VR, where their presence is highlighted by some pockets of Messinian-earliest Pliocene heterogeneous conglomerate (Figure 11). Transpressive kinematics associated with a general top-to-the-(E)SE sense of thrusting was observed on the reverse faults along the Montelanico-Carpineto Backthrust. As typical of cannibalized wedge-top basins, blocks of conglomerates occur within a marly-conglomeratic matrix near Gorga (Figure 11).

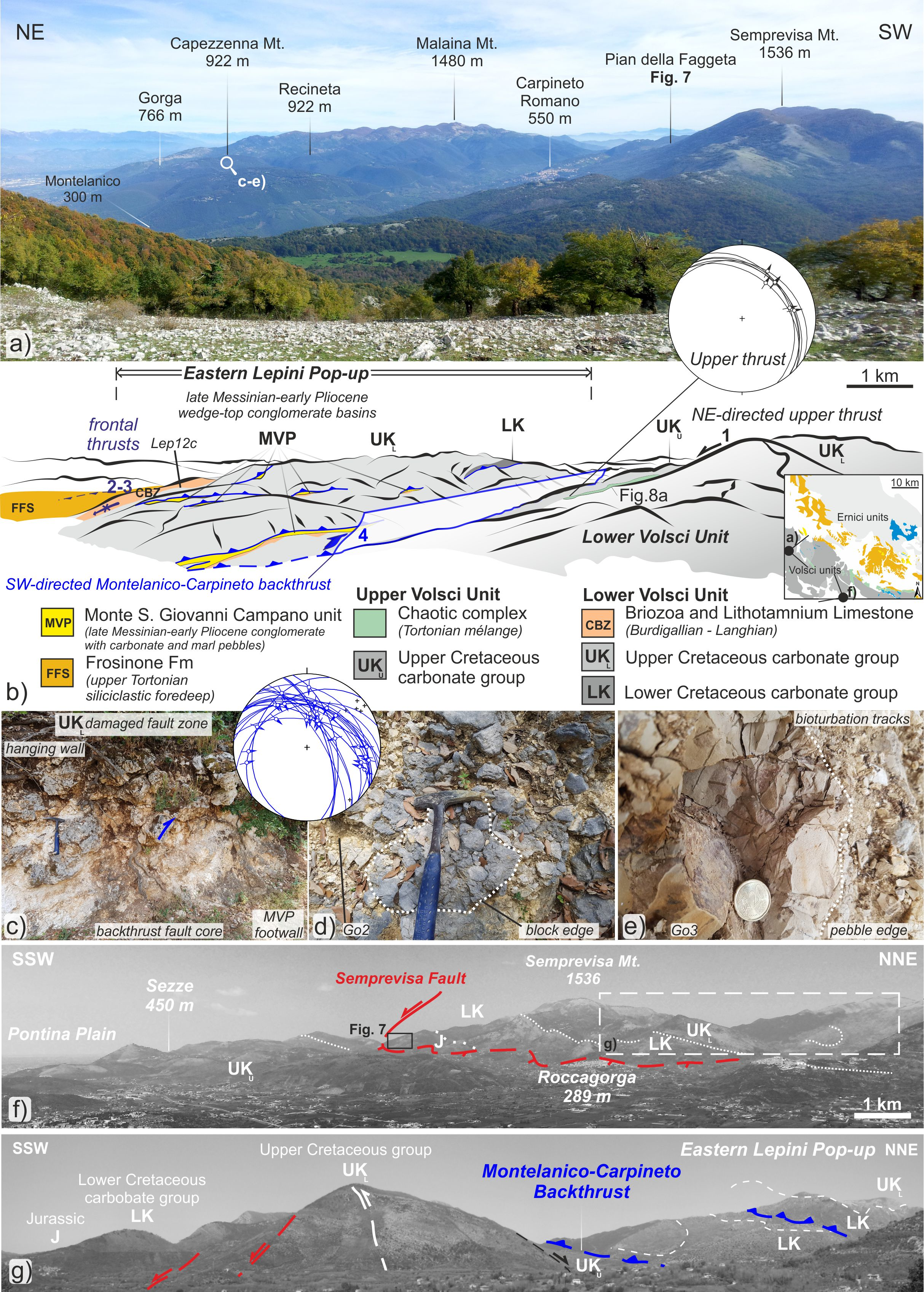

In Figure 11, we sketch the structural setting related to the backthrusts, which cross-cut and preserve the top-to-the-(E)NE Chaotic complex at the footwall of the Montelanico-Carpineto Backthrust. This major backthrust (i.e., Montelanico-Carpineto Backthrust) bounds the East Lepini structure, a large-scale anticline with its culmination at the Malaina Mt. (Figure 6 and Figure 11). The backthrust is accompanied by recumbent folds and minor high-angle reverse faults. In the southwestern sectors of the VR (Figure 11), normal faults cross-cut older contractional structures. More to the SW, another high-angle backthrust was mapped west of Bassiano (Figure 6). This structure allows the juxtaposition of the Jurassic and Early Cretaceous carbonate onto the upper Cretaceous and it is defined by transpressive kinematics (stereoplots in Figure 6).
Along the southern slope of Semprevisa Mt. (i.e., the Semprevisa Fault), a major normal fault dissects the whole Jurassic-Upper Cretaceous succession, while along the northern slope, the top of the Mesozoic succession is overthrust by Upper Cretaceous units (documented in depth in the following sections). To the southwest, stepwise segments of normal faults bound the Pontina Plain (Figure 2). Further to the northeast, domino-like blocks are bounded by 2–3 km spaced faults, each with about 0.5 km downdip offset. More details on the Quaternary fault system are in [45].

4.3. Seismic Interpretation of the Latin Valley

By tracing the reflectors of the unconformable contact between the Meso-Cenozoic carbonates and the upper Miocene siliciclastic deposits on top (cf. Section 3.4), two major seismic units were recognized in the subsurface of the Latin Valley: (i) the Upper Ernici unit and (ii) the Lower Ernici unItal.
The Upper Ernici unit crops out at Ceccano (Figure 2), and northwest of Morolo (Figure 9), where it constitutes a carbonate ridge in the middle of the Latin Valley. Coupled seismic and field geological evidence shows that the ridge is represented by detached Upper Cretaceous carbonates topped by a thick CBZ succession sealed by UAM and FFS units. The Upper Ernici Unit was drilled by the Frosinone 1, Ripi I, Ripi II, Pofi 1, and Ceprano 1 wells (Figure 3). This thrust-bounded unit is composed of a stratigraphic succession that can be correlated with the upper units of the Gavignano-1 well.
The Lower Ernici unit, apart from the distinctive near-top reflections, displays a variable amplitude and frequency with a discontinuous and chaotic pattern of reflectors that generally is characterized by noisy seismic facies. We exclude that this reflector is a coherent noise (multiple) as it can be followed over the entire study area and it displaces geometries that roughly differ from the above reflectors. Due to the scarce penetration of the seismic signal, this unit can be considered as the acoustic substratum of the area. No boreholes reached this unItal. By comparison due to our reconstruction of the thrust geometry, the top of the Lower Ernici seismic unit is possibly represented by the Meso-Cenozoic carbonates that crop out northeast of the Latin Valley (Figure 2). Due to the above reported uncertainty, marks indicate the less-constrained portions of the interpreted cross sections.
Within the Latin Valley, minor thickness changes of the carbonate tectonic units occur. Due to the repetition of the top-CBZ reflector accompanied by underlying top-UK reflectors, we have recognized multiple repetitions of the Upper Ernici unit due the occurrence of several thrust faults. The Ripi I well [106]), although crossing a major thrust zone, shows no siliciclastic deposits under the Mesozoic carbonates, but rocks of the Orbulina Marl and CBZ formations.

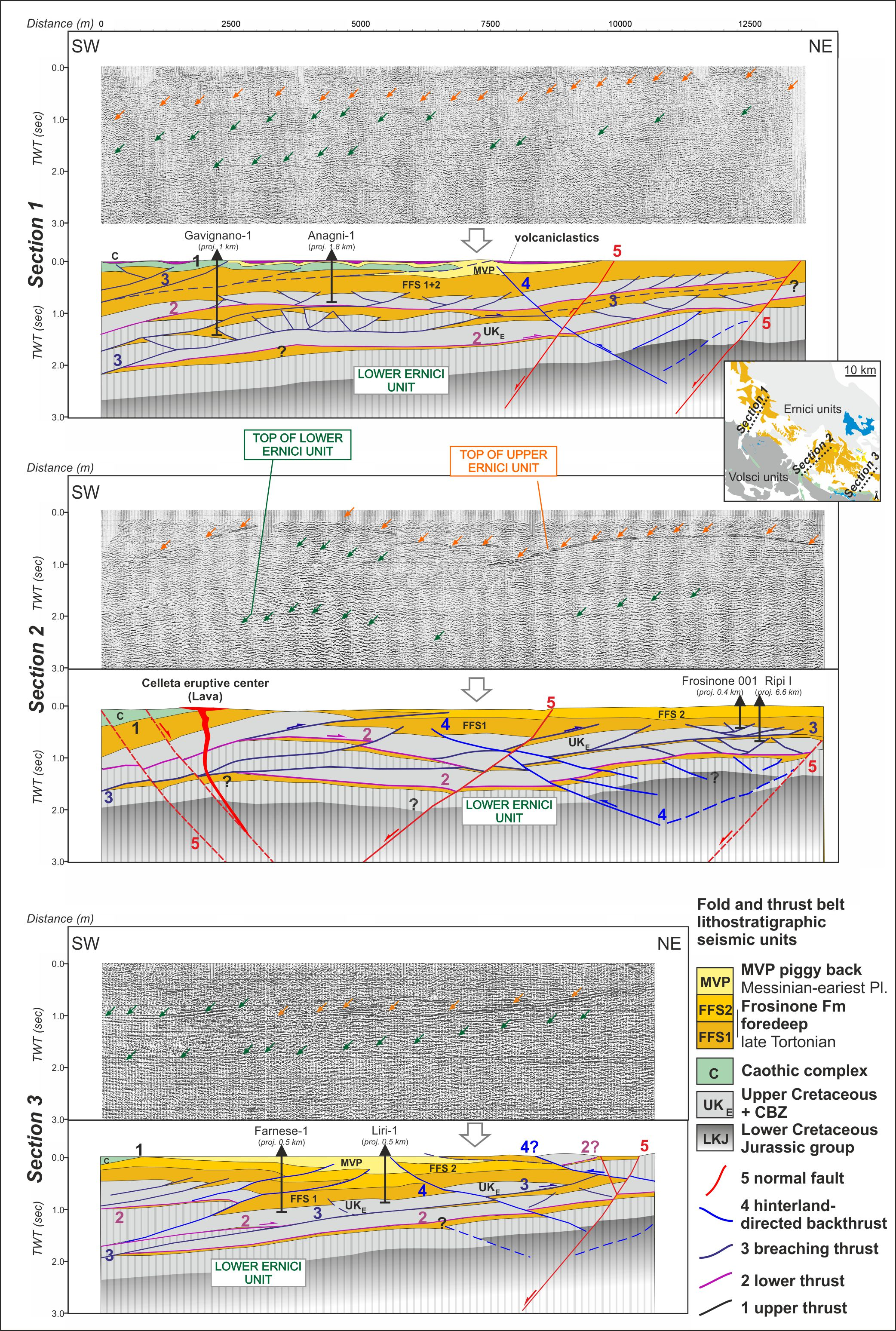

To show the general structural trend of the research area, we present three representative seismic lines (Figure 12), constrained by field and borehole data, showing thrust sheets characterized by a general top-to-the-NE sense of shear. Major thrusts, although occurring in all of the seismic lines, are well evident but discontinuous in number and distribution from line to line. Four major groups of thrusts form before the occurrence of normal faulting (Figure 13). From the most internal to the outermost we describe them as (1) the first group (thrust-1) marks the juxtaposition of the Chaotic complex on top of the FFS units and it can be correlated with the Upper Volsci thrust. (2) Thrust-2 marks the translation and doubling of the Upper Ernici unit within the Frosinone foredeep domain. No clear indication of the front could be recognized in the study area, possibly due to subsequent erosion. This structure is also represented by a series of thrust splays that cross-cut the formerly formed the fold-and-thrust fabric. Carbonate thrust-sheet units as thick as 0.6–0.8 s intervals have undergone significant translation in the order of 20–25 km. Considering that no thrust ramp could be observed toward the SE, this is a minimum estimate calculated on the hanging wall flat. (3) Thrust-3 is a group of reverse faults with flat-ramp-flat geometries that involve both the Upper and Lower Ernici units. The thrust-3 records a minimum offset in the range of 5 to 8.5 km. (4) The latest reverse faults belonging to the thrust-4 include the backthrusts at the northern edge of the Latin Valley. Such backthrusts cross-cut the previous 1–3 thrust faults and allow the formation of a triangle structure, during the deposition of the MVP deposits in the structural lows. In the southernmost section (Figure 12; Section 3), the cut-off relationships provided by the latest thrusts may have allowed the exposure of Thrust-2.
The most prominent of this group of thrusts generates the outcrop of basal platform at the foothill of the VR Front. A few backthrusts were recognized at depth, with vertical displacement up to 1–2 km. In Figure 12, normal faults with appreciable offset were identified (labeled with number 5). NE-striking faults concentrate at the Latin Valley edges and do not clearly show in seismic lines. NW-striking faults bound Quaternary graben, where travertine, continental, and volcaniclastic deposits were cumulated. The normal fault trace in seismic lines was drawn when it is anchored to the outcrop evidence. In these cases, we have extended the minimum offset recognized at surface to the deeper structural levels.
The most distinctive unconformities occur at the top of the Mesozoic carbonate succession and above the Middle Miocene CBZ Fm., onlapped by late Serravallian-early Tortonian UAM horizons (Section 3 in Figure 12 and Figure 13). At the borehole scale this contact may appear as a paraconformity but the discontinuous and variable thickness of both CBZ and UAM suggest that this is actually an unconformity with an irregular erosional surface. Three subunits, divided by two major unconformities, can be observed within the siliciclastics deposits and labeled as Lower Frosinone seismic subunit (FFS1), Upper Frosinone seismic subunit (FFS2), and Monte San Giovanni Campano seismic unit (MVP); the first two are made by the late Tortonian Frosinone Fm., while MVP is formed by the Messinian piggyback deposits (Monte San Giovanni Campano unit; see MVP in Figure 2 and Figure 12).
The thickness of the syn-orogenic units varies depending on the fold-and-thrust belt structure, being the siliciclastic deposits thicker to the south and to the north (up to 0.600 sec) and thinner in the central part (usually limited to 0.180 sec). As shown in Figure 13, Subunit FFS1 is folded together with the underlying carbonates, showing a transparent seismic facies, while Subunit FFS2 is thicker in the syncline and thinner towards the anticline and it is possibly related to Thrust-2. In FFS2, minor internal unconformities, typical of syn-depositional antiforms in foredeep basins, are here expressed by lobate-type seismic facies. In detail, the antiformal-growth geometries are crestal erosional truncations and diverging/converging reflection patterns around the hinge of the anticlines. In the piggyback basins, the FFS2 is defined by well-reflecting horizons and is marked by an erosive unconformity that at Ceprano cross-cuts both FFS1 at anticline culminations (Figure 13). This anticline is sealed by FFS2 and is formed on top of Thrust-3. As shown by the strike section in Figure 13, the thrust-and-fold geometry changes laterally as also reported for the Gavignano klippe more to the north.

5. Discussion

The tectono-stratigraphic analysis of field and subsurface data enabled us to define different thrust units, providing insights for a time-deformation analysis of one of the innermost portions of the Central Apennines. Hereby, we present a geological cross section, interpretative of the deep structures produced after the integration of field and subsurface structures (Figure 14), that includes pre-orogenic passive margin deposits, mélange units, foredeep, and wedge-top deposits. In the following, we discuss the main novel features of the geologic history that led to the development of the geological setting of Figure 14. In the cross section, we correlate the Upper Volsci Unit remnants of the Colle Cantocchio, Carpineto Romano, and Caccume Mt klippen. Based on the mixed exotic-native composition of the blocks of the Chaotic complex, we recognize that they were overthrusted together with the Upper Volsci Unit on top of the Lower Volsci UnItal. As shown in the cross section, the Lower Volsci Unit of the Western Lepini Mounts is a monocline essentially composed of Jurassic to Cretaceous carbonates dipping to (E)NE, that together with the remnants of the upper units was further crossed by high-angle faults. In detail, the Montelanico-Carpineto backthrust, bounds the Eastern Lepini pop-up that is affected by small-scale folds and reverse faults, whose geometry suggests positive reactivation of pre-orogenic normal faults during shortening. The wedge-top pockets preserved by the backthrusts are infilled by MVP Messinian conglomerate that was deposited directly on the Lower Volsci Unit, when the Upper Volsci unit was already dismantled. Thrusts and folds are mostly evident in the Latin Valley (Figure 12), whose substrate has been reconstructed by applying a depth conversion on a structural model published in [45].
By studying the top of the Mesozoic carbonate platform both in the Lower Volsci Unit and in the blocks embedded in the Chaotic complex (Appendix B; Figure S1), we have reported the occurrence of an irregular surface at the top of the platform. Such a paleotopography was likely the result of Late Cretaceous syn-sedimentary tectonics. In such scenario, the most elevated structures might have been affected by karstism (possibly with the formation of ferruginous crustons) during the latest Cretaceous (see Section 4.1). The occurrence of a Late Cretaceous tectonics is supported by the lithostratigraphic unit we refer to the “Gorga bioclastic limestone and dolostone” upper Campanian to Maastrichtian in age, whose lateral change and abrupt facies shift points to syn-depositional tectonics (Figure 2). At Gorga (Figure 3), this unit is represented by about 250 m thick rock volume [112], that thins rapidly towards the west, whereas it lacks in the rest of the Volsci Range. In particular, as recognized at Caccume Mt. and near Carpineto Romano (Figure 5), the unconformity occurring at the top of the platform is marked by a very thin younger breccia partially overprinted by a dolomitic and ferrougeneous cruston (cf. Figure 5 and Figure 9), whose age and origin need to be further constrained.
In the Apennine platform, the transition from the Upper Cretaceous carbonates to Paleocene–Eocene margin, slope, and Scaglia-type basin deposits was guided by a synchronous regional extension during Maastrichtian–Eocene time that affected both the Jurassic base-of-slope domains [30] and the demised sectors of the neritic platforms [118]. We recognize that the discordant stratigraphic contacts of Colle Cantocchio are due to the development of a submarine paleoescarpment, guided by normal faults down-stepping towards the WSW. The bluish hardground (highlighted by yellow dots Figure 15) can be interpreted as a submarine unconformity marking the onlap (escarpment contact) of the lower Miocene intraformational pebbly calcarenite on the Mesozoic carbonates. Similar facies have been reported elsewhere by the authors of [119] and are here interpreted as a diagenetic effect on the articulated inherited physiography of the previously unedited fault escarpment described in Figure 6. A simplified back-restoration of section C-D (Figure 7c) is attempted in Figure 15, where a fault step occurred to the south with an offset in the order of 700–1000 m due to the exposure of the Jurassic terrains and the downthrowing of the Cretaceous units in the hanging wall. The Semprevisa Fault can be still recognized laterally for over 10 km, although overprinted by later Pliocene-Quaternary tectonics, and possibly remarks at least part of this inherited structure. In our interpretation, as shown by the stratigraphic contacts, the Jurassic units of the southwestern slope of the Semprevisa Mt. were already exposed in early Miocene time (Figure 15). As suggested by the clasts within the Chaotic complex, coeval basinal sedimentation occurred more to the WSW [120]. In particular, the recognition of Cretaceous-Paleogene Scaglia lithotypes and of distal early Miocene CBZ limestones in the exotic blocks of the Chaotic complex (see Figure 7, Figure 9 and Figure 10) suggest that sedimentation occurred in a bypass slope setting during Paleogene-Neogene time. In particular, the Paleogene is recorded by a condensed to hemipelagic sedimentation, evolving during the Miocene to mixed calcareous-siliciclastic turbidites with chert. The Orbulina Marl Fm. (Serravallian pp.) sealed the pre-orogenic early Miocene topography. The Colle Cantocchio pre-orogenic fault is a part of the normal fault system that produced the steps from the exposed Jurassic carbonates to the basin and is here proposed to be at least Eocene in age, although older ages cannot be excluded. Synthetizing, according to the new data, we propose a provenance of the Chaotic complex (i.e., including the exotic blocks) from a hemipelagic paleogeographic domain with slow depositional rates placed to the WSW of the present-day Volsci Range.
The ongoing research in the southern Volsci Range, is providing constraints for the determination of the age of the encrusted normal faults bounding the Formia plain and Spigno Saturnia areas, whose data from the literature are reinterpreted above (cf. Figure 2). A comparable syn-sedimentary setting, leading to the deposition of Scaglia deposits has been recorded nearby the VR [8,121] and documented at the western tip of the Volsci Range [122]. Of note, at Colle Cantocchio (Figure 5), the early Miocene transgression over the Jurassic-Lower Cretaceous rocks occurred on a step of the escarpment, where there was no record of Paleogene basinal sedimentation. In alternative, this sector could be associated with renewed normal faulting activity along a pre-existing Cretaceous-Paleogenic normal fault, which may have further exposed the Mesozoic rocks with its reactivation and allowed the CBZ-UAM units to settle on top prior to the Tortonian onset of thrusting.

5.1. Chaotic Complex Emplacement and Thrust Propagation

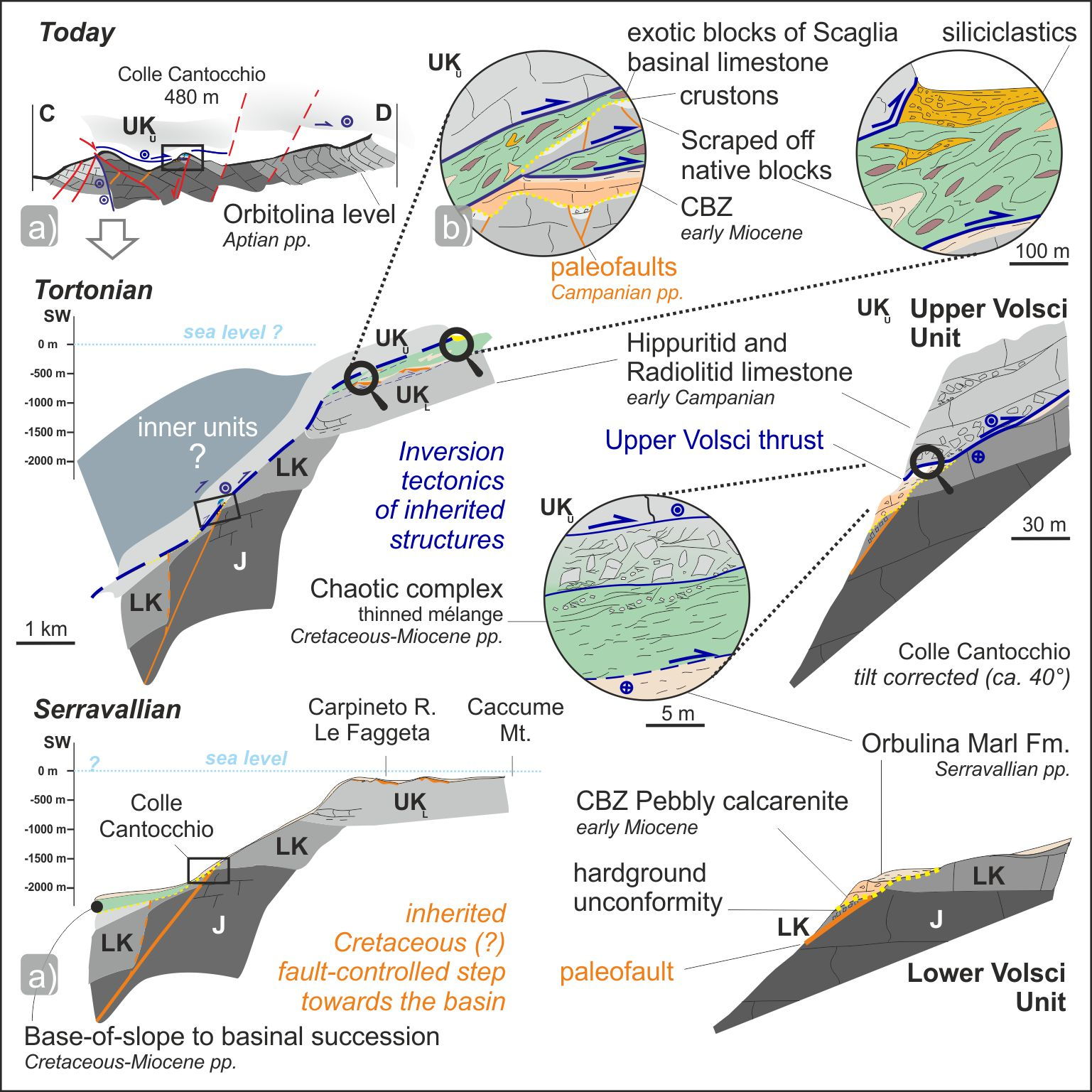

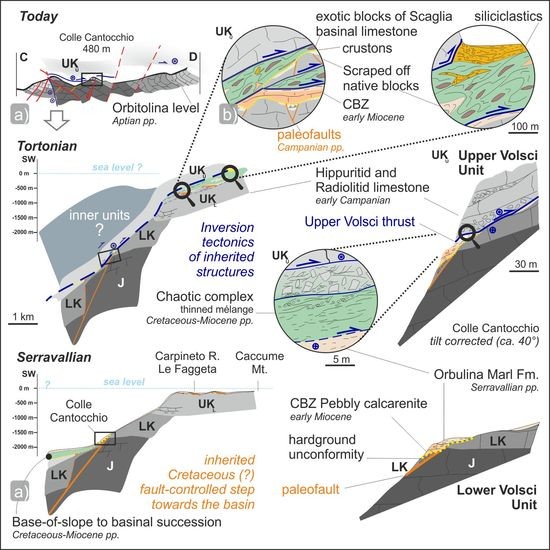

To define the overthrusting towards the (E)NE of the Upper Volsci Unit and to understand the evolution of the Chaotic complex, we correlated the carbonate klippen by documenting the stratigraphic and structural elements of the syn-orogenic deposits. This correlation was initially proposed by Accordi [71], but inherited structures, thrust kinematics, and age of the syn-orogenic deposits needed to be better constrained. With the degree of allochthony and origin of the Chaotic complex being long debated [45,64,67,86,123], in this section we discuss the Chaotic complex origin and the role of the thrust propagation towards the foreland into the late Miocene wedge growth.
Starting from the southwest, the Colle Cantocchio cataclasite and shale preserved underneath the Upper Volsci Thrust can be interpreted as a thin Chaotic complex unit juxtaposed on the paleo escarpment setting (c.f. Section 5.1). In this frame, the inherited topography produced a ramp in the upper thrust during shortening. A comparable setting occurs more to the south at the Vele Mt. (Figure 2), where the siliciclastic deposits underneath the thrust could be correlated with the Chaotic complex sliver of Colle Cantocchio (Figure 15). As commonly occurring in mélange complexes [124,125], the Chaotic complex formed at the expenses of the Lower Volsci Unit, whose inherited and articulated top was scraped off and grooved (see Figure 7, Figure 8 and Figure 9). The Chaotic complex is a combination of (i) autochthonous “native” and (ii) allochthonous “exotic” blocks (Figure 15). The latter derive form a discontinuous series of Paleogene-Burdigalian pelagic deposits deposited more to the south and progressively mixed with lower Serravallian to upper Tortonian siliciclastic units bearing also crystalline clasts.
In particular, the matrix of the Chaotic complex shows the same composition of the embedded blocks, but it also shows the occurrence of late Tortonian-Messinian nannofossil assemblages, which may have deposited during the final stage of thrusting related to the Upper Volsci Thrust. Further, we are able to further narrow this time range to the late Tortonian, considering also the absence of Amaurolithus sp., typical marker of top Tortonian-Messinian. Provided that the overthrust of the pelagic elements of the Chaotic complex is due to the juxtaposition of the Upper Volsci Unit, which squeezed them out towards the foredeep, they must have originated from about the same distance reached by the Upper Volsci Thrust front (Thrust-1).
In this frame, the SE-ward termination of the Chaotic complex and the lens-like shape of the outcrop at Carpineto Romano (Figure 6) provide an example of interaction between inherited top-platform physiography and thrust geometry. In our interpretation, this structure is an inherited depression at the top of the platform that was later crosscut by the Upper Volsci Thrust. At its southern tip, as demonstrated by Accordi [71], this thrust still occurs as it doubles of the upper Cretaceous units although not involving anymore the Chaotic complex, whereas, as shown on the map (Figure 6), at the northern of the Upper Volsci Thrust, the younger Montelanico-Carpineto backthrust cross-cut it (Figure 11).
The Upper Volsci Unit is mainly composed by Upper Cretaceous neritic carbonates (e.g., Carpineto Romano, Figure 8), implying that this unit detached essentially above the uppermost Lower Cretaceous Orbitolina Marl level during shortening. However, although rare, older Mesozoic rocks can also be found. A second detachment level, highlighted by subsurface data, corresponds with the Orbulina Marl Fm, which allowed the doubling. The chronological relationship between Thrust-1 (marking the overthrust of the Upper Volsci Unit on to the Upper Ernici unit) and Thrust-2 (between the Ernici Units of the Latin Valley) is beneath the resolution of our data. However, provided their geometrical distribution, these thrusts are likely to represent a classical thrust propagation towards more external and lower structural levels through time (i.e., towards the foreland). The minimal shortening associated with Thrust-1 is of about 25–30 km, which corresponds with the approximated present-day distance between Colle Cantocchio and the frontal klippe along the ENE-directed Thrust-1; while Thrust-2 ranges about 20 to 25 km as shown by the thrust-2 structures in Figure 14. These amounts are comparable with the shortening estimated at the thrust fronts of the Gran Sasso Massif (>20 km [30]) and of the Apennine platform in the southern Apennines (>60 km [126]), while it is significatively lower than the translation that affected the Ligurian Accretionary Complex onto the foredeep units (> 100 km [127]). In this frame, the Tortonian southern Apennine platform thrusting [28] matches our thrust dynamics (Figure 15). As also typical of the far-traveled Sicilian platform units [128], the thrust geometry is characterized by long flats (10–15 km) and thin thrust-sheets, that in our case can be as thin as about 0.7 km near the front. This implies that the Orbitolina level and Orbulina Marl Fm preferred slip levels were very efficient in allowing far-traveled thrusting.
As shown by thickness and facies variations of the siliciclastic deposits of the Latin Valley, the Thrust-2 shortening stage was accompanied by syn-sedimentary folding of the deposits of the FFS2 seismic unit (Figure 13). In our interpretation, while the unconformable FFS1 contact with the CBZ limestone marks the flexuration of the foredeep, the unconformable contact associated with wedge shape and channelized FFS2 facies marks the growth of pop-up anticlines, thus being representative of wedge-top settings initially developed during Thrust-2.
The channelized facies may be, respectively, representative of syn-tectonic fringe and lobe deposits and of inner channelized sand bodies, while pelitic facies are rather typical of outer fans [129]. In particular, the observed syn-sedimentary folded channelized structures (Figure 10b), show that, the deposition of the Frosinone Fm. thus encompassed an increasing input (mostly during the FFS1 stage), later followed by a progressive channelization of turbidity flows onto the synclines during the FFS2 stage. As already suggested in [130] for the Latin Valley on the channelization of the foredeep to wedge-top sediments, the active margin possibly followed a comparable evolution similar to what elsewhere envisaged in the southern Apennines by Casciano et al. [131].
At the front of our study area, a transition between the mélange and the flysch units occurs. Based on published maps [64], wells, and seismic lines on the southwestern edge of the Latin Valley, we also confirm that the Chaotic complex is juxtaposed to the Frosinone Fm. of the upper Ernici unit (cf. Gavignano; Figure 10 and Figure 13). For this feature, the authors of [132] proposed an olistostrome origin, while Centamore et al. (2007) proposed gravitational sliding of the Chaotic complex off the Volsci Upper UnItal. Further, this level can correlate with the mélange levels of the Massico Mt. [43,133].
To explain the abrupt thickening of the Chaotic complex east of the Caccume Mt. (Figure 10), we suggest that a growth structure was forming during the initial uplift of the Volsci Range front as testified by fault-propagation fold (Figure 14) at the hanging wall of thicker FFS units with syn-sedimentary folds (Figure 10 and Figure 12). This generated the glide of the Chaotic complex on top of the FFS units. Similar contexts were reconstructed for other mélange units at thrust fronts, where the remobilization of the formerly emplaced thrust sheets, allows the incorporation of the extrabasinal (exotic) lithologies within the foredeep [18,134]. An alternative possible explanation to allow the juxtaposition of the Upper Volsci unit onto the FFS units, would envisage thrusting to occur during the uppermost Tortonian-earliest Messinian.

5.2. The Late Stages of Shortening

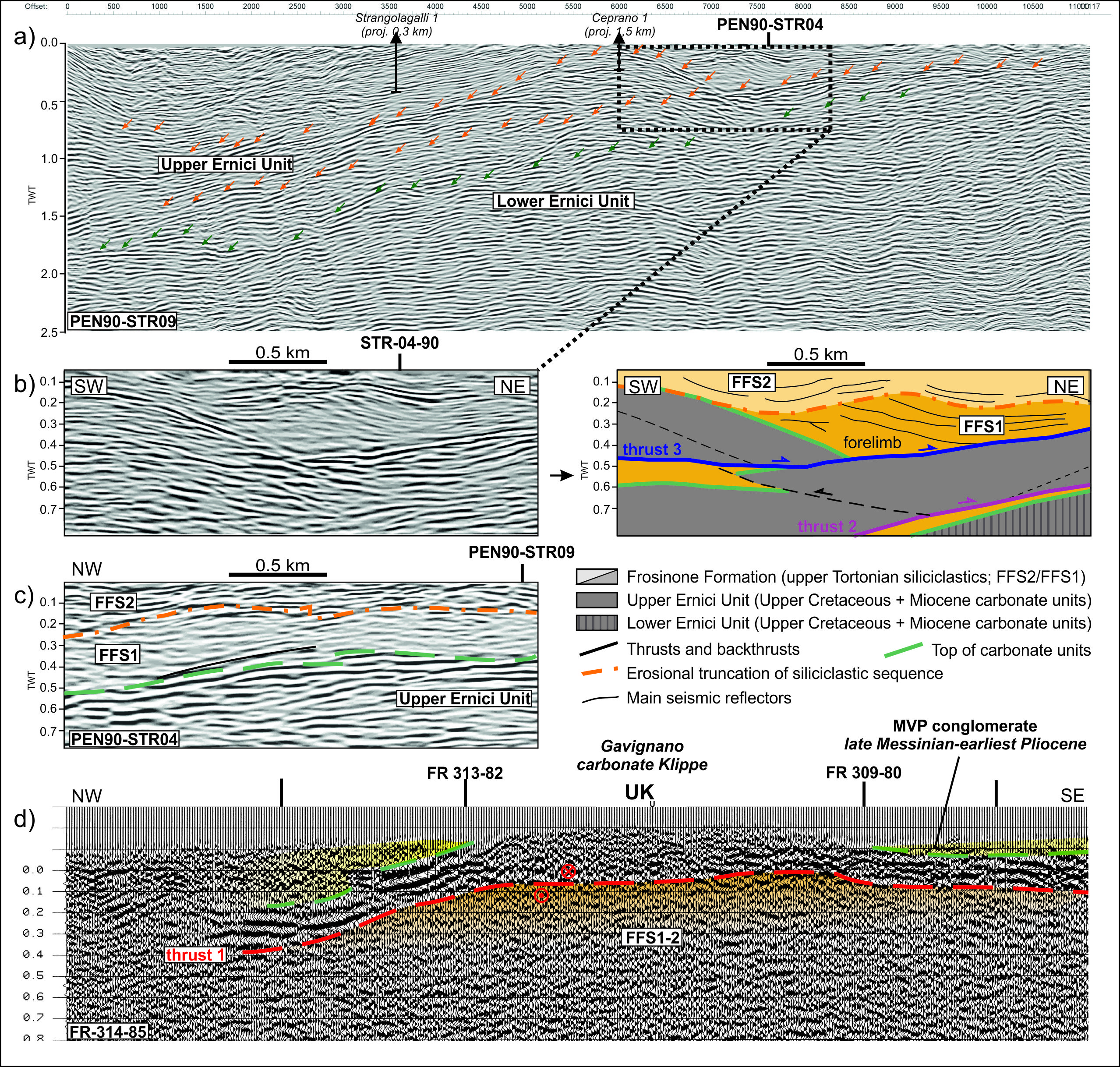

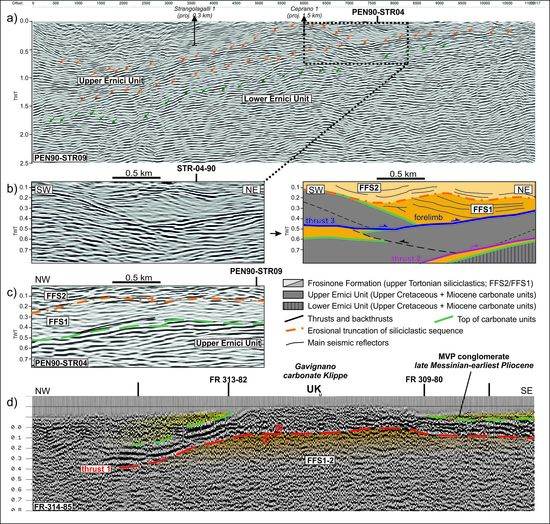

As observed in seismic lines (Figure 12 and Figure 13), thrust-3 produced the doubling of the flat of the far-traveled Thrust-2, by involving deeper carbonates in the thrust ramps. We have also shown that in the area break back thrusting occurred [135] (Figure 16). As shown near Ceprano well (Figure 13), MVP wedge-top deposits that include calcareous pebbles from the CBZ unit [87] were directly deposited on Mesozoic carbonates deformed by an anticline. This contact is representative of a wedge with regional subsidence slower than local antiformal growth [136]. Nannoplankton determination finally allowed constraining the age of the folded conglomerates and atop marls of Gavignano, thus allowing a correlation with the MVP stratigraphic unit (Figure 10). This unit represents a folded Messinian thrust top deposit and this constraint attributes this late folding stage to late Messinian-earliest Pliocene time. As supported by subsurface data (Figure 3 and Figure 13) the Gavignano klippe was involved into the renewed deformation of the VR front, which would correspond with the latest stage of thrusting and veining dated in [43] at the late Messinian on the Massico Mt. (cf. Figure 2). Those absolute constraints can be used to review the regional thrust kinematics. In this sense, the ages determined along the thrusts in areas more to the south can be compared to what provided in [114]. These authors have attributed a late Miocene-Pliocene age to the clayey matrix beneath the thrust at the front of the Siserno Mt. Similar to what reported for the Chaotic complex in this work (Appendix B), they have also reported that the exotic clasts are representative of a wide range of ages, from Late Cretaceous (including Scaglia Rossa pelagic limestone) to early-middle Miocene. The degree of fragmentation of microfauna embedded within the Chaotic complex [114] suggests active deposition during the late Miocene-Pliocene as well. Therefore, we can envisage a late involvement of Pliocene deposits into the reactivated thrust zones at the VR front. In this interpretation, the Chaotic complex was already exhumed likely after the strong erosion related to the Messinian salinity crisis [137,138,139,140], which also affected the Ernici Mts [77], implying reactivation in the rear [49].
In this context, the late Messinian shortening event could be correlated with the late orogenic structures in the northern VR that are crossed by a series of SW-directed backthrusts (Figure 11). In our interpretation, the SW-directed Montelanico-Carpineto backthrust cross-cuts the top-to-the (E)NE older Upper Volsci Thrust. Despite the lack of valuable data from the main lineament, minor thrusts show that top to the SW-backthrusting, could be accounted as partially reactivating the older fabric. Further, the fault strike of the backthrusts diverges about 20° from the trend of the upper Volsci Thrust that is underthrusted beneath the Eastern Lepini pop-up (Figure 5 and Figure 11).
So far, scarce constraints of top-to-the-SW shear were found, although backthrusting is possibly localized more to the NE of the studied area of Figure 11. Our stratigraphic constraints (Appendix B) from the MVP conglomerate near Gorga, document Messinain Lago-Mare conglomerates that are produced after iterative cannibalization of older wedge-top deposits. The further occurrence of upper Messinian deposits in the Pian della Faggeta area (Figure 5), is a possible clue indicating depositional activity on top of the Volsci Range during the Messinian salinity crisis (5.96–5.33 Ma). During that time, the area was exposed to linear erosion followed by the deposition of sandy gravels that Centamore et al. (2010) dated at the early Pliocene (south of Castro dei Volsci; Figure 3). This implies that the major valleys were already formed before the latest orogenic compressional events affected both the VR and Latin Valley [117]. Field evidence in the rear (Figure 5), suggests the presence of a major backthrust with transpressive kinematics further south, possibly implying that a deeper backthrust affected the southwestern slope of the VR during the early Pliocene. At that time, the Apennines experienced renewed shortening with frontal thrusting accompanied by backthrusting and tilting toward the foreland to the northeast (Figure 16).
During late orogenic deformation, thrust front migrated towards the outermost active margin units (Figure 1), and the inherited fold-and-thrust belt of the external Apennines was folded together with lower Pliocene syn-orogenic conglomerates (i.e., Rigopiano conglomerate [30,78]). Meanwhile, the previous in-sequence structure of the internal Apennines was truncated by triangle zones (Figure 12) and by more internal backthrusts (e.g., in the Volsci Range, Figure 11 and Figure 14).

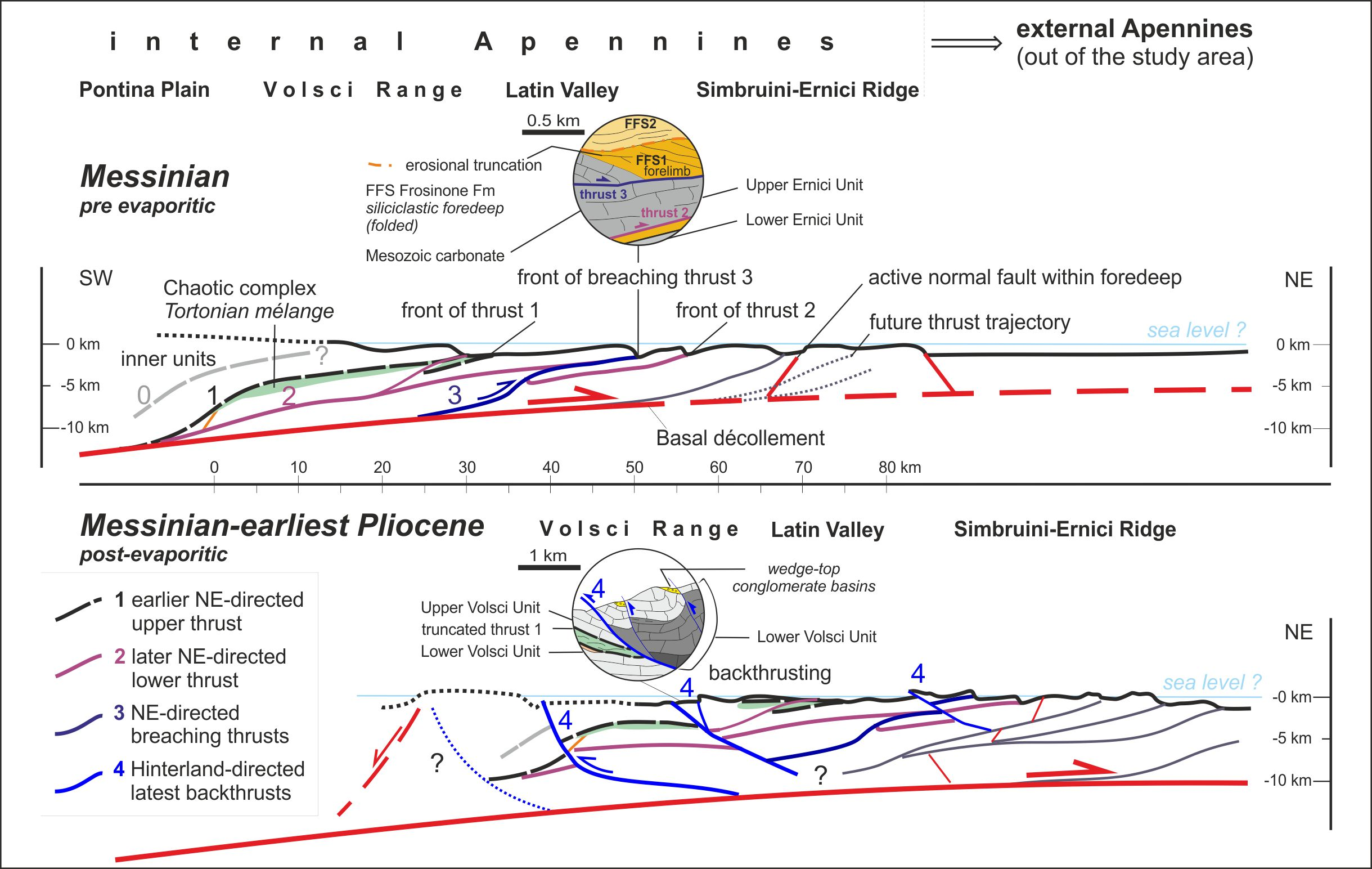

In our interpretation (Figure 16), the backthrusting roots at deeper levels, by following the dip of the basal detachment towards the backarc. In this sense, moving to the inner parts of the wedge, the inner wedge is remobilized, affecting a larger volume with respect to the external part. In the case of late orogenic deformation affecting only the sedimentary cover, shortening localizes within the weakest stratigraphic levels, possibly by reactivating the décollement of the older fore-thrusts [136,141,142,143,144,145], while in the rear faulting tends to broaden and possibly involve also deeper structural levels.
Finally, Pleistocene to Holocene NW- and NE-trending normal faults deeply affected the fold-and-thrust belt structure. In particular, the almost constant NE-dip shown by the bedding planes of the studied carbonates might be interpreted as the result of the activity of the major NW-striking and SW-dipping listric normal faults bordering the Pontina Plain, which were also documented at depth [146].

6. Conclusions

This study contributes to constraining the timing of initiation and progressive development of platform-derived thrust sheets, mélange units, foreland, foredeep, and wedge-top sediments of the internal Central Apennines. The main phases of the evolution of the belt are as follows:
  • Late Cretaceous extensional tectonics. The dismembering of the carbonate platform into shallower and deeper domains is constrained by the finding of crustons that may testify moments of subaerial exposure, characterizing the top of the Lower Volsci UnItal. Cave exploration and field mapping allowed us to recognize a previously unreported fault-controlled paleo-escarpment constituted by Cretaceous and Jurassic carbonates sealed by early Miocene deposits that were previously dated as middle Miocene. These units seal a hardground settling on a platform edge facing to the west, where basinal to bypass slow-rate sedimentation occurred till Burdigalian time.
  • Tortonian Chaotic complex emplacement (Thrust-1) and foreland-directed (in-sequence) thrust propagation (Thrust-2). During the overthrusting of the Upper Volsci Unit, Paleogene to Neogene basinal deposits were squeezed off towards the Foredeep and juxtaposed as a mélange unit on top of the carbonate platform together with early to middle Miocene calcareous-cherty-siliciclastics. The Chaotic complex also bears highly deformed basinal exotic and native blocks of neritic carbonates, the latter being scrapped off by the overthrust of the embedding Chaotic complex, whose Paleogene-Miocene matrix includes up to Tortonian nannoplankton. Seismic analysis supported by well logs at the regional scale highlighted repeated carbonate thrust sheets that have first been involved into an initial in-sequence propagation towards the foreland to the ENE occurred during foredeep to wedge-top sedimentation.
  • Intra Messinian thrusting (Thrust-3) breached the thrust front by doubling the flat of previous thrust fronts. Subsurface data show that during alternated phases of wedge-top deposition and erosion, the Upper Ernici unit was shortened approximately 5–8.5 km in the Latin Valley.
  • Messinian to early Pliocene backthrusting (Thrust-4). New biostratigraphic data constrain the thrust top deposits in the Volsci Range and in the Latin Valley, where SE-directed backthrusts contributed to the tilt and cross-cut of previous Thrust-2 and -3 structures.
  • Late Pliocene to Holocene normal faulting. Post-shortening extension has determined NE- and NW-striking orthogonal normal faults or WNW–ESE-trending right-lateral transtensional faults. These faults may have locally intercepted pre-existing normal faults that had been passively transported within the thrust sheets.
Finally, our findings bear implications on platform derived thrust sheets associated with active margin successions and mélange units. The far-traveled thrust sheets, hereby documented both in the field and in the subsurface, constitute a key aspect for the development of the internal Apennines, whose degree of allochthony and role of inherited structures was long debated. Furthermore, at the light of our new interpretation, the deeper platform units could be a new focus for hydrocarbon accumulation and may provide targets for geothermal and/or hydrocarbon research in the area. Beside the regional geological aspects, this work bears implications on the modes of involvement of mélange units at the transition from passive margin to foreland basin systems.

Supplementary Materials

Author Contributions

Conceptualization, G.L.C., G.V., L.C., M.S., and E.C.; methodology, G.L.C., and G.V.; software, G.V.; validation, E.C. and C.D.; formal analysis, G.L.C., G.V., L.C., and M.S.; investigation, G.L.C., G.V., L.C., M.S., and E.C.; resources, E.C., L.C., and C.D.; data curation, G.L.C., G.V., L.C., and M.S.; Writing—Original draft preparation, G.L.C., G.V., and L.C., Writing—Review and editing, G.L.C., G.V., L.C., M.S., and E.C.; visualization, G.L.C., G.V., L.C., and M.S.; supervision, E.C. and C.D.; project administration, G.L.C. and E.C.; funding acquisition, E.C., L.C., and C.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Progetti di Ateneo 2016 (C. Doglioni), 2017 and 2019 (C. Doglioni and E. Carminati) and by the Spanish Ministry of ‘Economía y Competitividad’ (projects CGL2012-33160 and CGL2015-69805-P).

Data Availability Statement

Data used for seismic interpretation and model reconstruction can mainly be found in the public VIDEPI database (www.videpi.com) (accessed on 20 January 2021) and in the Pentex Ltd. database. Data available at the ENI data room were also viewed.

Acknowledgments

We gratefully acknowledge Pentex Limited Italia and Luigi Albanesi for the permission to analyze their subsurface data and publish the seismic lines of the Strangolagalli Oil Concession area. We acknowledge ENI for the permission to participate at the data room as requested in San Donato Milanese, Milan, and in particular to analyze some seismic lines on old Permit Areas. We thank the G. Wang and the D. Liotta, G. Molli and A. Cipriani for the opportunity to share our research in the Special Issue “The Apennines: Tectonics, Sedimentation, and Magmatism from the Palaeozoic to the Present”. Enrico Tavarnelli, Andrea Artoni and an anonymous reviewer are acknowledged for insightful comments and suggestions. We are grateful to “Gruppo Grotte Castelli Romani”, “Federazione Speleologica del Lazio”, Andrea Cesaretti, Piero Ciccaglione, Pio Di Manna, Simone Fabbi, Luca Forti, Angelo Giuliani, Domenico Mannetta and Anne Mérienne for their support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

In the following, we report the Biostratigraphic and lithostratigraphic data of outcrops and stratigraphic units available from the literature related to syn-orogenic deposits shown in the representative stratigraphic logs of Figure 2 in the main manuscript. The formation labels are also related to Figure 2.
Site n°Group of LocalitiesLatitudeLongitudeTectonic UnitFormationLithologyBiomarkersAge RangeCommentsAuthor
1Gavignano R. klippe41°42′9.16″ N13°20′38.15″ EUpper Volsci unitDLAlimestoneCisalveolina fraasiCenomanianin situ[147]
41°42′9.16″ N13°20′38.15″ EUpper Volsci unitMVPcalcareous conglomerateGloborotalia apertura, G. involuta, G. concinna, Globigerina falconensisuppermost Tortonian- lowermost Zancleanreworked[103], this work
41°42′9.16″ N13°20′38.15″ EUpper Volsci unitPGCpolygenic conglomerateno dataupper Messinian (?) [103]
2Colle Cantocchio klippe41°34′29.48″ N13°0′1.49″ Elower Volsci unitRDTlimestoneDicyclina schlumbergeri, Accordiella conica, OrbitoidesCampanianin situ[93]
41°34′29.48″ N13°0′1.49″ Elower Volsci unitCBZcalcareniteechinid, Ditrupa, Elphidium, bryozoa, Miogypsina, Amphistegina, Operculina, Heterostegina, LepidocyclinaBurdigalianin situ[93]; this work
41°34′29.48″ N13°0′1.49″ Elower Volsci unitUAMgray-yellowish clayOrbulina universa, O. suturalis, O. bilobata, Globorotalia aff. Menardii, Globorotalia opima, Globorotalia scitula ventriosa, Globigerinoides trilobus, Globigerina eggeri, Globigerina cf. Bulloides, Globigerina concinna, Globoquadrina dehiscens, Globoquadrina altispira, Bolivinoides miocenicus, Valvulina pennatula italica.upper Serravallian—Tortonian p.p.reworked[93]
41°34′29.48″ N13°0′1.49″ EUpper Volsci unitSBG?polygenic brecciano dataPliocene- Pleistocene (?)reworked[93]
3Carpineto Romano41°35′17.12″ N13°06′15.66″ Elower Volsci unitRDTlimestonerudist, Dicyclina shlumbergeri, RotalispiraConiacian- Campanianin situ[103]
41°35′17.12″ N13°06′15.66″ Elower Volsci unitCBZlimestoneAmphistegina, Heterostegina, briozoa, Operculina, Miogyspina globulinaBurdigalian—Langhianin situ?[103]
41°35′17.12″ N13°06′15.66″ EUpper Volsci unitRDTlimestoneRotalispira maximalower Campaniannative block within Cthis work—sample LEP 17C
41°35′17.12″ N13°06′15.66″ EUpper Volsci unitRDTlimestone with iron crust (ancient karstification ?)Decastronema, ostracodae, discorbidaeCampaniannative block within Cthis work—sample LEP 18B
41°35′17.12″ N13°06′15.66″ EUpper Volsci unitScaglia s.l.limestoneHeteroelicidae, Hantkeninidae, Schackoina, Guembelina, Clavihedbergella, GloborotaliaAlbian?; Maastrichtian-early Eoceneexotic block within C[71,148]
41°35′17.12″ N13°06′15.66″ EUpper Volsci unitCglauconitic calcareniteOrbulina, Globigerinoides sacculiferus, Globoquadrina altispira, Globigerina parabulloides, Bigenerina nodosariaupper Serravallian- Tortonian p.p.reworkedThis work; [103]
41°35′17.12″ N13°06′15.66″ EUpper Volsci unitUAMmarl with cylindrites and calcareniteSphenolithus heteromorphus, Cyclicargolithus floridanus, Reticulofenestra pseudoumbilicus, Coccolithus miopelagicus, Helicosphaera walbersdorfensis, Calcidiscus premacintyrei, Neogloboquadrina continuosa, Neogloboquadrina
acostaensis.
upper Serravallianexotic block?[72]
4Gorga, Capezzenna Mt.41°37′38.45″ N13°08′32.37″ Elower Volsci unitRDTlimestoneRotalispira maxima, Dicyclina schlumbergeriSantonian- Campanianin situ[103]
41°37′38.45″ N13°08′32.37″ Elower Volsci unitMVPmarl pebble in conglomerateAmaurolithus primusuppermost Tortonian—basal Pliocenein situthis work—GO2
41°37′38.45″ N13°08′32.37″ Elower Volsci unitMVPbioturbated marl pebble in conglomerateDiscoaster surculus, Helicosphera wallichii. Calcidiscus leptoporus, C. macintyrei, Coccolithus pelagicus, Discoaster multiradiatus, Helicosphaera carteri, Reticulofenestra minuta, R. pseudombilicus, Sphenolithus moriformis, S. radians, Zygrhablithus bijugatusuppermost Tortonian—basal Pliocenein situthis work—GO3
5Gorga, Rave St. Marie41°39′36.01″ N13°07′9.51″ Elower Volsci unitRDTlimestoneOrbitoides medius, Sivasella monolateralisMaastrichtianin situ[111]
41°39′36.01″ N13°07′9.51″ Elower Volsci unitSpirolina lmst.limestoneSpirolina, carofitalower Eocenein situ[111]
41°39′36.01″ N13°07′9.51″ Elower Volsci unitCBZlimestone and marlCyclicargolithus floridanus, Sphenolithus conicus, Miogypsina cf. globulinalower Miocene (not younger than middle Burdigalian)in situThis work—LEP12C
41°39′36.01″ N13°07′9.51″ Elower Volsci unitUAMmarl with cylindritesGloborotalia menardii; Globorotalia ventriosa, Globigerina nepentheslower Tortonianin situ[103]
6Sgurgola41°40′38.97″ N13°9′34.03″ Eupper Ernici unitCBZlimestoneAmphistegina, Heterostegina, briozoa, Operculina, Miogyspina globulina, Cycloclypeus, Globorotalia scitula, Globigerinoides trilobus, G. sacculifer, G. bisphaericus, Orbulina universa, Orbulina suturalis, Globoquadrina dehiscens, Globorotalia mayeriLanghian—lower Serravallianin situ[103]
41°40′38.97″ N13°9′34.03″ Eupper Ernici unitUAMmarl with cylindritesGloborotalia menardii, Globigerina nepenthes, Globorotalia ventriosa, Globorotalia acostaensis, G. bulloides, G. parabulloides, G. pseudopachyderma, G. apertura, Globigerinoides obliquus, Globoquadrina globosa, Orbulina universaupper Serravallian—Tortonian p.p.in situ[103]
41°40′38.97″ N13°9′34.03″ Eupper Ernici unitFFSarenaceous-argillous turbiditeGloborotalia menardii, Globigerina nepenthes, Globorotalia ventriosaupper Tortonianin situ[103]
7Ferentino41°41′22.95″ N13°14′41.78″ Eupper Ernici unitRDTlimestoneRotalispira
scarsellai, Accordiella conica, Cuvillierinella salentina
middle Campanianin situ[103]
41°41′22.95″ N13°14′41.78″ Eupper Ernici unitSpirolina lmst.limestoneSpirolina, carofita, discorbidaelower Eocenein situ[103]
41°41′22.95″ N13°14′41.78″ Eupper Ernici unitCBZlimestoneAmphistegina, Heterostegina, briozoa, Operculina, Miogyspina globulina, Cycloclypeus, Globorotalia scitula, Globigerinoides trilobus, G. sacculifer, G. bisphaericus, Orbulina universa, Orbulina suturalis, Globoquadrina dehiscens, Globorotalia mayeriupper Langhian—upper Serravallianin situ[103]
41°41′22.95″ N13°14′41.78″ Eupper Ernici unitUAMmarl with cylindritesGloborotalia menardii, Globigerina nepenthes, Globorotalia ventriosa, Globorotalia acostaensis, G. bulloides, G. parabulloides, G. pseudopachyderma, G. apertura, Globigerinoides obliquus, Globoquadrina globosa, Orbulina universaupper Serravallian—Tortonian p.p.in situ[103]
41°41′22.95″ N13°14′41.78″ Eupper Ernici unitFFSarenaceous- pelitic turbiditeno dataupper Tortornian [103]
8Caccume Mt. klippe41°34′46.13″ N13°14′0.62″ Elower Volsci unitRDTlimestoneRotalispira scarsellai, Accordiella conica, Thaumatoporella, NezzazatinellaSantonian—Campanianin situthis work—LEP1A-C; LEP27
41°34′46.13″ N13°14′0.62″ Elower Volsci unitRDTlimestone with iron crustonRotalispira scarsellai, Accordiella conica, Thaumatoporella, NezzazatinellaSantonian—Campanianin situthis work—LEP1A-C; LEP28
41°34′46.13″ N13°14′0.62″ Eupper Volsci unitRDTrudstoneRotalispira maxima, Accordiella conicaCampaniannative block within Cthis work LEP20
41°34′46.13″ N13°14′0.62″ Eupper Volsci unitCglauconitic calcarenite with bryozoa; white -mica-bearingsandstone, brownish folded calcareous sandstone, green sandstone, veined and fracture calcareous marls; pinkish marl, Orbulina Marl lenses (Paleocene- Serravallian) Tortonian p.p.exotic block within C[45], this work
9Torrice41°38′1.75″ N13°24′27.41″ Eupper Ernici unitFFSpelitic- arenaceous; arenaceous -pelitic faciesGlogerinoides extremus, Globigerinoides obliquus, Neogloboquadrina acostaensis, Globorotalia humerosa, Orbulina suturalis, Orbulina universaupper Tortonian—basal Messinianin situ[64,129]
41°38′1.75″ N13°24′27.41″ Eupper Ernici unitMVParenaceous- pelitic faciesNN 11 la (CN 9a) subzone. Discoaster cf. quinqueramus and D. cf. berggreniilate Tortonianin situ[35], this work
10Monte San Giovanni Campano41°37′59.37″ N13°30′31.89″ Eupper Ernici unitUAMmarly limestone and gray marlNN 11 la (CN 9a) subzone. Discoaster cf. quinqueramus and D. cf. berggreniilate Tortonianin situ[87]
41°37′59.37″ N13°30′31.89″ Eupper Ernici unitFFSarenitic (sandstone) and pelitic faciesNN 11 la (CN 9a) subzone. Discoaster cf. quinqueramus and D. cf. berggreniilate Tortonianin situ[87]
41°37′59.37″ N13°30′31.89″ Eupper Ernici unitMVPclay with gypsum, sandstone and conglomerateTurborotalia multiloba, Aurila albicans, Discoaster variabilis, Discoaster intercalarislower Messinianin situ[87]
11Colle Cavallaro41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCBriozoa-bearing detrital limestoneMolluschi e di Echinoderms, Elphidium sp., Lagenidae, Rotaliidae, Melobesie.middle Miocenereworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCMarly gray-greenish limestoneHeterohelix sp., Globigerinidae, Globorotalia spp.earliest Paleocenereworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCwhite limestoneTicinella sp., Gavelinella, sp.Aptian-Albianreworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCDetrital-organogen limestoneHeterohelix, sp., Globigerinella sp., arenacous foraminiferaearly Paleocenereworked[114]
41°30′53.47"N13°26′25.33"EVolsci Thrust FrontCOxided detrital-organogen limestoneBriozoa, Globorotalia sp. e LagenidaeEocenereworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCcherty limestone ox-bearingRadiolarians, Lagenidae, Sponge spiculae(?)Oligocene—early Aquitanian (?)reworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCmarl, sandstone, greenish clayGlobigerinidae, Ammodiscus, Haplophragmoideslate Miocene-earliest Pliocenereworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCmarl, sandstone, greenish clay (matrix)Rotalipora cfr. appenninica, Globotruncana lapparenti lapparenti,Cenomanianreworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCmarl, sandstone, greenish clay (matrix)Racemiguembelina fructicosaMaastrichtianreworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCmarl, sandstone, greenish clay (matrix)Globigeraspis sp., Globigerina cfr. dissimilis, Globorotalia aequa, Globorotalia quetramiddle -upper Eocenereworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCmarl, sandstone, greenish clay (matrix)Cassidulina subglobosa horizontalis, Globoquadrina dehiscens, Globoquadrina cfr. quadraria, Globigerinoides bisphaericusearly Miocenereworked[114]
41°30′53.47″ N13°26′25.33″ EVolsci Thrust FrontCmarl, sandstone, greenish clay (matrix)Haplophragmoides sp., Eggerella brady, Nodosaria ovicula, Elphidium complanatum, Elphidium macellum, Nonion boueanum, Nonion umbilicatum, Pullenia bulloides, Plectofrondicularia diversicostata, Plectofrondicularia semicosta, Orthomorphina cfr. proxima, Robertina bradyi, Bulimina aculeata, Bulimina costata, Bulimina fusiformis, Bulimina inflata, Bolivina arta, Bolivina cistina, Bolivina punctata, Bolivinoides miocenicus, Uvigerina canariensis, Uvigerina laviculata, Uvigerina peregrina, Uvigerina rutila, Angulogenerina angulosa, Valvulineria bradyana, Valvulineria complanata, Gyroidina longispira, Gyroidina longispira miocenica, Gyroidina soldanii, Gyroidina soldanii altiformis, Eponides haidingeri, Eponides umbonatus stellatus, Rotalia beccarii inflata, Siphonina reticulata, Cassidulina laevigata carinata, Cassidulina oblonga, Cassidulina subglobosa, Sphaeroidina bulloides, Globigerina bulloides, Globigerina concinna, Globigerina eggeri, Sphaeroidinella cfr. dehiscens, Globigerinoides trilobus, Globigerinoides rubra, Orbulina suturalis, Catapsidrax unicavus, Globigerinita naparimaensis, Globorotalia cfr. bononiensis, Globorotalia scitula, Globorotalia aff. scitula, Globorotalia mayeriPliocene?Not reworked[114]
12Vele Mt. Thrust ramp41°21′12.97″ N13°31′7.49″ EUpper Volsci unitLKlimestoneCladocoropsis mirabilis, Salpingoporella dinarica, Orbitolina lenticularis, Cuneolina laurentii, C. camposauri, Salpingoporella annulatauppermost Jurassic—lower Cretaceousin situ[102]
41°21′12.97″ N13°31′7.49″ EUpper Volsci unitUKlimestoneAccordiella conica, Dicyclina schlumbergeri, Sellialveolina vialliiCenomanian- Santonianin situ[102]
41°21′12.97"N13°31′7.49"EUpper Volsci unitCclay mélangeno data reworked[102]
13Leucio Mt. klippe41°28′0.12″ N13°37′5.79″ EUpper Volsci unitLKlimestoneCladocoropsis mirabilis, Salpingoporella dinarica, Orbitolina lenticularis, Cuneolina laurentii, C. camposauri, Salpingoporella annulataUppermost Jurassic—lower Cretaceousin situ[102]
41°28′0.12″ N13°37′5.79″ EUpper Volsci unitCclay mélangeno dataupper Tortonian—lower Messinian [102]
14Formia-Maranola41°17′23.93″ N13°36′35.81″ Elower Volsci unitUKlimestoneAccordiella conica, Rotalispira scarsellai, Dicyclina schlumbergeri, Moncharmontia apenninicaSantonian—Campanianin situ[115]
41°17′23.93″ N13°36′35.81″ Elower Volsci unitUKlimestone with iron crustScandonea; Ticinella sp., Hedbergella sp.Campanian?- early Eocene? [63,115]
41°17′23.93″ N13°36′35.81″ Elower Volsci unitCsitly clays, marls and sandstone; Pietra paesina; Scaglia-type limestone; marly limestones and Mg-bearing sandstonesradiolarians, heterohelicidae, Globotruncana, Hedbergella, Globigerinoides sp. lagenidae, globigerinidae exotic blocks[115]
41°17′23.93″ N13°36′35.81″ Elower Volsci unitMVPmica-rich silty clays and argillous sands with gypsumGlorotalia, globorotaloidea, Globorotalia incompta, G. mayeri, G. obesa, G. pseudopachyderma, G. scitula, Globigerinoides spp., Globigerina quinqueloba, Orbulina sp.middle to upper Messinianin situ[115]
41°17′23.93″ N13°36′35.81″ E SBGpolygenic brecciaBolivina leonardi, Cibicides italicus, Elphidium complanatuma, lenticulina clerici, Marginulina costata, Nodosaria pentecostata, Glorotalia puncticulata, G. bononiensisuppermost Messinian—lower Pliocenein situ[115]
15Spigno Saturnia41°18′45.84″ N13°41′59.17″ Elower Volsci unitRDTlimestoneRotorbinella scarsellai, Accordiella conicaAptian- Turonianin situ[96]
41°18′45.84″ N13°41′59.17″ Elower Volsci unitRDTlimestone with iron crustno data [115]
41°18′45.84″ N13°41′59.17″ Elower Volsci unitCsitly clay, marl and sandstone; Pietra paesina; Scaglia-type limestone; marly limestones and Mg-bearing sandstonesradiolarians, heterohelicidae, Globotruncana, Hedbergella, Globigerinoides sp., lagenidae, globigerinidae exotic blocks[115]
16Torrente ausente Valley41°21′53.62″ N13°43′55.16″ Eupper Ernici unitCBZlimestoneAmphistegina, Elphidium, Heterostegina, Gypsinalower Aquitanian—lower Serravallian (?)in situ[149]
41°21′53.62″ N13°43′55.16″ Eupper Ernici unitUAMmarl with cylindritesOrbulina universa, O. suturalis, Globorotalia menardii, Globorotalia scitula ventriosa, Globigerinoides trilobus, Globigerina cf. bulloides, Globigerina concinna, Globoquadrina dehiscensSerravallian p.p.—Tortonian p.p.in situ[115]
41°21′53.62″ N13°43′55.16″ Eupper Ernici unitFFSsandstone with olistolites and olistostromesGloborotalia menardii, Globigerina nepenthes, Globorotalia ventriosa, G. parabulloides, Globigerinoides obliquus, Globoquadrina globosaupper Tortonianin situ with native blocks[115]
41°21′53.62″ N13°43′55.16″ Eupper Ernici unitMVPcalcarenite and conglomerate with quartz grainsAmphistegina, Elphidium, Textularidae, Miliolidae, Globigerinidae, Globotruncane, Nummuliteslower Messinianreworked[115,116,150]
41°21′53.62″ N13°43′55.16″ Eupper Ernici unitMVPsubordianate marl and gypsum towards the topGloborotalia acostaensis, Globigerina bulloides, Globigerina vanazuelana, Orbulina bilobata, Orbulina suturalis, Orbulina universalower Messinianin situ[115]
17Castelforte41°17′55.49″ N13°49′54.89″ Eupper Ernici unitRDTlimestoneAccordiella conica, Rotalispira scarsellai, Dicyclina schlumbergeri, Moncharmontia apenninica, LaffitteinaSantonian- Maastrichtianin situ[113]
41°17′55.49″ N13°49′54.89″ Eupper Ernici unitSpirolina lmst.limestoneSpirolina, Coskinolina liburnica, Alveolina ellipsoidalisupper Paleocene—lower Eocenein situ[113]
41°17′55.49″ N13°49′54.89″ Eupper Ernici unitCBZlimestoneAmphistegina, Cibicides, Operculina, EponidesLanghian (?)—Serravallian p.p.in situ[115]
41°17′55.49″ N13°49′54.89″ Eupper Ernici unitUAMmarl and sandstoneOrbulina universa, O. suturalis, Globorotalia menardii, Globorotalia scitula ventriosa, Globigerinoides trilobus, Globigerina cf. bulloides, Globigerina concinna, Globoquadrina dehiscensSerravallian p.p.—Tortonian p.p.in situ[115]
41°17′55.49″ N13°49′54.89″ Eupper Ernici unitFFSarenaceous -siltous clay turbiditeno dataTortonian [115]
18Massico Mt.41°9′39.27″ N13°54′16.24″ Eupper Ernici unit ?RDTlimestoneDicyclina schlumbergeri, Accordiella conica, rudistCampanianin situ[37]
41°9′39.27″ N13°54′16.24″ Eupper Ernici unit ?CBZlimestoneAmphistegina, bryozoa, Ditrupa, ostreidaeBurdigalian—Langhianin situ[37]
41°9′39.27″ N13°54′16.24″ Eupper Ernici unit ?UAMmarls and sandstoneOrbulina, Globorotalia menardiiSerravallian—lower Tortonian p.p.in situ[37,115]
41°9′39.27″ N13°54′16.24″ Eupper Ernici unit ?FFSclay and sandstone with olistolithesGloborotalia mayeri, G. scitula, Globigerinoides trilobus, Bolivina sp., Discoaster brouweri, D. variabilis, D. surculus, Helicosphaera wallichii, Sphenolithus abiesupper Tortonian—lower Messinian(?)in situ[37,115]

Appendix B

In the following, we report the new Stratigraphic constraints and age determination of the samples collected from twenty-five different localities in the study area representative stratigraphic logs of Figure 2 in the main manuscript.
Sampling LocalityLatitudeLongitudeSampleFmLithologyTexture and ComponentsBiomarkerAge Range
Gavignano, Contrada Fornarelli41°41′54″ N13°3′30″ ELEP9AMVPCalcarenitic/arenitic matrix with aboundat quartz grainsElphidium and Amphistegina; clasts of Cretaceous age (with Rotalispira) and clasts with Orbulina Late Miocene
41°41′54″ N13°3′30″ ELEP9A2MVPCalcarenitic/arenitic matrix with aboundat quartz grainsreworked Elphidium e Amphistegina and clasts with planctonic forams Late Miocene
Gavignano, promenade41°42′10″ N13°2′39″ ELEP10BMVPLithoclast of Rudist (radiolitids) limestone with benthic foraminiferaPeloidal packstone with RotalispiraMoncharmontia apenninica, RotalispiraConiacian- Campanian
41°42′10″ N13°2′39″ ELEP10AMVPCalcarenitic/arenitic matrix with aboundat quartz grainsreworked Elphidium e Amphistegina and clasts with planctonic forams Late Miocene
41°42′10″ N13°2′39″ ELEP10MVPLithoclast wackestone with planktonic foraminiferaOrbulinaOrbulinaSerravallian- Tortonian
41°42′8.67″ N13°2′38.40″ ELEP10LMVPCalcarenitic/arenitic matrix Coccolithus pelagicus, Discoaster surculus, Helicosphaera wallichii, Reticulofenestra bisecta, Reticulofenestra minutauppermost Tortonian—lowermost Zanclean
41°42′11.18″ N13°2′42.66″ ELEP10MMVPMarl and clay Amaurolithus primus, Coccolithus pelagicus, Discoaster surculus, Discoaster variabilis, Nicklithus amplificus, Sphenolithus abiesMessinian
Bassiano, Colle Cantocchio41°34′28.33″ N13°0′02.26″ ELEP8ACBZConglomerate of calcarenitic pebbles with glauconitePebbly grainstone with echinid, ditrupae, Elphidium, bryozoa, Miogypsina, Amphistegina, Operculina, Heterostegina, LepidocyclinaMiogypsina, Elphidium, bryozoaearly Miocene
41°34′28.33″ N13°0′02.26″ ELEP8CCBZConglomerate of calcarenitic pebbles with glauconitematrix made up with echinoderm and ostreid fragments with reworked Cretaceous clasts with Thaumatoporella orpeloidal faciesOstreid and echinodermsearly Miocene
41°34′32″ N13°0′9″ ELEP16CBZConglomerate with Cretaceous clastsEchinid, Elphidium, bryozoa, Amphistegina, Heterostegina, LepidocyclinaElphidium, Amphisteginaearly Miocene
Bassiano, Colle Cantocchio Bat Cave41°34′31.92″ N13°0′2.08″ ELEP49dUAMClay within thrust Braarudosphaera bigelowii, Catinaster cf. coalitus, C. cf. glenos, Coccolithus cf. eopelagicus, C. cf. miopelagicus, C. pelagicus, Cyclicargolithus abisectus, Cy. floridanus, Helicosphaera carteri, H. walberdosfensis, Ortorhadus cf. rugosus, O. serratus, Pontosphaera multipora, Reticulofenestra bisecta, R. cf. dictyoda, R. minuta, R. cf. pseudoumbilicus, Sphenolithus moriformis, S. radians, Triquetrorhabdulus carinatus, T. challegeri, Watznaueria barnesiaeMesozoic, Paleocene- Eocene; Oligocene- middle Miocene; Serravallian- Tortonian?
41°34′31.92″ N13°0′2.08″ ELEP49fUAMClay beneath thrust Braarudosphaera bigelowii, Calcidiscus leptoporus, Catinaster cf. coalitus, C. glenos, Chiasmolithus sp., Coccolithus cf. eopelagicus, C. cf. miopelagicus, C. pelagicus, C. tenuiforatus, Cruciplacolithus sp., Cyclicargolithus abisectus, Cy. floridanus, Discoaster cf. deflandrei, D. multiradiatus gr., D. sp., Helicosphaera carteri, H. walberdosfensis, Nannotetrina fulgens, Ortorhadus serratus, Pontosphaera multipora, Reticulofenestra bisecta, R. cf. dictyoda, R. minuta, R. cf. pseudoumbilicus, Sphenolithus moriformis, S. radians, Triquetrorhabdulus carinatus, Watznaueria barnesiae, Zygrhablithus bijugatusMesozoic, Paleocene- Eocene; Oligocene- middle Miocene; Serravallian- Tortonian?
Bassiano, Colle Cantocchio near top41°34′29″ N13°0′9″ ELEP15SBGBreccia with Mesozoic clastsReddish matrix with echinoderm fragmentsechinoderms
Gorga, Rave Santa Maria41°39′18″ N13°7′18″ ELEP 14BUKGrainstone/ Packstone with rudistsRotalispira and ostracodsRotalispiraCampanian
41°39′35″ N13°7′8″ ELEP12AUKCalcarenite with resedimented rudistbioclastic detritus (echinoderms) with Orbitoides and MurciellaOrbitoides and MurciellaUpper Campanian- lower Maastrichtian
41°39′35″ N13°7′8″ ELEP12BCBZBreccia of encrusted K pebbles, calcarenitic matrixBivalve, echinoid fragments and reworked Cretaceous clasts early Miocene
41°39′35″ N13°7′8″ ELEP12CCBZMarl level with tiny limestone clasts Cyclicargolithus floridanus, Sphenolithus conicusnot younger than middle Burdigalian
Gorga, Capezzenna Mt.41°39′6.86″ N13°4′22.07″ EGO2MVPMarly lens within conglomerate Amaurolithus primusuppermost Tortonian—lowermost Zanclean
41°39′6.86″ N13°4′22.07″ EGO3MVPMarly clast within conglomerateClast with Chondrites bioturbationsmain markers: Discoaster surculus, Helicosphera wallichii. Other components: Calcidiscus leptoporus, C. macintyrei, Coccolithus pelagicus, Discoaster multiradiatus, Helicosphaera carteri, Reticulofenestra minuta, R. pseudombilicus, Sphenolithus moriformis, S. radians, Zygrhablithus bijugatusupper Tortonian
Marroni, Morolo41°39′38.68″ N13°10′27.54″ ELEP72FFSMarl and clay Discoaster variabilis, Helicosphaera carteri, Reticulofenestra bisecta, R. minuta, Sphenolithus procerus, Zygrhablithus bijugatusnot older than upper Tortonian
Colle Fatuccio, Ferentino41°40′21.60″ N13°13′45.14″ ELEP73FFSMarl and clayCrustaceans bioturbationssterile
Carpineto, Pian della Faggeta41°34′34″ N15°06′53″ ELEP17CUKCarbonatic breccia at the top of a lithonPackstone with Rudist and foraminiferaRotalispiraSantonian- Campanian
41°34′34″ N16°06′53″ ELEP17DCFine-grained calcarenite lensGrainstone-packstone with Amphistegina, Miogypsinids and echinoderm fragmentsMiogypsinidsearly Miocene
41°34′34″ N15°06′53″ ELEP17ECMicroconglomerate lens with carbonatic and crystalline pebbles sterile
41°34′34″ N15°06′53″ ELEP17FCSandstone with carbonatic e and crystalline clasts sterile
41°34′35″ N18°06′41″ ELEP18BUKsStriated carbonate cruston at the top of a lithonWackestone with Decastronema, ostracoda, discorbidaeDecastronemaUpper Creteceous
41°34′35″ N18°06′41″ ELEP18DCMicroconglomerate lens with crystalline clasts Coccolithus pelagicus, Cyclicargolithus abisectus, Cy. floridanus, Reticulofenestra cf. pseudoumbilicusearly Miocene?
41°34′33″ N19°06′39″ ELEP19AUKRudist rudstone/floatstone at the top of a lithon rudistsUpper Cretaceous
41°34′33″ N19°06′39″ ELEP19BUKCarbonate brecciaWackestone with Thaumatoporella, and benthic foraminiferaNezzazatinella, RotalispiraConiacian- Campanian
Patrica, Caccume Mt. north41°34′46.50″ N13°13′58.92″ ECC20UKLimestoneWackestone with Thaumatoporella, and benthic foraminiferaAccordiella conica, Rotalispira maximaSantonian Campanian
41°34′46.50″ N13°13′58.92″ ECC21UKLimestone breccia on topWackestone with Thaumatoporella, and benthic foraminiferaNezzazatinella, Rotalispira maximaSantonian Campanian
41°34′46.50″ N13°13′58.92″ ECC23UKLimestone breccia on topWackestone with Thaumatoporella, and benthic foraminiferaRotalispira maximaSantonian Campanian
41°34′39.30″ N13°14′3.01″ ECC24UKCataclastic limestone Cenomanian?
41°34′47″ N13°13′59″ ELEP1AUKLimestone below unconformityBenthic foraminifera and small debris of rudist shells fragmentsAccordiella conica and Rotalispira maximaCampanian
41°34′47″ N13°13′59″ ELEP1BUKDolomitic limestone above unconformity Upper Cretaceous?
41°34′47″ N13°13′59″ ELEP1CUKEncrusted carbonatic breccia on topWackestone with benthic foraminifera, few intraclastsRotalispira scarsellaiSantonian- Campanian
41°34′47″ N13°13′59″ ELEP20UKLimestone breccia within Chaotic complexWackestone with benthic foraminifera, Cretaceous intraclastsRotalispira maxima and Accordiella conicaCampanian
41°34′32′′13°14′5′′LEP68aCClay Coccolithus pelagicus, C. miopelagicus, Cyclicargolithus abisectus, Cy. floridanus, Discoaster sp., D. berggrenii, D. brouweri, D. deflandrei, D. formosus, D. multiradiatus, D. pentaradiatus, D. quinqueramus, D. variabilis, Helicosphaera recta, H. stalis, H. walberdosfensis, Orthorhabdus rugosus, Reticulofenestra bisecta, R. minuta, R. pseudoumbilicus, Reticulofenestra sp., Sphaenolithus abies, S. ciperoensis, S. disbelemnos, S. heteromorphus, S. moriformis, Zygrhablithus bijugatusPaleocene- Eocene; Oligocene- early Miocene; middle Miocene; upper Tortonian—Messinian?
Giuliano di Roma, Caccume Mt. east41°34′19″ N13°14′55″ ELEP27BUKLimestone below unconformityPackstone with benthic foraminiferaRotalispira scarsellaiUpper Turonian- Campanian
41°34′19″ N13°14′55″ ELEP27C2UKBreccia above unconformity Santonian- Campanian
41°34′19″ N13°14′55″ ELEP27DUKLimestonePackstone with algae and benthic foraminiferaThaumatoporella, Rotalispira scarsellai, Rotalispira maxima, Moncharmontia apenninicaSantonian- Campanian
Giuliano di Roma, Caccume Mt. east41°34′19″ N13°14′55″ ELEP27FUKLimestoneWackestone with benthic foraminiferaNezzazatinella, Rotalispira, Pseudocyclammina sphaeroideaTuronian- Santonian
Giuliano di Roma, Caccume Mt. Scorciapane41°34′14.93′′N13°13′54.82′′ELEP67CClay beneath thrust sterile
Giuliano di Roma, Caccume Mt. west41°34′40′′N13°13′23′′ELEP69aCClay Calcidiscus leptoporus, Clarolithus ellipticus, Coccolithus pelagicus, C. miopelagicus, D. berggrenii, D. brouwerii, D. decorus, D. deflandrei, D. multiradiatus, D. pentaradiatus, D. quinqueramus, D. variabilis, Orthorhabdus rugosus, O. striatus, Pontosphaera discopora, P. multipora, Reticulofenestra bisecta, R. minuta, R. pseudoumbilicus, Sphaenolithus abies, S. moriformis, Zygrhablithus bijugatusPaleocene- Eocene; Oligocene- early Miocene; middle Miocene; upper Tortonian—Messinian?
Giuliano di Roma, Siserno Mt.41°32′17″ N13°18′02″ ELEP 30UKLimestoneWackestone with OstracodsostracodsCampanian?
41°32′17″ N13°18′02″ ELEP 31UKLimestoneMudstone with Dolomitized intraclasts Upper Cretaceous
41°32′17″ N13°18′02″ ELEP 32UKLimestoneWackestone with miliolidae, ostracoda and dolomite crystalsostracods and miliolidsCampanian
41°32′17″ N13°18′02″ ELEP 32BUKLimestoneWackestone with miliolidae, ostracoda, discorbidae and porcelaneous foraminiferaostracods and miliolidsCampanian
Patrica, il Patricano41°33′4.78″ N13°16′2.89″ ELEP36UKLimestoneWackestone with iscorbidaediscorbidaeCampanian
41°34′17″ N13°15′54″ ELEP39AUKLimestoneWackestone with rudist fragments, miolidae, ostracoda and Thaumatoporellaostracods and discorbideCampanian
41°34′17″ N13°15′54″ ELEP39BUKLimestoneWackestone with ostracods and miliolidaeRotalispira scarsellai, Accordiella conica,Campanian
41°34′20″ N13°15′55″ ELEP 40AUKLimestoneWackestone/Packstone with ostracods and discorbidaeThaumatoporella, Nezzazata, Moncharmontia apenninicaCampanian
Giuliano di Roma west41°33′7′′13°16′10′′LEP70CMarl and clay Coccolithus pelagicus, Reticulofenestra bisecta, R. minuta, Sphenolithus moriformis, Zygrhablithus bijugatusPaleocene- Tortonian
Frosinone, Le Fornaci cinema41°37′4.88″ N13°20′26.32″ ELEP71FFSMarl and pelite with coal Coccolithus pelagicus, Cyclicargolithus abisectus, Reticulofenestra bisecta, R. minuta, Pontosphaera sp.Oligocene- early Miocene; Tortonian?

References

  1. Read, J.F. Carbonate platform facies models. Aapg Bull. 1985, 69, 1–21. [Google Scholar] [CrossRef]
  2. Ford, M.; Stahel, U. The geometry of a deformed carbonate slope-basin transition: The Ventoux-Lure fault zone, SE France. Tectonics 1995, 14, 1393–1410. [Google Scholar] [CrossRef]
  3. Carminati, E.; Doglioni, C. Alps vs. Apennines: The paradigm of a tectonically asymmetric Earth. Earth-Sci. Rev. 2012, 112, 67–96. [Google Scholar] [CrossRef]
  4. Davis, D.; Suppe, J.; Dahlen, F.A. Mechanics of fold-and-thrust belts and accretionary wedges. J. Geophys. Res. Solid Earth 1983, 88, 1153–1172. [Google Scholar] [CrossRef]
  5. Roure, F. Foreland and hinterland basins: What controls their evolution? Swiss J. Geosci. 2008, 101, 5–29. [Google Scholar] [CrossRef]
  6. Grool, A.R.; Ford, M.; Vergés, J.; Huismans, R.S.; Christophoul, F.; Dielforder, A. Insights into the crustal-scale dynamics of a doubly vergent orogen from a quantitative analysis of its forelands: A case study of the Eastern Pyrenees. Tectonics 2018, 37, 450–476. [Google Scholar] [CrossRef]
  7. Butler, R.W.; Tavarnelli, E.; Grasso, M. Structural inheritance in mountain belts: An Alpine–Apennine perspective. J. Struct. Geol. 2006, 28, 1893–1908. [Google Scholar] [CrossRef]
  8. Tavani, S.; Storti, F.; Lacombe, O.; Corradetti, A.; Muñoz, J.A.; Mazzoli, S. A review of deformation pattern templates in foreland basin systems and fold-and-thrust belts: Implications for the state of stress in the frontal regions of thrust wedges. Earth-Sci. Rev. 2015, 14, 82–104. [Google Scholar] [CrossRef]
  9. Santantonio, M.; Carminati, E. Jurassic rifting evolution of the Apennines and Southern Alps (Italy): Parallels and differences. Gsa Bull. 2011, 123, 468–484. [Google Scholar] [CrossRef]
  10. Shiner, P.; Beccaccini, A.; Mazzoli, S. Thin-skinned versus thick-skinned structural models for Apulian carbonate reservoirs: Constraints from the Val d’Agri Fields, S Apennines, Italy. Mar. Pet. Geol. 2004, 21, 805–827. [Google Scholar] [CrossRef]
  11. Livani, M.; Scrocca, D.; Arecco, P.; Doglioni, C. Structural and stratigraphic control on salient and recess development along a thrust belt front: The Northern Apennines (Po Plain, Italy). J. Geophys. Res. Solid Earth 2018, 123, 4360–4387. [Google Scholar] [CrossRef]
  12. Cardello, G.L.; Di Vincenzo, G.; Giorgetti, G.; Zwingmann, H.; Mancktelow, N. Initiation and development of the Pennine Basal Thrust (Swiss Alps): A structural and geochronological study of an exhumed megathrust. J. Struct. Geol. 2019, 126, 338–356. [Google Scholar] [CrossRef]
  13. Herwegh, M.; Pfiffner, O.-A. Tectono-metamorphic evolution of a nappe stack: A case study of the Swiss Alps. Tectonophysics 2005, 404, 55–76. [Google Scholar] [CrossRef]
  14. Festa, A.; Pini, G.A.; Dilek, Y.; Codegone, G. Mélanges and mélange-forming processes: A historical overview and new concepts. Int. Geol. Rev. 2010, 52, 1040–1105. [Google Scholar] [CrossRef]
  15. Festa, A.; Dilek, Y.; Pini, G.A.; Codegone, G.; Ogata, K. Mechanisms and processes of stratal disruption and mixing in the development of mélanges and broken formations: Redefining and classifying mélanges. Tectonophysics 2012, 568, 7–24. [Google Scholar] [CrossRef]
  16. Ogawa, Y.; Anma, R.; Dilek, Y. Accretionary Prisms and Convergent Margin Tectonics in the Northwest Pacific Basin; Springer Science & Business Media: Berlin, Germany, 2011; Volume 8. [Google Scholar] [CrossRef]
  17. Codegone, G.; Festa, A.; Dilek, Y. Formation of Taconic mélanges and broken formations in the Hamburg Klippe, central Appalachian Orogenic Belt, eastern Pennsylvania. Tectonophysics 2012, 568, 215–229. [Google Scholar] [CrossRef]
  18. Ogata, K.; Festa, A.; Pini, G.A.; Pogačnik, Ž.; Lucente, C.C. Substrate deformation and incorporation in sedimentary mélanges (olistostromes): Examples from the northern Apennines (Italy) and northwestern Dinarides (Slovenia). Gondwana Res. 2019, 74, 101–125. [Google Scholar] [CrossRef]
  19. Mohn, G.; Manatschal, G.; Masini, E.; Müntener, O. Rift-related inheritance in orogens: A case study from the Austroalpine nappes in Central Alps (SE-Switzerland and N-Italy). Int. J. Earth Sci. 2011, 100, 937–961. [Google Scholar] [CrossRef]
  20. Bertok, C.; Martire, L.; Perotti, E.; d’Atri, A.; Piana, F. Kilometre-scale palaeoescarpments as evidence for Cretaceous synsedimentary tectonics in the External Briançonnais Domain (Ligurian Alps, Italy). Sediment. Geol. 2012, 251, 58–75. [Google Scholar] [CrossRef]
  21. Cardello, G.L.; Mancktelow, N.S. Cretaceous syn-sedimentary faulting in the Wildhorn Nappe (SW Switzerland). Swiss J. Geosci. 2014, 107, 223–250. [Google Scholar] [CrossRef]
  22. Balestro, G.; Festa, A.; Tartarotti, P. Tectonic significance of different block-in-matrix structures in exhumed convergent plate margins: Examples from oceanic and continental HP rocks in Inner Western Alps (northwest Italy). Int. Geol. Rev. 2015, 57, 581–605. [Google Scholar] [CrossRef]
  23. Tozer, R.S.J.; Butler, R.W.H.; Corrado, S. Comparing thin-and thick-skinned thrust tectonic models of the Central Apennines, Italy. Egu Stephan Mueller Spec. Publ. Ser. 2002, 1, 181–194. [Google Scholar] [CrossRef]
  24. Calabrò, R.A.; Corrado, S.; Di Bucci, D.; Robustini, P.; Tornaghi, M. Thin-skinned vs. thick-skinned tectonics in the Matese Massif, Central–Southern Apennines (Italy). Tectonophysics 2003, 377, 269–297. [Google Scholar] [CrossRef]
  25. Tavarnelli, E.; Butler, R.W.H.; Decandia, F.A.; Calamita, F.; Grasso, M.; Alvarez, W.; Renda, P. Implications of fault reactivation and structural inheritance in the Cenozoic tectonic evolution of Italy. Geol. Italy Spec. 2004, 1, 209–222. [Google Scholar]
  26. Scrocca, D.; Carminati, E.; Doglioni, C. Deep structure of the southern Apennines, Italy: Thin-skinned or thick-skinned? Tectonics 2005, 24. [Google Scholar] [CrossRef]
  27. Billi, A.; Barberi, G.; Faccenna, C.; Neri, G.; Pepe, F.; Sulli, A. Tectonics and seismicity of the Tindari Fault System, southern Italy: Crustal deformations at the transition between ongoing contractional and extensional domains located above the edge of a subducting slab. Tectonics 2006, 25. [Google Scholar] [CrossRef] [Green Version]
  28. Mazzoli, S.; D’errico, M.; Aldega, L.; Corrado, S.; Invernizzi, C.; Shiner, P.; Zattin, M. Tectonic burial and “young”(<10 Ma) exhumation in the southern Apennines fold-and-thrust belt (Italy). Geology 2008, 36, 243–246. [Google Scholar] [CrossRef]
  29. Molli, G.; Menegon, L.; Malasoma, A. Switching deformation mode and mechanisms during subduction of continental crust: A case study from Alpine Corsica. Solid Earth 2017, 8, 767–788. [Google Scholar] [CrossRef] [Green Version]
  30. Cardello, G.L.; Doglioni, C. From mesozoic rifting to Apennine orogeny: The gran Sasso range (Italy). Gondwana Res. 2015, 27, 1307–1334. [Google Scholar] [CrossRef]
  31. Vitale, S.; Tramparulo, F.D.A.; Ciarcia, S.; Amore, F.O.; Prinzi, E.P.; Laiena, F. The northward tectonic transport in the southern Apennines: Examples from the Capri Island and western Sorrento Peninsula (Italy). Int. J. Earth Sci. 2017, 106, 97–113. [Google Scholar] [CrossRef]
  32. Storti, F.; Balsamo, F.; Mozafari, M.; Koopman, A.; Swennen, R.; Taberner, C. Syn-Contractional Overprinting Between Extension and Shortening Along the Montagna Dei Fiori Fault During Plio-Pleistocene Antiformal Stacking at the Central Apennines Thrust Wedge Toe. Tectonics 2018, 37, 3690–3720. [Google Scholar] [CrossRef]
  33. Cipriani, A.; Bottini, C. Early Cretaceous tectonic rejuvenation of an Early Jurassic margin in the Central Apennines: The “Mt. Cosce Breccia”. Sediment. Geol. 2019, 387, 57–74. [Google Scholar] [CrossRef]
  34. Sabbatino, M.; Vitale, S.; Tavani, S.; Consorti, L.; Corradetti, A.; Cipriani, A.; Arienzo, I.; Parente, M. Constraining the onset of flexural subsidence and peripheral bulge extension in the Miocene foreland of the southern Apennines (Italy) by Sr-isotope stratigraphy. Sediment. Geol. 2020, 401. [Google Scholar] [CrossRef]
  35. Cipollari, P.; Cosentino, D. Miocene unconformities in the Central Apennines: Geodynamic significance and sedimentary basin evolution. Tectonophysics 1995, 252, 375–389. [Google Scholar] [CrossRef]
  36. Bigi, S.; Milli, S.; Corrado, S.; Casero, P.; Aldega, L.; Botti, F.; Moscatelli, M.; Stanzione, O.; Falcini, F.; Marini, M.; et al. Stratigraphy, structural setting and burial history of the Messinian Laga basin in the context of Apennine foreland basin system. J. Mediterr. Earth Sci. 2009, 1, 61–84. [Google Scholar]
  37. Vitale, S.; Prinzi, E.P.; Ciarcia, S.; Sabbatino, M.; Tramparulo, F.D.A.; Verazzo, G. Polyphase out-of-sequence thrusting and occurrence of marble detritus within the wedge-top basin deposits in the Mt. Massico (southern Apennines): Insights into the late Miocene tectonic evolution of the central Mediterranean. Int. J. Earth Sci. 2019, 108, 501–519. [Google Scholar] [CrossRef]
  38. Vitale, S.; Prinzi, E.P.; Tramparulo, F.D.A.; De Paola, C.; Di Maio, R.; Piegari, E.; Sabbatino, M.; Natale, J.; Notaro, P.; Ciarcia, S. Late Miocene-Early Pliocene Out-of-Sequence Thrusting in the Southern Apennines (Italy). Geosciences 2020, 10, 301. [Google Scholar] [CrossRef]
  39. De Capoa, P.; Di Staso, A.; Guerrera, F.; Perrone, V.; Tramontana, M. The extension of the Maghrebian Flysch basin in the Apenninic chain: Paleogeographic and paleotectonic implications. Atti Congr. “Etat des connaissances géologiques des régions nord du Maroc: La Chaîne rifaine dans son cadre Méditerranéen occidental, Rabat (Maroc). Trav. Inst. Sci. RabatGéogr. Phys. 2003, 21, 77–92. [Google Scholar]
  40. Carboni, F.; Viola, G.; Aldega, L.; van der Lelij, R.; Brozzetti, F.; Barchi, M.R. K-Ar fault gouge dating of Neogene thrusting: The case of the siliciclastic deposits of the Trasimeno Tectonic Wedge (Northern Apennines, Italy). Ital. J. Geosci. 2020, 139, 300–308. [Google Scholar] [CrossRef]
  41. Curzi, M.; Aldega, L.; Bernasconi, S.M.; Berra, F.; Billi, A.; Boschi, C.; Carminati, E. Architecture and evolution of an extensionally-inverted thrust (Mt. Tancia Thrust, Central Apennines): Geological, structural, geochemical, and K–Ar geochronological constraints. J. Struct. Geol. 2020, 104059. [Google Scholar] [CrossRef]
  42. Curzi, M.; Billi, A.; Carminati, E.; Rossetti, F.; Albert, R.; Aldega, L.; Cardello, G.L.; Conti, A.; Gerdes, A.; Smeraglia, L.; et al. Disproving the Presence of Paleozoic-Triassic Metamorphic Rocks on the Island of Zannone (Central Italy): Implications for the Early Stages of the Tyrrhenian-Apennines Tectonic Evolution. Tectonics 2020, 39, e2020TC006296. [Google Scholar] [CrossRef]
  43. Smeraglia, L.; Aldega, L.; Billi, A.; Carminati, E.; Di Fiore, F.; Gerdes, A.; Richard, A.; Rossetti, F.; Vignaroli, G. Development of an intrawedge tectonic mélange by out-of-sequence thrusting, buttressing, and intraformational rheological contrast, Mt. Massico ridge, Apennines, Italy. Tectonics 2019, 38, 1223–1249. [Google Scholar] [CrossRef]
  44. Vitale, S.; Ciarcia, S. Tectono-stratigraphic and kinematic evolution of the southern Apennines/Calabria–Peloritani Terrane system (Italy). Tectonophysics 2013, 583, 164–182. [Google Scholar] [CrossRef]
  45. Cardello, G.L.; Consorti, L.; Palladino, D.M.; Carminati, E.; Carlini, M.; Doglioni, C. Tectonically controlled carbonate-seated maar-diatreme volcanoes: The case of the Volsci Volcanic Field, central Italy. J. Geodyn. 2020, 139, 101763. [Google Scholar] [CrossRef]
  46. Roure, F.; Casero, P.; Vially, R. Growth processes and melange formation in the southern Apennines accretionary wedge. Earth Planet. Sci. Lett. 1991, 102, 395–412. [Google Scholar] [CrossRef]
  47. Molli, G. Northern Apennine–Corsica orogenic system: An updated overview. Geol. Soc. Lond. Spec. Publ. 2008, 298, 413–442. [Google Scholar] [CrossRef]
  48. Rosenbaum, G.; Gasparon, M.; Lucente, F.P.; Peccerillo, A.; Miller, M.S. Kinematics of slab tear faults during subduction segmentation and implications for Italian magmatism. Tectonics 2008, 27. [Google Scholar] [CrossRef] [Green Version]
  49. Carminati, E.; Fabbi, S.; Santantonio, M. Slab bending, syn-subduction normal faulting, and out-of-sequence thrusting in the Central Apennines. Tectonics 2014, 33, 530–551. [Google Scholar] [CrossRef]
  50. Faccenna, C.; Becker, T.W.; Miller, M.S.; Serpelloni, E.; Willett, S.D. Isostasy, dynamic topography, and the elevation of the Apennines of Italy. Earth Planet. Sci. Lett. 2014, 407, 163–174. [Google Scholar] [CrossRef]
  51. Boccaletti, M.; Guazzone, G. Remnant arcs and marginal basins in the Cainozoic development of the Mediterranean. Nature 1974, 252, 18–21. [Google Scholar] [CrossRef]
  52. Malinverno, A.; Ryan, W.B. Extension in the Tyrrhenian Sea and shortening in the Apennines as result of arc migration driven by sinking of the lithosphere. Tectonics 1986, 5, 227–245. [Google Scholar] [CrossRef]
  53. Royden, L.; Patacca, E.; Scandone, P. Segmentation and configuration of subducted lithosphere in Italy: An important control on thrust-belt and foredeep-basin evolution. Geology 1987, 15, 714–717. [Google Scholar] [CrossRef]
  54. Doglioni, C. A proposal for the kinematic modelling of W-dipping subductions-possible applications to the Tyrrhenian-Apennines system. Terra Nova 1991, 3, 423–434. [Google Scholar] [CrossRef]
  55. Jolivet, L.; Faccenna, C. Mediterranean extension and the Africa-Eurasia collision. Tectonics 2000, 19, 1095–1106. [Google Scholar] [CrossRef]
  56. Van Hinsbergen, D.J.; Torsvik, T.H.; Schmid, S.M.; Maţenco, L.C.; Maffione, M.; Vissers, R.L.; Gürer, D.; Spakman, W. Orogenic architecture of the Mediterranean region and kinematic reconstruction of its tectonic evolution since the Triassic. Gondwana Res. 2020, 81, 79–229. [Google Scholar] [CrossRef]
  57. Sartori, R.; Torelli, L.; Zitellini, N.; Carrara, G.; Magaldi, M.; Mussoni, P. Crustal features along a W–E Tyrrhenian transect from Sardinia to Campania margins (Central Mediterranean). Tectonophysics 2004, 383, 171–192. [Google Scholar] [CrossRef]
  58. Acocella, V.; Funiciello, R. Transverse systems along the extensional Tyrrhenian margin of central Italy and their influence on volcanism. Tectonics 2006, 25. [Google Scholar] [CrossRef]
  59. Beaudoin, A.; Augier, R.; Jolivet, L.; Jourdon, A.; Raimbourg, H.; Scaillet, S.; Cardello, G.L. Deformation behavior of continental crust during subduction and exhumation: Strain distribution over the Tenda massif (Alpine Corsica, France). Tectonophysics 2017, 705, 12–32. [Google Scholar] [CrossRef] [Green Version]
  60. Locardi, E. The origin of the Apenninic arcs. Tectonophysics 1988, 146, 105–123. [Google Scholar] [CrossRef]
  61. Pizzi, A.; Galadini, F. Pre-existing cross-structures and active fault segmentation in the northern-central Apennines (Italy). Tectonophysics 2009, 476, 304–319. [Google Scholar] [CrossRef]
  62. Castellarin, A.; Colacicchi, R.; Praturlon, A. Fasi distensive, trascorrenze e sovrascorrimenti lungo la <<Linea Ancona-Anzio>>, dal Lias Medio al Pliocene. Geol. Romana 1978, 17, 161–189. [Google Scholar]
  63. Centamore, E.; Di Manna, P.; Rossi, D. Kinematic evolution of the Volsci Range: A new overview. Ital. J. Geosci. 2007, 126, 159–172. [Google Scholar]
  64. Centamore, E.; Dramis, F.; Di Manna, P.; Fumanti, F.; Milli, S.; Rossi, D.; Palombo, M.R.; Palladino, D.M.; Trigila, R.; Zanon, V.; et al. Note illustrative del Foglio 402 Ceccano. In Carta Geol. D’italia 1:50.000. Serv. Geol. D’italia (ISPRA); Instituto Superiore per la Protezione e la Ricerca Ambientale: Rome, Italy, 2010. [Google Scholar]
  65. Fazzini, P.; Gelmini, R.; Mantovani, P.; Pellegrini, M. Geologia dei Monti della Tolfa (Lazio settentrionale; prov. di Viterbo e Roma). Mem. Soc. Geol. Ital. 1972, 11, 65–144. [Google Scholar]
  66. Parotto, M.; De Rita, D.; Giordano, G.; Cecili, A.; Chiocci, F.L.; La Monica, G.B. Note illustrative del Foglio 187 Albano Laziale. In Carta Geol. D’italia 1:50.000. Serv. Geol. D’italia (ISPRA); Instituto Superiore per la Protezione e la Ricerca Ambientale: Rome, Italy, 2009. [Google Scholar]
  67. Ogniben, L. Schema Introduttivo alla Geologia del confine Calabro-Lucano. Mem. Soc. Geol. Ital. 1969, 8, 453–763. [Google Scholar]
  68. Acocella, V.; Faccenna, C.; Funiciello, R. Elementi strutturali della media Valle Latina. Boll. Soc. Geol. Ital. 1996, 115, 501–518. [Google Scholar]
  69. Selli, R. Sulla trasgressione del Miocene nell’Italia meridionale. Museo Geologico Giovanni Capellini 1957, 2, 1–54. [Google Scholar]
  70. De Blasio, I.; Lima, A.; Perrone, V.; Russo, M. Nuove vedute sui depositi miocenici della Penisola Sorrentina. Boll. Soc. Geol. Ital. 1981, 100, 55–70. [Google Scholar]
  71. Accordi, B. La componente traslativa nella tettonica dell’Appennino laziale-abruzzese. Geol. Romana 1966, 5, 355–406. [Google Scholar]
  72. Cosentino, D.; Cipollari, P.; Di Donato, V.; Sgrosso, I.; Sgrosso, M. The Volsci Range in the kinematic evolution of the northern and southern Apennine orogenic system. Boll. Della Soc. Geol. Ital. 2002, 121, 209–218. [Google Scholar]
  73. Devoto, G. Note geologiche sul settore centrale dei Monti Simbruini ed Ernici (Lazio nord-orientale). Boll. Soc. Nat. Napoli 1967, 76, 1–112. [Google Scholar]
  74. Fabbi, S.; Santantonio, M. First report of a Messinian coralgal facies in a terrigenous setting of Central Apennines (Italy) and its palaeogeographic significance. Geol. J. 2019, 54, 1756–1768. [Google Scholar] [CrossRef]
  75. Dondi, L.; Papetti, I.; Tedeschi, D. Stratigrafia del pozzo Trevi 1 (Lazio). Geol. Romana 1966, 5, 249–262. [Google Scholar]
  76. Cavinato, G.; Cerisola, R.; Sirna, M. Strutture compressive pellicolari e tettonica distensiva nei Monti Ernici sudoccidentali (Appennino centrale). Mem. Sgi 1990, 45, 539–553. [Google Scholar]
  77. Cavinato, G.P.; Parotto, M.; Sirna, M. Geological summary of the Central Apennines. Four decades later. RendOnline Soc. Geol. Ital. 2012, 23, 31–44. [Google Scholar]
  78. Brozzetti, F.; Cerritelli, F.; Cirillo, D.; Agostini, S.; Lavecchia, G. The Roccacaramanico Conglomerate (Maiella Tectonic Unit) in the frame of the Abruzzo early Pliocene Foreland Basin System: Stratigraphic and structural implications. Ital. J. Geosci. 2020, 139, 266–286. [Google Scholar] [CrossRef]
  79. Accordi, G.; Carbone, F. Sequenze carbonatiche meso-cenozoiche. In Note Illustrative della Carta delle Litofacies del Lazio-Abruzzo ed Aree Limitrofe; Consiglio Nazionale delle Ricerche: Rome, Italy, 1988; pp. 11–92. [Google Scholar]
  80. Civitelli, G.; Brandano, M. Atlante delle litofacies e modello deposizionale dei Calcari a Briozoi e Litotamni nella Piattaforma carbonatica laziale-abruzzese. Boll. Della Soc. Geol. Ital. 2005, 124, 611. [Google Scholar]
  81. Cosentino, D.; Cipollari, P.; Marsili, P.; Scrocca, D. Geology of the central Apennines: A regional review. J. Virtual Explor. 2010, 36, 1–37. [Google Scholar] [CrossRef]
  82. Consorti, L.; Frijia, G.; Caus, E. Rotaloidean foraminifera from the Late Cretaceous carbonates of Central and Southern Italy. Cretac. Res. 2017, 70, 226–243. [Google Scholar] [CrossRef]
  83. Romano, M.; Manni, R.; Venditti, E.; Nicosia, U.; Cipriani, A. First occurrence of a Tylosaurinae mosasaur from the Turonian of the Central Apennines, Italy. Cretac. Res. 2019, 96, 196–209. [Google Scholar] [CrossRef]
  84. Angelucci, A.; Devoto, G. Geologia del Monte Caccume. Geol. Romana 1966, 5, 177–196. [Google Scholar]
  85. Casero, P. Structural setting of petroleum exploration plays in Italy. In Special Volume of the Italian Geological Society for the IGC 32 Florence-2004; Crescenti, U., d’Offizi, S., Merlino, S., Sacchi, L., Eds.; Italian Geological Society: Rome, Italy, 2004; pp. 189–199. [Google Scholar]
  86. Sani, F.; Del Ventisette, C.; Montanari, D.; Coli, M.; Nafissi, P.; Piazzini, A. Tectonic evolution of the internal sector of the Central Apennines, Italy. Mar. Pet. Geol. 2004, 21, 1235–1254. [Google Scholar] [CrossRef]
  87. Pasquali, V.; Castorina, F.; Cipollari, P.; Cosentino, D.; Lo Mastro, S. I depositi tardo-orogenici della Valle Latina meridionale: Stratigrafia e implicazioni cinematiche per l’evoluzione dell’Appennino centrale. Boll. Soc. Geol. Ital. 2007, 126, 101–118. [Google Scholar]
  88. Parotto, M.; Tallini, M. Geometry and kinematics of the Montelanico-Carpineto Backthrust (Lepini Mts., Latium) in the hanging wall of the early Messinian thrust front of the central Apennines: Implications for the Apennine chain building. Ital. J. Geosci. 2013, 132, 274–289. [Google Scholar] [CrossRef]
  89. Delchiaro, M.; Fioramonti, V.; Della Seta, M.; Cavinato, G.P.; Mattei, M. Fluvial inverse modelling for inferring the timing of Quaternary uplift in the Simbruini range (Central Apennines, Italy). In Proceedings of the Geomorphometry 2020 Conference; Alvioli, M., Marchesini, I., Melelli, L., Guth, P., Eds.; Consiglio Nazionale delle Ricerche: Rome, Italy, 2020. [Google Scholar] [CrossRef]
  90. Boni, C.; Bono, P.; Calderoni, G.; Lombardi, S.; Turi, B. Indagine idrogeologica e geochimica sui rapporti tra ciclo carsico e circuito idrotermale nella Pianura Pontina. Geol. Appl. E Idrogeol. 1980, 15, 204–247. [Google Scholar]
  91. Marra, F.; Bahain, J.-J.; Jicha, B.R.; Nomade, S.; Palladino, D.M.; Pereira, A.; Tolomei, C.; Voinchet, P.; Anzidei, M.; Aureli, D.; et al. Reconstruction of the MIS 5.5, 5.3 and 5.1 coastal terraces in Latium (central Italy): A re-evaluation of the sea-level history in the Mediterranean Sea during the last interglacial. Quat. Int. 2019, 525, 54–77. [Google Scholar] [CrossRef]
  92. Marra, F.; Cardello, G.L.; Gaeta, M.; Jicha, B.; Montone, P.; Niespolo, E.M.; Nomade, S.; Palladino, D.M.; Pereira, A.; De Luca, G.; et al. The Volsci Volcanic Field (central Italy): An open window on continental subduction processes. Int. J. Earth Sci. 2021. [Google Scholar] [CrossRef]
  93. Cocozza, T.; Praturlon, A. Note geologiche sul colle Cantocchio (Lepini sud-occidentali, Lazio). Geol. Rom 1966, 5, 323–334. [Google Scholar]
  94. Cosentino, D.; Cipollari, P.; Pipponzi, G. Il sistema orogenico dell’Appennino centrale: Vincoli stratigrafici e cronologia della migrazione. Evoluzione cinematica del sistema orogenico dell’Appennino centro-meridionale: Caratterizzazione stratigrafico-strutturale dei bacini sintettonici. In Studi Geologici Camerti - Convegno-escursione COFIN ’99; Numero Speciale; Cipollari, P., Cosentino, D., Eds.; Università degli Studi di Camerino: Camerino, Italy, 2003; pp. 85–99. [Google Scholar]
  95. Bown, P.R.; Young, J.R. Techniques. In Calcareous Nannofossil Biostratigraphy; Bown, P.R., Ed.; Springer: Dordrecht, The Netherlands, 1998; pp. 16–28. [Google Scholar]
  96. Chiocchini, M.; Mancinelli, A. Microbiostratigrafia del Mesozoico in facies di piattaforma carbontica dei Monti Aurunci (Lazio Meridionale). Studi Geol. Camerti 1977, 3, 109–152. [Google Scholar]
  97. Brandano, M.; Giannini, E.; Schiavinotto, F.; Varrubbi, V. Miogypsina globulina (Michelotti) from Lower Miocene Villa, S. Lucia section (M. te Cairo, Central Apennines). Geol. Romana 2007, 40, 119–127. [Google Scholar]
  98. Chiocchini, M.; Pampaloni, M.L.; Pichezzi, R.M. Microfacies and microfossils of the Mesozoic carbonate successions of Latium and Abruzzi (Central Italy). In Memorie per Servire alla Descrizione della Carta Geologica D’Italia (ISPRA) Dipartimento Difesa del Suolo; Instituto Superiore per la Protezione e la Ricerca Ambientale: Rome, Italy, 2012; Volume 17, p. 269. [Google Scholar]
  99. Martini, E. Standard Tertiary and Quaternary calcareous nannoplankton zonation, in: Proceedings of the Second Planktonic Conference, Roma 1970. Tecnoscienza 1971, 2, 739–785. [Google Scholar]
  100. Okada, H.; Bukry, D. Supplementary modification and introduction of code numbers to the low-latitude coccolith biostratigraphic zonation (Bukry, 1973; 1975). Marine Micropaleontology 1980, 5, 321–325. [Google Scholar] [CrossRef]
  101. Backman, J.; Raffi, I.; Rio, D.; Fornaciari, E. Biozonation and biochronology of Miocene through Pleistocene calcareous nannofossils from low and middle latitudes. Newsl. Stratigr. 2012, 47, 131–181. [Google Scholar] [CrossRef]
  102. Accordi, B.; Angelucci, A.; Sirna, G. Note illustrative della Carta Geologica d’Italia alla scala 1:100.000. Foglio 159 (Frosinone) e 160 (Cassino). In Servizio Geologico d’Italia (ISPRA), Roma; Instituto Superiore per la Protezione e la Ricerca Ambientale: Rome, Italy, 1967. [Google Scholar]
  103. Alberti, A.; Bergomi, C.; Catenacci, V.; Centamore, E.; Cestar, G.; Chiocchini, M.; Chiocchini, U.; Manganelli, V.; Molinari-Paganelli, V.; Panseril-Crescenzi, C.; et al. Note illustrative del Foglio 389 Anagni. In Carta Geol. D’italia 1:50.000. Serv. Geol. D’italia (ISPRA); Instituto Superiore per la Protezione e la Ricerca Ambientale: Rome, Italy, 1975. [Google Scholar]
  104. Ortner, H.; Retier, F.; Acs, P. Easy handling tectonic data: The programs VB for Mac and Tectonics FP for windows. Comput. Geosci. 2002. [Google Scholar] [CrossRef]
  105. Novarese, V. Il Miocene della Valle Latina. Boll. Del Reg. Uff. Geol. D’italia. Col. Roma 1943, 68, 29–48. [Google Scholar]
  106. Novarese, V. I terreni petroliferi della Valle Latina. Boll. Soc. Geol. Ital. 1923, 42, 347–367. [Google Scholar]
  107. Carboni, S.; Lombardi, L. Su alcuni affioramenti in facies di flysch della Valle Latina. Boli. Soc. Geol. Ital. 1956, 75, 109–113. [Google Scholar]
  108. Bally, A.W.; Burbi, L.; Cooper, C.; Ghelardoni, R. Balanced sections and seismic reflection profiles across the Central Apennines. Mem. Soc. Geol. Ital. 1986, 35, 257–310. [Google Scholar]
  109. Cassinis, R.; Scarascia, S.; Lozej, A. The deep crustal structure of Italy and surrounding areas from seismic refraction data; a new synthesis. Boll. Soc. Geol. Ital. 2003, 122, 365–376. [Google Scholar]
  110. Mirabella, F.; Barchi, M.R.; Lupattelli, A. Seismic reflection data in the Umbria Marche Region: Limits and capabilities to unravel the subsurface structure in a seismically active area. Ann. Geophys. 2008, 51. [Google Scholar] [CrossRef]
  111. Chiocchini, M.; Mancinelli, A. Sivasella monolateralis Sirel and Gunduz, 1978 (Foraminiferida) in the Maastrichtian of Latium (Italy). Rev. Micropaleontol. 2001, 44, 267–277. [Google Scholar] [CrossRef]
  112. Vecchio, E.; Barattolo, F.; Hottinger, L. Alveolina horizons in the Trentinara Formation (Southern Apennines, Italy): Stratigraphic and paleogeographic implication. Riv. Ital. Paleontol. E Stratigr. 2007, 113, 21–42. [Google Scholar] [CrossRef]
  113. Romano, A.; Urgera, A. Geologia del Paleogene dei Monti Aurunci orientali (Lazio meridionale). Studi Geol. Camerti 1995, 13, 29–38. [Google Scholar]
  114. Angelucci, A.; Devoto, G.; Farinacci, A. Le “argille caotiche” di Colle Cavallaro a est di Castro dei Volsci (Frosinone). Geol. Romana 1963, 2, 305–329. [Google Scholar]
  115. Bergomi, C.; Catenacci, V.; Cestari, G.; Manfredini, M.; Manganelli, V. Note illustrative della Carta Geologica d’Italia, F° 171. In Gaeta. Servizio Geologico d’Italia, Napoli; Instituto Superiore per la Protezione e la Ricerca Ambientale (ISPRA): Rome, Italy, 1969. [Google Scholar]
  116. Putignano, M.L.; Ungaro, A. Considerazioni sulla provenienza delle intercalazioni carbonatiche nella successione terrigena Messiniana nella Valle dell’Ausente (Appennino centro-meridionale). Mem. Soc. Geol. Ital. 1996, 51, 351–362. [Google Scholar]
  117. Angelucci, A. Tectonic marks on pebbles of Middle Latina Valley (Central Italy). Geol. Romana 1966, 5, 313–322. [Google Scholar]
  118. Vitale, S.; Amore, O.F.; Ciarcia, S.; Fedele, L.; Grifa, C.; Prinzi, E.P.; Tavani, S.; Tramparulo, F.D.A. Structural, stratigraphic, and petrological clues for a Cretaceous–Paleogene abortive rift in the southern Adria domain (southern Apennines, Italy). Geol. J. 2017, 53, 660–681. [Google Scholar] [CrossRef]
  119. Brandano, M. Tropical/subtropical inner ramp facies in Lower Miocene «Calcari a Briozoi e Litotamni» of the Monte Lungo Area (Cassino Plain, Central Apennines, Italy). Boll. Della Soc. Geol. Ital. 2003, 122, 85–98. [Google Scholar]
  120. Lombardi, L. Il pozzo Fogliano nei pressi di Latina e la paleogeografia dell’area. Boll. Soc. Geol. Ital. 1968, 87, 13–18. [Google Scholar]
  121. Corda, L.; Madonna, S.; Mariotti, G. Late Cretaceous to early Miocene evolution of the Southern Prenestini Mountains (Central Apennines): From fault-block platforms to carbonate ramp. J. Mediterr. Earth Sci. 2020, 12, 15–31. [Google Scholar] [CrossRef]
  122. Funiciello, R.; Giordano, G.; Capelli, G.; De Benedetti, A.; Del Monaco, F.; Mazza, R.; Tallini, M. Note illustrative del Foglio 388 Velletri. Carta Geologica 1:50.000. In Serv. Geol. D’Italia; Instituto Superiore per la Protezione e la Ricerca Ambientale (ISPRA): Rome, Italy, 2018. [Google Scholar]
  123. Beneo, E. Dalla Valle Latina a Carpineto Romano. Boll. Soc. Geol. Ital. 1950, 69, 600–601. [Google Scholar]
  124. Fagereng, Å.; Sibson, R.H. Melange rheology and seismic style. Geology 2010, 38, 751–754. [Google Scholar] [CrossRef]
  125. Festa, A.; Ogata, K.; Pini, G.A.; Dilek, Y.; Alonso, J.L. Origin and significance of olistostromes in the evolution of orogenic belts: A global synthesis. Gondwana Res. 2016, 39, 180–203. [Google Scholar] [CrossRef] [Green Version]
  126. Corrado, S.; Aldega, L.; Di Leo, P.; Giampaolo, C.; Invernizzi, C.; Mazzoli, S.; Zattin, M. Thermal maturity of the axial zone of the southern Apennines fold-and-thrust belt (Italy) from multiple organic and inorganic indicators. Terra Nova 2005, 17, 56–65. [Google Scholar] [CrossRef]
  127. Carlini, M.; Artoni, A.; Aldega, L.; Balestrieri, M.L.; Corrado, S.; Vescovi, P.; Bernini, M.; Torelli, L. Exhumation and reshaping of far-travelled/allochthonous tectonic units in mountain belts. New insights for the relationships between shortening and coeval extension in the western Northern Apennines (Italy). Tectonophysics 2013, 608, 267–287. [Google Scholar] [CrossRef]
  128. Catalano, R.; Valenti, V.; Albanese, C.; Accaino, F.; Sulli, A.; Tinivella, U.; Morticelli, M.G.; Zanolla, C.; Giustiniani, M. Sicily’s fold–thrust belt and slab roll-back: The SI. RI. PRO. seismic crustal transect. J. Geol. Soc. 2013, 170, 451–464. [Google Scholar] [CrossRef]
  129. Angelucci, A.; Bellotti, P.; Valeri, P. Analisi di facies dei sedimenti terrigeni tortoniani nella zona di Frosinone. Geol. Romana 1979, 18, 127–135. [Google Scholar]
  130. Critelli, S.; Le Pera, E.; Galluzzo, F.; Milli, S.; Moscatelli, M.; Perrotta, S.; Santantonio, M. Interpreting siliciclastic-carbonate detrital modes in foreland basin systems: An example from Upper Miocene arenites of the central Apennines, Italy. Spec. Pap. Geol. Soc. Am. 2007, 420, 107. [Google Scholar] [CrossRef]
  131. Casciano, C.I.; Patacci, M.; Longhitano, S.G.; Tropeano, M.; Mccaffrey, W.D.; Di Celma, C. Multi-scale analysis of a migrating submarine channel system in a tectonically-confined basin: The Miocene Gorgoglione Flysch Formation, southern Italy. Sedimentology 2019, 66, 205–240. [Google Scholar] [CrossRef]
  132. Cipollari, P.; Cosentino, D.; Pipponzi, G. Il sistema orogenico dell’Appennino centrale: Vincoli stratigrafici e cronologia della migrazione. Studi Geol. Camerti 2003, 87–101. [Google Scholar] [CrossRef]
  133. Smeraglia, L.; Aldega, L.; Bernasconi, S.M.; Billi, A.; Boschi, C.; Caracausi, A.; Carminati, E.; Franchini, S.; Rizzo, A.L.; Rossetti, F.; et al. The role of trapped fluids during the development and deformation of a carbonate/shale intra-wedge tectonic mélange (Mt. Massico, Southern Apennines, Italy). J. Struct. Geol. 2020, 138. [Google Scholar] [CrossRef]
  134. Artoni, A.; Bernini, M.; Papani, G.; Rizzini, F.; Barbacini, G.; Rossi, M.; Rogledi, S.; Ghielmi, M. Mass-transport deposits in confined wedge-top basins: Surficial processes shaping the messinian orogenic wedge of Northern Apennine of Italy. Ital. J. Geosci. 2010, 129, 101–118. [Google Scholar] [CrossRef]
  135. Butler, R.W.H. Thrust sequences. J. Geol. Soc. 1987, 144, 619–634. [Google Scholar] [CrossRef]
  136. Doglioni, C.; Harabaglia, P.; Merlini, S.; Mongelli, F.; Peccerillo, A.T.; Piromallo, C. Orogens and slabs vs. their direction of subduction. Earth-Sci. Rev. 1999, 45, 167–208. [Google Scholar] [CrossRef]
  137. Roveri, M.; Bassetti, M.A.; Lucchi, F.R. The Mediterranean Messinian salinity crisis: An Apennine foredeep perspective. Sediment. Geol. 2001, 140, 201–214. [Google Scholar] [CrossRef]
  138. Jolivet, L.; Augier, R.; Robin, C.; Suc, J.P.; Rouchy, J.M. Lithospheric-scale geodynamic context of the Messinian salinity crisis. Sediment. Geol. 2006, 188, 9–33. [Google Scholar] [CrossRef]
  139. Roveri, M.; Flecker, R.; Krijgsman, W.; Lofi, J.; Lugli, S.; Manzi, V.; Sierro, F.J.; Bertini, A.; Camerlenghi, A.; De Lange, G.; et al. The Messinian salinity crisis: Past and future of a great challenge for marine sciences. Mar. Geol. 2014, 349, 113–125. [Google Scholar] [CrossRef]
  140. Andreetto, F.; Aloisi, G.; Raad, F.; Heida, H.; Flecker, R.; Agiadi, K.; Lofi, J.; Blondel, S.; Bulian, F.; Camerlenghi, A.; et al. Freshening of the Mediterranean Salt Giant: Controversies and certainties around the terminal (Upper Gypsum and Lago-Mare) phases of the Messinian Salinity Crisis. Earth-Sci. Rev. 2021, 216, 103577. [Google Scholar] [CrossRef]
  141. Tavarnelli, E. The effects of pre-existing normal faults on thrust ramp development: An example from the northern Apennines, Italy. Geol. Rundsch. 1996, 85, 363–371. [Google Scholar] [CrossRef]
  142. Patacca, E.; Scandone, P.; Di Luzio, E.; Cavinato, G.P.; Parotto, M. Structural architecture of the central Apennines: Interpretation of the CROP 11 seismic profile from the Adriatic coast to the orographic divide. Tectonics 2008, 27. [Google Scholar] [CrossRef]
  143. Scisciani, V. Styles of positive inversion tectonics in the Central Apennines and in the Adriatic foreland: Implications for the evolution of the Apennine chain (Italy). J. Struct. Geol. 2009, 31, 1276–1294. [Google Scholar] [CrossRef]
  144. Turienzo, M.; Sánchez, N.; Dimieri, L.; Lebinson, F.; Araujo, V. Tectonic repetitions of the Early Cretaceous Agrio Formation in the Chos Malal fold-and-thrust belt, Neuquén basin, Argentina: Geometry, kinematics and structural implications for Andean building. J. South Am. Earth Sci. 2014, 53, 1–19. [Google Scholar] [CrossRef]
  145. Schori, M.; Mosar, J.; Schreurs, G. Multiple detachments during thin-skinned deformation of the Swiss Central Jura: A kinematic model across the Chasseral. Swiss J. Geosci. 2015, 108, 327–343. [Google Scholar] [CrossRef] [Green Version]
  146. Milia, A.; Torrente, M.M. Tectono-stratigraphic signature of a rapid multistage subsiding rift basin in the Tyrrhenian-Apennine hinge zone (Italy): A possible interaction of upper plate with subducting slab. J. Geodyn. 2015, 86, 42–60. [Google Scholar] [CrossRef]
  147. Farinacci, A. Breccias and laminated dolomites of the Gavignano exposure. Geol. Romana 1965, 4, 129–144. [Google Scholar]
  148. Civitelli, G.; Funiciello, R.; Lombardi, S. Alcune considerazioni sulla genesi della «Pietra Paesina». Geol. Romana 1970, 9, 195–204. [Google Scholar]
  149. Angrisani, A.C.; Calcaterra, D.; Cappelletti, P.; Colella, A.; Parente, M.; Přikryl, R.; de’Gennaro, M. Geological features, technological characterization and weathering phenomena of the Miocene Bryozoan and Lithothamnion limestones (central-southern Italy). Ital. J. Geosci. 2011, 130, 75–92. [Google Scholar]
  150. Cipollari, P.; Cosentino, D. Considerazioni sulla strutturazione della Catena dei Monti Aurunci: Vincoli stratigrafici. Studi Geol. Camerti 1991, 2, 151–156. [Google Scholar]
Figure 1. (a) Simplified Tectonic map of Central Italy (modified from the works in [30,38,44], showing the active margin units and the Meso-Cenozoic passive margin units. The shortening time is in italic. (b) Crustal cross-section (modified after the work in [45]). Deep well location is taken from in [23].
Figure 1. (a) Simplified Tectonic map of Central Italy (modified from the works in [30,38,44], showing the active margin units and the Meso-Cenozoic passive margin units. The shortening time is in italic. (b) Crustal cross-section (modified after the work in [45]). Deep well location is taken from in [23].
Geosciences 11 00160 g001
Figure 2. Simplified stratigraphic columns of the Volsci Range and the adjacent Latin Valley correlated, on the left, with the official cartography [64]. On the right, tectonic context and stratigraphy of basin deposits is reported from the literature (see Appendix A) and original data at representative localities. Localities from the Ernici unit are highlighted by vertical gray stripes. Below, the geological map of the study area with the studied locations and their respective numbers.
Figure 2. Simplified stratigraphic columns of the Volsci Range and the adjacent Latin Valley correlated, on the left, with the official cartography [64]. On the right, tectonic context and stratigraphy of basin deposits is reported from the literature (see Appendix A) and original data at representative localities. Localities from the Ernici unit are highlighted by vertical gray stripes. Below, the geological map of the study area with the studied locations and their respective numbers.
Geosciences 11 00160 g002
Figure 3. (a) Comparison among lithostratigraphic data from wells in the Latin Valley. (b) Sketched geological map with the location of the studied wells and seismic lines. Wells 1, 2, and 4 are from a public dataset (www.videpi.com) (accessed on 20 January 2021). Wells, 3, 5, 8, 11, 12, and 13 are provided by Pentex Limited Italia (see Acknowledgments). Wells 6, 7, 9, and 10 are reported in [105]. Full lines are stratigraphic correlations within the same structural unItal. Black dashed lines are uncertain stratigraphic and tectonic correlations (blue lines). Regional cross section AB (Figure 6) and the detailed structural maps of the Figures 6 and 9 are also shown.
Figure 3. (a) Comparison among lithostratigraphic data from wells in the Latin Valley. (b) Sketched geological map with the location of the studied wells and seismic lines. Wells 1, 2, and 4 are from a public dataset (www.videpi.com) (accessed on 20 January 2021). Wells, 3, 5, 8, 11, 12, and 13 are provided by Pentex Limited Italia (see Acknowledgments). Wells 6, 7, 9, and 10 are reported in [105]. Full lines are stratigraphic correlations within the same structural unItal. Black dashed lines are uncertain stratigraphic and tectonic correlations (blue lines). Regional cross section AB (Figure 6) and the detailed structural maps of the Figures 6 and 9 are also shown.
Geosciences 11 00160 g003
Figure 4. Simplified stratigraphic column of the Anagni 1 borehole with velocity log, synthetic seismogram, and an extract of a seismic section passing by the well (location in Figure 3). The seismic marker horizons and additional stratigraphic horizons interpreted in this study are also shown.
Figure 4. Simplified stratigraphic column of the Anagni 1 borehole with velocity log, synthetic seismogram, and an extract of a seismic section passing by the well (location in Figure 3). The seismic marker horizons and additional stratigraphic horizons interpreted in this study are also shown.
Geosciences 11 00160 g004
Figure 5. Sampled lithologies of the top of the platform and Chaotic complex. (a) Carpineto Romano (Pian della Faggeta; cf. Figure 6, Figure 7 and Figure 8), encrusted top of platform crossed by E-trending thrust grooves and later veins having growth-fiber lineations plunging towards the NE (corresponding to plot 3 in Figure 8; 41°34′51″ N/13°6′30″ E); (bc) encrusted native block within the Chaotic complex; (d) Campanian breccia beneath cruston; (e) Sampling site of the top of the Lower Volsci Unit north of Caccume Mt. and inherited paleo-topographic reconstruction; (fg) outcrop detail of the cruston and underneath discordant units. (h) example of discordant Santonian-Campanian breccia beneath Chaotic complex. (i) Small-scale dykes of the grooved top platform cruston (41°34′32″ N/13°14′5″ E); (j,k) lower Miocene blocks 41°34′33″ N/13°13′20″ E; (l) Tortonian turbidites from Caccume Mt. north.
Figure 5. Sampled lithologies of the top of the platform and Chaotic complex. (a) Carpineto Romano (Pian della Faggeta; cf. Figure 6, Figure 7 and Figure 8), encrusted top of platform crossed by E-trending thrust grooves and later veins having growth-fiber lineations plunging towards the NE (corresponding to plot 3 in Figure 8; 41°34′51″ N/13°6′30″ E); (bc) encrusted native block within the Chaotic complex; (d) Campanian breccia beneath cruston; (e) Sampling site of the top of the Lower Volsci Unit north of Caccume Mt. and inherited paleo-topographic reconstruction; (fg) outcrop detail of the cruston and underneath discordant units. (h) example of discordant Santonian-Campanian breccia beneath Chaotic complex. (i) Small-scale dykes of the grooved top platform cruston (41°34′32″ N/13°14′5″ E); (j,k) lower Miocene blocks 41°34′33″ N/13°13′20″ E; (l) Tortonian turbidites from Caccume Mt. north.
Geosciences 11 00160 g005
Figure 6. (a) Geological map of the western Lepini sector. (b) Stereoplots (lower hemisphere projection, equal area) summarizing orientation data for the structural elements representative of the subdivided areas in panel (a). Eigen vectors are indicative of the orientation of the axes of deformation calculated from the bedding, where the gray circles represent planes that contain the intermediate and maximum eigenvectors, as shown also by the data reported in the supplementary material. (c) Cross-section of the Volsci Range limited to the Malaina Mount to the northeast.
Figure 6. (a) Geological map of the western Lepini sector. (b) Stereoplots (lower hemisphere projection, equal area) summarizing orientation data for the structural elements representative of the subdivided areas in panel (a). Eigen vectors are indicative of the orientation of the axes of deformation calculated from the bedding, where the gray circles represent planes that contain the intermediate and maximum eigenvectors, as shown also by the data reported in the supplementary material. (c) Cross-section of the Volsci Range limited to the Malaina Mount to the northeast.
Geosciences 11 00160 g006
Figure 7. (a) Geological map of Colle Cantocchio modified after Cocozza and Praturlon (location in Figure 6 [93]). (b) Structural overview looking eastward. Blue line: thrusts and transpressive faults; yellow dotted line: paleoescarpment unconformity below Middle Miocene terrains (T); orange line (paleofault). (c) Larger geological cross section from Figure 6 and detailed (d) cross section (bold line traced in panel (a)) with stereoplots (lower hemisphere projection, equal area) of faults with slickenlines measured at the paleofault and in the roof of the cave. (e) Detail of the paleoescarpment contact of the pebbly calcarenite (f) over the hardground composed of oxidized Upper Jurassic peritidal limestones (41°34′29″ N/13°0′9″ E); (g) Polygenic breccia composed by Miocene and Cretaceous calcareous clasts with a reddish cement and calcareous matrix. (h) Cave details, grooved-base thrust fault zone constituted by foliated cataclasite bands (i,j). Sampling sites are referred to Appendix B.
Figure 7. (a) Geological map of Colle Cantocchio modified after Cocozza and Praturlon (location in Figure 6 [93]). (b) Structural overview looking eastward. Blue line: thrusts and transpressive faults; yellow dotted line: paleoescarpment unconformity below Middle Miocene terrains (T); orange line (paleofault). (c) Larger geological cross section from Figure 6 and detailed (d) cross section (bold line traced in panel (a)) with stereoplots (lower hemisphere projection, equal area) of faults with slickenlines measured at the paleofault and in the roof of the cave. (e) Detail of the paleoescarpment contact of the pebbly calcarenite (f) over the hardground composed of oxidized Upper Jurassic peritidal limestones (41°34′29″ N/13°0′9″ E); (g) Polygenic breccia composed by Miocene and Cretaceous calcareous clasts with a reddish cement and calcareous matrix. (h) Cave details, grooved-base thrust fault zone constituted by foliated cataclasite bands (i,j). Sampling sites are referred to Appendix B.
Geosciences 11 00160 g007
Figure 8. (a) Geological map of the Lower and Upper Volsci Unit deformation preserved between Pian della Faggeta and Occhio di bue localities (Figure 6) modified after [72] and the related geological cross section D-E in panel (b). (c) Stereoplots summarizing orientation data for the structural elements representative of the different key outcrops (from 1 to 6 in panel a). (d,e) Hanging wall and footwall of a (E)NE-directed thrust occurring in a cave near the top of the platform RTDb limestone (corresponding to plots 1–2; 41°34′48″ N/13°6′21″ E). (f) S/C top-to-the NE structures affecting lower–middle Miocene limestone and marl lithotypes (41°35′18.18″ N/13°6′16.40″ E). (g) Detail of the (E)NE verging fold (41°35′18.96″ N/13°6′19.28″ E) and striated bedding (41°36′11″ N/13°5′36″ E) of the Upper Volsci Unit (corresponding to plot 6). The sketch on top left shows the geometry of the outcrop that consists of a fault-propagation fold later tilted towards the foreland to the NE.
Figure 8. (a) Geological map of the Lower and Upper Volsci Unit deformation preserved between Pian della Faggeta and Occhio di bue localities (Figure 6) modified after [72] and the related geological cross section D-E in panel (b). (c) Stereoplots summarizing orientation data for the structural elements representative of the different key outcrops (from 1 to 6 in panel a). (d,e) Hanging wall and footwall of a (E)NE-directed thrust occurring in a cave near the top of the platform RTDb limestone (corresponding to plots 1–2; 41°34′48″ N/13°6′21″ E). (f) S/C top-to-the NE structures affecting lower–middle Miocene limestone and marl lithotypes (41°35′18.18″ N/13°6′16.40″ E). (g) Detail of the (E)NE verging fold (41°35′18.96″ N/13°6′19.28″ E) and striated bedding (41°36′11″ N/13°5′36″ E) of the Upper Volsci Unit (corresponding to plot 6). The sketch on top left shows the geometry of the outcrop that consists of a fault-propagation fold later tilted towards the foreland to the NE.
Geosciences 11 00160 g008
Figure 9. (a) Geological map of the Eastern Lepini sector and part of the Latin Valley. (b) Stereoplots (lower hemisphere projection, equal area for locations 11–20; numbering following after Figure 6) summarizing orientation data for the structural elements representative of the areas in panel a). Plot-13 shows E-striking folds interposed in the frontal thrust zone near Morolo, while plot-18 represents the N-S trending flank of a salient associated with transpressive S/C structures of Plot-19. (c) Sketched geological cross section and structural overview of the Volsci Range front (Caccume Mt. lower and upper unit, respectively, correspond to plots 16 and 17). Normal faults dip towards the NE, crosscut the Upper thrust. Sampling sites are reported in Appendix B. (d) Caccume Mt. front, detail of the encrusted top of the platform affected by E-trending D1 grooves and later crossed by oxides-rich (D2+3) en-echelon fractures and later NW-striking oxides-free and cemented veins; 41°34′46″ N/13°13′60″ E). (e) Upper thrust juxtaposing the Cenomanian neritic limestone over the Chaotic complex (41°34′15.00″ N/13°13′55.13″ E), which, as shown as the sampling site of LEP67 on a lithotype that in panel (f), is affected by top-to-the-(E)NE S/C structures.
Figure 9. (a) Geological map of the Eastern Lepini sector and part of the Latin Valley. (b) Stereoplots (lower hemisphere projection, equal area for locations 11–20; numbering following after Figure 6) summarizing orientation data for the structural elements representative of the areas in panel a). Plot-13 shows E-striking folds interposed in the frontal thrust zone near Morolo, while plot-18 represents the N-S trending flank of a salient associated with transpressive S/C structures of Plot-19. (c) Sketched geological cross section and structural overview of the Volsci Range front (Caccume Mt. lower and upper unit, respectively, correspond to plots 16 and 17). Normal faults dip towards the NE, crosscut the Upper thrust. Sampling sites are reported in Appendix B. (d) Caccume Mt. front, detail of the encrusted top of the platform affected by E-trending D1 grooves and later crossed by oxides-rich (D2+3) en-echelon fractures and later NW-striking oxides-free and cemented veins; 41°34′46″ N/13°13′60″ E). (e) Upper thrust juxtaposing the Cenomanian neritic limestone over the Chaotic complex (41°34′15.00″ N/13°13′55.13″ E), which, as shown as the sampling site of LEP67 on a lithotype that in panel (f), is affected by top-to-the-(E)NE S/C structures.
Geosciences 11 00160 g009
Figure 10. (a) Structural overview over two frontal klippen of the Latin Valley cropping out at Siserno Mt. where the Chaotic complex is juxtaposed to the Frosinone Fm. (b) Near Frosinone, an unconformity subdivides folded FFS units from the channelized facies on top. (c) Detail of the unconformity. (d) Vertical pelitic-arenaceous succession with (e) bioturbated levels. (f) Structural overview of the Gavignano area with stereoplot (lower hemisphere projection, equal area) of bedding and eigenvectors, that are indicative of the orientation of the axes of deformation related to the MVP thrust top conglomerates of Gavignano with (gi) location of sampling localities. Conglomerates at the base are affected by pressure solutions and in the most calcareous beds also by veins. Sampling sites are referred to the Table in Appendix B.
Figure 10. (a) Structural overview over two frontal klippen of the Latin Valley cropping out at Siserno Mt. where the Chaotic complex is juxtaposed to the Frosinone Fm. (b) Near Frosinone, an unconformity subdivides folded FFS units from the channelized facies on top. (c) Detail of the unconformity. (d) Vertical pelitic-arenaceous succession with (e) bioturbated levels. (f) Structural overview of the Gavignano area with stereoplot (lower hemisphere projection, equal area) of bedding and eigenvectors, that are indicative of the orientation of the axes of deformation related to the MVP thrust top conglomerates of Gavignano with (gi) location of sampling localities. Conglomerates at the base are affected by pressure solutions and in the most calcareous beds also by veins. Sampling sites are referred to the Table in Appendix B.
Geosciences 11 00160 g010
Figure 11. (a,b) Structural overview of the backthrusts in the northern Volsci Range with sampling sites (see Appendix B) and stereoplot (lower hemisphere projection, equal area) of bedding and backthrusts. (c) Thrust zone detail. (d) Block of conglomerate within conglomerate with clayish marly matrix. (e) Pebble of bioturbated marl with chondrites. (f,g) Structural overview of the Lepini sector and the Montelanico-Carpineto backthrust continuation towards the south beneath the Eastern Lepini Pop-up.
Figure 11. (a,b) Structural overview of the backthrusts in the northern Volsci Range with sampling sites (see Appendix B) and stereoplot (lower hemisphere projection, equal area) of bedding and backthrusts. (c) Thrust zone detail. (d) Block of conglomerate within conglomerate with clayish marly matrix. (e) Pebble of bioturbated marl with chondrites. (f,g) Structural overview of the Lepini sector and the Montelanico-Carpineto backthrust continuation towards the south beneath the Eastern Lepini Pop-up.
Geosciences 11 00160 g011
Figure 12. Two-times travel (TWT) seismic lines (from www.videpi.com (accessed on 20 January 2021); below, interpreted), also showing the projection of the wells. The location of both wells and seismic line traces of Section 1 (line label FR-309-80), Section 2 (FR-306-82), and Section 3 (FR-302-80) are in Figure 3. The vertical gray stripes highlight the Lower Ernici UnItal.
Figure 12. Two-times travel (TWT) seismic lines (from www.videpi.com (accessed on 20 January 2021); below, interpreted), also showing the projection of the wells. The location of both wells and seismic line traces of Section 1 (line label FR-309-80), Section 2 (FR-306-82), and Section 3 (FR-302-80) are in Figure 3. The vertical gray stripes highlight the Lower Ernici UnItal.
Geosciences 11 00160 g012
Figure 13. (a) Top-platform unconformities related to the upper (orange arrows) and lower Ernici units (green arrows) (Dip seismic line); (b) detail (right, interpreted) showing the angular unconformity between the Lower Frosinone seismic subunit (FFS1) and the Upper Frosinone seismic subunit (FFS2); (c) W-E view (Strike seismic line), showing the lateral variability of seismic facies FF1 and FFS2. (d) FR-314-82. Strike view of the Gavignano klippe, the purple dashed line marks the thrust onto the Frosinone Formation (transparent facies FFS), while the yellow dotted line highlights the top reflectors of the carbonates with the MVP conglomerate atop. Seismic line traces and well location in Figure 3.
Figure 13. (a) Top-platform unconformities related to the upper (orange arrows) and lower Ernici units (green arrows) (Dip seismic line); (b) detail (right, interpreted) showing the angular unconformity between the Lower Frosinone seismic subunit (FFS1) and the Upper Frosinone seismic subunit (FFS2); (c) W-E view (Strike seismic line), showing the lateral variability of seismic facies FF1 and FFS2. (d) FR-314-82. Strike view of the Gavignano klippe, the purple dashed line marks the thrust onto the Frosinone Formation (transparent facies FFS), while the yellow dotted line highlights the top reflectors of the carbonates with the MVP conglomerate atop. Seismic line traces and well location in Figure 3.
Geosciences 11 00160 g013
Figure 14. Geological cross section AB (trace in Figure 3) interpretative of both field and subsurface data converted to depth (see methods). Numbers related to the group of faults are disposed as in Figure 12. In the Volsci Range, the Upper Volsci Unit experiences about 25 km of thrusting (Thrust-1) towards the ENE. Thrust-2 accommodated the overthrust of the Volsci Range and Upper Ernici Unit on top of the Frosinone Formation. In Latin Valley, the Upper Ernici unit is doubled by the breaching of Thrust-3. Late reverse faults (Thrust-3 and -4) contribute to forming a triangle zone in the Latin Valley and backthrusts in the rear. Normal faults generate a graben in the Latin valley and SW dipping faults towards the Pontina Plain.
Figure 14. Geological cross section AB (trace in Figure 3) interpretative of both field and subsurface data converted to depth (see methods). Numbers related to the group of faults are disposed as in Figure 12. In the Volsci Range, the Upper Volsci Unit experiences about 25 km of thrusting (Thrust-1) towards the ENE. Thrust-2 accommodated the overthrust of the Volsci Range and Upper Ernici Unit on top of the Frosinone Formation. In Latin Valley, the Upper Ernici unit is doubled by the breaching of Thrust-3. Late reverse faults (Thrust-3 and -4) contribute to forming a triangle zone in the Latin Valley and backthrusts in the rear. Normal faults generate a graben in the Latin valley and SW dipping faults towards the Pontina Plain.
Geosciences 11 00160 g014
Figure 15. Reconstruction of the ramp-flat geometry of the upper thrust after restoration of section C-D by removing late backthrusts and normal faults. During Tortonian time, inversion tectonics of inherited structures occurred on a ramp by the overthrusting of the Upper Volsci UnItal. At the transition from ramp to flat, native blocks were scraped off from the Lower Volsci UnItal. On the right, peculiar settings inspired by field examples are contextualized to understand the mélange formation. During Serravallian time, the inherited structure was sealed by Orbulina Marl hemipelagic deposits. To the southwest, base-of-slope to basinal Cretaceous-Miocene deposits occurred on a fault-controlled step of the platform. On the right, a detail of the paleoscarpment setting prior to thrusting.
Figure 15. Reconstruction of the ramp-flat geometry of the upper thrust after restoration of section C-D by removing late backthrusts and normal faults. During Tortonian time, inversion tectonics of inherited structures occurred on a ramp by the overthrusting of the Upper Volsci UnItal. At the transition from ramp to flat, native blocks were scraped off from the Lower Volsci UnItal. On the right, peculiar settings inspired by field examples are contextualized to understand the mélange formation. During Serravallian time, the inherited structure was sealed by Orbulina Marl hemipelagic deposits. To the southwest, base-of-slope to basinal Cretaceous-Miocene deposits occurred on a fault-controlled step of the platform. On the right, a detail of the paleoscarpment setting prior to thrusting.
Geosciences 11 00160 g015
Figure 16. Sketch of relative timing and geometries of fore- and back-thrust involving different generations of thrusts (1–4) within the Apennine wedge through time. Backthrusts generate at progressively lower depths, moving towards the hinterland (to the left), due to the dip of the basal detachment.
Figure 16. Sketch of relative timing and geometries of fore- and back-thrust involving different generations of thrusts (1–4) within the Apennine wedge through time. Backthrusts generate at progressively lower depths, moving towards the hinterland (to the left), due to the dip of the basal detachment.
Geosciences 11 00160 g016
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cardello, G.L.; Vico, G.; Consorti, L.; Sabbatino, M.; Carminati, E.; Doglioni, C. Constraining the Passive to Active Margin Tectonics of the Internal Central Apennines: Insights from Biostratigraphy, Structural, and Seismic Analysis. Geosciences 2021, 11, 160. https://doi.org/10.3390/geosciences11040160

AMA Style

Cardello GL, Vico G, Consorti L, Sabbatino M, Carminati E, Doglioni C. Constraining the Passive to Active Margin Tectonics of the Internal Central Apennines: Insights from Biostratigraphy, Structural, and Seismic Analysis. Geosciences. 2021; 11(4):160. https://doi.org/10.3390/geosciences11040160

Chicago/Turabian Style

Cardello, Giovanni Luca, Giuseppe Vico, Lorenzo Consorti, Monia Sabbatino, Eugenio Carminati, and Carlo Doglioni. 2021. "Constraining the Passive to Active Margin Tectonics of the Internal Central Apennines: Insights from Biostratigraphy, Structural, and Seismic Analysis" Geosciences 11, no. 4: 160. https://doi.org/10.3390/geosciences11040160

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
