Natural Radioactivity of Laterite and Volcanic Rock Sample for Radioactive Mineral Exploration in Mamuju, Indonesia

Abstract

Mamuju is a region of Indonesia with relatively high exposure to natural radiation. Since 2012, Mamuju has been a uranium and thorium exploration area. Several mapping studies of the region have been carried out to depict NORM (naturally occurring radioactive material) areas and areas with uranium anomalies. This paper is the first study to use radioactivity measurements of laterite and volcanic rocks to determine the characteristics of radionuclides and other mineral measurements, which are essential for categorising Mamuju rocks and exploring the region as a potential mining area. The radioactivity of the samples was measured using a high-purity germanium (HPGe) detector. Furthermore, we used X-ray fluorescence (XRF) to determine the rock mineral composition. Mamuju is anomalous due to its high content of ²³⁸U and ²³²Th concentrations of 539–128,699 Bq·kg⁻¹ (average: 22,882 Bq·kg⁻¹) and 471–288,639 Bq·kg⁻¹ (average: 33,549 Bq·kg⁻¹), respectively. The major elements are dominant, including Fe₂O₃, SiO₂, Al₂O₃, and Na₂O, with several other major elements such as MnO, TiO₂, and CaO.

1. Introduction

The government of Indonesia plans to build a nuclear power plant (NPP). The amount of nuclear fuel necessary for the plant’s operation will require a supply of uranium ore. To maintain the continuity of the NPP’s operation, it is essential to maintain the balance of the demand and supply of uranium. Therefore, before the NPP is built, it is necessary to analyse the availability of uranium to develop an adequate and sustainable uranium supply strategy.

Mamuju is a region of Indonesia with relatively high exposure to natural radiation. According to the results of research conducted by the Centre for Safety and Metrology Technology of Radiation—BATAN, the ambient dose equivalent rate in the Mamuju area reached 2800 nSv·h⁻¹ with an average value of 631 ± 23 nSv·h⁻¹. This value is quite high compared to the average natural radiation dose rate in Indonesia, which is approximately 50 nSv·h⁻¹ [1,2]. Furthermore, a mapping research was conducted by the Centre for Nuclear Minerals Technology—BATAN to depict the NORM region and areas with uranium (U) anomalies in Mamuju [3]. Significant thorium (Th) levels were found in several areas in Tapalang, and high uranium (U) levels were observed at several sites.

U and Th contents in volcanic rocks in the Tapalang area are controlled by the distribution of rock types and their constituent soils. The main minerals that contain U and Th are davidite and thorianite, while gummite and autunite are secondary minerals [4]. Mamuju contains the Adang volcano rock complex, which is the product of the volcanism process of a volcano complex with an eruption centre and several lava domes [5]. The formation of volcanic rock complexes is related to the presence of radioactive minerals in basaltic–andesitic rocks. The accumulation of U and Th also occurs in volcanic rocks that have undergone weathering and enrichment processes [6].

Natural enrichment of radioactive minerals occurs due to volcanic activity in Mamuju area. Remote sensing analysis shows that the Mamuju area, including Tapalang, is a centre of volcanic activity, revealing a number of circular features throughout the region [7]. Areas that have high Th levels generally have a high level of rock alteration with a varied Th/U ratio.

U deposits can be formed under various geological conditions, including high-grade metamorphic, plutonic, metasomatic, hydrothermal, and basin diagenesis, and in volcanic, sedimentary, and superficial environments [8]. According to these geological processes, U ore deposits are divided into dozens of groups on the basis of different criteria. In intrusive-type U deposits, the mineralisation is associated with high-temperature magmatic systems such as alaskite, pegmatite, and granite [9]. The main U mineral in this group is typically magmatic uraninite (or uranothorite in some cases) [10]. The ore grades of this type of U deposits are usually low (0.01–0.1%). Mamuju and the surrounding geological area are composed of the Latimojong formation, Talaya volcanic rocks, Adang volcanic rocks, intrusion rocks, the Mamuju formation, the Tapalang member of Mamuju formation, and alluvium deposits (Figure 1) [4].

U has several naturally occurring isotopes, including ²³⁸U, ²³⁵U, and ²³⁴U. The determination of the ²³⁸U/²³⁵U activity ratio (AR) has been used as an indication of the presence of depleted uranium (DU) in the environment [11,12,13,14]; naturally occurring U has a constant ²³⁸U/²³⁵U AR of 21.7 [15], while DU has a ratio above 76.9 [11]. DU is characterised as technologically enhanced naturally occurring. Natural U contains 0.7% of the ²³⁵U isotope. The remaining 99.3% is mostly the ²³⁸U isotope, which does not contribute directly to the fission process. Most reactors are light-water reactors (of two types, pressurised water reactor and boiling water reactor ) and require U to be enriched from 0.7% to 3–5% ²³⁵U in their fuel.

The objective of this paper is to describe the radioactivity characteristics of laterite and volcanic rock samples from Mamuju, which are essential to the categorisation of Mamuju rocks in the radioactive mineral exploration area. This is the first study of the radioactivity characteristics of laterite and volcanic rock samples from Mamuju. Other researchers explained the geological order of the region [3], mapping radionuclides on the basis of satellite imagery results [7] and X-ray fluorescence (XRF) measurements [3,4,5]

2. Materials and Methods

2.1. Study Area

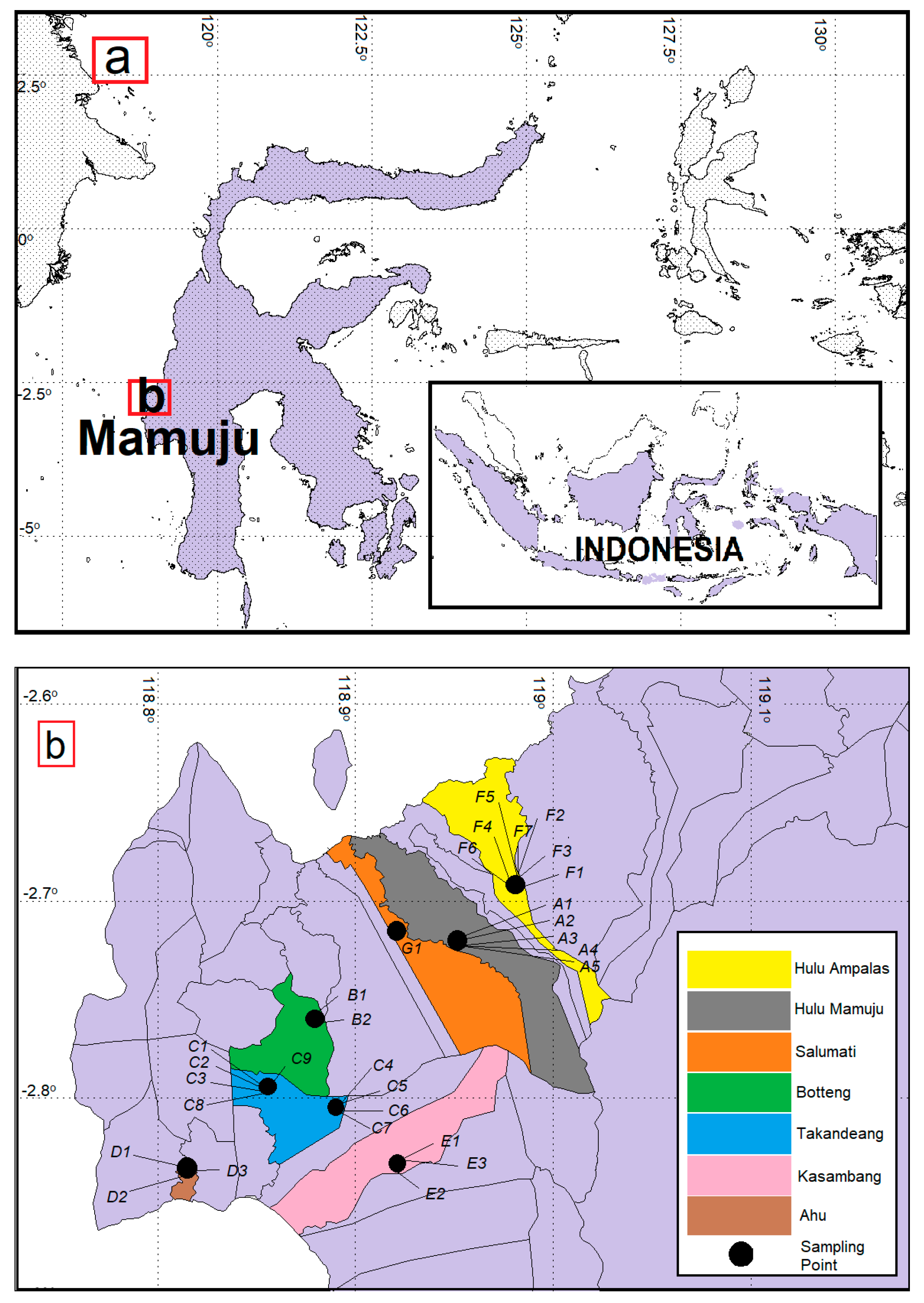

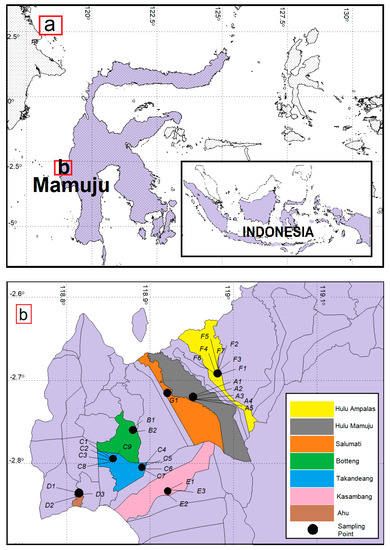

Mamuju is located on the western edge of the island Sulawesi. The topography of the Mamuju area includes the area from the coast to the mountain. The city of Mamuju lies in the province of West Sulawesi. Sulawesi Island has a complex geological setting with the complex of tectonic setting caused by the three interaction plates (Pacific, Eurasian continental, and Australian continental plates). Sulawesi island is generally divided into nonvolcanic arch and volcanic arch [16].

A total of 30 fresh rock samples were obtained from several subdistricts of Mamuju area: Takandeang, Rante Dunia, Kasambang, Botteng, Ahu, Hulu Mamuju, Hulu Ampalas, and Salumati (Figure 2). The purpose of taking fresh rock is to avoid weathering factors so that the fresh rock obtained is in accordance with the actual rock conditions. Fresh rock samples came from locations with high exposure; then, outcrop observations were made using a magnifying glass and ultraviolet flashlight. After the presence of mineral deposits in the outcrop was identified, further sampling was carried out at that location, accompanied by recording the coordinates of the location, the depth of rock or soil, and the rock and soil types.

2.2. Identification of Elements

We used XRF (Xepos, Ametek, Berwyn, PA, USA) to determine the elements in laterite and volcanic rock samples. The samples were air-dried at 25–35 °C for three days and then dried in an oven at 105 °C for more than 24 h to remove the moisture content until a constant weight was reached. Then, the samples were crushed and mashed to a size of 200 mesh and heated with 105 °C for 2 h to remove organic compounds. A total of 5 g of each sample was weighed, and 1 g of lithium tetraborate (Li₂B₄O₇; Merck, Darmstadt, Germany) was added as a binding agent. The mixture was stirred well and compressed into pellet form with a hydraulic press. Once the samples were shaped, the pellets were analysed using XRF. Before testing the samples, we performed XRF calibration using a blank, OREAS-124 (Mantra Resousces Nyota Prospect, Lindi, Tanzania), OREAS-465 (Tanzania- Mantra Resousces Nyota Prospect), CGL-124 (Central Geological Laboratory, Ulan Bator, Mongolia, RG-Th (IAEA), and GSR-5 (China).

2.3. Radioactivity Measurement

We measured the activity concentrations of the samples using an HPGe detector (GEM, ORTEC, USA). To prepare such a standard, a known quantity of a multi-nuclide standard source supplied by the Japan Radioisotope Association was placed in a cylindrical container of 48 mm × 55 mm (U-8 container). Approximately 100 g of each sample was weighed and sealed in U-8 container. The air-tightness of this vial aims to create equilibrium between the parent and the progeny, of which one of the decays of U and Th is ²²²Rn and ²²⁰Rn, which are gaseous. Furthermore, the samples are left for more than 30 days to allow decay products to reach secular equilibrium before further gamma spectrometer measurements. It was necessary to calibrate the counting system with a standard source with the same geometry as those of the samples. We measured ²³⁸U, ²³⁵U, ²³²Th, and ⁴⁰K using a HPGe detector with a relative efficiency of 40%, a resolution of 1.81 keV at 1.33 MeV, and ultra-low background shielding using old lead content. The detector was enclosed in a 10 cm thick compact lead shield. The counts of the samples were obtained by analysing the spectra obtained from the Multi-Channel Analyzer (MCA) on a PC with associated Gamma Studio software (Seiko, EG&G, Tokyo, Japan). The counting time was about 1800–70,000 s, depending on when the total count of each radionuclide reached 10,000 to obtain adequate certainty. The full energy absorbed peaks of 351 for ²¹⁴Pb and 609 keV for ²¹⁴Bi were identified for calculations of ²³⁸U or ²²⁶Ra concentration. ²³⁵U radioactivity was determined using the gamma energy lines of 143 keV and 163 keV. However, the most intensive gamma line, 185 keV, was excluded to avoid interference with the 186 keV gamma energy from ²²⁶Ra [17]. The full energy absorbed peaks of 238 keV for ²¹²Pb, 581 keV for ²⁰⁸Tl, and 911 keV for ²²⁸Ac were used for ²³²Th, and a single peak of 1460 keV was used for ⁴⁰K. The minimum detectable concentrations (MDCs) of ²³⁸U, ²³²Th, ²³⁵U, and ⁴⁰K for this measurement were 5.2 × 10⁻³, 5.2 × 10⁻³, 3.4 × 10⁻³, and 1.5 × 10⁻³ Bq·kg⁻¹, respectively. We used Equations (1) and (2) to calculate activity concentrations from these measurements.

$$A=\frac{n}{EYW{f}_c},$$

(1)

$$L_D=L_C+K{\sigma }_D,$$

(2)

where n is net count per second, E is the counting efficiency, Y is the energy yield, W is the sample weight (kg), and f_c is the correction factor (including summing in, summing out, decay factor, recovery factor, attenuation factor, branching ratio, and growth factor). L_D is the detection limit, L_C is the critical level below which no signal can be detected, ${\sigma }_{\mathrm{D}}$ is the standard deviation, and K is the error probability [18,19].

2.4. Statistical Analysis

We used Origin Pro 2020b (student version) to evaluate significant relationships between the distribution coefficients of radionuclides and major elements and their oxide contents. We conducted a Pearson correlation analysis and calculated the values of Pearson correlation coefficients with a two-tailed significance test (p-value at 0.05 and 0.01). Equation (3) expresses the Pearson correlation coefficients [20].

$$\mathit{r}=\frac{{\mathbf{\sum }}_{\mathit{i}=\mathbf{1}}^{\mathit{n}}\left({\mathit{x}}_{\mathit{i}}-\overline{\mathit{x}}\right)\left({\mathit{y}}_{\mathit{i}}-\overline{\mathit{y}}\right)}{\sqrt{{\mathbf{\sum }}_{\mathit{i}=\mathbf{1}}^{\mathit{n}}{\left({\mathit{x}}_{\mathit{i}}-\overline{\mathit{x}}\right)}^{\mathbf{2}}}\sqrt{{\mathbf{\sum }}_{\mathit{i}=\mathbf{1}}^{\mathit{n}}{\left({\mathit{y}}_{\mathit{i}}-\overline{\mathit{y}}\right)}^{\mathbf{2}}}}$$

(3)

where n is the sample size, x_i and y_i are the individual sample points indexed, and $\overline{\mathit{x}},\overline{\mathit{y}}$ are the sample means.

3. Results

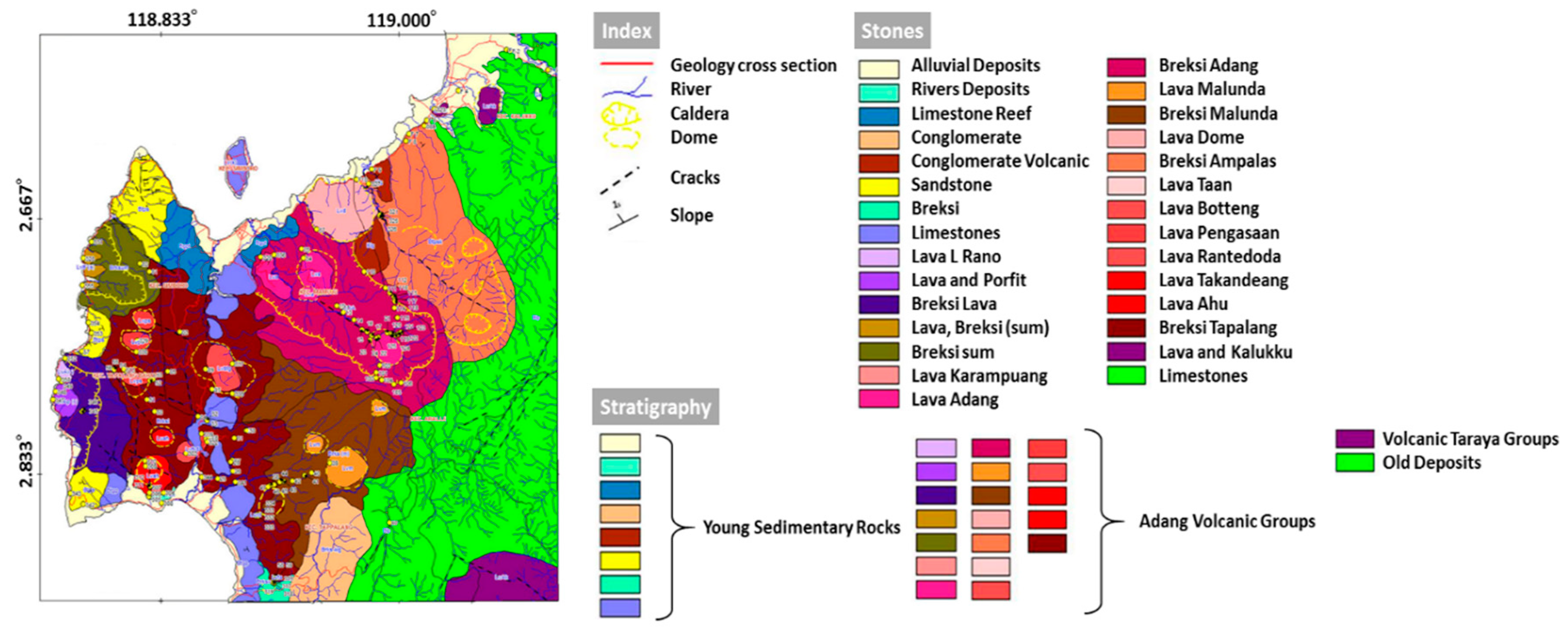

According to the regional geological data, the volcanic rocks found in the study area belong to the Talaya volcano group and the Adang volcano group. In general, sedimentary rocks in Mamuju occur in laterite, strata, and structures, while the constituent rocks of the volcanic complex in Mamuju Region are varied; thus, it is necessary to use very fresh rock samples. The base rock is generally dominated by types of tephrite, tephriponolite, phonotephrite, and phonolite (

Table 1. Details of rock sample.

Sample No.	Samples Code	Sedimentation Type	Rock Type	Rocks Name	GPS (UTM)			Location
					Zone	East (m)	North (m)
1	A1	Structure	Lava phonolite	Lava phonolite	50 S	721,567.00	9,696,880.00	Hulu Mamuju
2	A2	Structure	Lava phonolite	Lava phonolite	50 S	721,530.00	9,696,892.00	Hulu Mamuju
3	A3	Structure	Lava phonolite	Lava phonolite	50 S	721,774.00	9,696,416.00	Hulu Mamuju
4	A4	Structure	Lava phonolite	Lava phonolite	50 S	721,575.00	9,696,825.00	Hulu Mamuju
5	A5	Structure	Lava phonolite	Lava phonolite	50 S	721,827.00	9,696,745.00	Hulu Mamuju
6	B1	Strata	Phonolitoid	Phonolitoid	50 S	707,790.00	9,692,800.00	Botteng
7	B2	Strata	Phonolitoid	Phonolite	50 S	707,412.02	9,694,718.92	Botteng
8	C1	Structure	Autobreksi	Phonolite	50 S	705,746.00	9,688,196.00	Takandeang
9	C2	Structure	Autobreksi	Phonolite	50 S	705,746.00	9,688,196.00	Takandeang
10	C3	Structure	Autobreksi	Phonolite	50 S	705,746.00	9,688,196.00	Takandeang
11	C4	Laterite	Phonolitoid	Phonolitoid	50 S	709,486.00	9,689,203.00	Rante Dunia
12	C5	Laterite	Phonolitoid	Phonolitoid	50 S	709,486.00	9,689,203.00	Rante Dunia
13	C6	Laterite	Phonolitoid	Phonolitoid	50 S	709,486.00	9,689,203.00	Rante Dunia
14	C7	Laterite	Phonolitoid	Phonolitoid	50 S	709,486.00	9,689,203.00	Rante Dunia
15	C8	Structure	Autobreksi	Phonolite	50 S	705,746.00	9,688,196.00	Takandeang
16	D1	Laterite	Igneous	Phonolitee	50 S	703,255.00	9,689,161.00	Ahu
17	C9	Laterite	Igneous	Phonolite	50 S	704,674.00	9,689,566.00	Takandeang
18	E1	Strata	Sediment	Breksi	50 S	711,782.00	9,680,503.00	Kasambang
19	E2	Strata	Igneous	Phonolitoid	50 S	702,282.00	9,680,381.00	kasambang
20	E3	Strata	Igneous	Phonolitoid	50 S	712,050.00	9,680,507.00	kasambang
21	D2	Structure	Igneous	Phonolitoid	50 S	703,401.28	9,686,395.53	Ahu
22	D3	Strata	Igneous	Phonolitoid	50 S	703,734.50	9,685,494.98	Ahu
23	F1	Strata	Igneous	Phonolitoid	50 S	722,408.00	9,702,740.00	Hulu Ampalas
24	F2	Strata	Igneous	Phonolitoid	50 S	722,336.00	9,702,587.00	Hulu Ampalas
25	F3	Strata	Igneous	Phonolitoid	50 S	722,343.00	9,702,489.00	Hulu Ampalas
26	F4	Strata	Igneous	Phonolitoid	50 S	722,356.00	9,702,673.00	Hulu Ampalas
27	F5	Strata	Igneous	Phonolitoid	50 S	722,493.00	9,703,606.00	Hulu Ampalas
28	F6	Strata	Igneous	Phonolitoid	50 S	722,295.00	9,702,362.00	Hulu Ampalas
29	F7	Strata	Igneous	Phonolitoid	50 S	722,396.00	9,704,904.00	Hulu Ampalas
30	G1	Strata	Igneous	Phonolitoid	50 S	705,443.00	9,689,232.00	Salumati

).

Volcanic rocks from the Adang complex are composed of trachyte, tephra-phonolite, phono-tephrite, and phonolite rock with ultrapotassic affinity formed in the active continental margin (ACM) crust within the SW continental crust of Sulawesi [4,6]. The XRF analysis showed that the rocks in Mamuju are dominated by the elements Fe₂O₃, SiO₂, Al₂O₃, and Na₂O, with several other major elements such as MnO, TiO₂, and CaO (

Table 2. Major elements.

Sample	Na2O	MgO	Al2O3	SiO2	P2O5	K2O	CaO	TiO2	Fe2O3
	%	%	%	%	%	%	%	%	%
1	7.5 ± 0.2	0.3 ± 0.1	2.8 ± 0.1	11.6 ± 0.4	1.6 ± 0.1	2.8 ± 0.2	2.9 ± 0.2	3.2 ± 0.1	13.6 ± 0.6
2	6.5 ± 0.2	0.4 ± 0.1	16.4 ± 0.5	44.9 ± 1.4	1.1 ± 0.1	13.5 ± 0.5	0.5 ± 0.1	1.6 ± 0.2	10.1 ± 0.6
3	2.2 ± 0.1	0.4 ± 0.1	2.9 ± 0.1	10.9 ± 0.3	1.0 ± 0.1	3.3 ± 0.2	2.4 ± 0.2	0.6 ± 0.1	6.3 ± 0.4
4	2.0 ± 0.1	0.3 ± 0.1	2.9 ± 0.1	10.8 ± 0.3	0.8 ± 0.1	3.4 ± 0.2	2.8 ± 0.2	1.4 ± 0.1	14.3 ± 0.8
5	2.4 ± 0.1	0.4 ± 0.1	4.2 ± 0.1	14.2 ± 0.4	0.9 ± 0.1	5.1 ± 0.4	0.2 ± 0.1	0.2 ± 0.1	4.4 ± 0.3
6	4.3 ± 0.1	1.1 ± 0.1	7.2 ± 0.2	27.0 ± 0.8	1.1 ± 0.1	0.5 ± 0.1	4.5 ± 0.3	2.1 ± 0.1	11.7 ± 0.6
7	3.5 ± 0.1	0.3 ± 0.1	8.7 ± 0.2	10.9 ± 0.3	0.9 ± 0.1	0.7 ± 0.1	0.5 ± 0.1	3.6 ± 0.3	25.0 ± 1.8
8	3.8 ± 0.1	3.6 ± 0.1	14.8 ± 0.5	61.1 ± 1.8	0.2 ± 0.1	0.3 ± 0.1	2.1 ± 0.2	2.0 ± 0.2	10.9 ± 0.6
9	3.2 ± 0.1	4.5 ± 0.2	12.8 ± 0.5	50.7 ± 1.6	0.2 ± 0.1	0.2 ± 0.1	1.6 ± 0.2	1.6 ± 0.2	9.8 ± 0.6
10	3.6 ± 0.1	4.3 ± 0.2	14.4 ± 0.5	56.6 ± 1.7	0.2 ± 0.1	0.3 ± 0.1	2.0 ± 0.2	1.9 ± 0.2	9.9 ± 0.6
11	0.6 ± 0.1	0.5 ± 0.1	23.6 ± 0.7	39.5 ± 1.2	0.2 ± 0.1	0.9 ± 0.1	0.2 ± 0.1	2.9 ± 0.2	19.5 ± 1.1
12	0.4 ± 0.1	0.5 ± 0.1	22.4 ± 0.7	38.1 ± 1.2	0.2 ± 0.1	1.0 ± 0.1	0.2 ± 0.1	2.8 ± 0.2	18.7 ± 1.0
13	1.2 ± 0.1	0.9 ± 0.1	29.6 ± 0.8	47.9 ± 1.4	0.3 ± 0.1	0.9 ± 0.1	0.2 ± 0.1	2.7 ± 0.2	17.1 ± 1.0
14	0.8 ± 0.1	0.7 ± 0.1	29.4 ± 0.8	46.7 ± 1.4	0.2 ± 0.1	0.9 ± 0.1	0.2 ± 0.1	2.8 ± 0.2	19.0 ± 1.0
15	3.1 ± 0.1	5.5 ± 0.2	15.2 ± 0.5	58.6 ± 1.7	0.2 ± 0.1	0.2 ± 0.1	1.9 ± 0.2	2.0 ± 0.2	11.9 ± 0.6
16	5.9 ± 0.2	1.3 ± 0.1	15.4 ± 0.5	51.3 ± 1.6	1.0 ± 0.1	10.0 ± 0.5	5.4 ± 0.4	1.0 ± 0.1	8.8 ± 0.6
17	7.6 ± 0.2	2.4 ± 0.1	11.8 ± 0.4	48.8 ± 1.6	1.7 ± 0.1	3.0 ± 0.2	5.5 ± 0.4	1.9 ± 0.2	17.5 ± 1.0
18	3.4 ± 0.1	0.5 ± 0.1	6.4 ± 0.2	28.1 ± 1.0	0.7 ± 0.1	5.2 ± 0.3	2.4 ± 0.2	1.6 ± 0.1	13.6 ± 0.9
19	6.9 ± 0.2	1.1 ± 0.1	11.9 ± 0.4	52.3 ± 1.6	1.0 ± 0.1	5.5 ± 0.3	3.5 ± 0.3	1.4 ± 0.1	15.8 ± 1.0
20	6.8 ± 0.2	1.2 ± 0.1	11.3 ± 0.4	47.9 ± 1.5	1.3 ± 0.1	7.0 ± 0.4	4.3 ± 0.3	1.7 ± 0.1	17.6 ± 1.0
21	4.2 ± 0.1	4.2 ± 0.1	12.4 ± 0.5	53.4 ± 1.7	0.5 ± 0.1	0.9 ± 0.1	3.3 ± 0.2	1.8 ± 0.1	9.6 ± 0.6
22	2.0 ± 0.1	2.8 ± 0.1	9.2 ± 0.3	38.4 ± 1.3	0.5 ± 0.1	1.0 ± 0.1	2.4 ± 0.2	1.2 ± 0.1	10.7 ± 0.6
23	0.3 ± 0.1	1.8 ± 0.1	14.9 ± 0.5	62.8 ± 1.8	1.5 ± 0.2	10.5 ± 0.1	1.3 ± 0.2	1.9 ± 0.1	5.5 ± 0.4
24	0.3 ± 0.1	2.6 ± 0.1	13.1 ± 0.4	52.7 ± 1.6	1.6 ± 0.2	8.8 ± 0.4	1.4 ± 0.1	2.3 ± 0.2	7.3 ± 0.5
25	0.3 ± 0.1	0.5 ± 0.1	10.9 ± 0.3	44.3 ± 1.4	0.6 ± 0.1	8.8 ± 0.4	0.3 ± 0.1	1.1 ± 0.1	4.7 ± 0.3
26	0.3 ± 0.1	0.9 ± 0.1	9.6 ± 0.3	49.0 ± 1.5	1.1 ± 0.1	7.5 ± 0.4	0.6 ± 0.1	1.2 ± 0.1	19.8 ± 1.1
27	0.3 ± 0.1	0.6 ± 0.1	10.5 ± 0.3	74.7 ± 1.8	1.2 ± 0.1	6.7 ± 0.4	0.5 ± 0.1	1.2 ± 0.1	5.2 ± 0.4
28	0.6 ± 0.1	3.5 ± 0.1	15.1 ± 0.6	58.0 ± 1.6	0.9 ± 0.1	10.1 ± 0.5	0.9 ± 0.1	1.4 ± 0.1	9.5 ± 0.6
29	2.7 ± 0.1	2.7 ± 0.1	15.1 ± 0.6	55.1 ± 1.6	1.3 ± 0.1	6.4 ± 0.4	4.2 ± 0.3	1.4 ± 0.1	11.1 ± 0.6
30	5.4 ± 0.2	3.4 ± 0.1	16.3 ± 0.6	55.1 ± 1.6	0.4 ± 0.1	1.3 ± 0.1	1.9 ± 0.2	1.6 ± 0.1	11.5 ± 0.6

).

The rocks also contained rare Earth elements (REEs), as shown in

Table 3. Rare Earth elements in rock samples.

Samples	Rb2O	YPO4	ZrO2	La2O3	Ce2O3	Nd2O3	Sm2O3
	µg·g−1	µg·g−1	µg·g−1	µg·g−1	µg·g−1	µg·g−1	µg·g−1
1	175 ± 11	1094 ± 103	2232 ± 213	5025 ± 501	11,010 ± 1090	2921 ± 290	347 ± 32
2	504 ± 27	1235 ± 119	2892 ± 276	630 ± 61	2284 ± 225	524 ± 51	34 ± 3
3	301 ± 15	725 ± 69	1261 ± 125	9959 ± 989	23,570 ± 2257	5734 ± 571	647 ± 59
4	340 ± 17	795 ± 75	1535 ± 149	7232 ± 719	17,410 ± 1723	4466 ± 445	486 ± 47
5	337 ± 17	925 ± 90	1580 ± 155	7878 ± 778	17,450 ± 1723	4445 ± 432	555 ± 52
6	307 ± 15	827 ± 80	1825 ± 181	391 ± 37	728 ± 71	*BLD	73 ± 6
7	22 ± 2	80 ± 7	126 ± 12	701 ± 69	1433 ± 142	206 ± 19	102 ± 9
8	74 ± 5	89 ± 7	246 ± 23	438 ± 42	792 ± 78	137 ± 12	81 ± 7
9	48 ± 3	*BLD	126 ± 12	352 ± 33	639 ± 62	122 ± 11	59 ± 4
10	65 ± 5	*BLD	136 ± 13	442 ± 42	773 ± 76	167 ± 15	79 ± 6
11	381 ± 17	*BLD	120 ± 11	3174 ± 315	1610 ± 160	1172 ± 115	310 ± 29
12	397 ± 18	636 ± 60	1076 ± 104	3238 ± 321	1260 ± 125	1171 ± 115	293 ± 27
13	342 ± 16	89 ± 8	525 ± 51	3036 ± 301	1206 ± 120	1069 ± 101	293 ± 27
14	415 ± 19	21 ± 2	345 ± 32	3153 ± 314	1179 ± 116	1083 ± 103	290 ± 27
15	54 ± 3	90 ± 8	668 ± 63	393 ± 38	694 ± 68	156 ± 14	75 ± 6
16	2563 ± 235	*BLD	126 ± 12	808 ± 79	1497 ± 146	277 ± 25	32 ± 3
17	199 ± 15	208 ± 19	120 ± 11	453 ± 44	782 ± 76	84 ± 8	64 ± 6
18	953 ± 92	169 ± 15	56 ± 5	349 ± 33	1059 ± 104	44 ± 3	80 ± 8
19	1611 ± 149	67 ± 6	365 ± 34	521 ± 51	859 ± 83	74 ± 6	55 ± 5
20	674 ± 61	81 ± 8	366 ± 34	659 ± 64	1069 ± 105	54 ± 5	84 ± 8
21	191 ± 17	245 ± 21	128 ± 12	396 ± 37	759 ± 74	185 ± 17	79 ± 7
22	779 ± 71	226 ± 21	560 ± 55	690 ± 69	1414 ± 138	328 ± 31	46 ± 4
23	462 ± 45	820 ± 81	750 ± 73	326 ± 31	671 ± 66	175 ± 16	71 ± 6
24	651 ± 61	413 ± 40	756 ± 74	343 ± 33	737 ± 72	199 ± 18	85 ± 8
25	448 ± 42	725 ± 71	1261 ± 125	159 ± 15	313 ± 30	60 ± 5	41 ± 4
26	303 ± 29	621 ± 60	1001 ± 98	206 ± 19	436 ± 42	79 ± 7	80 ± 8
27	244 ± 21	802 ± 79	1123 ± 111	182 ± 17	372 ± 35	116 ± 10	34 ± 3
28	501 ± 49	645 ± 59	803 ± 80	322 ± 31	637 ± 61	150 ± 14	62 ± 6
29	822 ± 80	751 ± 72	1433 ± 141	215 ± 20	396 ± 38	63 ± 5	52 ± 5
30	969 ± 93	421 ± 40	862 ± 85	361 ± 35	541 ± 52	27 ± 2	*BLD

*BLD = below limit of detection.

. The identified REEs include Rb₂O, YPO₄, ZrO₂, BaO, La₂O₃, Ce₂O₃, Nd₂O₃, and Sm₂O₃. The most dominant of these REEs were YPO₄, ZrO₂, La₂O₃, and Ce₂O₃ with highest concentrations of 1235 µg·g⁻¹, 2892 µg·g⁻¹, and 23,570 µg·g⁻¹, respectively.

The radioactivity measurement was carried out in rocks using an HPGe detector (

Table 4. Radionuclide elements in rock samples.

Samples	Gamma Spectrometry				XRF
	238U	232Th	40K	235U	Total U	Total Th
	Bq·kg−1	Bq·kg−1	Bq·kg−1	Bq·kg−1	µg·g−1	µg·g−1
1	79,333 ± 6347	36,756 ± 2940	3078 ± 246	3598 ± 255	5363 ± 590	7633 ± 840
2	110,767 ± 8861	288,639 ± 23,091	23,088 ± 1847	4564 ± 412	5209 ± 573	52,730 ± 5300
3	15,667 ± 1253	211,271 ± 16,902	100 ± 8	660 ± 60	1444 ± 159	30,900 ± 3100
4	20,494 ± 1640	178,440 ± 14,275	100 ± 7	867 ± 81	1197 ± 132	29,210 ± 2903
5	50,113 ± 4000	261,266 ± 20,901	2182 ± 175	2165 ± 201	2084 ± 229	33,660 ± 3650
6	128,699 ± 10,296	1435 ± 115	77 ± 6	5663 ± 526	5450 ± 550	513 ± 51
7	2210 ± 177	1703 ± 136	669 ± 54	100 ± 8	505 ± 56	663 ± 66
8	565 ± 45	1374 ± 110	419 ± 34	25 ± 1	593 ± 58	644 ± 63
9	2230 ± 178	1919 ± 154	495 ± 40	111 ± 8	216 ± 21	506 ± 49
10	864 ± 69	984 ± 79	1280 ± 102	39 ± 2	194 ± 18	611 ± 60
11	1009 ± 81	2736 ± 219	633 ± 51	46 ± 3	153 ± 15	861 ± 85
12	990 ± 79	2619 ± 209	645 ± 52	47 ± 3	146 ± 14	864 ± 86
13	855 ± 68	2751 ± 220	639 ± 51	38 ± 3	108 ± 10	658 ± 63
14	815 ± 65	2594 ± 208	636 ± 52	35 ± 2	113 ± 11	713 ± 70
15	426 ± 34	959 ± 77	69 ± 6	16 ± 1	212 ± 20	611 ± 60
16	864 ± 69	576 ± 46	2290 ± 183	43 ± 3	117 ± 11	349 ± 32
17	373 ± 30	537 ± 43	674 ± 54	18 ± 1	64 ± 6	246 ± 23
18	539 ± 43	1005 ± 80	1540 ± 123	24 ± 2	73 ± 7	694 ± 67
19	864 ± 69	984 ± 79	1280 ± 102	35 ± 2	107 ± 10	314 ± 31
20	768 ± 61	1212 ± 95	1490 ± 119	35 ± 2	105 ± 10	1032 ± 99
21	14,738 ± 1179	826 ± 66	159 ± 13	621 ± 52	1446 ± 140	434 ± 41
22	5553 ± 444	1052 ± 84	318 ± 25	241 ± 19	1001 ± 99	394 ± 37
23	10,659 ± 853	553 ± 44	2594 ± 208	421 ± 38	801 ± 80	195 ± 18
24	22,538 ± 1804	623 ± 50	2320 ± 186	992 ± 71	2012 ± 199	229 ± 20
25	37,553 ± 3004	521 ± 42	3098 ± 248	1625 ± 141	2465 ± 23	143 ± 13
26	19,293 ± 1543	430 ± 34	1658 ± 133	821 ± 69	1209 ± 120	116 ± 10
27	92,009 ± 7361	471 ± 38	1668 ± 133	3956 ± 355	5306 ± 529	134 ± 12
28	9109 ± 729	585 ± 47	2296 ± 184	373 ± 31	925 ± 91	249 ± 23
29	27,420 ± 2194	954 ± 76	1491 ± 119	1115 ± 99	2496 ± 242	228 ± 20
30	29,154 ± 2332	680 ± 54	280 ± 22	1341 ± 121	2597 ± 251	405 ± 40
Ave.	22,882 ± 1602	33,549 ± 2348	1909 ± 134	988 ± 78	1457 ± 117	5531 ± 443
WA	37 ± 4	33 ± 3	400 ± 24	-	-	-

XRF = X-ray fluorescence; Ave. = average; WA = worldwide average in the soil [21].

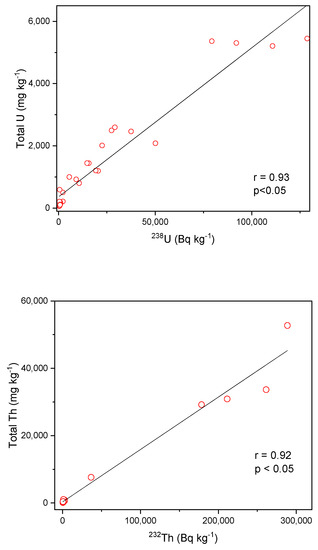

). The results show that the Mamuju rocks are unique because they have very high concentrations of ²³⁸U and ²³²Th radionuclides. There are two categories (uranium prone and thorium prone) of rocks that have higher ²³²Th concentrations, such as samples from Hulu Mamuju, Takandeang, and Rante Dunia, with a maximum ²³²Th activity concentration of 288,639 Bq·kg⁻¹. The rocks with the highest ²³⁸U activity concentrations, such as Botteng, Hulu Ampalas, Salumati, and Ahu, were found in the Botteng region with a maximum activity concentration of 128,699 Bq·kg⁻¹. The highest level of ⁴⁰K was measured in the Hulu Mamuju area and was approximately 23,088 Bq·kg⁻¹.

4. Discussion

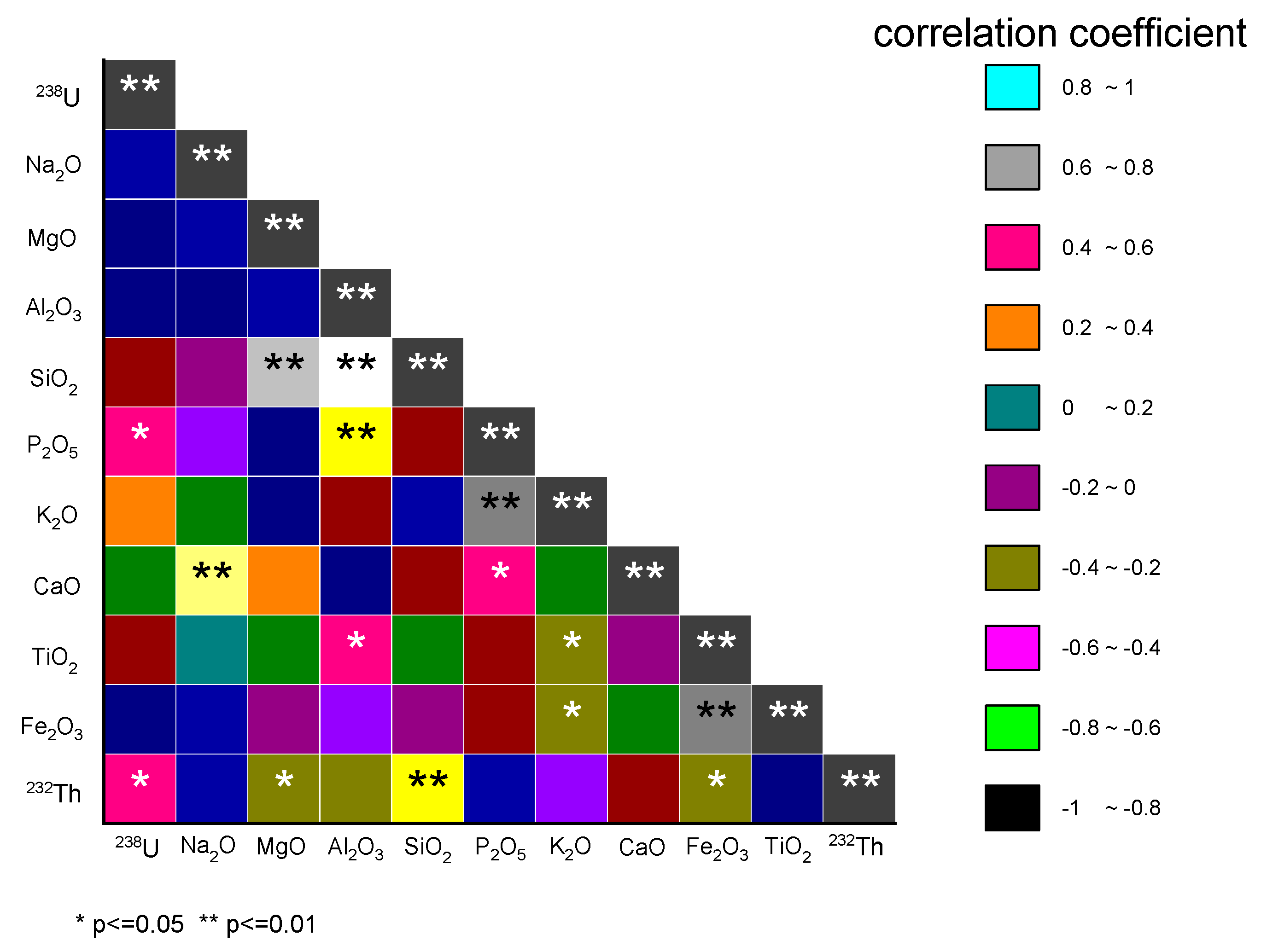

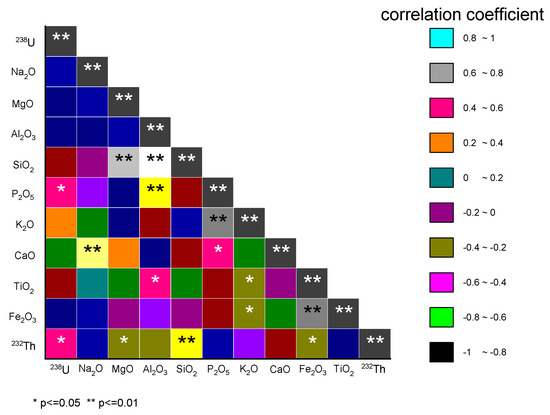

The diverse rock types in a volcanic complex indicate the existence of various factors that influence the formation of these rocks, including the source of magma, crystallisation rate, magma differentiation system, time, temperature, and pressure of magma formation, the amount of influential volatiles, and the tectonic arrangement of volcanic arcs. The results of elemental content measurements in the Mamuju sample using XRF can be seen in Table 2. It is known that rocks in Mamuju are dominated by elements of Fe₂O₃, SiO₂, Al₂O₃, and Na₂O, with several other major elements such as MnO, TiO₂, and CaO. Mamuju rocks also contain rare Earth elements or rare Earth metals (Table 3). The basaltic rocks that form the Adang volcanic rock complex are ultrapotassic rocks. Ultrapotassic rocks contain high levels of K₂O when associated with shoshonitic and calc-alkaline series. According to the results of correlation analysis between ²³⁸U, ²³²Th and the major elements in these rocks, there were several relationships of Fe₂O₃, SiO₂, Al₂O₃, and Na₂O with U and Th in Mamuju (Figure 3). The correlation accumulation of U and Th levels also occurs in volcanic rocks that have undergone weathering and enrichment processes. This is in accordance with previous studies showing that the Mamuju area contains the radioactive materials thorianite (12% Pb), davidite (15% Fe), gummite (>70% Th), and autunite [4,5,7].

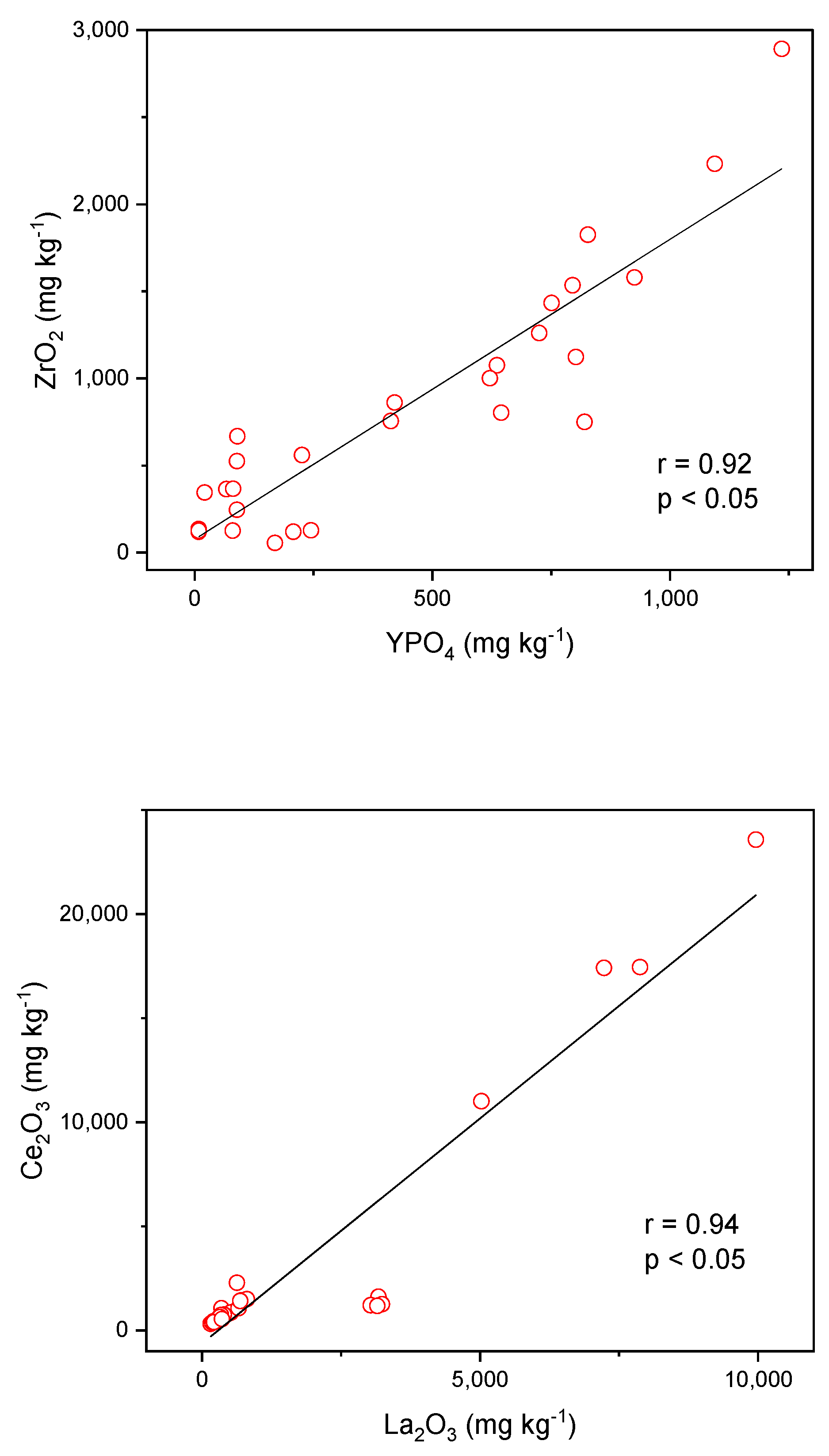

Among the REEs, there is a positive correlation between YPO₄ and ZrO₂ and between La₂O₃ and Ce₂O₃ (Figure 4). This is because YPO₄ (⁹¹Y) is the parent radionuclide and emits beta particles into ZrO₂ (⁹¹Zr) as in the decay scheme. Similarly, La₂O₃ (¹⁴⁰La) decays to Ce₂O₃ (¹⁴⁰Ce). With such conditions, Mamuju rocks contain higher levels of zircon and cerium.

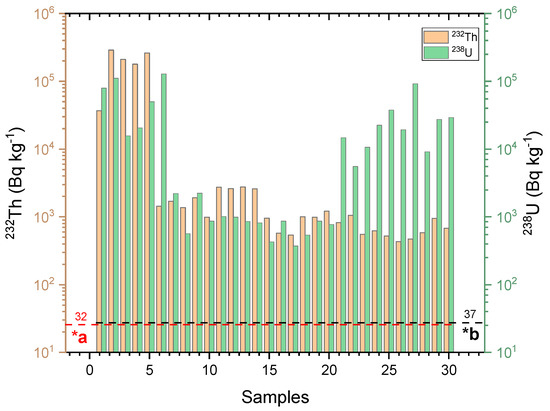

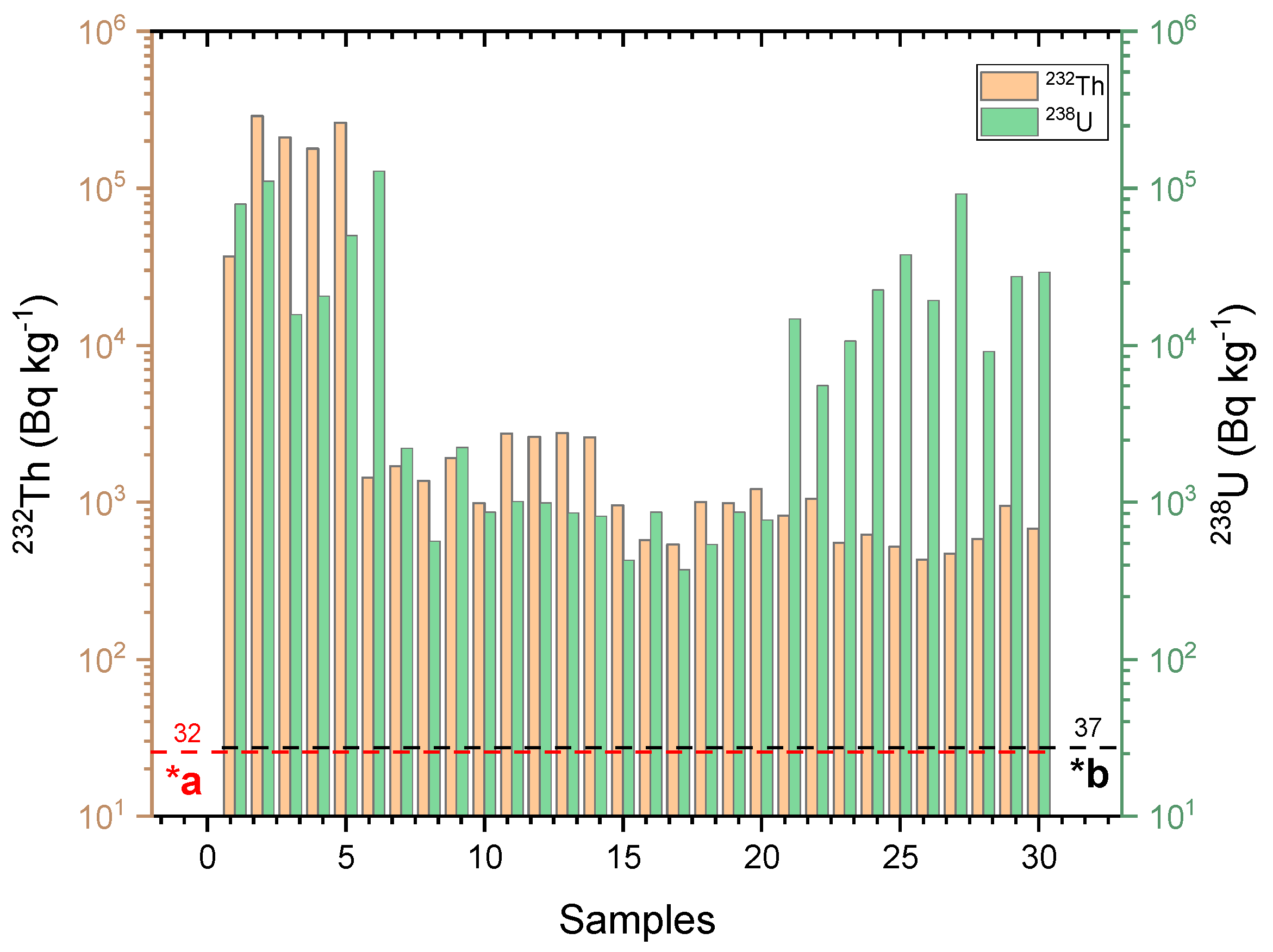

The results of HPGe analysis show that Mamuju rocks have a very high concentration of ²³⁸U and ²³²Th radionuclides. On the basis of the concept of secular equilibrium, concentrations of ²³⁸U and ²²⁶Ra are considered the same concentration between the parent and the progeny. We created a comparison chart of ²³⁸U activity concentrations using an HPGe detector and for total U using XRF analysis (Figure 5). This method was also used to compare ²³²Th and total Th. Correlation analysis was conducted using Pearson correlation. The p-value was less than 0.05 (two-tailed) and, thus, it was categorised as having a significant correlation. The correlation coefficient values of the U and Th variables were 0.93 and 0.92, respectively, which shows that both methods have a strong positive correlation. This graph shows that there is a uniformity between the ²³⁸U results of HPGe analysed from the energy peak ²¹⁴Pb and ²¹⁴Bi and the concentration of total U measured by XRF and between the ²³²Th results of HPGe analysed from the energy peak ²¹²Pb, ²⁰⁸Tl, and ²²⁸Ac and the concentration of total Th measured by XRF.

According to the HPGe measurement result, Mamuju is an anomalous area because it has high contents of ²³⁸U, ²³²Th, and ⁴⁰K with activity concentrations of 539–128,699 Bq·kg⁻¹ (average: 22,882 ± 1602 Bq·kg⁻¹), 471–288,639 Bq·kg⁻¹ (average: 33,549 ± 2348 Bq kg⁻¹), 69–23,088 Bq·kg⁻¹ (average: 1909 ± 134 Bq·kg⁻¹), respectively. According to the United Nations Scientific Committee on the Effects of Atomic Radiation (UNSCEAR) data, these values exceed the global elemental average concentrations of soil samples; the average concentration of ²³⁸U is around 37 ± 4 Bq·kg⁻¹, that of ²³²Th is around 33 ± 3 Bq·kg⁻¹, and that of ⁴⁰K is around 400 ± 24 Bq·kg⁻¹ (Figure 6) [21]. This shows that Mamuju has potential as an exploration area for radioactive minerals if we compare these values with other studies [22,23,24].

According to the measurement results, rock samples from Mamuju have a ²³⁸U/²³⁵U AR of 20.1–26.6, with an average of 22.9. This value indicates that the Mamuju area is still in natural condition without the effect of fallout from other sources (Figure 7) [11,15].

5. Conclusions

Mamuju is an anomalous area due to its high content of U and Th concentrations. From this study, it can be concluded that Mamuju rocks have ²³⁸U concentration characteristics of 539–128,699 Bq·kg⁻¹ and ²³²Th concentration characteristics of 471–288,639 Bq·kg⁻¹. The U occurring in the region is categorised as natural with an average AR ²³⁸U/²³⁵U of 22.9. The major elements include Fe₂O₃, SiO₂, Al₂O₃, and Na₂O, with several other major elements such as MnO, TiO₂, and CaO and REE elements such as ZrO₂ and Ce₂O₃. Therefore, Mamuju has potential as an exploration area for radioactive minerals.
