Lameness Detection in Dairy Cows: Part 1. How to Distinguish between Non-Lame and Lame Cows Based on Differences in Locomotion or Behavior

by
Annelies Van Nuffel
1,*,
Ingrid Zwertvaegher
1,
Liesbet Pluym
1,
Stephanie Van Weyenberg
1,
Vivi M. Thorup
2,3,
Matti Pastell
4,
Bart Sonck
5,6 and
Wouter Saeys
7
1
Technology and Food Science Unit–Precision Livestock Farming
2
INRA, UMR 791 Systemic Modelling of Ruminant Nutrition, 16 rue Claude Bernard, 75231 Paris cedex 05, France
3
AgroParisTech, UMR 791 Systemic Modelling of Ruminant Nutrition, 16 rue Claude Bernard, 75231 Paris cedex 05, France
4
Natural Resources Institute Finland (Luke), Green Technology, Koetilantie 5, 00790 Helsinki, Finland
5
Animal Sciences Unit, The Institute for Agricultural and Fisheries Research (ILVO), Scheldeweg 68, 9090 Melle, Belgium
6
Department of Biosystems Engineering, Faculty of Bioscience Engineering, Ghent University, Coupure links 653, 9000 Gent, Belgium
7
Division Mechatronics, Biostatistics and Sensors (MeBioS), Department of Biosystems, Katholieke Universiteit Leuven, Kasteelpark Arenberg 30 bus 2456, 3001 Heverlee, Belgium
*
Author to whom correspondence should be addressed.
Animals 2015, 5(3), 838-860; https://doi.org/10.3390/ani5030387
Submission received: 29 May 2015 / Revised: 17 August 2015 / Accepted: 18 August 2015 / Published: 28 August 2015
(This article belongs to the Special Issue Dairy Cow Mobility and Lameness)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Scoring cattle for lameness based on changes in locomotion or behavior is essential for farmers to find and treat their lame animals. This review discusses the normal locomotion of cows in order to define abnormal locomotion due to lameness. It furthermore provides an overview of various relevant visual locomotion scoring systems that are currently being used as well as practical considerations when assessing lameness on a commercial farm.

Abstract

Due to its detrimental effect on cow welfare, health and production, lameness in dairy cows has received quite a lot of attention in the last few decades—not only in terms of prevention and treatment of lameness but also in terms of detection, as early treatment might decrease the number of severely lame cows in the herds as well as decrease the direct and indirect costs associated with lameness cases. Generally, lame cows are detected by the herdsman, hoof trimmer or veterinarian based on abnormal locomotion, abnormal behavior or the presence of hoof lesions during routine trimming. In the scientific literature, several guidelines are proposed to detect lame cows based on visual interpretation of the locomotion of individual cows (i.e., locomotion scoring systems). Researchers and the industry have focused on automating such observations to support the farmer in finding the lame cows in their herds, but until now, such automated systems have rarely been used in commercial herds. This review starts with the description of normal locomotion of cows in order to define ‘abnormal’ locomotion caused by lameness. Cow locomotion (gait and posture) and behavioral features that change when a cow becomes lame are described and linked to the existing visual scoring systems. In addition, the lack of information of normal cow gait and a clear description of ‘abnormal’ gait are discussed. Finally, the different set-ups used during locomotion scoring and their influence on the resulting locomotion scores are evaluated.

1. Introduction

The increasing demand for animal products has led to a rapid growth in livestock production, including dairy farming, during the last 20 years [1]. As a result, dairy farming systems worldwide have intensified, with more cattle on fewer farms and per caretaker and higher productivity per animal [2]. This trend reduces the farmer’s available time to observe and monitor the cows and jeopardizes the health of the cows, in particular the high-yielding ones. Lameness is considered to be the third most costly health problem of dairy cows, after reduced fertility and mastitis [3]. Nevertheless, lameness has not only been under-recorded on farms but its importance with regard to cow welfare, cow health and farm profitability has also been hugely underestimated [4], even though it induces both direct (drug treatment, veterinary costs and death) and indirect costs (reduced milk production, reproductive performance and life expectancy) [5]. With a lameness prevalence reaching up to 72% [6], the levels in dairy herds in Europe are unacceptably high. Therefore, minimizing the occurrence and impact of lameness is one of the greatest challenges the dairy industry is currently facing [7]. Unfortunately, many dairy farmers are unaware of the number of lame cows in their herd, and, if noticed, they often do not have enough time to treat them [8]. Because many farmers fail to notice or lack the time to look for lame cows, sensor technology is being used to develop automated lameness detection systems. Generally, lame cows are detected by the herdsman, hoof trimmer or veterinarian based on changes in cow gait, posture or behavior or the presence of hoof lesions during routine trimming. This review is the first of two focusing on cow characteristics that are used to visually detect lame cows in practice. These characteristics are grouped into those of cow gait, posture and general behavior. To know which alterations of these characteristics are due to lameness, information on the normal locomotion (gait and posture) and behavior of cows are firstly described. Next, the abnormal characteristics in cow gait, posture or behavior closely related to lameness are summarized. In addition, several lameness scoring systems are compared, and some considerations in applying them in practice are discussed. The second review focuses on sensor technology to automatically measure relevant cow characteristics of gait, posture or behavior to develop automated lameness detection systems that support farmers in identifying the lame cows in their herd [9].

2. Definition of Lameness

Lameness can be defined as the clinical manifestation of painful disorders, mainly related to the locomotor system, resulting in impaired movement or deviation from normal gait or posture. The severity of lameness can vary from stiffness or decreased symmetry of limb movement to an inability to bear weight on a limb, or even total recumbency [10,11].
Disorders can be located in the limbs or trunk of the animal, and may include painful lesions as well as mechanical defects resulting in physical incapability [12]. Gait problems are thus a manifestation of discomfort or pain. In dairy cattle, the main cause of lameness are claw lesions. Claw lesions can be divided into non-infectious (such as white line disease, sole ulcer, sole hemorhhage, interdigital hyperplasia) or infectious claw lesions (such as digital dermatitis, interdigital dermatitis, heel erosion, foot rot) [13]. In addition, lameness can also be associated with injury in the nervous system (such as obturator paralysis) as well as the musculoskeletal system (such as fractures, arthritis and tendonitis) [14].
How these different disorders specifically influence the gait of cows remains unknown. However, to recognize the region of the hoof in which the cause of the lameness is located, the Merck Veterinary Manual [14] suggested the following: “when there is pain in the toe, the retraction phase (when hoof passes behind the phase of vertical weight-bearing) of the stride is reduced considerably. In contrast, if the pain is located in the heel, the protraction phase of the stride is reduced or the hoof is not carried as far forward as is normal”. To define whether the cause of lameness is in the hoof or the upper limb, Jackson and Cockcroft [15] stated that supporting limb lameness (i.e., shortened weight bearing and quick swing phase in order to minimize the contact with the ground) is associated with lesions in the hoof whereas swinging leg lameness (limb is held in extension during wing phase as flexion causes pain) with disorders in the upper limb.
Yet, it should be noted that abnormal gait may develop not only as a result of disorders in the locomotor system but also disorders in other organs (e.g., severe udder distension in heifers) [16]. Furthermore, both environmental and cow factors may impair locomotion. Wet flooring, dark environments, time relative to claw trimming sessions, age, cow dimensions, lactation and gestation stage might cause normal changes in cow gait that are not related to lameness [17].
In this review, lameness is considered abnormal locomotion due to pain caused by the locomotor system. Although changes in the general behavior of cows, like lying, standing or feeding behavior, have been associated with lameness, changes in locomotion are the most commonly used and most direct ways to monitor lameness.

3. Normal Locomotion of Dairy Cows

To understand abnormal locomotion (i.e., gait and posture), thorough insight into normal gait—with an emphasis on the way cows walk—is essential. Fundamental gait analyses have focused on the relation between limb/hoof events, which are traditionally described in terms of footfall patterns or phase relationships between limbs [18].
Phillips [19] defined walking as strides where each limb is lifted by shortening of the limb through flexion of the joints using especially hip, knee, hock and digital flexor muscles. The limb then enters the swing phase (during which the limb has no contact with the ground) and is placed on the ground through slow extension of the joint. Once the limb is on the ground, it checks the support and the sole is pushed hard against the floor by contracting the digital flexors. This enables the start for the support phase (during which the limb is in contact with the ground) again followed by the next swing phase.
The walk is a gait of four evenly spaced beats with no suspension phase (i.e., the phase in which the animal moves forward without any limb touching the ground) but with alternate support by two or three limbs. The usual succession of ground-contacting limbs during walk is LH–LF–RH–RF (where L, R, H, F indicate left, right, hind, and front, respectively) with a regular rhythm and even spacing between footfalls. Hildebrand [20] stated that it is conventional to enter the cycle with the footfall of the left hind foot. To allow the hind limb to overlap the front limb imprint, the latter is usually lifted just before the hind limb is placed. During a normal walk, the duration of support exceeds that of swing, and different limbs show less than 50% overlap in the swing phase of two successive steps [18].
Several techniques have been proposed to schematically represent animal gait, resulting in different ways to describe gait. Muybridge [21] proposed the footfall sequence formula (Figure 1A), while McGhee [22] defined the equivalent gait matrix (Figure 1B). Hildebrand’s [20] representation of the relative duration of the stance and swing phases during one stride are illustrated in Figure 1C. Abourachid [23] introduced an antero-posterior sequence approach in analysing gaits of quadrupeds where—besides focusing on strides—the time lags between the movements of both front limbs (F-lag) or hind limbs (H-lag) or between the front and hind limbs of the same side (P-lag) were added (Figure 1D). If the percentage of time lag during the whole cycle is 50% for both F-lag and H-lag and > 50% for P-lag, the walk is called lateral. Telezhenko [24] proposed track-way diagrams to describe the spatial relation between different limbs (Figure 1E).
Detailed information on footfall patterns in Holstein dairy cows was provided by Flower et al. [25] and Telezhenko [24] using a temporal gait diagram and a track-way representation of the spatial distribution of all limbs, respectively. Flower et al. [25] found that for non-lame cows only 18% of the stride time was in triple support, i.e., time when the body weight is supported by three limbs instead of two (Figure 2A). Telezhenko [24] reported three types of possible track-way measurements that either describe the rate of progression (stride length and tracking), the balance (step width, step angle) or the coordination between different limbs (step length, step asymmetry). Some of these variables are visualized in Figure 2B.
Animals 05 00387 g001 1024

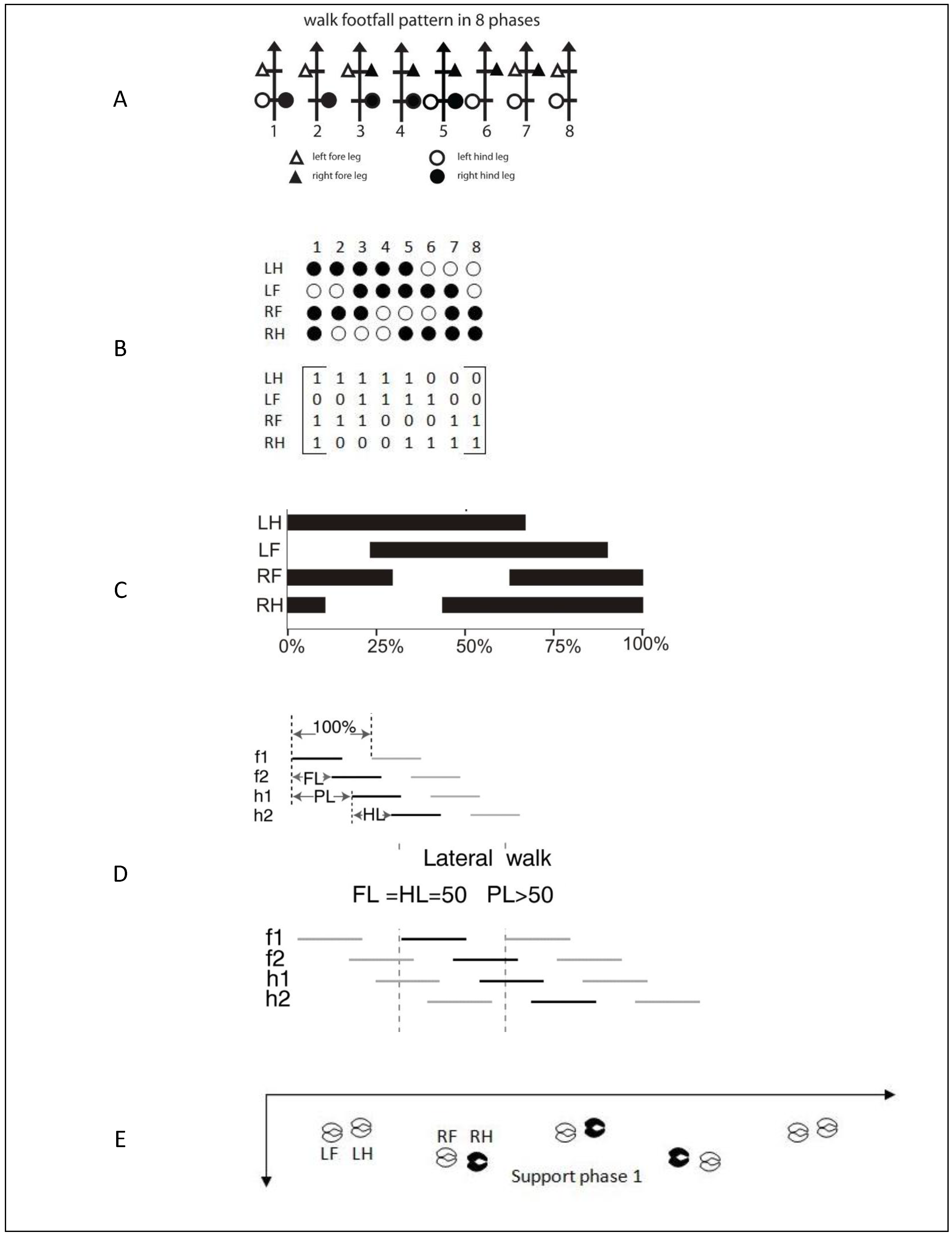

Figure 1. Schematic representation of quadruped gait: (A) footfall sequence formula according to Muybridge [21] with compact notation according to Hildebrand [20]; (B) gait matrix [22]; (C) gait diagram of a common lateral walk with additional temporal information [20]; (D) track-way diagrams revealing the use of the F-, H- and P-lag of Abourachid [23]; (E) spatial distribution of the supporting limbs [24].
Figure 1. Schematic representation of quadruped gait: (A) footfall sequence formula according to Muybridge [21] with compact notation according to Hildebrand [20]; (B) gait matrix [22]; (C) gait diagram of a common lateral walk with additional temporal information [20]; (D) track-way diagrams revealing the use of the F-, H- and P-lag of Abourachid [23]; (E) spatial distribution of the supporting limbs [24].
Animals 05 00387 g001
Animals 05 00387 g002 1024

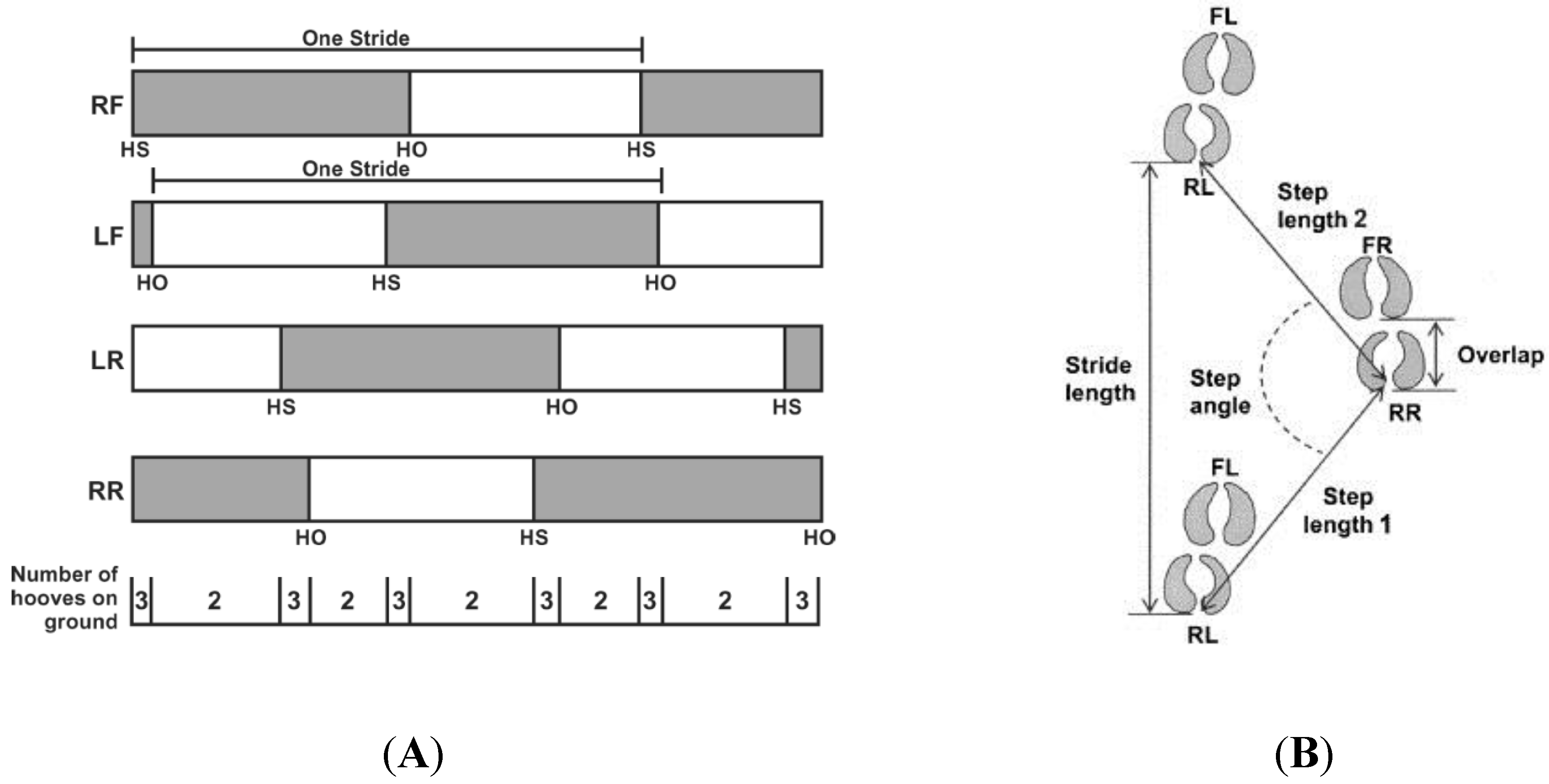

Figure 2. Temporal (A) and spatial (B) representation of cow gait: (A) the mean proportion of double and triple support time during a single stride for each limb; RF = right front hoof, LF = left front hoof, LR = left rear hoof, RR = right rear hoof, hoof strike (HS), and hoof-off (HO) [25]; (B) spatial track way measurements as performed by Telezhenko [24]; FL = front left; RL = rear left; FR = front right, and RR = rear right.
Figure 2. Temporal (A) and spatial (B) representation of cow gait: (A) the mean proportion of double and triple support time during a single stride for each limb; RF = right front hoof, LF = left front hoof, LR = left rear hoof, RR = right rear hoof, hoof strike (HS), and hoof-off (HO) [25]; (B) spatial track way measurements as performed by Telezhenko [24]; FL = front left; RL = rear left; FR = front right, and RR = rear right.
Animals 05 00387 g002
Besides spatio-temporal characteristics of gait, the forces exerted by the claws on the ground have been measured. One of the first pressure measurements in cattle was performed by Distl and Mair [26]. They reported an average force of 19 N/cm2 with peaks of 56 and 59 N/cm2 for first and second parity cows, respectively. Rajkondawar et al. [27] measured peak and averaged ground reaction forces (relative to the cow’s body weight) resulting in dimensionless numbers of 0.41 N/N and 0.30 N/N, respectively, and a stance time of 1.29 s for the hind limbs during walk. The majority of the total body weight (54% to 60%) is supported by the front limbs [19,28,29].
Table
Table 1. Average (±stdev) values of gait variables for non-lame cows.
Table 1. Average (±stdev) values of gait variables for non-lame cows.
Gait VariableAverage ± stdev
Walking speed (m/s)1.350 ± 0.150 1
Stride length (m)1.591 ± 0.005 2
Stride time (s)1.523 ± 0.009 2
Stance time (s)1.011 ± 0.007 2
Step overlap (m)0.011 ± 0.003 2
Abduction (m)0.029 ± 0.001 2
Asymmetry in step width (m)0.201 ± 0.003 2
Asymmetry in step length (m)0.419 ± 0.002 2
Asymmetry in step time (s)0.389 ± 0.002 2
Asymmetry in stance time (s)0.024 ± 0.001 2
Leg weight ratio (/) *80.0 3
1 Thorup et al. [30], n = 348 cows; 2 Van Nuffel [17] n = 34 cows; 3 Pastell and Kujala [31], n = 73 cows; * Leg weight ratio is the ratio between the heavier and lighter hind leg.
Mean values of locomotion characteristics of non-lame cows are provided in Table 1. Differences in gait variable measurements reported in the literature might be explained by differences in the breed, cow dimensions and cow factors (parity, locomotion scores, lactation stage, etc.) of the animals in the study, the measurement techniques used, measurement set-up or the definitions of the variable. Telezhenko [24] indeed found significant correlations (R2 of 0.51–0.66) between the height and the length of the cow and stride and step length, step angle and width. In a pilot study by Van Nuffel [17], step length and speed for example decreased with age and gestation stage. However, no information on cow dimensions (height, length, breast width, udder size, etc.) was collected during this study.
The weight of the cow is carried by the claw. The claw wall bears most of the load during walking, while during standing, most pressure was found at the heel area of the claw [32,33,34]. In a more detailed study done by van der Tol et al. [35], up to 51% (front limbs) and 37% (hind limbs) of the total body weight of the cows is almost completely borne by the lateral part of the claw compared to the medial part during walk, especially at heel strike. When standing, the posterior part and anterior of the claw are most often subjected to the highest pressure in the front limbs and hind limbs, [36]. Hence, depending on the lesion type, severity and location, a direct association can or cannot be found between the weight applied to the limb and the lesions present [37,38]. Moreover, when cows are lame on both hind limbs, weight is seldom transferred to the front limbs in an attempt to reduce pressure on the painful limbs. In contrast, cows that were lame on both front limbs were found to transfer some of the weight to the hind limbs [28]). However, the fact that painful lesions often occur symmetrically makes detection of lameness even more difficult.
Body movement patterns of the head, spine, joints and tail can also be considered characteristics of locomotion [20], yet recent studies of locomotion have mainly focused on the timing and duration of footfalls on the ground and the different patterns of support and swing phases (i.e., gait) and less on posture.

4. Signs of Lameness

4.1. Changes in Gait Patterns

In an attempt to detect abnormal or lame gait, several gait characteristics are used in the locomotion scoring of cattle. However, very few papers describe the relationship between poor locomotion and the gait characteristics. Flower et al. [16,25] found that lame cows walked slower, had longer stride durations, shorter strides and a more uneven weight distribution over the limbs than non-lame cows. The triple support time in the gait cycle even doubled for lame cows compared with healthy ones. Comparably, Telezhenko et al. [39] reported that severely lame cows walked more slowly with shorter stride and step length and a smaller step angle (see Figure 2B). Maertens et al. [40] and Blackie et al. [41] also found shorter stride lengths and negative tracking distances in lame cows compared with non-lame cows. Tracking distance (also reported as tracking, tracking up or step overlap) can be defined as over- or under-extension of the stride of a hind limb resulting in the hind claw not being placed on the same location as the front claw after initiation of the stride [40,42]. Similarly, increased abduction, meaning the sideways distance between the front foot imprint and the next placement of the hind foot on the same side, has been suggested to be associated with lameness [24,40]. According to Maertens et al. [40] lame cows showed more asymmetry between left and right limbs in step width, step length, step time, stance time and relative force compared with non-lame cows. Studies measuring stride heights or stiff movement of the joints have been scarce. Nevertheless, such variables of general flexion of the joints have also been suggested to be related to lameness [25,43]. Van Nuffel et al. [44,45] introduced the inconsistency of gait as a possible indicator for lameness based on the hypothesis that cows first occasionally show, e.g., short strides interchanged with ‘normal’ stride lengths before taking shorter strides in general when the lameness becomes more severe.

4.2. Changes in Posture or Body Movement Patterns

According to Sprecher et al. [46] and Flower et al. [16,25], a more pronounced arched-back posture is associated with lameness in cattle, both while standing and walking. Head movements or head ‘bobs’ (i.e., nodding, vertical movements of the head as the lame limb makes contact with the ground) have also been mentioned as a lameness characteristic in cattle [16,25,47].

4.3. Changes in Weight Distribution Patterns

Lame animals tend to shift their body weight onto non-affected limbs to reduce pain [48]. Indeed, when ground reaction forces were measured for cows during walking, the average and peak ground force reactions were found to decrease with an increase in locomotion score. This suggests that these forces could be used to discriminate lame from non-lame cows [27,49,50].
In practice, measuring weight distributions between the limbs of cows is more feasible during stance. Not surprisingly, lame cows placed more weight on the healthy limb in comparison to healthy animals which distributed their body weight more evenly [31]. According to Rushen et al. [48], lame cows had more than the normal amount of weight on the limb that was contralateral to the injured limb. The more severe the degree of lameness, the clearer the relationship with the body weight distribution was. However, painful lesions often occur symmetrically, making detection of lameness even more difficult. When cows are lame on both hind limbs, weight is seldom transferred to the front limbs in an attempt to reduce pressure on the painful limbs [28]. In contrast, cows that were lame on both front limbs were found to transfer some of the weight to the hind limbs [28].
These results were confirmed by measuring weight shifting between the contralateral limbs [28,37,38,51,52]. Higher leg weight ratios and higher variations in weight shifts between limbs were successfully used to distinguish lame from non-lame cows [31].
Increased step and kick behavior during milking has also been highlighted as a good indicator for lameness [51,53,54]. Chapinal and Tucker [55] confirmed these findings. In their study, lame cows stepped more with the hind limbs compared with non-lame cows, although this was not the case for the front limbs. The number of steps was found to be closely correlated to the weight shifting between limbs during measurements and with the limb weight ratio. However, in the study by Rousing et al. [56] a higher kicking frequency during milking was associated with pain and discomfort related to teat injuries, whereas no relation between lameness and kicking or stepping behavior was found.

4.4. Changes in Behavior

Besides locomotion, the most important natural behaviors for cow health, welfare and productivity are resting, eating, ruminating, and socializing [57]. Lameness has been associated with longer lying times, longer periods of standing in alleys and decreased feeding behavior [58,59,60] As lame cows tend to have pain and be lower in rank [61], this results in different behaviors such as longer duration spend at the resting, shorter duration at feeding places or grazing [53,62]. Detection of abnormal behavior is out of the scope of this review, but a detailed overview of the link between lameness and changes in lying/standing behavior, activity, feeding behavior, behavior around milking, estrus and social behavior can be found in Van Nuffel [17].

4.5. Some Considerations

Several gait and behavioral characteristics change when cows develop lameness making them interesting characteristics to be used by automatic lameness detection systems. To implement them, automating the assessment of these characteristics is a prerequisite. Direct characteristics of gait (e.g., stride length) might show more sensitivity in detecting lameness compared with more indirect characteristics such as lying and feeding behavior. Indeed, the intrinsic problem with using indirect measures of lameness is that they are also influenced by other factors, thus inhibiting straightforward conclusions of causal effects. Lying behavior for example is also associated with stage of lactation, production level, lying surface, bedding, cow comfort, stocking density, stall size, stall configuration, pen lay out, milking and feeding management, social rank, etc. [63]. A number of these factors might also influence the ‘normal’ gait of cows as recently investigated by Van Nuffel [17]. Also, it is not clear what the cause and effect relationship is between lameness and behavior; lameness may alter behavior, or may be the consequence of the behavior [64]?

5. Visual Locomotion Scoring

To reduce lameness, farmers need to be aware of the number of lame cows and the severity of lameness in their herd. The commonly accepted methodologies to quantify lameness rely on spotting changes in gait, posture or behavior of the cows. In practice, this is done using subjective methods such as visual observations leading to locomotion scorings by the farmer, an employee, a veterinarian or an agricultural consultant. Subjective scoring is quick to apply, inexpensive and easy-to-use. As many as 25 different visual scoring systems are available. Most of them are based on assessing walking cows, but they differ with respect to the scale used, the gait characteristics and postures considered and the definition of lameness applied [65]. The used scales range from binary (lame versus non-lame) to continuous (1 to 100). On a 5-point scale from 1 to 5, cows with a score > 3 are typically defined as being clinically lame. A range of indicators, defined as specific characteristics of gait or posture relevant for lameness, are used to help the observer assess the quality of a cow’s gait and posture and score their gait in classes ranging from non-lame to severely lame.

5.1. Visual Locomotion Scoring Systems and Accompanying Lameness Indicators

Manson and Leaver [66] were the first to describe locomotion scoring in cattle in detail. Cows were scored using a 9-point scale based on the absence or presence of tenderness, abduction and difficulty in turning/rising/walking. Wells et al. [67] proposed another system mainly focusing on gait asymmetry and restriction of movement. In this system, only 5 different locomotion classes were used. Sprecher et al. [46] introduced a 5-point lameness scoring system that assessed gait with special emphasis on back posture, both while standing and walking. In addition, short striding and weight bearing between different limbs were used during scoring. Winckler and Willen [68] modified the Sprecher method and introduced their 5-point scoring systems using the following criteria: irregular gait, short striding and reluctance to bear weight. Breuer et al. [69] introduced head bobs in a 4-point scoring system. Flower and Weary [70] proposed head bobs, tracking up and joint flexion as gait indicators to look for lameness. Arc of the foot flight, foot placement relative to body position, limb axis and foot rotation during weight bearing of every limb were looked at by Dyer et al. [71] in their aim to identify lame and sound limbs. The Welfare Quality assessment protocol for lameness in cattle focuses on irregular footfall, uneven temporal rhythm between hoof beats and weight not borne for equal time on each of the four feet [72]. Using the presence of nine gait indicators (tenderness, stiff joints, speed, arching of the back, head bobs, irregularity in hoof placement or timing, step overlap and abduction) Van Nuffel et al. [73] divided cows into non-lame (no indicator present), mildly lame (1 indicator present) or severely lame (2 or more indicators present or 1 present in severe grade). Lameness assessment of cows in tie-stalls was developed by Leach et al. [74]. Tied cows were considered lame when two of the following indicators were visually present: repeated weight-shifting between feet, rotation of feet from the line parallel to the midline of the body, standing on the edge of a step, resting a foot, and uneven weight bearing when moving from side to side.
In contrast to the visual locomotion scoring systems described above, some systems are based on scoring different gait characteristics separately from 1 (normal) to 5 (severely abnormal), such as tracking, spine curvature, speed, head bobbing, general symmetry and abduction/adduction [75,76,77,78].
Most of the visual locomotion scoring systems described in the literature use a specific number of classes ranging from non-lame to severely lame, often referred to as a numerical rating system (NRS). The number of classes range from 2 (lame/none lame) to 9 and allocation to a class depends on the absence or presence of gait characteristics, which differ in degrees of severity between each of these classes. Another approach uses an overall visual analogue scale (VAS). This is generally a continuous 100-unit line with at both ends of the scale the most extreme conditions of the characteristic. If VAS is used for general lameness scoring, those extremes would be ‘perfect gait’ and ‘cow unable to move’. Flower and Weary [70] suggested that such a scoring system might be more sensitive than NRS as it allows observers to record more subtle changes in gait characteristics.
Schlageter-Tello et al. [65] determined that the most commonly used visual scoring method is the one proposed by Sprecher et al. [46], which uses an ordinal scale from 1 to 5 that includes back arching as the most important characteristic to assess.

5.2. Practical Settings

In lameness research there is not only a wide variety in visual locomotion scoring systems, but also in the practical settings in which that scoring is performed. This makes it even harder to compare results between different studies. Most of the publications do not describe the specific practical settings or conditions under which locomotion was assessed, although the majority can have a great impact on the scoring. In Table 2 some discrepancies between important practical settings for locomotion scoring are illustrated by means of publications that included this information.
Table
Table 2. Overview of practical settings used during visual locomotion scoring.
Table 2. Overview of practical settings used during visual locomotion scoring.
Practical SettingDescription Used (Reference)References
Timing of scoringBefore milking O’Driscoll et al. [77]
After milkingO’ Callaghan et al. [79]
Walking surfaceSolid or slatted concrete O’ Callaghan et al. [79]
Rubber floorO’Driscoll et al. [78]
Wet or dry surface
Surface covered with slurry cleaned with automatic scrapers between every measurementsFlower and Weary [70]
Walking distanceUnspecified length
Specified length of e.g., 8.71 m, 7.05 m or a minimum of 10 mFlower and Weary [70]; O’Driscoll et al. [78]; Wells et al. [67] resp.
Walking directionStanding Dyer et al. [71]
Walking in a straight line
Walk into a left and right circle
Observer angleWalking away from the observer
Side viewO’Driscoll et al. [78]
Some of the practical settings summarized in Table 2 influence the gait of cows. For example, the amount and type of moisture on flooring surfaces influences the gait of cows because cows tend to walk more carefully (increased number of strides and decreased speed) on slippery floors compared with dry concrete floors) [80,81]. The presence of rubber and slatted flooring also influences the gait of cows [39,82]. In addition, floor roughness affects the gait of cows resulting in ‘stiffer and less confident’ walks on slippery surfaces, i.e., quicker with shorter steps and less range of motion [83], compared with longer swing phases combined with long strides on surfaces with higher friction [84]. Rushen and De Passillé [81] suggested that increasing the compressibility of the walk surfaces can improve cow locomotion independent of the roughness of the surface. Flower et al. [16] showed that cows walk faster, with longer strides, higher stride heights, and shorter stride duration after milking compared with before milking. This might either be due to their high motivation to go back to the barn or pasture for feeding or the decreased udder distension after milking. According to Telezhenko [24] quite some variability (12.1% to 76.6%) was present within cows for locomotion variables measured during 4 consecutive strides of cows walking in a straight line, showing the difficulty of achieving stability in the locomotion indicators within the 4 different strides of one test run during this experimental set-up. These findings suggest that locomotion scores using obvious observer presence should be based on several complete gait cycles in which cows can proceed undisturbed. The influence of angle of observation or walking pattern on lameness scoring has not yet been investigated. This overview illustrates the need for practical guidelines when scoring cow locomotion both in scientific studies as in practice in order to limit the effect of variable conditions on scoring.

5.3. Inconsistency in Scoring

Locomotion scoring requires the observer to distinguish normal from abnormal walking behavior. Since scoring is based on observer judgment it is open to some degree of interpretation. Hence, observers should be trained and retrained by observers familiar with the scoring system in order to obtain a high degree of agreement between and within observers [85,86,87]. As with every new observation, observers gradually build up more experience with the scoring system and with the range in which indicators can be shown, they will also drift in interpretation of the borders of each specific class. Periodical re-training is therefore advised to reach an acceptable level of inter-observer reliability [88]. Using fewer locomotion classes is sometimes suggested to improve intra- and inter-observer reliability [89]. The intra- and inter-observer variation of locomotion scoring systems for cattle have been assessed in several studies [46,67,68,70,79,89] and recently been reviewed by Schlageter-Tello et al. [65]. Engel et al. [90] pointed out that when using discrete scores, cows that were in between categories might be scored in different classes by less trained and trained observers even if they had more or less the same opinion. Schlageter-Tello et al. [65] suggest that it is easier to score consistently with 2- or 3-scale systems compared to a 5-scale system. Thomsen et al. [91] found that training had only a limited positive effect on the intra- and inter-observer reliability. Using a continuous scale from 0 to 100 with extremities on both ends might reduce the variability between observers. However, a larger variation between observers was found when using a VAS compared with a numeric scale with 9 categories [90]. In the study of O’Callaghan et al. [79] the intra- and inter- observer reliability using a 5-point scale were 56 % and 37%. These scores increased to 93% and 81%, respectively, when a one-point difference was allowed. Tuyttens et al. [92] introduced a modified VAS with additional anchor points dividing the continuous scale into three equal parts, resembling ordinal scores of NRS with 3 classes. The correlation between the means of the continuous scores and the categorical scores was high (r = 0.93). This suggests that both systems can be used to provide similar information on lameness in cattle. The inter-observer reliability was higher for VAS compared with NRS. Moreover, the majority of observers (66%) preferred VAS over NRS.
Table
Table 3. Commonly used gait indicators and their most detailed definition found in literature (resp. sources of the definitions are visualized with *).
Table 3. Commonly used gait indicators and their most detailed definition found in literature (resp. sources of the definitions are visualized with *).
IndicatorScoreDefinitionsScientific Sources
Back arch1The cow stands and walks with a level-back postureSprecher et al. [46] *; Flower and Weary [70]; Dyer et al. [71]; Gleeson et al. [75]; Olmos et al. [76].
2The cow stands with a level back posture but develops an arched-back posture while walking
3An arched-back posture is evident both while standing and while walking
4An arched-back posture is always evident
5The cow additionally demonstrates inability or extreme reluctance to move
Head bob1Normal vertical movement during locomotionWhay et al. [97]; Flower and Weary [70]; Gleeson et al. [75] *; Olmos et al. [76].
2Head ‘nods’ during locomotion
3Marked vertical head movement during locomotion
4Severe vertical movement during locomotion
5Head lowered almost to ground level with each step
Tracking up1Hind footprint fully traces, or is more forward than front footprintWhay et al. [97]; Olmos et al. [76] *; Flower and Weary [70]; Gleeson et al. [75]; Olmos et al. [76].
2Hind footprint partly traces (slight behind) front footprint
3Toe or hind footprint reaches heel of front footprint
4Hind footprint approx. 30 cm behind front footprint
5Hind footprint more than 30 cm behind front footprint
Joint flexion0Flexes and extends limbs through the normal range of motion;Wells et al. [67]; Winckler and Willen [68]; Flower and Weary [70] *.
100Limited flexion and extension resulting in stiffness
Tenderness No clear definition foundManson and Leaver [ 66]; Winckler and Willen [68]; Flower and Weary [70]; Dyer et al. [71].
Asymmetric steps0Gait abnormality not visible during walkWells et al. [67] *; Manson and Leaver [66]; Winckler and Willen [68]; Flower and Weary [70]; Olmos et al. [76]
1Mild variation from normal walk; includes intermittent gait asymmetry or mild bilateral or quadrilateral restriction of free movement
2Moderate or consistent gait asymmetry or symmetric gait abnormality
3Marked gait asymmetry or severe symmetric abnormality
4Recumbent
Reluctance to bear weight or Equal distribution weight1Normal gaitWinckler & Willen [68] *; Flower and Weary [70]; Dyer et al. [71]
2Uneven gait (stiff/very careful/swinging of legs around the udder/swaying of trunk and hind quarters)
3Short striding gait with one limb (even if just noticeable)
4Short striding gait with more than one limb or strong reluctance to bear weight on one limb
5Does not support on limb in one or more limbs, holding a limb up whenever possible.
Ease of movement/turning1Smooth and fluid movementManson and Leaver [66]; Wells et al. [67]; Dyer et al. [71]; Olmos et al. [76] *
2Ability to move freely is diminished
3Capable of locomotion but ability to move freely is compromised
4Ability to move freely is obviously compromised
5Ability to move is severely restricted. Cow must be vigorously encourage to stand or move
Abduction/adduction1Hind limb moves forward parallel to vertical midline of animal Manson and Leaver [66]; Gleeson et al. [75] *; Olmos et al. [76].
2Slight deviation from midline of animal
3Hooves form a C shape in the air as they move forward
4C shape so defined as to be almost circular
5Hooves circle completely in the air between each step
Stride or step length1Normal gaitSprecher et al. [46]; Winckler and Willen [68] *; Dyer et al. [71].
2Uneven gait (stiff/very careful/swinging of legs around the udder/swaying of trunk and hind quarters)
3Short striding gait with one limb (even if just noticeable)
4Short striding gait with more than one limb or strong reluctance to bear weight on one limb
5Does not support on limb in one or more limbs, holding a limb up whenever possible.
Speed1Normal locomotion at a comfortable paceDyer et al. [71]; Gleeson et al. [75]; Olmos et al. [76]; O’Driscoll et al. [77] *
2Locomotion slower than normal
3Slow, slightly hesitant walk and/or slight reluctance to bear weight
4Very slow hesitant walk and/or reluctance to bear weight
5Cow unable/unwilling to walk
Channon et al. [89] suggested that the root of the reliability problem could be the qualitative nature of the scoring systems, which are rather vague and indistinct. Without clear and objective descriptions, a scoring method is open to individual interpretation [93]. For example, using classes including ‘moderately lame’ and ‘slightly lame’ means that unless observers have viewed a large number of cows and developed agreed classes, there is no basis for reliable scoring. Moreover, the fact that ‘lame’ as a gait indicator is used as the basis for a lameness score is rather confusing. However, some scoring systems give a more thorough description of the indicators used to define the locomotion score. A summary of the most commonly used gait indicators in visual locomotion scoring systems is provided in Table 3. For every gait indicator, the most detailed and clear description found in the literature is given, together with other scientific papers using this indicator. Despite the efforts to clearly define the different levels of gait indicators, many scoring systems rely on only one or a few specific indicators, such as arched back. This might disguise lameness problems compared with scoring systems that use a wider range of indicators [93].
Another problem is the lack of good scientific descriptions on how healthy cows walk. The indistinct description of ‘normal gait’ or the ‘gait of non-lame cows’ in Table 4 implies that scoring cow gait objectively and reliably can only be possible with well-defined criteria and classes and with extensive experience in locomotion scoring to have a wide range of reference gaits to compare with. To define reliable and repeatable scoring systems, improved knowledge of the gait of cows is thus required. This can be derived from computer-assisted kinematic techniques that obtain precise measures of gait and how this gait changes when lameness occurs (von Keyserlingk et al., 2009) [93]. Such kinematic gait analyses are usually restricted to gait laboratories and are difficult to introduce into commercial barns due to the use of body markers or their specific needs for lighting. Nevertheless, the interest in improved and automated methods for gait monitoring increases.
Table
Table 4. Overview of criteria for non-lame cows found in frequently used scoring systems.
Table 4. Overview of criteria for non-lame cows found in frequently used scoring systems.
SourceDescription for Non-Lame Cows in Scoring System
Manson and Leaver [66]Minimal abduction/adduction, no unevenness of gait, no tenderness
Wells et al. [67]Gait abnormality not visible at a walk; not reluctant to walk
Sprecher et al. [46]Stands and walks with a level-back posture. The gait is normal
Breuer et al. [69]Normal gait
Winkler and Willen [68]Normal gait
Flower and Weary [70]Smooth and fluid movement with flat back, steady head carriage, hind hooves land on or in front of fore-hooves (track up), joints flex freely, symmetrical gait and all legs bear weight equally
Dyer et al. [71]Cows walk freely with unrestricted motion and symmetry in stride. No postural abnormalities are exhibited.
Welfare Quality® [72]Timing of steps and weight-bearing equal on all four feet

5.4. Practical Considerations

Although visual locomotion scoring can be implemented on any farm at any given time, some practical considerations should be taken into account. Besides the inconsistency of the locomotion scoring, assessing lameness of individual cows in a herd can be practically challenging. Although probably possible to construct, there is generally no specially designed alley available on farms where cows pass daily while their gait is observed. Cows often have to be assessed in barns lacking sufficient space to walk in a straight line for several meters. The slatted floor is furthermore mostly covered with slippery manure impairing normal locomotion. Also, cows can be reluctant to walk past herd mates and need to be motivated to walk past them. This again disturbs their normal locomotion and increases the need for an additional helper to guide the cow in order for the observer to give a score. Being a prey species and hence stoic in nature, lame cows might also mask signs of vulnerability, because this would make them an easier target for predators [94]. Therefore, in the presence of an observer or when forced to walk, cows tend to only show lame locomotion and behavior when the lameness is at an advanced stage. As only a trained observer may notice the onset of lameness by multiple subtle gait aberrations, detecting early lameness tends to be difficult. In addition, as discussed above, practical guidelines on the set-up for visual locomotion scoring are lacking.
Most visual scoring systems are not designed to assess lameness on a day-to-day basis, but to compare locomotion scores between different treatments or set-ups. Sporadic scoring of the entire herd by an experienced observer only provides the farmer or veterinarian with prevalence information for that specific moment. Because of the non-straightforward link between lameness and claw lesions or other diseases of the bones and joints [95], the usefulness of locomotion scores is limited to indications of pain, rather than as a diagnostic tool for the presence of hoof lesions [68]. This makes a thorough check of the cow necessary.
More importantly, all cows have their own specific way of walking [17] and reacting on illness [96]. Hence, a detection system should rather be based on changes in indicators over time than on the deviation from the group mean. Daily monitoring of locomotion or behavior on farm by a trained observer is too time-consuming and thus very cost inefficient. Automatic measurement of lameness-related, animal-based characteristics would allow for daily measurements and could, therefore, be a better option.

6. Conclusions

Clear and accurate definitions including numerical information of normal and abnormal cow gait are lacking in the description of visual locomotion scoring system. This adds to the difficulty of performing visual locomotion scoring to assess lameness on farms. Moreover, the farm design, experimental set-ups and presence of an observer impede proper scoring on practical farms even more. Different practical approaches are used during locomotion scoring, resulting in incomparable results between studies. The different set-ups used and their influence on the resulting locomotion score was evaluated. Automated measurements of lameness-related cow features might therefore solve some of these issues. However, the practical set-up of such systems will also be challenging.

Author Contributions

This review was written by the first author; all co-authors made suggestions and alterations to the review for improvement.

Conflicts of Interest

The authors declare no conflict of interest.

References and Notes

  1. International Dairy Federation (IDF). World Dairy Situation 2013; IDF: Brussels, Belgium, 2013. [Google Scholar]
  2. Van der Straeten, B.; Deuninck, J.; Van Gijseghem, D. De melkproductie in Vlaanderen na 2015; beleidsdomein Landbouw en Visserij, afdeling Monitoring en Studie: Brussel, Belgium, 2012. [Google Scholar]
  3. Enting, H.; Kooij, D.; Dijkhuizen, A.A.; Huirne, R.B.M.; Noordhuizen-Stassen, E.N. Economic losses due to clinical lameness in dairy cattle. Livest. Prod. Sci. 1997, 49, 259–267. [Google Scholar] [CrossRef]
  4. Laven, R.A. Lameness on New Zealand dairy farms: Perception and reality. In Proceedings of the 17th International Symposium and 9th International Conference on Lameness in Ruminants, Bristol, UK, 11–14 August 2013; pp. 25–27.
  5. Gröhn, Y.T.; Rajala-Schultz, P.J.; Allore, H.G.; DeLorenzo, M.A.; Hertl, J.A.; Galligan, D.T. Optimizing replacement of dairy cows: Modeling the effects of diseases. Prev. Vet. Med. 2003, 61, 27–43. [Google Scholar] [CrossRef]
  6. English, A.M.; Ullrich, E.; Bergfeld, U.; Fleisher, J.; Roesler, U.; Mueller, K.E. Animal suitability index and lameness in dairy farms in Saxony, Germany. In Proceedings of the 17th International Symposium and 9th International Conference on Lameness in Ruminants, Bristol, UK, 11–14 August 2013; pp. 109–110.
  7. Huxley, J.N. Impact of lameness and claw lesions in cows on health and production. Livest. Sci. 2013, 156, 64–70. [Google Scholar] [CrossRef]
  8. Leach, K.A.; Paul, E.S.; Whay, H.R.; Barker, Z.E.; Maggs, C.M.; Sedgwick, A.K.; Main, D.C.J. Reducing lameness in dairy herds—Overcoming some barriers. Res. Vet. Sci. 2013, 94, 820–825. [Google Scholar] [CrossRef] [PubMed]
  9. Van Nuffel, A.; Zwertvaegher, I.; Van Weyenberg, S.; Pastell, M.; Thorup, V.M.; Bahr, C.; Sonck, B.; Saeys, W. Lameness detection in dairy cows: Part 2. Use of sensors to automatically register changes in locomotion or behavior. Animals 2015. [Google Scholar] [CrossRef] [Green Version]
  10. Straw, B.E.; Dewe, C.E.; Wilson, M.R. Differential diagnosis of swine diseases. In Diseases of Swine; Straw, B.E., D’Allaire, S., Mengeling, W.L., Taylor, D.J., Eds.; Iowa State University Press: Ames, IA, USA, 1999; pp. 41–86. [Google Scholar]
  11. Maas, J. Musculoskeletal abnormalities. In Large Animal Internal Medicine; Smith, B.P., Ed.; Mosby, Inc.: ST. Louis, MS, USA, 2009; pp. 217–231. [Google Scholar]
  12. Beusker, N. Welfare of Dairy Cows: Lameness in Cattle. Literature Review; The Institute of Animal Hygiene, Animal Welfare and Animal Ethology, School of Veterinary Medicine: Hannover, Germany, 2007. [Google Scholar]
  13. Greenough, P.R. Bovine Laminitis and Lameness, a Hands-on Approach; Bergsten, C., Brizzi, A., Mülling, C., Eds.; Saunders Elsevier: Amsterdam, The Netherlands, 2007. [Google Scholar]
  14. Merck, 2015. The Merck Veterinary Manual. Lameness in Cattle. Available online: http://www.merckvetmanual.com/mvm/musculoskeletal_system/lameness_in_cattle/overview_of_lameness_in_cattle.html (accessed on 13 July 2015).
  15. Jackson, P.G.G.; Cockcroft, P.D. Clinical examination of the musculoskeletal system. In Clinical Examination of Farm Animals; Blackwell Publishing: Oxford, UK, 2002; pp. 167–197. [Google Scholar]
  16. Flower, F.C.; Sanderson, D.J.; Weary, D.M. Effects of milking on dairy cow gait. J. Dairy Sci. 2006, 89, 2084–2089. [Google Scholar] [CrossRef]
  17. Van Nuffel, A. Development of an Automated Detection System for Lameness in Cattle: The Gaitwise System. Ph.D. Thesis, Katholic University of Leuven, Leuven, Belgium, 2014. [Google Scholar]
  18. Eilam, D. Postnatal development of body architecture and gait in several rodent species. J. Exp. Biol. 1997, 200, 1339–1350. [Google Scholar] [PubMed]
  19. Hildebrand, M. The quadrupedal gaits of vertebrates. Bioscience 1989, 39, 766–775. [Google Scholar] [CrossRef]
  20. Muybridge, E. Animals in Motion; Dover Publications: New York, NY, USA, 1899. [Google Scholar]
  21. McGhee, R.B. On the stability of quadruped gaits. Math. Biosci. 1968, 3, 331–351. [Google Scholar] [CrossRef]
  22. Abourachid, A. A new way of analysing symmetrical and asymmetrical gaits in quadrupeds. Comptes Rendus Biol. 2003, 326, 625–630. [Google Scholar] [CrossRef]
  23. Telezhenko, E. Measurement of spatial gait parameters from footprints of dairy cows. Animal 2009, 3, 1746–1753. [Google Scholar] [CrossRef] [PubMed]
  24. Flower, F.C.; Sanderson, D.J.; Weary, D.M. Hoof pathologies influence kinematic measures of dairy cow gait. J. Dairy Sci. 2005, 88, 3166–3173. [Google Scholar] [CrossRef]
  25. Distl, O.; Mair, A. Computerized analysis of pedobarometric forces in cattle at the ground surface/floor interface. Comp. Electr. Agric. 1993, 8, 237–250. [Google Scholar] [CrossRef]
  26. Rajkondawar, P.G.; Liu, M.; Dyer, R.M.; Neerchal, N.K.; Tasch, U.; Lefcourt, A.M.; Erez, B.; Varner, M.A. Comparison of models to identify lame cows based on gait and lesion scores, and limb movement variables. J. Dairy Sci. 2006, 89, 4267–4275. [Google Scholar] [CrossRef]
  27. Neveux, S.; Weary, D.M.; Rushen, J.; von Keyserlingk, M.A.G.; de Passille, A.M. Hoof discomfort changes how dairy cattle distribute their body weight. J. Dairy Sci. 2006, 89, 2503–2509. [Google Scholar] [CrossRef]
  28. Pastell, M.; Hautala, M.; Poikalainen, V.; Praks, J.; Veermae, I.; Kujala, M.; Ahokas, J. Automatic observation of cow leg health using load sensors. Comp. Electr. Agr. 2008, 62, 48–53. [Google Scholar] [CrossRef]
  29. Thorup, V.M.; Munksgaard, L.; Robert, P.-E.; Erhard, H.W.; Thomsen, P.T.; Friggens, N.C. Lameness detection via leg-mounted accelerometers on dairy cows on four commercial farms. Animal 2015. [Google Scholar] [CrossRef] [PubMed]
  30. Pastell, M.E.; Kujala, M. A probabilistic neural network model for lameness detection. J. Dairy Sci. 2007, 90, 2283–2292. [Google Scholar] [CrossRef] [PubMed]
  31. Phillips, C. Locomotion and movement. In Cattle Behaviour & Welfare; Phillips, C., Ed.; Blackwell Science Ltd: Malden, MA, USA, 2007; Chapter 12; pp. 179–197. [Google Scholar]
  32. Mair, A.; Diebschlag, W.; Distl, O.; Krausslich, H. Measuring device for the analysis of pressure distribution on the foot soles of cattle. Journal of Veterinary Medicine Series A-Zentralblatt fur Veterinarmedizin Reihe A-Physiology Pathology Clinical Medicine 1988, 35, 696–704. [Google Scholar]
  33. Scott, G.B. Lameness and pregnancy in friesian dairy-cows. Brit. Vet. J. 1988, 144, 273–281. [Google Scholar] [CrossRef]
  34. Distl, O.; Koorn, D.S.; McDaniel, B.T.; Peterse, D.; Politiek, R.D.; Reurink, A. Claw traits in cattle breeding programs: Report of the E.A.A.P. Working Group “Claw Quality in Cattle”. Livest. Prod. Sci. 1990, 25, 1–13. [Google Scholar] [CrossRef]
  35. Van der Tol, P.P.J.; Metz, J.H.M.; Noordhuizen-Stassen, E.N.; Back, W.; Braam, C.R.; Weijs, W.A. The vertical ground reaction force and the pressure distribution on the claws of dairy cows while walking on a flat substrate. J. Dairy Sci. 2003, 86, 2875–2883. [Google Scholar] [CrossRef]
  36. Van der Tol, P.P.J.; Metz, J.H.M.; Noordhuizen-Stassen, E.N.; Back, W.; Braam, C.R.; Weijs, W.A. The pressure distribution under the bovine claw during square standing on a flat substrate. J. Dairy Sci. 2002, 85, 1476–1481. [Google Scholar] [CrossRef]
  37. Neveux, S.; Oostra, J.; de Passille, A.M.; Rushen, J. Validating on-farm tools for their ability to detect lameness in dairy cows. In Proceedings of the 37th International congress of the ISAE, Bano Therme, Italy, 24–28 June 2003.
  38. Pastell, M.; Hanninen, L.; de Passille, A.M.; Rushen, J. Measures of weight distribution of dairy cows to detect lameness and the presence of hoof lesions. J. Dairy Sci. 2010, 93, 954–960. [Google Scholar] [CrossRef] [PubMed]
  39. Telezhenko, E.; Bergsten, C. Influence of floor type on the locomotion of dairy cows. Appl. Animal Behav. Sci. 2005, 93, 183–197. [Google Scholar] [CrossRef]
  40. Maertens, W.; Vangeyte, J.; Baert, J.; Jantuan, A.; Mertens, K.C.; De Campeneere, S.; Pluk, A.; Opsomer, G.; Van Weyenberg, S.; Van Nuffel, A. Development of a real time cow gait tracking and analysing tool to assess lameness using a pressure sensitive walkway: The GAITWISE system. Biosyst. Eng. 2011, 110, 29–39. [Google Scholar] [CrossRef]
  41. Blackie, N.; Bleach, E.C.L.; Amory, J.R.; Scaife, J.R. Associations between locomotion score and kinematic measures in dairy cows with varying hoof lesion types. J. Dairy Sci. 2013, 96, 3564–3572. [Google Scholar] [CrossRef] [PubMed]
  42. Shearer, J.K.; Stock, M.L.; van Amstel, S.R.; Coetzee, J.F. Assessment and management of pain associated with lameness in cattle. Vet. Clin. North Am. Food Animal Pract. 2013, 29, 135–165. [Google Scholar] [CrossRef] [PubMed]
  43. Pluk, A.; Bahr, C.; Poursaberi, A.; Maertens, W.; Van Nuffel, A.; Berckmans, D. Automatic measurement of touch and release angles of the fetlock joint for lameness detection in dairy cattle using vision techniques. J. Dairy Sci. 2012, 95, 1738–1748. [Google Scholar] [CrossRef] [PubMed]
  44. Van Nuffel, A.; Vangeyte, J.; Mertens, K.C.; Pluym, L.; De Campeneere, S.; Saeys, W.; Opsomer, G.; Van Weyenberg, S. Exploration of measurement variation of gait variables for early lameness detection in cattle using the GAITWISE. Livest. Sci. 2013, 156, 88–95. [Google Scholar] [CrossRef]
  45. Van Nuffel, A.; Saeys, W.; Sonck, B.; Vangeyte, J.; Mertens, K.C.; De Ketelaere, B.; Van Weyenberg, S. Variables of gait inconsistency outperform basic gait variables in detecting mildly lame cows. Livest. Sci. 2015, 177, 125–131. [Google Scholar] [CrossRef]
  46. Sprecher, D.J.; Hostetler, D.E.; Kaneene, J.B. A lameness scoring system that uses posture and gait to predict dairy cattle reproductive performance. Theriogenology 1997, 47, 1179–1187. [Google Scholar] [CrossRef]
  47. Nordlund, K.V.; Cook, N.B.; Oetzel, G.R. Investigating strategies for laminitis in problem herds. J. Dairy Sci. 2004, 87, E27–E35. [Google Scholar] [CrossRef]
  48. Rushen, J.; Pombourcq, E.; de Passille, A.M. Validation of two measures of lameness in dairy cows. Appl. Animal Behav. Sci. 2007, 106, 173–177. [Google Scholar] [CrossRef]
  49. Scott, G.B. Changes in limb loading with lameness for a number of friesian cattle. Brit. Vet. J. 1989, 145, 28–38. [Google Scholar] [CrossRef]
  50. Rajkondawar, U.; Lefcourt, A.M.; Neerchal, N.K.; Dyer, R.M.; Varner Erez, B.; Tasch, P.G. The development of an objective lameness scoring system for dairy herds: Pilot study. Trans. ASABE 2002, 45, 1123–1125. [Google Scholar] [CrossRef]
  51. Chapinal, N.; de Passille, A.M.; Rushen, J.; Wagner, S. Effect of analgesia during hoof trimming on gait, weight distribution, and activity of dairy cattle. J. Dairy Sci. 2010, 93, 3039–3046. [Google Scholar] [CrossRef] [PubMed]
  52. Chapinal, N.; de Passille, A.M.; Rushen, J.; Wagner, S. Automated methods for detecting lameness and measuring analgesia in dairy cattle. J. Dairy Sci. 2010, 93, 2007–2013. [Google Scholar] [CrossRef] [PubMed]
  53. Hassall, S.A.; Ward, W.R.; Murray, R.D. Effects of lameness on the behavior of cows during the summer. Vet. Rec. 1993, 132, 578–580. [Google Scholar] [CrossRef] [PubMed]
  54. Pastell, M.; Aisla, A.M.; Hautala, M.; Poikalainen, V.; Praks, J.; Veermae, I.; Ahokas, J. Contactless measurement of cow behavior in a milking robot. Behav. Res. Meth. 2006, 38, 479–483. [Google Scholar] [CrossRef]
  55. Chapinal, N.; Tucker, C.B. Validation of an automated method to count steps while cows stand on a weighing platform and its application as a measure to detect lameness. J. Dairy Sci. 2012, 95, 6523–6528. [Google Scholar] [CrossRef] [PubMed]
  56. Rousing, T.; Bonde, M.; Badsberg, J.H.; Sorensen, J.T. Stepping and kicking behaviour during milking in relation to response in human-animal interaction test and clinical health in loose housed dairy cows. Livest. Prod. Sci. 2004, 88, 1–8. [Google Scholar] [CrossRef]
  57. Krawczel, P.; Grant, R. Effectss of cow comfort on milk quality, productivity and behavior. In Proceedings of the NMC Annual Meeting, Charlotte, NC, USA, 25–28 January 2009; pp. 15–24.
  58. Singh, S.S.; Ward, W.R.; Lautenlach, L.; Hughes, J.W.; Murray, R.D. Behaviour of first lactation and adult dairy cows while housed and at pasture and its relationship with sole lesions. Vet. Rec. 1993, 133, 469–474. [Google Scholar] [CrossRef] [PubMed]
  59. Gonzalez, L.A.; Tolkamp, B.J.; Coffey, M.P.; Ferret, A.; Kyriazakis, I. Changes in feeding behavior as possible indicators for the automatic monitoring of health disorders in dairy cows. J. Dairy Sci. 2008, 91, 1017–1028. [Google Scholar] [CrossRef] [PubMed]
  60. Blackie, N.; Bleach, E.; Amory, J.; Scaife, J. Impact of lameness on gait characteristics and lying behaviour of zero grazed dairy cattle in early lactation. Appl. Animal Behav. Sci. 2011, 129, 67–73. [Google Scholar] [CrossRef]
  61. Galindo, F.; Broom, D.M. The relationships between social behaviour of dairy cows and the occurrence of lameness in three herds. Res. Vet. Sci. 2000, 69, 75–79. [Google Scholar] [CrossRef] [PubMed]
  62. Yunta, C.; Guasch, I.; Bach, A. Short communication: Lying behavior of lactating dairy cows is influenced by lameness especially around feeding time. J. Dairy Sci. 2012, 95, 6546–6549. [Google Scholar] [CrossRef] [PubMed]
  63. Mattachini, G.; Riva, E.; Provolo, G. The lying and standing activity indices of dairy cows in free-stall housing. Appl. Animal Behav. Sci. 2011, 129, 18–27. [Google Scholar] [CrossRef]
  64. Cook, N.B.; Nordlund, K.V. The influence of the environment on dairy cow behavior, claw health and herd lameness dynamics. Vet. J. 2009, 179, 360–369. [Google Scholar] [CrossRef] [PubMed]
  65. Schlageter-Tello, A.; Bokkers, E.A.; Groot Koerkamp, P.W.; Van Hertem, T.; Viazzi, S.; Romanini, C.E.; Halachmi, I.; Bahr, C.; Berckmans, D.; Lokhorst, K. Effect of merging levels of locomotion scores for dairy cows on intra- and interrater reliability and agreement. J. Dairy Sci. 2014, 97, 5533–5542. [Google Scholar] [CrossRef] [PubMed]
  66. Manson, F.J.; Leaver, J.D. The influence of concentrate amount on locomotion and clinical lameness in dairy cattle. Animal Prod. 1988, 47, 185–190. [Google Scholar] [CrossRef]
  67. Wells, S.J.; Trent, A.M.; Marsh, W.E.; Robinson, R.A. Prevalence and severity of lameness in lactating dairy-cows in a sample of Minnesota and Wisconsin Herds. J. Am. Vet. Med. Assoc. 1993, 202, 78–82. [Google Scholar] [PubMed]
  68. Winckler, C.; Willen, S. The reliability and repeatability of a lameness scoring system for use as an indicator of welfare in dairy cattle. Acta Agr. Scand. A Animal Sci. 2000, 30, 103–107. [Google Scholar] [CrossRef]
  69. Breuer, K.; Hemsworth, P.H.; Barnett, J.L.; Matthews, L.R.; Coleman, G.J. Behavioural response to humans and the productivity of commercial dairy cows. Appl. Animal Behav. Sci. 2000, 66, 273–288. [Google Scholar] [CrossRef]
  70. Flower, F.C.; Weary, D.M. Effect of hoof pathologies on subjective assessments of dairy cow gait. J. Dairy Sci. 2006, 89, 139–146. [Google Scholar] [CrossRef]
  71. Dyer, R.M.; Neerchal, N.K.; Tasch, U.; Wu, Y.; Dyer, P.; Rajkondawar, P.G. Objective determination of claw pain and its relationship to limb locomotion score in dairy cattle. J. Dairy Sci. 2007, 90, 4592–4602. [Google Scholar] [CrossRef] [PubMed]
  72. Welfare Quality®. Welfare Quality® Assessment Protocol for Cattle; Welfare Quality® Consortium: Lelystad, The Netherlands, 2009. [Google Scholar]
  73. Van Nuffel, A.; Sprenger, M.; Tuyttens, F.; Maertens, W. Can people see gait irregularities? Animal Welf. 2009, 19, 433–439. [Google Scholar]
  74. Leach, K.A.; Dippel, S.; Huber, J.; March, S.; Winckler, C.; Whay, H.R. Assessing lameness in cows kept in tie-stalls. J. Dairy Sci. 2009, 92, 1567–1574. [Google Scholar] [CrossRef] [PubMed]
  75. Gleeson, D.E.; O’Brien, B.; Boyle, L.; Earley, B. Effect of milking frequency and nutritional level on aspects of the health and welfare of dairy cows. Animal 2007, 1, 125–132. [Google Scholar] [CrossRef] [PubMed]
  76. Olmos, G.; Boyle, L.; Horan, B.; Berry, D.P.; O’Connor, P.; Mee, J.F.; Hanlon, A. Effect of genetic group and feed system on locomotion score, clinical lameness and hoof disorders of pasture-based Holstein-Friesian cows. Animal 2009, 3, 96–107. [Google Scholar] [CrossRef] [PubMed]
  77. O’Driscoll, K.; Gleeson, D.; O’Brien, B.; Boyle, L. Effect of milking frequency and nutritional level on hoof health, locomotion score and lying behaviour of dairy cows. Livest. Sci. 2010, 127, 248–256. [Google Scholar] [CrossRef]
  78. O’Driscoll, K.K.M.; Schutz, M.M.; Lossie, A.C.; Eicher, S.D. The effect of floor surface on dairy cow immune function and locomotion score. J. Dairy Sci. 2009, 92, 4249–4261. [Google Scholar] [CrossRef] [PubMed]
  79. O’Callaghan, K.A.; Cripps, P.J.; Downham, D.Y.; Murray, R.D. Subjective and objective assessment of pain and discomfort due to lameness in dairy cattle. Animal Welf. 2003, 12, 605–610. [Google Scholar]
  80. Phillips, C.J.C.; Morris, I.D. The locomotion of dairy cows on concrete floors that are dry, wet, or covered with slurry of excreta. J. Dairy Sci. 2000, 83, 1767–1772. [Google Scholar] [CrossRef]
  81. Rushen, J.; de Passille, A.M. Effects of roughness and compressibility of flooring on cow locomotion. J. Dairy Sci. 2006, 89, 2965–2972. [Google Scholar] [CrossRef]
  82. Chapinal, N.; de Passille, A.M.; Pastell, M.; Hanninen, L.; Munksgaard, L.; Rushen, J. Measurement of acceleration while walking as an automated method for gait assessment in dairy cattle. J. Dairy Sci. 2011, 94, 2895–2901. [Google Scholar] [CrossRef] [PubMed]
  83. Van Der Tol, P.P.J.; Metz, J.H.M.; Noordhuizen-Stassen, E.N.; Back, W.; Braam, C.R.; Weijs, W.A. Frictional forces required for unrestrained locomotion in dairy cattle. J. Dairy Sci. 2005, 88, 615–624. [Google Scholar] [CrossRef]
  84. Phillips, C.J.C.; Morris, I.D. The locomotion of dairy cows on floor surfaces with different frictional properties. J. Dairy Sci. 2001, 84, 623–628. [Google Scholar] [CrossRef]
  85. Hollenbeck, A.R. Problems of reliability in observational research. In Observing Behaviour Vol II—Data Collection and Analysis Methods; Sacket, G.P., Ed.; University Park Press: Baltimore, MD, USA, 1978; pp. 79–98. [Google Scholar]
  86. Brenninkmeyer, C.; Dippel, S.; March, S.; Brinkmann, J.; Winckler, C.; Knierim, U. Reliability of a subjective lameness scoring system for dairy cows. Animal Welf. 2007, 16, 127–129. [Google Scholar]
  87. March, S.; Brinkmann, J.; Winkler, C. Effect of training on the inter-observer reliability of lameness scoring in dairy cattle. Animal Welf. 2007, 16, 131–133. [Google Scholar]
  88. Main, D.C.J.; Clegg, J.; Spatz, A.; Green, L.E. Repeatability of a lameness scoring system for finishing pigs. Vet. Rec. 2000, 147, 574–576. [Google Scholar] [CrossRef] [PubMed]
  89. Channon, A.J.; Walker, A.M.; Pfau, T.; Sheldon, I.M.; Wilson, A.M. Variability of Manson and Leaver locomotion scores assigned to dairy cows by different observers. Vet. Rec. 2009, 164, 388–392. [Google Scholar] [CrossRef] [PubMed]
  90. Engel, B.; Bruin, G.; Andre, G.; Buist, W. Assessment of observer performance in a subjective scoring system: Visual classification of the gait of cows. J. Agric. Sci. 2003, 140, 317–333. [Google Scholar] [CrossRef]
  91. Thomsen, P.T.; Munksgaard, L.; Tøgersen, F.A. Evaluation of a lameness scoring system for dairy cows. J. Diary Sci. 2008, 91, 119–126. [Google Scholar] [CrossRef] [PubMed]
  92. Tuyttens, F.A.M.; Sprenger, M.; Van Nuffel, A.; Maertens, W.; Van Dongen, S. Reliability of categorical versus continuous scoring of welfare indicators: Lameness in cows as a case study. Animal Welf. 2009, 18, 399–405. [Google Scholar]
  93. Von Keyserlingk, M.A.G.; Rushen, J.; de Passillé, A.M.; Weary, D.M. Invited review: The welfare of dairy cattle—Key concepts and the role of science. J. Dairy Sci. 2009, 92, 4101–4111. [Google Scholar] [CrossRef] [PubMed]
  94. Weary, D.M.; Huzzey, J.M.; von Keyserlingk, M.A.G. BOARD-INVITED REVIEW: Using behavior to predict and identify ill health in animals. J. Animal Sci. 2009, 87, 770–777. [Google Scholar] [CrossRef] [PubMed]
  95. Tadich, N.; Flor, E.; Green, L. Associations between hoof lesions and locomotion score in 1098 unsound dairy cows. Vet. J. 2010, 184, 60–65. [Google Scholar] [CrossRef] [PubMed]
  96. Kramer, E.; Cavero, D.; Stamer, E.; Krieter, J. Mastitis and lameness detection in dairy cows by application of fuzzy logic. Livest. Sci. 2009, 125, 92–96. [Google Scholar] [CrossRef]
  97. Whay, H.R.; Waterman, A.E.; Webster, A.J.F. Associations between locomotion, claw lesions and nociceptive threshold in dairy heifers during the peri-partum period. Vet. J. 1997, 154, 155–161. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Van Nuffel, A.; Zwertvaegher, I.; Pluym, L.; Van Weyenberg, S.; Thorup, V.M.; Pastell, M.; Sonck, B.; Saeys, W. Lameness Detection in Dairy Cows: Part 1. How to Distinguish between Non-Lame and Lame Cows Based on Differences in Locomotion or Behavior. Animals 2015, 5, 838-860. https://doi.org/10.3390/ani5030387

AMA Style

Van Nuffel A, Zwertvaegher I, Pluym L, Van Weyenberg S, Thorup VM, Pastell M, Sonck B, Saeys W. Lameness Detection in Dairy Cows: Part 1. How to Distinguish between Non-Lame and Lame Cows Based on Differences in Locomotion or Behavior. Animals. 2015; 5(3):838-860. https://doi.org/10.3390/ani5030387

Chicago/Turabian Style

Van Nuffel, Annelies, Ingrid Zwertvaegher, Liesbet Pluym, Stephanie Van Weyenberg, Vivi M. Thorup, Matti Pastell, Bart Sonck, and Wouter Saeys. 2015. "Lameness Detection in Dairy Cows: Part 1. How to Distinguish between Non-Lame and Lame Cows Based on Differences in Locomotion or Behavior" Animals 5, no. 3: 838-860. https://doi.org/10.3390/ani5030387

Article Metrics

Back to TopTop
