Understanding Vocalization Might Help to Assess Stressful Conditions in Piglets
Abstract
:Simple Summary
Abstract
1. Introduction
2. Experimental Section
Attribute | Unit | Description |
---|---|---|
Sex | - | Male or Female |
Distress | - | Normal (baseline), pain, cold and hunger |
Signal energy | Pa²*s | Energy emitted in the sound wave |
Signal duration | S | Duration of the sound wave |
Maximum range | Pa | Maximum range of the sound wave |
Minimum range | Pa | Minimum range of the sound wave |
Intensity | dB | Sound wave intensity |
Pitch frequency | Hz | Determines the pitch level |
First formant | Hz | First formant frequency |
Second formant | Hz | Second formant frequency |
Third formant | Hz | Third formant frequency |
Fourth formant | Hz | Fourth formant frequency |
Range | Pa | Difference of maximum and minimum ranges |
Sum of the formants | Hz | Sum of the 4 formants frequencies |
Average formants | Hz | Average of the 4 formants frequencies |
F3-F4 | Hz | Difference between the 4th and 3rd formants frequencies |
F4-F2 | Hz | Difference between the 4th and 2nd formants frequencies |
F4-F1 | Hz | Difference between the 4th and 1st formants frequencies |
F3-F2 | Hz | Difference between the 3rd and 2nd formants frequencies |
F3-F1 | Hz | Difference between the 3rd and 1st formants frequencies |
F2-F1 | Hertz | Difference between the 2nd and 1st formants frequencies |
Sum of the differences | Hertz | Sum of the differences between the formants |
Average of the differences | Hertz | Average of the differences between the formants |
3. Results and Discussion
Minimum number of objects per sheet | Accuracy (%) | Kappa statistic | Number of rules |
---|---|---|---|
3 | 79.72 | 0.73 | 7 |
6 | 78.54 | 0.71 | 15 |
9 | 81.69 | 0.75 | 12 |
12 | 80.17 | 0.73 | 9 |
15 | 77.95 | 0.71 | 10 |
18 | 76.97 | 0.69 | 6 |
21 | 75.59 | 0.67 | 6 |
24 | 77.75 | 0.70 | 6 |
27 | 77.75 | 0.70 | 5 |
30 | 77.95 | 0.71 | 5 |
Class | Precision |
---|---|
Normal (baseline) | 0.82 |
Cold | 0.71 |
Pain | 0.98 |
Hunger | 0.69 |

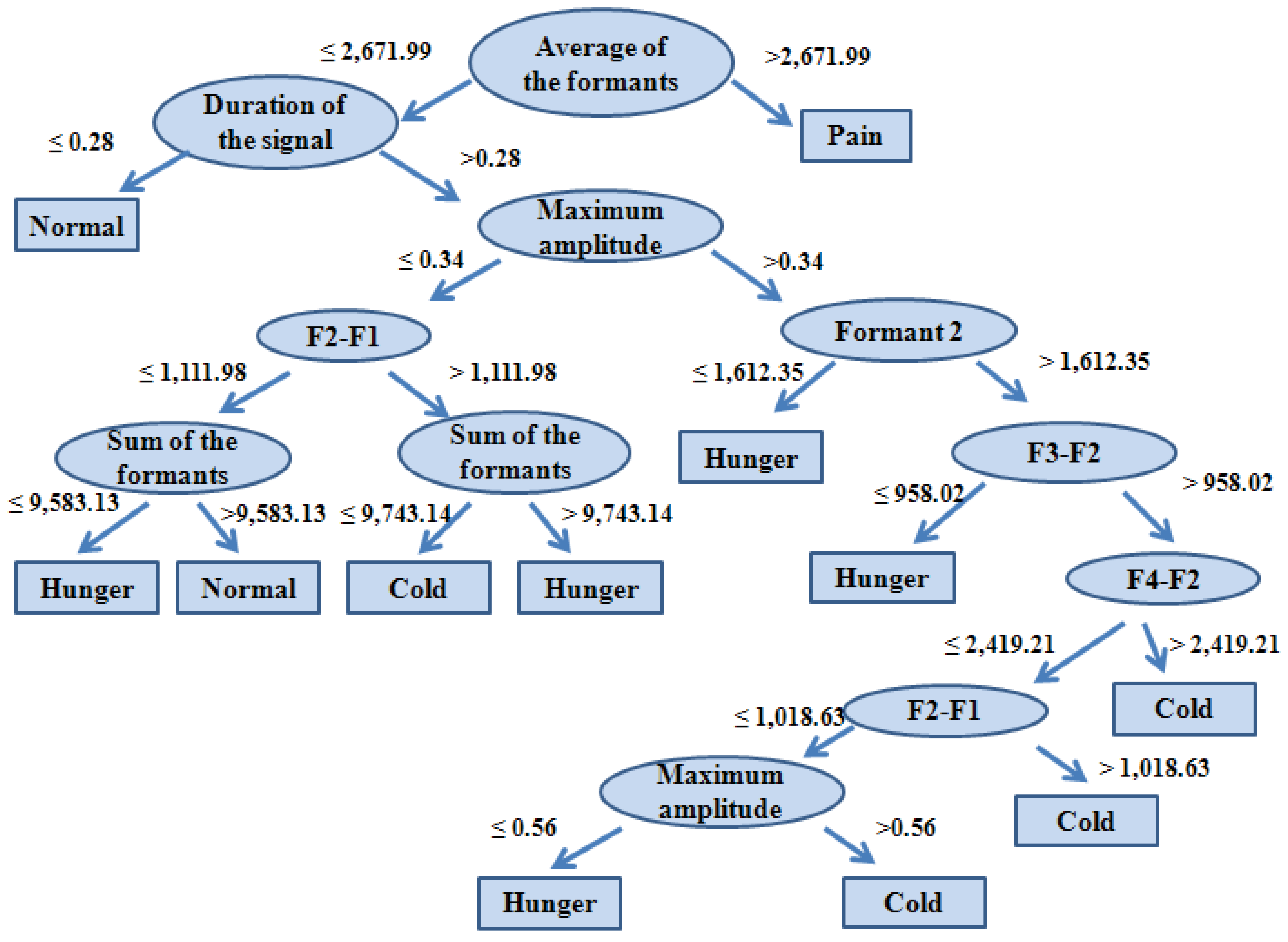

Rule | Description |
---|---|
1 | If the average value of the formants is ≤2,671.99 and the duration of the signal is ≤0.28, then the piglet is in normal condition. |
2 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is ≤0.34 and F2- F3 is ≤1,111.98 and the sum of the formants is ≤9,583.13 then the piglet is hungry. |
3 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is ≤0.34 and F2-F3 is ≤1,111.98 and the sum of the formants is >9,583.13 then the piglet is in normal condition. |
4 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is ≤0.34 and F2-F3 is >1,111.98 and the sum of the formants is ≤9,743.14 then the piglet is feeling cold. |
5 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is ≤0.34 and F2-F3 is >1,111.98 and the sum of the formants is >9,743.14 then the piglet is hungry. |
6 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is >0.34 and the formant 2 is ≤1,612.35 then the piglet is hungry. |
7 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is >0.34 and the formant 2 is >1,612.35 and F3-F2 is ≤958.02 then the piglet is hungry. |
8 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is >0.34 and the formant 2 is >1,612.35 and F3-F2 is >958.02 and F4-F2 is ≤2,419.21 and F2-F1 is ≤1,018.63 and the maximum amplitude ≤0.56 then the piglet is hungry. |
9 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is >0.34 and the formant 2 is >1,612.35 and F3-F2 is >958.02 and F4-F2 is ≤2,419.21 and F2-F1 is ≤1,018.63 and the maximum amplitude is >0.56 then the piglet is feeling cold. |
10 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is >0.34 and the formant 2 is >1,612.35 and F3-F2 is >958.02 and F4-F2 is ≤2,419.21 and F2-F1 is >1,018.63 then the piglet is feeling cold. |
11 | If the average of formants is ≤2,671.99 and the duration of the signal is >0.28 and the maximum amplitude is >0.34 and the formant 2 is >1,612.35 and F3-F2 is >958.02 and F4-F2 is >2,419.21 then the piglet is feeling cold. |
12 | If the average of formant is >2,671.99 then the piglet is in pain. |
4. Conclusions
Acknowledgments
Conflicts of Interest
