Development and Evaluation of Quadruplex Droplet Digital PCR Method to Multiplex Detection of Different Respiratory Pathogens of Chickens

by
Yingli Mu
1,†,
Xuejing Wang
2,†,
Tongchao Dong
1,
Xinran Bao
1,
Qianqian Xu
1,
Tianxiang Lan
1,
Juxiang Liu
1,* and
Ligong Chen
1,*
1
College of Veterinary Medicine, Hebei Agricultural University, Baoding 071000, China
2
Institute of Animal Husbandry and Veterinary Medicine of Hebei Province, Baoding 071001, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Animals 2026, 16(1), 139; https://doi.org/10.3390/ani16010139
Submission received: 29 October 2025 / Revised: 29 December 2025 / Accepted: 31 December 2025 / Published: 3 January 2026
(This article belongs to the Special Issue Advances in Molecular Diagnostics in Veterinary Sciences)
Browse Figures
Versions Notes

Simple Summary

A specific respiratory disease, termed chicken bronchial obstruction, caused by multiple respiratory pathogens, poses a continuous threat to the poultry industry. This study successfully established a highly specific and rapid quadruplex ddPCR method targeting the HA gene of H9 subtype AIV, the M gene of IBV, the Pal gene of P. aeruginosa, and the UidA gene of E. coli. The method achieved accurate detection of these pathogens or opportunistic pathogens through carefully designed primers and probes, showing no cross-reactivity with 10 other pathogens. Results demonstrated that the developed assay exhibited high sensitivity and specificity, with a strong positive correlation compared to quadruplex qPCR.

Abstract

Chicken respiratory diseases represent multifactorial conditions resulting from viral, bacterial, mycoplasmal pathogens, and environmental factors, causing significant economic losses within the poultry industry. A specific respiratory disease characterized by breathing difficulties and bronchial occlusion due to caseous exudates is termed chicken bronchial obstruction. However, the absence of rapid, precise, and highly sensitive diagnostic methods for differentiation of primary respiratory disease pathogens or opportunistic pathogens, including avian influenza virus (AIV), infectious bronchitis virus (IBV), Pseudomonas aeruginosa (P. aeruginosa), and Escherichia coli (E. coli), constitutes a substantial challenge. This study developed a quadruplex droplet digital polymerase chain reaction (ddPCR) method that targeted the HA gene of H9 subtype AIV, the M gene of IBV, the Pal gene of P. aeruginosa, and the UidA gene of E. coli. Following the optimization of annealing temperature, sensitivity, and repeatability, the minimum detectable concentrations were determined as 3.02 copies/μL for the HA gene of H9 subtype AIV, 3.08 copies/μL for the M gene of IBV, 3.19 copies/μL for the Pal gene of P. aeruginosa, 3.39 copies/μL for the UidA gene of E. coli. No cross-reactivity was observed with Newcastle disease virus (NDV), H5 subtype AIV, H7 subtype AIV, fowl adenovirus serotype 4 (FAdV-4), infectious laryngotracheitis virus (ILTV), Avibacterium paragallinarum, Streptococcus, Salmonella, Pasteurella multocida, and Staphylococcus aureus. The method demonstrated excellent repeatability, with a coefficient of variation (CV) below 9%. The 185 clinical samples collected in Hebei Province China are tested by both quadruplex ddPCR and quadruplex qPCR method and the results compared. The sensitivity of the quadruplex ddPCR method (57.30%; 106/185) slightly exceeded that of the quadruplex qPCR method (49.73%; 92/185). Pathogens or opportunistic pathogens positive rates obtained via the quadruplex ddPCR were 40.00% for H9 subtype AIV, 33.51% for IBV, 24.32% for P. aeruginosa, and 27.57% for E. coli. In comparison, the positive rates of H9 subtypes AIV, IBV, P. aeruginosa, and E. coli from the quadruplex qPCR were 36.22%, 30.81%, 21.62%, and 24.32%, respectively. The coincidence rates between the two methods were 96.22% for H9 AIV, 97.30% for IBV, 97.30% for P. aeruginosa, and 96.76% for E. coli. These results demonstrated that the quadruplex ddPCR method represented a highly sensitive, specific, and rapid technique for identifying H9 subtype AIV, IBV, P. aeruginosa, and E. coli.

1. Introduction

Avian respiratory diseases represented a multifactorial syndrome of global significance, arising from interactions among viral and bacterial pathogens, mycoplasmas, and environmental factors [1]. Characterized by prolonged disease course, high mortality rates, and limited treatment efficacy, these conditions imposed significant economic burdens on the poultry industry [2,3]. In recent years, a unique respiratory disorder designated as “chicken bronchial obstruction” has been documented in China, presenting clinically with respiratory distress and bronchial occlusion by caseous material. Epidemiological investigations spanning 2011 to 2022 revealed recurrent outbreaks across multiple regions of China, with persistent isolation of the following pathogens or opportunistic pathogens: enveloped RNA virus (avian influenza virus (AIV), infectious bronchitis virus (IBV), Newcastle disease virus (NDV)), enveloped DNA virus (infectious laryngotracheitis virus (ILTV)), Mycoplasma gallisepticum (MG), fungi, Pseudomonas aeruginosa (P. aeruginosa), and Escherichia coli (E. coli) [4,5,6,7,8,9,10]. Studies conducted in other countries, including Egypt, Pakistan, Bangladesh, Tunisia, Poland, Ethiopia, and Jordan, tested chickens exhibiting respiratory symptoms (tracheal mucosal haemorrhage and caseous tracheal obstruction) for respiratory pathogens. These investigations revealed mixed infection with multiple pathogens, while the detected pathogens were AIV, NDV, ILTV, IBV, MG, E. coli, and Klebsiella pneumoniae [11,12,13,14,15,16,17,18,19,20].
An investigation was conducted from 2016 to 2022 on ten pathogens or opportunistic pathogens (AIV, IBV, NDV, ILTV, avian metapneumovirus (aMPV), E. coli, P. aeruginosa, Ornithobacterium rhinotracheale (ORT), MG, and fungi) in chickens with bronchial obstruction. The results showed that the dominant pathogens were subtype H9 AIV, IBV, E. coli, and P. aeruginosa (unpublished data).
Avian influenza, an infection caused by AIV primarily affecting avian species [21], manifested particular clinical significance in its H9N2 subtype. Classified as low pathogenicity avian influenza virus (LPAIV) [22], the H9N2 subtype typically induced mild respiratory manifestations or remained asymptomatic in infected flocks [23], featured often escaping clinical detection. Notably, co-infection of H9N2 subtype AIV with other pathogens rapidly escalated morbidity and mortality rates in chickens, establishing the virus as a pathogen plaguing the poultry industry [24,25]. Infectious bronchitis, an acute multi-system infection affecting the avian respiratory tract, reproductive system, and kidney of chickens, demonstrated global prevalence through IBV transmission [26,27]. The respiratory type infectious bronchitis mainly caused respiratory disorders in chickens [28], and the histological lesions were serous, catarrhal, and fibrinous exudation in the trachea and yellow and white caseous material blockage in the lower tracheal segment and bronchial lumen. P. aeruginosa is an aerobic bacterium and a Gram-negative opportunistic pathogen [29], commonly originated from the intestinal tract, respiratory system, or eggs of normal birds, which infects poultry across all ages, causing infections associated with elevated mortality rates. After infecting chickens, the bacteria may cause perihepatic inflammation, pneumonia, ophthalmia, pericarditis, arthritis, etc. Biofilm-forming P. aeruginosa can evade host defenses and exhibits antibiotic tolerance, complicating treatment of both acute and chronic infections [30]. Avian pathogenic Escherichia coli (APEC), the etiological agent of chicken colibacillosis [31], manifested clinically through systemic presentations including septicemia, chronic respiratory disease, swollen head syndrome, peritonitis, and salpingitis [32]. APEC is a Gram-negative, non-spore-forming, facultatively anaerobic rod-shaped bacterium, which usually invades the respiratory tract of chickens, where the organism proliferates, with chicks exhibiting the highest susceptibility [33]. Epidemiological data indicated that the disease occurred frequently in winter and early spring, with a high propensity for co-infections or secondary infections involving other pathogens (IBV, NDV, AIV) [31,34,35,36].
Droplet digital PCR (ddPCR), acknowledged as the third generation of polymerase chain reaction technology [37], facilitates precise absolute quantification of multiple targets within complex clinical samples. This methodology exhibits distinct advantages, including superior sensitivity, good specificity, high precision, capacity for simultaneous multi-target analysis, and time savings, while obviating the requirement for establishment of standard curves during quantitative assessments [38]. Recognized as a highly accurate quantitative tool, ddPCR has shown significant value in preclinical research and widespread application. The target-specific primers and fluorescent probes used in ddPCR and TaqMan quantitative PCR (qPCR) systems are the same. Its capacity for absolute quantitation confers significant superiority in molecular detection methodologies [39]. The ddPCR partitions the reaction mixture into millions of water-in-oil droplets, each of which undergoes PCR amplification independently. Subsequent fluorescence signal detection categorizes droplets as positive or negative, enabling absolute calculation of the nucleic acid copy number according to the Poisson distribution [40]. Early-stage pathogen detection requiring rapidity, specificity, and sensitivity is crucial for effective disease management. Current diagnostic approaches for chicken respiratory pathogens encompass viral isolation, bacteria isolation, enzyme-linked immunosorbent assay (ELISA), recombinase-aided amplification (RAA), recombinase polymerase amplification (RPA), loop-mediated isothermal amplification (LAMP), and real-time PCR [20,41,42,43,44]. However, these established techniques exhibit inherent constraints including prolonged processing time, low sensitivity, difficulty in distinguishing diseases caused by mixed pathogens, and absence of direct pathogen load quantitation. Such limitations consequently restrict the utility for early detection of chicken bronchial obstruction syndrome resulting from multiple pathogen co-infections, and for analysis of low load pathogens or complex samples (such as oropharyngeal swabs, bronchial secretions). The diagnostic challenges underscore the necessity for establishing a rapid, sensitive, simple, and reliable multiplex ddPCR detection method for the detection of chicken bronchial obstruction syndrome caused by multiple pathogens.

2. Materials and Methods

2.1. Biological Materials

Eleven species of microorganisms representing H9 subtype AIV (A/chicken/Hebei/CZ6/2019(H9N2)), IBV (CK/CH/HBBD/ZZ16), P. aeruginosa (PA-18), E. coli (E-9), FAdV-4 (SDSX1), ILTV (CK/CH/HB/017/2020), Avibacterium paragallinarum (Ap-4), Streptococcus (St-7), Salmonella (Sa-11), Pasteurella multocida (Pm-15), and Staphylococcus aureus (Sa-1) were obtained from the Veterinary Pathology Laboratory of Hebei Agricultural University (Baoding, China). The live Newcastle disease heat-resistant vaccine (La Sota strain) was purchased from Qingdao Yibang Bioengineering Co., Ltd. (Qingdao, China). Antigens of H5 and H7 subtype AIV were sourced from Harbin Vico Biotechnology Development Co., Ltd. (Harbin, China). Antigens were used as controls for pathogens in specificity experiments. One hundred and eighty-five clinical samples included bronchia (n = 62), lung (n = 23), and oropharyngeal swabs (n = 100) were collected from chickens exhibiting bronchial obstruction in Hebei Province, China, between November 2023 and May 2025; all samples were stored at −80 °C.

2.2. Nucleic Acid Extraction

Bronchial or lung tissues were collected and homogenized with sterile phosphate buffer at a ratio of 1:4. For oropharyngeal swabs, 1000 μL of sterile phosphate buffer was added, and the mixture was shaken thoroughly. All samples were stored at −80 °C prior to nucleic acid extraction. According to the total RNA extraction BSC63 kit (Bioer, Hangzhou, China) solution, RNA of H5 subtype AIV and H7 subtype AIV (hemagglutination titer was not lower than 1:128), H9 subtype AIV (105 EID50/0.2 mL), IBV (105 EID50/0.2 mL), NDV (106 EID50/0.2 mL), 85 homogenates, and 100 swab solutions was extracted. The RNA quality control A260/A230 ratio range was 2.0–2.3. Subsequent reverse transcription of RNA into cDNA employed the BSB07 Reverse Transcription Amplification Kit (Bioer, Hangzhou, China). FAdV-4 (105 TCID50/0.2 mL), ILTV (105 EID50/0.2 mL), and the concentration of each control bacteria suspension was 108 colony-forming unit (CFU)/mL prepared before DNA extraction. For DNA extraction, 200 μL of FAdV-4, ILTV, each control bacteria suspension, 85 homogenates, and 100 swab solutions were combined with 50 μL lysozyme and 10 μL proteinase K solution, respectively. DNA was extracted from FAdV-4, ILTV, bacterial suspensions, 85 homogenates, and 100 swab solutions in accordance with the instructions of the BSC04 Tissue Genomic DNA Extraction Kit (Bioer, Hangzhou, China). The DNA quality control A260/A280 ratio range was 1.8–1.9. All cDNA and DNA samples underwent storage at −80 °C.

2.3. Design and Screening of Primers and Probes

Reference sequences of the H9N2 hemagglutinin (HA) gene, the IBV membrane (M) gene, the P. aeruginosa peptidoglycan-associated lipoprotein (Pal) gene, and the E. coli β-glucuronidase (UidA) gene were downloaded from the GenBank database (Supplement Figure S1), and aligned using DNAMAN software (version 6). The conserved regions of these four genes were selected, and specific primers and TaqMan® probes were designed using the PrimerQuest™ tool (Integrated DNA Technologies, Coralville, IA, USA). Three primer–probe sets for each target gene were evaluated (Supplement Table S1), and the best combination was selected based on the fluorescence intensity, amplification efficiency, and the boundaries of positive and negative droplet distribution in ddPCR. The HA gene probe was labeled with FAM/BHQ1 fluorophore, the M gene probe with HEX/BHQ1, the Pal gene probe with ROX/BHQ2, and the UidA gene probe with Cy5/BHQ3. All primers and TaqMan® probes were synthesized by Sangon Biotech Co., Ltd., respectively (Shanghai, China).

2.4. Preparation of Recombinant Standard Plasmids

Recombinant plasmids were constructed according to manufacturer instructions of the E. coli DH5α Competent Cells kit (Takara, Dalian, China). Target gene fragments were individually ligated into the pUC19 vector to generate four recombinant plasmids: pUC-HA, pUC-M, pUC-Pal, and pUC-UidA. Plasmid DNA standard concentration quantification was performed using a NanoDrop 2000 microvolume UV-Vis spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA), revealing a concentration of 6 × 1010 copies/μL. Four standard plasmids were evenly mixed in equal proportions and then continuously diluted 10-fold with sterile RNase-free water to produce template plasmids with concentrations ranging from 6 × 105 to 6 × 100 copies/µL. Then, they were 2-fold diluted to concentrations of 3, 1.5, and 0.75 copies/µL. All standard plasmids were stored at −80 °C until required for subsequent experiments.

2.5. Preliminary Establishment of Quadruplex DdPCR Method

The quadruplex ddPCR reaction mixtures contained 11 μL of 2× qPCR Probe Master Mix I (Bioer, Hangzhou, China), 0.8 μL of Cy5.5 reference dye (Sniper, Suzhou, China), 500 nM primers, 250 nM probes, 4 μL DNA template, and RNase-free water added to achieve a final volume of 22 µL. Thermal cycling comprised an initial step at 37 °C for 2 min, droplet stabilization at 60 °C for 5 min, pre-denaturation at 95 °C for 5 min, followed by 40 cycles of denaturation at 95 °C for 10 s and extension at 60 °C for 30 s, with a final hold at 12 °C. All ddPCR reactions were performed using the Sniper DQ24proTM ddPCR system (Sniper, Suzhou, China), with data analysis performed using SightPro (×64) software.

2.6. Optimization of Reaction Conditions for Establishing the Quadruplex DdPCR

Optimization of primer and probe concentrations employed 6 × 104 copies/µL of mix standard plasmids, with tested concentration combinations of 0.4/0.2 μM, 0.5/0.25 μM, 0.6/0.3 μΜ, and 0.8/0.3 μM. Orthogonal testing (Table 1) utilized the Sniper DQ24proTM ddPCR system (Sniper, Suzhou, China) for analysis. To determine the optimal ddPCR annealing temperature, gradient ddPCR was performed using mix standard plasmids (6 × 104 copies/µL) as templates with a temperature range of 55–62 °C.

2.7. Analysis of Sensitivity, Specificity, and Repeatability of Quadruplex DdPCR

To determine the limit of blank (LOB) for each channel, eight sterile RNase-free water samples were tested as blank samples based on previous studies. Eight independent replicate measurements were performed using mixed standard plasmid concentrations of 6, 3, 1.5, and 0.75 copies/μL, and LOD was defined as the lowest dilution where 8 replicates still produced a positive result. The copy value of the sample detection was obtained using the following calculation formula: C(copies/µL) = P × V/V1 where P was the mean software output value, V was the total reaction volume, V1 was the amount of nucleic acid added.
The sensitivity, specificity, and repeatability of quadruplex ddPCR were analyzed under the optimized quadruplex ddPCR reaction conditions. The sensitivity evaluation employed mix standard plasmids (6 × 105 to 0.75 copies/µL) followed by quadruplex ddPCR and quadruplex qPCR. Quantitative curves were constructed for each target using log10 (theoretical copies/reaction) as the x-axis, and log10 (measured copies/reaction) or the threshold cycle (Ct value) as the y-axis. The linear fitting coefficient (R2) was calculated using GraphPad Prism 9.5.
To evaluate the specificity of quadruplex ddPCR and quadruplex qPCR, an equal mixture of cDNA from H9 subtype AIV and IBV, and DNA from P. aeruginosa and E. coli was utilized as positive control. For the negative control, the cDNA of NDV, H5 subtype AIV, and H7 subtype AIV, along with DNA from FAdV-4, ILTV, Avibacterium paragallinarum, Streptococcus, Salmonella, Pasteurella multocida, Staphylococcus aureus, and RNase-free water were used as a template.
Intra-group and inter-group repeatability were determined by repeated assays and independent testing at different intervals using mixed standard plasmids (6 × 104, 6 × 103 and 6 × 102 copies/µL). To ensure the assay result accuracy, intra-assay and inter-assay repeatability tests were performed three times independently. The coefficient of variation (CV) was calculated at the threshold time.

2.8. Establishment of Quadruplex QPCR Method

Each qPCR reaction mixture contained 10 μL of 2× qPCR Probe Master Mix I (Bioer, China), 500 nM primers, 250 nM probes, 4 μL DNA template, and RNase-free water to achieve a final volume of 20 μL. Thermal cycling conditions comprised an initial step at 37 °C for 2 min, pre-denaturation at 95 °C for 1 min, followed by 40 cycles of denaturation at 95 °C for 15 s and annealing at 60 °C for 30 s. All qPCR reactions utilized the QuantFinder96 system (Bigfish, Hangzhou, China).

2.9. Detection of Clinical Samples

The 1:1 mixture of cDNA and DNA templates from 185 clinical samples were tested by established quadruplex ddPCR and quadruplex qPCR assays. Meanwhile, RNase-free water and an equal mixture of cDNA from H9 subtype AIV (A/chicken/Hebei/CZ6/2019(H9N2)) and IBV (CK/CH/HBBD/ZZ16), and DNA from P. aeruginosa (PA-18) and E. coli (E-9) were systematically incorporated as negative and positive controls, respectively.

2.10. Statistical Analysis

Probit regression analyses with a 95% coincidence interval were performed using SPSS 27.0.1 software to determine the limit of amplification. Kappa statistics were used to compare the coincidence rate between quadruplex ddPCR and quadruplex qPCR assays.

3. Results

3.1. Optimal Primers and Probes Screening for Quadruplex DdPCR

In ddPCR assays utilizing mix standard plasmids (6 × 104 copies/µL), the HA gene was labeled with FAM/BHQ1 in channel 1, the M gene with HEX/BHQ1 in channel 2, the Pal gene with ROX/BHQ2 in channel 3, and the UidA gene with Cy5/BHQ3 in channel 4. Analysis of results demonstrated maximal fluorescence amplitude differentials between negative droplets (gray) and positive droplets (blue, red, green, and orange) populations for specific primer–probe sets (Figure 1). Consequently, HA set 1, M set 2, Pal set 3, and UidA set 2 were selected as primers and probe combinations for subsequent experiments (Table 2).

3.2. The Results of Optimizing the Reaction Conditions of Quadruplex DdPCR

The combinations with the clearest fluorescence threshold intervals between gray (negative) and distinctly bounded blue, red, green, and orange (positive) signals were identified as optimal (Figure 2). The final selected concentrations were 0.5/0.25 μM for HA, 0.6/0.3 μM for M, 0.4/0.2 μM for Pal, and 0.8/0.4 μM for UidA. The results indicated that the optimal annealing temperature of 59 °C produces the highest fluorescence amplitude (Figure 3). Following optimization of reaction conditions, a quadruplex ddPCR method was successfully established (Table 3). The total volume of the 22 µL reaction mixtures consisted of 11 µL of Bioer 2× qPCR probe Master Mix I (Bioer, China), 0.8 µL of 20 µM Cy5.5 reference dye (Sniper, China), 0.5 µL of primer HA-F/R (20 µM), 0.25 µL of probe HA-P (20 µM), 0.6 µL of primers M-F/R (20 µM), 0.3 µL of probe M-P (20 µM), 0.4 µL of primers Pal-F/R (20 µM), 0.2 µL of probe Pal-P (20 µM), 0.8 µL of primer UidA-F/R (20 µM), 0.4 µL of probe UidA-P (20 µM), 4 µL of template, and 0.45 µL of RNase-free water. Amplification procedures comprised an initial incubation at 37 °C for 2 min, 60 °C for 5 min, and 95 °C for 5 min, followed by 40 cycles at 95 °C for 20 s and 59 °C for 30 s. The absolute copy number of each sample was calculated automatically by the Sniper DQ24proTM ddPCR system at 12 °C.

3.3. Evaluation of the Quadruplex DdPCR Method

Establishment of LOB involved analysis of eight replicates of RNase-free water, with determination of mean copy number with a 95% confidence interval. Calculated LOB values for channels 1–4 measured 1.02, 1.07, 0.74, and 1.31 copies/μL, respectively. In subsequent experiments, samples with copy numbers below their respective channel-specific LOB thresholds (24,940, 25,146, 7196, 9444) were classified as negative. Assessment of sensitivity of the quadruplex ddPCR assay employed serial dilutions of mix standard plasmids (6 × 105 to 0.75 copies/µL). The results revealed dynamic ranges of 3.02 to 6 × 105 copies/µL for the HA gene of H9 subtype AIV, 3.08 to 6 × 105 copies/µL for the M gene of IBV, 3.19 to 6 × 105 copies/µL for the Pal gene of P. aeruginosa and 3.39 to 6 × 105 copies/µL for the UidA gene of E. coli (Figure 4). Corresponding LOD values were determined as 3.02, 3.08, 3.19, and 3.39 copies/µL for channels 1–4, respectively. These data indicated that accurate detection can be achieved when the target gene content in the sample exceeds the corresponding LOD. All targets demonstrated strong linear correlations (R2 > 0.99) across the theoretical concentration range of 6 × 100 to 6 × 104 copies/µL (Figure 5).
The results of the specific experiments demonstrated that positive droplets were present in an equal mixture of cDNA from H9 subtype AIV (A/chicken/Hebei/CZ6/2019(H9N2)) and IBV (CK/CH/HBBD/ZZ16), and DNA from P. aeruginosa (PA-18) and E. coli (E-9), while no positive droplets were found in all negative controls. Absence of cross-amplification was observed, and thus confirmed the established quadruplex ddPCR method had fine specificity (Figure 6).
Repeatability and stability assessment were conducted using mixed standard plasmids (6 × 104, 6 × 103, 6 × 102 copies/µL). The intra-assay CVs were 1.14% to 8.13%, 0.80% to 6.93%, 2.70% to 3.58%, and 0.53% to 4.55%, while the inter-assay CVs were 1.07% to 7.22%, 1.34% to 7.10%, 2.76% to 5.15%, and 0.90% to 5.01% for the respective targets (Table 4). Both the intra-assay and inter-assay CVs were less than 9% and 8%, respectively (Table 4), indicating that the quadruplex ddPCR method has excellent repeatability and stability.

3.4. Comparison Analysis of the Sensitivity and Standard Curves Between Quadruplex DdPCR and Quadruplex QPCR

Sensitivity thresholds for both quadruplex ddPCR and quadruplex qPCR assays were evaluated using mix standard plasmids. The results illustrated that quadruplex ddPCR could detect 3 copies/μL of the target mix standard plasmids, while quadruplex qPCR required a minimum of 6 × 101 copies/μL. The correlation coefficients for each target of quadruplex ddPCR and quadruplex qPCR were 0.9995, 0.9995, 0.9981, and 0.9993, respectively (Figure 5), concurrently demonstrating a positive correlation between the two methods.

3.5. Test Results of Clinical Samples

Both quadruplex ddPCR and quadruplex qPCR were applied to analyze 185 clinical specimens. The results of quadruplex ddPCR illustrated positive rate of 40.00% for H9 subtype AIV, 33.51% for IBV, 24.32% for P. aeruginosa, and 27.57% for E. coli. In contrast, the positive rates of quadruplex qPCR results were 36.22%, 30.81%, 21.62%, and 24.32%, respectively. Comparative analysis revealed slightly higher sensitivity in quadruplex ddPCR, with inter-method coincidence rates of 96.22% (H9 subtype AIV), 97.30% (IBV), 97.30% (P. aeruginosa), and 96.76% (E. coli) (Table 5). The Kappa values exceeded 0.9, indicating excellent correlation. These results confirmed that the quadruplex ddPCR detection method established in this study exhibited outstanding performance and can be reliably applied in clinical diagnostics.
The quadruplex ddPCR analysis of 62 bronchial samples (Supplementary Table S2) showed positive rates of 70.97% for H9 subtype AIV, 66.13% for IBV, 48.39% for P. aeruginosa, and 54.84% for E. coli. The analysis of 23 lung samples indicated positive rates of 73.91% for H9 subtype AIV, 47.83% for IBV, 34.78% for P. aeruginosa, and 30.43% for E. coli. In 100 oropharyngeal swab samples, positive rates were 13.00% for H9 subtype AIV, 10.00% for IBV, 7.00% for P. aeruginosa, and 10.00% for E. coli.
Quadruplex ddPCR analysis of co-infections (Supplementary Table S2) revealed the following prevalence rates: 4.32% for H9 subtype AIV with IBV. Co-infections involving H9 subtype AIV and P. aeruginosa occurred at 4.86%, while combinations of H9 subtype AIV and E. coli had a higher prevalence of 5.41%. Co-infection rates involving IBV with P. aeruginosa were 2.16%, whereas IBV with E. coli had a higher rate of 3.24%. Tripartite infection rates were 7.57% for both combinations: H9 subtype AIV and IBV with P. aeruginosa, and H9 subtype AIV and IBV with E. coli. Quadruplex infections (H9 subtype AIV, IBV, P. aeruginosa, and E. coli) were detected in 5.95% of samples.

4. Discussion

The etiology of global chicken respiratory disease demonstrated multifactorial complexity, with primary causative agents encompassing AIV, IBV, NDV, MG, fungi, P. aeruginosa, and E. coli [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]. These infections imposed substantial economic burdens on the commercial poultry industry. To address diagnostic limitations, a quadruplex ddPCR method was developed for simultaneous detection of the H9 subtype AIV, IBV, P. aeruginosa, and E. coli.
Through the design of specific primers and probes, and the modification of lock-nucleic acid in the primers and probes, the binding ability and specificity of the primers to the target sequence were improved, and the accurate detection of multiple pathogens was achieved without cross-reaction with other common pathogens. The four-fold signal intensity was balanced by adjusting the concentration ratio of primers and probes. In ddPCR, the Cy5.5 reference dye was used to correct the physical differences in the experimental system and the optical fluctuations of the instrument. The ROX dye is commonly used in qPCR for signal normalization and correction. The LOB value of ddPCR is greater than zero because the technique cannot achieve a completely zero background. When the measured value is below the LOB, it should be interpreted as negative. The testing determined the minimum LOD of 3.02 copies/μL for HA gene of H9 subtype AIV, 3.08 copies/μL for M gene of IBV, 3.19 copies/μL for Pal gene of P. aeruginosa, and 3.39 copies/μL for UidA gene of E. coli. This study describes the first development of a quadruplex ddPCR assay capable of concurrent differentiation of H9 subtype AIV, IBV, P. aeruginosa, and E. coli. The method exhibits high efficiency, sensitivity, and specificity, enabling pathogen identification during low-burden avian respiratory disease progression. A single-tube detection format facilitates rapid containment of transmission sources and supports evidence-based biosecurity implementation. The comparison of the LOD described above refers to the amount of template nucleic acid detected after identical PCR reactions, from which the pathogen load within tissues and the pathogen load excreted into the environment via the chicken’s respiratory tract can subsequently be calculated. Whether the excreted pathogen levels are sufficient to induce disease in the host requires further experimental validation.
The study reported that CV below 10% for intra-assay precision and 15% for inter-assay precision was considered acceptable [45]. With respect to reproducibility, the intra- and inter-batch CVs for H9 subtype AIV, IBV, P. aeruginosa, and E. coli, as measured by the quadruplex ddPCR, were all below 9%. These results indicated that the established quadruplex ddPCR method for H9 subtype AIV, IBV, P. aeruginosa, and E. coli. had good reproducibility and stability, for P. aeruginosa, and E. coli being the most stable. Generally, CVs are higher at very low template concentrations due to Poisson sampling variability and decrease as copy numbers increase. However, the CVs at 6 × 103 copies/µL was unexpectedly higher than that at 6 × 102 copies/µL. This phenomenon has also been observed in previous studies [46,47]. Whether it is related to the template concentration critical effect with amplification competition remains to be further confirmed by subsequent studies.
Analysis of detection results from 185 clinical samples revealed that ddPCR exhibited greater sensitivity and could detect nucleic acid concentrations at thresholds tenfold lower than those detected by qPCR, with a virus-bacterial co-infection rate of 40.54% across all samples. The mixed infection rate was 80.65% in bronchial samples, 60.87% in lung samples, and 12.00% in oropharyngeal swabs. The pathogen content in oropharyngeal swabs may be lower than that in tissue samples, resulting in inconsistent detection results between quadruplex ddPCR and quadruplex qPCR, thus leading to the lowest detection rate (Supplementary Table S2). Among the 185 clinical samples, minimal differences in sensitivity were observed between quadruplex ddPCR and quadruplex qPCR. These findings indicated that the quadruplex ddPCR system demonstrated excellent primer specificity, probe-binding efficiency, and consistent PCR amplification kinetics without significant interference during co-amplification of multiple targets. The pathogen detection results in bronchi and lung samples were consistent, while 14 oropharyngeal swab samples were positive by quadruplex ddPCR but negative by quadruplex qPCR. Therefore, ddPCR is suitable for routine detection at the early stages of multiple pathogen infection.
Conventional pathogen isolation techniques remained labor-intensive, and exhibited limited discriminatory capacity for mixed infection, resulting in delayed therapeutic interventions [48,49]. The ddPCR provided an effective alternative to microbial culture for detecting pathogens responsible for bronchial obstruction in chickens, consistent with established literature [50]. However, dependence on singleplex ddPCR method increases the cost and sample consumption, while sequencing-based approaches remain prohibitively expensive and operationally complex and unsuitable for large-scale screening. The ddPCR can measure smaller copy number variations than qPCR and can determine the absolute quantification of samples with higher precision and reduced PCR bias, reducing influencing factors and making results more reliable and reproducible. The ddPCR method has developed for the detection and quantification of a range of microorganisms, including SARS-CoV-2 [51], Canine distemper virus [52], and Goose astrovirus [40]. Thus, ddPCR may outperform qPCR during initial infection stages.
Compared with RAA [42], RPA [43], and LAMP [44] technologies, a major disadvantage of ddPCR is the requirement for specialized droplet-generation equipment, along with relatively high costs of detection reagents and consumables. The overall cost is significantly greater than the simple isothermal devices used in RAA, RPA, and LAMP assays. Additionally, the operation is more complex and time-consuming, making it unsuitable for rapid on-site screening during epidemic outbreaks. The advantage of ddPCR lies in its ability to achieve absolute quantification with high precision, making it particularly suitable for determining pathogen loads in clinical samples during the early stages of infection. Furthermore, ddPCR exhibits robust resistance to interference, effectively reducing the impact of inhibitors present in clinical samples and consequently decreasing false-negative results. The ddPCR demonstrates potential application value in pathogen traceability, epidemic surveillance, and elucidating the epidemiological characteristics of co-infected samples, thereby strengthening the scientific foundation for implementing comprehensive prevention and control strategies against respiratory diseases in chickens.

5. Conclusions

In this study, a quadruplex ddPCR assay based on the Sniper DQ24proTM ddPCR system was established, enabling simultaneous identification of H9 subtype AIV, IBV, P. aeruginosa, and E. coli. The established technique demonstrated excellent key performance indicators, including high sensitivity, good specificity and excellent repeatability. Notably, this analytical method allows the simultaneous detection of four targets in a single sample, providing a new rapid and sensitive detection tool for differentiating pathogens in cases of chicken bronchial obstruction.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ani16010139/s1, Table S1: Primers and probes sequences designed for four targets; Table S2: The results of 185 samples by quadruplex ddPCR and quadruplex qPCR; Figure S1: The blast results of primers and probes for quadruplex ddPCR assay with DNAMAN software (version 6).

Author Contributions

Conceptualization, X.W., J.L. and L.C.; methodology, L.C.; investigation, Y.M., T.D. and X.B.; data curation, Y.M., T.D., X.B., Q.X. and T.L.; writing—original draft preparation, Y.M., T.D. and L.C.; writing—review and editing, Y.M., L.C. and J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Key Research Projects in Hebei Province (22326614D), China Agriculture Research System (CARS-41-Z13) and Supported by the earmarked fund for Hebei Agriculture Research System (HBCT2024270204).

Institutional Review Board Statement

The study protocol was approved by the Animal Ethics Committee of Hebei Agricultural University (IACUC No. 2023088).

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. For further inquiries, please contact the corresponding authors.

Acknowledgments

The disease materials were collected from Baoding Nongxiang livestock and poultry clinic (Hebei, China). Thanks to Hebei Animal Husbandry and Veterinary Research Institute for helping to go to the countryside to collect oral swabs.

Conflicts of Interest

The authors declare no competing financial interest.

References

  1. Yehia, N.; Salem, H.M.; Mahmmod, Y.; Said, D.; Samir, M.; Mawgod, S.A.; Sorour, H.K.; AbdelRahman, M.A.A.; Selim, S.; Saad, A.M.; et al. Common viral and bacterial avian respiratory infections: An updated review. Poult. Sci. 2023, 102, 102553. [Google Scholar] [CrossRef]
  2. Sid, H.; Benachour, K.; Rautenschlein, S. Co-infection with multiple respiratory pathogens contributes to increased mortality rates in algerian poultry flocks. Avian Dis. 2015, 59, 440–446. [Google Scholar] [CrossRef]
  3. Kong, L.; You, R.; Zhang, D.; Yuan, Q.; Xiang, B.; Liang, J.; Lin, Q.; Ding, C.; Liao, M.; Chen, L.; et al. Infectious bronchitis virus infection increases pathogenicity of H9N2 avian influenza virus by inducing severe inflammatory response. Front. Vet. Sci. 2021, 8, 824179. [Google Scholar] [CrossRef] [PubMed]
  4. He, X.; Luo, G.; Yu, Y. Etiological analysis and prevention measures of bronchial blockage in broilers. China Poult. 2013, 35, 58. [Google Scholar]
  5. Mu, Y.; Zhang, R.; Xiao, N.; Duan, Q.; Xu, L.; Zhou, S.; Liu, J.; Wang, X.; Chen, L. Investigation and analysis of viral pathogens causing bronchial obstruction in chickens. China Poult. 2022, 44, 42–50. [Google Scholar]
  6. Zhao, Z.; Wang, L.; Chen, D.; Zhou, H.; Wang, Y.; Du, Q. Investigation and analysis of bronchial embolism in broilers in some areas of Yunnan province. China Poult. 2014, 36, 60–61. [Google Scholar]
  7. Hu, X.; Xiao, J.; Chang, W. Analysis of pathogenesis and prevention measures of bronchial embolism in white feather broilers. China Poult. 2011, 33, 56–57. [Google Scholar]
  8. Zhang, J.; Lu, X.; Liu, K.; Wang, X.; Hu, S.; Liu, X. Study on co-infection of infectious bronchitis virus and low pathogenic avian influenza virus to enhance bronchial blockage in chickens. China Poult. 2022, 44, 104–110. [Google Scholar]
  9. Wang, Y.; Yan, J.; Hou, X.; Qin, J.; Xue, D.; Liu, J.; Xu, X. The therapeutic effect of gantan oral liquid on multietiological bronchial blockage in white feather broilers. Acta Ecol. Anim. Domastici 2023, 44, 71–76. [Google Scholar]
  10. Su, Z.; Sun, X.; Zhang, Y.; Tong, P.; Wang, D.; Gao, J.; Ma, K. Isolation and identification of mold in chicken bronchial obstruction cases. Heilongjiang Anim. Husb. Vet. Med. 2020, 7, 90–92. [Google Scholar]
  11. Al-Natour, M.Q.; Rohaim, M.A.; El Naggar, R.F.; Abdelsabour, M.A.; Afify, A.F.; Madbouly, Y.M.; Munir, M. Respiratory disease complex due to mixed viral infections in chicken in Jordan. Poult. Sci. 2024, 103, 103565. [Google Scholar] [CrossRef]
  12. Bona, M.; Kiss, I.; Denes, L.; Szilasi, A.; Mandoki, M. Tissue tropism of H9N2 low-pathogenic avian influenza virus in broiler chickens by immunohistochemistry. Animals 2023, 13, 1052. [Google Scholar] [CrossRef]
  13. El-Shemy, A.A.; Amer, M.M.; Hassan, H.M.; Elaish, M. Epidemiological distribution of respiratory viral pathogens in marketable vaccinated broiler chickens in five governorates in the Nile delta, Egypt, from January 2022 to October 2022. Vet World 2024, 17, 303–312. [Google Scholar] [CrossRef] [PubMed]
  14. Jbenyeni, A.; Croville, G.; Cazaban, C.; Guerin, J. Predominance of low pathogenic avian influenza virus H9N2 in the respiratory co-infections in broilers in Tunisia: A longitudinal field study, 2018–2020. Vet. Res. 2023, 54, 88. [Google Scholar] [CrossRef] [PubMed]
  15. Kursa, O.; Tomczyk, G.; Adamska, K.; Chrzanowska, J.; Sawicka-Durkalec, A. The microbial community of the respiratory tract of commercial chickens and turkeys. Microorganisms 2022, 10, 987. [Google Scholar] [CrossRef]
  16. Rahman, M.M.; Nooruzzaman, M.; Kabiraj, C.K.; Mumu, T.T.; Das, P.M.; Chowdhury, E.H.; Islam, M.R. Surveillance on respiratory diseases reveals enzootic circulation of both H5 and H9 avian influenza viruses in small-scale commercial layer farms of Bangladesh. Zoonoses Public Health 2021, 68, 896–907. [Google Scholar] [CrossRef]
  17. Shehata, A.A.; Sedeik, M.E.; Elbestawy, A.R.; Zain El-Abideen, M.A.; Ibrahim, H.H.; Kilany, W.H.; Ali, A. Co-infections, genetic, and antigenic relatedness of avian influenza H5N8 and H5N1 viruses in domestic and wild birds in Egypt. Poult. Sci. 2019, 98, 2371–2379. [Google Scholar] [CrossRef] [PubMed]
  18. Tekelemariam, T.H.; Walkden-Brown, S.; Atire, F.A.; Tefera, D.A.; Alemayehu, D.H.; Gerber, P.F. Detection of chicken respiratory pathogens in live markets of Addis Ababa, Ethiopia, and epidemiological implications. Vet. Sci. 2022, 9, 503. [Google Scholar] [CrossRef]
  19. Umar, S.; Teillaud, A.; Aslam, H.B.; Guerin, J.; Ducatez, M.F. Molecular epidemiology of respiratory viruses in commercial chicken flocks in Pakistan from 2014 through to 2016. BMC Vet. Res. 2019, 15, 351. [Google Scholar] [CrossRef]
  20. Hassan, K.E.; Shany, S.A.S.; Ali, A.; Dahshan, A.M.; El-Sawah, A.A.; El-Kady, M.F. Prevalence of avian respiratory viruses in broiler flocks in Egypt. Poult. Sci. 2016, 95, 1271–1280. [Google Scholar] [CrossRef]
  21. Liu, T.; Peng, Y.; Wu, J.; Lu, S.; He, Y.; Li, X.; Sun, L.; Song, S.; Zhang, S.; Li, Z.; et al. Surveillance of avian influenza viruses in live bird markets of Shandong province from 2013 to 2019. Front. Microbiol. 2022, 13, 1030545. [Google Scholar] [CrossRef]
  22. Xia, J.; Li, Y.; Dong, M.; Guo, Z.; Luo, Y.; Li, N.; Zhao, Y.; Li, M.; Lin, Y.; Xu, J.; et al. Evolution of prevalent H9N2 subtype of avian influenza virus during 2019 to 2022 for the development of a control strategy in China. Poult. Sci. 2023, 102, 102957. [Google Scholar] [CrossRef]
  23. Li, Y.; Liu, M.; Sun, Q.; Zhang, H.; Zhang, H.; Jiang, S.; Liu, S.; Huang, Y. Genotypic evolution and epidemiological characteristics of H9N2 influenza virus in Shandong province, China. Poult. Sci. 2019, 98, 3488–3495. [Google Scholar] [CrossRef] [PubMed]
  24. Arafat, N.; Eladl, A.H.; Marghani, B.H.; Saif, M.A.; El-Shafei, R.A. Enhanced infection of avian influenza virus H9N2 with infectious laryngeotracheitis vaccination in chickens. Vet. Microbiol. 2018, 219, 8–16. [Google Scholar] [CrossRef] [PubMed]
  25. Arafat, N.; Abd El Rahman, S.; Naguib, D.; El-Shafei, R.A.; Abdo, W.; Eladl, A.H. Co-infection of Salmonella enteritidis with H9N2 avian influenza virus in chickens. Avian Pathol. 2020, 49, 496–506. [Google Scholar] [CrossRef]
  26. Yan, S.; Sun, Y.; Huang, X.; Jia, W.; Xie, D.; Zhang, G. Molecular characteristics and pathogenicity analysis of QX-like avian infectious bronchitis virus isolated in China in 2017 and 2018. Poult Sci 2019, 98, 5336–5341. [Google Scholar] [CrossRef]
  27. Wu, Q.; Xu, M.; Wei, D.; Zhang, X.; Li, D.; Mei, M. Pathogenicity and molecular characterization of a GI-19 infectious bronchitis virus isolated from east China. Front. Vet. Sci. 2024, 11, 1431172. [Google Scholar] [CrossRef] [PubMed]
  28. Yuan, S.; Cheng, Q.; Guo, J.; Li, Z.; Yang, J.; Wang, C.; Liang, Z.; Zhang, X.; Yu, H.; Li, Y.; et al. Detection and genetic characterization of novel infectious bronchitis viruses from recent outbreaks in broiler and layer chicken flocks in southern China, 2021. Poult. Sci. 2022, 101, 102082. [Google Scholar] [CrossRef]
  29. Gellatly, S.L.; Hancock, R.E.W. Pseudomonas aeruginosa: New insights into pathogenesis and host defenses. Pathog. Dis. 2013, 67, 159–173. [Google Scholar] [CrossRef]
  30. Gallant, C.V.; Raivio, T.L.; Olson, J.C.; Woods, D.E.; Storey, D.G. Pseudomonas aeruginosa cystic fibrosis clinical isolates produce exotoxin a with altered ADP-ribosyltransferase activity and cytotoxicity. Microbiology 2000, 146, 891–1899. [Google Scholar] [CrossRef]
  31. Mahmoud, S.I.A.; Zyan, K.A.; Hamoud, M.M.; Khalifa, E.; Dardir, S.; Khalifa, R.; Kilany, W.H.; Elfeil, W.K. Effect of co-infection of low pathogenic avian influenza H9N2 virus and avian pathogenic E. coli on H9N2-vaccinated commercial broiler chickens. Front. Vet. Sci. 2022, 9, 918440. [Google Scholar] [CrossRef]
  32. Wang, X.; Liao, X.; Zhang, W.; Jiang, H.; Sun, J.; Zhang, M.; He, X.; Lao, D.; Liu, Y. Prevalence of serogroups, virulence genotypes, antimicrobial resistance, and phylogenetic background of avian pathogenic Escherichia coli in south of China. Foodborne Pathog. Dis. 2010, 7, 1099–1106. [Google Scholar] [CrossRef] [PubMed]
  33. Li, W.; Li, W.; Zhao, Q.; Wu, P.; Huang, X.; Jin, W.; Wang, B.; Li, S.; Liu, W.; Zhang, G.; et al. Combined analysis of the microbiome, metabolome and transcriptome of silkie chickens in response to avian pathogenic E. Coli (APEC). Microb. Pathog. 2024, 189, 106586. [Google Scholar] [CrossRef]
  34. Walker, G.K.; Suyemoto, M.M.; Gall, S.; Chen, L.; Thakur, S.; Borst, L.B. The role of enterococcus faecalis during co-infection with avian pathogenic Escherichia coli in avian colibacillosis. Avian Pathol. 2020, 49, 589–599. [Google Scholar] [CrossRef] [PubMed]
  35. Hashemi, S.; Ghalyanchilangeroudi, A.; Hosseini, S.M.; Sheikhi, N. Comparative trachea transcriptome analysis between avian infectious bronchitis virus and avian pathogenic E. coli individual infection and co-infection in SPF chickens. Acta Virol. 2020, 64, 457–469. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, S.; Jiang, N.; Shi, W.; Yin, H.; Chi, X.; Xie, Y.; Hu, J.; Zhang, Y.; Li, H.; Chen, J. Co-infection of H9N2 influenza a virus and Escherichia coli in a BALB/c mouse model aggravates lung injury by synergistic effects. Front. Microbiol. 2021, 12, 670688. [Google Scholar] [CrossRef]
  37. Qu, Y.; Liu, M.; Sun, X.; Liu, Y.; Liu, J.; Hu, L.; Jiang, Z.; Qi, F.; Nan, W.; Yan, X.; et al. Development and evaluation of a triplex droplet digital PCR method for differentiation of M. tuberculosis, M. bovis and BCG. Front. Microbiol. 2024, 15, 1397792. [Google Scholar] [CrossRef]
  38. Ganova, M.; Zhang, H.; Zhu, H.; Korabecna, M.; Neuzil, P. Multiplexed digital polymerase chain reaction as a powerful diagnostic tool. Biosens. Bioelectron. 2021, 181, 113155. [Google Scholar] [CrossRef]
  39. Rashid, S.A.; Nazakat, R.; Muhamad Robat, R.; Ismail, R.; Suppiah, J.; Rajendran, K.; Raj Louis Masalamany, A.S.S.; Muhamad Hendri, N.A.; Mohamad, N.; Khairul Hasni, N.A.; et al. Droplet digital PCR application for the detection of SARS-CoV-2 in air sample. Front. Public. Health 2023, 11, 1208348. [Google Scholar] [CrossRef] [PubMed]
  40. Shi, J.; Jin, Q.; Zhang, X.; Zhao, J.; Li, N.; Dong, B.; Yu, J.; Yao, L. The development of a sensitive droplet digital polymerase chain reaction test for quantitative detection of goose astrovirus. Viruses 2024, 16, 765. [Google Scholar] [CrossRef]
  41. Elyazeed, H.A.; Al-Atfeehy, N.M.; Abotaleb, R.; Sayed, R.; Marouf, S. Preparation of ELISA and Lateral Flow Kits for rapid Diagnosis of Mycoplasma gallisepticum in Poultry. Sci. Rep. 2020, 10, 9056. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, T.; Tang, J.; Zhang, Y.; Jin, Y.; Lin, Z.; Chen, J.; Huang, J.; Mo, M. Establishment of a rapid real-time fluorescence-based recombinase-aided amplification method for detection of avian infectious bronchitis virus. J. Virol. Methods 2024, 328, 114955. [Google Scholar] [CrossRef]
  43. Yehia, N.; Eldemery, F.; Arafa, A.S.; Abd El Wahed, A.; El Sanousi, A.; Weidmann, M.; Shalaby, M. Reverse Transcription Recombinase Polymerase Amplification Assay for Rapid Detection of Avian Influenza Virus H9N2 HA Gene. Vet. Sci. 2021, 8, 134. [Google Scholar] [CrossRef]
  44. El-Tholoth, M.; Bau, H.H. Molecular Detection of Respiratory Tract Viruses in Chickens at the Point of Need by Loop-Mediated Isothermal Amplification (LAMP). Viruses 2024, 16, 1248. [Google Scholar] [CrossRef]
  45. Nuraeni, U.; Malau, J.; Astuti, R.T.; Dewantoro, A.; Apriori, D.; Lusiana, E.D.; Prasetya, B. Droplet digital PCR versus real-time PCR for in-house validation of porcine detection and quantification protocol: An artificial recombinant plasmid approach. PLoS ONE 2023, 18, 287712. [Google Scholar] [CrossRef]
  46. Leong, N.K.C.; Chu, D.K.W.; Chu, J.T.S.; Tam, Y.H.; Ip, D.K.M.; Cowling, B.J.; Poon, L.L.M. A six-plex droplet digital RT-PCR assay for seasonal influenza virus typing, subtyping, and lineage determination. Influenza Other Respir. Viruses 2020, 14, 720–729. [Google Scholar]
  47. Chen, J.; Li, D.; Xu, Y.; Li, Z.; Ma, S.; Liu, X.; Yuan, Y.; Zhang, C.; Fu, Q.; Shi, H. Establishment and application of multiplex droplet digital polymerase chain reaction assay for bovine enterovirus, bovine coronavirus, and bovine rotavirus. Front. Vet. Sci. 2023, 10, 1157900. [Google Scholar] [CrossRef]
  48. Wei, Y.; Gao, W.; Sun, H.; Yu, C.; Pei, X.; Sun, Y.; Liu, J.; Pu, J. A duplex RT-PCR assay for detection of H9 subtype avian influenza viruses and infectious bronchitis viruses. J. Integr. Agric. 2016, 15, 2105–2113. [Google Scholar] [CrossRef] [PubMed]
  49. Xiao, Q.; Yan, L.; Yao, L.; Lei, J.; Bi, Z.; Hu, J.; Chen, Y.; Fang, A.; Li, H.; Li, Y.; et al. Development of oligonucleotide microarray for accurate and simultaneous detection of avian respiratory viral diseases. BMC Vet. Res. 2019, 15, 253. [Google Scholar] [CrossRef]
  50. Sanchez-Carvajal, J.M.; Vera-Salmoral, E.; Huerta, B.; Galan-Relano, A.; Ruedas-Torres, I.; Larenas-Munoz, F.; Luque, I.; Carrasco, L.; Gomez-Laguna, J. Droplet digital PCR as alternative to microbiological culture for Mycobacterium tuberculosis complex detection in bovine lymph node tissue samples. Front. Cell. Infect. Microbiol. 2024, 14, 1349999. [Google Scholar] [CrossRef]
  51. Li, R.; Zhu, Z.; Guo, Y.; Yang, L. Quadruplex Droplet Digital PCR Assay for Screening and Quantification of SARS-CoV-2. Int. J. Mol. Sci. 2024, 25, 8157. [Google Scholar] [CrossRef] [PubMed]
  52. Iribarnegaray, V.; Godiño, G.; Larrañaga, C.; Yamasaki, K.; Verdes, J.M.; Puentes, R. Droplet Digital PCR Enhances Sensitivity of Canine Distemper Virus Detection. Viruses 2024, 16, 1720. [Google Scholar] [CrossRef] [PubMed]
Animals 16 00139 g001
Figure 1. The screening results of primers and probe for quadruplex ddPCR assay. (A–C) 3 sets primers and probes for H9 subtype AIV HA gene in channel 1; (D–F) 3 sets primers and probes for IBV M gene in channel 2; (G–I) 3 sets primers and probes for P. aeruginosa Pal gene in channel 3; (J–L) 3 sets primers and probes for E. coli UidA gene in channel 4. The blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Every cyan five-pointed star represents the final adopted target for geophysical exploration.
Figure 1. The screening results of primers and probe for quadruplex ddPCR assay. (A–C) 3 sets primers and probes for H9 subtype AIV HA gene in channel 1; (D–F) 3 sets primers and probes for IBV M gene in channel 2; (G–I) 3 sets primers and probes for P. aeruginosa Pal gene in channel 3; (J–L) 3 sets primers and probes for E. coli UidA gene in channel 4. The blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Every cyan five-pointed star represents the final adopted target for geophysical exploration.
Animals 16 00139 g001
Animals 16 00139 g002
Figure 2. Optimization of the primer and probe concentrations for quadruplex ddPCR assay. (A) The optimization of primer and probe concentrations in channel 1 (H9 subtype AIV); (B) the optimization of primer and probe concentrations in channel 2 (IBV); (C) the optimization of primer and probe concentrations in channel 3 (P. aeruginosa); (D) the optimization of primer and probe concentrations in channel 4 (E. coli). The blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Numbers 1–16 represent different primers and probe concentrations, respectively. The cyan five-pointed star represents the final concentration of the primer–probe adopted.
Figure 2. Optimization of the primer and probe concentrations for quadruplex ddPCR assay. (A) The optimization of primer and probe concentrations in channel 1 (H9 subtype AIV); (B) the optimization of primer and probe concentrations in channel 2 (IBV); (C) the optimization of primer and probe concentrations in channel 3 (P. aeruginosa); (D) the optimization of primer and probe concentrations in channel 4 (E. coli). The blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Numbers 1–16 represent different primers and probe concentrations, respectively. The cyan five-pointed star represents the final concentration of the primer–probe adopted.
Animals 16 00139 g002
Animals 16 00139 g003

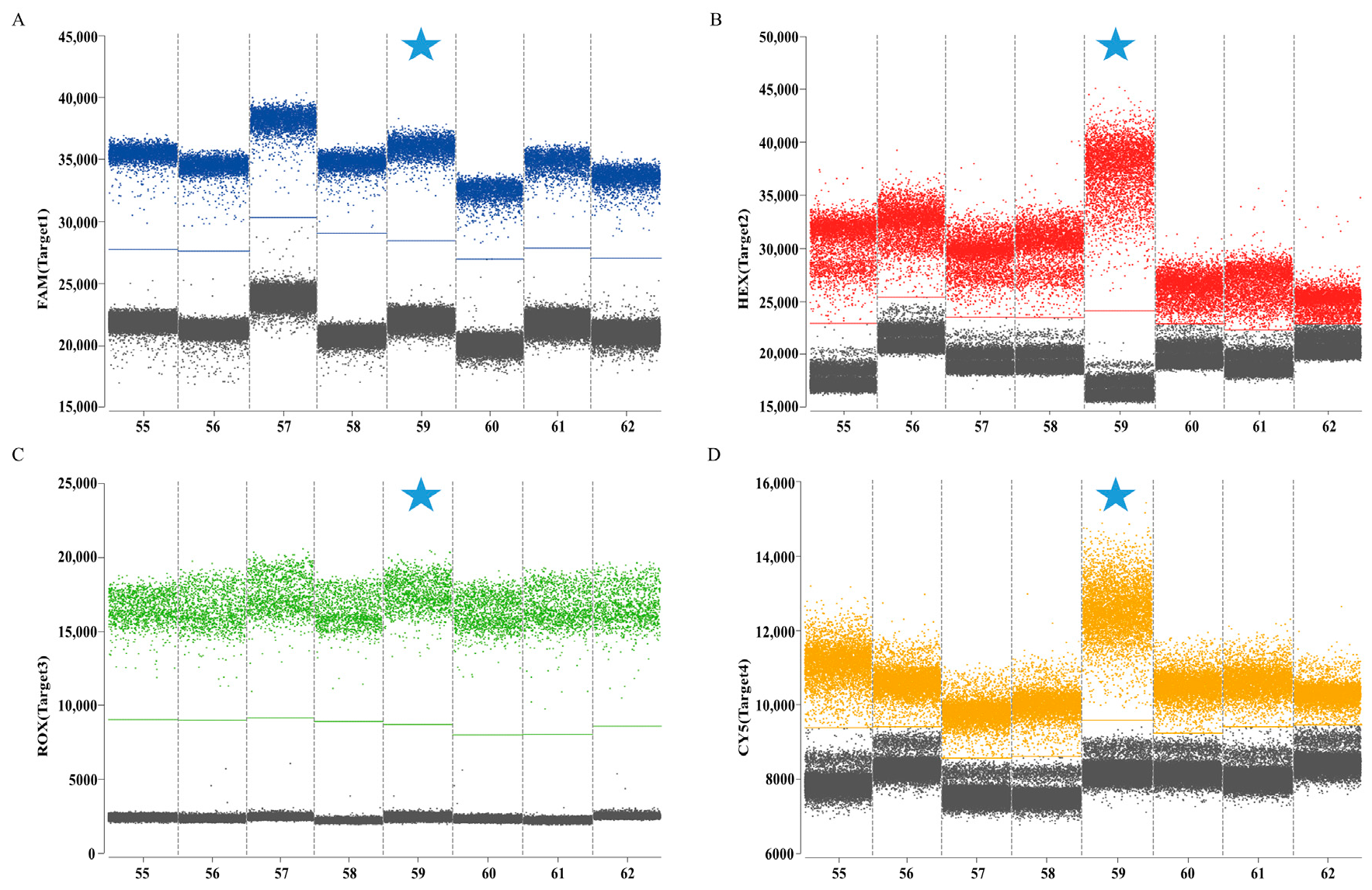

Figure 3. Optimization of annealing temperature for quadruplex ddPCR assay. (A) The optimization of annealing temperature in channel 1 (H9 subtype AIV); (B) the optimization of annealing temperature in channel 2 (IBV); (C) the optimization of annealing temperature in channel 3 (P. aeruginosa); (D) the optimization of annealing temperature in channel 4 (E. coli). The blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Numbers 52–62 represent annealing temperatures of 52–62 °C, respectively. The cyan five-pointed star represents the final annealing temperature.
Figure 3. Optimization of annealing temperature for quadruplex ddPCR assay. (A) The optimization of annealing temperature in channel 1 (H9 subtype AIV); (B) the optimization of annealing temperature in channel 2 (IBV); (C) the optimization of annealing temperature in channel 3 (P. aeruginosa); (D) the optimization of annealing temperature in channel 4 (E. coli). The blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Numbers 52–62 represent annealing temperatures of 52–62 °C, respectively. The cyan five-pointed star represents the final annealing temperature.
Animals 16 00139 g003
Animals 16 00139 g004

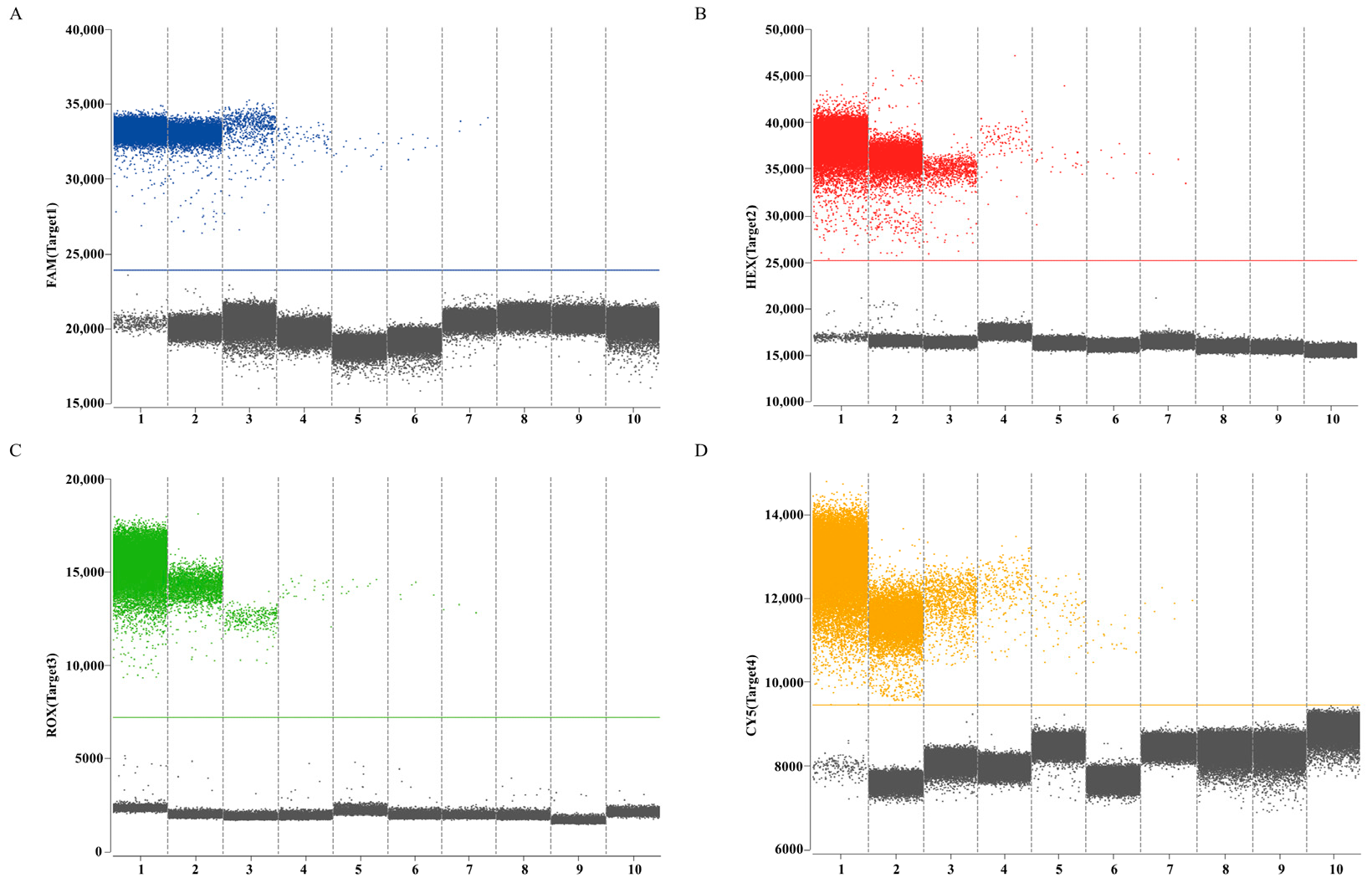

Figure 4. The dynamic range of quadruplex ddPCR assay to detect H9 subtype AIV, IBV, P. aeruginosa and E. coli DNA. (A–D) The mix standard plasmids in the range of 6 × 105–0.75 copies/µL, and RNase-free water were detected by the ddPCR, respectively; the blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Numbers 1–10 represent mix standard plasmids (6 × 105–0.75 copies/µL), and RNase-free water, respectively.
Figure 4. The dynamic range of quadruplex ddPCR assay to detect H9 subtype AIV, IBV, P. aeruginosa and E. coli DNA. (A–D) The mix standard plasmids in the range of 6 × 105–0.75 copies/µL, and RNase-free water were detected by the ddPCR, respectively; the blue, red, green, and orange points represent the positive signal from channel 1, channel 2, channel 3, channel 4, respectively; the gray points represent the negative signal. Numbers 1–10 represent mix standard plasmids (6 × 105–0.75 copies/µL), and RNase-free water, respectively.
Animals 16 00139 g004
Animals 16 00139 g005
Figure 5. Standard curve of the quadruplex ddPCR and quadruplex qPCR to detect H9 subtype AIV, IBV, P. aeruginosa, and E. coli DNA. Data were representative of at least three repeated experiments for different concentrations of template. (A) Standard curves of quadruplex ddPCR, the measured values (converted to log10) of mix standard plasmids were plotted on the Y axis and ddPCR theoretical values (converted to log10) on the X axis to perform linear analysis. (B) Standard curves of quadruplex qPCR, the Ct values (converted to log10) of mix standard plasmids were plotted on the Y axis and qPCR theoretical values (converted to log10) on the X axis to perform linear analysis. (C) The correlation between quadruplex ddPCR and quadruplex qPCR.
Figure 5. Standard curve of the quadruplex ddPCR and quadruplex qPCR to detect H9 subtype AIV, IBV, P. aeruginosa, and E. coli DNA. Data were representative of at least three repeated experiments for different concentrations of template. (A) Standard curves of quadruplex ddPCR, the measured values (converted to log10) of mix standard plasmids were plotted on the Y axis and ddPCR theoretical values (converted to log10) on the X axis to perform linear analysis. (B) Standard curves of quadruplex qPCR, the Ct values (converted to log10) of mix standard plasmids were plotted on the Y axis and qPCR theoretical values (converted to log10) on the X axis to perform linear analysis. (C) The correlation between quadruplex ddPCR and quadruplex qPCR.
Animals 16 00139 g005
Animals 16 00139 g006

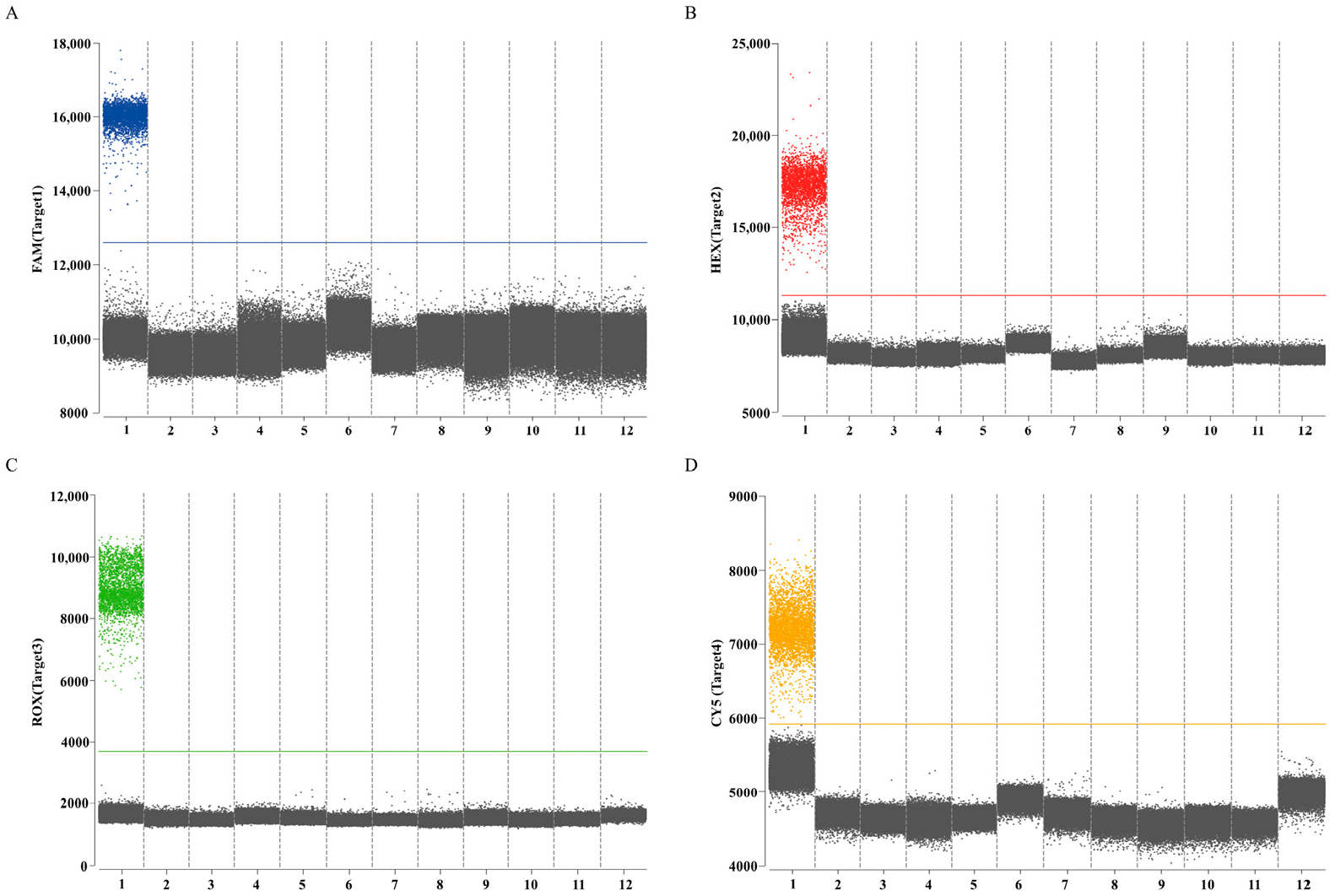

Figure 6. Specificity of the quadruplex ddPCR assay to detect H9 subtype AIV, IBV, P. aeruginosa, and E. coli. (A) Channel 1 detection results; (B) channel 2 detection results; (C) channel 3 detection results; (D) channel 4 detection results. The blue, red, green, and orange points represent the positive signal; the gray points represent the negative signal. Numbers 1–12 represent positive control, NDV, H5 subtype AIV, H7 subtype AIV, FAdV-4, ILTV, Avibacterium paragallinarum, Streptococcus, Salmonella, Pasteurella multocida, Staphylococcus aureus, and RNase-free water, respectively.
Figure 6. Specificity of the quadruplex ddPCR assay to detect H9 subtype AIV, IBV, P. aeruginosa, and E. coli. (A) Channel 1 detection results; (B) channel 2 detection results; (C) channel 3 detection results; (D) channel 4 detection results. The blue, red, green, and orange points represent the positive signal; the gray points represent the negative signal. Numbers 1–12 represent positive control, NDV, H5 subtype AIV, H7 subtype AIV, FAdV-4, ILTV, Avibacterium paragallinarum, Streptococcus, Salmonella, Pasteurella multocida, Staphylococcus aureus, and RNase-free water, respectively.
Animals 16 00139 g006
Table 1. The primer/probe concentration combinations designed for the four targets.
Table 1. The primer/probe concentration combinations designed for the four targets.
Test IDPrimer/Probe Concentration (μM)
H9 Subtype AIV HA GeneIBV M GeneE. coli UidA GeneP. aeruginosa Pal Gene
10.4/0.20.4/0.20.4/0.20.4/0.2
20.4/0.20.5/0.250.5/0.250.5/0.25
30.4/0.20.6/0.30.6/0.30.6/0.3
40.4/0.20.8/0.40.8/0.40.8/0.4
50.5/0.250.4/0.20.5/0.250.6/0.3
60.5/0.250.5/0.250.4/0.20.8/0.4
70.5/0.250.6/0.30.8/0.40.4/0.2
80.5/0.250.8/0.40.6/0.30.5/0.25
90.6/0.30.4/0.20.6/0.30.8/0.4
100.6/0.30.5/0.250.8/0.40.6/0.3
110.6/0.30.6/0.30.4/0.20.5/0.25
120.6/0.30.8/0.40.5/0.250.4/0.2
130.8/0.40.4/0.20.8/0.40.5/0.25
140.8/0.40.5/0.250.6/0.30.4/0.2
150.8/0.40.6/0.30.5/0.250.8/0.4
160.8/0.40.8/0.40.4/0.20.6/0.3
The screening results of primers and probe concentrations for the quadruplex ddPCR assay were in bold.
Table 2. Primer/probe set design.
Table 2. Primer/probe set design.
Target GenePrimer NamePrimer Sequences (5′–3′)Primer Span
H9 AIV
HA gene		HA-FAAGCTGGAATCTGAAGGAACTTACA90 bp
HA-RGAAGGCAGCAAACCCCATT
HA-PFAM-ATCCTCACCATTTATTCGACTGTCGCCT-BHQ1
IBV M geneM-FGTCCAA LNA C LNA GA LNA GACAAATTG170 bp
M-RCCAGAAA LNA CA LNA C LNA CATAACAC
M-PHEX-AATAAGCCGACTCCTAGTTGCGT-BHQ1
P. aeruginosa Pal genePal-FTCCAAGGGCGGCGATGCT86 bp
Pal-RAACGGCACCGCTGTTGG
Pal-PROX-CGACCCGAACGCAGGCTATGG-BHQ2
E. coli
UidA gene		UidA-FATGTGGAGTATTGCCAACGAA135 bp
UidA-RAGCGTCGCAGAACATTACATT
UidA-PCy5-CGTC LNA CGCAA LNA G LNA GTGCA-BHQ3
The bases at positions 7, 8, and 10 of the upstream primer sequence of the IBV M gene are all lock-nucleic acids (LNA), and the bases at positions 8, 10, and 11 of the downstream primer sequence are also LNA. The bases at positions 5, 10, and 11 of the probe primer sequence of E. coli UidA gene are all LNA.
Table 3. The reaction mixes of quadruplex ddPCR and quadruplex qPCR.
Table 3. The reaction mixes of quadruplex ddPCR and quadruplex qPCR.
Quadruplex DdPCR ReactionQuadruplex QPCR Reaction
Volume (μL)Final Concentration (nM)Volume (μL)Final Concentration (nM)
2× qPCR probe Master mix I111×101×
HA-F/20 μM0.54550.5500
HA-R/20 μM0.54550.5500
HA-P/20 μM0.252270.25250
M-F/20 μM0.65450.5500
M-R/20 μM0.65450.5500
M-P/20 μM0.32730.25250
Pal-F/20 μM0.43640.5500
Pal-R/20 μM0.43640.5500
Pal-P/20 μM0.21820.25250
UidA-F/20 μM0.87270.5500
UidA-R/20 μM0.87270.5500
UidA-P/20 μM0.43640.25250
DNA4 4
CY5.5/20 μM0.8727--
RNase-free water Up to 22 Up to 20
Table 4. Reproducibility analysis of the quadruplex ddPCR.
Table 4. Reproducibility analysis of the quadruplex ddPCR.
TargetFinal
Concentration
(Copies/µL)		Repeatability Intra-AssayReproducibility Inter-Assay
AVGSDCV (%)AVGSDCV (%)
H9 subtype AIV6 × 10464,110.64732.491.1464,043.97683.101.07
6 × 1035738.70466.738.135848.70422.457.22
6 × 102605.8826.844.43592.5512.192.06
IBV6 × 10464,504.55516.560.8064,504.55866.181.34
6 × 1036713.41465.196.936746.74479.317.10
6 × 102619.417.811.26610.419.651.58
P. aeruginosa6 × 10464,026.802295.353.5863,993.473295.865.15
6 × 1036442.39214.633.336442.39214.633.33
6 × 102699.6118.912.70686.2818.912.76
E. coli6 × 10463,293.12333.850.5363,626.451666.932.62
6 × 1037139.66324.614.556472.99324.615.01
6 × 102619.195.610.91622.525.610.90
AVG: average; SD: standard deviation; CV: coefficient of variation.
Table 5. Detection results of clinical samples by quadruplex ddPCR and quadruplex qPCR.
Table 5. Detection results of clinical samples by quadruplex ddPCR and quadruplex qPCR.
Detection MethodDetection Results
(Positive Samples/Total Samples)
H9 Subtype AIVIBVP. aeruginosaE. coli
Quadruplex ddPCR74/18562/18545/18551/185
Quadruplex qPCR67/18557/18540/18545/185
Kappa0.9200.9380.9240.916
Coincidence Rates (%)96.2297.3097.3096.76
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mu, Y.; Wang, X.; Dong, T.; Bao, X.; Xu, Q.; Lan, T.; Liu, J.; Chen, L. Development and Evaluation of Quadruplex Droplet Digital PCR Method to Multiplex Detection of Different Respiratory Pathogens of Chickens. Animals 2026, 16, 139. https://doi.org/10.3390/ani16010139

AMA Style

Mu Y, Wang X, Dong T, Bao X, Xu Q, Lan T, Liu J, Chen L. Development and Evaluation of Quadruplex Droplet Digital PCR Method to Multiplex Detection of Different Respiratory Pathogens of Chickens. Animals. 2026; 16(1):139. https://doi.org/10.3390/ani16010139

Chicago/Turabian Style

Mu, Yingli, Xuejing Wang, Tongchao Dong, Xinran Bao, Qianqian Xu, Tianxiang Lan, Juxiang Liu, and Ligong Chen. 2026. "Development and Evaluation of Quadruplex Droplet Digital PCR Method to Multiplex Detection of Different Respiratory Pathogens of Chickens" Animals 16, no. 1: 139. https://doi.org/10.3390/ani16010139

APA Style

Mu, Y., Wang, X., Dong, T., Bao, X., Xu, Q., Lan, T., Liu, J., & Chen, L. (2026). Development and Evaluation of Quadruplex Droplet Digital PCR Method to Multiplex Detection of Different Respiratory Pathogens of Chickens. Animals, 16(1), 139. https://doi.org/10.3390/ani16010139

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
