Virological and Parasitological Characterization of Mini-LEWE Minipigs Using Improved Screening Methods and an Overview of Data on Various Minipig Breeds

Institute of Virology, Freie Universität Berlin, 14163 Berlin, Germany
Research Group Veterinary Functional Genomics, Max Planck Institute for Molecular Genetics, 14195 Berlin, Germany
Institute of Animal Breeding and Genetics, University of Veterinary Medicine Hannover, 30559 Hannover, Germany
Institute for Parasitology, Centre for Infection Medicine, University of Veterinary Medicine Hannover, 30559 Hannover, Germany
Author to whom correspondence should be addressed.
Microorganisms 2021, 9(12), 2617;
Submission received: 19 November 2021 / Revised: 13 December 2021 / Accepted: 15 December 2021 / Published: 18 December 2021
(This article belongs to the Section Virology)


Minipigs play an important role in biomedical research and have also been used as donor animals in xenotransplantation. To serve as a donor in xenotransplantation, the animals must be free of potential zoonotic viruses, bacteria and parasites. Porcine endogenous retroviruses (PERVs) are integrated in the genome of all pigs and cannot be eliminated as most of the other pig viruses can. PERV-A and PERV-B infect human cells in cell culture and are integrated in all pigs, whereas PERV-C infects only pig cells and it is found in many, but not all pigs. Minipigs are known for a high prevalence of recombinant PERV-A/C viruses able to infect human cells (Denner and Schuurman, Viruses, 2021;13:1869). Here, Mini-LEWE minipigs are screened for the first time for pig viruses including PERV. Peripheral blood mononuclear cells (PBMCs) from 10 animals were screened using PCR-based methods (PCR, RT-PCR, and real-time PCR). In comparison with our previous screening assays, numerous improvements were introduced, e.g., the usage of gene blocks as a PCR standard and foreign RNA to control reverse transcription in RT-PCR. Using these improved detection methods, Mini-LEWE pigs were found to be negative for porcine cytomegalovirus (PCMV), porcine lymphotropic herpesviruses (PLHV-1, -2 and -3), porcine circoviruses (PCV1, 2, 3 and 4), porcine parvovirus (PPV) and hepatitis E virus (HEV). All animals carried PERV-A, PERV-B and PERV-C in their genome. PERV-A/C was not found. In contrast to all other minipig breeds (Göttingen minipigs, Aachen minipigs, Yucatan micropig, Massachusetts General Hospital miniature pigs), Mini-LEWE minipigs have less viruses and no PERV-A/C. Parasitological screening showed that none of the Mini-LEWE minipigs harbored ecto- and gastrointestinal parasites, but at least one animal tested positive for anti-Toxoplasma gondii antibodies.

1. Introduction

Pigs (Sus scrofa) have great potential as biomedical models for studying developmental processes, congenital diseases and pathogen response mechanisms and can be used as xenotransplant organ donors and tools for vaccine and drug design [1,2]. Minipigs are also broadly used in several fields of biomedicine, e.g., experimental surgery, pharmacology, toxicology and basic research (for review see [3,4,5,6]). This particular group of miniature size pigs (called minipigs, micropigs or miniature swine) has moved into focus as a model animal with many well-documented similarities to humans. Various minipig breeds have been used for research purposes worldwide, including the Mexican Yucatan minipig or the Minnesota minipigs, two of the oldest breeds in laboratory use [3,7], or the Göttingen miniature pig (GöMP) developed in Europe [8]. An example of use of these breeds is the research work carried out for xenotransplantation, for which minipigs have been considered as potentially suitable donors of islet cells in order to alleviate the increasing shortage of human donors of pancreata [9]. Thus, a preclinical trial was performed using islet cells transplanted from Göttingen minipigs into non-human primates as a potential future treatment for diabetic patients [10]. These studies are part of the development of a new technology, xenotransplantation, using cells, tissues and organs from pigs in order to alleviate the increasing shortage of human donors [11]. Furthermore, preclinical trials have been performed to address possible complications that need to be considered for xenotransplantation and/or transplantation. In a study on lung transplantation, Mini-LEWE minipigs were used as a model for successful proof of concept that an ex vivo lung perfusion can act as a bioreactor for the rehabilitation of transplanted lungs [12].
This particular minipig population, named Mini-LEWE due to its original breeding locations Lehnitz and Wendefeld (LEWE) in the former German Democratic Republic (GDR), has been suggested as a genetic resource of versatile use as an animal model [13,14]. It was bred as a cross between Vietnamese Pot-bellied sows and a boar, which was derived from mating a German Saddleback pig with a Deutsches Veredeltes Landschwein [13,14]. Further backcrossing to Vietnamese Pot-bellied pigs and thorough selection finally resulted in a minipig of white skin, large ears with pronounced veins and the desired low body weight [15]. The Mini-LEWE pigs showed a similar diversity level when compared with the better known GöMP [14]. Mini-LEWE pigs represent a closed population, separated from historically related pig populations. A great genetic distance was found in Mini-LEWE to the GöMP as well as Leicoma and Large White [14]. Leicoma is a synthetic dam line breed also bred in the former GDR.
Using minipigs in different fields of biomedicine requires that the animals are healthy and do not suffer from infections, otherwise the results of the experiments will be falsified by the interaction of the microorganism with the animal. Transplantation and xenotransplantation studies using minipigs are especially vulnerable concerning microbiological infections, including virus infections. The reason is that the cells or organs will be transplanted into an immunosuppressed recipient. In the above-mentioned transplantation of islet cells from GöMP into non-human primates, no porcine viruses were transmitted [10]. The pigs used were derived from Ellegaard Göttingen Minipigs A/S, where they are bred at a very high hygienic standard. They tested negative for about 89 porcine microorganisms. However, some animals were positive for porcine cytomegalovirus (PCMV) [16], and hepatitis E virus (HEV) [17].
In other preclinical xenotransplantation trials using genetically modified donor pigs for orthotopic heart transplantation into baboons (Papio anubis), an infection of the donor pigs with PCMV resulted in a drastic reduction in the survival time of the xenotransplantat [18]. A similar reduction was observed when pig kidneys were transplanted into baboons or rhesus monkeys (Macaca mulatta) (for review, see [19]).
In addition to the GöMP, the Aachen minipigs were also screened for porcine viruses [20,21]. HEV RNA was found by real-time reverse transcriptase PCR (real-time RT-PCR) in most, and DNA of PCMV, PLHV-2, and PLHV-3 was found by PCR in some animals. The animals were free of eight other microorganisms tested, but some were seropositive for porcine circovirus 2 (PCV2), porcine reproductive and respiratory syndrome virus (PRRSV), and porcine epidemic diarrhea virus (PEDV).
Porcine endogenous retroviruses pose a special risk for xenotransplantation, because they are integrated into the genome of all pigs and cannot be eliminated as all other viruses can. PERV-A and PERV-B were found in all pigs, they are able to infect human cells in cell culture [22]. PERV-C is present in most, but not all pigs, and it infects only pig cells [23]. Recombinations between PERV-A and PERV-C were observed in vivo, in the living pigs, and these PERV-A/C viruses are able to infect human cells and they are characterized by high replication rates (for review see [24]). In GöMP from Ellegaard Göttingen Minipigs A/S, Denmark [16] and from the University of Göttingen [25] all three PERVs were found integrated in the genome. Whereas in a small number of Ellegaard GöMPs no PERV-A/C were found, in three out of 11 animals from the University of Göttingen PERV-A/C was found. In one case an infectious PERV-A/C isolate able to infect human 293 cells was released [25]. Interestingly, the prevalence of PERV-A/C is generally high in minipigs (for review see [26]). There is consensus that only PERV-C-free pigs should be used for xenotransplantation in order to avoid PERV-A/C recombination [27]. Whether it will be necessary and possible to use pigs treated with CRISPR/Cas9 to inactivate all PERV copies in the genome [28,29] is still unclear [30].
Whereas pigs are well characterized concerning their viruses, the analysis of bacteria and parasites has been less comprehensive. In most cases only viruses [20,25,31], in some cases also bacteria [16,32], and only in rare cases also parasites were studied [33]. Here, we perform for the first time a broad virological and parasitological analysis of the Mini-LEWE pigs.

2. Materials and Methods

2.1. Mini-LEWE: Genetics and Breeding Conditions

All today’s breeding animals are derived from 5 boars and 10 sows born in 2003/2004, which were the only ones left with the demise of former GDR [14]. They were the last remnants from a breeding program started in 1965 at Humboldt University in Berlin [34], in which Vietnamese Pot-bellied sows were initially mated with a white boar (German Saddleback X Deutsches Veredeltes Landschwein) and their progeny subsequently backcrossed using Vietnamese Pot-bellied pigs [13]. This population kept a surprisingly nearly constant level of genetic diversity in a similar fashion as the more frequently used population of GöMP [14]. Nevertheless, the Mini-LEWE are genetically distinct to historically related breeds including GöMP, Leicoma and Large White [14].
The Mini-LEWE population is kept now under conventional farm-like (not specified pathogen free) conditions at the Farm for Education and Research Ruthe at a remote location of the University of Veterinary Medicine Hannover. In total, 14 breeding animals and 47 offspring represent the current Mini-LEWE population. A breeding pro-gram was performed within this closed population aiming at long generation intervals with low relationship coefficients to keep the increase in inbreeding as low as possible [35]. The average inbreeding coefficient was estimated to be 11.7% [35]. All individuals were kept on untreated (not sterilized) straw and fed with grain mixture (wheat meal, wheat bran) supplemented with mineral feed. They underwent a standard health monitoring, but despite current investigations, were not investigated by special screenings for viruses, bacteria, fungi, or parasites.

2.2. Samples and Mitogen Stimulation of Peripheral Blood Mononuclear Cells

To determine the virological status of the Mini-LEWE minipigs, heparin blood samples taken from ten minipigs for diagnostic purposes (Table 1) were investigated. For the isolation of peripheral blood mononuclear cells (PBMCs), the heparin blood was dispensed on Pancoll human (PAN-Biotech GmbH, Aidenbach, Germany), centrifugated at 900 g for 21 min and the isolated PBMCs were washed twice with phosphate-buffered saline. One million cells per sample were diluted in 2 mL Roswell Park Memorial Institute medium (RPMI-1640, PAN-Biotech GmbH, Aidenbach, Germany), seeded in a 12-well plate (Sarstedt AG & Co. KG, Nümbrecht, Germany) and stimulated with 10 µg/mL phytohemagglutinin-L (PHA-L) Solution (500 ×) (Invitrogen, Waltham, MA, USA). After five days, the activated PBMCs were pelleted and stored at −20 °C until further processing.

2.3. DNA and RNA Isolation

DNA nucleic acid extraction from activated PBMCs was carried out using the DNeasy Blood and Tissue kit (Qiagen, Hilden, Germany) for the detection of PCMV, PLHV-1, PLHV-2, PLHV-3, PCV-1, PCV-2, PCV-3, PCV-4, PPV-1 and to determine the proviral status of PERV A, B and C. For the detection of HEV, total RNA was extracted from activated PBMCs using the RNeasy Mini kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions in an elution volume of 30 µL. For the quantification of DNA and RNA in all samples, a NanoDrop Spectrophotometer ND-1000 (peqlab Biotechnologie GmbH, Erlangen, Germany) was used and the samples were stored at −20 °C until further processing.

2.4. PCR and Real-Time RT-PCR for the Detection of Porcine Endogenous Retroviruses

For the detection of all three subtypes, PERV-A, PERV-B and PERV-C, a real-time PCR targeting the PERV polymerase (PERV pol) was carried out using a TaqMan-based PCR (Table 2) [36] and using the SensiFAST Probe No-ROX kit (Meridian Bioscience, Cincinnati, OH, USA) in a reaction volume of 20 µL. Real-time PCR was performed on the qPCR cycler qTOWER3 G (Analytik Jena, Jena, Germany) using a temperature–time profile that comprises an activation step of 5 min at 95 °C, followed by 45 cycles of 15 s at 95 °C for denaturation, 30 s at 58 °C for annealing and 30 s at 72 °C for elongation.
To detect PERV-C, a conventional PCR was carried out, using specific primers for the envelope gene of PERV C [37]. This real-time PCR was carried out in a reaction volume of 25 µL comprising 1.2 µL of 10 µM env.2-forward primer, 1.2 µL of 10 µM env.2-reverse primer, 0.125 µL AmpliTaq DNA Polymerase (Applied Biosystems, Waltham, MA, USA), 2.5 µL of 10× PCR Buffer I (Applied Biosystems, Waltham, MA, USA) and 0.5 µL of 10 mM dNTP Mix (Thermo Fisher Scientific, Waltham, MA, USA) and applied on the Biometra TRIO cycler (Analytik Jena, Jena, Germany).
To detect PERV-A/C [38], a PCR was performed in a reaction volume of 25 µL containing 1 µL of 10 µM PERV-A env VRBF, 1 µL of 10 µM PERV-C env TMR, 0.125 µL AmpliTaq DNA Polymerase (Applied Biosystems, Waltham, MA, USA), 2.5 µL of 10x PCR Buffer I (Applied Biosystems, Waltham, MA, USA), 0.5 µL of 10 mM dNTP Mix (Thermo Fisher Scientific, Waltham, MA, USA) and filled to a final volume of 25 µL with nuclease-free water. The PCR was run on the Biometra TRIO cycler (Analytik Jena, Jena, Germany).

2.5. Real-Time RT-PCR for the Detection of Hepatitis E Virus

For the detection of HEV, a TaqMan based real-time RT-PCR described by Jothikumar et al. was performed [39]. The oligosequences of the primers and probes are listed in Table 2. All real-time RT-PCR reactions were prepared using the SenisFAST™ Probe No-ROX One-Step Kit (Meridian Bioscience, Cincinnati, OH, USA) in a volume of 16 µL and the real-time RT-PCR was performed at the qPCR cycler qTOWER3 G (Analytik Jena, Jena, Germany). The temperature time profile applied consisted of a reverse transcriptase step of 30 min at 50 °C and an activation step of 15 min at 95 °C, followed by 45 cycles of 10 s at 95 °C, 20 s at 55 °C and 15 s at 72 °C. To further enhance the reliability of the assay and to check the presence of inhibitory substances, an internal control (IC) system was integrated and validated. Two microliters of Influenza A-RNA derived from a mouse-adapted Influenza A strain A/WSN/1933 were spiked to each sample during the lysis of the nucleic acid extraction. The IC was detected by using a Flu-A (NA) real-time RT-PCR assay [40] that was applied as a duplex real-time RT-PCR assay along with the detection of the gene of interest.

2.6. PCR and Real-Time PCR for the Detection of DNA Viruses

The detection of PCMV, PLHV-1, PLHV-2, PLHV-3 and PCV1, PCV2, PCV3, PCV4 and PPV-1 was performed by species-specific real-time PCR assays (Table 2) based on TaqMan technology as described previously [37,41,42,43,44,45]. All experiments were performed with the SensiFAST Probe No-ROX kit (Meridian Bioscience, Cincinnati, OH, USA) at the qPCR cycler qTOWER3 G (Analytik Jena, Jena, Germany). The fluorescence signal was measured during the annealing step. All assays were performed as duplex real-time PCR using the reference gene porcine glycerinaldehyd-3-phosphat-dehydrogenase (pGAPDH), which is also an excellent reference gene in expression studies [46,47].
For the PCMV real-time PCR [41], a reaction volume of 20 µL was prepared containing 1.8 µL of PCMV-FAM mix and 1.8 µL of pGAPDH-HEX mix as IC and 4.0 µL of extracted DNA. The reaction was carried out for 2 min at 50 °C for activation 10 min at 95°C followed by 45 cycles comprising 15 s at 95 °C for denaturation and 60 s at 60 °C for annealing and elongation.
PLHV-1, -2 and 3 were detected as single real-time PCR, each performed in a 20 µL reaction volume as described by Chmielewicz et al. [42]. The temperature–time profile applied consisted of an activation step of 5 min at 95 °C, followed by 45 cycles containing 15 s at 95 °C for denaturation, 60 s at 56 °C for annealing and 30 s at 72 °C for extension.
For the detection of four different PCVs, independent real-time PCR with a reaction volume of 20 µL was performed. The real-time PCR for PCV1, PCV2 and PCV4 was carried out as described by Chen et al. [43], while the real-time PCR assay for PCV3 was performed according to the recommendations of Palinski et al. [44]. Each probe was labeled with a 6-carboxyfluorescein (6-FAM) fluorophore for PCV-1, PCV-2, PCV-3 and PCV-4, whereas the probe for pGAPDH was labeled with a HEX fluorophore [43].
For the PPV-1 real-time PCR [45], a reaction volume of 20 µL was prepared including 1.8 µL of PPV1-FAM mix and 1.8 µL of pGAPDH-HEX mix and 4.0 µL of extracted DNA. The PCR run was performed for 5 min at 95 °C, followed by 40 cycles comprising 15 s at 95 °C, 60 s at 56 °C and 30 s at 72 °C.

2.7. Generation of Viral Standards

For validation purpose and optimization of the real-time PCR used, four different gBlock Gene Fragments (hereinafter referred as gBlock; Integrated DNA Technologies, IDT, Coralville, IA, USA) were designed [48]. gBlocks are synthetic double-stranded DNA fragments, which can be used as a standard for a various number of applications in molecular biology. In this study, the gBlocks comprise the nucleotide sequence of the genes of interest, which are separated by spacers (Figure 1). The sequences of the investigated viruses were taken from [36,39,41,42,43,44,46,49,50,51,52,53,54]. The spacers are non-functional oligosequences of eight to fifteen base pairs that are used as placeholders to separate the oligosequences of interest. The nucleotide sequence of the gBlocks were submitted to IDT for production and access control. The lyophilized gBlocks were dissolved according to the manufacturer’s instructions and the DNA content was measured using a Qubit 4 Fluorometer (Thermo Fisher Scientific, Waltham, MA, USA). The copy number/µL can be calculated according to the formula [48]:
c o p y   n u m b e r   p e r   µ L = c × M × 1 × 10 15   mol f mol ×   Avogadro s   number
where c is the current concentration of the gBlock in ng/µL, and M is the molecular weight in fmol/ng. Afterwards, a log10 dilutional series was prepared in nuclease-free water. In the case of positive samples, a standardization was performed by application of the log10 dilutional series of the corresponding gBlocks containing the gene of interest and pGAPDH, respectively (Figure S1).

2.8. Minimum Information for Publication of Quantitative Real-Time PCR Experiments (MIQE)

For an improved reporting of technical information concerning the qPCR approaches used in this study, experimental details were provided in accordance with the MIQE guidelines [55,56]. In this study, the qPCR assays are well-established diagnostic methods (see Table 2) that were adapted to the requirements in xenotransplantation. Quality control tools and measurements were conducted to ensure reliable and reproducible test results in diagnostic applications (Tables S1 and S2).

2.9. Parasitological Screening

All animals were carefully checked for macroscopically visible ectoparasites (lice, ticks). To test for sarcoptic mange infestations, sera of the individual pigs were checked for antibodies using the Sarcoptes-ELISA 2001 Pig (Afosa, Blankenfelde-Mahlow, Germany) according to the manufacturer’s instructions. Individual serum samples were also used to screen for Toxoplasma gondii infection with the ID Screen Toxoplasmosis Indirect Elisa (IDvet, Grabels, France), as recommended by the manufacturer. Accordingly, samples with a sample/positive (S/P) ratio ≤ 40% were classified as negative, with 40% < S/P < 50% as questionable and with S/P ≥ 50% as positive.
Infections with gastrointestinal parasites were tested by fecal examination. To consider potential intermittent egg, oocyst or cyst shedding, all pigs were sampled on three consecutive days. All fecal samples (n = 30) were processed individually using the combined sedimentation–flotation technique as previously described [57].

3. Results

3.1. Prevalence of Porcine Endogenous Retroviruses

To determine the presence and proviral status of PERV, a set of PCRs, and real-time PCRs were carried out analyzing nucleic acids extracted from mitogen-stimulated and unstimulated PBMCs. The ten Mini-LEWE minipigs were positive for the polymerase gene (pol) of PERV, indicating that PERV is present in the genome of the Mini-LEWE minipigs as expected. PERV-A and PERV-B are present in all pig breeds. A conventional PCR, which uses a primer pair targeting the envelope gene (env) of PERV-C, revealed that in addition all animals were PERV-C positive (Table 3). Since the presence of PERV-C is a prerequisite for a recombination event to generate PERV A/C recombinants, all animals were tested for PERV A/C. All Mini-LEWE minipigs were negative for PERV A/C.

3.2. Screening for Hepatitis E Virus

Screening for hepatitis E virus (HEV), a porcine RNA virus with known zoonotic potential, was performed with a real-time RT-PCR and all samples were found to be negative (Table 4).
To improve the HEV real-time RT-PCR, an internal control (IC) system was established to check the RNA isolation and the reverse transcription reaction. As IC, a real-time PCR detecting the neuraminidase (NA) gene of the influenza virus-A strain A/WSN/1933 (abbreviated Flu-A (NA)) was used. With the help of a log10 dilutional series of the Flu-A virus-containing cell culture supernatant diluted in nuclease-free water, an optimal concentration was found, which was added to each minipig sample before the isolation of the RNA.

3.3. Screening for Porcine Herpes Viruses, Circoviruses and Porcine Parvovirus-1

The Mini-LEWE pigs were screened for four different herpes viruses (PCMV, PLHV-1, PLHV-2, PLHV-3), four circoviruses (PCV1, PCV2, PCV3, PCV4) and porcine parvovirus-1 (PPV-1); all animals were negative.

3.4. Establishment of gBlocks for the Standardization

For an easy-to-handle and less time-consuming preparation of a real-time PCR-standard, four gBlocks were designed (Figure 1). Each gBlock contains specific oligosequences corresponding to the PCR amplicon of the gene of interest of different virus species (Table S3), which are divided by spacers. After dissolution of the lyophilized gBlocks, the DNA content was determined by using the Qubit 4 Fluorometer. The DNA content measured varied between 1.13 and 4.72 ng/µL (Table S1) and was a prerequisite for the calculation of the copy numbers of the gBlock stock solutions. The gBlock stock solutions comprised 1.6 to 7.4 × 109 copies/µL (Table S1). Afterwards, the gBlock stock solution was diluted in a log10 dilutional series (108 to 10−1) per gBlock and the dilutional steps (starting with 106) were applied in a corresponding real-time PCR run. A standard curve was calculated by the qPCRsoft software package of Analytik Jena (Jena, Germany) by which the cycle threshold (Ct) values are plotted against the copy numbers/µL and the PCR efficiencies were calculated. The PCR efficiencies ranged from 0.85 to 1.07 (Table S2). The log10 dilutional series of all gBlocks showed a similar Ct value at the same dilution step, indicating that the run conditions for each real-time PCR assay are optimized. Since all animals were negative for all tested viruses, there was no need to estimate the copy number.

3.5. Screening for Pig Parasites

None of the ten tested Mini-LEWE pigs were infested with large ectoparasites such as lice or ticks and all individuals tested serologically negative for sarcoptic mange mites. Furthermore, all animals tested coproscopically negative for eggs, oocysts or cysts of gastrointestinal parasites. Screening for anti-Toxoplasma gondii antibodies revealed the animal with the sample ID LEWE-3 as seropositive (S/P = 75%), while LEWE-2 was questionable (S/P = 47%).

4. Discussion

This is the first virological examination of the Mini-LEWE minipigs at the molecular level using a set of PCR-based methods. When the animals were first characterized at the end of the 1970s, the clinical absence of virus infection was mainly diagnosed, and no molecular and only one immunological assay had been performed [58]. At that time Gregor et al. [58] reported that the animals kept under specified pathogen-free conditions were serologically free of brucellosis, caused by Brucella bacteria; transmissible gastro-enteritis (TGE), caused by the coronavirus TGEV; leptospirosis, caused by Leptospira bacteria; Aujeszky’s disease, caused by the Suid alphaherpesvirus 1 (SuHV-1), also called pseudorabies virus; and that the animals were clinically free of dysentery; salmonellosis, caused by Salmonella bacteria; Teschen disease and Talfan disease, both caused by teschoviruses; swine vesicular disease, caused by the swine vesicular disease virus, an enterovirus; foot-and-mouth disease, caused by the foot-and-mouth disease virus, an aphthovirus; classical swine fever caused by pestivirus C; porcine enzootic pneumonia, caused by Mycoplasma hyopneumoniae; pleuropneumonia due to Haemophilus pleuropneumoniae; and rhinitis atrophicans, caused by Pasteurella multocida. Serological tests showed the absence of pig-pathogenic mycoplasms, Chlamydia, Bordetella bronchiseptica and Pasteurella multocida. Furthermore, the animals were free of lice, mange mites and endoparasites.
In this study, nine DNA viruses (PCMV, PLHV-1, PLHV-2, PLHV-3 and PCV1, PCV2, PCV3, PCV4 and PPV-1), one RNA virus (HEV) and the integrated PERV proviruses (PERV-A, PERV-B, PERV-C and PERV-A/C) were analyzed because these viruses were declared as xenotransplantation relevant [25,59]. Although it still remains unclear, which porcine virus may cause a zoonosis when transmitted to human xenotransplant recipients, HEV is a well-known zoonotic virus which can be transmitted from pigs by undercooked pig meat and direct contact with infected animals (for review see [60]). Transmission of HEV from infected humans to other humans by blood transfusion and organ transplantation has also been observed (for review see [61]). HEV causes self-limiting acute hepatitis, acute liver failure, and neurological illness. Immunosuppressed individuals are at risk of developing chronic infections which may lead to liver fibrosis and cirrhosis.
The second virus with known zoonotic potential, at least for non-human primates, is PCMV, which is actually a porcine roseolovirus (PRV), closely related to the human herpes viruses 6A, 6B and 7. Transmission of PCMV/PRV in preclinical trials resulted in a significant reduction in the survival time of pig kidneys and hearts in rhesus monkeys and baboons (for review see [19]). In a recent study, orthotopic pig heart transplants survived up to 195 days in baboons, whereas the transplants from PCMV/PRV-positive animals survived less than 30 days [18]. PCMV/PRV was shown to increase the levels of interleukin-6 (IL-6) and tumor necrosis factor α (TNFα) in the transplanted baboons. In addition, increased levels of tissue plasminogen activator (tPA) and plasminogen activator inhibitor 1 complexes (tPA-PAI-1) were found, as measured in plasma samples by an ELISA. This indicates a complete loss of the pro-fibrinolytic properties of the endothelial cells. Since a reduction in the transplant survival time was observed in two different non-human primates (baboons, rhesus monkeys), it is very likely that the same may happen in human recipients.
Although transmission of PCV3 in a preclinical trial transplanting pig hearts into baboons was demonstrated, no pathological effects in the recipients were observed [62]. There are no reports showing transmission of any of the other viruses to non-human primate recipients. This is also true for PERVs, which are integrated into the genome of all pigs and therefore cannot be eliminated easily. PERV was also not transmitted in the first clinical trials transplanting pig islet cells in diabetic patients in New Zealand [63] and Argentina [64], as well as in more than 200 other human xenotransplant recipients (for review see [65,66]).
It is important to note that in this study only PBMCs isolated from fresh blood of the Mini-LEWE pigs were analyzed. It is possible that some viruses, especially latent viruses, may hide in certain organs and were not detected in the blood. For example, in one preclinical trial transplanting a pig heart orthotopically into baboons, PCMV was not detected in the blood of the donor pig, but transmitted to the recipient baboon [67]. Furthermore, microorganisms may also interact and one microorganism may enhance the effect of other microorganisms and worsen the clinical score associated with the disease [68].
Nevertheless, among all minipigs analyzed in our laboratory, the Mini-LEWE pigs have less exogenous viruses and surprisingly for minipigs have no PERV-A/C, which is common in minipigs [26] (Table 5). Minipigs that we did not analyze, such as the Massachusetts General Hospital SLA-defined miniature pigs, are also characterized by a high prevalence of PERV-A/C [38,69] and the presence of PCMV [70,71].
To test the viruses by PCR or real-time PCR, three new improvements were introduced. First, the usage of a Qubit instead of the less sensitive Nanodrop, second, the use of a control RNA virus, here the use of influenza virus RNA, to demonstrate that the transcription of the RNA by the reverse transcriptase took place in all tubes identical, and third, the use of gBlocks. The gBlocks guarantee a reproducible positive control on one hand, and on the other hand they will allow an exact determination of the copy number in the case virus is found. These improvements will guarantee a more correct testing in future.
Whereas in most cases the donor pigs were tested only for viruses [20,25,31], or viruses and bacteria [16,32], one study also screened for parasites [33]. The authors screened for pathogenic protozoa including Cryptosporidium parvum, Giardia sp. and Toxoplasma gondii, helminths, Trichinella spiralis, blood parasites and pathogenic arthropods such as lice and mites. In the present study, we examined the Mini-LEWE minipigs for common pathogenic parasites. No ectoparasites such as lice, ticks or zoonotic sarcoptic mites were detected. Furthermore, fecal examination to detect eggs, oocysts or cysts of gastrointestinal parasites, e.g., of (zoonotic) helminths such as Ascaris suum, Strongyloides ransomi or Trichuris suis, or (zoonotic) protozoans such as Giardia spp., Cystoisospora (former: Isospora) suis or Eimeria spp., was negative in all individuals. However, when testing for Toxoplasma gondii infections, one animal tested seropositive, and another one questionable. T. gondii is an important opportunistic pathogen in immunocompromised patients and can be transmitted from animals to humans with, e.g., blood products or tissue transplants [74]. In the present study, Mini-LEWE minipigs were housed under conventional conditions and kept on straw, providing various possibilities for T. gondii exposure. Conventional housing involves the risk of (infective) parasite stages being introduced by staff or equipment. Straw bedding in pig farming and laboratory husbandry provides employment and nest-building material, thus promoting animal welfare. If properly dried, straw is not a particular microbial hygiene risk; however, T. gondii infections can occur if animals have access to the storage rooms and the straw is contaminated with cat feces or dead rodents [75]. Although toxoplasmosis can be treated with antiparasitic drugs such as pyrimethamine, spiramycine and sulfadiazine, plus folinic acid, cysts are not eliminated completely. Therefore, animals generated for xenotransplantation should be tested regularly by serological methods and negative animals should be kept under designated pathogen-free conditions.

5. Conclusions

Mini-LEWE minipigs generated originally in East Germany were screened for the first time for several xenotransplantation-relevant pig viruses, including PERV, using PCR-based methods. All animals were found to be negative for PCMV, PLHV-1, -2 and -3, PCV1, 2, 3 and 4, PPV-1 and HEV. All animals carried PERV-A, PERV-B and PERV-C in their genome, but recombinant PERV-A/C was not found. In contrast to all other minipig breeds tested in the past, such as Göttingen minipig, Aachen minipig, Yucatan minipig or Minnesota minipigs, Mini-LEWE minipigs have less viruses and no PERV-A/C. Toxoplasma gondii, which may pose a high risk in immunosuppressed humans, was found in at least one animal, suggesting that a screening for parasites should also be performed in animals which may be used in xenotransplantation.

Supplementary Materials

The following are available online at, Figure S1: Workflow of using gBlock gene fragments as the standard for the determination of the copy number, using gBlock I as example, Table S1: gBlock gene fragments used in this study, Table S2: Experimental details concerning quality control criteria when applying a log10 dilutional series of the gBlock in the respective qPCR approaches. Table S3: Virus-specific oligo sequences of the amplicons integrated in gBlocks I, II, III and IV.

Author Contributions

Conceptualization, J.D. and J.M.; methodology, S.H., C.S., L.K. and B.K.; validation, S.H., C.S. and L.K.; investigation, S.H., C.S. and L.K.; resources, J.M.; writing—original draft preparation, J.D., S.H., J.M. and C.S.; writing—review and editing, J.D., S.H., J.M., L.K., C.S. and B.K.; supervision and project administration, J.D. and B.K.; funding acquisition, J.D. and B.K. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Deutsche Forschungsgemeinschaft, TRR 127.

Institutional Review Board Statement

All samples for this study have been obtained according to national and international guidelines of animal welfare and were taken for diagnostic purposes only. The sampling of the pigs was approved by the Lower Saxony state veterinary office at the Niedersächsische Landesamt für Verbraucherschutz und Lebensmittelsicherheit, Oldenburg, Germany (Ref. No. 33.9-42502-05-19A408). The owner has approved the use of the samples by informed client consent.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data supporting the reported results can be found in this manuscript and in the supplementary materials.


The authors acknowledge Christian Sürie and Jens-Oliver Minx from the Farm for Education and Research Ruthe of the University of Veterinary Medicine Hannover for providing knowledge and data on the Mini-LEWE population. We particularly acknowledge their effort to preserve this valuable resource population. We would like to thank Sabrina Hansen and Ulla Küttler for excellent technical assistance and the working group of M. Veit, Institute of Virology, for providing the Influenza A supernatants. The publication of this article was funded by Freie Universität Berlin.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Lunney, J.K.; Van Goor, A.; Walker, K.E.; Hailstock, T.; Franklin, J.; Dai, C. Importance of the pig as a human biomedical model. Sci. Transl. Med. 2021, 13, 5758. [Google Scholar] [CrossRef] [PubMed]
  2. Meurens, F.; Summerfield, A.; Nauwynck, H.; Saif, L.; Gerdts, V. The pig: A model for human infectious diseases. Trends Microbiol. 2012, 20, 50–57. [Google Scholar] [CrossRef] [PubMed]
  3. McAnulty, P.A.; Dayan, A.D.; Ganderup, N.-C.; Hastings, K.L. (Eds.) The Minipig in Biomedical Research; CRC Press: Boca Raton, FL, USA, 2012. [Google Scholar]
  4. Bollen, P.J.A.; Hansen, A.K.; Alstrup, A.K.O. The Laboratory Swine, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2010. [Google Scholar]
  5. Gutierrez, K.; Dicks, N.; Glanzner, W.G.; Agellon, L.B.; Bordignon, V. Efficacy of the porcine species in biomedical research. Front. Genet. 2015, 6, 293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Panepinto, L.M. Miniature Swine Breeds used Worldwide in Research. In Advances in Swine in Biomedical Research; Springer: Singapore, 1996; pp. 681–691. [Google Scholar]
  7. Panepinto, L.M.; Kroc, R.L. History, genetic origins, and care of Yucatan miniature and micro pigs. Lab. Anim. 1995, 24, 31–34. [Google Scholar]
  8. Ellegaard Göttingen Minipigs. Available online: (accessed on 8 July 2021).
  9. Van der Windt, D.J.; Bottino, R.; Kumar, G.; Wijkstrom, M.; Hara, H.; Ezzelarab, M.; Ekser, B.; Phelps, C.; Murase, N.; Casu, A.; et al. Clinical islet xenotransplantation: How close are we? Diabetes 2012, 61, 3046–3055. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Morozov, V.A.; Ludwig, S.; Ludwig, B.; Rotem, A.; Barkai, U.; Bornstein, S.R.; Denner, J. Islet cell transplantation from Göttingen minipigs to cynomolgus monkeys: Analysis of virus safety. Xenotransplantation 2016, 23, 320–327. [Google Scholar] [CrossRef] [PubMed]
  11. Ekser, B.; Ezzelarab, M.; Hara, H.; van der Windt, D.J.; Wijkstrom, M.; Bottino, R.; Trucco, M.; Cooper, D.K. Clinical xenotrans-plantation: The next medical revolution? Lancet 2012, 379, 672–683. [Google Scholar] [CrossRef]
  12. Mansour, D.; Roberts, S.; Lee, M.; Shukrallah, B.; Whitson, B.A. The Role of Ex-vivo Lung Perfusion (EVLP) in Lung Trans-plantation. In Thoracic Surgery; Nistor, C.E., Tsui, S., Kirali, K., Nistor, C., Aresu, G., Kocher, G.J., Eds.; Springer: Cham, Switzerland, 2020; pp. 977–986. [Google Scholar]
  13. Leucht, W.; Gregor, G.; Stier, H. Das Miniaturschwein, Versuchs- und Modeltier in Medizin und Biologie; VEB Gustav Fischer: Jena, Germany, 1982; pp. 13–23. [Google Scholar]
  14. Schachler, K.; Minx, J.-O.; Sürie, C.; Distl, O.; Metzger, J. Genetic characterisation of Mini-LEWE as resource population for experimental research. Berl Münch Tierärtl Wochenschr 2020, 133. [Google Scholar] [CrossRef]
  15. Gregor, G. Das Miniaturschwein „Mini-LEWE“ und seine Eigenschaften. Monatsh Veterinarmed 1976, 31, 624–629. [Google Scholar]
  16. Morozov, V.A.; Plotzki, E.; Rotem, A.; Barkai, U.; Denner, J. Extended microbiological characterization of Göttingen minipigs: Porcine cytomegalovirus and other viruses. Xenotransplantation 2016, 23, 490–496. [Google Scholar] [CrossRef]
  17. Morozov, V.A.; Morozov, A.; Rotem, A.; Barkai, U.; Bornstein, S.; Denner, J. Extended Microbiological Characterization of Göttingen Minipigs in the Context of Xenotransplantation: Detection and Vertical Transmission of Hepatitis E Virus. PLoS ONE 2015, 10, e0139893. [Google Scholar] [CrossRef] [Green Version]
  18. Denner, J.; Längin, M.; Reichart, B.; Krüger, L.; Fiebig, U.; Mokelke, M.; Radan, J.; Mayr, T.; Milusev, A.; Luther, F.; et al. Impact of porcine cytomegalovirus on long-term or-thotopic cardiac xenotransplant survival. Sci. Rep. 2020, 10, 17531. [Google Scholar] [CrossRef] [PubMed]
  19. Denner, J. Reduction of the survival time of pig xenotransplants by porcine cytomegalovirus. Virol. J. 2018, 15, 1–7. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Plotzki, E.; Heinrichs, G.; Kubícková, B.; Ulrich, R.G.; Denner, J. Microbiological characterization of a newly established pig breed, Aachen Minipigs. Xenotransplantation 2016, 23, 159–167. [Google Scholar] [CrossRef]
  21. Morozov, V.A.; Heinrichs, G.; Denner, J. Effective Detection of Porcine Cytomegalovirus Using Non-Invasively Taken Samples from Piglets. Viruses 2017, 9, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Patience, C.; Takeuchi, Y.; Weiss, R.A. Infection of human cells by an endogenous retrovirus of pigs. Nat. Med. 1997, 3, 282–286. [Google Scholar] [CrossRef]
  23. Takeuchi, Y.; Patience, C.; Magre, S.; Weiss, R.A.; Banerjee, P.T.; Le Tissier, P.; Stoye, J.P. Host range and interference studies of three classes of pig endogenous retrovirus. J. Virol. 1998, 72, 9986–9991. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Denner, J.; Tönjes, R.R. Infection Barriers to Successful Xenotransplantation Focusing on Porcine Endogenous Retroviruses. Clin. Microbiol. Rev. 2012, 25, 318–343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Krüger, L.; Kristiansen, Y.; Reuber, E.; Möller, L.; Laue, M.; Reimer, C.; Denner, J. A Comprehensive Strategy for Screening for Xenotransplantation-Relevant Viruses in a Second Isolated Population of Göttingen Minipigs. Viruses 2019, 12, 38. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Denner, J.; Schuurman, K.J. High prevalence of recombinant porcine endogenous retroviruses (PERV-A/Cs) in minipigs: A review on origin and presence. Viruses 2021, 13, 1869. [Google Scholar] [CrossRef]
  27. Spizzo, T.; Denner, J.; Gazda, L.; Martin, M.; Nathu, D.; Scobie, L.; Takeuchi, Y. First update of the International Xenotransplan-tation Association consensus statement on conditions for undertaking clinical trials of porcine islet products in type 1 di-abetes--Chapter 2a: Source pigs-preventing xenozoonoses. Xenotransplantation 2016, 23, 25–31. [Google Scholar] [CrossRef] [PubMed]
  28. Niu, D.; Wei, H.-J.; Lin, L.; George, H.; Wang, T.; Lee, I.-H.; Zhao, H.-Y.; Wang, Y.; Kan, Y.; Shrock, E.; et al. Inactivation of porcine endogenous retrovirus in pigs using CRISPR-Cas9. Science 2017, 357, 1303–1307. [Google Scholar] [CrossRef] [Green Version]
  29. Güell, M. Genome-Wide PERV Inactivation in Pigs Using CRISPR/Cas9. Springer Protoc. Handb. 2020, 2110, 139–149. [Google Scholar] [CrossRef]
  30. Scobie, L.; Denner, J.; Schuurman, H.-J. Inactivation of porcine endogenous retrovirus in pigs using CRISPR-Cas9, editorial commentary. Xenotransplantation 2017, 24, e12363. [Google Scholar] [CrossRef]
  31. Gazda, L.S.; Collins, J.; Lovatt, A.; Holdcraft, R.W.; Morin, M.J.; Galbraith, D.; Graham, M.; Laramore, M.A.; MacLean, C.; Black, J.; et al. A comprehensive microbiological safety approach for agarose encapsulated porcine islets intended for clinical trials. Xenotransplantation 2016, 23, 444–463. [Google Scholar] [CrossRef]
  32. Hartline, C.B.; Conner, R.L.; James, S.H.; Potter, J.; Gray, E.; Estrada, J.; Tector, M.; Tector, A.J.; Prichard, M.N. Xenotransplantation panel for the detection of infectious agents in pigs. Xenotransplantation 2018, 25, e12427. [Google Scholar] [CrossRef] [Green Version]
  33. Noordergraaf, J.; Schucker, A.; Martin, M.; Schuurman, H.-J.; Ordway, B.; Cooley, K.; Sheffler, M.; Theis, K.; Armstrong, C.; Klein, L.; et al. Pathogen elimination and prevention within a regulated, Designated Pathogen Free, closed pig herd for long-term breeding and production of xenotransplantation materials. Xenotransplantation 2018, 25, e12428. [Google Scholar] [CrossRef] [Green Version]
  34. Busse, H. Über weitere Maßnahmen zur Züchtung eines kleinen Versuchsschweines für medizinische Zwecke. Monatsh Veterinarmed 1967, 23, 949–954. [Google Scholar]
  35. Schachler, K.; Suerie, C.; Minx, J.; Distl, O.; Metzger, J. Estimation of the genetic diversity in the Mini-Lewe breeding population and influence of inbreeding on litter traits. Zuchtungskd 2019, 91, 227–245. [Google Scholar]
  36. Yang, L.; Guell, M.; Niu, D.; George, H.; Lesha, E.; Grishin, D.; Aach, J.; Shrock, E.; Xu, W.; Poci, J. Genome-wide inacti-vation of porcine endogenous retroviruses (PERVs). Science 2015, 350, 1101–1104. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Dieckhoff, B.; Kessler, B.; Jobst, D.; Kues, W.; Petersen, B.; Pfeifer, A.; Kurth, R.; Niemann, H.; Wolf, E.; Denner, J. Distri-bution and expression of porcine endogenous retroviruses in multi-transgenic pigs generated for xenotransplantation. Xenotransplantation 2009, 16, 64–73. [Google Scholar] [CrossRef] [PubMed]
  38. Wood, J.C.; Quinn, G.; Suling, K.M.; Oldmixon, B.A.; Van Tine, B.A.; Cina, R.; Arn, S.; Huang, C.A.; Scobie, L.; Onions, D.E.; et al. Identification of Exogenous Forms of Human-Tropic Porcine Endogenous Retrovirus in Miniature Swine. J. Virol. 2004, 78, 2494–2501. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Jothikumar, N.; Cromeans, T.L.; Robertson, B.H.; Meng, X.J.; Hill, V.R. A broadly reactive one-step real-time RT-PCR assay for rapid and sensitive detection of hepatitis E virus. J. Virol. Methods 2006, 131, 65–71. [Google Scholar] [CrossRef] [PubMed]
  40. Groenke, N. Molecular Mechanism of Virus Attenuation by Codon Pair Deoptimization. Ph.D. Thesis, Free University, Berlin, Germany, 2019. [Google Scholar]
  41. Mueller, N.J.; Barth, R.; Yamamoto, S.; Kitamura, H.; Patience, C.; Yamada, K.; Cooper, D.K.C.; Sachs, D.H.; Kaur, A.; Fishman, J.A. Activation of Cytomegalovirus in Pig-to-Primate Organ Xenotransplantation. J. Virol. 2002, 76, 4866–4872. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Chmielewicz, B.; Goltz, M.; Franz, T.; Bauer, C.; Brema, S.; Ellerbrok, H.; Beckmann, S.; Rziha, H.-J.; Lahrmann, K.-H.; Romero, C.; et al. A novel porcine gammaherpesvirus. Virology 2003, 308, 317–329. [Google Scholar] [CrossRef] [Green Version]
  43. Chen, N.; Xiao, Y.; Li, X.; Li, S.; Xie, N.; Yan, X.; Li, X.; Zhu, J. Development and application of a quadruplex real-time PCR assay for differential detection of porcine circoviruses (PCV1 to PCV4) in Jiangsu province of China from 2016 to 2020. Transbound. Emerg. Dis. 2021, 68, 1615–1624. [Google Scholar] [CrossRef] [PubMed]
  44. Palinski, R.; Piñeyro, P.; Shang, P.; Yuan, F.; Guo, R.; Fang, Y.; Byers, E.; Hause, B.M. A Novel Porcine Circovirus Distantly Related to Known Circoviruses Is Associated with Porcine Dermatitis and Nephropathy Syndrome and Reproductive Failure. J. Virol. 2017, 91, e01879-16. [Google Scholar] [CrossRef] [Green Version]
  45. Opriessnig, T.; Shen, H.G.; Pal, N.; Ramamoorthy, S.; Huang, Y.W.; Lager, K.M.; Beach, N.M.; Halbur, P.G.; Meng, X. A Live-Attenuated Chimeric Porcine Circovirus Type 2 (PCV2) Vaccine Is Transmitted to Contact Pigs but Is Not Upregulated by Concurrent Infection with Porcine Parvovirus (PPV) and Porcine Reproductive and Respiratory Syndrome Virus (PRRSV) and Is Efficacious in a PCV2b-PRRSV-PPV Challenge Model. Clin. Vaccine Immunol. 2011, 18, 1261–1268. [Google Scholar] [CrossRef] [PubMed]
  46. Duvigneau, J.; Hartl, R.; Groiss, S.; Gemeiner, M. Quantitative simultaneous multiplex real-time PCR for the detection of porcine cytokines. J. Immunol. Methods 2005, 306, 16–27. [Google Scholar] [CrossRef] [PubMed]
  47. Facci, M.R.; Auray, G.; Meurens, F.; Buchanan, R.; van Kessel, J.; Gerdts, V. Stability of expression of reference genes in porcine peripheral blood mononuclear and dendritic cells. Veter. Immunol. Immunopathol. 2011, 141, 11–15. [Google Scholar] [CrossRef] [PubMed]
  48. IDT. Tips for Working with gBlocks Gene Fragments—How to Resuspend, Quantify, and Calculate Copy Number. Available online: (accessed on 30 September 2021).
  49. Zhang, H.H.; Hu, W.Q.; Li, J.Y.; Liu, T.N.; Zhou, J.Y.; Opriessnig, T.; Xiao, C.T. Novel circovirus species identified in farmed pigs designated as Porcine circovirus 4, Hunan province, China. Transbound. Emerg. Dis. 2019, 67, 1057–1061. [Google Scholar] [CrossRef] [PubMed]
  50. Corman, V.M.; Landt, O.; Kaiser, M.; Molenkamp, R.; Meijer, A.; Chu, D.K.; Bleicker, T.; Brünink, S.; Schneider, J.; Schmidt, M.L.; et al. Detection of 2019 novel coronavirus (2019-nCoV) by real-time RT-PCR. Eurosurveillance 2020, 25, 2000045. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Xiao, C.-T.; Giménez-Lirola, L.; Huang, Y.-W.; Meng, X.-J.; Halbur, P.G.; Opriessnig, T. The prevalence of Torque teno sus virus (TTSuV) is common and increases with the age of growing pigs in the United States. J. Virol. Methods 2012, 183, 40–44. [Google Scholar] [CrossRef] [PubMed]
  52. Behrendt, R.; Fiebig, U.; Norley, S.; Gürtler, L.; Kurth, R.; Denner, J. A neutralization assay for HIV-2 based on measurement of provirus integration by duplex real-time PCR. J. Virol. Methods 2009, 159, 40–46. [Google Scholar] [CrossRef] [PubMed]
  53. Zhao, K.; Han, F.; Zou, Y.; Zhu, L.; Li, C.; Xu, Y.; Zhang, C.; Tan, F.; Wang, J.; Tao, S.; et al. Rapid detection of porcine circovirus type 2 using a TaqMan-based real-time PCR. Virol. J. 2010, 7, 374. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. McMahon, K.J.; Minihan, D.; Campion, E.M.; Loughran, S.T.; Allan, G.; McNeilly, F.; Walls, D. Infection of pigs in Ireland with lymphotropic γ-herpesviruses and relationship to postweaning multisystemic wasting syndrome. Veter. Microbiol. 2006, 116, 60–68. [Google Scholar] [CrossRef] [PubMed]
  55. Bustin, S.; Benes, V.; Garson, J.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.; Shipley, G.; et al. The need for transparency and good practices in the qPCR literature. Nat. Methods 2013, 10, 1063–1067. [Google Scholar] [CrossRef] [PubMed]
  56. Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L.; et al. The MIQE Guidelines: Minimum Information for Publication of Quantitative Real-Time PCR Experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef] [Green Version]
  57. Becker, A.-C.; Kraemer, A.; Epe, C.; Strube, C. Sensitivity and efficiency of selected coproscopical methods—sedimentation, combined zinc sulfate sedimentation-flotation, and McMaster method. Parasitol. Res. 2016, 115, 2581–2587. [Google Scholar] [CrossRef]
  58. Gregor, G.; H-Bohrisch, H.-G.; Knorck, H. Erfahrungen mit der spezifisch-pathogenfreien Haltung (SPF) des Miniaturschweines Mini-Lewe (Experience with specific-pathogen-free (SPF) "Mini-Lewe" miniature pigs). MH Vet. Med. 1980, 35, 190–193. [Google Scholar]
  59. Denner, J. Sensitive detection systems for infectious agents in xenotransplantation. Xenotransplantation 2020, e12594. [Google Scholar] [CrossRef] [Green Version]
  60. Denner, J. Xenotransplantation and Hepatitis E virus. Xenotransplantation 2015, 22, 167–173. [Google Scholar] [CrossRef] [PubMed]
  61. Denner, J.; Pischke, S.; Steinmann, E.; Blümel, J.; Glebe, D. Why all blood donations should be tested for hepatitis E virus (HEV). BMC Infect. Dis. 2019, 19, 1–5. [Google Scholar] [CrossRef] [Green Version]
  62. Krüger, L.; Längin, M.; Reichart, B.; Fiebig, U.; Kristiansen, Y.; Prinz, C.; Kessler, B.; Egerer, S.; Wolf, E.; Abicht, J.-M.; et al. Transmission of Porcine Circovirus 3 (PCV3) by Xenotransplantation of Pig Hearts into Baboons. Viruses 2019, 11, 650. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Wynyard, S.; Nathu, D.; Garkavenko, O.; Denner, J.; Elliott, R. Microbiological safety of the first clinical pig islet xenotransplantation trial in New Zealand. Xenotransplantation 2014, 21, 309–323. [Google Scholar] [CrossRef] [PubMed]
  64. Morozov, V.A.; Wynyard, S.; Matsumoto, S.; Abalovich, A.; Denner, J.; Elliott, R. No PERV transmission during a clinical trial of pig islet cell transplantation. Virus Res. 2017, 227, 34–40. [Google Scholar] [CrossRef]
  65. Paradis, K.; Langford, G.; Long, Z.; Heneine, W.; Sandstrom, P.; Switzer, W.M.; Chapman, L.E.; Lockey, C.; Onions, D.; Otto, E. Search for Cross-Species Transmission of Porcine Endogenous Retrovirus in Patients Treated with Living Pig Tissue. Science 1999, 285, 1236–1241. [Google Scholar] [CrossRef] [Green Version]
  66. Denner, J.; Schuurman, H.J.; Patience, C. The International Xenotransplantation Association consensus statement on conditions for undertaking clinical trials of porcine islet products in type 1 diabetes--chapter 5: Strategies to prevent transmission of porcine endogenous retroviruses. Xenotransplantation 2009, 16, 239–248. [Google Scholar] [CrossRef] [PubMed]
  67. Morozov, V.A.; Abicht, J.M.; Reichart, B.; Mayr, T.; Guethoff, S.; Denner, J. Active replication of porcine cytomegalovirus (PCMV) following transplantation of a pig heart into a baboon despite undetected virus in the donor pig. Ann. Virol. Res. 2016, 2, 1018. [Google Scholar]
  68. Saade, G.; Deblanc, C.; Bougon, J.; Marois-Créhan, C.; Fablet, C.; Auray, G.; Belloc, C.; Leblanc-Maridor, M.; Gagnon, C.A.; Zhu, J.; et al. Coinfections and their molecular consequences in the porcine respiratory tract. Veter. Res. 2020, 51, 1–19. [Google Scholar] [CrossRef] [PubMed]
  69. Martin, S.I.; Wilkinson, R.; Fishman, J.A. Genomic presence of recombinant porcine endogenous retrovirus in transmitting miniature swine. Virol. J. 2006, 3, 91–96. [Google Scholar] [CrossRef] [Green Version]
  70. Fishman, J.A.; Sachs, D.H.; Yamada, K.; Wilkinson, R.A. Absence of interaction between porcine endogenous retrovirus and porcine cytomegalovirus in pig-to-baboon renal xenotransplantation in vivo. Xenotransplantation 2018, 25, e12395. [Google Scholar] [CrossRef]
  71. Yamada, K.; Tasaki, M.; Sekijima, M.; Wilkinson, R.A.; Villani, V.; Moran, S.G.; Cormack, T.A.; Hanekamp, I.; Arn, J.S.; Fishman, J.A.; et al. Porcine Cytomegalovirus Infection Is Associated With Early Rejection of Kidney Grafts in a Pig to Baboon Xenotransplantation Model. Transplantation 2014, 98, 411–418. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Bittmann, I.; Mihica, D.; Plesker, R.; Denner, J. Expression of porcine endogenous retroviruses (PERV) in different organs of a pig. Virology 2012, 433, 329–336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Dieckhoff, B.; Puhlmann, J.; Büscher, K.; Hafner-Marx, A.; Herbach, N.; Bannert, N.; Büttner, M.; Wanke, R.; Kurth, R.; Denner, J. Expression of porcine endogenous retroviruses (PERVs) in melanomas of Munich miniature swine (MMS) Troll. Veter. Microbiol. 2007, 123, 53–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Tenter, A.M.; Heckeroth, A.R.; Weiss, L.M. Toxoplasma gondii: From animals to humans. Int. J. Parasitol. 2000, 30, 1217–1258. [Google Scholar] [CrossRef] [Green Version]
  75. Kijlstra, A.; Meerburg, B.; Mul, M. Animal-friendly production systems may cause re-emergence of Toxoplasma gondii. NJAS Wagening. J. Life Sci. 2004, 52, 119–132. [Google Scholar] [CrossRef] [Green Version]

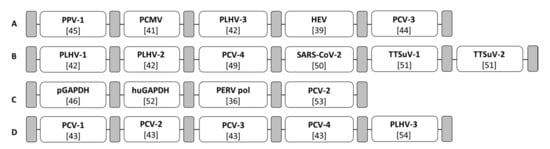

Figure 1. Schematic representation of four gBlocks: gBlock I (A), gBlock II (B), gBlock III (C), gBlock IV (D). Sequences of the investigated viruses were taken from [36,39,41,42,43,44,46,49,50,51,52,53,54]. Grey boxes indicate spacers; white boxes are virus-specific oligosequences corresponding to primer and probe. References are given in brackets; detailed information on the oligosequences are listed in Table S1.
Figure 1. Schematic representation of four gBlocks: gBlock I (A), gBlock II (B), gBlock III (C), gBlock IV (D). Sequences of the investigated viruses were taken from [36,39,41,42,43,44,46,49,50,51,52,53,54]. Grey boxes indicate spacers; white boxes are virus-specific oligosequences corresponding to primer and probe. References are given in brackets; detailed information on the oligosequences are listed in Table S1.
Microorganisms 09 02617 g001
Table 1. Characterization of the ten Mini-LEWE minipigs that were tested in this study.
Table 1. Characterization of the ten Mini-LEWE minipigs that were tested in this study.
Sample IDGenderAnimal
Age at the Time of Sampling
LEWE-1femalebreeding animal10 years
LEWE-2femalebreeding animal6 years
LEWE-3femalebreeding animal5 years
LEWE-4malebreeding animal6 months
LEWE-5maleoffspring13 months
LEWE-6maleoffspring13 months
LEWE-7maleoffspring6 months
LEWE-8maleoffspring6 months
LEWE-9maleoffspring4 months
LEWE-10maleoffspring4 months
Table 2. Primers and probes used in this study.
Table 2. Primers and probes used in this study.
PCR AssayPrimer/ProbeSequence 5′-3′Amplicon
(Base Pair)
PCV1PCV-1 (F2020)-FwdAAC CCC ATA AGA GGT GGG TGT T129[43] modified
PCV2PCV-2 (F2020)-FwdCTG AGT CTT TTT TAT CAC TTC GTA ATG GT146[43] modified
PPV-1PPV-1-FwdCAG AAT CAG CAA CCT CAC CA106[45] modified
Flu-A (NA)NG05 NA-FwdCTG GAC TAG TGG GAG CAT CA93[40] modified
Fwd = forward primer, Rev = reverse primer.
Table 3. Prevalence of PERVs in Mini-LEWE minipigs 1.
Table 3. Prevalence of PERVs in Mini-LEWE minipigs 1.
1 PERV pol were detected using a real-time PCR, and the numbers indicate the Ct value; PERV-C and PERV-A/C were detected using a conventional PCR.
Table 4. Absence of HEV in ten Mini-LEWE minipigs.
Table 4. Absence of HEV in ten Mini-LEWE minipigs.
Sample IDHEVFlu-A (NA)
LEWE-1no Ct27.20 *
LEWE-2no Ct26.59
LEWE-3no Ct26.83
LEWE-4no Ct27.23
LEWE-5no Ct32.91
LEWE-6no Ct31.06
LEWE-7no Ct31.83
LEWE-8no Ct27.60
LEWE-9no Ct32.17
LEWE-10no Ct26.92
* The numbers indicate the Ct values.
Table 5. Virus prevalence in six minipig breeds analyzed in our laboratory.
Table 5. Virus prevalence in six minipig breeds analyzed in our laboratory.
Minipig Breed 1Institution/
Mini LEWE 2University of Veterinary Medicine Hannover, Germany10/10
this manuscript
Göttingen minipigs Ellegaard Göttingen Minipigs A/S, Denmark28/28None
n.t. 33/21
Göttingen minipigs University Göttingen, Göttingen, Germany11/113/13
PBMCs 0/10n.t.3/10
Aachen minipigs 4Aachen Minipig, Heinsberg,
liver spleen
n.t.6/18 antibodiesn.t.12/18
Yucatan micropigCharles River, Saint-Aubin-Les-Elbeuf, France1/1 51/1
Munich miniature swine (MMS) 6Institute of Veterinary Pathology, University of MunichYes5/5
1 all animals were PERV-A and PERV-B positive, 2 the animals were in addition negative for PCV4 and PPV1; 3 n.t., not tested; 4 the animals were in addition negative for the suid herpesvirus-1 (SuHV-1), 1/10 positive for the porcine reproductive and respiratory syndrome virus (PRRSV), 1/10 positive for the porcine epidemic diarrhea virus (PEDV), negative for the African swine fever virus, and the classical swine fever virus (CSFV); 5 PERV proteins were found in different organs by immunohistochemistry; 6 strain Troll.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Halecker, S.; Metzger, J.; Strube, C.; Krabben, L.; Kaufer, B.; Denner, J. Virological and Parasitological Characterization of Mini-LEWE Minipigs Using Improved Screening Methods and an Overview of Data on Various Minipig Breeds. Microorganisms 2021, 9, 2617.

AMA Style

Halecker S, Metzger J, Strube C, Krabben L, Kaufer B, Denner J. Virological and Parasitological Characterization of Mini-LEWE Minipigs Using Improved Screening Methods and an Overview of Data on Various Minipig Breeds. Microorganisms. 2021; 9(12):2617.

Chicago/Turabian Style

Halecker, Sabrina, Julia Metzger, Christina Strube, Ludwig Krabben, Benedikt Kaufer, and Joachim Denner. 2021. "Virological and Parasitological Characterization of Mini-LEWE Minipigs Using Improved Screening Methods and an Overview of Data on Various Minipig Breeds" Microorganisms 9, no. 12: 2617.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
