Characterization of Non-O157 Escherichia coli from Cattle Faecal Samples in the North-West Province of South Africa

Department of Microbiology, Faculty of Natural and Agricultural Sciences, North-West University, Mafikeng Campus, Private Bag X2046, Mmabatho 2735, South Africa
Agriculture and Agri-Food Canada, Lethbridge Research and Development Centre, Lethbridge, AB T1J 4B1, Canada
Alberta Agriculture and Forestry, Lethbridge, AB T1J 4V6, Canada
Alberta Agriculture and Forestry, Edmonton, AB T6H 4P2, Canada
Department of Ecosystem and Public Health, Faculty of Veterinary Medicine, University of Calgary, Calgary, AB T2N 1N4, Canada
Authors to whom correspondence should be addressed.
Microorganisms 2019, 7(8), 272;
Submission received: 16 July 2019 / Revised: 16 August 2019 / Accepted: 17 August 2019 / Published: 20 August 2019
(This article belongs to the Special Issue Antimicrobial Resistance in Livestock)


Escherichia coli are commensal bacteria in the gastrointestinal tract of mammals, but some strains have acquired Shiga-toxins and can cause enterohemorrhagic diarrhoea and kidney failure in humans. Shiga-toxigenic E. coli (STEC) strains such as E. coli O157:H7 and some non-O157 strains also contain other virulence traits, some of which contribute to their ability to form biofilms. This study characterized non-O157 E. coli from South African cattle faecal samples for their virulence potential, antimicrobial resistance (AMR), biofilm-forming ability, and genetic relatedness using culture-based methods, pulsed-field gel electrophoresis (PFGE), and whole genome sequencing (WGS). Of 80 isolates screened, 77.5% (62/80) possessed Shiga-toxins genes. Of 18 antimicrobials tested, phenotypic resistance was detected against seven antimicrobials. Resistance ranged from 1.3% (1/80) for ampicillin-sulbactam to 20% (16/80) for tetracycline. Antimicrobial resistance genes were infrequently detected except for tetA, which was found in 31.3% (25/80) and tetB detected in 11.3% (9/80) of isolates. Eight biofilm-forming associated genes were detected in STEC isolates (n = 62) and two non-STEC strains. Prevalence of biofilm genes ranged from 31.3% (20/64) for ehaAβ passenger to 100% for curli structural subunit (csgA) and curli regulators (csgA and crl). Of the 64 STEC and multi-drug resistant isolates, 70.3% (45/64) and 37.5% (24/64) formed strong biofilms on polystyrene at 22 and 37 °C, respectively. Of 59 isolates screened by PFGE, 37 showed unique patterns and the remaining isolates were grouped into five clusters with a ≥90% relatedness. In silico serotyping following WGS on a subset of 24 non-O157 STEC isolates predicted 20 serotypes comprising three novel serotypes, indicating their diversity as potential pathogens. These findings show that North West South African cattle harbour genetically diverse, virulent, antimicrobial-resistant and biofilm-forming non-O157 E. coli. Biofilm-forming ability may increase the likelihood of persistence of these pathogens in the environment and facilitate their dissemination, increasing the risk of cross contamination or establishment of infections in hosts.

1. Introduction

Shiga-toxigenic E. coli (STEC) strains such as E. coli O157 and non-O157 (e.g., O26, O45, O91, O103, O104, O111, O113, O121, O118, O128, O145, O148 and O174) have acquired genetic traits that make them pathogenic to humans. These strains have caused both sporadic illness and outbreaks of food and water-borne infections worldwide [1,2,3]. Infections range from simple diarrhoea to the more complicated haemorrhagic colitis (HC), haemolytic uremic syndrome (HUS) and thrombotic thrombocytopenic purpura [4]. The consumption of contaminated food and water is generally known to be the most common mode of transmission [5]. Beef and dairy cattle are considered the main reservoir of these pathogens [6]. Oral rehydration is the principal method for the treatment of symptoms such as diarrhoea linked with E. coli infections [7]. The use of antibiotics for E. coli infections, especially STEC, remains a cause for concern as some strains exhibit resistance to a variety of antimicrobials, and antimicrobial therapy can heighten toxin production in STEC, increasing the risk of HUS [4,8]. E. coli strains that produce Shiga toxins (Stx) are termed Shiga-toxigenic STECand possess variants of the stx1 and stx2 genes, respectively [9]. Despite the fact that Shiga-toxins are the main virulence factors of STEC [10], additional accessory virulence factors such as adhesins, pili, intimin and hemolysin also contribute to pathogenicity.
A biofilm is the aggregation of microbial cells on a surface surrounded by a protective extracellular polymeric matrix [11]. Biofilms are major contributors to the persistence of undesirable bacteria in both food-processing plants and hospitals, as they are tenacious and resist disinfection or treatment [12,13]. This situation is exacerbated by the fact that most STEC has a very low infectious dose (i.e., <10 cells) [14]. Mature biofilms occasionally rupture, dispersing daughter cells [15], which can form new biofilms on contact surfaces or food [16,17,18]. In nature, bacteria predominantly exist within biofilms [19] and these communities are also frequently associated with infections in humans [20]. It has also been reported that non-O157 STEC forms biofilms on food contact surfaces. Therefore, biofilms could serve as potential reservoirs for food contamination, spoilage and sources of infection for consumers [21].
Attention has been directed towards the detection and characterization of E. coli O157:H7 in South Africa [22,23,24] and particularly in the North West Region [25,26]. However, previous studies investigating non-O157 STEC are limited. This study characterized non-O157 E. coli from cattle faecal samples for their virulence potential, antimicrobial resistance, biofilm-forming ability and genetic relatedness in consideration of the potential for disease associated with non-O157 STEC strains.

2. Materials and Methods

2.1. Sample Collection and Bacteria Isolation

A total of 600 faecal samples were collected from February 2015 to March 2017. Collection was performed from 3 commercial beef and/or dairy farms in 3 regions (Rooigrond, Vryburg and Koster) of the North-West Province (Mafikeng) of South Africa. Samples were transported on ice and analyzed immediately upon arrival in the laboratory. One gram of faecal sample was suspended in 7 mL MacConkey broth medium (Biolab Merck, Gauteng, South Africa) and incubated aerobically at 37 °C for 4 h. After incubation, 10-fold serial dilutions were prepared in sterile, distilled water and 100 μL aliquots of each dilution were spread-plated onto sorbitol-MacConkey agar (Sigma-Aldrich, St. Louis, MO, USA). Plates were incubated aerobically at 37 °C for 24 h. Presumptive non-O157 E. coli isolates (pink) were sub-cultured onto sorbitol MacConkey agar and the plates were incubated aerobically at 37 °C for 24 h. The sub-cultured bacteria were preserved in 50% (v/v) glycerol and stored at −80 °C for further microbiological studies (Figure S1 in the Supplemental Material). Genomic DNA was extracted from overnight bacterial cultures prepared in Luria-Bertani broth (Merck, Darmstadt, Germany), using the ZR Fungal/Bacterial DNA MiniPrepTM kit (Epigenetics Company, Irvine, CA, USA) according to the manufacturer’s instructions. Using PCR primers targeting E. coli uidA, 450 isolates were confirmed as E. coli [27]. PCR reactions were prepared in 25 μL total volumes comprised of 1 μM of the template DNA, 50 pmol of each oligonucleotide primer set, DreamTaq Green PCR Master Mix (2 X) (Thermo Scientific, Toronto, ON, Canada) and nuclease-free water. Thermal cycling conditions using a C1000 TouchTM Thermal Cycler (Bio-Rad, Hercules, CA, USA) were as follow: 95 °C for 5 min, followed by 35 cycles of 95 °C for 30 sec, 59 °C for 30 sec, 72 °C for 1.5 min and a final extension at 72 °C for 10 min. Positive E. coli uidA isolates were subsequently run in an E. coli O157 specific PCR [28] to eliminate E. coli O157 isolates from further analyses. PCR conditions for rfbO157 detection were as follows: 95 °C for 3 min, 10 cycles of 95 °C for 1 min, 65 °C for 2 min, 72 °C for 90 s at 72 °C for 10 min. Eighty of the presumptive non-O157 E. coli isolates were randomly selected from different regions (Rooigrond dairy n = 22, Rooigrond beef n = 28, Koster dairy n = 20 and Vryburg beef n = 10) and transported as bacterial glycerol stocks to the Lethbridge Research and Development Centre, Canada in accordance with Public Health Agency of Canada Regulations (,

2.2. PCR Based Detection of Virulence Genes

Genomic DNA was extracted from the overnight bacterial culture in LB broth (Merck, Germany), using the NucleoSpin® Tissue Kit (Macherey-Nagel, Bethlehem, PA, USA). The purity and concentration of the DNA were determined using the Nanodrop Lite spectrophotometer (Thermo Fisher Scientific, Verona, WI, USA). Bacterial isolates were screened for AMR [29] and biofilm-forming genes by PCR (Table S1 in the Supplemental Material). PCR reactions were performed in a 25 µL volume comprised of HotStar Plus MasterMix (Qiagen, Mississauga, ON, USA), 1 μM of the template DNA, 0.2 μM of each primer set and nuclease-free water. Multiplex PCR was used for the detection of the virulence genes [30]. The PCR mixture comprised QuantiFast Master Mix (Qiagen), 1 μM of the template DNA, 0.2 μM of each primer set and nuclease-free water. E. coli O157:H7 strain R508 and E. coli O26 strain (EC19960464), which carry stx2, hlyA, eaeA and stx1 genes, respectively, which were used as positive controls. Amplicons were resolved by gel electrophoresis using 2% (w/v) agarose at 70 V for 1 h, stained with gelRed and visualized using a UV transilluminator Gel Doc (BioRAD, Hercules, CA, USA). In each gel, a 1 kb plus molecular marker (Thermo Scientific), negative and positive controls were also included.

2.3. Antimicrobial Susceptibility Assay

Antimicrobial resistance (AMR) was determined on 80 non-O157 E. coli isolates using the disc diffusion technique [31]. Eighteen antibiotics (BD, Mississauga, ON, Canada) were tested: Ampicillin-sulbactam (AMS; 10/10 µg), amoxicillin-clavulanate (AMC; 20/10 µg), ampicillin (AMP; 10 µg), aztreonam (AZT; 30 µg), cefoxitin (FOX; 30 µg), cefotaxime (FOT; 30 µg), ceftazidime (TAZ; 30 µg), cefepime (CPM; 30 µg), imipenem (IPM; 10 µg), meropenem (MRP; 10 µg), gentamicin (GEN; 10 µg), streptomycin (STR; 10 µg), tetracycline (TET; 30 µg), colistin (CL; 10 µg), chloramphenicol (CHL; 30 µg), nalidixic acid (NAL; 30 µg), norfloxacin (NOR; 10 µg) and trimethoprim-sulfamethoxazole (SXT; 1.25/23.75 µg). The discs were placed on inoculated Mueller-Hinton agar (Dalynn Biologicals, Calgary, AB, Canada) and incubated aerobically at 37 °C for 18 h. Zones of growth inhibition were measured using a Biomic automated zone reader (Giles Scientific, Santa Barbara, CA, USA). Reference values [31] were used to classify isolates as resistant, intermediate resistant and susceptible to a particular antimicrobial agent (Table S2 in the Supplemental Material). E. coli ATCC 25922, Pseudomonas aeruginosa ATCC 27853 and E. coli ATCC 35218 were used as standards as described in Clinical and Laboratory Standards Institute (CLSI) guidelines [31].

2.4. Biofilm Formation Assay

Based on virulence gene and AMR profiles, 62 stx positive and 2 multidrug-resistant (non-STEC) isolates, were selected for biofilm evaluation in 96-well polystyrene microtiter plates (Nunc, Edmonton, AB, Canada) using a modification of methods described by Wang et al. [17]. Bacterial strains were grown overnight at 37 °C in minimal salt (M9) medium (Sigma-Aldrich) supplemented with 0.4% glucose, 0.02% MgSO4·7H2O and 0.001% CaCl2 (w/v) without casamino acid for 24 h. After incubation, the cultures were diluted (1:10) in M9 broth and 200 µL of diluted cultures were transferred into the wells in 8 replicates. Plates were incubated at 22 °C or 37 °C for 24 h, 48 h or 72 h. M9 broth only without bacteria was used as a negative control. After incubation, planktonic cells were removed, and wells were washed thrice with sterile water to remove the remaining unattached cells. Plates were fixed with 250 µL of absolute methanol (analytical grade, >99%, Sigma-Aldrich) per well for 20 min at room temperature. After being drained and air-dried, the biofilms were stained with 0.5% (w/v) crystal violet (Sigma-Aldrich) solution for 20 min. Plates were then washed 3 times with water and air-dried at room temperature. Crystal violet bound to the biofilm was then dissolved by adding 200 µL of 33% glacial acetic acid (Sigma-Aldrich) per well. An aliquot of 125 µL of 33% glacial acetic acid solution was removed from each well, transferred to new microplates and the optical density (OD590 nm) was measured in an ELISA plate reader (SynergyTM HT BioTek). The optical density cut-off value (ODc) of 0.082 was determined to be 3 standard deviations above the mean OD of the negative controls. According to Stepanović et al. [32], strains were classified as follows: OD ≤ ODc, non-adherent; ODc < OD ≤2 X ODc, weakly adherent; 2 X ODc < OD ≤4 X ODc, moderately adherent and 4 X ODc < OD strongly adherent based on OD590 nm values obtained as a result of biofilm formation.

2.5. Pulsed-Field Gel Electrophoresis (PFGE)

Non-O157 E. coli isolates were typed using a Clamped Homogeneous Electric Field-Dynamic Regulation (CHEFDRIII) system (Bio-Rad, Hercules, CA, USA) as described by Ribot et al. [33]. Briefly, agarose-embedded DNA of non-O157 E. coli was digested for 2 h with 20 units of XbaI restriction enzyme (New England Biolabs, Pickering, ON, Canada). Restriction fragments of DNA were separated on a 1% SeaKem Gold (SKG) agarose (Lonza, USA). The electrophoresis conditions for non-O157 E. coli were based on the Centre for Disease and Control (CDC) [34] protocol comprising an initial switch time of 6.76 s, final switch time of 35.38 s, voltage 6 V, angle: 120° and a run time of 18 h. Gel images were captured on a Gel Doc imaging system (Alpha Innotech, San Leandro, CA, USA), and analyzed with BioNumerics software version 7.6 (Applied Maths, Sint-Martens-Latem, Belgium). Salmonella Braenderup reference standard (H9812) was used as a control and for standardization of the gels. Band similarity was calculated by applying the dice coefficient method with an optimization of 0.5% and a band matching tolerance of 1%. Cluster analysis was performed using the unweighted pair group methods arithmetic average algorithm to construct a dendrogram.

2.6. Whole Genome Sequencing (WGS)

Of the 80 isolates investigated in this study, 24 isolates representing different sampling regions, virulence and AMR gene profiles, biofilm-forming ability on polystyrene and PFGE profiles were selected for WGS. WGS was performed at the Agri-Food Laboratories, (Alberta Agriculture and Forestry, Edmonton, AB, USA). DNA was quality checked and quantified using a Qubit fluorometer (ThermoFisher, Waltham, MA, USA) and a Tapestation 4200 system (Agilent, Santa Clara, CA, USA). Sample libraries were prepared using the Nextera XT library preparation kit protocol (Illumina, Inc., San Diego, CA, USA). Sequencing was performed on the Illumina MiSeq platform using the MiSeq Reagent Kit V3 to produce 251 bp paired-end reads. Sequencing reads were de novo assembled into contigs using the Shovill pipeline ( Shovill included trimming, which was performed with Trimmomatic 0.38, and de novo assembly was performed with SPAdes version 3.13.0. [35]. Draft genome assemblies were annotated with Prokka [36]. Contigs were searched against databases for serotype determinants, virulence factor genes, AMR genes and plasmids using ABRicate version 0.8.7 ( Non-O157 E. coli serotype determinants (O- and H-antigen sequences) were inferred in silico using the EcOH database ( C105 E03), which was originally developed to work with the Short Read Sequence Typing for Bacterial Pathogens (SRST2) program [37]. The EcOH database contained sequences of the O-antigen loci [either wzx (O-antigen flippase) and wzy (O-antigen polymerase)], or the ABC transporter (wzm and wzt)) and H-antigen (fliC and flnA) with referenced loci in the E. coli O-groups and H-types. The virulence factor (VF) profile was generated by searching contigs against the E. coli_VF database ( Virulence factors were considered as present if the nucleotide sequence identity was above 70% compared to reference gene length. Antimicrobial resistance gene profiles were generated by searching contigs against the Comprehensive Antibiotic Resistance Database [38], and plasmid search profiles were generated by searching contigs against the replicon sequences from the plasmidFinder database ( Replicon sequence identity above 80% was considered present against each genome.

2.7. Statistical Analyses

Biofilm results compiled from 3 replicates were scored as weak biofilm (non and weakly adherent) and strong biofilm (intermediate and strongly adherent) based on the criteria of [32]. The optical density of the biofilm was log transformed prior to analysis using the mixed model procedure of SAS (SAS 9.4, SAS Institute, Cary, NC, USA), with isolate * temperature * time as the experimental unit. For mixed model analyses, incubation temperature (22 °C or 37 °C), duration of incubation, and isolate were fixed effects, with replicate treated as a repeated measure. The influence of the source of the isolate and type of farm on presence/absence of genes for AMR was determined by generalized linear mixed models (Proc Glimmix) using a binomial distribution. Model adjusted means (back transformed to original scale) and 95% confidence intervals were reported. The isolate was the experimental unit, with the geographical region of origin and type of cattle (beef or dairy) as fixed effects. The relationships between biofilm formation and biofilm-forming genes; AMR phenotype and AMR genes were assessed using the logistic procedure with Firth’s bias adjustment. For all statistical tests, significance was p <0.05.

3. Results

3.1. PCR Detection of Shiga Toxins and Virulence

The majority of non-O157 E. coli strains (75%, 60/80) possessed stx2, 65% (52/80) possessed enterohaemolysin A (hlyA), while stx1 and eaeA were detected in a small proportion of isolates, 25% (20/80) and 15% (16/80), respectively (Table 1). Twenty percent (16/80) of the isolates harboured both stx2 and stx1 genes, while the Shiga-toxin Stx2 a was present in 13.8% (11/80) of isolates (Table 1). However, it was noted that PCR detection of Shiga toxins and virulence genes was not consistent after the second sub-culturing of the same bacterial glycerol stock (Figure S1 in the Supplemental Material).

3.2. Antimicrobial Susceptibility of Non-O157 E. coli

Susceptibility to 18 antimicrobials was tested, with resistance observed for eight antimicrobials (AMS; β-lactam/β-lactamase inhibitor combinations, AMP; Ampicillins, STR; Aminoglycosides, CHL; Phenicols, TET; Tetracyclines, NAL; Quinolones, NOR; Fluoroquinolones and SXT; Folate), representing eight different drug classes (Table 2). All strains were pan-susceptible to AZT, FOX, FOT, TAZ, CPM, IPM, MRP, GEN and CL. Four isolates presented intermediate-resistance to AMC. The antimicrobials to which resistance was most commonly detected were tetracycline and streptomycin. The presence of resistance genes for tetracycline (tetA and tetB), chloramphenicol (catA1), streptomycin (aadA1) and beta-lactams (blaTEM-1) was assessed (Table 2). All strains that were ampicillin-resistant contained the blaTEM-1 gene (p < 0.001). Isolates that were AMS-resistant and AMC intermediate-resistant were 151 and 115.6 times more likely to be positive for the blaTEM-1 gene, respectively, (p < 0.01). Three isolates showed phenotypic resistance to chloramphenicol, but catA1 was not detected. No significant effect of the presence of the aadA1 gene was observed for streptomycin resistance. A strong association was observed between the presence of tetA and tetB genes and tetracycline resistance (p < 0.05), and tetracycline-resistant isolates were 38.8 (p < 0.01) and 425.9 times (p < 0.001) more likely to have tetA and tetB genes, respectively. Overall, the geographic origin of the isolates only affected the prevalence of tetA which was greater (p < 0.01) in Rooigrond than Koster. Multidrug-resistance (MDR) was only observed in 11 dairy/beef isolates collected from the Rooigrond region, with resistance ranging from two to seven antimicrobials (Table 3).

3.3. Biofilm Formation and Detection of Associated Genes

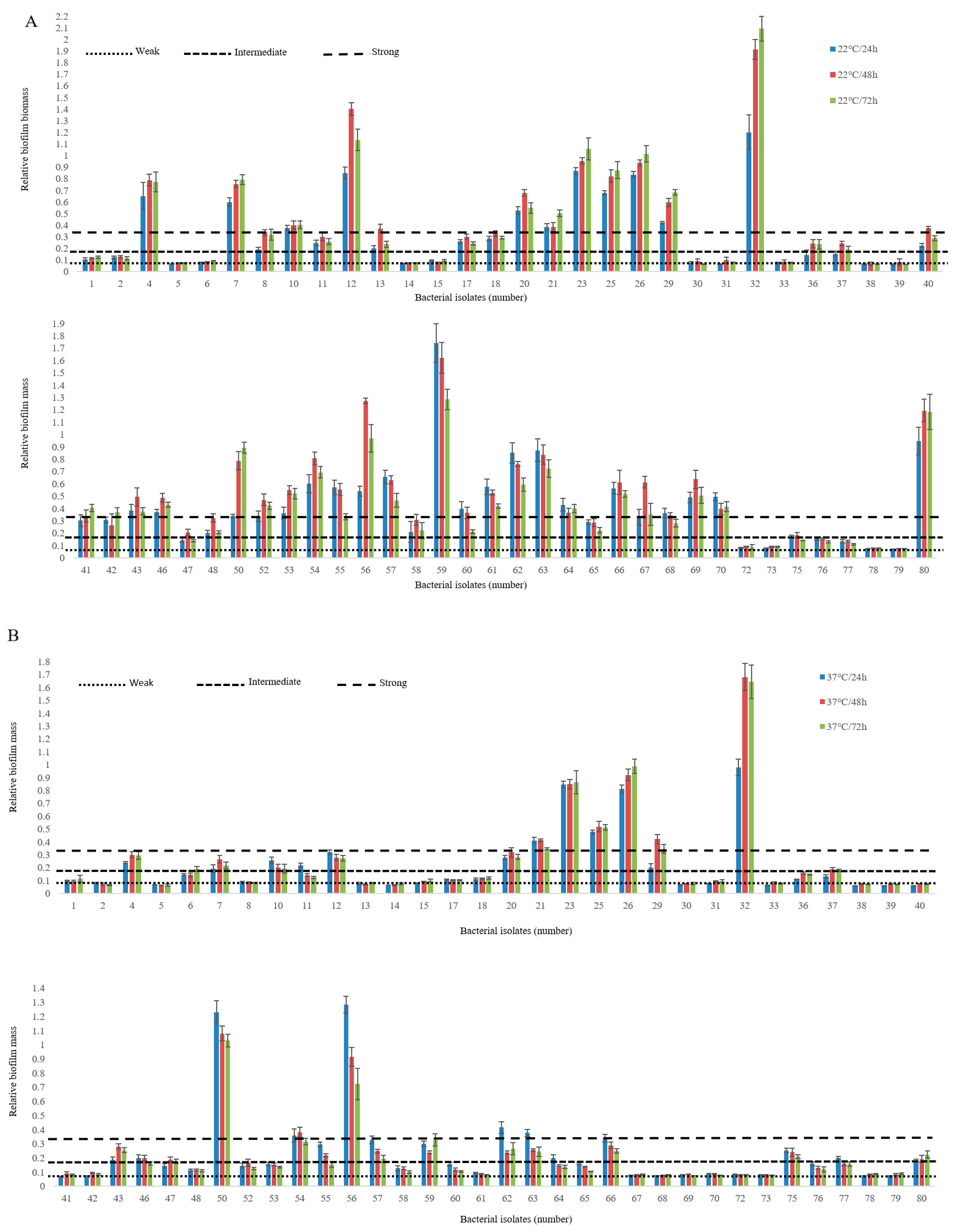

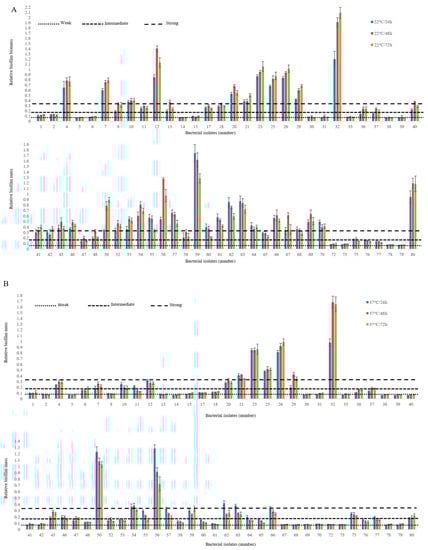

Non-O157 E. coli biofilm-forming ability varied amongst isolates, depending on incubation time and incubation temperatures (p < 0.001; Figure 1). In most instances, intermediate (OD 0.16) to strong biofilms (OD 0.33) were more likely at 22 °C than 37 °C (p < 0.001) and after 48 h (p < 0.001) as compared to 24 h and 72 h of incubation (Figure 1). Biofilm-forming ability on polystyrene was strongest at 22 °C and 37 °C in 70.3% and 37.5% of isolates, respectively (Table 4). Biofilm-associated genes including curli structural subunit (csgA), curli regulator D (csgA), and curli regulator (crl) were detected in all isolates. The majority of isolates also carried type 1 fimbriae (fimH, 95.3%), DNA binding protein for regulating csgD (rpoS, 82.8%), antigen 43 autotransporter protein (flu, 76.5%), and Eha passenger (ehaAα, 60.9%). A lower percentage of isolates were positive for Eha translocation domain (ehaAβ, 31.2%; Table 4). Of the biofilm-forming genes studied, rpoS was the only significant predictor of biofilm phenotype at 22 °C (p < 0.001) and 37 °C (p < 0.01). Overall, biofilm formation log OD at 22 °C and 37 °C were related (p <0.001), although the OD at 37 °C only predicted 39% of the variation in OD associated with biofilm formation at 22 °C.

3.4. Pulsed-Field Gel Electrophoresis

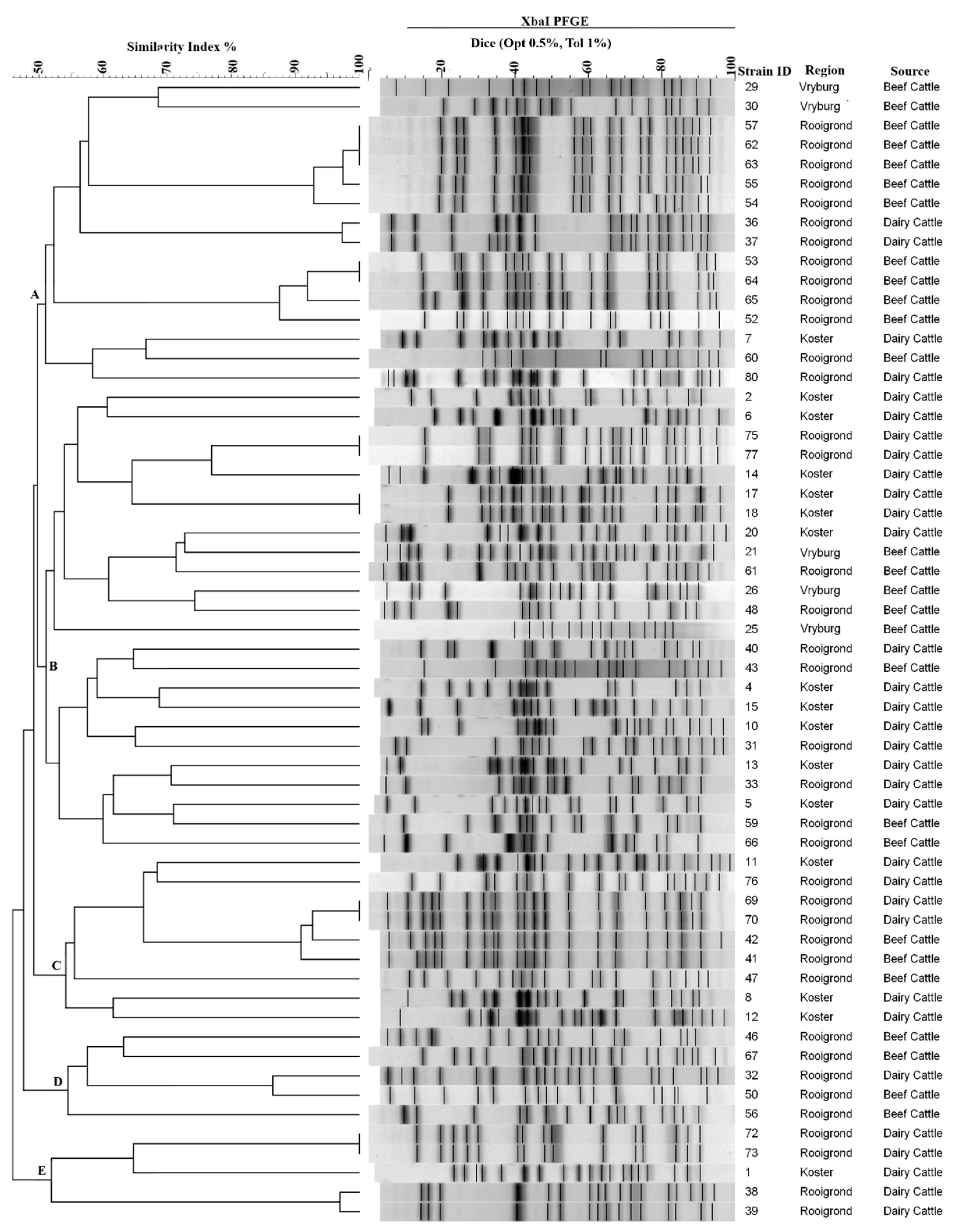

The Xba1 digestion of genomic DNA yielded between 14 and 20 bands with sizes ranging from 20.5 and 668.9 kb. Of 64 isolates profiled, five were undigested by XbaI and repeatedly appeared as smears. Fifty-nine isolates generated a total of 37 distinct restriction patterns using ≥90% similarity of the Dice coefficient, indicating a high level of diversity amongst bacterial strains from different sampling regions (Figure 2).

3.5. Whole Genome Sequence Analyses

Twenty-four isolates examined by WGS in this study had read coverage between 135 and 235 X, with genome sizes ranging from 4,564,407 to 5,562,801 bp (Table S3 in the Supplemental Material). These isolates were classified into twenty different serotypes (Table 5), including three O26:H11 and three isolates with novel serotypes. Annotation of Shiga-toxin genes did not always concur with stx detection via PCR (Table 5). Pathogenicity of bacterial strains was characterized based on virulence-associated gene profiling (Table S4 in the Supplemental Material), including: Autotransporter proteins; (EhaA and EhaB); [39], (EpeA); [40], (Agn43); [41], adhesins (Paa and EaeA); [42], (Ecp); [43], (ToxB); [44], (CsgA); [45], invasins (AslA, IbeB and OmpA); [46], (FimH); [47], iron uptake (ChuA); [48], serine protease (EspP); [49], toxins (HlyA); [50], (Cdt); [51], (East1); [52], (SubA); [53] and Type III translocated protein (EspA); [54].
Of a total of 20 virulence factors (VF) predicted, at least four were present in all the 24 isolates The most common VFs included genes coding for autotransporter protein (ehaA and ehaB), serine protease (espP), toxins (hlyA and suba), type III translocated (espA), invasins (fimH and ibeB) and adhesins (ecpA and csgA). Isolates, 11 (O156:H25), 37 (O17:H18), 60 (O116:H11), 64 and 65 (wzx-Onovel5:H19), and 69 and 42 (O26:H11) had the most common VF (Table S4 in the Supplemental Material).
A total of 16 antimicrobial resistance related genes were predicted in the 24 isolates. The most common encoded resistance to polymyxin (ugd,) streptogramin (vgac), and sulfonamide (sul2), which were present in 79.2, 16.6 and 16.6% of isolates, respectively. Interestingly, isolate 56 (O154:H10) carried 10/16 (62.5%) of antimicrobial resistance genes targeted. Six isolates indicated the presence of more than one resistance gene and two isolates harboured resistance to beta-lactams (Table S5 in the Supplemental Material). The presence of resistance genes corresponded with phenotypic resistance based on disc diffusion assay for beta-lactams, streptomycin and tetracycline most especially for isolate 56 (O154:H10).
The 24 non-O157 E. coli isolates contained three colicinogenic (Col) and 13 major incompatibility (Inc) plasmids. Seventeen isolates had more than one plasmid. The most frequent plasmid replicons were IncFIB (AP001918) and ColRNAI, in 62.5% and 50% of isolates, respectively. (Table S6 in the Supplemental Material).

4. Discussion

This study is the first to systemically characterize diverse groups of potentially pathogenic non-O157 E. coli from cattle faecal samples in the North-West region, South Africa. Non-O157 E. coli are emerging pathotypes around the world [5]. Most STEC human infections are attributed to contamination with cattle faeces [55], with STEC-associated disease widely documented in developing countries [7]. Humans may acquire STEC as a result of contamination of meat during processing, or surface and ground waters that are used to irrigate produce or other crops destined for human consumption [56]

4.1. PCR Detection of Shiga-Toxins and Virulence Genes

Non-O157 E. coli that possess a high proportion of stx2 to stx1 genes as documented in this study have been identified in other studies from South Africa [57], Iran [58] and the United States [59]. However, this observation is contrary to the studies conducted in Western Canada [60] and Europe [61], where non-O157 isolates have been found to harbour more stx1- than stx2 genes. Geographical location, seasonal changes and the presence of Shiga toxin-encoding prophages [62] may contribute to differences in the presence of Shiga toxin genes. Stx2 is regarded as the principal virulence factor in STEC [2] and is more often associated with HUS than Stx1 [63,64]. This study also detected stx2a, a subtype that has been reported to be more virulent than others [65]. Frequent detection of stx2 in South African non-O157 E. coli isolates with subtype stx2 could be cause for concern as stx2 has been reported to be more toxic in humans than stx1 [66]. Surprisingly, in this study, detection of stx1 and stx2 via conventional PCR did not conform to the annotated sequences derived by WGS. In this case, 66.7% (14/21) of the isolates that possessed either stx1 or stx2 based on PCR were not confirmed to still harbour these genes after WGS. There a number of possible explanations for this observation. Firstly, isolates may have lost the Shiga toxin related genes as a result of repetitive sub-culturing between assessment with PCR vs. WGS. Karch et al. [67] reported that after repetitive culture in liquid and solid media, non-O157 E. coli (O2:H5, O26:H11, O73:34 and O100:H32) became negative for either stx1 or stx2 gene by PCR and Vero cell assay. Similarly, Joris et al. [68] found that the loss of stx1 was more common in non-O157 E. coli isolates (45%) compared to O157 (15%) upon sub-cultivation. Unstable Shiga toxin detection has been demonstrated in Enterohaemorrhagic E. coli (EHEC) and atypical Enterohaemorrhagic E. coli (aEHEC) O26:H11 with 10% to 14% of isolates losing stx2 and aEHEC conversion to EHEC upon first sub-cultivation [69]. Some studies have also shown that stx genes can also be acquired, as stx2 encoding prophages were found to integrate into aEHEC O26:H11 as hot spots within the genome [69]. Others have attributed the acquisition of virulence in STEC to the integration of prophages carrying virulence determinants [70], which play a major role in the gain and loss of genes through lysogenic or decay processes [71]. Genes associated with Stx-conversion are mostly encoded by the lambdoid phages [72].
There is also the possibility that STEC cultures consisted of a mixture of isolates that possessed or lacked stx genes. Although the likelihood of this would be reduced by repetitive sub-culturing, this possibility can not be completely eliminated. Thus, a random selection of colonies that exhibit this variability could account for the inconsistent confirmation of the presence of stx between PCR detection and WGS annotation. The inconsistent stx results in this study perhaps reflect the unstable nature of Stx-encoding phages upon sub-culturing or other mechanisms that are yet to be understood and require further investigation.
A low proportion of eaeA (15%) genes in non-O157 E. coli agree with previous findings, where a lower percentage of eaeA was observed in non-O157 strains [58]. However, Stanford et al. [61] and Cernicchiaro et al. [73] found higher percentages of eaeA in non-O157 isolates from Western Canada and the United States, respectively. EaeA encodes intimin, which promotes bacterial attachment to host intestinal mucosa cells [74] and enhances infection by colonizing the intestinal wall. The eaeA gene was detected in O26:H11 (n = 2) and O156:25 indicating they harbor the pathogenicity island, the Locus for Enterocyte Effacement (LEE). However, the presence of eaeA may only suggest an additional virulence factor for these strains as LEE-negative STEC strains can produce adhesins other than eaeA [75]. Additional adhesins genes (tox B; 8.3%, ecpA; 91.7% and csgA; 100%), which are encoded outside the LEE region and identified in this study, could represent important adherence factors in the LEE-negative STEC strains. Hemolysin is thought to play an important role in E. coli infections in synergy with other virulence genes [76], causing red blood cell lysis and activating apoptosis [77]. All non-O157 isolates that tested positive for either or both stx1 and stx2 genes in this study possessed the hlyA gene. The results of this study highlight the need for food safety controls to be established to mitigate the dissemination of these potential virulent strains from farm to food products and surface/ground water, which may serve as vehicles of transmission to consumers.

4.2. Antimicrobial Susceptibility

Compared to other antimicrobials, a higher proportion of tetracycline resistance in this study is in agreement with other South African studies [24,26] for STEC and non STEC O157:H7 isolates from livestock, respectively. This may be a reflection of the abundant use of tetracycline as a growth promoter in cattle feed and as a disease control agent. Furthermore, tetracycline resistance is transferred by mobile genetic elements that are widely distributed across different bacterial genera [78]. Although tetA was present in higher proportions compared to tetB, a strong association with phenotypic resistance to tetracycline was observed for tetB. All isolates (11.3%) having the tetB gene expressed phenotypic resistance. Conversely, 16 of 25 (64%) tetA-possessing isolates did not express phenotypic resistance. This observation agrees with previous studies where the majority of E. coli isolates that exhibited tetracycline resistance encoded tetB [79,80]. Of eleven MDR isolates, four isolates harboured blaTEM-1 and demonstrated resistance to ampicillin, indicating a strong genotype:phenotype association. Shaikh et al. [81] highlighted growing concerns regarding the current rise in extended-spectrum beta-lactamase-resistant Enterobacteriaceae. Chloramphenicol usage in food-producing animals has been banned since the 1990s in South Africa [82]. However, phenotypic resistance was observed in three isolates. No gene to chloramphenicol-resistance was detected in these isolates. Similarly, phenotypic resistance for streptomycin was not related to the presence of (aadA1), suggesting that resistance might have been conferred by other resistance genes (aadA2, aadA5 and aadA23) not tested in this study or as a result of genes coding for unknown resistance mechanisms. In addition, there are other forms of resistance mechanisms such as intrinsic resistance driven by efflux pumps, adaptive resistance and regulatory mutations [13,83]. The presence of these resistance genes in non-O157 E. coli isolates from cattle faecal samples may represent a reservoir of resistance genes that are transferable to other bacteria in the gut and subsequent dissemination into the environment. Antimicrobial resistance patterns across the three different regions of this study indicate that MDR non-O157 E coli isolates were predominately from the Rooigrond region. This region has both beef and dairy production systems, raising the possibility of contamination of both meat and milk, making it important to gain a better understanding of AMR profile in non-O157 E coli in this region is required.

4.3. Biofilm Formation and Its Associated Genes

To the best of our knowledge, no biofilm data on antimicrobial-resistant non-O157 STEC strains have been previously described. Most non-O157 E. coli isolates in this study were able to adhere and form biofilms on polystyrene. Biofilm-forming ability of these isolates varied, suggesting a high diversity and strain specificity [17,84]. Biofilm formation was more evident at 48 h compared to 24 h and 72 h at 22 °C and 37 °C, respectively. This observation corroborates the findings of Biscola et al. [85], where strong biofilm of non-O157 at 28 °C for 48 h was observed. Similarly, strong and intermediate biofilm detection at 22 °C in this study compared to 37 °C agree with the findings of Wang et al. [17]. All non-O157 E. coli isolates in this study possessed the genes (crl and csgA and csgD) associated with curli expression during biofilm formation. However, the biofilm-forming ability could not be directly linked to the presence of these genes as 29.7% and 62.5% of the isolates that possessed these genes crl and csgA and csgD formed weak biofilms at 22 °C and 37 °C, respectively. Perhaps these biofilm-forming genes were either not functional in these isolates or they do not fully account for the mechanisms of biofilm formation [86]. Biscola et al. [85] also found that not all curli-positive strains developed the biofilm-forming phenotype in vitro.
RNA polymerase sigma factor S (rpoS) gene, encoding a stress response sigma factor is required for transcription in bacteria and regulates the response of cells to general environmental stress. This gene was present in 82.8% of non-O157 E. coli in this study and was a strong predictor of biofilm-forming ability of isolates at 22 °C and 37 °C. According to White-Ziegler et al. [87], rpoS is a thermoregulator that is expressed more at 23 °C than at 37 °C and impacts biofilm-forming genes including csgA and csgD. Both of these genes were detected in this study and these isolates exhibited robust biofilm formation at 22 °C than at 37 °C, indicating that temperature was an important factor to which rpoS-regulated genes are activated in different environmental conditions. Finally, the type 1 fimbriae gene (fimH), together with autotransporter genes (ehaAα, ehaAβ and flu) detected in this study were not statistically linked to biofilm formation. Therefore, further exploration of the functions of these genes in biofilm formation is needed. MDR isolates with a strong ability to adhere to polystyrene and form biofilm is a cause for concern as most of the cells in biofilm communities are in a state of metabolic stasis [88] and exhibit enhanced resistance to antimicrobials [89]. Furthermore, the surrounding exopolysaccharide matrix also acts as a barrier, preventing antimicrobials from contacting targeted bacteria [90].

4.4. PFGE

The fact that PFGE identified 37 unique patterns from 59 screened isolates reflects the diversity of non-O157 E. coli. Five isolates, which were not digested by XbaI despite efforts to optimize the procedure, were deemed untypable, as observed in other STEC studies [91]. A high diversity of non-O157 E. coli in cattle faeces using XbaI PFGE typing has previously been reported in France [92]. This high diversity indicates that cattle are an important animal reservoir for the emergence of potentially pathogenic non-O157 E. coli.

4.5. Whole Genome Sequence Analysis

The lipopolysaccharide (O) antigen is a highly variable region of the outer membrane of Gram-negative bacteria [93]. Together with the flagellar (H) antigen, the O-antigen is used in the identification of pathogenic E. coli strains [94]. An O-antigen locus that has a unique arrangement of genes compared with a novel reference allele in the EcOH database is termed a novel O-locus [37]. In silico, WGS identified diverse non-O157 E coli serotypes harbouring a broad range of VFs, antimicrobial resistant determinants and different plasmids types. Serotypes such as O156:H25 (n = 1), O17:H18 (n = 1), O163:H19 (n = 1), O116:H11 (n = 1), wzx-Onovel5:H19 (n = 2) and O26:H11 (n = 3) possessed more VFs than other serotypes predicted. Amongst these, O26:H11 is the most commonly reported non-O157 E. coli in human infections [3]. These factors range from cell-associated adhesins that can mediate binding to different surfaces to secreted toxins. Interestingly, WGS analysis indicated that the two novel-O (wzx-Onovel5) isolates possessing stx2 were clones contrary to PFGE-based results. Serotype O156:H25, an MDR strain characterized in this study via phenotypic/genotypic-based method and WGS, has been associated with E. coli strains that colonize cattle in Germany [95]. According to the Comprehensive Antibiotic Resistance Database [38], the antimicrobial resistance gene udg detected at 79.2% of isolates, is responsible for the synthesis of lipid A, which offers resistance to cationic antimicrobial peptides and is a common gene in many E. coli isolates.
Plasmids are thought to play a vital role in the mobility of antimicrobial resistance determinants via horizontal gene transfer between different bacterial species [96]. The ColRNAI replicon was detected in a large proportion of the isolates (50.0%), a level similar to that reported by others [97]. Plasmids of the Inc-family are frequently associated with MDR and virulence determinants in E. coli [98]. Thirteen Inc-related replicons were detected in this study especially the IncFIB (AP001918; 62.5%) compared to other Inc plasmids. Interestingly, O156:H25 an MDR isolate carried only one plasmid type (IncY), inferring resistance was chromosome-mediated as detected via PCR and WGS.
These potential pathogenic strains predicted by means of WGS may have remained uncharacterized using a traditional method such as serology- and PCR-based (virulence, antimicrobial and plasmid) typing methods. Thus, in silico WGS serotyping offers a rapid and accurate approach to identifying potential pathogenic strains. Use of WGS also has an advantage over serology-based typing methods, which frequently fail type isolates [37]. In addition, WGS offers a higher resolution for stx-subtyping [99] compared to PCR and a higher level of strain discrimination [100] than PFGE. Considering that WGS offers a more comprehensive and detailed description of bacterial strains it can be allied with traditional typing methods of non-O157 E. coli.

5. Conclusions

These findings indicate that cattle from the North West of South Africa harboured genetically diverse, virulent, antimicrobial-resistant and novel pathotypes of non-O157 STEC that formed biofilms. Biofilm-forming ability may increase the persistence and dissemination of these pathogens in the environment and possibly subsequent risk of contamination or infection. Furthermore, biofilm-forming AMR isolates could persist in the environment and lead to the spread of AMR genes to pathogenic or non-pathogenic bacteria that can in turn transfer resistance to human or animal pathogens. Finally, WGS is a powerful tool to discriminate and predict the pathogenicity of a wide range of E. coli strains from cattle faeces and has an important role in assessing food safety and human health risks of non-O157 STEC.

Supplementary Materials

The following are available online at, Figure S1: A flow chart illustrating bacterial characterization, Figure S2: Multiplex gel image of amplicons indicating no detection of stx2 (gel B). M indicates molecular marker 1kb plus, C+ the positive control, C− the negative control and isolate number (40–79), Table S1: PCR primer sequences, PCR product sizes and references, Table S2: Reference values used to classify isolates as susceptible, intermediate resistant and resistant, Table S3: Non-O157 E. coli isolates sequenced in this study Table S4: Annotation of virulence factors for non-O157 E. coli isolates, Table S5: Annotation results of antimicrobial resistance for non-O157 E. coli, Table S6: Annotated results of plasmids search for non-O157 E. coli.

Author Contributions

Conceptualization, T.A.M., Y.D.N. and C.N.A.; Data curation, E.W.B. and R.K.; Formal analysis, E.W.B., R.Z., R.O.P. and K.S.; Funding acquisition, T.A.M., K.S., Y.D.N. and C.N.A.; Investigation, E.W.B. and R.K.; Methodology, E.W.B., T.A.M., R.Z., K.S., Y.D.N. and C.N.A.; Project administration, T.A.M., K.S., Y.D.N. and C.N.A.; Resources, T.A.M., K.S. and C.N.A.; Software, R.O.P.; Supervision, T.A.M., K.S., Y.D.N. and C.N.A.; Validation, E.W.B., T.A.M., R.Z., K.S., Y.D.N. and C.N.A.; Visualization, E.W.B; Writing—original draft, E.W.B.; Writing—review & editing, E.W.B., T.A.M., R.Z., K.S., Y.D.N. and C.N.A.


This work is based on research supported in part by the National Research Foundation of South Africa (Grant UID Number 98983), together with North-West University research funds. Growing Forward II (GF2) of Alberta Agriculture and Forestry, CAP Accelerating the Advancement of Agriculture Innovation Program of Alberta Agriculture and Forestry, and the Agriculture and Agri-Food Canada–Beef Cluster program.


We acknowledge the technical assistance of D. Ashwin, Z. Ma, R. Ha, C. Conrad, R. Barbieri, S. Trapp and Y. Graham during the study.

Conflicts of Interest

The authors declare no conflict of interest.
