Microorganisms 2019, 7(5), 117; https://doi.org/10.3390/microorganisms7050117

Article
Occurrence and Function of the Na+-Translocating NADH:Quinone Oxidoreductase in Prevotella spp.
1
Institute of Animal Science, University of Hohenheim, 70599 Stuttgart, Germany
2
Institute of Microbiology, University of Hohenheim, 70599 Stuttgart, Germany
*
Correspondence: [email protected] (J.S.); [email protected] (J.S.); Tel.: +49-(0)71145923520 (J.S.); +49-(0)71145922228 (J.S.)
Present address: Interfaculty Institute of Microbiology and Infection Medicine, University Tübingen, 72076 Tübingen, Germany.
Received: 5 February 2019 / Accepted: 25 April 2019 / Published: 27 April 2019

Abstract

:
Strictly anaerobic Prevotella spp. are characterized by their vast metabolic potential. As members of the Prevotellaceae family, they represent the most abundant organisms in the rumen and are typically found in monogastrics such as pigs and humans. Within their largely anoxic habitats, these bacteria are considered to rely primarily on fermentation for energy conservation. A recent study of the rumen microbiome identified multiple subunits of the Na+-translocating NADH:quinone oxidoreductase (NQR) belonging to different Prevotella spp. Commonly, the NQR is associated with biochemical energy generation by respiration. The existence of this Na+ pump in Prevotella spp. may indicate an important role for electrochemical Na+ gradients in their anaerobic metabolism. However, detailed information about the potential activity of the NQR in Prevotella spp. is not available. Here, the presence of a functioning NQR in the strictly anaerobic model organism P. bryantii B14 was verified by conducting mass spectrometric, biochemical, and kinetic experiments. Our findings propose that P. bryantii B14 and other Prevotella spp. retrieved from the rumen operate a respiratory NQR together with a fumarate reductase which suggests that these ruminal bacteria utilize a sodium motive force generated during respiratory NADH:fumarate oxidoreduction.
Keywords:
Prevotellaceae; NQR; P. bryantii B14; proteomics

1. Introduction

Gram-negative, obligate anaerobic bacteria of the Prevotellaceae family represent the prevailing and most numerous species within the rumen [1,2,3] and also commonly occur in the intestinal tract of humans and pigs [4,5,6]. Members of the Prevotellaceae family exhibit versatile metabolic capabilities such as the utilization of peptides, proteins, monosaccharides, and non-structural plant polysaccharides [7,8,9]. As a representative of the Prevotellaceae family, the type strain Prevotella bryantii B14, isolated from the rumen [10], is likewise a typical inhabitant of digestive tract ecosystems. In addition to its ability to degrade proteins and peptides [11] this bacterium exhibits an extensive xylanolytic activity [10,12]. Despite the numerical and metabolic significance of Prevotella spp. in gastrointestinal environments, little is known about their metabolism and growth requirements. The oxidative branches of amino acid [13] and glucose [14] fermentation by P. intermedia and P. nigrescens have been studied, but the reductive pathways leading to the regeneration of NAD+ have not been investigated and the overall redox balance has not been taken into account. When P. copri is grown in defined minimal medium with glucose as sole carbon source, glycolysis represents the major fermentative pathway coupling the respiratory NADH:fumarate oxidoreduction with the redox cycling of ferredoxin [15].
The rumen constitutes a strictly anaerobic ecosystem characterized by pH values between 5.5 and 6.9, high buffering capacities, and low redox potentials of −400 to −350 mV which favor anaerobic metabolism. Within the rumen, fermentation respectively substrate-level phosphorylation is considered to be the principle strategy for energy conservation of bacteria and outweighs anaerobic respiration [16]. A comprehensive study of the rumen microbiome identified copious proteins of the Prevotellaceae family including various enzymes belonging to P. bryantii B14 [17]. Several subunits of the respiratory Na+-translocating NADH:quinone oxidoreductase (NQR) were discovered among the respective proteins suggesting that metabolically active Prevotella spp. operate redox-driven Na+ pumps within their natural habitats as reported recently for Prevotella copri [15]. Thus, it may be assumed that electrochemical Na+ gradients potentially play an important role in the anaerobic metabolism of these ruminal bacteria.
The NQR is embedded in the inner membrane of several Gram-negative bacteria [18,19]. It is composed of the six subunits NqrABCDEF that include flavins and FeS clusters as redox cofactors [20]. Oxidation of NADH is catalyzed by subunit NqrF and is linked to the reduction of ubiquinone by subunit NqrA. This exergonic redox reaction drives the endergonic transport of Na+ through the membrane-bound subunit NqrB [21]. Thus, an electrochemical Na+ gradient is established which drives important cellular processes such as nutrient uptake, motility, or extrusion of toxic compounds [22]. The occurrence of the NQR complex in a strict anaerobe such as P. bryantii B14, examined here, suggests that this Na+ pump constitutes a significant part of an anaerobic respiratory chain beneficial for survival in the sodium-rich rumen ecosystem.
Sequences encoding the six NQR subunits were identified in the genomes of several bacterial clades from distinct habitats with divergent metabolic requirements including certain species of the phylum of Bacteroidetes [18]. Comparative genomics detected sequences of the NQR subunits in 90 bacterial taxa that also included Bacteroides fragilis YCH46 and Bacteroides sp. 2_1_33B which belong to the family of Bacteroidaceae closely related to the family of Prevotellaceae [18]. Furthermore, a recent study found components similar to the NQR complex of Vibrio alginolyticus in seven strains of the genus Bacteroides [23]. Lately, the presence of genes encoding the NQR was noted for Prevotella bryantii B14 and also the potential interplay of the NQR with a fumarate reductase was described [24]. In this study, we confirm the existence of an active NQR in P. bryantii B14 by using mass spectrometric, biochemical, and kinetic approaches and discuss its potential involvement in anaerobic respiration and metabolism.

2. Materials and Methods

2.1. Analysis of Prevotellaceae-Derived Proteins from the Rumen

A previously published study employed liquid chromatography–tandem mass spectrometry (LC–MS/MS) and the software MaxQuant (v. 1.5.3.8, Max Planck Institute of Biochemistry–Martinsried, Bavaria, Germany) to quantify bacterial proteins in the rumen ecosystem. The obtained metaproteomic dataset included a large number of proteins belonging to various members of the Prevotellacea family [17]. The subcellular localization of the respective proteins was inferred using the Cello algorithm [25] for Gram-negative bacteria which differentiates between cytoplasmic, periplasmic, inner and outer membrane proteins and also assigns extracellular proteins. The protein sequences were screened for hydrophobic stretches to identify membrane-affiliated motifs using the TMHMM (transmembrane alpha-helices Hidden Markov Model) Server v. 2.0 algorithms [26], to assign α-helices and the PRED-TMBB2 (prediction of transmembrane beta-barrels) algorithms [27], to find β-barrel outer membrane proteins. Furthermore, the Prevotellaceae-derived protein dataset was searched manually for subunits of the Na+-translocating NADH:quinone reductase (NQR) and other respiratory enzymes also including the related ferredoxin:NAD+ oxidoreductase complex (RNF) complex.

2.2. Organism and Growth Conditions

P. bryantii B14 [10] was kindly provided by Nest McKain (Rowett Research Institute, Aberdeen, UK) and cultivated in the liquid form of Hobson´s M2 medium [28] under an O2-free CO2 atmosphere at 39 °C as demonstrated before [29]. Despite the availability of defined media without rumen fluid [15,30], Hobson’s M2 medium [28] was used to simulate conditions as close as possible to the rumen environment. Cultivation was conducted in Hungate tubes and in serum vials for larger volumes. Inoculum volume was 5% (v/v) of an active culture or glycerol stock. To achieve a consistent media composition, rumen fluid of a fistulated Holstein–Frisian cow (approved by Regierungspräsidium Stuttgart; V263/09 TE) was sampled once, 1 h prior to the morning feeding using a vacuum pump. The animal was fed twice a day with 4.5 kg hay diet containing 12% concentrate (20% soybean, 17% corn, 25% barley, 28% wheat, 4% molasses, 6% minerals).

2.3. Proteome Extraction, Fractionation and Sodium Dodecyl Sulfate PolyAcrylamide Gel Electrophoresis (SDS-PAGE)

Exponentially growing cells (wet weight 0.5 g) were harvested at 15,000× g for 15 min at 4 °C, washed in 5 mL of 50 mM Tris-HCl (pH 7.5), and resuspended in 4 mL of 50 mM Tris-HCl (pH 7.5; 10 mM MgCl2; 1 mM phenylmethylsulfonyl fluoride) followed by sonication on ice using a tip sonicator (Ultrasonic Processor UP50H, Hielscher, Germany) for four times 3 min (amplitude 50%; cycle 0.5). The cell debris fraction (CD) was removed by centrifugation at 15,000× g for 15 min at 4 °C and stored at −20 °C until further processing. The membrane fraction (MP) was enriched from the crude extract by centrifugation at 90,000× g for 1 h at 4 °C. The supernatant containing soluble proteins was discarded and the MP fraction was washed once in 1 mL 50 mM Tris-HCl (pH 7.5) and collected by centrifugation at 90,000× g for 1 h at 4 °C. Please note that this single washing step did not result in complete removal of cytoplasmic and periplasmic proteins from the enriched membranes. Pellets of the MP and CD fractions were resolved in 50 µL of 20 mM Tris-HCl (pH 7.5), and 100 µL of 20 mM Tris-HCl (pH 7.5; 2% (w/v) sodium dodecyl sulfate) were added. The samples were incubated for 5 min at 60 °C and 1200 rpm, and 1 mL of 20 mM Tris-HCl (pH 7.5; 0.1 mg/mL MgCl2; 1 mM phenylmethylsulfonyl fluoride; 1 μL/mL Benzonase–Novagen) was added followed by sonication on ice with a tip sonicator (Ultrasonic Processor UP50H, Hielscher, Germany) for two times 1 min (amplitude 50%; cycle 0.5). Subsequently, nuclease digestion was performed for 10 min at 37 °C and 1400 rpm. The supernatants of the MP and CD fractions were collected after centrifugation at 10,000× g for 10 min at 4 °C and stored at −20 °C. The amount of protein was quantified by the bicinchoninic acid assay [31] using bovine serum albumin as standard.
Aliquots of 60 µg of each fraction were precipitated by incubation in 1 mL 20% precooled trichloroacetic acid for 30 min at 4 °C and centrifugation at 12,000× g for 15 min at 4 °C. The protein pellets were washed twice in precooled acetone, dried by vacuum centrifugation and resuspended in 30 μL Laemmli buffer [32]. After incubation for 5 min at 95 °C to reduce disulfide bonds, 15 µL were applied on a one-dimensional sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) that was carried out as reported previously [33] using 10% acrylamide/bisacrylamide (37.5:1.0) gels. Electrophoresis was started at 20 mA until proteins entered the separation gel and was completed at 40 mA. The gel was scanned by a CanoScan LIDE100 (Canon, Tokyo, Japan) and lanes of interest were cut out for proper illustration using IrfanView (v. 4.51, Irfan Škiljan, Vienna, Austria). Each Coomassie-stained gel lane was cut into pieces and stored at −20 °C until subsequent trypsin digestion.

2.4. Isolation of Membranes, Solubilization and Blue Native Polyacrylamide Gel Electrophoresis (BN-PAGE)

Exponentially growing cells were harvested at 15,000× g for 30 min at 4 °C and washed twice in 20 mM Tris-H2SO4 (pH 7.5). Cell disruption was performed as described earlier [34], with some modifications. The procedure was kept chloride-free to prevent Ag+ precipitation during kinetic experiments. A wet weight of 10 g of cells was resuspended in 30 mL 20 mM Tris-H2SO4 (pH 7.5; 50 mM Na2SO4; 5 mM MgSO4; 1 mM dithiothreitol; 1 mM PMSF; 0.1 mM diisopropyl fluorophosphate; traces of DNase I – Roche, Basel, Switzerland). The suspensions were passed three times through an EmulsiFlex high pressure homogenizer at 20,000 psi and 4 °C. Cell debris and unbroken cells were removed by centrifugation at 27,000× g for 30 min at 4 °C. Membranes were collected by ultracentrifugation at 257,000× g for 1 h at 4 °C and washed in 20 mM Tris-H2SO4 (pH 7.5; 50 mM Na2SO4, 5% (v/v) glycerol). Suspensions of isolated membranes were stored in liquid nitrogen.
The blue native polyacrylamide gel electrophoresis (BN-PAGE) was carried out as noted formerly [35], with minor modifications. To solubilize the membranes, 10 mg of membrane proteins were gently shaken over night at 4 °C in 1 ml 20 mM Tris-H2SO4 (pH 7.5) with 1% or 2% (w/v) Triton X-100 followed by centrifugation at 156,425× g for 1 h and 4 °C. Solubilized and non-solubilized membranes were diluted in 50 mM aminocaproic acid with 0.3% (w/v) Coomassie Brilliant Blue G250 and 200 µg were subjected to a polyacrylamide gradient gel (5–20%). The gel was run at 100 V until the frontline passed one third of the gel. To complete the run at 200 V, the cathode buffer (pH 7; 50 mM Tricine; 15 mM BisTris; 0.02% Coomassie Brilliant Blue G250) was replaced by a Coomassie-free buffer (pH 7; 50 mM Tricine; 15 mM BisTris). The BN-PAGE was stained with Coomassie Brilliant Blue G250 and scanned by a CanoScan LIDE100 (Canon, Tokyo, Japan). Visible gel bands of membranes solubilized with 1% or 2% (w/v) Triton X-100 were excised and stored at −20 °C until subsequent trypsin digestion.

2.5. Trypsin Digestion, Liquid Chromatography–Tandem Mass Spectrometry (LC–MS/MS) Measurements and Bioinformatic Processing

The parts of the excised gel lanes from the SDS-PAGE (2.3) and the single gel bands of solubilized membranes from the BN-PAGE (2.4) were subjected to in-gel trypsin (Promega, Madison, WI, USA) digestion overnight [36]. The obtained tryptic peptides were purified and desalted using C18 microcolumns (Merck Millipore, Burlington, MA, USA) and dried by vacuum centrifugation.
Peptide samples were reconstituted in 20 µL 0.1% formic acid and analyzed using an ACQUITY nano-UPLC (ultra-performance liquid chromatography) system (Waters, Milford, MA, USA) coupled to a LTQ-Orbitrap XL hybrid mass spectrometer (Thermo Fisher Scientific, Waltham, MA, USA). Of each sample, 5 µL were concentrated and desalted on a C18 precolumn (180 µm × 2 cm, 5 µm) and separated on a BEH 130 C18 reversed phase column (75 µm × 25 cm, 1.7 µm). Chromatography was performed from 1% to 40% acetonitrile in 0.1% formic acid with a gradient time of 240 min. The LTQ-Orbitrap XL was operated in the positive ion mode under control of the XCalibur 2.1 software (Thermo Fisher Scientific, Germany). Survey spectra were detected in the mass range of 250–1800 m/z in the Orbitrap mass analyzer with a resolution of r = 60,000 at 400 m/z. Data dependent tandem mass spectra were generated for the seven most abundant peptide precursors in the linear ion trap. For all measurements using the Orbitrap detector, internal calibration was performed using lock-mass ions from ambient air.
Raw mass spectrometry (MS) and MS/MS data were processed by Thermo Proteome Discoverer software (v. 1.4.1.14, Thermo Fisher Scientific, Waltham, MA, USA) and the Mascot engine (v. 2.4, Matrix Science, London, UK) by searching independently against the UniProtKB/TrEMBL database (v. 12/2017, European Bioinformatics Institute, Hinxton Cambridge, UK) for Prevotella bryantii (3779 sequences). Oxidation of methionine was set as variable modification and carbamidomethylation of cysteine as fixed modification. Precursor ion tolerance was defined at 10 ppm and fragment ion tolerance to 0.02 Da with a maximum of one missed trypsin cleavage. Furthermore, the Spectrum Grouper node was employed with a precursor mass tolerance of 10 ppm and a max. retention time difference of 90 s, and the Percolator node was activated with a false discovery rate of 1%. The default filter was set to a minimum of two peptides per protein and a Mascot Significance threshold of 0.05 including a peptide, protein and PSM false discovery rate below 1%. Protein grouping was enabled with a minimum PSM confidence of medium and a delta Cn better than 0.15, strict maximum parsimony principle was applied.
The subcellular localization and membrane-associated motifs (α-helices and β-barrels) of the identified proteins were assigned as described for the metaproteomic dataset (2.1) and the proteins were screened again for subunits of the NQR complex, the RNF complex and other respiratory enzymes including the electrogenic NADH:quinone oxidoreductase (NDH-I). Multiple sequence alignments were conducted using the Clustal Omega algorithm of the European Bioinformatics Institute with default settings (ebi.ac.uk/Tools/msa/clustalo/). In silico trypsin digestion to find shared tryptic peptides was performed using the ExPASy PeptideCutter of the Swiss Institute of Bioinformatics (web.expasy.org/peptide_cutter/).

2.6. Detection of NADH:Quinone Oxidoreductase (NQR) Homologues by In-Gel Fluorescence

The presence of NQR homologues was determined in detecting flavin mononucleotides (FMNs) covalently bound to the NqrB and NqrC subunits by in-gel fluorescence as demonstrated before [37], with slight modifications. Protein concentration was determined by the bicinchoninic acid assay [31] and 150 µg of all subcellular fractions obtained during the isolation of membranes (as conducted in 2.4) were subjected to SDS-PAGE [33]. In-gel fluorescence of proteins with covalently bound FMN chromophores was detected immediately after electrophoresis using the ImageQuant LAS 4000 imager (λexcitation = 460 nm, emission filter = Y515 Cy™2). Fluorescent proteins with molecular masses of 25, 50 and 75 kDa served as molecular size markers (Precision Plus Protein™ WesternC™ Standards, BioRad; excitation, red LED; emission filter, R670 Cy5). The contrast of the gel picture was slightly increased using IrfanView (v. 4.51) to achieve a more appropriate visualization of the fluorescent bands.

2.7. Inhibition of the NADH:Quinone Oxidoreduction Activity by Ag+

Inhibition of NADH oxidation was measured in an assay buffer (20 mM Tris-H2SO4; 50 mM Na2SO4; 5% (v/v) glycerol; 100 µM ubiquinone-1; 150 µM NADH) at 25 °C by a Diode-Array Spectrophotometer (HP 8452A) using 150 µg of membranes (obtained as described in 2.4). In advance, membranes were diluted in 20 mM Tris- H2SO4 (5% (v/v) glycerol) and preincubated with varying amounts of AgNO3 (0–2.5 µM) for 5 min at 4 °C. The reaction was started by adding the preincubated membranes to the assay buffer. Subsequently, NADH oxidation was monitored by following the absorbance at 340 nm. Specific activities were determined based on the molar extinction coefficient of NADH at 340 nm (ε340 = 6.22 mM−1 cm−1) applying Beers’ law.

2.8. Stimulation of the NADH:Quinone Oxidoreduction Activity by Na+

The enzyme assays for sodium stimulation of the NADH oxidation by membranes of P. bryantii B14 were performed at 25 °C in 20 mM Tris-HCl (pH 7.5) with increasing concentrations (0 to 500 µM) of NaCl or KCl, 100 µM NADH dipotassium salt, 100 µM ubiquinone-1, and 50 µg of isolated membranes (obtained as described in 2.4). The initial rates were recorded on a SPECORD® S600 UV VIS spectrophotometer (Analytik Jena, Jena, Germany) and NADH oxidation was followed at 340 nm (ε340 = 6.22 mM−1 cm−1). The residual Na+ concentration in each sample was 40 µM. Sodium concentrations were determined with an Agilent Technologies 200 Series AA spectrometer.

3. Results and Discussion

3.1. Identification of Na+-Translocating NADH:Quinone Oxidoreductase Subunits by LC–MS/MS

3.1.1. Ruminal Prevotellaceae Proteins Include Subunits of the NQR

A comprehensive study investigated the rumen microbiome and quantified a total of 8163 bacterial proteins in three distinct rumen fractions of three individual cows that were fed rotationally with varying diets [17] which revealed that a major part of 1881 proteins belonged to the family of Prevotellaceae of which 49 proteins were assigned to P. bryantii B14 (Table S1). About 72% of the Prevotellaceae-derived proteins were predicted to be cytoplasmic proteins, above 15% belonged to the periplasmic space, and 10% were assigned to inner and outer membrane proteins (Figure 1A and Table S1) which emphasized the capability of mass spectrometry-based analyses to identify subunits of membrane-associated proteins [38]. A total of above 12% of the respective protein sequences were predicted to contain hydrophobic stretches that were assigned to membrane-bound α-helices and β-barrels (Figure 1B and Table S1).
The 143 proteins exhibiting α-helices (Figure 1B and Table S1) included, inter alia, the NQR subunits NqrB, NqrC, and NqrF of P. ruminicola, and the NqrF of Prevotella sp. P5-119 (Table 1). Furthermore, four NqrA subunits of P. ruminicola, P. timonensis, Prevotella sp. CAG:1092, and Prevotella sp. S7 MS 2 were identified among the 1881 Prevotellaceae proteins. In addition, 15 other respiratory enzymes of Prevotella spp. such as the anaerobic electron transport complex protein RnfG, succinate dehydrogenases, or the fumarate reductase iron-sulfur protein of P. bryantii B14 were found to be present (Table 1).
The NQR and the closely related ferredoxin:NAD+ oxidoreductase complex (RNF), which have a common ancestor, are redox-driven Na+-pumps [39]. Under anaerobic conditions, the RNF may also be employed in reverse electron transfer reactions for reduction of NAD+ yielding NADH [40,41]. Genes encoding the NQR were predicted for a variety of genomes from aerobic, microaerophilic, and even obligate anaerobic microorganisms such as Bacteroides spp. [18,23]. Generally, the NQR is the dedicated Na+ pump in aerobic or facultative anaerobic bacteria [42,43]. The occurrence of the Na+-translocating NQR in members of the Gram-negative Prevotellaceae family, which are obligate anaerobes, indicates that the generated sodium-motive force is a so far overlooked, but potentially important, factor for the survival of these species within their natural habitats.
To exclude false-positive protein identifications due to the large search databases that were employed for the bioinformatic processing of the rumen metaproteomic data and, thus, to confirm the presence of a Na+-translocating NQR in Prevotella spp., proteome fractions of the model organism P. bryantii B14 [9] were analyzed by mass-spectrometry as follows.

3.1.2. NQR Subunits Detected in Fractions of the Prevotella bryantii B14 Proteome

LC–MS/MS-based analyses of membrane protein (MP) and cell debris (CD) fractions obtained from P. bryantii B14 cultures (Figure 2A) identified a total of 293 and 363 proteins respectively (Table S2). A total of 232 proteins were detected in both proteome fractions (Figure 2B) which indicated an insufficient separation of the subcellular fractions. More than 68% of proteins found in the CD fraction were predicted to be cytoplasmic proteins, about 12% belonged to the periplasmic space, and 11% were assigned to outer membrane proteins (Figure 2C). In contrast, 17% of the proteins of the MP fraction were outer membrane proteins and 17% belonged to the periplasm whereas 53% were allocated to the cytoplasm (Figure 2C). This indicates that soluble proteins were not completely removed from the membranes which were resuspended only once in Tris buffer. Inspection for hydrophobic stretches revealed that more than 20% of protein sequences of the MP fraction contained membrane-affiliated motifs while less than 13% of the CD proteins exhibited sequence sections assigned to α-helices and β-barrels (Figure 2D).
Searching for subunits of the NQR and other respiratory enzymes in the proteome datasets of P. bryantii B14 confirmed the presence of the NqrA and NqrC in both, the CD and MP fractions (Table 2). Furthermore, the electron transport complex protein RnfG and other respiratory enzymes like succinate dehydrogenases, fumarate reductases, and subunits of the bacterial homologue to the eukaryotic complex I [44] were identified (Table 2). Note that P. copri [15] and members of the Bacteroidetes phylum [45] contain the so-called headless NDH-I complex. This membrane-bound protein complex contains 11 of the 14 subunits of the bacterial complex I (NDH-I). Since it lacks 3 peripheral subunits required for NADH oxidation, it will not contribute to the overall NADH oxidation activity of membranes from Prevotella spp.
To prevent the possibility of erroneously identifying subunits of the homologous RNF complex or the electrogenic NDH-I, multiple sequence alignments were carried out to determine the amino acid sequence identity of the NQR subunits and the RNF complex or the most similar subunits of the NDH-I complex. The highest sequence identity of 44.5% was obtained for the NqrE and the RnfA subunits whereas the residual alignments exhibited a negligible sequence identity (Table 3). Moreover, in silico trypsin digestion revealed that there are no shared tryptic peptides for all subunits of the NQR, RNF, and the headless NDH-I complex which ensures confident identification by LC–MS/MS and subsequent bioinformatic processing as further demonstrated by the number of unique peptides that were used for identification (Table 2).
However, in the course of the mass spectrometry-based analysis of fractions of the P. bryantii B14 proteome, exclusively the NqrA and NqrC subunits were identified and an adequate separation of the membrane proteins was not achieved. Thus, to confirm the occurrence of a NQR complex and to identify the remaining NQR subunits in metabolically active P. bryantii B14 cells, further validation was required and conducted as follows.

3.1.3. NQR Subunits Identified in Solubilized Membranes of Prevotella bryantii B14

Isolated membranes of P. bryantii B14 were solubilized with Triton X-100 and subjected to a BN-PAGE (Figure S1) to be analyzed by LC–MS/MS. Mass spectrometric analyses of excised protein bands (Figure S1) identified 163, 186 and 212 proteins in bands A, B and C of the 1% Triton X-100 treatment respectively (Table S3). Regarding the membrane proteins solubilized in 2% Triton X-100, 139, 177 and 197 proteins were identified in the bands A, B and C respectively (Table S3). Subunits of the NQR, RNF, the headless NDH-I complex (Nuo), and other respiratory enzymes such as succinate dehydrogenases or fumarate reductases that were detected are listed in Table 4.
The bands B and C from solubilized membranes (of both, 1% and 2% Triton X-100 solubilisates) contained the NADH-oxidizing NqrF subunit (Table 4) whereas the NqrF was not detected in the respective bands A. Besides the more hydrophobic NqrE, all subunits of the NQR complex (NqrABCDF) were identified based on unique peptides in band B of the 1% Triton X-100 and band C of the 2% Triton X-100 treatment (Table 4). In contrast, the bands A of both Triton X-100 solubilisates exclusively contained the more hydrophilic NqrA subunit.
The subunits NuoB, NuoCD, NuoH, NuoI, NuoL and NuoN of the headless NDH-I complex were also detected but with less confident identification scores, less unique peptides, and lower sequence coverages when compared to the identification parameters of the NQR subunits (Table 4). A recent study confirmed the expression of the headless NDH I complex I in P. copri by qRT-PCR [15]. As predicted from the genome, we did not detect the peripheral subunits NuoEFG (N-module) that are responsible for NADH oxidation in P. bryantii B14 which further emphasizes the prevalent role of the NQR regarding NADH oxidation. Of the RNF complex, exclusively the electron transport protein RnfG was detected in the bands A and C of the 1% Triton X-100 and band C of the 2% Triton X-100 solubilisates, again with less certain identification parameters when compared to the NQR subunits.

3.2. Prevotella bryantii B14 Contains a Functional NQR

3.2.1. Detection of the Membrane-Bound Subunits NqrB and NqrC

The NQR complex comprises several flavin cofactors such as the flavin adenine dinucleotide (FAD) that is bound noncovalently to the NqrF subunit, riboflavin which is associated noncovalently with the NqrB subunit, and two flavin mononucleotides (FMNs) that are covalently attached to the NqrB and NqrC subunits by a phosphodiester bond at the threonine residues 236 and 225, respectively [46,47].
The presence of the NqrB and NqrC subunits of P. bryantii B14 was verified by in-gel fluorescence detection of covalently bound FMN chromophores (Figure 3). This is shown best in lane no. 5 of Figure 3 that comprises the washed membranes which exhibit a fluorescent band at about 25 kDa. It was reported before that the NqrB and NqrC subunits migrate together under these conditions and appear as a single band at about 25 kDa [48]. The NqrB and NqrC subunits of P. bryantii B14 exhibit a length of 385 and 210 amino acids with a mass of 41.7 and 23.2 kDa, respectively. As a positive control, a truncated NqrC33–257 of Vibrio cholerae was used (Figure 3, lane 6) which lacks the N-terminal transmembrane helix. Please note that hydrophobic proteins like the NqrB and NqrC subunits migrate faster in SDS-PAGE [47].
In accordance with the observed fluorescence of proteins that run at a comparable weight in the SDS-PAGE and which we assigned as NqrB and NqrC, the threonine residues with covalently attached FMN cofactors in NqrB and NqrC of the V. cholerae NQR complex [47] are as well conserved in the corresponding NQR subunits of P. bryantii B14.

3.2.2. NADH Dehydrogenase Activity Is Inhibited by Micromolar Ag+

The preceding findings confirmed the presence of a NQR complex in membranes of growing P. bryantii B14 cells but still did not provide evidence to answer the question if the NQR complex is truly functional and active. Therefore, we studied the inhibition of NADH oxidation by P. bryantii B14 membranes using micromolar Ag+ concentrations. Silver ions particularly inhibit NADH oxidation of the NQR but do not affect the NDH-I complex [49].
Membranes of the wild type Vibrio cholerae were reported to have a NADH dehydrogenase activity of about 0.4–0.5 μmol min−1 mg−1 [50] whereas membranes of P. bryantii B14 exhibited an activity of about 0.2 μmol min−1 mg−1. The NQR is specifically inhibited by micromolar concentrations of Ag+ whereas the activity of other respiratory NADH dehydrogenases such as the electrogenic NDH-I (Nuo) or the non-electrogenic NADH dehydrogenase (NDH-II) is not affected [51]. As depicted in Figure 4, the half-maximum inhibition of NADH:quinone oxidoreduction activity of native membranes from P. bryantii B14 was already achieved at a concentration of about 0.75 µM AgNO3 indicating that oxidation of NADH by membranes of P. bryantii B14 is catalyzed predominantly by the NQR.

3.2.3. NADH Dehydrogenase Activity Is Stimulated by Na+

To further confirm the notion of an active NQR complex and to verify the results of the previous experiment that used micromolar concentrations of Ag+ to inhibit NADH oxidation activity, the following kinetic experiment analyzed the stimulating effects of increasing sodium concentrations on the NADH oxidation activity of isolated membranes from P. bryantii B14 (Figure 5). In parallel, identical amounts of KCl were used as a control for the Na+-dependent stimulation of NADH oxidation activity.
Increasing amounts of sodium caused an enhanced NADH oxidation activity of P. bryantii B14 membranes whereas the control using KCl instead of NaCl did not affect the NADH dehydrogenase activity. NADH oxidation activity of P. bryantii B14 membranes increased from 223 nmol min−1 mg−1 at a NaCl concentration of 100 µM to a maximum of 334 nmol min−1 mg−1 at a NaCl concentration of 500 µM. Please note that the residual Na+ concentration in assay buffers (40 µM) would be sufficient for half-maximal activity of purified NQR from Vibrio cholera [52], which explains the basal activity of P. bryantii B14 membranes without added salts (Figure 5). The inhibition of NADH oxidation activity by silver ions [49,53], and the stimulation of NADH oxidation by Na+ [54] are hallmark features for the presence of NQR in bacterial membranes, and demonstrate that P. bryantii B14 membranes also contain active NQR. In contrast, the control experiment revealed a NADH oxidation activity of 201 nmol min−1 mg−1 at a KCl concentration of 100 µM and 220 nmol min−1 mg−1 at a KCl concentration of 500 µM which emphasized the prevalent role of the NQR complex in respiratory NADH oxidation by P. bryantii B14.

4. Conclusions

The identification of NQR subunits from five different Prevotella spp. in the metaproteomic dataset obtained from the rumen [17] and the fact that this respiratory complex pumps Na+ exclusively, suggested an important role of electrochemical Na+ gradients in the anaerobic energy metabolism and physiology of these major inhabitants of the rumen ecosystem. For the first time, to the best of our knowledge, the presence of a functioning NQR complex in the strictly anaerobic P. bryantii B14 was verified by mass spectrometric, biochemical and kinetic experiments. Subunits of the NQR that were identified in the rumen and in P. bryantii B14 are summarized in Figure 6. The unidentified NqrE subunit comprises only two tryptic peptides at single charge state and three peptides at double charge state that match the precursor mass filter of 300 to 1800 m/z of the LTQ-Orbitrap XL mass spectrometer. For comparison, the NqrD subunit exhibited a total of 7 tryptic peptides of detectable length (at each charge state). Thus, the low number of detectable peptides derived from NqrE prevented their identification.
The H+-translocating NDH-I complex (Nuo) is present in many bacterial species [55,56] but, according to genome predications, P. bryantii B14 contains the headless NDH-I complex that lacks the subunits NuoEFG (N-module) which are responsible for the oxidation of NADH. The 11-subunit NDH-I complex was found, amongst others, in Bacteroidetes species [45] and the presence of the headless NDH-I complex I in P. copri was confirmed by quantitative reverse transcription polymerase chain reaction (qRT-PCR) [15]. The current mass spectrometric experiments did not identify the NuoEFG subunits in P. bryantii B14 which further emphasized the dominant role of the NQR in oxidation of NADH.
The subunits NuoL, NuoM and NuoN of the NDH-I complex are homologues to the Na+/H+ gradient antiporter Mrp [57] which is capable of converting sodium gradients to proton gradients. Thus, it is possible that the headless NDH-I complex performs in a similar way. P. bryantii B14 contains a proton gradient-driven ATP synthase and the sodium motive force generated by the NQR might be utilized to build up a proton gradient via Na+/H+ antiporters and possibly also by the headless NDH-I complex in order to regenerate ATP (Figure 6). Further studies are required to clarify the possible role of this complex in respiration or secondary cation/H+ antiport.
The electrochemical Na+ gradient generated by the NQR could also be used in sodium-symporters (Figure 6) as reported for the ruminal Streptococcus bovis that utilizes the sodium motive force for the import of amino acids [58]. Sodium dependent uptake of amino acids was reported for several ruminal bacteria [59].
Prevotella spp. represent the predominant bacterial genus in the rumen and are involved in the maintenance of the redox potential and influence the metabolite profile. Within their natural habitat, Prevotella spp. were considered to rely exclusively on fermentation for energy conservation. Our findings that Prevotella spp. retrieved from the rumen and P. bryantii B14 operate a respiratory Na+-translocating NADH:quinone oxidoreductase which is probably linked to a fumarate reductase suggest that these ruminal bacteria critically depend on a sodium motive force generated during respiratory NADH:fumarate oxidoreduction. The NQR is robust voltage-generating machinery [37] and additional ATP yields from anaerobic respiration and the interlinked recovery of NAD+ represents a highly beneficial feature for survival and competition in the rumen ecosystem.
Regarding Prevotella spp. and P. bryantii B14 we propose that reduced NADH produced by fermentation is oxidized by the NQR using fumarate as final electron acceptor (Figure 6) since subunits of the fumarate reductase including iron-sulfur proteins and flavoproteins were also detected in the mass spectrometric experiments (Tables S1–S3). The observation of a fumarate reductase in membranes from P. bryantii B14 and the presence of the NQR suggests that NADH:fumarate oxidoreduction under generation of a sodium motive force (Figure 6) is an important building block in the anaerobic lifestyle of Prevotella spp.
Other, closely related members of gastrointestinal microbiomes such as Bacteroides fragilis and B. thetaiotaomicron might also benefit from NADH:fumarate oxidoreduction performed by the NQR together with the fumarate reductase [60]. The fumarate reductase catalyzes the reaction of fumarate to succinate which is rapidly converted to propionate by Prevotella spp. [61]. However, part of the succinate formed is also excreted [15]. NADH:fumarate oxidoreduction under secretion of succinate could be a general strategy in members of the rumen microbiota to remove reducing equivalents and achieve redox balance in anaerobic metabolism. In the rumen, overall redox balance largely depends on methanogens which oxidize H2 produced by fermenting bacteria, thus representing the major hydrogen sink in this ecosystem. Once could speculate that when methanogenesis is inhibited, bacteria which are able to increase succinate production and secretion by increased NADH:fumarate oxidoreduction activity have an advantage. Indeed, it was reported that Prevotella spp. and Clostridium aminophilum increase in abundance when methanogenesis is inhibited [62]. Further studies are required to substantiate these assumptions.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2607/7/5/117/s1, Figure S1: BN-PAGE of P. bryantii B14 membranes solubilized with 1% or 2% (w/v) Triton X-100. The protein bands that were excised for subsequent LC–MS/MS analysis are indicated, Table S1: Prevotellaceae-derived proteins identified in the rumen ecosystem. Quantification parameters of MaxQuant (v. 1.5.3.8) and the prediction parameters of CELLO (v. 2.5), TMHMM Server (v. 2.0) and PRED-TMBB2 for subcellular localization, α-helices and ß-barrel outer membrane proteins, Table S2: Entirety of proteins identified in the cell debris (CD) and membrane protein (MP) fractions of P. bryantii B14. Identification parameters of the Thermo Proteome Discoverer software (v. 1.4.1.14) and the Mascot engine (v. 2.4) and the prediction parameters of CELLO (v. 2.5), TMHMM Server (v. 2.0) and PRED-TMBB2 for subcellular localization, α-helices and ß-barrel outer membrane proteins, Table S3: Entirety of proteins detected in bands A, B, and C from the BN-PAGE containing isolated membranes of P. bryantii B14 that were solubilized using 1% and 2% Triton X-100. Identification parameters of the Thermo Proteome Discoverer software (v. 1.4.1.14) and the Mascot engine (v. 2.4).

Author Contributions

J.S. (Jana Seifert) and J.S. (Julia Steuber) conceived and designed the experiments; E.B., L.S. and S.D. performed the experiments; J.S. (Jana Seifert) and J.S. (Julia Steuber) contributed reagents/materials/bioinformatic analysis tools; S.D. conducted the bioinformatical analysis of LC-MS/MS data and wrote the paper; all authors helped to analyze the data and write the paper.

Funding

This work was supported by grants from the Deutsche Forschungsgemeinschaft to Jana Seifert (SE2059/3-1) and Julia Steuber (FR1321/7-1).

Acknowledgments

We thank Nest McKain for providing the Prevotella strain and her helpful instructions regarding the cultivation procedure.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in study design, data collection and interpretation, or the decision to submit the work for publication. There is no conflict of interest and there are no commercial and other relationships to declare.

References

  1. Jami, E.; Mizrahi, I. Composition and similarity of bovine rumen microbiota across individual animals. PLoS ONE 2012, 7, e33306. [Google Scholar] [CrossRef]
  2. Jami, E.; White, B.A.; Mizrahi, I. Potential role of the bovine rumen microbiome in modulating milk composition and feed efficiency. PLoS ONE 2014, 9, e85423. [Google Scholar] [CrossRef] [PubMed]
  3. Kim, M.; Morrison, M.; Yu, Z. Status of the phylogenetic diversity census of ruminal microbiomes. FEMS Microbiol. Ecol. 2011, 76, 49–63. [Google Scholar] [CrossRef] [PubMed]
  4. Looft, T.; Allen, H.K.; Cantarel, B.L.; Levine, U.Y.; Bayles, D.O.; Alt, D.P.; Henrissat, B.; Stanton, T.B. Bacteria, phages and pigs: the effects of in-feed antibiotics on the microbiome at different gut locations. ISME J. 2014, 8, 1566–1576. [Google Scholar] [CrossRef] [PubMed]
  5. Arumugam, M.; Raes, J.; Pelletier, E.; Paslier, D.; Yamada, T.; Mende, D.R. Enterotypes of the human gut microbiome. Nature 2011, 473, 174–180. [Google Scholar] [CrossRef] [PubMed]
  6. Rajilic-Stojanovic, M.; de Vos, W.M. The first 1000 cultured species of the human gastrointestinal microbiota. FEMS Microbiol. Rev. 2014, 38, 996–1047. [Google Scholar] [CrossRef]
  7. Miyazaki, K.; Martin, J.C.; Marinsek-Logar, R.; Flint, H.J. Degradation and utilization of xylans by the rumen anaerobe Prevotella bryantii (formerly P. ruminicola subsp. brevis) B14. Anaerobe 1997, 3, 373–381. [Google Scholar] [CrossRef] [PubMed]
  8. Matsui, H.; Ogata, K.; Tajima, K.; Nakamura, M.; Nagamine, T.; Aminov, R.I.; Benno, Y. Phenotypic characterization of polysaccharidases produced by four Prevotella type strains. Curr. Microbiol. 2000, 41, 45–49. [Google Scholar] [CrossRef]
  9. Purushe, J.; Fouts, D.E.; Morrison, M.; White, B.A.; Mackie, R.I.; Coutinho, P.M.; Henrissat, B.; Nelson, K.E. Comparative genome analysis of Prevotella ruminicola and Prevotella bryantii: Insights into their environmental niche. Microb. Ecol. 2010, 60, 721–729. [Google Scholar] [CrossRef]
  10. Avgustin, G.; Wallace, R.J.; Flint, H.J. Phenotypic diversity among ruminal isolates of Prevotella ruminicola: proposal of Prevotella brevis sp. nov., Prevotella bryantii sp. nov., and Prevotella albensis sp. nov. and redefinition of Prevotella ruminicola. Int. J. Syst. Bacteriol. 1997, 47, 284–288. [Google Scholar] [CrossRef]
  11. Griswold, K.E.; White, B.A.; Mackie, R.I. Diversity of extracellular proteolytic activities among Prevotella species from the rumen. Curr. Microbiol. 1999, 39, 187–194. [Google Scholar] [CrossRef] [PubMed]
  12. Zorec, M.; Vodovnik, M.; Marinšek-Logar, R. Potential of selected rumen bacteria for cellulose and hemicellulose degradation. Food Technol. Biotech. 2014, 52, 210–221. [Google Scholar]
  13. Takahashi, N.; Yamada, T. Pathways for amino acid metabolism by Prevotella intermedia and Prevotella nigrescens. Oral Microbiol. Immun. 2000, 15, 96–102. [Google Scholar] [CrossRef]
  14. Takahashi, N.; Yamada, T. Glucose metabolism by Prevotella intermedia and Prevotella nigrescens. Oral Microbiol. Immun. 2000, 15, 188–195. [Google Scholar] [CrossRef]
  15. Franke, T.; Deppenmeier, U. Physiology and central carbon metabolism of the gut bacterium Prevotella copri. Mol. Microbiol. 2018, 109, 528–540. [Google Scholar] [CrossRef] [PubMed]
  16. Millen, D.D.; De Beni Arrigoni, M.; Pacheco, R.D.L. Microbiology of the rumen. In Rumenology; Springer International Publishing: Switzerland, 2016; pp. 39–40. [Google Scholar]
  17. Deusch, S.; Camarinha-Silva, A.; Conrad, J.; Beifuss, U.; Rodehutscord, M.; Seifert, J. A structural and functional elucidation of the rumen microbiome influenced by various diets and microenvironments. Front. Microbiol. 2017, 8, 1605. [Google Scholar] [CrossRef]
  18. Reyes-Prieto, A.; Barquera, B.; Juárez, O. Origin and evolution of the sodium-pumping NADH:Ubiquinone oxidoreductase. PLoS ONE 2014, 9, e96696. [Google Scholar] [CrossRef]
  19. Barquera, B. The sodium pumping NADH:quinone oxidoreductase (Na+-NQR), a unique redox-driven ion pump. J. Bioenerg. Biomembr. 2014, 46, 289–298. [Google Scholar] [CrossRef] [PubMed]
  20. Steuber, J.; Vohl, G.; Casutt, M.S.; Vorburger, T.; Diederichs, K.; Fritz, G. Structure of the V. cholerae Na+-pumping NADH:quinone oxidoreductase. Nature 2014, 516, 62–67. [Google Scholar] [CrossRef] [PubMed]
  21. Steuber, J.; Vohl, G.; Muras, V.; Toulouse, C.; Claussen, B.; Vorburger, T.; Fritz, G. The structure of Na+-translocating of NADH:ubiquinone oxidoreductase of Vibrio cholerae: Implications on coupling between electron transfer and Na+ transport. Biol. Chem. 2015, 396, 1015–1030. [Google Scholar] [CrossRef]
  22. Steuber, J.; Halang, P.; Vorburger, T.; Steffen, W.; Vohl, G.; Fritz, G. Central role of the Na+-translocating NADH:quinone oxidoreductase (Na+-NQR) in sodium bioenergetics of Vibrio cholerae. Biol. Chem. 2014, 395, 1389–1399. [Google Scholar] [CrossRef] [PubMed]
  23. Zafar, H.; Saier, M.H., Jr. Comparative genomics of transport proteins in seven Bacteroides species. PLoS ONE 2018, 13, e0208151. [Google Scholar] [CrossRef]
  24. Hackmann, T.J.; Ngugi, D.K.; Firkins, J.L.; Tao, J. Genomes of rumen bacteria encode atypical pathways for fermenting hexoses to short-chain fatty acids. Environ. Microbiol. 2017, 19, 4670–4683. [Google Scholar] [CrossRef]
  25. Yu, C.S.; Chen, Y.C.; Lu, C.H.; Hwang, J.K. Prediction of protein subcellular localization. Proteins 2006, 64, 643–651. [Google Scholar] [CrossRef]
  26. Krogh, A.; Larsson, B.; von Heijne, G.; Sonnhammer, E.L. Predicting transmembrane protein topology with a hidden Markov model: Application to complete genomes. J. Mol. Biol. 2001, 305, 567–580. [Google Scholar] [CrossRef]
  27. Tsirigos, K.D.; Elofsson, A.; Bagos, P.G. PRED-TMBB2: improved topology prediction and detection of beta-barrel outer membrane proteins. Bioinformatics 2016, 32, 665–671. [Google Scholar] [CrossRef] [PubMed]
  28. Hobson, P.N. Rumen Bacteria. In Methods in Microbiology; Norris, J.R., Ribbons, D.W., Eds.; Academic Press: New York, NY, USA, 1969; Volume 3, pp. 133–149. [Google Scholar]
  29. Bryant, M.P. Commentary on the Hungate technique for culture of anaerobic bacteria. Am. J. Clin. Nutr. 1972, 25, 1324–1328. [Google Scholar] [CrossRef]
  30. Varel, V.H.; Bryant, M.P. Nutritional features of Bacteroides fragilis subsp. fragilis. Appl. Microbiol. 1974, 28, 251–257. [Google Scholar]
  31. Smith, P.K.; Krohn, R.I.; Hermanson, G.T.; Mallia, A.K.; Gartner, F.H.; Provenzano, M.D.; Fujimoto, E.K.; Goeke, N.M.; Olson, B.J.; Klenk, D.C. Measurement of protein using bicinchoninic acid. Anal. Biochem. 1985, 150, 76–85. [Google Scholar] [CrossRef]
  32. Laemmli, U.K. Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 1970, 227, 680–685. [Google Scholar] [CrossRef] [PubMed]
  33. Schägger, H.; von Jagow, G. Tricine-sodium dodecyl sulfate-polyacrylamide gel electrophoresis for the separation of proteins in the range from 1 to 100 kDa. Anal. Biochem. 1987, 166, 368–379. [Google Scholar] [CrossRef]
  34. Tao, M.; Casutt, M.S.; Fritz, G.; Steuber, J. Oxidant-induced formation of a neutral flavosemiquinone in the Na+-translocating NADH:quinone oxidoreductase (Na+-NQR) from Vibrio cholerae. Biochim. Biophys. Acta Bioenergetics 2008, 1777, 696–702. [Google Scholar] [CrossRef]
  35. Schägger, H.; von Jagow, G. Blue native electrophoresis for isolation of membrane protein complexes in enzymatically active form. Anal. Biochem. 1991, 199, 223–231. [Google Scholar] [CrossRef]
  36. Jehmlich, N.; Schmidt, F.; Hartwich, M.; von Bergen, M.; Richnow, H.H.; Vogt, C. Incorporation of carbon and nitrogen atoms into proteins measured by protein-based stable isotope probing (Protein-SIP). Rapid Commun. Mass Sp. 2008, 22, 2889–2897. [Google Scholar] [CrossRef]
  37. Vorburger, T.; Nedielkov, R.; Brosig, A.; Bok, E.; Schunke, E.; Steffen, W.; Mayer, S.; Götz, F.; Möller, H.M.; Steuber, J. Role of the Na+-translocating NADH:quinone oxidoreductase in voltage generation and Na+ extrusion in Vibrio cholerae. Biochim. Biophys. Acta Bioenergetics 2016, 1857, 473–482. [Google Scholar] [CrossRef]
  38. Tanca, A.; Palomba, A.; Pisanu, S.; Deligios, M.; Fraumene, C.; Manghina, V.; Pagnozzi, D.; Addis, M.F.; Uzzau, S. A straightforward and efficient analytical pipeline for metaproteome characterization. Microbiome 2014, 2. [Google Scholar] [CrossRef]
  39. Biegel, E.; Schmidt, S.; González, J.M.; Müller, V. Biochemistry, evolution and physiological function of the Rnf complex, a novel ion-motive electron transport complex in prokaryotes. Cell. Mol. Life Sci. 2011, 68, 613–634. [Google Scholar] [CrossRef] [PubMed]
  40. Juárez, O.; Barquera, B. Insights into the mechanism of electron transfer and sodium translocation of the Na+-pumping NADH:quinone oxidoreductase. Biochim. Biophys. Acta Bioenergetics 2012, 1817, 1823–1832. [Google Scholar] [CrossRef]
  41. Hess, V.; Schuchmann, K.; Muller, V. The ferredoxin:NAD+ oxidoreductase (Rnf) from the acetogen Acetobacterium woodii requires Na+ and is reversibly coupled to the membrane potential. J. Biol. Chem. 2013, 288, 31496–31502. [Google Scholar] [CrossRef] [PubMed]
  42. Dimroth, P. Mechanisms of sodium transport in bacteria. Philos. Trans. R. Soc. B 1990, 326, 465–477. [Google Scholar] [CrossRef] [PubMed]
  43. Dimroth, P. Primary sodium ion translocating enzymes. Biochim. Biophys. Acta 1997, 1318, 11–51. [Google Scholar] [CrossRef]
  44. Leif, H.; Sled, V.D.; Ohnishi, T.; Weiss, H.; Friedrich, T. Isolation and characterization of the proton-translocating NADH: ubiquinone oxidoreductase from Escherichia coli. Eur. J. Biochem. 1995, 230, 538–548. [Google Scholar] [CrossRef]
  45. Moparthi, V.K.; Hägerhäll, C. The evolution of respiratory chain complex I from a smaller last common ancestor consisting of 11 protein subunits. J. Mol. Evol. 2011, 72, 484–497. [Google Scholar] [CrossRef] [PubMed]
  46. Hayashi, M.; Nakayama, Y.; Yasui, M.; Maeda, M.; Furuishi, K.; Unemoto, T. FMN is covalently attached to a threonine residue in the NqrB and NqrC subunits of Na+-translocating NADH:quinone reductase from Vibrio alginolyticus. FEBS Lett. 2001, 488, 5–8. [Google Scholar] [CrossRef]
  47. Casutt, M.S.; Huber, T.; Brunisholz, R.; Tao, M.; Fritz, G.; Steuber, J. Localization and function of the membrane-bound riboflavin in the Na+-translocating NADH:quinone oxidoreductase (Na+-NQR) from Vibrio cholerae. J. Biol. Chem. 2010, 285, 27088–27099. [Google Scholar] [CrossRef]
  48. Casutt, M.S.; Wendelspiess, S.; Steuber, J.; Fritz, G. Crystallization of the Na+-translocating NADH:quinone oxidoreductase from Vibrio cholerae. Acta Crystallogr. F 2010, 66, 1677–1679. [Google Scholar] [CrossRef] [PubMed]
  49. Steuber, J.; Krebs, W.; Dimroth, P. The Na+-translocating NADH:ubiquinone oxidoreductase from Vibrio alginolyticus—Redox states of the FAD prosthetic group and mechanism of Ag+ inhibition. Eur. J. Biochem. 1997, 249, 770–776. [Google Scholar] [CrossRef] [PubMed]
  50. Lin, P.C.; Turk, K.; Hase, C.C.; Fritz, G.; Steuber, J. Quinone reduction by the Na+-translocating NADH dehydrogenase promotes extracellular superoxide production in Vibrio cholerae. J. Bacteriol. 2007, 189, 3902–3908. [Google Scholar] [CrossRef] [PubMed]
  51. Krebs, W.; Steuber, J.; Gemperli Anja, C.; Dimroth, P. Na+ translocation by the NADH:ubiquinone oxidoreductase (complex I) from Klebsiella pneumoniae. Mol. Microbiol. 2002, 33, 590–598. [Google Scholar] [CrossRef]
  52. Toulouse, C.; Claussen, B.; Muras, V.; Fritz, G.; Steuber, J. Strong pH dependence of coupling efficiency of the Na+-translocating NADH:quinone oxidoreductase (Na+-NQR) of Vibrio cholerae. Biol. Chem. 2017, 398, 251–260. [Google Scholar] [CrossRef]
  53. Unemoto, T.; Ogura, T.; Hayashi, M. Modifications by Na+ and K+, and the site of Ag+ inhibition in the Na+-translocating NADH:quinone reductase from a marine Vibrio alginolyticus. Biochim. Biophys. Acta Bioenergetics 1993, 1183, 201–205. [Google Scholar] [CrossRef]
  54. Tokuda, H.; Unemoto, T. Na+ is translocated at NADH:quinone oxidoreductase segment in the respiratory chain of Vibrio alginolyticus. J. Biol. Chem. 1984, 259, 7785–7790. [Google Scholar] [PubMed]
  55. Marreiros, B.C.; Batista, A.P.; Duarte, A.M.S.; Pereira, M.M. A missing link between complex I and group 4 membrane-bound [NiFe] hydrogenases. Biochim. Biophys. Acta Bioenergetics 2013, 1827, 198–209. [Google Scholar] [CrossRef] [PubMed]
  56. Steffen, W.; Steuber, J. Cation transport by the respiratory NADH:quinone oxidoreductase (complex I): Facts and hypotheses. Biochem. Soc. T. 2013, 41, 1280–1287. [Google Scholar] [CrossRef]
  57. Swartz, T.H.; Ikewada, S.; Ishikawa, O.; Ito, M.; Krulwich, T.A. The Mrp system: A giant among monovalent cation/proton antiporters? Extremophiles 2005, 9, 345–354. [Google Scholar] [CrossRef] [PubMed]
  58. Russell, J.B.; Strobel, H.J.; Driessen, A.J.; Konings, W.N. Sodium-dependent transport of neutral amino acids by whole cells and membrane vesicles of Streptococcus bovis, a ruminal bacterium. J. Bacteriol. 1988, 170, 3531–3536. [Google Scholar] [CrossRef] [PubMed]
  59. Martin, S.A. Nutrient transport by ruminal bacteria: A review. J. Anim. Sci. 1994, 72, 3019–3031. [Google Scholar] [CrossRef]
  60. Lu, Z.; Imlay, J.A. The Fumarate Reductase of Bacteroides thetaiotaomicron, unlike that of Escherichia coli, is configured so that it does not generate reactive oxygen species. mBio 2017, 8, e01873-16. [Google Scholar] [CrossRef]
  61. Stewart, C.S. The rumen bacteria. In The Rumen Microbial Ecosystem; Hobson, P.N., Stewart, C.S., Eds.; Springer: Heidelberg, Germany, 1997; pp. 10–72. [Google Scholar]
  62. Mitsumori, M.; Shinkai, T.; Takenaka, A.; Enishi, O.; Higuchi, K.; Kobayashi, Y.; Nonaka, I.; Asanuma, N.; Denman, S.E.; McSweeney, C.S. Responses in digestion, rumen fermentation and microbial populations to inhibition of methane formation by a halogenated methane analogue. Br. J. Nutr. 2012, 108, 482–491. [Google Scholar] [CrossRef]

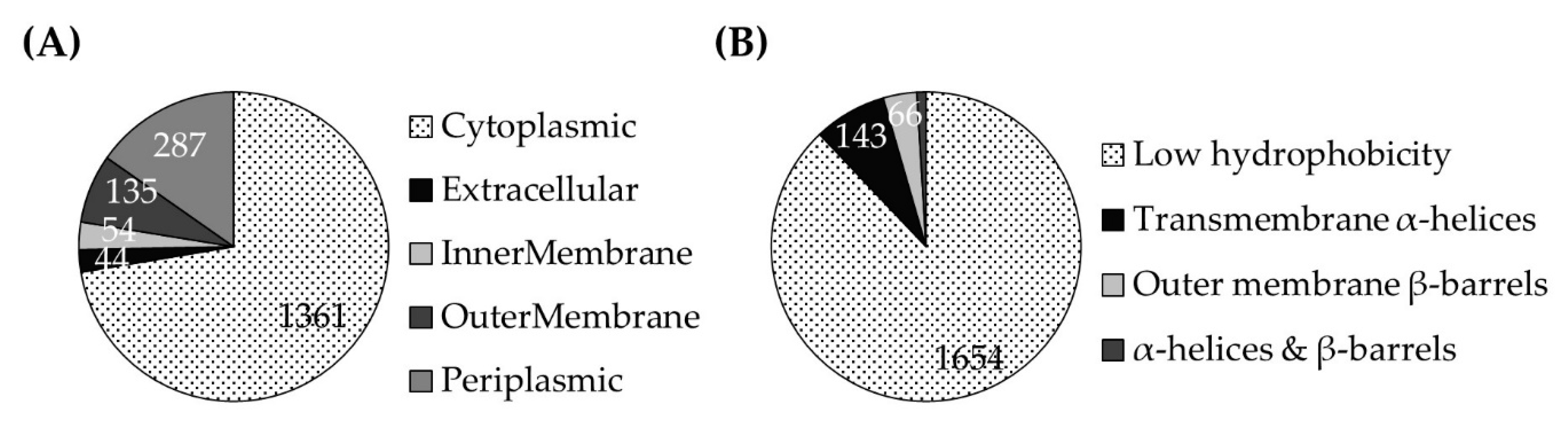

Figure 1. Sequence-based prediction of subcellular localization and hydrophobicity of 1,881 proteins of the Prevotellaceae family as identified in the rumen ecosystem. (A) Results obtained from the Cello algorithm (cello.life.nctu.edu.tw/) which differentiates between four cellular compartments and extracellular proteins. (B) The combined results of the TMHMM Server v. 2.0 (cbs.dtu.dk/services/TMHMM/) and the PRED-TMBB2 (compgen.org/tools/PRED-TMBB2/) algorithms which assign hydrophobic stretches (α-helices and β-barrels).
Figure 1. Sequence-based prediction of subcellular localization and hydrophobicity of 1,881 proteins of the Prevotellaceae family as identified in the rumen ecosystem. (A) Results obtained from the Cello algorithm (cello.life.nctu.edu.tw/) which differentiates between four cellular compartments and extracellular proteins. (B) The combined results of the TMHMM Server v. 2.0 (cbs.dtu.dk/services/TMHMM/) and the PRED-TMBB2 (compgen.org/tools/PRED-TMBB2/) algorithms which assign hydrophobic stretches (α-helices and β-barrels).
Microorganisms 07 00117 g001

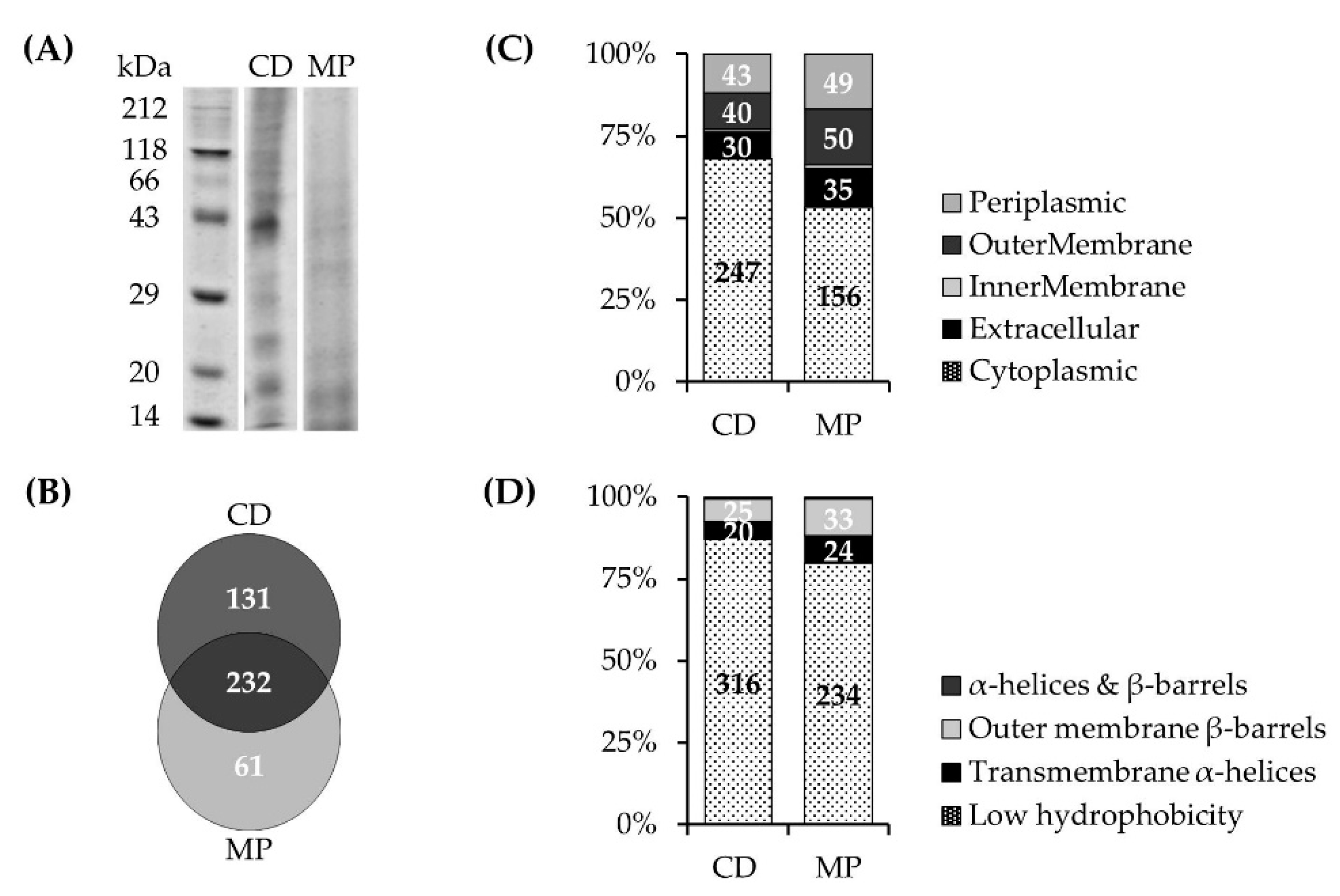

Figure 2. (A) Separation of proteins from subcellular fractions (MP, membrane proteins; CD, cell debris) of the P. bryantii B14 proteome by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE). (B) Overlap of proteins identified in the MP fraction (293 proteins) and CD fraction (363 proteins). (C) Predicted subcellular localization of proteins (Cello). Cytoplasmic proteins detected in the MP fraction represent contaminations which were not completely removed during preparation of the MP fraction. (D) Membrane-affiliated motifs: α-helices and β-barrels of proteins identified in the MP and CD fractions (TMHMM Server v. 2.0 and PRED-TMBB2).
Figure 2. (A) Separation of proteins from subcellular fractions (MP, membrane proteins; CD, cell debris) of the P. bryantii B14 proteome by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE). (B) Overlap of proteins identified in the MP fraction (293 proteins) and CD fraction (363 proteins). (C) Predicted subcellular localization of proteins (Cello). Cytoplasmic proteins detected in the MP fraction represent contaminations which were not completely removed during preparation of the MP fraction. (D) Membrane-affiliated motifs: α-helices and β-barrels of proteins identified in the MP and CD fractions (TMHMM Server v. 2.0 and PRED-TMBB2).
Microorganisms 07 00117 g002
Figure 3. Detection of the membrane-bound NQR subunits NqrB and NqrC by in-gel fluorography. Cell fractions were separated by SDS-PAGE (0.15 mg protein per lane). (M) protein marker; (1) unbroken cells; (2) crude extract; (3) soluble fraction; (4) cleared supernatant of washed membranes after centrifugation; (5) washed membranes; (6) positive control: truncated NqrC33-257 of the Vibrio cholerae NQR complex comprising the covalently attached FMN but lacking the N-terminal transmembrane helix.
Figure 3. Detection of the membrane-bound NQR subunits NqrB and NqrC by in-gel fluorography. Cell fractions were separated by SDS-PAGE (0.15 mg protein per lane). (M) protein marker; (1) unbroken cells; (2) crude extract; (3) soluble fraction; (4) cleared supernatant of washed membranes after centrifugation; (5) washed membranes; (6) positive control: truncated NqrC33-257 of the Vibrio cholerae NQR complex comprising the covalently attached FMN but lacking the N-terminal transmembrane helix.
Microorganisms 07 00117 g003

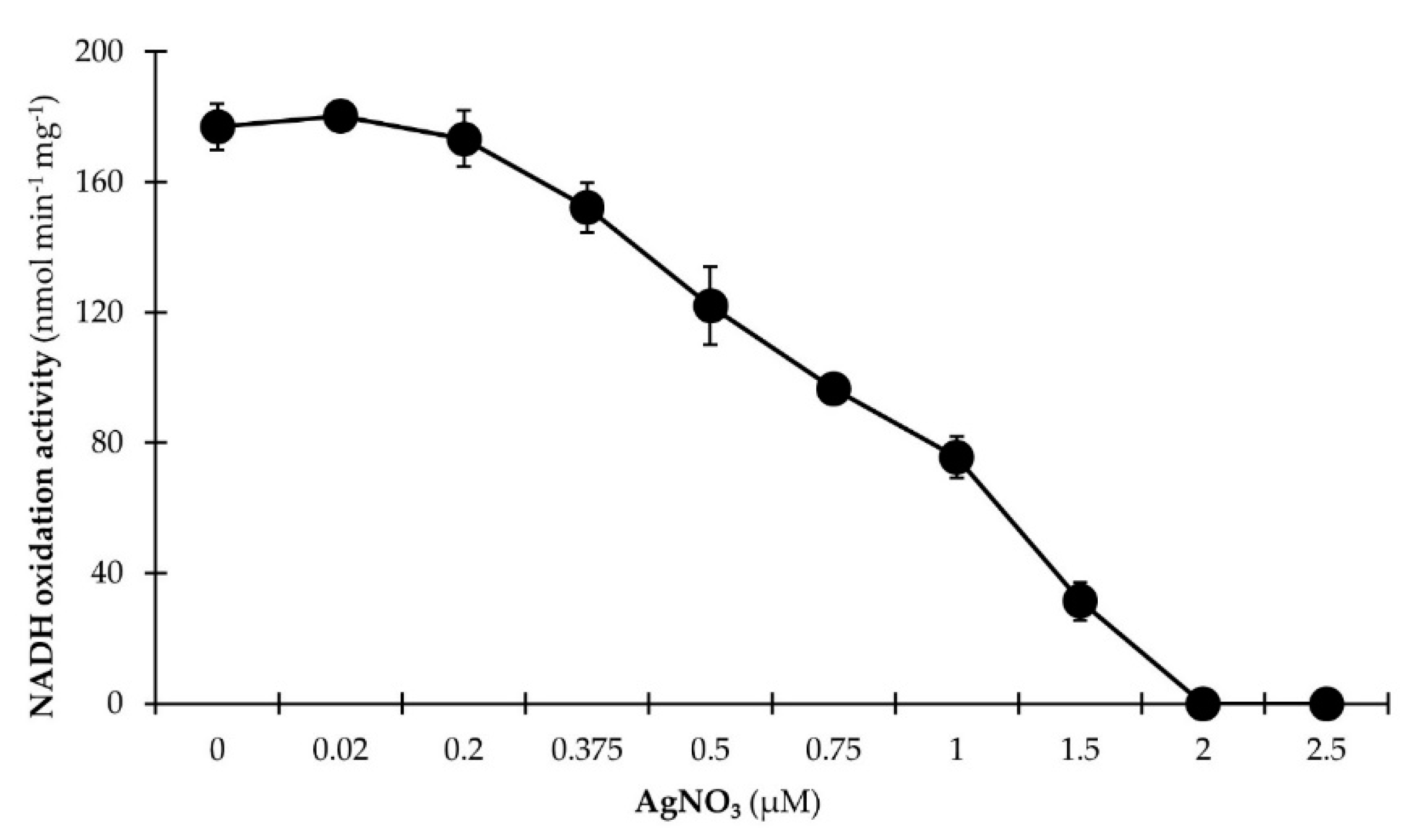

Figure 4. Ag+ inhibits NADH:quinone oxidoreduction activity of P. bryantii B14 membranes. Membranes prepared in chloride-free buffers (aliquots of 150 µg protein) were incubated with varying amounts of AgNO3 (0–2.5 µM) for 5 min at 4 °C. Membrane aliquots were added to the reaction buffer (20 mM Tris H2SO4, 5 % glycerol, 50 µM Na2SO4, 150 µM NADH, 100 µM ubiquinone-1), and the oxidation of NADH was followed spectrophotometrically at 25 °C. Mean values and SD are from n = 3 measurements.
Figure 4. Ag+ inhibits NADH:quinone oxidoreduction activity of P. bryantii B14 membranes. Membranes prepared in chloride-free buffers (aliquots of 150 µg protein) were incubated with varying amounts of AgNO3 (0–2.5 µM) for 5 min at 4 °C. Membrane aliquots were added to the reaction buffer (20 mM Tris H2SO4, 5 % glycerol, 50 µM Na2SO4, 150 µM NADH, 100 µM ubiquinone-1), and the oxidation of NADH was followed spectrophotometrically at 25 °C. Mean values and SD are from n = 3 measurements.
Microorganisms 07 00117 g004

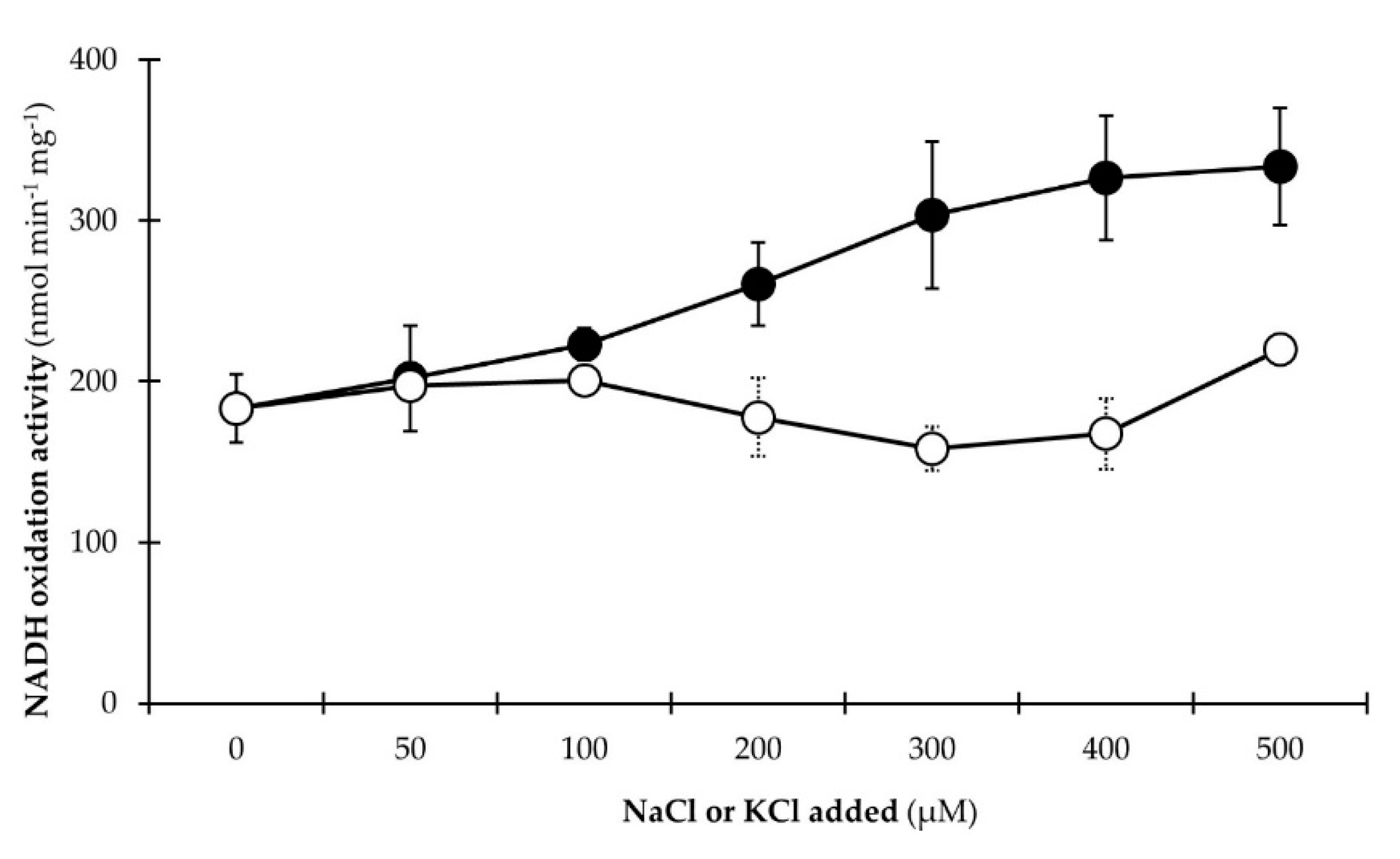

Figure 5. Stimulation of NADH:quinone oxidoreduction activity of P. bryantii B14 membranes by Na+. The assay mixture contained membranes (aliquots of 50 µg protein), 20 mM Tris-HCl (pH 7.5), 100 µM NADH, and 100 µM ubiquinone-1. To the assay mixture, 0–500 µM NaCl (●) or KCl (○) were added. The residual Na+ concentration in every samples was 40 µM. The oxidation of NADH was followed spectrophotometrically at 25 °C. Mean values and SD are from n = 3 measurements.
Figure 5. Stimulation of NADH:quinone oxidoreduction activity of P. bryantii B14 membranes by Na+. The assay mixture contained membranes (aliquots of 50 µg protein), 20 mM Tris-HCl (pH 7.5), 100 µM NADH, and 100 µM ubiquinone-1. To the assay mixture, 0–500 µM NaCl (●) or KCl (○) were added. The residual Na+ concentration in every samples was 40 µM. The oxidation of NADH was followed spectrophotometrically at 25 °C. Mean values and SD are from n = 3 measurements.
Microorganisms 07 00117 g005

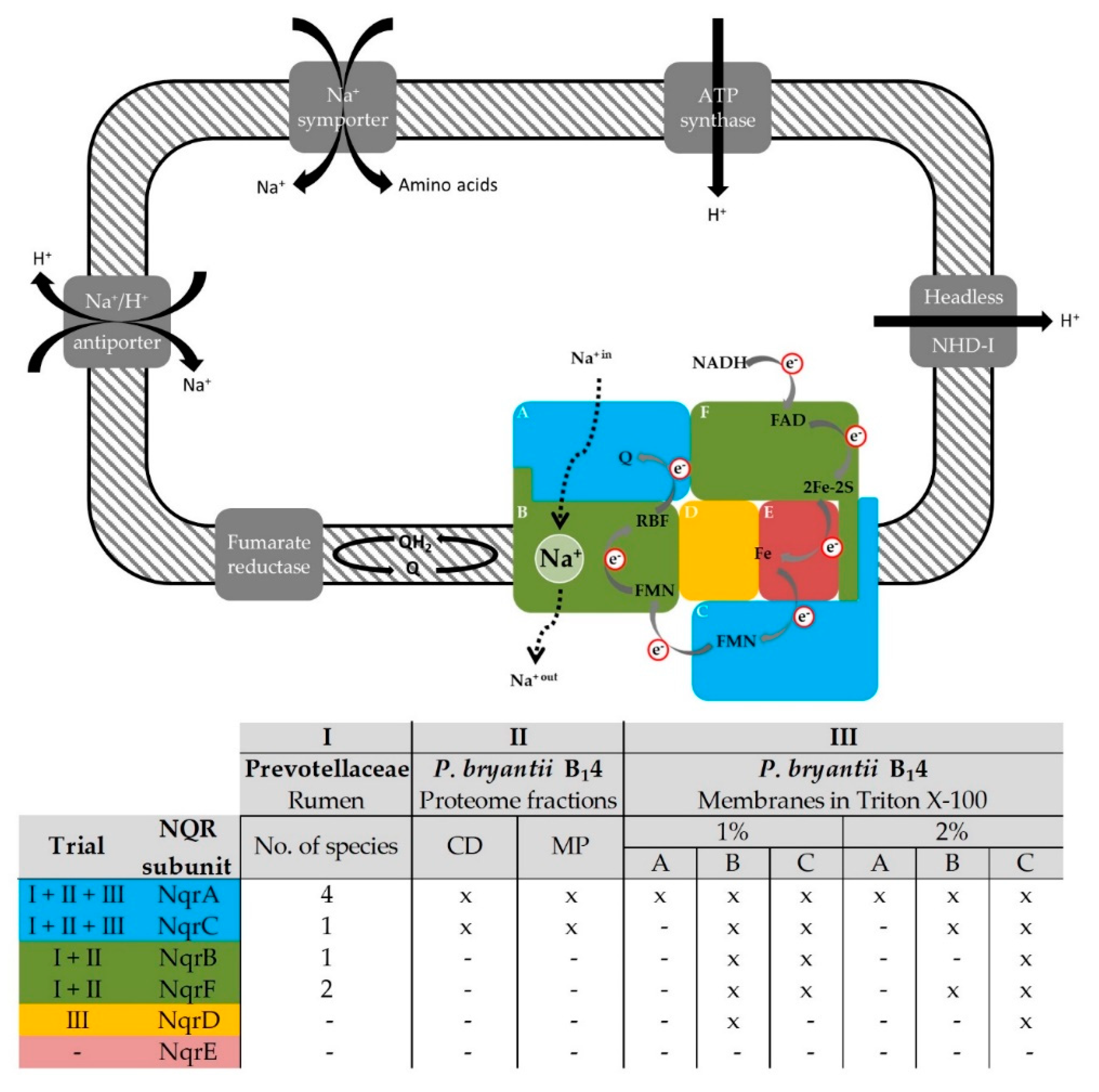

Figure 6. Critical role of the NQR in energy conservation of members of the Prevotellaceae family. Upper panel: The NQR consists of the six subunits NqrABCDEF and catalyzes the oxidation of NADH and reduction of quinone (Q) under translocation of Na+ (broken arrow). This overall reaction requires FAD and a 2Fe-2S protein in subunit NqrF, an iron (Fe) site in subunits NqrDE, one FMN in each subunit NqrC and NqrB, a riboflavin and a presumed Na+ binding site in NqrB, and a quinone (Q) binding site in NqrA. Electron (e) transfer steps are indicated by grey arrows. Fumarate may constitute the final electron acceptor receiving electrons from quinol. The sodium motive force generated by the NQR may be used for sodium-symporters or the establishment of a proton gradient via Na+/H+ antiporters or the headless NDH-I complex to drive ATP regeneration. Lower panel: Nqr subunits identified in the rumen or in P. bryantii B14 by mass spectrometry in three experimental trials (I, II, III) indicated by color code.
Figure 6. Critical role of the NQR in energy conservation of members of the Prevotellaceae family. Upper panel: The NQR consists of the six subunits NqrABCDEF and catalyzes the oxidation of NADH and reduction of quinone (Q) under translocation of Na+ (broken arrow). This overall reaction requires FAD and a 2Fe-2S protein in subunit NqrF, an iron (Fe) site in subunits NqrDE, one FMN in each subunit NqrC and NqrB, a riboflavin and a presumed Na+ binding site in NqrB, and a quinone (Q) binding site in NqrA. Electron (e) transfer steps are indicated by grey arrows. Fumarate may constitute the final electron acceptor receiving electrons from quinol. The sodium motive force generated by the NQR may be used for sodium-symporters or the establishment of a proton gradient via Na+/H+ antiporters or the headless NDH-I complex to drive ATP regeneration. Lower panel: Nqr subunits identified in the rumen or in P. bryantii B14 by mass spectrometry in three experimental trials (I, II, III) indicated by color code.
Microorganisms 07 00117 g006
Table 1. Subunits of the Na+-translocating NADH:quinone reductase (NQR) and other respiratory enzymes produced by members of the Prevotellaceae family as identified by a metaproteomic survey of the rumen [17]. The entirety of identified proteins is listed in Table S1. Proteins belonging to the succinate dehydrogenase (succ.dehyd.) or fumarate reductase (fum. reduc.) were not identified unambiguously in all cases.
Table 1. Subunits of the Na+-translocating NADH:quinone reductase (NQR) and other respiratory enzymes produced by members of the Prevotellaceae family as identified by a metaproteomic survey of the rumen [17]. The entirety of identified proteins is listed in Table S1. Proteins belonging to the succinate dehydrogenase (succ.dehyd.) or fumarate reductase (fum. reduc.) were not identified unambiguously in all cases.
Uniprot Accession no.Identified Proteins SpeciesScore (Max Quant)Sequence Coverage (%)Unique PeptidesTotal Peptides
D5ESF6NqrF40.2832.0049
Prevotella ruminicola
D5ESG1NqrA11.6719.6058
Prevotella ruminicola
D5ESF9NqrC5.0512.2033
Prevotella ruminicola
A0A0D0J042NqrF3.9911.3023
Prevotella sp. P5-119
R5P524NqrA2.008.3013
Prevotella sp. CAG:1092
D5ESG0NqrB1.672.6011
Prevotella ruminicola
D1VWD5NqrA-2.007.0023
Prevotella timonensis
A0A099BUQ4NqrA-2.006.0013
Prevotella sp. S7 MS 2
D5EZ70El. transp. complex RnfG3.9816.6022
Prevotella ruminicola
D5EWF4Succ. dehyd./fum. reduc., flavopr.251.4441.3925
Prevotella ruminicola
D5EWF3Succ. dehyd./fum. reduc., Fe-S pr.133.5551.6113
Prevotella ruminicola
D3HYQ8Succ. dehyd./fum. reduc. Fe-S sub.9.2853.6013
Prevotella buccae
R6CJ62Fumarate reductase, Fe-S pr.9.1347.2011
Prevotella copri
A0A096C9D9Succinate dehydrogenase7.3622.7115
Prevotella amnii
D8DXM5Fumarate reductase, Fe-S pr.5.5845.2011
Prevotella bryantii B14
L0JDX3Menaqui.-Succ. dehyd./fum. reduc.3.9317.6111
Prevotella dentalis
L1MZ30Succ. dehyd./fum. reduc., flavopr.3.7826.4116
Prevotella saccharolytica
R7F4R5Succ. dehyd./fum. reduc., flavopr.2.6719012
Prevotella sp. CAG:485
D7NDJ3Fumarate reductase, Fe-S pr.2.5040.5210
Prevotella oris
U2QH41Succ. dehyd./fum. reduc., flavopr.1.4517.9112
Prevotella baroniae
A0A096BN50Succinate dehydrogenase1.1846.4012
Prevotella buccalis
F8NCB8Succinate dehydrogenase sub. B-2.0017.504
Prevotella multisaccharivorax
R5GTK6Succ. dehyd./fum. reduc. Fe-S sub.-2.0044010
Prevotella sp. CAG:755
Table 2. Subunits of respiratory, NADH-converting complexes and other respiratory enzymes identified in the two proteome fractions (membrane proteins, MP and cell debris, CD) of P. bryantii B14. The entirety of identified proteins is listed in Table S2.
Table 2. Subunits of respiratory, NADH-converting complexes and other respiratory enzymes identified in the two proteome fractions (membrane proteins, MP and cell debris, CD) of P. bryantii B14. The entirety of identified proteins is listed in Table S2.
SampleFractionUniprot Accession no.Identified Proteins of Prevotella bryantii B14Score (Mascot/PD)Sequence Coverage (%)Unique PeptidesTotal Peptides
CDD8DWC1NqrA275.0017.3777
D8DWB9NqrC151.1730.9566
D8DYE1El. transp. complex RnfG (FMN)95.9023.6633
D8DWN9NuoCD117.977.8233
D8DWN7NuoI63.747.2522
D8DWP0NuoB 57.699.4522
D8DXM5Fumarate reductase, Fe-S pr.619.2151.191313
D8DXM6Succinate dehydrogenase475.15221515
MPD8DWB9NqrC137.8217.1433
D8DWC1NqrA113.5711.5855
D8DYE1El. transp. complex RnfG (FMN)196.6832.8255
D8DXV4El. transp. complex RnfG110.2615.2622
D8DWN9NuoCD36.653.8222
D8DXM5Fumarate reductase, Fe-S pr.477.0851.191414
D8DXM6Succinate dehydrogenase243.9015.481111
Table 3. Sequence identities inferred from multiple sequence alignments of the NQR subunits with the corresponding subunits of the RNF complex and the most similar subunits of the NDH-I (Nuo). Alignments were performed with Clustal Omega (European Bioinformatics Institute, ebi.ac.uk/Tools/msa/clustalo/).
Table 3. Sequence identities inferred from multiple sequence alignments of the NQR subunits with the corresponding subunits of the RNF complex and the most similar subunits of the NDH-I (Nuo). Alignments were performed with Clustal Omega (European Bioinformatics Institute, ebi.ac.uk/Tools/msa/clustalo/).
NQR SubunitUniprot Accession No.RNF SubunitUniprot Accession No.Identity (%)NDH-I SubunitUniprot Accession No.Identity (%)
NqrAD8DWC1RnfCD8DXV625.22NuoHD8DWN818.44
NqrBD8DWC0RnfDD8DXV530.28NuoKD8DWN526.88
NqrCD8DWB9RnfGD8DYE127.05NuoID8DWN726.83
NqrDD8DWB8RnfED8DXV337.36NuoND8DX0219.08
NqrED8DWB7RnfAD8DXV244.50NuoLA0A1H9A8K016.67
NqrFD8DWB6RnfBD8DXV717.34NuoCDD8DWN917.48
Table 4. Subunits of the NQR, RNF, NDH-I (Nuo), and other respiratory enzymes identified from membranes solubilized with 1% or 2% (w/v) Triton X-100. Bands were excised from the BN-PAGE as indicated in Figure S1. The entirety of identified proteins is listed in Table S3.
Table 4. Subunits of the NQR, RNF, NDH-I (Nuo), and other respiratory enzymes identified from membranes solubilized with 1% or 2% (w/v) Triton X-100. Bands were excised from the BN-PAGE as indicated in Figure S1. The entirety of identified proteins is listed in Table S3.
Protein BandUniprot Accession No.Identified Proteins of Prevotella bryantii B14Score (Mascot/PD)Sequence Coverage (%)Unique PeptidesTotal Peptides
Triton 1%—AD8DWC1NqrA259.3724.501010
D8DXV4El. transp. complex RnfG87.4816.8422
D8DWN8NuoH 98.715.7722
D8DXM6Succinate dehydrogenase1843.3441.883232
D8DXM5Fumarate reductase, Fe-S pr.1272.0063.891616
Triton 1%—BD8DWC1NqrA1126.9360.582627
D8DWB6NqrF386.3118.0177
D8DWB9NqrC272.8940.4878
D8DWC0NqrB55.6611.4333
D8DWB8NqrD41.654.7822
D8DWN8NuoH 115.469.6244
D8DWN7NuoI 90.3516.5833
D8DX02NuoN81.474.5022
D8DWP0NuoB70.536.3022
D8DXM6Succinate dehydrogenase814.3029.592222
D8DXM5Fumarate reductase, Fe-S pr.605.9348.021212
Triton 1%—CD8DWC1NqrA1233.9069.043333
D8DWB9NqrC348.7941.4389
D8DWB6NqrF160.7010.1944
D8DWC0NqrB44.906.4922
D8DXV4El. transp. complex RnfG88.6415.2622
D8DWN8NuoH 133.209.8955
A0A1H9A8K0NuoL110.735.1333
D8DWP0NuoB66.306.322
D8DWN9NuoCD61.144.222
D8DWN7NuoI 39.7011.422
D8DXM6Succinate dehydrogenase120.156.2255
D8DXM5Fumarate reductase, Fe-S pr.99.839.9222
Triton 2%—AD8DWC1NqrA103.8511.5844
D8DWN8NuoH 73.765.7722
D8DXM6Succinate dehydrogenase2189.8641.883232
D8DXM5Fumarate reductase, Fe-S pr.1159.1360.711515
Triton 2%—BD8DWC1NqrA791.1345.661920
D8DWB6NqrF255.8614.4566
D8DWB9NqrC176.8018.5744
D8DWN8NuoH 122.629.6244
D8DWP0NuoB67.366.3022
D8DWN9NuoCD63.924.2022
D8DXM6Succinate dehydrogenase822.6926.251818
D8DXM5Fumarate reductase, Fe-S pr.537.0054.371313
Triton 2%—CD8DWC1NqrA1218.8063.253030
D8DWB6NqrF464.9124.6489
D8DWB9NqrC242.6034.7667
D8DWC0NqrB66.4511.1733
D8DWB8NqrD41.624.7822
D8DXV4El. transp. complex RnfG25.9811.5822
D8DWN8NuoH 118.117.6944
D8DWN7NuoI 104.2616.5833
D8DWP0NuoB78.148.6633

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Microorganisms EISSN 2076-2607 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
