Adhesion Properties of Lactic Acid Bacteria on Intestinal Mucin

Department of Microbiology, School of Pharmacy, Kitasato University, Tokyo 108-8641, Japan
Faculty of Veterinary Medicine, School of Veterinary Medicine, Kitasato University, Aomori 034-8628, Japan
Department of Animal Science, School of Veterinary Medicine, Kitasato University, Aomori 034-8628, Japan
Author to whom correspondence should be addressed.
Microorganisms 2016, 4(3), 34;
Received: 30 June 2016 / Revised: 6 September 2016 / Accepted: 9 September 2016 / Published: 20 September 2016
(This article belongs to the Special Issue Probiotic Microorganisms: An Intimate Gaze)


Lactic acid bacteria (LAB) are Gram-positive bacteria that are natural inhabitants of the gastrointestinal (GI) tracts of mammals, including humans. Since Mechnikov first proposed that yogurt could prevent intestinal putrefaction and aging, the beneficial effects of LAB have been widely demonstrated. The region between the duodenum and the terminal of the ileum is the primary region colonized by LAB, particularly the Lactobacillus species, and this region is covered by a mucus layer composed mainly of mucin-type glycoproteins. The mucus layer plays a role in protecting the intestinal epithelial cells against damage, but is also considered to be critical for the adhesion of Lactobacillus in the GI tract. Consequently, the adhesion exhibited by lactobacilli on mucin has attracted attention as one of the critical factors contributing to the persistent beneficial effects of Lactobacillus in a constantly changing intestinal environment. Thus, understanding the interactions between Lactobacillus and mucin is crucial for elucidating the survival strategies of LAB in the GI tract. This review highlights the properties of the interactions between Lactobacillus and mucin, while concomitantly considering the structure of the GI tract from a histochemical perspective.

1. Introduction

The gastrointestinal (GI) tract of humans and other mammals is inhabited by ~1014 bacteria from approximately 1000 or more different species, which continuously interact with their host as they grow and form a diverse microbiota [1,2,3]. Of the human GI microbiota, relatively few bacteria inhabit the stomach, with <104 bacteria present per g of stomach content, whereas this number increases further down the GI tract, with 105–108 and 1011 bacteria inhabiting the small and large intestines, respectively [4,5]. These bacteria produce myriad metabolites, which are frequently recognized as stimulating factors by the host. Accordingly, the behavior of the microbiota markedly influences the overall health of the host [6,7]. In recent years, whole-genome sequencing of bacteria and metagenomic analyses of microbiota performed using comprehensive genomic analytical techniques have revealed the structure of the symbiotic relationship between the host and the bacteria within the complex ecosystem that is the human body [8,9].
As a form of deliberate administration, certain bacteria can be proactively consumed to directly or indirectly improve the microbiota, and this shows considerable potential for producing health-maintaining effects in humans and animals. These bacteria are frequently referred to as probiotics, and these organisms have been defined by the International Scientific Association for Probiotics and Prebiotics consensus statement based on the FAO/WHO Guidelines as “a live microorganism that, when administered in adequate amounts, confers a health benefit on the host” [10].
Lactic acid bacteria (LAB), which include Lactobacillus species, produce lactic acid (>50% of sugar carbon) as the main end product of carbohydrate metabolism. Taxonomically, the genus Lactobacillus belongs to the phylum Firmicutes, class Bacilli, order Lactobacillales, and family Lactobacillaceae Lactobacillus comprises a large heterogeneous group of low-G + C Gram-positive, non-sporulating, anaerobic bacteria [11] that includes over 145 recognized species [12]. Lactobacillus species are present throughout the GI tract of mammals, such as humans, pigs, hamsters, mice, rats, dogs, sheep, and cattle, and also several birds [13]. Moreover, Lactobacillus species are frequently detected as dominant bacteria in the region from the duodenum to the terminal of the ileum in the human gut [14] and in the female urogenital tract [15,16], but are present in a very low proportion (<104 bacterial counts) in the colon [15]. By contrast, rodents and chickens harbor comparatively large numbers of lactobacilli in the upper gut and the forestomach and crop, respectively [17].
The mucus layer covering the GI tract is the first point of contact between the intestinal microbiota and the host, and it provides a habitat for the microbiota [18,19]. Moreover, the secretion and turnover of mucin and the movement of gut contents create a fluid environment in the GI tract. Therefore, adhesion to the mucosal surface is one of the critical prerequisites for the colonization of non-motile organisms in the GI tract, which also provides the organisms a competitive advantage in this ecosystem [20,21,22]. In the last 10 years, the availability of a complete repertoire of tools for Lactobacillus genetics and the advancement of analytical techniques have markedly accelerated research on the molecular mechanisms used by Lactobacillus strains to recognize and adhere to mucin. Such mechanisms involve carbohydrate-protein interactions with the mucin chain through diverse adhesins associated with the bacterial cell surface, as previously described in several reviews [23,24,25]. Here we provide an updated review of the field while concurrently considering the structure of the GI tract mucosa from a histochemical perspective.

2. Anatomy and Histology of the Mouse and Human GI Tracts

The mammalian GI tract can be divided into two main parts: the upper and the lower GI tract (Figure 1). The primary functions of the upper GI tract are enzymatic digestion, absorption of nutrients, and protection against the external environment. The primary function of the lower GI tract is to dehydrate and store fecal material. The GI tracts of monogastric animals are similar with respect to their general structures and functions. However, various anatomical differences in the gut structures exist between animal species, and these differences create a host-specific GI environment [1]. Because murine species (particularly mice) are commonly used as an in vivo experimental colonization model [22,26,27,28], in this section, we describe the structure of the GI tract mucosa from a histochemical perspective with comparison of the human and murine intestinal systems.
Among the structures of the upper GI tract, the stomach shows the greatest gross anatomical difference between mice and humans (Figure 1); whereas the murine stomach is grossly divided into two distinct regions, the forestomach and the glandular stomach, humans lack the forestomach [29,30]. In the small intestine of mice, the villi are taller than those in humans, and this provides an increased surface area to compensate for the lack of plicae, which are found in the human small intestinal structure [30]. In the lower GI tract of mice, a large cecum is present and an appendix is absent (Figure 1, left), and whereas the human colon contains the taenia coli and haustra (Figure 1, right), the mouse colon features a smooth serosal line [31]. The mouse cecum is a functional fermentation organ that contains a high population of bacteria, and mice can readily capture the free fatty acids and vitamins produced by these bacteria. These anatomical differences between the human and mouse GI tracts exert a mechanical and spatial influence on the colonization conditions, which results in the aforementioned development of host-specific gut microbiota [1,17].
Paneth cells and goblet cells are the principal secretory cells of the intestinal epithelium. Paneth cells of the small intestinal crypts are the main source of antibacterial peptides [32,33]. Goblet cells are present in the GI epithelia of mammals, and these cells produce a large amount of the mucus (mucin) that coats the intestinal epithelium. This mucus layer and the gastric mucosa lining the gut epithelia contain antimicrobial peptides, cytokines, and immunoglobulins [34]. Therefore, both cell types secrete products that regulate the innate and adaptive immune systems in the GI tract. Goblet and Paneth cells are conserved between mice and humans, although their distribution shows differences: in mice, goblet cells are prominent along the surface of the intestinal crypts in the proximal colon, but their numbers are decreased in the distal colon and rectum at the base of the crypt. Conversely, in humans, goblet cells are consistently abundant from the cecum to the rectum [35]. Paneth cells in mice are most abundant in the jejunum and are not detected in the large intestine (see schematic models in Figure 1, lower) [29], whereas Paneth cells in humans are normal constituents of the small intestine, appendix, and cecum [36]. In mice, goblet cells are the main type of mucus-producing cells and are most prevalent in the ileum. In addition to these local differences, the amounts of peptides or mucus secreted from and stored in Paneth cells differ between mice and humans [29].

3. Histochemical Studies of the GI Mucus

Mucin glycoproteins are the most prevalent structural components of the GI mucus, followed by a complex mixture of lipids, enzymes, nucleic acids, and secretory immunoglobulin A. Furthermore, because water weight accounts for at least 95% of the GI mucus [37], observing the detailed morphology of the mucus layer is challenging. Therefore, optimal preservation, embedding, and proper selection of the fixative used are the first essential steps for successful histochemistry.
Two main fixatives are commonly used for histochemical purposes: (i) crosslinking fixatives (e.g., formaldehydes such as neutral-buffered formalin or paraformaldehyde) and (ii) denaturing fixatives (e.g., alcohol-based fixatives such as Carnoy’s fixative) [38]. Formaldehyde acts by forming intramolecular and intermolecular crosslinks, including ethoxylated adducts, crosslinked molecules with amines, and depurination fragments from nucleic acids [39]. Conversely, alcohol solutions cause protein dehydration, which results in protein coagulation and tissue shrinkage. In the case of Carnoy’s fixative, chloroform and acetic acid are added to the mixture, which prevents the shrinkage effects of ethanol, and tissues are fixed through hydrogen bonding of the constituents to the tissue [40]. Methacarn is a fixative in which methanol is used instead of ethanol in Carnoy’s solution to counteract the shrinkage effect [41]. To optimize visualization of the natural mucin distribution of the human colon, Ota and Katsuyama [42] evaluated paraffin sections embedded with 5 distinct fixatives (3 crosslinking fixatives: phosphate-buffered 10% formalin, Bouin’s solution, and HgCl2-glutaraldehyde solution; and 2 denaturing fixative: Carnoy’s solution and 100% ethyl alcohol); only the Carnoy fixative yielded satisfactory results.
Figure 2a shows our suggested protocol for histochemical studies of the mucus of the GI tract, which is based on the method of Puchtler et al. [41] and includes several modifications of the solutions and processing times. The key procedural steps are to immerse the specimen in the fixative solution immediately before autolysis and degradation, and to prevent tissue shrinkage. As shown by the examples in Figure 2b, by using this method, we successfully observed highly conserved mucus layers in murine jejunum and colon sections. Notably, the mucus layer showed weakly positive periodic acid-Schiff (PAS) staining (outer mucus layer), whereas the high-density mucus layer that contacts epithelial cells showed strong PAS-positive staining (inner mucus layer). Such a double mucus layer structure is characteristic of the large intestine. By contrast, the small intestine formed a single layer of mucus attachment, which showed only weakly positive PAS staining (Figure 2b). In mice, the mucus gel layer in the small and large intestines is approximately 100–400-μm thick, with the thickest section detected in the duodenum [43,44]. Moreover, Johansson et al. [18] analyzed colonic tissue sections for bacterial presence through in situ hybridization performed using a general 16S rRNA probe. Microbiota colonized the outer mucus layer, but could not pass through the inner mucus layer bordering epithelial cells, which is packed with densely linked mucin. Therefore, whereas the inner mucus layer plays the key role of preventing bacterial contact with and invasion into epithelial cells, the expanded outer mucus layer is a major habitat for commensal bacteria [18].

4. Mucin Biosynthesis

Mucin secretion is an extremely dynamic process, and new mucin is continuously produced in colonic goblet cells and features a turnover rate of <1 h [43]. The gene muc encodes the core protein of mucin, and approximately 20 different mucin-encoding genes have been discovered in humans to date, and a few homologous muc genes have been identified in other animal species [23,34]. Among the secreted mucins, the main gel-forming molecules are MUC2, MUC5AC, MUC5B, and MUC6 [45], and MUC2 is the predominant mucin in the small and large intestines [46]. As illustrated in Figure 3, the molecular structure of MUC2 mucin has been likened to a “bottle-brush”. Mucin-type O-glycans are covalently α-linked via an N-acetylgalactosamine (GalNAc) moiety to the hydroxyl group of serine or threonine residues within a peptide backbone (Figure 3). The transfer process of the glycosylation reaction occurs in the Golgi apparatus, starting with the addition of GalNAc, following which various carbohydrate chains are formed through the addition of galactose, N-acetylglucosamine (GlcNAc), fucose, or sialic acid, depending on the glycosyltransferase prevalence in the cell. In certain cases, sulfotransferases also add a sulfate group. After the carbohydrate chains have been added in the Golgi apparatus and the molecule is secreted, disulfide bonds form between all of the monomers at their N-terminal cysteine residues, which results in the assembly of a single giant polymer (Figure 3). Moreover, the human ABO blood-group substance is frequently expressed on the non-reducing terminal of the mucin glycan, which generates carbohydrate chains featuring diverse structures [46].
Histochemically, mucin can be classified as neutral or as acidic when its non-reducing terminal is modified by sialic acid or a sulfate group, which results in an overall negative charge [48]; therefore, these residues have been considered the target binding site for intestinal microbiota, as discussed in Section 5 and Section 6. Specifically, sialomucin and sulfomucin, which are modified by sialic residues and sulfate groups, respectively, show drastic changes according to host, age, and digestive organs and under certain conditions such as cancer and inflammatory bowel disease (IBD) [48,49]. Based on a histochemical study performed on human colonic biopsy samples, sialomucin and sulfomucin were both shown to increase gradually along the right colon to the rectum, whereas sulfomucin was predominant throughout the colon [50]. By contrast, in certain rodents (mice, rats, and guinea pigs), sialomucin was increased from the cecum to the distal colon, but sulfomucin appeared only in the distal colon [51]. In humans, the amount of acidic mucin has been found to be altered in IBD, where sulfomucin levels are decreased [52] and sialomucin is increased [53]. Interestingly, a previous study found increased proportions of Lactobacillus in patients with IBD [54]. Although the relationship with adhesion of Lactobacillus is not clear, modulation of mucin carbohydrates might affect host- or digestive-organ-specific Lactobacillus colonization.
Moreover, a recent report indicated that increased sulfomucin levels in human colonic tissues correlated with elevated representation of sulfate-reducing bacteria [50], which can obtain energy by oxidizing organic compounds or molecular hydrogen while concomitantly reducing sulfate to hydrogen sulfide. Therefore, these lines of evidence raise additional possibilities: the carbohydrates and terminal groups present on mucin oligosaccharide chains can serve both as binding sites and as a potential source of nutrients for GI microbes, and might contribute to the composition of host-specific microbial communities.

5. Interactions of Lactobacillus with Intestinal Glycoconjugates

A considerable amount of research has been conducted to deepen our understanding of the interaction between bacteria and intestinal glycoconjugates. In the case of pathogenic bacteria in particular, the step in which the bacterium adheres to the host is critical during the course of proliferation and infection inside the host. The concept of bacterial adherence to host carbohydrate chains was first proposed following observations of the interference of Escherichia coli adherence to cells upon the addition of mannose [55]. Moreover, the pili that cover E. coli were found to exhibit lectin-like properties, and the interactions between the bacterial adhesion factors and receptors through carbohydrate chains were revealed [56]. Subsequent research showed that Helicobacter pylori adhere using the heat-shock proteins Hsp70 and BabA, which are adhesion factors for the sulfated carbohydrate chains and blood-group antigens that are present in the gastric mucin of humans, and further that the interactions with carbohydrate chains are critical for H. pylori infection [57,58]. These findings then raised the question of what types of interactions might exist between Lactobacillus and intestinal glycoconjugates.
In the early 1990s, a Lactobacillus strain was identified in which adhesion to blood-cell coagulation and mucus-secreting HT29-MTX cells decreased after processing with a protease [59,60]. This was the first report to suggest the existence of an adhesion process in Lactobacillus that is similar to that used by pathogenic bacteria: an “extracellular bridging protein” interacts with a component of the bacterial cell and a receptor on the intestinal epithelium [60]. Following this discovery, the interaction between glycolipid carbohydrate chains and Lactobacillus was elucidated based on the results of thin-layer chromatography. Lactobacillus casei IFO3425 was shown to bind to carbohydrate chains that contained either a galactosyl or glucosyl residue on the non-reducing terminal [61]. Furthermore, by using asialo-GM1, Lactobacillus reuteri JCM1081 was shown to strongly bind to neutral carbohydrate chains harboring a galactosyl residue on the non-reducing terminal [62]. These Lactobacillus strains did not bind to acidic carbohydrate chains that contained sialic acid, which indicated the existence of specific interactions between Lactobacillus and carbohydrate chains rather than the involvement of electrostatic forces. An adhesion mechanism mediated by lectin-like proteins was proposed for Lactobacillus [63], which led to further research on their interaction with mucin through carbohydrate chains. Studies were also conducted using a carbohydrate probe from an ABO blood-group antigen that is present on the non-reducing terminal of mucin-type carbohydrate chains, and this resulted in the discovery of several Lactobacillus strains exhibiting adhesion that were capable of binding to human blood antigens; this revealed a mechanism for adhesion to mucin carbohydrate chains through blood-group antigens [64,65]. Moreover, certain Lactobacillus strains were discovered in which neuraminidase- or sulfatase-mediated enzymatic processing, as well as physical inhibition by barium chloride, reduced the adhesion toward human colonic mucin [66]. This suggests that acidic mucin carbohydrate chains that contain sialic acid residues and sulfate groups might contribute to the adhesion of Lactobacillus to mucin. The aforementioned studied have provided evidence for the specific interactions of Lactobacillus through carbohydrate chains, including the interactions of Lactobacillus with the complex web of carbohydrate chains in mucin.

6. Mucin Adhesion Factors and Adhesion Mechanisms in Lactobacillus

In this section, we discuss the molecular mechanisms involved in the adhesion exhibited by lactobacilli toward mucin. As shown in Figure 4, the surface of Gram-positive bacterial cells comprises a thick peptidoglycan layer, polysaccharides (e.g., teichoic acid and lipoteichoic acid), and various cell-surface proteins, including S-layer proteins. These are typical cell-surface structures of bacteria because the structures are in direct contact with the environment, and the cell-surface proteins in particular are involved in diverse physiological functions, and the proteins range from adhesion factors, antigens, and receptors to enzymes or transporters, as reviewed previously [21,67]. In Table 1, we list the major lactobacilli protein-like adhesion factors for mucin that have been reported to date. Adhesion factors possessing lectin-like properties have also been discovered in Lactobacillus strains that exhibit adhesion for blood-group antigens and acidic mucin carbohydrate chains, and this has facilitated the gradual elucidation of the adhesion mechanisms. Furthermore, the application of bioinformatics based on genomic data, the use of which has surged recently, and the development and availability of several new genetic tools have motivated further research directed toward uncovering the adhesion factors of Lactobacillus by using the sequence information stored in the surface proteins. Here, the adhesion factors for mucin and mucin carbohydrate chains are introduced. The cell-surface proteins that act as adhesion factors exhibit two main patterns of localization; these proteins include (i) the cell wall-anchored proteins that are covalently bonded to the cell wall by sortases through the anchor sequence (LPXTG) located at the C-terminus (Section 6.1), and (ii) multifunctional proteins that act as adhesion factors in addition to performing their primary intracellular functions (the so-called moonlighting proteins; Section 6.2).

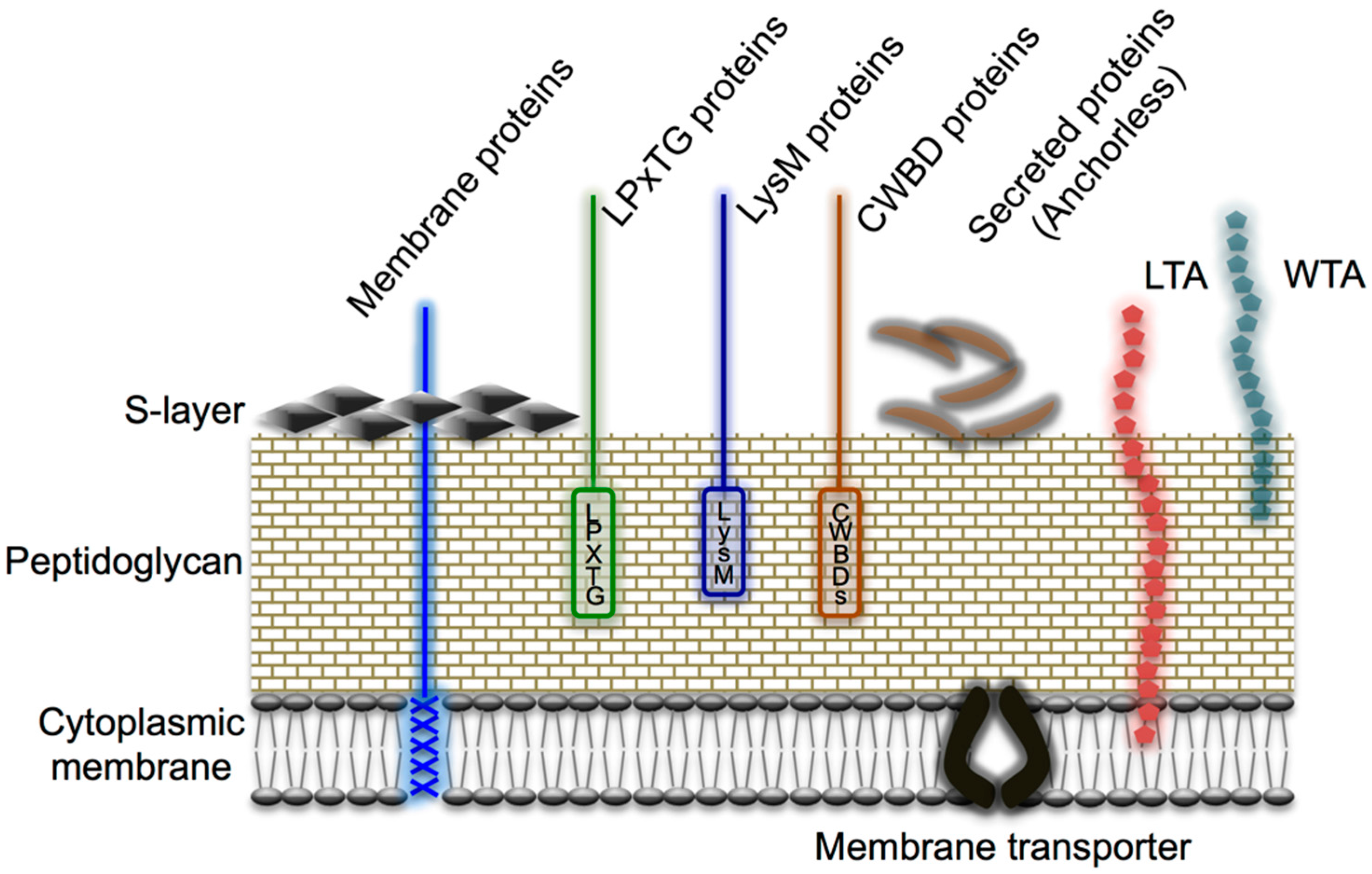

6.1. Cell Wall-Anchored Proteins

Among the mucin adhesion factors of Lactobacillus identified thus far, the mucus-binding (MUB) protein family is probably the most extensively studied. First discovered in L. reuteri 1063 and Lactobacillus acidophilus NCFM, MUB is a large protein (molecular weight ≥ 300,000 Da) that features a characteristic YSIRK secretion signal sequence and a sortase-dependent LPXTG anchor motif conserved at its N- and C-termini, respectively [68,69]. MUB also contains two signature conserved regions of repeats named Mub1 and Mub2, with each repeat composed of 183–206 amino acid residues (Figure 5, left) [68,70]. In subsequent research, MUB’S role as a mucin adhesion factor in L. reuteri ATCC 53068 (same strain as L. reuteri 1063) was demonstrated through inhibition tests performed using anti-MUB antibodies [71]. The MUB repeat sequence was found to be highly similar to the mucin-binding protein (MucBP, PF06458) domain and an amino acid sequence reported in Listeria monocytogenes [72], which led to further investigation on MucBP homologous proteins in other bacterial species. To date, >10 bacterial species have been found to contain cell-surface proteins featuring amino acid sequences similar to those of the MucBP domain [70,71,73,74]. All of these proteins have been assumed to function as adhesins, but few investigations into their genuine roles have been conducted. However, recent histological analyses of MUB purified from L. reuteri have suggested that MUB recognizes terminal sialic acid residues in mucin chains, and thus the distinct aspects of MUB adhesion to mucin are gradually being uncovered [74]. Moreover, chemically synthesized MUB70 originating from the MucBP-associated domain (MUBAD), which differs from the L. reuteri MUB-encoded MucBP domain, was characterized to bind to sulfated carbohydrates of Muc2-type mucin by using pull-down assays and histochemical techniques [75]. During the onset of colonic mucinous carcinomas, Muc2-type mucin is excessively secreted; this suggests that a potential marker for mucosal cancer could be developed based on the specific binding affinity of MUB70.
Mannose-specific adhesin (Msa) is a protein of 1,010 amino acid residues from Lactobacillus plantarum WCSF-1 that contains conserved sequences that are highly homologous with sequences of the ConA lectin-like SasA domain and MucBP domain [78]. This suggests that the protein uses a carbohydrate chain containing a mannose as receptor, although biochemical investigations are required to investigate this in the context of mucins.
More recently, genomic analyses identified putative adhesion factors based on the presence of the YSIRK signal, LPXTG motif, or MucBP domains in the sequence. For example, mucus-binding factor (MBF) was identified in Lactobacillus rhamnosus, which binds to mucin and extracellular matrix (ECM) proteins including laminin, fibronectin, and collagen IV [79,80], and cell and mucus-binding protein A (CmbA) was identified in L. reuteri, which binds to mucin and Caco-2 cells [81]. Almost concurrently, Lar_0958, a previously unidentified protein containing a repeat pattern that differs from known Mub proteins, was discovered in L. reuteri JCM1112 [70], and this was the same protein as CmbA [81]. The protein contributes to mucin adhesion and bacterial co-aggregation [70]. All of these factors were analyzed in strains harboring mutant adhesion-factor genes in order to reveal the effects of different genetic mutations on the adhesion of each strain.
Other mucin adhesion factors have been discovered by exploiting genomic information. Pili (fimbriae), for example, were long considered to be a feature unique to pathogenic bacteria. However, after the entire genome of Lactobacillus johnsonii NCC533 was sequenced, the existence of a gene cluster encoding pili was reported for the first time in Lactobacillus species [82], following which pili were identified through immunoelectron microscopy on the cell surface of L. rhamnosus GG [76]. The pili of L. rhamnosus are formed by the polymerization of 3 subunits, SpaA, B, and C (called SpaCBA). SpaC, which is present along the whole pilus length, is reported to be involved in mucin binding (Figure 5, right) [76,77,83]. Moreover, we have recently discovered that SpaC possesses lectin-like properties, and this enables SpaC to specifically bind to the galactosyl group located on the non-reducing terminal of mucin [47]. SpaC was also found to specifically bind to the gut contents, gel mucus layer, and intestinal glands in murine colonic mucosa sections (Figure 6a). Comparative genomic analysis of 100 L. rhamnosus strains revealed that the production of SpaCBA pili was considerably more prevalent in human isolates than in dairy isolates [84]. Douillard and colleagues also suggested that the lack of the gene cluster encoding SpaCBA pili in most dairy strains reflects a possible niche specialization to a habitat in which pili are not essential and do not offer any benefit for colonization. In addition to the SpaCBA operon, another set of genes for a second type of pilus (called SpaFED) is found in the L. rhamnosus GG genome [76]. The SpaFED pilus is produced in Lactococcus lactis, with the tip-located SpaF pilin serving as the focal determinant for pilus-mediated cellular interactions with mucins, collagen, and fibronectin, as well as with the Caco-2 and HT-29 intestinal cell lines [85].
Recently, pili have also been shown to be required for adhesion of Bifidobacterium for host colonization. The type IVb or so-called tight-adherence pili (Tad pili) from Bifidobacterium breve UCC2003 and the sortase-dependent pili from Bifidobacterium bifidum PRL2010 have been implicated in GI tract colonization and the persistence of bifidobacteria in the murine gut [28,87]. The fimbria-associated BL0675 subunit (FimA) is found in several Bifidobacterium longum subsp. longum strains [88,89], and the mucin-binding properties of this protein are affected by genetic polymorphisms [90]. These appendages, which decorate the surface of commensal bacteria, are increasingly regarded as key molecules in the mediation of bacterial adherence to the host mucosal surface.

6.2. Moonlighting Proteins

Moonlighting proteins were named based on the term “moonlighting”, which refers to working a side job; these proteins perform two or more functions in addition to their primary (originally identified) function [91]. In lactobacilli, the following proteins have been reported to act as mucin adhesion factors (Table 1): the elongation factor Tu (EF-Tu) [86,92,93,94], glyceraldehyde 3-phosphate dehydrogenase (GAPDH) [95,96,97], the chaperonin GroEL [98], and the ATP-binding cassette (ABC) transporter [99,100,101,102,103]. A few moonlighting proteins have been shown to reside on the cell surface by binding to the cell wall through electrostatic forces. When the extracellular pH becomes weakly alkaline, EF-Tu and GAPDH are completely released from the cell surface [86,104]. These proteins do not contain a typical conserved cell-surface-anchoring motif, and their cell-surface localization is affected by environmental conditions; therefore, these proteins might appear to function as minor adhesion factors, but they exhibit specific interactions with carbohydrate chains.
Mucus adhesion-promoting protein (MapA) from L. reuteri 104R [99,100], a 32-kDa mucus- and mucin-binding protein (32-Mmubp) from L. fermentum BCS87 [101], and a 29-kDa protein (Lam29) from L. mucosae ME-340 [102,103] are components of ABC transporters, but have also been shown to function as mucin- and epithelial cell-adhesion factors. Furthermore, in an experiment conducted using carbohydrate chain probes, GAPDH from L. plantarum LA318 was found to exhibit binding activity for GalNAc and galactose, which are present on A and B blood-group antigens [95,96]. Lam29 was also reported to bind to blood-group antigens [102,103]. These adhesion factors might mediate the adhesion of certain Lactobacillus strains to mucin carbohydrate chains through blood-group antigens, as described in Section 5.
Moreover, we discovered that under acidic conditions, EF-Tu from L. reuteri JCM1081 exhibited binding activity for acidic oligosaccharides purified from sulfated glycolipids or mucin [86,92]. Furthermore, the reaction site of high iron diamine (HID) stain, which is used for staining sulfated groups, resembled that of the EF-Tu protein in tissue slices of porcine gastric mucosal surface (Figure 6b). Interestingly, EF-Tu showed little or no affinity for negatively charged sialic acid, but specifically bound to mucin’s sulfate group or sulfated blood-group antigen [86]. Notably, these pH-dependent binding properties of EF-Tu were similar to those described by Granato et al. [93], who found that the EF-Tu protein of L. johnsonii NCC533 bound efficiently to mucin and also to Caco-2 and HT-29 intestinal cell lines under acidic conditions, but not under neutral conditions. The amino acid sequence of EF-Tu shared high identity with that of L. johnsonii NCC533. Thus, the binding of EF-Tu to the mucosal surface might be mediated by sulfated carbohydrates in other Lactobacillus species. Furthermore, because sulfated carbohydrates represent one of the receptors involved in H. pylori infection of a host [57], in vitro and in vivo experiments were conducted by exploiting EF-Tu’s binding specificity in order to test for the hypothesized competitive inhibition of the adhesion between H. pylori and EF-Tu [92,105].
The production of genetic mutants, however, will not be a simple task, because several moonlighting proteins are essential for growth of lactobacilli, and this makes evaluation of their contribution to Lactobacillus adhesive properties challenging. Although lectin-like domains or similar characteristic sequences in these proteins have not yet been reported, further research is expected to unravel the mystery of why these proteins exhibit specific binding activity toward carbohydrate chains.

7. Conclusions

Whole-genome sequencing of bacteria and metagenomic analyses of microbiota using comprehensive genomic analytical techniques have allowed us to piece together the symbiotic relationship between the host and the microorganisms within the complex ecosystem that is the human body. Therefore, the existence of a specific yet stable microbiota is becoming increasingly clear. Adhesion of Lactobacillus to the mucosal surface has been considered one of the initial events in the successful colonization of the host GI tract. There is considerable interest in determining how Lactobacillus can colonize and coexist with their host, and a substantial amount of research has recently been focused on whether this ability depends on specific host–LAB interactions.
As discussed in this review, lactobacilli exhibit various adhesive properties on mucin and mucin carbohydrate chains based on a wide variation of molecular structures. This implies that Lactobacillus adapt to the constantly changing intestinal environment of the host, and further suggests that adhesion factors of Lactobacillus possess specific binding affinities that allow them to advantageously colonize the host while concurrently avoiding competition with other bacteria. Therefore, findings on lactobacilli adhesion factors for mucin provide crucial insights that enhance our understanding of the unique characteristics of Lactobacillus. Currently, findings on lactobacilli adhesion mechanisms have halted at the level of specific strains, and therefore comparative analyses of these strains is a key direction for further research. Moreover, despite the increasing knowledge regarding adhesion factors, several binding epitopes on the carbohydrate chains remain unresolved, and these will be targets of future studies. Deepening our understanding of the close relationship between Lactobacillus and mucin is expected to provide crucial findings that will help us to propose additional specific applications of Lactobacillus, and elucidate at least one part of the host-adhesion mechanism.

Author Contributions

K.N. and M.S. wrote and reviewed the manuscript. T.M. conceived the structure and reviewed the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Ethical Statements

All animal experiments referred to in this review were performed using protocols approved by the Institutional Animal Care and Use Committee at Kitasato University.


  1. Dethlefsen, L.; McFall-Ngai, M.; Relman, D.A. An ecological and evolutionary perspective on human–microbe mutualism and disease. Nature 2007, 449, 811–818. [Google Scholar] [CrossRef] [PubMed]
  2. Qin, J.; Li, R.; Raes, J.; Arumugam, M.; Burgdorf, K.S.; Manichanh, C.; Nielsen, T.; Pons, N.; Levenez, F.; Yamada, T.; et al. A human gut microbial gene catalogue established by metagenomic sequencing. Nature 2010, 464, 59–65. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Rajilić-Stojanović, M.; de Vos, W.M. The first 1000 cultured species of the human gastrointestinal microbiota. FEMS Microbiol. Rev. 2014, 38, 996–1047. [Google Scholar] [CrossRef] [PubMed]
  4. O’Hara, A.M.; Shanahan, F.; Abreu, M.; Vora, P.; Faure, E.; Thomas, L.; Arnold, E.; Arditi, M.; Abreu, M.; Fukata, M.; et al. The gut flora as a forgotten organ. EMBO Rep. 2006, 7, 688–693. [Google Scholar] [CrossRef] [PubMed]
  5. Purchiaroni, F.; Tortora, A.; Gabrielli, M.; Bertucci, F.; Gigante, G.; Ianiro, G.; Ojetti, V.; Scarpellini, E.; Gasbarrini, A. The role of intestinal microbiota and the immune system. Eur. Rev. Med. Pharmacol. Sci. 2013, 17, 323–333. [Google Scholar] [PubMed]
  6. Blum, S.; Schiffrin, E.J. Intestinal microflora and homeostasis of the mucosal immune response: Implications for probiotic bacteria? Curr. Issues Intest. Microbiol. 2003, 4, 53–60. [Google Scholar] [PubMed]
  7. Smith, M.I.; Yatsunenko, T.; Manary, M.J.; Trehan, I.; Mkakosya, R.; Cheng, J.; Kau, A.L.; Rich, S.S.; Concannon, P.; Mychaleckyj, J.C.; et al. Gut microbiomes of Malawian twin pairs discordant for kwashiorkor. Science 2013, 339, 548–554. [Google Scholar] [CrossRef] [PubMed]
  8. Yatsunenko, T.; Rey, F.E.; Manary, M.J.; Trehan, I.; Dominguez-Bello, M.G.; Contreras, M.; Magris, M.; Hidalgo, G.; Baldassano, R.N.; Anokhin, A.P.; et al. Human gut microbiome viewed across age and geography. Nature 2012, 486, 222–227. [Google Scholar] [CrossRef] [PubMed]
  9. Lee, S.M.; Donaldson, G.P.; Mikulski, Z.; Boyajian, S.; Ley, K.; Mazmanian, S.K. Bacterial colonization factors control specificity and stability of the gut microbiota. Nature 2013, 501, 426–429. [Google Scholar] [CrossRef] [PubMed]
  10. Hill, C.; Guarner, F.; Reid, G.; Gibson, G.R.; Merenstein, D.J.; Pot, B.; Morelli, L.; Canani, R.B.; Flint, H.J.; Salminen, S.; et al. Expert consensus document. The international scientific association for probiotics and prebiotics consensus statement on the scope and appropriate use of the term probiotic. Nat. Rev. Gastroenterol. Hepatol. 2014, 11, 506–514. [Google Scholar] [CrossRef] [PubMed]
  11. Claesson, M.J.; van Sinderen, D.; O’Toole, P.W. The genus Lactobacillus—A genomic basis for understanding its diversity. FEMS Microbiol. Lett. 2007, 269, 22–28. [Google Scholar] [CrossRef] [PubMed]
  12. Claesson, M.J.; van Sinderen, D.; O’Toole, P.W. Lactobacillus phylogenomics—Towards a reclassification of the genus. Int. J. Syst. Evol. Microbiol. 2008, 58, 2945–2954. [Google Scholar] [CrossRef] [PubMed]
  13. Mitsuoka, T. The human gastrointestinal tract. In the Lactic Acid Bacteria in Health and Disease; Springer US: New York, NY, USA, 1992; pp. 69–114. [Google Scholar]
  14. Reuter, G. The Lactobacillus and Bifidobacterium microflora of the human intestine: Composition and succession. Curr. Issues. Intest. Microbiol. 2001, 2, 43–53. [Google Scholar] [PubMed]
  15. Hill, G.B.; Eschenbach, D.A.; Holmes, K.K. Bacteriology of the vagina. Scand. J. Urol. Nephrol. Suppl. 1984, 86, 23–39. [Google Scholar] [PubMed]
  16. Zhou, X.; Brown, C.J.; Abdo, Z.; Davis, C.C.; Hansmann, M.A.; Joyce, P.; Foster, J.A.; Forney, L.J. Differences in the composition of vaginal microbial communities found in healthy Caucasian and black women. ISME J. 2007, 2, 121–133. [Google Scholar] [CrossRef] [PubMed]
  17. Tannock, G.W. Lactic microbiota of pigs, mice and rats. In the Lactic Acid Bacteria in Health and Disease; Springer US: New York, NY, USA, 1992; pp. 21–48. [Google Scholar]
  18. Johansson, M.E.V.; Phillipson, M.; Petersson, J.; Velcich, A.; Holm, L.; Hansson, G.C. The inner of the two Muc2 mucin-dependent mucus layers in colon is devoid of bacteria. Proc. Natl. Acad. Sci. USA 2008, 105, 15064–15069. [Google Scholar] [CrossRef] [PubMed]
  19. Johansson, M.E.V.; Larsson, J.M.H.; Hansson, G.C. The two mucus layers of colon are organized by the Muc2 mucin, whereas the outer layer is a legislator of host-microbial interactions. Proc. Natl. Acad. Sci. USA 2011, 108, 4659–4665. [Google Scholar] [CrossRef] [PubMed]
  20. Walter, J. Ecological role of lactobacilli in the gastrointestinal tract: Implications for fundamental and biomedical research. Appl. Environ. Microbiol. 2008, 74, 4985–4996. [Google Scholar] [CrossRef] [PubMed]
  21. Lebeer, S.; Vanderleyden, J.; de Keersmaecker, S.C.J. Genes and molecules of lactobacilli supporting probiotic action. Microbiol. Mol. Biol. Rev. 2008, 72, 728–764. [Google Scholar] [CrossRef] [PubMed]
  22. Frese, S.A.; Mackenzie, D.A.; Peterson, D.A.; Schmaltz, R.; Fangman, T.; Zhou, Y.; Zhang, C.; Benson, A.K.; Cody, L.A.; Mulholland, F.; et al. Molecular characterization of host-specific biofilm formation in a vertebrate gut symbiont. PLoS Genet. 2013, 9, e1004057. [Google Scholar] [CrossRef] [PubMed]
  23. Van Tassell, M.L.; Miller, M.J. Lactobacillus adhesion to mucus. Nutrients 2011, 3, 613–636. [Google Scholar] [CrossRef] [PubMed]
  24. Juge, N. Microbial adhesins to gastrointestinal mucus. Trends. Microbiol. 2012, 20, 30–39. [Google Scholar] [CrossRef] [PubMed]
  25. Etzold, S.; Juge, N. Structural insights into bacterial recognition of intestinal mucins. Curr. Opin. Struct. Biol. 2014, 28, 23–31. [Google Scholar] [CrossRef] [PubMed]
  26. Van Zyl, W.F.; Deane, S.M.; Dicks, L.M.T. Use of the mCherry fluorescent protein to study intestinal colonization by Enterococcus mundtii ST4SA and Lactobacillus plantarum 423 in mice. Appl. Environ. Microbiol. 2015, 81, 5993–6002. [Google Scholar] [CrossRef] [PubMed]
  27. Ardita, C.S.; Mercante, J.W.; Kwon, Y.M.; Luo, L.; Crawford, M.E.; Powell, D.N.; Jones, R.M.; Neish, A.S. Epithelial adhesion mediated by pilin SpaC is required for Lactobacillus rhamnosus GG-induced cellular responses. Appl. Environ. Microbiol. 2014, 80, 5068–5077. [Google Scholar] [CrossRef] [PubMed]
  28. O’Connell Motherway, M.; Zomer, A.; Leahy, S.C.; Reunanen, J.; Bottacini, F.; Claesson, M.J.; O’Brien, F.; Flynn, K.; Casey, P.G.; Munoz, J.A.M.; et al. Functional genome analysis of Bifidobacterium breve UCC2003 reveals type IVb tight adherence (Tad) pili as an essential and conserved host-colonization factor. Proc. Natl. Acad. Sci. USA 2011, 108, 11217–11222. [Google Scholar] [CrossRef] [PubMed]
  29. Sheahan, D.G.; Jervis, H.R. Comparative histochemistry of gastrointestinal mucosubstances. Am. J. Anat. 1976, 146, 103–131. [Google Scholar] [CrossRef] [PubMed]
  30. Treuting, P.M.; Valasek, M.A.; Dintzis, S.M. Upper gastrointestinal tract. In Comparative Anatomy and Histology—A Mouse and Human Atlas, 1st ed.; Dintzis, S.M., Treuting, P.M., Eds.; Elsevier Inc.: Amsterdam, The Netherlands, 2012; pp. 155–175. [Google Scholar]
  31. Treuting, P.M.; Dintzis, S.M. Upper gastrointestinal tract. In Comparative Anatomy and Histology–A Mouse and Human Atlas, 1st ed.; Dintzis, S.M., Treuting, P.M., Eds.; Elsevier Inc.: Amsterdam, the Netherlands, 2012; pp. 177–192. [Google Scholar]
  32. Caballero, S.; Pamer, E.G. Microbiota-mediated inflammation and antimicrobial defense in the intestine. Annu. Rev. Immunol. 2015, 33, 227–256. [Google Scholar] [CrossRef] [PubMed]
  33. El Aidy, S.; van den Bogert, B.; Kleerebezem, M. The small intestine microbiota, nutritional modulation and relevance for health. Curr. Opin. Biotechnol. 2015, 32, 14–20. [Google Scholar] [CrossRef] [PubMed]
  34. McGuckin, M.; Lindén, S.K.; Sutton, P.; Florin, T.H. Mucin dynamics and enteric pathogens. Nat. Rev. Microbiol. 2011, 9, 265–278. [Google Scholar] [CrossRef] [PubMed]
  35. Podolsky, D.K.; Fournier, D.A.; Lynch, K.E. Human colonic goblet cells. Demonstration of distinct subpopulations defined by mucin-specific monoclonal antibodies. J. Clin. Invest. 1986, 77, 1263–1271. [Google Scholar] [CrossRef] [PubMed]
  36. Vertty, M.A.; Mellinkoff, S.M.; Frankland, M.; Greipel, M. Serotonin content and argentaffin and Paneth cell changes in ulcerative colitis. Gastroenterology 1962, 43, 24–31. [Google Scholar]
  37. Wong, W.M.; Poulsom, R.; Wright, N.A. Trefoil peptides. Gut 1999, 44, 890–895. [Google Scholar] [CrossRef] [PubMed]
  38. Howat, W.J.; Wilson, B.A. Tissue fixation and the effect of molecular fixatives on downstream staining procedures. Methods 2014, 70, 12–19. [Google Scholar] [CrossRef] [PubMed]
  39. Dapson, R.W. Macromolecular changes caused by formalin fixation and antigen retrieval. Biotech. Histochem. 2007, 82, 133–140. [Google Scholar] [CrossRef] [PubMed]
  40. Puchtler, H.; Waldrop, F.S.; Conner, H.M.; Terry, M.S. Carnoy fixation: Practical and theoretical considerations. Histochemie 1968, 16, 361–371. [Google Scholar] [CrossRef] [PubMed]
  41. Puchtler, H.; Waldrop, F.S.; Melan, S.N.; Terry, M.S.; Conner, H.M. Methacarn (methanol-Carnoy) fixation. Practical and theoretical considerations. Histochemie 1970, 21, 97–116. [Google Scholar] [CrossRef] [PubMed]
  42. Ota, H.; Katsuyama, T. Alternating laminated array of two types of mucin in the human gastric surface mucous layer. Histochem. J. 1992, 24, 86–92. [Google Scholar] [CrossRef] [PubMed]
  43. Ermund, A.; Schütte, A.; Johansson, M.E.V.; Gustafsson, J.K.; Hansson, G.C. Studies of mucus in mouse stomach, small intestine, and colon. I. Gastrointestinal mucus layers have different properties depending on location as well as over the Peyer’s patches. Am. J. Physiol. Gastrointest. Liver Physiol. 2013, 305, G341–G347. [Google Scholar] [CrossRef] [PubMed]
  44. Pelaseyed, T.; Bergström, J.H.; Gustafsson, J.K.; Ermund, A.; Birchenough, G.M.H.; Schütte, A.; van der Post, S.; Svensson, F.; Rodríguez-Piñeiro, A.M.; Nyström, E.E.L.; et al. The mucus and mucins of the goblet cells and enterocytes provide the first defense line of the gastrointestinal tract and interact with the immune system. Immunol. Rev. 2014, 260, 8–20. [Google Scholar] [CrossRef] [PubMed]
  45. Lesuffleur, T.; Zweibaum, A.; Real, F.X. Mucins in normal and neoplastic human gastrointestinal tissues. Crit. Rev. Oncol. Hematol. 1994, 17, 153–180. [Google Scholar] [CrossRef]
  46. Larsson, J.M.; Karlsson, H.; Sjovall, H.; Hansson, G.C. A complex, but uniform O-glycosylation of the human MUC2 mucin from colonic biopsies analyzed by nanoLC/MSn. Glycobiology 2009, 19, 756–766. [Google Scholar] [CrossRef] [PubMed]
  47. Nishiyama, K.; Ueno, S.; Sugiyama, M.; Yamamoto, Y.; Mukai, T. Lactobacillus rhamnosus GG SpaC pilin subunit binds to the carbohydrate moieties of intestinal glycoconjugates. Anim. Sci. J. 2016, 87, 809–815. [Google Scholar] [CrossRef] [PubMed]
  48. Brockhausen, I. Sulphotransferases acting on mucin-type oligosaccharides. Biochem. Soc. Trans. 2003, 31, 318–325. [Google Scholar] [CrossRef] [PubMed]
  49. Corfield, A.P.; Myerscough, N.; Longman, R.; Sylvester, P.; Arul, S.; Pignatelli, M. Mucins and mucosal protection in the gastrointestinal tract: New prospects for mucins in the pathology of gastrointestinal disease. Gut 2000, 47, 589–594. [Google Scholar] [CrossRef] [PubMed]
  50. Croix, J.A.; Carbonero, F.; Nava, G.M.; Russell, M.; Greenberg, E.; Gaskins, H.R. On the relationship between sialomucin and sulfomucin expression and hydrogenotrophic microbes in the human colonic mucosa. PLoS One 2011, 6, e24447. [Google Scholar] [CrossRef] [PubMed]
  51. Sakata, T.; von Engelhardt, W. Luminal mucin in the large intestine of mice, rats and guinea pigs. Cell Tissue Res. 1981, 219, 629–635. [Google Scholar] [CrossRef] [PubMed]
  52. Corfield, A.P.; Myerscough, N.; Bradfield, N.; Corfield, C.A.; Gough, M.; Clamp, J.R.; Durdey, P.; Warren, B.F.; Bartolo, D.C.; King, K.R.; et al. Colonic mucins in ulcerative colitis: Evidence for loss of sulfation. Glycoconj. J. 1996, 13, 809–822. [Google Scholar] [CrossRef] [PubMed]
  53. Agawa, S.; Muto, T.; Morioka, Y. Mucin abnormality of colonic mucosa in ulcerative colitis associated with carcinoma and/or dysplasia. Dis. Colon Rectum 1988, 31, 387–389. [Google Scholar] [CrossRef] [PubMed]
  54. Wang, W.; Chen, L.; Zhou, R.; Wang, X.; Song, L.; Huang, S.; Wang, G.; Xia, B. Increased proportions of Bifidobacterium and the Lactobacillus group and loss of butyrate-producing bacteria in inflammatory bowel disease. J. Clin. Microbiol. 2014, 52, 398–406. [Google Scholar] [CrossRef] [PubMed]
  55. Constable, F.L. Fimbriae and haemagglutinating activity in strains of Bacterium cloacae. J. Pathol. Bacteriol. 1956, 72, 133–136. [Google Scholar] [CrossRef] [PubMed]
  56. Duguid, J.P.; Old, D.C. Adhesive properties of enterobacteriaceae. In Bacterial Adherence; Springer Netherlands: Dordrecht, the Netherlands, 1980; pp. 185–217. [Google Scholar]
  57. Huesca, M.; Goodwin, A.; Bhagwansingh, A.; Hoffman, P.; Lingwood, C.A. Characterization of an acidic-pH-inducible stress protein (hsp70), a putative sulfatide binding adhesin, from Helicobacter pylori. Infect. Immun. 1998, 66, 4061–4067. [Google Scholar] [PubMed]
  58. Aspholm-Hurtig, M.; Dailide, G.; Lahmann, M.; Kalia, A.; Ilver, D.; Roche, N.; Vikström, S.; Sjöström, R.; Lindén, S.; Bäckström, A.; et al. Functional adaptation of BabA, the H. pylori ABO blood group antigen binding adhesin. Science 2004, 305, 519–522. [Google Scholar] [CrossRef] [PubMed]
  59. Mukai, T.; Arihara, K.; Itoh, H. Lectin-like activity of Lactobacillus acidophilus strain JCM 1026. FEMS Microbiol. Lett. 1992, 98, 71–74. [Google Scholar] [CrossRef]
  60. Coconnier, M.H.; Klaenhammer, T.R.; Kernéis, S.; Bernet, M.F.; Servin, A.L. Protein-mediated adhesion of Lactobacillus acidophilus BG2FO4 on human enterocyte and mucus-secreting cell lines in culture. Appl. Environ. Microbiol. 1992, 58, 2034–2039. [Google Scholar] [PubMed]
  61. Yamamoto, K.; Miwa, T.; Taniguchi, H.; Nagano, T.; Shimamura, K.; Tanaka, T.; Kumagai, H. Binding specificity of Lactobacillus to glycolipids. Biochem. Biophys. Res. Commun. 1996, 228, 148–152. [Google Scholar] [CrossRef] [PubMed]
  62. Mukai, T.; Kaneko, S.; Ohori, H. Haemagglutination and glycolipid-binding activities of Lactobacillus reuteri. Lett. Appl. Microbiol. 1998, 27, 130–134. [Google Scholar] [CrossRef] [PubMed]
  63. Mukai, T.; Arihara, K. Presence of intestinal lectin-binding glycoproteins on the cell surface of Lactobacillus acidophilus. Biosci. Biotechnol. Biochem. 1994, 58, 1851–1854. [Google Scholar] [CrossRef]
  64. Uchida, H.; Kinoshita, H.; Kawai, Y.; Kitazawa, H.; Miura, K.; Shiiba, K.; Horii, A.; Kimura, K.; Taketomo, N.; Oda, M.; et al. Lactobacilli binding human A-antigen expressed in intestinal mucosa. Res. Microbiol. 2006, 157, 659–665. [Google Scholar] [CrossRef] [PubMed]
  65. Uchida, H.; Kawai, Y.; Kinoshita, H.; Kitazawa, H.; Miura, K.; Shiiba, K.; Horii, A.; Kimura, K.; Taketomo, N.; Oda, M.; et al. Lactic acid bacteria (LAB) bind to human B- or H-antigens expressed on intestinal mucosa. Biosci. Biotechnol. Biochem. 2006, 70, 3073–3076. [Google Scholar] [CrossRef] [PubMed]
  66. Huang, I.N.; Okawara, T.; Watanabe, M.; Kawai, Y.; Kitazawa, H.; Ohnuma, S.; Shibata, C.; Horii, A.; Kimura, K.; Taketomo, N.; et al. New screening methods for probiotics with adhesion properties to sialic acid and sulphate residues in human colonic mucin using the Biacore assay. J. Appl. Microbiol. 2013, 114, 854–860. [Google Scholar] [CrossRef] [PubMed]
  67. Desvaux, M.; Dumas, E.; Chafsey, I.; Hébraud, M. Protein cell surface display in Gram-positive bacteria: From single protein to macromolecular protein structure. FEMS Microbiol. Lett. 2006, 256, 1–15. [Google Scholar] [CrossRef] [PubMed]
  68. Roos, S.; Jonsson, H. A high-molecular-mass cell-surface protein from Lactobacillus reuteri 1063 adheres to mucus components. Microbiology 2002, 148, 433–442. [Google Scholar] [CrossRef] [PubMed]
  69. Buck, B.L.; Altermann, E.; Svingerud, T.; Klaenhammer, T.R. Functional analysis of putative adhesion factors in Lactobacillus acidophilus NCFM. Appl. Environ. Microbiol. 2005, 71, 8344–8351. [Google Scholar] [CrossRef] [PubMed]
  70. Etzold, S.; Mackenzie, D.A.; Jeffers, F.; Walshaw, J.; Roos, S.; Hemmings, A.M.; Juge, N. Structural and molecular insights into novel surface-exposed mucus adhesins from Lactobacillus reuteri human strains. Mol. Microbiol. 2014, 92, 543–556. [Google Scholar] [CrossRef] [PubMed]
  71. Mackenzie, D.A.; Jeffers, F.; Parker, M.L.; Vibert-Vallet, A.; Bongaerts, R.J.; Roos, S.; Walter, J.; Juge, N. Strain-specific diversity of mucus-binding proteins in the adhesion and aggregation properties of Lactobacillus reuteri. Microbiology 2010, 156, 3368–3378. [Google Scholar] [CrossRef] [PubMed]
  72. Bierne, H.; Cossart, P. Listeria monocytogenes surface proteins: From genome predictions to function. Microbiol. Mol. Biol. Rev. 2007, 71, 377–397. [Google Scholar] [CrossRef] [PubMed]
  73. Boekhorst, J.; Helmer, Q.; Kleerebezem, M.; Siezen, R.J. Comparative analysis of proteins with a mucus-binding domain found exclusively in lactic acid bacteria. Microbiology 2006, 152, 273–280. [Google Scholar] [CrossRef] [PubMed][Green Version]
  74. Etzold, S.; Kober, O.I.; Mackenzie, D.A.; Tailford, L.E.; Gunning, A.P.; Walshaw, J.; Hemmings, A.M.; Juge, N. Structural basis for adaptation of lactobacilli to gastrointestinal mucus. Environ. Microbiol. 2014, 16, 888–903. [Google Scholar] [CrossRef] [PubMed]
  75. Coïc, Y.M.; Baleux, F.; Poyraz, Ö.; Thibeaux, R.; Labruyere, E.; Chretien, F.; Sobhani, I.; Lazure, T.; Wyplosz, B.; Schneider, G.; et al. Design of a specific colonic mucus marker using a human commensal bacterium cell surface domain. J. Biol. Chem. 2012, 287, 15916–15922. [Google Scholar] [CrossRef] [PubMed]
  76. Kankainen, M.; Paulin, L.; Tynkkynen, S.; von Ossowski, I.; Reunanen, J.; Partanen, P.; Satokari, R.; Vesterlund, S.; Hendrickx, A.P.A.; Lebeer, S.; et al. Comparative genomic analysis of Lactobacillus rhamnosus GG reveals pili containing a human-mucus binding protein. Proc. Natl. Acad. Sci. USA 2009, 106, 17193–17198. [Google Scholar] [CrossRef] [PubMed]
  77. Reunanen, J.; von Ossowski, I.; Hendrickx, A.P.A.; Palva, A.; de Vos, W.M. Characterization of the SpaCBA pilus fibers in the probiotic Lactobacillus rhamnosus GG. Appl. Environ. Microbiol. 2012, 78, 2337–2344. [Google Scholar] [CrossRef] [PubMed]
  78. Pretzer, G.; Snel, J.; Molenaar, D.; Wiersma, A.; Bron, P.A.; Lambert, J.; de Vos, W.M.; van der Meer, R.; Smits, M.A.; Kleerebezem, M. Biodiversity-based identification and functional characterization of the mannose-specific adhesin of Lactobacillus plantarum. J. Bacteriol. 2005, 187, 6128–6136. [Google Scholar] [CrossRef] [PubMed]
  79. Von Ossowski, I.; Satokari, R.; Reunanen, J.; Lebeer, S.; de Keersmaecker, S.C.J.; Vanderleyden, J.; de Vos, W.M.; Palva, A. Functional characterization of a mucus-specific LPXTG surface adhesin from probiotic Lactobacillus rhamnosus GG. Appl. Environ. Microbiol. 2011, 77, 4465–4472. [Google Scholar] [CrossRef] [PubMed]
  80. Nishiyama, K.; Nakamata, K.; Ueno, S.; Terao, A.; Aryantini, N.P.D.; Sujaya, I.N.; Fukuda, K.; Urashima, T.; Yamamoto, Y.; Mukai, T. Adhesion properties of Lactobacillus rhamnosus mucus-binding factor to mucin and extracellular matrix proteins. Biosci. Biotechnol. Biochem. 2015, 79, 271–279. [Google Scholar] [CrossRef] [PubMed]
  81. Jensen, H.; Roos, S.; Jonsson, H.; Rud, I.; Grimmer, S.; van Pijkeren, J.P.; Britton, R.A.; Axelsson, L. Role of Lactobacillus reuteri cell and mucus-binding protein A (CmbA) in adhesion to intestinal epithelial cells and mucus in vitro. Microbiology 2014, 160, 671–681. [Google Scholar] [CrossRef] [PubMed]
  82. Pridmore, R.D.; Berger, B.; Desiere, F.; Vilanova, D.; Barretto, C.; Pittet, A.C.; Zwahlen, M.C.; Rouvet, M.; Altermann, E.; Barrangou, R. The genome sequence of the probiotic intestinal bacterium Lactobacillus johnsonii NCC 533. Proc. Natl. Acad. Sci. USA 2004, 101, 2512–2517. [Google Scholar] [CrossRef] [PubMed]
  83. Von Ossowski, I.; Reunanen, J.; Satokari, R.; Vesterlund, S.; Kankainen, M.; Huhtinen, H.; Tynkkynen, S.; Salminen, S.; de Vos, W.M.; Palva, A. Mucosal adhesion properties of the probiotic Lactobacillus rhamnosus GG SpaCBA and SpaFED pilin subunits. Appl. Environ. Microbiol. 2010, 76, 2049–2057. [Google Scholar] [CrossRef] [PubMed]
  84. Douillard, F.P.; Ribbera, A.; Kant, R.; Pietilä, T.E.; Järvinen, H.M.; Messing, M.; Randazzo, C.L.; Paulin, L.; Laine, P.; Ritari, J.; et al. Comparative genomic and functional analysis of 100 Lactobacillus rhamnosus strains and their comparison with strain GG. PLoS Genet. 2013, 9, e1003683. [Google Scholar] [CrossRef] [PubMed]
  85. Rintahaka, J.; Yu, X.; Kant, R.; Palva, A.; von Ossowski, I. Phenotypical analysis of the Lactobacillus rhamnosus GG fimbrial spaFED operon: Surface expression and functional characterization of recombinant SpaFED pili in Lactococcus lactis. PLoS One 2014, 9, e113922. [Google Scholar] [CrossRef] [PubMed]
  86. Nishiyama, K.; Ochiai, A.; Tsubokawa, D.; Ishihara, K.; Yamamoto, Y.; Mukai, T. Identification and characterization of sulfated carbohydrate-binding protein from Lactobacillus reuteri. PLoS One 2013, 8, e83703. [Google Scholar] [CrossRef] [PubMed]
  87. Turroni, F.; Serafini, F.; Foroni, E.; Duranti, S.; O’Connell Motherway, M.; Taverniti, V.; Mangifesta, M.; Milani, C.; Viappiani, A.; Roversi, T.; et al. Role of sortase-dependent pili of Bifidobacterium bifidum PRL2010 in modulating bacterium-host interactions. Proc. Natl. Acad. Sci. USA 2013, 110, 11151–11156. [Google Scholar] [CrossRef] [PubMed]
  88. Schell, M.A.; Karmirantzou, M.; Snel, B.; Vilanova, D.; Berger, B.; Pessi, G.; Zwahlen, M.C.; Desiere, F.; Bork, P.; Delley, M.; et al. The genome sequence of Bifidobacterium longum reflects its adaptation to the human gastrointestinal tract. Proc. Natl. Acad. Sci. USA 2002, 99, 14422–14427. [Google Scholar] [CrossRef] [PubMed]
  89. Iguchi, A.; Umekawa, N.; Maegawa, T.; Tsuruta, H.; Odamaki, T.; Xiao, J.Z.; Osawa, R. Polymorphism and distribution of putative cell-surface adhesin-encoding ORFs among human fecal isolates of Bifidobacterium longum subsp. longum. Antonie Van Leeuwenhoek 2011, 99, 457–471. [Google Scholar] [CrossRef] [PubMed]
  90. Suzuki, K.; Nishiyama, K.; Miyajima, H.; Osawa, R.; Yamamoto, Y.; Mukai, T. Adhesion properties of a putative polymorphic fimbrial subunit protein from Bifidobacterium longum subsp. longum. Biosci. Microbiota. Food Heal. 2016, 35, 19–27. [Google Scholar] [CrossRef] [PubMed]
  91. Jeffery, C.J. Moonlighting proteins—An update. Mol. Biosyst. 2009, 5, 345–350. [Google Scholar] [CrossRef] [PubMed]
  92. Mukai, T.; Asasaka, T.; Sato, E.; Mori, K.; Matsumoto, M.; Ohori, H. Inhibition of binding of Helicobacter pylori to the glycolipid receptors by probiotic Lactobacillus reuteri. FEMS Immunol. Med. Microbiol. 2002, 32, 105–110. [Google Scholar] [CrossRef] [PubMed]
  93. Granato, D.; Bergonzelli, G.E.; Pridmore, R.D.; Marvin, L.; Rouvet, M.; Corthésy-Theulaz, I.E. Cell surface-associated elongation factor Tu mediates the attachment of Lactobacillus johnsonii NCC533 (La1) to human intestinal cells and mucins. Infect. Immun. 2004, 72, 2160–2169. [Google Scholar] [CrossRef] [PubMed]
  94. Dhanani, A.S.; Bagchi, T. The expression of adhesin EF-Tu in response to mucin and its role in Lactobacillus adhesion and competitive inhibition of enteropathogens to mucin. J. Appl. Microbiol. 2013, 115, 546–554. [Google Scholar] [CrossRef] [PubMed]
  95. Kinoshita, H.; Uchida, H.; Kawai, Y.; Kawasaki, T.; Wakahara, N.; Matsuo, H.; Watanabe, M.; Kitazawa, H.; Ohnuma, S.; Miura, K.; et al. Cell surface Lactobacillus plantarum LA 318 glyceraldehyde-3-phosphate dehydrogenase (GAPDH) adheres to human colonic mucin. J. Appl. Microbiol. 2008, 104, 1667–1674. [Google Scholar] [CrossRef] [PubMed]
  96. Kinoshita, H.; Wakahara, N.; Watanabe, M.; Kawasaki, T.; Matsuo, H.; Kawai, Y.; Kitazawa, H.; Ohnuma, S.; Miura, K.; Horii, A.; et al. Cell surface glyceraldehyde-3-phosphate dehydrogenase (GAPDH) of Lactobacillus plantarum LA 318 recognizes human A and B blood group antigens. Res. Microbiol. 2008, 159, 685–691. [Google Scholar] [CrossRef] [PubMed]
  97. Patel, D.K.; Shah, K.R.; Pappachan, A.; Gupta, S.; Singh, D.D. Cloning, expression and characterization of a mucin-binding GAPDH from Lactobacillus acidophilus. Int. J. Biol. Macromol. 2016, 91, 338–346. [Google Scholar] [CrossRef] [PubMed]
  98. Bergonzelli, G.E.; Granato, D.; Pridmore, R.D.; Marvin-Guy, L.F.; Donnicola, D.; Corthésy-Theulaz, I.E. GroEL of Lactobacillus johnsonii La1 (NCC 533) is cell surface associated: potential role in interactions with the host and the gastric pathogen Helicobacter pylori. Infect. Immun. 2006, 74, 425–434. [Google Scholar] [CrossRef] [PubMed]
  99. Rojas, M.; Ascencio, F.; Conway, P.L. Purification and characterization of a surface protein from Lactobacillus fermentum 104R that binds to porcine small intestinal mucus and gastric mucin. Appl. Environ. Microbiol. 2002, 68, 2330–2336. [Google Scholar] [CrossRef] [PubMed]
  100. Miyoshi, Y.; Okada, S.; Uchimura, T.; Satoh, E. A mucus adhesion promoting protein, MapA, mediates the adhesion of Lactobacillus reuteri to Caco-2 human intestinal epithelial cells. Biosci. Biotechnol. Biochem. 2006, 70, 1622–1628. [Google Scholar] [CrossRef] [PubMed]
  101. Macías-Rodríguez, M.E.; Zagorec, M.; Ascencio, F.; Vázquez-Juárez, R.; Rojas, M. Lactobacillus fermentum BCS87 expresses mucus- and mucin-binding proteins on the cell surface. J. Appl. Microbiol. 2009, 107, 1866–1874. [Google Scholar] [CrossRef] [PubMed]
  102. Watanabe, M.; Kinoshita, H.; Nitta, M.; Yukishita, R.; Kawai, Y.; Kimura, K.; Taketomo, N.; Yamazaki, Y.; Tateno, Y.; Miura, K.; et al. Identification of a new adhesin-like protein from Lactobacillus mucosae ME-340 with specific affinity to the human blood group A and B antigens. J. Appl. Microbiol. 2010, 109, 927–935. [Google Scholar] [CrossRef] [PubMed]
  103. Watanabe, M.; Kinoshita, H.; Huang, I.N.; Eguchi, K.; Tsurumi, T.; Kawai, Y.; Kitazawa, H.; Kimura, K.; Taketomo, N.; Kikuchi, D.; et al. An adhesin-like protein, Lam29, from Lactobacillus mucosae ME-340 binds to histone H3 and blood group antigens in human colonic mucus. Biosci. Biotechnol. Biochem. 2012, 76, 1655–1660. [Google Scholar] [CrossRef] [PubMed]
  104. Antikainen, J.; Kuparinen, V.; Kupannen, V.; Lähteenmäki, K.; Korhonen, T.K. pH-dependent association of enolase and glyceraldehyde-3-phosphate dehydrogenase of Lactobacillus crispatus with the cell wall and lipoteichoic acids. J. Bacteriol. 2007, 189, 4539–4543. [Google Scholar] [CrossRef] [PubMed]
  105. Matsui, H.; Takahashi, T.; Øverby, A.; Murayama, S.Y.; Yoshida, H.; Yamamoto, Y.; Nishiyama, K.; Seto, Y.; Takahashi, T.; Mukai, T.; et al. Mouse models for assessing the protective efficacy of Lactobacillus gasseri SBT2055 against Helicobacter suis infection associated with the development of gastric mucosa-associated lymphoid tissue lymphoma. Helicobacter 2015, 20, 291–298. [Google Scholar] [CrossRef] [PubMed]

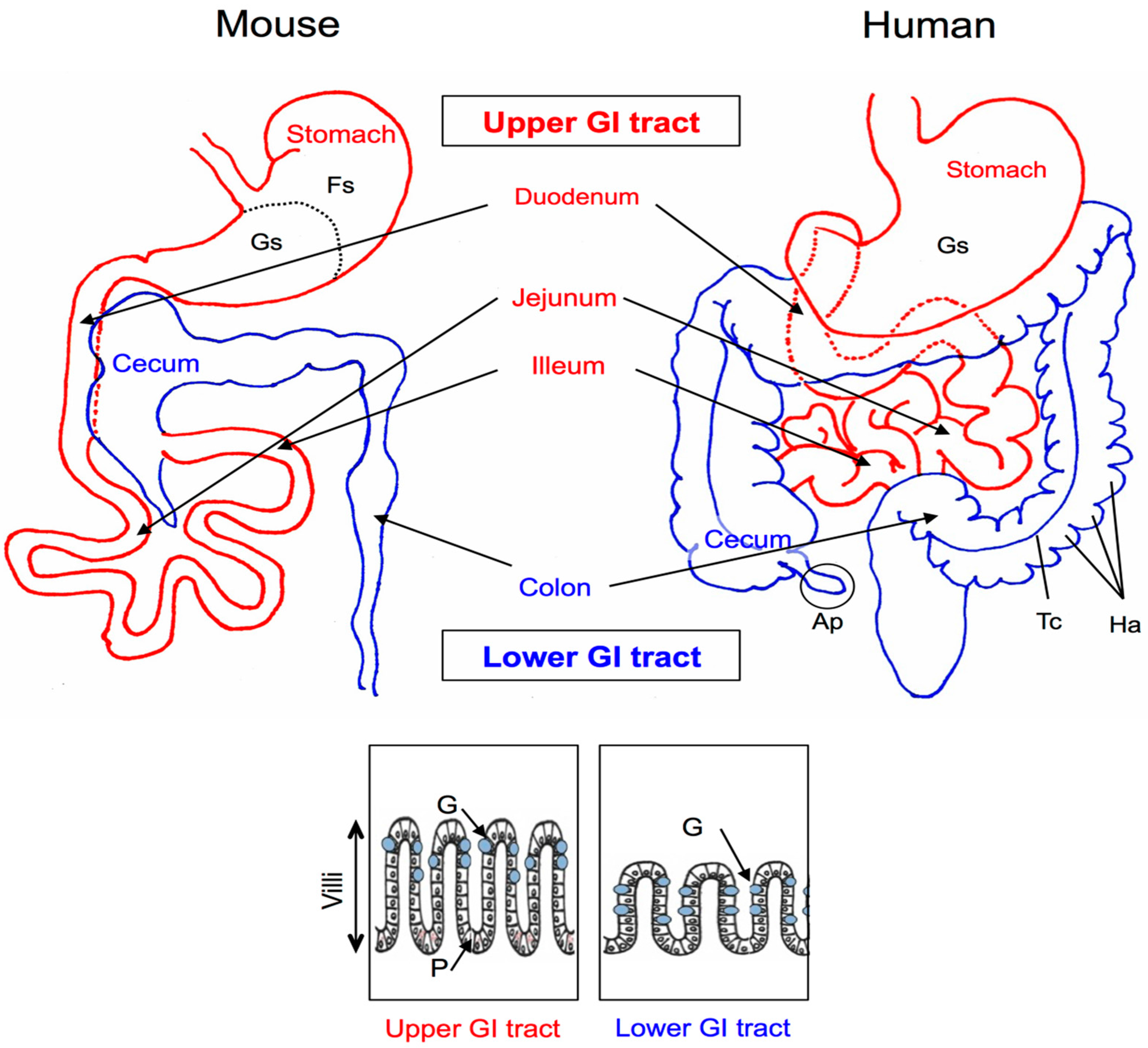

Figure 1. Mouse and human abdominal anatomy. The gastrointestinal (GI) tract is divided into two regions: the upper (red) and the lower (blue) GI tract. The rectangles show schematic models of the villi of the upper and lower GI tracts. G, goblet cells; P, Paneth cells; Fs, forestomach; Gs, glandular stomach; Ap, appendix; Tc, taenia coli; Ha, haustra.
Figure 1. Mouse and human abdominal anatomy. The gastrointestinal (GI) tract is divided into two regions: the upper (red) and the lower (blue) GI tract. The rectangles show schematic models of the villi of the upper and lower GI tracts. G, goblet cells; P, Paneth cells; Fs, forestomach; Gs, glandular stomach; Ap, appendix; Tc, taenia coli; Ha, haustra.
Microorganisms 04 00034 g001

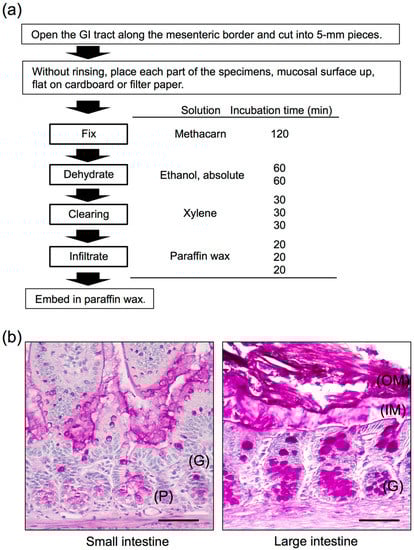

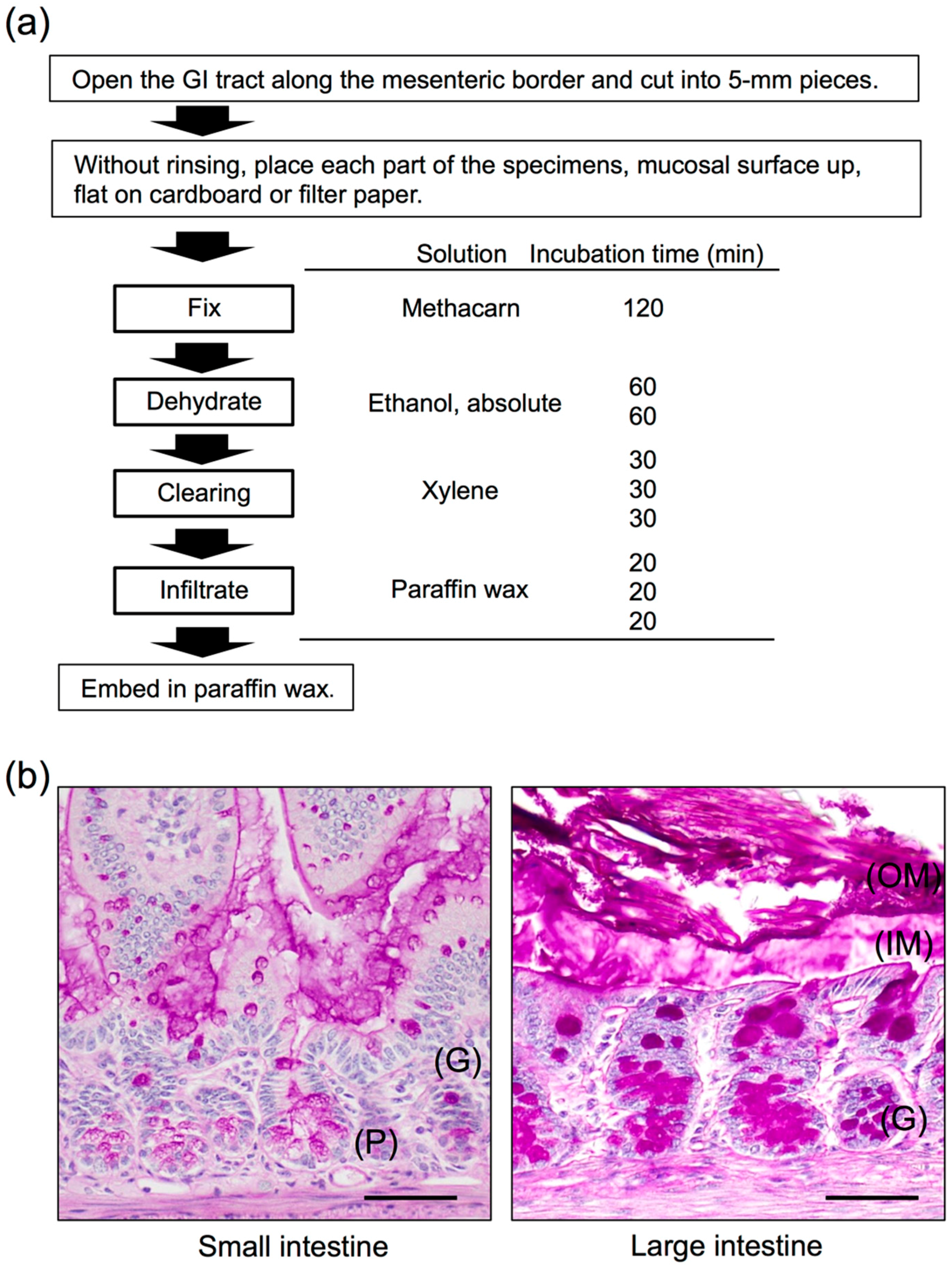

Figure 2. Histology of the mouse small and large intestines. (a) Methacarn fixative and paraffin embedding procedure and methods, based on Puchtler’s protocol [41]. (b) Transverse sections of a 12-week-old male mouse small intestine (jejunum) and large intestine (colon). Methacarn fixative, periodic acid-Schiff stain. OM, outer mucus; IM, inner mucus; G, goblet cells; P, Paneth cells. Scale bars: 100 µm. Based on the results of Nishiyama et al. [47].
Figure 2. Histology of the mouse small and large intestines. (a) Methacarn fixative and paraffin embedding procedure and methods, based on Puchtler’s protocol [41]. (b) Transverse sections of a 12-week-old male mouse small intestine (jejunum) and large intestine (colon). Methacarn fixative, periodic acid-Schiff stain. OM, outer mucus; IM, inner mucus; G, goblet cells; P, Paneth cells. Scale bars: 100 µm. Based on the results of Nishiyama et al. [47].
Microorganisms 04 00034 g002

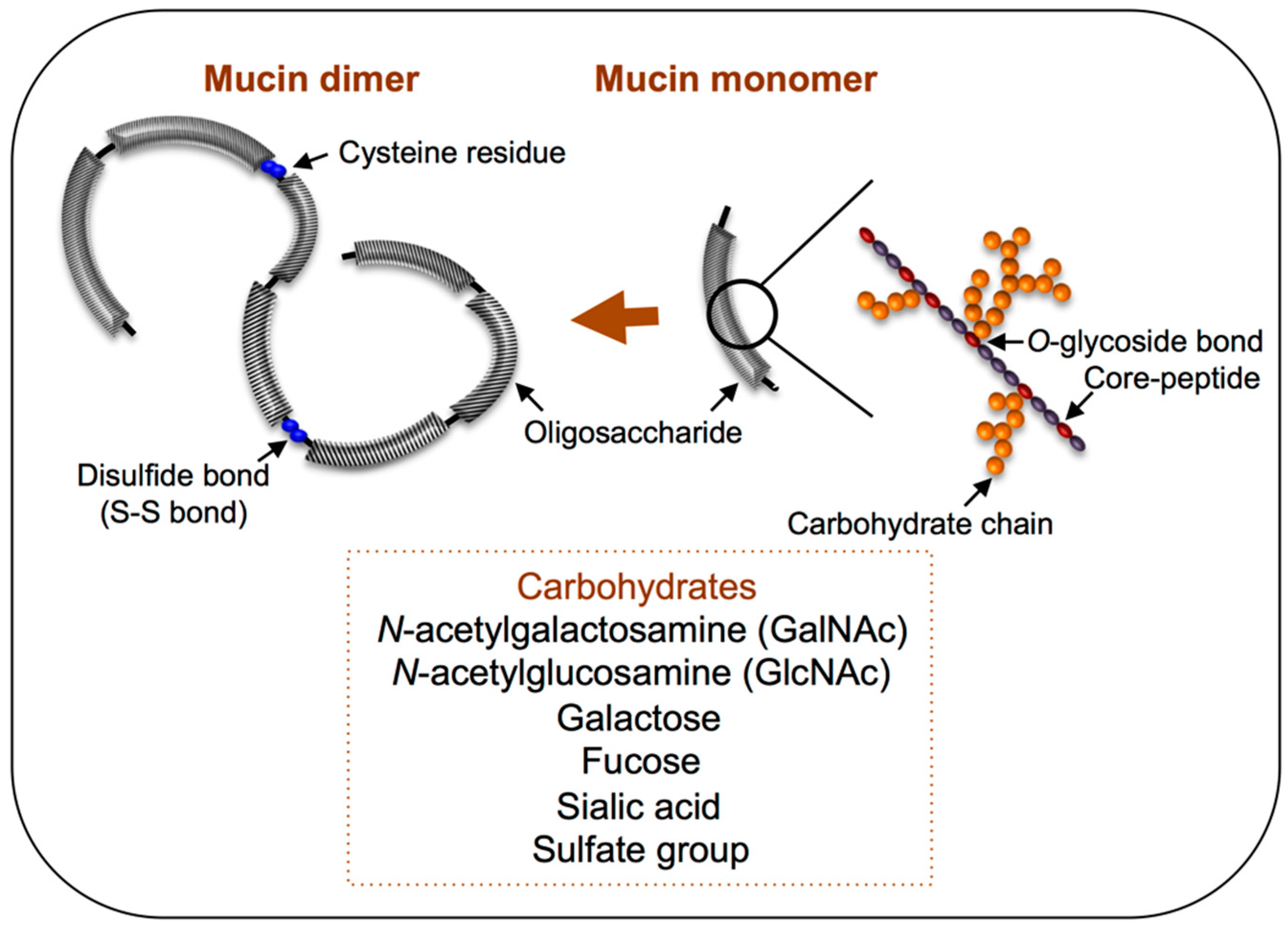

Figure 3. Polymeric structure of mucin molecules. A simplified scheme showing the composition of mucin glycoproteins, in monomer and dimer forms. Glycosylated regions are shown as black diagonal tubes, in which carbohydrate chains form a closely packed sheath around the central peptide core.
Figure 3. Polymeric structure of mucin molecules. A simplified scheme showing the composition of mucin glycoproteins, in monomer and dimer forms. Glycosylated regions are shown as black diagonal tubes, in which carbohydrate chains form a closely packed sheath around the central peptide core.
Microorganisms 04 00034 g003
Figure 4. Cell-surface architecture of Gram-positive bacteria. A thick, multilayered peptidoglycan layer is decorated with lipoteichoic acid (LTA), wall teichoic acid (WTA), and various proteins, including S-layer proteins. Cell wall-anchored proteins are attached to the cell wall either (i) covalently by sortases (e.g., LPXTG proteins) or (ii) non-covalently (e.g., through a LysM motif or cell wall-binding domains [CWBDs]). Membrane proteins can covalently attach to the long-chain fatty acids of the cytoplasmic membrane, whereas S-layer proteins are attached to the cell wall through charged or uncharged secondary cell wall polymers. Reproduced from Desvaux et al. [67] with several modifications.
Figure 4. Cell-surface architecture of Gram-positive bacteria. A thick, multilayered peptidoglycan layer is decorated with lipoteichoic acid (LTA), wall teichoic acid (WTA), and various proteins, including S-layer proteins. Cell wall-anchored proteins are attached to the cell wall either (i) covalently by sortases (e.g., LPXTG proteins) or (ii) non-covalently (e.g., through a LysM motif or cell wall-binding domains [CWBDs]). Membrane proteins can covalently attach to the long-chain fatty acids of the cytoplasmic membrane, whereas S-layer proteins are attached to the cell wall through charged or uncharged secondary cell wall polymers. Reproduced from Desvaux et al. [67] with several modifications.
Microorganisms 04 00034 g004
Figure 5. Schematic model of MUB and SpaCBA pili. MUB comprises 6 Mub1 repeats (green) and 8 Mub2 repeats (purple). The C-terminal LPXTG motif anchors MUB to the peptidoglycan of the bacterial cell wall. Reproduced from Roos and Jonsson [68] and Etzold et al. [70] with several modifications. The heterotrimeric SpaCBA pili are composed of shaft-forming SpaA (gray) major pilins together with SpaB (red) and SpaC (navy) minor pilins. Reproduced from Kankainen et al. [76] and Reunanen et al. [77] with several modifications.
Figure 5. Schematic model of MUB and SpaCBA pili. MUB comprises 6 Mub1 repeats (green) and 8 Mub2 repeats (purple). The C-terminal LPXTG motif anchors MUB to the peptidoglycan of the bacterial cell wall. Reproduced from Roos and Jonsson [68] and Etzold et al. [70] with several modifications. The heterotrimeric SpaCBA pili are composed of shaft-forming SpaA (gray) major pilins together with SpaB (red) and SpaC (navy) minor pilins. Reproduced from Kankainen et al. [76] and Reunanen et al. [77] with several modifications.
Microorganisms 04 00034 g005
Figure 6. Histochemical staining of the Methacarn-fixed GI mucosal surface with recombinant proteins. (a) Binding of His6-SpaC was observed on the murine colonic mucosa. Arrows indicate the gut contents (C) and the mucus layer (M). Scale bar: 200 µm. Based on the results of Nishiyama et al. [47]. (b) Binding of His6-EF-Tu was observed on the porcine gastric mucosal surface (upper panel). These areas were coincident with areas positively stained for high iron diamine (HID) (lower panel). Scale bars: 1000 µm. Based on the results of Nishiyama et al. [86].
Figure 6. Histochemical staining of the Methacarn-fixed GI mucosal surface with recombinant proteins. (a) Binding of His6-SpaC was observed on the murine colonic mucosa. Arrows indicate the gut contents (C) and the mucus layer (M). Scale bar: 200 µm. Based on the results of Nishiyama et al. [47]. (b) Binding of His6-EF-Tu was observed on the porcine gastric mucosal surface (upper panel). These areas were coincident with areas positively stained for high iron diamine (HID) (lower panel). Scale bars: 1000 µm. Based on the results of Nishiyama et al. [86].
Microorganisms 04 00034 g006
Table 1. Mucin adhesion factors in Lactobacillus species.
Table 1. Mucin adhesion factors in Lactobacillus species.
Adhesion FactorSpeciesAnchoring TypeReference
CmbA/Lar_0958L. reuteri ATCC PTA 6475, JCM1112LPXTG[70,81]
EF-TuL. johnsonii NCC533Anchorless[86,92,93,94]
L. reuteri JCM1081
L. plantarum strains
GAPDHL. acidophilus La14Anchorless[95,96,97]
L. plantarum La318
GroELL. johnsonii NCC533Anchorless[98]
Lam29L. mucosae ME-340Membrane bound[102,103]
MapAL. reuteri 104RMembrane bound[99,100]
MBFL. rhamnosus GG, FSMM22LPXTG[79,80]
MsaL. plantarum WCFS-1LPXTG[78]
Mub (Mub family)L. acidophilus NCFMLPXTG[68,69,70,71,73,74]
L. reuteri strains
PiliL. rhamnosus GGLPXTG (Fimbriae type)[47,76,77,83,85]
32-MmubpL. fermentum BCS87Membrane bound[101]

Share and Cite

MDPI and ACS Style

Nishiyama, K.; Sugiyama, M.; Mukai, T. Adhesion Properties of Lactic Acid Bacteria on Intestinal Mucin. Microorganisms 2016, 4, 34.

AMA Style

Nishiyama K, Sugiyama M, Mukai T. Adhesion Properties of Lactic Acid Bacteria on Intestinal Mucin. Microorganisms. 2016; 4(3):34.

Chicago/Turabian Style

Nishiyama, Keita, Makoto Sugiyama, and Takao Mukai. 2016. "Adhesion Properties of Lactic Acid Bacteria on Intestinal Mucin" Microorganisms 4, no. 3: 34.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
