Diplodia seriata Biocontrol Is Altered via Temperature and the Control of Bacteria

by
Alejandra Larach
1,2,3,*,†,
Paulina Vega-Celedón
1,2,†,
Diyanira Castillo-Novales
1,2,3,
Lorena Tapia
1,
Italo Cuneo
1,
Fabiola Cádiz
1,
Michael Seeger
2,3 and
Ximena Besoain
1,3,*
1
Escuela de Agronomía, Facultad de Ciencias Agronómicas y de los Alimentos, Pontificia Universidad Católica de Valparaíso, San Francisco s/n La Palma, Quillota 2260000, Chile
2
Laboratorio de Microbiología Molecular y Biotecnología Ambiental, Departamento de Química & Centro de Biotecnología Dr. Daniel Alkalay Lowitt, Universidad Técnica Federico Santa María, Avenida España 1680, Valparaíso 2390123, Chile
3
Millennium Nucleus BioGEM, Valparaíso 2390123, Chile
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Microorganisms 2024, 12(2), 350; https://doi.org/10.3390/microorganisms12020350
Submission received: 27 November 2023 / Revised: 17 January 2024 / Accepted: 2 February 2024 / Published: 8 February 2024
(This article belongs to the Special Issue Microorganisms as Biocontrol Agents in Plant Pathology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Grapevine trunk diseases (GTDs) attack the vine’s wood, devastating vineyards worldwide. Chile is the world’s fourth-largest wine exporter, and Cabernet Sauvignon is one of the most economically important red wine varieties. Botryosphaeria dieback is an important GTD, and Diplodia seriata is one of the main pathogenic species. Biocontrol studies of these pathogens are commonly carried out at different incubation times but at a single temperature. This study aimed to evaluate the biocontrol effect of Chilean PGPB and grapevine endophytic bacteria against D. seriata at different temperatures. We analyzed the biocontrol effect of Pseudomonas sp. GcR15a, Pseudomonas sp. AMCR2b and Rhodococcus sp. PU4, with three D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183) at 8, 22 and 35 °C. Two dual-culture antagonism methods (agar plug diffusion and double plate) were used to evaluate the in vitro effect, and an in vivo test was performed with Cabernet Sauvignon cuttings. In vitro, the greatest inhibitions were obtained using the agar plug diffusion method and at a temperature of 8 °C, where Rhodococcus sp. PU4 obtains a 65% control (average) and Pseudomonas sp. GcR15a a 57% average. At 22 °C, only strains of Pseudomonas sp. show control. At 35 °C, one Pseudomonas strain shows the highest control (38%), on average, similar to tebuconazole (33%), and then Rhodococcus sp. (30%). In vivo, a biocontrol effect is observed against two D. seriata isolates, while the PUCV 2142 proves to be more resistant to control. The biocontrol ability at low temperatures is promising for effective control in the field, where infections occur primarily in winter.

1. Introduction

The cultivation of grapevines (Vitis vinifera L.) is an important and widespread agricultural activity worldwide that dates back more than 7000 years. Grapevines are highly appreciated for their fresh fruits and wines [1]. However, one of the most significant challenges in growing grapevines is their susceptibility to various pathogens, including viruses, bacteria, fungi and nematodes [2]. Grapevine trunk diseases (GTDs) attack grapevine wood and devastate vineyards worldwide. Although GTDs have been known for more than a century, their impact has increased significantly in recent decades [3,4,5,6], causing significant production losses [4,7]. The three main GTDs are Botryosphaeria dieback, Eutypa dieback and Esca disease, which generally attack perennial organs at all stages of vine growth [2,3,8]. Botryosphaeria dieback is one of the most important GTDs worldwide and has been associated with 26 botryosphaeriaceous taxa [9]; the most frequently reported species are Diplodia seriata, D. mutila, Lasiodiplodia theobromae and Neofusicoccum parvum [2,4,9,10].
Chile is currently the top wine exporter in America and the fourth wine exporter worldwide, surpassed only by France, Spain and Italy [11]. The total area of Chilean vineyards currently occupies more than 141 thousand hectares, which has a wine production potential of close to 1200 million liters [11]. According to the National Viticultural Registry of Chile 2020, Cabernet Sauvignon is at the leading position among the red wine varieties, with more than 40,000 hectares [12]. A study of Botryosphaeria dieback disease in Cabernet Sauvignon vineyards in Central Chile showed that the overall disease incidences were 87% in 2010 and 84% in 2018, the severities of the damage were 49% in 2010 and 47% in 2018 and yield losses were 39% in 2010 and 46% in 2018, wherein D. seriata was the most prevalent fungus isolated from symptomatic plants [4]. Other studies demonstrated that D. seriata (anamorph of Botryosphaeria obtusa) is one of the most frequently isolated species from diseased grapevines in Chile [4,13,14,15] and other regions, such as California [16], Mexico [17], Spain [18,19], Portugal [20], France [21], Iran [22], Lebanon [23], Algeria [24], Tunisia [25] and Australia [26].
Compared to other species of Botryosphariaceae (Botryosphaeria dothidea, Diplodia corticola, D. mutila, Dothiorella iberica, L. theobromae, N. parvum and Spencermartinsia viticola), conidia of D. seriata showed the highest germination under a wide range of temperatures (10 to 40 °C) [27]. More isolates of D. seriata than N. parvum were isolated from colder places in Iran [22]. Diplodia seriata strains were isolated at temperatures between 5 and 40 °C. These studies suggest that D. seriata is probably the most cosmopolitan botryosphaeriaceous fungus infecting grapevines [27]. Climate change, including extreme heat or cold, will continue to increase stress on plant communities, and some species of Botryosphariaceae, such as D. seriata, will probably cause large-scale damage [28] due to their wide growth temperature range. Considering this, it is essential to know, on the one hand, how the Chilean strains of D. seriata behave at different temperatures and their possible biocontrol agents. During the pruning season, there is dispersion of spores, which coincides with rainfall [15], and the average temperatures oscillate between 8 and 22 °C in the Maule region of Central Chile. During the summer, the maximum average temperatures on some days exceed 35 °C (https://agrometeorología.cl, 2023 accessed on 14 August 2023) [29].
Several species of Botryosphariaceae are endophytes or have an endophytic stage, including D. seriata [28]. Currently, there are no efficient tools to eradicate infections caused by these pathogens other than surgical removal of the infected organs, so they are managed mainly by practices that aim to prevent infections [9,30]. In recent years, synthetic products for controlling Botryosphaeria dieback in Vitis vinifera, such as benzimidazoles (benomyl and carbendazim), have been limited and banned in several countries [30]. Biocontrol of GTDs using microorganisms is a promising alternative [31,32] that appears to be a response to the increase in wood diseases, product restrictions and low efficacy of some chemicals [30]. Bacteria from the phylum Actinomycetota [33,34] and the genus Pseudomonas [31] have shown high antifungal activity against fungi associated with GTDs.
Biocontrol in vitro and in vivo studies of grapevine trunk pathogens are commonly performed at different incubation times but only at a single temperature, usually 25 °C [31,32,33,34]. In vitro and in vivo studies have shown that the fungus D. seriata is able to grow at a wide range of temperatures [22,27]. Therefore, its biocontrol at different temperatures should be studied, considering those that occur in winter and summer during vineyard cultivation. The objective of this study was to evaluate the biocontrol effects of two plant growth-promoting bacteria (PGPB) bacteria isolates from wild plants from Chile and one endophyte bacteria from vine against different isolates of D. seriata at low (8 °C), medium (22 °C) and high temperatures (35 °C). The capacity of biocontrol was evaluated in vitro using two forms of the dual-culture antagonism method and an in vivo assay with Cabernet Sauvignon cuttings. We analyzed the biocontrol effects of plant growth-promoting bacteria (PGPB), Pseudomonas sp. GcR15a, Pseudomonas sp. AMCR2b and the endophyte Rhodococcus sp. PU4, on three D. seriata isolates at 8, 22 and 35 °C.

2. Materials and Methods

2.1. Bacteria

The psychrotolerant PGPBs for biocontrol studies were Pseudomonas sp. GcR15a [35], Pseudomonas sp. AMCR2b (protected use under patent request: PCT/CL2022/050057) and the endophyte Rhodococcus sp. PU4, which was obtained from a healthy and nongrafted Cabernet Sauvignon plant. Three phytopathogenic D. seriata isolates were used in this study: PUCV 2120, PUCV 2142 and PUCV 2183. These were obtained from diseased grapevine plants [4]. These microorganisms were obtained from the culture collections of the Escuela de Agronomía (Pontificia Universidad Católica de Valparaíso, Quillota, Chile) and the Molecular Microbiology and Environmental Biotechnology Laboratory (Universidad Técnica Federico Santa María, Valparaíso, Chile).

2.2. In Vitro Biocontrol Assay (Agar Plug Diffusion Method)

The biocontrol activity on D. seriata isolates was evaluated using the agar plug diffusion method, as described by Balouiri et al. [36], with modifications. Yeast malt (YM) agar culture medium (10 g L−1 glucose (Merck, Darmstadt, Germany), 3 g L−1 malt extract, 5 g L−1 peptone (Difco, Laboratories, Franklin Lakes, NJ, USA), 3 g L−1 yeast extract (Difco) and 15 g L−1 agar (Difco)) was used for biocontrol bacteria (strains GcR15a, AMCR2b and PU4), and Potato Dextrose Agar (PDA, HiMedia, Laboratories West Chester, PA, USA) was used for D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183). Bacteria were grown in YM medium for ~12 h and then adjusted to a turbidity at 600 nm of 1. Three drops of 100 µL of each isolate were placed on a plate, allowed to dry and incubated for 72 h at room temperature (22 ± 3 °C). Diplodia seriata isolates were grown in PDA medium for 4–5 days at 26 °C. An 8 mm mycelial disc of colony under active growth of each D. seriata isolate was obtained with a sterilized metal punch and deposited in a PDA plate at 4 cm of an 8 mm piece of YM agar, with bacterial growth also obtained from a colony in active growth. A negative control (YM agar medium without bacteria) and a positive inhibition control (tebuconazole, 0.3 mg L−1) [37] were incorporated. This assay was performed twice in triplicate. Inhibitions were observed at 7 and 14 days at 8, 22 and 35 °C. The internal radius of fungal growth was recorded, measuring from the center of the inoculum plug to the edge of hyphal growth, at 7 and 14 days of incubation.
The inhibition percentage of each treatment was calculated using the Equation (1):
Percentage of inhibition (%) = ((R − r)/R) ∗ 100,
where R corresponds to the average radius of fungal growth of the negative control (C−) and r to the average radius of fungal growth with the applied treatment [38].

2.3. In Vitro Biocontrol Assay (Double Plate Method)

The biocontrol activity on D. seriata isolates was analyzed using the double plate method (two-sealed-base plates), as reported by Dennis et al. [39] and Delgado et al. [40], with modifications according to Gao et al. [41]. YM agar culture medium was used for biocontrol bacteria (strains GcR15a, AMCR2b and PU4), and PDA was used for D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183). The biocontrol bacteria were streaked onto YM plates, 8 mm pieces of D. seriata isolates were placed in the center of PDA plates, and the two plates were sealed with parafilm. This assay was performed twice in triplicate. Fungal growth inhibition was observed after 7 and 14 days at 8, 22 and 35 °C. The fungal growth diameter was measured. The inhibition percentage of each treatment was calculated using Equation (1).

2.4. In Vivo Biocontrol Assay

The in vivo biocontrol capacity of the grapevine endophytic bacterium Rhodococcus sp. PU4 and the PGPBs Pseudomonas sp. GcR15a and Pseudomonas sp. AMCR2b was determined with three D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183), employing cuttings following the methodology of Haidar et al. [42] and Kotze et al. [43] (Supplementary Text S1). From a vineyard cv. Cabernet Sauvignon, 18 cm long one-year-old semi-lignified cuttings were taken, disinfected with 1% sodium hypochlorite for 5 min and 95% ethanol for 30 s and washed three times with sterile-distilled water (SDW). Finally, they were dried at room temperature inside a laminar flow chamber. The cuttings were kept at 5 °C for two weeks before use. A fresh wound was made and was immediately inoculated with 40 µL of each bacterial suspension (1 × 108 CFU mL–1) in YM medium, YM medium (negative control, C−) and Tebuconazole (0.5% p v–1, positive control, C+). Bacterial suspensions were prepared as described previously in Vega-Celedón et al. [35]. After inoculation with the treatments, the cuttings were left at room temperature until the total absorption of the inoculum. Then, each cutting was placed in a humid chamber with a disinfected plastic grid including a sterile absorbent moistened paper (5 mL of SDW) and placed at 8, 22 °C and 35 °C. One day later, the cuttings were inoculated with a 50 µL suspension of D. seriata at a concentration of 1 × 105 conidia µL−1 at the same end where the previous inoculation was performed. Fungal suspensions were prepared as described previously in Larach et al. [6,44]. Cuttings inoculated with each D. seriata isolate and their treatments (GcR15a, AMCR2b, PU4, C− and C+) were placed in humid chambers at 8, 22 and 35 °C. Six cuttings were used for each treatment, isolate and temperature, a total of 270 cuttings. The assay was evaluated two months after inoculation with D. seriata. The length of the vascular lesions was measured in every detached cutting. The inhibition percentage of each treatment was calculated using Equation (1).

2.5. Statistical Analysis

One-way ANOVA was used to analyze the effects of the biocontrol strains. After performing one-way ANOVA, Tukey’s test was used to detect significant differences (p < 0.05) for the in vitro biocontrol assay, and LSD was used to evaluate the in vivo biocontrol assay using grapevine cuttings. To examine normality, the Shapiro–Wilk test was employed, while the Levene test was utilized to assess the homogeneity of variance. In cases where the assumptions were not met, data were appropriately transformed.

3. Results

3.1. In Vitro Biocontrol Assay (Agar Plug Diffusion Method)

The biocontrol effect by PGPB and endophyte biocontrol bacteria (Pseudomonas sp. GcR15a, Pseudomonas sp. AMCR2b and Rhodococcus sp. PU4) against D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183) was evaluated through the agar plug diffusion method. The activity was evaluated using the agar plug diffusion method at different temperatures (Figure 1, Figure 2, Figure 3 and Figure 4), where the fungal mycelial growth inhibition was determined by measuring the inner radius of the fungal growth area.
For the biocontrol by the diffusion method of D. seriata PUCV 2120 (Figure 1), strain GcR15a exhibited a significant decrease in growth after 7 and 14 days at 8 and 22 °C (Figure 4a,d), while at 35 °C, no biocontrol effect was observed. Strain GcR15a reached 75% and 56% inhibition after 14 days at 8 and 22 °C, respectively. Strain AMCR2b presented a significant inhibitory effect on growth after 7 and 14 days at 8 and 22 °C (Figure 4a,d). At 35 °C, inhibition was observed only after 14 days (Figure 1c). Strain AMCR2b reached 20%, 65% and 43% inhibition after 14 days at 8, 22 and 35 °C, respectively. With strain AMCR2b, changes in the color of the fungal growth were also observed after 7 and 14 days at 22 °C (Figure 1b). For strain PU4, a significant decrease in D. seriata growth was observed after 7 and 14 days only at 8 °C (Figure 4a), reaching 74% inhibition after 14 days. Strain AMCR2b presented the highest decrease in the inner radius of isolate PUCV 2120 (Figure 1). The positive control (tebuconazole) presented complete inhibition after 7 and 14 days at 8 °C (Figure 4a), while at 7 days at 22 °C, there was a significant effect; however, the effect was lost after 14 days (Figure 4d). Significant biocontrol effects were observed at high temperatures only after 14 days at 35 °C (Figure 4g).
For the biocontrol by the diffusion method of D. seriata PUCV 2142 (Figure 2), strain GcR15a exhibited a significant decrease in growth after 7 and 14 days at 8 and 22 °C (Figure 4a,d), while at 35 °C, a biocontrol effect was not observed. Strain GcR15a reached 55% and 46% inhibition after 14 days at 8 and 22 °C, respectively. Strain AMCR2b showed a significant inhibitory effect on growth after 14 days at 8 °C (Figure 4b), while at 22 and 35 °C, a decrease was observed after 7 and 14 days (Figure 4e,h). Strain AMCR2b reached 20%, 65% and 43% inhibition after 14 days at 8, 22 and 35 °C, respectively. For strain PU4, a significant decrease at 8 °C was observed after 7 and 14 days (Figure 4b), while at 35 °C, a significant decrease was observed only after 14 days (Figure 1c). In contrast, no effect was observed at 22 °C. Strain PU4 reached 65% and 27% inhibition after 14 days at 8 and 35 °C, respectively. Strain AMCR2b presented the highest decrease in the inner radius of strain PUCV 2142 (Figure 2). The positive control presented a significant inhibitory effect at 8 and 35 °C after 7 and 14 days (Figure 4b,h), while at 22 °C, its effect was significant only after 7 days (Figure 4d).
The biocontrol through the diffusion method of D. seriata PUCV 2183 (Figure 3) showed the same effects of strains GcR15a and AMCR2b, significantly decreasing growth after 14 days at 8 °C (Figure 4c) and after 7 and 14 days at 22 and 35 °C (Figure 4f,i). Strain GcR15a reached 40%, 59% and 20% inhibition after 14 days at 8, 22 and 35 °C, respectively. Strain AMCR2b reached 27%, 61% and 31% inhibition after 14 days at 8, 22 and 35 °C, respectively. For strain PU4, a significant decrease at 8 °C and 35 °C was observed after 14 days (Figure 4c,i), while no inhibition was observed at 22 °C. Strain PU4 reached 55% and 35% inhibition after 14 days at 8 and 35 °C, respectively. Strains GcR15a and AMCR2b presented the highest decrease in the inner radius of strain PUCV2183 (Figure 3). The positive control presented complete inhibition after 7 and 14 days at 8 °C (Figure 4c), while at 22 °C, its effect was significant after 7 days (Figure 4f) and at 35 °C after 7 and 14 days (Figure 4i).
From the negative controls, we observed that all D. seriata isolates showed higher growth at 22 °C, followed by 35 and 8 °C (Figure 1, Figure 2 and Figure 3), highlighting that the isolate PUCV 2120 presented warped growth at 35 °C with all treatments (Figure 1c). On the other hand, at 22 °C, a noticeable change in the color of the growth (demelanizing effect) of all D. seriata strains (PUCV 2120, PUCV 2142 and PUCV 2183) was also observed with the biocontrol strains GcR15a and AMCR2b (Figure 1b, Figure 2b and Figure 3b).

3.2. In Vitro Biocontrol Assay (Double Plate Method)

The biocontrol effect from PGPB and endophyte bacteria (Pseudomonas sp. GcR15a, Pseudomonas sp. AMCR2b and Rhodococcus sp. PU4) against D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183) was examined through the double plate method at different temperatures (Figure 5, Figure 6, Figure 7 and Figure 8). The fungal mycelial growth inhibition was determined by measuring the diameter of the fungal growth. With respect to the biocontrol of all the D. seriata isolates at 22 °C, there was no significant biocontrol effect observed for any strain.
For the biocontrol effect via the double plate method of D. seriata PUCV 2120 (Figure 5), strains GcR15a and AMCR2b showed the same effect, significantly decreasing the growth after 7 and 14 days at 8 °C (Figure 8a), while no effect was observed at 35 °C (Figure 8d). For strain PU4, a significant decrease at 8 °C was observed after 14 days (Figure 8a). At 35 °C, a significant decrease was determined after 7 and 14 days (Figure 8d). Strain PU4 presented the highest decrease in the growth diameter of the isolate PUCV 2120 (Figure 5).
Biocontrol assays of D. seriata PUCV 2142 with the double plate method (Figure 6) showed no significant decrease in the diameter of the fungal growth with any of the treatments (Figure 8b,e).
For biocontrol through the D. seriata PUCV 2183 double plate method (Figure 7), the strains GcR15a and AMCR2b did not present significant decreases in the growth of the fungus at 8 and 35 °C (Figure 8c,f). For strain PU4, only a significant decrease at 35 °C was observed at 14 days of evaluation (Figure 8f), while at 8 °C, no effect was observed (Figure 8d).
In this assay, the bacterial strains studied did not have a significant effect through the double plate method, contrasting with the results observed with the agar plug diffusion method. Similar to the agar plug diffusion assay at 22 °C, a notable color change in the growth and demelanizing effect of isolates PUCV 2142 and PUCV 2183 was observed with strains GcR15a and AMCR2b (Figure 6 and Figure 7). In addition, irregular growth of isolate PUCV 2120 at 35 °C was observed (Figure 7c).

3.3. Biocontrol on Grapevine Cuttings

The effects of D. seriata isolates on grapevine cuttings pre-inoculated with PGPB and endophyte biocontrol bacteria (Pseudomonas sp. GcR15a, Pseudomonas sp. AMCR2b and Rhodococcus sp. PU4, respectively) at 8 and 22 °C were evaluated. The damage to the grapevine cuttings was observed by measuring the vascular lesion length after two months (Supplementary Text S2 and Figure S1).

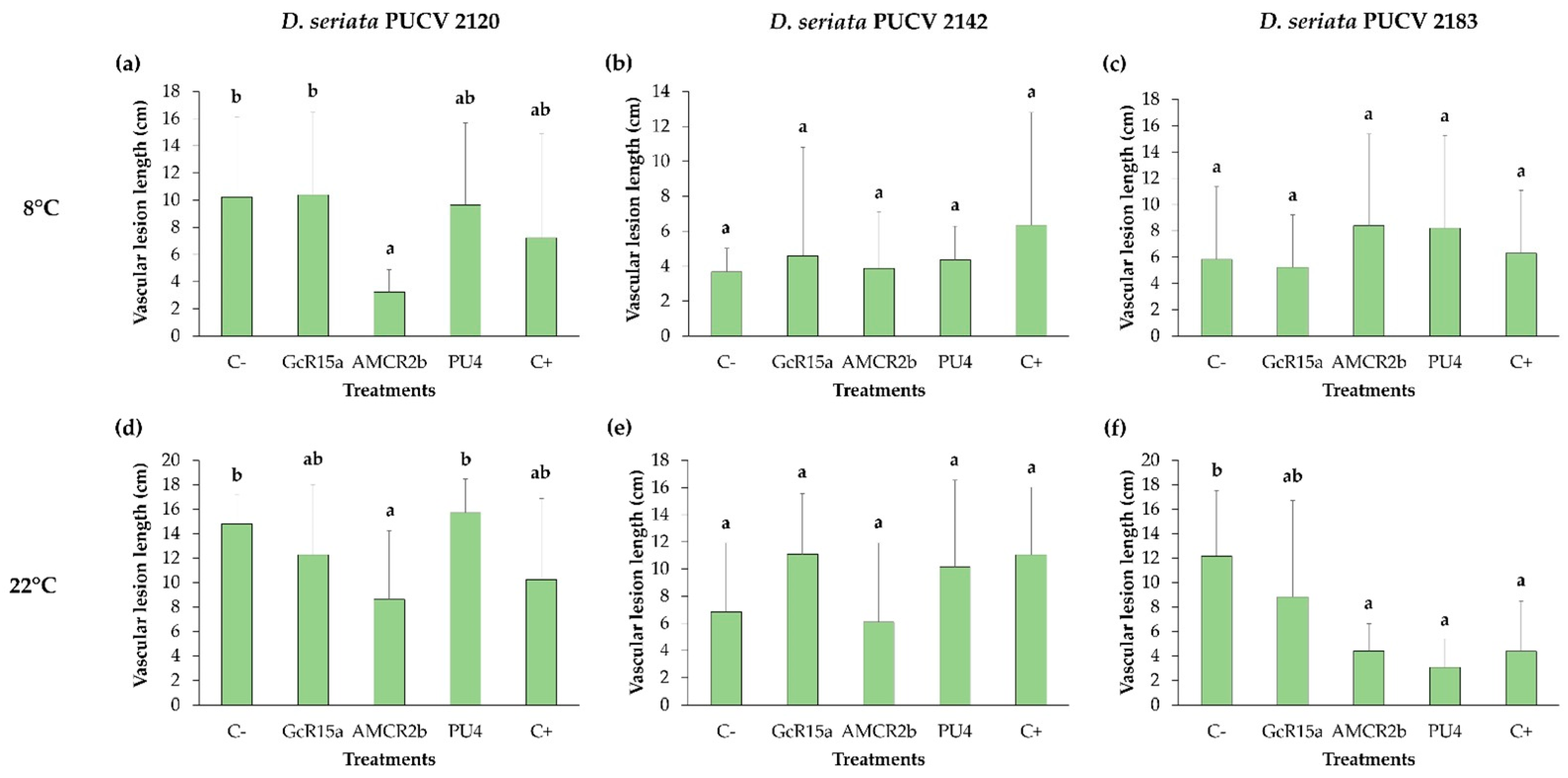

For the biocontrol effect of D. seriata PUCV 2120 (Figure 9), only strain AMCR2b showed a significant decrease in the vascular lesion length at 8 and 22 °C with respect to the negative control (Figure 9a,d).
For the biocontrol effect of D. seriata PUCV 2142 (Figure 9), none of the treatments exhibited significant differences with respect to the negative control at 8 and 22 °C (Figure 9b,e).
For the biocontrol effect of D. seriata PUCV 2183 (Figure 9), at 22 °C, strains AMCR2b and PU4 showed a significant decrease in the vascular lesion length with respect to the negative control (Figure 9e), while none of the treatments presented significant differences with respect to the negative control at 8 °C (Figure 9c).
The control percentages on D. seriata after 14 days of each bacterium in the different tests were obtained using Formula (1), indicated above and shown in Table 1. The best results were obtained by the in vitro assay using the agar plug diffusion method at a temperature of 8 °C, where Rhodococcus sp. PU4 obtains a 65% control (average) and Pseudomonas sp. GcR15a, a 57% average. On the other hand, at 22 °C, only strains of Pseudomonas sp. showed control (greater than 50%). At 35 °C, Pseudomonas AMCR2b showed higher control (38%), on average, similar to the positive control tebuconazole (33%) and Rhodococcus sp. (30%).

4. Discussion

Diplodia seriata is one of the most frequently isolated fungal species from diseased grapevines in different countries, such as Chile, USA (California), Mexico, Spain, Portugal, France, Iran, Lebanon, Algeria, Tunisia and Australia [4,13,14,15,16,17,18,19,20,21,22,23,24,25,26]. Using microorganisms for the biocontrol of D. seriata is a promising alternative to chemical fungicides [30,31,32]. Due to the wide temperature growth range of D. seriata [22,27], its biocontrol should be evaluated at different temperatures. This study assessed the capability of two bacteria of the genus Pseudomonas (GcR15a and AMCR2b) and one of Rhodococcus (PU4) to inhibit the mycelial growth of three Chilean D. seriata isolates (PUCV 2120, PUCV 2142 and PUCV 2183) at 8, 22 and 35 °C. Some works evaluated the in vitro growth of biocontrol bacteria at different temperatures, but the biocontrol with pathogenic fungi (including D. seriata) effect was only at 25 °C [45]. Also, antagonistic effects against phytopathogenic fungi at different temperatures have rarely been reported [46,47,48,49].
The best results were obtained by using the agar plug diffusion method, where up to 75% inhibition of mycelial growth was obtained with Pseudomonas sp. (GcR15a) at a temperature of 8 °C. In comparison, the double plate method’s maximum efficiency was 42% with Rhodococcus sp. at 35 °C (Table 1). Alvarez-Pérez et al. [33] observed inhibition by Streptomyces and Saccharopopolys strains against D. seriata CBS 112555, between 29% and 61% after 12 days of incubation at 25 °C. On the other hand, Niem et al. [31] observed the inhibition of mycelial growth (12–47%) with Pseudomonas strains against D. seriata (isolate A142a) after 7 days of incubation at 25 °C, results similar to those obtained in this study (Figure 4d–f). Silva-Valderrama et al. [32] observed inhibition in the growth of D. seriata (isolate 117 Molina) 15–100% after 21 days of incubation at 25 °C, in this case using biocontrol fungi, such as Chaetomium sp., Cladosporium sp., Clonostachys rosea, Epicoccum nigrum, Purpureocillium lilacinum and Trichoderma sp. An important aspect is that the biocontrol work with D. seriata described above uses one isolate. Our results highlight the importance of considering more than one when evaluating the effectiveness of a biocontroller. Previous reports support the importance of evaluating the effect of different D. seriata isolates that presented different mycelial growth at 22 °C and differences in necrosis length in detached canes and potted vines [50].
Regarding reports at different temperatures, in a temperature range of 25 to 35 °C, Pseudomonas fluorescens RG-26 inhibits the growth (≥50%) of Fusarium oxysporum f. sp. ciceris race 5, whereas the Trichoderma sp. isolate Td-1 inhibited (36–56%) the growth of Sclerotium rolfsii [46]. Guetsky et al. [47] and Manaa et al. [49] highlighted the biocontrol effect at temperatures ≤10 °C, observing a significant decrease in fungus Aspergillus flavus KCCM 60330 growth with the bacterium Pseudomonas protegens AS15 at 10, 20, 30 and 40 °C [49], and a similar effect was reported against B. cinerea with a bacterial consortium composed of Pichia guilermondii and Bacillus mycoides at 4, 10, 15, 20, 25, 30 and 36 °C, with spore germination inhibition between 20% and 80% [47]. Knowing biocontrol at low temperatures is important for the protection of exposed wounds of vine plants generated by pruning during winter [51], which is consistent with most dispersion times of spores of causal fungi of dieback-type trunk diseases in Mediterranean climate zones such as Chile [15] and California [16,52]. In addition, the importance of demonstrating the biocontrol effect at different temperatures is in accordance with increasing evidence that suggests that extreme temperatures (cold or heat) will increase in the coming years [28]. Therefore, microbial products that alleviate the stress caused by climate change in crops are required for agriculture [53,54].
In this study, after seven days, tebuconazole inhibited mycelial growth of isolates of D. seriata in PDA agar plates 100% at 8 °C, 42–48% at 22 °C and 35–50% at 35 °C, maintaining an inhibition at 14 days of 88–100% to 8 °C, 0–12% at 22 °C and 15–48% at 35 °C. Therefore, tebuconazole presented high efficacy at 8 °C. A tebuconazole-based treatment was able to inhibit the conidial and mycelial germination of three D. seriata isolates (Vid 1472, Vid 1468 and Vid 1270) at temperatures of 22 and 25 °C [37]. Treatments with Pseudomonas strains GcR15a and AMCR2b at 22 °C maintained biocontrol for 14 days for the three D. seriata isolates. This study highlighted the importance of carrying out tests on plants naturally infected or inoculated with D. seriata conidia to determine how infection occurs in nature [55,56].
In the present work, we observed that the greatest biocontrol effect was exhibited by Pseudomonas strains, which were isolated from cold environments [35]. The biocontrol potential of Pseudomonas strains against phytopathogens has been previously reported [31,35,50,57,58,59,60,61]. The double plate assay method suggested that the biocontrol effect exhibited by the bacteria is probably produced by diffusible compounds [45]. In accordance, diffusible compounds were more effective than volatile compounds in in vitro assays using Pseudomonas strains against B. cinerea [57]. Niem et al. [31] showed that Pseudomonas is a healthy vineyard’s predominant endophytic bacterial genus. In contrast, this genus decreased significantly in diseased plants with GTDs, suggesting a possible effect of Pseudomonas strains against D. seriata and other fungi associated with GTDs. On the other hand, the biocontrol potential of Rhodococcus spp. against phytopathogens has rarely been reported [62,63]. In our work, Rhodococcus sp. PU4 presented a significant inhibitory effect through the agar plug method in some cases. Still, its inhibitory effect on the growth of D. seriata strains PUCV 2120 and PUCV 2183 through the double plate method at high temperatures (35 °C) was higher than the effect of Pseudomonas strains. In a study by De Oliveira et al. [64], they evaluated the effectiveness of 70 actinomycete isolates with other pathogens at three different temperatures: 25, 30 and 35 °C. The best antagonistic bacteria had their effectiveness maximized at 30 °C. In our work, the actinobacteria Rhodococcus performed at 8 °C and 35 °C, while at 22 °C, this microorganism could not contain the D. seriata growth.
A potential bacterial consortium composed of these three bacteria seems attractive for future studies, presenting various biocontrol mechanisms against D. seriata. The strategy of consortia may increase the efficacy and improve the biocontrol effects due to synergistic mechanisms [60].
In some cases, in in vitro assays, no growth inhibition but just a change in color was observed for D. seriata growth by the biocontrol bacteria. A darker phenotype was observed in the control at longer incubation times at the optimal temperature (22 °C) and 35 °C, possibly due to melanin production. Genes involved in melanin syntheses, such as DOPA-melanin (production of aerial mycelium and protection against enzymatic lysis and oxidative stress), DHN-melanin (ramification of mycelium when exposed to nutrient deficiency) and pyomelanin (hyphae development), were conserved among Botryosphariaceae, highlighting the importance of melanin in pathogenesis [65]. Melanization is not an essential factor for fungal growth but contributes to the survival of cells under environmental stress conditions and may confer virulence in pathogens [65,66]. Demelanizing activity was observed with Ganoderma lucidum extracts against Aspergillus niger, indicating that the decrease in pigmentation could reduce this virulence factor [67].
When considering the results obtained in vine cuttings, there were differences in biocontrol at 8 and 22 °C depending on the type of D. seriata isolate used. Pseudomonas sp. AMCR2b presented a biocontrol effect against the isolate PUCV 2120 at both temperatures and against the isolate PUCV 2183 only at 22 °C, and Rhodococcus sp. PU4 showed a biocontrol effect only against the isolate PUCV 2183 at 22 °C, while none of the bacterial strains presented activity against the isolate PUCV 2142, demonstrating that it is a D. seriata isolate more resistant to control, even by the fungicide tebuconazole. Previous studies performed by Larach et al. [6] showed that the isolate PUCV 2142 presented a greater lesion diameter on grape berries than isolates PUCV 2120 and PUCV 2183. This aspect reinforces the need to evaluate more than one isolate per pathogen, an aspect not previously considered by some authors [31,32,33]. Therefore, the biocontrol effects of the bacteria studied in this work could prevent the fungus from establishing itself in grapevine plants through direct inhibition or demelanization. In future trials, it will be interesting to test the biocontrol effects of these bacteria in plants with a mixture of D. seriata isolates at different temperatures.

5. Conclusions

In this study, the growth inhibition of three D. seriata isolates by beneficial bacteria was observed. The highest inhibition was observed with both Pseudomonas strains using the agar plug diffusion assay at different temperatures. In assays without fungal inhibition, antifungal demelanizing activity was observed. Rhodococcus sp. PU4 showed biocontrol potential by producing potential VOCs capable of inhibiting D. seriata growth at high temperatures (35 °C). The in vivo biocontrol assay with cuttings corroborated the biocontrol effect of Pseudomonas sp. AMRC2b in two isolates from D. seriata, while Rhodococcus sp. PU4 presented a biocontrol effect in only one isolate. None of the bacterial strains evaluated in the in vivo biocontrol assay showed an effect against the isolated PUCV 2142, proving to be a highly resistant isolate to control. The study of different pathogen isolates should be mostly evaluated to better understand their different behaviors and to improve their control and biocontrol strategies. The results obtained at low temperatures in in vitro and in vivo assays are promising for effective control in the field, where infections occur mainly in winter.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microorganisms12020350/s1, Text S1: Materials and Methods Biocontrol on Grapevine Cuttings; Text S2: Results: Biocontrol on Grapevine Cuttings; Figure S1: Effects of Diplodia seriata isolates grapevine pruning material pre-inoculated with PGPB and endophyte bacteria at different temperatures.

Author Contributions

A.L., P.V.-C., L.T., D.C.-N. and X.B. conceived and designed the experiments; A.L., P.V.-C., L.T. and D.C.-N. performed the experiments; A.L., P.V.-C., L.T., D.C.-N., A.L., D.C.-N., I.C., F.C., M.S. and X.B. analyzed the data; M.S. and X.B. contributed reagents, materials and analysis tools; P.V.-C., A.L., D.C.-N., M.S. and X.B. wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fondecyt 1211094 (A.L., P.V.-C., L.T., D.C.-N., M.S., X.B.), Fondecyt 1200756 (P.V.-C., M.S.), Millennium Nucleus BioGEM NCN2023_054 (ANID), PhD USM fellowship (D.C.-N.) and PhD ANID fellowship (A.L.).

Data Availability Statement

The partial sequences of the ITS and β-tub genes of D. seriata PUCV 2120, D. seriata PUCV 2142 and D. seriata PUCV 2183 are deposited in GenBank accession number MT023573-MT063140; MT023574-MT063141 and MT023587-MT063154, respectively for each isolate. The partial 16S rRNA gene sequences of Pseudomonas sp. GcR15a, Pseudomonas sp. AMCR2b and Rhodococcus sp. PU4 are deposited in GenBank under the accession numbers MW548343, OQ244037 and OQ244039, respectively.

Acknowledgments

The authors thank Beatriz Cámara, UTFSM researcher, for the suggestions on in vitro assays, Eduardo Salgado for the statistical support and the Phytopathology team for their collaboration in preparing the laboratory material.

Conflicts of Interest

The authors Alejandra Larach, Diyanira Castillo-Novales, Michael Seeger and Ximena Besoain, as members of the BioGEM Millennium Nucleus NCN2023_054, declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Sargolzaei, M.; Rustioni, L.; Cola, G.; Ricciardi, V.; Bianco, P.A.; Maghradze, D.; Failla, O.; Quaglino, F.; Toffolatti, S.L.; de Lorenzis, G. Georgian grapevine cultivars: Ancient biodiversity for future viticulture. Front. Plant Sci. 2021, 12, 630122. [Google Scholar] [CrossRef] [PubMed]
  2. Kenfaoui, J.; Radouane, N.; Mennani, M.; Tahiri, A.; El Ghadraoui, L.; Belabess, Z.; Fontaine, F.; El Hamss, H.; Amiri, S.; Lahlali, R.; et al. A panoramic view on Grapevine Trunk Diseases threats: Case of Eutypa Dieback, Botryosphaeria Dieback and Esca Disease. J. Fungi 2022, 8, 595. [Google Scholar] [CrossRef] [PubMed]
  3. Kovács, C.; Sándor, E. The increasing importance of grapevine trunk diseases. Int. J. Hortic. Sci. 2016, 22, 21–30. [Google Scholar] [CrossRef]
  4. Larach, A.; Torres, C.; Riquelme, N.; Valenzuela, M.; Salgado, E.; Seeger, M.; Besoain, X. Yield loss estimation and pathogen identification from Botryosphaeria dieback in vineyards of Central Chile over two growing seasons. Phytopathol. Mediterr. 2020, 59, 537–548. [Google Scholar]
  5. Lade, S.B.; Štraus, D.; Oliva, J. Variation in fungal community in grapevine (Vitis vinifera) nursery stock depends on nursery, variety and rootstock. J. Fungi 2022, 8, 47. [Google Scholar] [CrossRef]
  6. Larach, A.; Vega-Celedón, P.; Salgado, E.; Salinas, A.; Riquelme, N.; Castillo-Novales, D.; Sanhueza, P.; Seeger, M.; Besoain, X. Higher virulence of Diplodia seriata isolates on vines of cv. Cabernet Sauvignon associated with 10-Year-old wood compared to young tissue. Plants 2023, 12, 2984. [Google Scholar] [CrossRef]
  7. Kaplan, J.; Travadon, R.; Cooper, M.; Hillis, V.; Lubell, M.; Baumgartner, K. Identifying economic hurdles to early adoption of preventative practices: The case of trunk diseases in California winegrape vineyards. Wine Econ. Policy 2016, 5, 127–141. [Google Scholar] [CrossRef]
  8. Besoain, X. Grapevine Trunk Diseases (GTDs): Impact in table grapes and wine vineyards in Chile. In Grapes and Wines—Advances in Production, Processing, Analysis and Valorization; Jordao, A.M., Cosme, F., Eds.; Intechopen: London, UK, 2018; pp. 43–58. [Google Scholar]
  9. Gramaje, D.; Urbez-Torres, J.R.; Sosnowski, M.R. Managing grapevine trunk diseases with respect to etiology and epidemiology: Current strategies and future prospects. Plant Dis. 2018, 102, 12–39. [Google Scholar] [CrossRef]
  10. Úrbez-Torres, J.R. The status of Botryosphariaceae species infecting grapevines. Phytopathol. Mediterr. 2011, 50, 5–45. [Google Scholar]
  11. ODEPA. Oficina de Estudios y Políticas Agrarias. Rubros. Vinos. 2022. Available online: https://www.odepa.gob.cl/rubros/vinos-y-alcoholes (accessed on 6 September 2023).
  12. SAG. Catastro Vitícola Nacional. 2020. Available online: https://www.sag.gob.cl/noticias/sag-presenta-catastro-viticola-nacional-2020 (accessed on 6 September 2023).
  13. Morales, A.; Latorre, B.A.; Piontelli, E.; Besoain, X. Botryosphariaceae species affecting table grape vineyards in Chile and cultivar susceptibility. Cienc. Investig. Agrar. 2012, 39, 445–458. [Google Scholar] [CrossRef]
  14. Díaz, G.A.; Auger, J.; Besoain, X.; Bordeu, E.; Latorre, B.A. Prevalence and pathogenicity of fungi associated with grapevine trunk diseases in Chilean vineyards. Cienc. Investig. Agrar. 2013, 40, 327–339. [Google Scholar] [CrossRef]
  15. Valencia, D.; Torres, C.; Camps, R.; López, E.; Celis-Diez, J.L.; Besoain, X. Dissemination of Botryosphariaceae conidia in vineyards in the semiarid Mediterranean climate of the Valparaíso Region of Chile. Phytopathol. Mediterr. 2015, 54, 394–402. [Google Scholar]
  16. Úrbez-Torres, J.R.; Battany, M.; Bettiga, L.J.; Gispert, C.; McGourty, G.; Roncoroni, J.; Smith, R.J.; Verdegaal, P.; Gubler, W.D. Botryosphariaceae species spore-trapping studies in California vineyards. Plant Dis. 2010, 94, 717–724. [Google Scholar] [CrossRef] [PubMed]
  17. Úrbez-Torres, J.R.; Leavitt, G.M.; Guerrero, J.C.; Guevara, J.; Gubler, W.D. Identification and pathogenicity of Lasiodiplodia theobromae and Diplodia seriata, the causal agents of bot canker disease of grapevines in Mexico. Plant Dis. 2008, 92, 519–529. [Google Scholar] [CrossRef] [PubMed]
  18. Martín, M.T.; Cobos, R. Identification of fungi associated with grapevine decline in Castilla y León (Spain). Phytopathol. Mediterr. 2007, 46, 18–25. [Google Scholar]
  19. Luque, J.; Elena, G.; Garcia-Figueres, F.; Reyes, J.; Barrios, G.; Legorburu, F.J. Natural infections of pruning wounds by fungal trunk pathogens in mature grapevines in Catalonia (Northeast Spain). Aust. J. Grape Wine Res. 2014, 20, 134–143. [Google Scholar] [CrossRef]
  20. Reis, P.; Gaspar, A.; Alves, A.; Fontaine, F.; Lourenço, I.; Saramago, J.; Mota, M.; Rego, C. Early season symptoms on stem, inflorescences and flowers of grapevine associated with Botryosphariaceae species. Plants 2020, 9, 1427. [Google Scholar] [CrossRef]
  21. Kuntzmann, P.; Villaume, S.; Larignon, P.; Bertsch, C. Esca, BDA and Eutypiosis: Foliar symptoms, trunk lesions and fungi observed in diseased vinestocks in two vineyards in Alsace. Vitis 2010, 49, 71–76. [Google Scholar]
  22. Mohammadi, H.; Gramaje, D.; Banihashemi, Z.; Armengol, J. Characterization of Diplodia seriata and Neofusicoccum parvum associated with grapevine decline in Iran. J. Agrar. Sci. Technol. 2013, 15, 603–616. [Google Scholar]
  23. Choueiri, E.; Jreijiri, F.; Chlela, P.; Louvet, G.; Lecomte, P. Occurrence of grapevine declines and first report of black dead arm associated with Botryosphaeria obtusa in Lebanon. Plant Dis. 2006, 90, 115. [Google Scholar] [CrossRef]
  24. Ammad, F.; Benchabane, M.; Toumi, M.; Belkacem, N.; Guesmi, A.; Ameur, C.; Lecomte, P.; Merah, O. Occurrence of Botryosphariaceae species associated with grapevine dieback in Algeria. Turk. J. Agric. For. 2014, 38, 865–876. [Google Scholar] [CrossRef]
  25. Chebil, S.; Fersi, R.; Bouzid, M.; Quaglino, F.; Chenenaoui, S.; Melki, I.; Durante, G.; Zacchi, E.; Bahri, B.A.; Bianco, P.A.; et al. Fungi from the Diaporthaceae and Botryosphariaceae families associated with grapevine decline in Tunisia. Cienc. Investig. Agrar. 2017, 44, 127–138. [Google Scholar] [CrossRef]
  26. Savocchia, S.; Steel, C.C.; Stodart, B.J. Pathogenicity of Botryosphaeria species isolated from declining grapevines in sub tropical regions of eastern Australia Grapevine Trunk Disease. Vitis 2007, 46, 27–32. [Google Scholar]
  27. Úrbez-Torres, J.R.; Bruez, E.; Hurtado, J.; Gubler, W.D. Effect of temperature on conidial germination of Botryosphariaceae species infecting grapevines. Plant Dis. 2010, 94, 1476–1484. [Google Scholar] [CrossRef]
  28. Slippers, B.; Wingfield, M.J. Botryosphariaceae as endophytes and latent pathogens of woody plants: Diversity, ecology and impact. Fungal Biol. Rev. 2007, 21, 90–106. [Google Scholar] [CrossRef]
  29. Agrometereología, Red Agrometereológica INIA. Available online: https://agrometeorologia.cl/ (accessed on 14 August 2023).
  30. Mondello, V.; Songy, A.; Battiston, E.; Pinto, C.; Coppin, C.; Trotel-Aziz, P.; Clément, C.; Mugnai, L.; Fontaine, F. Grapevine trunk diseases: A review of fifteen years of trials for their control with chemicals and biocontrol agents. Plant Dis. 2018, 102, 1189–1217. [Google Scholar] [CrossRef]
  31. Niem, J.M.; Billones-Baaijens, R.; Stodart, B.; Savocchia, S. Diversity profiling of grapevine microbial endosphere and antagonistic potential of endophytic Pseudomonas against Grapevine Trunk Diseases. Front. Microbiol. 2020, 11, 477. [Google Scholar] [CrossRef] [PubMed]
  32. Silva-Valderrama, I.; Toapanta, D.; Miccono, M.d.L.A.; Lolas, M.; Díaz, G.A.; Cantu, D.; Castro, A. Biocontrol potential of grapevine endophytic and rhizospheric fungi against trunk pathogens. Front. Microbiol. 2021, 11, 614620. [Google Scholar] [CrossRef] [PubMed]
  33. Álvarez-Pérez, J.M.; González-García, S.; Cobos, R.; Olego, M.Á.; Ibañez, A.; Díez-Galán, A.; Garzón-Jimeno, E.; Coque, J.J.R. Use of endophytic and rhizosphere actinobacteria from grapevine plants to reduce nursery fungal graft infections that lead to young grapevine decline. Appl. Environ. Microbiol. 2017, 83, e01564-17. [Google Scholar] [CrossRef]
  34. Laassami, A.; Yekkour, A.; Meklat, A.; Djemouai, N.; Zitouni, A.; Mokrane, S.; Lecomte, P.; Rey, P.; Berraf-Tebbal, A. Actinobacteria associated with vineyard soils of Algeria: Classification, antifungal potential against grapevine trunk pathogens and plant growth-promoting features. Curr. Microbiol. 2020, 77, 2831–2840. [Google Scholar] [CrossRef]
  35. Vega-Celedón, P.; Bravo, G.; Velásquez, A.; Cid, F.P.; Valenzuela, M.; Ramírez, I.; Vasconez, I.N.; Álvarez, I.; Jorquera, M.A.; Seeger, M. Microbial diversity of psychrotolerant bacteria isolated from wild flora of Andes Mountains and Patagonia of Chile towards the selection of plant growth-promoting bacterial consortia to alleviate cold stress in plants. Microorganisms 2021, 9, 538. [Google Scholar] [CrossRef]
  36. Balouiri, M.; Sadiki, M.; Ibnsouda, S.K. Methods for in vitro evaluating antimicrobial activity: A review. J. Pharm. Anal. 2016, 6, 71–79. [Google Scholar] [CrossRef] [PubMed]
  37. Torres, C.; Latorre, B.A.; Undurraga, P.; Besoain, X. Evaluation of DMI fungicides against species of Diplodia and Neofusicoccum associated with Botryosphaeria canker of grapevine. Cienc. Investig. Agrar. 2013, 40, 131–138. [Google Scholar] [CrossRef]
  38. Idris, H.A.; Labuschagne, N.; Korsten, L. Screening rhizobacteria for biological control of Fusarium root and crown rot of sorghum in Ethiopia. Biol. Control 2007, 40, 97–106. [Google Scholar] [CrossRef]
  39. Dennis, C.; Webster, J. Antagonistic properties of species-groups of Trichoderma. II Production of volatile antibiotics. Trans. Br. Mycol. Soc. 1971, 57, 41–48. [Google Scholar] [CrossRef]
  40. Delgado, N.; Olivera, M.; Cádiz, F.; Bravo, G.; Montenegro, I.; Madrid, A.; Fuentealba, C.; Pedreschi, R.; Salgado, E.; Besoain, X. Volatile Organic Compounds (VOCs) produced by Gluconobacter cerinus and Hanseniaspora osmophila displaying control effect against table grape-rot pathogens. Antibiotics 2021, 10, 663. [Google Scholar] [CrossRef] [PubMed]
  41. Gao, Z.; Zhang, B.; Liu, H.; Han, J.; Zhang, Y. Identification of endophytic Bacillus velezensis ZSY-1 strain and antifungal activity of its volatile compounds against Alternaria solani and Botrytis cinerea. Biol. Control 2017, 105, 27–39. [Google Scholar] [CrossRef]
  42. Haidar, R.; Deschamps, A.; Roudet, J.; Calvo-Garrido, C.; Bruez, E.; Rey, P.; Fermaud, M. Multi-organ screening of efficient bacterial control agents against two major pathogens of grapevine. Biol. Control 2016, 92, 55–65. [Google Scholar] [CrossRef]
  43. Kotze, C.; van Niekerk, J.; Halleen, F.; Mostert, L.; Pourie, P. Evaluation of biocontrol agents for grapevine pruning wound protection against trunk pathogen infection. Phytopathol. Mediterr. 2011, 50, 247–263. [Google Scholar]
  44. Larach, A.; Riquelme, N.; Salinas, A.; Rolshausen, P.E.; Seeger, M.; Besoain, X. First report of Diaporthe ambigua associated with dead arm disease on grapevine in Chile. Plant Dis. 2022. [Google Scholar] [CrossRef]
  45. Boiu-Sicuia, O.-A.; Toma, R.C.; Diguță, C.F.; Matei, F.; Cornea, C.P. In Vitro Evaluation of Some Endophytic Bacillus to Potentially Inhibit Grape and Grapevine Fungal Pathogens. Plants 2023, 12, 2553. [Google Scholar] [CrossRef]
  46. Mukherjee, P.K.; Raghu, K. Effect of temperature on antagonistic and biocontrol potential of Trichoderma sp. on Sclerotium rolfsii. Mycopathologia 1997, 139, 151–155. [Google Scholar] [CrossRef]
  47. Guetsky, R.; Shtienberg, D.; Elad, Y.; Dinoor, A. Combining biocontrol agents to reduce the variability of biological control. Phytopathology 2001, 91, 621–627. [Google Scholar] [CrossRef]
  48. Landa, B.B.; Navas-Cortés, J.A.; Jiménez-Díaz, R.M. Influence of temperature on plant-rhizobacteria interactions related to biocontrol potential for suppression of fusarium wilt of chickpea. Plant Pathol. 2004, 53, 341–352. [Google Scholar] [CrossRef]
  49. Mannaa, M.; Kim, K.D. Effect of temperature and relative humidity on growth of Aspergillus and Penicillium spp. and biocontrol activity of Pseudomonas protegens AS15 against aflatoxigenic Aspergillus flavus in stored rice grains. Mycobiology 2018, 46, 287–295. [Google Scholar] [CrossRef] [PubMed]
  50. Elena, G.; Garcia-Figueres, F.; Reigada, S.; Luque, J. Intraspecific variation in Diplodia seriata isolates occurring on grapevines in Spain. Plant Pathol. 2015, 64, 680–689. [Google Scholar] [CrossRef]
  51. Rolshausen, P.E.; Úrbez-Torres, J.R.; Rooney-Latham, S.; Eskalen, A.; Smith, R.J. Evaluation of pruning wound susceptibility and protection against fungi associated whith grapevine trunk diseases. Am. J. Enol. Vitic. 2009, 60, 113–119. [Google Scholar]
  52. Fujiyoshi, P.T.; Lawrence, D.P.; Travadon, R.; Cooper, M.; Verdegaal, P.; Schwebs, S.; Baumgartner, K. Detection of spores of causal fungi of dieback-type trunk diseases in young, asymptomatic vineyards and mature, symptomatic vineyards. Crop Prot. 2021, 150, 105798. [Google Scholar] [CrossRef]
  53. Naamala, J.; Smith, D.L. Relevance of plant growth promoting microorganisms and their derived compounds, in the face of climate change. Agronomy 2020, 10, 1179. [Google Scholar] [CrossRef]
  54. Fadiji, A.E.; Babalola, O.O.; Santoyo, G.; Perazzolli, M. The potential role of microbial biostimulants in the amelioration of climate change-associated abiotic stresses on crops. Front. Microbiol. 2022, 12, 829099. [Google Scholar] [CrossRef] [PubMed]
  55. Van Niekerk, J.M.; Fourie, P.H.; Halleen, F.; Crous, P. Botryosphaeria spp. as grapevine trunk disease pathogens. Phytopathol. Mediterr. 2006, 45, 43–54. [Google Scholar]
  56. Úrbez-Torres, J.R.; Gubler, W.B. Susceptibility of grapevine pruning wounds to infection by Lasiodiplodia theobromae and Neofusicoccum parvum. Plant Pathol. 2011, 60, 261–270. [Google Scholar] [CrossRef]
  57. Hernández-León, R.; Rojas-Solís, D.; Contreras-Pérez, M.; Orozco-Mosqueda, M.d.C.; Macías-Rodríguez, L.I.; Reyes-de la Cruz, H.; Valencia-Cantero, E.; Santoyo, G. Characterization of the antifungal and plant growth-promoting effects of diffusible and volatile organic compounds produced by Pseudomonas fluorescens strains. Biol. Control 2015, 81, 83–92. [Google Scholar] [CrossRef]
  58. Simionato, A.S.; Navarro, M.O.P.; de Jesus, M.L.A.; Barazetti, A.R.; da Silva, C.S.; Simões, G.C.; Balbi-Peña, M.I.; de Mello, J.C.P.; Panagio, L.A.; de Almeida, R.S.C.; et al. The effect of phenazine-1-carboxylic acid on mycelial growth of Botrytis cinerea produced by Pseudomonas aeruginosa LV strain. Front. Microbiol. 2017, 8, 1102. [Google Scholar] [CrossRef] [PubMed]
  59. Kong, W.L.; Li, P.S.; Wu, X.Q.; Wu, T.Y.; Sun, X.R. Forest tree associated bacterial diffusible and volatile organic compounds against various phytopathogenic fungi. Microorganisms 2020, 8, 590. [Google Scholar] [CrossRef]
  60. Bonaterra, A.; Badosa, E.; Daranas, N.; Francés, J.; Roselló, G.; Montesinos, E. Bacteria as biological control agents of plant diseases. Microorganisms 2022, 10, 1759. [Google Scholar] [CrossRef]
  61. Win, K.T.; Kobayashi, M.; Tanaka, F.; Takeuchi, K.; Oo, A.Z.; Jiang, C.J. Identification of Pseudomonas strains for the biological control of soybean red crown root rot. Sci. Rep. 2022, 12, 14510. [Google Scholar] [CrossRef] [PubMed]
  62. Chane, A.; Barbey, C.; Robert, M.; Merieau, A.; Konto-Ghiorghi, Y.; Beury-Cirou, A.; Feuilloley, M.; Pátek, M.; Gobert, V.; Latour, X. Biocontrol of soft rot: Confocal microscopy highlights virulent pectobacterial communication and its jamming by rhodococcal quorum-quenching. Mol. Plant Microbe Interact. 2019, 32, 802–812. [Google Scholar] [CrossRef]
  63. Zhou, Z.; Wu, X.; Li, J.; Zhang, Y.; Huang, Y.; Zhang, W.; Shi, Y.; Wang, J.; Chen, S. A novel quorum quencher, Rhodococcus pyridinivorans XN-36, is a powerful agent for the biocontrol of soft rot disease in various host plants. Biol. Control 2022, 169, 104889. [Google Scholar] [CrossRef]
  64. De Oliveira, F.; Germano, M.; Van Der Sand, S. Anti-phytopathogen potential of endophytic actinobacteria isolated from tomato plants (Lycopersicon esculentum) in southern Brazil and characterization of Streptomyces sp. R18, a potential biocontrol agent. Res. Microbiol. 2010, 161, 565–572. [Google Scholar] [CrossRef]
  65. Rangel-Montoya, E.A.; Paolinelli, M.; Rolshausen, P.; Hernandez-Martinez, R. The role of melanin in the grapevine trunk disease pathogen Lasiodiplodia gilanensis. Phytopathol. Mediterr. 2020, 59, 549–563. [Google Scholar]
  66. Eisenman, H.C.; Greer, E.M.; McGrail, C.W. The role of melanins in melanotic fungi for pathogenesis and environmental survival. Appl. Microbiol. Biotechnol. 2020, 104, 4247–4257. [Google Scholar] [CrossRef] [PubMed]
  67. Heleno, S.A.; Ferreira, I.C.F.R.; Esteves, A.P.; Ćirić, A.; Glamočlija, J.; Martins, A.; Soković, M.; Queiroz, M.J.R.P. Antimicrobial and demelanizing activity of Ganoderma lucidum extract, p-hydroxybenzoic and cinnamic acids and their synthetic acetylated glucuronide methyl esters. Food Chem. Toxicol. 2013, 58, 95–100. [Google Scholar] [CrossRef] [PubMed]
Microorganisms 12 00350 g001
Figure 1. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2120 by the agar plug diffusion method at different temperatures. (a) Biocontrol against D. seriata PUCV 2120 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2120 at 22 °C after 7 and 14 days. (c) Biocontrol D. seriata PUCV 2120 at 35 °C after 7 and 14 days. Abbreviations: 2120, D. seriata PUCV 2120; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Figure 1. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2120 by the agar plug diffusion method at different temperatures. (a) Biocontrol against D. seriata PUCV 2120 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2120 at 22 °C after 7 and 14 days. (c) Biocontrol D. seriata PUCV 2120 at 35 °C after 7 and 14 days. Abbreviations: 2120, D. seriata PUCV 2120; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Microorganisms 12 00350 g001
Microorganisms 12 00350 g002
Figure 2. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2142 by the agar plug diffusion method at different temperatures. (a) Biocontrol against D. seriata PUCV 2142 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2142 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2142 at 35 °C after 7 and 14 days. Abbreviations: 2142, D. seriata PUCV 2142; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Figure 2. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2142 by the agar plug diffusion method at different temperatures. (a) Biocontrol against D. seriata PUCV 2142 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2142 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2142 at 35 °C after 7 and 14 days. Abbreviations: 2142, D. seriata PUCV 2142; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Microorganisms 12 00350 g002
Microorganisms 12 00350 g003
Figure 3. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2183 by the agar plug diffusion method at different temperatures. (a) Biocontrol against D. seriata PUCV 2183 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2183 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2183 at 35 °C after 7 and 14 days. Abbreviations: 2183, D. seriata PUCV 2183; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Figure 3. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2183 by the agar plug diffusion method at different temperatures. (a) Biocontrol against D. seriata PUCV 2183 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2183 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2183 at 35 °C after 7 and 14 days. Abbreviations: 2183, D. seriata PUCV 2183; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Microorganisms 12 00350 g003
Microorganisms 12 00350 g004

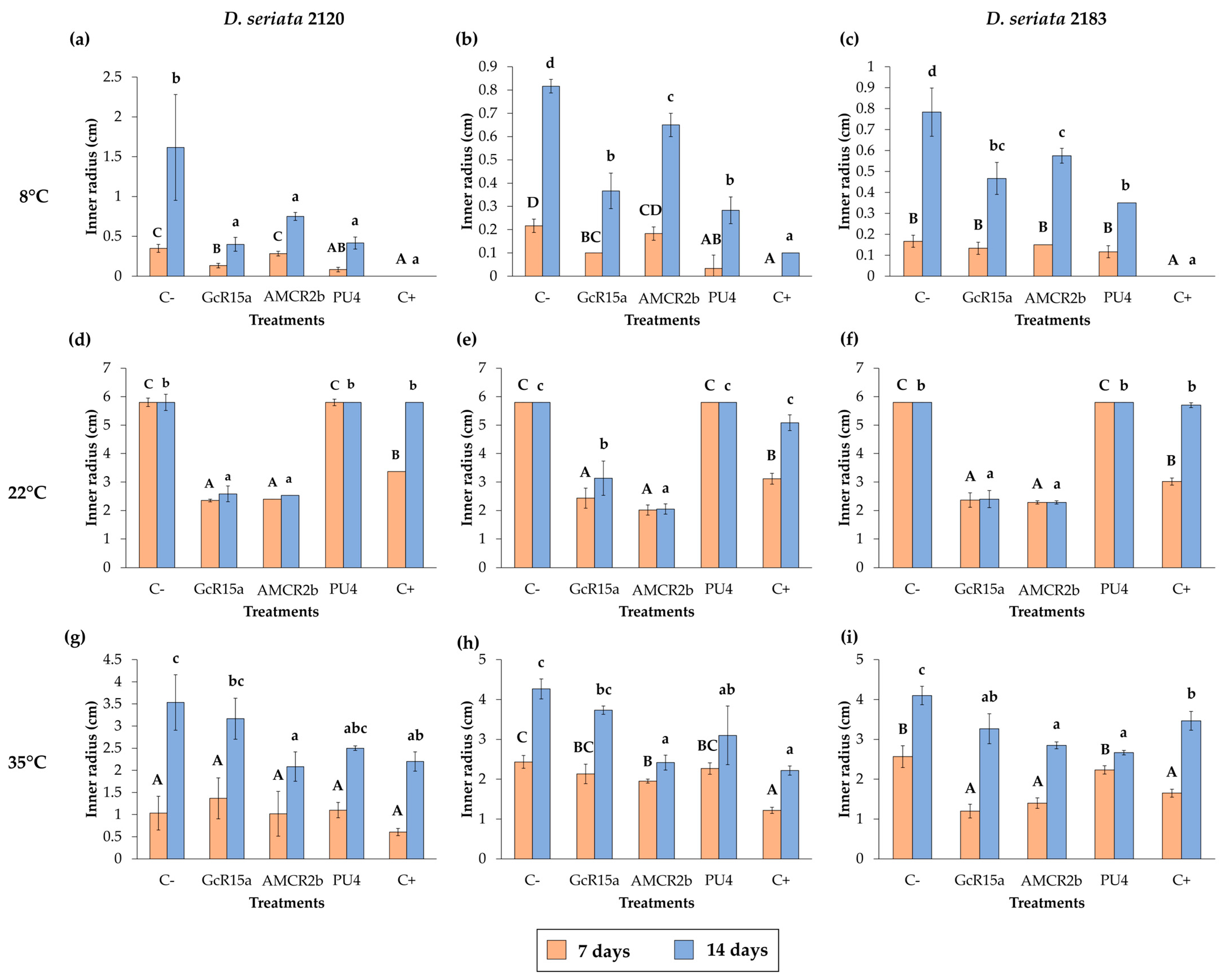

Figure 4. Effects of PGPB and endophyte bacteria on the inner radius of Diplodia seriata isolates by the agar plug diffusion method at different temperatures. (a–c) Effects on the inner radius of the isolates of D. seriata at 8 °C after 7 and 14 days. (d–f) Effects on the inner radius of D. seriata isolates at 22 °C after 7 and 14 days. (g–i) Effects on the inner radius of D. seriata isolates at 35 °C after 7 and 14 days. Means with different letters indicate significant differences (p < 0.05) and uppercase and lowercase letters correspond to 7 and 14 days, respectively. Abbreviations: C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Figure 4. Effects of PGPB and endophyte bacteria on the inner radius of Diplodia seriata isolates by the agar plug diffusion method at different temperatures. (a–c) Effects on the inner radius of the isolates of D. seriata at 8 °C after 7 and 14 days. (d–f) Effects on the inner radius of D. seriata isolates at 22 °C after 7 and 14 days. (g–i) Effects on the inner radius of D. seriata isolates at 35 °C after 7 and 14 days. Means with different letters indicate significant differences (p < 0.05) and uppercase and lowercase letters correspond to 7 and 14 days, respectively. Abbreviations: C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Microorganisms 12 00350 g004
Microorganisms 12 00350 g005
Figure 5. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2120 by the double plate method at different temperatures. (a) Biocontrol against D. seriata PUCV 2120 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2120 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2120 at 35 °C after 7 and 14 days. Abbreviations: 2120, D. seriata PUCV 2120; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Figure 5. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2120 by the double plate method at different temperatures. (a) Biocontrol against D. seriata PUCV 2120 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2120 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2120 at 35 °C after 7 and 14 days. Abbreviations: 2120, D. seriata PUCV 2120; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Microorganisms 12 00350 g005
Microorganisms 12 00350 g006
Figure 6. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2142 by the double plate method at different temperatures. (a) Biocontrol against D. seriata PUCV 2142 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2142 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2142 at 35 °C after 7 and 14 days. Abbreviations: 2142, D. seriata PUCV 2142; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Figure 6. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2142 by the double plate method at different temperatures. (a) Biocontrol against D. seriata PUCV 2142 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2142 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2142 at 35 °C after 7 and 14 days. Abbreviations: 2142, D. seriata PUCV 2142; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Microorganisms 12 00350 g006
Microorganisms 12 00350 g007
Figure 7. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2183 by the double plate method at different temperatures. (a) Biocontrol against D. seriata PUCV 2183 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2183 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2183 at 35 °C after 7 and 14 days. Abbreviations: 2183, D. seriata PUCV 2183; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Figure 7. Biocontrol by PGPB and endophyte bacteria against Diplodia seriata PUCV 2183 by the double plate method at different temperatures. (a) Biocontrol against D. seriata PUCV 2183 at 8 °C after 7 and 14 days. (b) Biocontrol against D. seriata PUCV 2183 at 22 °C after 7 and 14 days. (c) Biocontrol against D. seriata PUCV 2183 at 35 °C after 7 and 14 days. Abbreviations: 2183, D. seriata PUCV 2183; C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Microorganisms 12 00350 g007
Microorganisms 12 00350 g008

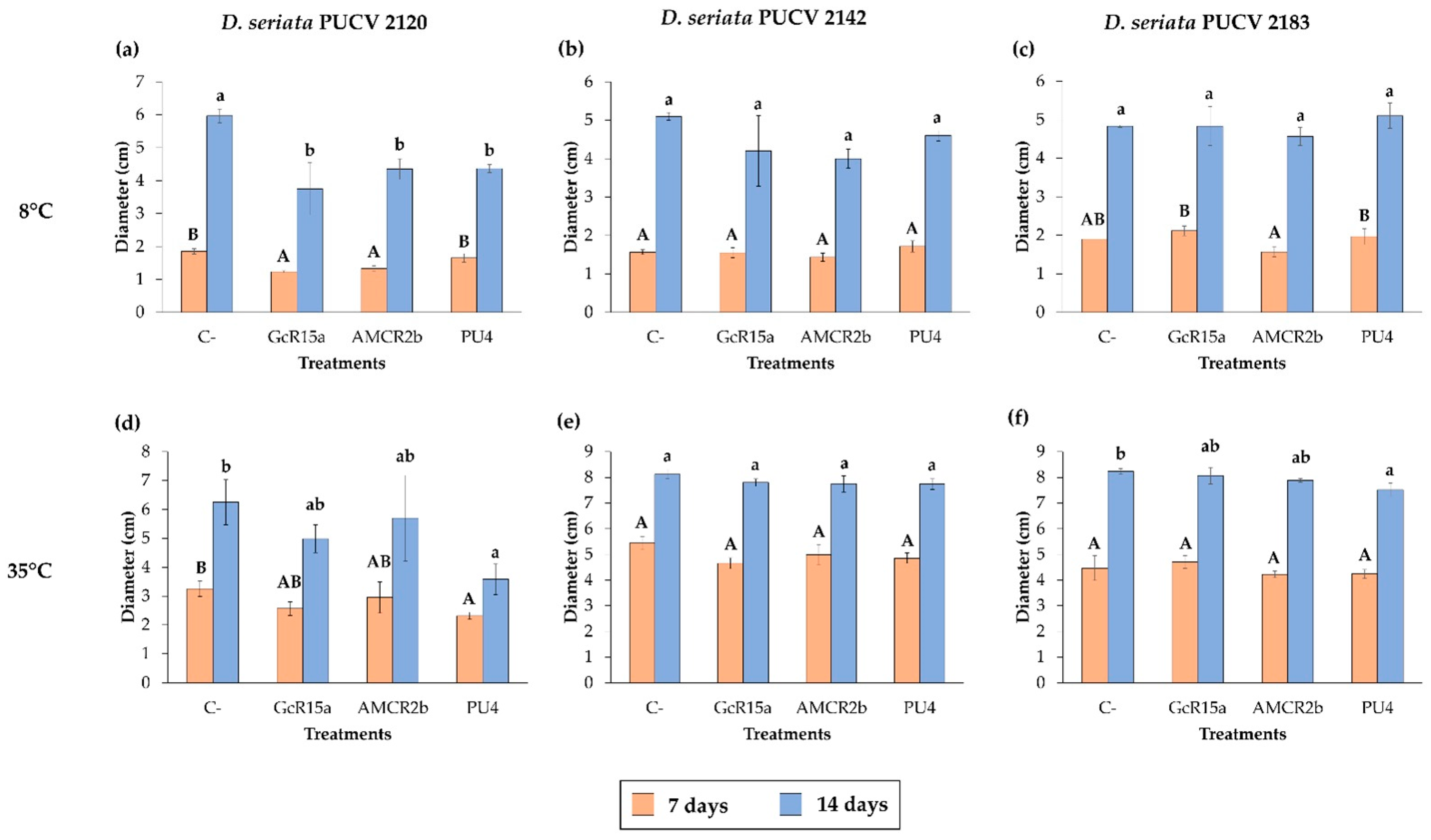

Figure 8. Effects of PGPB and endophyte bacteria on the diameter of Diplodia seriata isolates by the double plate method at different temperatures. (a–c) Effects on the diameter of the isolates of D. seriata at 8 °C after 7 and 14 days. (d–f) Effects on the inner radius of the isolates of D. seriata at 35 °C after 7 and 14 days. There was no decrease in the diameter of the isolates of D. seriata with any treatments at 22 °C and the fungi grew entirely from 7 days (8.5 cm). Means with different letters indicate significant differences (p < 0.05) and uppercase and lowercase letters correspond to 7 and 14 days, respectively. Abbreviations: C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Figure 8. Effects of PGPB and endophyte bacteria on the diameter of Diplodia seriata isolates by the double plate method at different temperatures. (a–c) Effects on the diameter of the isolates of D. seriata at 8 °C after 7 and 14 days. (d–f) Effects on the inner radius of the isolates of D. seriata at 35 °C after 7 and 14 days. There was no decrease in the diameter of the isolates of D. seriata with any treatments at 22 °C and the fungi grew entirely from 7 days (8.5 cm). Means with different letters indicate significant differences (p < 0.05) and uppercase and lowercase letters correspond to 7 and 14 days, respectively. Abbreviations: C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4.
Microorganisms 12 00350 g008
Microorganisms 12 00350 g009
Figure 9. Effects of Diplodia seriata isolates grapevine pruning material pre-inoculated with PGPB and endophyte bacteria at different temperatures. (a–c) Effects of pre-inoculation with native bacteria on the vascular lesion length of grapevine pruning material inoculated with D. seriata isolates at 8 °C. (d–f) Effects of pre-inoculation with native bacteria on the vascular lesion length of grapevine pruning material inoculated with D. seriata isolates at 22 °C. Means with different letters indicate significant differences (p < 0.05). Abbreviations: C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Figure 9. Effects of Diplodia seriata isolates grapevine pruning material pre-inoculated with PGPB and endophyte bacteria at different temperatures. (a–c) Effects of pre-inoculation with native bacteria on the vascular lesion length of grapevine pruning material inoculated with D. seriata isolates at 8 °C. (d–f) Effects of pre-inoculation with native bacteria on the vascular lesion length of grapevine pruning material inoculated with D. seriata isolates at 22 °C. Means with different letters indicate significant differences (p < 0.05). Abbreviations: C−, negative control; GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp. AMCR2b; PU4, Rhodococcus sp. PU4; C+, positive control (tebuconazole).
Microorganisms 12 00350 g009
Table 1. Percentage of inhibition of D. seriata isolates by PGPB and endophyte bacteria at different temperatures at 14 days of confrontation.
Table 1. Percentage of inhibition of D. seriata isolates by PGPB and endophyte bacteria at different temperatures at 14 days of confrontation.
T °CPathogenInhibition Percentage (%)
C+GcR15aAMCR2bPU4
Agar plug diffusion
(in vitro)		8 °CD. seriata 2120100755374
D. seriata 214288552065
D. seriata 2183100402655
22 °CD. seriata 2120056560
D. seriata 21421245640
D. seriata 2183258600
35 °CD. seriata 212037104129
D. seriata 214248124327
D. seriata 218315203034
Double plate
(in vitro)		8 °CD. seriata 2120-372727
D. seriata 2142-172110
D. seriata 2183-050
22 °CD. seriata 2120-000
D. seriata 2142-000
D. seriata 2183-000
35 °CD. seriata 2120-20942
D. seriata 2142-455
D. seriata 2183-249
Cuttings
(in vivo)		8 °CD. seriata 2120290685
D. seriata 21420000
D. seriata 218301000
22 °CD. seriata 21203117420
D. seriata 214200100
D. seriata 218364276375
Abbreviations: C+, positive control (tebuconazole). GcR15a, Pseudomonas sp. GcR15a; AMCR2b, Pseudomonas sp.; PU4, Rhodococcus sp. PU4.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Larach, A.; Vega-Celedón, P.; Castillo-Novales, D.; Tapia, L.; Cuneo, I.; Cádiz, F.; Seeger, M.; Besoain, X. Diplodia seriata Biocontrol Is Altered via Temperature and the Control of Bacteria. Microorganisms 2024, 12, 350. https://doi.org/10.3390/microorganisms12020350

AMA Style

Larach A, Vega-Celedón P, Castillo-Novales D, Tapia L, Cuneo I, Cádiz F, Seeger M, Besoain X. Diplodia seriata Biocontrol Is Altered via Temperature and the Control of Bacteria. Microorganisms. 2024; 12(2):350. https://doi.org/10.3390/microorganisms12020350

Chicago/Turabian Style

Larach, Alejandra, Paulina Vega-Celedón, Diyanira Castillo-Novales, Lorena Tapia, Italo Cuneo, Fabiola Cádiz, Michael Seeger, and Ximena Besoain. 2024. "Diplodia seriata Biocontrol Is Altered via Temperature and the Control of Bacteria" Microorganisms 12, no. 2: 350. https://doi.org/10.3390/microorganisms12020350

APA Style

Larach, A., Vega-Celedón, P., Castillo-Novales, D., Tapia, L., Cuneo, I., Cádiz, F., Seeger, M., & Besoain, X. (2024). Diplodia seriata Biocontrol Is Altered via Temperature and the Control of Bacteria. Microorganisms, 12(2), 350. https://doi.org/10.3390/microorganisms12020350

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
