Eight-DOF Dynamic Modeling of EMA Mechanical Transmission and Spalling Fault Characteristic Analysis

Abstract

Electromechanical actuators (EMAs), as the critical actuator system of next-generation aircraft, have attracted the attention of many institutions and enterprises around the world. However, due to harsh working conditions, their reliability cannot satisfy the requirements of widespread application in aircraft. Therefore, in order to conduct fault diagnosis on EMAs, in this paper, we establish a comprehensive dynamic model under numerous assumptions to study the fault characteristics that may occur in the displacement and acceleration responses of EMA systems. First, an eight-DOF dynamic model containing typical mechanical components of an EMA is established. Then, by obtaining the impact forces between balls and the spalling fault and the nonlinear relationship between the total elastic restoring forces and the change of ball deformation when the fault occurs, a faulty dynamic model is established. Comparison of the simulation results between the normal and faulty model reveals that the acceleration amplitude at the third harmonic of the ball passage frequency increases when fault occurs. Based on this phenomenon, a numerical calculation method of fault characteristics is proposed. Finally, the effectiveness of the established models and the identified phenomenon are verified by experiments conducted on an EMA test rig in a laboratory environment.

1. Introduction

With the advantage of reducing or even eliminating complicated hydraulic systems, more electric aircraft (MEA) and all-electric aircraft (AEA) have become research hotspots recently. As the critical actuator system of MEA or AEA, electromechanical actuators (EMAs) have also attracted the attention of many institutions and enterprises around the world. However, due to harsh operating conditions and the insufficient technological maturity of EMAs, their reliability cannot satisfy the requirements of widespread application in the field of aviation.

The common fault modes of EMAs include motor faults, power-drive electric (PDE) faults, mechanical faults and sensor faults [1,2]. Among all common fault modes of EMAs, mechanical faults are generally considered the most concerning [3] because failure of mechanical transmission may lead to jamming of the whole actuator system or even disastrous consequences, such as loss of control of the flap or the rudder and unstoppable diving of an aircraft. Therefore, it is necessary to conduct condition-based maintenance (CBM) and fault diagnosis on EMA mechanical transmissions.

Some research has been conducted on EMA mechanical faults. The NASA Ames Research Center established a flyable electromechanical actuator (FLEA) test stand and carried out a series of experiments on ball-screw spalling faults, jamming faults, motor faults and sensor faults [4,5,6,7]. The database established by the FLEA test stand has made useful contributions to data-driven fault diagnosis methods for EMAs. Bodden et al. also conducted accelerated wear experiments on bearings in practical EMA systems and proposed some potentially useful wear indicators [8]. Wang et al. proposed an extended convolutional adversarial autoencoder (ECAAE) to diagnose ball-screw jamming faults, spalling faults and motor faults in EMAs [9]. The accuracy and robustness of the proposed algorithm was verified by the NASA FLEA dataset. Hussain et al. eatablished a detailed EMA model in the Matlab/Simulink environment and verified the possiblity of using motor current signals to identify jamming faults of ball-screw pairs in EMA systems [10]. Mazzoleni et al. proposed a model-free methodology involving the use of current signals to monitor mechanical faults in EMA systems [11]. Chirico and Kolodziej proposed a data-driven feature extraction method to detect bearing and ball-screw defects in EMAs [12]. They adopted a resampling technique and power spectral density as the signal preprocessing method and successfully identified both bearing and ball-screw fault signatures using vibration signals in an EMA system. Yang et al. proposed an EMA fault detection and fault isolation method based on built-in testing (BIT), aiming to isolate ball-screw jamming faults and motor faults in EMAs in unmanned aerial vehicles (UAVs) [13].

Although considerable effort has been devoted to fault diagnosis in EMA mechanical transmissions, very few studies have established detailed dynamic models to describe how mechanical faults could affect the vibration responses of EMA systems. Dynamic modeling of EMA mechanical transmissions can better reflect the actual vibration behaviors of EMAs than data-driven methods. After implantation with common EMA mechanical faults, the established dynamic models can reveal the failure mechanism and the fault characteristics that may occur in the vibration signals. Furthermore, detailed dynamic models of EMA mechanical transmissions can generate data that can be used in data-driven fault diagnosis algorithms. The generated data can be used to solve the most important problem associated with most data-driven fault diagnosis methods for EMAs: the “lack of available data”. Therefore, it is necessary to conduct research on dynamic modeling of EMA mechanical transmissions.

Among the mechanical components of EMAs, the ball-screw pairs and bearings are the two components that are most likely to cause faults [3]; ball-screw pairs are responsible for 16% of the total mechanical failures [14] and represent the most critical mechanical component of EMAs. Failure of the ball-screw pair could directly lead to jamming of the whole EMA system. The common fault modes of ball-screw pairs include spalling, backlash, degraded operation, binding, denting and lubricant problems [1,3]. According to the research conducted by the NASA Ames Research Center, backlash and spalling are the two fault modes that are most likely to occur in ball-screw pairs of EMA systems and could lead to failures such as jamming of the EMA system or severe vibrations [3]. Therefore, in this paper, we take nut spalling fault as the main subject, which is one of the most common fault modes of ball-screw pairs.

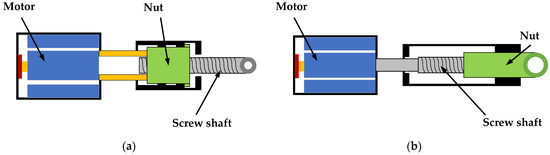

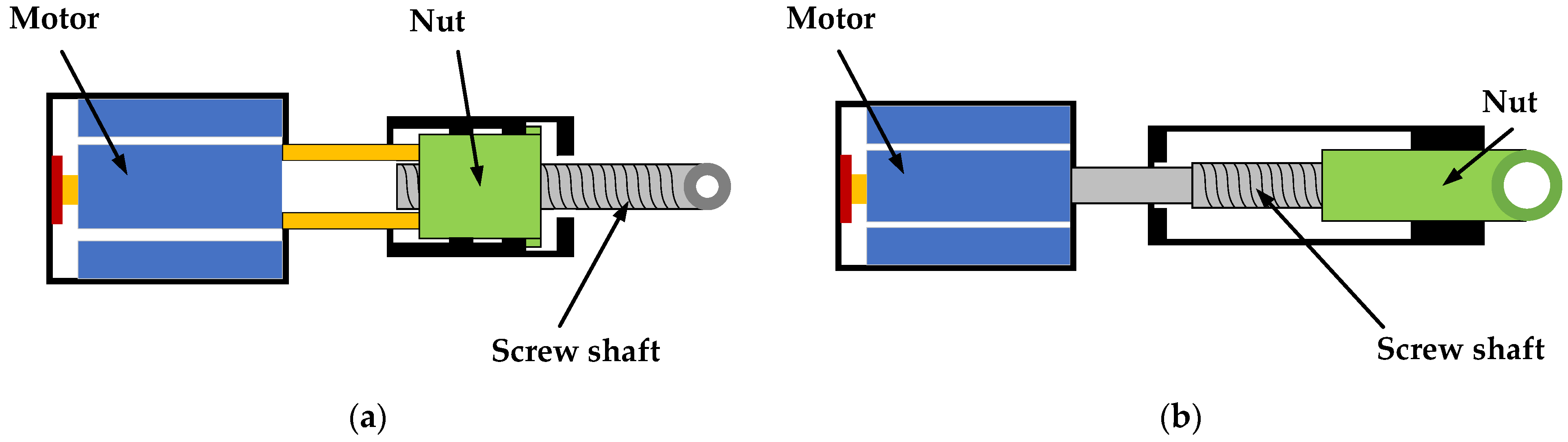

Ball-screw pairs in EMAs usually have two actuation modes. One uses the nut as the driving component, and the other uses the screw shaft as the driving component; their basic structures are shown in Figure 1. For the convenience of installing sensors and capturing fault characteristics, we take ball-screw pairs that use the nut as the driving component as the subject of this paper.

Some scholars have studied the dynamic modeling method of ball-screw pairs. Liu et al. [16] established a 14-DOF dynamic model of a ball-screw feed system including a ball-screw pair and a linear guide rail. The radial and axial vibration of the ball-screw pair was studied, and the stiffness and nonlinear restoring force of each component were calculated. Xu et al. [17] established a lumped parameter model of a ball-screw feed system and studied the relationship between the displacement of the ball nut and the nonlinear restoring force under cycling load. Liu and Ou [18] established an axial contact stiffness model of a ball-screw feed system and proposed a calculation method for the dynamic axial contact stiffness of the ball-screw pair. Gu and Zhang [19] established a dynamic model of a ball-screw feed system considering the time-varying stiffness and studied the influence of the position of the worktable on the control performance and positioning accuracy. Guo et al. [20] proposed a new dynamic modeling method for a ball-screw feed system. A model with high positioning accuracy of the ball-screw feed system was obtained by combining the classical dynamic theory with an artificial neural network. Bertolino et al. [21] built a high-fidelity model of a ball-screw pair, wherein the balls inside the nut were modelled as spring-damping systems, and the contact force of each ball was analyzed. In their subsequent research, a multibody dynamic model of a double-nut ball-screw pair was established. In this model, the inertia of each subcomponent of the ball-screw pair was considered, and the influence of friction and lubrication was also taken into account [22].

However, the studies mentioned above have examined the ball-screw feed system as the research subject. The main purpose of their models was to improve the control performance and control accuracy of the ball-screw feed system. Few studies have implemented detailed dynamic modeling for the possible faults of the ball-screw pair in an EMA and investigated the possible impacts of faults on the radial or axial vibration characteristics of the ball-screw pair. Therefore, it is necessary to establish a systematic model of a ball-screw pair and comprehensively study the impact of faults on the radial and axial vibration of the ball-screw pair. Furthermore, it is necessary to determine in which direction the fault characteristics are most obvious, analyze the specific performance of faults occurring in the dynamic responses of the system and extract fault features or establish health indicators (HI) of the ball-screw pair so as to realize fault identification and fault diagnosis in EMA mechanical transmissions.

This paper is dedicated to establishing a comprehensive dynamic model containing typical mechanical components of EMAs (such as ball-screw pairs and bearings) and studying the coupling effect between the radial and axial vibration of ball-screw pairs in EMAs. After implantation of a spalling fault on the raceway of the nut, the fault characteristics that would possibly occur in the radial and axial responses of EMA systems are studied, the fault features are extracted and a specific calculation method for fault characteristics is proposed, laying a foundation for subsequent research on EMA fault diagnosis and fault prognosis. The remainder of this paper is structured as follows. In Section 2, an eight-DOF dynamic model of an EMA mechanical transmission is established, and the contact deformation of each ball inside the nut is analyzed. In Section 3, a detailed method of implanting a spall in the inner raceway of the nut is described, and a dynamic model of an EMA mechanical transmission with a nut spalling fault is established. In Section 4, the vibration responses of the established normal and faulty models are analyzed, and a numerical calculation method for fault characteristics is proposed. Finally, in Section 5, the effectiveness of the established dynamic models and the proposed numerical calculation method are verified by experiments conducted on an EMA test stand built in a laboratory environment.

2. Dynamic Modeling under Normal Condition

2.1. Equations of Motion

In this research, the following assumptions are proposed before establishing the dynamic models:

(1)

All the balls are closely distributed in the nut of the ball-screw pair;

(2)

The direction of the preload applied on the nut is collinear with the axis of the nut;

(3)

Both the nut raceway and the screw shaft raceway are rigid bodies;

(4)

Each ball in the nut rotates at the same speed around the screw shaft when not in contact with the spalling fault;

(5)

The damping constants of the ball-screw pair are equal in all three directions;

(6)

The influences of the machining and assembly errors are not considered;

(7)

The profiles and materials of all balls are exactly the same, and the materials of the nut raceway and the screw shaft raceway are also the same;

(8)

Gravity is applied in the radial direction of the system;

(9)

Backlash is not considered;

(10)

As the total mass of the balls inside the nut is negligible, the inertial loads of the balls are not considered;

(11)

The motion of each ball inside the nut occurs by pure rolling only; and

(12)

The influence of friction is not considered in the models.

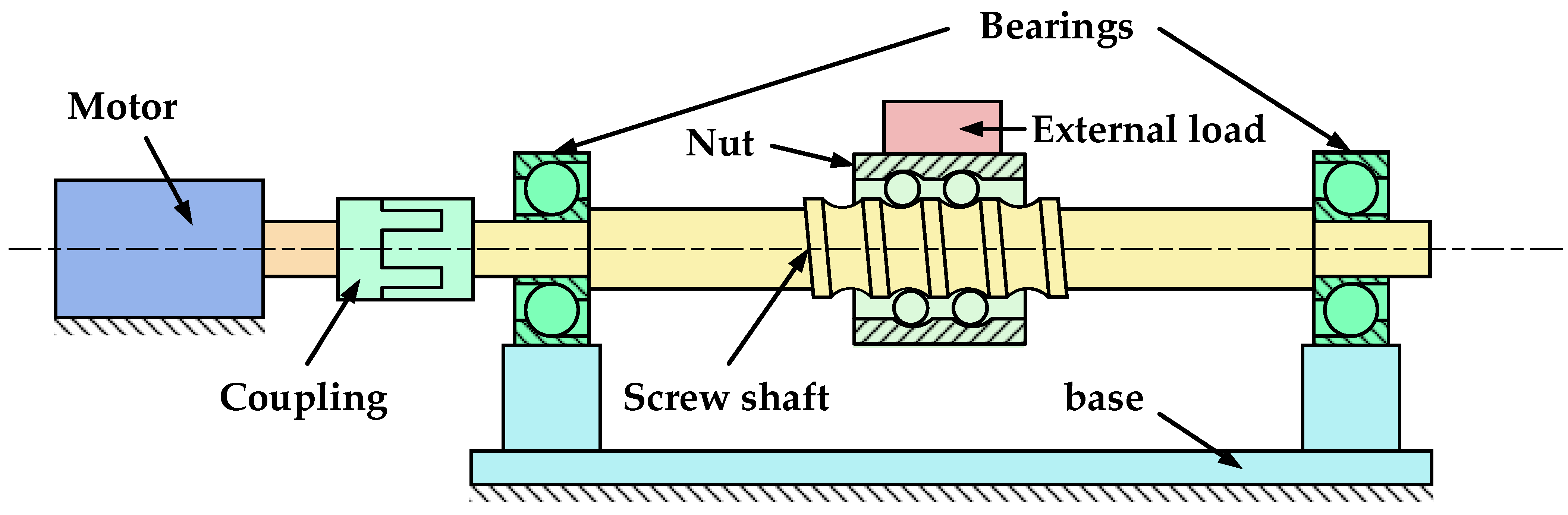

In this paper, the EMA system used for experimental validation is simplified into the model shown in Figure 2, which includes the motor, the coupling, the support bearings, the screw shaft, the nut and the external loads applied on the nut. A dynamic model can be established by equating the coupling and the bearings as a spring-damping system. However, the nut of the ball-screw pair cannot be simply equated to a typical spring-damped system. During the rotation of the screw shaft, the balls in the nut continuously enter and exit the return device, which produces impacts, and the elastic restoring force of each ball in the nut changes nonlinearly. Therefore, in this paper, the balls inside the nut are equivalent to a nonlinear spring-damping system, and the stiffness of the nonlinear spring is directly provided by the elastic restoring force divided by the relative displacement between the nut and the screw shaft. The elastic restoring forces of the balls in the nut are calculated in Section 2.2. The dynamic model of an EMA mechanical transmission is shown in Figure 3.

Because of the lead angle (γ) in the ball-screw pair, there is a coupling relationship between the angular displacement of the rotation of the screw shaft and the axial displacement (z) of the nut. Therefore, when establishing an axial dynamic model of an EMA mechanical transmission, the influence of the screw shaft and the motor in the torsional direction should be considered [23,24], as shown in Figure 3a.

In this paper, it is assumed that the motor and the supporting bearings are fixed, and the nut only moves along its axis and does not rotate itself. In this paper, we mainly investigate the vibration characteristics of the screw shaft and the nut in the axial direction (z direction), plumb radial direction (y direction) and horizontal radial direction (x direction). The dynamic models in the x direction and the y direction are basically the same (they only differ in terms of the presence or absence of gravity). Therefore, the radial dynamic model shown in Figure 3b can represent the dynamic models in the x and y directions.

According to Newton’s second law, the motion equation of an EMA mechanical part can be expressed as:

$$\mathit{M}\ddot{\mathit{q}}+\mathit{C}\dot{\mathit{q}}+\mathit{K}\mathit{q}=\mathit{F}$$

(1)

where M, C and K are the mass matrix, damping matrix and stiffness matrix of the EMA mechanical transmission, respectively; and F is the load applied to a specific component. The vector q is defined as follows:

$$\mathit{q}={\left(\begin{array}{cccc}{x}_{\mathrm{s}}& x_{\mathrm{n}}& y_{\mathrm{s}}& \begin{array}{cccc}{y}_{\mathrm{n}}& z_{\mathrm{s}}& z_{\mathrm{n}}& \begin{array}{cc}{\theta }_{\mathrm{s}}& {\theta }_{\mathrm{m}}\end{array}\end{array}\end{array}\right)}^T$$

(2)

where x_s, y_s and z_s are the displacements of the screw shaft in the x, y and z directions, respectively; x_n, y_n and z_n are the displacements of the nut in the x, y and z directions, respectively; θ_s is the angle displacement of the screw shaft; and θ_m is the angle displacement of the motor output shaft.

Due to the complex coupling effects among the mechanical components of EMAs, it is difficult to directly obtain the equations of motion. Therefore, in this paper, we use the Lagrangian energy method to analyze the x, y and z directions.

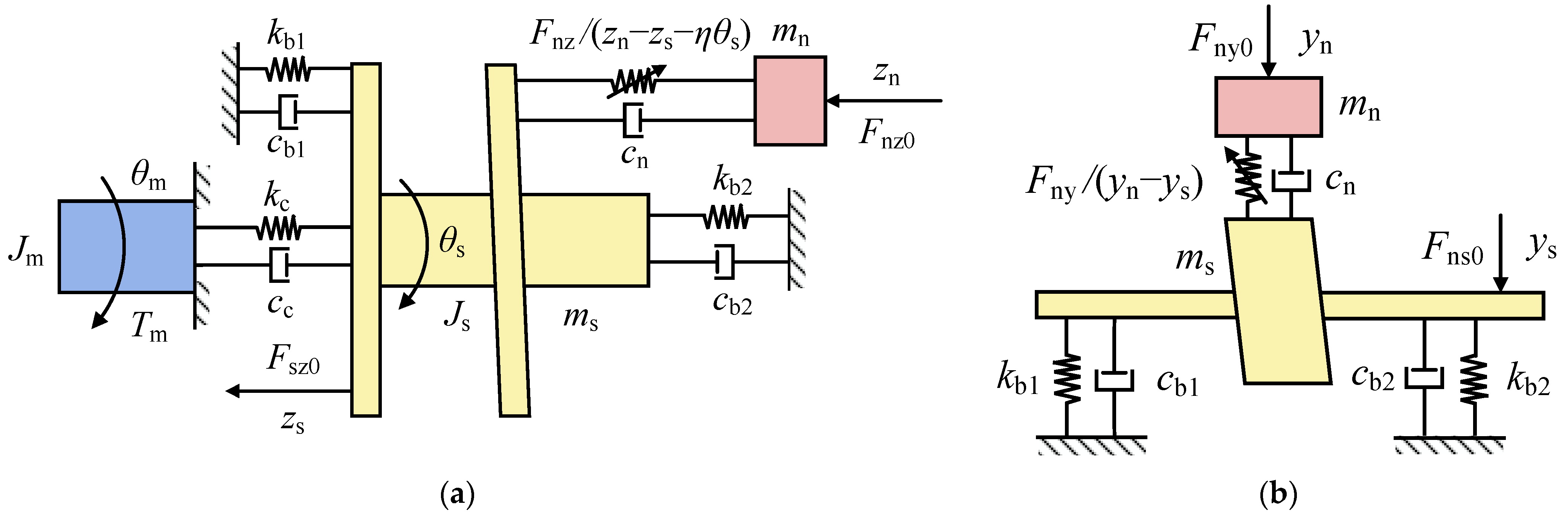

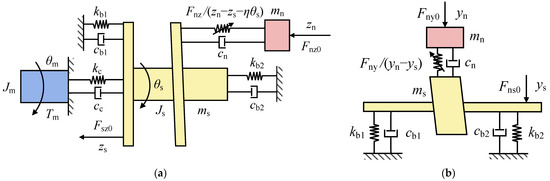

According to Figure 3b, the kinetic energy equation in the y direction of the system can be obtained as follows:

$$T_{\mathrm{y}}=\frac{1}{2}{m}_{\mathrm{n}}{\left({\dot{y}}_{\mathrm{n}}-{\dot{y}}_{\mathrm{s}}\right)}^2+\frac{1}{2}{m}_{\mathrm{s}}{\dot{y}}_s^2$$

(3)

where m_s is the mass of the screw shaft, and m_n is the total mass of the nut and the additional components installed on it.

The potential energy of the system in the y direction is expressed as:

$$V_{\mathrm{y}}=\frac{1}{2}\left(k_{\mathrm{b}1}+k_{\mathrm{b}2}\right)y_{\mathrm{s}}^2-m_{\mathrm{s}}g{y}_{\mathrm{s}}-m_{\mathrm{n}}g\left(y_{\mathrm{s}}+y_{\mathrm{n}}\right)$$

(4)

where k_b1 and k_b2 are the stiffness of the supporting bearings at each end of the screw shaft, respectively.

The dissipation function of the system in the y direction is expressed as [25]:

$$D_{\mathrm{y}}=\frac{1}{2}\left(c_{\mathrm{b}1}+c_{\mathrm{b}2}\right){\dot{y}}_{\mathrm{s}}^2+\frac{1}{2}{c}_{\mathrm{n}}{\left({\dot{y}}_{\mathrm{n}}-{\dot{y}}_{\mathrm{s}}\right)}^2$$

(5)

where c_b1 and c_b2 are the viscous damping coefficients of the supporting bearings at each ends of the screw shaft, respectively.

Substitute Equations (3)–(5) into the Lagrange’s equations, and the equations of motion in the y direction can be obtained as follows [26]:

$$\{\begin{array}{l}{m}_{\mathrm{n}}\left({\ddot{y}}_{\mathrm{s}}-{\ddot{y}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{y}}_{\mathrm{s}}+\left(c_{\mathrm{b}1}+c_{\mathrm{b}2}\right){\dot{y}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{y}}_{\mathrm{s}}-{\dot{y}}_{\mathrm{n}}\right)+\left(k_{\mathrm{b}1}+k_{\mathrm{b}2}\right)y_{\mathrm{s}}=\left(m_{\mathrm{n}}+m_{\mathrm{s}}\right)g+F_{\mathrm{sy}0}-F_{\mathrm{ny}}\\ m_{\mathrm{n}}\left({\ddot{y}}_{\mathrm{n}}-{\ddot{y}}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{y}}_{\mathrm{n}}-{\dot{y}}_{\mathrm{s}}\right)=m_{\mathrm{n}}g+F_{\mathrm{ny}0}-F_{\mathrm{ny}}\end{array}$$

(6)

where F_sy0 is the preload applied on the y direction of the screw shaft, F_ny0 is the preload applied on the y direction of the nut and F_ny is the total elastic restoring force of all balls in the nut in the y direction.

According to the Hertz contact theory, the relationship between the elastic restoring force of the balls in the nut and the displacement of the nut is not linear. Therefore, in this paper, we do not calculate the elastic potential energy of the balls in the nut but do calculate the elastic restoring force of each ball and substitute it into the Lagrange equation. Owing to the complexity of the solution process, the solution method for the elastic restoring force of each ball will be described in detail in Section 2.2.

The vibration of an EMA mechanical transmission in the x direction is similar to that in the y direction, despite the lack of influence of gravity. Therefore, according to Equation (6), the equations of motion in the x direction can be expressed as follows:

$$\{\begin{array}{l}{m}_{\mathrm{n}}\left({\ddot{x}}_{\mathrm{s}}-{\ddot{x}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{x}}_{\mathrm{s}}+\left(c_{\mathrm{b}1}+c_{\mathrm{b}2}\right){\dot{x}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{x}}_{\mathrm{s}}-{\dot{x}}_{\mathrm{n}}\right)+\left(k_{\mathrm{b}1}+k_{\mathrm{b}2}\right)x_{\mathrm{s}}=F_{\mathrm{sx}0}-F_{\mathrm{nx}}\\ m_{\mathrm{n}}\left({\ddot{x}}_{\mathrm{n}}-{\ddot{x}}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{x}}_{\mathrm{n}}-{\dot{x}}_{\mathrm{s}}\right)=F_{\mathrm{nx}0}-F_{\mathrm{nx}}\end{array}$$

(7)

where F_sx0 is the preload applied in the x direction of the screw shaft, F_nx0 is the preload applied in the x direction of the nut and F_nx is the total elastic restoring force of all balls in the nut in the x direction.

However, for the z direction and the torsional direction, there is a coupling relationship between the translation of the nut and the rotation of the screw shaft, so it is necessary to conduct additional analysis for the motion in the z and torsional directions.

According to Figure 3a, the total kinetic energy of the system in the z and torsional directions is:

$$T_{\mathrm{z}}=\frac{1}{2}{m}_{\mathrm{n}}{\left({\dot{z}}_{\mathrm{n}}-{\dot{z}}_{\mathrm{s}}-\eta {\dot{\theta }}_{\mathrm{s}}\right)}^2+\frac{1}{2}{m}_{\mathrm{s}}{\dot{z}}_s^2+\frac{1}{2}{J}_{\mathrm{s}}{\dot{\theta }}_{\mathrm{s}}^2+\frac{1}{2}{J}_{\mathrm{m}}{\dot{\theta }}_{\mathrm{m}}^2$$

(8)

where η = Ph/2π, Ph is the lead of the screw shaft, the relationship between the displacement of the nut in the z direction (z_n) and the angle displacement of the screw shaft (θ_s) is z_n = ηθ_s, the equivalent torque of the elastic restoring force in the torsional direction of the screw shaft is ηF_nz [27], J_s is the rotary inertia of the screw shaft and J_m is the rotary inertia of the motor rotor and motor output shaft.

The potential energy of the system in the z and torsion directions is:

$$V_{\mathrm{z}}=\frac{1}{2}\left(k_{\mathrm{b}1}+k_{\mathrm{b}2}\right)z_{\mathrm{s}}^2+\frac{1}{2}{k}_{\mathrm{c}}{({\theta }_{\mathrm{s}}-{\theta }_{\mathrm{m}})}^2$$

(9)

where k_c is the torsional rigidity of the coupling.

The dissipation function of the system in the z and torsional directions is:

$$D_{\mathrm{z}}=\frac{1}{2}\left(c_{\mathrm{b}1}+c_{\mathrm{b}2}\right){\dot{z}}_{\mathrm{s}}^2+\frac{1}{2}{c}_{\mathrm{n}}{\left({\dot{z}}_{\mathrm{n}}-{\dot{z}}_{\mathrm{s}}-\eta {\dot{\theta }}_{\mathrm{s}}\right)}^2+\frac{1}{2}{c}_{\mathrm{c}}{({\dot{\theta }}_{\mathrm{s}}-{\dot{\theta }}_{\mathrm{m}})}^2$$

(10)

Substitute Equations (8)–(10) into the Lagrange equations, and the equations of motion in the z and torsional directions can be obtained as follows.

$$\{\begin{array}{l}{m}_{\mathrm{n}}\left({\ddot{z}}_{\mathrm{s}}+\eta {\ddot{\theta }}_{\mathrm{s}}-{\ddot{z}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{z}}_{\mathrm{s}}+\left(c_{\mathrm{b}1}+c_{\mathrm{b}2}\right){\dot{z}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{z}}_{\mathrm{s}}+\eta {\dot{\theta }}_{\mathrm{s}}-{\dot{z}}_{\mathrm{n}}\right)+\left(k_{\mathrm{b}1}+k_{\mathrm{b}2}\right)z_{\mathrm{s}}=F_{\mathrm{sz}0}-F_{\mathrm{nz}}\\ m_{\mathrm{n}}\left({\ddot{z}}_{\mathrm{n}}-{\ddot{z}}_{\mathrm{s}}-\eta {\ddot{\theta }}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{z}}_{\mathrm{n}}-{\dot{z}}_{\mathrm{s}}-\eta {\dot{\theta }}_{\mathrm{s}}\right)=F_{\mathrm{nz}0}-F_{\mathrm{nz}}\\ m_{\mathrm{n}}\eta \left({\ddot{z}}_{\mathrm{s}}+\eta {\ddot{\theta }}_{\mathrm{s}}-{\ddot{z}}_{\mathrm{n}}\right)+J_{\mathrm{s}}{\ddot{\theta }}_{\mathrm{s}}+c_{\mathrm{n}}\eta \left({\dot{z}}_{\mathrm{s}}+\eta {\dot{\theta }}_{\mathrm{s}}-{\dot{z}}_{\mathrm{n}}\right)+c_{\mathrm{c}}\left({\dot{\theta }}_{\mathrm{s}}-{\dot{\theta }}_{\mathrm{m}}\right)+k_{\mathrm{c}}\left({\theta }_{\mathrm{s}}-{\theta }_{\mathrm{m}}\right)=T_{\mathrm{s}0}-\eta F_{\mathrm{nz}}\\ J_{\mathrm{m}}{\ddot{\theta }}_{\mathrm{m}}+c_{\mathrm{c}}\left({\dot{\theta }}_{\mathrm{m}}-{\dot{\theta }}_{\mathrm{s}}\right)+k_{\mathrm{c}}\left({\theta }_{\mathrm{m}}-{\theta }_{\mathrm{s}}\right)=T_{\mathrm{m}0}+T_{\mathrm{m}}\left(t\right)\end{array}$$

(11)

where F_sz0 is the preload applied in the z direction of the screw shaft; F_nz0 is the preload applied in the z direction of the nut; F_nz is the total elastic restoring force of all balls in the nut in the z direction; T_s0 and T_m0 are the constant torque applied on the screw shaft and the motor output shaft, respectively; and T_m(t) is the motor output torque, which can be directly measured by sensors installed on the EMA.

In addition, the supporting bearings used in the established model are angular-contact ball bearings. Therefore, only one bearing bears the axial load at a given moment. Assuming that the basic parameters of the bearings at both ends are the same, i.e., k_b1 = k_b2 = k_b, c_b1 = c_b2 = c_b, the equations of motion in the z and torsion directions can be rewritten as:

$$\{\begin{array}{l}{m}_{\mathrm{n}}\left({\ddot{z}}_{\mathrm{s}}+\eta {\ddot{\theta }}_{\mathrm{s}}-{\ddot{z}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{z}}_{\mathrm{s}}+c_{\mathrm{b}}{\dot{z}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{z}}_{\mathrm{s}}+\eta {\dot{\theta }}_{\mathrm{s}}-{\dot{z}}_{\mathrm{n}}\right)+k_{\mathrm{b}}{z}_{\mathrm{s}}=F_{\mathrm{sz}0}-F_{\mathrm{nz}}\\ m_{\mathrm{n}}\left({\ddot{z}}_{\mathrm{n}}-{\ddot{z}}_{\mathrm{s}}-\eta {\ddot{\theta }}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{z}}_{\mathrm{n}}-{\dot{z}}_{\mathrm{s}}-\eta {\dot{\theta }}_{\mathrm{s}}\right)=F_{\mathrm{nz}0}-F_{\mathrm{nz}}\\ m_{\mathrm{n}}\eta \left({\ddot{z}}_{\mathrm{s}}+\eta {\ddot{\theta }}_{\mathrm{s}}-{\ddot{z}}_{\mathrm{n}}\right)+J_{\mathrm{s}}{\ddot{\theta }}_{\mathrm{s}}+c_{\mathrm{n}}\eta \left({\dot{z}}_{\mathrm{s}}+\eta {\dot{\theta }}_{\mathrm{s}}-{\dot{z}}_{\mathrm{n}}\right)+c_{\mathrm{c}}\left({\dot{\theta }}_{\mathrm{s}}-{\dot{\theta }}_{\mathrm{m}}\right)+k_{\mathrm{c}}\left({\theta }_{\mathrm{s}}-{\theta }_{\mathrm{m}}\right)=T_{\mathrm{s}0}-\eta F_{\mathrm{nz}}\\ J_{\mathrm{m}}{\ddot{\theta }}_{\mathrm{m}}+c_{\mathrm{c}}\left({\dot{\theta }}_{\mathrm{m}}-{\dot{\theta }}_{\mathrm{s}}\right)+k_{\mathrm{c}}\left({\theta }_{\mathrm{m}}-{\theta }_{\mathrm{s}}\right)=T_{\mathrm{m}0}+T_{\mathrm{m}}\left(t\right)\end{array}$$

(12)

Combining Equations (6), (7) and (12) and the assuming that the parameters of the supporting bearings are the same, the equations of motion in the four directions of the EMA mechanical transmission can be obtained as follows:

$$\{\begin{array}{l}{m}_{\mathrm{n}}\left({\ddot{x}}_{\mathrm{s}}-{\ddot{x}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{x}}_{\mathrm{s}}+2c_{\mathrm{b}}{\dot{x}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{x}}_{\mathrm{s}}-{\dot{x}}_{\mathrm{n}}\right)+2k_{\mathrm{b}}{x}_{\mathrm{s}}=F_{\mathrm{sx}0}-F_{\mathrm{nx}}\\ m_{\mathrm{n}}\left({\ddot{x}}_{\mathrm{n}}-{\ddot{x}}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{x}}_{\mathrm{n}}-{\dot{x}}_{\mathrm{s}}\right)=F_{\mathrm{nx}0}-F_{\mathrm{nx}}\\ m_{\mathrm{n}}\left({\ddot{y}}_{\mathrm{s}}-{\ddot{y}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{y}}_{\mathrm{s}}+2c_{\mathrm{b}}{\dot{y}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{y}}_{\mathrm{s}}-{\dot{y}}_{\mathrm{n}}\right)+2k_{\mathrm{b}}{y}_{\mathrm{s}}=\left(m_{\mathrm{n}}+m_{\mathrm{s}}\right)g+F_{\mathrm{sy}0}-F_{\mathrm{ny}}\\ m_{\mathrm{n}}\left({\ddot{y}}_{\mathrm{n}}-{\ddot{y}}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{y}}_{\mathrm{n}}-{\dot{y}}_{\mathrm{s}}\right)=m_{\mathrm{n}}g+F_{\mathrm{ny}0}-F_{\mathrm{ny}}\\ m_{\mathrm{n}}\left({\ddot{z}}_{\mathrm{s}}+\eta {\ddot{\theta }}_{\mathrm{s}}-{\ddot{z}}_{\mathrm{n}}\right)+m_{\mathrm{s}}{\ddot{z}}_{\mathrm{s}}+c_{\mathrm{b}}{\dot{z}}_{\mathrm{s}}+c_{\mathrm{n}}\left({\dot{z}}_{\mathrm{s}}+\eta {\dot{\theta }}_{\mathrm{s}}-{\dot{z}}_{\mathrm{n}}\right)+k_{\mathrm{b}}{z}_{\mathrm{s}}=F_{\mathrm{sz}0}-F_{\mathrm{nz}}\\ m_{\mathrm{n}}\left({\ddot{z}}_{\mathrm{n}}-{\ddot{z}}_{\mathrm{s}}-\eta {\ddot{\theta }}_{\mathrm{s}}\right)+c_{\mathrm{n}}\left({\dot{z}}_{\mathrm{n}}-{\dot{z}}_{\mathrm{s}}-\eta {\dot{\theta }}_{\mathrm{s}}\right)=F_{\mathrm{nz}0}-F_{\mathrm{nz}}\\ m_{\mathrm{n}}\eta \left({\ddot{z}}_{\mathrm{s}}+\eta {\ddot{\theta }}_{\mathrm{s}}-{\ddot{z}}_{\mathrm{n}}\right)+J_{\mathrm{s}}{\ddot{\theta }}_{\mathrm{s}}+c_{\mathrm{n}}\eta \left({\dot{z}}_{\mathrm{s}}+\eta {\dot{\theta }}_{\mathrm{s}}-{\dot{z}}_{\mathrm{n}}\right)+c_{\mathrm{c}}\left({\dot{\theta }}_{\mathrm{s}}-{\dot{\theta }}_{\mathrm{m}}\right)+k_{\mathrm{c}}\left({\theta }_{\mathrm{s}}-{\theta }_{\mathrm{m}}\right)=T_{\mathrm{s}0}-\eta F_{\mathrm{nz}}\\ J_{\mathrm{m}}{\ddot{\theta }}_{\mathrm{m}}+c_{\mathrm{c}}\left({\dot{\theta }}_{\mathrm{m}}-{\dot{\theta }}_{\mathrm{s}}\right)+k_{\mathrm{c}}\left({\theta }_{\mathrm{m}}-{\theta }_{\mathrm{s}}\right)=T_{\mathrm{m}0}+T_{\mathrm{m}}\left(t\right)\end{array}$$

(13)

Considering the matrix equation in Equation (1), the coefficient matrices in the equation are:

$$\mathit{M}=\left(\begin{array}{cccc}\begin{array}{c}{m}_{\mathrm{n}}+m_{\mathrm{s}}\\ -m_{\mathrm{n}}\\ \begin{array}{c}0\\ 0\\ 0\end{array}\\ \begin{array}{c}0\\ 0\\ 0\end{array}\end{array}& \begin{array}{c}\begin{array}{c}-m_{\mathrm{n}}\\ m_{\mathrm{n}}\\ \begin{array}{c}0\\ 0\\ 0\end{array}\end{array}\\ 0\\ 0\\ 0\end{array}& \begin{array}{c}\begin{array}{c}\begin{array}{c}0\\ 0\\ m_{\mathrm{n}}+m_{\mathrm{s}}\end{array}\\ -m_{\mathrm{n}}\\ 0\end{array}\\ 0\\ 0\\ 0\end{array}& \begin{array}{ccc}\begin{array}{c}\begin{array}{c}0\\ \begin{array}{c}0\\ -m_{\mathrm{n}}\\ m_{\mathrm{n}}\end{array}\\ 0\end{array}\\ 0\\ 0\\ 0\end{array}& \begin{array}{c}\begin{array}{c}0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\\ m_{\mathrm{n}}+m_{\mathrm{s}}\end{array}\\ -m_{\mathrm{n}}\\ \eta m_{\mathrm{n}}\\ 0\end{array}& \begin{array}{c}\begin{array}{c}0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\\ -m_{\mathrm{n}}\end{array}\\ m_{\mathrm{n}}\\ -\eta m_{\mathrm{n}}\\ 0\end{array} \begin{array}{cc}\begin{array}{c}0\\ 0\\ \begin{array}{c}\begin{array}{c}0\\ 0\end{array}\\ \eta m_{\mathrm{n}}\\ -\eta m_{\mathrm{n}}\\ {\eta }^2{m}_{\mathrm{n}}+J_{\mathrm{s}}\end{array}\\ 0\end{array}& \begin{array}{c}\begin{array}{c}\begin{array}{c}0\\ 0\end{array}\\ 0\\ 0\\ 0\end{array}\\ 0\\ 0\\ J_{\mathrm{m}}\end{array}\end{array}\end{array}\end{array}\right)$$

(14)

$$\mathit{C}=\left(\begin{array}{cccc}\begin{array}{c}2c_{\mathrm{b}}+c_{\mathrm{n}}\\ -c_{\mathrm{n}}\\ \begin{array}{c}0\\ 0\\ 0\end{array}\\ \begin{array}{c}0\\ 0\\ 0\end{array}\end{array}& \begin{array}{c}\begin{array}{c}-c_{\mathrm{n}}\\ c_{\mathrm{n}}\\ \begin{array}{c}0\\ 0\\ 0\end{array}\end{array}\\ 0\\ 0\\ 0\end{array}& \begin{array}{c}\begin{array}{c}0\\ \begin{array}{c}0\\ 2c_{\mathrm{b}}+c_{\mathrm{n}}\\ -c_{\mathrm{n}}\end{array}\\ 0\end{array}\\ 0\\ 0\\ 0\end{array}& \begin{array}{ccc}\begin{array}{c}\begin{array}{c}0\\ \begin{array}{c}0\\ -c_{\mathrm{n}}\\ c_{\mathrm{n}}\end{array}\\ 0\end{array}\\ 0\\ 0\\ 0\end{array}& \begin{array}{c}\begin{array}{c}0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\\ c_{\mathrm{b}}+c_{\mathrm{n}}\end{array}\\ -c_{\mathrm{n}}\\ \eta c_{\mathrm{n}}\\ 0\end{array}& \begin{array}{c}\begin{array}{c}0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\\ -c_{\mathrm{n}}\end{array}\\ c_{\mathrm{n}}\\ -\eta c_{\mathrm{n}}\\ 0\end{array} \begin{array}{c}\begin{array}{c}\begin{array}{c}0\\ 0\end{array}\\ 0\\ 0\\ \eta c_{\mathrm{n}}\end{array}\\ -\eta c_{\mathrm{n}}\\ {\eta }^2{c}_{\mathrm{n}}+c_{\mathrm{c}}\\ -c_{\mathrm{c}}\end{array} \end{array}\end{array}\begin{array}{c}\begin{array}{c}\begin{array}{c}0\\ 0\end{array}\\ 0\\ 0\\ 0\end{array}\\ 0\\ -c_{\mathrm{c}}\\ c_{\mathrm{c}}\end{array}\right)$$

(15)

$$\mathit{K}=\left(\begin{array}{cccc}\begin{array}{c}2k_{\mathrm{b}}\\ 0\\ 0\\ \begin{array}{c}0\\ 0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\end{array}\end{array}& \begin{array}{c}\begin{array}{c}0\\ 0\\ 0\end{array}\\ 0\\ 0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\end{array}& \begin{array}{c}\begin{array}{c}0\\ 0\\ 2k_{\mathrm{b}}\end{array}\\ 0\\ 0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\end{array}& \begin{array}{ccc}\begin{array}{c}\begin{array}{c}0\\ 0\\ 0\end{array}\\ 0\\ 0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\end{array}& \begin{array}{c}\begin{array}{c}0\\ 0\\ 0\end{array}\\ 0\\ k_{\mathrm{b}}\\ \begin{array}{l}0\\ 0\\ 0\end{array}\end{array}& \begin{array}{c}\begin{array}{c}0\\ 0\\ 0\end{array}\\ 0\\ 0\\ \begin{array}{l}0\\ 0\\ 0\end{array}\end{array}\end{array} \begin{array}{c}0\\ 0\\ 0\\ \begin{array}{c}0\\ 0\\ 0\\ k_{\mathrm{c}}\\ -k_{\mathrm{c}}\end{array}\end{array} \begin{array}{c}0\\ 0\\ 0\\ \begin{array}{c}0\\ 0\\ 0\\ -k_{\mathrm{c}}\\ k_{\mathrm{c}}\end{array}\end{array}\end{array}\right)$$

(16)

$$\mathit{F}=\left(\begin{array}{c}\begin{array}{c}{F}_{\mathrm{sx}0}-F_{\mathrm{nx}}\\ F_{\mathrm{nx}0}-F_{\mathrm{nx}}\\ \left(m_{\mathrm{n}}+m_{\mathrm{s}}\right)g+F_{\mathrm{sy}0}-F_{\mathrm{ny}}\end{array}\\ m_{\mathrm{n}}g+F_{\mathrm{ny}0}-F_{\mathrm{ny}}\\ F_{\mathrm{sz}0}-F_{\mathrm{nz}}\\ \begin{array}{l}{F}_{\mathrm{nz}0}-F_{\mathrm{nz}}\\ T_{s0}-\eta F_{\mathrm{nz}}\\ T_{m0}+T_m\left(t\right)\end{array}\end{array}\right)$$

(17)

2.2. Solution of the Total Elastic Restoring Force of Balls

Due to the existence of the return device in the ball-screw pair, the elastic restoring force borne by each ball changes with the ball continuously entering and exiting the return device. Therefore, when calculating the total elastic restoring force, it is necessary to calculate the forces of the balls in the nut raceway and the balls entering or exiting the return device. Xu et al. proposed a solution for the axial elastic restoring force when the ith ball bears the axial load, considering the preload [28].

$$\{\begin{array}{l}{F}_{\mathrm{a}i}=\frac{l_{\mathrm{p}}{k}_{\mathrm{n}}\sin \alpha \cos \beta }{{\delta }_1+l_{\mathrm{p}}-{\delta }_{\mathrm{p}}}{\delta }_1{}^{3/2}\\ {\delta }_1=\sqrt{{\left(l_{\mathrm{p}}\sin \alpha +{\delta }_{\mathrm{a}i}\cos \beta \right)}^2+{\left(l_{\mathrm{p}}\cos \alpha \right)}^2}-l_{\mathrm{p}}+{\delta }_{\mathrm{p}}\end{array}$$

(18)

where l_a is the distance between the curvature center of the nut raceway and the curvature center of the screw shaft raceway under axial load, δ_ai represents the ball deformation caused by the relative axial displacement between the nut and the screw shaft when the ith ball bears the load, α is the contact angle and β is the lead angle of the screw shaft and the nut raceway. As shown in Figure 4, l_p is the distance between the curvature center of the nut raceway and the screw shaft raceway when only the preload is applied, which can be obtained by l_p = r_s + r_n − d_s + δ_p; r_s and r_n are the radius of the curvature of the screw shaft raceway and the nut raceway, respectively; and δ_p is the deformation of the ball caused by the preload, which can be calculated by the following formula.

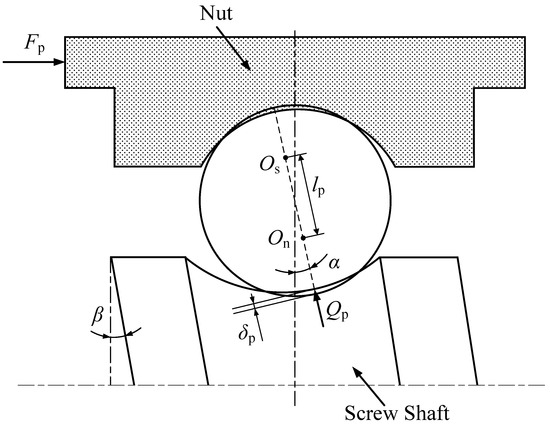

$${\delta }_{\mathrm{p}}={\left(\frac{F_{\mathrm{p}}}{N{k}_{\mathrm{n}}\sin \alpha \cos \beta }\right)}^{2/3}$$

(19)

where F_p is the axial preload on the nut, and the relationship between F_p and the preloads in the equations of motion is as follows: F_sx0 = 0, F_nx0 = ηF_p; F_sy0 = (m_s + m_n)g, F_ny0 = ηF_p + m_ng; and F_sz0 = 0, F_nz0 = F_p. N is the number of balls in the nut raceway, and k_n is the Hertz contact stiffness between the balls and the nut or screw shaft raceway [29].

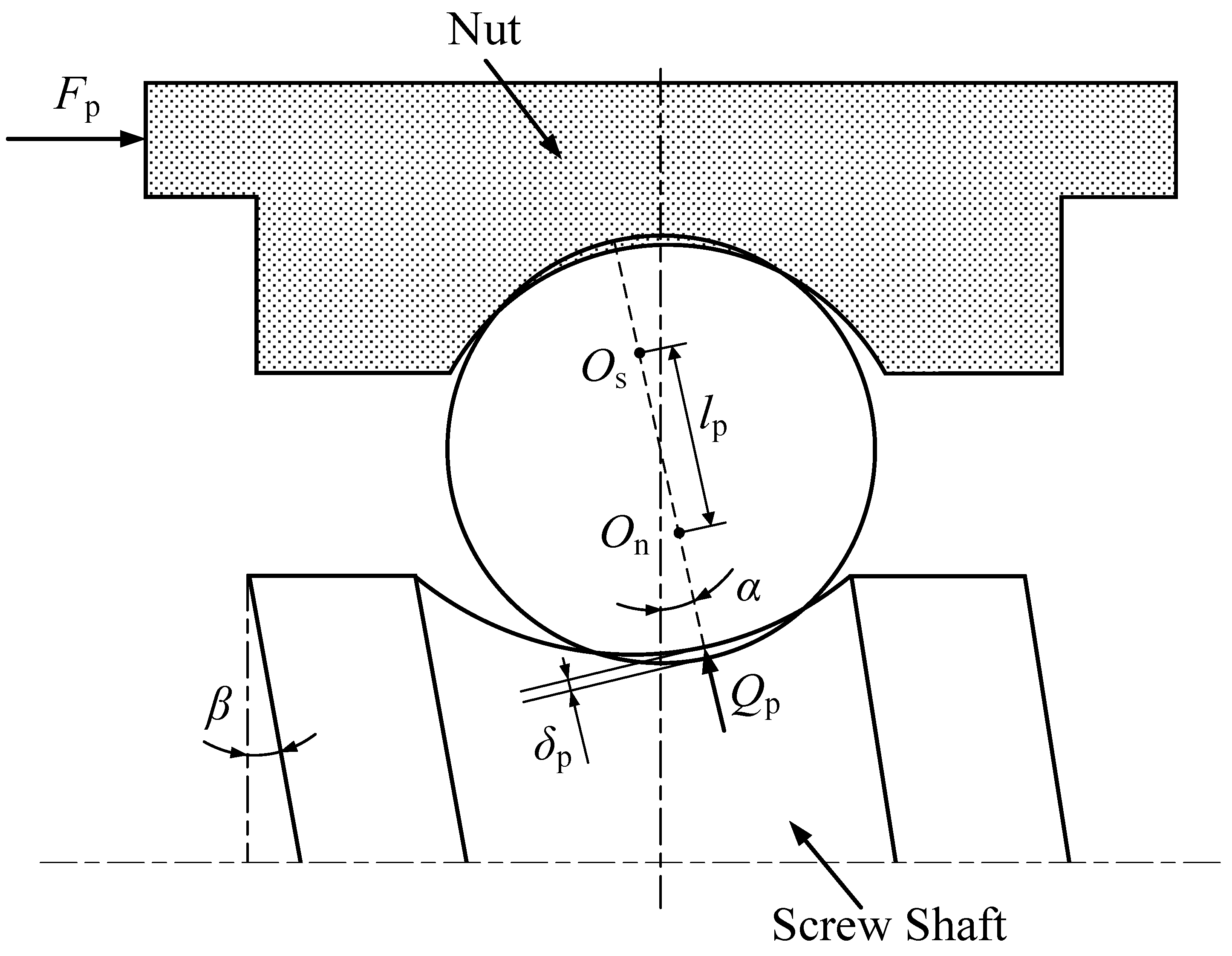

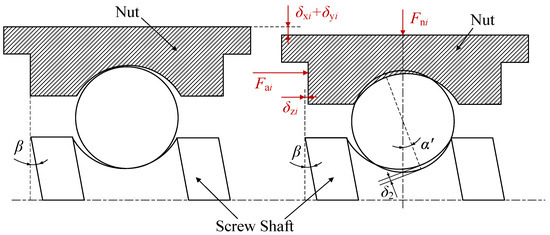

Figure 5 shows δ_ai and δ_ni after the ith ball bears the load, indicating that ball deformation caused by the relative axial and radial displacement between the nut and the screw shaft. Due to the coupling relationship between the axial displacement of the nut and the angular displacement of the screw shaft, θ_s also influences the deformation of balls. The radial direction of each ball is different, so x_s, y_s, x_n and y_n cannot be directly used to calculate ball deformation. Instead, the related parameters should be projected to the corresponding radial direction of each ball before calculation.

The solution of δ_ai is:

$${\delta }_{\mathrm{a}i}=\left({\delta }_{\mathrm{x}i}+{\delta }_{\mathrm{y}i}\right)\sin \beta +{\delta }_{\mathrm{z}i}\cos \beta$$

(20)

where δ_xi, δ_yi and δ_zi are the projections of the nut displacements in the axial direction and radial direction of the ith ball. Their solutions are as follows:

$$\{\begin{array}{l}{\delta }_{\mathrm{x}i}=\left|x_{\mathrm{n}}-x_{\mathrm{s}}\right|\sin \left({\theta }_{\mathrm{pr}}+{\omega }_{\mathrm{bs}}\mathrm{mod}\left(t,T_{\mathrm{b}}\right)+i\theta \right)\\ {\delta }_{\mathrm{y}i}=\left|y_{\mathrm{n}}-y_{\mathrm{s}}\right|\cos \left({\theta }_{\mathrm{pr}}+{\omega }_{\mathrm{bs}}\mathrm{mod}\left(t,T_{\mathrm{b}}\right)+i\theta \right)\\ {\delta }_{\mathrm{z}i}=z_{\mathrm{n}}-z_{\mathrm{s}}-\eta {\theta }_{\mathrm{s}}\end{array}$$

(21)

where θ_pr is the included angle between the beginning (or end) of the return tube and the y axis, which can be obtained with the information provided by the ball screw manufacturer; θ is the included angle between two adjacent balls; mod (t, T_b) is the remaining time (t) divided by T_b; T_b = θ/ω_bs is the period during which the balls pass through a specific point on the nut; f_b = 1/T_b is the ball passage frequency; and ω_bs is the angular velocity of the ball center rotating around the screw shaft and can be calculated as follows:

$${\omega }_{\mathrm{bs}}=\frac{1}{2}{\omega }_{\mathrm{s}}\left(1+\frac{d_{\mathrm{b}}}{d_{\mathrm{s}}}\cos \alpha \right)\cos \beta$$

(22)

where ω_s is the angular velocity of the screw shaft, d_s is the diameter of the screw shaft pitch circle and d_b is the diameter of the balls.

After calculating F_ai of the ith ball with the obtained parameters, the corresponding F_ai of each ball can be composed into the total axial elastic restoring force (F_nz).

$$F_{\mathrm{nz}}=F_{\mathrm{aex}}+F_{\mathrm{aen}}+{\displaystyle \sum _{i=1}^{N-2}{F}_{\mathrm{a}i}}$$

(23)

where F_aex and F_aen are the elastic restoring force of the ball exiting and entering the return tube, respectively [28].

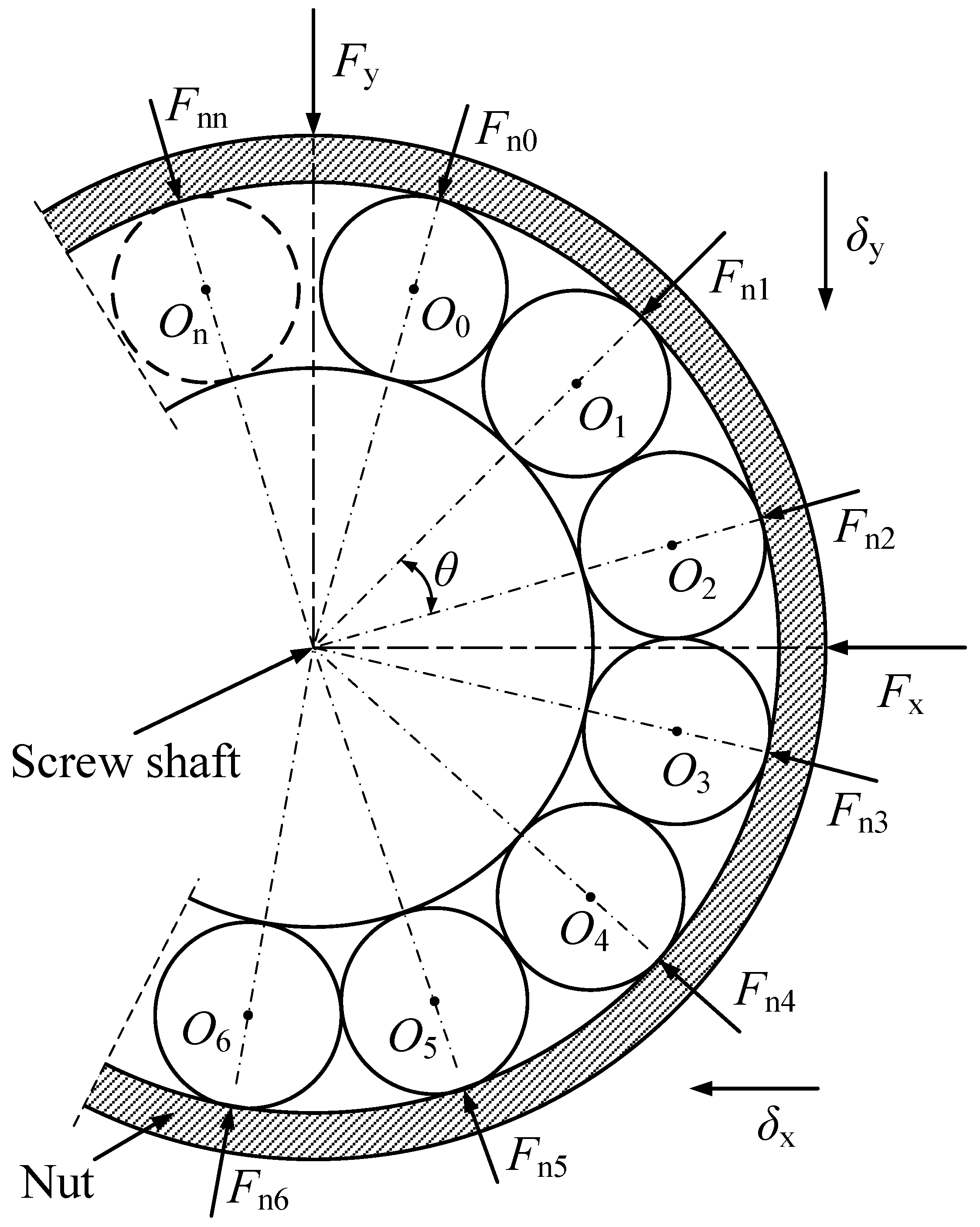

The solution for F_ni is roughly the same that for F_ai, but the direction of the forces is changed. Therefore, the sin α in Equation (18) should be changed into cos α, and Equation (18) can be revised as:

$$\{\begin{array}{l}{F}_{\mathrm{n}i}=\frac{l_{\mathrm{p}}{k}_{\mathrm{n}}\cos \alpha \cos \beta }{{\delta }_2+l_{\mathrm{p}}-{\delta }_{\mathrm{p}}}{\delta }_2{}^{3/2}\\ {\delta }_2=\sqrt{{\left(l_{\mathrm{p}}\sin \alpha +{\delta }_{\mathrm{n}i}\cos \beta \right)}^2+{\left(l_{\mathrm{p}}\cos \alpha \right)}^2}-l_{\mathrm{p}}+{\delta }_{\mathrm{p}}\end{array}$$

(24)

where δ_ni is the deformation caused by the relative radial displacement between the nut and the screw shaft when the ith ball bears the load. The solution is similar to Equation (20).

$${\delta }_{\mathrm{n}i}=\left({\delta }_{\mathrm{x}i}+{\delta }_{\mathrm{y}i}\right)\cos \beta +\left(z_{\mathrm{n}}-z_{\mathrm{s}}-\eta {\theta }_{\mathrm{s}}\right)\sin \beta$$

(25)

However, when composing the radial elastic restoring forces of each ball, it is necessary to project them to the x axis and y axis, respectively, because the F_ni direction of each ball is different, as shown in Figure 6. The solutions of F_nx and F_ny are as follows [30]:

$$F_{\mathrm{nx}}=-F_{\mathrm{nen}}\sin {\theta }_{\mathrm{pr}}+F_{\mathrm{nex}}\sin {\theta }_{\mathrm{pr}}+{\displaystyle \sum _{i=1}^{n-2}{F}_{\mathrm{n}i}\sin \left({\theta }_{\mathrm{pr}}+{\omega }_{\mathrm{bs}}\mathrm{mod}\left(t,T_{\mathrm{b}}\right)+i\theta \right)}$$

(26)

$$F_{\mathrm{ny}}=F_{\mathrm{nen}}\cos {\theta }_{\mathrm{pr}}+F_{\mathrm{nex}}\cos {\theta }_{\mathrm{pr}}+{\displaystyle \sum _{i=1}^{n-2}{F}_{\mathrm{n}i}\cos \left({\theta }_{\mathrm{pr}}+{\omega }_{\mathrm{bs}}\mathrm{mod}\left(t,T_{\mathrm{b}}\right)+i\theta \right)}$$

(27)

3. Dynamic Modeling under Faulty Conditions

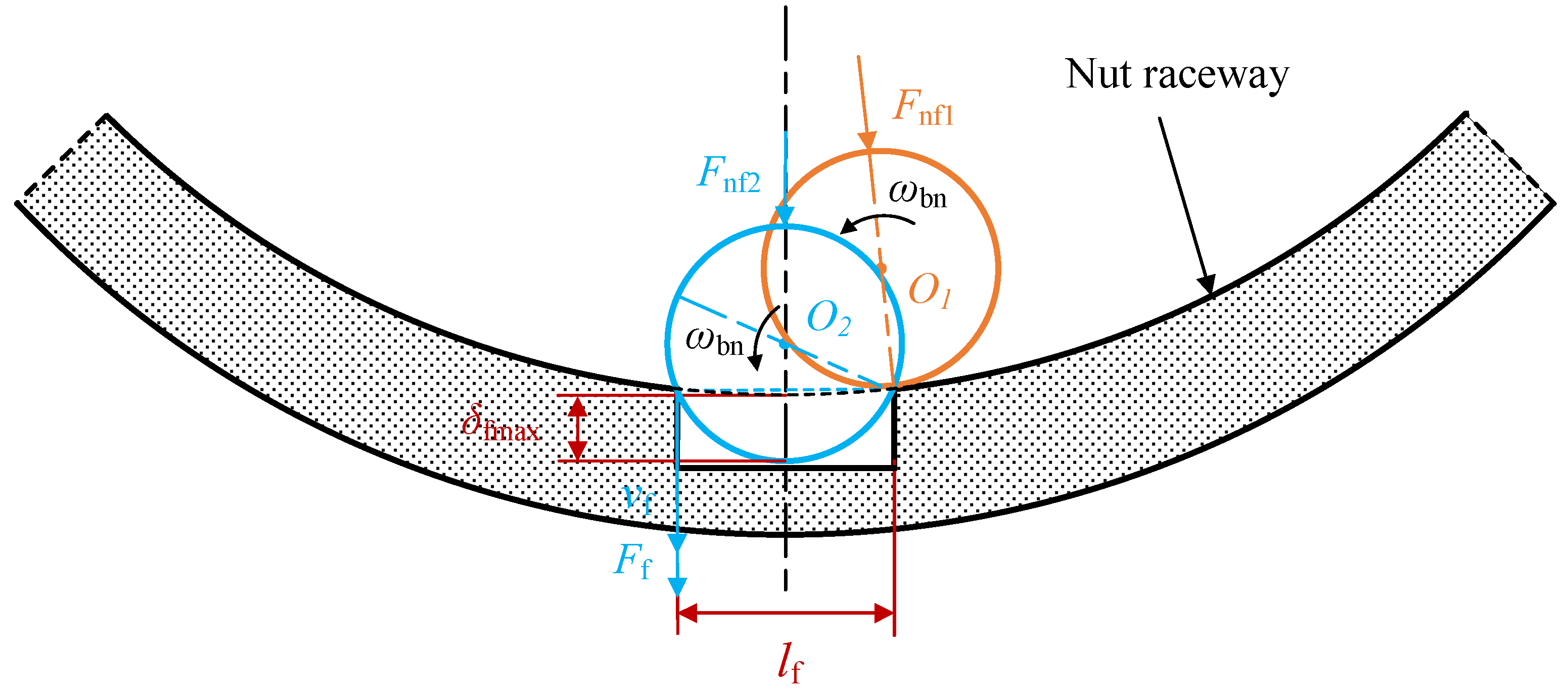

Figure 7 shows the model when a ball passes through a spall in the nut raceway. Unlike the screw shaft and the balls, the nut raceway always bears a load during the EMA system operation. Therefore, a spalling fault is more likely to occur in the raceway of the nut, which is why the nut spalling fault is investigated in this paper. When the ball reaches the front edge of the fault, the support of the subsequent nut raceway disappears, but the pressure of the screw shaft on the ball still exists. Therefore, the ball rotates around the front edge and enters the spalling fault area under the pressure of the screw shaft.

As the ball gradually enters the spalling fault area, the elastic deformation of the ball gradually releases until the ball center reaches the fault centerline and the release amount reaches its maximum [31]. When passing through the fault centerline, the ball impacts the edge of the spall due to inertia, at which point the ball center crosses the fault centerline, the ball gradually leaves the spall and the elastic deformation of the ball gradually returns to the level under normal conditions [14].

The impact force of the ball on the fault edge (F_t) can be calculated by the theorem of momentum.

$$F_{\mathrm{f}}{t}_{\mathrm{f}}=m_{\mathrm{b}}{v}_{\mathrm{f}}\cos \beta$$

(28)

where m_b is the mass of the ball, and t_f is the fault impact time. v_f = ω_bnl_f is the linear velocity of the ball during the impact, where l_f is the width of the fault crack, and ω_bn is the angular velocity of the ball rotating around a point on the nut raceway. Ismail et al. provide the corresponding relationship between ω_bn and the speed of ω_bs [4].

$${\omega }_{\mathrm{bn}}={\omega }_{\mathrm{bs}}\frac{d_{\mathrm{s}}-d_{\mathrm{b}}\cos \alpha }{d_{\mathrm{s}}+d_{\mathrm{b}}\cos \alpha }$$

(29)

Although Equation (29) is based on the assumption that there is no slipping and no deformation, because the deformation of the ball is particularly small (about 10⁻⁷ m), as shown in Section 4, and the motion of each ball inside the nut is assumed to occur by pure rolling only, the results of Equation (29) are not strongly affected and can still be used for analysis of fault characteristics.

In addition to the impact force, the elastic restoring force of the ball when passing through the crack fault also changes to a certain extent. When a ball enters the spalling fault area, the vacancy on the subsequent nut raceway reduces the elastic deformation of the ball. Assuming that the release amount of elastic deformation of the ball when passing through the spall is δ_f, when the ball is entering the fault area, δ_f gradually increases until the ball center reaches the fault centerline and δ_f reaches its maximum value.

$${\delta }_{\mathrm{fmax}}=\frac{d_{\mathrm{b}}-\sqrt{d_{\mathrm{b}}{}^2-l_{\mathrm{f}}{}^2}}{2}$$

(30)

Then, as the ball center crosses the fault centerline, δ_f gradually decreases until the ball leaves the fault area and becomes 0 again. The calculation method of the total elastic restoring force of balls under faulty conditions is similar to that under normal conditions. The only difference is that δ_ai and δ_ni have to be changed into (δ_ai − δ_f) and (δ_ni − δ_f), respectively, when calculating the elastic restoring force of the ball passing the fault. Then, the total elastic restoring force in the x, y and z directions under faulty conditions (F_nxf, F_nyf and F_nzf) can be obtained. After substituting F_nx, F_ny and F_nz in Equation (17) with F_nxf, F_nyf and F_nzf, the equations of motion under faulty conditions can be expressed as follows:

$$M\ddot{q}+C\dot{q}+Kq=F_{\mathrm{f}}$$

(31)

where F_f is the vector of external forces under faulty conditions, which can be specifically expressed as follows:

$$F_{\mathrm{f}}=\left(\begin{array}{c}\begin{array}{c}{F}_{\mathrm{sx}0}-F_{\mathrm{nxf}}\\ F_{\mathrm{nx}0}-F_{\mathrm{nxf}}\\ \left(m_{\mathrm{n}}+m_{\mathrm{s}}\right)g+F_{\mathrm{sy}0}-F_{\mathrm{nyf}}\end{array}\\ m_{\mathrm{n}}g+F_{\mathrm{ny}0}-F_{\mathrm{nyf}}\\ F_{\mathrm{sz}0}-F_{\mathrm{nzf}}\\ \begin{array}{l}{F}_{\mathrm{nz}0}-F_{\mathrm{nzf}}\\ T_{s0}-\eta F_{\mathrm{nz}}\\ T_{m0}+T_m\left(t\right)\end{array}\end{array}\right)$$

(32)

4. Simulation Results and Fault Characteristic Analysis

In order to facilitate experimental verification, we set the parameters of simulation based on the EMA test stand. The main parameters are listed in

Table 1. Main parameters of the normal/faulty simulation model.

Parameter	Value
Ball diameter, db (m)	0.003175
Diameter of the screw shaft pitch circle, ds (m)	0.025
Lead angle, β (rad)	0.063576
Contact angle, α (rad)	0.25π
Number of turns of the nut raceway, Ns	4.8
Mass of the nut, mn (kg)	0.6605
Mass of the screw shaft, ms (kg)	3.4285
Axial preload, Fp (N)	25
Width of nut spalling fault, lf (m)	0.001
Screw shaft rotating speed (rpm)	180

.

In this paper, the five-order Runge–Kutta method is used to solve the differential equations in Equations (17) and (31). Because the sampling frequency used in the experimental verification is 25.6 kHz, in order to make the simulation parameters consistent with the parameters adopted in actual experiments, the simulation step size is set to 3.90625 × 10⁻⁵ s. In the testing stage of the simulation, it is verified that such a step setting will not cause distortion of the simulation results. In order to ensure that the simulation signals contain enough screw shaft rotation cycles for subsequent analysis, the simulation time is set to 10 s. The geometric parameters, such as the ball diameter and the lead angle, are directly obtained from the manufacturer of the ball-screw pair. The damping coefficients can be calculated by the following equation [32]:

$$c=2\zeta \sqrt{km}$$

(33)

where k is the stiffness of the component. In this paper, the calculated Hertz contact stiffnesses are adopted to calculate damping coefficients. m is the mass of the component, and ζ is the damping ratio, which is generally set between 0.02 and 0.1 based on engineering experience [33]. Therefore, in the simulation of the established model, ζ is set to 0.05, and according to the simulation results, such a parameter setting is appropriate.

The preload is set to 25 N. The reason for such a low preload is that the EMA test stand used for experimental verification was not designed to bear a large external load. Therefore, the EMA test stand only operates under a particularly small or even no external load, and the data acquired on this test stand are only used to verify the method proposed in this paper. Under such circumstances, a preload as low as 25 N is enough to ensure normal operation of the test stand. In the future studies, a test stand that is closer to actual EMA systems applied in engineering practice will be built and could support further research on the dynamic behaviors of actual EMAs used in aircraft. Then, experiments with parameters that are closer to those of EMAs in practical applications can be conducted and provide improved verification of the proposed model and identified fault characteristics.

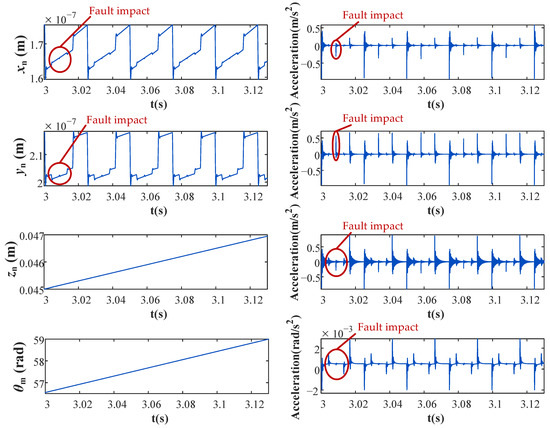

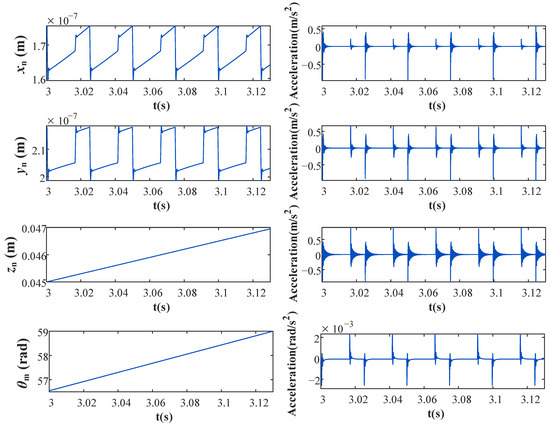

Figure 8, Figure 9, Figure 10 and Figure 11 shows the simulation results when the angular velocity of the screw shaft is 6π rad/s (180 rpm), i.e., the rotation frequency is 3 Hz.

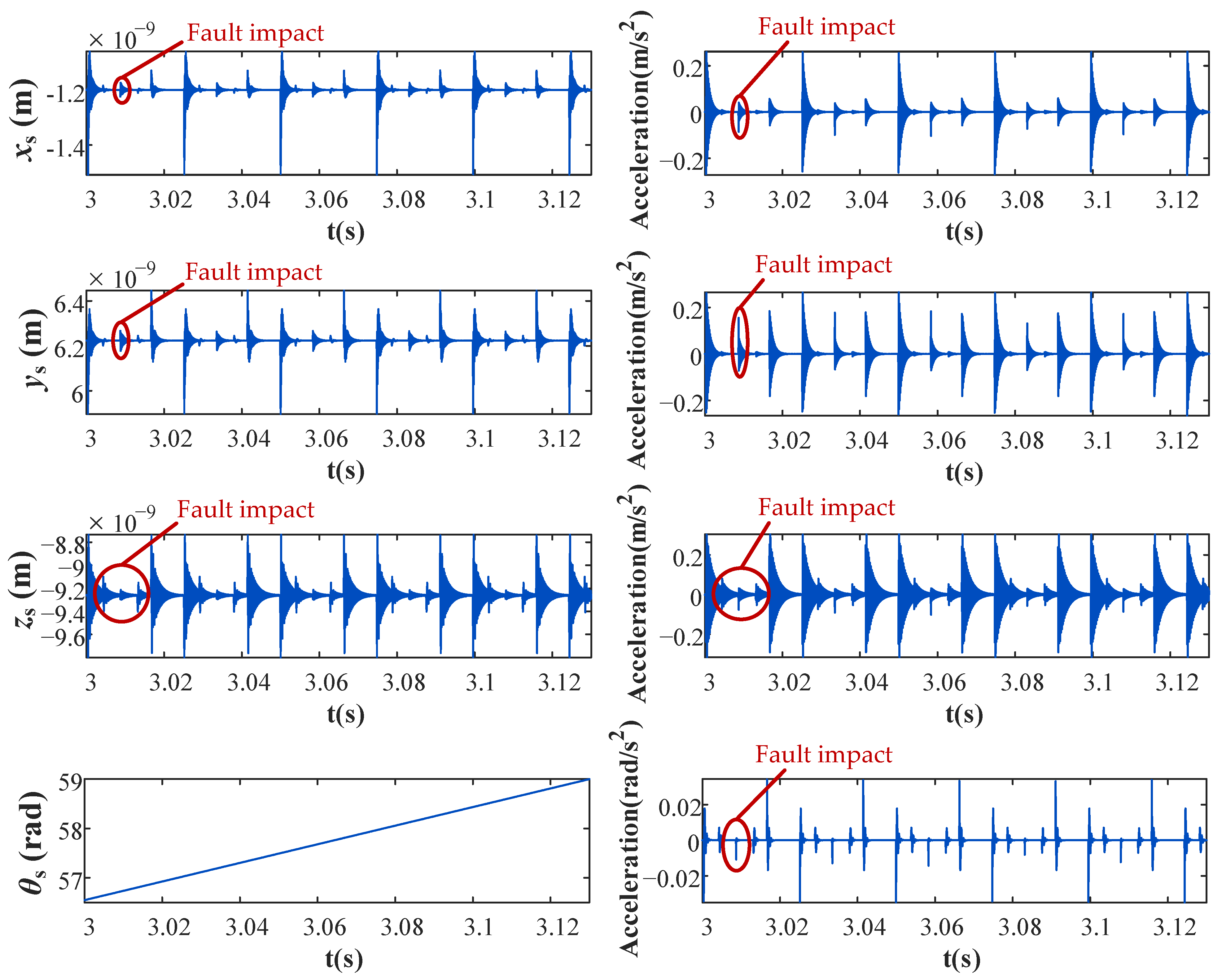

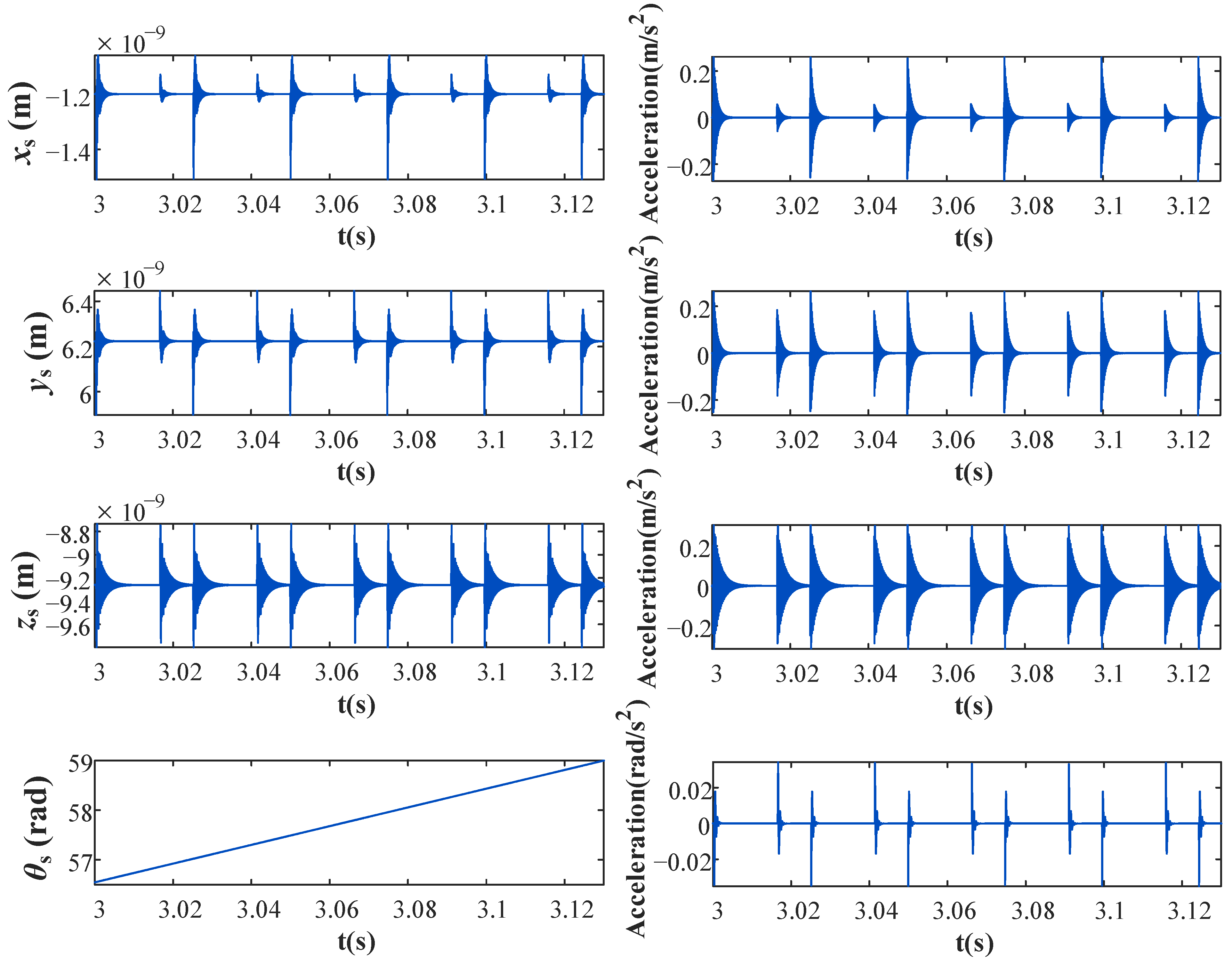

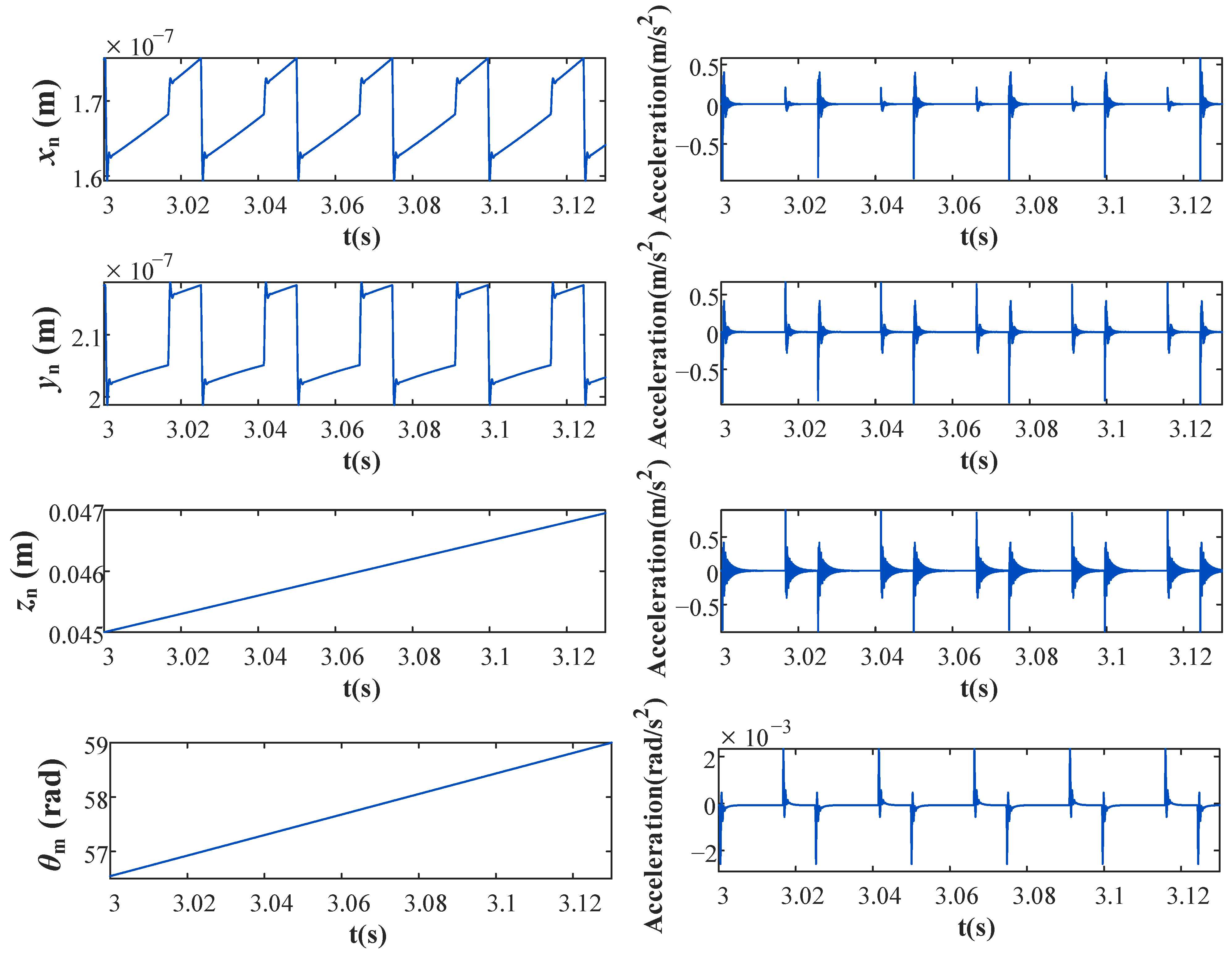

Figure 8 shows the displacement (angular displacement) response and acceleration (angular acceleration) response of the screw-shaft-related parameters (x_s, y_s, z_s and θ_s) under normal conditions. Figure 9 shows the displacement (angular displacement) response and acceleration (angular acceleration) response of the nut-related parameters (x_n, y_n and z_n), as well as the rotation of the motor output shaft (θ_m) in under normal conditions.

When the angular velocity of the screw shaft is constant, θ_s and θ_m increase linearly, and the rotation of the screw shaft drives the nut to move axially, so the axial displacement of the nut (z_n) also increases, as shown in Figure 9. However, affected by the impacts of the balls entering and exiting the return device, the value of z_n fluctuates slightly with increased rotation of the screw shaft. Because the amplitude of the fluctuation is far less than the value of z_n (at about 10⁻⁷ level), it is difficult to directly determine the impacts of balls in the displacement response of z_n, although they are much more obvious in the acceleration response.

As shown in Figure 8 and Figure 9, the impacts of the balls can be observed in the acceleration responses in the x, y and z directions. Whenever a ball exits (or enters) the raceway of the nut, the total elastic restoring force changes accordingly, and the nut displacement exhibits similar behavior to that of step responses, as shown in Figure 9. For the screw shaft, the impact generated by the balls entering and exiting the return device can be regarded as an external vibration excitation source, which generates impacts at different amplitudes but the same frequency. Then, the screw shaft exhibits forced vibration under the excitation of these impacts and the constraint of the bearings. Therefore, the displacement of the screw shaft exhibits behavior similar to that of impulse responses, as shown in Figure 8.

The displacement and acceleration responses of the system after the spalling fault is implanted into the model are shown in Figure 10 and Figure 11. Figure 10 shows that the responses of the screw-shaft-related parameters under faulty conditions are also impulse responses, similar to those under normal conditions. However, besides the two impacts of the ball entering and exiting the return device, there is another fault impact in both displacement and acceleration responses under faulty conditions. Furthermore, in the displacement and acceleration responses of the nut-related parameters, fault impacts can be more obviously identified. As shown in Figure 11, it is obvious that there is an additional fault impact between the two original impacts in the displacement responses of x_n and y_n.

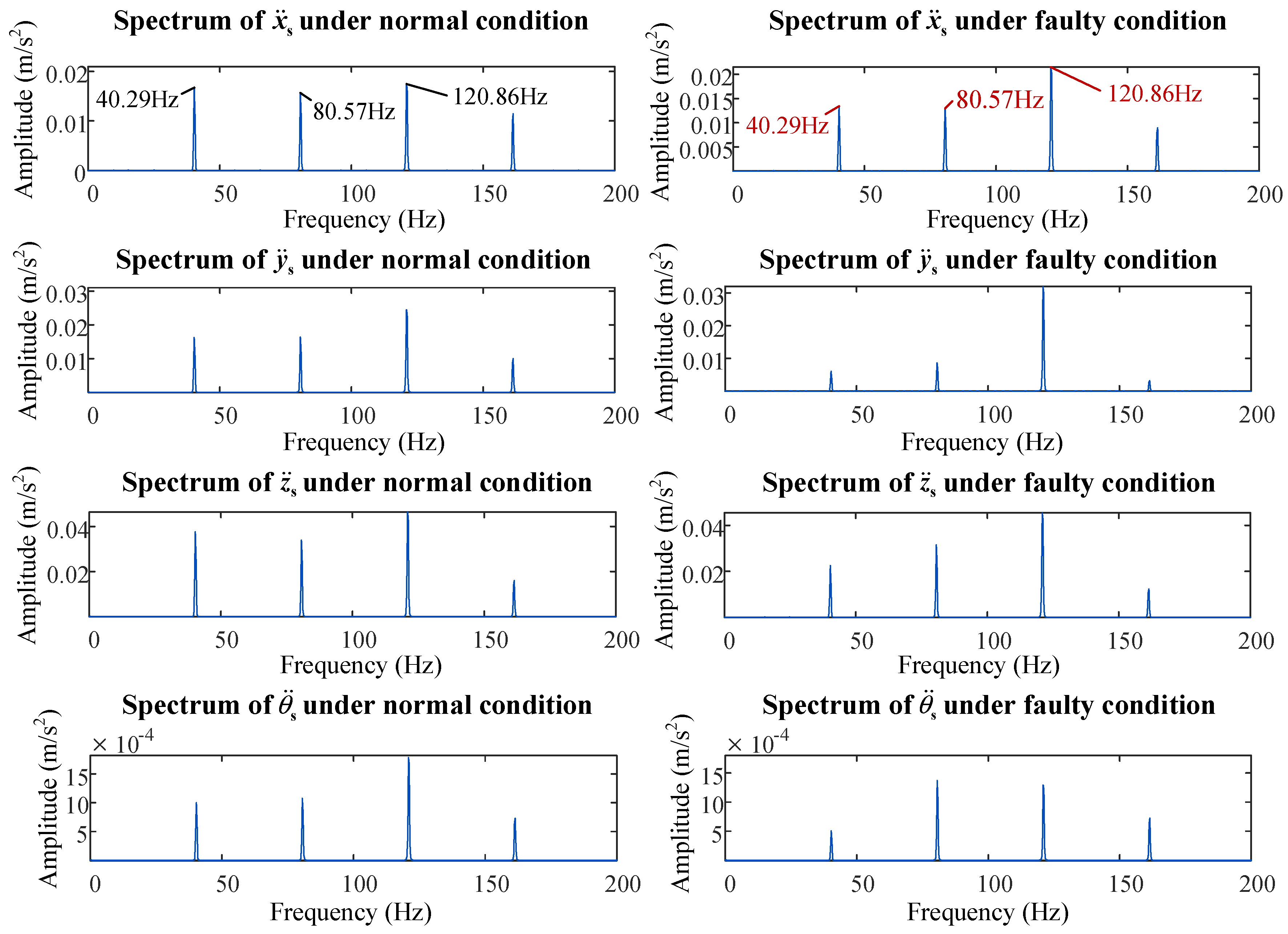

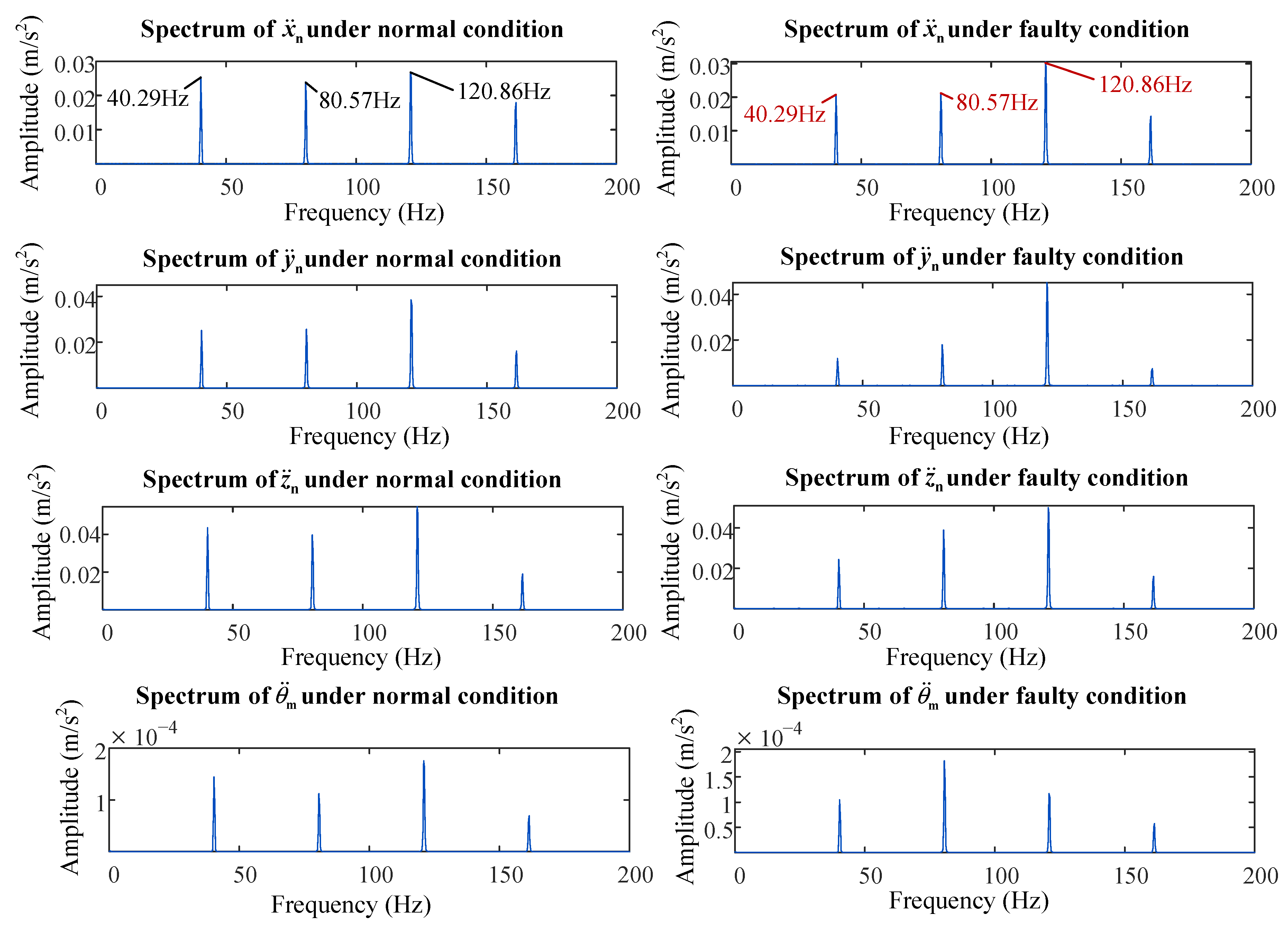

Fast Fourier transform (FFT) is then applied to the acceleration responses to acquire the frequency spectra of the normal and fault models. Figure 12 shows the acceleration spectra of the screw-shaft-related parameters under normal and fault conditions. The ball passage frequency (f_b), which is at about 40.29 Hz, can be observed in the normal frequency spectra. The harmonics of the ball passage frequency can also be found in the spectra. In the fault spectrum, the positions of f_b and each of its harmonics are roughly the same as those in the normal spectra, despite the change in amplitude. After the spalling fault occurs, the amplitude at the first and second harmonics of f_b decrease, whereas the amplitude at the third harmonic increases. This phenomenon can also be observed in the frequency spectra of nut-related parameters, as shown in Figure 13. This is because when the spalling fault occurs, the number of impacts in the same ball passage cycle changes from two to three, resulting in an increase in the amplitude at the third harmonic of f_b in the frequency spectra obtained by FFT and a decrease at the first and second harmonics of f_b.

Assuming that P_n1, P_n2 and P_n3 are the peak values of the first three harmonics of f_b in the normal spectra, P_f1, P_f2 and P_f3 are the peak values of the first three harmonics of f_b in the faulty spectra. The specific values of P_n1, P_n2, P_n3, P_f1, P_f2 and P_f3 can be obtained through the peak-detection algorithms. Based on the amplitude-increasing phenomenon described in the previous paragraph, we propose a numerical calculation method for the characteristics of nut spalling faults to describe the decrease and increase in the amplitudes of the harmonics of f_b after the spalling fault occurs.

$$FC=\frac{P_{\mathrm{n}1}-P_{\mathrm{f}1}}{P_{\mathrm{n}1}}+\frac{P_{\mathrm{n}2}-P_{\mathrm{f}2}}{P_{\mathrm{n}2}}+\frac{P_{\mathrm{f}3}-P_{\mathrm{n}3}}{P_{\mathrm{n}3}}$$

(34)

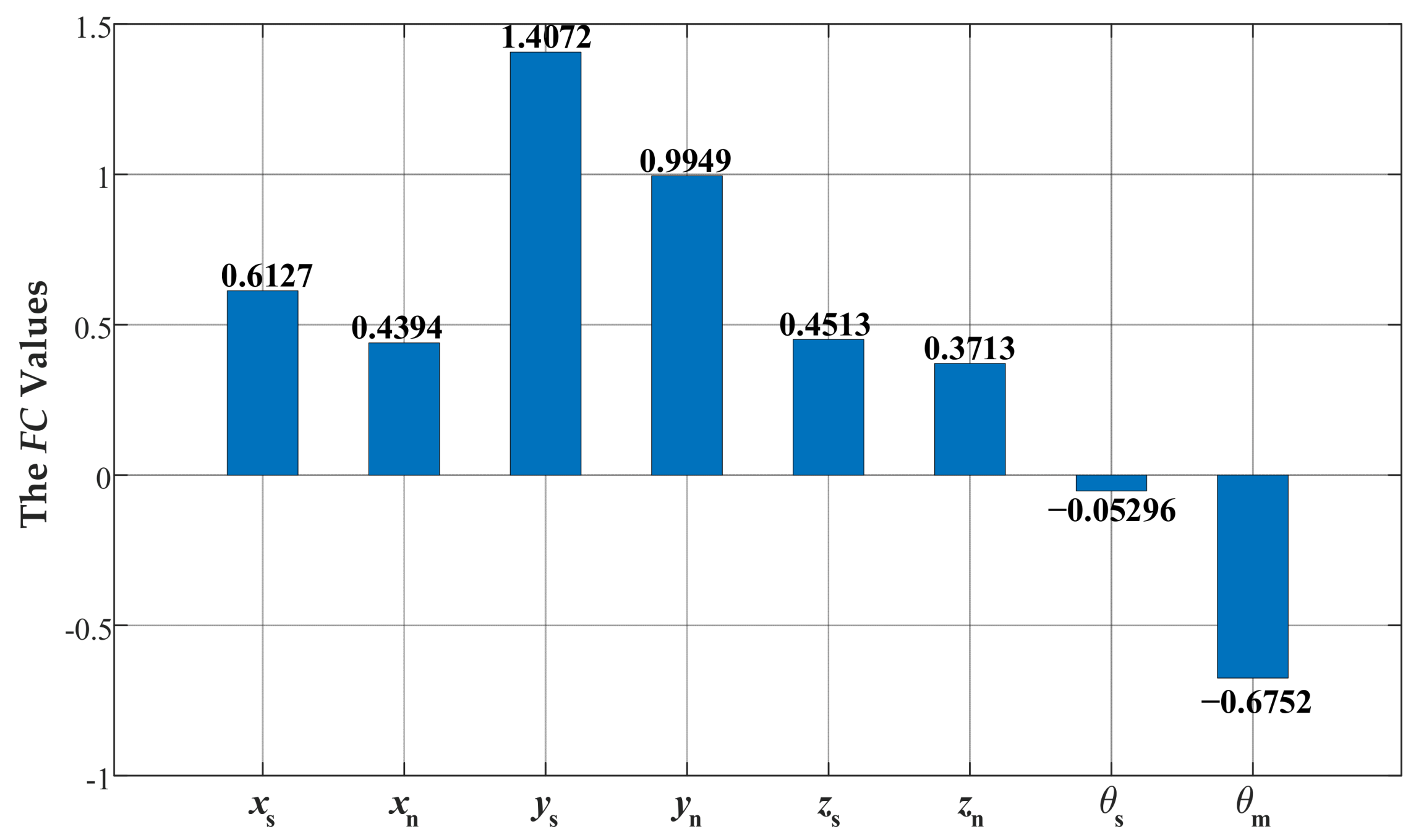

The proposed FC values of the frequency spectra of all eight parameters (x_s, y_s, z_s, θ_s, x_n, y_n, z_n and θ_m) are calculated; the results are shown in Figure 14. The FC values in the y direction of the nut and the screw shaft are the highest among all eight parameters, with values of 1.4072 and 0.9949, respectively. The FC values in the x and z directions are smaller than those in the y direction, which indicates that the spalling fault has less of an influence on the vibration in the x and z directions. However, the FC values in the torsional direction are less than 0, and the FC value of θ_m reaches −0.6752, in contrast to the fault characteristic described in this paper. This may because that the acceleration amplitudes of θ_m caused by the vibration of the screw shaft and the nut are particularly small under both normal and faulty conditions, which makes the influence of the fault on θ_m appear to be abnormal. Therefore, the FC values in the torsional direction cannot be used as the features of the nut spalling fault.

In summary, the FC values in the y direction are the most suitable to be used as a fault feature. However, this is only the result obtained under a certain rotational frequency of the screw shaft. Further exploration is necessary to obtain fault characteristics suitable for different working conditions.

5. Experimental Verification

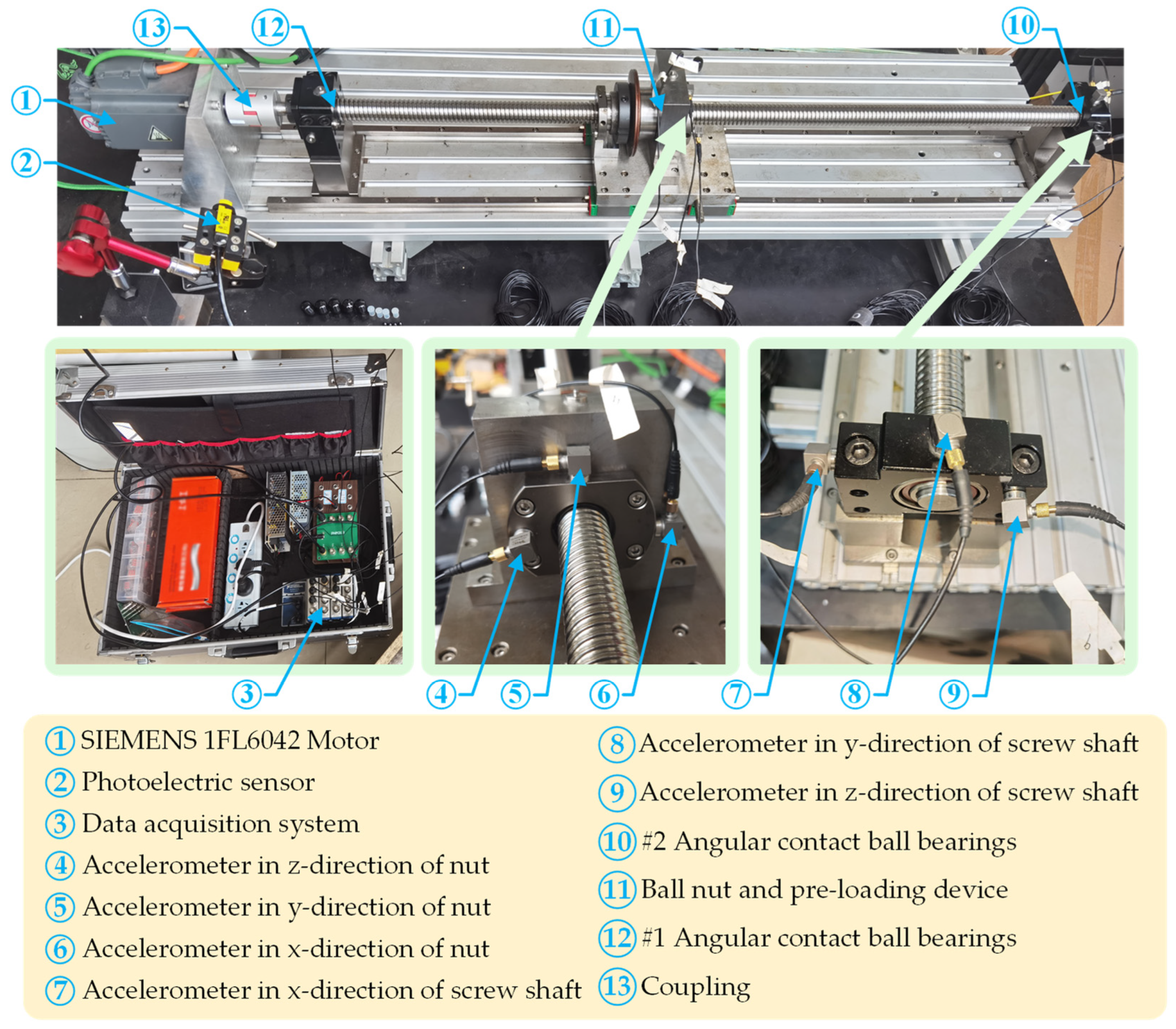

In order to further verify the accuracy and effectiveness of the models established in this paper, we use an EMA test stand built in a laboratory environment to verify the proposed dynamic models. The main components of the test stand are shown in Figure 15. The motor used in the test stand is a Siemens 1FL6042 motor, and the ball-screw pair is a TBI sfv2505 ball-screw pair. The six accelerometers used in the test stand are Yangzhou ymc-162A10T single-axial low-impedance voltage-output micro accelerometers with a range of ±500 g (g refers to the gravitational acceleration) and a sensitivity of 10 mV/g. The accelerometers are installed to measure the acceleration signals of the screw shaft and the nut in the x, y and z directions. Because it is difficult to directly measure the vibration in the torsional direction, the angular parameters in the simulation model are not verified in this paper. In addition to acquiring the vibration signals of the ball-screw pair, a photoelectric sensor is adopted in the test stand to monitor the angular velocity of the screw shaft. The acquisition equipment used in the data acquisition system comprises three NI9234 sound and vibration input modules and an NI cDAQ-9174 chassis. The sampling frequency is set to be 25.6 kHz, and the duration of measurement is 5 s.

Owing to the rotation of the screw shaft during test stand operation, it is difficult to directly obtain the vibration signal of the screw shaft. Moreover, owing to the raceway groove with a lead angle, the contour of the screw shaft changes continuously during the rotation, so it is also difficult to directly acquire the displacement signal of the screw shaft. Therefore, as an alternative, the accelerometers are installed on the base of the supporting bearings to obtain the vibration signals of the screw shaft. In order to eliminate the interference caused by motor vibration, the positions of the screw accelerometers are set on the bearing base far away from the motor output shaft, namely the base of bearing #2.

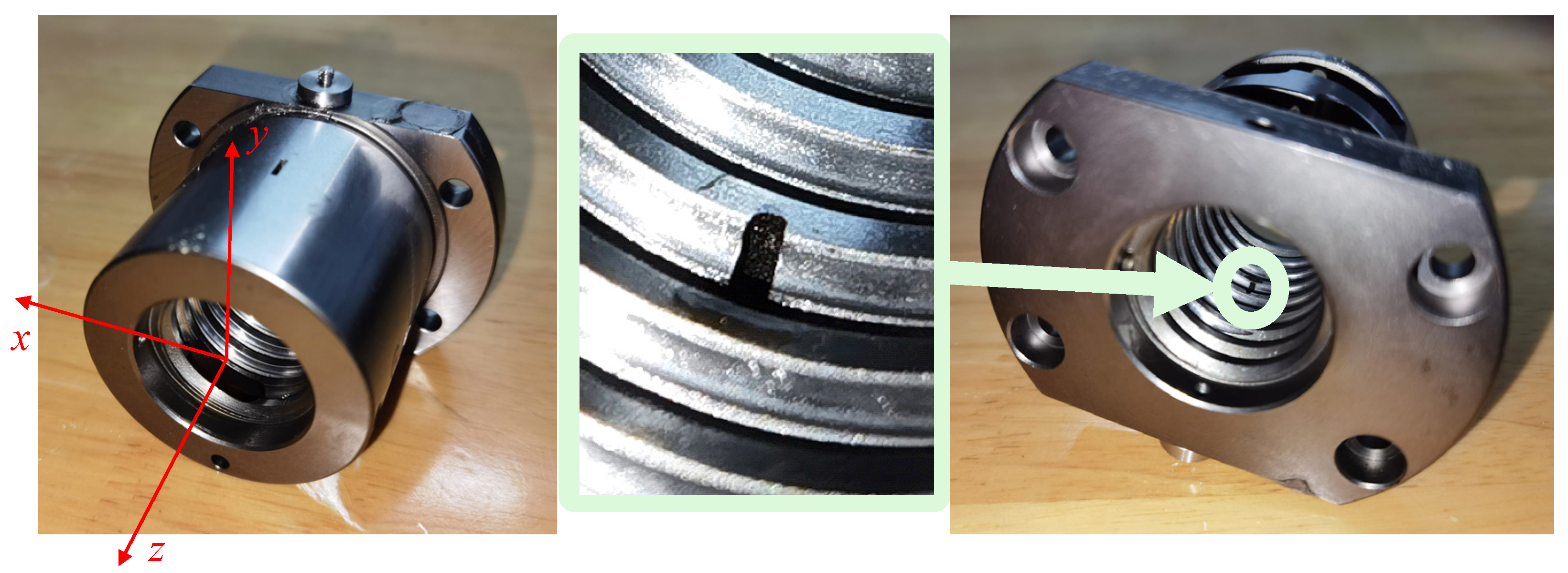

The faulty nut used in the test stand is machined from a normal sfv2505 nut. A 1 mm gap is cut in the y direction of the nut by the wire cutting method to simulate the spall generated during EMA operation. The faulty nut is shown in Figure 16.

After obtaining the acceleration signals acquired by all six accelerometers, it is necessary to denoise the original signals and highlight the fault characteristics. In this paper, we adopt the wavelet domain denoising as the denoising method, with the aim of reducing the high-frequency components in the acceleration signals and focusing on the frequency components around f_b and its harmonics. After wavelet domain denoising, the FFT is used to obtain the frequency spectrum of each acceleration signal, as shown in Figure 17 and Figure 18.

6. Discussion

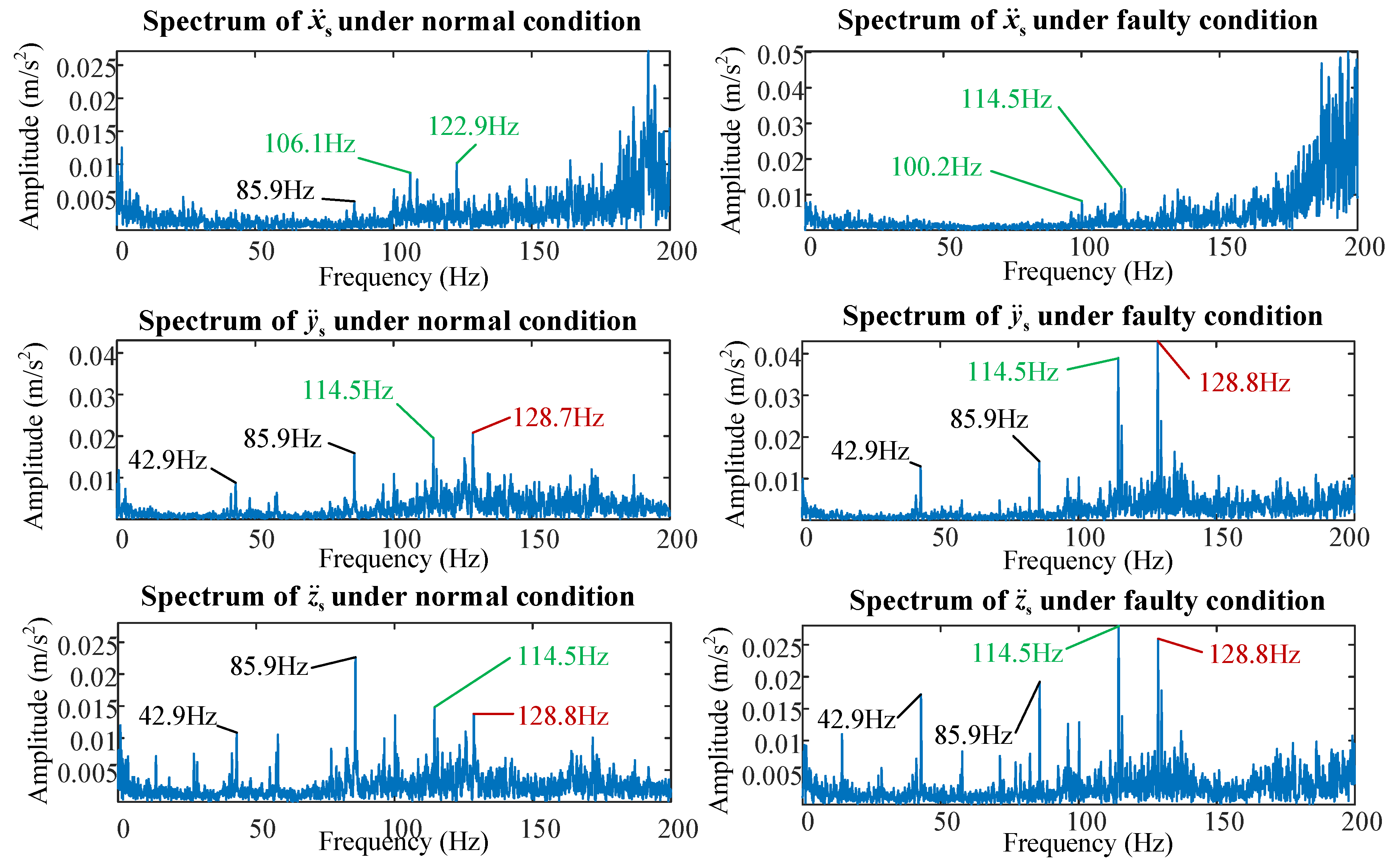

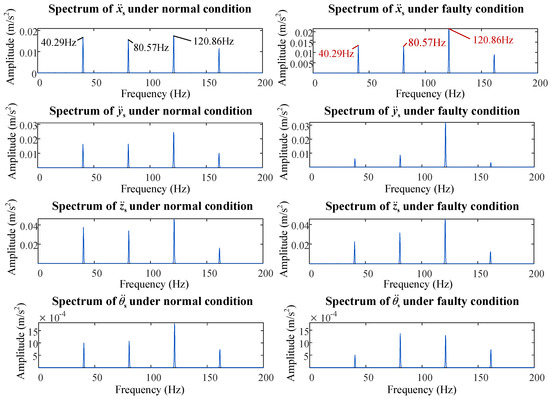

Figure 17 shows the experimental acceleration spectra of the screw-shaft-related parameters (x_s, y_s and z_s) under normal and faulty conditions. It is difficult to determine the ball-passing frequency (40.29 Hz) in the frequency spectrum in the x direction of the screw shaft. Although there are similar frequency spikes, their amplitudes are far smaller than that of the main frequency component and are almost covered up by other components. This may be caused by the lack of external load in the x direction. The screw shaft needs to drive the nut assembly in the z direction and bear the gravity of the nut assembly in the y direction. However, the screw shaft hardly bears any load in the x direction. As a result, the vibration amplitude of the screw shaft excited by the impact of the balls in the x direction is relatively small and is easily covered up by other noises. In contrast, in the normal acceleration spectra of the y and z directions, amplitude peaks can be found at 42.9 Hz, as well as near the second (85.9 Hz) and third (128.8 Hz) harmonics. Although frequency peaks at three harmonics can be observed in the experimental frequency spectra, there is still a difference between the experimental ball-passage frequency (42.9 Hz) and the simulated frequency (40.29 Hz), possibly because the output speed of the motor is not stable during EMA test stand operation.

In addition, in the faulty acceleration spectra in the y and z directions, obvious frequency spikes can be found at these three frequencies. Compared with normal conditions, the amplitudes at the first and second harmonics decrease, whereas the that at the third harmonic increases, which is also consistent with the phenomenon reported in the analysis of simulation results in this paper.

However, as shown in Figure 17, the frequency spectra of screw-shaft-related parameters also contain many frequency components that are not related to the f_b, especially around 100.2 Hz and 114.5 Hz. In some spectra, the amplitudes of these two frequencies even exceed the amplitudes of f_b and its harmonics. Owing to these interference components, it is difficult to directly use the same peak-detection algorithm as that used in the simulation analysis to extract fault features from the acquired signal of each screw-shaft-related parameter. Therefore, the proposed method should be supplemented by more advanced signal processing methods.

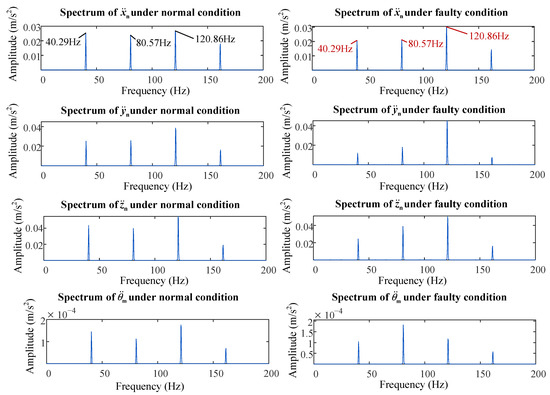

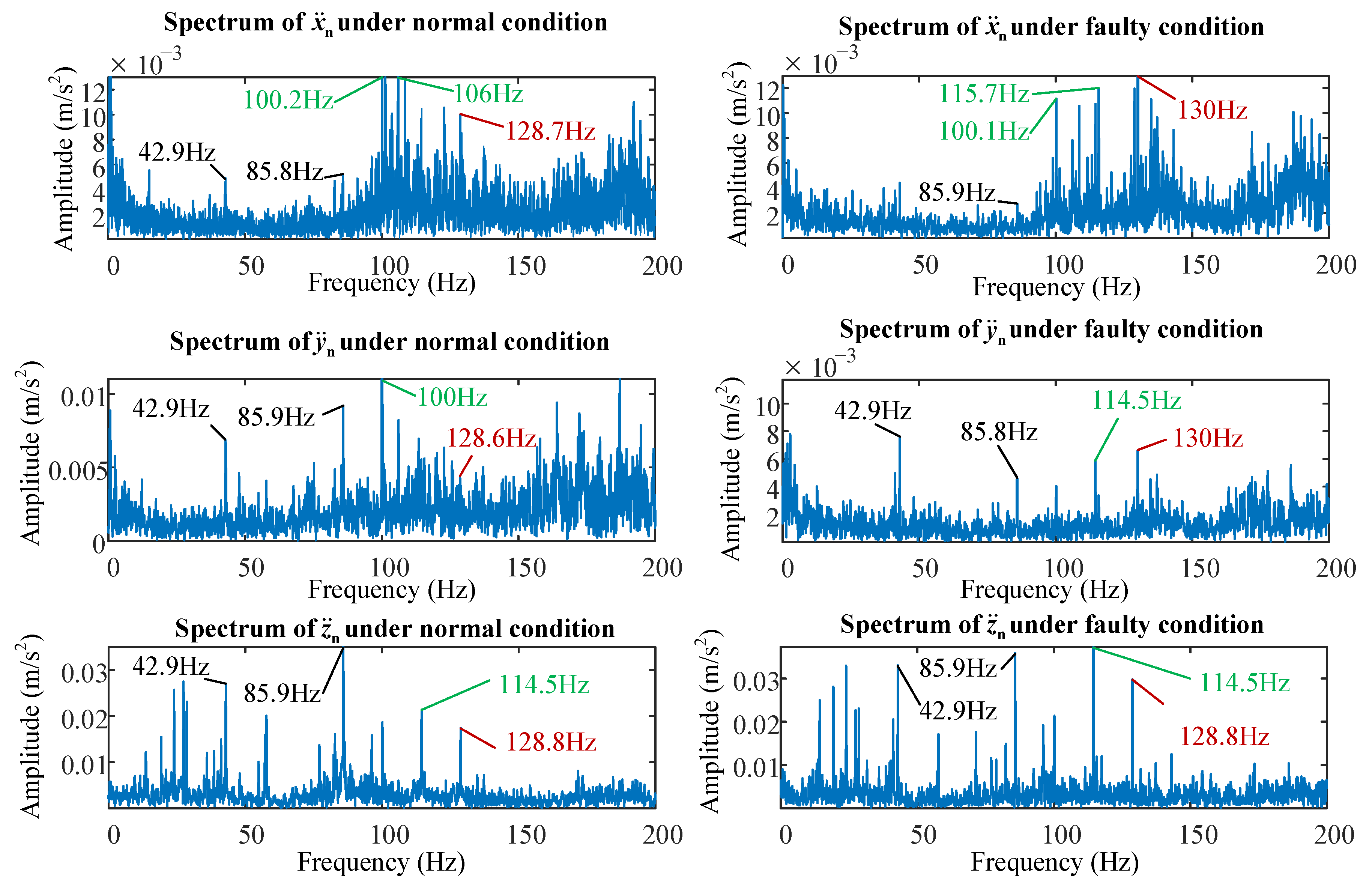

Figure 18 shows the acceleration spectra of the nut-related parameters (x_n, y_n and z_n) under normal and faulty conditions. Similar to the screw shaft acceleration spectrum, it is difficult to determine the frequency components similar to the ball passage frequency (40.29 Hz) in the spectra of x_n, which are basically covered by the interference components of approximately 100.1 Hz and 114 Hz. Although the corresponding amplitude peaks at approximately 42.9 Hz and its harmonics can be found in the frequency spectra of z_n, there are also many components that are independent of the ball-passage frequency, causing serious interference.

However, in the frequency spectra of y_n, especially in the faulty spectrum, three amplitude peaks occur at 42.9 Hz, 85.8 Hz and 130 Hz, and the peaks at 42.9 Hz and 130 Hz considerably exceed other interference components. A comparison of the faulty spectrum with the normal spectrum shows that the amplitude at the third harmonic increases obviously, whereas those at the first and second harmonics decrease. Therefore, the signals of y_n are the most suitable for extraction of fault features among all six parameters.

Then, the corresponding amplitude values are determined around f_b (42.9 Hz), 2f_b (85.9 Hz) and 3f_b (128.8 Hz or 130 Hz) in the frequency spectra of y_s, z_s, y_n and z_n, as shown in

Table 2. Amplitude values around f_b, 2f_b and 3f_b.

Spectrum	Amplitude Increase Rate (%)
	fb	2fb	3fb
ys	46.9832	−11.2515	111.486
zs	59.3389	−15.1929	88.1544
yn	10.7598	−58.4076	58.8222
zn	22.3039	−40.7564	71.6203

.

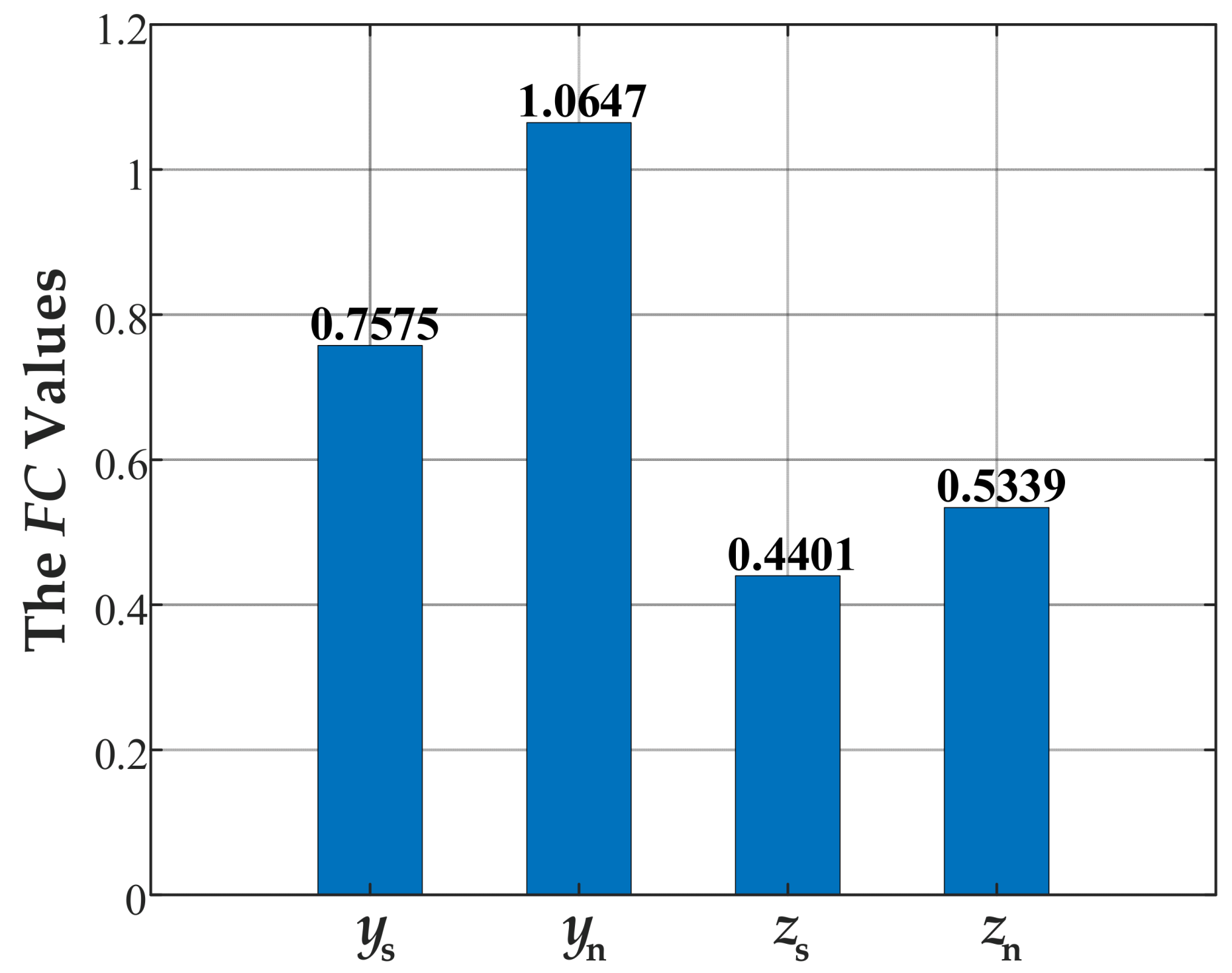

When the obtained amplitude values are input into Equation (34), the fault characteristic FC values of the four parameters can be obtained, as shown in Figure 19. The FC values in the y direction are higher than those in the z direction, which indicates that the nut spalling fault has a stronger influence on the y direction than the z direction. This verifies the amplitude-increasing phenomenon observed in the simulation analysis to a certain extent. However, there are still some differences between the experimental values of FC and the simulated values of FC, especially the FC values of y_s. This is because the vibration of the screw shaft is not directly acquired by the accelerometers, and the influence of the nut spalling fault is reduced by the supporting bearings. Therefore, in order to ensure more accurate and stable fault features for the subsequent fault diagnosis or prognosis work, further exploration is necessary with respect to a numerical calculation method for nut spalling fault characteristics.

7. Conclusions

With the help of the Lagrangian energy method, an eight-DOF dynamic model containing typical mechanical components of an EMAs is established in this paper. By obtaining the impact force and the relationship between the total elastic restoring forces and the change in ball deformation when a spall occurs in the raceway of the nut, a faulty dynamic model of an EMA mechanical transmission is established. In the analysis of the simulation results of the established models, the dynamic behaviors of the ball-screw pair in the EMA system are described in detail, and the coupling effect of the displacements and accelerations in the axial and torsional direction is reflected. After further exploration under different working conditions, the established dynamic models of an EMA mechanical transmission can serve as a reference for establishing physical models of EMA systems or generating available data for the data-driven fault diagnosis of EMA systems.

According to a comparison of the amplitudes of the simulated accelerations of the normal and faulty models, the acceleration amplitude at the third harmonic of the ball passage frequency increases, whereas the amplitudes at the first and second harmonics decrease in the faulty model. A fault indicator of nut spalling is proposed based on this phenomenon. Then, the FC values of all eight parameters are calculated, and it is concluded that the parameters in the radial direction have the highest FC values and are suitable for extracting fault features. Although restricted by numerous assumptions adopted for dynamic modeling, the analysis of the simulation results in this paper can still provide a new feature extraction method for EMA fault diagnosis and inform the installation of the accelerometers in EMA systems.

The effectiveness of the established eight-DOF dynamic models and the identified phenomenon is verified by experiments conducted on an EMA test stand in a laboratory environment. However, there is still considerable noise interference in the acquired signals, as well as certain errors between the simulation and experiment results of the ball passage frequency and FC values. Therefore, in subsequent research, the influence of the motor will be considered to further improve the accuracy of the established model and the proposed FC calculation method. Furthermore, additional signal processing methods are needed to realize engineering applications in actual EMA systems. Moreover, a test stand using actual aircraft EMAs will be built to ensure experimental results that are closer to practical aviation applications.
