2. Introduction
Phospholipids have been shown to be necessary for enveloped viruses to promote infection. Phosphatidylserine (PS) is used as a receptor by different viruses [
1,
2]. Recently, it was shown that PS exposure on cell surface occurs shortly after equid herpesvirus type 1 (EHV-1) contacts the cell [
3]. Similar findings for another alphaherpesvirus, herpes simplex virus type 1 (HSV-1), were reported [
4]. Exogenous PS and the anionic lipid phosphatidylglycerol facilitate cell-to-cell fusion of cells expressing human immunodeficiency virus 1 (HIV-1) proteins. This led to the conclusion that specific interactions can occur between virus particles and cellular phospholipids [
5]. Here, we investigated the role of PS as well as other phospholipids during virus infection. Furthermore, we assessed the specificity of the interaction between EHV-1 and differentially charged phospholipids. To this end, we used small unilamellar vesicles (SUV) composed of exogenous lipids that have different charges: (i) negatively charged PS, (ii) positively charged DOTAP (N-[1-(2,3-Dioleoyloxy)propyl]-N,N,N-trimethylammonium), or (iii) neutral phosphatidylcholine (PC). We investigated the interaction between virus particles and the different phospholipids by means of surface plasmon resonance (SPR) and visualized virus interaction with giant unilamellar vesicles (GUV) or large unilamellar vesicles (LUV) via confocal microscopy.
4. Discussion

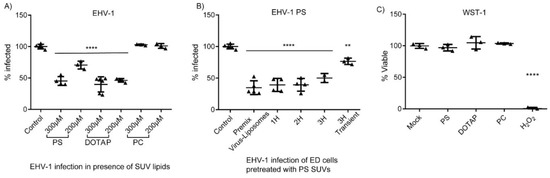

We report here that PS and DOTAP inhibit the infection of ED cells by EHV-1. The inhibition is immediate, reversible, and dose-dependent. Previously, we showed that EHV-1 facilitates scramblase-dependent exposure of PS on the outer leaflet of the plasma membrane, suggesting that there is a specific, yet unknown, role for PS in fusion with the plasma membrane [
3]. Thus, we surmised that integration of external PS would promote fusion and enhance the infection process [
5]. Contrary to our expectations, we found that EHV-1 infection was reduced in the presence of PS.
The hypothesis that PS liposomes are blocking the infection after integration into the plasma membrane of the target cell, as was described for HIV before [
5], was not supported by our data, because (i) there was no significant change in virus inhibition with increase in duration of incubation times, (ii) significant inhibition was observed immediately after addition (0 h time point), and (iii) removal of PS liposomes prior to infection rescued virus infection. From our results we concluded that the mechanism of virus entry, although appearing similar, is distinct between HIV and herpesviruses.
Higher concentration of PS resulted in more pronounced reduction of infection. EHV-1 induces localized PS exposure during the early stages of infection [
3] and, presumably, viral particles have the capacity to bind to PS to facilitate membrane fusion. Possibly, addition of external PS may transiently bind to the viral particles and thus reduce infectivity. When media containing PS was removed, cells regained susceptibility to infection independently of previous exposure to PS. We surmise that free PS liposomes in media are interfering specifically with the process of virus–cell interaction (binding) with EHV-1. It is likely that EHV-1 envelope glycoproteins, like those of other viruses, feature a phospholipid (PS)-binding domain that enables virus binding to different phospholipids of the plasma membrane to facilitate entry [
3,
6,
7]. Addition of exogenous PS can interact with herpesviral glycoproteins, particularly gH/gL and gB, and block virus entry as was described for other viruses [
6]. On the other hand, it is possible that PS is redistributing the charges on the cell surface in a fashion that makes the initial contact between virus particles and cell surface proteoglycans containing heparan sulfate less likely, thus reducing the probability of virus entry. However, the exact mechanism of how PS is blocking the infection needs to be investigated.

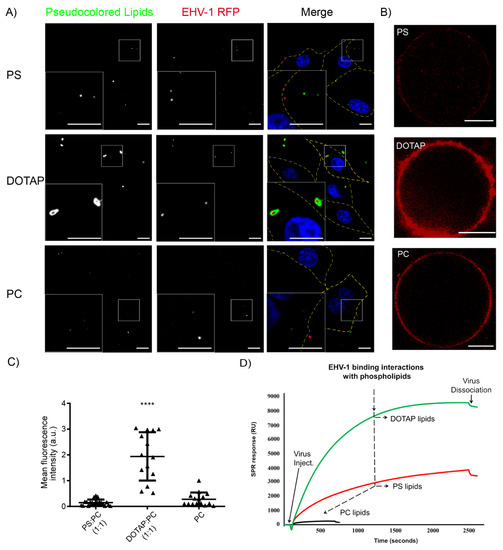

Our confocal microscopy and SPR data both confirmed that PS interacts with EHV-1. Although the microscopy data did not show strong interaction between PS and virus particles, the SPR data indicated a stronger interaction as compared to neutral liposomes (PC). It became clear in our study that SPR analysis is more sensitive than microscopic examination. It can detect binding of small amounts of phospholipids from exosomes, cell debris, or other impurities from the virus purification process that could interact with virus particles, but remain undetected by confocal microscopy. This approach is complementary to confocal microscopy, which is more specific since it relies on labeled viral and lipid particles.
Our data provides evidence of virus interaction with DOTAP, as is the case with PS. Both the SPR and confocal microscopy results showed that interaction of EHV-1 with the cationic DOTAP is stronger than that with PS, whereas there is no interaction with PC. Positively charged DOTAP also had an inhibitory effect on EHV-1 infection. However, unlike in the case of PS lipids, the strong interaction between DOTAP and virus particles (
Figure 2) can be explained by the negative charge of the virus particle that can attract cationic DOTAP vesicles. The strong liposome–virus interaction in turn leads to a reduction of infection through preventing virus from interacting with its cognate cellular receptors. The electrostatic interaction (of DOTAP with EHV-1) is in-line with the data describing that herpesviruses possess a negative overall charge [
8], probably due to anionic lipids present in the envelope and to the protein’s net charges and glycans, which carry charged carboxy- or sulfate groups. Zwitterionic lipid PC, on the other hand, showed no binding with EHV-1, and had no effect on infection.
Strong inhibitory effect of DOTAP and PS that was observed in vitro, could point further investigation into the biophysical interaction between virus and the cell and would improve our understanding of the infection process. Furthermore, as phospholipids are important for the entry of several viruses, they might have a great potential as antiviral agents.
5. Materials and Methods
5.1. Viruses and Cells
Equid herpesvirus type 1 strain RacL11 EHV-1-RFP [
9] with a red fluorescent protein (RFP) fused to the small capsid protein VP26 [
3] was used in this study. The virus further expresses the enhanced green fluorescent protein (eGFP) for efficient identification of infected cells. The virus was grown on primary equine dermal (ED) cells (CCLV-RIE 1222, Federal Research Institute for Animal Health, Germany) as described before [
3]. The cells were propagated in Isocove’s Liquid Medium with stable glutamine (Pan-Biotech GmbH) supplemented with 20% fetal calf serum (Pan-Biotech GmbH), 0.5% penicillin (Roth), 0.5% streptomycin (Alfa Aesar), 1% sodium pyruvate 100 mM (Pan-Biotech GmbH), and 1% nonessential amino acids (Merck KGaA). For microscopy experiments, virus was purified by ultracentrifugation over a 30% sucrose solution followed by sucrose step gradient ultracentrifugation exactly as described before [
10].
5.2. Phospholipids
Phosphatidylserine (PS; 1,2-dioleoyl-sn-glycero-3-phospho-L-serine; number: 840035), phosphatidylcholine (PC; 1,2-dioleoyl-sn-glycero-3- phosphocholine; number: 850375), and DOTAP (1,2-dioleoyl-3-trimethylammonium-propane; number: 890890) were purchased from Avanti Polar Lipids, USA. Multilamellar vesicles (MLVs) were prepared at concentration of 1 mM. Lipid stock was dissolved in ultrapure chloroform (Sigma Aldrich, Germany) in a glass vial. The solvent was evaporated under gentle flow of nitrogen and lipids were kept in a desiccator with calcium chloride overnight. The dry lipid film was resuspended in phosphate-buffered saline (PBS) with at least 2 h of shaking at 200 rpm at room temperature. The resulting opaque 1 mM MLV solution was stored at –80 °C. Large unilamellar vesicles (LUVs) were generated via extrusion through a polycarbonate membrane with 0.1 μm pore size. The extruder setup consisted of two syringes and the extruder itself, all held together by a holding block (Avanti Polar Lipids, USA). Extrusion was performed at a constant temperature of 37 °C, and LUVs were stored at 4 °C for up to 3 days. The mixture of MLVs was passed through the membrane 31 times to ensure homogeneous LUV size. Small unilamellar vesicles (SUVs) were produced through ultrasonication of MLVs in 1.5 mL tubes at room temperature, with ultrasonic frequency: 35 kHz, ultrasonic peak output: 320 W, in a Sonorex Super RK100 (Bandelin, Germany). Ultrasonication was carried out in two 15-min steps, with vortexing in between. SUVs and LUVs used throughout this study were composed of either 100 mol% PS, 100 mol% PC, or 1:1 DOTAP:PC. All SUVs and LUVs were labeled via addition of DHPE, Oregon Green™ 488 (1,2-Dihexadecanoyl-sn-Glycero-3-Phosphoethanolamine, Thermo Fisher Scientific, USA-IL, Rockfeld) and 18:0 Cy5.5 PE1,2-distearoyl-sn-glycero-3-phosphoethanolamine-N-(Cyanine 5.5) (Avanti Polar Lipids, USA). During the preparation process, a final concentration of 0.01 to 0.05 mol% was used for both fluorescent lipids. All lipid preparations were tested for their possible cytotoxic effects on cells using WST-1 cell proliferation assay kit (Cayman chemical, USA) [
11,
12].
Giant unilamellar vesicles (GUVs) were produced through electroformation [
13]. Briefly, a lipid solution in organic solvent with the desired lipid components was dried on indium tin oxide (ITO) coated glass slides. After evaporation of the solvent, a swelling solution of 150 mM sucrose was carefully added. The two ITO slides were separated by a 3-mm thick Teflon spacer. An alternating current (AC) with a 10 Hz sine wave, and electric potential difference of 0.5 V, was applied for the first 30 min, following by 1.0 V for 30 min and 1.6 V for 30 min. The resulting GUVs were assessed via confocal microscopy. In order to increase the yield of the electroformation process, PS-containing GUVs were prepared with a composition of 1:1 PS:PC (rather than 100% PS, as used for SUVs or LUVs).
5.3. Flow Cytometry
Approximately 30,000 cells were treated with freshly prepared SUVs of the appropriate lipids (PS, PC, or DOTAP:PC 1:1; 300 µM), and incubated for different periods (0, 1, 2, and 3 h) at 37 °C and 5% CO2. Afterwards, cells were infected in the presence of SUVs with EHV-1 at a multiplicity of infection (MOI) of 0.1. At the 0 time point (Premix Virus-Liposomes), lipids were mixed with viruses and immediately added to the cells. Mock-treated cells (i.e. cells without addition of lipids) were infected with EHV-1 and used as positive controls. In another experiment, cells were incubated with different concentrations, 200 µM or 300 µM, of lipids (PS, PC, or DOTAP:PC 1:1) for 3 h before infection with EHV-1 (MOI = 0.1). Twenty-four hours post infection, 10,000 cells were analyzed using CytoFLEX S (Beckman Coulter, Germany). The subset of GFP positive cells among viable population was considered infected. The percent of GFP-positive cells in the mock-treated group was set to 100%.
5.4. Surface Plasmon Resonance
This experiment was performed on a SPR GE Biacore J Biomolecular Interaction Analyser instrument (Uppsala, Sweden) using a lipid-coated HPP sensor chip (XanTec bioanalytics GmbH) prepared according to the protocol provided by the chip vendor. All solutions were freshly prepared, degassed, and filtered through 0.22 μm-pore filters and measurements were performed at 24 °C in PBS (pH 7.4). Prior to use, the surface of the HPP chip was cleaned by an injection of the nonionic detergent
N-octyl β-d-glucopyranoside (100 μL, 40 mM) at low flow setting. PS (100 mol%), PC (100 mol%), and DOTAP (100 mol%) liposomes (1 mM) were injected as required over the surface of the HHP sensor chip for 60 min. Note that DOTAP and PS liposomes did not contain PC, for all SPR experiments, in order to avoid uncertainties regarding the actual final composition of the lipid monolayer. One of the two available chip channels (flow cells) was incubated in all experiment with PS vesicles. The second channel was treated with either PC or DOTAP vesicles. Then, NaOH (200 μL, 20 mM) was injected several times until producing a stable baseline with a signal ranging from 2500 to 3200 resonance units (RU), compatible with the presence of a stable lipid monolayer in both channels. EHV-1 was injected simultaneously over the lipid monolayers in both channels and virus binding was monitored for up to 40 min, to provide sufficient time for the association phase to reach saturation equilibrium levels (R
eq) [
14]. The dissociation phase was monitored for 5 min. Each lipid composition was analyzed in independent duplicates (n = 2 for DOTAP and PC, n = 4 for PS).
5.5. Microscopy
Confocal laser scanning microscopy was conducted with Nikon Eclipse Ti Visitron microscope (Visitron Systems GmbH, Germany) to visualize the colocalization of LUVs with RFP-labeled viruses. A 100× oil immersion objective was used in combination with an EMCCD camera and the VisiVIEW imaging software (Visitron Systems GmbH, Germany). Twenty-four hours before the experiment, 2000 ED cells were plated in a µ-Slide 8-well (ibidi, USA). On the day of experiment, cells were incubated with a mixture of EHV-1-RFP (MOI of 5) and fluorescently labeled LUVs of PS, PC, or DOTAP:PC 1:1 (300 µM) for 1 h on ice. Cells were fixed with 4% paraformaldehyde (PFA), visualized under the microscope, and virus particles (RFP-labeled) were counted as colocalized if the visible portion of the point spread function of the signals were overlapping. The experiment was conducted blindly three independent times.
GUVs were observed with a Zeiss LSM780 system (Carl Zeiss, Oberkochen, Germany) using a 40×, 1.2 numerical aperture water-immersion objective. A fresh suspension of GUVs (either PS:PC 1:1, PC, or DOTAP:PC 1:1) was released from the ITO slide and transferred to imaging chambers. EHV-1-RFP virus was added to allow the interaction with the GUVs. The mixture was incubated at room temperature for at least 20 min prior to imaging. Mean fluorescence intensities values corresponding to the EHV-1-RFP bound to the GUVs membrane were quantified using Zen Black Software (Carl Zeiss). The analyzed regions were selected manually by drawing two concentric circles delimiting the GUV membrane.
5.6. Statistical Analysis
Experiments were performed in triplicate, unless specified otherwise. Image analysis was performed in a blinded fashion. One-way ANOVA was performed using GraphPad Prism (GraphPad Software, San Diego, CA, USA). The mean of each treatment groups was compared to the mean of the control group. The Dunnet’s test was used to correct for multiple comparisons. Fisher’s exact test was used to compare colocalization of virus particles with DOTAP compared to PS. Values of p < 0.05 are considered significant.
