Article

Comparative Study of a Novel Lateral Flow Rapid Test with Conventional Serological Test Systems for the Diagnosis of Canine Leishmaniosis in Croatia and Brazil

1
Institute of Medical Microbiology and Hospital Hygiene, Phillips University of Marburg, 35043 Marburg, Germany
2
Faculty of Veterinary Medicine, University of Zagreb, HR-1000 Zagreb, Croatia
3
Department of Parasitology, Microbiology and Immunology, Federal University of Juiz de Fora, Juiz de Fora 36036-900, MG, Brazil
4
School of Pharmacy, Federal University of Ouro Preto, Ouro Preto 35400-000, MG, Brazil
5
Gold Standard Diagnostics Frankfurt (GSD Frankfurt), 63128 Dietzenbach, Germany
6
Gold Standard Diagnostics Madrid S.A. (GSD Madrid), 28037 Madrid, Spain
7
Department of Clinical Laboratory Science, College of Applied Medical Sciences, Imam Abdulrahman Bin Faisal University, Dammam 34212, Saudi Arabia
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Pathogens 2024, 13(2), 109; https://doi.org/10.3390/pathogens13020109
Submission received: 30 November 2023 / Revised: 20 December 2023 / Accepted: 27 December 2023 / Published: 26 January 2024

Abstract

:
Control of canine infections with Leishmania infantum (L. infantum), a major zoonotic disease in Brazil and southern Europe, is becoming increasingly important due to its close proximity to humans, the increasing import of dogs from endemic regions and the impact of climate change on vector spreading. Simple, rapid and reliable diagnostic tests are therefore needed to detect infected dogs. Here, we re-evaluated different serological methods for the diagnosis of canine leishmaniosis (CanL) in Croatia and Brazil. The diagnostic performance of the indirect fluorescent antibody test (IFAT) and the VetLine® Leishmania ELISA (GSD Frankfurt, Germany) was compared with three rKLi8.3-based diagnostic test systems, the rKLi8.3 ELISA (GSD Frankfurt, Germany), the INgezim® Leishma CROM (GSD Madrid, Spain) lateral flow test (LFT) and the VetBlot® Leishmania LineBlot (GSD Frankfurt, Germany). CanL symptomatic dogs were efficiently diagnosed by all tests, except the VetLine® Leishmania ELISA, which is based on whole Leishmania antigens. The advantage of rKLi8.3 was also observed in oligo- and asymptomatic dogs from Brazil and Croatia, although with reduced diagnostic efficiency compared to symptomatic dogs. Similar to IFAT and rKLi8.3 ELISA, the LFT did not cross-react with other common canine pathogens; it showed very high specificity for healthy dogs from endemic regions in both countries and did not react with healthy, vaccinated dogs in Brazil. In conclusion, serodiagnostic tests based on the rKLi8.3 antigens are superior to whole parasite antigens, and the LFT has the advantage of providing a laboratory-independent, rapid and specific diagnosis of CanL.

1. Introduction

Leishmanioses are diseases caused by protozoan flagellate parasites of the genus Leishmania. Some of them are causative agents of disease in humans, dogs, cats, horses, rodents, etc., but most of them, 20 out of 30 species are zoonotic [1]. The life cycle of Leishmania parasites is dixenous, i.e., it includes the vertebrate—and arthropod—host although they may be transmitted directly from the vertebrate host without the arthropod vector [2,3,4,5].
In vertebrates, Leishmania sp. parasitizes intracellularly in mononuclear phagocytes as amastigote forms while in the biological vector, e.g., sandflies of the genera Phlebotomus and Lutzomyia, they live extracellularly as promastigote forms [6]. Infections with Leishmania parasites occur mainly in tropical and poor areas of Africa, Asia and Latin America, but also increasingly in countries of southern Europe. They can cause cutaneous (CL) or visceral leishmaniasis (VL) in humans and canine leishmaniosis (CanL) in dogs [7,8].
From the aspect of veterinary medicine, CanL is most important, although the disease can be diagnosed in other domestic and wild animals [9]. Dogs are important reservoirs of the Leishmania parasites, i.e., the causative agent of CanL and human leishmaniasis, which in Europe is caused by the most prevalent species—L. infantum [10], while in Brazil the disease has been related to eight species of Leishmania, mainly L. infantum and L. brasiliensis [1]. Although wild animals may be involved in the transmission of Leishmania, dogs are the most relevant reservoir in urban areas due to their close association with humans [11]. The zoonotic nature of L. infantum is a serious concern for animal and public health. In the Americas, Brazil is the country responsible for the endemic disease of leishmaniasis, with 96% of the VL cases occurring in this country. Although surveys that assess the VL/CanL situation in Brazil are scarce, the expansion of cities into forest areas, the high number of domestic dogs and the adaptability of sandflies are likely to be responsible for the spread of leishmaniasis in northeastern municipalities of Brazil [12,13,14]. Thus, dogs have become the main target for disease control [15]. In Europe, the import of L. infantum into previously non-endemic countries has been known for a long time, but lately, it has become a problem and seems to be a consequence of the increased travelling with dogs into endemic areas and the import of infected puppies and stray dogs from endemic areas [16,17,18,19]. Furthermore, global warming favors the occurrence of the sandfly vector in these countries increasing the risk of transmission [20]. Animal and human health authorities have recognized the emergence of leishmaniasis in part of the European Union as a serious public health problem and have stressed the importance of surveillance, notification and control of this disease [10].
CanL shows a variable, non-specific spectrum of clinical signs depending on the immune status, and infected dogs are often asymptomatic, which is a major challenge as they may contribute to the spread of the disease despite the lack of clinical signs; therefore, detection of such animals is important but remains mostly incidental [21]. Here we used a classification of four clinical stages based on clinical signs, clinicopathological abnormalities and serological status. This was proposed by the LeishVet group in an attempt to cover the wide range of clinical manifestations and degrees of severity seen in CanL [22] and has been further developed for the consensus recommendation [23].
The serological tests already available such as the indirect fluorescent antibody test (IFAT), ELISA, lineblot and lateral flow tests (LFT) play a central role in disease surveillance because they are inexpensive, and in particular, the LFT is easy to use [24]. However, they often fail to detect subclinical infections, may cross-react with other infectious agents and do not always discriminate infected from vaccinated dogs, as many of these tests are based on whole Leishmania antigens [25,26]. To ameliorate the serodiagnosis of leishmaniosis, we recently developed a new recombinant kinesin antigen from L. infantum (rKLi8.3) that has shown improved diagnostic performance in VL patients, independent of their endemic area origin [27].
The aim of this study was to compare the diagnostic performance of different serodiagnostic methods on a panel of sera from Croatian and Brazilian dogs that have been classified as Leishmania-positive or negative dogs by IFAT, parasitological examination and/or Dual Path Platform test (DPP®, Fiocruz, Manguinhos, Rio de Janeiro, Brasil). The results demonstrate that ELISA, lineblot and LFT based on the rKLi8.3 antigen exhibit superior diagnostic performance with regard to symptomatic (SD), oligosymptomatic (OD), asymptomatic (AD), vaccinated dogs and those suffering from other canine infections.

2. Materials and Methods

2.1. Canine Serum Sample

We analyzed serum samples from 232 Croatian and 112 Brazilian adult dogs of both sexes. Croatian samples were obtained from a serum repository of the Serological Animal Laboratory, Department for Parasitology and Invasive Diseases with Clinics, Faculty of Veterinary Medicine, University of Zagreb and included asymptomatic and symptomatic animals with serologically proven leishmaniosis, healthy controls and sera from dogs with other infections.
Brazilian samples were obtained from a serum repository of the Laboratory of Immunopathology at the Federal University of Ouro Preto, Minas Gerais and comprised sera from parasitological confirmed (L. infantum), asymptomatic, oligosymptomatic, symptomatic dogs and non-infected, endemic controls (EC). VAC (n = 20) sera from healthy dogs immunized with the Leish-Tec® vaccine (Ceva Hertape AS, Juatuba, Brazil) were received from the blood bank of the Santo Agostinho Veterinary Hospital, Belo Horizonte, Minas Gerais, Brazil (Supplementary Materials Table S1).

2.2. Clinical Examinations

Dogs positive for CanL were classified according to the presence of clinical symptoms into three groups: asymptomatic (AD; n = 11), without clinical suggestive signs of the disease; oligosymptomatic (OD; n = 12), with a maximum of three symptoms indicative of CanL including dull hair and/or localized alopecia and/or moderate weight loss; symptomatic (SD; n = 13), with clinical signs characteristic of CanL, such as dull hair, severe weight loss, onychogryphosis, skin lesions, apathy and keratoconjunctivitis [28].

2.3. Serological Tests

IFAT-classified sera were re-evaluated by two ELISAs and one lateral flow test (LFT): VetLine® Leishmania ELISA test (GSD Frankfurt, Germany) based on native L. infantum antigens, recombinant KLi8.3 antigen-based ELISA (rKLi8.3 ELISA, GSD Frankfurt, Germany) and the rKLi8.3 LFT (INgezim® Leishma CROM, GSD Madrid, Spain) [27]. For ELISAs, samples were probed in duplicates, and optical densities (OD) were read in a spectrophotometer. The mean was used to classify samples as positive, negative or ambiguous (uncertain), following kit instructions. The principle of the LFT is shown in Supplementary Materials Figure S1, and tests were performed according to the manufacturer’s instructions. Briefly, 10 μL of serum was added to the sample window of the test device, followed by 4 drops of buffer provided in the kits. The test was read 10 min after the addition of the buffer. The results were positive if two distinct red or pink lines appeared (test and control region), negative when the control region was positive but the test region negative and invalid if the control line failed to appear. LFT was performed twice, and critical sera (low antibody titers/asymptomatic dogs) were analyzed in triplicate.
For IFAT, the antigen was prepared from promastigotes of L. infantum MON-1 (archive isolate from continuous in vitro culture—MCAN/HR/2011/SO) for Croatia and L. amazonensis (MHOM/BR/1960/BH6) and L. chagasi (MHOM/BR/1972/BH46) for Brazil, and anti-Leishmania antibodies were detected using goat or rabbit anti-dog FITC IgG. Cytoplasmic or membranous green fluorescence of promastigotes scored positive with a cutoff dilution of 1/40. As controls, CanL-positive and -negative sera were included [29].
Recombinant antigens, rK28, rK39 and rLb6H, were produced at the Infectious Disease Research Institute (IDRI), Seattle, USA. ELISAs with these antigens were performed as previously described [30].
For lineblots (VetBlot® Leishmania LineBlot, GSD Frankfurt, Germany), recombinant rKLi8.3, rK39 and rKLO8 and a native Leishmania antigen were printed with a dispenser (FrontLine HR microliter contact; BioDot, Irvine, CA, USA) on a nitrocellulose membrane (GE Healthcare, Chicago, IL, USA), together with a control line for sample loading and for conjugate function as shown in Supplementary Materials Figure S2. After drying, the membranes were cut into 3 mm stripes and stored at 4 °C until use. Prior to use, stripes were equilibrated in 1 mL of sample dilution buffer (10 mM phosphate buffer, pH 7.2). Samples were added in a dilution of 1:100 and the membranes were incubated with gentle shaking for 1 h at room temperature. After 3 washes with 1 mL washing buffer (0.2 M phosphate, pH = 7.2) for 5 min each, the membranes were incubated with gentle shaking for 30 min with 1 mL horseradish peroxidase (HRP)-labeled protein A/G conjugate at room temperature. The stripes were washed three times with 1 mL of washing buffer for 5 min. The development of the signals took place by incubation of the membranes with 1 mL of 3,3′,5,5′-tetramethylbenzidine (TMB) substrate solution for 15 min with gentle shaking at room temperature. The reaction was stopped by the addition of at least 1 mL of distilled water. After drying the membranes for at least 30 min at room temperature, the stripes were evaluated.

2.4. Statistical Analyses

Statistical analysis of the mean optical densities (ODs) of infected and healthy groups was performed using the Mann–Whitney U test. Comparisons of the mean ODs from asymptomatic, oligosymptomatic, symptomatic and healthy dogs, as well as dogs with other diseases, were performed using the Kruskal–Wallis test, followed by Dunn’s Multiple Comparison Test (GraphPad Software 9.0, San Diego, CA, USA). Sensitivity and specificity were calculated with their 95% confidence intervals. p values of <0.05 were considered statistically significant.

3. Results

3.1. Comparative Testing of IFAT, ELISA and LFT for CanL Serodiagnosis in Croatia

IFAT-characterized sera from Croatian dogs were re-evaluated by the VetLine® ELISA, the rKLi8.3 ELISA and the LFT.
The rKLi8.3-based ELISA and LFT showed the highest diagnostic performance. Of 66 symptomatic dogs, 64 animals were positive in both, rKLi8.3 ELISA and LFT. This corresponds to a sensitivity of 96.9%. IFAT detected 63 and VetLine® ELISA 58 dogs, corresponding to 95.4% and 87.8% sensitivity, respectively. Of the 27 asymptomatic dogs, 19 sera were positive by the VetLine® ELISA, while 23 and 22 dogs were positive by the rKLi8.3 ELISA and the LFT, respectively. Interestingly, 24 animals were CanL-positive by IFAT, corresponding to 88.8% sensitivity.
To assess the specificity of these tests, we analyzed 88 serum samples from healthy dogs originating from the same endemic area. The specificity was as follows: IFAT (98.8%), VetLine® ELISA (85.2%), rKLi8.3 ELISA (98.8%) and LFT (97.7%) (Table 1).
Furthermore, potential cross-reactivity of the test systems was assessed with 51 serum samples from dogs that were parasitological positive for Canine babesiosis, Giardia duodenalis, Dirofilaria repens, Toxocara canis, Ehrlichia canis, Ancylostoma caninum and Anaplasmosis. While the VetLine® ELISA cross-reacted with 2 sera of canine babesiosis, none of the 51 sera cross-reacted with IFAT, rKLi8.3 ELISA and LFT.
Comparison of the ELISAs indicated that rKLi8.3 ELISA showed the highest area under the curve (AUC), with a value of 0.9664 and a confidence interval (CI) 95%: 0.9342 to 0.9986, whereas VetLine® ELISA showed an AUC of 0.9221, CI 95%: 0.8805 to 0.9638 (Figure 1).

3.2. Evaluation of the rKLi8.3 ELISA and LFT in Healthy, Vaccinated and Infected Dogs from Brazil

We next analyzed a cohort of Brazilian dogs that comprised parasitologically confirmed cases of CanL, including asymptomatic (AD), oligosymptomatic (OD) and symptomatic (SD) infected dogs. As controls, non-vaccinated (EC) and vaccinated (Leish-Tec®) healthy dogs (VAC) from the same endemic area were investigated by the rKLi8.3 ELISA and LFT. All SD (12/12), 6/8 OD and 5/8 AD dogs were positive in ELISA as well as LFT, and none of the healthy and vaccinated control animals showed any signals in ELISA (Figure 2 and Supplementary Materials Table S2). It is interesting to note that both rKLi8.3-based tests, ELISA and LFT, gave identical results in all investigated groups. Accordingly, the sensitivity of the ELISA and LFT for SD, OD and AD was 100%, 75% and 62%, respectively, and their specificity for VAC and EC was 100%. Of note, rKLi8.3-based ELISA and LFT did not cross-react with autochtonous T. cruzi-infected dogs from Brazil (Supplementary Materials Figure S3, Table S3).
ELISAs using recombinant rK28, rK39 and rLb6H antigens were also performed on the same serum panel. With the rK28 antigen, 13/13 SD, 9/12 OD and 8/11 AD were identified as positive. The corresponding sensitivities are 100%, 75% and 72.7%. For the rK39 antigen, 12/13 SD, 10/12 OD and 8/11 AD were positive, representing sensitivities of 92.3%, 83.3% and 72.7%. With the rLb6H antigen, 13/13 SD, 11/12 OD and 11/11 AD were positive, giving a sensitivity of 100% for SD and AD and 90.9% for OD. The rK28 exhibited 100% specificity, rK39 91.6% and rLb6H only 14.2% (Supplementary Materials Figure S4).

3.3. Detection of CanL-Specific IgG Antibodies in Dogs from Croatia and Brazil by rKLi8.3 Lineblot

About 24 sera from SD, 15 from AD and 52 from EC dogs from Croatia, previously tested positive or negative for CanL by IFAT, VetLine® ELISA, rKLi8.3 ELISA and LFT INgezim®, were also tested with the rKLi8.3 lineblot (Supplementary Materials Table S4).
In SD, all the above-mentioned test systems showed 100% sensitivity. For AD, rKLi8.3 lineblot showed 80%, rKLi8.3 ELISA 86.6%, LFT INgezim® 86.6% and VetLine® ELISA 66.6% sensitivity. The EC group exhibited 94.2% specificity with the rKLi8.3 lineblot, 100% with the rKLi8.3 ELISA, 98% with the LFT and 86.5% with the VetLine® ELISA (Table 2).
Furthermore, we analyzed Brazilian dogs with parasitologically confirmed CanL cases, including AD, OD and SD dogs by lineblot. EC and vaccinated healthy dogs were used as controls (Supplementary Materials Table S5). In the SD group (n = 13), all sera were positive, and in the AD group (n = 11), 6 sera were positive, showing a sensitivity of 54.5%. In the OD group (n = 11), 8 sera were positive, exhibiting a sensitivity of 72.7%. All sera from the EC groups (n = 13) and vaccinated dogs (n = 16) were tested negative, showing 100% specificity.

4. Discussion

Leishmania-infected dogs act as the main reservoir for the zoonotic disease and play a crucial role in the transmission to humans. Increased travel and the import of dogs by animal welfare organizations bear the risk of spreading leishmaniosis to countries where it has not previously occurred. Part of the problem is also that surveillance and notification of canine leishmaniosis has a low priority among animal health authorities [10,31].
To minimize the risk of spreading infections with L. infantum, systematic infection control of dogs originating from or moved to endemic areas is required. Thus, there is a need for a simple and reliable, point-of-care test. The currently used test systems, e.g., ELISA, IFAT, PCR and parasitological examinations, require a laboratory and are not suitable for a fast and simple routine diagnostic [32]. Furthermore, some of the diagnostic tests show low specificity and cross-reactivity between Leishmania sp. and other canine pathogens, such as Ehrlichia, Babesia canis, Toxoplasma gondii and T. cruzi, or are unable to differentiate between vaccinated and infected dogs [30,33].
An additional challenge of CanL diagnosis is infected but clinically asymptomatic dogs because they represent a potential reservoir of the parasite [21]. The detection of asymptomatic dogs often represents a problem, as Leishmania-specific antibody levels are either very low or some animals never become seropositive or revert to seronegative while they still harbor the parasite [34,35,36,37].
IFAT is most commonly used to diagnose CanL in Mediterranean countries [34,38]. However, IFAT is a complex and time-consuming technique that relies on the experience of the observer, as positive antigen–antibody reactions are assessed by the fluorescence intensity. It needs great expertise, and results may vary between different investigators. In our study, IFAT was highly sensitive for SD and AD and showed high specificity in EC, while other studies reported sensitivities ranging from 68% to 100% and specificities from 60% to 90% [39,40].
Commercially available ELISAs that are based on whole parasite antigens often show low reproducibility due to the use of different Leishmania species and thus variant antigen compositions that react with different VL antibodies [41].
Furthermore, several recombinant antigens, such as rK39, rK26, rK28, rLb6H and rKLO8, have been used for serodiagnosis in humans and dogs [27,37,42,43,44]. Although the reported sensitivities of these antigens are generally high for symptomatic dogs, variable sensitivities (98–64%) have been described for asymptomatic dogs [34,37,44]. These discrepancies illustrate the problems of comparing different studies, especially when carried out on different canine serum samples.
The rKLi8.3 kinesin antigen is characterized by a high content of charged amino acids from L. infantum and an increased number of B-cell epitopes. This antigen demonstrated superior diagnostic efficacy over rK39 in diagnosing human VL when used in the ELISA and LFT format [27]; however, its diagnostic potential in dogs has not been investigated.
The CanL screening of 232 Croatian dogs revealed that both, rKLi8.3 ELISA and LFT, have a very similar diagnostic sensitivity with regard to symptomatic (both 96.9%) and asymptomatic (85.1%; 81.4%) dogs. Furthermore, both tests showed 100% specificity for animals with other infections and about 98% when tested in healthy endemic controls. Similar results were also observed for the rKLi8.3 lineblot. It is interesting to note that the IFAT results were comparable to rKLi8.3-based test systems, with the difference that IFAT was slightly better in AD (88.8%) and marginally less sensitive in SD (93.9%). In contrast, the VetLine® ELISA showed a significantly poorer diagnostic efficiency, with a sensitivity of 87.8% in SD and 70.3% in AD groups.
The extension of the study with Brazilian dogs provided additional insights into the diagnostic performance of the rKLi8.3 based ELISA, lineblot and LFT in a different endemic area.
Screening of 72 sera from parasitologically tested dogs from Belo Horizonte, Brazil, showed that all three tests gave very similar results and that the performance of these tests was independent of the endemic area. Neither vaccinated nor endemic controls gave positive signals in either test, and rKLi8.3 did not cross-react with sera from T. cruzi-infected dogs.
Notably, the same sera (except for vaccinated animals) were tested in ELISA with rK28, rK39 and rLb6H antigens, but none of these antigens outperformed the rKLi8.3 antigen in terms of SD, OD and AD group sensitivities or specificity for EC group.
In conclusion, the study shows that the rKLi8.3-based test systems are highly sensitive and specific diagnostic tools for Leishmaniosis in humans and dogs, irrespective of the endemic area. However, it is important to note that, unlike parasitological methods, serological tests are fundamentally dependent on the amount of Leishmania-specific antibodies, which are not present in all asymptomatic animals. However, the high diagnostic performance, combined with simple use, rapid results and laboratory independence, make the rKLi8.3 LFT suitable for routine and large-scale diagnosis in veterinary practices and in the field.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/pathogens13020109/s1, Table S1: Panel of canine sera from Croatia and Brazil; Figure S1: Scheme of the lateral flow assay (INgezim® Leishma CROM, Spain) for the detection of antibodies to Leishmania; Figure S2: Scheme of the VetBlot® Leishmania Lineblot for the detection of CanL antibodies; Table S2: Comparison of CVL seropositivity by rKLi8.3 based LFT and ELISA and ELISAs based on other recombinant antigens; Figure S3: Sera from T. cruzi infected dogs with acute and chronic Chagas disease were tested by rKLi8.3 ELISA.; Table S3: Comparison of CVL seropositivity by rKLi8.3 based LFT and -ELISA in acute and chronic T. cruzi infected dogs; Figure S4: Comparison of anti-Leishmania antibody responses in rK28-rK39- and rLb6H ELISA using symptomatic (SD), oligosymptomatic (OD), asymptomatic (AD) and endemic control sera from Brazil; Table S4: Croatian dog sera tested by lineblot; Table S5: Brazilian dog sera tested by lineblot.

Author Contributions

All authors had access to the data in this study and take responsibility for the integrity and accuracy of data analysis. The authors’ contribution was as follows: conceptualization, R.M., F.M., U.S. and H.C.T.; methodology, J.R.-O., A.L., H.C.T., D.H., C.A., E.A., I.E.P. and A.B.R.; formal analysis, F.M., R.M. and H.C.T.; writing—original draft preparation, F.M., R.M. and U.S.; writing—review and editing, U.S. and R.M.; resources, F.M., H.C.T., A.L., C.A. and A.F.-T.; critical review of manuscript and data, all authors; supervision, U.S. and H.C.T.; project administration, U.S.; funding acquisition, U.S. All authors have read and agreed to the published version of the manuscript.

Funding

The project was funded by the Loewe Center Druid (Project C4 to U.S.) within the Hessian Excellence Program. The work was also supported by Conselho Nacional de Pesquisa e Desenvolvimento Tecnológico (CNPq, Project 310313/2019–8 to H.C.T.) and Fundação de Amparo a Pesquisa do Estado de Minas Gerais (FAPEMIG, Project RED-00313–16 to H.C.T.).

Institutional Review Board Statement

Samples from dogs diagnosed with CanL were obtained from necropsies performed by the Zoonosis Control Center in Cuiabá—MT, Brazil according to the recommendations of the Ministry ofHealth. There was no animal experimentation, therefore, no need for a license according to the guidance of the Ethics Committee on Animal Use of the Oswaldo Cruz Foundation and the Brazilian law 11794/08. The access to genetic heritage is registered and certified in SISGEN under number A76E438.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data will be made available upon request.

Acknowledgments

The authors thank Patrick Bastien (CNRL, Montpellier) for providing us with Leishmania strains and Bärbel Camara and Anne Hellhund for their excellent technical support. We are grateful for the excellent support of Thomas Widmann (Transmit GmbH) for writing the patent and for bringing the license agreement with Gold Standard Diagnostics to a conclusion. We also thank Maria de Lourdes P. Araújo and the staff of Santo Agostinho Veterinary Hospital of Belo Horizonte, MG, Brazil, for the LeishTec-immunized dog sera and Marta de Lana (UFOP, Brazil) for the kind donation of sera from dogs infected with T. cruzi.

Conflicts of Interest

U.S. and R.M. are inventors on a patent application related to the use of rKLi8.3 that has been filed by the Philipps-University Marburg (EP22152398.8). The title of the patent application: Diagnostic test for high sensitive detection of antibodies from visceral leishmaniasis patients. A.L. and D.H. are employees of Gold Standard Diagnostics Frankfurt, and A.F.-T. and C.A. are employees of Gold Standard Diagnostics Madrid and were involved in the development of rKLi8.3 ELISA and lateral flow tests.

References

  1. Ashford, R.W. The leishmaniases as emerging and reemerging zoonoses. Int. J. Parasitol. 2000, 30, 1269–1281. [Google Scholar] [CrossRef] [PubMed]
  2. Boggiatto, P.M.; Gibson-Corley, K.N.; Metz, K.; Gallup, J.M.; Hostetter, J.M.; Mullin, K.; Petersen, C.A. Transplacental transmission of Leishmania infantum as a means for continued disease incidence in North America. PLoS Negl. Trop. Dis. 2011, 5, e1019. [Google Scholar] [CrossRef]
  3. Owens, S.D.; Oakley, D.A.; Marryott, K.; Hatchett, W.; Walton, R.; Nolan, T.J.; Newton, A.; Steurer, F.; Schantz, P.; Giger, U. Transmission of visceral leishmaniasis through blood transfusions from infected English Foxhounds to anemic dogs. J. Am. Vet. Med. Assoc. 2001, 219, 1076–1083. [Google Scholar] [CrossRef] [PubMed]
  4. Serafim, T.D.; Coutinho-Abreu, I.V.; Dey, R.; Kissinger, R.; Valenzuela, J.G.; Oliveira, F.; Kamhawi, S. Leishmaniasis: The act of transmission. Trends Parasitol. 2021, 37, 976–987. [Google Scholar] [CrossRef] [PubMed]
  5. Svobodova, V.; Svoboda, M.; Friedlaenderova, L.; Drahotsky, P.; Bohacova, E.; Baneth, G. Canine leishmaniosis in three consecutive generations of dogs in Czech Republic. Vet. Parasitol. 2017, 237, 122–124. [Google Scholar] [CrossRef] [PubMed]
  6. Maroli, M.; Feliciangeli, M.D.; Bichaud, L.; Charrel, R.N.; Gradoni, L. Phlebotomine sandflies and the spreading of leishmaniases and other diseases of public health concern. Med. Vet. Entomol. 2013, 27, 123–147. [Google Scholar] [CrossRef] [PubMed]
  7. Morales-Yuste, M.; Martin-Sanchez, J.; Corpas-Lopez, V. Canine Leishmaniasis: Update on Epidemiology, Diagnosis, Treatment, and Prevention. Vet. Sci. 2022, 9, 387. [Google Scholar] [CrossRef]
  8. Alvar, J.; Vélez, I.D.; Bern, C.; Herrero, M.; Desjeux, P.; Cano, J.; Jannin, J.; den Boer, M.; WHO Leishmaniasis Control Team. Leishmaniasis Worldwide and Global Estimates of Its Incidence. PLoS ONE 2012, 7, e35671. [Google Scholar] [CrossRef]
  9. Quinnell, R.J.; Courtenay, O. Transmission, reservoir hosts and control of zoonotic visceral leishmaniasis. Parasitology 2009, 136, 1915–1934. [Google Scholar] [CrossRef]
  10. Berriatua, E.; Maia, C.; Conceiçao, C.; Özbel, Y.; Töz, S.; Baneth, G.; Pérez-Cutillas, P.; Ortuño, M.; Muñoz, C.; Jumakanova, Z.; et al. Leishmaniases in the European Union and Neighboring Countries. Emerg. Infect. Dis. 2021, 27, 1723–1727. [Google Scholar] [CrossRef]
  11. Navea-Pérez, H.M.; Díaz-Sáez, V.; Corpas-López, V.; Merino-Espinosa, G.; Morillas-Márquez, F.; Martín-Sánchez, J. Leishmania infantum in wild rodents: Reservoirs or just irrelevant incidental hosts? Parasitol. Res. 2015, 114, 2363–2370. [Google Scholar] [CrossRef] [PubMed]
  12. Nunes, J.B.; Laurenti, M.D.; Kanamura, H.Y.; Pereira, A.A.C.; Colombo, F.A.; Marques, M.J. Leishmania infantum Infection in Dogs from the Southern Region of State, Brazil. Rev. Inst. Med. Trop. SP 2016, 58, 75. [Google Scholar]
  13. Reguera, R.M.; Morán, M.; Pérez-Pertejo, Y.; García-Estrada, C.; Balaña-Fouce, R. Current status on prevention and treatment of canine leishmaniasis. Vet. Parasitol. 2016, 227, 98–114. [Google Scholar] [CrossRef]
  14. Werneck, G.L. Visceral leishmaniasis in Brazil: Rationale and concerns related to reservoir control. Rev. Saude Publ. 2014, 48, 851–855. [Google Scholar] [CrossRef] [PubMed]
  15. Matsumoto, P.S.S.; Hiramoto, R.M.; Pereira, V.B.R.; Camprigher, V.M.; Taniguchi, H.H.; Barbosa, J.E.D.; Cortez, L.R.P.D.; Fonseca, E.D.; Guimaraes, R.B.; Tolezano, J.E. Impact of the dog population and household environment for the maintenance of natural foci of transmission to human and animal hosts in endemic areas for visceral leishmaniasis in Sao Paulo state, Brazil. PLoS ONE 2021, 16, e0256534. [Google Scholar] [CrossRef]
  16. Maia, C.; Cardoso, L. Spread of in Europe with dog travelling. Vet. Parasitol. 2015, 213, 2–11. [Google Scholar] [CrossRef]
  17. Schafer, I.; Volkmann, M.; Beelitz, P.; Merle, R.; Muller, E.; Kohn, B. Retrospective evaluation of vector-borne infections in dogs imported from the Mediterranean region and southeastern Europe (2007–2015). Parasites Vectors 2019, 12, 30. [Google Scholar] [CrossRef]
  18. Menn, B.; Lorentz, S.; Naucke, T.J. Imported and travelling dogs as carriers of canine vector-borne pathogens in Germany. Parasites Vectors 2010, 3, 34. [Google Scholar] [CrossRef]
  19. Hamel, D.; Silaghi, C.; Pfister, K. Arthropod-borne infections in travelled dogs in Europe. Parasite 2013, 20, 9. [Google Scholar] [CrossRef]
  20. Oerther, S.; Jöst, H.; Heitmann, A.; Lühken, R.; Krüger, A.; Steinhausen, I.; Brinker, C.; Lorentz, S.; Marx, M.; Schmidt-Chanasit, J.; et al. Phlebotomine sand flies in Southwest Germany: An update with records in new locations. Parasites Vectors 2020, 13, 173. [Google Scholar] [CrossRef]
  21. Moshfe, A.; Mohebali, M.; Edrissian, G.; Zarei, Z.; Akhoundi, B.; Kazemi, B.; Jamshidi, S.; Mahmoodi, M. Canine visceral leishmaniasis: Asymptomatic infected dogs as a source of L. infantum infection. Acta Trop. 2009, 112, 101–105. [Google Scholar] [CrossRef] [PubMed]
  22. Solano-Gallego, L.; Koutinas, A.; Miro, G.; Cardoso, L.; Pennisi, M.G.; Ferrer, L.; Bourdeau, P.; Oliva, G.; Baneth, G. Directions for the diagnosis, clinical staging, treatment and prevention of canine leishmaniosis. Vet. Parasitol. 2009, 165, 1–18. [Google Scholar] [CrossRef] [PubMed]
  23. Solano-Gallego, L.; Miro, G.; Koutinas, A.; Cardoso, L.; Pennisi, M.G.; Ferrer, L.; Bourdeau, P.; Oliva, G.; Baneth, G. LeishVet guidelines for the practical management of canine leishmaniosis. Parasites Vectors 2011, 4, 86. [Google Scholar] [CrossRef] [PubMed]
  24. Maia, C.; Campino, L. Methods for diagnosis of canine leishmaniasis and immune response to infection. Vet. Parasitol. 2008, 158, 274–287. [Google Scholar] [CrossRef] [PubMed]
  25. Solano-Gallego, L.; Cardoso, L.; Pennisi, M.G.; Petersen, C.; Bourdeau, P.; Oliva, G.; Miro, G.; Ferrer, L.; Baneth, G. Diagnostic Challenges in the Era of Canine Leishmania infantum Vaccines. Trends Parasitol. 2017, 33, 706–717. [Google Scholar] [CrossRef] [PubMed]
  26. Oliveira, T.M.; Furuta, P.I.; de Carvalho, D.; Machado, R.Z. A study of cross-reactivity in serum samples from dogs positive for Leishmania sp., Babesia canis and Ehrlichia canis in enzyme-linked immunosorbent assay and indirect fluorescent antibody test. Rev. Bras. Parasitol. Vet. 2008, 17, 7–11. [Google Scholar] [CrossRef]
  27. Mahdavi, R.; Shams-Eldin, H.; Witt, S.; Latz, A.; Heinz, D.; Fresco-Taboada, A.; Aira, C.; Hubner, M.P.; Sukyte, D.; Visekruna, A.; et al. Development of a Novel Enzyme-Linked Immunosorbent Assay and Lateral Flow Test System for Improved Serodiagnosis of Visceral Leishmaniasis in Different Areas of Endemicity. Microbiol. Spectr. 2023, 11, e0433822. [Google Scholar] [CrossRef]
  28. Reis, A.B.; Teixeira-Carvalho, A.; Giunchetti, R.C.; Guerra, L.L.; Carvalho, M.G.; Mayrink, W.; Genaro, O.; Correa-Oliveira, R.; Martins-Filho, O.A. Phenotypic features of circulating leucocytes as immunological markers for clinical status and bone marrow parasite density in dogs naturally infected by Leishmania chagasi. Clin. Exp. Immunol. 2006, 146, 303–311. [Google Scholar] [CrossRef]
  29. Martinkovic, F.; Marinculic, A. Antibodies against Leishmania cross-react with Crithidia luciliae: Indirect immunofluorescence and Dot-ELISA study in dogs. Parasitol. Res. 2006, 98, 378–380. [Google Scholar] [CrossRef]
  30. Pereira, I.E.; Silva, K.P.; Menegati, L.M.; Pinheiro, A.C.; Assuncao, E.A.O.; Araujo, M.L.P.; Abass, E.; Duthie, M.S.; Steinhoff, U.; Teixeira, H.C. Performance of recombinant proteins in diagnosis and differentiation of canine visceral leishmaniasis infected and vaccinated dogs. Eur. J. Microbiol. Immunol. 2020, 10, 165–171. [Google Scholar] [CrossRef]
  31. Lachaud, L.; Dedet, J.P.; Marty, P.; Faraut, F.; Buffet, P.; Gangneux, J.P.; Ravel, C.; Bastien, P.; Working Group for the Notification of Human Leishmanioses in France. Surveillance of leishmaniases in France, 1999 to 2012. Eurosurveillance 2013, 18, 38–44. [Google Scholar] [CrossRef]
  32. Grimaldi, G., Jr.; Tesh, R.B. Leishmaniases of the New World: Current concepts and implications for future research. Clin. Microbiol. Rev. 1993, 6, 230–250. [Google Scholar] [CrossRef] [PubMed]
  33. Zanette, M.F.; Lima, V.M.; Laurenti, M.D.; Rossi, C.N.; Vides, J.P.; Vieira, R.F.; Biondo, A.W.; Marcondes, M. Serological cross-reactivity of Trypanosoma cruzi, Ehrlichia canis, Toxoplasma gondii, Neospora caninum and Babesia canis to Leishmania infantum chagasi tests in dogs. Rev. Soc. Bras. Med. Trop. 2014, 47, 105–107. [Google Scholar] [CrossRef] [PubMed]
  34. Mettler, M.; Grimm, F.; Capelli, G.; Camp, H.; Deplazes, P. Evaluation of enzyme-linked immunosorbent assays, an immunofluorescent-antibody test, and two rapid tests (immunochromatographic-dipstick and gel tests) for serological diagnosis of symptomatic and asymptomatic Leishmania infections in dogs. J. Clin. Microbiol. 2005, 43, 5515–5519. [Google Scholar] [CrossRef] [PubMed]
  35. Dye, C.; Vidor, E.; Dereure, J. Serological diagnosis of leishmaniasis: On detecting infection as well as disease. Epidemiol. Infect. 1993, 110, 647–656. [Google Scholar] [CrossRef] [PubMed]
  36. Quinnell, R.J.; Courtenay, O.; Garcez, L.; Dye, C. The epidemiology of canine leishmaniasis: Transmission rates estimated from a cohort study in Amazonian Brazil. Parasitology 1997, 115 Pt 2, 143–156. [Google Scholar] [CrossRef] [PubMed]
  37. Porrozzi, R.; Santos da Costa, M.V.; Teva, A.; Falqueto, A.; Ferreira, A.L.; dos Santos, C.D.; Fernandes, A.P.; Gazzinelli, R.T.; Campos-Neto, A.; Grimaldi, G., Jr. Comparative evaluation of enzyme-linked immunosorbent assays based on crude and recombinant leishmanial antigens for serodiagnosis of symptomatic and asymptomatic Leishmania infantum visceral infections in dogs. Clin. Vaccine Immunol. 2007, 14, 544–548. [Google Scholar] [CrossRef]
  38. Santarem, N.; Sousa, S.; Amorim, C.G.; de Carvalho, N.L.; de Carvalho, H.L.; Felgueiras, O.; Brito, M.; da Silva, A.C. Challenges in the serological evaluation of dogs clinically suspect for canine leishmaniasis. Sci. Rep. 2020, 10, 3099. [Google Scholar] [CrossRef]
  39. Ferreira Ede, C.; de Lana, M.; Carneiro, M.; Reis, A.B.; Paes, D.V.; da Silva, E.S.; Schallig, H.; Gontijo, C.M. Comparison of serological assays for the diagnosis of canine visceral leishmaniasis in animals presenting different clinical manifestations. Vet. Parasitol. 2007, 146, 235–241. [Google Scholar] [CrossRef]
  40. Ferroglio, E.; Centaro, E.; Mignone, W.; Trisciuoglio, A. Evaluation of an ELISA rapid device for the serological diagnosis of Leishmania infantum infection in dog as compared with immunofluorescence assay and Western blot. Vet. Parasitol. 2007, 144, 162–166. [Google Scholar] [CrossRef]
  41. Nolan, T.J.; Herman, R. Effects of long-term in vitro cultivation on Leishmania donovani promastigotes. J. Protozool. 1985, 32, 70–75. [Google Scholar] [CrossRef] [PubMed]
  42. Martinez Abad, L.P.; Almeida, C.S.; Mattos, A.M.M.; Mendonca, A.C.P.; Alves, M.J.M.; Pinheiro, A.C.; Porrozzi, R.; Abass, E.; Steinhoff, U.; Teixeira, H.C. Diagnostic accuracy of rKLO8 versus rK26 ELISAs for screening of canine visceral leishmaniasis. Acta Trop. 2017, 166, 133–138. [Google Scholar] [CrossRef] [PubMed]
  43. Abass, E.; Kang, C.; Martinkovic, F.; Semiao-Santos, S.J.; Sundar, S.; Walden, P.; Piarroux, R.; El Harith, A.; Lohoff, M.; Steinhoff, U. Heterogeneity of Leishmania donovani parasites complicates diagnosis of visceral leishmaniasis: Comparison of different serological tests in three endemic regions. PLoS ONE 2015, 10, e0116408. [Google Scholar] [CrossRef] [PubMed]
  44. Da Costa, R.T.; Franca, J.C.; Mayrink, W.; Nascimento, E.; Genaro, O.; Campos-Neto, A. Standardization of a rapid immunochromatographic test with the recombinant antigens K39 and K26 for the diagnosis of canine visceral leishmaniasis. Trans. R. Soc. Trop. Med. Hyg. 2003, 97, 678–682. [Google Scholar] [CrossRef]

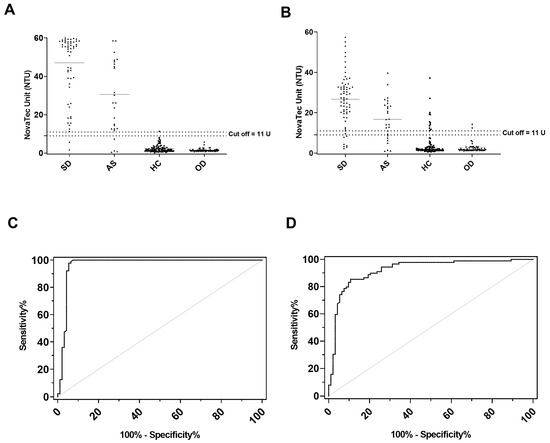

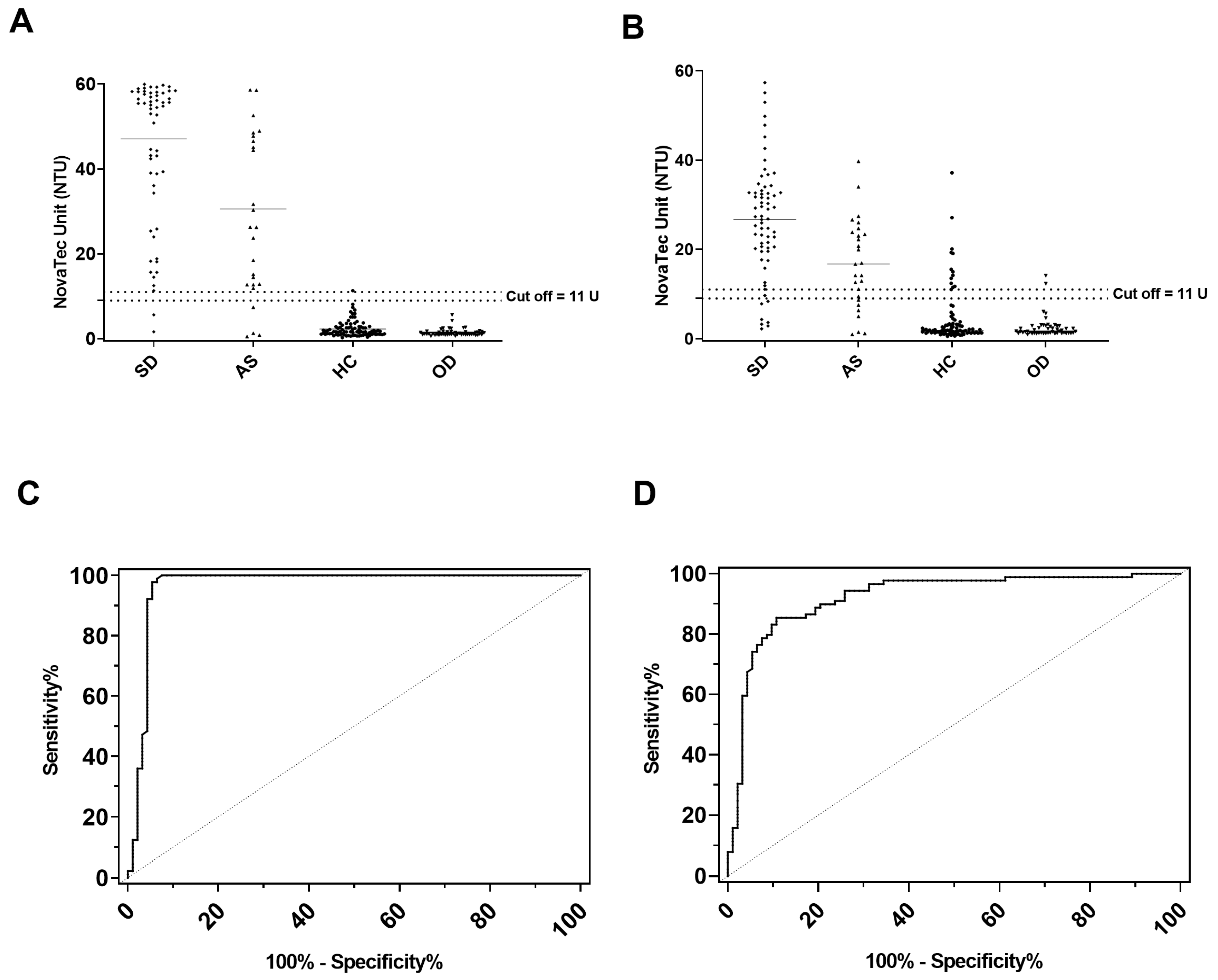

Figure 1. CanL-specific antibody responses in canine sera from Croatia were measured by (A) rKLi8.3 ELISA and (B) VetLine® ELISA. The manufacturer-defined borderline zone is indicated by dotted lines; data within were considered negative. Roc curve analysis of rKLi8.3 (C) and VetLine®ELISA (D). AS = asymptomatic; HC = healthy controls; OD = other diseases.
Figure 1. CanL-specific antibody responses in canine sera from Croatia were measured by (A) rKLi8.3 ELISA and (B) VetLine® ELISA. The manufacturer-defined borderline zone is indicated by dotted lines; data within were considered negative. Roc curve analysis of rKLi8.3 (C) and VetLine®ELISA (D). AS = asymptomatic; HC = healthy controls; OD = other diseases.
Pathogens 13 00109 g001

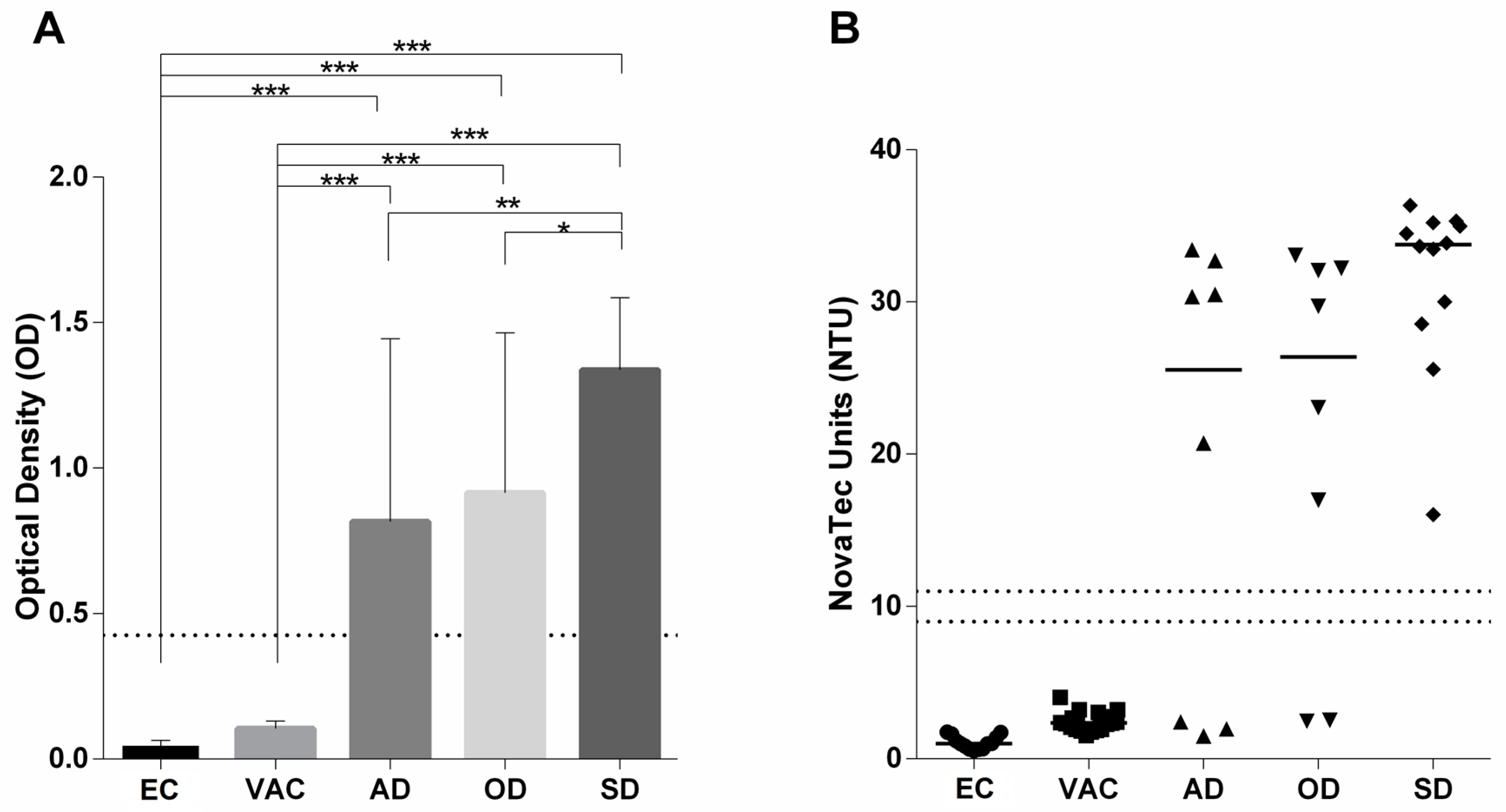

Figure 2. CanL-specific antibody responses in dog sera from Brazil were measured by rKLi8.3 ELISA and shown as (A) optical densities or (B) as individual dot blots in NovaTec units, according to the manufacturer. The borderline zone is indicated by dotted lines. AD = asymptomatic dogs; OD = oligosymptomatic dogs; SD = symptomatic dogs; VAC = vaccinated dogs; EC = healthy endemic controls. * p = 0.1; ** p = 0.01; *** p = 0.001.
Figure 2. CanL-specific antibody responses in dog sera from Brazil were measured by rKLi8.3 ELISA and shown as (A) optical densities or (B) as individual dot blots in NovaTec units, according to the manufacturer. The borderline zone is indicated by dotted lines. AD = asymptomatic dogs; OD = oligosymptomatic dogs; SD = symptomatic dogs; VAC = vaccinated dogs; EC = healthy endemic controls. * p = 0.1; ** p = 0.01; *** p = 0.001.
Pathogens 13 00109 g002
Table 1. Diagnostic performance of Commercial VetLine® ELISA, rKLi8.3 ELISA, LFT and IFAT for CanL in Croatia.
Table 1. Diagnostic performance of Commercial VetLine® ELISA, rKLi8.3 ELISA, LFT and IFAT for CanL in Croatia.
Dogs (n)In house IFATVetLine® ELISArKLi8.3 ELISALFT INgezim®
PosNeg PosNeg PosNeg PosNeg
Symptomatic (66)633Sensitivity
95.4%
588Sensitivity 87.8%642Sensitivity 96.9%642Sensitivity
96.9%
Asymptomatic (27)243Sensitivity 88.8%198Sensitivity
70.3%
234Sensitivity 85.1%225Sensitivity
81.4%
Healthy endemic (88)187Specificity 98.8%1373Specificity 85.2%187Specificity 98.8%286Specificity
97.7%
Other infections (51)051Specificity 100%249Specificity 96%051Specificity 100%051Specificity 100%
Pos, Positive; Neg, Negative.
Table 2. Diagnostic performance of VetLine® ELISA, rKLi8.3 ELISA, LFT and rKLi8.3 lineblot for CanL in Croatia.
Table 2. Diagnostic performance of VetLine® ELISA, rKLi8.3 ELISA, LFT and rKLi8.3 lineblot for CanL in Croatia.
Dogs (n)VetBlot Leishmania® LineBlotVetLine® ELISArKLi8.3 ELISALFT INgezim®
PosNeg PosNeg PosNeg PosNeg
Symptomatic (24)240Sensitivity
100%
240Sensitivity 100%240Sensitivity 100%240Sensitivity
100%
Asymptomatic (15)123Sensitivity
80%
105Sensitivity
66.6%
132Sensitivity 86.6%132Sensitivity
86.6%
Healthy endemic (52)349Specificity 94.2%745Specificity 86.5%052Specificity 100%151Specificity
98%
Pos, Positive; Neg, Negative.
