Article

Interrelation Between Pathoadaptability Factors and Crispr-Element Patterns in the Genomes of Escherichia coli Isolates Collected from Healthy Puerperant Women in Ural Region, Russia

by
Yulia Mikhaylova
1,†,
Marina Tyumentseva
1,†,
Konstantin Karbyshev
1,
Aleksandr Tyumentsev
1,
Anna Slavokhotova
1,
Svetlana Smirnova
2,
Andrey Akinin
1,
Andrey Shelenkov
1,* and
Vasiliy Akimkin
1
1
Central Research Institute of Epidemiology, Rospotrebnadzor, Novogireevskaya Str., 3a, 111123 Moscow, Russia
2
Federal Scientific Research Institute of Viral Infections «Virome», Letnyaya Str., 23, 620030 Ekaterinburg, Russia
*
Author to whom correspondence should be addressed.
†
These authors equally contributed to this work.
Pathogens 2024, 13(11), 997; https://doi.org/10.3390/pathogens13110997
Submission received: 4 September 2024 / Revised: 3 October 2024 / Accepted: 30 October 2024 / Published: 14 November 2024
(This article belongs to the Special Issue Detection and Epidemiology of Drug-Resistant Bacteria)
Browse Figures
Review Reports Versions Notes

Abstract

:
Escherichia coli is a commensal and opportunistic bacterium widely distributed around the world in different niches including intestinal of humans and animals, and its extraordinary genome plasticity led to the emergence of pathogenic strains causing a wide range of diseases. E. coli is one of the monitored species in maternity hospitals, being the main etiological agent of urogenital infections, endometriosis, puerperal sepsis, and neonatal diseases. This study presents a comprehensive analysis of E. coli isolates obtained from the maternal birth canal of healthy puerperant women 3–4 days after labor. According to whole genome sequencing data, 31 sequence types and six phylogenetic groups characterized the collection containing 53 isolates. The majority of the isolates belonged to the B2 phylogroup. The data also includes phenotypic and genotypic antibiotic resistance profiles, virulence factors, and plasmid replicons. Phenotypic and genotypic antibiotic resistance testing did not demonstrate extensive drug resistance traits except for two multidrug-resistant E. coli isolates. The pathogenic factors revealed in silico were assessed with respect to CRISPR-element patterns. Multiparametric and correlation analyses were conducted to study the interrelation of different pathoadaptability factors, including antimicrobial resistance and virulence genomic determinants carried by the isolates under investigation. The data presented will serve as a valuable addition to further scientific investigations in the field of bacterial pathoadaptability, especially in studying the role of CRISPR/Cas systems in the E. coli genome plasticity and evolution.

1. Introduction

Escherichia coli is one of the most divergent and widespread species that can behave as a commensal in the human gastrointestinal tract and persists in water and soil regardless of the host. At the same time, it can behave as a pathogen causing different types of diseases both in and outside of a human or animal host’s digestive system [1]. The remarkable and complex plasticity of the E. coli genome contributes to the formation of the pathogenic potential. Thus, as a result of taking up and accumulating pathogenic factors, multidrug-resistant high-risk clones capable of causing a wide range of diseases in humans in a certain biotope/system can emerge [2,3].
According to the combination of special genetic markers, E. coli can be subdivided into eight phylogenetic groups: A, B1, B2, C, D, E, F, and G. Such phylogroup classification of E. coli is useful for comparative analysis of serogroup, virulence, and resistance traits, as well as diversity assessment of E. coli populations within various hosts and environments [4,5].
The pathogenic potential of E. coli is implemented by the presence of various virulence factors. There are different E. coli pathotypes represented by a group of clones that share a certain set of specific virulence determinants [2]. The most common E. coli ST131 clone from phylogenetic group B2 is the predominant clone of high-risk worldwide, and recently another ST1193 clone was recognized as an emerging high-risk clone belonging to the same group. High-risk E. coli clones are spreading very quickly, which leads to their existence in different niches, in human and animal intestinal tracts, and persistence in the environment [3]. Moreover, phylogenomic approaches have shown that only four sequence types (STs) are responsible for extraintestinal infections (ST131, ST73, and ST95 of a phylogroup B2, and ST69 of a phylogroup D), which were always studied in epidemiological surveillance investigations and were therefore named “the big four ExPEC (extraintestinal pathogenic E. coli) clones” [6].
Most E. coli strains are characterized by possessing either type I-E or I-F CRISPR/Cas systems. These findings can explain an evolutionary interrelation between CRISPR and pathogenicity in E. coli [7]. Taking into account the continuously accumulating data, it becomes apparent that adaptive immunity is not the only role of CRISPR/Cas systems. It was shown that the expression of many bacterial genes affecting the virulence and group behavior of pathogenic bacteria is regulated by these systems. Additionally, CRISPR/Cas participates in DNA repair and accelerates the evolution of the genomes [8]. Other studies indicated an association between the presence of the CRISPR sequence and decreased antibiotic resistance, thus suggesting that the presence of CRISPR limits the adaptability of the microorganism [7,9].
It is noteworthy that most genome sequencing projects emphasize the analysis of multidrug-resistant clones, clinically relevant pathogens, or epidemiological outbreaks. However, there is a lack of genomic data on opportunistic E. coli populations obtained from healthy patients, namely, puerperant women, who take a specific place in maternity care facilities. They are not patients with some kind of pathology, but, at the same time, they are “healthy patients” with an open system (maternal birth canal) or surgical suture (after caesarian section), which are susceptible to infections in hospital conditions. Women who give birth by cesarean section labor are estimated to have a 5-fold to 20-fold risk of bacterial infection in comparison to women who give birth vaginally [10]. Regardless of the labor type, women in the early postpartum period face transient immunodeficiency, and decreased activity of local tissue immunity, which increases their sensitivity to bacterial infection [11]. At the same time, E. coli bacteria play a major role in the etiology of puerperal sepsis [12].
As a part of our ongoing molecular surveillance program, here we provide a detailed investigation of E. coli isolates collected from maternal birth canal discharge of puerperant women in two perinatal centers of Ekaterinburg, Russia (referenced as ‘Crie-Pu’ isolates below). We used whole genome sequencing (WGS) to characterize E. coli isolates as a dominating bacteria collected. The entire collection of the strains was examined in terms of population structure, phenotypic and genotypic profiles of antimicrobial resistance, virulence factors, plasmid replicons, and analysis of CRISPR-elements patterns. Information on resistance and virulence genes and correlation analysis is an important tool for epidemiological studies in assessing the pathogenic potential and total pool of important determinants in a population of opportunistic E. coli and monitoring the emergence of new clinically and epidemically significant resistance and virulence phenotypes.

2. Materials and Methods

2.1. Isolate Collection

The study was conducted by continuous sampling method in the postpartum department of two Perinatal Centers in the Ural region. It included 100 and 130 clinically healthy puerperant women on the 3rd–4th day after labor immediately before discharge from the department of municipal and regional perinatal centers, correspondingly. Nurses of the departments collected biological material from the maternal birth canal with the informed consent of the women. The samples were collected using sterile disposable probes followed by preliminary seeding on a transport medium. Isolation of pure bacterial cultures was carried out by seeding on solid nutrient media (Endo Agar) with subsequent species identification based on cultural-morphological, biochemical, and antigenic properties. The species for all isolates under study were identified by time-of-flight mass spectrometry (MALDI-TOF MS) using the VITEK MS system (bioMerieux, Marcy-l’Étoile, France).
Sixty-two bacterial cultures of opportunistic pathogens were obtained from the municipal perinatal center, including 10 E. coli isolates. One hundred opportunistic bacterial pathogens including 43 E. coli isolates were collected from the patients of the regional perinatal center. The age of patients from whom E. coli samples were isolated (n = 53) ranged from 19 to 42 years with a median equal to 29 (Table S1).

2.2. Determination of Antibiotic Susceptibility

The antibiotic susceptibility was evaluated by the disc diffusion method using the Mueller–Hinton medium (bioMerieux, Marcy-l’Étoile, France) and disks with antibiotics (BioRad, Marnes-la-Coquette, France), and by the boundary concentration method on VITEK2 Compact 30 analyzer (bioMerieux, Marcy-l’Étoile, France). The isolates were tested for their susceptibility/resistance to the following antimicrobial drugs: imipenem, amoxicillin, amoxicillin/clavulanic acid, amikacin, gentamicin, levofloxacin, ciprofloxacin, cefotaxime, cefixime, ceftriaxone, and cefuroxime. The EUCAST clinical breakpoints version 12 was used to interpret the results obtained (https://www.eucast.org/clinical_breakpoints/, accessed on 20 December 2022).

2.3. Whole Genome Sequencing

Genomic DNA was isolated using a DNeasy Blood and Tissue kit (Qiagen, Hilden, Germany) and passed to the paired-end library preparation with Nextera™ DNASamplePrepKit (Illumina®, SanDiego, CA, USA). Whole genome sequencing (WGS) of 53 isolates was conducted on the Illumina® NextSeq2000 platform (Illumina®, San Diego, CA, USA). Assemblies were obtained using SPAdes versions 3.15.2 and 3.15.4 and were uploaded to NCBI Genbank under the project number PRJNA1151703.

2.4. Data Processing

The genomes assembled were processed using the custom pipeline described earlier by us [13,14]. In brief, for all isolates, we performed MLST typing using the Achtman 7 Gene MLST scheme with the profiles presented in Enterobase (https://enterobase.warwick.ac.uk/species/index/ecoli, accessed on 21 May 2024), and serotyping was made with SerotypeFinder 2.0 (https://cge.food.dtu.dk/services/SerotypeFinder/, accessed on 21 May 2024). Phylogroups were assigned based on the data from Clermont et al. [15]. We used the Resfinder 4.0 database with default parameters for antimicrobial gene identification (http://genepi.food.dtu.dk/resfinder, accessed on 22 May 2024). Plasmid sequences were revealed and typed using PlasmidFinder 2.1 with default parameters (https://cge.food.dtu.dk/services/PlasmidFinder/, accessed on 26 May 2024). Virulence factors were revealed by searching in VFDB (http://www.mgc.ac.cn/VFs/main.htm, accessed on 25 May 2024).
CRISPRCasFinder version 4.2.20 with default parameters [16] was used to identify the presence of CRISPR/Cas systems and spacers in the genomes analyzed. The data on CRISPR-elements in 3210 reference isolates were obtained from the CRISPRCas database (https://crisprcas.i2bc.paris-saclay.fr/MainDb/StrainList, accessed on 3 July 2024).
The analysis of spacers in CRISPR arrays of Crie-Pu E. coli isolates with putative CRISPR/Cas systems was performed by Web BLAST®. The spacers were identified and downloaded from the CRISPRDetect web tool [17] (http://crispr.otago.ac.nz/CRISPRDetect/predict_crispr_array.html, accessed on 10 July 2024). CRISPRDetect FASTA sequences of Crie-Pu E. coli spacers were uploaded to Web BLAST® blastn suite (https://blast.ncbi.nlm.nih.gov, accessed on 10 July 2024) and analyzed using default parameters of the MegaBLAST algorithm. In addition, CRISPRDetect FASTA sequences of the spacers were uploaded to the CRISPRTarget web tool [18,19] (http://crispr.otago.ac.nz/CRISPRTarget/crispr_analysis.html, accessed on 10 July 2024).
Phylogenetic analyses were conducted using the Maximum Likelihood (ML) method in MEGA X [20] as described earlier [21].
To assess the differences between the distribution of antimicrobial resistance (AMR) genes, virulence factors, and plasmid replicons in the studied E. coli population, Fisher’s Exact Test was used (https://www.langsrud.com/fisher.htm, accessed on 16 July 2024). Corresponding data analysis and graphing were performed using Prism version 9 (GraphPad Software, San Diego, CA, USA).

3. Results

3.1. Isolate Typing

The 53 isolates of E. coli belonged to 31 different STs without a significant prevalence of any individual one. Most numerous were ST69 (n = 8), ST73 (n = 5), and ST131 (n = 6), while 29 different STs were represented only by less than four isolates or even by a single one. Phylogroup classification demonstrated that E. coli isolates were distributed in six diverse phylogroups—A, B1, B2, C, D, and F, with the prevalence of B2 represented by 32 samples belonging to 18 STs (Table S2). The phylogroup D combined nine isolates of ST69 and ST349 (single sample). A and B1 phylogroups consisted of four and five isolates, respectively, while C and F were represented by a single sample each (Table S2). The exact phylogenetic group was not identified for three isolates (Crie-Pu1335, 1340, and 1370), the last of which carried boundary traits of B2 and F phylogroups. Additionally, twenty different O serogroups were distinguished, O50 (15%), O15 (13%), O16 (7.5%), and O75 (9%) were the most frequent among the isolates under investigation. O-serogroup diversity is described in more detail in the section “Virulence genes” as long as both O-serogroup antigen and virulence factors are essential for the pathogenicity assessment of E. coli.

3.2. CRISPR Element Distribution of the Crie-Pu E. coli Isolates

Approximately 68% of the E. coli genomes available in the CRISPRCasdb are predicted to harbor active CRISPR/Cas systems (https://crisprcas.i2bc.paris-saclay.fr/MainDb/StrainList, accessed on 3 July 2024). High variability of CRISPR/Cas systems was observed along with previously known diversity and plasticity of E. coli genomes. This is the first work that shows a thorough description of CRISPR/Cas elements in Russian E. coli isolates of clinical origin (listed in Table S3) collected from healthy patients, in comparison to the strains of the same species that were available from public databases (https://crisprcas.i2bc.paris-saclay.fr/MainDb/StrainList, accessed on 3 July 2024).
A total of 26.4% (14 out of 53) of the studied E. coli isolates harbored neither CRISPR array nor cas cassette. Six isolates (11.3%) from the set possessed confirmed CRISPR arrays but lacked cas cassettes, and thirty-three samples (62.3%) carried different putative CRISPR/Cas systems containing cas cassettes (Table S3). It should be noted that a similar distribution of CRISPR arrays and CRISPR/Cas systems containing cas cassettes was observed for our E. coli isolates and the 3210 reference E. coli isolates available in the CRISPRCas database (https://crisprcas.i2bc.paris-saclay.fr/MainDb/StrainList, accessed on 3 July 2024). Namely, 2470 and 2193 isolates were characterized as carrying CRISPR arrays and cas cassettes, respectively, while 740 strains did not have any CRISPR/Cas elements.
Among 33 Crie-Pu E. coli isolates carrying putative CRISPR/Cas systems containing cas cassettes, 19 carried the Type I-E CRISPR/Cas system (57.5%) and 14 carried the Type I-F CRISPR/Cas system (42.4%). It should be noted that Type I-E CRISPR/Cas systems are found more frequently (p ˂ 0.05) in the group of reference E. coli isolates available in the CRISPRCas database (https://crisprcas.i2bc.paris-saclay.fr/MainDb/StrainList, accessed on 3 July 2024), while Type I-F CRISPR/Cas systems occurred much more frequently (p ˂ 0.00001) in the experimental group of Crie-Pu isolates.
Crie-Pu isolates bearing neither a CRISPR array nor a cas cassette belonged to eight different sequence types, the predominant being ST131 and ST73—five and three Crie-Pu isolates without cas cassettes belonged to these STs, respectively (Figure 1). Crie-Pu isolates with confirmed CRISPR arrays, but without cas cassettes, belonged to 5 different sequence types, the predominant being ST73 possessed by two Crie-Pu isolates (Figure 1).
Crie-Pu isolates with Type I-E CRISPR/Cas systems belonged to 12 different sequence types with the dominance of ST69 (eight out of 19 Crie-Pu isolates) (Figure 1). The isolates with Type I-F CRISPR/Cas systems belonged to nine different sequence types, the predominant being ST141 (four isolates), ST1993, and ST80 (two isolates each) (Figure 1).
All Crie-Pu isolates bearing neither a CRISPR array nor cas cassette belonged to the phylogenetic group B2 (Figure 2), while the isolates with confirmed CRISPR arrays, but without cas cassettes, belonged to three different phylogenetic groups—B2 (four isolates), A, and D (one isolate each) (Figure 2).
Crie-Pu isolates with Type I-E CRISPR/Cas systems belonged to six different phylogenetic groups—D (eight isolates), B1 (4), A (3), F, C, and B2/F, while the isolate Crie-Pu1335 was not assigned to any known phylogroup (Figure 2). Almost all isolates with Type I-F CRISPR/Cas systems belonged to the B2 phylogenetic group, and only Crie-Pu1340 was not assigned to any group (Figure 2).
At the same time, almost all of the Type I-E CRISPR/Cas systems (18 out of 19) consisted of eight genes encoding Cas1, Cas2, Cas3, Cas5, Cas6, Cas7, Cse1, and Cse2. Crie-Pu1332 Type I-E isolate carried four cas genes—cas3, cse1, cas1, and cas2, and Crie-Pu1252 Type I-E isolate carried an additional cas3 gene.
According to the phylogenetic analysis of the full-length Type I-E cas gene sequences, ST69 isolates formed a separate clade on phylogenetic trees, while the topology of the Crie-Pu isolates belonging to the other STs differed slightly between the phylogenetic trees (Figure 3).
The CRISPR/Cas loci of most Type I-F Crie-Pu isolates (13 out of 14) consisted of six genes encoding Cas6/Csy4 endoribonuclease, three Csy proteins (Csy3, Csy2, and Csy1), Cas3f helicase/RNase, and Cas1f endonuclease located in the vicinity of CRISPR arrays, except for the Crie-Pu1367 isolate, which carried only cas6, csy1, csy2, and csy3 genes.

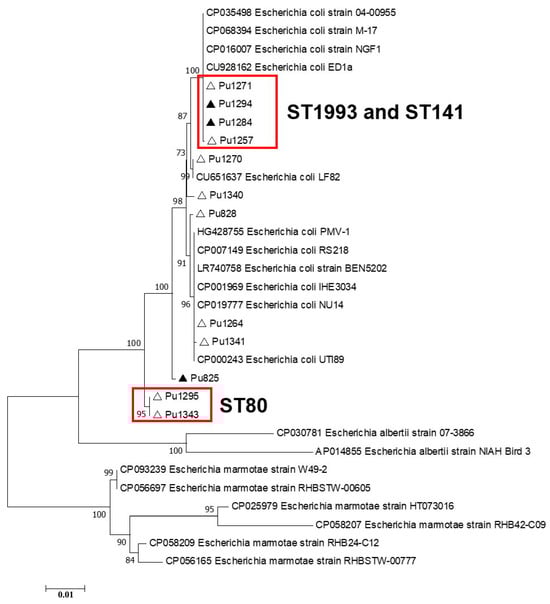

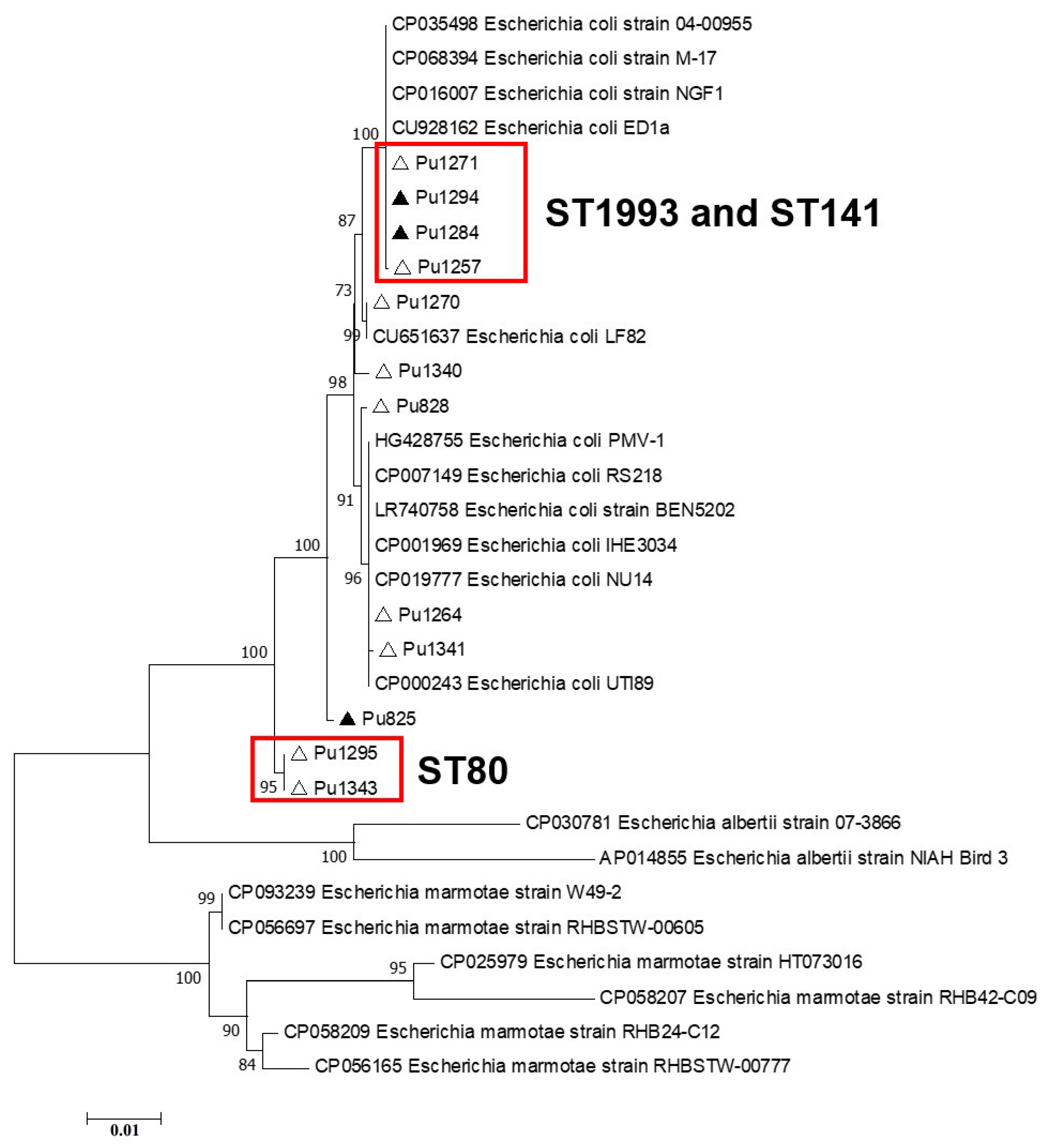

Phylogenetic analysis of the Type I-F cas gene sequences showed that separate clades on phylogenetic trees were formed by (i) E. coli Crie-Pu ST141 and ST1993 isolates and (ii) E. coli Crie-Pu ST80 isolates. It is worth noting that the isolates belonging to other genetic lines (STs) did not form separate clades and were dispersed throughout the phylogenetic trees (Figure 4).

3.3. Susceptibility to Antibiotics

Phenotypic antimicrobial susceptibility testing showed that 28 E. coli isolates (53%) were susceptible to all antibiotics in the panel used (Table S1). Phenotypic resistance to three antimicrobial compounds of different groups (aminoglycosides/penicillins, fluoroquinolones, and cephalosporins) was detected in two isolates (Crie-Pu 1299 and 829, correspondingly). Resistance to two antibiotics of different groups simultaneously (cephalosporins in combination with aminoglycosides, penicillins, or fluoroquinolones, as well as aminoglycosides and fluoroquinolones) was detected in 11 isolates. The remaining 12 isolates were resistant to only one of the antibiotics used in the panel. The identified phenotypes were not associated with the type of labor (cesarean section or vaginal birth), as well as with the prescribed antibiotic therapy. However, it should be noted that the multidrug-resistant isolates (Crie-Pu1299 and 829) were identified in two puerperant women with a cesarean section and one with a complicated vaginal birth. In these two cases, antibiotic therapy was prescribed (Table S1).

3.4. Antimicrobial Resistance Genetic Determinants

In silico searching for AMR determinants revealed the genes and gene clusters conferring resistance to aminoglycosides, beta-lactams, chloramphenicol, fluoroquinolones, trimethoprim, fosfomycin, macrolides, sulfonamides, and tetracycline.
The genomes of seven isolates of 28 susceptible to all antimicrobial compounds were characterized by the presence of 1 to 7 AMR genes including carbapenemase-encoding blaDHA-1 and extended-spectrum β-lactamase (ESBL)-encoding genes (blaCTX-M-15 and blaTEM-1C) (Table S4).
The genomes of all remaining antibiotic-resistant isolates, except for four isolates belonging to phylogroup B2, contained ESBL- and other β-lactamase encoding genes: blaTEM (n = 19), blaCTX-M (n = 15), blaDHA-1 (n = 2), and blaOXA-1 (n = 1). Two isolates of the B2 phylogroup (Crie-Pu1235 and 1290) combined two β-lactamase genes of different types in their genomes (blaCTX-M-27 + blaTEM-1B and blaCTX-M-15 + blaOXA-1, respectively). It is noteworthy that both strains belonged to ST131, but had different serotypes O16:H5 and O25:H4 (Table S4). The diversity of identified alleles of the epidemically significant ESBL gene blaCTX-M-3, -15, and -27 draws attention since these genes were revealed in almost a third of the studied strains from a short period of research within the same perinatal center and in a small group of puerperant women.
Most of the isolates of phylogroup B2 (14 out of 22) lacked genes responsible for resistance to aminoglycosides, chloramphenicol, macrolides, and sulfonamides. Four isolates of that group carried only a single gene determining resistance to chloramphenicol (two isolates), tetracycline, or trimethoprim (Table S4).
All isolates of the phylogroup D were characterized by the presence of 1–4 genes that determined resistance to aminoglycosides and one or two genes encoding resistance to trimethoprim. We also marked a combination of aadA5 (aminoglycoside) and dfrA17 (trimethoprim) resistance genes in E. coli genomes simultaneously. The only isolate (Crie-Pu1256) from this phylogroup and the entire studied set was characterized by the presence of the fosA providing resistance to fosfomycin (Table S4).

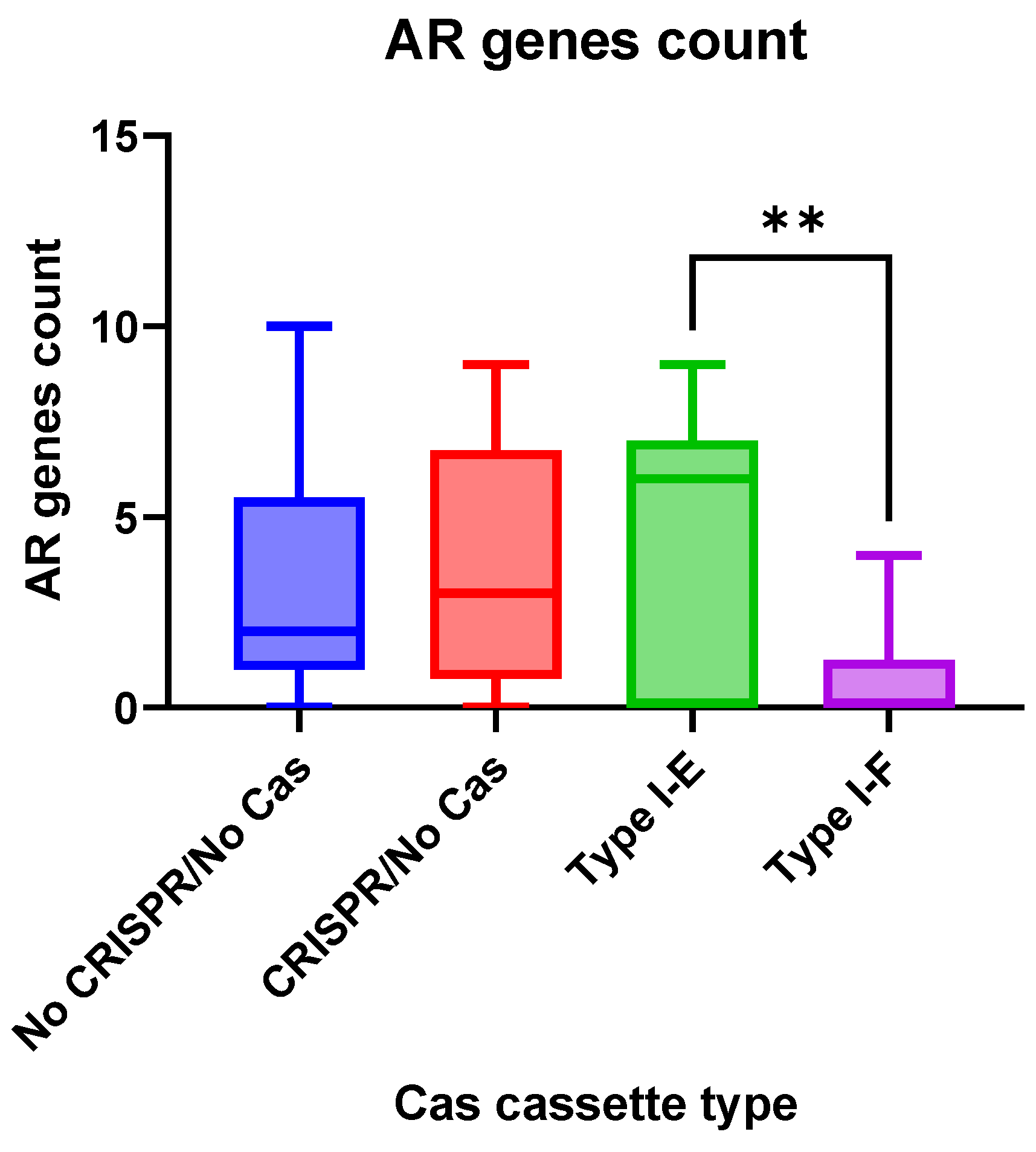

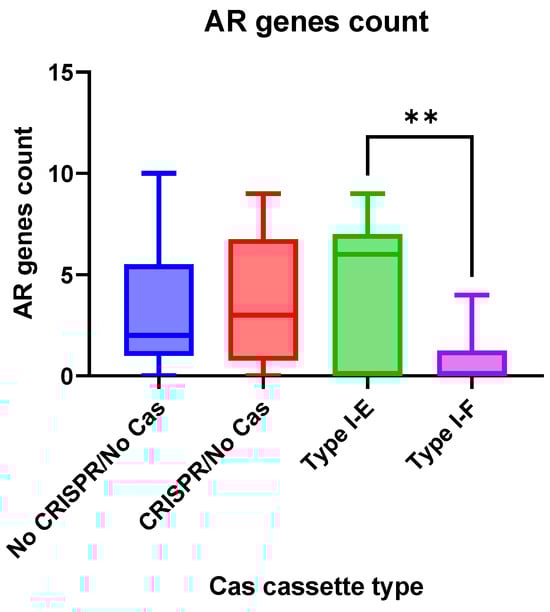

Antimicrobial resistance genes were observed more frequently (p = 0.0058) in the group “Type I-E” E. coli isolates when compared to the “Type I-F” isolates (Figure 5).

3.5. Virulence Genes

E. coli isolates under investigation included a diverse repertoire of virulence-associated genes with 24 genes detected in each of the 53 isolates, namely, the multidrug efflux pump subunit gene acrB4; the allantoinase gene allB; the intimin-like adhesin gene fdeC; the outer membrane protein gene ompA; the enterobactin iron acquisition system genes entABCES; the ferric uptake genes fes and fur; the phosphogluconate dehydrogenase gene gndA; the invasion genes ibeB, C; the transcriptional regulatory protein genes (cgs operon, phoP, pmrA, rcsB, rpoS); and the fimbrial chaperone genes (yagV-Z/ecpA-E).
Additionally, more than 200 virulence genes were present variably, according to phylogroup and serotype of the isolates under investigation (Table S2). Genes involved in adhesion, iron acquisition, immune evasion, and toxins were widespread. Since the virulence profiles of the isolates were very heterogenic, we will describe them by focusing on the main functional groups mentioned above.
Adhesins represent the molecules involved in signaling pathways between bacteria and host cells thereby stimulating tissue colonization and invasion [22]. This is the most important pathogenicity-related factor in E. coli. The most common adhesion determinants in our sample set were fim genes encoding type 1 fimbriae. All isolates except one (Crie-Pu1338) harbored this gene cluster. The main part of the isolates of B2 and D phylogroups carried genes of P-fimbriae (pap). The isolates of serogroups O25 and O50 had the most complete gene set composing this cluster. The genes associated with mannosoresistant pili (sfa and foc) were observed only in B2 isolates mainly belonging to serogroups O6, O18, and O50 (Table S2).
Iron acquisition is a significant property facilitating bacterial survival during the infection process. It is also necessary for general growth, fitness, and electron transfer during cellular respiration [23]. The main players of iron uptake in bacterial cells are different types of siderophores, namely, aero, entero-, yersiniabactins, and salmochelin. As to the E. coli strains of our research, the full aerobactin operons iucABCD and iutA were present in 43.4% (n = 23) of the isolates. In the dominant phylogroup B2, these genes were associated with O16, O18, and O25 serotypes. A ferric enterobactin cluster (fepA-G) was observed in all isolates except Crie-Pu1367 (ST141-B2-O50:H6). The ferric yersiniabactin uptake receptor fyuA was not found in only six isolates. Four of them belonged to A (n = 2) and B1 (n = 2) phylogroups, and the rest—to C and D phylogroups. The iron-regulatory proteins irp1 (n = 45, 85.0%) and irp2 (n = 44, 83.7%) were present in the same fraction, and the complete yersiniabactin siderophore operon ybtAEPQSTYX was additionally presented in these isolates. The salmochelin siderophore system encoded by iroBCDEN was revealed in 90.0% (n = 48) of the isolates belonging to all phylogenetic groups except for Crie-Pu1239 (St59-O1:H7) of the F phylogroup. B2-ST131-O16:H5 isolates (n = 4) were characterized by the absence of salmochelin genes, and the same iron uptake genes profile was exhibited by ST131-O25:H4 isolates (n = 2), and one of each isolate from ST404 and ST1193 belonging to the same serotype (O75:H5). Most of the B2 isolates (n = 16) were characterized by the absence of aerobactin operone, predominantly, and these samples mostly referred to O6:H1, O50:H6, and O75:H7 serotypes (Table S2).
Toxins play an important role in infections of different localizations since they contribute to the spread of bacteria in tissues, increasing cytotoxicity, resistance to neutrophils, as well as damage and disruption of host cell metabolism, leading to a biotope environment more favorable for E. coli [24]. Toxin genes were not revealed in two isolates with unidentified phylogroups (Crie-Pu1335 and 1340); in two samples of A and all isolates of B1 phylogroups (n = 4); in a single strain of C1 (Crie-Pu1330); and in separate isolates of B2 and D phylogroups (n = 5 and n = 2, correspondingly). The most frequently identified toxin genes were cnf1 (cytotoxic necrotizing factor) and hlyA-D (hemolysin). The combination of these genes was more common for B2 isolates, especially, for serogroups O50 and O6 (Table S2). Several isolates belonging to A, B2, D, and F phylogroups harbored serine protease autotransporters genes (pic and sat) and the enterotoxin determinant senB. The combination with maximal numbers of toxin determinants was identified in three isolates of the B2 phylogroup, with two of them (Crie-Pu1235 and 1290, both ST131) belonging to O16:H5 and O25:H4 serotypes, correspondingly, and the isolate Crie-Pu1304-ST73-O18ac:H1 (Table S2).
Protectins defend bacteria from the host immune system and from various unfavorable conditions. In particular, protectins include bacterial capsules, outer membrane proteins, and lipopolysaccharide components. Most of the E. coli isolates under investigation (n = 38, mainly the isolates from the B2 and D phylogroups) carried the kps cluster, determining the synthesis of a polysialic acid capsule. Some of these isolates additionally harbored the neu cluster responsible for polysialic acid production. Only ten isolates of the B2 phylogroup (mainly belonging to O50 and O6 serotypes) carried the tcpC gene involved in the suppression of innate immunity (Table S2).

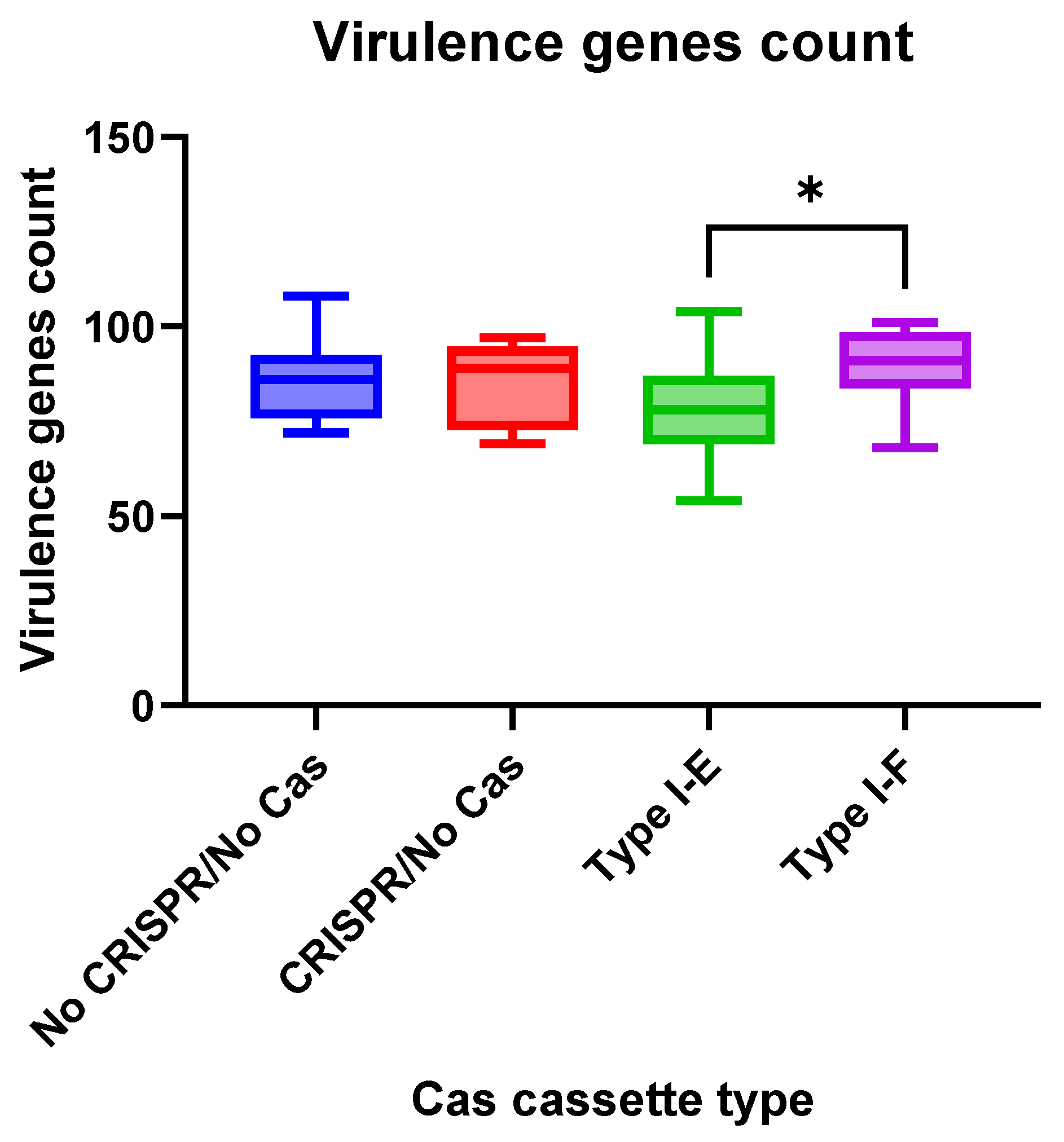

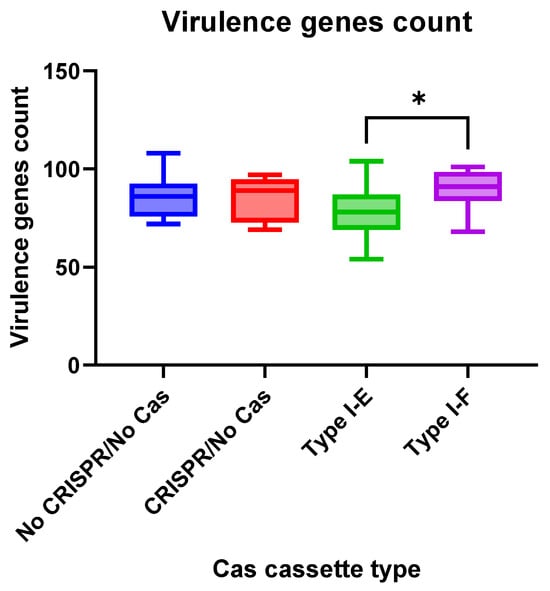

We observed insignificant differences in virulence gene numbers for the E. coli isolates vs. CRISPR-element patterns. Meanwhile, virulence factor genes were found more frequently (p = 0.0412) in the group “Type I-F” E. coli isolates when compared to the “Type I-E” isolates (Figure 6).

3.6. Plasmid Replicons of Crie-Pu E. coli Isolates

Since plasmids are very important vehicles of antibiotic resistance genes [25], we performed a search of plasmid sequences in the WGS data obtained. The list of plasmid replicons identified in the isolates is shown in Table S5. Plasmid sequences were revealed in 50/53 (94%) isolates analyzed. In total, 24 different types of plasmid replicons belonging to 15 varieties of Inc-type plasmids and nine varieties of Col-type plasmids were found (Table S5). IncFIB and Col156 plasmids were the most frequently carried replicons in our collection, revealed in 27 and 18 Crie-Pu isolates, respectively. Col- or Inc-type plasmid replicons were separately carried by nine and seven E. coli isolates, respectively, while thirty-seven isolates under investigation included the replicons of both types. The total replicon number usually was between 1 and 4, while the maximum number of plasmid replicons belonging to different types in one E. coli genome reached eight (Crie-Pu1331) (Table S5).
However, in order to obtain reliable plasmid sequences, long-read sequencing is usually required, which we plan to perform in the future.

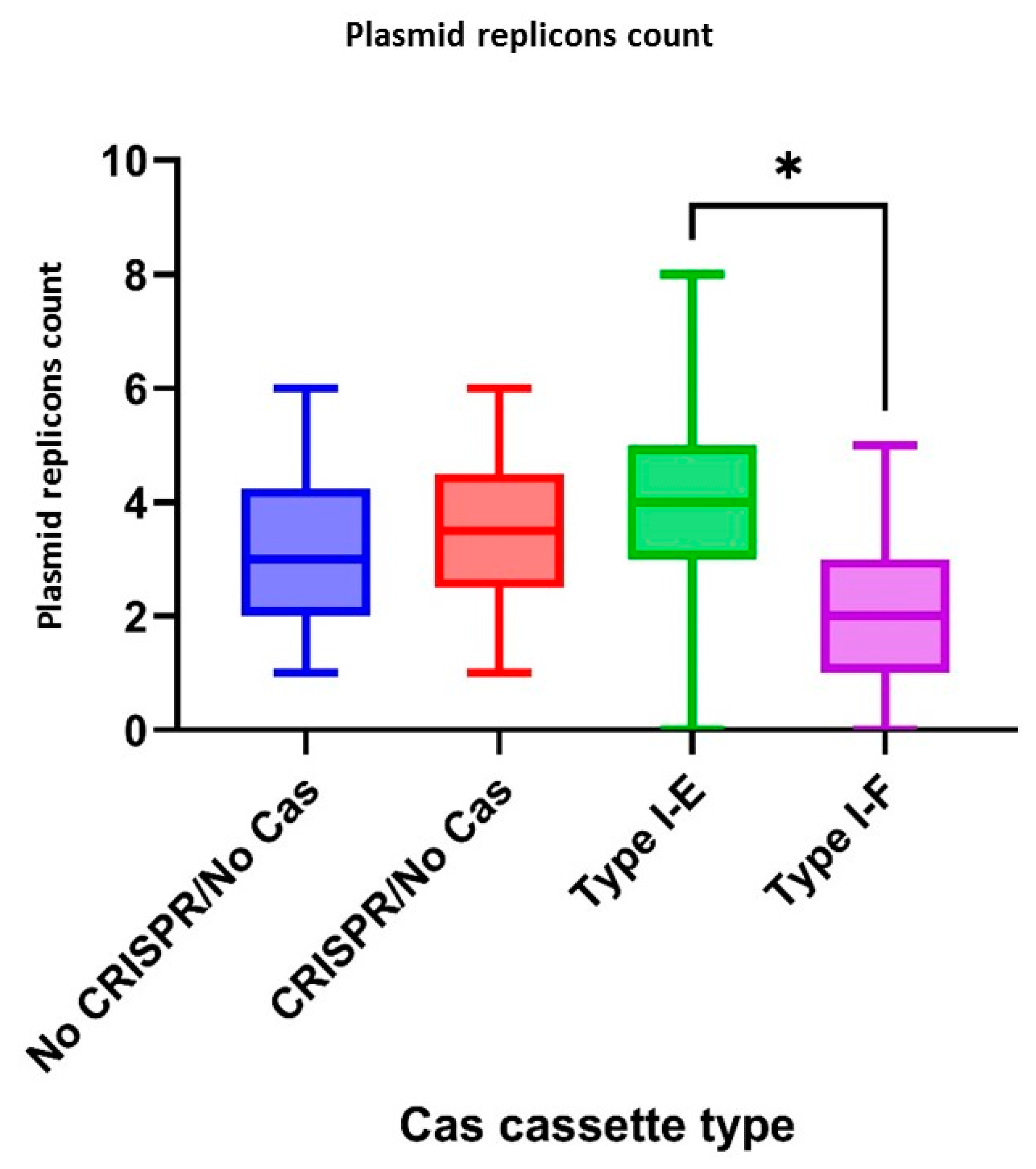

According to CRISPR-element sets of the studied isolates, plasmid replicons were observed more frequently (p = 0.0333) in the group “Type I-E” E. coli isolates when compared to the “Type I-F” isolates (Figure 7).

3.7. CRISPR Arrays of the E. coli Isolates

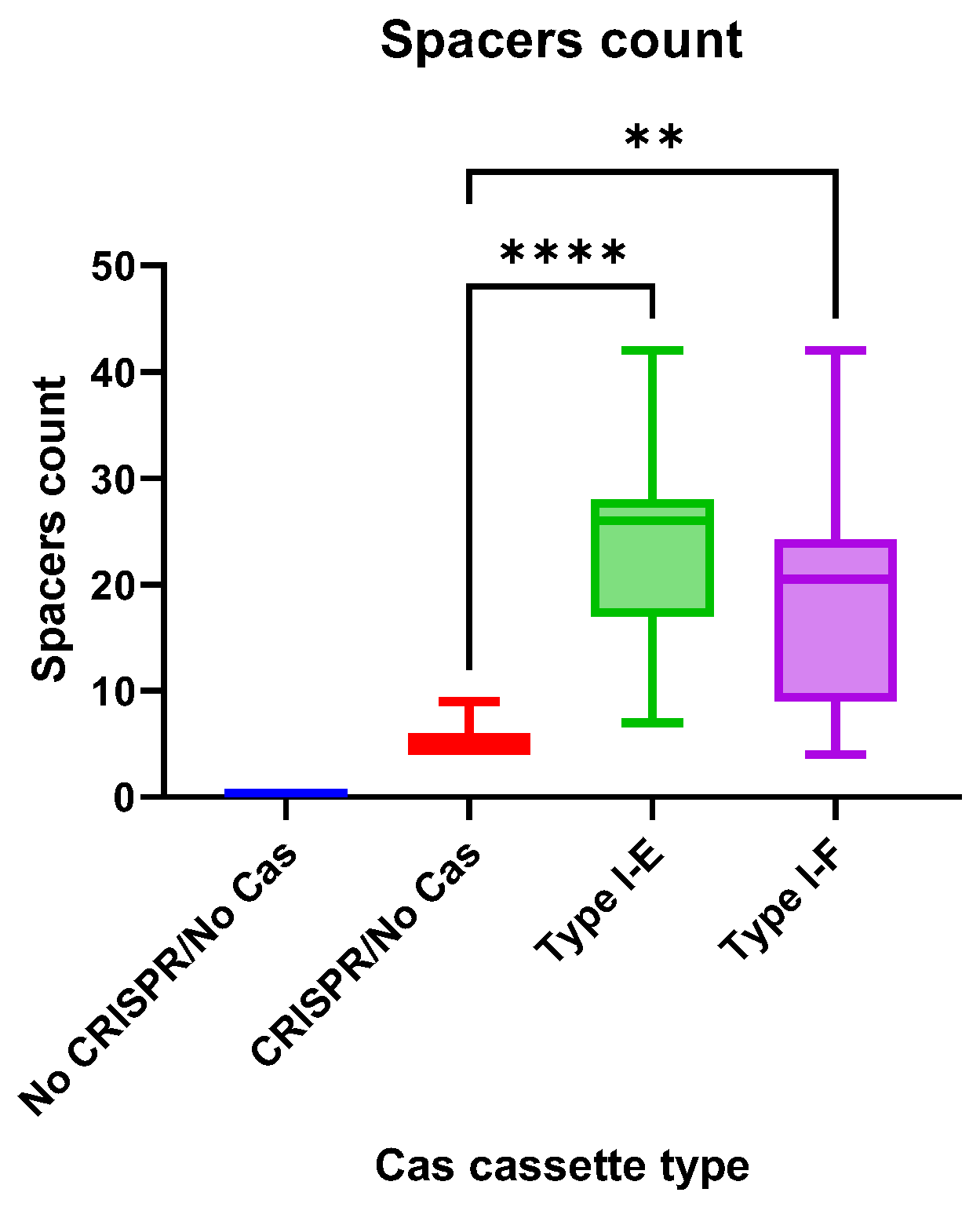

The CRISPR array spacers number did not differ significantly between “Type I-E” and “Type I-F” E. coli isolates, but the number of spacers in both groups was significantly higher than in “CRISPR/No Cas” (Figure 8).
CRISPR arrays of Type I-E Crie-Pu E. coli isolates consisted of 450 spacers (189 unique spacers and 261 repeating spacers with 48 unique spacers among them). 71.1% of the analyzed spacers were identified as E. coli CRISPR spacers (e.g., ‘Escherichia coli strain C2-7 CRISPR repeat region’) using the MegaBLAST algorithm of Basic Local Alignment Search Tool (BLAST®, National Library of Medicine). Only 4.2% of spacers were identified as phage sequences (e.g., ‘Bacteriophage sp. isolate 4198_46168, partial genome’), and 49.3% of spacers targeted plasmids (e.g., ‘Escherichia coli strain KE47 plasmid unnamed1, complete sequence’) (Table S6). The rest (around 14.2%) were self-targeting spacers (Table S6).
In total, 224 spacers were found in Type I-F Crie-Pu E. coli CRISPR arrays, with 75 of them being unique and 149 being repeating (with 39 unique spacers among the repeating ones). In addition, 61.6% (138 out of 224) were identified as spacers from known E. coli CRISPR arrays (e.g., ‘Escherichia coli strain 718 CRISPR1 repeat region’). Only five spacers (out of 224) targeted phage sequences (e.g., ‘Salmonella phage SW3, complete genome’), and ten spacers targeted plasmids (e.g., ‘Escherichia coli strain SCU-204 plasmid pSCU-204-5, complete sequence’) according to the analysis conducted using MegaBLAST algorithm of BLAST® (National Library of Medicine) (Table S7). The rest spacers (32.6%) targeted E. coli genomes (Table S7).

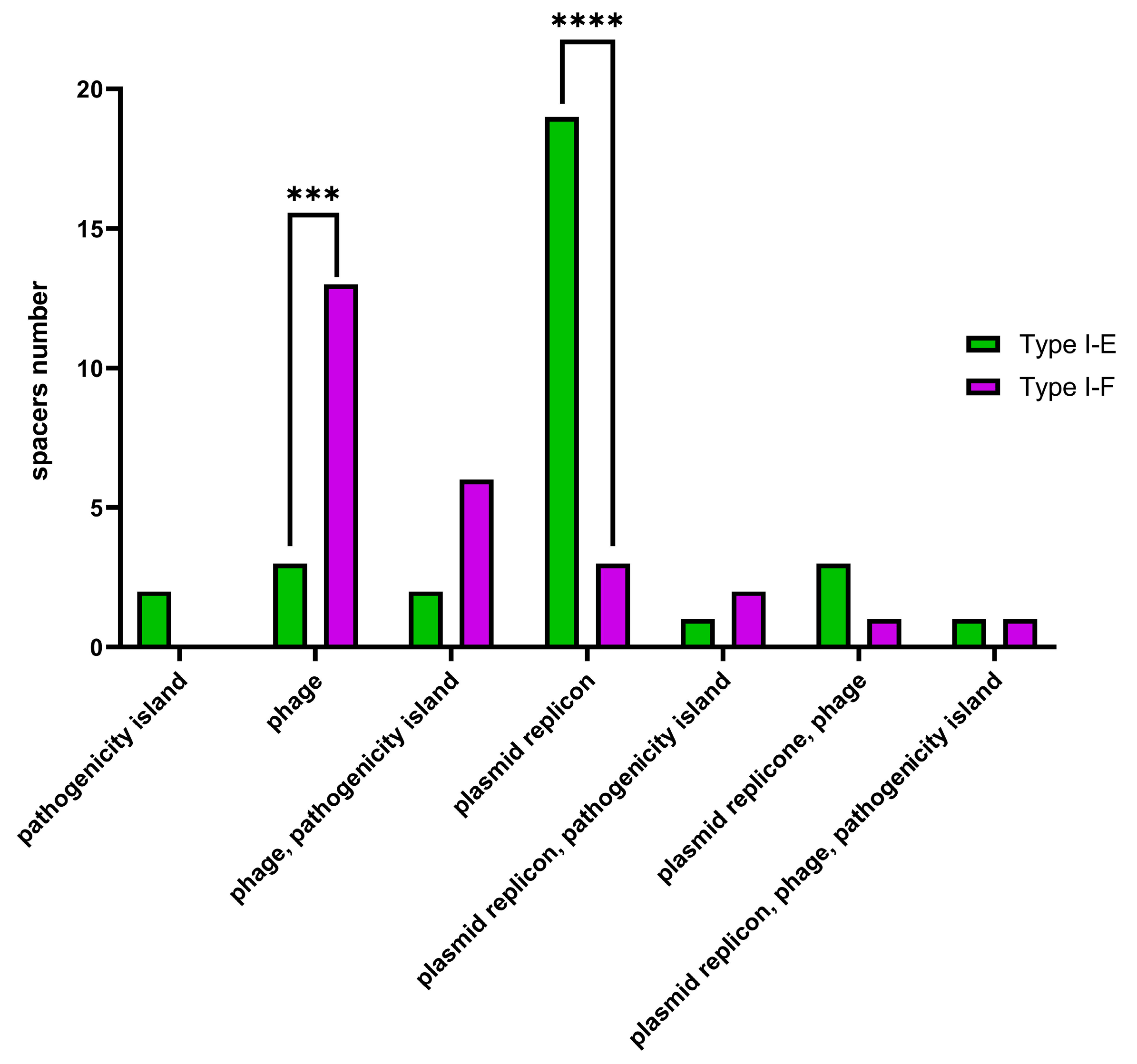

Additionally, Type I-E and Type I-F CRISPR spacers were analyzed using the CRISPRTarget web service (http://crispr.otago.ac.nz/CRISPRDetect/predict_crispr_array.html accessed on 10 July 2024 [17]; http://crispr.otago.ac.nz/CRISPRTarget/crispr_analysis.html accessed on 10 July 2024 [18,19]). CRISPRTarget revealed specific targets (namely, ‘plasmids’, ‘phages’, ‘pathogenicity islands’ or combinations thereof) for 31 Type I-E and 26 Type I-F E. coli CRISPR spacers with 61.3% (19 out of 31) Type I-E spacers identified as targeting plasmids, while 50% (13 out of 26) Type I-F spacers were identified as targeting phages. It was shown that plasmid-targeting spacers were observed more frequently (p ≤ 0.0001) within Type I-E spacers, whereas phage-targeting spacers (p ≤ 0.001) were observed more frequently within Type I-F spacers (Figure 9).

3.8. Correlation Analysis

In order to find out the interrelation between pathoadaptability factors and CRISPR-element patterns, a correlation analysis was performed. First of all, the datasets “Antibiotic resistance genes count”, “Virulence factors genes count” “Plasmids count” and “Spacers count” for “No CRISPR/No Cas”, “CRISPR/No Cas”, “Type I-E”, and “Type I-F” groups of Crie-Pu E. coli isolates were normalized. Afterward, the nonparametric Spearman correlation was calculated, and correlation matrices were constructed. The resulting correlation matrices are presented in Figure S1.
In the “No CRISPR/No Cas” group of E. coli isolates, a moderate negative correlation (p = 0.025) was observed between the number of virulence factor genes and plasmids count (Table 1), while the number of AMR genes positively correlated with the number of plasmids in the “Type I-E” and “Type I-F” groups (Table 1).

4. Discussion

The work presented here focuses on whole genome analysis of E. coli strains isolated from the maternal birth canal discharge of puerperant women on the 3rd or 4th day after labor. We described our results through the prism of CRISPR-elements patterns to assess the pathogenic potential of the isolates under study. Our previous investigations showed specific features of multidrug-resistant bacteria in terms of their pathoadaptability, and genomic and phenotypic adaptations that promote bacterial survival under hospital conditions [21,26]. It is worth noting that there is a lack of data regarding the phenotypic and genotypic characterization of E. coli strains colonizing healthy women several days after labor.
The analysis of the population structure of the isolates showed a notable heterogeneity of the strains at genotype and phylogroup levels. The 53 studied samples belonged to 31 MLST-based sequence types and 20 O-serotypes. Phylogroup classification demonstrated that E. coli isolates under investigation were distributed in six phylogroups—A, B1, B2, C, D, and F, and more than half of the isolates (32, 60%) belonged to phylogroup B2. It was reported that most ExPEC strains derived from this group [27,28], and common ExPEC types were revealed in our sample set. These types included ST73 (three isolates), ST95 (one isolate), ST131 (six isolates), ST1193 (one isolate), and ST69 (phylogroup D, eight isolates). Interestingly, similar heterogeneity of E. coli isolates with the prevalence of the B2 phylogroup was described earlier for vaginal and endocervical strains collected from pregnant women [29,30] and cervix isolates of women in preterm labor [31]. It is also worth mentioning that four ST141 isolates were revealed in our study since their prevalence has recently increased in both extraintestinal and intestinal diseases [6]. In general, such a diversity of isolates collected from one department during a rather short period practically eliminates the possibility of nosocomial infection in this case.
In total, 62.3% of Crie-Pu E. coli isolates were characterized by the presence of the CRISPR/Cas systems. Commonly, such a high percentage of CRISPR/Cas systems is found in the microorganisms used in fermentation processes (e.g., starter cultures, probiotic cultures, and so on) [32,33]. CRISPR/Cas systems provide protection to these microorganisms from phage invasions that dramatically affect the quality of products [34] and represent one of the evolutionary mechanisms of adaptation and survival.
CRISPR/Cas systems Type I-E and I-F were found in 35.8% and 26.4% of Crie-Pu E. coli isolates, respectively. On the one hand, Type I-E CRISPR/Cas distribution is consistent with the one published earlier [35,36]. On the other hand, we found that Type I-E CRISPR/Cas systems are found more frequently (p ˂ 0.05) in the group of reference E. coli isolates available in the CRISPRCas database. Type I-F CRISPR/Cas systems were overrepresented (p ˂ 0.00001) in our collection of E. coli isolates compared to the data published earlier [35] and the fraction revealed in the reference group. This is due to the predominance of B2 isolates in our sample set since the Type I-F CRISPR/Cas system is a characteristic of B2 E. coli strains [37]. It is worth noting that the Type I-F CRISPR/Cas system is more active than Type I-E, so it possesses a higher potential association with pathogenicity due to its presumable affinity to genetic elements and low prevalence [7,38]. Interestingly, according to phylogenetic analysis of Type I-E and I-F cas genes, Crie-Pu E. coli isolates belonging to ST69, 141, and 80 formed separate clades on maximum-likelihood trees, thus indicating their greater divergence compared to reference isolates from the database.
Apparently, there are several factors contributing to bacterial pathoadaptability, such as the number of AMR genes, virulence factors, plasmids, and the presence of apparently functional CRISPR/Cas systems. In the present study, we demonstrated that the number of AMR genes and plasmid replicons was higher in E. coli isolates bearing Type I-E CRISPR/Cas system than in isolates with Type I-F systems, and this fact is consistent with the observation published earlier [39]. In 2019, Long et al. demonstrated the role of the Type I-F system in limiting the acquisition of AMR [37]. Interestingly, the majority of our E. coli isolates carrying the I-F system included fewer antimicrobial resistance genes compared to other isolates under investigation, but were characterized by a lower number of plasmid-targeting spacers than Type I-E Crie-Pu E. coli isolates. This fact is in contrast to the work of Aydin S. et al., who reported a much larger proportion of plasmid-specific spacers in E. coli isolates susceptible to antimicrobial drugs [39]. This observation suggests a more complex role of CRISPR/Cas systems in bacterial pathoadaptability and needs further investigation.
At the same time, in Type I-F E. coli isolates the number of genes encoding virulence factors was higher. Several virulence factors such as sfa (S fimbriae), cnf1 (cytotoxic necrotizing factor 1), focF and focH (Fimbriae of serotype 1C), iroB, and hlyABCD (hemolysins) were seen more frequently in the group of Type I-F vs. Type I-E isolates. These virulence factors are frequently found in Uropathogenic Escherichia coli (UPEC), which represents the primary cause of UTIs globally [40] and is also associated with cystitis and pyelonephritis [41,42].
It is worth noting that the CRISPR/No Cas group of our Crie-Pu sample set was represented by six isolates only and they were characterized by an interrelation pattern of pathoadaptability factors similar to Type I-E E. coli isolates.
Furthermore, remarkable correlations were found between the pathoadaptability factors, such as the number of AMR genes, the number of virulence factors, and the number of plasmid replicons in the groups of Crie-Pu E. coli isolates with different types of CRISPR/Cas systems. Thus, for Crie-Pu E. coli isolates without CRISPR/Cas systems, we revealed the pattern of “more virulence genes-less plasmids” and vice versa. Another correlation pattern “more plasmids-more antibiotic resistance genes” and vice versa was observed in the “Type I-E” and “Type I-F” groups. This fact confers the potential association of Type I-E and Type I-F with E. coli pathogenicity [7] and may contribute to the pathoadaptability of E. coli with different CRISPR/Cas systems. Moreover, the presence of spacers with identities to phage and plasmid sequences in Crie-Pu E.coli strains indicates the defense role of CRISPR/Cas systems.
In our study, 14.2% of Type I-E spacers and 32.6% of Type I-F spacers were identified as self-targeting. It is known that E. coli CRISPR spacers have a statistically significant tendency to target hosts compared to phage genomes [43]. It is known that self-targeting spacers in CRISPR/Cas systems acquired from the host chromosome are involved in autoimmunity and cell death [44]. Moreover, such spacers play an important role in the mRNA degradation process making it possible to overcome host immune reactions [45]. In addition, self-targeting spacers may contribute to bacterial gene regulation and evolution [8,46]. It is assumed that CRISPR/Cas systems containing self-targeting spacers should be tightly regulated to maintain a balance between the risk of developing autoimmune reactions leading to cell death and the ability to resist phage invasions. These CRISPR/Cas systems still require further investigation [47].

5. Conclusions

Our whole genome-based analysis demonstrated that E. coli isolates from birth canal discharge of healthy puerperant women possessed a high potential for extraintestinal infections. This applies mainly to the isolates belonging to B2 and D phylogroups. We also observed colonization with E. coli strains from A, B1, C, and F phylogroups, which more commonly behave as commensals [48]. Additionally, the remarkable heterogeneity of the studied bacterial population was observed, which makes the nosocomial origin of E. coli infections unlikely. We believe that the data presented will contribute to further investigations in the field of bacterial pathoadaptability, and will serve as an important supplementary for the formation of new approaches for genomic epidemiology surveillance in clinical conditions, and in maternal care facilities, in particular. The assessment of antimicrobial resistance and virulence genetic determinants, plasmid replicons, etc. with respect to the variability of CRISPR elements for bacterial strains could be used as additional pathogenicity predictors and could facilitate the development of better prevention strategies against this important pathogen.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/pathogens13110997/s1, Figure S1: Correlation analysis of CRISPR type vs. other pathoadaptability factors; Table S1: Metadata and susceptibility to antibiotics of the studied E. coli isolates; Table S2: Typing of E. coli isolates studied and revealed virulence genes; Table S3: Pathoadaptability Factors vs. CRISPR-Elements; Table S4: Distribution of antibiotic resistance determinants in E.coli isolates studied; Table S5: Plasmid replicons in E. coli isolates studied; Table S6: CRISPR arrays in Crie-Pu E. coli isolates with putative Type I-E CRISPR/Cas systems; Table S7: CRISPR arrays in Crie-Pu E. coli isolates with putative Type I-F CRISPR/Cas systems.

Author Contributions

Conceptualization, Y.M., M.T. and A.T.; Data curation, A.S. (Anna Slavokhotova) and A.S. (Andrey Shelenkov); Formal analysis, K.K., A.T. and S.S.; Funding acquisition, V.A.; Investigation, Y.M., M.T., K.K., A.S. (Anna Slavokhotova), S.S., A.A. and A.S. (Andrey Shelenkov); Methodology, Y.M., M.T., A.T. and S.S.; Project administration, V.A.; Resources, M.T., K.K., S.S., A.A. and A.S. (Andrey Shelenkov); Software, A.S. (Andrey Shelenkov); Supervision, A.T. and V.A.; Validation, Y.M. and A.S. (Anna Slavokhotova); Visualization, M.T., K.K. and A.A.; Writing—original draft, Y.M. and M.T.; Writing—review & editing, A.S. (Anna Slavokhotova) and A.S. (Andrey Shelenkov). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by a grant from the Ministry of Science and Higher Education of the Russian Federation (agreement No. 075-15-2019-1666).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki, and approved by the Local Ethics Committee of the Central Research Institute of Epidemiology (protocol No. 126, approved on 30 August 2022).

Informed Consent Statement

The informed consent was received for all patients involved in the study.

Data Availability Statement

The genomes of all isolates described in this study were uploaded to NCBI under the project number PRJNA1151703.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Geurtsen, J.; de Been, M.; Weerdenburg, E.; Zomer, A.; McNally, A.; Poolman, J. Genomics and pathotypes of the many faces of Escherichia coli. FEMS Microbiol. Rev. 2022, 46, fuac031. [Google Scholar] [CrossRef] [PubMed]
  2. Denamur, E.; Clermont, O.; Bonacorsi, S.; Gordon, D. The population genetics of pathogenic Escherichia coli. Nat. Rev. Microbiol. 2021, 19, 37–54. [Google Scholar] [CrossRef]
  3. Kocsis, B.; Gulyas, D.; Szabo, D. Emergence and Dissemination of Extraintestinal Pathogenic High-Risk International Clones of Escherichia coli. Life 2022, 12, 2077. [Google Scholar] [CrossRef]
  4. Beghain, J.; Bridier-Nahmias, A.; Le Nagard, H.; Denamur, E.; Clermont, O. ClermonTyping: An easy-to-use and accurate in silico method for Escherichia genus strain phylotyping. Microb. Genom. 2018, 4, e000192. [Google Scholar] [CrossRef] [PubMed]
  5. Clermont, O.; Bonacorsi, S.; Bingen, E. Rapid and simple determination of the Escherichia coli phylogenetic group. Appl. Environ. Microbiol. 2000, 66, 4555–4558. [Google Scholar] [CrossRef]
  6. Emery, A.; Hocquet, D.; Bonnet, R.; Bertrand, X. Genotypic Characteristics and Antimicrobial Resistance of Escherichia coli ST141 Clonal Group. Antibiotics 2023, 12, 382. [Google Scholar] [CrossRef]
  7. Garcia-Gutierrez, E.; Almendros, C.; Mojica, F.J.; Guzman, N.M.; Garcia-Martinez, J. CRISPR Content Correlates with the Pathogenic Potential of Escherichia coli. PLoS ONE 2015, 10, e0131935, Erratum in PLoS ONE 2015, 10, e0134138. [Google Scholar] [CrossRef] [PubMed]
  8. Westra, E.R.; Buckling, A.; Fineran, P.C. CRISPR-Cas systems: Beyond adaptive immunity. Nat. Rev. Microbiol. 2014, 12, 317–326. [Google Scholar] [CrossRef]
  9. Shehreen, S.; Chyou, T.Y.; Fineran, P.C.; Brown, C.M. Genome-wide correlation analysis suggests different roles of CRISPR-Cas systems in the acquisition of antibiotic resistance genes in diverse species. Philos. Trans. R. Soc. Lond. B Biol. Sci. 2019, 374, 20180384. [Google Scholar] [CrossRef]
  10. Conroy, K.; Koenig, A.F.; Yu, Y.H.; Courtney, A.; Lee, H.J.; Norwitz, E.R. Infectious morbidity after cesarean delivery: 10 strategies to reduce risk. Rev. Obstet. Gynecol. 2012, 5, 69–77. [Google Scholar]
  11. Smirnova, S.S.; Egorov, I.A.; Golubkova, A.A. Purulent-septic infections in puerperas. Part 2. Clinical and pathogenetic characteristics of nosological forms, etiology and antibiotic resistance (literature review). J. Microbiol. Epidemiol. Immunobiol. 2022, 99, 244–259. [Google Scholar] [CrossRef]
  12. Knowles, S.J.; O’Sullivan, N.P.; Meenan, A.M.; Hanniffy, R.; Robson, M. Maternal sepsis incidence, aetiology and outcome for mother and fetus: A prospective study. BJOG 2015, 122, 663–671. [Google Scholar] [CrossRef] [PubMed]
  13. Shelenkov, A.; Petrova, L.; Fomina, V.; Zamyatin, M.; Mikhaylova, Y.; Akimkin, V. Multidrug-Resistant Proteus mirabilis Strain with Cointegrate Plasmid. Microorganisms 2020, 8, 1775. [Google Scholar] [CrossRef] [PubMed]
  14. Egorova, A.; Mikhaylova, Y.; Saenko, S.; Tyumentseva, M.; Tyumentsev, A.; Karbyshev, K.; Chernyshkov, A.; Manzeniuk, I.; Akimkin, V.; Shelenkov, A. Comparative Whole-Genome Analysis of Russian Foodborne Multidrug-Resistant Salmonella Infantis Isolates. Microorganisms 2021, 10, 89. [Google Scholar] [CrossRef] [PubMed]
  15. Clermont, O.; Gordon, D.; Denamur, E. Guide to the various phylogenetic classification schemes for Escherichia coli and the correspondence among schemes. Microbiology 2015, 161, 980–988. [Google Scholar] [CrossRef]
  16. Couvin, D.; Bernheim, A.; Toffano-Nioche, C.; Touchon, M.; Michalik, J.; Neron, B.; Rocha, E.P.C.; Vergnaud, G.; Gautheret, D.; Pourcel, C. CRISPRCasFinder, an update of CRISRFinder, includes a portable version, enhanced performance and integrates search for Cas proteins. Nucleic Acids Res. 2018, 46, W246–W251. [Google Scholar] [CrossRef]
  17. Biswas, A.; Staals, R.H.; Morales, S.E.; Fineran, P.C.; Brown, C.M. CRISPRDetect: A flexible algorithm to define CRISPR arrays. BMC Genom. 2016, 17, 356. [Google Scholar] [CrossRef]
  18. Biswas, A.; Gagnon, J.N.; Brouns, S.J.; Fineran, P.C.; Brown, C.M. CRISPRTarget: Bioinformatic prediction and analysis of crRNA targets. RNA Biol. 2013, 10, 817–827. [Google Scholar] [CrossRef]
  19. Staals, R.H.; Jackson, S.A.; Biswas, A.; Brouns, S.J.; Brown, C.M.; Fineran, P.C. Interference-driven spacer acquisition is dominant over naive and primed adaptation in a native CRISPR-Cas system. Nat. Commun. 2016, 7, 12853. [Google Scholar] [CrossRef]
  20. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  21. Tyumentseva, M.; Mikhaylova, Y.; Prelovskaya, A.; Karbyshev, K.; Tyumentsev, A.; Petrova, L.; Mironova, A.; Zamyatin, M.; Shelenkov, A.; Akimkin, V. CRISPR Element Patterns vs. Pathoadaptability of Clinical Pseudomonas aeruginosa Isolates from a Medical Center in Moscow, Russia. Antibiotics 2021, 10, 1301. [Google Scholar] [CrossRef] [PubMed]
  22. Soto, G.E.; Hultgren, S.J. Bacterial adhesins: Common themes and variations in architecture and assembly. J. Bacteriol. 1999, 181, 1059–1071. [Google Scholar] [CrossRef]
  23. Klebba, P.E.; Newton, S.M.C.; Six, D.A.; Kumar, A.; Yang, T.; Nairn, B.L.; Munger, C.; Chakravorty, S. Iron Acquisition Systems of Gram-negative Bacterial Pathogens Define TonB-Dependent Pathways to Novel Antibiotics. Chem. Rev. 2021, 121, 5193–5239. [Google Scholar] [CrossRef]
  24. Sarowska, J.; Futoma-Koloch, B.; Jama-Kmiecik, A.; Frej-Madrzak, M.; Ksiazczyk, M.; Bugla-Ploskonska, G.; Choroszy-Krol, I. Virulence factors, prevalence and potential transmission of extraintestinal pathogenic Escherichia coli isolated from different sources: Recent reports. Gut Pathog. 2019, 11, 10. [Google Scholar] [CrossRef] [PubMed]
  25. Stephens, C.; Arismendi, T.; Wright, M.; Hartman, A.; Gonzalez, A.; Gill, M.; Pandori, M.; Hess, D. F Plasmids Are the Major Carriers of Antibiotic Resistance Genes in Human-Associated Commensal Escherichia coli. mSphere 2020, 5. [Google Scholar] [CrossRef]
  26. Tyumentseva, M.; Mikhaylova, Y.; Prelovskaya, A.; Tyumentsev, A.; Petrova, L.; Fomina, V.; Zamyatin, M.; Shelenkov, A.; Akimkin, V. Genomic and Phenotypic Analysis of Multidrug-Resistant Acinetobacter baumannii Clinical Isolates Carrying Different Types of CRISPR/Cas Systems. Pathogens 2021, 10, 205. [Google Scholar] [CrossRef] [PubMed]
  27. Picard, B.; Garcia, J.S.; Gouriou, S.; Duriez, P.; Brahimi, N.; Bingen, E.; Elion, J.; Denamur, E. The link between phylogeny and virulence in Escherichia coli extraintestinal infection. Infect. Immun. 1999, 67, 546–553. [Google Scholar] [CrossRef]
  28. Johnson, J.R.; Stell, A.L. Extended virulence genotypes of Escherichia coli strains from patients with urosepsis in relation to phylogeny and host compromise. J. Infect. Dis. 2000, 181, 261–272. [Google Scholar] [CrossRef]
  29. Obata-Yasuoka, M.; Ba-Thein, W.; Tsukamoto, T.; Yoshikawa, H.; Hayashi, H. Vaginal Escherichia coli share common virulence factor profiles, serotypes and phylogeny with other extraintestinal E. coli. Microbiology 2002, 148, 2745–2752. [Google Scholar] [CrossRef]
  30. Guiral, E.; Bosch, J.; Vila, J.; Soto, S.M. Prevalence of Escherichia coli among samples collected from the genital tract in pregnant and nonpregnant women: Relationship with virulence. FEMS Microbiol. Lett. 2011, 314, 170–173. [Google Scholar] [CrossRef]
  31. Williams, M.; Jones, A.B.; Maxedon, A.L.; Tabakh, J.E.; McCloskey, C.B.; Bard, D.E.; Heruth, D.P.; Chavez-Bueno, S. Whole-genome sequencing-based phylogeny, antibiotic resistance, and invasive phenotype of Escherichia coli strains colonizing the cervix of women in preterm labor. BMC Microbiol. 2021, 21, 330. [Google Scholar] [CrossRef] [PubMed]
  32. Stout, E.; Klaenhammer, T.; Barrangou, R. CRISPR-Cas Technologies and Applications in Food Bacteria. Annu. Rev. Food Sci. Technol. 2017, 8, 413–437. [Google Scholar] [CrossRef]
  33. Sun, Z.; Harris, H.M.; McCann, A.; Guo, C.; Argimon, S.; Zhang, W.; Yang, X.; Jeffery, I.B.; Cooney, J.C.; Kagawa, T.F.; et al. Expanding the biotechnology potential of lactobacilli through comparative genomics of 213 strains and associated genera. Nat. Commun. 2015, 6, 8322. [Google Scholar] [CrossRef]
  34. Chegini, Z.; Khoshbayan, A.; Taati Moghadam, M.; Farahani, I.; Jazireian, P.; Shariati, A. Bacteriophage therapy against Pseudomonas aeruginosa biofilms: A review. Ann. Clin. Microbiol. Antimicrob. 2020, 19, 45. [Google Scholar] [CrossRef]
  35. Medina-Aparicio, L.; Davila, S.; Rebollar-Flores, J.E.; Calva, E.; Hernandez-Lucas, I. The CRISPR-Cas system in Enterobacteriaceae. Pathog. Dis. 2018, 76, fty002. [Google Scholar] [CrossRef] [PubMed]
  36. Dion, M.B.; Shah, S.A.; Deng, L.; Thorsen, J.; Stokholm, J.; Krogfelt, K.A.; Schjorring, S.; Horvath, P.; Allard, A.; Nielsen, D.S.; et al. Escherichia coli CRISPR arrays from early life fecal samples preferentially target prophages. ISME J. 2024, 18, wrae005. [Google Scholar] [CrossRef] [PubMed]
  37. Long, J.; Xu, Y.; Ou, L.; Yang, H.; Xi, Y.; Chen, S.; Duan, G. Polymorphism of Type I-F CRISPR/Cas system in Escherichia coli of phylogenetic group B2 and its application in genotyping. Infect. Genet. Evol. 2019, 74, 103916. [Google Scholar] [CrossRef]
  38. Almendros, C.; Mojica, F.J.; Diez-Villasenor, C.; Guzman, N.M.; Garcia-Martinez, J. CRISPR-Cas functional module exchange in Escherichia coli. mBio 2014, 5, e00767-00713. [Google Scholar] [CrossRef] [PubMed]
  39. Aydin, S.; Personne, Y.; Newire, E.; Laverick, R.; Russell, O.; Roberts, A.P.; Enne, V.I. Presence of Type I-F CRISPR/Cas systems is associated with antimicrobial susceptibility in Escherichia coli. J. Antimicrob. Chemother. 2017, 72, 2213–2218. [Google Scholar] [CrossRef]
  40. Terlizzi, M.E.; Gribaudo, G.; Maffei, M.E. UroPathogenic Escherichia coli (UPEC) Infections: Virulence Factors, Bladder Responses, Antibiotic, and Non-antibiotic Antimicrobial Strategies. Front. Microbiol. 2017, 8, 1566. [Google Scholar] [CrossRef]
  41. Tiba, M.R.; Yano, T.; Leite Dda, S. Genotypic characterization of virulence factors in Escherichia coli strains from patients with cystitis. Rev. Inst. Med. Trop. Sao Paulo 2008, 50, 255–260. [Google Scholar] [CrossRef] [PubMed]
  42. Salvador, E.; Wagenlehner, F.; Kohler, C.D.; Mellmann, A.; Hacker, J.; Svanborg, C.; Dobrindt, U. Comparison of asymptomatic bacteriuria Escherichia coli isolates from healthy individuals versus those from hospital patients shows that long-term bladder colonization selects for attenuated virulence phenotypes. Infect. Immun. 2012, 80, 668–678. [Google Scholar] [CrossRef]
  43. Bozic, B.; Repac, J.; Djordjevic, M. Endogenous Gene Regulation as a Predicted Main Function of Type I-E CRISPR/Cas System in E. coli. Molecules 2019, 24, 784. [Google Scholar] [CrossRef] [PubMed]
  44. McGinn, J.; Marraffini, L.A. Molecular mechanisms of CRISPR-Cas spacer acquisition. Nat. Rev. Microbiol. 2019, 17, 7–12. [Google Scholar] [CrossRef] [PubMed]
  45. Wimmer, F.; Beisel, C.L. CRISPR-Cas Systems and the Paradox of Self-Targeting Spacers. Front. Microbiol. 2019, 10, 3078. [Google Scholar] [CrossRef]
  46. Devi, V.; Harjai, K.; Chhibber, S. Self-targeting spacers in CRISPR-array: Accidental occurrence or evolutionarily conserved phenomenon. J. Basic Microbiol. 2022, 62, 4–12. [Google Scholar] [CrossRef]
  47. Hoyland-Kroghsbo, N.M.; Paczkowski, J.; Mukherjee, S.; Broniewski, J.; Westra, E.; Bondy-Denomy, J.; Bassler, B.L. Quorum sensing controls the Pseudomonas aeruginosa CRISPR-Cas adaptive immune system. Proc. Natl. Acad. Sci. USA 2017, 114, 131–135. [Google Scholar] [CrossRef]
  48. Logue, C.M.; Wannemuehler, Y.; Nicholson, B.A.; Doetkott, C.; Barbieri, N.L.; Nolan, L.K. Comparative Analysis of Phylogenetic Assignment of Human and Avian ExPEC and Fecal Commensal Escherichia coli Using the (Previous and Revised) Clermont Phylogenetic Typing Methods and its Impact on Avian Pathogenic Escherichia coli (APEC) Classification. Front. Microbiol. 2017, 8, 283. [Google Scholar] [CrossRef]
Pathogens 13 00997 g001

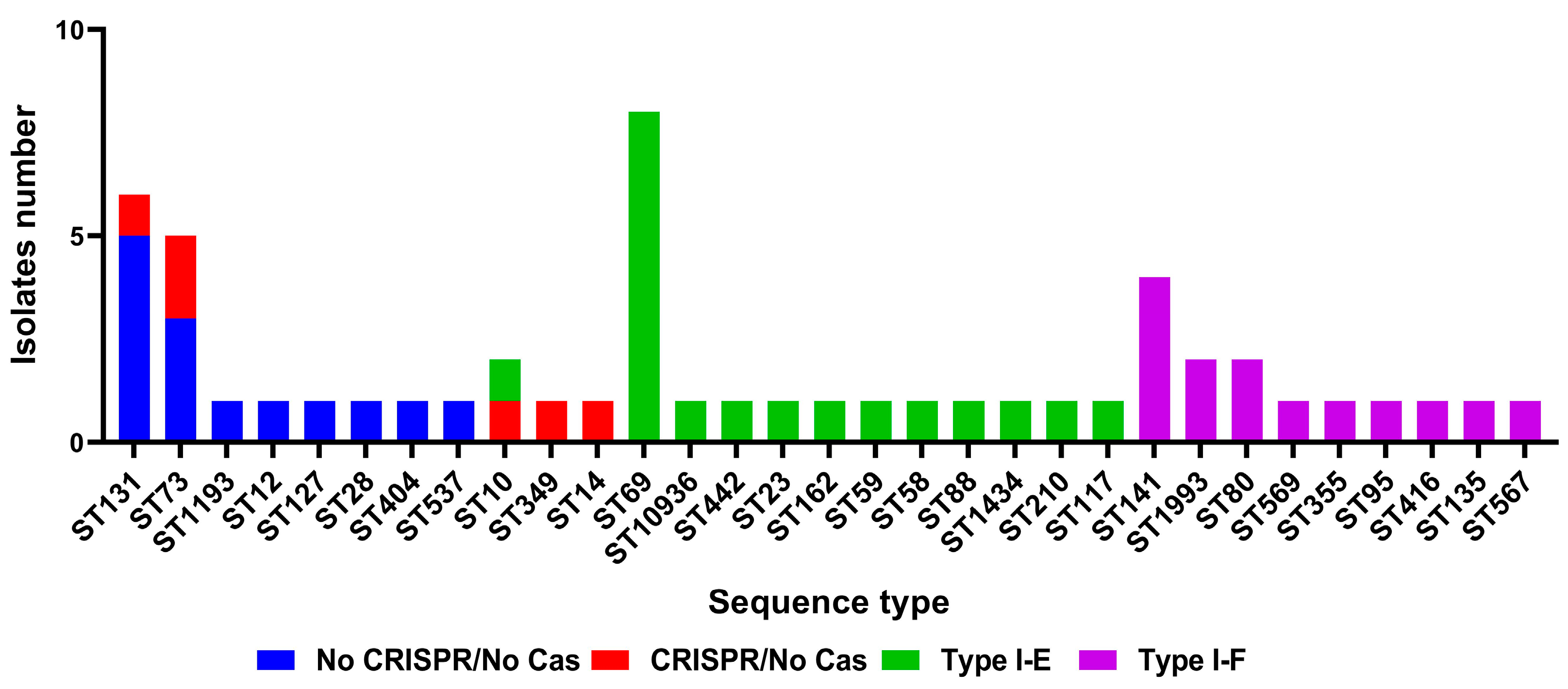

Figure 1. Sequence type distribution among different groups (“No CRISPR/No Cas”, “CRISPR/No Cas”, “Type I-E”, and “Type I-F”) of Crie-Pu E. coli isolates.
Figure 1. Sequence type distribution among different groups (“No CRISPR/No Cas”, “CRISPR/No Cas”, “Type I-E”, and “Type I-F”) of Crie-Pu E. coli isolates.
Pathogens 13 00997 g001
Pathogens 13 00997 g002

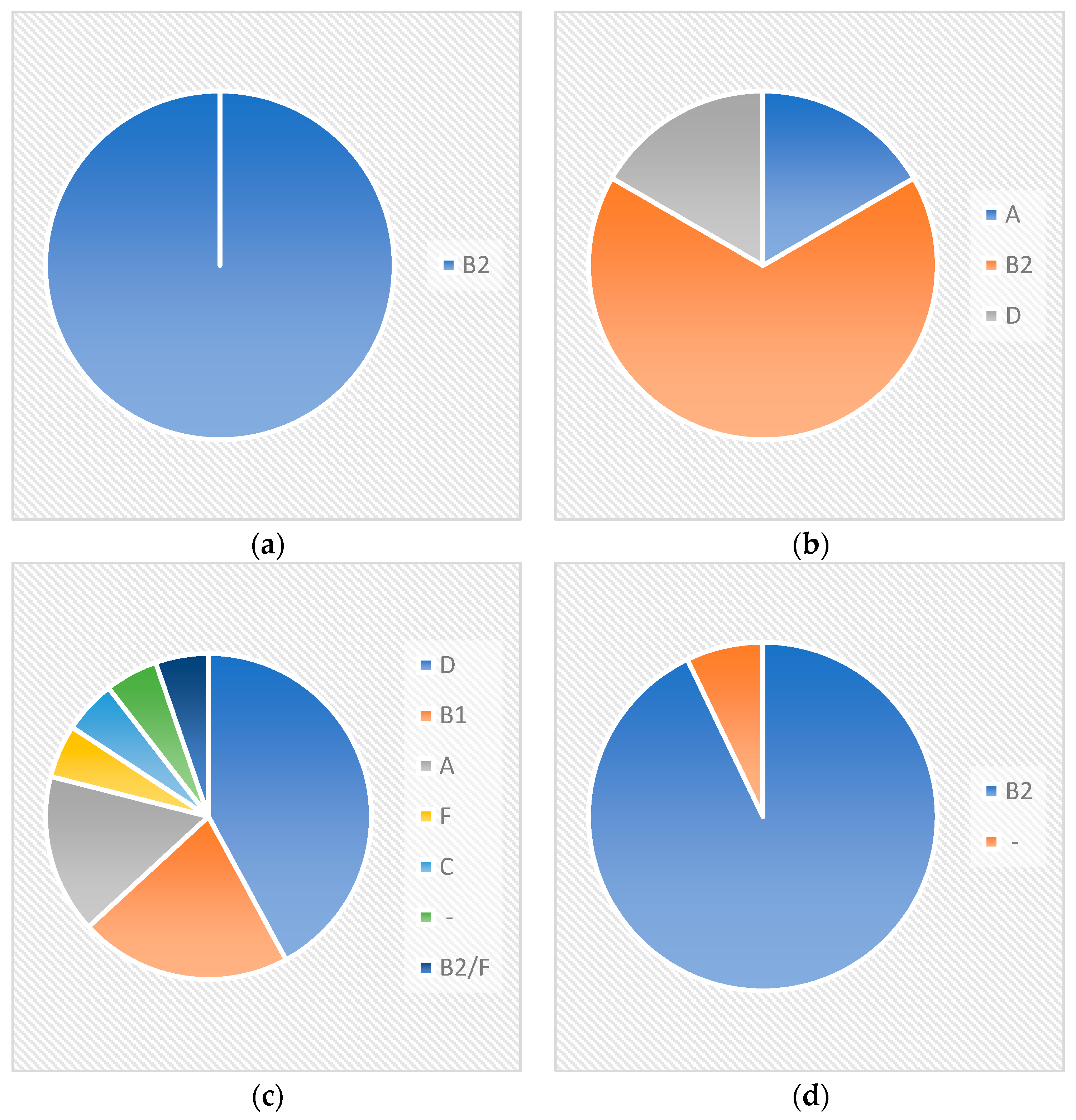

Figure 2. Phylogenetic groups’ distribution within different CRISPR-elements groups (“No CRISPR/No Cas”, “CRISPR/No Cas”, “Type I-E”, and “Type I-F”) for Crie-Pu E. coli isolates. (a) Crie-Pu isolates bearing neither CRISPR array, nor cas cassette; (b) Crie-Pu isolates with confirmed CRISPR arrays, but without cas cassettes; (c) Crie-Pu isolates with Type I-E CRISPR/Cas systems; (d) Crie-Pu isolates with Type I-F CRISPR/Cas systems.
Figure 2. Phylogenetic groups’ distribution within different CRISPR-elements groups (“No CRISPR/No Cas”, “CRISPR/No Cas”, “Type I-E”, and “Type I-F”) for Crie-Pu E. coli isolates. (a) Crie-Pu isolates bearing neither CRISPR array, nor cas cassette; (b) Crie-Pu isolates with confirmed CRISPR arrays, but without cas cassettes; (c) Crie-Pu isolates with Type I-E CRISPR/Cas systems; (d) Crie-Pu isolates with Type I-F CRISPR/Cas systems.
Pathogens 13 00997 g002
Pathogens 13 00997 g003

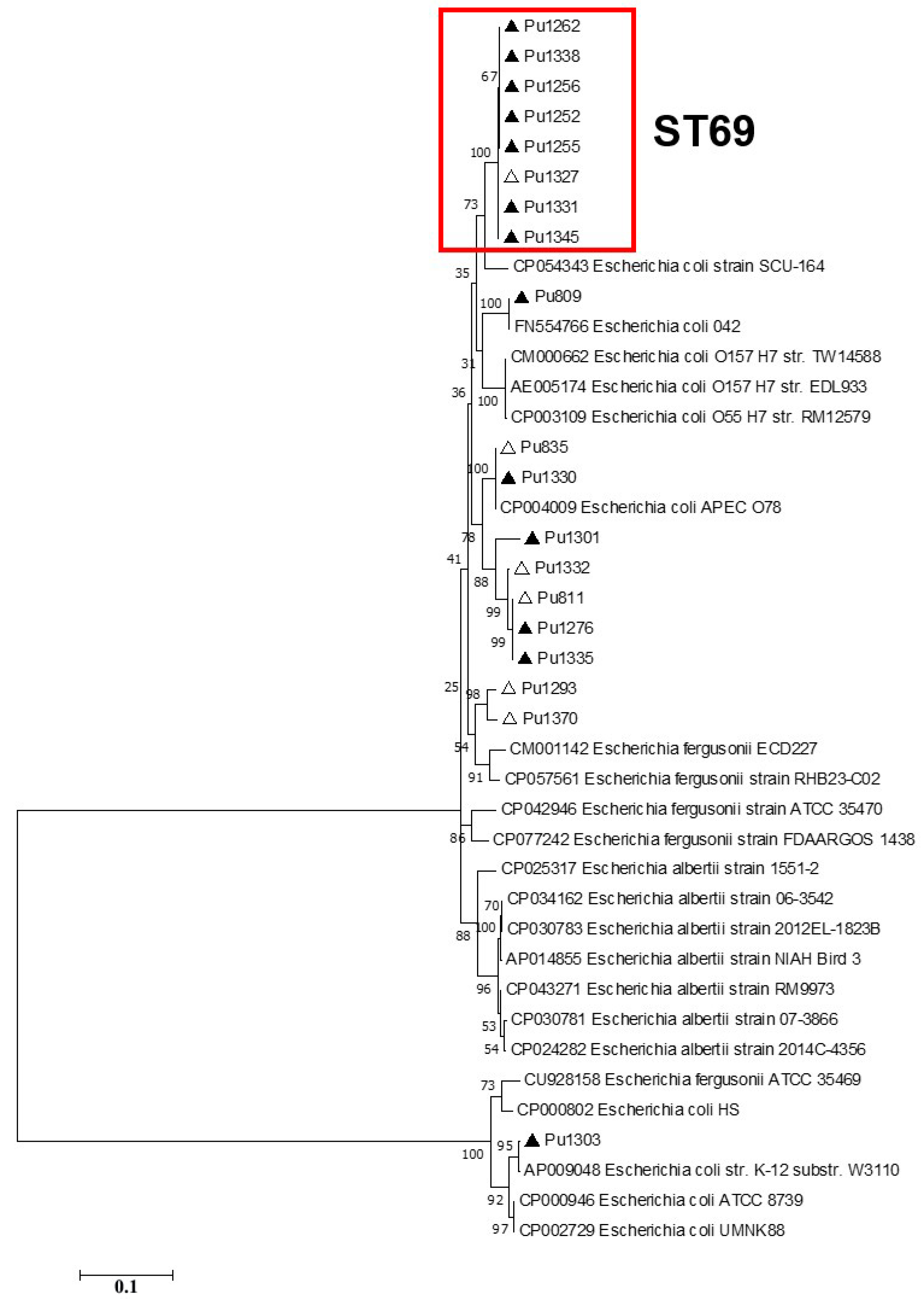

Figure 3. Maximum likelihood phylogenetic tree of the full-length Type I-E cas3 gene sequences of clinical Crie-Pu E. coli isolates (shown as ‘Pu’ for brevity) and reference Escherichia isolates obtained from CRISPRCasdb. Bootstrap test (1000 replicates) was applied. Bootstrap values are indicated at the branch nodes. Antibiotic-resistant Crie-Pu E. coli isolates are marked with black triangles, antibiotic-sensitive Crie-Pu E. coli isolates are marked with white triangles. The genes identified in this study are indicated by the short isolate names, and the reference sequences are shown by GenBank accession number and strain name.
Figure 3. Maximum likelihood phylogenetic tree of the full-length Type I-E cas3 gene sequences of clinical Crie-Pu E. coli isolates (shown as ‘Pu’ for brevity) and reference Escherichia isolates obtained from CRISPRCasdb. Bootstrap test (1000 replicates) was applied. Bootstrap values are indicated at the branch nodes. Antibiotic-resistant Crie-Pu E. coli isolates are marked with black triangles, antibiotic-sensitive Crie-Pu E. coli isolates are marked with white triangles. The genes identified in this study are indicated by the short isolate names, and the reference sequences are shown by GenBank accession number and strain name.
Pathogens 13 00997 g003
Pathogens 13 00997 g004
Figure 4. Maximum likelihood phylogenetic tree of the full-length Type I-F cas3 gene sequences of clinical Crie-Pu E. coli isolates (shown as ‘Pu’ for brevity) and reference Escherichia isolates obtained from CRISPRCas database. Bootstrap test (1000 replicates) was applied. Bootstrap values are indicated at the branch nodes. Antibiotic-resistant Crie-Pu E. coli isolates are marked with black triangles, antibiotic-sensitive Crie-Pu E. coli isolates are marked with white triangles. The genes identified in this study are indicated by the short isolate names, and the reference sequences are shown by GenBank accession number and strain name.
Figure 4. Maximum likelihood phylogenetic tree of the full-length Type I-F cas3 gene sequences of clinical Crie-Pu E. coli isolates (shown as ‘Pu’ for brevity) and reference Escherichia isolates obtained from CRISPRCas database. Bootstrap test (1000 replicates) was applied. Bootstrap values are indicated at the branch nodes. Antibiotic-resistant Crie-Pu E. coli isolates are marked with black triangles, antibiotic-sensitive Crie-Pu E. coli isolates are marked with white triangles. The genes identified in this study are indicated by the short isolate names, and the reference sequences are shown by GenBank accession number and strain name.
Pathogens 13 00997 g004
Pathogens 13 00997 g005
Figure 5. The number of antibiotic resistance genes in the analyzed groups of the Crie-Pu E. coli isolates. Asterisks denote significant difference (** p ≤ 0.01).
Figure 5. The number of antibiotic resistance genes in the analyzed groups of the Crie-Pu E. coli isolates. Asterisks denote significant difference (** p ≤ 0.01).
Pathogens 13 00997 g005
Pathogens 13 00997 g006
Figure 6. Virulence genes number in the analyzed groups of the Crie-Pu E. coli isolates. Asterisk denotes significant difference (* p ≤ 0.05).
Figure 6. Virulence genes number in the analyzed groups of the Crie-Pu E. coli isolates. Asterisk denotes significant difference (* p ≤ 0.05).
Pathogens 13 00997 g006
Pathogens 13 00997 g007
Figure 7. Plasmid replicons number in the analyzed groups of the Crie-Pu E. coli isolates. Asterisk denotes significant difference (* p ≤ 0.05).
Figure 7. Plasmid replicons number in the analyzed groups of the Crie-Pu E. coli isolates. Asterisk denotes significant difference (* p ≤ 0.05).
Pathogens 13 00997 g007
Pathogens 13 00997 g008
Figure 8. The CRISPR arrays spacers count in the analyzed groups of the Crie-Pu E. coli isolates. Asterisks denote significant differences (** p ≤ 0.01, **** p ≤ 0.0001).
Figure 8. The CRISPR arrays spacers count in the analyzed groups of the Crie-Pu E. coli isolates. Asterisks denote significant differences (** p ≤ 0.01, **** p ≤ 0.0001).
Pathogens 13 00997 g008
Pathogens 13 00997 g009
Figure 9. CRISPR array spacers distribution in Type I-E and Type I-F Crie-Pu E. coli isolates according to CRISPRTarget web service. Asterisks denote significant differences (*** p ≤ 0.001, **** p ≤ 0.0001).
Figure 9. CRISPR array spacers distribution in Type I-E and Type I-F Crie-Pu E. coli isolates according to CRISPRTarget web service. Asterisks denote significant differences (*** p ≤ 0.001, **** p ≤ 0.0001).
Pathogens 13 00997 g009
Table 1. Significant correlations in the analyzed groups of Crie-Pu E. coli isolates.
Table 1. Significant correlations in the analyzed groups of Crie-Pu E. coli isolates.
Correlation/Cas TypeNo CRISPR/
No Cas		CRISPR/
No Cas		Type I-EType I-F
Antibiotic resistance gene count vs.
Virulence factor gene count		------------
Antibiotic resistance gene count vs. Plasmid count------r = 0.48, p = 0.039r = 0.52, p = 0.060
Antibiotic resistance gene count vs. Spacer count------------
Virulence factors gene count vs. Plasmid countr = −0.60,
p = 0.025		---------
Virulence factor gene count vs. Spacer count------------
Plasmid count vs.
Spacer count		------------
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Mikhaylova, Y.; Tyumentseva, M.; Karbyshev, K.; Tyumentsev, A.; Slavokhotova, A.; Smirnova, S.; Akinin, A.; Shelenkov, A.; Akimkin, V. Interrelation Between Pathoadaptability Factors and Crispr-Element Patterns in the Genomes of Escherichia coli Isolates Collected from Healthy Puerperant Women in Ural Region, Russia. Pathogens 2024, 13, 997. https://doi.org/10.3390/pathogens13110997

AMA Style

Mikhaylova Y, Tyumentseva M, Karbyshev K, Tyumentsev A, Slavokhotova A, Smirnova S, Akinin A, Shelenkov A, Akimkin V. Interrelation Between Pathoadaptability Factors and Crispr-Element Patterns in the Genomes of Escherichia coli Isolates Collected from Healthy Puerperant Women in Ural Region, Russia. Pathogens. 2024; 13(11):997. https://doi.org/10.3390/pathogens13110997

Chicago/Turabian Style

Mikhaylova, Yulia, Marina Tyumentseva, Konstantin Karbyshev, Aleksandr Tyumentsev, Anna Slavokhotova, Svetlana Smirnova, Andrey Akinin, Andrey Shelenkov, and Vasiliy Akimkin. 2024. "Interrelation Between Pathoadaptability Factors and Crispr-Element Patterns in the Genomes of Escherichia coli Isolates Collected from Healthy Puerperant Women in Ural Region, Russia" Pathogens 13, no. 11: 997. https://doi.org/10.3390/pathogens13110997

APA Style

Mikhaylova, Y., Tyumentseva, M., Karbyshev, K., Tyumentsev, A., Slavokhotova, A., Smirnova, S., Akinin, A., Shelenkov, A., & Akimkin, V. (2024). Interrelation Between Pathoadaptability Factors and Crispr-Element Patterns in the Genomes of Escherichia coli Isolates Collected from Healthy Puerperant Women in Ural Region, Russia. Pathogens, 13(11), 997. https://doi.org/10.3390/pathogens13110997

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
