Article

Evaluation of a Live Attenuated S. sonnei Vaccine Strain in the Human Enteroid Model

by
Giulia Pilla
1,
Tao Wu
2,
Christen Grassel
2,
Jonathan Moon
2,
Jennifer Foulke-Abel
3,
Christoph M. Tang
1 and
Eileen M. Barry
2,*
1
Sir William Dunn School of Pathology, University of Oxford, South Parks Road, Oxford OX1 3RE, UK
2
Center for Vaccine Development and Global Health, University of Maryland School of Medicine, 685 West Baltimore Street, Baltimore, MD 21201-1509, USA
3
Department of Medicine, Division of Gastroenterology and Hepatology, Johns Hopkins University School of Medicine, Baltimore, MD 21201, USA
*
Author to whom correspondence should be addressed.
Pathogens 2021, 10(9), 1079; https://doi.org/10.3390/pathogens10091079
Submission received: 20 May 2021 / Revised: 12 August 2021 / Accepted: 15 August 2021 / Published: 25 August 2021
(This article belongs to the Special Issue New Tools in 3D Host-pathogen Interactions)
Browse Figures
Review Reports Versions Notes

Abstract

:
Shigella is a leading cause of bacillary dysentery worldwide, responsible for high death rates especially among children under five in low–middle income countries. Shigella sonnei prevails in high-income countries and is becoming prevalent in industrializing countries, where multi-drug resistant strains have emerged, as a significant public health concern. One strategy to combat drug resistance in S. sonnei is the development of effective vaccines. There is no licensed vaccine against Shigella, and development has been hindered by the lack of an effective small-animal model. In this work, we used human enteroids, for the first time, as a model system to evaluate a plasmid-stabilized S. sonnei live attenuated vaccine strain, CVD 1233-SP, and a multivalent derivative, CVD 1233-SP::CS2-CS3, which expresses antigens from enterotoxigenic Escherichia coli. The strains were also tested for immunogenicity and protective capacity in the guinea pig model, demonstrating their ability to elicit serum and mucosal antibody responses as well as protection against challenge with wild-type S. sonnei. These promising results highlight the utility of enteroids as an innovative preclinical model to evaluate Shigella vaccine candidates, constituting a significant advance for the development of preventative strategies against this important human pathogen.

1. Introduction

Shigella is responsible for a substantial burden of disease in multiple populations within the U.S. and worldwide, causing an estimated 163 million cases and more than 74,000 deaths per year [1,2]. The greatest impact is in children under 5 years of age in low- and middle-income countries, where Shigella was found to be the number one pathogen causing moderate to severe (MSD) diarrhea in children between 12–59 months of age and the fourth most important MSD pathogen in the youngest (0–11 months) children [3,4]. More recently, Shigella has also been recognized as a cause of considerable disease in the U.S. and other high-resource settings [5]. The widespread isolation of multi-drug resistant (MDR) isolates that limit therapeutic interventions and the continued high levels of endemic disease make Shigella a high priority for new preventative interventions and vaccine development.
S. flexneri is the most important strain causing disease in endemic regions, while S. sonnei causes the most disease in high-resource settings [6]. S. sonnei is gaining importance as regions transition to increased development, and S. sonnei replaces S. flexneri as the predominant pathogen [7,8,9]. MDR S. sonnei strains, refractory to most antibiotics, circulating at high levels in particular populations, is becoming recognized as a serious concern [10,11,12]. Within S. flexneri, there are more than 15 serotypes defined by the O-antigen structure (O-Ag) of LPS, while S. sonnei only has a single serotype [13]. Protective immunity is believed to be O-Ag serotype specific, and vaccine strategies (live attenuated or O-Ag-based conjugates) must account for the diversity of serotypes required to confer broad protection; a successful vaccine must cover S. flexneri and S. sonnei [12,14,15].
There are multiple strategies currently being pursued for Shigella vaccine development [12,14,15,16]. One approach that has shown promise in field trials and volunteer studies is live attenuated vaccines that can be delivered by the oral route. We have engineered a live attenuated strain of S. sonnei, CVD 1233, that contains a deletion in the guaBA operon, which encodes critical enzymes in the biosynthetic pathway of guanine nucleotides, and in the sen gene encoding Shigella enterotoxin 2 (ShET2). These deletions render S. sonnei auxotrophic for guanine and attenuated in vitro and in vivo [17]. One characteristic of S. sonnei strains is the frequent spontaneous loss of the large virulence plasmid, pINV, which is required for vaccine strain efficacy. To prevent this, we introduced mutations in one of the plasmid-encoded maintenance systems, which rendered pINV more stable [18]. The stabilized strain, CVD 1233-SP, was also further modified to express two heterologous antigens from enterotoxigenic Eschericia coli (ETEC), CS2 and CS3, as a component of a multivalent Shigella-ETEC vaccine, CVD 1233-SP::CS2-CS3.
The lack of preclinical models that reflect relevant human disease pathophysiology of Shigella have delayed the development of new vaccines and therapeutics. The human enteroid/colonoid “mini-gut” model presents a technological leap in human gastrointestinal (GI) system modelling [19,20,21]. Isolated human adult intestinal epithelial stem cells obtained from biopsies or surgically resected tissue can be indefinitely propagated as small intestinal epithelial cultures termed enteroids. Protocols have been established to grow human enteroid monolayer cultures on transwell filters that allow controlled access to both apical and basolateral surfaces. Differentiation leads to the increased expression of goblet and enteroendocrine cells as well as mature, nutrient-absorptive enterocytes. We optimized the enteroid model for the study of Shigella pathogenesis and showed preferential basolateral versus apical invasion, intracellular replication, and induction of host responses including IL-8 and the mucin glycoprotein MUC2 [21,22]. In this report, we describe the development and evaluation of a pINV-stabilized S. sonnei vaccine strain CVD 1233-SP and a multivalent derivative CVD 1233-SP::CS2-CS3 in the human enteroid model.

2. Results

2.1. Increased Stabilization of pINV Improves the Consistency of S. sonnei Vaccine Strain Production

The attenuated S. sonnei vaccine candidate strain CVD 1233 was constructed by introducing deletion mutations in the guaBA operon that render the bacteria auxotrophic for guanine and unable to replicate in the absence of this amino acid as well as in the sen gene, which prevents production of Shigella enterotoxin 2 (ShET2). These mutations result in attenuation of virulence [17]. Invasion and intracellular replication of this vaccine strain was tested in the human intestinal epithelial cell line HT29 and compared with the wild-type parent strain S. sonnei 53G (53G WT) (Figure 1A,B). As S. sonnei is known to spontaneously lose its 210 kb (pINV) at high rates due to instability [18], strains were cultured on agar containing Congo Red (CR agar) prior to infection to detect maintenance of pINV. Only colonies harbouring an intact pINV bind the CR and appear red (here defined as pINV+); in contrast, avirulent, plasmid-less colonies do not bind CR and appear white and rough (here defined as pINV-) due to the loss of pINV-encoded T3SS and O-Ag synthesis genes, respectively [18,23]. To minimise the impact of the loss of virulence, only pINV+ colonies were selected and used for inoculating HT29 epithelial cells. HT29 cells were incubated with bacteria for 90 min, then treated with gentamicin to remove extracellular bacteria and incubated for an additional 30 min or 4 h. Total intracellular bacteria were quantified by counting colony-forming units (CFU) in cell lysates at each time point (Figure 1A), and the fold increase of bacterial recovery at 4 h vs. 30 min incubation was also calculated for each strain (Figure 1B). To assess pINV stability of the strains, CFU were recovered from cells on media containing CR, and pINV+ and pINV- CFU were quantified (Figure 1C).
While at 30-min post infection, a higher recovery of CVD 1233 compared to 53G WT was evident, at 4-h post infection, a significant increase in recovery of intracellular bacteria was only observed with 53G WT but not CVD 1233 (Figure 1A). In fact, 53G WT was recovered at a 14-fold higher level at 4 h compared with 30 min, while CVD 1233 showed only a 1.6-fold increase. Due to high variation between experiments, the two strains did not show statistical difference in fold increase of bacterial recovery for intracellular replication, although CVD 1233 demonstrated a reduced increase in bacterial recovery compared to 53G WT, suggesting that this strain is unable to replicate intracellularly (Figure 1B).
We hypothesized that the high variation in bacterial invasion after 30 min of incubation with either strain could be due to the loss of pINV during growth in vitro. In fact, colonies selected from overnight cultures and used for infecting epithelial cells may contain a small proportion of pINV- bacteria that, when incubated with HT29 cells, would be incapable of invading cells, leading to a reduction in the total number of intracellular bacteria. The abundance of pINV- bacteria may vary from colony to colony and would not be quantifiable due to limitations of the CR binding selection, causing the aforementioned variation in bacterial invasion. Therefore, we quantified pINV- vs. pINV+ bacteria of CVD 1233 and 53G WT to assess the levels of spontaneous loss of pINV. We found that at 30-min post infection, more than 25% of bacteria lost pINV in CVD 1233, while more than 90% of 53G WT bacteria were pINV- (Figure 1C). At 4-h post infection, a lower proportion of pINV- bacteria was recovered, but pINV- bacteria still represented approximately 6% and 4.5% of the population of 53G WT and CVD 1233, respectively (Figure 1C).
To increase the stability of pINV in CVD 1233, we introduced mutations in one of the plasmid-encoded maintenance systems to render pINV more stable, creating CVD 1233-SP (Stabilized Plasmid) [18]. The stability of pINV was first confirmed by performing plasmid loss assays in vitro. Single pINV+ colonies of CVD 1233-SP were grown in broth overnight at 37 °C, and bacteria were then plated on CR agar to quantify emergence of pINV- colonies. After approximately 25 generations of growth, no pINV- colonies were detected in CVD 1233-SP, while approximately 40% of pINV- bacteria emerged in the non-stabilized pINV vaccine strain, suggesting that pINV is significantly more stable in CVD 1233-SP than in CVD 1233 (Figure 1D). The invasion and intracellular replication of these strains were then tested in HT29 cells; 53G WT and its stabilized version, 53G-SP, were included as control strains in addition to CVD 1233 and CVD 1233-SP (Figure 1A–C). There was no significant difference in the number of intracellular bacteria between CVD 1233-SP and CVD 1233 at 30 min or at 4 h (Figure 1A), indicating that stabilization of pINV in CVD 1233-SP does not influence the invasion of the vaccine strain. As with CVD 1233, the number of CVD 1233-SP bacteria recovered at 4-h post infection was not different from 30 min, indicating that this strain does not replicate intracellularly (Figure 1A). Infection with the stabilized control strain 53G-SP resulted in a significantly higher recovery at 4 h compared to 53G WT (Figure 1A), although the average fold increase for this time point was not significantly different between the two strains (Figure 1B). However, as opposed to what was previously observed for 53G WT and CVD1233, significant differences were recorded in the fold increase of the intracellular populations of 53G-SP and CVD 1233-SP (Figure 1B), suggesting that stabilization of pINV allows a better comparison between the control and the vaccine strain and confirming that unlike 53G-SP, CVD 1233-SP is not able to replicate within cells.
Furthermore, no pINV- bacteria were detected among intracellular bacteria recovered from CVD 1233-SP and 53G-SP, demonstrating that pINV is stable intracellularly when tested over the course of HT29 cell infections (Figure 1C).
Taken together, these data show that CVD 1233-SP is a promising attenuated S. sonnei vaccine candidate. Consistent with previous work, inactivation of the guaBA operon significantly reduces the intracellular replication rate of CVD 1233-SP compared to wild-type strains, while stabilization of pINV results in a dramatic decrease of spontaneous plasmid loss, providing a more accurate analysis of the invasion and replication capability of this strain and supporting its use in vaccine development.

2.2. Use of a Human Enteroid Model to Validate CVD 1233-SP

We tested the ability of CVD 1233, CVD 1233-SP, and the control strain 53G WT to invade and replicate within differentiated enteroid monolayers derived from human colon. Human intestinal enteroids are derived from LGR5+ stem-cell-containing colonic crypts from healthy subjects that can be differentiated into enteroids composed of enterocytes, goblet cells, and enteroendocrine cells (Figure 2 and Supplementary Figure S1). This system recapitulates physiological characteristics of the intestine and represents a highly relevant human model for the evaluation of Shigella vaccine strains [19,24,25,26,27,28,29]. Previous enteroid infection studies performed using S. flexneri have shown that Shigella preferentially invades enteroid cells via the basolateral surface [21,22]. Therefore, differentiated enteroid monolayers were infected on the basolateral surface for 90 min and then treated with gentamicin to remove extracellular bacteria and incubated for 30 min or 4 h. Intracellular bacteria were recovered from cell lysates by plating on media containing CR, and total, pINV+, and pINV- CFU were quantified (Figure 3).
At 30 min post infection, similar numbers of intracellular bacteria were recovered for all strains, ranging between ~8 × 103 and ~3 × 104 CFU/mL (Figure 3A). In contrast, following 4 h of incubation, 53G WT displayed a ~10-fold increase in intracellular bacteria, reaching 2 × 105 CFU/mL, while the numbers of CVD 1233 and CVD 1233-SP reduced ~10-fold to approximately 8 × 102 CFU/mL (Figure 3A,B). Furthermore, there was no significant difference between 53G WT and CVD 1233 in the proportion of pINV- bacteria at both time points; more than 50% and 20% of total bacteria lost pINV in 53G WT and CVD 1233, respectively, when bacteria were recovered at 30 min, while after 4 h, pINV- bacteria accounted for only 7% of all bacteria (Figure 3C). In contrast, no pINV- colonies were detected following infection with CVD 1233-SP (Figure 3C).
These results provide further evidence that the human enteroids are a viable model to test invasion and intracellular replication of S. sonnei vaccine candidates. Infection of differentiated enteroid monolayers with CVD 1233-SP confirms that this strain is attenuated, as it can invade cells but is unable to replicate intracellularly compared to the wild-type strain. Stabilization of pINV in the attenuated strain significantly reduced spontaneous loss of pINV during enteroid infection, demonstrating a major advancement for the construction process of S. sonnei vaccine candidates.

2.3. Immunogenicity, Protectoin, and Safety of CVD 1233-SP in Guinea Pigs

Vaccine candidates CVD 1233 and CVD 1233-SP were tested for their immunogenicity and protective capacity in the guinea pig model. Animals were immunized with two intranasal doses of each vaccine strain approximately two weeks apart. Serum and tears were collected prior to immunization and approximately two weeks following each dose to quantify IgG and IgA responses, respectively. Following a single dose of CVD 1233 or CVD 1233-SP, 100% of animals seroconverted with 4-fold rise or greater in serum IgG (in the range of 588–1361 and 2417–7583, respectively) and mucosal IgA anti-S. sonnei LPS over pre-immune titres (in the range of 123–1794 and 128–1104, respectively) (Figure 4). These titres were boosted to higher levels following the second dose, reaching an average of ~1057 and ~2080 of IgA and ~14,021 and ~64,819 of IgG, respectively.
Approximately two weeks following the final dose, all animals were challenged with 53G WT using the Serény test. Following intra-ocular inoculation with ~108 CFU 53G WT, all control animals developed evidence of acute infection with active inflammation and keratoconjunctivitis by 24–48-h post challenge. In contrast, 1/7 and 0/4 animals immunized with CVD 1233 or CVD 1233-SP exhibited signs of inflammation and keratoconjunctivitis. A total of 6/7 and 4/4 animals immunized with CVD 1233 and CVD 1233-SP, respectively, were completely protected against any signs of infection, resulting in efficacy values of 86% and 100% (Table 1).

2.4. Use of CVD 1233-SP as a Live Vector for Expression of Heterologous Antigens from ETEC

The CVD has an ongoing program to develop a combined Shigella-ETEC vaccine that is composed of multiple live attenuated Shigella strains each expressing important antigens from ETEC [30]. Based on the promising results obtained for CVD 1233-SP, this strain was used as a live vector to express the fimbrial antigens CS2 and CS3 from ETEC as a component of a multivalent Shigella-ETEC vaccine, producing CVD 1233-SP::CS2-CS3. The operons encoding CS2 and CS3 were engineered for high-level constitutive expression by the mLpp promoter [31] and inserted in the chromosome at a permissive site downstream of the glmS gene using the Tn7 system developed by McKenzie and Craig [32]. Attenuation of CVD 1233-SP::CS2-CS3 was first tested by quantifying intracellular replication in human enteroid monolayers, as described above, and compared with the control strain 53G-SP, a S. sonnei 53G strain with stabilized pINV (Figure 5). Similar to CVD 1233-SP, CVD 1233-SP::CS2-CS3 did not replicate intracellularly, showing a significant ~2-fold reduction in bacterial recovery following 4 h of gentamicin treatment compared to the control strain 53G-SP (Figure 5A,B).
Immunogenicity of this strain was then tested in guinea pigs. Groups of animals were immunized with two doses of CVD 1233-SP::CS2-CS3 spaced approximately two weeks apart. Serum and tears were collected for quantification of anti-S. sonnei LPS, CS2, and CS3-specific serum IgG and mucosal IgA responses (Figure 6). Following a single dose of CVD 1233-SP::CS2-CS3, 100% animals seroconverted with 4-fold or higher anti-S. sonnei LPS IgG (in the range of 69–214) and IgA titres (in the range of 21–154); titres were boosted to higher levels following the second dose, reaching, respectively, an average of ~1986 and ~245 (Figure 6A,B). Similarly, all vaccinated animals seroconverted with 4-fold or greater serum IgG responses to CS2 and CS3 following a single dose, and all titres were boosted to higher levels following a second immunization (Figure 6C,E). After two doses, all animals responded with mucosal IgA response to CS2 and CS3 (Figure 6D,F).
There is no good small-animal model to evaluate the protective efficacy against ETEC. We tested the functional capacity of serum from immunized animals to inhibit adherence of CS2- or CS3-expressing ETEC to HT29 cells [33]. Individual animal serum samples exhibited 92–99% inhibition of CS2-ETEC and 60–91% inhibition of CS3-ETEC adherence (Figure 7), which were similar to adherence-inhibition levels exhibited when bacteria were pre-incubated with commercial anti-CS2 and -CS3 antibodies (~93% and ~79%, respectively). Pre-immune serum had no inhibitory activity against ETEC attachment.
To test the efficacy of the immunization, animals previously immunized with CVD 1233-SP::CS2-CS3 and unvaccinated controls were challenged with 53G WT using the Serény test approximately two weeks following the final dose. Following intra-ocular inoculation with ~107 CFU WT 53G, all (3/3) control animals succumbed to infection and exhibited inflammation and keratoconjunctivitis by 24–48-h post challenge. One of five animals immunized with CVD 1233-SP::CS2-CS3 developed infection, with 4/5 animals being completely protected against any signs of infection, resulting in an efficacy of 80% (Table 1). These data confirm that the expression of heterologous antigens in the attenuated vaccine strain CVD 1233-SP did not eliminate the ability of the live vector to induce protective responses against Shigella.

3. Discussion

In the last ten years, enteroids have emerged as a promising and revolutionary model to study enteropathogens. In contrast to human cell lines, they provide several of the characteristic features of the human intestinal epithelium, including multiple cell types, cellular composition, apical/basal cell polarization, segmental specificity, mucus secretion, and production of antimicrobial peptides [34]. The specificity of some pathogens to human hosts, including Shigella, often limits the use of animal models, leaving enteroids as the most physiological relevant model system to test the pathogenesis of this class of bacteria [34].
Enteroids have been especially useful for studying host-pathogen interactions with many enteric pathogens, including Salmonella, pathovars of E. coli (e.g., ETEC, EPEC, EAEC, and EHEC), and Shigella [34]. In particular, studies have shown that enteroids alone or in co-culture with neutrophils can be used to model Shigella pathogenesis and study different aspects of the early stage infection, such as epithelial cell invasion and response [21,22,35,36]. More recently, researchers have examined the use of human enteroids as preclinical models in drug and vaccine development and for studying new therapeutic approaches [37,38,39].
In this study, we employed human intestinal enteroids, for the first time, as a model system to evaluate live attenuated S. sonnei vaccine candidates. We used intestinal monolayers derived from LGR5+ stem-cell-containing colonic crypts from healthy subjects that were differentiated into enteroids composed of enterocytes, Paneth cells, goblet cells, and enteroendocrine cells. This system accurately reproduces the physiology of the human intestine, offering a highly relevant model for the preclinical evaluation of Shigella vaccine strains [19,24,25,26,27,28,29]. We previously demonstrated that a S. sonnei live attenuated vaccine can be produced by inactivating the de-novo pathway for biosynthesis of guanine nucleotides, which prevents intracellular replication and spread, and by eliminating expression of the ShET2 toxin [17]. We enhanced the stability of pINV in this strain by introducing mutations in one of the plasmid maintenance systems, rendering pINV more stable and resulting in CVD 1233-SP (Figure 1). Infection of differentiated enteroid monolayers was informative, as it demonstrated that this strain maintains its ability to invade cells but cannot replicate intracellularly, the critical attenuating feature of this vaccine strain (Figure 2). Stabilization of pINV reduced spontaneous loss of pINV during both in-vitro growth and infection of enteroids (Figure 1 and Figure 2), representing a significant improvement for eventual manufacture S. sonnei vaccine strains and potentially for challenge studies. Historically, construction of a stable S. sonnei vaccine strain has been problematic due to the spontaneous loss of pINV, often requiring multiple cultures to select for the most stable isolates [40,41,42,43]. The utility of this strain was further explored for the development of a combined multivalent Shigella-ETEC vaccine; CVD 1233-SP was used as a live vector to express the fimbrial antigens CS2 and CS3 from ETEC, producing CVD 1233-SP::CS2-CS3. Human enteroid monolayers were successfully used to confirm the attenuation of this strain, as demonstrated by the lack of intracellular replication (Figure 4). Future studies will include additional readouts from enteroid infections, including cytokine responses and differential gene expression to provide further evidence for the attenuation of this vaccine strain. Immunogenicity and protection tests of both CVD 1233-SP and CVD 1233-SP::CS2-CS3 in guinea pigs showed the induction of strong serum and mucosal antibody titres against S. sonnei LPS by both strains and also against CS2 and CS3 when using the multivalent strain (Figure 3 andFigure 5). Furthermore, animals immunized with either strain were protected against challenge with wild-type S. sonnei 53G (Table 1), and antibodies produced following immunization with CVD 1233-SP::CS2-CS3 efficiently inhibited the adherence of CS2- and CS3-expressing ETEC to HT29 epithelial cells (Figure 6). Taken together, our promising results support the advancement of these strains to further preclinical development and subsequent clinical trials.

4. Materials and Methods

4.1. Bacterial Strains and Growth Conditions

Bacterial strains used for this study are shown in the Table 2. Shigella strains were grown on tryptic soy broth or on tryptic soy media containing agar (TSA) (BD Difco, Franklin Lakes, NJ, USA). CVD 1233, CVD 1233-SP, and CVD 1233-SP::CS2-CS3 were grown in the presence of guanine 0.005% (w/v) (Sigma-Aldrich, St. Louis, MO, USA). Congo red (Sigma, St. Louis, MO, USA) was added to TSA media at a final concentration of 0.01% (w/v) to make CR-TSA plates. Escherichia coli strains were grown on lysogeny broth (LB, Invitrogen) or solid media containing 1.5% (w/v) agar (Oxoid). Antibiotics were used, when necessary, at the following concentrations: chloramphenicol, 20 μg/mL; carbenicillin, 100 μg/mL.

4.2. Construction of Strains

Restriction enzymes, ligases, and polymerases used for mutagenesis and PCR were purchased from New England Biolabs (Beverly, MA, USA) or Roche (Basel, Switzerland) and used according to the manufacturers’ instructions.
The details for the construction of CVD 1233 can be found in Barry et al. [17]. In CVD 1233-SP::CS2-CS3, the operons encoding CS2 and CS3 under constitutive expression by the mLpp promoter were inserted in the chromosome at a permissive site downstream of the glmS gene using the Tn7 system developed by McKenzie and Craig [31,32].
Integration was facilitated with plasmid pGRG-PmLpp-CS2-CS3. This plasmid contains the mLpp promoter, which drives high-level constitutive expression of downstream genes [31], and the operons encoding CS2 and CS3 were inserted downstream of PmLpp [44]. The construct was first confirmed by PCR, restriction digestion, and DNA sequencing and then electroporated into CVD 1233-SP; single colonies were selected using procedures previously described [32]. Individual colonies were screened by PCR to detect integration of mLpp-CS2-CS3 into the CVD 1233-SP chromosome. The sequence and location of CS2 and CS3 in the chromosome of CVD 1233-SP::CS2-CS3mlpp-CS2_CS3 was confirmed by PCR and DNA sequencing.
The DNA construct for the mutagenesis of 53G-SP, CVD1233-SP, and CVD1233-SP::CS2-CS3 was generated using the primers listed in Table 3 and ligated into pUC19 using NEBuilder HIFi master mix (New England Biolabs, NEB, Ipswich, MA, USA).
The resulting plasmid was transformed into E. coli DH5α, and the linear DNA construct was amplified by PCR using plasmids as the template. Shigella strains were made electrocompetent by growing cells to a mid-log OD600 value of 0.5–0.8 at 37 °C and resuspending them in 1/75 the original culture volume in sterile, cold 10% glycerol following washes with same solution. Linear DNA construct was electroporated using the following conditions: 1.75 kV, 600 Ω, and 25 μF. Mutations were introduced into pINV of 53G-SP, CVD1233-SP, and CVD1233-SP::CS2-CS3 using λ-recombination [46,47]. Mutagenesis was confirmed by PCR analysis using primers binding outside of the sequences that mediated genetic recombination.

4.3. Congo Red Loss Assay

S. sonnei was grown on CR-TSA plates overnight at 37 °C to obtain single colonies. Three pINV+ colonies from each strain were re-suspended in 5mL TSB and incubated at 37 °C, 180 r.p.m., for 16 h. Samples were diluted in Dulbecco’s phosphate-buffered saline (DPBS) and plated onto CR-TSA, normalising the plating volume to the OD600 of the culture, and incubated overnight at 37 °C before pINV+ and pINV- colonies were counted.

4.4. HT29 Cell Cultivation, Invasion Assays, and Adherence Inhibition Assays

Human HT-29 (ATCC HTB-38) monolayers were cultured in DMEM (Corning, New York, NY, USA) supplemented with 10% Fetalplex (Gemini, New York, NY, USA) and 2% HEPES (Quality Biological) in 150 cm2 flasks (Corning, New York, NY, USA). The cells were incubated in 5% CO2 at 37 °C and passaged once a week. For the invasion assay, cells were seeded at a density of 5 × 105 cells per well in a 24-well plate and incubated overnight. The bacterial inoculum was prepared by resuspending S. sonnei pINV+ colonies from a CR-TSA plate in DPBS, washing, and then suspending in DMEM adjusted for bacterial concentration of a multiplicity of infection (MOI) of 100. Therefore, a 1 mL of 5 × 107 CFU/mL bacteria was added to the HT-29 cells in triplicate wells. The plates were centrifuged 5 min at 3000× g at 37 °C and then incubated at 37 °C with 5% CO2 for 90 min. The cells were then washed twice with DPBS and incubated with DMEM containing 50 μg/mL gentamicin at 37 °C with 5% CO2 for 30 min and 4 h. At each time point, three replicates of each sample were washed with DPBS twice to remove gentamicin and lysed with 1 mL/well of 1% Triton X-100. Serial dilutions were plated on CR-TSA to quantify total, pINV+, and pINV- intracellular CFUs of S. sonnei.
The ETEC adherence inhibition assay was performed as described by Poole et al. [33]. HT-29 cells were seeded at a density of 4 × 105 cells/mL in a 48-well flat-bottom plate (CellTreat). ETEC strain 202,326 (expressing CS2) or strain E9034A (expressing CS3) were grown overnight at 37 °C on CFA agar (2% agar, 1% Casamino acids, 0.15% Yeast Extract, 0.005% MgSO4, 0.0005% MnCl2). Bacteria were re-suspended to a concentration of 2 × 108 CFU/mL in DMEM. An 800 µL aliquot of the bacterial suspension was mixed with 80 µL individual guinea pig serum samples (pre-immunization or after second immunization) or with commercial rabbit anti-CS2 or CS3 antibodies (Bethyl and Rockland, respectively) as positive control and incubated at 37 °C for 1 h to promote binding of serum antibodies to ETEC. A 250 µL aliquot of the antibody-bacteria mixture was then used to infect HT29 cells in triplicate. The infections were carried out at 37 °C with 5% CO2 for 90 min. Each well was then washed with 500 µL of DPBS and allowed to shake at 544 r.p.m. for 5 min. The washing process was repeated for a total of three washes. After washing, cells were lysed for 10 min at room temperature using 500 µL of 1% Triton X-100 and serially diluted to quantify adhered bacteria. The following formula was used to calculate % of binding inhibition: 100% − [(n° bacteriasample/n° bacteriaPBS) × 100%] where bacteriaPBS are bacteria quantified in infections performed using pre-incubated bacteria with pre-immunization sera.

4.5. Enteroid Cultivation and Invasion Assays

Human enteroid cultures were established from biopsies obtained after endoscopic or surgical procedures utilizing the methods developed by the laboratory of Dr. Hans Clevers [19]. De-identified biopsy tissue was obtained from healthy subjects who provided informed consent at Johns Hopkins University, and all methods were carried out in accordance with approved guidelines and regulations. All experimental protocols were approved by the Johns Hopkins University Institutional Review Board (IRB# NA_00038329). Enteroid monolayers were cultivated following the procedures described by Ranganathan et al. [21].
For the invasion assays, each transwell containing monolayers was inverted onto a sterile petri dish after aspirating the medium from the inner chamber of the transwell. The bacterial inoculum was prepared by resuspending pINV+ colonies from a CR-TSA plate in DPBS, washed, and then suspended in DMEM adjusted for bacterial concentration of a MOI of 100. The inoculum of 50 µL containing ~4.5 × 107 bacteria was carefully added on the basolateral side in triplicate transwells, and cells were incubated for 2 h at 37 °C + 5% CO2. Following incubation, the inoculum was aspirated, and each transwell was transferred back to a 24-well plate. The cells were then washed twice with DPBS and incubated with DMEM containing 50 μg/mL gentamicin at 37 °C with 5% CO2 for 30 min and 4 h. After each timepoint, the transepithelial electrical resistance (TEER) was measured, the medium was aspirated, and cells were washed with DPBS twice to remove gentamicin and lysed with 1 mL/well of 1% Triton X-100 by gentle scraping to disrupt the monolayer. Serial dilutions were plated on CR-TSA to quantify total, pINV+, and pINV- intracellular CFUs of S. sonnei.

4.6. Immunizations, Sample Collection and Challenge

Overnight cultures of the immunizing strains were harvested from TSA plates with PBS to a concentration of 1010 CFU/mL. After sedation with ketamine/xylazine, randomized, female Hartley guinea pigs (6–8 weeks old) were immunized intranasally with 100 µL of the bacterial suspension on day 0. An identical booster dose was administered ~14 days later. Tears were collected following instillation of 50 µL of sterile PBS to the eye surface, and fluid was collected in 50 µL capillary tubes. Blood was obtained from anaesthetized guinea pigs via the anterior vena cava. Tears and blood were collected on days prior to immunization and approximately two weeks following each dose. Approximately two weeks following the second immunization, animals were challenged with a 10µL aliquot containing 8 × 107–1 × 108 CFU of 53G WT by intraocular administration in the Serény test. Animals were scored for signs of inflammation for 3 days as follows: 0 = normal eye indistinguishable from contralateral uninoculated eye; 1 = lacrimation or eyelid edema; 2 = 1 plus mild conjunctival hyperemia; 3 = 2 plus slight exudates; and 4 = full blown purulent keratoconjunctivitis. All animal procedures were approved by the University of Maryland, Baltimore Institutional Animal care and Use Committee, IACUC #0319002.

4.7. ELISA

Antigens used in enzyme-linked immunosorbent assay (ELISA) included hot water phenol-extracted S. sonnei LPS from WT strain 53G and purified CS2 and CS3 obtained from bei Resources (Manassas Va). Specific IgG and IgA titres were determined for serum and tears. Briefly, 96-well Immulon 2 HB plates (Thermo Milford, MA, USA) were coated with 100 µL of the antigen and incubated at 37 °C for 3 h. The plates were then washed four times with PBS containing 0.05% Tween 20 (PBST). The plates were blocked with 200 µL/well 10% milk powder (Nestle USA, Inc., Glendale, CA, USA) in PBS overnight at 4 °C. After each incubation, plates were washed four times with PBST. To determine the endpoint titres, threefold dilutions of sera or tears in 10% milk powder were added to the plates and incubated for 2 h at 37 °C. The IgG ELISA plates were then incubated with 100 μL of 1:3000 peroxidase-labeled goat anti-guinea pig IgG (Kirkegaard & Perry Laboratories, Gaitherburg, MD, USA) for 1 h at 37 °C. The plates were then incubated with substrate for 15 min at room temperature (TMB Microwell Peroxidase KPL Kirkegard & Perry Laboratories, Inc., Gaithersburg, MD, USA). Following tears incubation, IgA plates were incubated with 100 μL of 1:3000 Sheep anti guinea Pig IgA (ICL, Portland, OR, USA) for 1 h at 37 °C, then washed and incubated with 100 μL of 1:3000 peroxidase-labeled Rabbit anti Sheep IgG (ICL, Portland, OR, USA) for 1 h at 37 °C. The plates were then washed and incubated with TMB substrate for 15 min at room temperature. The reaction was stopped by the addition of 100 µL H2PO4, and the OD450nm was determined in an ELISA micro plate reader (VersaMax Molecular Devices, San Jose, CA, USA). Sera and tears were run in duplicate. Linear regression curves were plotted for each sample, and titres were calculated (through equation parameters) as the inverse of the serum dilution that produces an OD450nm of 0.2 above the blank.

4.8. Enteroid Microscopy

Enteroid monolayers (sample 109C) were prepared for staining as follows. For enterocyte and enteroendocrine staining, transwells were washed with PBS to remove loose cells and fixed with 4% paraformaldehyde (PFA) in PBS for 1 h at room temperature. PFA was removed, and transwells were stored in PBS at 4 °C until stained. Transwells were stained with phalloidin for F-actin (Invitrogen A22287) for enterocytes, chromagranin A (Developmental Studies Hybridoma Bank, University of Iowa, CPTC-CHGA-2) for enteroendocrine cells, and Hoechst 33,342 (Invitrogen H3570) for nuclei. For goblet cells and enterocyte staining, transwells were washed with PBS to remove loose cells and fixed with a 1:1 solution of cold methanol acetic acid for 10 min. Transwells were washed with PBS to rehydrate and stored in PBS at 4 °C until stained. Transwells were stained with MUC2 (Invitrogen MA5-12345) for goblet cells, EpCAM (Abcam ab223582) for lateral membranes, wheat germ agglutinin (Invitrogen W32466) for brush border, and Hoechst 33,342 (Invitrogen H3570) for nuclei.
Bacteria were labelled with carbxyfluorescein succinimidlester (CFSE) by rotating 5 mL of bacteria with 10 µM CFSE for 30 min @ 37 °C. Bacteria were centrifuged, washed with PBS 3 times, and resuspended in DMEM at a concentration of 1 × 109 bacteria/mL. Stained monolayers were visualized with an Olympus FV3000 scanning laser confocal microscope using Olympus FV-31 software.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pathogens10091079/s1, Figure S1: Enteroid monolayers were stained with anti-F-actin to visualize the brush border (blue), anti-NHE3 to visualize the NHE3 transporter (red) and Hoechst to visualize nuclei (light blue). S. sonnei 1233-SP was staining with CFSE prior to invasion (green). Figure S2: Enteroid monolayers were stained with anti-chromagranin A (ChgA) for enteroendocrine cells (green) (A and C) and anti-F-actin to visualize the brush border (white) (B and C), and Hoechst to visualize nuclei (blue) (A, B, and C).

Author Contributions

Conceptualization, E.M.B., G.P., T.W., and C.M.T.; methodology, G.P., T.W., C.G., J.M., and J.F.-A.; formal analysis, G.P., T.W., C.G., and J.M.; writing—original draft preparation, G.P., and E.M.B.; writing—review and editing, G.P., E.M.B., C.M.T., T.W., C.G., J.M., and J.F.-A.; funding acquisition, E.M.B., C.M.T., and J.F.-A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NIH NIAID P01 AI125181, NIH NIAID U19AI109776 awarded to E.M.B., Wellcome Trust Senior Investigator awarded to C.M.T. (G102908) and Oxford-MRC Doctoral Training Partnership supplementary funding awarded to G.P. The confocal microscope was purchased with an NIH shared instrumentation grant (S10 OD025244). The Johns Hopkins GI Core Center that manages the microscope is funded by NIH P30 DK089502.

Institutional Review Board Statement

The study was conducted according to the guidelines of the UMB Institutional Care and Use Committee under the approved protocol #0319002.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors acknowledge the expert veterinary technical assistance of Theresa Nolan, Rebecca O’Reilly, and Marvin Riddley and critical review by Rachel Laufer.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Baker, S.; The, H.C. Recent insights into Shigella. Curr. Opin. Infect. Dis. 2018, 31, 449–454. [Google Scholar] [CrossRef] [PubMed]
  2. Tickell, K.D.; Brander, R.L.; Atlas, H.E.; Pernica, J.M.; Walson, J.L.; Pavlinac, P.B. Identification and management of Shigella infection in children with diarrhoea: A systematic review and meta-analysis. Lancet Glob. Health 2017, 5, e1235–e1248. [Google Scholar] [CrossRef] [Green Version]
  3. Kotloff, K.L.; Nataro, J.P.; Blackwelder, W.C.; Nasrin, D.; Farag, T.H.; Panchalingam, S.; Wu, Y.; Sow, S.O.; Sur, D.; Breiman, R.F.; et al. Burden and aetiology of diarrhoeal disease in infants and young children in developing countries (the Global Enteric Multicenter Study, GEMS): A prospective, case-control study. Lancet 2013, 382, 209–222. [Google Scholar] [CrossRef]
  4. Liu, J.; Platts-Mills, J.A.; Juma, J.; Kabir, F.; Nkeze, J.; Okoi, C.; Operario, D.J.; Uddin, J.; Ahmed, S.; Alonso, P.L.; et al. Use of quantitative molecular diagnostic methods to identify causes of diarrhoea in children: A reanalysis of the GEMS case-control study. Lancet 2016, 388, 1291–1301. [Google Scholar] [CrossRef]
  5. Mead, P.S.; Slutsker, L.; Dietz, V.; McCaig, L.F.; Bresee, J.S.; Shapiro, C.; Griffin, P.M.; Tauxe, R.V. Food-related illness and death in the United States. Emerg. Infect. Dis. 1999, 5, 607–625. [Google Scholar] [CrossRef] [PubMed]
  6. Livio, S.; Strockbine, N.A.; Panchalingam, S.; Tennant, S.M.; Barry, E.M.; Marohn, M.E.; Antonio, M.; Hossain, A.; Mandomando, I.; Ochieng, J.B.; et al. Shigella isolates from the global enteric multicenter study inform vaccine development. Clin. Infect. Dis. 2014, 59, 933–941. [Google Scholar] [CrossRef]
  7. Thompson, C.N.; Duy, P.T.; Baker, S. The Rising Dominance of Shigella sonnei: An Intercontinental Shift in the Etiology of Bacillary Dysentery. PLoS Negl. Trop. Dis. 2015, 9, e0003708. [Google Scholar] [CrossRef] [Green Version]
  8. Ud-Din, A.I.; Wahid, S.U.; Latif, H.A.; Shahnaij, M.; Akter, M.; Azmi, I.J.; Hasan, T.N.; Ahmed, D.; Hossain, M.A.; Faruque, A.S.; et al. Changing trends in the prevalence of Shigella species: Emergence of multi-drug resistant Shigella sonnei biotype g in Bangladesh. PLoS ONE 2013, 8, e82601. [Google Scholar] [CrossRef] [Green Version]
  9. Vinh, H.; Nhu, N.T.; Nga, T.V.; Duy, P.T.; Campbell, J.I.; Hoang, N.V.; Boni, M.F.; My, P.V.; Parry, C.; Nga, T.T.; et al. A changing picture of shigellosis in southern Vietnam: Shifting species dominance, antimicrobial susceptibility and clinical presentation. BMC Infect. Dis. 2009, 9, 204. [Google Scholar] [CrossRef] [Green Version]
  10. Collins, J.P.; Friedman, C.R.; Birhane, M.G.; Karp, B.E.; Osinski, A.; Montgomery, M.W.; Thomas, D.; Barkley, J.; Sanchez, M.C.; Hanna, S.; et al. Evidence of Failure of Oral Third-Generation Cephalosporin Treatment for Shigella sonnei Infection. Open Forum. Infect. Dis. 2020, 7, ofaa113. [Google Scholar] [CrossRef]
  11. Baker, K.S.; Dallman, T.J.; Field, N.; Childs, T.; Mitchell, H.; Day, M.; Weill, F.X.; Lefevre, S.; Tourdjman, M.; Hughes, G.; et al. Horizontal antimicrobial resistance transfer drives epidemics of multiple Shigella species. Nat. Commun. 2018, 9, 1462. [Google Scholar] [CrossRef]
  12. Barry, E.M.; Pasetti, M.F.; Sztein, M.B.; Fasano, A.; Kotloff, K.L.; Levine, M.M. Progress and pitfalls in Shigella vaccine research. Nat. Rev. Gastroenterol. Hepatol. 2013, 10, 245–255. [Google Scholar] [CrossRef] [Green Version]
  13. Kotloff, K.L.; Riddle, M.S.; Platts-Mills, J.A.; Pavlinac, P.; Zaidi, A.K.M. Shigellosis. Lancet 2018, 391, 801–812. [Google Scholar] [CrossRef]
  14. Mani, S.; Wierzba, T.; Walker, R.I. Status of vaccine research and development for Shigella. Vaccine 2016, 34, 2887–2894. [Google Scholar] [CrossRef] [Green Version]
  15. Riddle, M.S.; Chen, W.H.; Kirkwood, C.D.; MacLennan, C.A. Update on vaccines for enteric pathogens. Clin. Microbiol. Infect. 2018, 24, 1039–1045. [Google Scholar] [CrossRef] [Green Version]
  16. Walker, R.I.; Wierzba, T.F.; Mani, S.; Bourgeois, A.L. Vaccines against Shigella and enterotoxigenic Escherichia coli: A summary of the 2016 VASE Conference. Vaccine 2017, 35, 6775–6782. [Google Scholar] [CrossRef] [PubMed]
  17. Barry, E.M.; Wang, J.; Wu, T.; Davis, T.; Levine, M.M. Immunogenicity of multivalent Shigella-ETEC candidate vaccine strains in a guinea pig model. Vaccine 2006, 24, 3727–3734. [Google Scholar] [CrossRef] [PubMed]
  18. McVicker, G.; Tang, C.M. Deletion of toxin-antitoxin systems in the evolution of Shigella sonnei as a host-adapted pathogen. Nat. Microbiol. 2016, 2, 16204. [Google Scholar] [CrossRef] [PubMed]
  19. Sato, T.; Clevers, H. Growing self-organizing mini-guts from a single intestinal stem cell: Mechanism and applications. Science 2013, 340, 1190–1194. [Google Scholar] [CrossRef] [Green Version]
  20. Sato, T.; Stange, D.E.; Ferrante, M.; Vries, R.G.; Van Es, J.H.; Van den Brink, S.; Van Houdt, W.J.; Pronk, A.; Van Gorp, J.; Siersema, P.D.; et al. Long-term expansion of epithelial organoids from human colon, adenoma, adenocarcinoma, and Barrett’s epithelium. Gastroenterology 2011, 141, 1762–1772. [Google Scholar] [CrossRef] [PubMed]
  21. Ranganathan, S.; Doucet, M.; Grassel, C.L.; Delaine-Elias, B.; Zachos, N.C.; Barry, E.M. Evaluating Shigella flexneri Pathogenesis in the Human Enteroid Model. Infect. Immun. 2019, 87, e00740-18. [Google Scholar] [CrossRef] [Green Version]
  22. Koestler, B.J.; Ward, C.M.; Fisher, C.R.; Rajan, A.; Maresso, A.W.; Payne, S.M. Human Intestinal Enteroids as a Model System of Shigella Pathogenesis. Infect. Immun. 2019, 87, e00733-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Pilla, G.; McVicker, G.; Tang, C.M. Genetic plasticity of the Shigella virulence plasmid is mediated by intra- and inter-molecular events between insertion sequences. PLoS Genet. 2017, 13, e1007014. [Google Scholar] [CrossRef] [PubMed]
  24. Foulke-Abel, J.; In, J.; Kovbasnjuk, O.; Zachos, N.C.; Ettayebi, K.; Blutt, S.E.; Hyser, J.M.; Zeng, X.L.; Crawford, S.E.; Broughman, J.R.; et al. Human enteroids as an ex-vivo model of host-pathogen interactions in the gastrointestinal tract. Exp. Biol. Med. 2014, 239, 1124–1134. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Foulke-Abel, J.; In, J.; Yin, J.; Zachos, N.C.; Kovbasnjuk, O.; Estes, M.K.; de Jonge, H.; Donowitz, M. Human Enteroids as a Model of Upper Small Intestinal Ion Transport Physiology and Pathophysiology. Gastroenterology 2016, 150, 638–649.e8. [Google Scholar] [CrossRef] [Green Version]
  26. In, J.; Foulke-Abel, J.; Zachos, N.C.; Hansen, A.M.; Kaper, J.B.; Bernstein, H.D.; Halushka, M.; Blutt, S.; Estes, M.K.; Donowitz, M.; et al. Enterohemorrhagic Escherichia coli reduce mucus and intermicrovillar bridges in human stem cell-derived colonoids. Cell Mol. Gastroenterol. Hepatol. 2016, 2, 48–62.e3. [Google Scholar] [CrossRef] [Green Version]
  27. Noel, G.; Baetz, N.W.; Staab, J.F.; Donowitz, M.; Kovbasnjuk, O.; Pasetti, M.F.; Zachos, N.C. A primary human macrophage-enteroid co-culture model to investigate mucosal gut physiology and host-pathogen interactions. Sci Rep. 2017, 7, 45270. [Google Scholar] [CrossRef] [Green Version]
  28. Zachos, N.C.; Kovbasnjuk, O.; Foulke-Abel, J.; In, J.; Blutt, S.E.; de Jonge, H.R.; Estes, M.K.; Donowitz, M. Human Enteroids/Colonoids and Intestinal Organoids Functionally Recapitulate Normal Intestinal Physiology and Pathophysiology. J. Biol. Chem 2016, 291, 3759–3766. [Google Scholar] [CrossRef] [Green Version]
  29. Middendorp, S.; Schneeberger, K.; Wiegerinck, C.L.; Mokry, M.; Akkerman, R.D.; van Wijngaarden, S.; Clevers, H.; Nieuwenhuis, E.E. Adult stem cells in the small intestine are intrinsically programmed with their location-specific function. Stem Cells 2014, 32, 1083–1091. [Google Scholar] [CrossRef]
  30. Barry, E.M.; Levine, M.M. A tale of two bacterial enteropathogens and one multivalent vaccine. Cell Microbiol. 2019, 21, e13067. [Google Scholar] [CrossRef]
  31. Wu, T.; Grassel, C.; Levine, M.M.; Barry, E.M. Live attenuated Shigella dysenteriae type 1 vaccine strains overexpressing shiga toxin B subunit. Infect. Immun. 2011, 79, 4912–4922. [Google Scholar] [CrossRef] [Green Version]
  32. McKenzie, G.J.; Craig, N.L. Fast, easy and efficient: Site-specific insertion of transgenes into enterobacterial chromosomes using Tn7 without need for selection of the insertion event. BMC Microbiol. 2006, 6, 39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Poole, S.T.; Maciel, M., Jr.; Dinadayala, P.; Dori, K.E.; McVeigh, A.L.; Liu, Y.; Barry, E.; Grassel, C.; Prouty, M.G.; Renauld-Mongenie, G.; et al. Biochemical and Immunological Evaluation of Recombinant CS6-Derived Subunit Enterotoxigenic Escherichia coli Vaccine Candidates. Infect. Immun. 2019, 87, e00788-18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Ranganathan, S.; Smith, E.M.; Foulke-Abel, J.D.; Barry, E.M. Research in a time of enteroids and organoids: How the human gut model has transformed the study of enteric bacterial pathogens. Gut Microbes 2020, 12, 1795492. [Google Scholar] [CrossRef] [PubMed]
  35. Lemme-Dumit, J.M.; Doucet, M.; Zachos, N.C.; Pasetti, M.F. Epithelial and neutrophil interactions and innate immune response to Shigella in a human intestinal enteroid-neutrophil co-culture. bioRxiv 2021. [Google Scholar] [CrossRef]
  36. Chanin, R.B.; Nickerson, K.P.; Llanos-Chea, A.; Sistrunk, J.R.; Rasko, D.A.; Kumar, D.K.V.; de la Parra, J.; Auclair, J.R.; Ding, J.; Li, K.; et al. Shigella flexneri Adherence Factor Expression in In Vivo-Like Conditions. mSphere 2019, 4, e00751-19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Saxena, K.; Blutt, S.E.; Ettayebi, K.; Zeng, X.L.; Broughman, J.R.; Crawford, S.E.; Karandikar, U.C.; Sastri, N.P.; Conner, M.E.; Opekun, A.R.; et al. Human Intestinal Enteroids: A New Model To Study Human Rotavirus Infection, Host Restriction, and Pathophysiology. J. Virol. 2016, 90, 43–56. [Google Scholar] [CrossRef] [Green Version]
  38. Llanos-Chea, A.; Citorik, R.J.; Nickerson, K.P.; Ingano, L.; Serena, G.; Senger, S.; Lu, T.K.; Fasano, A.; Faherty, C.S. Bacteriophage Therapy Testing Against Shigella flexneri in a Novel Human Intestinal Organoid-Derived Infection Model. J. Pediatr Gastroenterol. Nutr. 2019, 68, 509–516. [Google Scholar] [CrossRef]
  39. Donowitz, M.; Turner, J.R.; Verkman, A.S.; Zachos, N.C. Current and potential future applications of human stem cell models in drug development. J. Clin. Invest. 2020, 130, 3342–3344. [Google Scholar] [CrossRef]
  40. Hartman, A.B.; Venkatesan, M.M. Construction of a stable attenuated Shigella sonnei DeltavirG vaccine strain, WRSS1, and protective efficacy and immunogenicity in the guinea pig keratoconjunctivitis model. Infect. Immun. 1998, 66, 4572–4576. [Google Scholar] [CrossRef]
  41. Kotloff, K.L.; Taylor, D.N.; Sztein, M.B.; Wasserman, S.S.; Losonsky, G.A.; Nataro, J.P.; Venkatesan, M.; Hartman, A.; Picking, W.D.; Katz, D.E.; et al. Phase I evaluation of delta virG Shigella sonnei live, attenuated, oral vaccine strain WRSS1 in healthy adults. Infect. Immun. 2002, 70, 2016–2021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Barnoy, S.; Baqar, S.; Kaminski, R.W.; Collins, T.; Nemelka, K.; Hale, T.L.; Ranallo, R.T.; Venkatesan, M.M. Shigella sonnei vaccine candidates WRSs2 and WRSs3 are as immunogenic as WRSS1, a clinically tested vaccine candidate, in a primate model of infection. Vaccine 2011, 29, 6371–6378. [Google Scholar] [CrossRef] [PubMed]
  43. Bedford, L.; Fonseka, S.; Boren, T.; Ranallo, R.T.; Suvarnapunya, A.E.; Lee, J.E.; Barnoy, S.; Venkatesan, M.M. Further characterization of Shigella sonnei live vaccine candidates WRSs2 and WRSs3-plasmid composition, invasion assays and Sereny reactions. Gut Microbes 2011, 2, 244–251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Altboum, Z.; Barry, E.M.; Losonsky, G.; Galen, J.E.; Levine, M.M. Attenuated Shigella flexneri 2a Delta guaBA strain CVD 1204 expressing enterotoxigenic Escherichia coli (ETEC) CS2 and CS3 fimbriae as a live mucosal vaccine against Shigella and ETEC infection. Infect. Immun. 2001, 69, 3150–3158. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Kopecko, D.J.; Washington, O.; Formal, S.B. Genetic and physical evidence for plasmid control of Shigella sonnei form I cell surface antigen. Infect. Immun. 1980, 29, 207–214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Datsenko, K.A.; Wanner, B.L. One-step inactivation of chromosomal genes in Escherichia coli K-12 using PCR products. Proc. Natl Acad Sci USA 2000, 97, 6640–6645. [Google Scholar] [CrossRef] [Green Version]
  47. Cherepanov, P.P.; Wackernagel, W. Gene disruption in Escherichia coli: TcR and KmR cassettes with the option of Flp-catalyzed excision of the antibiotic-resistance determinant. Gene 1995, 158, 9–14. [Google Scholar] [CrossRef]
Pathogens 10 01079 g001 550

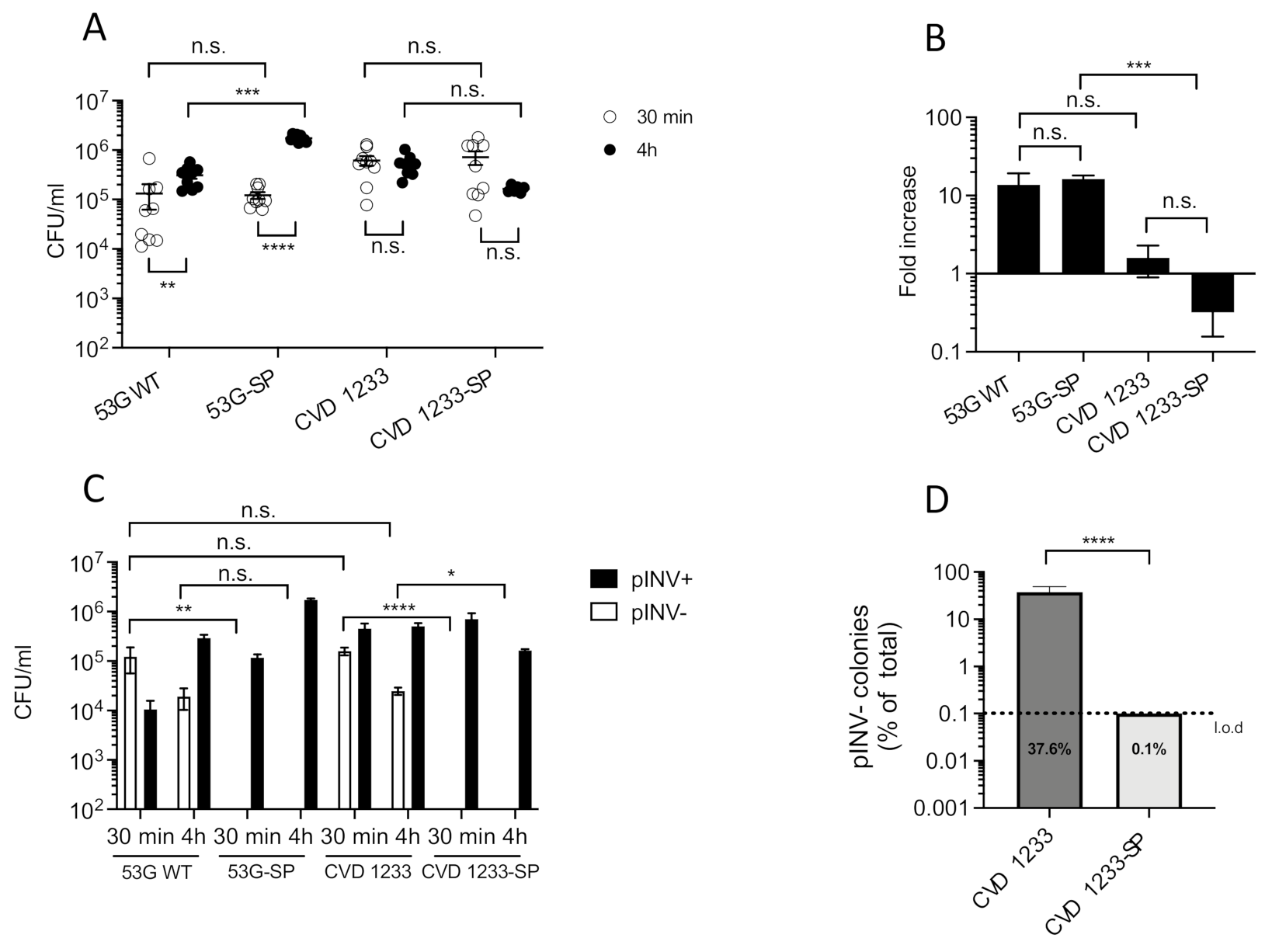

Figure 1. Loss of pINV is significantly reduced in CVD 1233-SP. (A–C) Intracellular replication and plasmid stability of S. sonnei 53G wild-type (53G WT), 53G without pINV (53G pINV-), CVD 1233, and CVD 1233 with a stabilized pINV (CVD 1233-SP) were tested in HT29 cells, and bacteria were recovered from nine independent infections performed in groups of three experiments, following 30-min and 4-h gentamicin treatment. (A) Number of total colonies recovered, shown as CFU/mL. (B) Fold increase of bacterial recovery following 4-h vs. 30-min gentamicin treatment. (C) Number of colonies harbouring or lacking pINV (pINV+, pINV-, respectively), shown as CFU/mL. Data are shown as mean ± S.E.M. *, p ≤ 0.05; **, p ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with parametric Tukey’s (A) or nonparametric Dunn’s (B,C) multiple comparison test. (D) Number of pINV- colonies emerging from CVD1233 and CVD1233-SP after growth at 37 °C for ∼25 generations in vitro, shown as a percentage of total colonies. Data are shown as mean ± S.E.M. (n = 9 biological replicates); ****, p ≤ 0.0001; t-test. l.o.d., limit of detection.
Figure 1. Loss of pINV is significantly reduced in CVD 1233-SP. (A–C) Intracellular replication and plasmid stability of S. sonnei 53G wild-type (53G WT), 53G without pINV (53G pINV-), CVD 1233, and CVD 1233 with a stabilized pINV (CVD 1233-SP) were tested in HT29 cells, and bacteria were recovered from nine independent infections performed in groups of three experiments, following 30-min and 4-h gentamicin treatment. (A) Number of total colonies recovered, shown as CFU/mL. (B) Fold increase of bacterial recovery following 4-h vs. 30-min gentamicin treatment. (C) Number of colonies harbouring or lacking pINV (pINV+, pINV-, respectively), shown as CFU/mL. Data are shown as mean ± S.E.M. *, p ≤ 0.05; **, p ≤ 0.01; ***, p ≤ 0.001; ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with parametric Tukey’s (A) or nonparametric Dunn’s (B,C) multiple comparison test. (D) Number of pINV- colonies emerging from CVD1233 and CVD1233-SP after growth at 37 °C for ∼25 generations in vitro, shown as a percentage of total colonies. Data are shown as mean ± S.E.M. (n = 9 biological replicates); ****, p ≤ 0.0001; t-test. l.o.d., limit of detection.
Pathogens 10 01079 g001
Pathogens 10 01079 g002 550
Figure 2. Human enteroid monolayers include multiple cell types. The enteroid monolayer was fixed with methanol and stained with Hoechst for nuclei (light blue), antibodies against MUC2 for goblet cells (green), epithelial cell adhesion molecule (EpCAM) for lateral membranes (red), and wheat germ agglutinin (WGA) for brush border (blue).
Figure 2. Human enteroid monolayers include multiple cell types. The enteroid monolayer was fixed with methanol and stained with Hoechst for nuclei (light blue), antibodies against MUC2 for goblet cells (green), epithelial cell adhesion molecule (EpCAM) for lateral membranes (red), and wheat germ agglutinin (WGA) for brush border (blue).
Pathogens 10 01079 g002
Pathogens 10 01079 g003 550

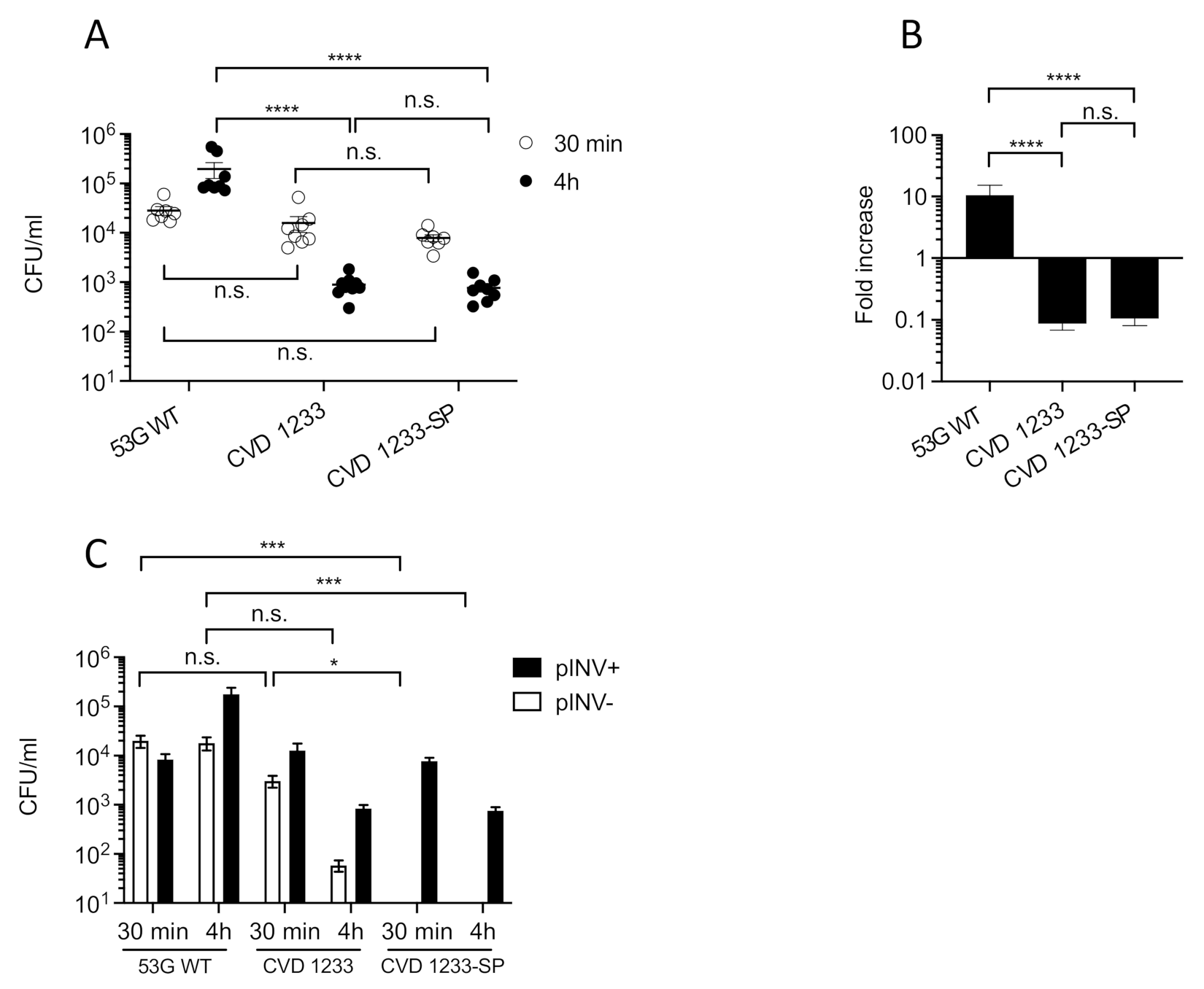

Figure 3. A human enteroid model to test intracellular replication and plasmid stability of CVD 1233-SP. Differentiated human enteroid monolayers were infected basolaterally with wild-type S. sonnei 53G (53G WT), CVD 1233, and its derivative strain with a stabilized pINV (CVD 1233-SP). Bacteria were recovered from nine independent infections performed in groups of three independent experiments, following 30-min and 4-h gentamicin treatment. (A) Number of total colonies recovered, shown as CFU/mL. Solid line, mean ± S.E.M. ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with nonparametric Dunn’s multiple comparison test. (B) Fold increase of bacterial recovery following 4-h vs. 30-min gentamicin treatment. Data are shown as mean ± S.E.M. ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with parametric Tukey’s multiple comparison test. (C) Number of colonies harbouring or lacking pINV (pINV+, pINV-, respectively), shown as CFU/mL. Data are shown as mean ± S.E.M. ***, p ≤ 0.001; *, p ≤ 0.05; n.s., not significant; one-way ANOVA with nonparametric Dunn’s multiple comparison test.
Figure 3. A human enteroid model to test intracellular replication and plasmid stability of CVD 1233-SP. Differentiated human enteroid monolayers were infected basolaterally with wild-type S. sonnei 53G (53G WT), CVD 1233, and its derivative strain with a stabilized pINV (CVD 1233-SP). Bacteria were recovered from nine independent infections performed in groups of three independent experiments, following 30-min and 4-h gentamicin treatment. (A) Number of total colonies recovered, shown as CFU/mL. Solid line, mean ± S.E.M. ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with nonparametric Dunn’s multiple comparison test. (B) Fold increase of bacterial recovery following 4-h vs. 30-min gentamicin treatment. Data are shown as mean ± S.E.M. ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with parametric Tukey’s multiple comparison test. (C) Number of colonies harbouring or lacking pINV (pINV+, pINV-, respectively), shown as CFU/mL. Data are shown as mean ± S.E.M. ***, p ≤ 0.001; *, p ≤ 0.05; n.s., not significant; one-way ANOVA with nonparametric Dunn’s multiple comparison test.
Pathogens 10 01079 g003
Pathogens 10 01079 g004 550

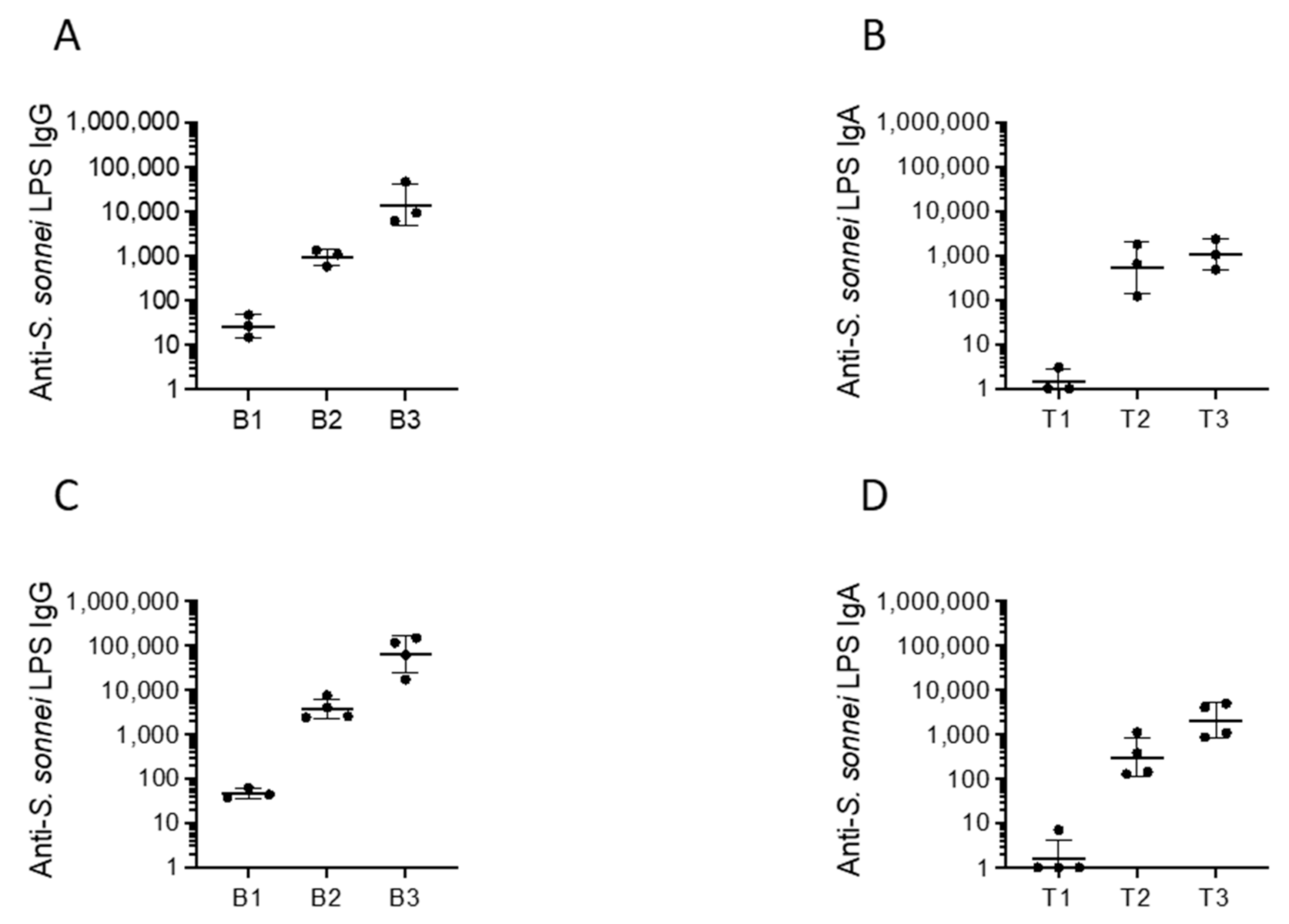

Figure 4. Serum and mucosal antibody responses to CVD 1233 and CVD 1233-SP. Antibody titres are shown as geometric mean titres of a group of three and four animals prior to immunization (B1 and T1) and following dose 1 (B2 and T2) and dose 2 (B3 and T3) of CVD 1233 (A,B) and CVD 1233-SP (C,D).
Figure 4. Serum and mucosal antibody responses to CVD 1233 and CVD 1233-SP. Antibody titres are shown as geometric mean titres of a group of three and four animals prior to immunization (B1 and T1) and following dose 1 (B2 and T2) and dose 2 (B3 and T3) of CVD 1233 (A,B) and CVD 1233-SP (C,D).
Pathogens 10 01079 g004
Pathogens 10 01079 g005 550
Figure 5. CVD 1233-SP::CS2-CS3 does not replicate in human enteroids. Differentiated human enteroid monolayers were infected basolaterally with S. sonnei 53G and CVD 1233::CS2-CS3, both harbouring a stabilized pINV (53G-SP and CVD 1233-SP::CS2-CS3). Bacteria were recovered from nine independent infections performed in groups of three independent experiments, following 30-min and 4-h gentamicin treatment. (A) Number of total colonies recovered, shown as CFU/mL. Solid line, mean ± S.E.M. ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with nonparametric Dunn’s multiple comparison test. (B) Fold increase of bacterial recovery following 4-h vs. 30-min gentamicin treatment. Data are shown as mean ± S.E.M. ***, p ≤ 0.001; nonparametric Mann–Whitney t-test.
Figure 5. CVD 1233-SP::CS2-CS3 does not replicate in human enteroids. Differentiated human enteroid monolayers were infected basolaterally with S. sonnei 53G and CVD 1233::CS2-CS3, both harbouring a stabilized pINV (53G-SP and CVD 1233-SP::CS2-CS3). Bacteria were recovered from nine independent infections performed in groups of three independent experiments, following 30-min and 4-h gentamicin treatment. (A) Number of total colonies recovered, shown as CFU/mL. Solid line, mean ± S.E.M. ****, p ≤ 0.0001; n.s., not significant; one-way ANOVA with nonparametric Dunn’s multiple comparison test. (B) Fold increase of bacterial recovery following 4-h vs. 30-min gentamicin treatment. Data are shown as mean ± S.E.M. ***, p ≤ 0.001; nonparametric Mann–Whitney t-test.
Pathogens 10 01079 g005
Pathogens 10 01079 g006 550
Figure 6. Serum and mucosal antibody responses to CVD 1233-SP::CS2-CS3. Antibody titres are shown as geometric means of titres with SD of a group of five animals prior to immunization (B1 and T1) and following dose 1 (B2 and T2) and dose 2 (B3 and T3) of CVD 1233-SP::CS2-CS3. Antibody titres are shown for S. sonnei LPS (A,B), CS2 (C,D), and CS3 (E,F).
Figure 6. Serum and mucosal antibody responses to CVD 1233-SP::CS2-CS3. Antibody titres are shown as geometric means of titres with SD of a group of five animals prior to immunization (B1 and T1) and following dose 1 (B2 and T2) and dose 2 (B3 and T3) of CVD 1233-SP::CS2-CS3. Antibody titres are shown for S. sonnei LPS (A,B), CS2 (C,D), and CS3 (E,F).
Pathogens 10 01079 g006
Pathogens 10 01079 g007 550

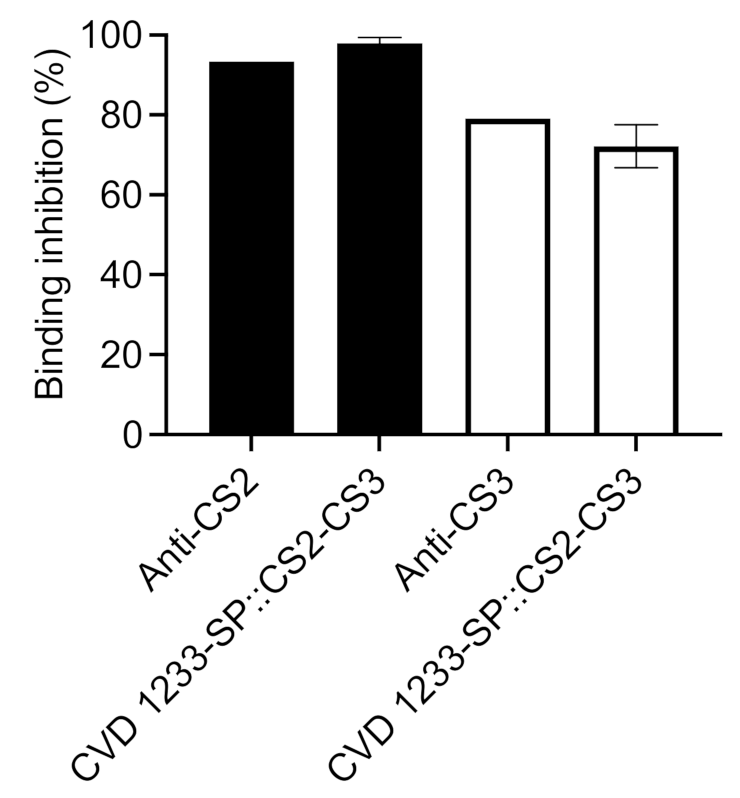

Figure 7. Serum-mediated inhibition of adherence of CS2- and CS3-expressing ETEC. Sera from five guinea pigs previously immunized with CVD 1233-SP::CS2-CS3 were tested to quantify binding inhibition of adherence of ETEC strains expressing CS2 (strain 202326, black bars) or CS3 (strain E9034A, white bars). As a control, binding inhibition was also tested using bacteria pre-incubated with commercial anti-CS2 and anti-CS3 antibodies. Bars indicated as mean ± S.E.M.
Figure 7. Serum-mediated inhibition of adherence of CS2- and CS3-expressing ETEC. Sera from five guinea pigs previously immunized with CVD 1233-SP::CS2-CS3 were tested to quantify binding inhibition of adherence of ETEC strains expressing CS2 (strain 202326, black bars) or CS3 (strain E9034A, white bars). As a control, binding inhibition was also tested using bacteria pre-incubated with commercial anti-CS2 and anti-CS3 antibodies. Bars indicated as mean ± S.E.M.
Pathogens 10 01079 g007
Table
Table 1. Protection of animals immunized with CVD 1233, CVD 1233-SP, and CVD 1233::CS2-CS3-SP following challenge with S. sonnei strain 53G WT.
Table 1. Protection of animals immunized with CVD 1233, CVD 1233-SP, and CVD 1233::CS2-CS3-SP following challenge with S. sonnei strain 53G WT.
Treatment GroupAttack RateEfficacy
CVD 1233 §1/786%
CVD 1233-SP0/4100%
Unvaccinated controls §6/6-
CVD 1233-SP::CS2-CS31/580%
Unvaccinated controls3/3-
Efficacy = ARU − ARV/ARU × 100, § Data combined from 2 separate studies.
Table
Table 2. List of strains used in this study.
Table 2. List of strains used in this study.
StrainDescriptionReference
53G WTWild-type S. sonnei 53G [45]
53G-SP53G WT with stabilized pINVThis work
CVD 1233ΔguaBA, Δsen, S. sonnei vaccine derived from 53G WT[17]
CVD 1233-SPCVD 1233 with stabilized pINVThis work
CVD 1233::CS2-CS3CVD 1233-expressing CS2 and CS3 antigens from ETECThis work
CVD 1233-SP::CS2-CS3CVD 1233::CS2-CS3 with stabilized pINVThis work
Table
Table 3. List of primers used in this study to generate strains.
Table 3. List of primers used in this study to generate strains.
PrimerSequence (5′-3′)Generated Strains
Wu215_FACCGAACAACGAACTGTTGGAACVD 1233::CS2-CS3 and
CVD 1233-SP::CS2-CS3
Wu215_RTGCGTAGCGTTACAGTACCTGAT
Giulia007acggccagtgaattcgagctGTGAAGCGGGTCCGGGTG53G-SP,
CVD 1233-SP
and
CVD 1233-SP::CS2-CS3
GP173ATGGAAACCACCGTATTTCTCAGCAACCGCAGC
GP174GCTGCGGTTGCTGAGAAATACGGTGGTTTCCAT
JM296AACTTCAGCATCAGAATGACTCCCTTTC
JM298GTCATTCTGATGCTGAAGTTTATGCTCGATACCAAC
GM174TGTGTAGGCTGGAGCTGCTT
GM175ATGGGAATTAGCCATGGTCC
Giulia010ccatggctaattcccatTCAGCTCCAGTCTTCAGTTC
Giulia011agcctacacaCCTGTTCATCAGAAATCATCTC
GP141CATGATTACGCCAAGCTgtaatcgtcgtgtgtgg
GP175gcaatggcctgtgtcacc
GP176atgtggctgtccattgcc
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Pilla, G.; Wu, T.; Grassel, C.; Moon, J.; Foulke-Abel, J.; Tang, C.M.; Barry, E.M. Evaluation of a Live Attenuated S. sonnei Vaccine Strain in the Human Enteroid Model. Pathogens 2021, 10, 1079. https://doi.org/10.3390/pathogens10091079

AMA Style

Pilla G, Wu T, Grassel C, Moon J, Foulke-Abel J, Tang CM, Barry EM. Evaluation of a Live Attenuated S. sonnei Vaccine Strain in the Human Enteroid Model. Pathogens. 2021; 10(9):1079. https://doi.org/10.3390/pathogens10091079

Chicago/Turabian Style

Pilla, Giulia, Tao Wu, Christen Grassel, Jonathan Moon, Jennifer Foulke-Abel, Christoph M. Tang, and Eileen M. Barry. 2021. "Evaluation of a Live Attenuated S. sonnei Vaccine Strain in the Human Enteroid Model" Pathogens 10, no. 9: 1079. https://doi.org/10.3390/pathogens10091079

APA Style

Pilla, G., Wu, T., Grassel, C., Moon, J., Foulke-Abel, J., Tang, C. M., & Barry, E. M. (2021). Evaluation of a Live Attenuated S. sonnei Vaccine Strain in the Human Enteroid Model. Pathogens, 10(9), 1079. https://doi.org/10.3390/pathogens10091079

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
