Optimization of Rockburst Risk Control Measures for Deeply Buried TBM Tunnels: A Case Study
Abstract
:1. Introduction
2. Overview of the N-J Hydropower Project and Microseismic Monitoring

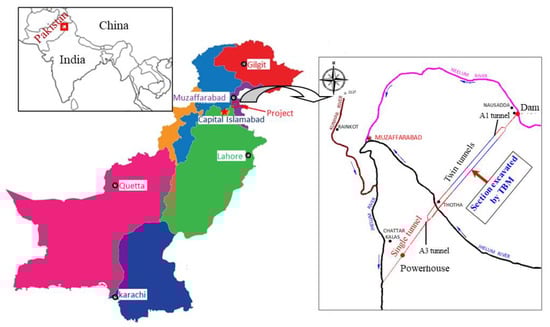

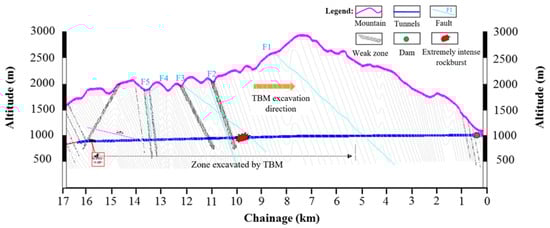

2.1. The Headrace Tunnel of the N-J Hydropower Project

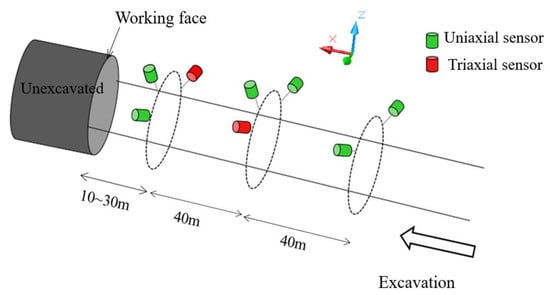

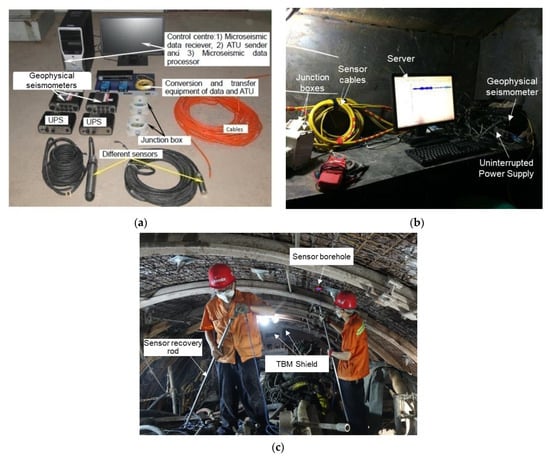

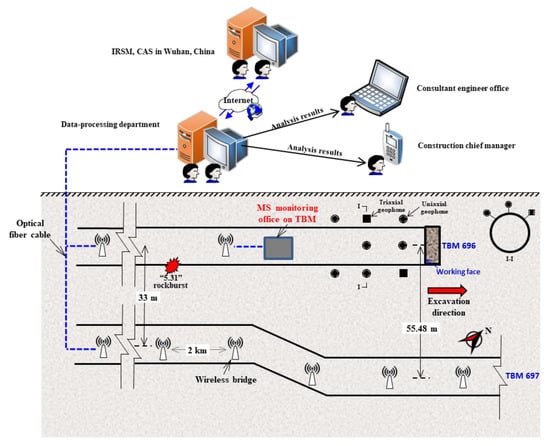

2.2. Microseismic Monitoring
3. Rockburst Risk Mitigation Measures in the Twin Headrace Tunnels

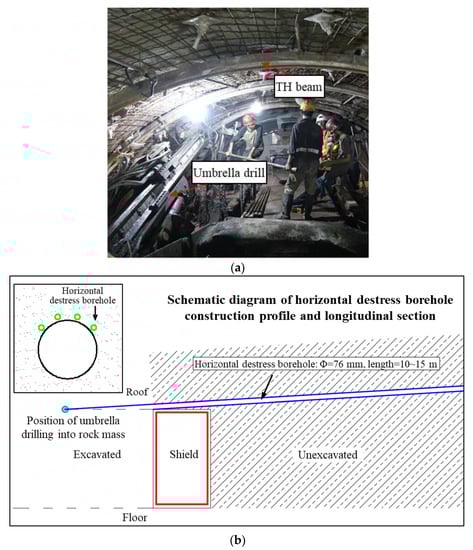

3.1. Rockburst Risk Mitigation Measures and Their Mechanism
3.2. Analysis of Time and Expense Cost for Different Rockburst Mitigation Measures
4. Analysis of the Control and Mitigation Ability of Different Measures on Rockbursts

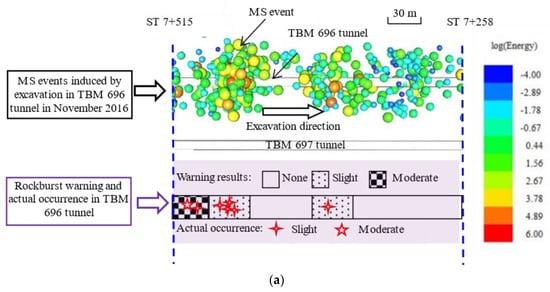

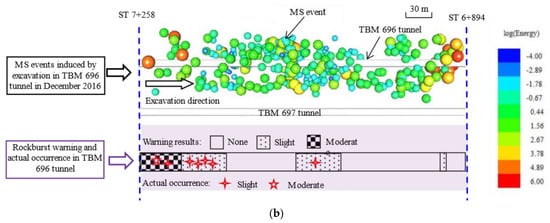

4.1. Rockburst Warning Methods and Warning Effectiveness

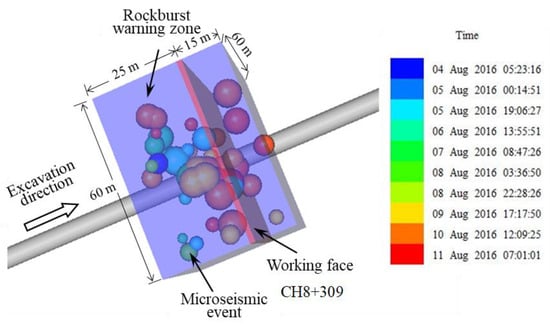

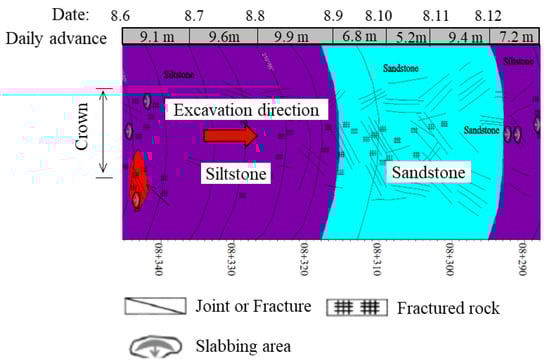

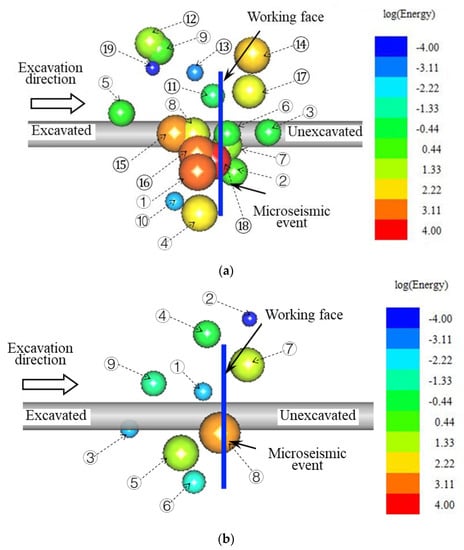

4.2. Rockburst Warning and Mitigation: A Case Report

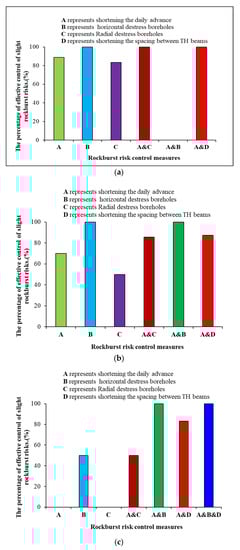

4.3. The Control and Mitigation Effect of Different Mitigation Measures on Rockburst Risks of Different Intensities
5. The Optimized Mitigation Measures for Different Intensity Rockburst Risks in the Twin Headrace Tunnels
6. Conclusions
- (1)

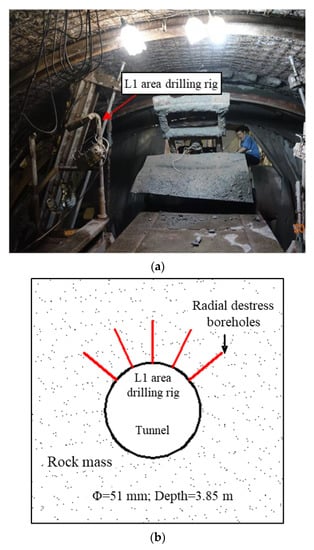

- Four measures are mainly taken to control rockburst risk in twin TBM tunnels, including implementing radial destress boreholes, implementing horizontal destress boreholes, shortening the daily advance, and shortening the spacing between TH beams, as well as their combinations. The control mechanism and the time and expense cost of the rockburst control measures are different from each other. The degree of impact on production is sorted from high to low as shortening the daily advance, shortening the spacing between TH beams, implementing horizontal destress boreholes, and implementing radial destress boreholes.
- (2)
- MS monitoring has been successfully applied in rockburst early warning and management in twin TBM tunnels. After adopting rockburst control measures, microseismic activity is reduced, energy release from the rock mass is reduced, and rockburst risk is alleviated. Different rockburst control measures have varying degrees of risk mitigation, i.e., varying rockburst control capabilities. Shortening the daily advance, horizontal destress boreholes, and spacing between TH beams are powerful control measures for preventing and controlling rockbursts. The combined control measures have greater control capabilities than a single measure.
- (3)
- Optimized control or mitigation measures for different intensity rockburst risks in the twin headrace tunnels of the N-J Hydropower Station are proposed. For slight rockburst risk, normal excavation procedures can be followed, as the on-site hazards are relatively small. For moderate rockburst risk, horizontal destress boreholes are the preferred construction method. For intense rockburst risk, the preferred control measure is to shorten daily advance and combine it with horizontal destress boreholes.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Kaiser, P.K.; Cai, M. Design of rock support system under rockburst condition. J. Rock Mech. Geotech. Eng. 2012, 4, 215–227. [Google Scholar] [CrossRef]
- Lu, C.; Cai, C. Challenges and Countermeasures for Construction Safety during the Sichuan–Tibet Railway Project. Engineering 2019, 5, 833–838. [Google Scholar] [CrossRef]
- Feng, X.T. Rockburst: Mechanism, Monitoring, Warning and Mitigation, 1st ed.; Elsevier-Health Sciences Division: Oxford, UK, 2017. [Google Scholar]
- Feng, X.T.; Chen, B.R.; Zhang, C.Q.; Li, S.J.; Wu, S.Y. Mechanism, Warning and Dynamic Control of Rockburst Development Processes, 1st ed.; Science Press: Beijing, China, 2013. (In Chinese) [Google Scholar]
- Li, P.-X.; Chen, B.-R.; Xiao, Y.-X.; Feng, G.-L.; Zhou, Y.-Y.; Zhao, J.-S. Rockburst and microseismic activity in a lagging tunnel as the spacing between twin TBM excavated tunnels changes: A case from the Neelum-Jhelum hydropower project. Tunn. Undergr. Space Technol. 2023, 132, 104884. [Google Scholar] [CrossRef]
- Poplawski, R.F. Seismic parameters and rockburst hazard at Mt Charlotte mine. Int. J. Rock Mech. Min. Sci. 1997, 4, 1213–1228. [Google Scholar] [CrossRef]
- Zhang, C.; Feng, X.; Zhou, H.; Qiu, S.; Wu, W. A Top Pilot Tunnel Preconditioning Method for the Prevention of Extremely Intense Rockbursts in Deep Tunnels Excavated by TBMs. Rock Mech. Rock Eng. 2011, 45, 289–309. [Google Scholar] [CrossRef]
- Cai, M. Principles of rock support in burst-prone ground. Tunn. Undergr. Space Technol. 2013, 36, 46–56. [Google Scholar] [CrossRef]
- Ma, T.; Tang, C.; Tang, L.; Zhang, W.; Wang, L. Rockburst characteristics and microseismic monitoring of deep-buried tunnels for Jinping II Hydropower Station. Tunn. Undergr. Space Technol. 2015, 49, 345–368. [Google Scholar] [CrossRef]
- He, M.; e Sousa, L.R.; Miranda, T.; Zhu, G. Rockburst laboratory tests database—Application of data mining techniques. Eng. Geol. 2015, 185, 116–130. [Google Scholar] [CrossRef]
- Mazaira, A.; Konicek, P. Intense rockburst impacts in deep underground construction and their prevention. Can. Geotech. J. 2015, 52, 1426–1439. [Google Scholar] [CrossRef]
- Feng, G.-L.; Feng, X.-T.; Chen, B.-R.; Xiao, Y.-X.; Yu, Y. A Microseismic Method for Dynamic Warning of Rockburst Development Processes in Tunnels. Rock Mech. Rock Eng. 2014, 48, 2061–2076. [Google Scholar] [CrossRef]
- Li, P.-X.; Feng, X.-T.; Feng, G.-L.; Xiao, Y.-X.; Chen, B.-R. Rockburst and microseismic characteristics around lithological interfaces under different excavation directions in deep tunnels. Eng. Geol. 2019, 260, 105209. [Google Scholar] [CrossRef]
- Zhang, W.; Feng, X.-T.; Yao, Z.-B.; Hu, L.; Xiao, Y.-X.; Feng, G.-L.; Niu, W.-J.; Zhang, Y. Development and Occurrence Mechanisms of Fault-Slip Rockburst in a Deep Tunnel Excavated by Drilling and Blasting: A Case Study. Rock Mech. Rock Eng. 2022, 55, 5599–5618. [Google Scholar] [CrossRef]
- Niu, W.; Feng, X.-T.; Yao, Z.; Bi, X.; Yang, C.; Hu, L.; Zhang, W. Types and occurrence time of rockbursts in tunnel affected by geological conditions and drilling & blasting procedures. Eng. Geol. 2022, 303, 106671. [Google Scholar]
- Russenes, B.F. Analysis of Rock Spalling for Tunnels in Steep Valley Sides. Master’s Thesis, Norwegian Institute of Technology, Trondheim, Norway, 1974. [Google Scholar]
- Barton, N.; Lien, R.; Lunde, J. Engineering classification of rock masses for the design of tunnel support. Rock Mech. Rock Eng. 1974, 6, 189–236. [Google Scholar] [CrossRef]
- Gong, F.Q.; Wang, Y.L.; Luo, S. Rockburst proneness criteria for rock materials: Review and new insights. J. Cent. South Univ. 2020, 27, 2793–2821. [Google Scholar] [CrossRef]
- Hoek, E.; Brown, T. Underground Excavation in Rock; The Institute of Mining and Metallurgy: London, UK, 1980. [Google Scholar]
- Kidybiski, A. Bursting liability indices of coal. Int. J. Rock Mech. Min. Sci. 1981, 18, 295–304. [Google Scholar] [CrossRef]
- Cook, N.G.W.; Hoek, E.; Pretorius, J.P.G.; Ortlepp, W.D.; Salamon, M.D.G. Rock mechanics applied to the study of rockbursts. J. S. Afr. Inst. Min. Metall. 1966, 66, 435–528. [Google Scholar]
- Gong, F.; Yan, J.; Li, X.; Luo, S. A peak-strength strain energy storage index for rock burst proneness of rock materials. Int. J. Rock Mech. Min. Sci. 2019, 117, 76–89. [Google Scholar] [CrossRef]
- Zhang, J.J.; Fu, B.J. Rockburst and its criteria and control. Chin. J. Rock Mech. Eng. 2008, 27, 2034–2042. (In Chinese) [Google Scholar]
- Zhou, J.; Li, X.; Mitri, H.S. Evaluation method of rockburst: State-of-the-art literature review. Tunn. Undergr. Space Technol. 2018, 81, 632–659. [Google Scholar] [CrossRef]
- Alcott, J.M.; Kaiser, P.K.; Simser, B.P. Use of Microseismic Source Parameters for Rockburst Hazard Assessment. Pure Appl. Geophys. 1998, 153, 41–65. [Google Scholar] [CrossRef]
- Hudyma, M.; Potvin, Y.H. An Engineering Approach to Seismic Risk Management in Hardrock Mines. Rock Mech. Rock Eng. 2009, 43, 891–906. [Google Scholar] [CrossRef]
- Zhao, J.S.; Jiang, Q.; Lu, J.F.; Chen, B.R.; Pei, S.F.; Wang, Z.L. Rock fracturing observation based on microseismic monitoring and borehole imaging: In situ investigation in a large underground cavern under high geo-stress. Tunn. Undergr. Space Technol. 2022, 126, 104549. [Google Scholar] [CrossRef]
- Salvoni, M.; Dight, P.M. Rock damage assessment in a large unstable slope from microseismic monitoring—MMG Century mine (Queensland, Australia) case study. Eng. Geol. 2016, 210, 45–56. [Google Scholar] [CrossRef]
- Dai, F.; Li, B.; Xu, N.; Fan, Y.; Zhang, C. Deformation forecasting and stability analysis of large-scale underground powerhouse caverns from microseismic monitoring. Int. J. Rock Mech. Min. Sci. 2016, 86, 269–281. [Google Scholar] [CrossRef]
- Cao, A.-Y.; Dou, L.-M.; Wang, C.-B.; Yao, X.-X.; Dong, J.-Y.; Gu, Y. Microseismic Precursory Characteristics of Rock Burst Hazard in Mining Areas Near a Large Residual Coal Pillar: A Case Study from Xuzhuang Coal Mine, Xuzhou, China. Rock Mech. Rock Eng. 2016, 49, 4407–4422. [Google Scholar] [CrossRef]
- Tang, Z.; Liu, X.; Xu, Q.; Li, C.; Qin, P. Stability evaluation of deep-buried TBM construction tunnel based on microseismic monitoring technology. Tunn. Undergr. Space Technol. 2018, 81, 512–524. [Google Scholar] [CrossRef]
- Kumar, V.; Gopalakrishnan, N.; Singh, N.P.; Cherukuri, S. Microseismic monitoring application for primary stability evaluation of the powerhouse of the Tapovan Vishnugad Hydropower Project. J. Earth Syst. Sci. 2019, 128, 169. [Google Scholar] [CrossRef]
- Liu, F.; Tang, C.A.; Ma, T.H.; Tang, L.X. Characterizing Rockbursts Along a Structural Plane in a Tunnel of the Hanjiang-to-Weihe River Diversion Project by Microseismic Monitoring. Rock Mech. Rock Eng. 2019, 52, 1835–1856. [Google Scholar] [CrossRef]
- Feng, G.-L.; Feng, X.-T.; Xiao, Y.-X.; Yao, Z.-B.; Hu, L.; Niu, W.-J.; Li, T. Characteristic microseismicity during the development process of intermittent rockburst in a deep railway tunnel. Int. J. Rock Mech. Min. Sci. 2019, 124, 104135. [Google Scholar] [CrossRef]
- Zhao, J.S.; Jiang, Q.; Pei, S.F.; Chen, B.R.; Xu, D.P.; Song, L.B. Microseismicity and focal mechanism of blasting-induced block falling of intersecting chamber of large underground cavern under high geo-stress. J. Cent. South Univ. 2023, 30, 542–554. [Google Scholar] [CrossRef]
- Konicek, P.; Soucek, K.; Stas, L.; Singh, R. Long-hole destress blasting for rockburst control during deep underground coal mining. Int. J. Rock Mech. Min. Sci. 2013, 61, 141–153. [Google Scholar] [CrossRef]
- Zhu, Q.; Feng, Y.; Cai, M.; Liu, J.; Wang, H. Interpretation of the extent of hydraulic fracturing for rockburst prevention using microseismic monitoring data. J. Nat. Gas Sci. Eng. 2017, 38, 107–119. [Google Scholar] [CrossRef]
- Li, C.C. A new energy-absorbing bolt for rock support in high stress rock masses. Int. J. Rock Mech. Min. Sci. 2010, 47, 396–404. [Google Scholar]
- Zhang, M.Y.; Yu, D.M.; Wang, T.Y.; Xu, C. Coupling analysis of tunnel construction safety risks based on N-K model and SD causalitydiagram. Buildings 2023, 13, 1081. [Google Scholar] [CrossRef]
- Fan, Y.; Lu, W.; Zhou, Y.; Yan, P.; Leng, Z.; Chen, M. Influence of tunneling methods on the strainburst characteristics during the excavation of deep rock masses. Eng. Geol. 2016, 201, 85–95. [Google Scholar] [CrossRef]
- Yan, P.; Zhao, Z.; Lu, W.; Fan, Y.; Chen, X.; Shan, Z. Mitigation of rock burst events by blasting techniques during deep-tunnel excavation. Eng. Geol. 2015, 188, 126–136. [Google Scholar] [CrossRef]
- Jiang, B.; Ding, M.; Li, W.; Gu, S.; Ji, H. Investigation on Characteristics and Prevention of Rockburst in a Deep Hard and Soft Compound Stratum Tunnel Excavated Using TBM. Sustainability 2022, 14, 3190. [Google Scholar] [CrossRef]
- Xiao, Y.X.; Feng, X.T.; Hudson, J.A.; Chen, B.R.; Feng, G.L.; Liu, J.P. ISRM suggested method for in situ microseismic moni-toring of the fracturing process in rock masses. Rock Mech. Rock Eng. 2016, 49, 343–369. [Google Scholar] [CrossRef]
- China Renewable Energy Engineering Institute. Technical Code for Rockburst Risk Assessment of Hydropower Projects NB/T 10143-2019; China Water & Power Press: Beijing, China, 2019. (In Chinese) [Google Scholar]
Rockburst Control Measures | Input of Manpower | Time-Consuming | Asset Consumption | Timing of Implementation | Degree of Impact on Advance Rate |
---|---|---|---|---|---|
Radial destress boreholes | 1~2 people | 2~3 h | Machine wear | During excavation or maintenance | Minor |
Horizontal destress boreholes | 2~3 people | 5~8 h | Machine wear | During excavation or maintenance | Moderate |
Shortening the daily advance | - | - | - | During excavation | Major |
Shortening the spacing between TH beams | 4~5 people | 1~3 h per piece | CNY 14,000 per piece | During excavation | Moderate to Major |
Rockburst Risk Level | Shortening Daily Advance | Horizontal Destress Boreholes | Radial Destress Boreholes | Shortening Daily Advance & Radial Destress Boreholes | Shortening Daily Advance & Horizontal Destress Boreholes | Shortening Daily Advance & Shortening Spacing between TH Beams | Shortening Daily Advance & Shortening Spacing between TH Beams & Horizontal Destress Boreholes | Total Number of Cases |
---|---|---|---|---|---|---|---|---|
Intense | - | 4 | - | 2 | 4 | 6 | 5 | 21 |
Moderate | 10 | 4 | 8 | 7 | 6 | 8 | - | 43 |
Slight | 9 | 2 | 6 | 8 | - | 5 | - | 30 |
Rockburst Risk Level | Control Measures |
---|---|
Intense | ① Shortening daily advance & horizontal destress boreholes; ② Shortening daily advance & horizontal destress boreholes & shortening spacing between TH beams |
Moderate | ① Horizontal destress boreholes; ② Shortening daily advance & radial destress boreholes |
Slight | ① Normal procedure; ② Radial destress boreholes; ③ Shortening daily advance |
